Gas Control Manager Program User Manual (ROC800-Series)
Manuals & Guides
68 pgs3.55 Mb0
Table of contents
Loading...

Remote Automation Solutions Gas Control Manager Program User Manual (ROC800-Series) Manuals & Guides

Download
Part D301748X012
August 2014
Gas Control Manager Program User Manual (for the ROC800-Series)
Remote Automation Solutions
Page
Revision
Initial release
Aug-14
Revision Tracking Sheet
August 2014
This manual may be revised periodically to incorporate new or updated information. The revision date of each page appears at the bottom of the page opposite the page number. A change in revision date to any page also changes the date of the manual that appears on the front cover. Listed below is the revision date of each page (if applicable):
ii Issued Aug-14
Contents
Chapter 1 – Introduction 1
1.1. Scope and Organization ................................................................................................................. 1
1.2. Product Overview ........................................................................................................................... 2
1.2.1. EFM Applications ............................................................................................................. 2
1.2.2. Cause and Effect .............................................................................................................. 2
1.3. Program Requirements .................................................................................................................. 2
Chapter 2 – Installation 5
2.1. Installing the License Key ............................................................................................................... 5
2.1.1 Verifying the License Key Installation .............................................................................. 6
2.2. Downloading the Program .............................................................................................................. 6
Chapter 3 – Configuration 11
3.1. EFM Applications .......................................................................................................................... 11
3.1.1. Run Switching – Run Switch Tab: Station Settings ....................................................... 12
3.1.2. Run Switching – Run Switch Tab: Tube Settings .......................................................... 17
3.1.3. Run Switching – Run Switch Operate Tab ..................................................................... 20
3.1.4. Run Switching – Proportional Output Tab ...................................................................... 21
3.1.5. Run Switching – Total Accum Tab ................................................................................. 22
3.1.6. About Open and Close DO ............................................................................................ 23
3.2. Cause and Effect .......................................................................................................................... 23
3.2.1. Effect Configuration Settings .......................................................................................... 25
3.2.2. Cause Configuration Settings ........................................................................................ 27
3.2.3. Cause and Effect Operate Display ................................................................................. 32
3.2.4. Configuration Examples ................................................................................................. 33
Chapter 4 – Reference 43
4.1. Point Type 73: Run Switching ..................................................................................................... 44
4.2. Point Type 71: Cause Configuration ............................................................................................ 54
4.3. Point Type 72: Effect Configuration .............................................................................................. 59

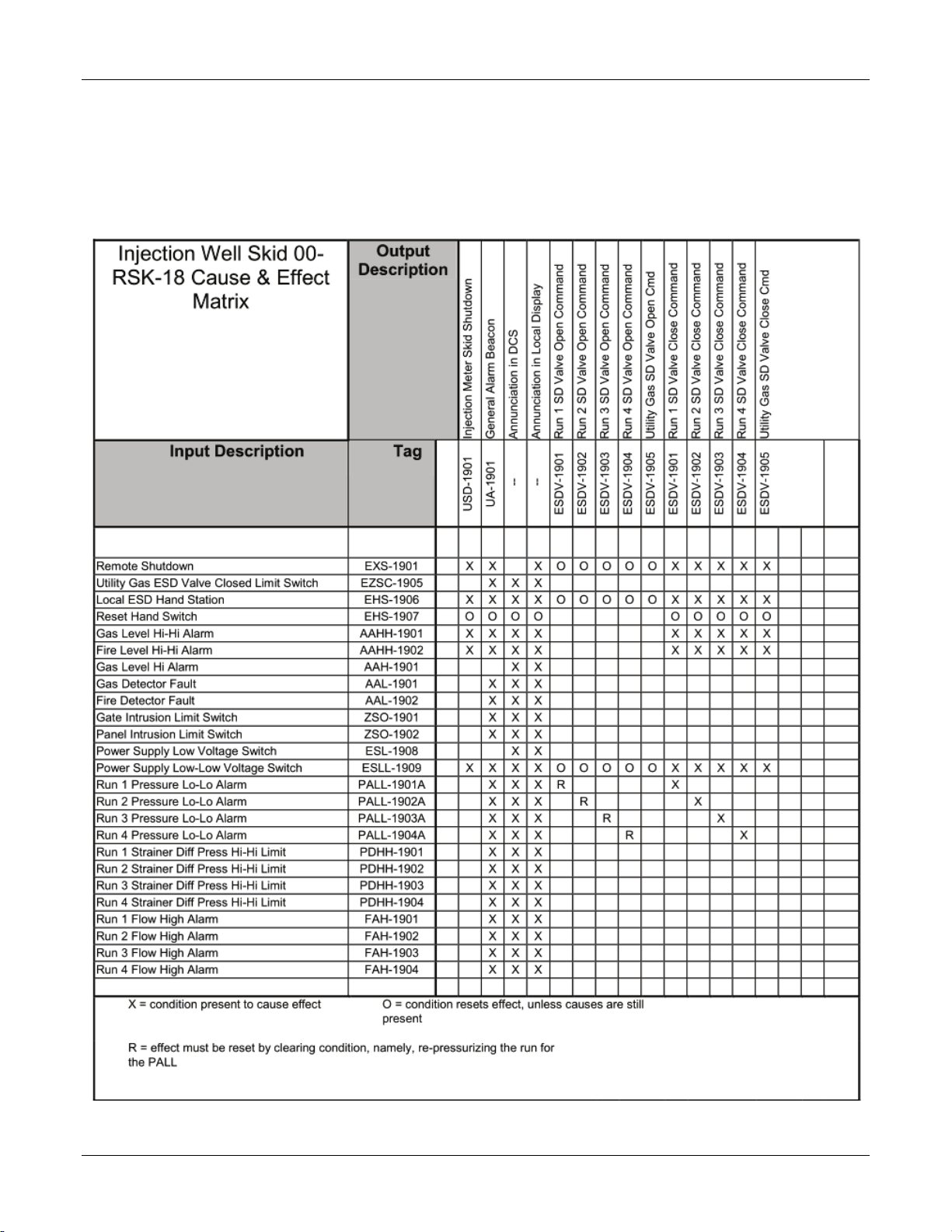

Appendix A – Sample Cause and Effect Diagram 63
Issued Aug-14 iii
[This page is intentionally left blank.]
iv Issued Aug-14

Chapter 1 – Introduction

Caution
When implementing control using this product, observe best industry practices as suggested by applicable and appropriate environmental, health, and safety organizations. While this product can be used as A safety component in a system, it is NOT intended or designed to be the ONLY safety mechanism in that system.
This chapter describes the structure of this manual and presents an overview and installation instructions of the Gas Control Manager Program for the ROC800-Series Remote Operations Controller (ROC800).

1.1. Scope and Organization

This document is the user manual for the Gas Control Manager Program for use in the ROC800.
This manual describes how to download and configure this program (referred to as the “Gas Control Manager Program” or “the program” throughout the rest of this manual). You access and configure this program using ROCLINK™ 800 Configuration Software (version 2.20 or greater) loaded on a personal computer (PC) running Windows Service Pack 2), Windows XP (with Service Pack 3), Windows Vista (32­bit), or Windows 7 (32-bit).
®
2000 (with
The sections in this manual provide information in a sequence appropriate for first-time users. Once you become familiar with the procedures and the software running in a ROC800, the manual becomes a reference tool.
This manual has the following major sections:
Chapter 1 – Introduction Chapter 2 – Installation Chapter 3 – Configuration Chapter 4 – Reference
This manual assumes that you are familiar with the ROC800 and its configuration. For more information, refer to the following manuals:
ROC800-Series Remote Operations Controller Instruction Manual
(Form A6175).
ROCLINK 800 Configuration Software User Manual (for ROC800-
Series) (Form A6218).
Issued Aug-14 1

1.2. Product Overview

The Gas Control Manager Program contains two parts: EFM Applications and Cause and Effect. This manual describes both parts of the program, in two sections. The first section covers the EFM Applications, and the second section covers Cause and Effect.

1.2.1. EFM Applications

The EFM Applications User Program is designed to allow you to configure the Emerson Process Management ROC and ROC800 products to do common gas measurement functions such as station emergency shutdown, outputting a 4-20mA signal proportional to an input or calculation, resettable total meter accumulators for volume/energy and run switching. Normally, a user would have to write FSTs to accomplish these tasks.

1.2.2. Cause and Effect

The Gas Control Manager User Program supports 16 causes and 8 effects. The program is designed to allow you to configure the Emerson Process Management ROC and ROC800 products to do logical operations without writing FSTs. A Cause would typically monitor a selected point that would be logically evaluated against a user defined set-point. Any tripped Cause linked to an Effect will force the action defined in that Effect. The layout of the configuration screens is such that you can configure logic by inputting entries from a Cause and Effect matrix. In many cases you can input the effects and causes line by line through the entire matrix. Each Cause configuration screen and Effect configuration screen will apply to a tag line in the user’s Cause & Effect matrix.

1.3. Program Requirements

You download the Gas Control Manager Program to the Flash and RAM memory on the ROC800 with firmware version 3.50 (or greater). Download and configure the program using ROCLINK 800 Configuration software version 2.20 (or greater).
The downloadable program is:
File Name
GasControlMgrv
305_01.tar
2 Issued Aug-14
Target Unit/
Version
ROC800 3.50 71, 72, 73 128845 114688 2.20 20, 21, 22, 23
User Defined Points (UDP)
Note: You must connect a PC to the ROC800’s LOI port before starting
Flash Used
(in bytes)
DRAM Used
(in bytes)
ROCLINK 800
Version
Display
Number
the download.
For information on viewing the memory allocation of user programs, refer to the ROCLINK 800 Configuration Software User Manual (for ROC800­Series) (Form A6218).
Issued Aug-14 3
[This page is intentionally left blank.]
4 Issued Aug-14
Failure to exercise proper electrostatic discharge precautions, such as

Chapter 2 – Installation

This section provides instructions for installing the Gas Control Manager program into the ROC800. Read Section 1.3 of this manual for program requirements.
Notes:
The computer running ROCLINK 800 must be connected to the Local
Operator Interface (LOI) port before you begin the download.
The program and license key can be installed in any order. The manual
shows the installation of the license key first.
The installation process and functionality is the same for all versions
of the Gas Control Manager program.

2.1. Installing the License Key

If you order the Gas Control Manager program for a new ROC800, your ROC800 is delivered with the license key installed. Go to Section 2.2. If you order the program for an existing ROC800, you must install the license key yourself.
Caution
wearing a grounded wrist strap may reset the processor or damage electronic components, resulting in interrupted operations.
When working on units located in a hazardous area (where explosive gases may be present), make sure the area is in a non-hazardous state before performing these procedures. Performing these procedures in a hazardous area could result in personal injury or property damage.
To install a license key:
1. Remove power from the ROC800.
2. Remove the wire channel cover.
3. Unscrew the screws from the Central Processing Unit (CPU) faceplate.
4. Remove the CPU faceplate.
5. Place the license key in the appropriate terminal slot (P4 or P6) in the
CPU.
Figure 2-1. License Key Installation
Issued Aug-14 5
Note: When using a single license key, install it in slot P4.
6. Press the license key into the terminal until it is firmly seated (refer to
Figure 2–1).
7. Replace the CPU faceplate.
8. Replace the screws on the CPU faceplate.
9. Replace the wire channel cover.
10. Restore power to the ROC800.

2.1.1 Verifying the License Key Installation

After you install the license key, you can verify whether the ROC800 recognizes the key. From the ROCLINK 800 screen, select Utilities > License Key Administrator. The License Key Administrator screen displays:
Figure 2-2. License Key Administrator
Gas Control Mgr appears in the Application Name column. [For further information on the License Key Administrator screen, refer to Section 2.4 of the ROCLINK 800 Configuration Software User Manual (for ROC800- Series) (Form A6218).]
After you verify that the license key is correctly installed and recognized, proceed to Section 2.2 to download the user programs.

2.2. Downloading the Program

This section provides instructions for installing the user program into ROC800 memory.
Note: Connect a PC to the ROC800’s LOI port before starting the
download.
6 Issued Aug-14
To download the user program:
1. Start and logon to ROCLINK 800.
2. Select ROC > Direct Connect to connect to the ROC800 unit.
3. Select Utilities > User Program Administrator from the ROCLINK
menu bar. The User Program Administrator screen displays (see
Figure 3):
Figure 3. User Program Administrator
4. Click Browse in the Download User Program File frame. The Select
User Program File screen displays (see Figure 4).
5. Select the path and user program file to download from the CD-ROM.
(Program files are typically located in the Program Files folder on the CD-ROM). As Figure 4 shows, the screen lists all valid user program files with the .TAR extension:
Figure 4. Select User Program File
6. Click Open to select the program file. The User Program
Administrator screen displays. As shown in Figure 5, note that the
Issued Aug-14 7
Download User Program File frame identifies the selected program and that the Download & Start button is active:
Figure 5. User Program Administrator
7. Click Download & Start to begin loading the selected program. The
following message displays:
Figure 6. Confirm Download
8. Click Yes to begin the download. During the download, the program
performs a warm start, creates an event in the event log, and—when the download completes—displays the following message:
8 Issued Aug-14
Figure 7. ROCLINK 800 Download Confirmation
9. Click OK. The User Program Administrator screen displays (see
Figure 8). Note that:
The User Programs Installed in Device frame identifies the loaded
program.
The Status field indicates that the program is running.
Figure 8. User Program Administrator
10. Click Close and proceed to Chapter 3 to configure the program
Note: Installing a user program without a license key allows you only
to view the program screens (that is, the program outputs no data). Installing the license key enables the program to read from the meter and output data.
Issued Aug-14 9
[This page is intentionally left blank.]
10 Issued Aug-14

Chapter 3 – Configuration

After you download and start the Gas Control Manager Program, configure the program using ROCLINK 800 software. To do this, use the program-specific Gas Control Manager Program screen.

3.1. EFM Applications

Once you have successfully loaded the Gas Control Manager program into the ROC800, you can access the Gas Control Manager screens. To start the EFM Applications:
1. Double-click an ROC800 device or click the Direct Connect icon in
2. The device window opens. Select User Program > Gas Control Mgr
3. Double-click Display #23, Run Switching.
4. You will see a display for each station. Double-click a station to see
Figure 9. ROCLINK 800
the toolbar.
in the ROCLINK configuration tree.
the Run Switching window for that station.
Issued Aug-14 11

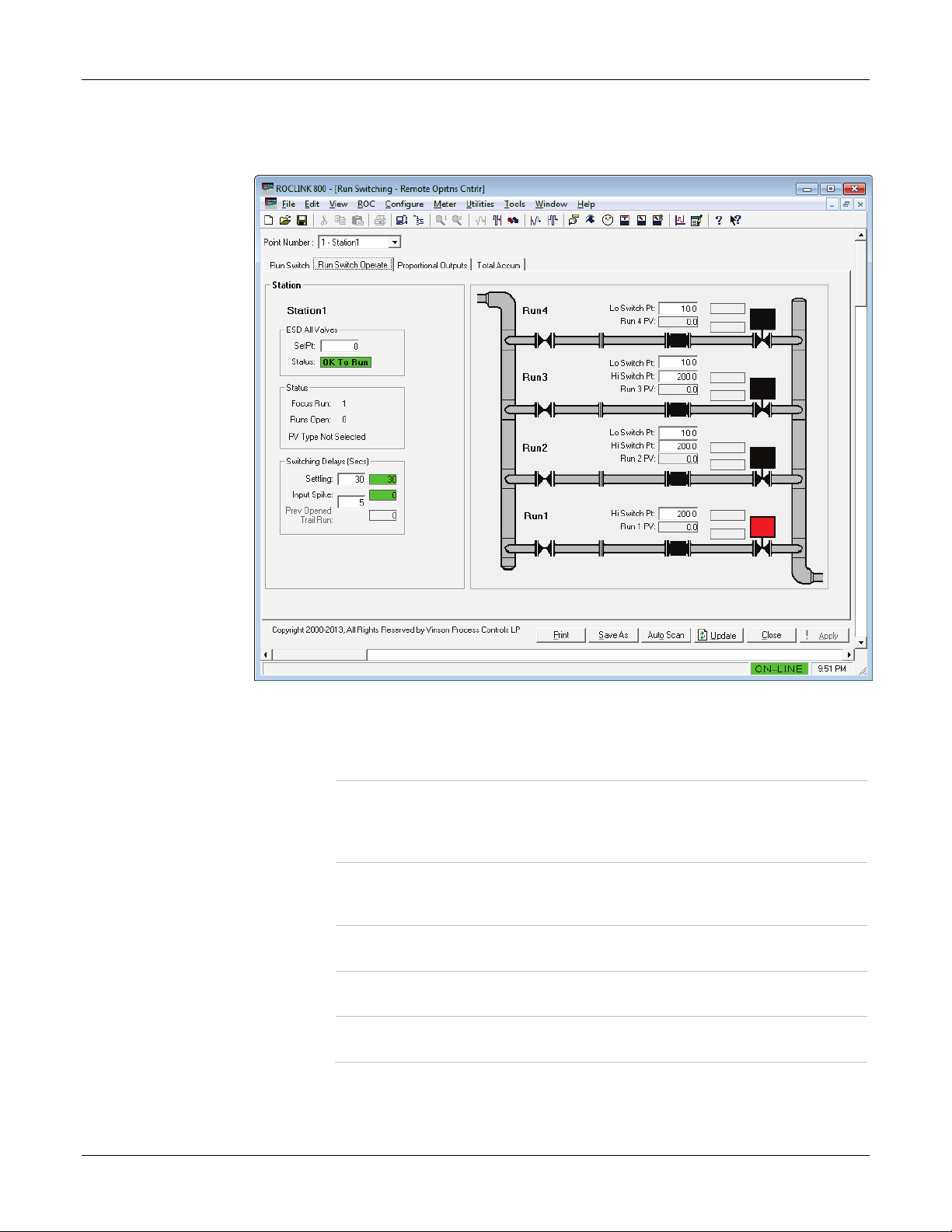

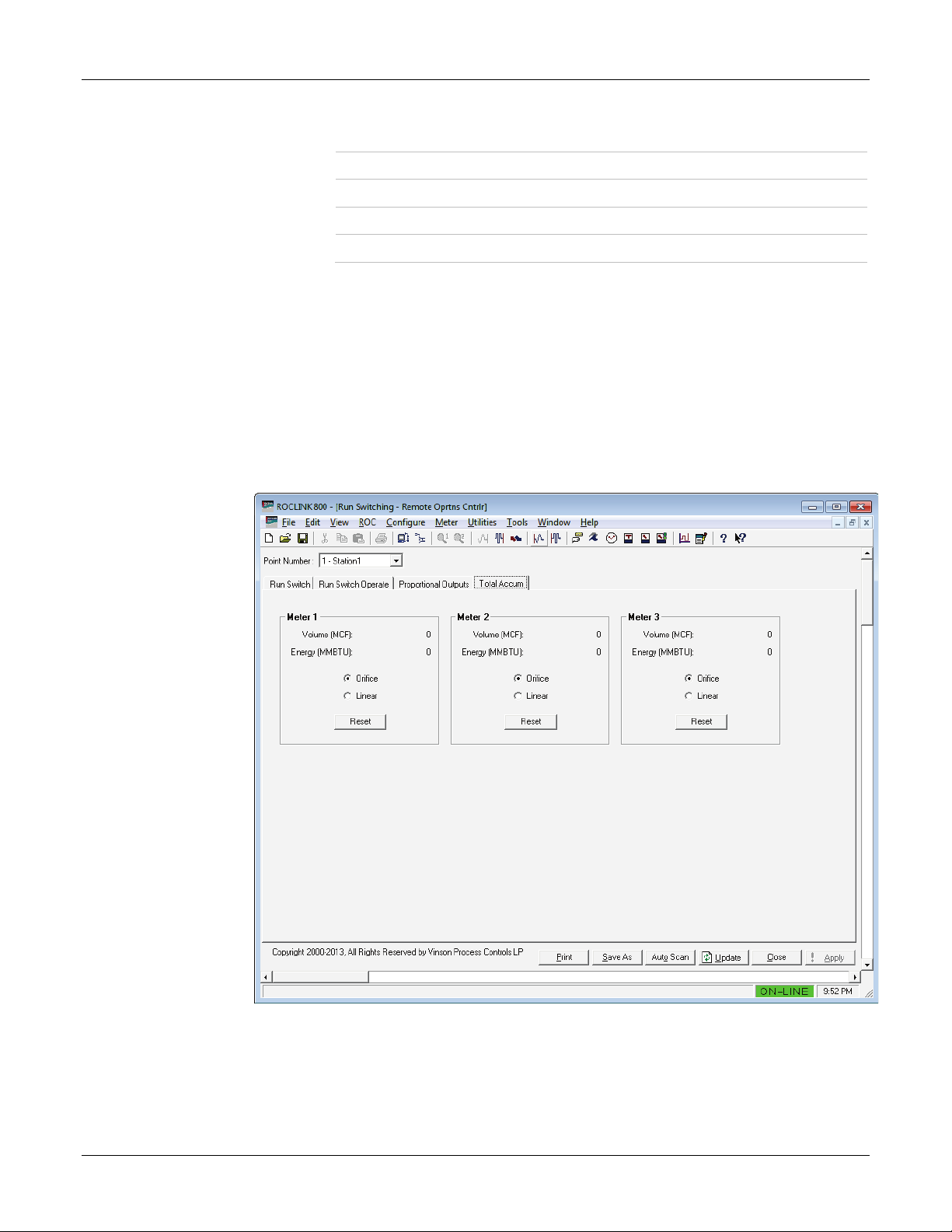

Figure 10. Run Switch tab – Run Switching screen
The Run Switch tab is divided into two main sections: Station Configuration and Tube Configuration:
Station Configuration. Use this section to configure global settings
that affect all tubes in the station. Four run switching stations are available.
Tube Configuration. Use this section to configure switching for up to
four runs. You define your input and output points, set high and low points, and choose when to open and close runs.

3.1.1. Run Switching – Run Switch Tab: Station Settings

Use this section to configure global settings that affect all tubes in the station. Four run switching stations are available.
12 Issued Aug-14
Field
Description
Figure 11. Station settings of the Run Switch tab
1. Review the values in the following fields:
Station Tag
Status
Status Message Display
Use this field to name your station. The default value is Station1.
The first number reflects the total number of runs (flow tubes) that the program believes is currently open. The next four fields show the status of each of the four tubes. The values are 1 (open) or 0 (closed). The blue box frames the tube that is in focus or control.
Provides information for the following run switching conditions. The code number is available in Run Switching Parameter 81:
0 = Status OK 1 = Station ESD
2 = PV Type Not Selected
3 = Invalid Open DO Type
4 = Invalid Open DO Param
5 = Invalid Close DO Type 6 = Invalid Close DO Param
7 = Invalid Open DI Type
8 = Invalid Open DI Param
9 = Invalid Close DI Type
10 = Invalid Close DI Param
11 = Illegal Flow Tube 1 12 = Illegal Flow Tube 2
13 = Illegal Flow Tube 3
14 = Illegal Flow Tube 4
15 = Illegal DI Tube 1
16 = Illegal DI Tube 2
17 = Illegal DI Tube 3 18 = Illegal DI Tube 4
Issued Aug-14 13
Delays
Use the Spike and Settling delays to set how long the system waits before taking action.
Field
Description
Spike Delay
Settling Delay
Switch Mode
Solenoid Mode
Delay time in seconds. The program examines this field whenever a run’s Input TLP value goes above or below its high or low set point. The condition must remain in effect for the number of seconds specified in this field before any run-switching executes. The delay provides a filter for the process variables. The Spike Delay time is also used when switching down to a lower tube that has been closed or up from a lower tube that will be closed (this happens when “Leave Open After Opening Next Tube” is unchecked). Before the program closes that tube, it must see flow (a PV value greater than the PV Cutoff Value) for the tube just opened, for the amount of time specified in the Spike Delay. Maximum value is 255 seconds.
Delay time in seconds. This delay goes into effect immediately after a run switches. During the delay, the new focus run remains in focus, so no comparisons occur for any more possible switching. This allows process conditions to stabilize after the previous change before any more decisions are made. Maximum value is 255 seconds.
Indicates how the tubes are monitored.
Monitor All
Monitor Last Opened
Selects a method for controlling the run switching valve activations. The selected mode applies to all valves, and impacts status messages that notify whether relevant selections for digital outputs and digital inputs have been made. Valid values are:
Single Solenoid Latch
Monitor all passed switch points. For example, if all four tubes had been opened, choosing this option causes the system to monitor the switch points in all four tubes.
Monitor only the switch point that was last activated. For example, if all four tubes had been opened, choosing this option causes the system to monitor the switch points in tube 4 only.
The Open DO selection is defined for each valve used which opens and closes the valve by energizing or de­energizing a solenoid. The Open and Close DI selections can be defined and monitored to verify valve travel if needed.
14 Issued Aug-14
Field
Description
Focus Run Verification
PV Cutoff Value
Dual Solenoid Latch
Dual Solenoid Latch with DI Reset
Dual Solenoid Momentary
Verifies the focus (control) tube by continually monitoring the verification method of each enabled tube. The highest number tube that is verified to be flowing is set as the focus tube. This feedback causes the proper DO state to be asserted to establish proper focus. Valid values are:
Disable
PV Flow Sensing
DI State
The low flow cutoff value that defines a threshold for a valid flow sensing condition. The program also uses this value to establish a valid flow for the Action On Failure mode Illegal PV Flow.
The Open DO selection defines the output signal to open the valve. The program will hold this state until a signal to close is issued. The Close DO selection will define the output signal to close the valve. One or the other solenoids will always be on. The Open and Close DI selections can be defined and monitored to verify valve travel if needed.
In this mode the outputs behave as a Dual Solenoid Latch, but the solenoid resets or releases after the valve travels and the valve DI limit switches detect that valve position.
In this mode, selections are made for an open and close DO that turn on momentarily while the valve travels and then turn off. The ROC800 Point I/O Time On setting for that DO determines the duration of the momentary pulse. The Open and Close DI selections can be defined and monitored to verify valve travel if needed.
No Run Verification
Compares Input PV to the PV Cutoff Value to determine whether a flow condition exists for that tube. The highest number tube that is flowing becomes the focus tube.
Examines the state of the digital inputs for each tube to determine the focus tube. The highest number tube with its digital inputs indicating “valve open” becomes the focus tube. If these DI points are “Undefined,” this evaluation is not made.
Issued Aug-14 15
Field
Description
Station ESD
ESD TLP
Action On Failure
Failure Delay (Sec)
Configures the Emergency Shutdown feature. If you leave this field “Undefined” the ESD is not activated. This feature can also be used for routine station shut-in. When tripped, an ESD closes all run switching valves to provide positive shut-in. A Set condition is logged to the alarm log. The program restores the run switching function when the ESD condition clears, and sends a Clear condition to the alarm log.
Defines the TLP the program monitors for emergency shutdown.
Verifies tube flowing conditions or DI states relative to the focus tube depending on the selected Failure Type. Various actions are possible based on the selection. No evaluations are made until after the Failure Delay counter to allow run switching to stabilize before applying any actions are applied. Valid values are:
Type: None
Type: Illegal PV Flow
Type: Illegal DI State
Action: Status Only
Action: Alarm Log
Action: Disable Tube & Alarm Log
All Action On Failures are performed after the Settling Delay plus the Failure Delay setting in seconds. Maximum value is 255 seconds.
Disables any failure evaluation.
Evaluates valid tube flow by using the PV Cutoff Value in the Focus Run Verification section, which determines if a tube is actually open or closed.
Uses digital input states to determine if a tube is actually open or closed.
Generates a status message code to indicate a Failure condition.
Sends a Failure condition to the alarm log that contains the status message code number.
Disables the tube where the Failure condition is identified and logs that tube as OFF in the alarm log. If this tube was not the last tube enabled, run switching skips the disabled tube and uses the next tube for control.
16 Issued Aug-14
2. Click Apply to save your changes.
3. Proceed to Section 3.1.2, Run Switching – Run Switch Tab: Tube
Settings.
Focus Run Verification methods can be used to assure the run switching program’s focus tube is what is actually happening. An example of this is a valve with momentary solenoids that do not change state when the output is pulsed. If this were to occur, the program would switch focus and lose sight of the actual valve states. This may be most useful for dual
Field
Description
solenoids that do not hold their states such as Momentary or DI Reset modes.
An example of what happens in the event of a valve switch failure: Tube 3 has just pulsed to close because of low DP. Ordinarily tube 2 becomes the focus run. But as long as flow is still sensed in tube 3, it remains the focus run. After the settling time expires (default 30 seconds), if tube 3 still has low DP, the program will pulse to close tube 3 again and wait another settling period.

3.1.2. Run Switching – Run Switch Tab: Tube Settings

Use this section to configure switching for up to four runs. You define your input and output points, set high and low points, and choose when to open and close runs.
In the Run Switching section, you can configure switching for up to four runs, using various types of input and output points. The program supports both non-latching and latching (such as Versa® Valve or Magna-Latch) solenoids and has configurable high and low switch points, and the option of closing the previous run when opening another.
Issued Aug-14 17
Figure 12. Station settings of the Run Switch tab
Notice that the Run 1 configuration has no Lo SwitchPt field. This is because the Lo SwitchPt field triggers a run to be closed and closing Run 1 would result in no flow at the station. Conversely, notice that the Run 4 configuration has no Hi SwitchPt or Leave Open fields. This is because there is no Run 5 to be opened after Run 4.
1. Review the values in the following fields:
Tag
A 10-character field that identifies the meters that makes up the run-switching scheme. This tag is useful for documentation purposes (screen prints, etc.).
Field
Description
Enabled
Input PV TLP
Open DO TLP
Select this checkbox to enable a run for the run­switching scheme. You must enable at least two runs in order to do run-switching. If only one of the four runs is enabled, no action is done. The left-most run (Run 1) is the primary run (open during lowest/all flow conditions). The focus starts on the left and moves to the right. Normally, at least Run 1 and Run 2 would be enabled to do run-switching with two meters. However, the program allows you to skip runs (taken out of service) so the run-switching functionality is still valid even with Run 1 disabled (as long as you have enabled two or more other runs).
Specifies the points in the ROC800 that are defined as variable inputs to the run-switching function. For orifice measurement, these are typically differential pressures (DPs) which are the “Meter Input” parameter used in flow calculations. For linear measurement, actual uncorrected flow is typically selected. If you leave this field “Undefined” the program displays a PV Type Not Selected status message. The field shown as PV displays the current value of the selected Input PV.
Specifies the points in the ROC800 that are wired to the valve solenoids. These should be digital output points. They can be wired to either non-latching solenoids (energized/de-energized) or latching solenoids (such as Versa Valves or Magna-Latches). All enabled tubes must use an Open DO with the exception of the base tube (the first enabled tube), which is optional. If the base tube has no actuated switching valve, the DO will be “Undefined”.
Close DO TLP
Energize to Open
Open DI TLP
18 Issued Aug-14
Will be used unless the Single Solenoid Mode is selected or the base tube has no physical actuated valve in which case the DO is “Undefined.”
For more information about open and close DO, refer to Section 3.1.3. About Open and Close DO.
Select to energize the Open DO to open the valve and open the run. If this box is not selected, the program turns off the Open DO to open the valve.
Selects the Open DI from available points on the ROC800. The TLP automatically uses the STATUS parameter regardless of what parameter is selected. This selection is mandatory only for the Solenoid Mode Dual Solenoid Latch – DI Reset. Otherwise the point can be used for monitoring purposes or left as “Undefined” if the valve has no limit switches.
Field
Description
Close DI TLP
Lo Switch Pt
Hi Switch Pt
Select the Close DI from available points on the ROC800. The TLP automatically uses the STATUS parameter regardless of what parameter is selected. This selection is mandatory only for the Solenoid Mode Dual Solenoid Latch – DI Reset. Otherwise the point can be used for monitoring purposes or left as “Undefined” if the valve has no limit switches.
Indicates the low value that the program compares to the value of the Input TLP for each run. In the run­switching function the right-most (furthest to the right) run open is the focus run. When the value of the focus run’s “Input TLP” is less than or equal to its low set point for a certain amount of time (spike delay), the run closes. When using “Monitor All Passed SwitchPts,” if any of the runs is below its low set point, the focus run closes and focus shifts to the next enabled run to the left.
Note: The units of this field are actual Engineering
Units (not percentages).
Indicates the high value that the program compares to the value of the Input TLP for each run. In the run­switching function the right-most (furthest to the right) run open is the focus run. When the value of the focus run’s “Input TLP” is greater than or equal to its high set point for a certain amount of time (spike delay), the next enabled run to the right opens. When using “Monitor All Passed SwitchPts,” if any of the runs is above its high set point, the next enabled run to the right of focus opens and focus shifts to that run. Notice that Run4 has no “Hi Switch Pt” field as there is no openable run to its right (all available runs are already open).
Note: The units of this field are actual Engineering
Units (not percentages).
Issued Aug-14 19
Leave Open After Opening Next Tube
Select this checkbox if, during expansion, each run remains open when focus shifts to the next enabled run to the right. If you do not select this checkbox, each run opens only when it is the focus run (there is only one run open at all times). When a run loses focus it remains open while monitoring the new focus run (to either the left or right). When flow is detected on the new focus run (Input TLP value is greater than one, for the spike delay time), the previous focus closes.
2. Click Apply to save your changes.
3. Proceed to Section 3.1.3, Run Switching – Run Switch Operate Tab.
Field
Description

3.1.3. Run Switching – Run Switch Operate Tab

Use this tab to view information about the stations.
Figure 13. Run Switching screen – Run Switch Operate tab
1. Review the values in the following fields:
ESD SetPt
ESD Status
Status This read-only section shows the status of the Focus
Settling
Input Spike
Establishes the set point which triggers the ESD. When the setpoint matches the TLP defined, an ESD occurs, shutting all available runs configured in Run Switching.
Provides information for the run switching conditions. The code number is available in Run Switching parameter 81.
Run and Runs Open.
Sets Settling Run Switch Delay. Values are shown in seconds.
Sets Spike Delay for all inputs. Values are shown in seconds.
20 Issued Aug-14
Field
Description
Prev Opened Trail Run
Lo Switch Pt
Hi Switch Pt
Indicates the setting time (in seconds) that both valves are open during the transition period between tubes. This feature applies only if you have disabled the Leave Open After Opening Next Tube option on the Run Switch tab.
Indicates the low value that the program compares to the value of the Input TLP for each run.
Note: The units of this field are actual Engineering
Units (not percentages).
Indicates the high value that the program compares to the value of the Input TLP for each run.
Note: The units of this field are actual Engineering
Units (not percentages).
2. Click Apply to save your changes.
3. Proceed to Section 3.1.4, Run Switching – Proportional Output Tab.

3.1.4. Run Switching – Proportional Output Tab

Sixteen proportional outputs are available that send selected inputs points to analog outputs. Each Station includes four Outputs, that is, Station 1 contains the 1st to 4th Output, Station 2 contains the 5th to 8th output, and so on.
Issued Aug-14 21
Figure 14. Run Switching screen – Proportional Outputs tab
Field
Description
1. Review the values in the following fields:
Tag
Input TLP
AO Value
AO TLP
Use this field to name your output.
Select the Input from available points on the ROC.
This shows the AO Value for the selected Output.
Select the AO from available points on the ROC.
2. Click Apply to save your changes.
3. Proceed to Section 3.1.5, Run Switching – Total Accum Tab.

3.1.5. Run Switching – Total Accum Tab

The program provides four sets of resettable total accumulators for each meters volume and energy. Unlike the total accumulator points in the base ROC800 (that roll over at a value of 1,000,000), this accumulator is based on a huge data type that practically never rolls over unless manually reset. All resets log to the event log.
22 Issued Aug-14
Figure 15. Run Switching screen – Total Accum tab
1. Review the values in the following fields:
Field
Description
Volume (MCF)
Energy (MMBTU)
Reset
2. Click Apply to save your changes.
3. Proceed to Section 3.1.6, About Open and Close DO.
This read-only field shows the Run Total Volume Accum for the selected meter.
This read-only field shows the Run Total Volume Energy for the selected meter.
Click to reset the value of the selected meter.

3.1.6. About Open and Close DO

The selected Solenoid Mode determines the DO parameter, so correct selection of Status or Mode is not important. For testing purposes without any physical I/O, FST MISC 1 to 4 Parameters are legitimate selections.
When using the Solenoid Mode Dual Solenoid Momentary, you configure the pulse DO Time On delay in seconds using the ROCLINK I/O Discrete Output screen’s General tab:

3.2. Cause and Effect

Issued Aug-14 23
Figure 16. Discrete Output window
Before you begin configuring causes and effects, a little planning is helpful. You may have up to eight effects triggered by one or more of the sixteen causes. For this reason, it is best to plan your effects first, and then decide what triggers those effects.

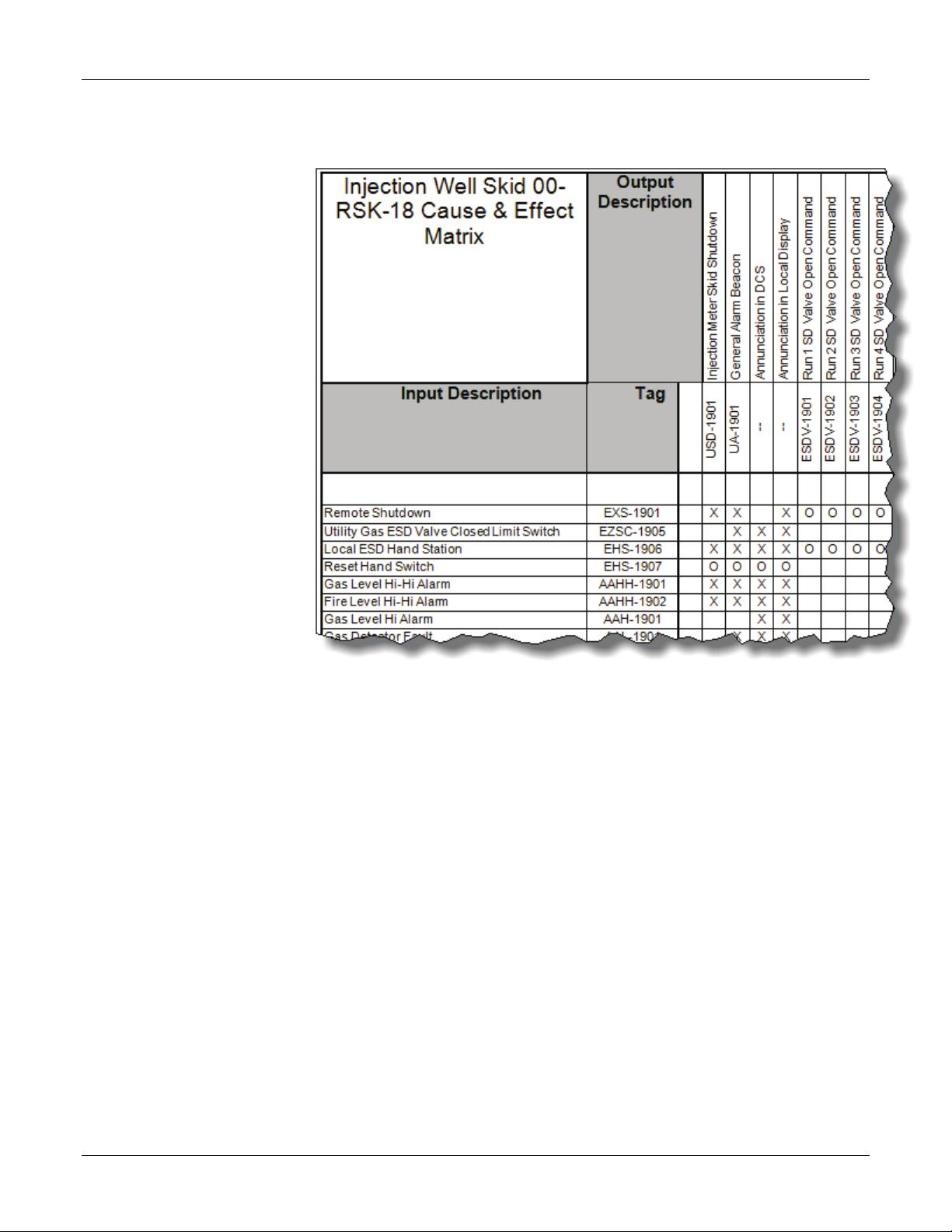

You may wish to use a chart such as the one pictured below as a handy way to organize your information. The effects are located across the top of
the table in columns, and the causes are listed down the left side of the table for easy reference:
Figure 17. Cause and Effect sample matrix
Appendix A provides a full sample matrix. Use the sample or make your own design.
To start the Cause and Effect Program:
1. Double-click a ROC800 or click the Direct Connect icon in the
toolbar.
2. The device window opens. Click User Program > Gas Control Mgr
in the ROCLINK configuration tree.
3. Double-click Display #22, Effect Configuration.
4. A display appears for each effect point. Double-click a station to see
the Effect Configuration window for that effect point.
Each effect represents a particular action that occurs when the causes that are linked to it are tripped or cleared. The Value When Active is the value the program applies to the selected PtDef when the effect is active (1 = Yes). The Value When Inactive is the value that the program applies to the selected PtDef when the effect is not active (0 = No). The output state is written either one time only or continuously based on the Assert Effect
24 Issued Aug-14
Field
Description
Continuously selection. Writing one time to the output can be useful for operations such as setting a discrete output momentary parameter for a resettable output.
The Effect Configuration screen displays for the effect you have chosen. The screen has three main sections:
Effect Configuration. Use this area to name your effect, define the
point and define the active and inactive states that will be applied.
Effect Usage. Use this area to define an effect to be a normal output or
hardware/software input reset point.
Effect Status. This area is informational.

3.2.1. Effect Configuration Settings

Use this screen to configure the Effect Configuration settings..
Issued Aug-14 25
Figure 18. Effects Configuration screen
1. Review the values in the following fields:
Tag Name
Enable Effect
Use this field to name your effect with up to 10
characters. The default value is Effect 1.
Select this checkbox to process the effect. If you leave this checkbox blank, the program ignores the effect, even when a cause should activate it (that is, one or more causes that list the effect are true).
PtDef
Indicates the controlled ROC800 data point (TLP).
Tag and CurValue
Value When Active
Value When Inactive
Force Value When Inactive
Assert Effect Continuously
These fields show the current name “PtDef” field whenever the effect is activated by one or more true causes.
The user-specified (or dynamic) value that is sent to the TLP defined in the “PtDef” field whenever the effect is actuated by one or more true causes.
The user-specified (or dynamic) value that is sent to the TLP defined in the Effect PtDef field whenever the effect is un-activated as a result of no true cause. If the Force Value When Inactive is unchecked, the TLP defined in the Effect PtDef field is not controlled when the effect is un-activated.
Select this checkbox to write the value in the Value When Inactive field to the TLP defined in the PtDef field whenever the effect is un-activated (that is, none of the causes that list the effect are true).
If you leave this checkbox blank, the program does not write any values to the PtDef field when the effect is un-activated.
Select this checkbox to have the program continuously write active or inactive values to the PtDef TLP. This may be desirable to assure that the output is re­asserted to the expected state (for example, when a DO point is taken out of manual mode).
If you leave this checkbox blank, the program sets the state one time. This may be useful for a DO point in momentary mode which resets itself.
Effect Usage
Normal (Not
Hard-Wired
Software
Reset Code
This section allows effects to be defined as reset points. Reset points are monitored by causes that require a reset before clearing from the tripped condition.
Select if the effect is handled like any
used as a reset)
Reset (DI Point)
Reset
Defines a code that, if matched to a Cause Reset Code, reset those causes when the program detects a software or hard-wired reset point.
other normal effect (this is the default).
Select if the effect is handled as a reset point requiring a manual action, such as pressing a reset pushbutton.
Select if the effect is handled as a reset point that can be reset through a variable. This variable could then be assigned to the LCD display or set by SCADA. The program automatically reset the field back to the Inactive Value. The program now allows the selection of other data types besides unsigned interger (UINT8).
26 Issued Aug-14
Effect Status
Shows whether the effect has been tripped (activated).
Active Link Tattletale
Current Active Link Count
This area shows the first four causes that currently hold this effect active, and the order in which they occurred.
Shows how many causes currently activate this effect.
2. Click Apply to save your changes.
3. Proceed to Section 3.2.2, Cause Configuration Settings.
A reset point is normally a digital input point, such as a status point. For example, you may have the “PtDef” configured to be a DI status and the “Actuated Value” would be the value of the digital input when the reset button is pushed. All causes that require resets (“Require Reset?” Is checked) would examine this effect (reset effect) for the activated value. Causes reset when program detects the activated value.

3.2.2. Cause Configuration Settings

To access the Cause Configuration window:
1. Double-click a ROC800 or click the Direct Connect icon in the
toolbar.
2. The device window opens. Click User Program > Gas Control Mgr
in the ROCLINK configuration tree.
3. Double-click Display #21, Cause Configuration.
4. A display for each cause point appears. Double-click a cause point to
see the Cause Configuration window for that station.
Issued Aug-14 27
Figure 19. Cause Configuration screen
The Cause Configuration window has seven main sections:
General Cause Configuration. Use this section to assign a name to
your cause, define it as simple or compound, indicate the requirement for a pre- condition, and enable the cause.
Cause Execution Pre-Condition. This section displays only if you
select Pre-Condition Required in the General Cause Configuration section. Use this section to define the pre-condition.
Primary Logic Section. Use this section to define the primary logic of
your cause.
Secondary Logic Section. This section displays only if you select
Compound in the General Cause Configuration section. Use this
section to define the secondary logic of your cause.
Effect Assignments. Use this section to link your cause to one or
more effects.
Misc Parameters. Use this section to write logs or alerts, or to have
this cause require a reset.
Cause Status. This informational section shows the status of the
cause. Red indicates tripped, and green indicates not tripped.
Causes can be configured to perform multiple functions, including true/false logical comparisons, math functions, copying data, state
28 Issued Aug-14
Field
Description
changes, and watchdog timer. Causes can be linked to eight effects, which will activate when the cause comparison is true.
1. Review the values in the following fields:
General Cause Configuration
Cause
Simple/
Secondary’s
Pre-Condition
Cause Tag
Enabled
Compound
Relationship with Primary
Required
A 10- character field for the tag from the cause & effect matrix or a user-selected tag.
Select this checkbox to process the cause. Leave the checkbox blank to ignore the cause.
Note: Ensure all portions of the cause
screen are correctly configured before enabling the cause.
Choose Simple if you want to use one logic section in this cause. Choose Compound to use two logic sections, primary and secondary.
Use this selection to set the relationship between the primary and secondary logic sections.
Note: This section displays only if you
chose Compound for this cause. The relationship can be "AND" or "OR".
Select this checkbox to activate this cause only when the pre-condition has been met. The Cause Execution Pre­Condition section displays when you select this option.
Cause Execution Pre-Condition
PtDef
Operators
SetPt
Delay Secs.
Primary Logic Section
Issued Aug-14 29
Pre-Condition Met
Preset
“Primary” refers to the fact that this field is in “Part 1” of the two possible comparisons for each cause.
When the pre-condition goes true, this box is checked.
Indicates the data point (TLP) value used as a pre-condition. If the set point is not reached for this TLP, this cause does not activate.
Choose how you want the value of this point to be evaluated – equal (==), greater than or equal to (>=), not equal (!=), or less than or equal to (<=).
Identifies the point at which the cause is activated.
Identifies how long the program waits after the condition is met before activating the cause.
Field
Description
PtDef
Tag
Cur Value
Operator
The data point (TLP) value that displays in the Cur Value field. This item can be any numerical point including values from other causes. Click the “…” button to the right of the field to browse through the list of available parameters. You must configure this field for all cause function types.
The name given to the soft point in the soft point configuration screen.
Note: The system reads the tag when you
configure the point definition. If you change the tag after it has been read, you will not see the updated tag name until you reconfigure the point definition. To force an update, set the PtDef to “Undefined” then reset it to the desired point. The tag name will then be read and updated. If a particular point type selected does not have a tag as the first parameter, this field may not display properly.
Displays the current value of the ROC point (TLP) specified in the “PtDef” field.
Specifies the function (operator) of the cause. The possible functions are shown in
Table 1.
SetPt Def
SetPt Value
Deadband
or Math Result
Trip Delay Preset
Secs
The ROC data point (TLP) that becomes a dynamic source of the set point value (“SetPt Value” field). When this field is left “Undefined,” you may enter a static value in the “SetPt Val” field.
Holds the value that is used for comparisons and math functions. This field is not used for the One-Scan or Watchdog Timer functions. If the “SetPt Def” field is configured (other than “Undefined”), this field gets its value from the TLP specified in “SetPt Def”.
This field serves three purposes. When using comparison operators (>=, <=, ==, !=), it specifies a deadband value that must be exceeded before an existing true comparison can go false. For math functions (Add, Subtract, Multiply, Divide), this field holds the result of the math operation. For the Copy Data function, this field defines how many fields or parameters to copy. Deadband is not used with One­Scan or Watchdog Timer functions.
The number of user-defined seconds for which the comparison must be true before the cause goes true.
30 Issued Aug-14
Field
Description
Check this box if the logic requires that a
done.
Elapsed
Secs
Timer
Timing
Secondary Logic Section
Effect Assignments
# Links
The Secondary Logic section has the same fields and logic as the Primary Logic section.
These are the links to the effects for this cause. The link labels indicate there are 8 possible links that can be used. The Link fields will be the 1 to 8 number referenced to one or more effects where 0 indicates no link. For example, If you wanted the first effect activated to be effect #4, you would enter 4 in the “# of Link 1” field. Any number of effects can be listed here, from zero to eight. If all eight fields are set to zero (defaults), no effects are connected to the cause.
Currently Active
Displays the delay count in seconds up to the user-defined preset. When the comparison becomes true, the count (seconds) increments until it reaches the “Preset Secs” and the cause becomes true. If at anytime the comparison turns false, the count resets to zero and the cause becomes false.
This field’s value is 1 or 0. It serves as an indication that the timer has been activated.
This shows the number of effects that are currently tripped for this cause.
Misc Parameters
Log Clears
Require
Log Trips
Reset?
Determines if an alarm generated by the cause will be written to the ROC’s alarm log. If this field is checked, every time the cause goes true an alarm will be logged. The log consists of the cause’s 10-character tag and the value of “Cur Value” along with the date and time.
Determines whether an entry will be written to the ROC’s alarm log when this cause is cleared. If this field is checked, every time the cause is cleared an entry will be logged. The log consists of the cause’s 10-character tag and the value of “Cur Value” along with the date and time.
Note: Log entries that begin with a “Z” as the
first digit are cause entries. Alarms not generated by Cause & Effect are not prefixed with a Z.
reset button needs to be pushed before the cause is set back to false. For example: when the cause goes true, it actuates effects that cause a shutdown, and it is desired that the shutdown be maintained until a reset is
Issued Aug-14 31
Field
Description
Reset Code
Minimum
Trip Secs. Preset
Elaps Trip
Secs
Accumulat
ed Trips
Cause Status Pre-
Condition Met
Primary
Section Tripped
Secondary
Section Tripped
Cause
Tripped
A numeric value that must be associated with the Effect Reset Code that will provide the reset through a DI point or software point.
Holds the trip state for a minimum time so a short duration trip can be detected.
Shows how long the cause has been tripped. This is also the counter for the Minimum Trip Secs. Preset.
Shows how many times the cause has been tripped.
Shows whether the Pre-Condition section has been tripped (1 for Yes, 0 for No).
Shows whether the Primary section has been tripped (1 for Yes, 0 for No).
Shows whether the Secondary section has been tripped (1 for Yes, 0 for No).
Shows whether the cause has been tripped (1 for Yes, 0 for No). If this is a compound cause and the relationship between primary and secondary was set to AND, the cause will only be tripped if both the Primary Section and Secondary Sections are tripped.
2. Click Apply to save your changes.
3. Proceed to Section 3.2.3, Cause and Effect Operate Display.

3.2.3. Cause and Effect Operate Display

The Cause & Effect Operate display is a read-only summary screen showing all conditions, statistics and linkages for the 16 causes and 8 effects. Red indicates an active or tripped state where green indicates an inactive or normal state.
32 Issued Aug-14
Function
Function Description
>=
True If (compare) Greater Than (or equal to)
<= T
==
True If (compare) Equal To
!= T
O
O
O
O
W
W
Copy Data
Copies from Cur Value to SetPt Value (see full explanation
A
A
S
S
Multiply
Multiplication, Cur Value times SetPt Value
D
D
Modulus
Modulus. Remainder of Integers: Cur Value / SetPt Value

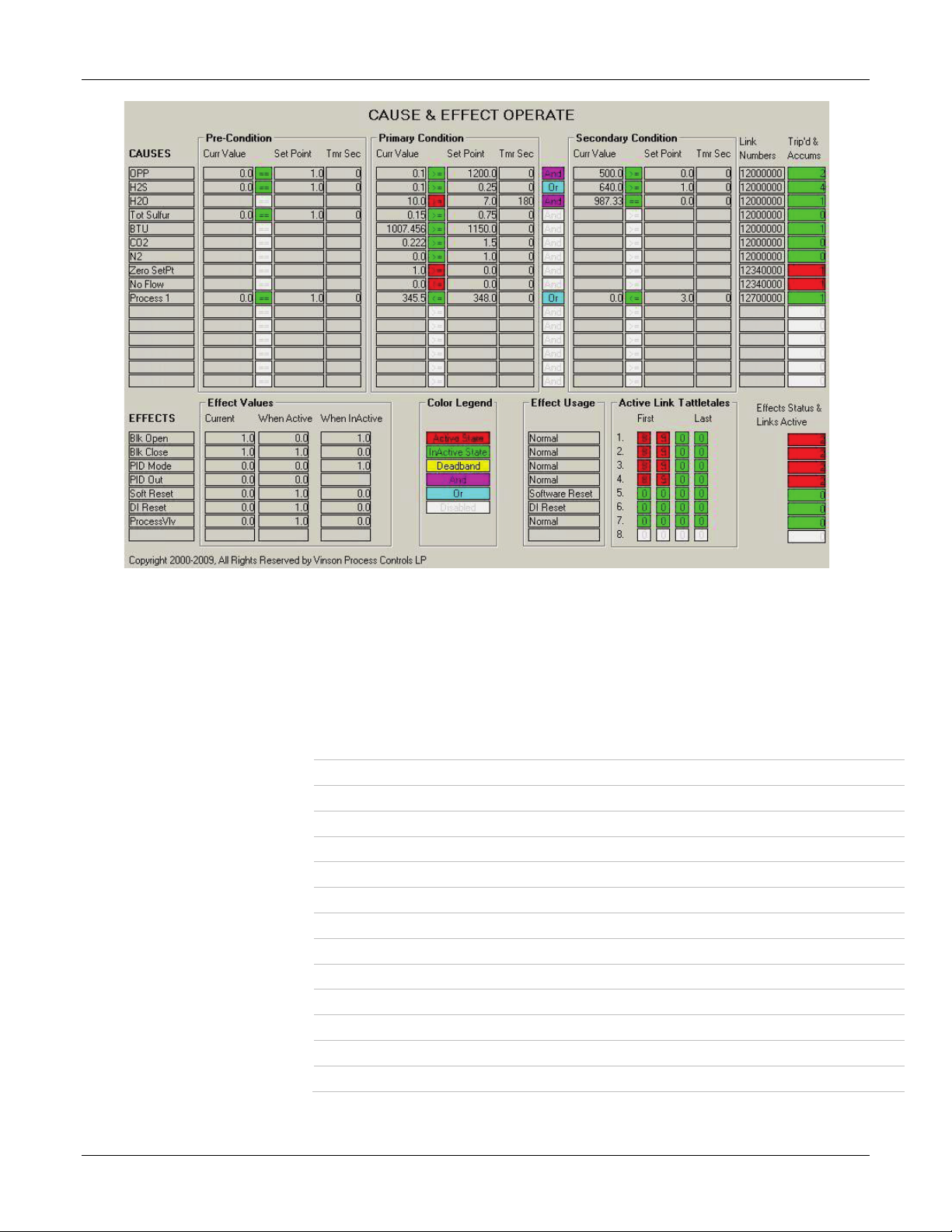

Figure 20. Cause and Effect Operate Display screen

3.2.4. Configuration Examples

The possible functions are shown in the table below. All comparisons are between “Cur Value” and “SetPt Value.”
Table 1. List of Functions
rue If (compare) Less Than (or equal to)
rue If (compare) Not Equal To
ne-Scan Rising
ne-Scan Falling
atchdog Timer
dd
ubtract
ne-Scan Rising (Cur Value, 0 to 1 transition = true)
ne-Scan Falling (Cur Value, 1 to 0 transition = true)
atchdog Timer (resets on changing value of Cur Value)
ddition, Cur Value plus SetPt Value
ubtraction, CurValue minus SetPt Value
ivide
Issued Aug-14 33
ivision, Cur Value divided by SetPt Value
Greater Than
The cause goes true when the value at “Cur Value” is greater than or
Less Than
The cause goes true when the value at “Cur Value” is less than or equal
Figure 21. Operator area in the Primary Logic Section
The following examples show how to do configurations with each of the available functions (operators). These examples do not show compound logic (AND, OR) or examples utilizing enablers.
( > =)
equal to the value at “SetPt Val”.

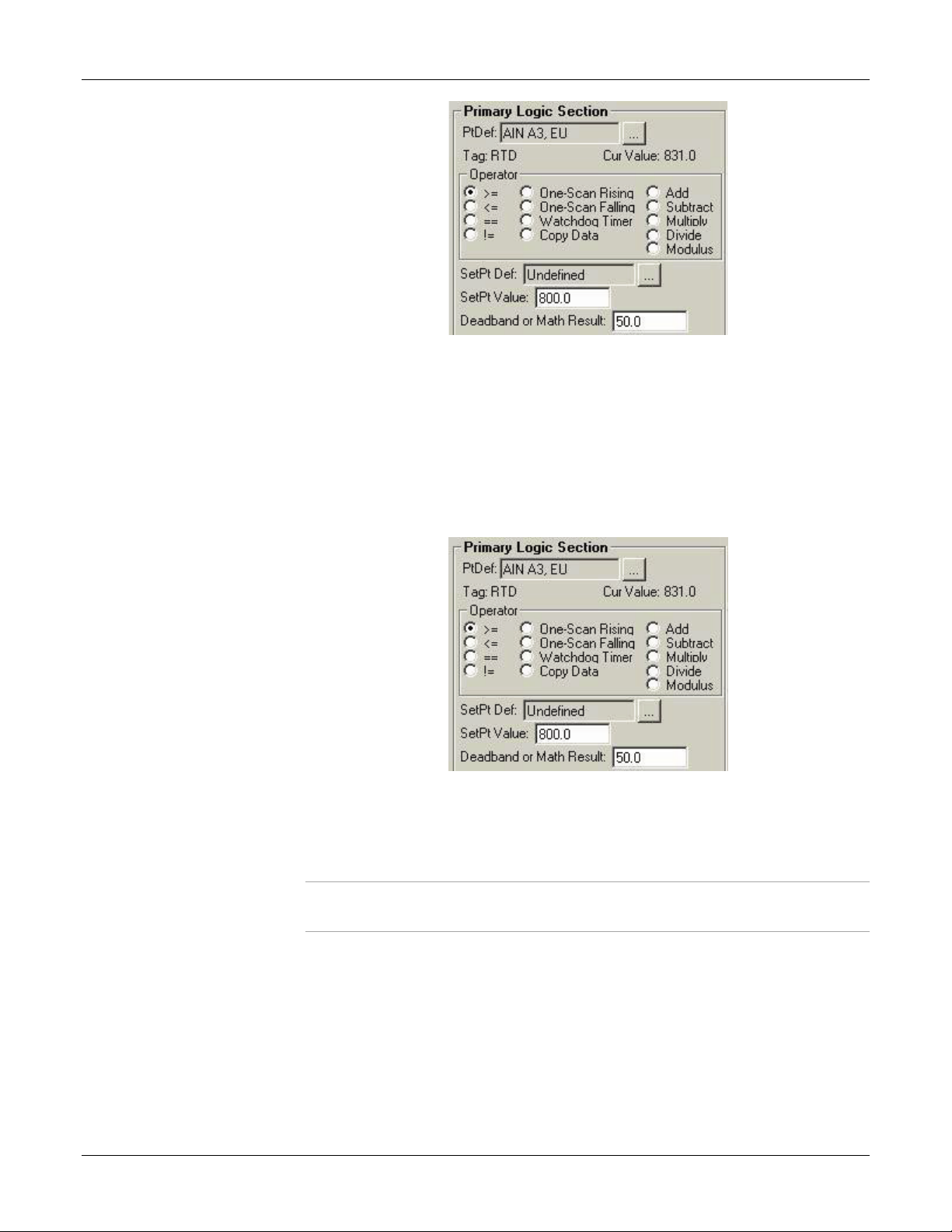

Figure 22. Greater Than Operator example
This cause is true because “Cur Value” (831) is greater than “SetPt Val” (800).
Note: Because of the deadband of 50, the cause will remain true until the
value of analog input A3 falls below 750.
( < =)
34 Issued Aug-14
to the value at “SetPt Value”.
Equals
The cause goes true when the value at “Cur Value” is equal to the
Not Equal
The cause goes true when the value at “Cur Value” is not equal to the
Figure 23. Less Than Operator example
This cause is true because “Cur Value” (375) is less than or equal to “SetPt Value” (385).
Note: “SetPt Value” is a dynamic value coming from analog input A3.
( = = )
value at “SetPt Value”.
Figure 24. Equals Operator example
This cause is true because digital input A9 is zero.
Note: Even when the level switch (A9) goes to normal (1) the cause
remains true until someone pushes the reset button if Reset Required is checked.
( ! = )
Issued Aug-14 35
value at “SetPt Value”.
One-Scan Rising
The cause goes true when the value at “Cur Value” changes from zero
One-Scan Falling
The cause goes true when the value at “Cur Value” changes from one
Figure 25. Not Equal Operator example
This cause is true because the statue of digital input A9 (0) does not equal the set point value (1).
to one. The cause will be true for one scan (1 second) only.
Figure 26. One-Scan Rising Operator example
The input to this cause is the status of cause #1 (true/false). When cause #1 goes true, this cause will go true for one second. The effect for this cause might be the mode of a digital output (versa valve or momentary solenoid).
Inputs for this function should be limited to Boolean types because only a zero to one transition will cause a trip.
to zero. The cause will be true for one scan (1 sec) only.
36 Issued Aug-14
Watchdog Timer
The cause goes true when the value at “Cur Value” does not change
Figure 27. One-Scan Falling Operator example
The input to this cause is the status of cause #1 (true/false). When cause #1 goes false, this cause will go true for one second. Effect #2 might be the mode of a digital output (versa valve or momentary solenoid).
Inputs for this function should be limited to Boolean types because only a one to zero transition will cause a trip.
within the time span defined at “True Delay sec”. This is an example using the comm. port Valid Receive Counter to detect when communication stops:
Figure 28. Watchdog Timer Operator example
The value (1053) is from the valid receipt-counter of a remote ROC. It is stored in Soft Point #1 – Data #1.
The intent here is to alarm if there is no valid Modbus communication for a 2-minute period. The effect this cause triggers might be a remote alarm dialer channel.
Issued Aug-14 37
Copy Data
The cause copies from Cur Value to SetPt Value. The numeric value in
the “Deadband” field tells the system what type of copy to make and
how much data to copy.

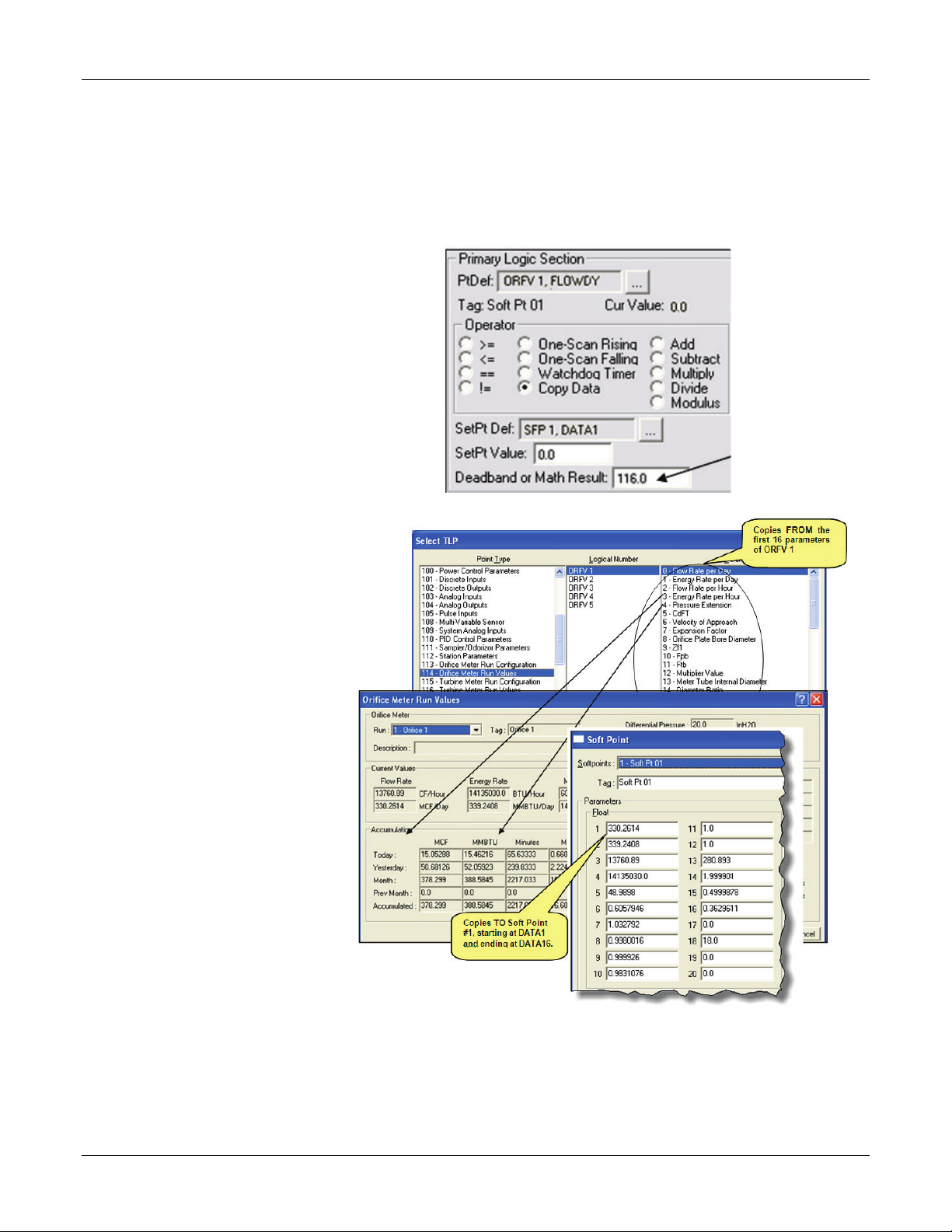

This is an example how to copy Orifice meter run parameters to
Softpoint data points.
Figure 29. Copy Data Operator example
The 1XX value in the Deadband/Result field commands that the copy is from incremental parameters to incremental parameters, and is configured
38 Issued Aug-14
to copy 16 parameters (by parameter to parameter) starting from Orifice
Add
The sum of “Cur Value” and “SetPt Value” is placed in the
Subtract
The difference of “Cur Value” and “SetPt Value” is placed in the
Meter Run values #1, parameter 0 (flow rate per day). The 16 copied items land in soft point #1, starting at DATA1 and ending at DATA16.
The Copy Data function copies data from “PtDef” to “SetPt Def.” There are four different types of copies – by logicals, by parameters, logicals to parameters, parameters to logicals. The numeric value in the “Deadband” field tells the system what type of copy to make and how much data to copy:
Table 2. Types of Copies
Number Copy Type Description
XX Logicals Source data located in a Logical order will be
copied to the Target data location in a Logical order.
1XX Parameters Source data located in a Parameter order will
be copied to the Target data location in a Parameter order.
2XX Logicals to
Parameters
3XX Parameters
to Logicals
Source data located in a Logical order will be copied to the Target data location in a Parameter order.
Source data located in a Parameter order will be copied to the Target data location in a Logical order.
Example: 105 in the Deadband field means copy parameters 0 through 4 to parameters 1 through 5 on another TLP.
“Deadband/Result” register. If the SetPt Def is undefined, the value entered in SetPt Value will be added as a constant. The cause status is always zero.
Figure 30. Add Operator example
Note: No effects are used with math operations.
Issued Aug-14 39
“Deadband/Result” register. The cause status is always zero.
Mutiply
The product of “Cur Value” and “SetPt Value” is placed in the
Divide
The quotient of “Cur Value” divided by “SetPt Value” is placed in the
Figure 31. Subtract Operator example
Note: No effects are used with math operations.
“Deadband/Result” register. The cause status is always zero.
Figure 32. Multiply Operator example
Note: No effects are used with math operations.
“Deadband/Result” register. The cause status is always zero.
40 Issued Aug-14
Modulus
The remainder of the integer division of “Cur Value” divided by “SetPt

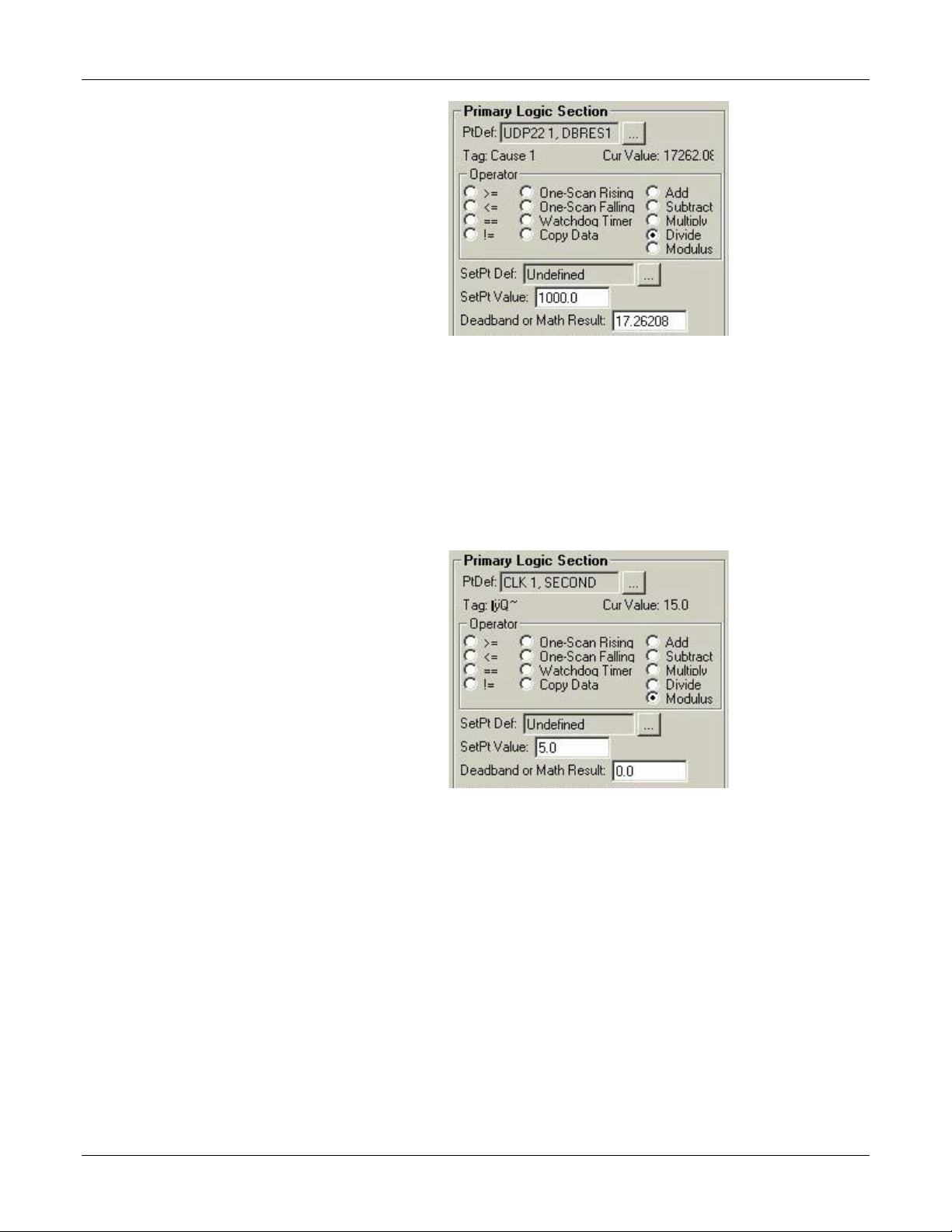

Figure 33. Divide Operator example
The quotient of “Cur Value” divided by “SetPt Value” is placed in the “Deadband/Result” register. The cause status is always zero.
Value” is placed in the “Deadband/Result” register. The cause status is always zero. This is an example how to create 5-second execution from ROC clock seconds:
Figure 34. Modulus Operator example
The seconds from the ROC clock are divided by five. Every five seconds the modulus (remainder) is zero. Another cause can look at this cause’s result field for a zero as part of condition for taking action. In this way a 5-
second execution clock is created.
Issued Aug-14 41
[This page is intentionally left blank.]
42 Issued Aug-14

Chapter 4 – Reference

This section provides information on the user-defined point type the Gas Control Manager program uses:
Point Type 73: Run Switching Point Type 71: Cause Configuration Point Type 72: Effect Configuration
Issued Aug-14 43
S Run1
Run2
Run3
Run4
Run1
Run2
Run3

4.1. Point Type 73: Run Switching

Point type 73 applies to Run Switching. There are 4 logicals of this point type.
Point Type 73: Run Switching
Parm Name Abbr Access System
or User Update
0
tation Tag STATAG R/W User String10 10 0x20 -> 0x7E for
1
2
3
4
5
6
7
Tag RUN1TG R/W User String10 10 0x20 -> 0x7E for
Tag RUN2TG R/W User String10 10 0x20 -> 0x7E for
Tag RUN3TG R/W User String10 10 0x20 -> 0x7E for
Tag RUN4TG R/W User String10 10 0x20 -> 0x7E for
Enable RUN1EN R/W User Binary
Enable RUN2EN R/W User Binary
Enable RUN3EN R/W User Binary
DataType Length Range Default Ver Description
each ASCII character
each ASCII character
each ASCII character
each ASCII character
each ASCII character
1
0 -> 1 00000001 1.00 Run 1 Enable:
1
0 -> 1 00000000 1.00 Run 2 Enable:
1
0 -> 1 00000000 1.00 Run 3 Enable:
Station 1 to Station 4
Run1 1.00 Run 1 Tag Name
Run2 1.00 Run 2 Tag Name
Run3 1.00 Run 3 Tag Name
Run4 1.00 Run 4 Tag Name
1.00 Station Tag Name
0 = Disabled
1 = Enabled
0 = Disabled
1 = Enabled
0 = Disabled
1 = Enabled
44 Issued Aug-14
Run4
Run1
Run2
Run3
Run4
Run1
Run2
Run3
Run4
Run1
Run3
Run4
Run1
Run2
Run3
Run4
Point Type 73: Run Switching
Parm Name Abbr Access System
or User Update
8
9
10
11
12
13
14
15
16
17
18 Run2 Close DO R2CLDO R/W User TLP
19
20
21
22
23
24
Enable RUN4EN R/W User Binary
Input R1INPT R/W User TLP
Input R2INPT R/W User TLP
Input R3INPT R/W User TLP
Input R4INPT R/W User TLP
Open DO R1OPDO R/W User TLP
Open DO R2OPDO R/W User TLP
Open DO R3OPDO R/W User TLP
Open DO R4OPDO R/W User TLP
Close DO R1CLDO R/W User TLP
Close DO R3CLDO R/W User TLP
Close DO R4CLDO R/W User TLP
Open State R1OPST R/W System Binary
Open State R2OPST R/W System Binary
Open State R3OPST R/W System Binary
Open State R4OPST R/W System Binary
DataType Length Range Default Ver Description
1
0 -> 1 00000000 1.00 Run 4 Enable:
0 = Disabled
1 = Enabled
3
3
3
3
3
3
3
3
3
3
3
3
1
0 -> 1 00000001 1.00 Run 1 Energize to Open:
1
0 -> 1 00000001 1.00 Run 2 Energize to Open:
1
0 -> 1 00000001 1.00 Run 3 Energize to Open:
1
0 -> 1 00000001 1.00 Run 4 Energize to Open:
0,0,0 1.00 Selected Run 1 Input
0,0,0 1.00 Selected Run 2 Input
0,0,0 1.00 Selected Run 3 Input
0,0,0 1.00 Selected Run 4 Input
0,0,0 1.00 Selected Run 1 Open DO
0,0,0 1.00 Selected Run 2 Open DO
0,0,0 1.00 Selected Run 3 Open DO
0,0,0 1.00 Selected Run 4 Open DO
0,0,0 1.00 Selected Run 1 Close DO
0,0,0 1.00 Selected Run 2 Close DO
0,0,0 1.00 Selected Run 3 Close DO
0,0,0 1.00 Selected Run 4 Close DO
0 = No
1 = Yes
0 = No
1 = Yes
0 = No
1 = Yes
0 = No
1 = Yes
Issued Aug-14 45
Run1
Run2
Run3
Run4
Run1
Run2
Run3
Run1
Run2
Run3
Runs
Point Type 73: Run Switching
Parm Name Abbr Access System
or User Update
DataType Length Range Default Ver Description
25
26
27
28
29
30
31
32
33
34
35 Spike Delay SPKDLY R/W User U8
Lo SetPt R1LOSP R/W User Float
Lo SetPt R2LOSP R/W User Float
Lo SetPt R3LOSP R/W User Float
Lo SetPt R4LOSP R/W User Float
Hi SetPt R1HISP R/W User Float
Hi SetPt R2HISP R/W User Float
Hi SetPt R3HISP R/W User Float
Leave Open R1LVOP R/W User Binary
Leave Open R2LVOP R/W User Binary
Leave Open R3LVOP R/W User Binary
4
Any FloatingPoint
Number
4
Any FloatingPoint
Number
4
Any FloatingPoint Number
4
Any FloatingPoint
Number
4
Any FloatingPoint Number
4
Any FloatingPoint
Number
4
Any FloatingPoint
Number
1
0 -> 1 00000001 1.00
1
0 -> 1 00000001 1.00 Run 2 Leave Open AfterOpening Next
1
0 -> 1 00000001 1.00
1
0 -> 255 5 1.00
0.0 1.00 Run 1 Low Set Point
10.0 1.00 Run 2 Low Set Point
10.0 1.00 Run 3 Low Set Point
10.0 1.00 Run 4 Low Set Point
200.0 1.00 Run 1 High Set Point
200.0 1.00 Run 2 High Set Point
200.0 1.00 Run 3 High Set Point
Run 1 Leave Open AfterOpening Next Tube
0 = No
1 = Yes
Tube
0 = No
1 = Yes
Run 3 Leave Open AfterOpening Next Tube
0 = No
1 = Yes
Spike Delay For All Inputs - Seconds
36 Settling Delay SETDLY R/W User U8
37
Open RNSOPN R/O System U8
1
0 -> 255 30 1.00
1
1 -> 4 0 1.00 Runs Open Status
Settling Run Switch Delay - Seconds
46 Issued Aug-14
Con
Run1
Run2
Point Type 73: Run Switching
Parm Name Abbr Access System
or User Update
DataType Length Range Default Ver Description
38
39 Prop1 Tag PR1TAG R/W User String10 10 0x20 -> 0x7E for
40 Prop2 Tag PR2TAG R/W User String10 10 0x20 -> 0x7E for
41 Prop3 Tag PR3TAG R/W User String10 10 0x20 -> 0x7E for
42 Prop4 Tag PR4TAG R/W User String10 10
43 Prop1 Input PRP1IN R/W User TLP
44 Prop2 Input PRP2IN R/W User TLP
45 Prop3 Input PRP3IN R/W User TLP
46 Prop4 Input PRP4IN R/W User TLP
47 Prop1 Output PRP1OU R/W User TLP
48 Prop2 Output PRP2OU R/W User TLP
trol Type CTLTYP R/W User U8
1
0 -> 1 1 1.00 Switch Mode:
each ASCII character
each ASCII character
each ASCII character
0x20 -> 0x7E for each ASCII character
3
3
3
3
3
3
0 = Monitor Last OpenedSwitch Points
1 = Monitor All PassedSwitch Points
PropOut1 1.00 Proportional Output 1 TagName
PropOut2 1.00 Proportional Output 2 TagName
PropOut3 1.00 Proportional Output 3 TagName
PropOut4 1.00 Proportional Output 4 TagName
0,0,0 1.00 Selected Input 1
0,0,0 1.00 Selected Input 2
0,0,0 1.00 Selected Input 3
0,0,0 1.00 Selected Input 4
0,0,0 1.00 Selected ProportionalOutput 1
0,0,0 1.00
Selected ProportionalOutput 2
49 Prop3 Output PRP3OU R/W User TLP
50 Prop4 Output PRP4OU R/W User TLP
51
52
Open Close R1OPCL R/W Both Binary
Open Close R2OPCL R/W Both Binary
3
3
1
0 -> 1 00000000 1.00 Run 1 Status:
1
0 -> 1 00000000 1.00 Run 2 Status:
0,0,0 1.00 Selected ProportionalOutput 3
0,0,0 1.00 Selected ProportionalOutput 4
0 = Close
1 = Open
0 = Close
1 = Open
Issued Aug-14 47
Run3
Run4
ES ES
ES
Run1
Run2
Run3
Run4
ds
D
Point Type 73: Run Switching
Parm Name Abbr Access System
or User Update
DataType Length Range Default Ver Description
53
54
55 Use Flow Sensing FLWSNS R/W User U8
56
57
58
59
60
61
62
63 Spike DelaySeconds SPKSEC R/O System U8
64 Settling DelaySecon
65 Trail Run
Open Close R3OPCL R/W Both Binary
Open Close R4OPCL R/W Both Binary
D Pt Def ESDDEF R/W User TLP
D Trip Value ESDTRP R/W User U8
D Cur Value ESDCUR R/O System U8
Input Value DP1VAL R/O System Float
Input Value DP2VAL R/O System Float
Input Value DP3VAL R/O System Float
Input Value DP4VAL R/O System Float
STLSEC R/O System U8
TRLSEC R/O System U8
elaySeconds
1
0 -> 1 00000000 1.00 Run 3 Status:
0 = Close
1 = Open
1
0 -> 1 00000000 1.00 Run 4 Status:
0 = Close
1 = Open
1
0 -> 2 0 3.00 Focus Run Verification:
0 = Disable
1 = PV Flow Sensing
2 = DI State
3
1
0 -> 255 0 1.00 ESD Trip Set Point
1
0 -> 1 0 1.00 ESD Status:
4
Any FloatingPoint
Number
4
Any FloatingPoint
Number
4
Any FloatingPoint
Number
4
Any FloatingPoint
Number
1
0 -> 255 0 1.00 Spike Delay - (Secs)
1
0 -> 255 0 1.00 Settling Delay - (Secs)
1
0 -> 255 0 1.00 Trail Run Delay (Secs) (NotUsed)
0,0,0 1.00 Selected ESD Point(Referenced
PointMonitored for ESD)
0 = OK to Run
1 = ESD Active
0.0 1.00 Run 1 Value
0.0 1.00 Run 2 Value
0.0 1.00 Run 3 Value
0.0 1.00 Run 4 Value
48 Issued Aug-14
Fo
Fo Cut
Run V
Run V
Run V
Run E
Run E
Run E
Run A
Run Re
0
Point Type 73: Run Switching
Parm Name Abbr Access System
or User Update
DataType Length Range Default Ver Description
66
67
68
69
70
71
72
73
74
75
76 Run Total
cus Run Number FOCRUN R/O System U8
cus Sense PV
off
Total
olumeAccum 1
Total
olumeAccum 2
Total
olumeAccum 3
Total
nergyAccum 1
Total
nergyAccum 2
Total
nergyAccum 3
Total
ccumReset 1
Total Accum
set 2
AccumReset 3
FPVCUT R/W User FL
RVOLA1 R/O System UINT32
RVOLA2 R/O System UINT32
RVOLA3 R/O System UINT32
RENEA1 R/O System UINT32
RENEA2 R/O System UINT32
RENEA3 R/O System UINT32
RARST1 R/W User UINT8
RARST2 R/W User UINT8
RARST3 R/W User UINT8
1
0 -> 3 0 1.00 Current Control Run:
Run #1
Run #2
Run #3
Run #4
4
Any FloatingPoint
Number
4
0->4294967295 0 3.00 Run Total Volume Accum 1
4
0->4294967295 0 3.00 Run Total Volume Accum 2
1
0->4294967295 0 3.00 Run Total Volume Accum 3
4
0->4294967295 0 3.00 Run Total Energy Accum 1
4
0->4294967295 0 3.00 Run Total Energy Accum 2
4
0->4294967295 0 3.00 Run Total Energy Accum 3
1
0->1 0 3.00 Run Total Accum Reset 1:
1
0->1 0 3.00 Run Total Accum Reset 2:
1
->1 0 3.00 Run Total Accum Reset 3:
3.0 1.00 PV Low Cutoff for FlowSensing
0 = Normal
1 = Reset (program returnsto normal)
0 = Normal
1 = Reset (program returns to normal)
0 = Normal
1 = Reset (program returnsto normal)
Issued Aug-14 49
0
0
0
A N
A N
A N
A N
Point Type 73: Run Switching
Parm Name Abbr Access System
or User Update
DataType Length Range Default Ver Description
77 AGA
CalculationSelect 1
78 AGA
CalculationSelect 2
79 AGA
CalculationSelect 3
80 AO Value 1 AOVAL1 R/O System FL
81 AO Value 2 AOVAL2 R/O System FL
82 AO Value 3 AOVAL3 R/O System FL
83 AO Value 4 AOVAL4 R/O System FL
AGASL1 R/W User UINT8
AGASL2 R/W User UINT8
AGASL3 R/W User UINT8
1
->1 0 3.00 AGA Calculation Select 1:
0 = AGA3
1 = AGA7
1
->1 0 3.00 AGA Calculation Select 2:
0 = AGA3
1 = AGA7
1
->1 0 3.00 AGA Calculation Select 3:
0 = AGA3
1 = AGA7
4
ny FloatingPoint umber
4
ny FloatingPoint umber
4
ny FloatingPoint umber
4
ny FloatingPoint umber
0 3.00 AO Value 1
0 3.00 AO Value 2
0 3.00 AO Value 3
0 3.00 AO Value 4
50 Issued Aug-14
0
11
12
13
14
15
16
17
0
Failure Type:
0 = None
1 = Illegal PV Flow
2 =
0
Failure Action:
0 = Status Only
1 = Alarm Log + Status
2 = Disable Tube + Alarm
Log + Status
Fa
0
Failure Delay (Secs)
Fa
0
Failure Seconds
Point Type 73: Run Switching
Parm Name Abbr Access System
or User Update
DataType Length Range Default Ver Description
84 Status Code STATUS R/O System UINT8
85 Failure Type FAILTY R/W User UINT8 1
86 Failure Action FAIACT R/W User UINT8 1
87
88
Issued Aug-14 51
1
ilure Delay FAIDLY R/W User UINT8 1
ilure Seconds FAISEC R/O System
UINT8
1
->18 0 3.00 Status Code:
->2 0 3.00
->2 0 3.00
->255 0 3.00
->255 0
3.00
0 = Status Ok
1 = Station ESD
2 = PV Type Not Selected
3 = Invalid Open DO Type
4 = Invalid Open DO Param
5 = Invalid Close DO Type
6 = Invalid Close DOParam
7 = Invalid Open DI Type
8 = Invalid Open DI Param
9 = Invalid Close DI Type
10 = Invalid Close DIParam
= Illegal Flow Tube 1
= Illegal Flow Tube 2
= Illegal Flow Tube 3
= Illegal Flow Tube 4
= Illegal DI Tube 1
= Illegal DI Tube 2
= Illegal DI Tube 3
Illegal DI State
0
Solenoid Mode:
0 = Single Solenoid Latch
1 = Dual Solenoid Latch
2 = Dual Solenoid Latch
3 = Dual Solenoid Momentary
Run 1
Run Run 2 Open Reset DI
Run Run 3 Open Reset DI
Run 3 Open Reset DI
Run 4 Open Reset DI
Run 4 Open Reset DI
Run 1 Close Reset DI
Run 1 Close Reset DI
Run 2 Close Reset DI
Run 2 Close Reset DI
Run 3 Close Reset DI
Run 3 Close Reset DI
Run
Run V
0
Run V
0
Run V
0
Run V
0
Point Type 73: Run Switching
Parm Name Abbr Access System
or User Update
DataType Length Range Default Ver Description
89 Solenoid Mode SOLMOD R/W User UINT8 1
90
91
92
93
94
95
96
97
98
99
100
101
Open Reset DI R1OPDI R/W User TLP 3
R2OPDI R/W User TLP 3
R3OPDI R/W User TLP 3
R4OPDI R/W User TLP 3
R1CLDI R/W User TLP 3
R2CLDI R/W User TLP 3
R3CLDI R/W User TLP 3
4 Close ResetDI
1 Open DI
alue
2 Open DI
alue
3 Open DI
alue
4 Open DI
alue
R4CLDI R/W User TLP 3
DIOPV1 R/O System UINT8 1
DIOPV2 R/O System UINT8 1
DIOPV3 R/O System UINT8 1
DIOPV4 R/O System UINT8 1
->3 0 3.00
0,0,0 3.00
0,0,0 3.00
0,0,0 3.00
0,0,0 3.00
0,0,0 3.00
0,0,0 3.00
0,0,0 3.00
0,0,0 3.00 Run 4 Close Reset DI
->1 0 3.00 Run 1 Open DI Value:
->1 0 3.00 Run 2 Open DI Value:
->1 0 3.00 Run 3 Open DI Value:
->1 0 3.00 Run 4 Open DI Value:
1 Open Reset DI
2 Open Reset DI
0 = Reset
1 = Open
0 = Reset
1 = Open
0 = Reset
1 = Open
0 = Reset
1 = Open
- DI Reset
52 Issued Aug-14
Run V
0
Run V
0
Run V
0
Run V
0
Point Type 73: Run Switching
Parm Name Abbr Access System
or User Update
DataType Length Range Default Ver Description
102
103
104
105
1 Close DI
alue
2 Close DI
alue
3 Close DI
alue
4 Close DI
alue
DICLV1 R/O System UINT8 1
DICLV2 R/O System UINT8 1
DICLV3 R/O System UINT8 1
DICLV4 R/O System UINT8 1
->1 0 3.00 Run 1 Close DI Value:
0 = Reset
1 = Close
->1 0 3.00 Run 2 Close DI Value:
0 = Reset
1 = Close
->1 0 3.00 Run 3 Close DI Value:
0 = Reset
1 = Close
->1 0 3.00 Run 4 Close DI Value:
0 = Reset
1 = Close
Issued Aug-14 53

4.2. Point Type 71: Cause Configuration

Point type 71 applies to Cause Configuration. There are up to 16 logicals of this point type.
Point Type 71: Cause Configuration
Parm Name Abbr Access
System or User Update
DataType Length Range Default Ver Description
0 Cause Tag PTTAG R/W User String10 10 0x20 -> 0x7E for
each ASCIIcharacter
1 Enable Cause ENABLE R/W User U8 1 0 -> 1 0 1.04 Cause Enabled:
2 Input1 Definition INDEF1 R/W User TLP 3
3 Input1 Tag INTAG1 R/O System String10 10
4 Cur Value CUVAL1 R/O System Float 4 Any Floating Point
5 Function1 Type RELAT1 R/W User U8 1
6 SetPt1 Definition SETDF1 R/W User TLP 3
0x20 -> 0x7E for each ASCIIcharacter
Number
1, 2, 3, 4, 5, 7, 8, 10, 11, 12,13, 14, 18
Cause 1 toCause 16
98,0,1 1.04 Primary Logic Point Selection
<none> 1.04
0 1.04 Primary Logic Current Value:
1 1.04 Primary Logic Operator:
0,0,0 1.04
1.04 Cause Tag Name
0 = Disable
1 = Enable
Selected Primary Logic PointTag ID
1) >=
2) <=
3) ==
4) !=
5) Watch Dog Timer
7) One Scan Rising
8) One Scan Falling
10) Add
11) Subtract
12) Multiply
13) Divide
14) Modulus
18) Copy Data
Primary Logic Set PointSelection
54 Issued Aug-14
Point Type 71: Cause Configuration
Parm Name Abbr Access
System or User Update
DataType Length Range Default Ver Description
7 SetPt1 Value SETPT1 R/W User Float 4 Any Floating Point
Number
Deadband orResult1
8
9 Part2 Enable USEPT2 R/W User U8 1 0 -> 1 0 1.04 Secondary Enable:
10 Input2 Definition INDEF2 R/W User TLP 3
11 Input2 Tag INTAG2 R/O System String10 10
12 Cur Value2 CUVAL2 R/O System Float 4 Any Floating Point
13 Function2 Type RELAT2 R/W User U8 1
14 SetPt2 Definition SETDF2 R/W User TLP 3
DBRES1 R/W Both Float 4 Any Floating Point
Number
0x20 -> 0x7E for each ASCIIcharacter
Number
1, 2, 3, 4, 5, 7, 8, 10, 11, 12,13, 14, 18
0 1.04 Primary Logic Setpoint Value
0 1.04
0,0,0 1.04
<none> 1.04
0 1.04 Secondary Logic Current Value
1 1.04 Secondary Logic Operator:
0,0,0 1.04
Primary Logic Deadband orMath Result
0 = Simple
1 = Compound
Secondary Logic PointSelection
Selected Secondary Logic PointTag ID
1) >=
2) <=
3) ==
4) !=
5) Watch Dog Timer
7) One Scan Rising
8) One Scan Falling
10) Add
11) Subtract
12) Multiply
13) Divide
14) Modulus
18) Copy Data
Secondary Logic Set PointSelection
15 SetPt2 Value SETPT2 R/W User Float 4 Any Floating Point
Number
0.0 1.04 Secondary Logic Setpoint Value
Issued Aug-14 55
:
Point Type 71: Cause Configuration
Parm Name Abbr Access
Deadband orResult2
16
17 And/Or Mode ANDOR R/W User U8 1 15 -> 16 15 1.04
18 Cause Trip/Clear CZTRUE R/O System U8 1 0 -> 1 0 1.04 Cause Tripped Status:
19 Part1 Trip/Clear P1TRUE R/O System U8 1 0 -> 1 0 1.04 Primary Section Tripped Status:
20 Part2 Trip/Clear P2TRUE R/O System U8 1 0 -> 1 0 1.04
21 Use DigitalEnabler ENABRQ R/W User U8 1 0 -> 1 0 1.04 Pre-Condition Required:
Digi EnabDefinition
22
DBRES2 R/W Both Float 4 Any Floating Point
ENADEF R/W User TLP 3
System or User Update
DataType Length Range Default Ver Description
Secondary Logic Deadband orMath Result
Secondary Relationship withPrimary
15 = And with Primary
16 = Or with Primary
0 = No
1 = Yes
0 = No
1 = Yes
Secondary Section TrippedStatus:
0 = No
1 = Yes
0 = Disable
1 = Enable
Number
0.0 1.04
0,0,0 1.04 Pre-Condition Point Selection
23 Digi Enab Tag ENATAG R/O System String10 10
24 Digi EnabProcess
Value
Digi EnablerType
25
Digi Enab StPtValue
26
56 Issued Aug-14
ENAPV R/O System Float 4 Any Floating Point
ENAREL R/W User U8 1 0 -> 3 0 1.04 Pre-Condition Operator:
ENSTPT R/W User Float 4 Any Floating Point
0x20 -> 0x7E for each ASCIIcharacter
Number
Number
<none> 1.04
0.0 1.04 Pre-Condition Selected PointValue
0.0 1.04 Pre-Condition Setpoint
Selected Pre-Condition PointTag ID
0) ==
1) !=
2) >=
3) <=
Point Type 71: Cause Configuration
Parm Name Abbr Access
System or User Update
DataType Length Range Default Ver Description
27 Digi Enab
ResultValue
Enab Delay
28
SecsPreset
Enab Delay
29
SecsElapsed
Pri Trip DelaySecs
30
Preset
31 Pri Trip Delay TRPCT1 R/O System U16 2 0 -> 65535 0 1.04 Primary Logic Trip Elapsed
Secs Elapsed
32 Scan Interval SCANIV R/W User U8 1 0 -> 5 3 1.04 Scan Interval: (Not Used)
33 Log Alarms LOGALM R/W User U8 1 0 -> 1 0 1.04 Log Trips to Alarm Log:
34 Require Reset RSTREQ R/W User U8 1 0 -> 1 0 1.04 Trip Requires Reset:
35 Effect 1 EFFT1 R/W User U8 1 1 -> 8 0 1.04 Effect Assignment Link 1
36 Effect 2 EFFT2 R/W User U8 1 1 -> 8 0 1.04 Effect Assignment Link 2
37 Effect 3 EFFT3 R/W User U8 1 1 -> 8 0 1.04 Effect Assignment Link 3
38 Effect 4 EFFT4 R/W User U8 1 1 -> 8 0 1.04 Effect Assignment Link 4
39 Effect 5 EFFT5 R/W User U8 1 1 -> 8 0 1.04 Effect Assignment Link 5
ENARLT R/O System U8 1 0 -> 1 0 1.04 Pre-Condition Met:
0 = No
1 = Yes
ENAPRE R/W User U16 2 0 -> 65535 30 1.04
ENACNT R/O System U16 2 0 -> 65535 0 1.04 Pre-Condition Timer (Secs)
TRPPR1 R/W User U16 2 0 -> 65535 0 1.04
Pre-Condition Timer Preset(Secs)
Primary Logic Trip Preset(Secs)
(Secs)
0 = 100 mSec
1 = 200 mSec
2 = 500 mSec
3 = 1 Sec
4 = 2 Sec
5 = 5 Sec
0 = No
1 = Yes
0 = No
1 = Yes
Issued Aug-14 57
d
Provides an incrementing counter, to
Point Type 71: Cause Configuration
Parm Name Abbr Access
40 Effect 6 EFFT6 R/W User U8 1 1 -> 8 0 1.04 Effect Assignment Link 6
41 Effect 7 EFFT7 R/W User U8 1 1 -> 8 0 1.04 Effect Assignment Link 7
42 Effect 8 EFFT8 R/W User U8 1 1 -> 8 0 1.04 Effect Assignment Link 8
43 Links Energized LNKENR R/O System U8 1 1 -> 8 0 1.04 Effect Assignment LinksCurrently
Min Trip SecsPresets
44
Min Trip SecsElapse
45
46 Log Clears LOGCLR R/W User U8 1 0 -> 1 0 1.04 Log Clears To Alarm Log:
47 Reset Code RSTCOD R/W User U8 1 0 -> 255 0 1.04
Sec Trip DelaySecs
48
Preset
Sec Trip DelaySecs
49
Elapsed
Pri Trip DelayTimer
50
Timing
51 Sec Trip DelayTimer
Timing
AccumulatedTrips
52
Watchdog Timer
53
MNTPRE R/W User U16 2 0 -> 65535 0 1.04 Minimum Trip Seconds Preset
MNTCNT R/O System U16 2 0 -> 65535 0 1.04 Minimum Trip Seconds Elapsed
TRPPR2 R/W User U16 2 0 -> 65535 0 1.04
TRPCT2 R/O System U16 2 0 -> 65535 0 1.04
TMRTT1 R/O System U8 1 0 -> 1 0 1.04
TMRTT2 R/O System U8 1 0 -> 1 0 1.04
TRPACM R/W Both U16 2 0 -> 65535 0 1.04 Accumulated Trips
WATDOG R/O SYSTEM UINT16 2 0 -> 65535 0 3.05
System or User Update
DataType Length Range Default Ver Description
Active
0 = No
1 = Yes
Reset Code Matched to EffectReset Code
Secondary Logic Trip Preset(Secs)
Secondary Logic Trip Elapsed(Secs)
Primary Logic Trip TimerTiming:
0 = Timer Expired
1 = Timing
Secondary Logic Trip TimerTiming:
0 = Timer Expired
1 = Timing
validate the program’s running status.
Only updated for the first logical instance.
58 Issued Aug-14

4.3. Point Type 72: Effect Configuration

Point type 72 applies to Effect Configuration. There are 8 logicals of this point type.
Point Type 72: Effect Configuration
Parm Name Abbr Access System
or User Update
Data Type
Length Range Default Ver Description
0 Effect Tag EFFTAG R/W User String10 10 0x20 -> 0x7E for
each ASCIIcharacter
1 Effect Enable EFFENB R/W User U8 1 0 -> 1 0 1.04 Effect Enable:
2 Effect Definition EFFDEF R/W User TLP 3 0,0,0 1.04 Point Selection
3 Definition Tag DEFTAG R/O System String10 10 0x20 -> 0x7E for
each ASCIIcharacter
4 Now Active CUREN
G
5 Cur Val CURVAL R/O System Float 4 Any Floating
6 Value When Active ENGVAL R/W User Float 4 Any Floating
7 Value When Not
Active
8 Apply When Not
Active
9 Is Reset Pt? RESTPT R/W User U 1 0 -> 2 0 1.04 Reset Type:
UENVAL R/W User Float 4 Any Floating
WRITEU R/W User U8 1 0 -> 1 1 1.04 Force Value When Inactive:
R/O System U8 1 0 -> 1 0 1.04 Effect Status Is Active:
Point Number
Point Number
Point Number
Effect 1 to Effect 16
<none> 1.04 Selected Point Tag ID
0.0 1.04 Effect Current Value
1.0 1.04 Value When Active
0.0 1.04 Value When Inactive
1.04 Effect Tag Name
0 = Disabled
1 = Enabled
0 = No
1 = Yes
0 = No
1 = Yes
0 = This Point is Not a Reset Point
1 = This Point is a Hard-W ired Reset
2 = This Point is a Software Reset
Issued Aug-14 59
character
19
Active Link Count
LNKCNT
R/O
System
U8 1
1 -> 16
0
1.04
Current Active Link Count
Point Type 72: Effect Configuration
Parm Name Abbr Access System
or User Update
Data Type
Length Range Default Ver Description
10 1st Out Cause 1OUTCZ R/O System U8
11 2nd Out Cause 2OUTCZ R/O System U8
12 3rd Out Cause 3OUTCZ R/O System U8
13 4th Out Cause 4OUTCZ R/O System U8
14 1st Out Tag 1OTTAG R/O System String10 10
15 2nd Out Tag 2OTTAG R/O System String10 10
16 3rd Out Tag 3OTTAG R/O System String10 10 0x20 -> 0x7E
1
0 -> 1 0 1.04 1st Trip Cause NumberTattletale:
1
0 -> 1 0 1.04 2nd Trip Cause NumberTattletale:
1
0 -> 1 0 1.04 3rd Trip Cause NumberTattletale:
1
0 -> 1 0 1.04 4th Trip Cause NumberTattletale:
0x20 -> 0x7E for each ASCII
0x20 -> 0x7E for each ASCII
for each ASCII
0 = None
1 = Active
0 = None
1 = Active
0 = None
1 = Active
0 = None
1 = Active
<none> 1.04 1st Trip Cause Tag
<none> 1.04 2nd Trip Cause Tag
<none> 1.04 3rd Trip Cause Tag
17 4th Out Tag 4OTTAG R/O System String10 10 0x20 -> 0x7E
18 Reset Code RSTCOD R/W User U8
60 Issued Aug-14
<none> 1.04 4th Trip Cause Tag for each ASCII
1
0 -> 255 0 1.04 Match Reset Code withCause
Reset Code
character
Point Type 72: Effect Configuration
Parm Name Abbr Access System
or User Update
Data Type
Length Range Default Ver Description
20 Assert
EffectContinuously
10 1st Out Cause 1OUTCZ R/O System U8
11 2nd Out Cause 2OUTCZ R/O System U8
12 3rd Out Cause 3OUTCZ R/O System U8
13 4th Out Cause 4OUTCZ R/O System U8
14 1st Out Tag 1OTTAG R/O System String10 10
EFMODE R/W User U8
1
1
1
1
1
0 -> 1 0 3.03 Assert Effect Continuously:
0 = Once
1 = Continuous
2 = This Point is a SoftwareReset
0 -> 1 0 1.04 1st Trip Cause NumberTattletale:
0 = None
1 = Active
0 -> 1 0 1.04 2nd Trip Cause NumberTattletale:
0 = None
1 = Active
0 -> 1 0 1.04 3rd Trip Cause NumberTattletale:
0 = None
1 = Active
0 -> 1 0 1.04 4th Trip Cause NumberTattletale:
0 = None
1 = Active
0x20 -> 0x7E for each ASCII
<none> 1.04 1st Trip Cause Tag
15 2nd Out Tag 2OTTAG R/O System String10 10
16 3rd Out Tag 3OTTAG R/O System String10 10 0x20 -> 0x7E
0x20 -> 0x7E for each ASCII
for each ASCII
<none> 1.04 2nd Trip Cause Tag
<none> 1.04 3rd Trip Cause Tag
Issued Aug-14 61
19
Active Link Count
LNKCNT
R/O
System
U8 1
1 -> 16
0
1.04
Current Active Link Count
Point Type 72: Effect Configuration
Parm Name Abbr Access System
or User Update
Data Type
Length Range Default Ver Description
17 4th Out Tag 4OTTAG R/O System String10 10 0x20 -> 0x7E
for each ASCII character
18 Reset Code RSTCOD R/W User U8
20 Assert
EffectContinuously
EFMODE R/W User U8
1
0 -> 255 0 1.04 Match Reset Code withCause
1
0 -> 1 0 3.03 Assert Effect Continuously:
<none> 1.04 4th Trip Cause Tag
Reset Code
0 = Once
1 = Continuous
62 Issued Aug-14

Appendix A – Sample Cause and Effect Diagram

This appendix presents a full Cause and Effect Diagram sample matrix. You can use the sample or make your own design.
Issued Aug-14 63
Headquarters:
ity. Remote Automation Solutions reserves the right to modify
purchaser and end-user.
Europe:
North American/Latin America:
Middle East/Africa:
Asia-Pacific:
www.EmersonProcess.com/Remote
Emerson Process Management
Remote Automation Solutions 6005 Rogerdale Road Houston, TX 77072 U.S.A. T +1 281 879 2699 | F +1 281 988 4445
www.EmersonProcess.com/Remote
Emerson Process Management
Remote Automation Solutions Emerson House Unit 8, Waterfront Business Park Dudley Road, Brierly Hill Dudley UK DY5 1LX T +44 1384 487200 | F +44 1384 487258
www.EmersonProcess.com/Remote
Emerson Process Management
Remote Automation Solutions 6005 Rogerdale Road Houston TX USA 77072 T +1 281 879 2699 | F +1 281 988 4445
www.EmersonProcess.com/Remote
Emerson Process Management
Remote Automation Solutions Emerson FZE P.O. Box 17033 Jebel Ali Free Zone – South 2 Dubai U.A.E. T +971 4 8118100 | F +971 4 8865465
www.EmersonProcess.com/Remote
Emerson Process Management
Remote Automation Solutions 1 Pandan Crescent Singapore 128461 T +65 6777 8211| F +65 6777 0947
© 2014 Remote Automation Solutions, a business unit of Emerson Process Management. All rights reserved.
Remote Automation Solutions, a business unit of Emerson Process Management, shall not be liable for technical or editorial errors in this manual or omissions from this manual. REMOTE AUTOMATION SOLUTIONS MAKES NO WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE WITH RESPECT TO THIS MANUAL AND, IN NO EVENT SHALL REMOTE AUTOMATION SOLUTIONS BE LIABLE FOR ANY INCIDENTAL, PUNITIVE, SPECIAL OR CONSEQUENTIAL DAMAGES INCLUDING, BUT NOT LIMITED TO, LOSS OF PRODUCTION, LOSS OF PROFITS, LOSS OF REVENUE OR USE AND COSTS INCURRED INCLUDING WITHOUT LIMITATION FOR CAPITAL, FUEL AND POWER, AND CLAIMS OF THIRD PARTIES.
Emerson Process Management Ltd, Remote Automation Solutions (UK), is a wholly owned subsidiary of Emerson Electric Co. doing business as Remote Automation Solutions, a business unit of Emerson Process Management. FloBoss, ROCLINK, ControlWave, Helicoid, and OpenEnterprise are trademarks of Remote Automation Solutions. AMS, PlantWeb, and the PlantWeb logo are marks owned by one of the companies in the Emerson Process Management business unit of Emerson Electric Co. Emerson Process Management, Emerson and the Emerson logo are trademarks and service marks of the Emerson Electric Co. All other marks are property of their respective owners.
The contents of this publication are presented for informational purposes only. While every effort has been made to ensure informational accuracy, they are not to be construed as warranties or guarantees, express or implied, regarding the products or services described herein or their use or applicabil or improve the designs or specifications of such products at any time without notice. All sales are governed by Remote Automation Solutions’ terms and conditions which are available upon request. Remote Automation Solutions does not assume responsibility for the selection, use or maintenance of any product. Responsibility for proper selection, use and maintenance of any Remote Automation Solutions product remains solely with the
Remote Automation Solutions
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
