Remote Automation Solutions FloBoss 107 Flow Manager LCD User Manual Manuals & Guides

Download
Remote Automation Solutions
Part Number D301258X012
August 2019
FloBoss™ 107 Flow Manager LCD User Manual
ii Revised August-2019

System Training

A well-trained workforce is critical to the success of your operation. Knowing how to correctly install, configure, program, calibrate, and trouble-shoot your Emerson equipment provides your engineers and technicians with the skills and confidence to optimize your investment. Remote Automation Solutions offers a variety of ways for your personnel to acquire essential system expertise. Our full-time professional instructors can conduct classroom training at several of our corporate offices, at your site, or even at your regional Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Remote Automation Solutions Training Department at 800-338-8158 or email us at education@emerson.com.
FB107 LCD User Manual
Revised August-2019 iii

Contents

Chapter 1 – Introduction 1-1
1.1 Scope and Organization ................................................................................................................. 1-1
1.2 Overview ........................................................................................................................................ 1-1
1.2.1 Display Mode ..................................................................................................................... 1-4
1.2.2 Power Savings Mode ......................................................................................................... 1-5
1.2.3 Inactivity Time .................................................................................................................... 1-6
1.2.4 Touchpad and ROCLINK 800 Security .............................................................................. 1-6
Chapter 2 – Configuration 2-1
2.1 Configuring the Port Owner ............................................................................................................ 2-1
2.2 Configuring Touchpad Options ...................................................................................................... 2-4
2.3 Configuring Basic List Mode (BLM) ............................................................................................... 2-5
2.4 Configuring Standard or Normal Mode .......................................................................................... 2-7
2.5 Configuring Chart Mode ................................................................................................................. 2-8
2.6 Configuring Touchpad Security ...................................................................................................... 2-9
Chapter 3 – Using The Touchpad 3-1
3.1 Touchpad Screens ......................................................................................................................... 3-1
3.1.1 Menu Screens .................................................................................................................... 3-1
3.1.2 Parameter Screens ............................................................................................................ 3-2
3.1.3 Dynamic Charts .................................................................................................................. 3-3
3.1.4 Operational Screens .......................................................................................................... 3-4
3.1.5 Touchpad Time Out ........................................................................................................... 3-4
3.2 Logging On ..................................................................................................................................... 3-5
3.3 User Lists ....................................................................................................................................... 3-8

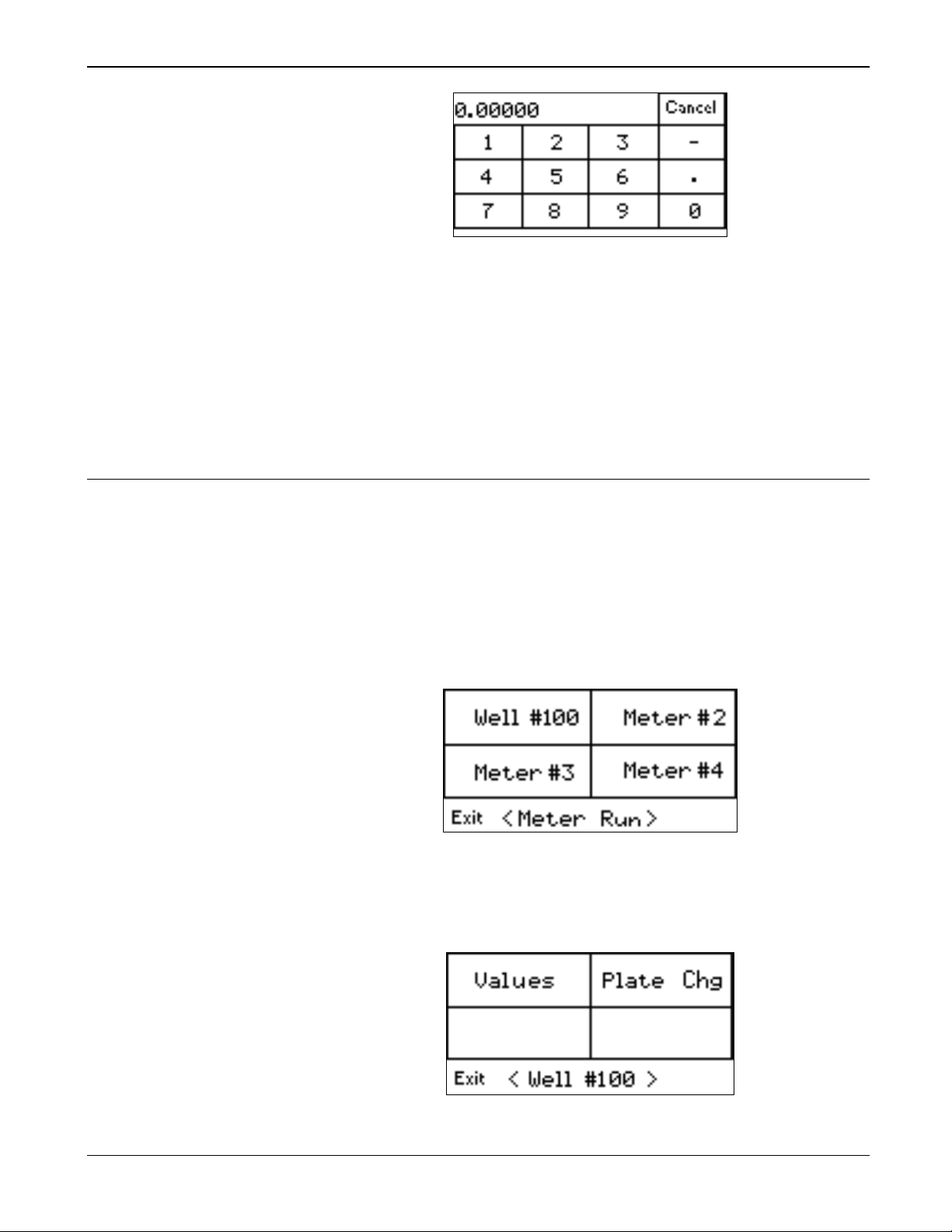

3.4 Meter Runs ................................................................................................................................... 3-11
3.4.1 Displaying Meter Information ........................................................................................... 3-12
3.4.2 Changing a Plate .............................................................................................................. 3-12
3.5 Module Information ...................................................................................................................... 3-13
3.5.1 Viewing I/O and Diagnostic Information ........................................................................... 3-14

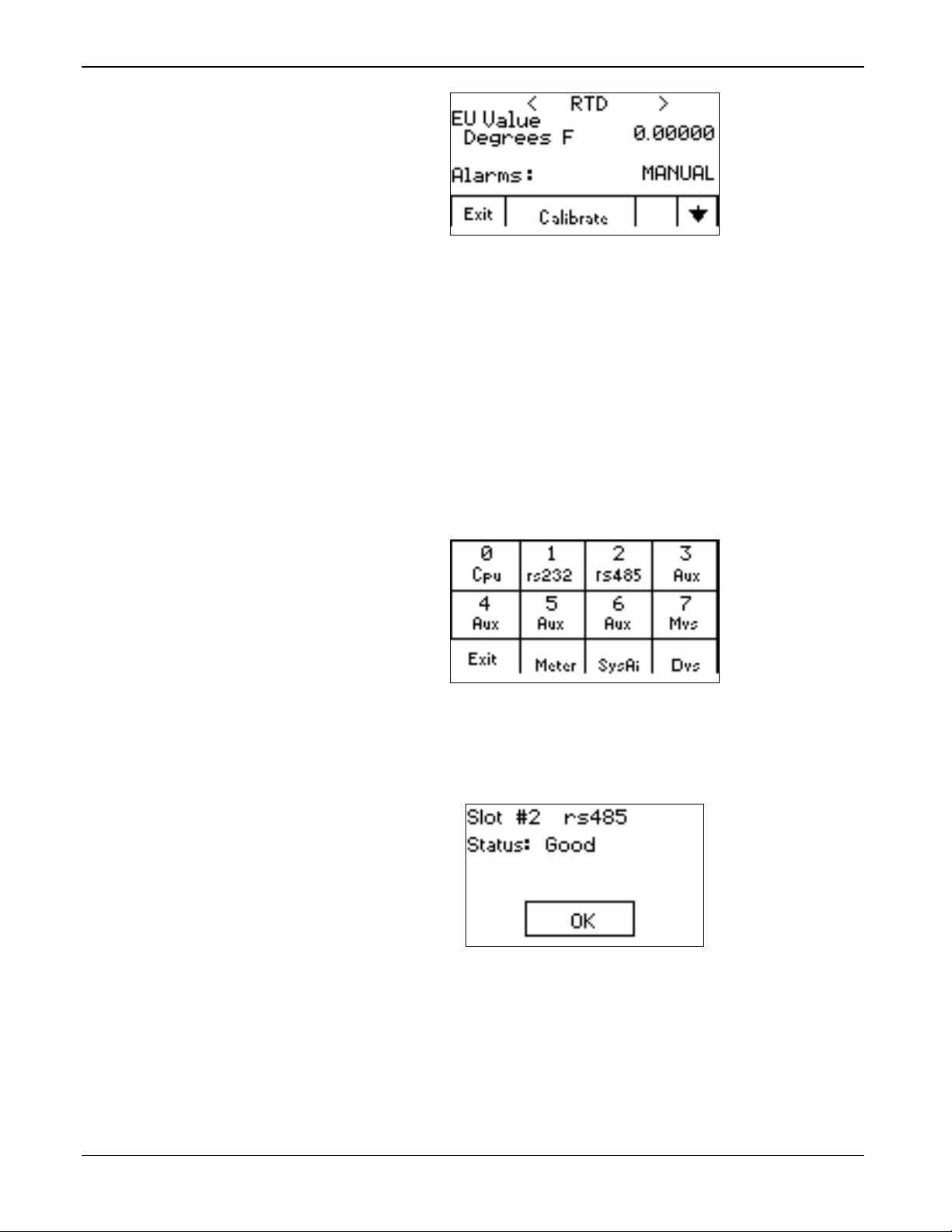

3.5.2 Viewing RTD Information ................................................................................................. 3-15
3.5.3 Viewing COMM Information ............................................................................................. 3-16
3.5.4 Viewing Multiple Variable Sensor (MVS) Information ...................................................... 3-16
3.5.5 Viewing Meter Information ............................................................................................... 3-17
3.5.6 Viewing System Information ............................................................................................. 3-18
3.5.7 Viewing Dual Variable Sensor (DVS) Information ............................................................ 3-19
3.5.8 Calibrating a Point ............................................................................................................ 3-20
3.6 Charts ........................................................................................................................................... 3-23
3.6.1 Viewing Historical Data .................................................................................................... 3-24
3.6.2 Viewing Dynamic Data ..................................................................................................... 3-26

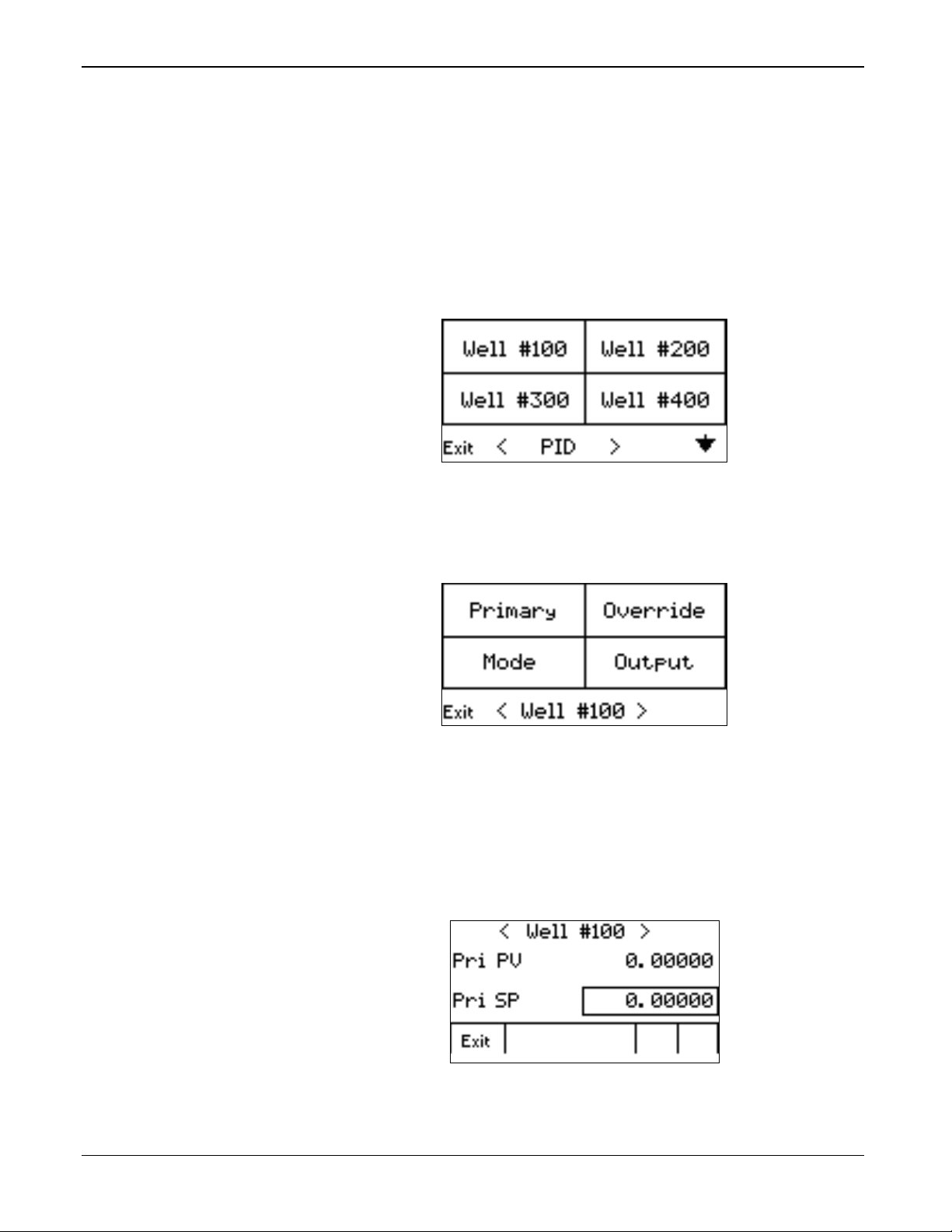

3.7 PID Loops ..................................................................................................................................... 3-27
3.7.1 Setting Basic PID Loops .................................................................................................. 3-28
3.7.2 Setting Advanced PID Loops ........................................................................................... 3-30

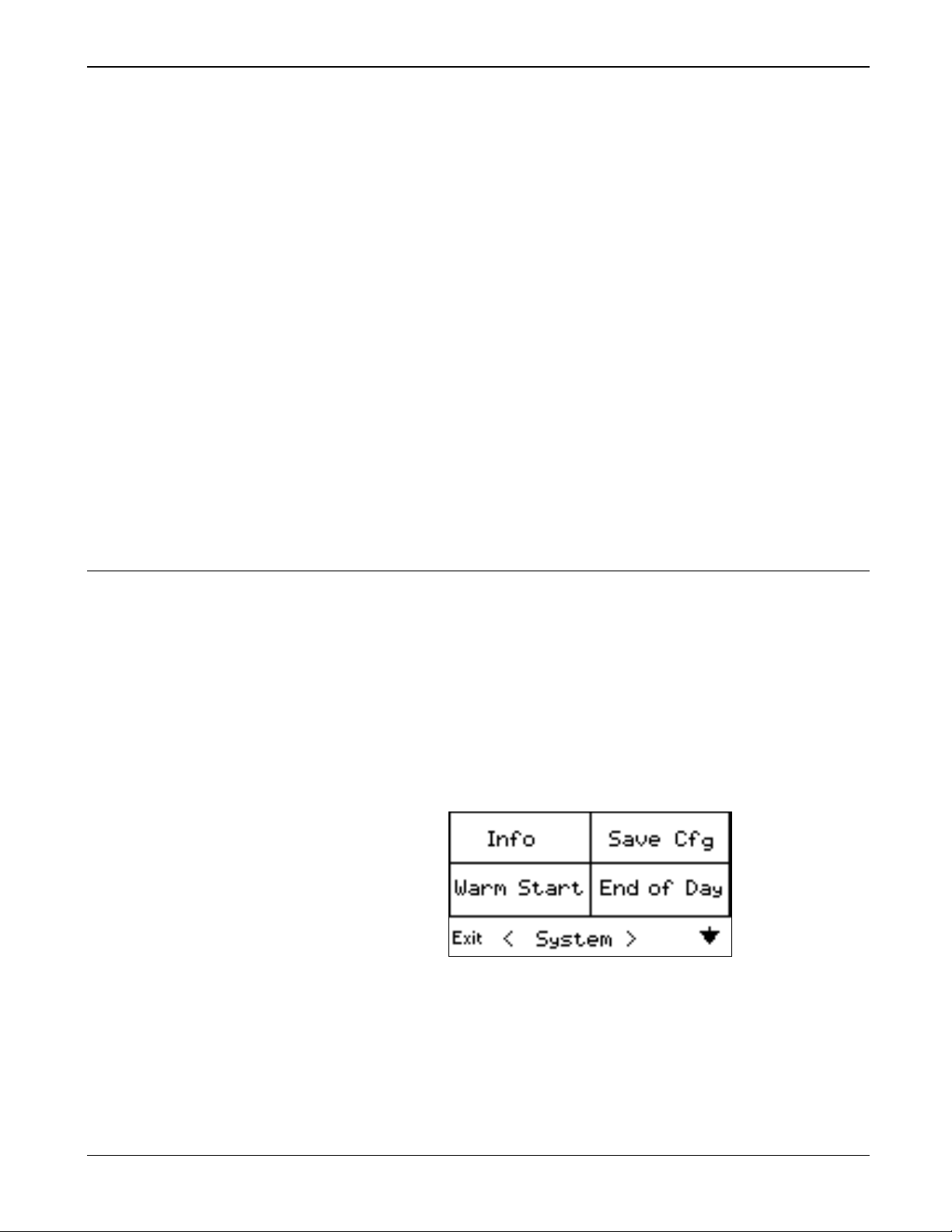

3.8 System Information ...................................................................................................................... 3-31
3.8.1 Displaying System Information......................................................................................... 3-32
3.8.2 Saving a Configuration ..................................................................................................... 3-32
3.8.3 Performing a Warm Start ................................................................................................. 3-33
3.8.4 Forcing End of Day .......................................................................................................... 3-34
FB107 LCD User Manual
iv Revised August-2019

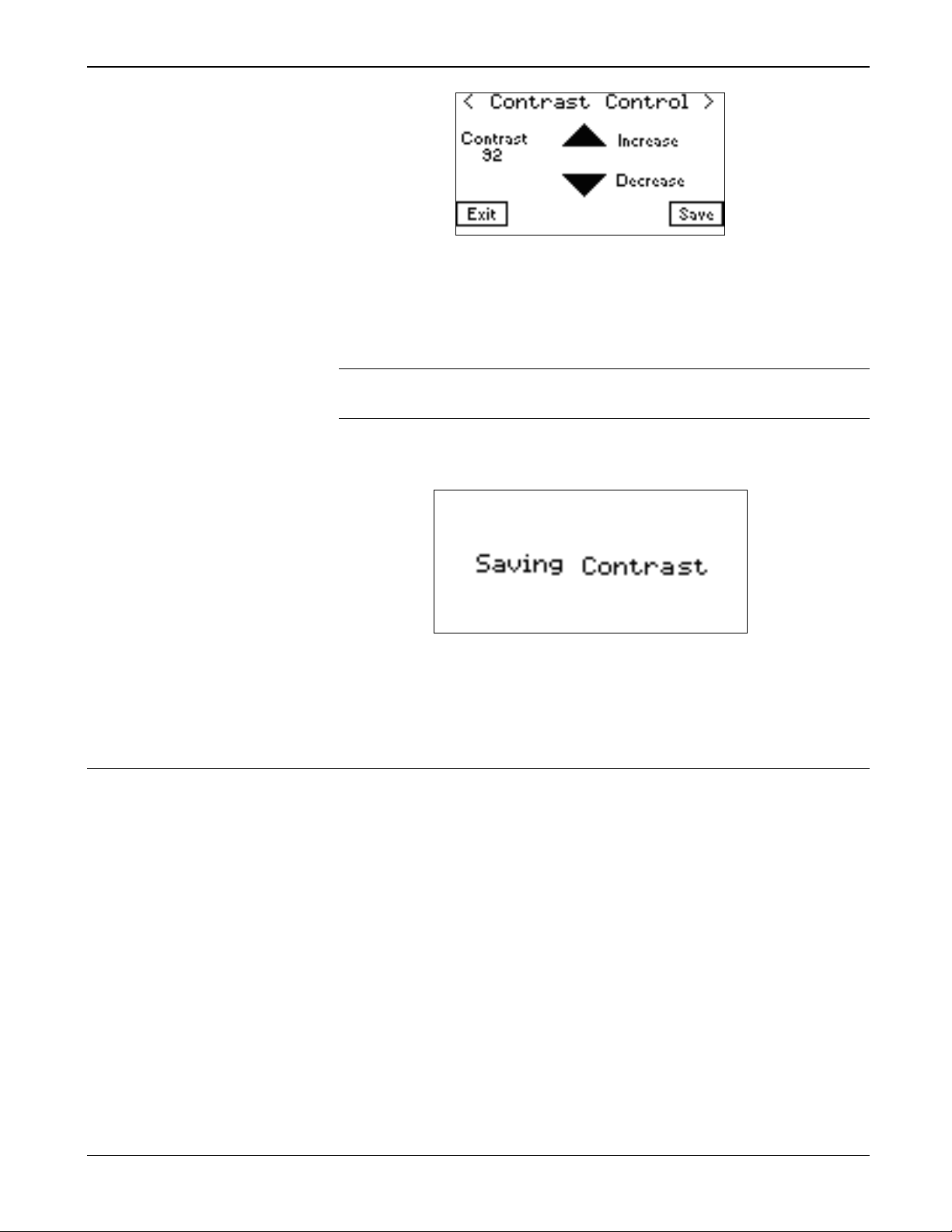

3.8.5 Adjusting Touchpad Contrast ............................................................................................3-34
3.9 History ...........................................................................................................................................3-35
3.10 Logging Off ....................................................................................................................................3-37
Appendix A – Installing the Touchpad A-1

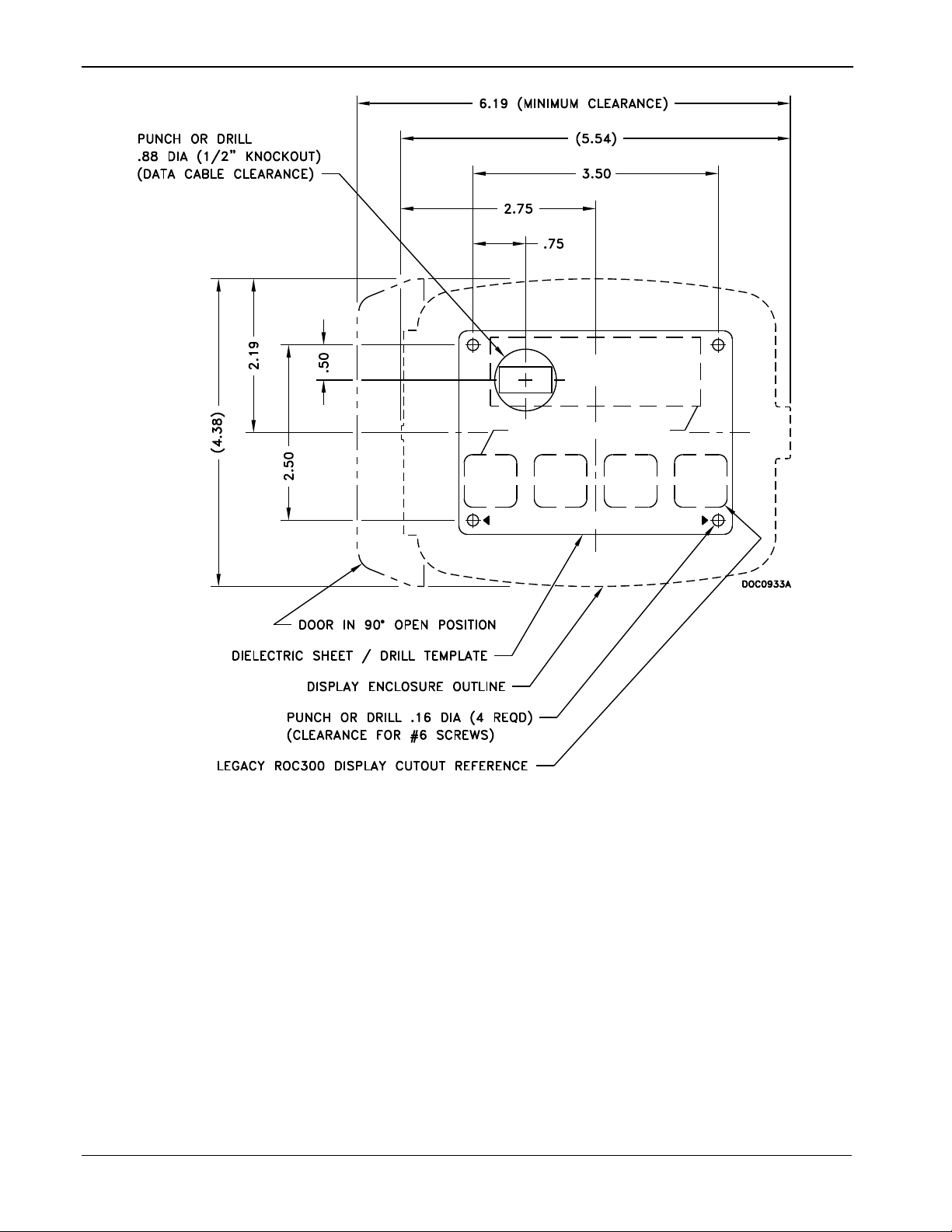

A.1 Touchpad Location .............................................................................................................. A-1
Index I-1

Revised August-2019 Introduction 1-1

Chapter 1 – Introduction

This chapter describes the structure of this manual and presents an overview of the Liquid Crystal Display (LCD) for the FloBoss™ 107 Flow Manager.

1.1 Scope and Organization

This document serves as the user manual for the FloBoss™ 107 Flow Manager Liquid Crystal Display (LCD), which is intended for use with the FloBoss 107 Flow Manager (“FB107”). This manual describes how to install, configure, and use the FB107 LCD (the “Touchpad”). You initially access and configure the Touchpad using ROCLINK 800 Configuration software loaded on a personal computer running Windows® 7 (32-bit or 64-bit), Windows 8 (32-bit or 64-bit), or Windows 10 (32-bit or 64-bit). Once configured, the Touchpad provides access to many FB107 system parameters and functions.
The chapters in this manual provide information in a sequence appropriate for first-time users. Once you become familiar with the device and the procedures, the manual becomes a reference tool.
This manual has the following major sections:
▪ Chapter 1 – Introduction ▪ Chapter 2 – Configuration ▪ Chapter 3 – Using the Touchpad
This manual assumes that you are familiar with the FB107 and its configuration. For more information, refer to the following specification sheet and manuals:
▪ FloBoss™ 107 Flow Manager Instruction Manual
(part D301232X012)
▪ FloBoss™ 107 LCD Specification Sheet (5.5:LCD) ▪ ROCLINK 800 Configuration Software User Manual (for FB107)
(part D301249X012)

1.2 Overview

The Touchpad enables you to access FB107 process and operational information and to view and change FB107 parameters. The Touchpad is a touch-sensitive liquid crystal display (LCD) screen. It fits behind a protective covering that is mounted to an enclosure (see Figure 1-1).
1-2 Introduction Revised August-2019
Figure 1-1. FB107 Touchpad, Enclosure-Mounted
Note: The Touchpad (with FB107) is designed to be mounted to an
enclosure. Remote Automation Solutions has an enclosure designed for the Touchpad. If you choose to use your own enclosure, contact your local sales representative for a template and appropriate specifications.
The Touchpad communicates with the FB107 through a dedicated RS­232 connection located on the FB107 base unit (see Figure 1-2). The Touchpad’s RS-232 connection is permanently configured with a baud rate of 19200, 1 stop bit, 1 start bit, 8 data bits, and no parity.
Revised August-2019 Introduction 1-3
A
Display connection

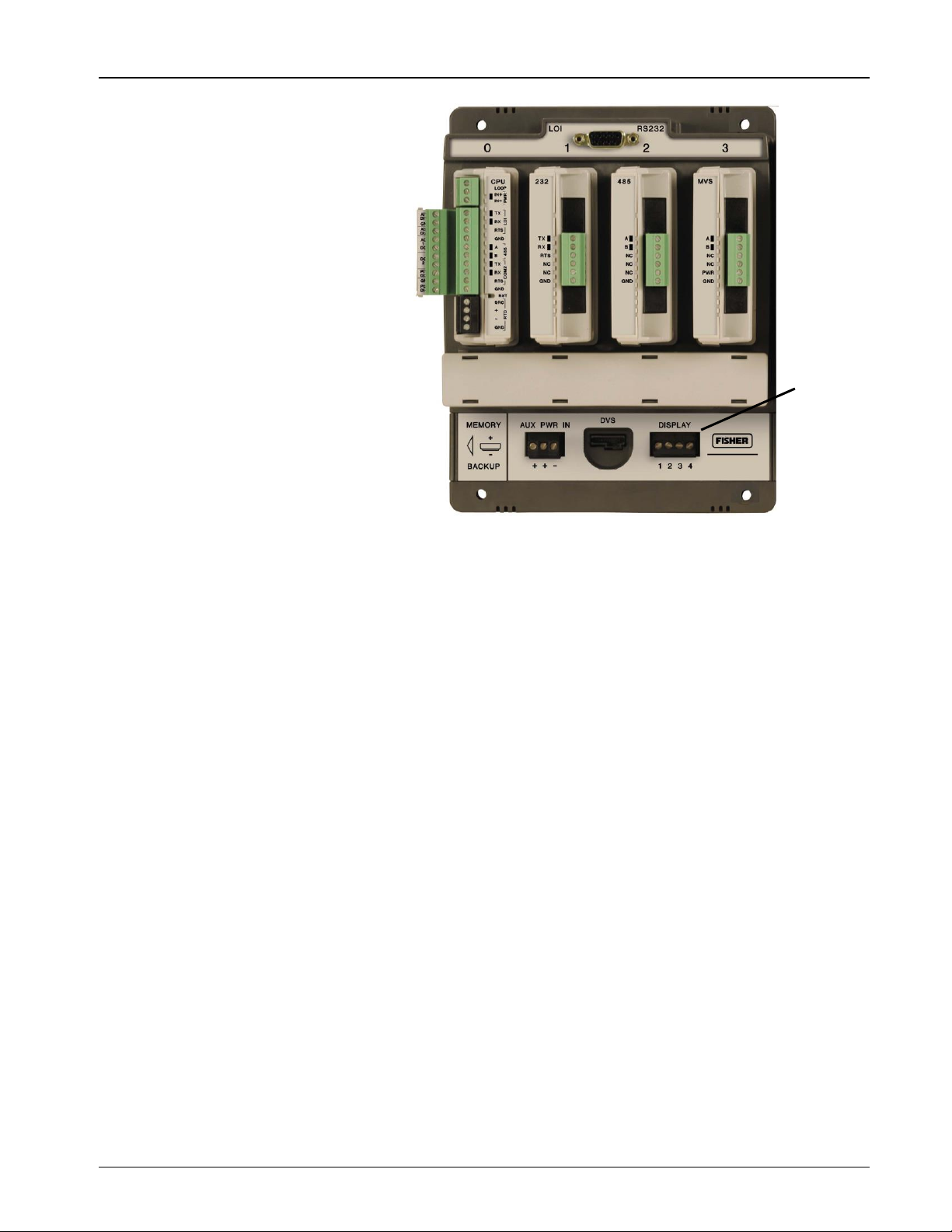

Figure 1-2. FB107 Base Unit, Display Connection
The Touchpad is a transreflective LCD. To maintain readability in direct sunlight, it reflects most of the sunlight and increases or decreases the brightness of its display based on the amount of light. This reduces your need to manually adjust the screen. It also has a backlight to increase readability during low-light use conditions or during critical operations (such as when you enter a PIN code). During idle periods, the backlight automatically enters a power-saving mode to conserve energy.
The Touchpad requires no manual calibration. Internal firmware provides the coordinates to assure display communications between the Touchpad and your FB107.
A
1-4 Introduction Revised August-2019
ALARMKEY ACK
TO ACTIVATE
TOUCH SCREEN

Figure 1-3. FB107 Touchpad with Open Cover
To use the Touchpad, you open its protective cover and touch the screen. Two light-emitting diodes (LEDs) at the top of the Touchpad
provide visual signals on the Touchpad’s operational status. The green LED indicates successful “touches”: each time you touch the screen, the
green LED flashes to verify that the Touchpad has acknowledged your entry. The green LED also can flash once every three seconds if you have set the power savings mode (see Section 1.2.2). The red LED signals alarm or integrity issues, and coordinates with other visual Touchpad clues (such as an on-screen asterisk, i, or a) to identify the area of concern. See Chapter 3, Using the Touchpad.

1.2.1 Display Mode

The Touchpad has two operational modes, Normal and Basic List Mode (BLM). When you open the cover, the Touchpad displays the
“idle state display” (typically the Emerson Process Management logo):
Figure 1-4. Touchpad “Idle State” Display
Revised August-2019 Introduction 1-5
When you touch the screen, you see either a list of system parameters or a number grid.

Figure 1-5. Initial Active Touchpad Displays
BLM mode (indicated by the on-screen BLM List label) provides an auto-scrolling list of read-only parameters, which displays up to 48 user­defined parameters (refreshed once per second) without requiring a log on process. (At any time you can interrupt the auto-display and log on through the Touchpad.)

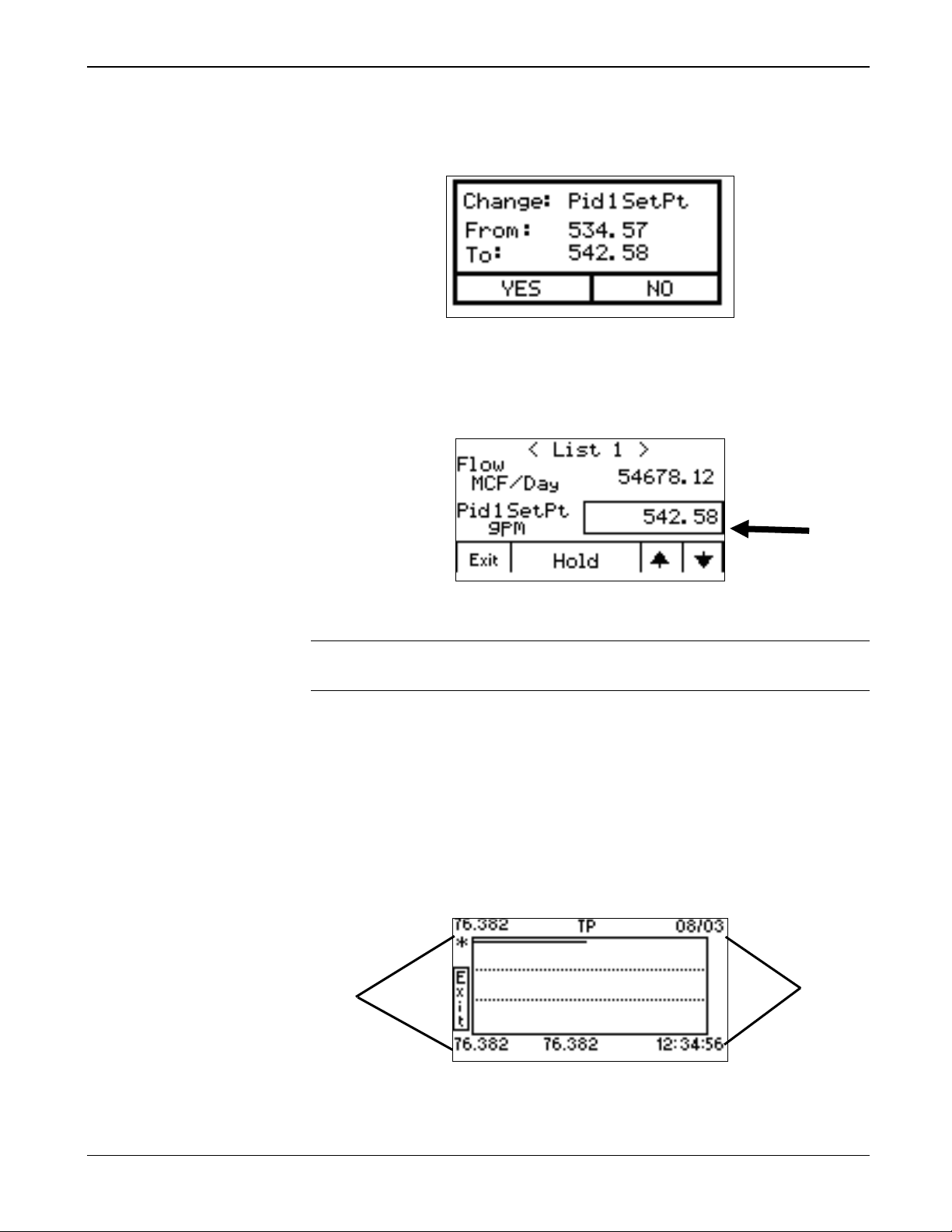

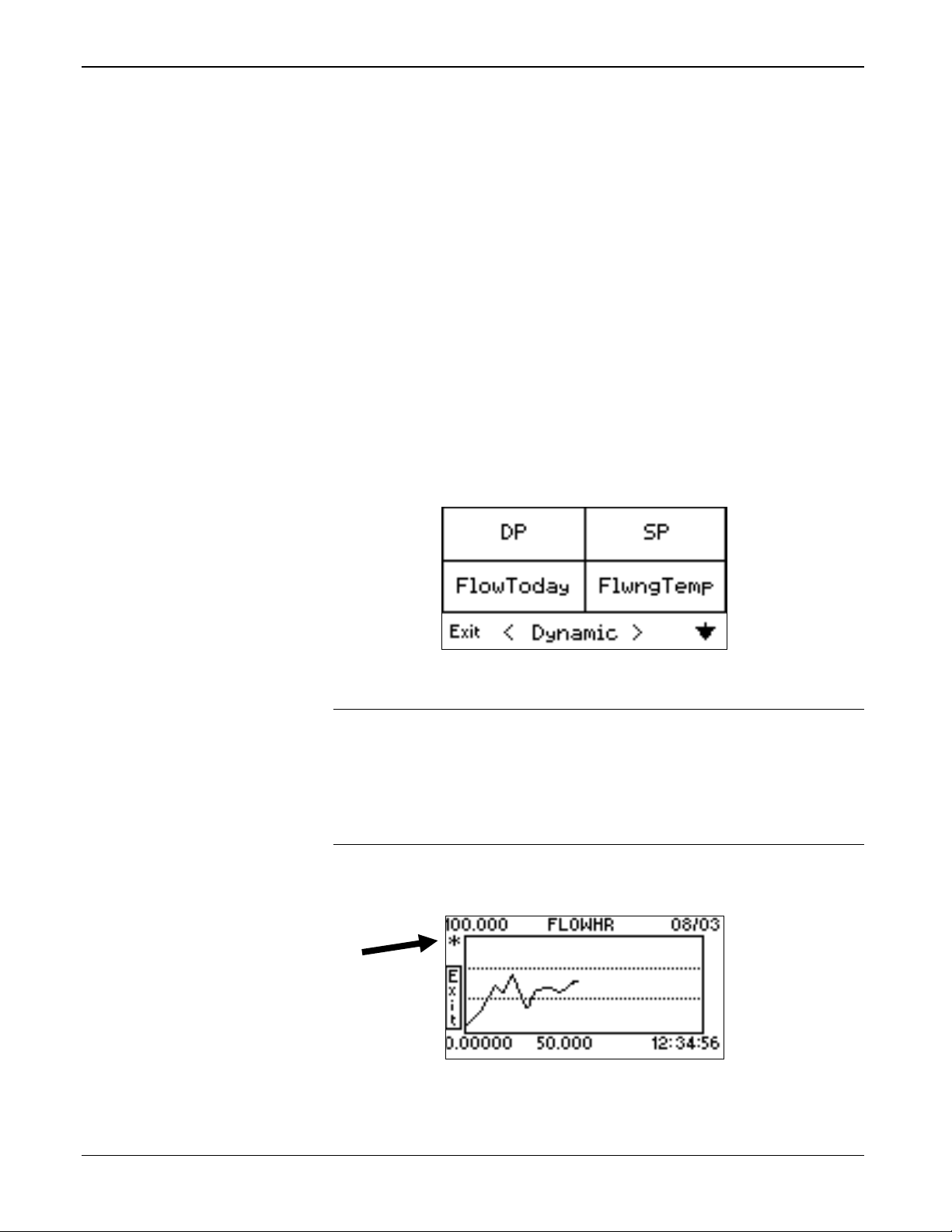

Note: BLM mode also includes a dynamic chart mode. Technicians can
touch a parameter and the Touchpad displays a dynamic chart related to that parameter. See Chapter 3, Using the Touchpad, for further details on this feature.
Normal mode requires a sign-in process before displaying any information. Refer to Chapter 3, Using the Touchpad, for further information.

1.2.2 Power Savings Mode

The Touchpad also provides an optional power-savings mode, which activates whenever the idle state display occurs. (This power savings mode works with either Normal or BLM display mode.) Select this option on the Advanced tab of the LCD Controller screen (see Figure 1-
6).

1-6 Introduction Revised August-2019
Figure 1-6. Power Savings Modes
When you click Low Power (and then click Update to apply the change), ROCLINK 800 performs a warm start and shuts down the Touchpad. While the Touchpad is blank, the green LED blinks once every three seconds to indicate the Touchpad is active. The Touchpad
“awakens” when you touch it, and shows the idle state display. At that
point log on and proceed to use the Touchpad normally. Whenever the
Touchpad “times out” and would normally show the idle state display,
the Touchpad is blank. This reduces the energy required to continually show the idle state display.

1.2.3 Inactivity Time

The LCD is setup to remain ON indefinitely. Setting this option overrides the Inactivity Timer in the LCD. The Inactivity Timer is configurable and you can access this option on the “Advanced” tab of the LCD.

1.2.4 Touchpad and ROCLINK 800 Security

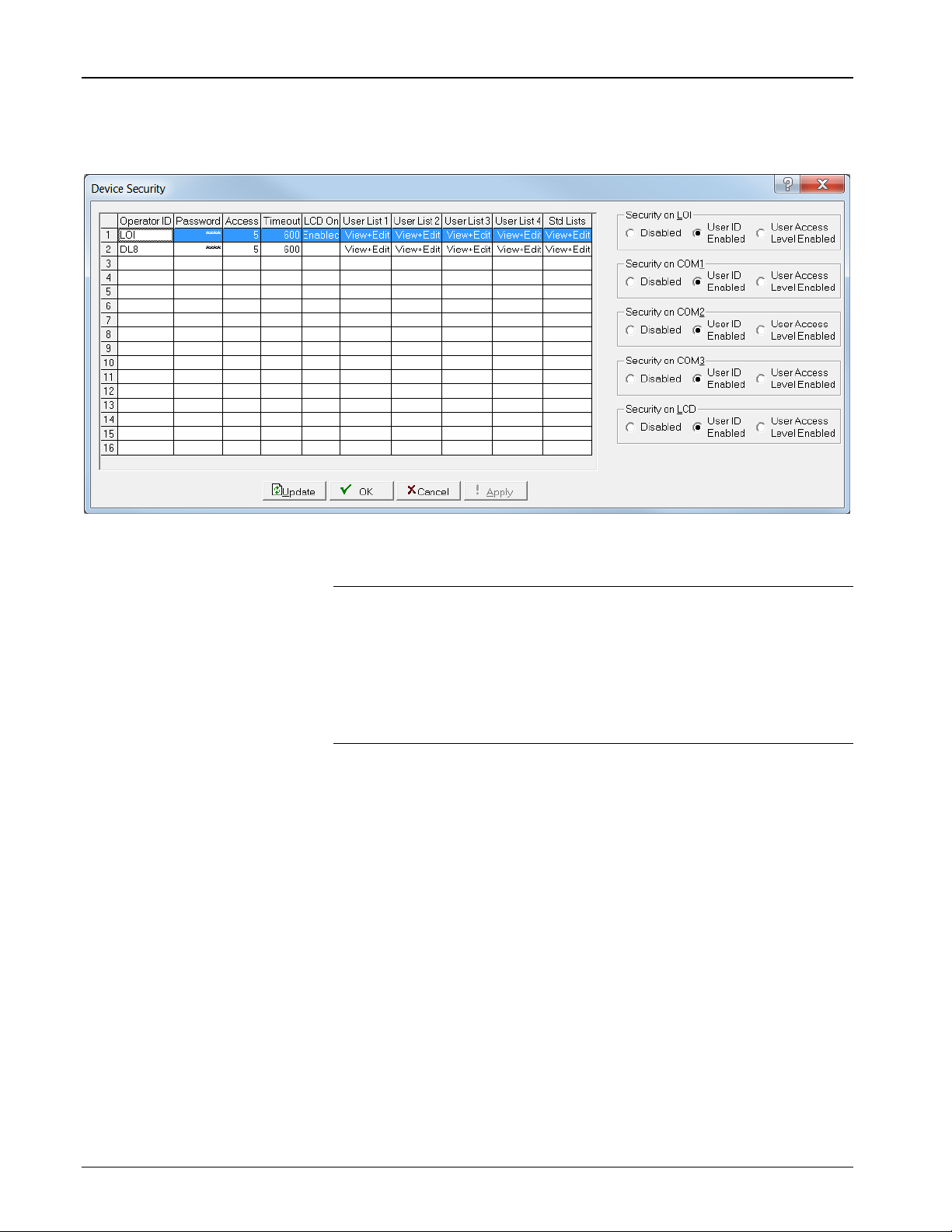

ROCLINK 800 security enables you can determine which user IDs can access which Touchpad features. You can define up to 16 user IDs, each of which can have read-only, read-write, or no access to the four user
Revised August-2019 Introduction 1-7
lists and standard features of the Touchpad. See Section 2.6, Configuring Touchpad Security.
1-8 Introduction Revised August-2019
[This page is intentionally left blank.]

Revised August-2019 Configuration 2-1

Chapter 2 – Configuration

This chapter provides instructions for configuring Touchpad options. The FB107 is factory-configured to accept the Touchpad. Until you
connect the Touchpad to the FB107, the Display port displays an integrity (“red I”) error (see Figure 2-1, Section 2-1).
After connecting the Touchpad, you can configure additional display options as well as Touchpad security (see Sections 2-2 through 2-6).

2.1 Configuring the Port Owner

1. Log onto and open ROCLINK 800. The FB107 graphic displays.

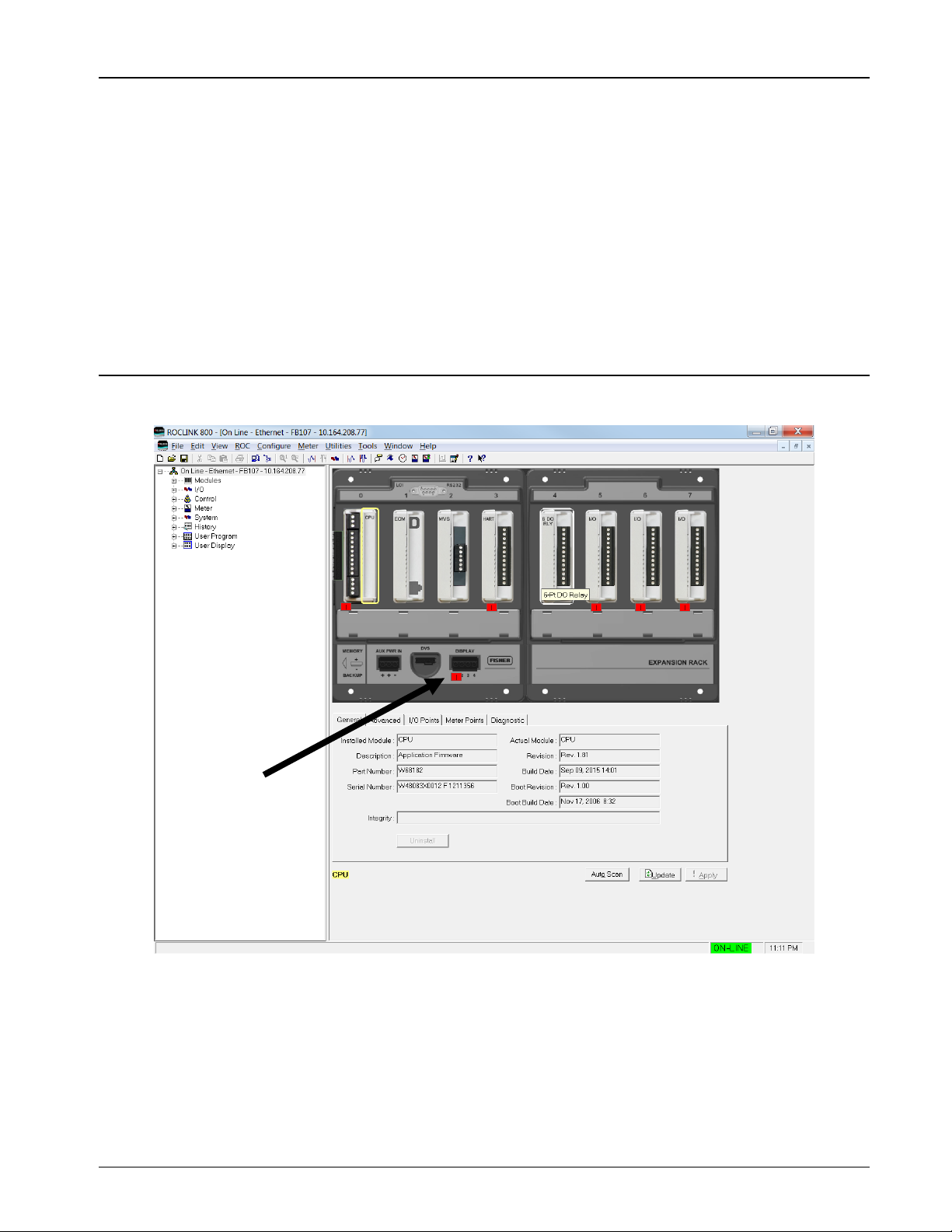

Figure 2-1. FB107 Graphic Display
2. Plug the connector for the Touchpad into the Display port on your
FB107 (see Figure 2-1). The Touchpad activates and displays the message “Waiting for Comms…”
2-2 Configuration Revised August-2019

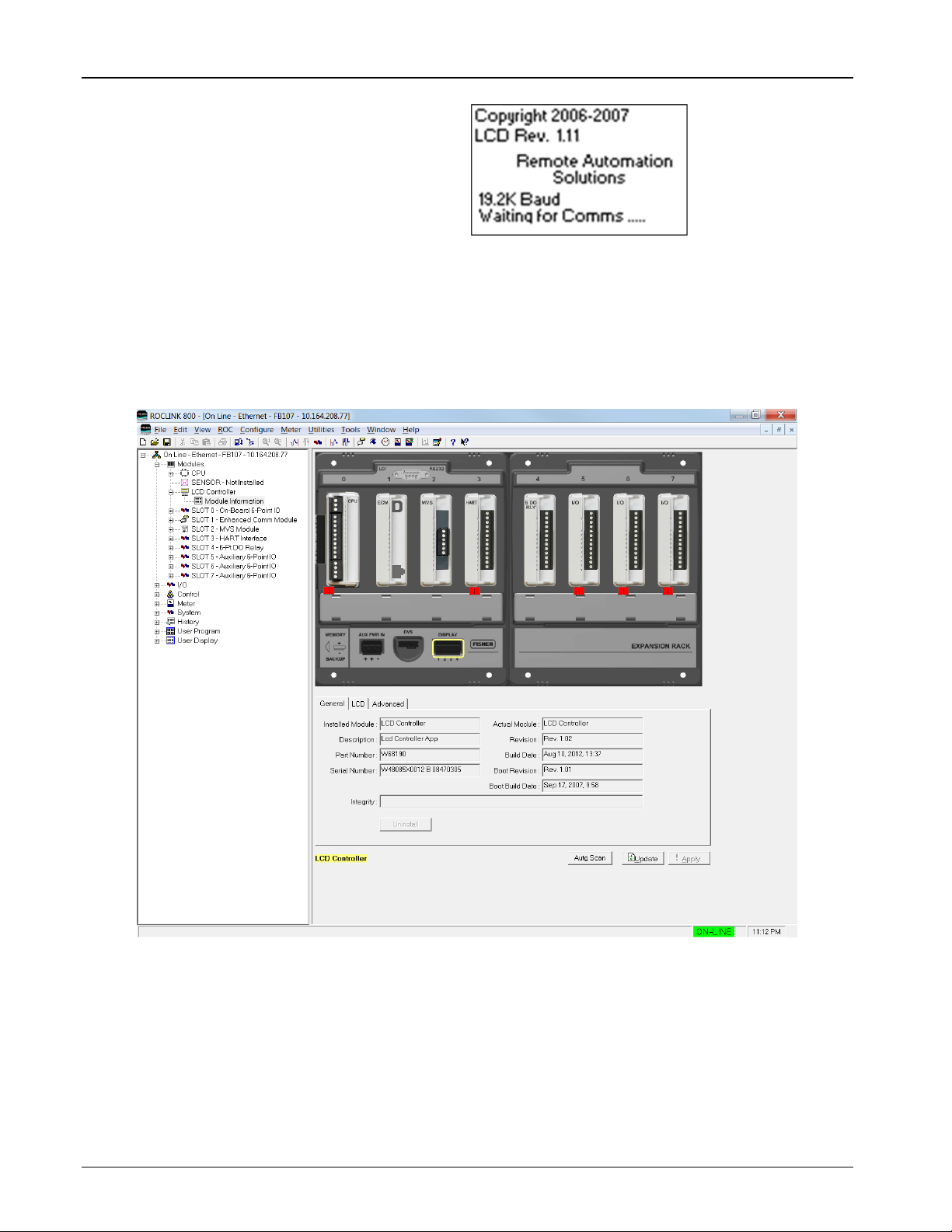

Figure 2-2. Touchpad Activation
3. Click the Display port on the FB107 graphic. The LCD Controller
screen appears at the bottom of the FB107 graphic display. Note that the FB107 graphic highlights the Display port and
removes the integrity error on the display port.
Figure 2-3. LCD Controller
4. Select the Advanced tab. The Advanced screen displays.
Revised August-2019 Configuration 2-3
Figure 2-4. LCD Controller, Advanced tab
5. Verify that LCD Master in the Port Owner frame is the port owner
(this is the default value).
Note: Figure 2-4 also shows the other default comm values (Baud
Rate, Parity, Data Bits, Stop Bits, and LCD Mode) for the FB107.
6. Click Apply if you changed any values on this screen. ROCLINK
800 performs a warm start, and the Touchpad displays the Emerson Process Management logos.
Figure 2-5. Emerson Process Management Logos
Proceed to Sections 2.2 through 2.6 to configure display options.

2-4 Configuration Revised August-2019

2.2 Configuring Touchpad Options

When configuring Touchpad options, you determine both the default display mode (Sections 2.3 through 2.5) and which user IDs may access which Touchpad features (Section 2.6).

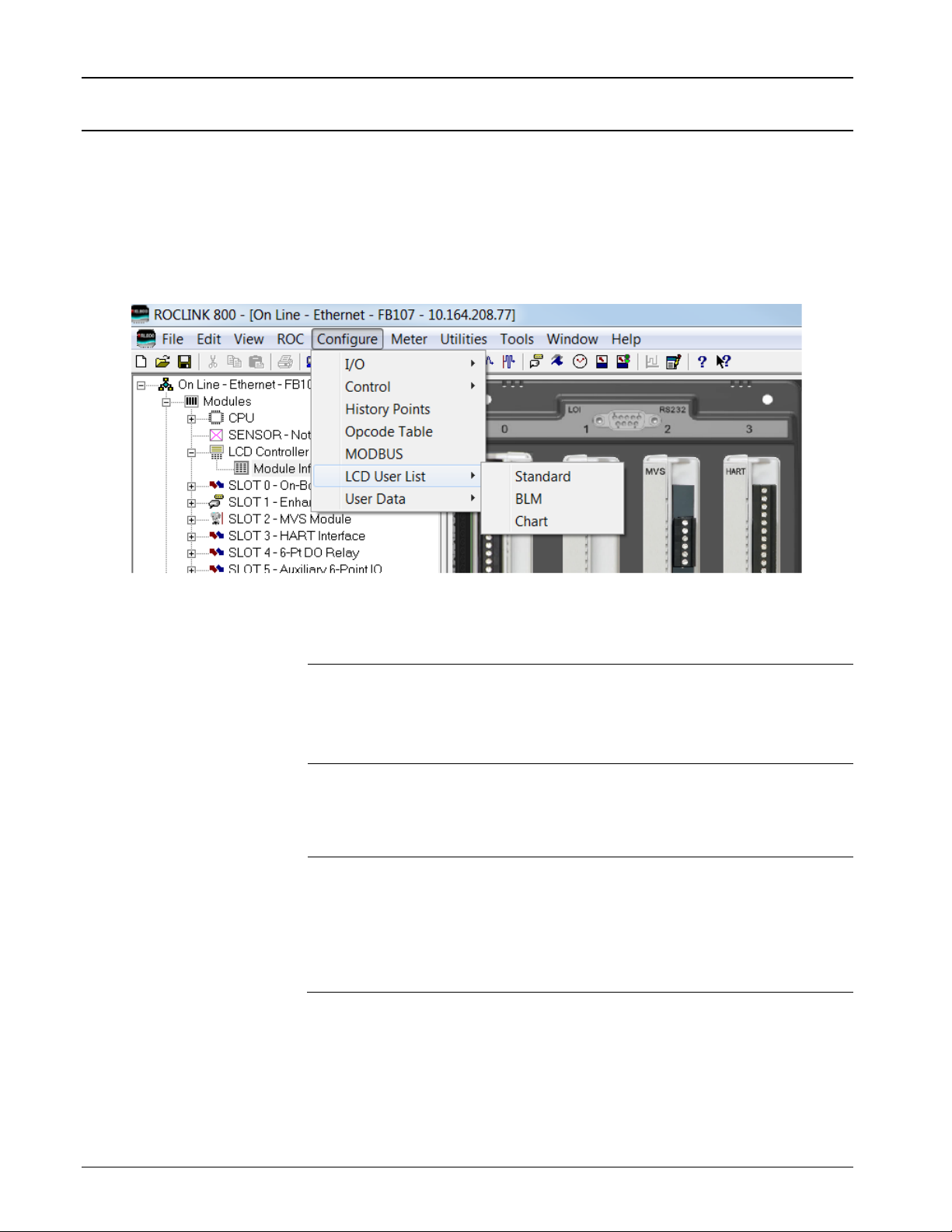

You use the Configure option on the ROCLINK menu bar to select one of two possible default display modes for the Touchpad.
Figure 2-6. ROCLINK 800 LCD User List Configuration Options
Option
Description
Standard
Requires you to first log onto the Touchpad. Displays (based on pre-defined ROCLINK 800 security parameters) select system values and allows you modify select system parameters.
Note: This is also called “Normal” mode.
BLM
Automatically displays up to 48 parameter values. Allows you (based on pre-defined ROCLINK 800 security parameters) to log onto the Touchpad and display select system values and modify select system parameters.
Chart
Requires you to first log onto the Touchpad. Displays, in a chart recorder format, historical or dynamic values for up to 16 user-defined parameters.
Note: For convenience, a dynamic charting function
is available for the parameters displayed in basic list mode. However, this is not the full­function charting facility.

Revised August-2019 Configuration 2-5

2.3 Configuring Basic List Mode (BLM)

In Basic List Mode (BLM), the Touchpad displays up to 48 parameter values, automatically scrolling through the list at a speed you define. (The Touchpad displays up to two parameters per screen.) This mode allows service technicians to quickly review a dynamic display of current values without logging onto the Touchpad.
1. Select the Advanced tab of the LCD Controller screen. The
Advanced screen displays.
Figure 2-7. ROCLINK 800 LCD User List Configuration Options
2. Select BLM in the LCD Mode frame. Click Apply to save your
change. ROCLINK 800 performs a warm start.
3. Select Configure > LCD User List > BLM from the ROCLINK
800 Menu bar. The LCD User List – BLM screen displays.
2-6 Configuration Revised August-2019
Figure 2-8. LCD User List – BLM
4. Complete the following fields to define the contents of the BLM list.
Field
Description
Title
Sets a 10-character alphanumeric identifier for the list.
Scroll Time
Indicates the number of seconds the Touchpad displays each parameter set before scrolling to the next parameter set. (The Touchpad displays up to two parameters at a time.) Valid values are
0 (do not scroll) to 255; the default is 4. Note: If you set this value to 0, you must use the
and keys on the Touchpad to manually scroll through the parameters defined in the list.
Device Parameter
Sets the parameter that you want to display on the Touchpad. Click … to display a Select TLP screen you use to define the parameter.
Text
Sets a 10-character alphanumeric identifier for the parameter.
Units
Shows the engineering units for the associated parameter.
5. Click the 17-32 tab to define 16 additional parameters.
6. Click the 33-48 tab to define 16 additional parameters.

Revised August-2019 Configuration 2-7
7. Click Apply if you make any changes to this screen.
8. Click OK to close the LCD User List – BLM screen.
9. Proceed to Chapter 3, Using the Touchpad.

2.4 Configuring Standard or Normal Mode

In Standard or Normal mode, the Touchpad displays the Emerson Process Management logos. When you touch the screen, a logon grid displays. You then enter a PIN number to log on to the Touchpad.
1. Select the Advanced tab of the LCD Controller screen. The
Advanced screen displays.
Figure 2-9. ROCLINK 800 LCD User List Configuration Options, Advanced tab
2. Verify that Normal is selected in the LCD Mode frame. (This is the
factory default value for the Touchpad.)
3. Click Apply if you have needed to change the setting. ROCLINK
800 performs a warm start. The Touchpad now starts in Normal mode.

2-8 Configuration Revised August-2019
4. Proceed to Chapter 3, Using the Touchpad.

2.5 Configuring Chart Mode

Chart mode allows the Touchpad to emulate a chart recorder. After you log on normally, Chart is one of the options displayed on the Main Menu:
Figure 2-10. Touchpad Main Menu
The Touchpad can display up to 16 historic or dynamic system values. Use this procedure to define the displayed values.

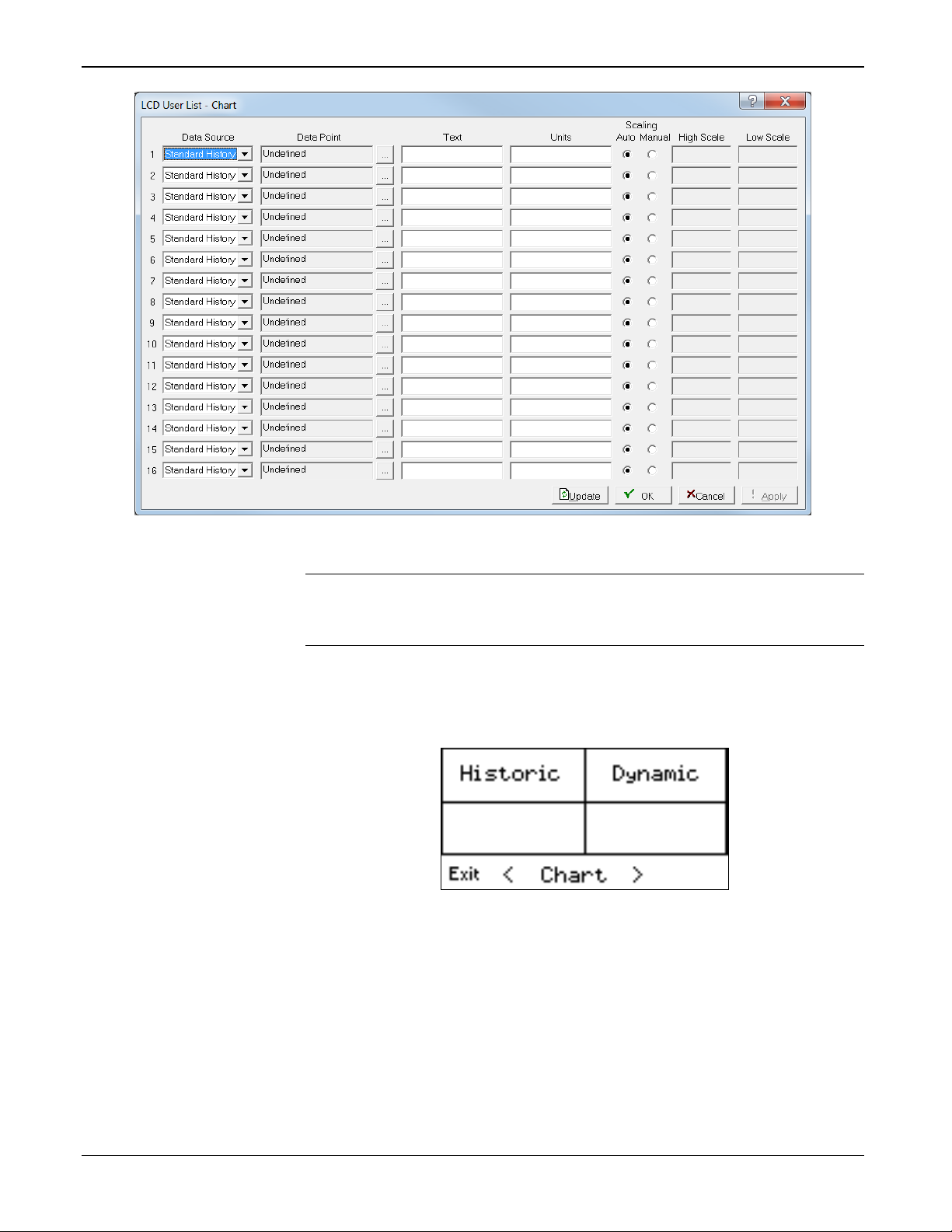

1. Select Configure > LCD User List > Chart from the ROCLINK
800 Menu bar. The LCD User List – Chart screen displays.
Figure 2-11. LCD User List - Chart
Revised August-2019 Configuration 2-9
2. Complete the following fields to define the chart display values.
Field
Description
Data Source
Sets the source for data included in the chart. Valid values are:
Standard History
Sets a standard history point to chart. Click … to open a Select History Point dialog box you can use to select a valid standard history point.
Extended History
Sets an extended history point to chart. Click … to open a Select History Point dialog box you can use to select a valid extended history point.
Dynamic
Sets a dynamic data point to chart. Click … to open a Select TLP dialog box you can use to select a valid TLP.
Data Point
Shows the data point selected.
Text
Sets a 10-character alphanumeric identifier for the data point.
Units
Shows the engineering units for the associated parameter.
Scaling
Indicates whether the system applies automatic or manual value limit factors to the charted results. Valid values are Auto (apply automatic values) or
Manual (apply defined values).
HighScale
Sets the high value for the data point.
Note: This field is available only if you select
Manual as a scaling option.
Low Scale
Sets the low value for the data point.
Note: This field is available only if you select
Manual as a scaling option.

3. Click Apply if you make any changes to this screen.
4. Click OK to close the LCD User List – Chart screen.
5. Proceed to Chapter 3, Using the Touchpad.

2.6 Configuring Touchpad Security

Touchpad security enables you to selectively restrict or permit access to Touchpad functions for up to 16 user IDs you define. To do this, you use ROCLINK 800’s Device Security screens (Figures 2-12 and 2-13). You can define an ID which can access all or only one user list or just
the Touchpad’s “standard lists.” Additionally, the ID can have edit
capability or just view capability. You define IDs and their accesses to meet your organization’s needs.
2-10 Configuration Revised August-2019

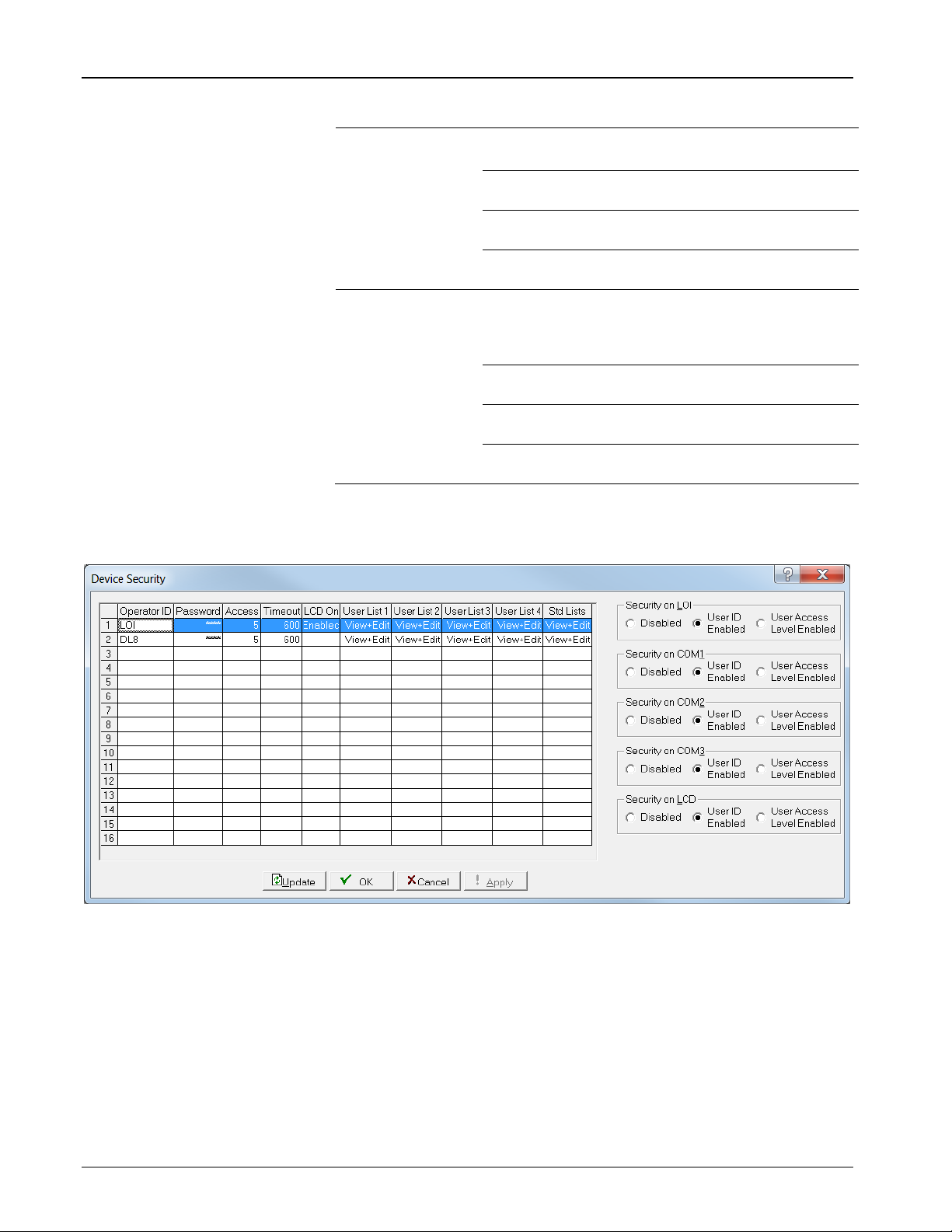

1. Select ROC > Security from the ROCLINK 800 Menu bar. The
Device Security screen displays.
Figure 2-12. Device Security
Note: Use only the left-hand side of this screen to define Touchpad
security. The right-hand fields (Security on LOI, Security on COM1, etc.) do not apply to the Touchpad (but do apply to security levels on the FB107). Leave the Security on LCD field disabled. It applies only if you are connecting a display other than the LCD from Remote Automation Solutions. If that is the case, contact Product Support.
2. Click in the first empty Operator ID field. The Device Security
dialog box displays.
Revised August-2019 Configuration 2-11
Figure 2-13. Device Security, User Level
3. Complete the following fields to define the access permissions for
the new user ID.
Field
Description
Operator ID
Sets the three alphanumeric characters for the password.
Password
Sets the four-digit password associated with this ID.
Confirm Password
Confirms the four-digit password associated with this ID.
Note: The contents of this field must match the
contents of the Password field.
Access Level
This field does not apply to the FB107 Touchpad.
Security Timeout
Sets in seconds the amount of time the communication port waits for a valid message before logging you off of the device. Valid values must be between 60 and 65535. The default is 600.
Note: You must enable security on each port
(Security On…) before the Security Timeout
is enabled for that port.
LCD Display ON
Select Enabled to implement security on and prevent write access through the LCD. Select
Disabled to allow write access through the LCD. Note: If you set LCD On to Enabled, certain
features that require write access (such as performing a warm start or forcing an end of day) are not available through the LCD for selected Operator ID.
2-12 Configuration Revised August-2019
Field
Description
User List 1 through 4
Indicates whether the ID can access the user­defined User Lists. Valid values are:
Disabled
Removes the user list from the displayed options.
View Only
Displays the user list but does not allow edits to displayed data.
View+Edit
Displays the user list and allows edits to displayed data.
Standard Lists
Indicates whether the ID can access the standard Touchpad functions (that is, the options on the Main Menu screen: Meter Runs, Modules, Charts, PID, System, and Log Off). Valid values are:
Disabled
Removes the user list from the displayed options.
View Only
Displays the user list but does not allow edits to displayed data.
View+Edit
Displays the user list and allows edits to displayed data.
4. Click OK to apply these edits. The system displays the updated
Device Security screen.
Figure 2-14. Device Security
5. Repeat steps 2 and 3 to add up to 14 more IDs.
6. Click OK to display the FB107 graphic.

Revised August-2019 Using the Touchpad 3-1

Chapter 3 – Using The Touchpad

This chapter describes the day-to-day use of the Touchpad.

3.1 Touchpad Screens

The Touchpad uses several major screen formats to present information. Included are menu screens, parameter screens, and dynamic charts.
Note: System security settings controls which options display on your
Touchpad and whether you can edit parameter values. Refer to Section 2.6, Configuring Touchpad Security, for further information.

3.1.1 Menu Screens

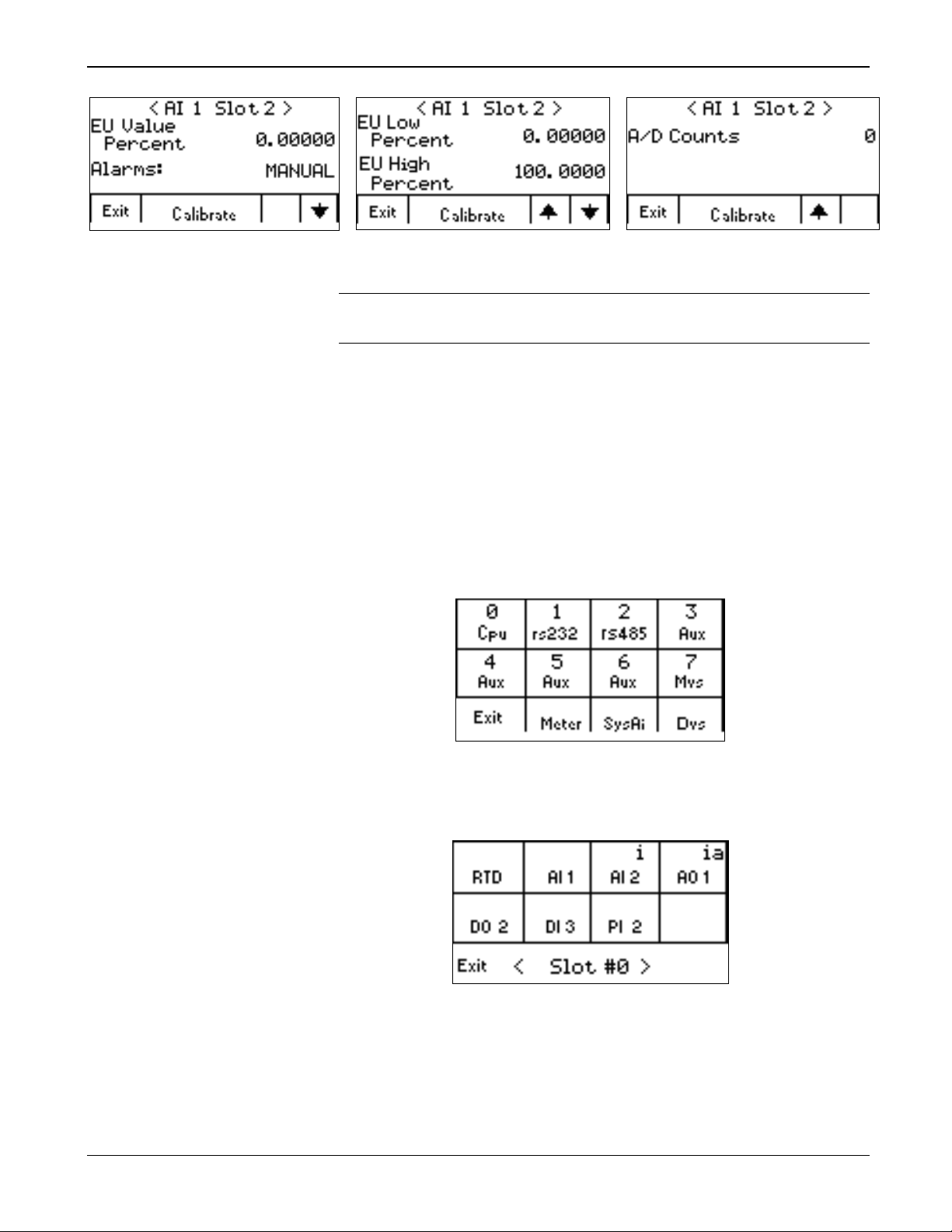

Menu screens are basically two or more options placed in a grid. Typically, an Exit option may appear in the menu’s lower left corner. A menu label (such as Main Menu or Slot #0 in Figure 3-1) is centered between brackets, and arrows (to access additional menu options) may appear in the right corner of the menu. Figure 3-1 shows two examples of menu screens.
Figure 3-1. Sample Menu Screens
Touching an option on the menu screen’s grid may lead to another menu or to a parameter screen.
Notes:
▪ A blinking asterisk (*) in the upper right corner of a menu box (as in
the Modules option in Figure 3-1) indicates an integrity or alarm issue in this module.
▪ A blinking i, ia, or a in the upper right corner of a menu box (as in AI
2 and AO 1 in Figure 3-1) indicates an integrity or alarm issue with this point.

3-2 Using the Touchpad Revised August-2019

3.1.2 Parameter Screens

Parameter screens primarily display values, but provide other ways to display information. A label typically appears at the top of a parameter screen indicating where that parameter belongs. The bottom of the screen contains two or more boxes, usually providing an Exit option on the left­hand side, a Hold option (to prevent the screen from auto-scrolling to the next set of parameters) in the center, and and options on the right­hand side so you can move more quickly from parameter to parameter (see Figure 3-2).
Figure 3-2. Sample Parameter Screens
Up to two parameter values display in the center of the screen. The values are dynamic and refresh each second.
A
Parameter tag or label
B
Parameter units
C
Parameter value (read only)
D
Parameter value (editable)
Figure 3-3. Sample Parameter Screen
Parameter values are usually read-only. However, you can edit a value in a box (as in the case of 534.57 in Figure 3-3). Touch the box to display a numeric keypad screen (Figure 3-4).
Figure 3-4. Numeric Keypad
A
B C
D

Revised August-2019 Using the Touchpad 3-3
As you enter a new value, the numeric keypad changes (as shown in Figure 3-4). When you are finished, touch Done. The Touchpad displays a screen to confirm the new value (see Figure 3-5).
Figure 3-5. Edited Parameter
When you touch Yes, the new value appears in the parameter screen’s editable field.
Figure 3-6. Edited Parameter
Note: The Touchpad uses this “value inside a box” signal extensively to
indicate a field you can edit.
Finally, you can touch the parameter tag on any parameter screen to display a chart screen that dynamically displays the values of that parameter (see Section 3.1.3).

3.1.3 Dynamic Charts

The Touchpad can display any parameter you select in a dynamic “chart recorder” format. Touch the label or units on a parameter screen to
display the chart. Charting begins from the moment of touch and continues either for 30 minutes or until you touch Exit.
A
Current upper and lower scale
B
Current date and time
Figure 3-7. Sample Dynamic Chart
A
B
3-4 Using the Touchpad Revised August-2019
The parameter label displays in the upper center of the screen, and alternates with a display of the units every four seconds. The current parameter value displays in the lower center of the screen. The current date appear in the upper right-hand corner of the screen. The current time appears in the lower right-hand corner of the screen. The values in the upper and lower left-hand corners of the screen display the chart’s current scale. You can modify the scale by touching the asterisk (*) just below the upper scale value. The Touchpad displays a numeric keypad you use to define first a new upper range, then a new lower range.

Figure 3-8. Chart Scale Ranges
When you exit the numeric keypads, the parameter screen reflects the new values.
Figure 3-9. Revised Scales
Note: These new values are valid only for the current viewing. The
Touchpad restores the original scale values when you exit the parameter screen.

3.1.4 Operational Screens

The Touchpad provides a complement of message screens, confirmation screens, and other screen types to support system processing. Refer to Sections 3.2 through 3.9 for examples of these screens.

3.1.5 Touchpad Time Out

For both security and to save power, the Touchpad display goes blank (or “times out”) at specific intervals if left untouched. Touching a timed-out screen restores the idle state display (see Figure 1-4), from which you must log on again.
Revised August-2019 Using the Touchpad 3-5
Screen
Display Duration
PIN (Figure 3-12)
1 minute
Menu (Figure 3-1)
10 minutes
Calibrate (Figure 3-43)
60 minutes
Plate Change (Figure 3-42)
30 minutes
You can also access a power savings mode to enable the Touchpad to time out more frequently (see Section 1.2.2).

3.2 Logging On

In daily operation, the Touchpad normally displays the Emerson Process Management logo in its “idle” or waiting state.
Figure 3-10. Idle State Display
1. Touch the screen. A second screen displays, depending on the mode
you’ve selected (Normal or BLM). If you’ve configured BLM mode,
the Touchpad begins to auto-scroll through the parameters you defined on ROCLINK 800’s LCD User List – BLM screen (see Section 2.3). If you’ve configured Normal mode, the Touchpad displays a log on screen:
Figure 3-11. Log On
Note: The Touchpad displays this log on screen for 60 seconds. If
you do not enter a PIN in that time, the idle state screen displays.
2. Enter a valid log on PIN. As you touch each number, the Key
Acknowledgement LED (Key Ack, Figure 1-3) should blink green and the Touchpad reverses the numeric image (see Figure 3-12).
3-6 Using the Touchpad Revised August-2019
Figure 3-12. Touched Value
If you enter an incorrect PIN number, the Touchpad displays a message. Click OK and re-enter the PIN.
Figure 3-13. Invalid PIN Message
Note: The default PIN is 1000. If you have disabled that PIN or
replaced it with another PIN to establish security for your organization, use those values with the Touchpad.
Figure 3-14 provides a map of all Touchpad options.
Revised August-2019 Using the Touchpad 3-7
Main Menu
1) User Lists
2) Meter Runs
3) Modules
4) Chart
5) PID
6) System
7) Log Off
8) History
List 1 List 2 List 3 List 4
BLM User
List Screen
Idle State
(displays Splash Screen)
Logon
Screen
BLM Mode
Normal Mode
Exit Pressed
Valid Logon
1) Run 1
2) Run 2
3) Run 3
4) Run 4
1) Flow Values
2) Properties
3) Plate Change
1) Flowing
2) Non-Flowing
1) PID 1
2) PID 2
3) PID 3
4) PID 4
5) PID 5
6) PID 6
7) PID 7
8) PID 8
1) Daily
2) Hourly
3) Extended
1) Hist Pt x
2) Hist Pt x
3) Hist Pt x
4) Hist Pt x
5) Hist Pt x
6) Hist Pt x
7) Hist Pt x
8) Hist Pt x
9) Hist Pt x
10) Hist Pt x
11) Hist Pt x
12) Hist Pt x
13) Hist Pt x
14) Hist Pt x
15) Hist Pt x
16) Hist Pt x
1) Slot 0
2) Slot 1
3) Slot 2
4) Slot 3
5) Slot 4
6) Slot 5
7) Slot 6
8) Slot 7
SysAI’s
Dvs or Pim Meter
1) IO Type
2) IO Type
3) IO Type
4) IO Type
5) IO Type
6) IO Type
1) Info
2) Save Cfg
3) Warm Start
4) End of Day
5) Contrast
1) Historic
2) Dynamic
1) Primary
2) Override
3) Mode
4) Output
1) Basic
2) Advanced
Pri 50.0 1.0 10.0
Auto
1) Run 1
2) Run 2
3) Run 3
4) Run 4
Basic PID
Advanced PID
1) Calibration
2) Verify
Note: Pressing and holding “Exit” for 1.5 seconds
or longer on any level exits to the Main Menu.
1) Hist Pt x
2) Hist Pt x
3) Hist Pt x
4) Hist Pt x
5) Hist Pt x
6) Hist Pt x
7) Hist Pt x
8) Hist Pt x
9) Hist Pt x
10) Hist Pt x
11) Hist Pt x
12) Hist Pt x
13) Hist Pt x
14) Hist Pt x
15) Hist Pt x
16) Hist Pt x
7 Day History
Figure 3-14. Touchpad Options Map
3-8 Using the Touchpad Revised August-2019
Once you enter a valid PIN on the log on screen, the Touchpad’s Main Menu screen displays:
Figure 3-15. Touchpad Main Menu
Option
Description

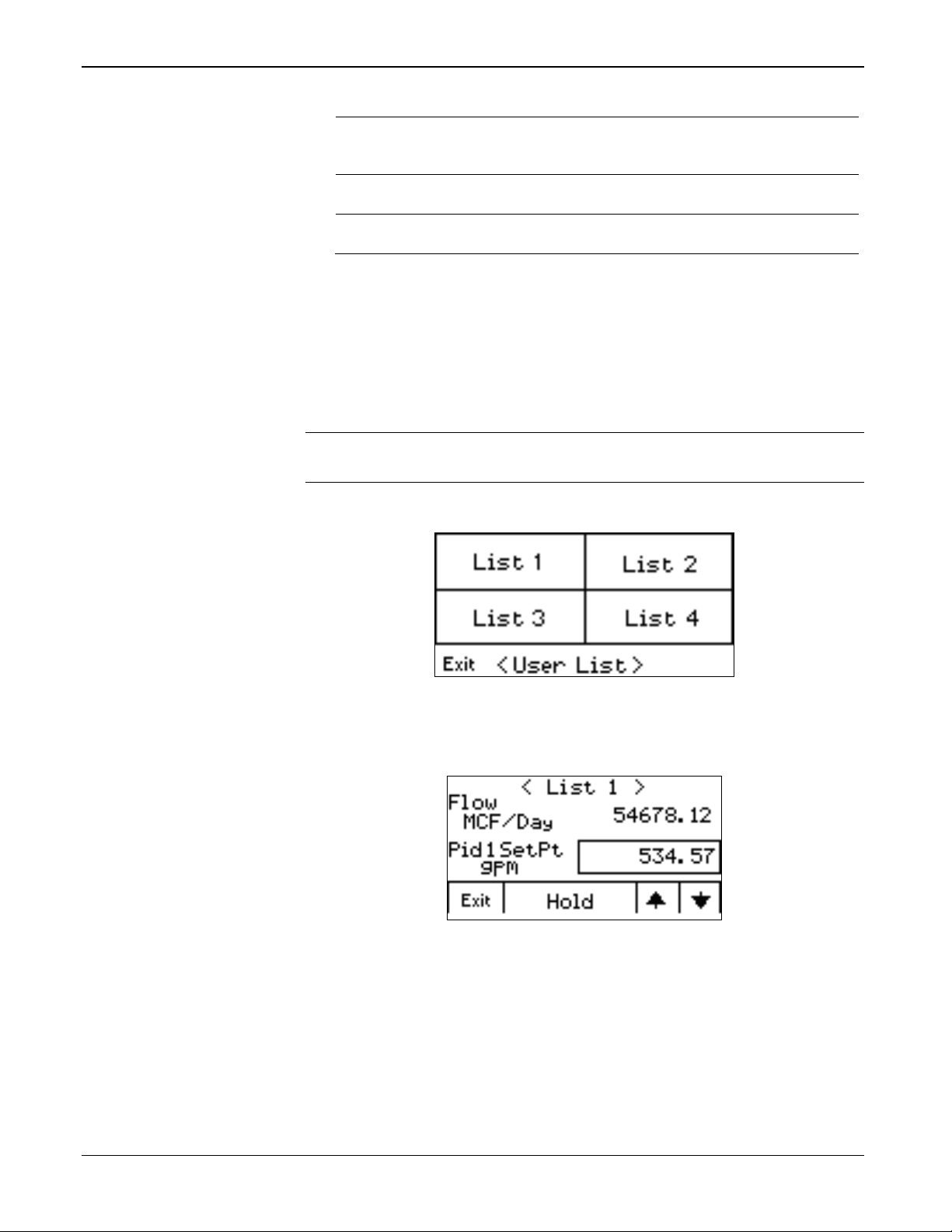

User Lists
Displays a list of 16 parameter values. You can define up to four lists, for a total of up to 64 parameters.
Note: Configure these values using the LCD User
List screen.

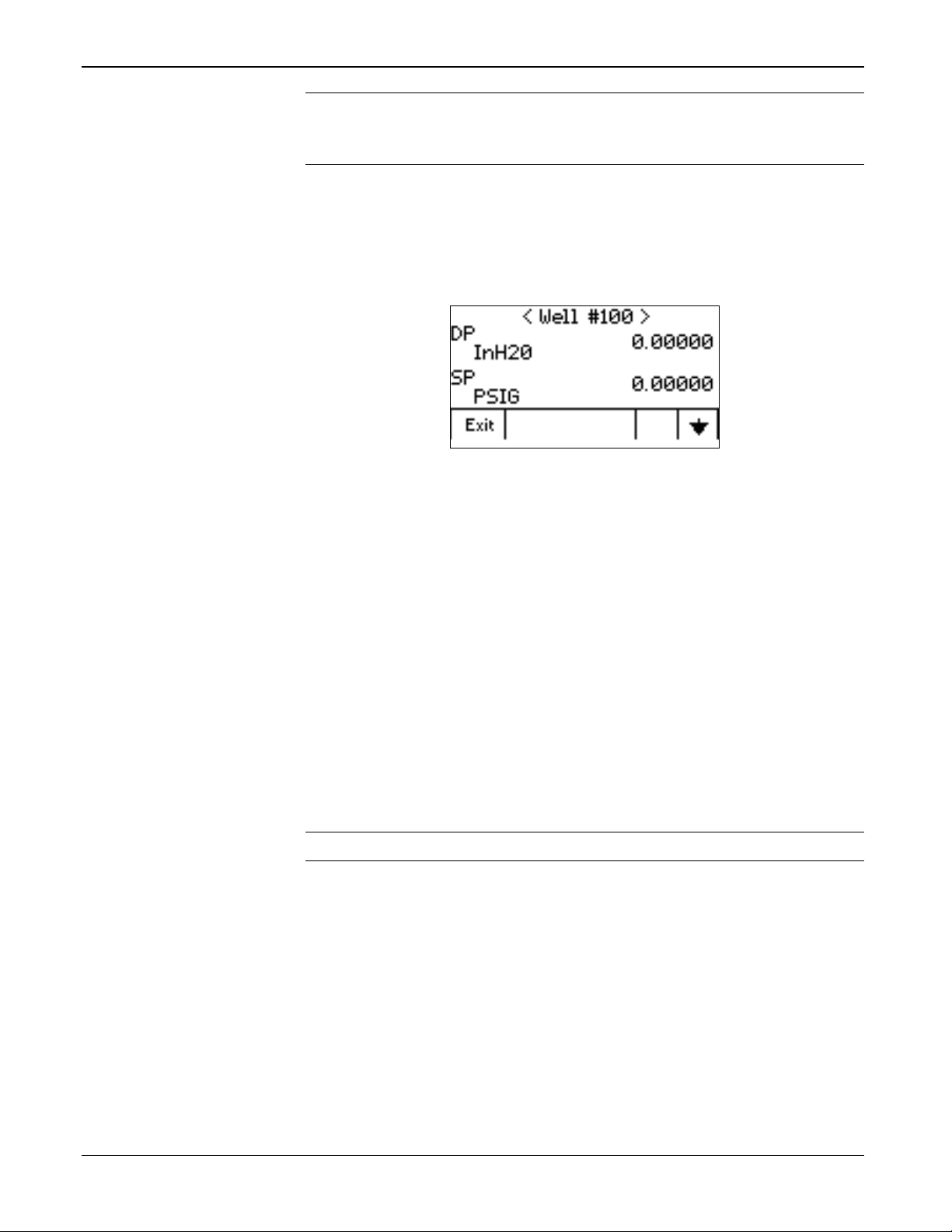

Meter Runs
Displays values for up to four meter runs.
Note: These are read-only values. You configure
the number of valid meters on the Points tab on the Device Information screen (ROC > Device Information) and the meter content itself on the Meter Setup screen (Meter >
Setup).
Modules
Displays parameter values associated with each module installed in the FB107.
Chart
Displays historical or dynamic information in a chart format.
Note: These are read-only values. You define the
format, scale, and content of the charts using the LCD User List – Chart screen (Configure > LCD User List > Chart).
PID
Displays and permits changes to defined PID parameters. .
Note: You must first define PID parameters on the
PID Loop screen (Configure > Control > PID
Loop).
System
Enables you to access and modify some general system parameters.
History
Displays seven days (7) of history for all Standard History points.
Note: These are read-only values. You define the
format, scale, and content of the history using the LCD User List – Chart screen (Configure > LCD User List > Chart).
Log Off
Logs you off the Touchpad; redisplays the idle logos screen.
Sections 3.3 through 3.9 discuss these options.

3.3 User Lists

Revised August-2019 Using the Touchpad 3-9
User lists are groups of up to 16 system parameters. You can define up to four user lists, for a total of 64 parameters. You first define the user lists in ROCLINK 800 and update your ROCLINK 800 configuration file. When you next log onto the Touchpad, the User List menu option reflects those changes. Alternately, you can log off the Touchpad and log back on to see your changes.
To define user lists:
1. Select Configure > LCD User List > Standard on the ROCLINK
800 menu bar. The LCD User List screen displays.

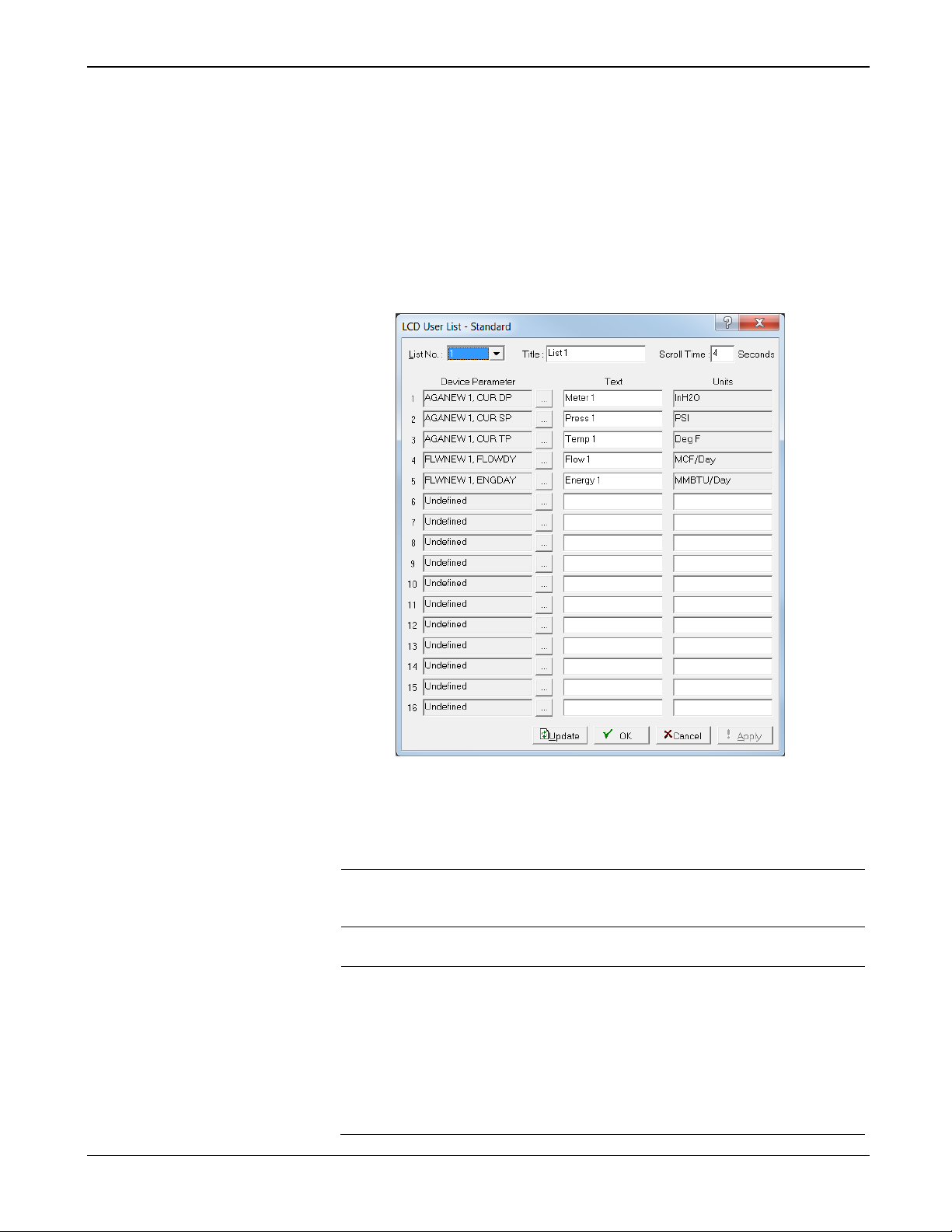

Figure 3-16. LCD User List
2. Complete the following fields to define the contents of each user list.
Field
Description
List No.
Sets the number of the LCD User List you want to configure. Click to display all defined lists. You can define up to four user lists.
Title
Sets a 10-character alphanumeric identifier for the user list.
Scroll Time
Indicates the number of seconds the Touchpad displays each parameter set before scrolling to the next parameter set. (Typically the Touchpad displays two parameters at a time.) Valid values are 0 (do not scroll) to 255.
Note: If you set this value to 0, you must use the
and  keys on the Touchpad to manually scroll through the parameters defined in the list.
3-10 Using the Touchpad Revised August-2019
Field
Description
Device Parameter
Sets the parameter that you want to display on the Touchpad. Click … to display a Select TLP screen you can use to define the parameter.
Text
Sets a 10-character alphanumeric identifier for the parameter.
Units
Shows the engineering units for the associated parameter.
3. Click Apply if you make any changes to this screen. To define
additional lists, repeat step 2.
4. Click OK to close the LCD User List screen.
Once you have defined your user lists and sent the changes to the Touchpad, you can view them on the Touchpad and, if appropriate, edit the values.
Note: These steps assume you have successfully logged onto the
Touchpad and are starting at the Main Menu.
1. Touch User Lists on the Touchpad. The User List menu displays.
Figure 3-17. User List Menu
2. Touch the number of a User List. A parameters screen displays.
Figure 3-18. User List Parameters)
3. The Touchpad automatically scrolls through the defined values in the
user list. You can touch Hold to pause the display (and restart the scroll by pressing Scroll), or touch or to move more quickly through the parameter values.
In this example, note that the value for the second parameter (Pid 1 SetPt) has a box around it. This means you can edit it. If you touch this value, a numeric keypad screen displays.
Revised August-2019 Using the Touchpad 3-11
Figure 3-19. Numeric Keypad
If appropriate, use the keypad to enter a new value for the indicated field. Touch Done to apply the edited value to the parameters screen.The Touchpad requires your confirmation before it applies any changes to the parameter values.
4. Touch Exit to display the User List menu.
5. Touch Exit to display the Touchpad Main Menu.

3.4 Meter Runs

You can define up to four meter runs for the FB107. You configure the number of valid meters on the Points tab on the Device Information screen (ROC > Device Information) and the meter information itself on the Meter Setup screen (Meter > Setup). Once you have defined and configured the meter runs using ROCLINK 800, you can use the Touchpad to view and change the information.
1. Touch Meter Runs on the Main Menu. The Meter Run menu
displays.
Figure 3-20. Meter Run Menu
2. Touch a meter run. An option screen displays. Note that the selected
meter displays at the bottom of the screen.
Figure 3-21. Meter Menu

3-12 Using the Touchpad Revised August-2019
Note: In this example, Well #100 is defined as using an orifice meter.
The Plate Chg option displays only for orifice meters. For turbine meters, you see only the Values option.

3.4.1 Displaying Meter Information

Use this option to display meter information.
1. Touch Values on the Meter Run menu. The meter-specific parameters
screen displays.
Figure 3-22. Meter Parameters
2. Touch or to scroll through a number of meter-specific
parameters, including:
▪ Differential pressure (orifice meters only) ▪ Uncorrected flow (turbine meters only) ▪ Static pressure ▪ Temperature ▪ Flowrate ▪ Energy rate ▪ Flow today ▪ Energy today ▪ Alarms
3. Touch Exit to display the Meter Run menu.

3.4.2 Changing a Plate

Note: This option is available only for orifice meters.
Although you can also accomplish this process using the Plate Change screen in ROCLINK 800 (Meter > Plate Change), the Touchpad provides this function as a convenience for service technicians who may need to change orifice plates without access to ROCLINK 800.
1. Touch Plate Chg on the Meter Run menu. The Plate Change Menu
displays.
Revised August-2019 Using the Touchpad 3-13
Figure 3-23. Plate Change Menu
2. Touch the condition under which the plate change occurs.
Note: If you select Flowing, the system freezes input values for the
duration of the change to provide constant values to the flow calculations and displays a notification screen. When you exit this activity, the system restores the meter values.
3. The system then displays three parameter values screens.
Figure 3-24. Plate Change Parameters
Note: You can edit the orifice diameter value. These parameter
screens remain active for 30 minutes, after which the Touchpad displays the idle state screen.
4. Touch Exit to display the Plate Change menu screen.
5. Touch Exit to display the Meter menu.
6. Touch Exit to display the Meter Run menu.

3.5 Module Information

Use this option to view information for each module installed in the FB107. The Modules menu shows only the modules you have installed on your FB107. For example, Figure 3-25 shows a fully equipped FB107 with expansion plate. If your FB107 has an open module slot, the Touchpad shows the slot number but does not include a module identifier. If your FB107 does not have an expansion plate, the Touchpad displays the second row (slots 4 through 7) but omits the numbers, indicating those slots are not available.

3-14 Using the Touchpad Revised August-2019
You can also use this menu to display information on meter runs (refer to Section 3.5.5, Viewing Meter Information) and to diagnose alarm conditions (refer to Section 3.5.8, Calibrating a Point).

3.5.1 Viewing I/O and Diagnostic Information

1. Touch Modules on the Main Menu. The Modules menu displays.
Figure 3-25. Modules Menu
Notes:
▪ A blinking asterisk (*) in the upper right corner of a module box
(as in slots 0 and 3 in Figure 3-25) indicates an integrity or alarm issue in this module. This mirrors a blinking asterisk that may appear in the upper right corner of the Modules option on the Main Menu.
▪ The content of the Modules menu corresponds to your installed
system. The example in Figure 3-25 shows a fully loaded FB107.
2. Touch a module. The Touchpad displays a screen showing all the I/O
points defined for that module (Figure 3-26 shows the options for the CPU module).
Figure 3-26. Module I/O Points
Note: A blinking i, ia, or a in the upper right corner of a point box
(as in AI 2 and AO 1 in Figure 3-26) indicates an integrity or alarm issue with this point.
3. Touch an I/O point. The Touchpad displays a series of screens
showing the parameters for that point.
Revised August-2019 Using the Touchpad 3-15

Figure 3-27. I/O Point Parameters
Note: The Touchpad places a box around any parameter value you
can edit (as with AO or DO points). See Figure 3-18.
4. Review the points. To resolve an error condition (if one exists), use
ROCLINK 800 to correct the situation.
5. Touch Exit to display the Module I/O Points screen.
6. Touch Exit to display the Modules Menu screen.

3.5.2 Viewing RTD Information

Use this option to review data on the CPU module’s Resistance
Temperature Detector (RTD).
1. Touch Modules on the Main Menu. The Modules menu displays.
Figure 3-28. Modules Menu
2. Touch Cpu. An I/O points screen for the CPU module displays.
Figure 3-29. Module I/O Points
3. Touch RTD. A parameter screen for the RTD module displays.

3-16 Using the Touchpad Revised August-2019
Figure 3-30. RTD Parameters
4. Touch or to view additional RTD parameter values.
5. Touch Exit to display the Module I/O Points screen.
6. Touch Exit to display the Module menu.

3.5.3 Viewing COMM Information

Your FB107 can have up to two communications modules (RS-232 or RS-485) which you must place in slots 1 or 2. Use this procedure to verify the status of these modules.
1. Touch Modules on the Main Menu. The Modules menu displays.
Figure 3-31. Modules Menu
2. Touch rs232 or rs485 (depending on which communications module
you have installed). A status screen displays.
Figure 3-32. Communication Status
3. Touch OK to display the Modules menu.

3.5.4 Viewing Multiple Variable Sensor (MVS) Information

The FB107 supports up to six MVS transmitters. Use this option to review the parameters for each transmitter.

Revised August-2019 Using the Touchpad 3-17
1. Touch Modules on the Main Menu. The Modules menu displays.
Figure 3-33. Modules Menu
2. Touch Mvs. The MVS menu displays.
Figure 3-34. MVS Menu
Note: A blinking i, ia, or a in the upper right corner of an MVS
box (as in Mvs-1 and Mvs-3 in Figure 3-34) indicates an integrity or alarm issue with this transmitter.
3. Touch a transmitter box. A parameter screen for the MVS transmitter
displays.
Figure 3-35. MVS Parameters
4. Touch or to view additional parameter values.
5. Touch Exit to display the MVS menu.
6. Touch Exit to display the Modules menu.

3.5.5 Viewing Meter Information

The FB107 supports up to four meters. Use this option to view flow rate and alarm information for each defined meter run.
1. Touch Meter on the Modules menu. The Meter Run menu displays.

3-18 Using the Touchpad Revised August-2019
Figure 3-36. Meter Run Menu
Note: A blinking a in the upper right corner of a run box (as in
Run 2 in Figure 3-36) indicates an active alarm.
2. Touch a meter run. A parameter screen for the meter run displays.
Figure 3-37. Meter Run Parameters
3. Touch Exit to display the Meter Run menu.
4. Touch Exit to display the Modules menu.

3.5.6 Viewing System Information

Use the SysAI option on the Modules menu to view the following information on the FB107’s battery, charging status, and board temperature.
Logic
Battery
Charging
▪ Volts ▪ Alarms ▪ Low Volts ▪ High Volts
▪ A/D Counts
▪ Volts ▪ Alarms ▪ Low Volts ▪ High Volts ▪ A/D Counts
▪ Volts ▪ Alarms ▪ Low Volts ▪ High Volts ▪ A/D Counts
Unused
Board Temperature
▪ Milliamps ▪ Alarms ▪ Low Milliamps ▪ High Milliamps
▪ A/D Counts
▪ Degrees ▪ Alarms ▪ Low Degrees ▪ High Degrees ▪ A/D Counts
1. Touch SysAi on the Modules menu. The System AI menu displays.

Revised August-2019 Using the Touchpad 3-19
Figure 3-38. System AI Menu
2. Touch an option. A parameters screen displays.
Figure 3-39. System AI Parameters
3. Touch or to view additional parameter values.
4. Touch Exit to display the System AI menu.
5. Touch Exit to display the Modules menu.

3.5.7 Viewing Dual Variable Sensor (DVS) Information

Use the Dvs option on the Modules menu to view the following differential or static pressure information:
Differential Pressure (DP)
Static Pressure (SP)
▪ Current Pressure ▪ Alarms ▪ Low Pressure ▪ High Pressure ▪ A/D Counts
▪ Current Pressure ▪ Alarms ▪ Low Pressure ▪ High Pressure ▪ A/D Counts
1. Touch Dvs on the Modules menu. The DVS menu displays.
Figure 3-40. DVS Menu

3-20 Using the Touchpad Revised August-2019
Note: A blinking i, ia, or a in the upper right corner of a run box
indicates an integrity or alarm issue.
2. Touch an option. A parameters screen displays.
3. Touch or to view additional parameter values.
4. Touch Exit to display the DVS menu.
5. Touch Exit to display the Modules menu.

3.5.8 Calibrating a Point

In the process of troubleshooting an integrity error, you might find it necessary to calibrate or verify a point. Various screens (such as the AI parameter screen in Figure 3-27 or the RTD parameter screen in Figure
3-41) provide Calibrate as an option.
Figure 3-41. RTD Parameters
Note: Refer to Chapter 8, Utilities, in the ROCLINK 800 Configuration
Software User Manual (for FloBoss 107) (A6217) for a complete
discussion of both calibration and verification.
Calibrate
For calibration, you define a zero point, a span, and up to three midpoints. To calibrate a point:
1. Touch Calibrate on the parameter screen. The Touchpad displays the
Calibrate menu.
Figure 3-42. Calibrate Menu
Note: Whether you select Calibrate or Verify, ROCLINK 800
freezes the current value and displays a notification screen. When you exit the utility, ROCLINK 800 restores the live values.
Revised August-2019 Using the Touchpad 3-21
2. Touch Calibrate. The Touchpad displays a message screen (starting
the calibration and freezing the EU value) and then displays a parameter screen.
Figure 3-43. Set Zero Calibration Point
Note: You can touch the value displayed in the Tester Value field
to edit it. The FB107 continues to update the Live Value field and calculate the deviation percentage.
3. Touch Set Zero when the displayed values are appropriate. The
Touchpad prompts you to set a span point.
Figure 3-44. Set Span Calibration Point
Note: You can touch the value displayed in the Tester Value field
to edit it. The FB107 continues to update the Live Value field and calculate the deviation percentage.
4. Touch Set Span when the displayed values are appropriate. The
Touchpad prompts you to set the first of three calibration midpoints.
Figure 3-45. Set Midpoint 1 Calibration Point
3-22 Using the Touchpad Revised August-2019
Note: For calibrations, you can set up to three midpoints (the
Touchpad presents a screen on which you can set each midpoint) or none at all by touching Done. You can also touch Cancel at any time to cancel the calibration.
5. When you touch Done, the Touchpad evaluates the calibration,
displays a completion message indicating whether the calibration was successful, and displays the Calibrate menu.
6. Touch Exit to display the parameter screen from which you began the
calibration.
Figure 3-46. RTD Parameters
Verify
To verify a point:
1. Touch Verify on the Calibrate menu. The Touchpad first displays a
message screen (starting the verification and freezing the EU value) and then displays a parameter screen.
Figure 3-47. RTD Verification Parameters
2. Touch Verify. The Touchpad displays a message and generates an
event for the event log.
Figure 3-48. Verification Message Parameters
3. Monitor the relationship between the live and test values, touching
Verify until you have enough events to ensure verification.
Revised August-2019 Using the Touchpad 3-23
4. Touch Done. The Touchpad displays a completion message and then
displays the Calibrate menu
Figure 3-49. Verification Message Parameters
5. Touch Exit on the Calibrate menu to display the parameter screen
from which you began the calibration.
Figure 3-50. RTD Parameters

3.6 Charts

Use this option to display historic or dynamic FB107 information in a chart format. You must first use the ROCLINK 800 LCD User List – Chart screen (Configure > LCD User List > Chart) to define up to 16 points for charting (see Figure 3-51).

3-24 Using the Touchpad Revised August-2019
Figure 3-51. LCD User List – Chart
Note: Refer to Chapter 7 in the ROCLINK 800 Configuration Software
User Manual (for FloBoss 107) (part D301249X012) for complete
instructions on configuring this screen.
Once you have configured the points on this screen, you can view them on the Touchpad.
Touch Chart on the Modules menu. The Chart menu displays.
Figure 3-52. Chart Menu

3.6.1 Viewing Historical Data

Use this option to view defined historical data points you have defined on the LCD User List – Chart screen.
1. Touch Historic on the Chart menu. The History menu displays.
Revised August-2019 Using the Touchpad 3-25
Figure 3-53. History Menu
Note: This menu enables you to view historical data either on an
hourly or daily basis. The menu options on the subsequent screens are the same.
2. Touch Daily on the History menu. The Daily History menu displays.
Figure 3-54. Daily History Menu
1. Touch an option on the Daily History menu. A history charting screen
displays.
A
Upper Scale
B
Value’s label
C
Value at current scroll point
D
Lower Scale
E
Time at scroll point
F
MM/DD at scroll point
Figure 3-55. History Chart
The vertical dotted line indicates the current point on the historical record. The arrows on the right side of the chart allow you to scroll forward () or backward () on the historical record (up to 60 days,
as defined on the ROCLINK 800 History Setup screen’s Setup tab).
Touch an arrow once to move in daily (or hourly) steps; touch and hold an arrow to “fast scroll” through the chart.
A
B
C
D E
F

3-26 Using the Touchpad Revised August-2019
The date for the current scroll point appears in the upper right-hand corner of the screen. The time for the current scroll point appears in the lower right-hand corner of the screen. The value for the current scroll point appears in the lower middle of the screen. The label for the value appears in the upper middle of the screen, and alternates with the units for that label every four seconds.
2. Touch Exit to display the Daily History menu.
3. Touch Exit to display the History menu.
4. Touch Exit to display the Chart menu.
5. Touch Exit to display the Modules menu.

3.6.2 Viewing Dynamic Data

Use this option to view dynamic data points you have previously define on the LCD User List – Chart screen.
1. Touch Dynamic on the Chart menu. The Dynamic Data menu
displays.
Figure 3-56. Dynamic Data Menu
Note: The titles on the Dynamic Data menu items correspond to what
you have used–or entered–in the Text field on the LCD User List – Chart screen. You can define as many as 16 Dynamic points. The Touchpad configures each defined point as a menu option. You can touch or to display additional menu options.
2. Touch a selection on the Dynamic Data menu. A dynamic charting
screen displays.
Figure 3-57. Dynamic Chart
Revised August-2019 Using the Touchpad 3-27
Each chart can display up to 54 most recent data values. The Touchpad alternates the chart header (here, FLOWHR) with the EU value (MCF), if units are available. The asterisk on the screen indicates that you can set the upper and lower scale values for the display.
3. Touch the asterisk to set new upper and lower scale values. The
Touchpad displays two screens, in sequence.
Figure 3-58. Upper and Lower Scale Ranges
4. Use each screen to enter a new upper and new lower range for the
display, if necessary. The Dynamic Chart displays.
5. Touch Exit to display the Dynamic Data menu.
6. Touch Exit to display the Chart menu.
7. Touch Exit to display the Modules menu.

3.7 PID Loops

This option provides two methods—basic and advanced—for displaying and changing Proportional, Integral, and Derivative (PID) loops. You can define up to eight PID loops on an FB107.
Note: Use the Points tab on the ROCLINK 800 Device Information
screen (ROC > Information) to define the total number of active PID loops; use the PID Loop screen (Configure > Control > PID Loop) to initially define the PID loops.
To use this option, touch PID on the Main Menu. The PID menu displays.
Figure 3-59. PID Menu

3-28 Using the Touchpad Revised August-2019
The Basic method accesses a series of parameter screens you use to establish primary and override process variables and setpoints. The Advanced method accesses a single graphical screen that you use to perform the same tasks.

3.7.1 Setting Basic PID Loops

Use this option to access a series of parameter screens to establish the PID process variables and setpoints.
1. Touch Basic on the PID Menu. The PID Loop menu displays.
Figure 3-60. PID Loop Menu
2. Touch a PID loop on the PID Loop menu. The PID Parameters menu
displays.
Figure 3-61. PID Parameters Menu
Use these four options – Primary, Override, Mode, and Output – to refine PID parameters for each defined PID loop. You can modify individual parameters or (as in this example) proceed through each screen in sequence.
3. Touch Primary. The Primary PID Loop Parameters screen displays.
Figure 3-62. Primary PID Loop Parameters
Revised August-2019 Using the Touchpad 3-29
Use this screen to display the primary process variable and redefine (if necessary) the primary setpoint.
4. Touch Exit to display the PID Parameters menu.
5. Touch Override. The Override Parameters screen displays.
Figure 3-63. Override PID Loop Parameters
Use this screen to display the override process variable and redefine (if necessary) the override setpoint.
6. Touch Exit to display the PID Parameters menu.
7. Touch Mode to display the PID Mode screen.
Figure 3-64. PID Mode
Use this screen to switch the PID Control mode between Automatic and Manual.
8. Touch Exit to display the PID Parameters menu.
9. Touch Output to display the PID Output screen.
Figure 3-65. PID Output
Use this screen to review the current output for the PID loop.
10. Touch Exit to display the PID Parameters menu.

3-30 Using the Touchpad Revised August-2019
11. Touch Exit to display the PID Loop menu.
12. Touch Exit to display the PID Menu.

3.7.2 Setting Advanced PID Loops

Use this option to access a graphic display (and supporting screens) that enables you to quickly review and adjust PID parameters.
1. Touch Advanced on the PID menu. The PID Loop menu displays.
Figure 3-66. PID Loop Menu
2. Touch a PID loop on the PID Loop menu. The graphical PID Loop
displays.
A
Loop selector
B
Loop control indicator
C
Output bar graph
D
PV bar graph
E
PID Mode indicator
Figure 3-67. Graphical PID Loop
This display provides a “dashboard” view of the selected PID loop.
The left vertical bar graph represents the output value for the PID loop; the right bar graph represents the process variable value for the loop. Units for each bar graph display at the top of each graph. The upper and lower EU values for each bar graph display at the top and bottom of the graph. This is a dynamic display: as the output or PV values change, the graphic changes.
Touch the Output or PV vertical bar graph to access charts that display these values.
Touch or to modify the output or setpoint, depending on the
PID loop’s current mode (Auto or Manual, indicated by the boxed
value in the upper right corner of the display). If the PID mode is Manual, the buttons change the output parameter. If the PID mode is
A
B C
D E
Revised August-2019 Using the Touchpad 3-31
Automatic, the buttons change the PID setpoint. Touch and release a button to change the value by one percent; touch and hold the button down to more quickly change the value.
To change the PID mode (from Auto to Manual or Manual to Auto), touch and hold down the Auto/Man value for two seconds. The green Key Acknowledgement light blinks, indicating that the value has changed. This two-second touch prevents you from accidentally changing the PID mode. The indicator arrow on the bar graph also moves, indicating which value you can now change.
The upper right corner of the display indicates whether the Touchpad
is displaying information from the PID loop’s Primary or Override
control loop. Touch this field to switch between the loops. (This is an option only if you have selected Override Control as the Control Type on the General tab on the PID Loop screen in ROCLINK 800.) An asterisk (*) in the upper left corner of the graphic indicates whether the selected loop is in control.
3. Touch Exit to display the PID Loop menu.
4. Touch Exit to display the PID menu.

3.8 System Information

This option enables you to view a variety of system information, adjust system parameters, and perform common tasks.
▪ System Information. ▪ Saving a configuration. ▪ Perform a warm start. ▪ Forcing end-of-day processing. ▪ Adjust Touchpad contrast.
To use this option, touch System on the Main Menu. The System menu displays.
Figure 3-68. System Menu
Each of these options is discussed in detail below.

3-32 Using the Touchpad Revised August-2019

3.8.1 Displaying System Information

Use this option to display pertinent system information, including:
▪ Time and date ▪ ROC Name ▪ Firmware revision ▪ LCD revision ▪ Device address ▪ Device group ▪ Contract Hour ▪ CPU Load
1. Touch Info on the System menu. The System Parameters screen
displays.
Figure 3-69. System Parameters
2. Touch and to display various system parameters. Note: You can change the Contract Hour parameter. Also, you can
touch the CPU Load option to display a chart of the current CPU load.
3. Touch Exit to display the System menu.

3.8.2 Saving a Configuration

Use this option to save the currently active FB107 configuration to Flash memory.
1. Touch Save Cfg on the System menu. The Save Configuration menu
displays.
Figure 3-70. Save Configuration Menu

Revised August-2019 Using the Touchpad 3-33
2. Touch Yes. The Touchpad displays a confirmation message.
Figure 3-71. Confirmation Message
3. The Touchpad then displays the System menu.

3.8.3 Performing a Warm Start

Use this option to warm start the system from the Touchpad.
1. Touch Warm Start on the System menu. The Warm Start menu
displays.
Figure 3-72. Warm Start Menu
2. Touch Yes. The Touchpad displays a confirmation message.
Figure 3-73. Confirmation Message
3. When the warm start completes, the Touchpad displays the default
idle state display.

3-34 Using the Touchpad Revised August-2019
Figure 3-74. Idle State Display
Note: After a warm start, you must log onto the Touchpad again.

3.8.4 Forcing End of Day

Use this option to force end-of-day processing from the Touchpad.
1. Touch End of Day from the System menu. The Force End of Day
menu displays.
Figure 3-75. Force End of Day Menu
2. Touch Yes. When the end of day processing completes, the Touchpad
displays a confirmation message.
Figure 3-76. Confirmation Message
3. The Touchpad then displays the System menu.

3.8.5 Adjusting Touchpad Contrast

Use this option to adjust the displayed brightness of the Touchpad. The FB107 stores the contrast value in a section of Flash memory that is protected from firmware upgrades.
1. Touch Contrast on the System menu. The Contrast Control
Parameters screen displays.
Revised August-2019 Using the Touchpad 3-35
Figure 3-77. Contrast Control Parameters
2. Touch or to increase or decrease the contrast on the Touchpad.
The current contrast value (limited between 110 and 86) displays below the Contrast label.
Note: Above 110 the Touchpad contrast becomes too dark; below 86
the contrast is too light.
3. Touch Save to place the current contrast setting in protected Flash
memory. The Touchpad displays a confirmation message.
Figure 3-78. Confirmation Message
4. Touch Exit to display the System menu.

3.9 History

Use this option to display seven days of history data for all Standard History points.
1. Start ROCLINK 800.
2. Select View > History> From Device and select the History Type.
3-36 Using the Touchpad Revised August-2019
Figure 3-79. Select History to View screen
3. Click OK.
4. Select Configure > LCD User List > Chart to define up to 16
Standard History points.
Figure 3-80. LCD User List – Chart, Standard History points
Revised August-2019 Using the Touchpad 3-37
Once you have configured the Standard History points on this screen, you can view them on the Touchpad.
Touch History on the Main menu. The History menu displays.
Figure 3-81. History Menu
Touch FLOWDY to display up to seven days history data.
Figure 3-82. FLOWDY History Data

3.10 Logging Off

This option enables you to immediately log off the system. Touch Log off from the Main Menu. The Touchpad immediately displays
the idle state screen.
3-38 Using the Touchpad Revised August-2019
[This page is intentionally left blank.]
Revised August-2019 Installing the Touchpad A-1

Appendix A – Installing the Touchpad

This appendix describes how to install the Touchpad in a enclosure or panel of your selection.

A.1 Touchpad Location

If ordered from the factory, the Touchpad is pre-installed in the door of the FB107 enclosure. However, you can order a Touchpad by itself and install it in a panel or on the cover of your own enclosure.
Note: Wiring instructions are packed with the Touchpad (FB107
Touchscreen Display/Enclosure Installation Sheet, Form
A6236). The lower portions of pages 2 and 3 of that form detail
options for the Touchpad’s wiring and power requirements.
This appendix discusses only the hardware installation process.
To determine the best location of your Touchpad, review Figure A-1 to establish the appropriate location and clearances.

A.1.1 Special Considerations

▪ The plastic cover for the Touchpad opens to the left. Ensure at least
6.19 inches of clearance to open the cover to 90°. Allow more space if you want to open the cover wider.
▪ Use the dielectric plastic template included with the Touchpad to
determine what holes you may need to drill. Place the self-stick template on the front side of the cover or panel (the side that faces those using the Touchpad) and position the template so that the hole for the data cable is in the upper left corner of the template (as shown in Figure A-1).
▪ If you are using a legacy ROC300 enclosure to house your FB107
and Touchpad, the plastic template has special notation for this situation. To correctly mount the Touchpad, align the dashed lines on the template with the existing cut-outs on the legacy enclosure. This ensures that the Touchpad mounts securely and enables you to use one of the cut-outs for the Touchpad’s data cable.
A-2 Installing the Touchpad Revised August-2019
(APPROX .88 DIA)
1/2 INCH KNOCKOUT
CENTER PUNCH / DRILL 4X .16 DIA
EXISTING DOOR CUTOUT
Figure A-1. Dimensions of Touchpad

A.1.2 Installing the Touchpad

Refer to the FB107 Touchscreen Display/Enclosure Installation Sheet (Form A6236) that came with your Touchpad for specific installation instructions.

A.1.3 Wiring the Touchpad

Refer to the FB107 Touchscreen Display/Enclosure Installation Sheet (Form A6236) that came with your Touchpad for wiring diagram meeting your needs.
Revised August-2019 Index I-1
Index
A
Access Levels ................................................... 2-11
Adjusing Touchpad contrast ............................. 3-37
Advanced PID Loops ........................................ 3-32
Asterisk
blinking .................................................. 3-1, 3-15
B
Basic List Mode (BLM) ........................................ 1-5
Basic PID Loops ............................................... 3-30
Blinking asterisk ......................................... 3-1, 3-15
BLM
Configuring ..................................................... 2-5
BLM list
parameter text ................................................ 2-6
Parameters ..................................................... 2-6
BLM list title......................................................... 2-6
BLM mode........................................................... 2-4
C
Calibration ......................................................... 3-22
Changing a Plate .............................................. 3-14
Chart
Data source .................................................... 2-9
Chart mode ......................................................... 2-4
Chart Mode
Configuring ..................................................... 2-8
Charts ............................................................... 3-26
Comm Information ............................................ 3-17
Configurations, saving ...................................... 3-35
Configuring BLM ................................................. 2-5
Configuring Chart Mode ...................................... 2-8
Configuring Normal Mode ................................... 2-7
Configuring the Touchpad ........................... 2-1, 2-4
Configuring Touchpad Security .......................... 2-9
D
Daily Use ............................................................. 3-6
Data point............................................................ 2-9
Display
BLM ................................................................ 1-5
Normal ............................................................ 1-5
Displaying Meter Parameters ........................... 3-13
DVS Information ............................................... 3-21
Dynamic charts ................................................. 3-28
Dynamic Charts .................................................. 3-3
E
End of Day Processing ..................................... 3-36
F
Figures
A-1. Dimensions of Touchpad ........................ 1-2
1-1. FB107 Touchpad, Enclosure Mounted .... 1-2
1-2. FB107 Base Unit, Display Connection .... 1-3
1-3. FB107 Touchpad ..................................... 1-4
1-4. Touchpad Idle State Display ................... 1-4
1-5. Initial Active Touchpad Displays ............. 1-5
1-6. Initial Active Touchpad Displays ............. 1-6
2-1. FB107 Graphic Display ........................... 2-1
2-2. Touchpad Activation ................................ 2-2
2-3. LCD Controller ......................................... 2-2
2-4. LCD Controller, Advanced tab ................ 2-3
2-5. Emerson Process Management Logos ... 2-3 2-6. RL800 LCD User List Configuration
Options ..................................................... 2-4
2-7. RL800 LCD User List Configuration
Options ..................................................... 2-5
2-8. LCD User List - BLM ............................... 2-6
2-9. RL800 LCD User List Configuration
Options, Advanced tab ............................. 2-7
2-10. Touchpad Main Menu............................ 2-8
2-11. LCD User List - Chart ............................ 2-8
2-12. Device Security ................................... 2-10
2-13. Device Security, User Level ................ 2-11
2-14. Device Security ................................... 2-12
3-1. Sample Menu Screens ............................ 3-1
3-2. Sample Parameter Screens .................... 3-2
3-3. Sample Parameter .................................. 3-2
3-4. Numeric Keypad ...................................... 3-2
3-5. Edited Parameter .................................... 3-3
3-6. Edited Parameter .................................... 3-3
3-7. Sample Dynamic Chart ........................... 3-3
3-8. Chart Scale Ranges ................................ 3-4
3-9. Revised Scales ........................................ 3-4
3-10. Idle State Display .................................. 3-5
3-11. Log On ................................................... 3-5
3-12. Touched Value ...................................... 3-6
3-13. Invalid PINMessage .............................. 3-6
3-14. Touchpad Options Map ......................... 3-7
3-15. Touchpad Main Menu............................ 3-8
3-16. LCD User List ........................................ 3-9
3-17. User List Menu .................................... 3-10
3-18. User List Parameters ........................... 3-10
3-19. Numeric Keypad .................................. 3-11
3-20. Meter Run Menu .................................. 3-11
3-21. Meter Menu ......................................... 3-12
3-22. Meter Parameters ................................ 3-12
3-23. Plate Change Menu............................. 3-13
3-24. Plate Change Parameters ................... 3-13
3-25. Modules Menu ..................................... 3-14
3-26. Modules I/O Points .............................. 3-14
3-27. I/O Point Parameters ........................... 3-15
I-2 Index Revised August-2019
3-28. Modules Menu ..................................... 3-15
3-29. Module I/O Points ................................ 3-15
3-30. RTD Parameters ................................. 3-16
3-31. Modules Menu ..................................... 3-16
3-32. Communication Status ........................ 3-16
3-33. Modules Menu ..................................... 3-17
3-34. MVS Menu .......................................... 3-17
3-35. MVS Parameters ................................. 3-17
3-36. Meter Run Menu ................................. 3-18
3-37. Meter Run Parameters ........................ 3-18
3-38. System AI Menu .................................. 3-19
3-39. System AI Paramters .......................... 3-19
3-40. DVS Menu ........................................... 3-19
3-41. RTD Parameters ................................. 3-20
4-42. Calibrate Menu .................................... 3-20
3-43. Set Zerol Calibration Point .................. 3-21
3-44. Set Span Calibration Point .................. 3-21
3-45. Set Midpoint 1 Calibration Point .......... 3-21
3-46. RTD Parameters ................................. 3-22
3-47. RTD Verification Parameters .............. 3-22
3-48. RTD Parameters ................................. 3-22
3-49. RTD Parameters ................................. 3-23
3-50. RTD Parameters ................................. 3-23
3-51. LCD User List - Chart .......................... 3-24
3-52. Chart Menu ......................................... 3-24
3-53. History Menu ....................................... 3-25
3-54. Daily History Menu .............................. 3-25
3-55. History Chart ....................................... 3-25
3-56. Dynamic Data Menu............................ 3-26
3-57. Dynamic Chart .................................... 3-26
3-58. Upper and Lower Scale Ranges ......... 3-27
3-59. PID Menu ............................................ 3-27
3-60. PID Loop Menu ................................... 3-28
3-61. PID Parameters Menu ........................ 3-28
3-62. Primary PID Loop Parameters ............ 3-28
3-63. Override PID Loop Parameters ........... 3-29
3-64. PID Mode ............................................ 3-29
3-65. PID Output .......................................... 3-29
3-66. PID Loop Menu ................................... 3-30
3-67. Graphical PID Loop ............................. 3-30
3-68. System Menu ...................................... 3-31
3-69. System Parameters............................. 3-32
3-70. Save Configuration Menu ................... 3-32
3-71. Confirmation Message ........................ 3-33
3-72. Warm Start Menu ................................ 3-33
3-73. Confirmation Message ........................ 3-33
3-74. Idle State Display ................................ 3-34
3-75. Force End of Day Menu ...................... 3-34
3-76. Confirmation Message ........................ 3-34
3-77. Contrast Control Parameters .............. 3-35
3-78. Confirmation Message ........................ 3-36
3-79. Select History to View screen ............. 3-36
3-80. LCD User List - Chart, Standard
History points ............................................. 3-36
3-81. History Menu ....................................... 3-37
3-82. FLOWDY History Data ........................ 3-37
Forcing End of Day processing ........................ 3-36
H
Hardware
Overview ......................................................... 1-1
High Scale ........................................................... 2-9
Historical charts ................................................ 3-27
I
Inactivity Timer .................................................... 1-6
L
List Number ....................................................... 3-10
Logging Off ....................................................... 3-37
Low Scale ........................................................... 2-9
M
Menu Map ........................................................... 3-8
Menu screens ..................................................... 3-1
Meter Info
Displaying ..................................................... 3-13
Meter Information .............................................. 3-19
Meter Plates
Changing ...................................................... 3-14
Meter Runs ....................................................... 3-12
Module Information ........................................... 3-15
MVS Information ............................................... 3-18
N
Normal Display Mode ......................................... 1-5
Normal Mode
Configuring ..................................................... 2-7
O
Operator ID ....................................................... 2-11
Options Map ........................................................ 3-8
Orifice Meters
Changing a Plate .......................................... 3-14
Overview
Hardware ........................................................ 1-1
Software ......................................................... 1-1
P
Parameter screens ............................................. 3-2
Parameter text: .......................................... 2-6, 3-11
Parameters
Meter ............................................................ 3-13
Password .......................................................... 2-11
PID Loops ................................................ 3-29, 3-37
Advanced ...................................................... 3-32
Basic ............................................................. 3-30
Power Savings mode .......................................... 1-5
R
RTD Information................................................ 3-16
Revised August-2019 Index I-3
S
Saving configurations ....................................... 3-35
Scaling ................................................................ 2-9
Scope & Organization ......................................... 1-1
Screens
Dynamic Charts .............................................. 3-3
Menu ........................................................ 3-1, 3-3
Miscellaneous ................................................. 3-5
Parameter ....................................................... 3-2
Scroll time .................................................. 2-6, 3-11
Security ............................................................... 1-6
Configuring ..................................................... 2-9
Software
Overview ......................................................... 1-1
Standard Lists ................................................... 2-11
Standard mode ................................................... 2-4
System Information .................................. 3-20, 3-34
T
Timeout ............................................................... 3-5
Title
BLM list ........................................................... 2-6
User list ......................................................... 3-10
Touchpad
Communications ............................................. 1-2
Configuration .................................................. 2-1
Configuring ..................................................... 2-4
Contrast ........................................................ 3-37
Daily Use ................................................. 3-1, 3-6
Display mode .................................................. 1-4
Installing ......................................................... A-1
Logging On ..................................................... 3-6
Power Savings................................................ 1-5
Screens .......................................................... 3-1
Scroll time .............................................. 2-6, 3-11
Timeout ........................................................... 3-5
Wiring ............................................................. A-2
Transreflective .................................................... 1-3
U
User ID .............................................................. 2-11
User list
parameter text: ............................................. 3-11
Parameters: .................................................. 3-11
User list title ...................................................... 3-10
User Lists ................................................. 2-11, 3-10
Using the Touchpad ............................................ 3-1
V
Verification ........................................................ 3-22
Viewing
Dynamic data ................................................ 3-28
Historical charts ............................................ 3-27
W
Warm Start ........................................................ 3-36
FB107 LCD User Manual
For customer service and technical support, visit www.Emerson.com/SupportNet.
Global Headquarters, North America, and Latin America:
Emerson Automation Solutions Remote Automation Solutions 6005 Rogerdale Road Houston, TX 77072 U.S.A. T +1 281 879 2699 | F +1 281 988 4445
www.Emerson.com/RemoteAutomation
© 2007–2019 Remote Automation Solutions, a business unit of Emerson Automation Solutions. All rights reserved.
This publication is for informational purposes only. While every effort has been made to ensure accuracy, this publication shall not be read to include any warranty or guarantee, express or implied, including as regards the products or services described or their use or applicability. Remote Automation Solutions (RAS) reserves the right to modify or improve the designs or specifications of its products at any time without notice. All sales are governed by RAS terms and conditions which are available upon request. RAS accepts no responsibility for proper selection, use or maintenance of any product, which remains solely with the purchaser and/or end-user.
Europe:
Emerson Automation Solutions Remote Automation Solutions Unit 1, Waterfront Business Park Dudley Road, Brierley Hill Dudley DY5 1LX UK T +44 1384 487200 | F +44 1384 487258
Middle East/Africa:
Emerson Automation Solutions Remote Automation Solutions Emerson FZE P.O. Box 17033 Jebel Ali Free Zone – South 2 Dubai U.A.E. T +971 4 8118100 | F +971 4 8865465
Asia-Pacific:
Emerson Automation Solutions Remote Automation Solutions 1 Pandan Crescent Singapore 128461 T +65 6777 8211| F +65 6777 0947
Remote Automation Solutions
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
