FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

FB1100/FB1200 Flow Computer
CPU Module
Field Replacement Guide

D301802X012

November 2020

For Part Numbers (Kits):

 399134018-KIT: CPU (DC power only)
 399393-01-0: CPU (with lithium battery board)
 399381-01-1: CPU (with lead acid battery board)
 399381-02-0: CPU (with lead acid battery board - Enersys)

Remote Automation Solutions

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

D301802X012
November 2020

Device Safety Considerations

 Reading these Instructions

Before operating the device, read these instructions carefully and understand their safety implications. In some situations,
improperly using this device may result in damage or injury. Keep this manual in a convenient location for future reference.
Note that these instructions may not cover all details or variations in equipment or cover every possible situation regarding
installation, operation, or maintenance. Should problems arise that are not covered sufficiently in the text, immediately
contact Customer Support for further information.

 Protecting Operating Processes

A failure of this device – for whatever reason -- may leave an operating process without appropriate protection and could result
in possible damage to property or injury to persons. To protect against this, you should review the need for additional backup
equipment or provide alternate means of protection (such as alarm devices, output limiting, fail-safe valves, relief valves,
emergency shutoffs, emergency switches, etc.). Contact Remote Automation Solutions for additional information.

 Returning Equipment

If you need to return any equipment to Remote Automation Solutions, it is your responsibility to ensure that the equipment
has been cleaned to safe levels, as defined and/or determined by applicable federal, state and/or local law regulations or
codes. You also agree to indemnify Remote Automation Solutions and hold Remote Automation Solutions harmless from any
liability or damage which Remote Automation Solutions may incur or suffer due to your failure to ensure device cleanliness.

 Grounding Equipment

Ground metal enclosures and exposed metal parts of electrical instruments in accordance with OSHA rules and regulations as
specified in Design Safety Standards for Electrical Systems, 29 CFR, Part 1910, Subpart S, dated: April 16, 1981 (OSHA rulings are
in agreement with the National Electrical Code). You must also ground mechanical or pneumatic instruments that include
electrically operated devices such as lights, switches, relays, alarms, or chart drives.
Important: Complying with the codes and regulations of authorities having jurisdiction is essential to ensuring personnel
safety. The guidelines and recommendations in this manual are intended to meet or exceed applicable codes and regulations.
If differences occur between this manual and the codes and regulations of authorities having jurisdiction, those codes and
regulations must take precedence.

 Protecting from Electrostatic Discharge (ESD)

This device contains sensitive electronic components which be damaged by exposure to an ESD voltage. Depending on the
magnitude and duration of the ESD, it can result in erratic operation or complete failure of the equipment. Ensure that you
correctly care for and handle ESD-sensitive components.

System Training

A well-trained workforce is critical to the success of your operation. Knowing how to correctly install, configure, program,
calibrate, and trouble-shoot your Emerson equipment provides your engineers and technicians with the skills and confidence
to optimize your investment. Remote Automation Solutions offers a variety of ways for your personnel to acquire essential
system expertise. Our full-time professional instructors can conduct classroom training at several of our corporate offices, at
your site, or even at your regional Emerson office. You can also receive the same quality training via our live, interactive
Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Remote
Automation Solutions Training Department at 800-338-8158 or email us at [e-mail].

Ethernet Connectivity

This automation device is intended to be used in an Ethernet network which does not have public access. The inclusion of this
device in a publicly accessible Ethernet-based network is not recommended.

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

Item

Field Replacement Kit
Part Number

CPU Type

Lead Acid Battery Type

CPU and Charger Board
399381-01-0

CPU and Charger Board
399381-02-0 (for Enersys
battery)

Replacing the CPU Module

You can replace the CPU module in the field provided that the replacement is the identical CPU
type. Depending upon the CPU type, the CPU module may have one or more additional boards
(“daughter boards”) sitting on the main CPU board. The procedure for replacing the module is the
same, with the exception that for the FB1200, if you purchased the optional 6-channel expansion
I/O module, you must disconnect it from the old CPU so you can re-connect it to the new CPU.

Restriction

Hazardous area approvals request that any part replaced in the field be the exact same part (“like­for-like”). Upgrading or substituting different parts violates hazardous area certification.

Refer to the table below for the correct field replacement part number.

CPU board with DC power only 395620-03-1

D301802X012

November 2020

CPU board with lithium battery board (FB1100 only) 399393-01-0

CPU board with solar (Div. 2 only) /lead acid battery charge board 399381-01-0

CPU board with solar (Div. 2 only)/lead acid battery charge board for
Enersys battery

Important

When replacing one of the CPU and charger boards used with a lead acid battery, ensure your flow
computer has the correct lead acid battery type. To see what type you have, check the part number
shown on the label on the bottom of the battery pack enclosure. See the following compatibility
chart.

Important

Use only accessories (batteries) supplied with the flow computer or sold by Emerson as spare parts
for this flow computer.
certification.

Charger Board and Lead Acid Battery Compatibility

Substituting a part you obtain elsewhere (such as a battery) voids your

399381-02

399186-01-8 SUPPORTED NOT SUPPORTED

399457-00-0 (Enersys) SUPPORTED SUPPORTED

Ambient Temperature Range

May be used up to a maximum ambient temperature of 80°C and a minimum ambient temperature
of –40°C; refer to the data plate attached to the device for ambient temperature.

1

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

WARNING

WARNING

DANGER

D301802X012
November 2020

Required Tools



#1 Phillips-head screwdriver



#2 Phillips-head screwdriver



3/32-inch flat head screwdriver (for 3.81 mm pitch terminal block connections and
disconnecting the internal connector to the sensor)



Hexagonal torque wrenches with 3mm, #1, and #2 Phillips-head bits. Ranges must include 1
to 2 in-lbs (0.1 to 0.2 N-m), 4 to 6 in-lbs (0.5 to 0.7 N-m), and 10 to 12 in-lbs (1.1 to 1.4 N-m).

Electrical Ratings



Input Voltage: 5.7-30Vdc, 10 Watts Max



I/O Ratings (FB1200 Flow Computer):

o

4 Digital Outputs: 0.5A, 24Vdc

o

2 Analog Outputs: 4-20 mA

EXPLOSION HAZARD –Do not disconnect equipment unless power has been removed or the area
is known to be non-hazardous.

EXPLOSION HAZARD -Substitution of any components may impair suitability for Class I, Division
1 or Class I, Division 2.

DANGER

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous.
Performing this operation in a hazardous area could result in an explosion.

EXPLOSION HAZARD: Never remove end cap(s) in a hazardous location. Removing cover(s) in a
hazardous location could result in an explosion.

Removing/Replacing the CPU Module

UL Listed CPU Module Field Installed Accessory Kit for use in Class I, Division 1, Groups C, and D;
and Class I, Division 2, Groups A, B, C, and D.

2

 Flow Computer CPU Board with DC power only Field Installed Accessory Kit Part No.

399134018-KIT for use with UL Listed Model Series FB1100 and FB1200.

 Flow Computer CPU Board with lithium battery board Field Installed Accessory Kit Part No.

399393-01-1 for use with UL Listed Model Series FB1100.

 Flow Computer CPU board with solar/lead acid battery charge board Field Installed

Accessory Kit Part No. 399381-01-0 for use with UL Listed Model Series FB1100 and FB1200.

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

CAUTION

must

1

Screw

2

Retaining Clamp

3

Washer

D301802X012

November 2020

 Flow Computer CPU board with solar/Enersys lead acid battery charge board Field Installed

Accessory Kit Part No. 399381-02-0 for use with UL Listed Model Series FB1100 and FB1200.

If your flow computer uses lead acid battery pack 399186-01-8 and you need to replace the CPU
and battery charge board, you
not supported by the Enersys charge board.

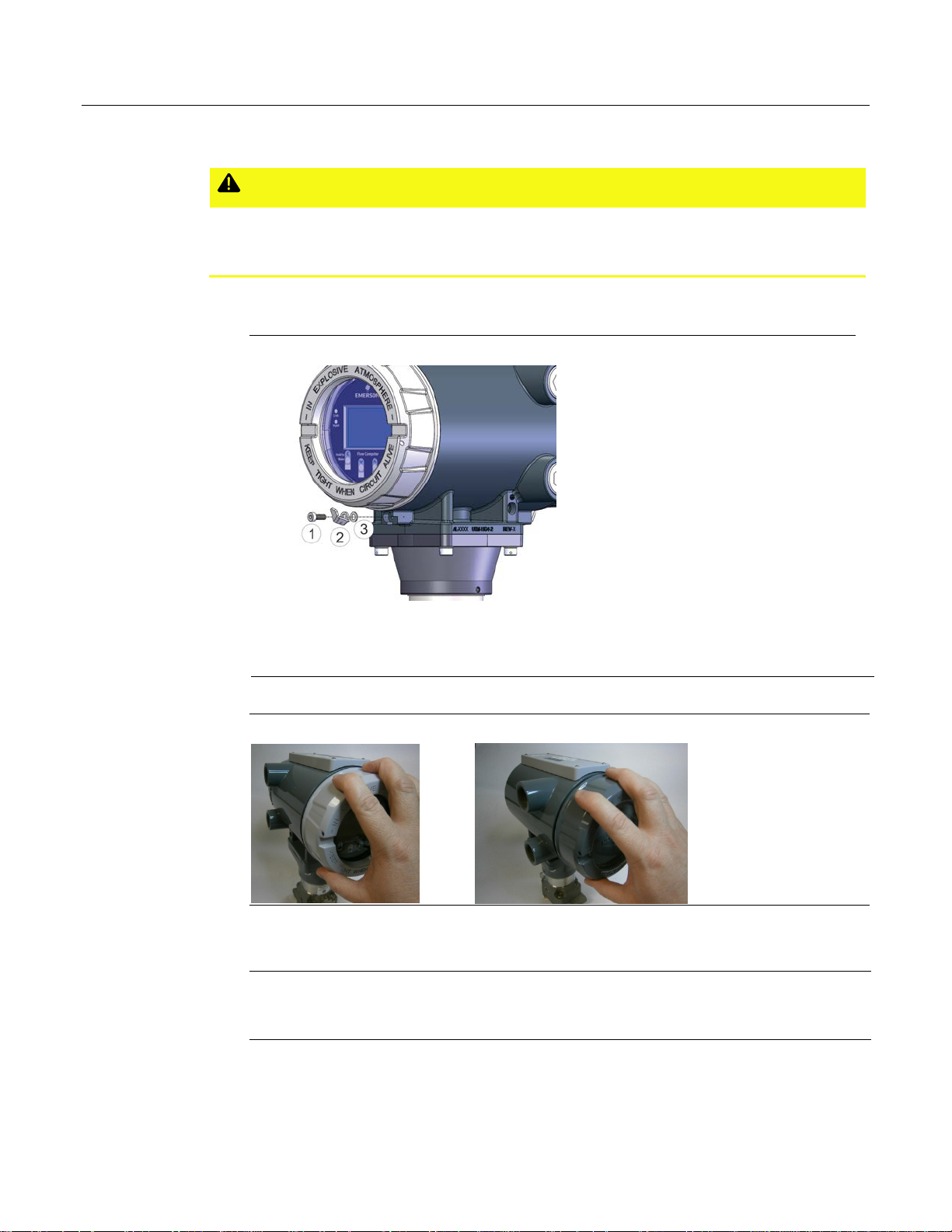

1. Remove the front and rear end caps. Remove the retaining clamps on the end caps (if
present) using a 3 mm hexagonal wrench.

Components of Retaining Clamp Assembly

select kit 399381-01-0 because the 399186-01-8 battery is

2. Grasp the end cap.

Front End Cap Rear End Cap

3. Unscrew the end cap by turning it counter-clockwise until it comes off. Set the end cap aside
in a safe location.

Note

If you need more leverage, place a long screwdriver or other appropriate tool across the two
notches in the end cap to act as a pry bar.

3

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

D301802X012
November 2020

Front End Cap (unscrewed) Rear End Cap (removed)

4. Unplug terminal block TB1 to disconnect main power. TB1 has either six connectors or eight
connectors. See the graphics below for detail:

TB1 (Six connectors)

4

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

TB1 (Eight connectors)

D301802X012

November 2020

5. With a #2 Phillips-head screwdriver, loosen the two captive fastening screws in the recessed
areas of the battery pack enclosure.

Note

Not all units include an internal battery but the battery enclosure is always present.

5

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

D301802X012
November 2020

Captive Screws

6. With a #1 Phillips-head screwdriver, loosen the two bottom captive fastening screws on the
HMI module. Leave the two top screws on the HMI module connected to the battery pack
enclosure.

Captive Screws (loosened)

7. Grasp the HMI module and gently pull it and the battery pack enclosure out of the housing.

6

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

HMI Module (removed)

8. If the battery pack holds an internal battery, disconnect it.

Internal Battery (disconnected)

D301802X012

November 2020

9. Set the battery pack enclosure and HMI module assembly aside.

10. Remove the SRAM backup battery; set it aside in a safe place.

7

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

D301802X012
November 2020

SRAM Battery (removed)

11. With a #2 Phillips-head screwdriver, loosen the two captive fastening screws in the plastic
bezel that hold the CPU module in place.

Bezel Fastening Screws

12. Grasp the plastic bezel and gently pull the CPU module out of the housing.

8

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

D301802X012

November 2020

CPU Module (removed)

13. Use a 3/32-inch flathead screwdriver to separate the internal wire connector plug from the
plug on the bottom of the CPU module.

Internal Wire Connector Plug on CPU Module

14. If your flow computer includes the 6-channel expansion I/O board (available only on FB1200
units), use a #1 Phillips-head screwdriver to remove the four screws that attach the I/O
expansion board to the CPU module and separate the board from the CPU module. Set the
old CPU module aside and now use those four screws to attach the 6-channel expansion I/O
board to your
N-m).

new (replacement) CPU module. Torque screws to 1 to 2 in-lbs (0.1 to 0.2

9

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

D301802X012
November 2020

Correct IO Expansion Board Screw Locations

Snap the
internal wire connector plug (from Step 13) onto the mating plug on the bottom of the new
(replacement) CPU module and gently slide the new CPU module into the housing, being
careful not to pinch wires. Press firmly into place.

16. Tighten the two captive fastening screws that hold the CPU module in the housing. Torque
screws to 4 to 6 in-lbs (0.5 to 0.7 N-m).

17. Replace the SRAM backup battery you removed in Step 10. (The “+” must be facing
upwards.)

18. Slide the HMI module/battery pack enclosure assembly (from Step 7) back into the housing.
Tighten the captive fastening screws on the top of the battery pack enclosure and then
tighten the bottom screws on the HMI module with a torque value of 4 to 6 in-lbs (0.5 to 0.7
N-m).

19. Reconnect battery power (if present). (See the connector shown in Step 8).

20. Restore main power at connector TB1.

21. Carefully align the end cap threads with the threads of the enclosure and screw each end cap
clockwise (eight full turns) until it is tightly sealed to the enclosure. End caps must have at
least 8 full threads engaged upon reassembly.

Note

If you need more leverage, place a long screwdriver or other appropriate tool across the two
notches in the end cap to act as a pry bar.

10

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

D301802X012

November 2020

22. If applicable, tighten the retaining clamp onto each end cap using a 3mm hexagonal wrench.
When tightening, torque to 10 to 12 in-lbs (1.1 to 1.4 N-m).

11

FB1100/FB1200 Flow Computer CPU Module Field Replacement Guide

For customer service and technical support,

Global Headquarters,
North America, and Latin America:

end-user.

Europe:

Middle East/Africa:

Asia-Pacific:

T [phone]| F [phone]

D301802X012
November 2020

visit www.Emerson.com/SupportNet

Emerson Automation Solutions
Remote Automation Solutions
6005 Rogerdale Road
Houston, TX 77072 U.S.A.
T [phone] | F [phone]

www.Emerson.com/RemoteAutomation

Emerson Automation Solutions
Remote Automation Solutions
Unit 1, Waterfront Business Park
Dudley Road, Brierley Hill
Dudley DY5 1LX UK
T [phone] | F [phone]

Emerson Automation Solutions
Remote Automation Solutions
Emerson FZE
P.O. Box 17033
Jebel Ali Free Zone – South 2
Dubai U.A.E.
T [phone] | F [phone]

Emerson Automation Solutions
Remote Automation Solutions
1 Pandan Crescent
Singapore 128461

© 2018-2020 Remote Automation Solutions, a business unit of Emerson Automation
Solutions. All rights reserved.

This publication is for informational purposes only. While every effort has been made to ensure
accuracy, this publication shall not be read to include any warranty or guarantee, express or
implied, including as regards the products or services described or their use or applicability.
Remote Automation Solutions (RAS) reserves the right to modify or improve the designs or
specifications of its products at any time without notice. All sales are governed by RAS terms
and conditions which are available upon request. RAS accepts no responsibility for proper
selection, use or maintenance of any product, which remains solely with the purchaser and/or

Remote Automation Solutions
