Emeson DNP3 Protocol Specifications Manual (for FB1000 and FB2000 Series Flow Computers)
Table of contents
Loading...Remote Automation Solutions Emeson DNP3 Protocol Specifications Manual (for FB1000 and FB2000 Series Flow Computers) Manuals & Guides
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Energy and Transportation Solutions
Emerson DNP3 Protocol Specifications
Manual (for FB1000 and FB2000 Series Flow
Computers)
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
ii
System Training
A well-trained workforce is critical to the success of your operation.
Knowing how to correctly install, configure, program, calibrate, and
trouble-shoot your Emerson equipment provides your engineers and
technicians with the skills and confidence to optimize your
investment. Energy and Transportation Solutions offers a variety of
ways for your personnel to acquire essential system expertise. Our
full-time professional instructors can conduct classroom training at
several of our corporate offices, at your site, or even at your regional
Emerson office. You can also receive the same quality training via our
live, interactive Emerson Virtual Classroom and save on travel costs.
For our complete schedule and further information, contact the
Energy and Transportation Solutions Training Department at 800338-8158 or email us at education@emerson.com.
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Contents iii
Contents
1. Introduction 1
1.1 Scope ................................................................................................................................... 1
1.2 Glossary ................................................................................................................................ 1
1.3 DNP3 Protocol Overview ....................................................................................................... 2
2. DNP3 Application Layer Definitions 9
2.1 DNP3 Point ........................................................................................................................... 9
2.2 Index, Groups, and Variations ............................................................................................... 9
2.3 DNP3 Objects ....................................................................................................................... 9
2.4 Static, Event, and Class Data ............................................................................................... 10
2.4.1 Static Data ............................................................................................................... 10
2.4.2 Event Data ............................................................................................................... 10
2.4.3 DNP3 Classes Data ................................................................................................... 10
3. DNP3 Application Layer Messaging 11
3.1 Function Code Table ........................................................................................................... 11
4. DNP3 Data Point List 13
4.1 Binary Input: DNP3 Object Groups 1 (Static) & 2 (Events) .................................................... 14
4.1.1 DNP3 Object Group 1: Binary Input Static ................................................................ 14
4.1.2 DNP3 Object Group 2: Binary Input Events ............................................................... 14
4.2 Binary Output: DNP3 Object Groups 10 (Static) & 12 (Commands) ...................................... 15
4.2.1 DNP3 Object Group 10: Binary Output Static ........................................................... 15
4.2.2 DNP3 Object Group 12: Binary Output Command or Control Relay Output Block
(CROB) ................................................................................................................................ 15
4.3 Analog Input: DNP3 Object Groups 30 (Static) & 32 (Events) ............................................... 16
4.3.1 DNP3 Object Group 30: Analog Input Static ............................................................. 16
4.3.2 DNP3 Object Group 32: Analog Input Events ............................................................ 16
4.4 Analog Output: DNP3 Object Groups 40 (Status) & 41 (Commands) ................................... 22
4.4.1 DNP3 Object Group 40: Analog Output Status ......................................................... 22
4.4.2 DNP3 Object Group 41: Analog Output Commands ................................................. 22
4.5 Binary Counter: DNP3 Object Groups 20 (Events) & 22 (Events) ........................................... 41
4.5.1 DNP3 Object Group 20: Counters (Static) ................................................................ 41
4.5.2 DNP3 Object Group 22: Counters (Events) ............................................................... 41
4.6 String Group: DNP3 Object Group 110 (Static) .................................................................... 42
4.6.1 DNP3 Object Group 110: Octet Strings (Static) ........................................................ 42
5. Object Parameter Listing 45
5.1 Measurement Types ........................................................................................................... 45
5.2 Object Parameters .............................................................................................................. 78
5.2.1 Action Block Parameters .......................................................................................... 80
5.2.2 AI Parameters .......................................................................................................... 90
5.2.3 AlCal Parameters ..................................................................................................... 97
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
iv Contents
5.2.4 Alarm Parameters .................................................................................................. 102
5.2.5 AO Parameters ...................................................................................................... 115
5.2.6 Average Parameters .............................................................................................. 121
5.2.7 BSAP Parameters ................................................................................................... 126
5.2.8 Clock Parameters .................................................................................................. 130
5.2.9 Comm Parameters ................................................................................................ 135
5.2.10 Components Parameters ..................................................................................... 140
5.2.11 DI Parameters ...................................................................................................... 152
5.2.12 Display Parameters .............................................................................................. 157
5.2.13 DNP3 Parameters ................................................................................................ 187
5.2.14 DO Parameters .................................................................................................... 192
5.2.15 DP Parameters ..................................................................................................... 198
5.2.16 DP Meter Parameters ........................................................................................... 202
5.2.17 Effect Parameters ................................................................................................ 217
5.2.18 FBxNConfig Parameters ....................................................................................... 220
5.2.19 FLTCal Parameters ............................................................................................... 222
5.2.20 Fluid Prop Parameters .......................................................................................... 230
5.2.21 GC Config Parameters .......................................................................................... 240
5.2.22 GC Data Parameters ............................................................................................. 248
5.2.23 GC Stream Parameters ......................................................................................... 263
5.2.24 Hist Parameters ................................................................................................... 270
5.2.26 Hist Grp Parameters ............................................................................................. 276
5.2.27 HostLink Parameters ............................................................................................ 281
5.2.28 IoConfig Parameters ............................................................................................ 282
5.2.29 Linear Meter Parameters ...................................................................................... 286
5.2.30 Liq Dens Parameters ............................................................................................ 302
5.2.31 Liq FlProp Parameters .......................................................................................... 304
5.2.32 Liq LinMtr Parameters .......................................................................................... 310
5.2.33 Liq Prod Parameters ............................................................................................. 330
5.2.34 Local Parameters ................................................................................................. 332
5.2.35 Log Parameters .................................................................................................... 334
5.2.36 MapTable Parameters .......................................................................................... 341
5.2.37 MasterConf Parameters ....................................................................................... 378
5.2.38 Math Block Parameters ........................................................................................ 382
5.2.39 Module Parameters ............................................................................................. 387
5.2.40 Mtr Setup Parameters .......................................................................................... 391
5.2.41 PI Parameters ...................................................................................................... 393
5.2.42 PID Parameters .................................................................................................... 398
5.2.43 PollTable Parameters ........................................................................................... 405
5.2.44 PowerCtrl Parameters .......................................................................................... 445
5.2.45 Press Parameters ................................................................................................. 449
5.2.46 ROC Parameters .................................................................................................. 453
5.2.47 Role Parameters .................................................................................................. 455
5.2.48 RTD Parameters ................................................................................................... 460
5.2.49 Security Parameters ............................................................................................. 465
5.2.50 Sensor Parameters ............................................................................................... 467
5.2.51 SlaveConf Parameters .......................................................................................... 474
5.2.52 Station Parameters .............................................................................................. 478
5.2.53 System Parameters .............................................................................................. 490
5.2.54 System Power Parameters ................................................................................... 496
5.2.55 Total Parameters ................................................................................................. 499
5.2.57 User Data Parameters .......................................................................................... 515
5.2.58 4088 Parameters ................................................................................................. 524
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Introduction 1
1. Introduction
This DNP3 Protocol Specifications Manual (for FB1000 and FB2000 Series Flow
Computers) enables internal Emerson personnel, Emerson customers, and
third-party vendors to integrate data to SCADA and other supervisory
systems. SCADA vendors can use this manual and the FBxConnect™
configuration software toolset and to configure, send, and receive data to
and from the Emerson FB1000 Series and FB2000 Series flow computers.
1.1 Scope
This manual covers the implementation of the DNP3 protocol in the FB1000
Series and FB2000 Series flow computers. It should assist SCADA
integrators in interfacing DNP3 host-based applications with Emerson
FB1000 Series and FB2000 Series flow computers for both configuration
and data collection.
1.2 Glossary
Following are words, terms, and acronyms pertinent to this manual.
Term
Definition
ALSFC
Application Layer Sub Function Code
Authority
A notified body that can change certain parameters on the flow computer which cannot
otherwise be changed by the customer or engineers on site.
CON
A bit in the Application Layer’s control byte that specifies whether an Application Layer
confirmation is required.
Control Relay Output
Block (CROB)
A structured data block appearing in request and response messages associated with
actuating on/off type output devices.
CRC
Cyclic Redundancy Check code that is generated according to a specific algorithm, and
transmitted with the message for the purpose of detecting data corruption during
communication via the Physical Layer.
Deprecated
Indicates that a feature or requirement is still permitted although its use is discouraged,
and it is not guaranteed to be part of future specification versions. See also obsolete.
DNP
Distributed Network Protocol
DNP3
The third generation of DNP
End device
A device that provides information to another (‘host”) device.
FIN
Final Data Link frame or final Application Layer fragment in a message
FIR
First Data Link frame or first Application Layer fragment in a message
Fragment
A packet of bytes that is sized to fit into the buffers of the receiving device’s Application
Layer. Each fragment has an application header and bytes containing Application Layer
request, response or confirmation information.
Frame
A packet of octets transmitted from the Data Link Layer in one device to the Data Link
Layer in another device over the Physical Layer. Each frame contains a link header, cyclic
redundancy check (CRC) octets, and sometimes a segment from the Transport
Function.
Host device
A device which controls other (“end”) devices.
IED
Intelligent Electronic Device. These are usually physically located close to sensors or
actuators that are monitored or controlled.
Input
Refers to values that are measured, read, or generated by the device and are reported by
an outstation to a host device.
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
2 Introduction
Term
Definition
IP
Internet Protocol
LSB
Least Significant Byte, the byte which represents that part of a value split across two or
more bytes.
LMB
Lower Middle Byte
MSB
Most Significant Byte, the byte which represents the part of a value split across two or
more bytes.
Octet
A group of eight contiguous digital information bits.
Output
Refers to values in an outstation or lower-level device that are controlled by commands
from the host device.
Poll
A poll is a request for data from a host device.
Private
Belonging to or restricted to an individual device not generally known to other devices.
Request
An Application Layer message from a host device that asks an end device to perform a
specific action. A poll is only one type of request with multiple different types available.
Response
An Application Layer message from the end device that is returned to the host device as
the result of a request from the host device.
Route
Describes how multiple flow computers can be connected so that they can be layered on
top of one another.
RTU
Remote Terminal Unit. Similar to an IED, RTUs are normally placed in the field close to
the sensors or actuators that they monitor or control.
SCADA
Supervisor Control and Data Acquisition. A generic term used to indicate monitoring
and controlling devices that are physically located remotely from a centralized
computer. Communications are implied between the central location and the outlying
devices.
Segment
A packet of bytes that is sized to fit into a Link Layer frame. Each segment contains a
transport header and a portion of a fragment from the Application Layer.
SEQ
Sequence number that differentiates subsequent Data Link frames or Application Layer
fragments. Sequence numbers associated with unsolicited responses are distinct from
sequence numbers used for solicited messages
Static Data
A DNP3 definition for “present” values; the mostly recently measured, computed, or
obtained values.
TCP
Transmission Control Protocol
Unsolicited Response
An Application Layer message from a slave device to a master for which no explicit
request was received. The request is implied by the act of a master enabling unsolicited
reporting from slave devices.
UNS
A bit in the Application Layer’s control byte that specifies whether a fragment (response
and confirmation) pertains to an unsolicited message. When this bit is set the sequence
number in the SEQ field refers to the unsolicited sequence number.
1.3 DNP3 Protocol Overview
Emerson FB1000 Series and FB2000 Series flow computers are
implemented as DNP3 outstations for communication and configuration
with Emerson Field Tools software and SCADA hosts. DNP3 is an open and
public protocol used to ensure standards-based inter-operability between
DNP3 outstations and a SCADA host.
The flow computers support physical communication over Wi-Fi®, Ethernet,
and serial communications.
Note
DNP3 uses little-endian as the byte order of the messages.
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Introduction 3
The flow computers implement the DNP3 level 3 protocol subset.
Content that has no highlighting (such as this paragraph) appears in the
unlicensed version of this protocol manual.
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Application Layer Definitions 9
2. DNP3 Application Layer Definitions
In the Emerson FB1000 and FB2000 Series flow computers DNP3 data
points map statically to tags.
2.1 DNP3 Point
The DNP3 point is a uniquely identifiable physical/logical entity that applies
to inputs and outputs like binaries, analogs, and inputs (such as counters).
Point type is an independent array of points having related characteristics.
2.2 Index, Groups, and Variations
Index numbers identify points having the same point type. They are zerobased and the lowest element is always zero.
Groups enable you to classify the data types within a message. Each group
number shares a common point type and a common method of data
generation and creation. For example, these might be the different group
numbers in an analog input point type:
Group 30
Current value of the point
Group 31
Frozen value of the point
Group 32
Change of current value event
Group 33
Change of frozen value event
Variations are different encoding formats for the data types within a group.
Every group number has an independent set of variations. For example,
these might be the variations in group 20:
Variation 1
32-bit with flag
Variation 2
16-bit with flag
Variation 3
32-bit with flag, delta
Variation 4
16-bit with flag, delta
Variation 5
32-bit without flag
Variation 6
16-bit without flag
Variation 7
32-bit without flag, delta
Variation 8
16-bit without flag, delta
2.3 DNP3 Objects
An object is an encoded representation of data from a point. The system
formats data according to its group and variation number in order to
transport the message.
DNP3 messages may contain multiple objects, each representing the value
of a point at a given instant in time or a command to be issued to an output
point.
The supported DNP3 objects and groups are:
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
10 DNP3 Application Layer Definitions
Name
Group Number
Binary Inputs
1, 2
Binary Outputs
10
Control Relay Output
(CROB)
12
Binary Counters
20, 21, 22, 23
Analog Inputs
30, 32
Analog Outputs
40, 41
Time and Data
50
Class
60
Internal Indications
80
Octet String
110
2.4 Static, Event, and Class Data
2.4.1 Static Data
Static data refers to a point’s current or most recently recorded value. For
binary input points, “static data” refers to the present on/off condition.
2.4.2 Event Data
Events are associations with changes in points, such as state changes,
measurement at some threshold, or an analog input changing by more than
its defined dead band.
Structured information stored in each event, including:
▪ Type of event
▪ Value
▪ Point index
▪ Time when event occurred
▪ Class assignment
2.4.3 DNP3 Classes Data
Classes organize events and current values into categories:
▪ Class 0 data refers to static data. When a host device requests class 0
data from a flow computer, the end device reports back the most
recently measured, computed, or obtained values for the different
point types.
▪ Class 1, 2, and 3 are event classes. DNP3 does not assign significance to
these event classes. Implementations can use different strategies
around these classes, such as assigning highest priority events to class 1
and lowest priority events to class 3. Host devices may request events
from one or more of these classes.
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Application Layer Messaging 11
3. DNP3 Application Layer Messaging
Host devices send a request fragment to an end device to execute a command or return
data. The end device performs the requested action, generates the appropriate response,
and transmits it back to the host device.
The end device may transmit unsolicited response messages to the host. DNP message
fragments can contain header, data, and checksum bytes. Figure 3-1 shows the response
message fragment.
Figure 3-1: DNP3 Message Fragment
Each fragment (request or response) begins with an application header that contains
message control information. The application response header contains an additional field
called “internal indications.”
3.1 Function Code Table
The function code octet identifies the purpose of the message. Request messages from
host devices use function codes in the range of 0 to 128, and response messages from
outstations use function codes with values ranging from 129 to 255. The following table
describes the function codes.
Requests (Hex)
0x00
Confirm
0x01
Read
0x02
Write
Application
Req/Resp
Header
First
Object
Header
DNP3 Objects
Last Object
Header
DNP3
Objects
Start of Fragment
Application
Control
Function
Code
Internal Indications
LSB MSB
FIN
FIR
SEQ
CON
UNS
7 6 5 4 3 2 1 0
Application control byte
Bit number
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
12 DNP3 Application Layer Messaging
Requests (Hex)
0x03
Select
0x04
Operate
0x05
Direct operate
0x06
Direct operate – no response
0x07
Freeze
0x08
Freeze – no response
0x09
Freeze clear
0x0A
Freeze clear – no response
0x0B
Freeze at time
0x0C
Freeze at time – no response
0x0D
Cold start
0x0E
Warm start
0x0F
Initialize data
0x10
Initialized application
0x11
Start application
0x12
Stop application
0x13
Save configuration
0x14
Enable unsolicited messages
0x15
Disable unsolicited messages
0x16
Assign class
0x17
Delay measurements
0x18
Record measurement
0x19
Open file
0x1A
Close file
0x1B
Delete file
0x1C
Get file information
0x1D
Authenticate file
0x1E
Abort file
0x1F
Activate configuration
0x20
Authenticate request
0x21
Authenticate request – no ack
Responses (Hex)
0x81
Response
0x82
Unsolicited response
0x83
Authenticate response
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 13
4. DNP3 Data Point List
The Emerson FB1000 and FB2000 Series flow computers statically map DNP3 data points
to tags.
Data Point Mappings: Default and Custom
The FB1000 and FB2000 Series provides a default mapping of data points which represents
what a typical customer might need. The default mapping is an out-of-the-box solution
that accesses information for approximately 24 instances of each type of meter and
station, along with a full (7-slot) chassis of IO modules, along with other things (such as
components, PIDs, and user data).
Take time to review the information in this chapter against your organization’s
requirements. If you need DNP3 access to additional device parameters not present in the
default map, you have two options:
▪ Create a custom data point map using FBxConnect (refer to the DNP3 Mapping topic in
the online help for FBxConnect) that replaces the default mapping. While this option
would enable you to explicitly define the additional points to access, you must also
include in the custom map all the standard data points present in the default map.
Otherwise those data points are not available when you change the Active DNP3 Map
setting in FBxConnect to User Defined.
▪ Use the DNP3 Tunneling protocol to access all the device parameters. Tunneling is a
licensed function; consult with your Emerson Impact Partner if you want this
capability.
To obtain a report of the current data point map, issue a series of DNP3 file read requests
to the device to read the binary files which define the currently active point mapping for
any group. Filenames include:
▪ /protocol/dnp3/activemap/AnigIn_Group30_32.pro
▪ /protocol/dnp3/activemap/AnigOut_Group40_41.pro
▪ /protocol/dnp3/activemap/BinIn_Group1_2.pro
▪ /protocol/dnp3/activemap/BinOut_Group10_12.pro
▪ /protocol/dnp3/activemap/Counters_Group20_22_21_23.pro
▪ /protocol/dnp3/activemap/String_Group110.pro
Point Limits per group:
▪ Group 1 and 2 – 50
▪ Groups 10 and 11 - 30
▪ Groups 20 and 22 - 60
▪ Groups 30 and 32 - 220
▪ Groups 40 and 41 - 780
▪ Group 110 – 80
Important
This chapter discusses the default data point map provided for the
FB1000 and FB2000
Series
.
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
14 DNP3 Data Point List
4.1 Binary Input: DNP3 Object Groups 1 (Static) & 2
(Events)
4.1.1 DNP3 Object Group 1: Binary Input Static
This group can be read with two possible variations:
▪ Variation 1: Package format having single bit binary input state without status flags
▪ Variation 2: Each DNP3 point is returned with a single byte having status flags
indicating the point status (such as online/offline, comm lost, over range, etc.)
4.1.2 DNP3 Object Group 2: Binary Input Events
This group can be read with three possible variations:
▪ Variation 1: A single byte for reporting state of input and status flags without time
▪ Variation 2: A single byte for reporting state of input and status flags with absolute
time when the event occurred.
▪ Variation 3: A single byte for reporting state of input and status flags with relative
time. A preceding common time of occurrence (CTO) object, group 51, establishes
the basis for relative time.
Point
Index
Tag Mapped
Name for State
when value = 0
Name for State
when value = 1
Default Class
Assigned
0
System Pwr_1.SRAM_BATT_STATUS
Normal
Failed
Class_1
1
DI_1-1.SELECTED
OFF
ON
Class_1
2
DI_1-2.SELECTED
OFF
ON
Class_1
3
DI_1-3.SELECTED
OFF
ON
Class_1
4
DI_1-4.SELECTED
OFF
ON
Class_1
5
DI_1-5.SELECTED
OFF
ON
Class_1
6
DI_1-6.SELECTED
OFF
ON
Class_1
7
DI_1-7.SELECTED
OFF
ON
Class_1
8
DI_1-8.SELECTED
OFF
ON
Class_1
9
DI_1-9.SELECTED
OFF
ON
Class_1
10
DI_1-10.SELECTED
OFF
ON
Class_1
11
DO_1-1.SELECTED
OFF
ON
Class_1
12
DO_1-2.SELECTED
OFF
ON
Class_1
13
DO_1-3.SELECTED
OFF
ON
Class_1
14
DO_1-4.SELECTED
OFF
ON
Class_1
15
DO_1-5.SELECTED
OFF
ON
Class_1
16
DO_1-6.SELECTED
OFF
ON
Class_1
17
DO_1-7.SELECTED
OFF
ON
Class_1
18
DO_1-8.SELECTED
OFF
ON
Class_1
19
DO_1-9.SELECTED
OFF
ON
Class_1
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 15
Point
Index
Tag Mapped
Name for State
when value = 0
Name for State
when value = 1
Default Class
Assigned
20
DO_1-10.SELECTED
OFF
ON
Class_1
21
Station_1.FLD-TYPE
NaturalGasDry
NaturalGasSat
Class_3
22
Station_2.FLD-TYPE
NaturalGasDry
NaturalGasSat
Class_3
23
DP Mtr_1.STATION_OBJ.FLD_TYPE
NaturalGasDry
NaturalGasSat
Class_3
24
DP Mtr_2.STATION_OBJ.FLD_TYPE
NaturalGasDry
NaturalGasSat
Class_3
25
Linear Mtr_1. STATION_OBJ.FLD_TYPE
NaturalGasDry
NaturalGasSat
Class_3
26
Linear Mtr_2.STATION_OBJ.FLD_TYPE
NaturalGasDry
NaturalGasSat
Class_3
27
PID_1.OUTPUT_MODE
Manual
Auto
Class_3
28
PID_2.OUTPUT_MODE
Manual
Auto
Class_3
29
PID_3.OUTPUT_MODE
Manual
Auto
Class_3
4.2 Binary Output: DNP3 Object Groups 10 (Static) & 12
(Commands)
4.2.1 DNP3 Object Group 10: Binary Output Static
This group can be read with the following variations:
▪ Variation 1: Package format having single bit binary output state without status flags
▪ Variation 2: Each DNP3 point is returned with a single byte having status flags
indicating the point status (such as online/offline, comm lost, over range, etc.)
4.2.2 DNP3 Object Group 12: Binary Output Command or Control
Relay Output Block (CROB)
This group can be read with the following variations:
▪ Variation 1: Control Relay Output Block
▪ Variation 2: Pattern Control Block (PCB); this variation is not supported.
▪ Variation 3: Pattern Control Mask; this variation is not supported.
Point
Index
Tag Mapped
Name for State
when value = 0
Name for State
when value = 1
Default Class
Assigned
0
DP Mtr_1.PRESS_LOC
Upstream
Downstream
None
1
DP Mtr_1.PRESS_TYPE
Absolute
Gauge
None
2
DP Mtr_2.PRESS_LOC
Disabled
Enabled
None
3
DP Mtr_2.PRESS_TYPE
Disabled
Enabled
None
4
Linear Mtr_1.MTR_TYPE
Volume
Mass
None
5
Linear Mtr_1.PRESS_TYPE
Absolute
Gauge
None
6
Linear Mtr_2.MTR_TYPE
Volume
Mass
None
7
Linear Mtr_2.PRESS_TYPE
Absolute
Gauge
None
8
PID_1.PID_ENABLE
Disable
Enable
None
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
16 DNP3 Data Point List
Point
Index
Tag Mapped
Name for State
when value = 0
Name for State
when value = 1
Default Class
Assigned
9
PID_1.OUTPUT_TYPE
Analog
Digital
None
10
PID_2.PID_ENABLE
Disable
Enable
None
11
PID_2.OUTPUT_TYPE
Analog
Digital
None
12
PID_3.PID_ENABLE
Disable
Enable
None
13
PID_3.OUTPUT_TYPE
Analog
Digital
None
4.3 Analog Input: DNP3 Object Groups 30 (Static) & 32
(Events)
4.3.1 DNP3 Object Group 30: Analog Input Static
This group can be read with the following variations:
▪ Variation 1: 32-bit with flag
▪ Variation 2: 16-bit with flag
▪ Variation 3: 32-bit without flag
▪ Variation 4:16-bit without flag
▪ Variation 5: Single precision floating point with flag
▪ Variation 6: Double precision floating point with flag
4.3.2 DNP3 Object Group 32: Analog Input Events
This group can be read with the following variations:
▪ Variation 1: 32-bit with flag
▪ Variation 2: 16-bit with flag
▪ Variation 3: 32-bit without flag
▪ Variation 4: 16-bit without flag
▪ Variation 5: single precision floating without time
▪ Variation 6: double precision floating without time
▪ Variation 7: single precision floating with time
▪ Variation 8: double precision floating with time
Point
Index
Tag Mapped
Default
Class
Group 30
Default
Variation
Group 32
Default
Variation
0
System_1.NUM_ALM
Class_2
Variation 1
Variation 1
1
System_1.NUM_EVT
Class_2
Variation 1
Variation 1
2
System_1.NUM_WM_EVT
Class_2
Variation 1
Variation 1
3
System Pwr_1.BATT_ALM.PROCESS_ALM
Class_1
Variation 2
Variation 2
4
System Pwr_1.EXT_VOLT_ALM.PROCESS_ALM
Class_1
Variation 2
Variation 2
5
Clock_1.TIME
Class_2
Variation 1
Variation 1
6
Clock_1.YEAR
Class_2
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 17
Point
Index
Tag Mapped
Default
Class
Group 30
Default
Variation
Group 32
Default
Variation
7
Clock_1.MONTH
Class_2
Variation 2
Variation 2
8
Clock_1.DAY
Class_2
Variation 2
Variation 2
9
Clock_1.HOUR
Class_2
Variation 2
Variation 2
10
Clock_1.SECOND
Class_2
Variation 2
Variation 2
11
Clock_1.MINUTE
Class_2
Variation 2
Variation 2
12
Log_1.LOG_ALM
Class_2
Variation 1
Variation 1
13
Log_1.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
14
Log_2.LOG_ALM
Class_2
Variation 1
Variation 1
15
Log_2.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
16
Log_3.LOG_ALM
Class_2
Variation 1
Variation 1
17
Log_3.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
18
Log_4.LOG_ALM
Class_2
Variation 1
Variation 1
19
Log_4.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
20
Log_5.LOG_ALM
Class_2
Variation 1
Variation 1
21
Log_5.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
22
Log_6.LOG_ALM
Class_2
Variation 1
Variation 1
23
Log_6.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
24
Log_7.LOG_ALM
Class_2
Variation 1
Variation 1
25
Log_7.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
26
Log_8.LOG_ALM
Class_2
Variation 1
Variation 1
27
Log_8.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
28
Log_9.LOG_ALM
Class_2
Variation 1
Variation 1
29
Log_9.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
30
Log_10.LOG_ALM
Class_2
Variation 1
Variation 1
31
Log_10.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
32
Log_11.LOG_ALM
Class_2
Variation 1
Variation 1
33
Log_11.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
34
Log_12.LOG_ALM
Class_2
Variation 1
Variation 1
35
Log_12.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
36
Log_13.LOG_ALM
Class_2
Variation 1
Variation 1
37
Log_13.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
38
Log_14.LOG_ALM
Class_2
Variation 1
Variation 1
39
Log_14.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
40
Log_15.LOG_ALM
Class_2
Variation 1
Variation 1
41
Log_15.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
18 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Group 30
Default
Variation
Group 32
Default
Variation
42
Log_16.LOG_ALM
Class_2
Variation 1
Variation 1
43
Log_16.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
44
Log_17.LOG_ALM
Class_2
Variation 1
Variation 1
45
Log_17.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
46
Log_18.LOG_ALM
Class_2
Variation 1
Variation 1
47
Log_18.LAST_READ_SEQ
Class_2
Variation 1
Variation 1
48
AI_1-1.SELECTED
Class_2
Variation 5
Variation 5
49
AI_1-2.SELECTED
Class_2
Variation 5
Variation 5
50
AI_1-3.SELECTED
Class_2
Variation 5
Variation 5
51
AI_1-4.SELECTED
Class_2
Variation 5
Variation 5
52
AI_1-5.SELECTED
Class_2
Variation 5
Variation 5
53
AI_1-6.SELECTED
Class_2
Variation 5
Variation 5
54
AI_1-7.SELECTED
Class_2
Variation 5
Variation 5
55
AI_1-8.SELECTED
Class_2
Variation 5
Variation 5
56
AI_1-1.INPUT_STATUS
Class_1
Variation 2
Variation 2
57
AI_1-2.INPUT_STATUS
Class_1
Variation 2
Variation 2
58
AI_1-3.INPUT_STATUS
Class_1
Variation 2
Variation 2
59
AI_1-4.INPUT_STATUS
Class_1
Variation 2
Variation 2
60
AI_1-5.INPUT_STATUS
Class_1
Variation 2
Variation 2
61
AI_1-6.INPUT_STATUS
Class_1
Variation 2
Variation 2
62
AI_1-7.INPUT_STATUS
Class_1
Variation 2
Variation 2
63
AI_1-8.INPUT_STATUS
Class_1
Variation 2
Variation 2
64
AO_1-1.SELECTED
Class_2
Variation 5
Variation 5
65
AO_1-2.SELECTED
Class_2
Variation 5
Variation 5
66
AO_1-3.SELECTED
Class_2
Variation 5
Variation 5
67
AO_1-4.SELECTED
Class_2
Variation 5
Variation 5
68
AO_1-5.SELECTED
Class_2
Variation 5
Variation 5
69
AO_1-6.SELECTED
Class_2
Variation 5
Variation 5
70
AO_1-7.SELECTED
Class_2
Variation 5
Variation 5
71
AO_1-8.SELECTED
Class_2
Variation 5
Variation 5
72
AO_1-1.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
73
AO_1-2.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
74
AO_1-3.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
75
AO_1-4.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
76
AO_1-5.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 19
Point
Index
Tag Mapped
Default
Class
Group 30
Default
Variation
Group 32
Default
Variation
77
AO_1-6.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
78
AO_1-7.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
79
AO_1-8.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
80
DI_1-1.INPUT_STATUS
Class_1
Variation 2
Variation 1
81
DI_1-2.INPUT_STATUS
Class_1
Variation 2
Variation 2
82
DI_1-3.INPUT_STATUS
Class_1
Variation 2
Variation 2
83
DI_1-4.INPUT_STATUS
Class_1
Variation 2
Variation 2
84
DI_1-5.INPUT_STATUS
Class_1
Variation 2
Variation 2
85
DI_1-6.INPUT_STATUS
Class_1
Variation 2
Variation 2
86
DI_1-7.INPUT_STATUS
Class_1
Variation 2
Variation 2
87
DI_1-8.INPUT_STATUS
Class_1
Variation 2
Variation 2
88
DI_1-9.INPUT_STATUS
Class_1
Variation 2
Variation 2
89
DI_1-10.INPUT_STATUS
Class_1
Variation 2
Variation 2
90
DO_1-1.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
91
DO_1-2.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
92
DO_1-3.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
93
DO_1-4.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
94
DO_1-5.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
95
DO_1-6.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
96
DO_1-7.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
97
DO_1-8.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
98
DO_1-9.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
99
DO_1-10.OUTPUT_STATUS
Class_1
Variation 2
Variation 2
100
PI_1-1.SELECTED_FREQ
Class_2
Variation 5
Variation 5
101
PI_1-2.SELECTED_FREQ
Class_2
Variation 5
Variation 5
102
PI_1-3.SELECTED_FREQ
Class_2
Variation 5
Variation 5
103
PI_1-4.SELECTED_FREQ
Class_2
Variation 5
Variation 5
104
PI_1-5.SELECTED_FREQ
Class_2
Variation 5
Variation 5
105
PI_1-6.SELECTED_FREQ
Class_2
Variation 5
Variation 5
106
PI_1-7.SELECTED_FREQ
Class_2
Variation 5
Variation 5
107
PI_1-8.SELECTED_FREQ
Class_2
Variation 5
Variation 5
108
PI_1-9.SELECTED_FREQ
Class_2
Variation 5
Variation 5
109
PI_1-10.SELECTED_FREQ
Class_2
Variation 5
Variation 5
110
PI_1-1.INPUT_STATUS
Class_1
Variation 2
Variation 2
111
PI_1-2.INPUT_STATUS
Class_1
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
20 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Group 30
Default
Variation
Group 32
Default
Variation
112
PI_1-3.INPUT_STATUS
Class_1
Variation 2
Variation 2
113
PI_1-4.INPUT_STATUS
Class_1
Variation 2
Variation 2
114
PI_1-5.INPUT_STATUS
Class_1
Variation 2
Variation 2
115
PI_1-6.INPUT_STATUS
Class_1
Variation 2
Variation 2
116
PI_1-7.INPUT_STATUS
Class_1
Variation 2
Variation 2
117
PI_1-8.INPUT_STATUS
Class_1
Variation 2
Variation 2
118
PI_1-9.INPUT_STATUS
Class_1
Variation 2
Variation 2
119
PI_1-10.INPUT_STATUS
Class_1
Variation 2
Variation 2
120
Fluid Prop_1.PCALC_ALM
Class_2
Variation 1
Variation 1
121
Fluid Prop_2.PCALC_ALM
Class_2
Variation 1
Variation 1
122
Fluid Prop_3.PCALC_ALM
Class_2
Variation 1
Variation 1
123
Fluid Prop_4.PCALC_ALM
Class_2
Variation 1
Variation 2
124
Station_1.UVOL_RATE
Class_2
Variation 6
Variation 6
125
Station_1.SVOL_RATE
Class_2
Variation 6
Variation 6
126
Station_1.MASS_RATE
Class_2
Variation 6
Variation 6
127
Station_1.ENERGY_RATE
Class_2
Variation 6
Variation 6
128
Station_1.FLW_ALM_OBJ.PROCESS_ALM
Class_1
Variation 2
Variation 2
129
Station_1.HIST_GRP_OBJ.CONTRACT_HR
Class_1
Variation 2
Variation 2
130
Station_2.UVOL_RATE
Class_2
Variation 6
Variation 6
131
Station_2.SVOL_RATE
Class_2
Variation 6
Variation 6
132
Station_2.MASS_RATE
Class_2
Variation 6
Variation 6
133
Station_2.ENERGY_RATE
Class_2
Variation 6
Variation 6
134
Station_2.FLW_ALM_OBJ.PROCESS_ALM
Class_1
Variation 2
Variation 2
135
Station_2.HIST_GRP_OBJ.CONTRACT_HR
Class_1
Variation 2
Variation 2
136
DP Mtr_1.DP_OBJ.SELECTED
Class_2
Variation 5
Variation 5
137
DP Mtr_1.PF_OBJ.SELECTED
Class_2
Variation 5
Variation 5
138
DP Mtr_1.TF_OBJ.SELECTED
Class_2
Variation 5
Variation 5
139
DP Mtr_1.UVOL_RATE
Class_2
Variation 6
Variation 6
140
DP Mtr_1.SVOL_RATE
Class_2
Variation 6
Variation 6
141
DP Mtr_1.MASS_RATE
Class_2
Variation 6
Variation 6
142
DP Mtr_1.ENERGY_RATE
Class_2
Variation 6
Variation 6
143
DP Mtr_1.FLW_ALM_OBJ.PROCESS_ALM
Class_1
Variation 2
Variation 2
144
DP Mtr_1.DP_OBJ.INPUT_STATUS
Class_1
Variation 2
Variation 2
145
DP Mtr_1.PF_OBJ.INPUT_STATUS
Class_1
Variation 2
Variation 2
146
DP Mtr_1.TF_OBJ.INPUT_STATUS
Class_1
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 21
Point
Index
Tag Mapped
Default
Class
Group 30
Default
Variation
Group 32
Default
Variation
147
DP Mtr_2.DP_OBJ.SELECTED
Class_2
Variation 5
Variation 5
148
DP Mtr_2.PF_OBJ.SELECTED
Class_2
Variation 5
Variation 5
149
DP Mtr_2.TF_OBJ.SELECTED
Class_2
Variation 5
Variation 5
150
DP Mtr_2.UVOL_RATE
Class_2
Variation 6
Variation 6
151
DP Mtr_2.SVOL_RATE
Class_2
Variation 6
Variation 6
152
DP Mtr_2.MASS_RATE
Class_2
Variation 6
Variation 6
153
DP Mtr_2.ENERGY_RATE
Class_2
Variation 6
Variation 6
154
DP Mtr_2.FLW_ALM_OBJ.PROCESS_ALM
Class_1
Variation 2
Variation 2
155
DP Mtr_2.DP_OBJ.INPUT_STATUS
Class_1
Variation 2
Variation 2
156
DP Mtr_2.PF_OBJ.INPUT_STATUS
Class_1
Variation 2
Variation 2
157
DP Mtr_2.TF_OBJ.INPUT_STATUS
Class_1
Variation 2
Variation 2
158
Linear Mtr_1.IQ_RATE
Class_2
Variation 6
Variation 6
159
Linear Mtr_1.PF_INUSE
Class_2
Variation 6
Variation 6
160
Linear Mtr_1.TF_INUSE
Class_2
Variation 6
Variation 6
161
Linear Mtr_1.UVOL_RATE
Class_2
Variation 6
Variation 6
162
Linear Mtr_1.SVOL_RATE
Class_2
Variation 6
Variation 6
163
Linear Mtr_1.MASS_RATE
Class_2
Variation 6
Variation 6
164
Linear Mtr_1.ENERGY_RATE
Class_2
Variation 6
Variation 6
165
Linear Mtr_1.FLW_ALM_OBJ.PROCESS_ALM
Class_1
Variation 2
Variation 2
166
Linear Mtr_1.PF_OBJ.INPUT_STATUS
Class_1
Variation 2
Variation 2
167
Linear Mtr_1.TF_OBJ.INPUT_STATUS
Class_1
Variation 2
Variation 2
168
Linear Mtr_2.IQ_RATE
Class_2
Variation 6
Variation 6
169
Linear Mtr_2.PF_INUSE
Class_2
Variation 6
Variation 6
170
Linear Mtr_2.TF_INUSE
Class_2
Variation 6
Variation 6
171
Linear Mtr_2.UVOL_RATE
Class_2
Variation 6
Variation 6
172
Linear Mtr_2.SVOL_RATE
Class_2
Variation 6
Variation 6
173
Linear Mtr_2.MASS_RATE
Class_2
Variation 6
Variation 6
174
Linear Mtr_2.ENERGY_RATE
Class_2
Variation 6
Variation 6
175
Linear Mtr_2.FLW_ALM_OBJ.PROCESS_ALM
Class_1
Variation 2
Variation 2
176
Linear Mtr_2.PF_OBJ.INPUT_STATUS
Class_1
Variation 2
Variation 2
177
Linear Mtr_2.TF_OBJ.INPUT_STATUS
Class_1
Variation 2
Variation 2
178
PID_1.P_PROCESS_VARIABLE
Class_2
Variation 5
Variation 5
179
PID_1.O_PROCESS_VARIABLE
Class_2
Variation 5
Variation 5
180
PID_2.P_PROCESS_VARIABLE
Class_2
Variation 5
Variation 5
181
PID_2.O_PROCESS_VARIABLE
Class_2
Variation 5
Variation 5
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
22 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Group 30
Default
Variation
Group 32
Default
Variation
182
PID_3.P_PROCESS_VARIABLE
Class_2
Variation 5
Variation 5
183
PID_3.O_PROCESS_VARIABLE
Class_2
Variation 5
Variation 5
4.4 Analog Output: DNP3 Object Groups 40 (Status) & 41
(Commands)
4.4.1 DNP3 Object Group 40: Analog Output Status
This group can be read with the following variations:
▪ Variation 1:32-bit with flag
▪ Variation 2: 16-bit with flag
▪ Variation 3: single-precision floating point with flag
▪ Variation 4: double-precision floating point with flag
4.4.2 DNP3 Object Group 41: Analog Output Commands
This group can be read with the following variations:
▪ Variation 1: Write 32-bit value
▪ Variation 2: Write 16-bit value
▪ Variation 3: Write single-precision floating point value
▪ Variation 4: Write double-precision floating point value
Note
The Supported Control Operations column of this table classifies the analog output points
which can be written to (Sel_Op = “Select/Operate”) and those which cannot be operated
upon (NA = “Not Applicable.”).
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 23
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
0
System_1.PROD_TYPE
Class_3
NA
Variation 2
Variation 2
1
System_1.MPU_LOAD
Class_3
NA
Variation 3
Variation 3
2
System_1.MAX_PID
Class_3
NA
Variation 1
Variation 1
3
System_1.MAX_STN
Class_3
NA
Variation 1
Variation 1
4
System_1.MAX_STRM
Class_3
NA
Variation 1
Variation 1
5
Mtr Setup_1.MAX_MTRS
Class_3
NA
Variation 1
Variation 1
6
System Pwr_1.BATT_VAL
Class_3
NA
Variation 3
Variation 3
7
System Pwr_1.EXT_VOLT_VAL
Class_3
NA
Variation 3
Variation 3
8
Mtr Setup_1.NUM_DPMTRS
None
Sel_Op
Variation 2
Variation 2
9
Mtr Setup_1.NUM_LINMTRS
None
Sel_Op
Variation 2
Variation 2
10
System Pwr_1.BATT_TYPE
None
Sel_Op
Variation 2
Variation 2
11
Log_1.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
12
Log_2.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
13
Log_3.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
14
Log_4.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
15
Log_5.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
16
Log_6.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
17
Log_7.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
18
Log_8.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
19
Log_9.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
20
Log_10.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
21
Log_11.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
22
Log_12.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
23
Log_13.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
24
Log_14.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
25
Log_15.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
26
Log_16.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
27
Log_17.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
28
Log_18.LOG_TYPE
None
Sel_Op
Variation 2
Variation 2
29
AI_1-1.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
30
AI_1-2.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
31
AI_1-3.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
32
AI_1-4.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
33
AI_1-5.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
34
AI_1-6.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
24 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
35
AI_1-7.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
36
AI_1-8.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
37
AI_1-1.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
38
AI_1-2.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
39
AI_1-3.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
40
AI_1-4.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
41
AI_1-5.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
42
AI_1-6.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
43
AI_1-7.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
44
AI_1-8.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
45
AI_1-1.LOW_EU
None
Sel_Op
Variation 3
Variation 3
46
AI_1-2.LOW_EU
None
Sel_Op
Variation 3
Variation 3
47
AI_1-3.LOW_EU
None
Sel_Op
Variation 3
Variation 3
48
AI_1-4.LOW_EU
None
Sel_Op
Variation 3
Variation 3
49
AI_1-5.LOW_EU
None
Sel_Op
Variation 3
Variation 3
50
AI_1-6.LOW_EU
None
Sel_Op
Variation 3
Variation 3
51
AI_1-7.LOW_EU
None
Sel_Op
Variation 3
Variation 3
52
AI_1-8.LOW_EU
None
Sel_Op
Variation 3
Variation 3
53
AI_1-1.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
54
AI_1-2.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
55
AI_1-3.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
56
AI_1-4.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
57
AI_1-5.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
58
AI_1-6.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
59
AI_1-7.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
60
AI_1-8.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
61
AO_1-1.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
62
AO_1-2.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
63
AO_1-3.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
64
AO_1-4.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
65
AO_1-5.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
66
AO_1-6.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
67
AO_1-7.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
68
AO_1-8.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
69
AO_1-1.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 25
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
70
AO_1-2.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
71
AO_1-3.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
72
AO_1-4.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
73
AO_1-5.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
74
AO_1-6.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
75
AO_1-7.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
76
AO_1-8.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
77
AO_1-1.LOW_EU
None
Sel_Op
Variation 3
Variation 3
78
AO_1-2.LOW_EU
None
Sel_Op
Variation 3
Variation 3
79
AO_1-3.LOW_EU
None
Sel_Op
Variation 3
Variation 3
80
AO_1-4.LOW_EU
None
Sel_Op
Variation 3
Variation 3
81
AO_1-5.LOW_EU
None
Sel_Op
Variation 3
Variation 3
82
AO_1-6.LOW_EU
None
Sel_Op
Variation 3
Variation 3
83
AO_1-7.LOW_EU
None
Sel_Op
Variation 3
Variation 3
84
AO_1-8.LOW_EU
None
Sel_Op
Variation 3
Variation 3
85
AO_1-1.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
86
AO_1-2.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
87
AO_1-3.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
88
AO_1-4.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
89
AO_1-5.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
90
AO_1-6.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
91
AO_1-7.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
92
AO_1-8.HIGH_EU
None
Sel_Op
Variation 3
Variation 3
93
DI_1-1.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
94
DI_1-2.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
95
DI_1-3.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
96
DI_1-4.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
97
DI_1-5.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
98
DI_1-6.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
99
DI_1-7.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
100
DI_1-8.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
101
DI_1-9.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
102
DI_1-10.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
103
DI_1-1.DI_TYPE
None
Sel_Op
Variation 2
Variation 2
104
DI_1-2.DI_TYPE
None
Sel_Op
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
26 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
105
DI_1-3.DI_TYPE
None
Sel_Op
Variation 2
Variation 2
106
DI_1-4.DI_TYPE
None
Sel_Op
Variation 2
Variation 2
107
DI_1-5.DI_TYPE
None
Sel_Op
Variation 2
Variation 2
108
DI_1-6.DI_TYPE
None
Sel_Op
Variation 2
Variation 2
109
DI_1-7.DI_TYPE
None
Sel_Op
Variation 2
Variation 2
110
DI_1-8.DI_TYPE
None
Sel_Op
Variation 2
Variation 2
111
DI_1-9.DI_TYPE
None
Sel_Op
Variation 2
Variation 2
112
DI_1-10.DI_TYPE
None
Sel_Op
Variation 2
Variation 2
113
DO_1-1.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
114
DO_1-2.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
115
DO_1-3.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
116
DO_1-4.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
117
DO_1-5.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
118
DO_1-6.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
119
DO_1-7.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
120
DO_1-8.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
121
DO_1-9.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
122
DO_1-10.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
123
DO_1-1.DO_TYPE
None
Sel_Op
Variation 2
Variation 2
124
DO_1-2.DO_TYPE
None
Sel_Op
Variation 2
Variation 2
125
DO_1-3.DO_TYPE
None
Sel_Op
Variation 2
Variation 2
126
DO_1-4.DO_TYPE
None
Sel_Op
Variation 2
Variation 2
127
DO_1-5.DO_TYPE
None
Sel_Op
Variation 2
Variation 2
128
DO_1-6.DO_TYPE
None
Sel_Op
Variation 2
Variation 2
129
DO_1-7.DO_TYPE
None
Sel_Op
Variation 2
Variation 2
130
DO_1-8.DO_TYPE
None
Sel_Op
Variation 2
Variation 2
131
DO_1-9.DO_TYPE
None
Sel_Op
Variation 2
Variation 2
132
DO_1-10.DO_TYPE
None
Sel_Op
Variation 2
Variation 2
133
PI_1-1.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
134
PI_1-2.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
135
PI_1-3.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
136
PI_1-4.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
137
PI_1-5.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
138
PI_1-6.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
139
PI_1-7.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 27
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
140
PI_1-8.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
141
PI_1-9.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
142
PI_1-10.ACTUAL_MODE
Class_3
NA
Variation 2
Variation 2
143
PI_1-1.TODAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
144
PI_1-2.TODAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
145
PI_1-3.TODAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
146
PI_1-4.TODAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
147
PI_1-5.TODAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
148
PI_1-6.TODAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
149
PI_1-7.TODAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
150
PI_1-8.TODAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
151
PI_1-9.TODAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
152
PI_1-10.TODAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
153
PI_1-1.YESTERDAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
154
PI_1-2.YESTERDAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
155
PI_1-3.YESTERDAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
156
PI_1-4.YESTERDAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
157
PI_1-5.YESTERDAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
158
PI_1-6.YESTERDAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
159
PI_1-7.YESTERDAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
160
PI_1-8.YESTERDAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
161
PI_1-9.YESTERDAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
162
PI_1-10.YESTERDAYS_TOTAL
Class_3
NA
Variation 4
Variation 4
163
PI_1-1.FREQ_ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
164
PI_1-2.FREQ_ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
165
PI_1-3.FREQ_ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
166
PI_1-4.FREQ_ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
167
PI_1-5.FREQ_ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
168
PI_1-6.FREQ_ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
169
PI_1-7.FREQ_ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
170
PI_1-8.FREQ_ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
171
PI_1-9.FREQ_ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
172
PI_1-10.FREQ_ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
173
PI_1-1.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
174
PI_1-2.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
28 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
175
PI_1-3.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
176
PI_1-4.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
177
PI_1-5.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
178
PI_1-6.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
179
PI_1-7.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
180
PI_1-8.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
181
PI_1-9.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
182
PI_1-10.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
183
Sensor_1-1.XMTR_STATUS
Class_3
NA
Variation 2
Variation 2
184
Sensor_1-2.XMTR_STATUS
Class_3
NA
Variation 2
Variation 2
185
Sensor_1-3.XMTR_STATUS
Class_3
NA
Variation 2
Variation 2
186
Station_1.ATMPR_SEL
Class_3
NA
Variation 4
Variation 4
187
Station_1.GRAV_SEL
Class_3
NA
Variation 4
Variation 4
188
Station_1.PB_SEL
None
NA
Variation 4
Variation 4
189
Station_1.TB_SEL
None
NA
Variation 4
Variation 4
190
Station_1.LATITUDE
None
Sel_Op
Variation 4
Variation 4
191
Station_1.ELEVATION
None
Sel_Op
Variation 4
Variation 4
192
Station_1.ZF_METHOD
None
Sel_Op
Variation 2
Variation 2
193
Station_1.HV_METHOD
None
Sel_Op
Variation 2
Variation 2
194
Station_1.UVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
195
Station_1.UVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
196
Station_1.UVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
197
Station_1.UVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
198
Station_1.UVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
199
Station_1.SVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
200
Station_1.SVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
201
Station_1.SVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
202
Station_1.SVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
203
Station_1.SVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
204
Station_1.MASS_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
205
Station_1.MASS_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
206
Station_1.MASS_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
207
Station_1.MASS_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
208
Station_1.MASS_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
209
Station_1.ENERGY_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 29
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
210
Station_1.ENERGY_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
211
Station_1.ENERGY_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
212
Station_1.ENERGY_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
213
Station_1.ENERGY_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
214
Station_2.ATMPR_SEL
Class_3
NA
Variation 4
Variation 4
215
Station_2.GRAV_SEL
Class_3
NA
Variation 4
Variation 4
216
Station_2.PB_SEL
None
NA
Variation 4
Variation 4
217
Station_2.TB_SEL
None
NA
Variation 4
Variation 4
218
Station_2.LATITUDE
None
Sel_Op
Variation 4
Variation 4
219
Station_2.ELEVATION
None
Sel_Op
Variation 4
Variation 4
220
Station_2.ZF_METHOD
None
Sel_Op
Variation 2
Variation 2
221
Station_2.HV_METHOD
None
Sel_Op
Variation 2
Variation 2
222
Station_2.UVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
223
Station_2.UVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
224
Station_2.UVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
225
Station_2.UVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
226
Station_2.UVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
227
Station_2.SVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
228
Station_2.SVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
229
Station_2.SVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
230
Station_2.SVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
231
Station_2.SVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
232
Station_2.MASS_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
233
Station_2.MASS_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
234
Station_2.MASS_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
235
Station_2.MASS_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
236
Station_2.MASS_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
237
Station_2.ENERGY_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
238
Station_2.ENERGY_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
239
Station_2.ENERGY_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
240
Station_2.ENERGY_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
241
Station_2.ENERGY_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
242
DP Mtr_1.MTR_TYPE
None
Sel_Op
Variation 2
Variation 2
243
DP Mtr_1.AGA3_METHOD
None
Sel_Op
Variation 2
Variation 2
244
DP Mtr_1.ISO5167_METHOD
None
Sel_Op
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
30 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
245
DP Mtr_1.RMT_ORIF_METHOD
None
Sel_Op
Variation 2
Variation 2
246
DP Mtr_1.CONE_METHOD
None
Sel_Op
Variation 2
Variation 2
247
DP Mtr_1.ABAR_METHOD
None
Sel_Op
Variation 2
Variation 2
248
DP Mtr_1.MTR_DIAM
None
Sel_Op
Variation 4
Variation 4
249
DP Mtr_1.PIPE_DIAM
None
Sel_Op
Variation 4
Variation 4
250
DP Mtr_1.NO_FLOW_LIM
None
Sel_Op
Variation 4
Variation 4
251
DP Mtr_1.PIPE_MAT_OPT
None
Sel_Op
Variation 2
Variation 2
252
DP Mtr_1.MTR_MAT_OPT
None
Sel_Op
Variation 2
Variation 2
253
DP Mtr_1.PIPE_DIAM_REF
None
Sel_Op
Variation 4
Variation 4
254
DP Mtr_1.MTR_DIAM_REF
None
Sel_Op
Variation 4
Variation 4
255
DP Mtr_1.FCALC_ALM
Class_3
NA
Variation 1
Variation 1
256
DP Mtr_1.MTR_DIAM_SEL
Class_3
NA
Variation 4
Variation 4
257
DP Mtr_1.PIPE_DIAM_SEL
Class_3
NA
Variation 4
Variation 4
258
DP Mtr_1.BETA_SEL
Class_3
NA
Variation 4
Variation 4
259
DP Mtr_1.PLOSS_SEL
Class_3
NA
Variation 4
Variation 4
260
DP Mtr_1.RE_SEL
Class_3
NA
Variation 4
Variation 4
261
DP Mtr_1.CD_SEL
Class_3
NA
Variation 4
Variation 4
262
DP Mtr_1.FS_SEL
Class_3
NA
Variation 4
Variation 4
263
DP Mtr_1.Y1_SEL
Class_3
NA
Variation 4
Variation 4
264
DP Mtr_1.EV_SEL
Class_3
NA
Variation 4
Variation 4
265
DP Mtr_1.IV_SEL
Class_3
NA
Variation 4
Variation 4
266
DP Mtr_1.IMV_SEL
Class_3
NA
Variation 4
Variation 4
267
RESERVED
268
DP Mtr_1.USER_CORR_FACTOR
Class_3
NA
Variation 4
Variation 4
269
DP Mtr_1.STATION_OBJ.PB_SEL
None
NA
Variation 4
Variation 4
270
DP Mtr_1.STATION_OBJ.TB_SEL
None
NA
Variation 2
Variation 2
271
DP Mtr_1.STATION_OBJ.LATITUDE
None
Sel_Op
Variation 4
Variation 4
272
DP Mtr_1.STATION_OBJ.ELEVATION
None
Sel_Op
Variation 4
Variation 4
273
DP Mtr_1.STATION_OBJ.ATMPR_SEL
Class_3
NA
Variation 4
Variation 4
274
DP Mtr_1.STATION_OBJ.GRAV_SEL
Class_3
NA
Variation 4
Variation 4
275
DP Mtr_1.STATION_OBJ.HIST_
GRP_OBJ.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
276
DP Mtr_1.FLUID_PROP_OBJ.N2_INUSE
Class_3
NA
Variation 4
Variation 4
277
DP Mtr_1.FLUID_PROP_OBJ.CO2_INUSE
Class_3
NA
Variation 4
Variation 4
278
DP Mtr_1.FLUID_PROP_OBJ.C1_INUSE
Class_3
NA
Variation 4
Variation 4
279
DP Mtr_1.FLUID_PROP_OBJ.C2_INUSE
Class_3
NA
Variation 4
Variation 4
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 31
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
280
DP Mtr_1.FLUID_PROP_OBJ.C3_INUSE
Class_3
NA
Variation 4
Variation 4
281
DP Mtr_1.FLUID_PROP_OBJ.NC4_INUSE
Class_3
NA
Variation 4
Variation 4
282
DP Mtr_1.FLUID_PROP_OBJ.IC4_INUSE
Class_3
NA
Variation 4
Variation 4
283
DP Mtr_1.FLUID_PROP_OBJ.NC5_INUSE
Class_3
NA
Variation 4
Variation 4
284
DP Mtr_1.FLUID_PROP_OBJ.IC5_INUSE
Class_3
NA
Variation 4
Variation 4
285
DP Mtr_1.FLUID_PROP_OBJ.C6_INUSE
Class_3
NA
Variation 4
Variation 4
286
DP Mtr_1.FLUID_PROP_OBJ.C7_INUSE
Class_3
NA
Variation 4
Variation 4
287
DP Mtr_1.FLUID_PROP_OBJ.C8_INUSE
Class_3
NA
Variation 4
Variation 4
288
DP Mtr_1.FLUID_PROP_OBJ.C9_INUSE
Class_3
NA
Variation 4
Variation 4
289
DP Mtr_1.FLUID_PROP_OBJ.C10_INUSE
Class_3
NA
Variation 4
Variation 4
290
DP Mtr_1.FLUID_PROP_OBJ.H2S_INUSE
Class_3
NA
Variation 4
Variation 4
291
DP Mtr_1.FLUID_PROP_OBJ.H2O_INUSE
Class_3
NA
Variation 4
Variation 4
292
DP Mtr_1.FLUID_PROP_OBJ.HE_INUSE
Class_3
NA
Variation 4
Variation 4
293
DP Mtr_1.FLUID_PROP_OBJ.O2_INUSE
Class_3
NA
Variation 4
Variation 4
294
DP Mtr_1.FLUID_PROP_OBJ.H2_INUSE
Class_3
NA
Variation 4
Variation 4
295
DP Mtr_1.FLUID_PROP_OBJ.CO_INUSE
Class_3
NA
Variation 4
Variation 4
296
DP Mtr_1.FLUID_PROP_OBJ.AR_INUSE
Class_3
NA
Variation 4
Variation 4
297
DP Mtr_1.FLUID_PROP_OBJ.H2O_
CONTENT_SEL
Class_3
NA
Variation 4
Variation 4
298
DP Mtr_1.FLUID_PROP_OBJ.HV_REAL_SEL
Class_3
NA
Variation 4
Variation 4
299
DP Mtr_1.FLUID_PROP_OBJ.RD_REAL_SEL
Class_3
NA
Variation 4
Variation 4
300
DP Mtr_1.FLUID_PROP_OBJ.ZB_SEL
Class_3
NA
Variation 4
Variation 4
301
DP Mtr_1.FLUID_PROP_OBJ.ZS_SEL
Class_3
NA
Variation 4
Variation 4
302
DP Mtr_1.FLUID_PROP_OBJ.ZF_SEL
Class_3
NA
Variation 4
Variation 4
303
DP Mtr_1.FLUID_PROP_OBJ.DENSB_SEL
Class_3
NA
Variation 4
Variation 4
304
DP Mtr_1.FLUID_PROP_OBJ.DENSF_SEL
Class_3
NA
Variation 4
Variation 4
305
DP Mtr_1.DP_OBJ.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
306
DP Mtr_1.PF_OBJ.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
307
DP Mtr_1.TF_OBJ.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
308
DP Mtr_1.UVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
309
DP Mtr_1.UVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
310
DP Mtr_1.UVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
311
DP Mtr_1.UVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
312
DP Mtr_1.UVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
313
DP Mtr_1.SVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
314
DP Mtr_1.SVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
32 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
315
DP Mtr_1.SVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
316
DP Mtr_1.SVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
317
DP Mtr_1.SVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
318
DP Mtr_1.MASS_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
319
DP Mtr_1.MASS_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
320
DP Mtr_1.MASS_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
321
DP Mtr_1.MASS_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
322
DP Mtr_1.MASS_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
323
DP Mtr_1.ENERGY_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
324
DP Mtr_1.ENERGY_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
325
DP Mtr_1.ENERGY_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
326
DP Mtr_1.ENERGY_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
327
DP Mtr_1.ENERGY_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
328
DP Mtr_1.FLWTM_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
329
DP Mtr_1.FLWTM_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
330
DP Mtr_1.FLWTM_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
331
DP Mtr_1.FLWTM_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
332
DP Mtr_1.FLWTM_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
333
DP Mtr_1.IV_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
334
DP Mtr_1.IV_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
335
DP Mtr_1.IV_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
336
DP Mtr_1.IV_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
337
DP Mtr_1.IV_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
338
DP Mtr_2.MTR_TYPE
None
Sel_Op
Variation 2
Variation 2
339
DP Mtr_2.AGA3_METHOD
None
Sel_Op
Variation 2
Variation 2
340
DP Mtr_2.ISO5167_METHOD
None
Sel_Op
Variation 2
Variation 2
341
DP Mtr_2.RMT_ORIF_METHOD
None
Sel_Op
Variation 2
Variation 2
342
DP Mtr_2.CONE_METHOD
None
Sel_Op
Variation 2
Variation 2
343
DP Mtr_2.ABAR_METHOD
None
Sel_Op
Variation 2
Variation 2
344
DP Mtr_2.MTR_DIAM
None
Sel_Op
Variation 4
Variation 4
345
DP Mtr_2.PIPE_DIAM
None
Sel_Op
Variation 4
Variation 4
346
DP Mtr_2.NO_FLOW_LIM
None
Sel_Op
Variation 4
Variation 4
347
DP Mtr_2.PIPE_MAT_OPT
None
Sel_Op
Variation 2
Variation 2
348
DP Mtr_2.MTR_MAT_OPT
None
Sel_Op
Variation 2
Variation 2
349
DP Mtr_2.PIPE_DIAM_REF
None
Sel_Op
Variation 4
Variation 4
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 33
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
350
DP Mtr_2.MTR_DIAM_REF
None
Sel_Op
Variation 4
Variation 4
351
DP Mtr_2.FCALC_ALM
Class_3
NA
Variation 1
Variation 1
352
DP Mtr_2.MTR_DIAM_SEL
Class_3
NA
Variation 4
Variation 4
353
DP Mtr_2.PIPE_DIAM_SEL
Class_3
NA
Variation 4
Variation 4
354
DP Mtr_2.BETA_SEL
Class_3
NA
Variation 4
Variation 4
355
DP Mtr_2.PLOSS_SEL
Class_3
NA
Variation 4
Variation 4
356
DP Mtr_2.RE_SEL
Class_3
NA
Variation 4
Variation 4
357
DP Mtr_2.CD_SEL
Class_3
NA
Variation 4
Variation 4
358
DP Mtr_2.FS_SEL
Class_3
NA
Variation 4
Variation 4
359
DP Mtr_2.Y1_SEL
Class_3
NA
Variation 4
Variation 4
360
DP Mtr_2.EV_SEL
Class_3
NA
Variation 4
Variation 4
361
DP Mtr_2.IV_SEL
Class_3
NA
Variation 4
Variation 4
362
DP Mtr_2.IMV_SEL
Class_3
NA
Variation 4
Variation 4
363
RESERVED
364
DP Mtr_2.USER_CORR_FACTOR
Class_3
NA
Variation 4
Variation 4
365
DP Mtr_2.STATION_OBJ.ATMPR_SEL
Class_3
NA
Variation 4
Variation 4
366
DP Mtr_2.STATION_OBJ.GRAV_SEL
Class_3
NA
Variation 4
Variation 4
367
DP Mtr_2.STATION_OBJ.PB_SEL
None
NA
Variation 4
Variation 4
368
DP Mtr_2.STATION_OBJ.TB_SEL
None
NA
Variation 2
Variation 2
369
DP Mtr_2.STATION_OBJ.LATITUDE
None
Sel_Op
Variation 4
Variation 4
370
DP Mtr_2.STATION_OBJ.ELEVATION
None
Sel_Op
Variation 4
Variation 4
371
DP Mtr_2.STATION_OBJ.HIST_GRP_OBJ.
CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
372
DP Mtr_2.FLUID_PROP_OBJ.N2_INUSE
Class_3
NA
Variation 4
Variation 4
373
DP Mtr_2.FLUID_PROP_OBJ.CO2_INUSE
Class_3
NA
Variation 4
Variation 4
374
DP Mtr_2.FLUID_PROP_OBJ.C1_INUSE
Class_3
NA
Variation 4
Variation 4
375
DP Mtr_2.FLUID_PROP_OBJ.C2_INUSE
Class_3
NA
Variation 4
Variation 4
376
DP Mtr_2.FLUID_PROP_OBJ.C3_INUSE
Class_3
NA
Variation 4
Variation 4
377
DP Mtr_2.FLUID_PROP_OBJ.NC4_INUSE
Class_3
NA
Variation 4
Variation 4
378
DP Mtr_2.FLUID_PROP_OBJ.IC4_INUSE
Class_3
NA
Variation 4
Variation 4
379
DP Mtr_2.FLUID_PROP_OBJ.NC5_INUSE
Class_3
NA
Variation 4
Variation 4
380
DP Mtr_2.FLUID_PROP_OBJ.IC5_INUSE
Class_3
NA
Variation 4
Variation 4
381
DP Mtr_2.FLUID_PROP_OBJ.C6_INUSE
Class_3
NA
Variation 4
Variation 4
382
DP Mtr_2.FLUID_PROP_OBJ.C7_INUSE
Class_3
NA
Variation 4
Variation 4
383
DP Mtr_2.FLUID_PROP_OBJ.C8_INUSE
Class_3
NA
Variation 4
Variation 4
384
DP Mtr_2.FLUID_PROP_OBJ.C9_INUSE
Class_3
NA
Variation 4
Variation 4
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
34 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
385
DP Mtr_2.FLUID_PROP_OBJ.C10_INUSE
Class_3
NA
Variation 4
Variation 4
386
DP Mtr_2.FLUID_PROP_OBJ.H2S_INUSE
Class_3
NA
Variation 4
Variation 4
387
DP Mtr_2.FLUID_PROP_OBJ.H2O_INUSE
Class_3
NA
Variation 4
Variation 4
388
DP Mtr_2.FLUID_PROP_OBJ.HE_INUSE
Class_3
NA
Variation 4
Variation 4
389
DP Mtr_2.FLUID_PROP_OBJ.O2_INUSE
Class_3
NA
Variation 4
Variation 4
390
DP Mtr_2.FLUID_PROP_OBJ.H2_INUSE
Class_3
NA
Variation 4
Variation 4
391
DP Mtr_2.FLUID_PROP_OBJ.CO_INUSE
Class_3
NA
Variation 4
Variation 4
392
DP Mtr_2.FLUID_PROP_OBJ.AR_INUSE
Class_3
NA
Variation 4
Variation 4
393
DP Mtr_2.FLUID_PROP_OBJ.H2O_
CONTENT_SEL
Class_3
NA
Variation 4
Variation 4
394
DP Mtr_2.FLUID_PROP_OBJ.HV_REAL_SEL
Class_3
NA
Variation 4
Variation 4
395
DP Mtr_2.FLUID_PROP_OBJ.RD_REAL_SEL
Class_3
NA
Variation 4
Variation 4
396
DP Mtr_2.FLUID_PROP_OBJ.ZB_SEL
Class_3
NA
Variation 4
Variation 4
397
DP Mtr_2.FLUID_PROP_OBJ.ZS_SEL
Class_3
NA
Variation 4
Variation 4
398
DP Mtr_2.FLUID_PROP_OBJ.ZF_SEL
Class_3
NA
Variation 4
Variation 4
399
DP Mtr_2.FLUID_PROP_OBJ.DENSB_SEL
Class_3
NA
Variation 4
Variation 4
400
DP Mtr_2.FLUID_PROP_OBJ.DENSF_SEL
Class_3
NA
Variation 4
Variation 4
401
DP Mtr_2.DP_OBJ.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
402
DP Mtr_2.PF_OBJ.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
403
DP Mtr_2.TF_OBJ.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
404
DP Mtr_2.UVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
405
DP Mtr_2.UVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
406
DP Mtr_2.UVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
407
DP Mtr_2.UVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
408
DP Mtr_2.UVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
409
DP Mtr_2.SVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
410
DP Mtr_2.SVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
411
DP Mtr_2.SVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
412
DP Mtr_2.SVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
413
DP Mtr_2.SVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
414
DP Mtr_2.MASS_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
415
DP Mtr_2.MASS_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
416
DP Mtr_2.MASS_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
417
DP Mtr_2.MASS_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
418
DP Mtr_2.MASS_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
419
DP Mtr_2.ENERGY_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 35
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
420
DP Mtr_2.ENERGY_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
421
DP Mtr_2.ENERGY_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
422
DP Mtr_2.ENERGY_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
423
DP Mtr_2.ENERGY_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
424
DP Mtr_2.FLWTM_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
425
DP Mtr_2.FLWTM_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
426
DP Mtr_2.FLWTM_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
427
DP Mtr_2.FLWTM_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
428
DP Mtr_2.FLWTM_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
429
DP Mtr_2.IV_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
430
DP Mtr_2.IV_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
431
DP Mtr_2.IV_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
432
DP Mtr_2.IV_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
433
DP Mtr_2.IV_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
434
Linear Mtr_1.NO_FLOW_LIM
None
Sel_Op
Variation 4
Variation 4
435
Linear Mtr_1.NO_FLOW_TIME
None
Sel_Op
Variation 1
Variation 1
436
Linear Mtr_1.FACTOR_CURVE_OPT
None
Sel_Op
Variation 2
Variation 2
437
Linear Mtr_1.USER_CORR_FACTOR
None
Sel_Op
Variation 4
Variation 4
438
Linear Mtr_1.MASS_CORR_PF_OPT
None
Sel_Op
Variation 4
Variation 4
439
Linear Mtr_1.PCAL
None
Sel_Op
Variation 4
Variation 4
440
Linear Mtr_1.MASS_CORR_PF_COEFF
None
Sel_Op
Variation 4
Variation 4
441
Linear Mtr_1.FCALC_ALM
Class_3
NA
Variation 1
Variation 1
442
Linear Mtr_1.PRESS_MULT
Class_3
NA
Variation 4
Variation 4
443
Linear Mtr_1.TEMP_MULT
Class_3
NA
Variation 4
Variation 4
444
Linear Mtr_1.COMP_MULT
Class_3
NA
Variation 4
Variation 4
445
Linear Mtr_1.IMV_SEL
Class_3
NA
Variation 4
Variation 4
446
Linear Mtr_1.MF_SEL
Class_3
NA
Variation 4
Variation 4
447
Linear Mtr_1.KF_SEL
Class_3
NA
Variation 4
Variation 4
448
Linear Mtr_1.PF_OBJ.CAL_OBJ.USER_ZERO_
VAL
None
Sel_Op
Variation 3
Variation 3
449
Linear Mtr_1.PF_OBJ.CAL_OBJ.USER_SPAN_
VAL
None
Sel_Op
Variation 3
Variation 3
450
Linear Mtr_1.TF_OBJ.CAL_OBJ.USER_ZERO_
VAL
None
Sel_Op
Variation 3
Variation 3
451
Linear Mtr_1.TF_OBJ.CAL_OBJ.USER_SPAN_
VAL
None
Sel_Op
Variation 3
Variation 3
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
36 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
452
Linear Mtr_1.STATION_OBJ.ATMPR_SEL
Class_3
NA
Variation 4
Variation 4
453
Linear Mtr_1.STATION_OBJ.GRAV_SEL
Class_3
NA
Variation 4
Variation 4
454
Linear Mtr_1.STATION_OBJ.PB_SEL
None
NA
Variation 4
Variation 4
455
Linear Mtr_1.STATION_OBJ.TB_SEL
None
NA
Variation 4
Variation 4
456
Linear Mtr_1.STATION_OBJ.LATITUDE
None
Sel_Op
Variation 4
Variation 4
457
Linear Mtr_1.STATION_OBJ.ELEVATION
None
Sel_Op
Variation 4
Variation 4
458
Linear Mtr_1.STATION_OBJ.HIST_GRP_
OBJ.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
459
Linear Mtr_1.FLUID_PROP_OBJ.N2_INUSE
Class_3
Sel_Op
Variation 4
Variation 4
460
Linear Mtr_1.FLUID_PROP_OBJ.CO2_INUSE
Class_3
NA
Variation 4
Variation 4
461
Linear Mtr_1.FLUID_PROP_OBJ.C1_INUSE
Class_3
NA
Variation 4
Variation 4
462
Linear Mtr_1.FLUID_PROP_OBJ.C2_INUSE
Class_3
NA
Variation 4
Variation 4
463
Linear Mtr_1.FLUID_PROP_OBJ.C3_INUSE
Class_3
NA
Variation 4
Variation 4
464
Linear Mtr_1.FLUID_PROP_OBJ.NC4_INUSE
Class_3
NA
Variation 4
Variation 4
465
Linear Mtr_1.FLUID_PROP_OBJ.IC4_INUSE
Class_3
NA
Variation 4
Variation 4
466
Linear Mtr_1.FLUID_PROP_OBJ.NC5_INUSE
Class_3
NA
Variation 4
Variation 4
467
Linear Mtr_1.FLUID_PROP_OBJ.IC5_INUSE
Class_3
NA
Variation 4
Variation 4
468
Linear Mtr_1.FLUID_PROP_OBJ.C6_INUSE
Class_3
NA
Variation 4
Variation 4
469
Linear Mtr_1.FLUID_PROP_OBJ.C7_INUSE
Class_3
NA
Variation 4
Variation 4
470
Linear Mtr_1.FLUID_PROP_OBJ.C8_INUSE
Class_3
NA
Variation 4
Variation 4
471
Linear Mtr_1.FLUID_PROP_OBJ.C9_INUSE
Class_3
NA
Variation 4
Variation 4
472
Linear Mtr_1.FLUID_PROP_OBJ.C10_INUSE
Class_3
NA
Variation 4
Variation 4
473
Linear Mtr_1.FLUID_PROP_OBJ.H2S_INUSE
Class_3
NA
Variation 4
Variation 4
474
Linear Mtr_1.FLUID_PROP_OBJ.H2O_INUSE
Class_3
NA
Variation 4
Variation 4
475
Linear Mtr_1.FLUID_PROP_OBJ.HE_INUSE
Class_3
NA
Variation 4
Variation 4
476
Linear Mtr_1.FLUID_PROP_OBJ.O2_INUSE
Class_3
NA
Variation 4
Variation 4
477
Linear Mtr_1.FLUID_PROP_OBJ.H2_INUSE
Class_3
NA
Variation 4
Variation 4
478
Linear Mtr_1.FLUID_PROP_OBJ.CO_INUSE
Class_3
NA
Variation 4
Variation 4
479
Linear Mtr_1.FLUID_PROP_OBJ.AR_INUSE
Class_3
NA
Variation 4
Variation 4
480
Linear Mtr_1.FLUID_PROP_OBJ.H2O_
CONTENT_SEL
Class_3
NA
Variation 4
Variation 4
481
Linear Mtr_1.FLUID_PROP_OBJ.HV_REAL_
SEL
Class_3
NA
Variation 4
Variation 4
482
Linear Mtr_1.FLUID_PROP_OBJ.RD_REAL_
SEL
Class_3
NA
Variation 4
Variation 4
483
Linear Mtr_1.FLUID_PROP_OBJ.ZB_SEL
Class_3
NA
Variation 4
Variation 4
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 37
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
484
Linear Mtr_1.FLUID_PROP_OBJ.ZS_SEL
Class_3
NA
Variation 4
Variation 4
485
Linear Mtr_1.FLUID_PROP_OBJ.ZF_SEL
Class_3
NA
Variation 4
Variation 4
486
Linear Mtr_1.FLUID_PROP_OBJ.DENSB_SEL
Class_3
NA
Variation 4
Variation 4
487
Linear Mtr_1.FLUID_PROP_OBJ.DENSF_SEL
Class_3
NA
Variation 4
Variation 4
488
Linear Mtr_1.PF_OBJ.ALM_OBJ.PROCESS_
ALM
Class_3
NA
Variation 2
Variation 2
489
Linear Mtr_1.TF_OBJ.ALM_OBJ.PROCESS_
ALM
Class_3
NA
Variation 2
Variation 2
490
Linear Mtr_1.UVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
491
Linear Mtr_1.UVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
492
Linear Mtr_1.UVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
493
Linear Mtr_1.UVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
494
Linear Mtr_1.UVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
495
Linear Mtr_1.SVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
496
Linear Mtr_1.SVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
497
Linear Mtr_1.SVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
498
Linear Mtr_1.SVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
499
Linear Mtr_1.SVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
500
Linear Mtr_1.MASS_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
501
Linear Mtr_1.MASS_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
502
Linear Mtr_1.MASS_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
503
Linear Mtr_1.MASS_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
504
Linear Mtr_1.MASS_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
505
Linear Mtr_1.ENERGY_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
506
Linear Mtr_1.ENERGY_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
507
Linear Mtr_1.ENERGY_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
508
Linear Mtr_1.ENERGY_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
509
Linear Mtr_1.ENERGY_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
510
Linear Mtr_1.FLWTM_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
511
Linear Mtr_1.FLWTM_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
512
Linear Mtr_1.FLWTM_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
513
Linear Mtr_1.FLWTM_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
514
Linear Mtr_1.FLWTM_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
515
Linear Mtr_2.NO_FLOW_LIM
None
Sel_Op
Variation 4
Variation 4
516
Linear Mtr_2.NO_FLOW_TIME
None
Sel_Op
Variation 1
Variation 1
517
Linear Mtr_2.FACTOR_CURVE_OPT
None
Sel_Op
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
38 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
518
Linear Mtr_2.USER_CORR_FACTOR
None
Sel_Op
Variation 4
Variation 4
519
Linear Mtr_2.MASS_CORR_PF_OPT
None
Sel_Op
Variation 4
Variation 4
520
Linear Mtr_2.PCAL
None
Sel_Op
Variation 4
Variation 4
521
Linear Mtr_2.MASS_CORR_PF_COEFF
None
Sel_Op
Variation 4
Variation 4
522
Linear Mtr_2.FCALC_ALM
Class_3
NA
Variation 1
Variation 1
523
Linear Mtr_2.PRESS_MULT
Class_3
NA
Variation 4
Variation 4
524
Linear Mtr_2.TEMP_MULT
Class_3
NA
Variation 4
Variation 4
525
Linear Mtr_2.COMP_MULT
Class_3
NA
Variation 4
Variation 4
526
Linear Mtr_2.IMV_SEL
Class_3
NA
Variation 4
Variation 4
527
Linear Mtr_2.MF_SEL
Class_3
NA
Variation 4
Variation 4
528
Linear Mtr_2.KF_SEL
Class_3
NA
Variation 4
Variation 4
529
Linear Mtr_2.PF_OBJ.CAL_OBJ.USER_ZERO_
VAL
None
Sel_Op
Variation 3
Variation 3
530
Linear Mtr_2.PF_OBJ.CAL_OBJ.USER_SPAN_
VAL
None
Sel_Op
Variation 3
Variation 3
531
Linear Mtr_2.TF_OBJ.CAL_OBJ.USER_ZERO_
VAL
None
Sel_Op
Variation 3
Variation 3
532
Linear Mtr_2.TF_OBJ.CAL_OBJ.USER_SPAN_
VAL
None
Sel_Op
Variation 3
Variation 3
533
Linear Mtr_2.STATION_OBJ.PB_SEL
None
NA
Variation 4
Variation 4
534
Linear Mtr_2.STATION_OBJ.TB_SEL
None
NA
Variation 4
Variation 4
535
Linear Mtr_2.STATION_OBJ.LATITUDE
None
Sel_Op
Variation 4
Variation 4
536
Linear Mtr_2.STATION_OBJ.ELEVATION
None
Sel_Op
Variation 4
Variation 4
537
Linear Mtr_2.STATION_OBJ.ATMPR_SEL
Class_3
NA
Variation 4
Variation 4
538
Linear Mtr_2.STATION_OBJ.GRAV_SEL
Class_3
NA
Variation 4
Variation 4
539
Linear Mtr_2.STATION_OBJ.HIST_GRP_
OBJ.CONTRACT_HR
None
Sel_Op
Variation 2
Variation 2
540
Linear Mtr_2.FLUID_PROP_OBJ.N2_INUSE
Class_3
NA
Variation 4
Variation 4
541
Linear Mtr_2.FLUID_PROP_OBJ.CO2_INUSE
Class_3
NA
Variation 4
Variation 4
542
Linear Mtr_2.FLUID_PROP_OBJ.C1_INUSE
Class_3
NA
Variation 4
Variation 4
543
Linear Mtr_2.FLUID_PROP_OBJ.C2_INUSE
Class_3
NA
Variation 4
Variation 4
544
Linear Mtr_2.FLUID_PROP_OBJ.C3_INUSE
Class_3
NA
Variation 4
Variation 4
545
Linear Mtr_2.FLUID_PROP_OBJ.NC4_INUSE
Class_3
NA
Variation 4
Variation 4
546
Linear Mtr_2.FLUID_PROP_OBJ.IC4_INUSE
Class_3
NA
Variation 4
Variation 4
547
Linear Mtr_2.FLUID_PROP_OBJ.NC5_INUSE
Class_3
NA
Variation 4
Variation 4
548
Linear Mtr_2.FLUID_PROP_OBJ.IC5_INUSE
Class_3
NA
Variation 4
Variation 4
549
Linear Mtr_2.FLUID_PROP_OBJ.C6_INUSE
Class_3
NA
Variation 4
Variation 4
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 39
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
550
Linear Mtr_2.FLUID_PROP_OBJ.C7_INUSE
Class_3
NA
Variation 4
Variation 4
551
Linear Mtr_2.FLUID_PROP_OBJ.C8_INUSE
Class_3
NA
Variation 4
Variation 4
552
Linear Mtr_2.FLUID_PROP_OBJ.C9_INUSE
Class_3
NA
Variation 4
Variation 4
553
Linear Mtr_2.FLUID_PROP_OBJ.C10_INUSE
Class_3
NA
Variation 4
Variation 4
554
Linear Mtr_2.FLUID_PROP_OBJ.H2S_INUSE
Class_3
NA
Variation 4
Variation 4
555
Linear Mtr_2.FLUID_PROP_OBJ.H2O_INUSE
Class_3
NA
Variation 4
Variation 4
556
Linear Mtr_2.FLUID_PROP_OBJ.HE_INUSE
Class_3
NA
Variation 4
Variation 4
557
Linear Mtr_2.FLUID_PROP_OBJ.O2_INUSE
Class_3
NA
Variation 4
Variation 4
558
Linear Mtr_2.FLUID_PROP_OBJ.H2_INUSE
Class_3
NA
Variation 4
Variation 4
559
Linear Mtr_2.FLUID_PROP_OBJ.CO_INUSE
Class_3
NA
Variation 4
Variation 4
560
Linear Mtr_2.FLUID_PROP_OBJ.AR_INUSE
Class_3
NA
Variation 4
Variation 4
561
Linear
Mtr_2.FLUID_PROP_OBJ.H2O_CONTENT_SEL
Class_3
NA
Variation 4
Variation 4
562
Linear
Mtr_2.FLUID_PROP_OBJ.HV_REAL_SEL
Class_3
NA
Variation 4
Variation 4
563
Linear
Mtr_2.FLUID_PROP_OBJ.RD_REAL_SEL
Class_3
NA
Variation 4
Variation 4
564
Linear Mtr_2.FLUID_PROP_OBJ.ZB_SEL
Class_3
NA
Variation 4
Variation 4
565
Linear Mtr_2.FLUID_PROP_OBJ.ZS_SEL
Class_3
NA
Variation 4
Variation 4
566
Linear Mtr_2.FLUID_PROP_OBJ.ZF_SEL
Class_3
NA
Variation 4
Variation 4
567
Linear Mtr_2.FLUID_PROP_OBJ.DENSB_SEL
Class_3
NA
Variation 4
Variation 4
568
Linear Mtr_2.FLUID_PROP_OBJ.DENSF_SEL
Class_3
NA
Variation 4
Variation 4
569
Linear
Mtr_2.PF_OBJ.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
570
Linear
Mtr_2.TF_OBJ.ALM_OBJ.PROCESS_ALM
Class_3
NA
Variation 2
Variation 2
571
Linear Mtr_2.UVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
572
Linear Mtr_2.UVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
573
Linear Mtr_2.UVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
574
Linear Mtr_2.UVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
575
Linear Mtr_2.UVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
576
Linear Mtr_2.SVOL_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
577
Linear Mtr_2.SVOL_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
578
Linear Mtr_2.SVOL_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
579
Linear Mtr_2.SVOL_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
580
Linear Mtr_2.SVOL_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
581
Linear Mtr_2.MASS_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
40 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
582
Linear Mtr_2.MASS_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
583
Linear Mtr_2.MASS_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
584
Linear Mtr_2.MASS_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
585
Linear Mtr_2.MASS_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
586
Linear Mtr_2.ENERGY_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
587
Linear Mtr_2.ENERGY_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
588
Linear Mtr_2.ENERGY_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
589
Linear Mtr_2.ENERGY_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
590
Linear Mtr_2.ENERGY_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
591
Linear Mtr_2.FLWTM_TOT_OBJ.CURRENT
Class_3
NA
Variation 4
Variation 4
592
Linear Mtr_2.FLWTM_TOT_OBJ.CUR_PER
Class_3
NA
Variation 4
Variation 4
593
Linear Mtr_2.FLWTM_TOT_OBJ.PREV_PER
Class_3
NA
Variation 4
Variation 4
594
Linear Mtr_2.FLWTM_TOT_OBJ.CUR_DAY
Class_3
NA
Variation 4
Variation 4
595
Linear Mtr_2.FLWTM_TOT_OBJ.PREV_DAY
Class_3
NA
Variation 4
Variation 4
596
PID_1.PID_LOOP_TYPE
None
Sel_Op
Variation 2
Variation 2
597
PID_1.P_PROPORTIONAL_G
None
Sel_Op
Variation 3
Variation 3
598
PID_1.P_INTEGRAL_GAIN
None
Sel_Op
Variation 3
Variation 3
599
PID_1.P_DERIVATIVE_GAIN
None
Sel_Op
Variation 3
Variation 3
600
PID_1.O_PROPORTIONAL_G
None
Sel_Op
Variation 3
Variation 3
601
PID_1.O_INTEGRAL_GAIN
None
Sel_Op
Variation 3
Variation 3
602
PID_1.O_DERIVATIVE_GAIN
None
Sel_Op
Variation 3
Variation 3
603
PID_1.P_SETPOINT
Class_3
Sel_Op
Variation 3
Variation 3
604
PID_1.O_SETPOINT
Class_3
Sel_Op
Variation 3
Variation 3
605
PID_1.SELECTED_LOOP
Class_3
NA
Variation 2
Variation 2
606
PID_2.PID_LOOP_TYPE
None
Sel_Op
Variation 2
Variation 2
607
PID_2.P_PROPORTIONAL_G
None
Sel_Op
Variation 3
Variation 3
608
PID_2.P_INTEGRAL_GAIN
None
Sel_Op
Variation 3
Variation 3
609
PID_2.P_DERIVATIVE_GAIN
None
Sel_Op
Variation 3
Variation 3
610
PID_2.O_PROPORTIONAL_G
None
Sel_Op
Variation 3
Variation 3
611
PID_2.O_INTEGRAL_GAIN
None
Sel_Op
Variation 3
Variation 3
612
PID_2.O_DERIVATIVE_GAIN
None
Sel_Op
Variation 3
Variation 3
613
PID_2.P_SETPOINT
Class_3
Sel_Op
Variation 3
Variation 3
614
PID_2.O_SETPOINT
Class_3
Sel_Op
Variation 3
Variation 3
615
PID_2.SELECTED_LOOP
Class_3
NA
Variation 2
Variation 2
616
PID_3.PID_LOOP_TYPE
None
Sel_Op
Variation 2
Variation 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 41
Point
Index
Tag Mapped
Default
Class
Supported
Control
Operations
Group 40
Default
Variation
Group 41
Default
Variation
617
PID_3.P_PROPORTIONAL_G
None
Sel_Op
Variation 3
Variation 3
618
PID_3.P_INTEGRAL_GAIN
None
Sel_Op
Variation 3
Variation 3
619
PID_3.P_DERIVATIVE_GAIN
None
Sel_Op
Variation 3
Variation 3
620
PID_3.O_PROPORTIONAL_G
None
Sel_Op
Variation 3
Variation 3
621
PID_3.O_INTEGRAL_GAIN
None
Sel_Op
Variation 3
Variation 3
622
PID_3.O_DERIVATIVE_GAIN
None
Sel_Op
Variation 3
Variation 3
623
PID_3.P_SETPOINT
Class_3
Sel_Op
Variation 3
Variation 3
624
PID_3.O_SETPOINT
Class_3
Sel_Op
Variation 3
Variation 3
625
PID_3.SELECTED_LOOP
Class_3
NA
Variation 2
Variation 2
4.5 Binary Counter: DNP3 Object Groups 20 (Events) & 22
(Events)
4.5.1 DNP3 Object Group 20: Counters (Static)
This group can be read with the following variations:
▪ Variation 1: 32-bit with flag
▪ Variation 2: 16-bit with flag
▪ Variation 3: 32-bit with flag, delta
▪ Variation 4: 16-bit with flag, delta
▪ Variation 5: 32-bit without flag
▪ Variation 6: 16-bit without flag
▪ Variation 7: 32-bit without flag, delta
▪ Variation 8: 16-bit without flag, delta
4.5.2 DNP3 Object Group 22: Counters (Events)
This group can be read with the following variations:
▪ Variation 1: 32-bit with flag
▪ Variation 2: 16-bit with flag
▪ Variation 3: 32-bit with flag, delta
▪ Variation 4: 16-bit with flag, delta
▪ Variation 5: 32-bit with flag and time
▪ Variation 6: 16-bit with flag and time
▪ Variation 7: 32-bit with flag and time, delta
▪ Variation 8: 16-bit with flag and time, delta
Point
Index
Tag Mapped
Default
Class
Default variation
Group 20
Default Variation
Group 22
0
PI_1-1.PULSE_DAY_ACCUM_32
Class_3
Variation 1-32b flag
Variation 1-32b flag
1
PI_1-2.PULSE_DAY_ACCUM_32
Class_3
Variation 1-32b flag
Variation 1-32b flag
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
42 DNP3 Data Point List
Point
Index
Tag Mapped
Default
Class
Default variation
Group 20
Default Variation
Group 22
2
PI_1-3.PULSE_DAY_ACCUM_32
Class_3
Variation 1-32b flag
Variation 1-32b flag
3
PI_1-4.PULSE_DAY_ACCUM_32
Class_3
Variation 1-32b flag
Variation 1-32b flag
4
PI_1-5.PULSE_DAY_ACCUM_32
Class_3
Variation 1-32b flag
Variation 1-32b flag
5
PI_1-6.PULSE_DAY_ACCUM_32
Class_3
Variation 1-32b flag
Variation 1-32b flag
6
PI_1-7.PULSE_DAY_ACCUM_32
Class_3
Variation 1-32b flag
Variation 1-32b flag
7
PI_1-8.PULSE_DAY_ACCUM_32
Class_3
Variation 1-32b flag
Variation 1-32b flag
8
PI_1-9.PULSE_DAY_ACCUM_32
Class_3
Variation 1-32b flag
Variation 1-32b flag
9
PI_1-10.PULSE_DAY_ACCUM_32
Class_3
Variation 1-32b flag
Variation 1-32b flag
4.6 String Group: DNP3 Object Group 110 (Static)
4.6.1 DNP3 Object Group 110: Octet Strings (Static)
This group can be read with all variations:
Point Index
Tag Mapped
Default Class
Assigned
0
DNP3_2.DESC
None
1
System_1.PROD_DESC
None
2
System_1.SITE_NAME
None
3
AI_1-1.DESC
None
4
AI_1-2.DESC
None
5
AI_1-3.DESC
None
6
AI_1-4.DESC
None
7
AI_1-5.DESC
None
8
AI_1-6.DESC
None
9
AI_1-7.DESC
None
10
AI_1-8.DESC
None
11
AO_1-1.DESC
None
12
AO_1-2.DESC
None
13
AO_1-3.DESC
None
14
AO_1-4.DESC
None
15
AO_1-5.DESC
None
16
AO_1-6.DESC
None
17
AO_1-7.DESC
None
18
AO_1-8.DESC
None
19
DI_1-1.DESC
None
20
DI_1-2.DESC
None
21
DI_1-3.DESC
None
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
DNP3 Data Point List 43
Point Index
Tag Mapped
Default Class
Assigned
22
DI_1-4.DESC
None
23
DI_1-5.DESC
None
24
DI_1-6.DESC
None
25
DI_1-7.DESC
None
26
DI_1-8.DESC
None
27
DI_1-9.DESC
None
28
DI_1-10.DESC
None
29
DO_1-1.DESC
None
30
DO_1-2.DESC
None
31
DO_1-3.DESC
None
32
DO_1-4.DESC
None
33
DO_1-5.DESC
None
34
DO_1-6.DESC
None
35
DO_1-7.DESC
None
36
DO_1-8.DESC
None
37
DO_1-9.DESC
None
38
DO_1-10.DESC
None
39
PI_1-1.DESC
None
40
PI_1-2.DESC
None
41
PI_1-3.DESC
None
42
PI_1-4.DESC
None
43
PI_1-5.DESC
None
44
PI_1-6.DESC
None
45
PI_1-7.DESC
None
46
PI_1-8.DESC
None
47
PI_1-9.DESC
None
48
PI_1-10.DESC
None
49
Sensor_1-1.DESC
None
50
Sensor_1-2.DESC
None
51
Sensor_1-3.DESC
None
52
Station_1.DESC
None
53
Station_2.DESC
None
54
DP Mtr_1.DESC
None
55
DP Mtr_1.SER_NUM
None
56
DP Mtr_2.DESC
None
57
DP Mtr_2.SER_NUM
None
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
44 DNP3 Data Point List
Point Index
Tag Mapped
Default Class
Assigned
58
Linear Mtr_1.DESC
None
59
Linear Mtr_1.SER_NUM
None
60
Linear Mtr_2.DESC
None
61
Linear Mtr_2.SER_NUM
None
62
PID_1.DESC
None
63
PID_2.DESC
None
64
PID_3.DESC
None
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 45

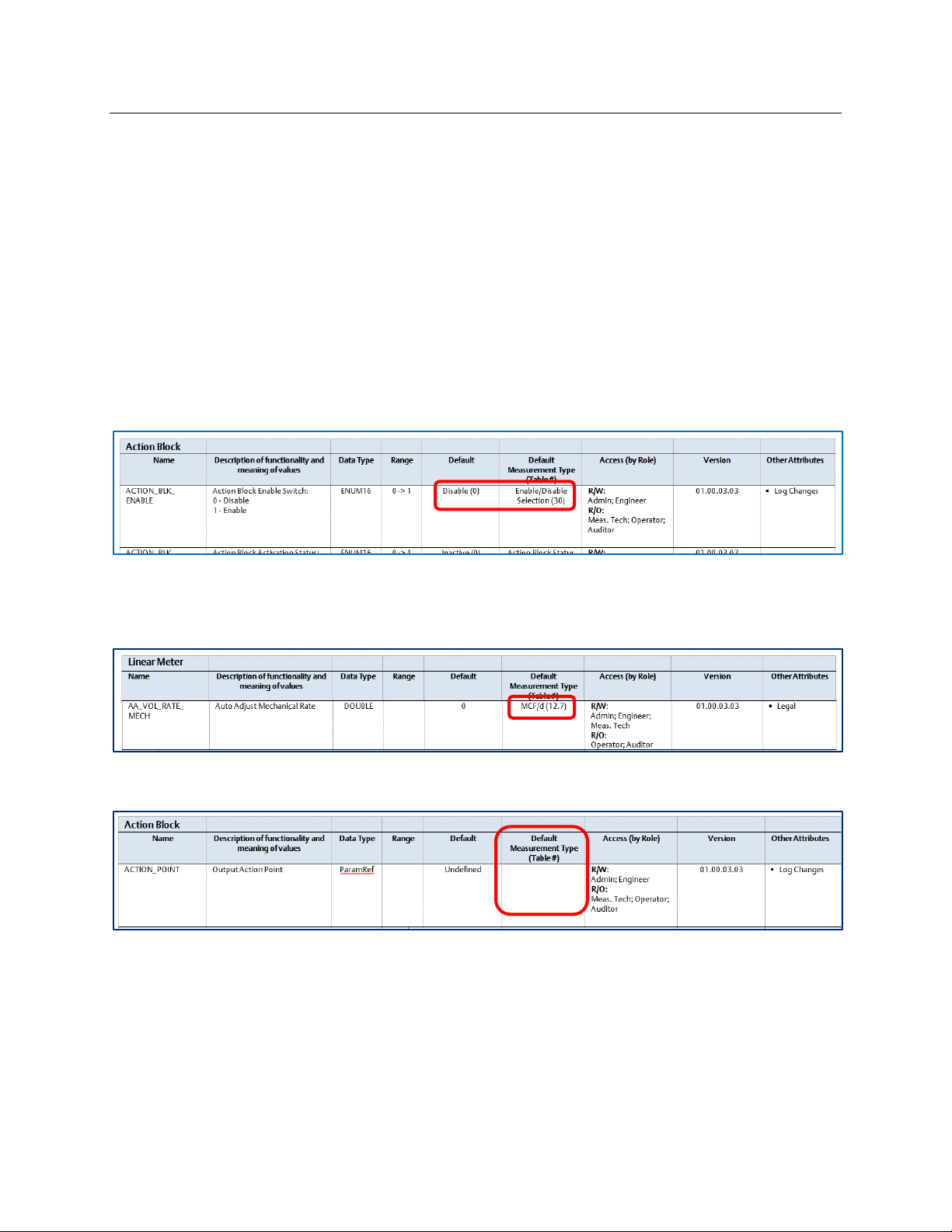

5. Object Parameter Listing
This chapter provides tables describing the measurement types and parameters for each
DNP3 object.
5.1 Measurement Types
Table 5-1 details the unit codes associated with each measurement type. Depending on the
data type, the unit code type associated with a parameter (or an instance of a parameter)
may appear as a number in parentheses in the Default Measurement Type column.
▪ For Data Type ENUM16, the description of the Measurement Type appears as a
number in parentheses [here, (30)] after the value in the Default Measurement Type
column and the unit code number – which correlates to the Units column in Table 5-1
– appears as a number in parentheses [here, (0)] after the value in the Default column:
▪ For other data types (such as DOUBLE, FLOAT, or UINT), the description of the
Measurement Type appears in the Default Measurement Type column as a number in
parentheses with a decimal value [here, (12.7)]: the decimal value correlates to the
unit code for that specific table (that is, table 12 and value 7):
▪ Finally, for some parameters/data types, the Default Measurement Type is not
applicable, and the column is blank:
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
46 Object Parameter Listing
Table 5-1: Measurement Types
Type
Description
Units
0
Unitless
1
Differential Pressure Display
0 = inH2O
1 = inH2O
2 = kPa
3 = mbar
4 = kg/cm²
5 = psi
6 = bar
2
Absolute Pressure
0 = psi(a)
1 = kPa(a)
2 = MPa(a)
3 = bar(a)
4 = kg/cm²(a)
3
Temperature
0 = °F
1 = °C
2 = K
4
Gas Density
0 = lb/ft³
1 = kg/m³
2 = g/cc
3 – lb/MMCF
4 = lb/US gal
5 = kg/L
6 = lb/bbl
7 = RD(liq)
8 = API
5
Volume Heating Value
0 = Btu/ft³
1 = MJ/m³
6
Dynamic Viscosity
0 = cP
1 = lb/ft-s
7
Linear (Short)
0 = in
1 = mm
8
Linear (Long)
0 = ft
1 = m
9
Gas Volume Total
0 = ft³
1 = m³
2 = MCF
3 = (k)m³
4 = MMCF
5 = BCF
6 = L
7 = US gal
8 = bbl
10
Mass Total
0 = lb
1 = kg
2 = Mlb
3 = tonne
4 = ton
11
Energy Total
0 = Btu
1 = MMBtu
2 = J
3 = MJ
4 = GJ
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 47
Type
Description
Units
5 = Dth
6 = TJ
7 = PJ
12
Gas Volume Rate
0 = ft³/s
1 = ft³/min
2 = ft³/h
3 = ft³/d
4 = MCF/s
5 = MCF/min
6 = MCF/h
7 = MCF/d
8 = m³/s
9 = m³/min
10 = m³/h
11 = m³/d
12 = (k)m³/s
13 = (k)m³/min
14 = (k)m³/h
15 = (k)m³/d
16 = MMCF/s
17 = MMCF/min
18 = MMCF/h
19 = MMCF/d
20 = BCF/s
21 = BCF/min
22 = BCF/h
23 = BCF/d
24 = L/s
25 = L/min
26 = L/h
27 = L/d
28 = US gal/s
29 = US gal/min
30 = US gal/h
31 = US gal/d
32 = bbl/s
33 = bbl/min
34 = bbl/h
35 = bbl/d
13
Mass Rate
0 = lb/s
1 = lb/min
2 = lb/h
3 = lb/d
4 = Mlb/s
5 = Mlb/min
6 = Mlb/h
7 = Mlb/d
8 = kg/s
9 = kg/min
10 = kg/h
11 = kg/d
12 = tonne/s
13 = tonne/min
14 = tonne/h
15 = tonne/d
16 = ton/s
17 = ton/min
18 = ton/h
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
48 Object Parameter Listing
Type
Description
Units
19 = ton/d
14
Energy Rate
0 = Btu/s
1 = Btu/min
2 = Btu/h
3 = Btu/d
4 = MMBtu/s
5 = MMBtu/min
6 = MMBtu/h
7 = MMBtu/d
8 = J/s
9 = J/min
10 = J/h
11 = J/d
12 = MJ/s
13 = MJ/min
14 = MJ/h
15 = MJ/d
16 = GJ/s
17 = GJ/min
18 = GJ/h
19 = GJ/d
20 = Dth/s
21 = Dth/min
22 = Dth/h
23 = Dth/d
24 = TJ/s
25 = TJ/min
26 = TJ/h
27 = TJ/d
28 = PJ/s
29 = PJ/min
30 = PJ/h
31 = PJ/d
15
Current
0 = mA
1 =A
16
Voltage
0 = V
1 = kV
17
Duration
0 = s
1 = min
2 = h
3 = d
18
Ratio
0 = %
1 = UNDEFINED
2 = ppm
19
Acceleration
0 = ft/s²
1= m/s²
20
Latitude
0 = °
21
Water Content
0 = lb/MMSCF
1 = kg/(k)m³
22
Joule-Thompson Coefficient
0 = °F/psi
1 = K/bar
2 = K/kPa
3 = °C/bar
4 = °C/kPa
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 49
Type
Description
Units
5 = K/MPa
23
Resistance
0 = ohms
24
Frequency
0 = Hz
25
Molar Mass
0 = lb/lb-mol
1 = kg/kmol
2 = g/mol
26
Differential Pressure Selection
0 = inH2O@60°F
1 = inH2O@68°F
2 = kPa
3 = mbar
4 = kg/cm²
5 = psi
6 = bar
27
Volumetric K-factor
0 = pulses/ft³
1 = pulses/m³
2 = pulses/US gal
3 = pulses/bbl
28
Mass K-factor
0 = pulses/lb
1 = pulses/kg
29
Gauge Pressure
0 = psi(g)
1 = kPa(g)
2 = MPa(g)
3 = bar(g)
4 = kg/cm²(g)
30
Enable/Disable Selection
0 = Disable
1 = Enable
31
User Selection
0 = Live
1 = Override
32
Fault Selection
0 = Live
1 = Fault
2 = Last Good
3 = Last Hour Average
33
Composite System Integrity
0 = Normal
1 = Alarm
2 = Fault
34
Day of Week
0 = Sunday
1 = Monday
2 = Tuesday
3 = Wednesday
4 = Thursday
5 = Friday
6 = Saturday
35
Date Format Selection
0 = MM/DD/YY
1 = MM/DD/YYYY
2 = DD/MM/YY
3 = DD/MM/YYYY
4 = YYYY/MM/DD
5 = YY/MM/DD
36
Time Format Selection
0 = 12 Hour
1 = 24 Hour
37
Language Selection
0 = English
38
Port Owner
0 = Debug
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
50 Object Parameter Listing
Type
Description
Units
1 = DNP3/Modbus Slave
2 = DNP3
3 = Modbus Slave
4 = Master Modbus
5 = BSAP
6 = ROC
7 = MVS4088
8 = HART Slave
39
Baud Rate
0 = 1200
1 = 2400
2 = 4800
3 = 9600
4 = 19.2K
5 = 38.4K
6 = 57.6K
7 = 115.2K
40
Serial Settings
0 = 7 data bits; odd parity; 1 stop bit
1 = 7 data bits; even parity; 1 stop bit
2 = 8 data bits; no parity; 1 stop bit
3 = 8 data bits; odd parity; 1 stop bit
4 = 8 data bits; even parity; 1 stop bit
41
IPv4 Address
0 = IPv4
42
48-bit MAC Address
0 = 48-bit
43
History Type
0 = Average
1 = Total / Difference
2 = Snapshot
3 = Minimum
4 = Maximum
5 = Integration
44
Alarm Status DP SP
0 = Normal
1 = Not Licensed
2 = Instance Inactive
3 = Comm Fail
4 = Override Active
5 = In Alarm
6 = Point Fail
7 = Above URL
8 = Below LRL
9 = Input Frozen
45
Composite Status Alarm
0 = Normal
1 = Low
2 = Low Low
3 = High
4 = High High
5 = Rate of Change
6 = Point Fail
46
Discrete Output Types
0 = Latching
1 = Momentary
2 = Toggle
3 = Time Duration Output Momentary
4 = Time Duration Output Toggle
5 = Scaled Pulse Output
47
Output Mode
0 = Manual
1 = Auto
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 51
Type
Description
Units
48
Output Action on Power Cycle
0 = Last
1 = Fault
49
CVD Curve Selection
0 = User
1 = Alpha 0.00385 DIN/IEC
2 = Alpha 0.00392
50
Meter Type Selection
0 = AGA3 Orifice (Flange Taps)
1 = ISO5167 Orifice (Flange Taps)
2 = ISO5167 Orifice (Corner Taps)
3 = ISO5167 Orifice (D & D/2 Taps)
4 = ISO5167 Venturi (As Cast)
5 = ISO5167 Venturi (Machined)
6 = ISO5167 Venturi (Rough Weld)
7 = ISO5167 Nozzle (Venturi)
8 = ISO5167 Nozzle (Long Radius)
9 = ISO5167 Nozzle (ISA 1932)
10 = 1595 Conditioning Orifice (Flange)
11 = 1595 Conditioning Orifice (D and D/2)
12 = 405C Compact Orifice
13 = Cone (McCrometer V-Cone)
14 = Cone (McCrometer Wafer-Cone)
15 = Cone (NUFLO)
51
AGA 3 Calculation Method
0 = AGA3 1992 Volume
1 = AGA3 1992 Mass
2 = AGA3 1992 Relative Density
3 = AGA3 2012 Volume
4 = AGA3 2012 Mass
5 = AGA3 2012 Relative Density
52
ISO 5167 Calculation Method
0 = ISO5167 1991
1 = ISO5167 1998
2 = ISO5167 2003
53
Linear Meter Type
0 = Turbine
1 = Coriolis
2 = Auto-Adjust
54
Density/Compress Calc Selection
0 = AGA8 1994 Detailed
1 = AGA8 1994 Gross 1
2 = AGA8 1994 Gross 2
3 = ISO 12213-2 2009
4 = SGERG 1991 CV/RD/CO2/H2 (Std)
5 = SGERG 1991 CV/RD/N2/H2
6 = SGERG 1991 RD/N2/CO2/H2)
7 = SGERG 1991 CV/N2/CO2/H2)
8 = ISO12213-3 2006 CV/RD/CO2/H2 (Perf)
9 = ISO12213-3 2006 N2/CV/RD/H2 (Set B)
10 = ISO12213-3 2006 N2/CO2/RD/H2 (Set C)
11 = ISO12213-3 2006 N2/CO2/CV/H2 (Set D
12 = NX-19 1962 (Z VDI/VDE)
13 = NX-19 Mod
14 = NX-19 /VDI/VDE
15 = AGA8 Part 1 2017 Detailed
16 = RESERVED
17 = AGA8 Part 1 2017 Gross 1
18 – AGA8 Part 1 2017 Gross 2
19 = AGA8 Part 1 2017/GERG 2008
20 = NX-19 (Z Miller)
55
Heating Value Calculation Selection
0 = GPA2172 2009 Gross
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
52 Object Parameter Listing
Type
Description
Units
1 = ISO6976 1995 Superior
2 = ISO6976 1995 Inferior
3 = AGA5 2009 Gross
4 = AGA5 2009 Net
56
Heating Value Combustion Reference
0 = 60°F
1 = 0°C
2 = 15°C
3 = 20°C
4 = 25°C
57
SP Type Selection
0 = Gauge
1 = Absolute
58
Pressure Location
0 = Upstream
1 = Downstream
59
Material Selection
0 = Carbon Steel
1 = 304 Stainless Steel
2 = 316 Stainless Steel
3 = Generic Stainless
4 = Monel 400
5 = User Entered Alpha
60
Modbus Mode Selection
0 = ASCII
1 = RTU
2 = TCP
61
Modbus Byte Order Selection
0 = LSB
1 = MSB
62
Modbus 4-byte Types
0 = 1 Register
1 = 2 Register 0-1-2-3
2 = 2 Register 1-0-3-2
3 = 2 Register 2-3-0-1
4 = 2 Register 3-2-1-0
63
Modbus 8-byte Types
0 = 1 Register
1 = 4 Register 0-1-2-3-4-5-6-7
2 = 4 Register 2-3-0-1-6-7-4-5
3 = 4 Register 4-5-6-7-0-1-2-3
4 = 4 Register 6-7-4-5-3-2-0-1
5 = 4 Register 1-0-3-2-5-4-7-6
6 = 4 Register 3-2-1-0-7-6-5-4
7 = 4 Register 5-4-7-6-1-0-3-2
8 = 4 Register 7-6-5-4-3-2-1-0
64
Data Type Select
0 = Unknown
65
Calculation Fault Option
0 = Alarm Disabled
1 = Alarm and Continue
2 = Alarm and Halt Calculation
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 53
Type
Description
Units
66
Remote Data Types
0 = No Conversion
1 = UINT8
2 = INT8
3 = UINT16
4 = INT16
5 = UINT32 (2 Registers 0-1-2-3)
6 = UINT32 (2 Registers 1-0-3-2)
7 = UINT32 (2 Registers 2-3-0-1)
8 = UINT32 (2 Registers 3-2-1-0)
9 = INT32 (2 Registers 0-1-2-3)
10 = INT32 (2 Registers 1-0-3-2)
11 = INT32 (2 Registers 2-3-0-1)
12 = INT32 (2 Registers 3-2-1-0)
13 = UINT64 (4 Registers 0-1-2-3-4-5-6-7)
14 = UINT64 (4 Registers 2-3-0-1-6-7-4-5)
15 = UINT64 (4 Registers 4-5-6-7-0-1-2-3)
16 = UINT64 (4 Registers 6-7-4-5-2-3-0-1)
17 = UINT64 (4 Registers 1-0-3-2-5-4-7-6)
18 = UINT64 (4 Registers 3-2-1-0-7-6-5-4)
19 = UINT64 (4 Registers 5-4-7-6-1-0-3-2)
20 = UINT64 (4 Registers 7-6-5-4-3-2-1-0)
21 = INT64 (4 Registers 0-1-2-3-4-5-6-7)
22 = INT64 (4 Registers 2-3-0-1-6-7-4-5)
23 = INT64 (4 Registers 4-5-6-7-0-1-2-3)
24 = INT64 (4 Registers 6-7-4-5-2-3-0-1)
25 = INT64 (4 Registers 1-0-3-2-5-4-7-6)
26 = INT64 (4 Registers 3-2-1-0-7-6-5-4)
27 = INT64 (4 Registers 5-4-7-6-1-0-3-2)
28 = INT64 (4 Registers 7-6-5-4-3-2-1-0)
29 = FLOAT (2 Registers 0-1-2-3)
30 = FLOAT (2 Registers 1-0-3-2)
31 = FLOAT (2 Registers 2-3-0-1)
32 = FLOAT (2 Registers 3-2-1-0)
33 = DOUBLE (4 Registers 0-1-2-3-4-5-6-7)
34 = DOUBLE (4 Registers 2-3-0-1-6-7-4-5)
35 = DOUBLE (4 Registers 4-5-6-7-0-1-2-3)
36 = DOUBLE (4 Registers 6-7-4-5-2-3-0-1)
37 = DOUBLE (4 Registers 1-0-3-2-5-4-7-6)
38 = DOUBLE (4 Registers 3-2-1-0-7-6-5-4)
39 = DOUBLE (4 Registers 5-4-7-6-1-0-3-2)
40 = DOUBLE (4 Registers 7-6-5-4-3-2-1-0)
41 = SINGLE REGISTER FLOATING POINT
42 = SINGLE REGISTER DOUBLE
43 = SINGLE REGISTER INT32
44 = SINGLE REGISTER UINT32
45 = SINGLE REGISTER INT64
46 = SINGLE REGISTER UINT64
47 = STRING (10 Characters)
48 = STRING (20 Characters)
49 = STRING (30 Characters)
50 = STRING (40 Characters)
67
Normalization Type
0 = None
1 = Full Normalization
2 = Methane Adjust
68
Port Type
0 = Serial
1 = Ethernet
2 = Wi-Fi®
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
54 Object Parameter Listing
Type
Description
Units
3 = USB
69
Serial Port Mode
0 = RS-232
1 = RS-485(No Termination)
2 = RS-485(Terminated)
3 = RS-422(No Termination)
4 = RS-422(Terminated)
70
H20 Content Basis
0 = Dry
1 = Saturated at Base Conditions
2 = RESERVED
3 = Partially Saturated
71
Averaging Type
0 = Linear
1 = Flow Dependent Linear
72
Battery Type
0 = None
1 = Lithium
2 = Lead Acid
3 = Not Applicable
73
Fluid Type
0 = Natural Gas
1 = RESERVED
2 = Liquid
74
Base Temperature
0 = User
1 = 60°F
2 = 15°C
3 = 20°C
4 = 30°C
5 = 0°C
75
Water Content Calc Standard
0 = IGT Bulletin 8
76
Reserved
0 = RESERVED
77
Annubar Calc Selection
0 = 485-1
1 = 485-2
2 = 485-3
78
Pressure
0 = psi
1 = kPa
2 = MPa
3 = bar
4 = kg/cm²
79
User Mode Selection 1
0 = Measured
1 = Override
2 = Calculated
80
Object Status
0 = Normal
1 = In Alarm
2 = Failure
3 = Override
4 = Inactive
82
Live Trigger
0 = No Action
1 = Accept Composition
83
RTD Type
0 = 2-wire
1 = 3-wire
2 = 4-wire
84
History Group Type
0 = General History
1 = Meter History
2 = User Periodic
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 55
Type
Description
Units
85
Sensor Configuration
0 = Standard Coplanar
1 = Standard Threaded
2 = Level Coplanar
3 = Reference Class Coplanar
4 = High Temp Conventional
5-251 = RESERVED
252 = Unknown
86
Sensor Type
0 = Dual Variable
1 = DP Only
2 = SP Only
87
Static Pressure Type
0 = No Static Pressure
1 = Absolute
2 = Gauge
88
RMT Sensor Range
0 = Range 0
1 = Range 1
2 = Range 2
3 = Range 3
4 = Range 4
5 = Range 5
6 = Range 6
7 = Range 7
8 = Range 8
9 = Range 9
10 = Range 10
11-252 = RESERVED
253 = Special
89
Flange Type
0-11 = RESERVED
12 = Traditional
13 = Coplanar
14 = Remote Seal
15 = Level; 3in; 150lb
16 = Level; 4in; 150lb
17 = Level; 3in; 300lb
18 = Level; 4in; 300lb
19 = Level; DN 80; PN 40
20 = Level; DN 100; PN 40
21 = Level; DN 100; PN 10/16
22 = Level; 2in; 150lb
23 = Level; 2in; 300lb
24 = Level; DN 50; PN 6
25 = Level; DN 50; PN 40
26-43 = RESERVED
44 = 1/2in; NPTF
45 = DIN16288G 1/2 A male
46 = 1/4in; NPTF
47-240 = RESERVED
240 = Auto Clave F-250-C
241 = Tri-Clamp
242 = Fractional Line Fit
243 = 1/8in; NPTF
244 = VCR
245 = PMC
246 = Traditional RC 1/4
247 = Traditional RC 1/2
248-251 = RESERVED
252 = Unknown
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
56 Object Parameter Listing
Type
Description
Units
253 = Special
90
Sensor Material
0 = Carbon Steel
1 = Undefined
2 = 316 Stainless Steel
3 = Hastelloy® C
4 = Monel
5 = Tantalum
6-14 = RESERVED
15 = Gold Monel
16-23 = RESERVED
24 = Kynar
25 = Gold Monel
26-29 = RESERVED
30 = Hastelloy C276
31-33 = RESERVED
34 = PTFE Coated 316L SST
35 = Gold Plated Hastelloy C276
36-238 = RESERVED
239 = Monel 400
240-250 = RESERVED
251 = None
252 = Unknown
253 = Special
91
O-ring Material
0-9 = RESERVED
10 = PTFE (Teflon® R)
11 = Viton
12 = Buna-N
13 = Ethyl-Prop
14-35 = RESERVED
36 = PTFE Glass
37 = PTFE Graphite
38-250 = RESERVED
251 = None
252 = Unknown
253 = Special
92
Fill Fluid
0 = Undefined
1 = Silicone
2 = Inert
3-6 = RESERVED
7 = NEOBEE® M-20
8-251 = RESERVED
252 = Unknown
253 = Special
93
Product Type
0 = FB1100
1 = FB1200
2 = FB2100
3 = FB2200
4 = FB3000
5 = I/O Scanner
94
Heavy Gas Mode
0 = Disabled
1 = C6+
2 = C7+
3 = C8+
4 = C9+
95
Wi-Fi Security Option
0 = Open
1 = WPA-2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 57
Type
Description
Units
96
Cd/Fc Curve Option
0 = Disabled
1 = Cd vs Re Curve
2 = Fc vs Flow Curve
97
User Mode Selection 2
0 = RESERVED
1 = Override
2 = Calculated
98
User Mode Selection 3
0 = Measured
1 = Override
2 = Calculated
3 = Remote Download
99
Actual Mode
0 = Measured
1 = Override
2 = Calculated
3 = Remote Download
4 = Fault
100
Alarm Type
0 = Low
1 = Low Low
2 = High
3 = High High
4 = Rate of Change
5 = User Account Locked
6 = Log Full Limit Exceeded
7 = Log Nearly Full Limit Exceeded
8 = Log Integrity Failure
9 = Battery Status
10 = Low Voltage
11 = Override
12 = Point Fail
13 = DI ON Status Alarm
14 = No Response from History
15 = Analysis Timeout
16 = Normalization Failure
17 = Flow Calculation Alarm
18 = Properties Calculation Alarm
19 = Auto-Adjust System Alarm
20 = Auto-Adjust Flow Alarm
21 = Auto-Adjust Delta A Alarm
22 = History Point Movement Failure
23 = Door Open Status Alarm
24 = Other
25 = Flow Calc Alarm: Invalid Input(s)
26 = Flow Calc Alarm: Invalid Config
27 = Flow Calc Alarm: Calculation Error
28 = Flow Calc Alarm: Boundary Error
29 = Flow Calc Alarm: Invalid Station Assign
30-32 = Flow Calc Alarm: RESERVED
33 = Flow Calc Alarm: DP/Flow
34 = Flow Calc Alarm: Pressure
35 = Flow Calc Alarm: Temperature
36 = Flow Calc Alarm: Flowing Density/Z
37 = Flow Calc Alarm: Base Density/Z
38 = Flow Calc Alarm: Relative Density
39 = Flow Calc Alarm: HV/Enthalpy
40 = Flow Calc Alarm: Viscosity
41 = Flow Calc Alarm: User Corr Factor
42 = Flow Calc Alarm: Total/Increment
43 = Flow Calc Alarm: Integral Mult Value
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
58 Object Parameter Listing
Type
Description
Units
44-49 = Flow Calc Alarm: RESERVED
50 = Flow Calc Alarm: Beta Ratio
51 = Flow Calc Alarm: DP/P Ratio
52 = Flow Calc Alarm: Isentropic Exponent
53 = Flow Calc Alarm: Reynolds Number
54 = Flow Calc Alarm: Pressure Loss/Ratio
55 = Flow Calc Alarm: Alpha
56 = Flow Calc Alarm: Expansion Factor
57 = Flow Calc Alarm: K-factor/Meter Factor-Gas
58 = Flow Calc Alarm: Mass Press Corr Factor-Gas
59-63 = RESERVED
64 = Flow Calc Alarm: K-factor/Meter Factor Liq
65 = Flow Calc Alarm: Mass Press Corr Factor-Liq
66 = Flow Calc Alarm Water Cut
67 = Flow Calc Alarm: Shrinkage Factor
68 = Flow Calc Alarm: CTL
69 = Flow Calc Alarm: NGL Factor/Flash Fctr
70 = Flow Calc Alarm: RESERVED
71 = Prop Calc Alarm: Invalid Input(s)
72 = Prop Calc Alarm: Invalid Config
73 = Prop Calc Alarm: Calculation Error
74 = Prop Calc Alarm: Boundary Error
75-79 = Prop Calc Alarm: Reserved
80 = Prop Calc Alarm: Temperature
81 = Prop Calc Alarm: Flowing Density/Z
82 = Prop Calc Alarm: Base Density/Z
83 = Prop Calc Alarm: Relative Density
84 = Prop Calc Alarm: HV/Enthalpy
85 = Prop Calc Alarm: Composition
86 = Prop Calc Alarm: Water Constant
87 = Prop Calc Alarm: Atm Press/Grav Accel
88 = Prop Calc Alarm: Viscosity
89 = Prop Calc Alarm: Isentropic Exponent
90 = Prop Calc Alarm: Speed of Sound
91 = Prop Calc Alarm: Critical Temp/Press
92-102 = Prop Calc Alarm: RESERVED
103 = Parameter Health Status
104 = Meter Task Detected Fatal Error
105 = External Accumulator High Increment
101
Alarm Direction
0 = Clear
1 = Set
102
User Alarm Type
0 = Low
1 = Low Low
2 = High
3 = High High
4 = Rate of Change
5 = Discrete
6 = Calculation
7 = Manual
8 = Scanning Disabled
9 = Calibration
10 = Failure
11 = Failssafe
12 = Permanent Shutdown
13 = Temporary Shutdown
14 = Action on Failure
15 = Other
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 59
103
Event Type
0 = RESERVED
1 = Power Applied
2 = Power Removed
3 = Battery Changed
4 = Firmware Update Start
5 = Firmware Apply Package Version
6 = Firmware Update Complete
7 = Firmware Update Package Restore Fail
8 = Event Type 8
9 = Event Type 9
10 = Event Type 10
11 = Event Type 11
12 = Event Type 12
13 = Event Type 13
14 = Event Type 14
15 = Event Type 15
16 = Login Success
17 = Login Fail Invalid Credentials
18 = Account Locked
19 = Logout
20 = Account Added
21 = Account Removed
22 = Account Modified
23 = Log Clear
24 = Log Clear Due to CRC Corrupt
25 = History Point Cleared
26 = System Down
27 = Action Block Trip Status Changed
28 = Database Initialized
29 = Daylight Saving Time Change
30 = Total Rollover
31 = System Restart
32 = Pulse Accum Rollover
33 = Firmware Apply Image Version
34 = Firmware I/O Board Disabled
35 = Restart during Calc Cycle
36 = Configuration Counter Changed
37 = Log Clear for Combined Event Log
38 = Log Clear for Separate Event Logs
39 = History Clear
40 = Alarm Clear
41 = Event Clear
42 = History Records Lost
43 = Alarm Records Lost
44 = Event Records Lost
45 = Standard History Point Archival Reset
46 = GC Data Read Failed
47 = Hist Group Read Failed
48 = Application Clear
49 = Users Clear
50 = Counts Dropped
51 = FBxNet Watchdog
52 – Legal Event Exported/Event Exported
53 – User Defined Protocol Maps Clear
54 = FW Checksum Error on IO Card
55 = FW Checksum Error
56 = Configuration Checksum Mismatch
57 = Configuration Checksum Saved
58 = Application Restarted
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
60 Object Parameter Listing
Type
Description
Units
59 = External Accumulator Rollover
60 = Transaction History Clear
104
Calibration Event Type
0 = Verification
1 = Calibration Start
2 = Set Zero
3 = Set Span
4 = Set Midpoint1
5 = Set Midpoint2
6 = Set Midpoint3
7 = Calibration Done
8 = Calibration Cancel
9 = Calibration Restore Defaults
10 = Set Zero Shift
11 = Input Frozen
12 = Input Unfrozen
13 = Calibration Timeout
105
User Event Type
0 = Informational
1 = Error
2 = Status
3 = Calculated Factor
4 = Message
5 = Data
6 = Notice
7 = Feedback
8 = Confirmation
9 = Program Adjusted
10 = Estimated Result
11 = User Input
12 = System Change
13 = HMI Input
14 = Other
106
Alarm Record Type
0 = Parameter
1 = Application
2 = User Application
3 = User Parameter
107
Event Record Type
0 = Parameter Change
1 = Application
2 = Calibration
3 = User Application
4 = String
5 = VTE Parameter Change
6 = VTE Application
7 = VTE Calibration
8 = Parameter Alarm
9 = Application Alarm
110
Sensor Transmitter Status
0 = Normal
1 = SP Out of Low Limits
2 = SP Below Low Alr Limits
3 = SP Above Upr Alr Limits
4 = SP Out of Hi Limits
5 = DP Out of Low Limits
6 = DP Below Low Alr Limits
7 = DP Above Upr Alr Limits
8 = DP Out of Hi Limits
9 = Warning Set
10 = Critical Alr Set
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 61
Type
Description
Units
11 = 4088B Calib in Progress
12 = Sensor Module Fail
13 = LCD Comm Error
14 = RTD Sensor Mismatch
15 = ST Below Low Alr Limits
16 = ST Above Upr Alr Limits
17 = ST Out of Low Limits
18 = ST Out of Hi Limits
19 = PT Sensor Fail
20 = PT Out of Low Limits
21 = PT Below Low Alr Limits
22 = PT Above Upr Alr Limits
23 = PT Out of Hi Limits
24 = ST Simulation Enable
25 = Write Protect Switch Lock
26 = PT Simulation Enable
27 = Feature Board Fail
28 = SP Simulation Enable
29 = DP Simulation Enable
30 = Sensor Module Incompatible
31 = Power Fail
32 = Sensor Module Comm Fail
111
Idle Action
0 = Sleep
1 = Always On
112
PID Control Type
0 = Primary Only
1 = Override Only
2 = Dual Control
113
PID Output Type
0 = Analog
1 = Discrete
114
PID Control Action
0 = Forward
1 = Reverse
115
PID Switch Logic
0 = Lesser
1 = Greater
116
PID Selected Loop
0 = Disabled
1 = Primary
2 = Override
117
Data Quality
0 = Healthy
1 = Unhealthy
118
PID Action on Unhealthy Data
0 = Continue
1 = Manual Mode
119
QTR Log Break Options
0 = Disabled
1 = Hourly Only
2 = All Standard Periodic Logs
120
Temperature Correction Selection
0 = No Correction
1 = Isentropic
2 = Isenthalpic (Joule-Thomson)
121
Lockout Type
0 = Disabled
1 = Timed
123
Enclosure Door Status
0 = Enclosure Door Closed
1 = Enclosure Door Open
124
AI Resistor Selection
0 = Current
1 = Voltage
2 = Disabled
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
62 Object Parameter Listing
Type
Description
Units
125
Actual Mode
0 = Live
1 = Auto
2 = Auto Read
3 = Override
4 = Calibration
5 = Fault
6 = Last Good
7 = Last Hour Average
8 = Ramp to Fault Value
9 = Ramp to Last Hour Avg
126
Reserved for future use
127
Raw Counts
0 = A/D Counts
1 = D/A Counts
128
Factory Calibration Status
0 = Invalid
1 = Valid
129
AI Status
0 = Normal
1 = Not Licensed
2 = Instance Inactive
3 = Comm Fail
4 = Override Active
5 = In Alarm
6 = Point Fail
7 = Above URL
8 = Below LRL
9 = Input Frozen
10 = Input Clipped
11 = Factory Calibration Invalid
12 = User Calibration Invalid
13 = Disabled
14 = Termination Missing
15 = Hardware Fail
16 = HART Device Fail
130
AO Status
0 = Normal
1 = Not Licensed
2 = Instance Inactive
3 = Comm Fail
4 = Override Active
5 = In Alarm
6 = Point Fail
7 = Above URL
8 = Below LRL
9 = Output Frozen
10 = Output Clipped
11 = Factory Calibration Invalid
12 = Auto Read Parameter Invalid
13 = AO Readback Failure
14 = Termination Missing
15 = Disabled
16 = Hardware Fail
131
IO Output User Selection
0 = Auto
1 = Override
2 = Auto Read
132
DI Type
0 = Normal
1 = Latched
133
Logic Level
0 = 66 microamps
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 63
Type
Description
Units
1 = 2 milliamps
134
Digital Status
0 = Off
1 = On
135
DI Status
0 = Normal
1 = Not Licensed
2 = Instance Inactive
3 = Comm Fail
4 = Override Active
5 = In Alarm
6 = Point Fail
7 = Status Alarm
8 = Hardware Failure
136
IO Fault Selection
0 = Fault
1 = Last Good
2 = Last Hour Average
3 = Ramp to Fault Value
4 = Ramp to Last Hour Avg
137
1x00/2x00 DO Status
0 = Normal
1 = Not Licensed
2 = Instance Inactive
3 = Comm Fail
4 = Override Active
5 = In Alarm
6 = Point Fail
7 = Auto Read Parameter Invalid
8 = SPO Parameter Invalid
9 = Status Alarm
10 = Hardware Failure
138
PI Filter Mode
0 = Low Speed Filter
1 = High Speed Filter
139
PI Conversion Factor
0 = Pulses/EU
140
PI Rate Period
0 = Seconds
1 = Minutes
2 = Hours
3 = Days
141
Pulses
0 = Pulses
142
PI Status
0 = Normal
1 = Not Licensed
2 = Instance Inactive
3 = Comm Fail
4 = Override Active
5 = In Alarm
6 = Point Fail
7 = Above URL
8 = Below LRL
9 = Termination Missing
10 = Hardware Fail
143
Module Mode
0 = Not Installed
1 = Boot
2 = Normal
3 = Not Licensed
4 = Communication Failure
5 = Module Failure
6 = Power Off
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
64 Object Parameter Listing
Type
Description
Units
7 = Termination Failure
8 = Firmware Mismatch
9 = Module Mismatch
10 = Firmware Error
11 = Termination Missing
144
AI/DI/PD Channel Type Select
0 = AI
1 = DI
2 = PI
145
Channel Type Select None
0 = None
146
Channel Type Select DO Only
0 = DO Only
147
AI/AO Channel Type Select
0 = AI
1 = AO
148
DI/DO/PI Channel Type Select
0 = DI
1 = DO
2 = PI
149
Calibration Command
0 = None
1 = Freeze
2 = Start Calibration
3 = Set Zero
4 = Set Span
5 = Set Mid1
6 = Set Mid2
7 = Set Mid3
8 = Set Zero Shift
9 = Save Calibration
10 = Unfreeze
11 = Cancel Calibration
12 = Restore Factory Defaults
13 = Start Verification
14 = Set Verification Pt1
15 = Set Verification Pt2
16 = Set Verification Pt3
17 = Set Verification Pt4
18 = Set Verification Pt5
19 = Set Verification Pt6
20 = Set Verification Pt7
21 = Verification Done
22 = Restored Successfully
23 = Restore Failed
150
Calibration Status
0 = Calibration Not in Progress
1 = Input Frozen
2 = Calibration in Progress
3 = Reserved
4 = Set Command Failed
5 = Timeout Occurred
6 = Span Too Small
7 = Excess Correction
8 = Passed Parameter Too Small
9 = Passed Parameter Too Large
10 = Ideal Value Too Small
11 = Ideal Value Too Large
12 = Wrong Command
13 = Verification in Progress
151
Week of Month
0 = First Week
1 = Second Week
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 65
Type
Description
Units
2 = Third Week
3 = Fourth Week
4 = Last Week
152
Battery Status
0 = Battery Not in Use
1 = Lead Acid Fault
2 = Lead Acid Charging
3 = Lead Acid Standby
4 = Lithium Battery on Reserve C Cell
5 = Lithium Battery Error
6 = Lithium Battery on Main D Cell
153
SRAM Battery Status
0 = Battery Normal
1 = Battery Failure or Removal
154
Battery Change
0 = No Change
1 = Battery Replaced
2 = CPU SRAM Battery Replaced
3 = PB SRAM Battery Replaced
155
Operational Trip Point 1X00
0 = 6 Volts
1 = 12 Volts
2 = 24 Volts
156
Log Type
0 = Undefined
1 = Legal Event
2 = Non Legal Event
3 = Legal Alarm
4 = Non Legal Alarm
5 = Legal History
6 = Non Legal History
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
66 Object Parameter Listing
Type
Description
Units
157
Contract Day of Month
0 = RESERVED
1 = 1
2 = 2
3 = 3
4 = 4
5 = 5
6 = 6
7 = 7
8 = 8
9 = 9
10 = 10
11 = 11
12 = 12
13 = 13
14 = 14
15 = 15
16 = 16
17 = 17
18 = 18
19 = 19
20 = 20
21 = 21
22 = 22
23 = 23
24 = 24
25 = 25
26 = 26
27 = 27
28 = 28
29 = 3rd from Last Day of Month
30 = 2nd to Last Day of Month
31 = Last Day of Month
158
Start Poll
0 = Cancel
1 = Start
159
Continuous Poll
0 = Disabled
1 = Enabled
160
Indexing Used
0 = Point
1 = Parameter
161
Function Code
0 = Polling Disabled
1 = Read Coil Status
2 = Read Input Status
3 = Read Holding Registers
4 = Read Input Registers
5 = Force Single Coil
6 = Set Single Register
7-14 = RESERVED
15 = Force Multiple Coils
16 = Set Multiple Registers
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 67
Type
Description
Units
162
Comm Status
0 = Inactive or Start of Transmission
1 = Response Timeout
2 = Function Code Error
3 = Invalid Register Error
4 = Invalid Request Data Error
5 = Exception Error Code Received
6 = Mapping Table Error
7 = Invalid Response Received
8 = CRC or LRC Check Error
9 = Database Read Error
10 = Valid Response Received
11 = Request Framing Error
12 = Transmit Timeout Error
13 = Database Write Error
14 = Broadcast Request Transmitted
15 = Unable to Connect Error
163
Comm Port Instance
0 = Serial Port 1
1 = Serial Port 2
2 = Serial Port 3
3 = Wi-Fi Port
4 = Ethernet Port
164
Operational Trip Point 2X00
0 = RESERVED
1 = 12 Volts
2 = 24 Volts
165
Master Byte Order
0 = LSB First
1 = MSB First
166
Action Block Status
0 = Inactive
1 = Active
167
Action Block Operators
0 = Greater Than
1 = Less Than
2 = Equal To
3 = Greater Than Or Equal To
4 = Not Equal To
5 = Less Than Or Equal To
6 = AND (Bitwise)
7 = OR (Bitwise)
8 = Watchdog
9 = Soft Timer
168
Action Block Bypass Type
0 = Latched
1 = Class B
2 = Class C
3 = Class B / C
169
Action Block Alarm Option
0 = None
1 = Alarm on Active
2 = Alarm on Inactive
170
Action Block Event Option
0 = None
1 = Event on Active
2 = Event on Inactive
171
Action Block Trip Logic
0 = True If Block True
1 = True If Chain True
2 = True If Either True
3 = True If Both True
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
68 Object Parameter Listing
Type
Description
Units
172
Action Block Action Type
0 = No Action
1 = Effect
2 = Binary Action
3 = Move Value
4 = Load Value
5 = Write Value
173
Discrete Action Type
0 = Force 1 True & 0 False
1 = Force 0 True & 1 False
2 = Poke 1 True
3 = Poke 0 True
4 = Poke 1 True & 0 False
5 = Poke 0 True & 1 False
6 = Force 1 True & Poke 0 False
7 = Force 0 True & Poke 1 False
8 = Force 1 True
9 = Force 0 True
174
Math Block Equation State
0 = Invalid
1 = Valid
175
Effect Output Assert Type
0 = Neither State
1 = Active State Only
2 = Inactive State Only
3 = Both States
176
Effect Reset Option
0 = No Reset Required
1 = Reset Required
177
Effect Reset Ready Values
0 = No Reset Needed
1 = Ready for Reset
178
AI Units Type
0 = Unitless
1 = RESERVED
2 = Absolute Pressure
3 = Temperature
4 = Gas Density
5 = Volume Heating Value
6 = Dynamic Viscosity
7 = Linear (Short)
8 = Linear (Long)
9-11 = RESERVED
12 = Gas Volume Rate
13 = Mass Rate
14 = Energy Rate
15 = Current
16 = Voltage
17 = RESERVED
18 = Percentage
19 = Acceleration
20 = RESERVED
21 = Water Content
22 = RESERVED
23 = Resistance
24-25 = RESERVED
26 = Differential Pressure
27-28 = RESERVED
29 = Gauge Pressure
30-224 = RESERVED
225 = Mass Heating Value
226-293 = RESERVED
294 = Liquid Density
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 69
Type
Description
Units
295 = Water Density
296 = Liquid Volume
297 = Water Volume
298 = Liquid Rate
299 = Water Rate
300-305 = RESERVED
306 = Relative Density
179
AO Units Type
0 = Unitless
1 = RESERVED
2 = Absolute Pressure
3 = Temperature
4 = Gas Density
5 = Volume Heating Value
6 = Dynamic Viscosity
7 = Linear (Short)
8 = Linear (Long)
9-11 = RESERVED
12 = Gas Volume Rate
13 = Mass Rate
14 = Energy Rate
15 = Current
16 = Voltage
17 = RESERVED
18 = Percentage
19 = Acceleration
20-22 = RESERVED
23 = Resistance
24-25 = RESERVED
26 = Differential Pressure
27-28 = RESERVED
29 = Gauge Pressure
30-224 = RESERVED
225 = Mass Heating Value
226-293 = RESERVED
294 = Liquid Density
295 = Water Density
296 = Liquid Volume
297 = Liquid Density
298 = Liquid Rate
299 = Water Rate
300-305 = RESERVED
306 = Relative Density
180
PI Units Type
0 = Unitless
1-8 = RESERVED
9 = Gas Volume Total
10 = Mass Total
11-23 = RESERVED
24 = Frequency
25-295 = RESERVED
296 = Liquid Volume Total
297 = Water Volume Total
181
HV Measurement Basis
0 = Volume
1 = Mass
182
Water Adjustment Option
0 = No Adjustment
1 = Adjust Composition
183
Factor Curve Option
0 = Single Meter Factor / Single K-factor
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
70 Object Parameter Listing
Type
Description
Units
1 = Meter Factor Curve / Single K-factor
2 = Single Meter Factor / K-factor Curve
184
Pipe Schedule
0 = Schedule 10
1 = Schedule 40
2 = Schedule 80
185
Meter Averaging Type
0 = Flow Dependent Linear
1 = Flow Dependent Formulaic
2 = Flow Weighted Linear
3 = Flow Weighted Formulaic
186
Rosemount Orifice Method
0 = Based on ISO5167 2003
187
Velocity
0 = ft/s
1 = m/s
188
User Mode Selection 4
0 = Measured
1 = Override
2 = RESERVED
3 = Remote Download
189
GC Component Update
0 = None
1 = Methane
2 = Nitrogen
3 = Carbon Dioxide
4 = Ethane
5 = Propane
6 = Water
7 = Hydrogen Sulfide
8 = Hydrogen
9 = Carbon Monoxide
10 = Oxygen
11 = i-Butane
12 = n-Butane
13 = i-Pentane
14 = n-Pentane
15 = Hexane
16 = Heptane
17 = Octane
18 = Nonane
19 = Decane
20 = Helium
21 = Argon
22 = neo-Pentane
23 = Benzene
24 = Toluene
25 = Undecane (C11)
26 = Dodecane (C12)
190
Components Alarm
0 = Normal
1 = Analysis Timeout
2 = Normalization Failure
191
Cx Split Type
0 = Hexane Plus Split
1 = Heptane Plus Split
2 = Octane Plus Split
3 = Nonane Plus Split
192
GC Validation Alarm
0 = Normal
1 = Component Limit Alarm
2 = Heating Value Limit Alarm
3 = Relative Density Limit Alarm
4 = Un-normalized Mole Sum Alarm
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 71
Type
Description
Units
5 = Total Mole Sum Alarm
6 = Composition Deviation Alarm
7 = Alarm 1
8 = Alarm 2
193
Auto Configure
0 = No Action
1 = Auto Configure
194
Daylight Saving Time Status
0 = Standard Time
1 = Saving Time
2 = Gift Time
195
Rate of Change Mode Alarm
0 = Disabled
1 = Alarm on Positive Changes
2 = Alarm on Negative Changes
3 = Alarm on Both
196
LCD Bit Masks
0 = None
1 = Differential Pressure
2 = Absolute Pressure
3 = Temperature
4 = Baud Rate
5 = Gage Pressure
6 = Sensor Temperature
7 = RESERVED
8 = Slave Address
9 = Host Parameter 1
10 = Host Parameter 2
11 = Host Parameter 3
12 = Host Parameter 4
13 = Host Parameter 5
14 = Host Parameter 6
15-16 = RESERVED
17 = Host Variable 1
18 = Host Variable 2
19 = Host Variable 3
197
Transmitter Status Option
0 = None
1 = DP Sensor Present
2 = AP Sensor Present
3 = GP Sensor Present
4 = PT Sensor Present
5 = LCD Available
198
User Commands
0 = No Command
1 = On Demand Connect
2 = On Demand Synchronize
3 = Transmitter Reset
199
Calibration Status of 4088
0 = No Measurement In Calibration
1 = DP Measurement In Calibration
2 = SP Measurement In Calibration
3 = PT Measurement In Calibration
200
Status
0 = Success
1 = Failure
2 = Disabled
201
4088 Input Status
0 = Normal
1 = Not Licensed
2 = Instance Inactive
3 = Communication Failed
4 = Config. Issue Due To Write Protect
5 = DP Failed
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
72 Object Parameter Listing
Type
Description
Units
6 = Pressure Failed
7 = RTD Failed
8 = Synchronization In Progress
9 = Scan Disabled
10 = Writing Failed
11 = RESERVED
12 = 4088 in Mode A
13 = Reading Device
14 = Writing Device
15 = Baud Too Low
16 = Writing Baud Failed
17 = Sensor Disconnected
18 = Scanning Baud Rate 1200
19 = Scanning Baud Rate 2400
20 = Scanning Baud Rate 4800
21 = Scanning Baud Rate 9600
22 = Scanning Baud Rate 19200
202
Variable Status
0 = Good - Not Limited
1 = Poor Accuracy-Low Limited
2 = Poor Accuracy-High Limited
3 = Poor Accuracy-No Limited
4 = Manual/Fixed - Constant
5 = Bad -Constant
6 = Unknown
203
GC Type
0 = American
1 = European
204
GC US Alarm 1
0 = Normal
1 = A/D 0 Low
2 = A/D 0 High
3 = A/D 1 Low
4 = A/D 1 High
5 = A/D 2 Low
6 = A/D 2 High
7 = A/D Cal Low
8 = A/D Cal High
9 = D/A 1 Low
10 = D/A 1 High
11 = D/A 2 Low
12 = D/A 2 High
13 = D/A 3 Low
14 = D/A 3 High
15 = Analyzer Failure
16 = Checksum Failure
205
GC US Alarm 2
0 = Normal
1 = Power Failure
2 = RF % Deviation
3 = Preamp Failure
4 = Adjust Preamp
206
DP Flow Calculation Alarm
0 = RESERVED
1 = Invalid Input(s)
2 = Invalid Configuration
3 = Calculation Error
4 = Boundary Error
5 = Invalid Station Assignment
6-8 = RESERVED
9 = Differential Pressure
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 73
Type
Description
Units
10 = Pressure
11 = Temperature
12 = Flowing Density/Compressibility
13 = Base Density/Compressibility
14 = Relative Density
15 = Heating Value/Enthalpy
16 = Viscosity
17 = User Correction Factor
18 = Total/Increment
19 = Integral Multiplier Value
20-25 = RESERVED
26 = Beta Ratio
27 = DP/P Ratio
28 = Isentropic Exponent
29 = Reynolds Number
30 = Pressure Loss/Pressure Loss Ratio
31 = Alpha
32 = Expansion Factor
207
Property Calculation Alarm
0 = RESERVED
1 = Invalid Input(s)
2 = Invalid Configuration
3 = Calculation Error
4 = Boundary Error
5-8 = RESERVED
9 = Pressure
10 = Temperature
11 = Flow Density/Compressibility
12 = Base Density/Compressibility
13 = Relative Density
14 = Heating Value/Enthalpy
15 = Composition
16 = Water Content
17 = Atmospheric Press/Gravitational Accel
18 = Viscosity
19 = Isentropic Exponent
20 = Speed of Sound
21-32 = RESERVED
208
Yes/No Option
0 = No
1 = Yes
209
Module Type
0 = Unknown
1 = HMI
0 = Unknown
1 = HMI
2 = On-Board I/O
3 = Optional I/O
4 = Expanded I/O
5 = I/O Module
6-253 = RESERVED
254 = I/O Scan CPU
255 = Main CPU
210
Module Subtype
0 = None
1 = 8AIDIPI 2AO 2DO
4 = 8 AODO
49 = HART 4
211
Option Not Applicable
0 = Not Applicable
212
LCD Installed
0 = LCD Not Found
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
74 Object Parameter Listing
Type
Description
Units
1 = LCD Detected
213
WiFi Installed
0 = WiFi Not Found
1 = WiFi Detected
214
Serial Port Module
0 = RS-232
1 = RS-485 2-Wire (No Termination)
2 = RS-485 2-Wire (Terminated)
215
Action Block Alarm Type
0 = Low
1 = Low Low
2 = High
3 = High High
4 = Rate of Change
5 = Other
216
Action Block Chain Type
0 = AND
1 = OR
2 = NAND
217
Action Block Chain to Status
0 = Block Status
1 = Chain Status
2 = Output Status
218
Current Bypasses Active
0 = None
1 = Local Latched
2 = Remote Latched
3 = Class B
4 = Class C
5 = Class B/C
219
4088 RTD Type
0 = RESERVED
1 = 3-wire
2 = 4-wire
220
Alarm Status RTD
0 = Normal
1 = Not Licensed
2 = Instance Inactive
3 = Comm Fail
4 = Override Active
5 = In Alarm
6 = Point Fail
7 = Above URL
8 = Below LRL
9 = Input Frozen
10 = Type Mismatch
221
EU Scaling Mode
0 = Multi-Point Calibration
1 = EU Scaling
222
Alpha
0 = in./in.-°F
1 = mm/mm-°C
2 = mm/mm-K
223
Calculated Cd
0 = Flow Equation Standard
1 = Calibrated Discharge Coefficient Curve
224
Ethernet Support
0 = No Ethernet Support
1 = Ethernet Supported
225
Mass Heating Value
0 = Btu/lb
1 = MJ/kg
226
WiFi Antenna Type
0 = Internal Antenna
1 = External Antenna
227
Auto Adjust Initial Cycle
0 = Initial Cycle Complete
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 75
Type
Description
Units
1 = Initial Cycle In Progress
228
Auto Adjust System Alarm
0 = Normal Flow
1 = No Flow / Loss of Both Pulses
2 = Leakage or Resonant No-Net Flow
3 = No Main Rotor Pulses
4 = No Sensing Rotor Pulses
229
Auto Adjust Flow Alarm
0 = Normal Flow
1 = Non-steady Flow
230
Auto Adjust Delta A Alarm
0 = Normal
1 = Low Warning
2 = High Warning
3 = Low Alarm
4 = High Alarm
231
Serial Port 1 Owner
1 = DNP3/Modbus Slave
2 = DNP3
3 = Modbus Slave
4 = Master Modbus
5 = BSAP
6 = ROC
7 = RESERVED
232
Serial Port 2 Owner
1 = DNP3/Modbus Slave
2 = DNP3
3 = Modbus Slave
4 = Master Modbus
5 = BSAP
6 = ROC
7 = RESERVED
233
Serial Port 3 Owner
1 = DNP3/Modbus Slave
2 = DNP3
3 = Modbus Slave
4 = Master Modbus
5 = BSAP
6 = ROC
7 = MVS4088B
234
WiFi Port Owner
0-1 = RESERVED
2 = DNP3
3-7 = RESERVED
236
Months of Year
1 = January
2 = February
3 = March
4 = April
5 = May
6 = June
7 = July
8 = August
9 = September
10 = October
11 = November
12 = December
237
GC Poll Alarm
0 = Normal
1 = Poll Failed
2= Comp Code Match Error
3 = Poll Disabled
4 = Auto-config Fail
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
76 Object Parameter Listing
Type
Description
Units
238
No Flow Option
0 = Time Between Pulses
1 = Flow Cut-off
2 = Flow Cut-off with accumulation
239
No Flow Status
0 = Not Flowing
1 = Flowing
240
Protocol
0 = None
1 = DNP3
2 = Modbus
3 = ROC
4 = BSAP
5 = FBxNet
241
String Type
0 = None
1 = Password
242
4088 Temperature
0 = °F
1 = °C
243
GC EU Alarm 1
0 = Normal
1 = Peak Overflow
2 = Unknown Error
3 = Peak Analysis Failure
4 = Chromat I/O Failure
5 = Controller Stack Overflow
6-7 = RESERVED
8 = Peak Analysis Start
9 = Chromat I/O Start Failure
10 = Analog Input Failure
11 = Analog Input Failure
12 = Analog Input Failure
13 = Chromat Buffer Overflow
14 = Inputs Out of Range
15 = Preamp Failure
16 = Preamp Adjust
244
GC EU Alarm 2
0 = Normal
1 = Calibration Failure
2 = Auto Start Fail
3 = Alarm on 24Hr Averages
4 = Analysis Failure
5 = Auto Start Alarm
245
Pulse Rate
0 = Pulses/sec
1 = Pulses/min
2 = Pulses/hr
3 = Pulses/day
246
Event Log Config Type
0 = Combined Event Log
1 = Separate Legal and Non-Legal Event Logs
2 = Separate Verifiable & Exportable Logs
3 = BSAP Combined Alarm Event Log
247
Pressure Effect
0 = %/psi
1 = %/bar
248
IP Connection 1 2 3 Owner
0 = DNP3 Protocol
1 = Modbus Slave Protocol
2 = ROC Protocol
3 = BSAP Protocol
249
IP Connection 4 5 6 Owner
0 = Modbus Slave Protocol
1 = ROC Protocol
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 77
Type
Description
Units
2 = BSAP Protocol
250
Screen Saver Password
0 = No Password Required
1 = Password Required
251
Alarm Format
0 = Standard Alarm Format
1 = Extended Alarm Format
252
Signal Name Format
0 = ControlWave
1 = Native
2 = ACCOL 3
253
Meter Direction
0 = Forward
1 = Reverse
254
Alarm Status
0 = Normal
1 = In Alarm
255
Low Power Option
0 = Low Power Mode Not Available
1 = Low Power Mode Available
256
Database Recovery Option
0 = Restore to Database Defaults
1 = Restore from Flash Config File
257
Power Control Comm Port Option
0-2 = RESERVED
3 = All Comm Ports Enabled
258
Override Type Select
0 = Low
1 = High
259
Power Control Status
0 = Power Control Inactive
1 = Power Control Active
2 = Power Control Low Voltage
3 = Power Control Held by Comms
260
IP Connection 7 Owner
0 = Modbus Master Protocol
261
CPU Frequency Level
0 = Low Frequency
1 = Medium Frequency
2 = High Frequency
262
Log/Archive Array Format
0 = Logs as arrays not available
1 = Field Data Values
2 = TimeStamp (TS) + Field Data Values
3 = TS+Local/Global Seq#+Field Data Values
4 = TS2 (Days+Secs+20ms)+Field Data Values
5 = TS2+Seq#s+Field Data Values
6 = Seq#s+Field Data Values
7 = Field Data Values (Oldest -> Newest)
8 = TS+Field Data Values (Oldest -> Newest)
9 = TS+S#+Field Data Values (Oldest -> Newest)
10 = TS2+Field Data Values (Oldest -> Newest)
11 = TS2+S#+Field Data Values(Oldest -> Newest)
12 = S#+Field Data Values (Oldest -> Newest)
263
Base Pressure
0 = User
1= 14.65 psi(a)
2 = 14.696 psi(a)
3 = 14.73 psi(a)
4 = 15.025 psi(a)
5 = 101.325 kPa(a)
6 = 0.101325 MPa(a)
7 = 1.01325 bar(a)
264
Linear Flow Calculation Alarm
0 = RESERVED
1 = Invalid Input(s)
2 = Invalid Configuration
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
78 Object Parameter Listing
Type
Description
Units
3 = Calculation Error
4 = Boundary Error
5 = Invalid Station Assignment
6-8 = RESERVED
9 = Flow
10 = Pressure
11 = Temperature
12 = Flow Density/Compressibility
13 = Base Density/Compressibility
14 = Relative Density
15 = Heating Value/Enthalpy
16 = Viscosity
17 = User Correction Factor
18 = Total/Increment
19 = Integral Multiplier Value
20-25 = RESERVED
26 = K-factor/Meter Factor
27 = Mass Pressure Correction Factor
28-32 = RESERVED
265
Active DNP3 Map
0 = Default
1 = User Defined
266
Alarm Suppress State
0 = Off
1 = On
267
Memory Size
0 = Bytes
1 = Kilobytes
2 = Megabytes
268
Channel Type Select AO Only
0 = AO Only
269
Poll Intervals
0 = 1 second
1 = 500 ms
2 =200 ms
3 =100 ms
4 = 50 ms
5 = 20 ms
6 = 10 ms
270
Rack Size
0 = 8 Modules
1 = 16 Modules
2 = 24 Modules
3 = 32 Modules
271
Application Status
0 = Unloladed
1 = Load Required
2 = Loaded
3 = Start Requested
4 = Running
5 = Stop Requested
6 = Stopped
7 = Terminate Requested
8 = Terminated
9 = RESERVED
272
Application Exception Code
0 = None
1 = String Error
2 = Watchdog Exceeded
3 = Max CPU Load Exceeded
4 = System Error
5 = End Error
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 79
Type
Description
Units
273
Application Control
0 = Idle
1 = Start
2 = Stop
3 = Load
4 = Clear
274
Task Status
0 = Stopped
1 = Started
2 = No License
3 = Library Version Error
275
RESERVED
276
DI/PI Resistor Selection
0 = Pull Up
1 = Pull Down
277
RESERVED
278
RESERVED
279
Liq LinMtr Linear Meter Type
0 =Turbine
1 = Coriolis
280
Rounding Option
0 = Rounding
1 = Rounding According to API 12.2.2
281
Liq LinMtr Flow Calculation Alarm
0 = RESERVED
1 = Invalid Input(s)
2 = Invalid Configuration
3 = Calculation Error
4 = Boundary Error
5 = Invalid Station Assignment
6-8 = RESERVED
9 = Flow
10 = Pressure
11 = Temperature
12 = Flowing Density
13 = Base Density
14-17 = RESERVED
18 = Total/Increment
19-25 = RESERVED
26 = K-factor/Meter Factor
27 = Mass Pressure Correction Factor
28 = Water Cut
29 = Shrinkage Factor
30 = CTL/CPL
31 = NGL Factor/Flash Gas Factor
32 = RESERVED
282
LIq LinMtr Property Calculation Alarm
0 = RESERVED
1 = Invalid Input(s)
2 = Invalid Configuration
3 = Calculation Error
4 = Boundary Error
5=8 = RESERVED
9 = Pressure
10 = Temperature
11 = Flowing Density
12 = Base Density
13-16 = RESERVED
17 = Atmospheric Press/Gravitational Accel
18-20 = RESERVED
21 = Critical Temp/Press
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
80 Object Parameter Listing
Type
Description
Units
22-32 = RESERVED
283
Water Cut Method
0 = Dynamic
1 = Statics
284
DO Low Side Switch
0 = Disable grounded output
1 = Enable grounded output
285
User Mode Selection 5
0 = Measured
1 = Override
286
PI Filter Mode
0 = Low Speed Filter
1 = Medium Speed Filter
2 = High Speed Filter
287
Busy Status
0 = Idle
1 = Busy
288
Personality Module Status
0 = Module inserted and valid
1 = Module not present
2 = Module not valid in this slot
3 = Module not calibrated
4 = Module EEPROM data corrupted
289
Personality Module Type
0 = Invalid personality board type
1 = CPU Personality Module
2 = CPU PM with WiFi
3-9 = RESERVED
10 = 12 point mixed I/O PM
11 = 10 point DI/DO P
12 = 8 point AI/DI/PI PM
13 = 8 point AO/DO PM
14-48 =
49 = 4 Channel HART PM
290
IP Connection Owner
0 = DNP3 Protocol
1 = Modbus Slave Protocol
291
Serial Port Owner
0 = RESERVED
1 = DNP3/Modbus Slave
2 = DNP3
3 = Modbus Slave
4 = Modbus Master
5-7 = RESERVED
292
Serial Port Owner
0 = RESERVED
1 = DNP3/Modbus Slave
2 = DNP3
3 = Modbus Slave
4 = Modbus Master
5-6 = RESERVED
7 = MVS4088B
293
Protocol
0 = None
1 = DNP3
2 = Modbus
3-4 = RESERVED
5 = FBxNet
294
Liquid Density
0 = lb/ft3
1 = kg/m3
2 = g/cc
3 = lb/MMCF
4 = lb/US gal
5 = kg/L
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 81
Type
Description
Units
6 = lb/bbl
7 = RD
8 = API
295
Water Density
0 = lb/ft3
1 = kg/m3
2 = g/cc
3 = lb/MMCF
4 = lb/US gal
5 = kg/L
6 = lb/bbl
7 = RD
8 = API
296
Liquid Volume Total
0 = ft3
1 = m3
2 = MCF
3 = (k)m3
4 = MMCF
5 = BCF
6 = L
7 = US gal
8 = bbl
297
Water Volume Total
0 = ft3
1 = m3
2 = MCF
3 = (k)m3
4 = MMCF
5 = BCF
6 = L
7 = US gal
8 = bbl
298
Liquid Volume Rate
0 = ft3/s
1 = ft3/min
2 = ft3/h
3 = ft3/d
4 = MCF/s
5 = MCF/min
6 = MCF/h
7 = MCF/d
8 = m3/s
9 = m3/min
10 = m3/h
11 = m3/d
12 = (k)m3/s
13 = (k)m3/min
14 = (k)m3/h
15 = (k)m3/d
16 = MMCF/s
17 = MMCF/min
18 = MMCF/h
19 = MMCF/d
20 = BCF/s
21 = BCF/min
22 = BCF/h
23 = BCF/d
24 = L/s
25 = L/min
26 = L/h
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
82 Object Parameter Listing
Type
Description
Units
27 = L/d
28 = US gal/sUS
29 = US gal/min
30 = US gal/h
31 = US gal/d
32 = bbl/s
33 = bbl/min
34 = bbl/h
35 = bbl/d
299
Volume Water Rate
0 = ft3/s
1 = ft3/min
2 = ft3/h
3 = ft3/d
4 = MCF/s
5 = MCF/min
6 = MCF/h
7 = MCF/d
8 = m3/s
9 = m3/min
10 = m3/h
11 = m3/d
12 = (k)m3/s
13 = (k)m3/min
14 = (k)m3/h
15 = (k)m3/d
16 = MMCF/s
17 = MMCF/min
18 = MMCF/h
19 = MMCF/d
20 = BCF/s
21 = BCF/min
22 = BCF/h
23 = BCF/d
24 = L/s
25 = L/min
26 = L/h
27 = L/d
28 = US gal/sUS
29 = US gal/min
30 = US gal/h
31 = US gal/d
32 = bbl/s
33 = bbl/min
34 = bbl/h
35 = bbl/d
300
Serial Port Owner
0-1 = RESERVED
2 = DNP3
3-7 = RESERVED
301
Operational Trip Point
0 = RESERVED
1 = Solar Supply
2 = DC Supply
302
Comm Port Instance
0 = Serial Port 1
1 = Serial Port 2
2 = Serial Port 3
3 = Serial Port 4
4 = Ethernet Port 1
5 = Ethernet Port 2
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 83
Type
Description
Units
303
FB3000 DO Status
0 = Normal
1 = Not Licensed
2 = Instance Inactive
3 = Comm Fail
4 = Override Active
5 = In Alarm
6 = Point Fail
7 = Auto Read Parameter Invalid
8 = SPO Parameter Invalid
9 = Termination Missing
10 = Status Alarm
11 = Hardware Fail
304
FB3000 DI Status
0 = Normal
1 = Not Licensed
2 = Instance Inactive
3 = Comm Fail
4 = Override Active
5 = In Alarm
6 = Point Fail
7 = Termination Missing
8 = Status Alarm
9 = Hardware Fail
305
4088 Config Type
0 = None
1 = EMV4088B
306
Relative Density
0 = RD
307
Calc Availability
0 = Not Available
1 = Available
308
Serial Port Mode
0 = RESERVED
1 = RS-485 2-Wire (No Termination)
2 = RS-485 2-Wire (Terminated)
309
Application Package Status
0 = Unloaded
1 = Loaded
310
Time Synchronization Deadband
0 = Seconds
1 = Milliseconds
311
Reset Counter
0 = Idle
1 = Reset
312
HART Comm Mode
0 = Disabled
1 = Point to Point
2 = MultiDrop
313
HART Master Type
0 = Primary
1 = Secondary
314
HART Scan Status
0 = Not Scanning
1 = Scanning
2 = Dual Master
3 = Pass thru
4 = Burst Mode
315
HART Passthru Mode
0 = Disable
1 = Strip
2 = Full
316
HART Poll Mode
0 = Skip
1 = PV only
2 = All Process
3 = All Dynamic
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
84 Object Parameter Listing
Type
Description
Units
317
HART Fault Selection
0 = Fault
1 = Last Good
318
Module Subtype – Extended Rack
0 =None
1 = 8AIDIPI 2AO 2DO
4 = 8AODO
319
Historical Log Timestamp Mode
0 = Start of Period
1 = End of Period
320
Density Option
0 = Station Base Density
1 = Meter Observed Density
2 = Station Header Density
322
Product Type
0 = Crude Oil
1-5 = RESERVED
6 = Light Hydrocarbon
323
Oil Flow Calculation Method
0 = API Ch. 12.2
1 = API Ch. 20.1
324
API Ch 11 Volume Correction Method
0 = API 11.1 2007
325
Water Option
0 = Use Oil Correction Factor for Water
1 = Use Separate Correction Factor for Water
326
IBP Timesynch Option
0 = Disable
1 = Enable
2 = Require NHP
327
FBxNet Device Connection Status
0 = Not Started
1 = Connecting
2 = Resolving
3 = Online
4 = Offline
5 = Invalid
6 = Connection Timeout
7 = Transmit Error
8 = Response Timeout
9 = Resolving Failure
10 = Read Failure
11 = Disabled
12 = Online with Parameter Error(s)
13 = No Account Found
14 = Authentication Failed
15 = Authenticating
329
Module Mode
0 = Not Installed
1 = Boot
2 = Normal
3 = Not Licensed
4 = Communication Failure
5 = Module Failure
6 = Power Off
7 = Firmware Mismatch
8 = Module Mismatch
330
Meter Runs
RESERVED
331
Meter Runs
RESERVED
332
Meter Runs
RESERVED
333
Meter Runs
RESERVED
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 85
Type
Description
Units
334
Meter Runs
RESERVED
335
Meter Runs
RESERVED
336
Meter Runs
RESERVED
337
Meter Runs
RESERVED
338
Meter Runs
RESERVED
339
Meter Runs
RESERVED
340
Connection File Status
0 = No Error
1 = File Open Fail
2 = Column Mismatch
3 = Missing Req Column
4 = Exceeded Max Data
5 = Empty Subscriber Tag
6 = Invalid FBxNet Data Instance
7 = Missing or Invalid Required Value
8 = Duplicate FBxNet Data Instance
9 = Not Configured
10 = Exceeded Publisher Fault
341
FBxNet Poll Cycle
0 = Off
1 = On
342
Device Status
0 = Normal
1 = PV Override
2 = Point Fail
3 = Device Comm Fail
4 = PV Above URL
5 = PV Below LRL
6 = Termination Missing
7 = Module Comm Fail
8 = Not Scanning
9 = In Alarm
10 = Device Malfunction
11 = SV Override
12 = TV Override
13 = QV Override
343
HART Object Status
0 = Normal
1 = In Alarm
2 = Fault
3 = Override
4 = No Device
5 = Device Comm Error
344
HART Units
0 = Undef
1 = inH2O
2 = inHg
3 = ftH2O
4 = mmH2O
5 = mmHg
6 = psi
7 = bar
8 = mbar
9 = g/cm2
10 = kg/cm2
11 = Pa
12 = kPa
13 = Torr
14 = at
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
86 Object Parameter Listing
Type
Description
Units
15 = ft3/min
16 = gal/mibn
17 = l/min
18 = gal(UK)/min
19 = m3/h
20 = ft/s
21 = m/s
22 = gal/s
23 = Mgal/d
24 = l/s
25 = Ml/d
26 = ft3/s
27 = ft3/d
28 = m3/s
29 = m3/d
30 = gal(UK)/h
31 = gal(UK)/d
32 = C
33 = F
34 = R
35 = K
36 = mV
37 = ohms
38 = Hz
39 = mA
40 = gal
41 = l
42 = gal(UK)
43 = m3
44 = ft
45 = m
46 = bbl
47 = in
48 = cm
49 = mm
50 = min
51 = s
52 = h
53 = d
54 = cSt
55 = cP
56 = uSiemen
57 = %
58 = V
59 = pH
60 = g
61 = kg
62 = t
63 = lb
64 = ton
65 = ton(KU)
66 = mSiemen/cm
67 = uSiemen/cm
68 = N
69 = J
70 = g/s
71 = g/min
72 = g/h
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 87
Type
Description
Units
73 = kg/s
74 = kg/min
75 = kg/h
76 = kg/d
77 = t/min
78 = t/h
79 = t/d
80 = lb/s
81 = lb/min
82 = lb/h
83 = lb/d
84 = ton/min
85 = ton/h
86 = ton/d
87 = ton(UK)/h
88 = ton(UK)/d
89 = DTH
90 = SG
91 = g/cm3
92 = kg/m3
93 = lb/gal
94 = lb/ft3
95 = g/ml
96 = kg/l
97 = g/l
98 = lb/in3
99 = ton/yd3
100 = Tw
101 = Bx
102 = B
103 = B(light)
104 = Degrees API
105 = % sol/wt
106 = % sol/vol
107 = Bg
108 = proof/vol
109 = proof/mass
110 = bu
111 = yd3
112 = ft3
113 = in3
114 = in/sd
115 = in/min
116 = ft/min
117 = /s
118 = rps
119 = rpm
120 = m/h
121 = Nm3/h
122 = Nl/hr
123 = SCF/min
124 = bbl(US)
125 = oz
126 = ftlbf
127 = kW
128 = kWh
129 = hp
130 = ft3/h
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
88 Object Parameter Listing
Type
Description
Units
131 = m3/min
132 = bbl/s
133 = bbl/min
134 = bbl/h
135 = bbl/d
136 = gal/h
137 = gal(UK)/s
138 = l/h
139 = ppm
140 = Mcal(th)/h
141 = MJ/h
142 = Btu/h
143 = degrees
144 = radian
145 = inH2O(60F)
146 = ug/l
147 = ug/m3
148 = %
149 = vol%
150 = % Stm Qual
151 = ft-16
152 = ft3/lb
153 = pF
154 = ml/l
155 = ul/l
156 = dB
157-159 = RESERVED
160 = %P
161 = %LEL
162 = Mcal(th)
163 = Kilo ohms
164 = MJ
165 = Btu
166 = Nm3
167 = Nl
168 = SCF
169 = ppb
170-234 = RESERVED
235 = gal/d
236 = hl
237 = MPa
238 = inH2O(4 C)
239 = mmH20(4 C)
240-249 = RESERVED
250 = Not Used
251 = None
252 = RESERVED
253 = Special
345
EFM Hist Time Format
0 = HHMM
1 = HHMMSS
346
Publisher Comm Enable
0 = Disabled
1 = Enable Read/Write
2 = Enable Read Only
347
AO/DO Channel Type Select
0 = AO
1 = DO
348
FBxNData Input Status
0 = Normal
1 = Fault
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing 89
Type
Description
Units
2 = Override
3 = RESERVED
4 = Alarm
5-16 = RESERVED
17 = Comm Failure
349
Apply Resize Values
0 = Good
1 = Invalid User Config
2 = Resize in Progress
3 = Last Resize Failed
4 = Transaction In Progress
5 = Database Instance Full
350
System Verification Status
0 = System Unverified
1 = System Verified
351
Base Density Units & Temperature
0-10 = RESERVED
11 = kg/m3@60F
12 = kg/m3@15C
13 = kg/m3@20C
14 = kg/m3@30C
15 = kg/m3@0C
16-21 = RESERVED
22 = g/cc@15C
23 = g/cc@20C
24 = g/cc@30C
25 = g/cc@0C
26-70 = RESERVED
71 = RD@60F
72 = RD@15C
73 = RD@20C
74 = RD@30C
75 = RD@0C
76-80 = RESERVED
81 =API@60F
352
License Control
0 = Licensed
1 = Unlicensed
353
HART Pressure Units
0 = psi
1 = kPa
2 = MPa
3 = bar
4 = kg/cm3
5 = inH2O@60F
6 = inH2O@68F
7 = mbar
354
Shrinkage Factor Option
0 = Apply to Gross Standard Volume
1 = Apply to Net Standard Volume
355
Legal Event Lock Status
0 = Unlocked
1 = Locked
357
Compressibility Factor
0 = 1/psi
1 = 1/kPa
2 = 1/MPa
3 = 1/bar
4 = 1/(kg/cm²)
358
Flow Input Option
0 = Flow Input Only
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
90 Object Parameter Listing
Type
Description
Units
1 = External Accumulator Only
2 = External Accumulator with Flow Rate
359
Flow Time Units
0 = s
1 = min
360
Fault Health Configuration
361
RESERVED
362
RESERVED
363
RESERVED
364
RESERVED
365
RESERVED
367
CSV Option
368
CSV Parse Status
369
Reloading Maps
370
Integrity Status
371
IBP Header Option
372
Integrity Status
373
Hexadecimal Data
374
Trans Hist Data Format
375
Trans Grp Conf Stat
376
RESERVED
377
Trans Trigger Subtype
378
Trans Trigger Status
379
Trans Trigger Signal
380
Trans Hist Status
381
Trace Status
382
Transactional History Group Use
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
78
Object Parameter Listing
5.2 Object Parameters
Important
The system determines all object references (parameter names that include “_OBJ” such as ALM_OBJ, CAL_OBJ, STATION_OBJ, and so
on) only at startup and does not dynamically update these object references until the next time you restart the device. If you assign a
meter to a different station, you must restart that device – which causes a system reinitialization – before the system can
acknowledge, for example, that Linear Mtr_1.STATION_OBJ should now point to Station_2.PB-SEL.
The tables in this section list the parameters associated with each object. Parameters include:
Field
Description
Name
The parameter’s system identifier.
Description
Description for the parameter, including (if appropriate) any values.
Data Type
Type of data associated with the parameter. Valid values include:
BIN
Binary value; the numeric value indicates the number of bits (for example, BIN32 is a
32-bit binary)
BYTE
Byte array; the numeric value indicates the number of bytes (for example, BYTE32 is a
32-byte array)
DOUBLE
64-bit FLOATING point number
ENUM
Enumeration; the numeric value indicates the number of bits (for example, ENUM16 is
a 16-bit long enumeration)
FLOAT
32-bit FLOATING point number
INT
Signed integer; the numeric value indicates the number of bits (for example, INT16 is
a 16-bit signed integer)
OBJREF
Object reference
PRMREF
Parameter reference
TIME
Number of seconds since 01 January 2000 @ 00:00:00 (taking into account the 2038
issue)
UC
Character string with null termination. Valid values are:
UC10
10-character string with null termination (11 bytes max)
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing
79
Field
Description
UC20
20-character string with null termination (21 bytes max)
UC30
30-character string with null termination (31 bytes max)
UC40
40-character string with null termination (41 bytes max)
UINT
Unsigned integer; the numeric value indicates the number of bits (for example,
UINT16 is a 16-bit unsigned integer)
Unknown
Data type is unknown
Range
Indicates the range of possible values for the parameter (if applicable)
Default
Indicates the default value for the parameter.
Default Measurement Type
Indicates (for ENUM16 and BIN data types) the measurement type used for possible values. For other
data types, indicates the default units for the parameter and the associated measurement type.
Access (by Role)
Indicates the overall accessibility of the parameter by role. Valid values are R/O (the parameter can
only be read), R/W (the parameter can be modified if the user has the proper role access), and N/A
the parameter does not apply to this role).
Version
Indicates the version at which the parameter was introduced.
Other Attributes
Identifies any other attributes associated with the parameter. Values can include:
Log Changes
The system logs any changes to the parameter in the Event log.
Legal
This parameter affects the calculation of flow rates, totals, and/or averages. The
system logs any user changes to this parameter to the legal event log.
Verified
Changing the parameter value requires additional verification by the system
(beyond range checking). When a new value is written to the parameter, it
updates the parameter status to indicate the value is undergoing verification.
Once verification is complete, the system updates the parameter status to indicate
the value has been verified.
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
80
Object Parameter Listing
5.2.1 Action Block Parameters
Description:
The Action Block object provides the parameters for configuring programming components that check a basic
logic condition and use the result to activate effects or perform other actions.
Number of Instances:
30 instances may exist.
Storage Location:
Saved to internal configuration memory.
Table 5-2: Action Block Parameters
Action Block
Name
Description of functionality and
meaning of values
Data Type
Range
Default
Default
Measurement Type
(Table #)
Access (by Role)
Version
Other Attributes
OBJ_NAME
Tag
UC20 Instance:
Action Block X
(where X is
instance number)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
OBJ_AREA
Area Assignment
UINT8
0 → 5
0
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
OBJ_STATUS
Status:
0 - Normal
1 - In Alarm
2 - Failure
3 - Override
4 - Inactive
BIN32 Normal
Object Status (80)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
DESC
Description
UC20 Instance:
Action Block X
(where X is
instance number)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
ACTION_BLK_
ENABLE
Action Block Enable Switch:
0 - Disable
1 - Enable
ENUM16
0 → 1
Disable (0)
Enable/Disable
Selection (30)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing
81
Action Block
Name
Description of functionality and
meaning of values
Data Type
Range
Default
Default
Measurement Type
(Table #)
Access (by Role)
Version
Other Attributes
ACTION_BLK_STATU
S
Action Block Activation Status:
0 - Inactive
1 - Active
ENUM16
0 → 1
Inactive (0)
Action Block Status
(166)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
VAR_1_DESC
Variable 1 Param Description
UC20
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
VAR_1_POINT
Input 1 DB point
ParamRef
Undefined
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
VAR_1_VAL
Variable 1 Live Value
FLOAT 0
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
VAR_2_DESC
Variable 2 Param Description
UC20
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
VAR_2_POINT
Input 2 DB point
ParamRef
Undefined
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
VAR_2_VAL
Variable 2 Live Value Or Entered
FLOAT 0
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
82
Object Parameter Listing
Action Block
Name
Description of functionality and
meaning of values
Data Type
Range
Default
Default
Measurement Type
(Table #)
Access (by Role)
Version
Other Attributes
OPERATOR
Operator Selection:
0 - Greater Than
1 - Less Than
2 - Equal To
3 - Greater Than Or Equal To
4 - Not Equal To
5 - Less Than Or Equal To
6 - AND (Bitwise)
7 - OR (Bitwise)
8 - Watchdog
9 - Soft Timer
ENUM16
0 → 9
Greater Than (0)
Action Block
Operators (167)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
RESULT_DEADBAND
Deadband EU
FLOAT 0
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
TRIP_STATUS
Basic Logic Block Status
0 - Inactive
1 - Active
ENUM16
0 → 1
Inactive (0)
Action Block Status
(166)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
DELAY_SEC
Activation Delay
UINT16 0
s (17.0)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
ELAPSED_SEC
Elapsed Delay
UINT16 0
s (17.0)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
BYPASSES_ACTIVE
Current Bypasses Active:
0 - Local Latched
1 - Remote Latched
2 - Class B
3 - Class C
4 - Class B/C
BIN8 Local Latched
Action Block Chain
To Status (218)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing
83
Action Block
Name
Description of functionality and
meaning of values
Data Type
Range
Default
Default
Measurement Type
(Table #)
Access (by Role)
Version
Other Attributes
BYPASS_LOCAL
On Demand Local Bypass:
0 - Disable
1 - Enable
ENUM16
0 → 1
Disable (0)
Enable/Disable
Selection (30)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
REMOTE_BYPASS_
BLK_1
Remote Bypass Block Number 1
UINT16
0 → 30
0
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
REMOTE_BYPASS_
TYPE_1
Remote Bypass Type 1:
0 - Latched
1 - Class B
2 - Class C
3 - Class B / C
ENUM16
0 → 3
Latched (0)
Action Block Bypass
Types (168)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
REMOTE_BYPASS_
BLK_2
Remote Bypass Block Number 2
UINT16
0 → 30
0
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
REMOTE_BYPASS_
TYPE_2
Remote Bypass Type 2:
0 - Latched
1 - Class B
2 - Class C
3 - Class B / C
ENUM16
0 → 3
Latched (0)
Action Block Bypass
Types (168)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
REMOTE_BYPASS_
BLK_3
Remote Bypass Block Number 3
UINT16
0 → 30
0
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
REMOTE_BYPASS_
YPE_3
Remote Bypass Type 3:
0 - Latched
1 - Class B
2 - Class C
3 - Class B / C
ENUM16
0 → 3
Latched (0)
Action Block Bypass
Types (168)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
CLASS_B_DELAY_
SEC
Class B Preset Delay Time
UINT16 300
s (17.0)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
84
Object Parameter Listing
Action Block
Name
Description of functionality and
meaning of values
Data Type
Range
Default
Default
Measurement Type
(Table #)
Access (by Role)
Version
Other Attributes
CLASS_B_ELAPSED_
SEC
Class B Elapsed Time
UINT16 0
s (17.0)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
CLASS_C_
DEADBAND
Class C Deadband EU Value
FLOAT 0
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
CLASS_C_DELAY_
SEC
Class C Preset Delay Time
UINT16 10
s (17.0)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
CLASS_C_ELAPSED_
SEC
Class C Elapsed Time
UINT16 0
s (17.0)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
BYPASS_BLK_
STATUS
Bypass Block Trip Status:
0 - Inactive
1 - Active
ENUM16
0 → 1
Inactive (0)
Action Block Status
(166)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
CHAIN_BLK
Chain To Action Block Selection
UINT8
0 → 30
0
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
Log Changes
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing
85
Action Block
Name
Description of functionality and
meaning of values
Data Type
Range
Default
Default
Measurement Type
(Table #)
Access (by Role)
Version
Other Attributes
CHAIN_TO_BLK_
STATUS
Chain Selected Block Status:
0 - Block Status
1 - Chain Status
2 - Output Status
ENUM16
0 → 2
Output Status (2)
Action Block Chain
To Status (217)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
CHAIN_TYPE
Chain Logic Type:
0 - AND
1 - OR
2 - NAND
ENUM16
0 → 2
AND (0)
Action Block Chain
Type (216)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
CHAIN_FIRST_OUT
Chain First Out Block
UINT16 0
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
CHAIN_IS_END
This Block Is The End Of The
Chain:
0 - No
1 - Yes
ENUM16
0 → 1
No (0)
Yes/No Option
(208)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
CHAIN_DELAY_SEC
Chain Preset Delay Time
UINT16 0
s (17.0)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
CHAIN_ELAPSED_
SEC
Chain Elapsed Delay Time
UINT16 0
s (17.0)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
86
Object Parameter Listing
Action Block
Name
Description of functionality and
meaning of values
Data Type
Range
Default
Default
Measurement Type
(Table #)
Access (by Role)
Version
Other Attributes
CHAIN_BLK_STATUS
Chain Block Trip Status:
0 - Inactive
1 - Active
ENUM16
0 → 1
Inactive (0)
Action Block Status
(166)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
ALARM_LOG_
OPTION
Alarm Logging Option:
0 - None
1 - Alarm on Active
2 - Alarm on Inactive
BIN8 None
Action Block Alarm
Option (169)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
ALARM_TYPE
Alarm Type To Log:
0 - Low
1 - Low Low
2 - High
3 - High High
4 - Rate of Change
5 - Other
ENUM16
0 → 5
Low (0)
Action Block Alarm
Type (215)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
EVENT_LOG_OPTION
Event Logging Option:
0 - None
1 - Event on Active
2 - Event on Inactive
BIN8 None
Action Block Event
Option (170)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
EVENT_LOG_
MESSAGE
Event Log Message To Write
UC40 Instance:
Action Block X
(where X is
instance number)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
ACTION_TRIP_EVENT
Condition to Trip Action Block:
0 - True If Block True
1 - True If Chain True
2 - True If Either True
3 - True If Both True
ENUM16
0 → 3
True If Block True
(0)
Action Block Trip
Logic (171)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
ACTION_TRIP_
STATUS
Output Block Trip Status:
0 - Inactive
1 - Active
ENUM16
0 → 1
Inactive (0)
Action Block Status
(166)
R/O:
Admin; Engineer
Meas. Tech; Operator;
Auditor
01.00.03.03
DNP3 Protocol Specifications Manual (FB1000/FB2000)
D301806X012
June 2022
Object Parameter Listing
87
Action Block
Name
Description of functionality and
meaning of values
Data Type
Range
Default
Default
Measurement Type
(Table #)
Access (by Role)
Version
Other Attributes
ACTION_TYPE
Output Type Triggered:
0 - No Action
1 - Effect
2 - Binary Action
3 - Move Value
4 - Load Value
5 - Write Value
ENUM16
0 → 5
No Action (0)
Action Block Action
Type (172)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
ACTION_POINT
Output Action Point
ParamRef
Undefined
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
ACTION_DO_
BEHAVIOR
Output Boolean Behavior:
0 - Force 1 True & 0 False
1 - Force 0 True & 1 False
2 - Poke 1 True
3 - Poke 0 True
4 - Poke 1 True & 0 False
5 - Poke 0 True & 1 False
6 - Force 1 True & Poke 0 False
7 - Force 0 True & Poke 1 False
8 - Force 1 True
9 - Force 0 True
ENUM16
0 → 9
Force 1 True & 0
False (0)
Discrete Action
Type (173)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
LINK_1_EFFECT
Selected Effect Link 1:
0 - Disable
1 - Enable
ENUM16
0 → 1
Disable (0)
Enable/Disable
Selection (30)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
LINK_2_EFFECT
Selected Effect Link 2:
0 - Disable
1 - Enable
ENUM16
0 → 1
Disable (0)
Enable/Disable
Selection (30)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
LINK_3_EFFECT
Selected Effect Link 3:
0 - Disable
1 - Enable
ENUM16
0 → 1
Disable (0)
Enable/Disable
Selection (30)
R/W:
Admin; Engineer
R/O:
Meas. Tech; Operator;
Auditor
01.00.03.03
▪ Log Changes
Loading...
