Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

Remote Automation Solutions

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

Device Safety Considerations

 Reading these Instructions

Before operating the device, read these instructions carefully and understand their safety implications. In some situations, improperly using this device may result in damage or injury. Keep this manual in a convenient location for future reference. Note that these instructions may not cover all details or variations in equipment or cover every possible situation regarding installation, operation, or maintenance. Should problems arise that are not covered sufficiently in the text, immediately contact Customer Support for further information.

 Protecting Operating Processes

A failure of this device – for whatever reason -- may leave an operating process without appropriate protection and could result in possible damage to property or injury to persons. To protect against this, you should review the need for additional backup equipment or provide alternate means of protection (such as alarm devices, output limiting, fail-safe valves, relief valves, emergency shutoffs, emergency switches, etc.). Contact Remote Automation Solutions for additional information.

 Returning Equipment

If you need to return any equipment to Remote Automation Solutions, it is your responsibility to ensure that the equipment has been cleaned to safe levels, as defined and/or determined by applicable federal, state and/or local law regulations or codes. You also agree to indemnify Remote Automation Solutions and hold Remote Automation Solutions harmless from any liability or damage which Remote Automation Solutions may incur or suffer due to your failure to ensure device cleanliness.

 Grounding Equipment

Ground metal enclosures and exposed metal parts of electrical instruments in accordance with OSHA rules and regulations as specified in Design Safety Standards for Electrical Systems, 29 CFR, Part 1910, Subpart S, dated: April 16, 1981 (OSHA rulings are in agreement with the National Electrical Code). You must also ground mechanical or pneumatic instruments that include electrically operated devices such as lights, switches, relays, alarms, or chart drives. Important: Complying with the codes and regulations of authorities having jurisdiction is essential to ensuring personnel safety. The guidelines and recommendations in this manual are intended to meet or exceed applicable codes and regulations. If differences occur between this manual and the codes and regulations of authorities having jurisdiction, those codes and regulations must take precedence.

 Protecting from Electrostatic Discharge (ESD)

This device contains sensitive electronic components which be damaged by exposure to an ESD voltage. Depending on the magnitude and duration of the ESD, it can result in erratic operation or complete failure of the equipment. Ensure that you correctly care for and handle ESD-sensitive components.

System Training

A well-trained workforce is critical to the success of your operation. Knowing how to correctly install, configure, program, calibrate, and trouble-shoot your Emerson equipment provides your engineers and technicians with the skills and confidence to optimize your investment. Remote Automation Solutions offers a variety of ways for your personnel to acquire essential system expertise. Our full-time professional instructors can conduct classroom training at several of our corporate offices, at your site, or even at your regional Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Remote Automation Solutions Training Department at 800-338-8158 or email us at education@emerson.com.

Ethernet Connectivity

This automation device is intended to be used in an Ethernet network which does not have public access. The inclusion of this device in a publicly accessible Ethernet-based network is

not recommended.

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

Contents

Section 1: Introduction 1

1.1 Safety Labels ........................................................................................................................ 3

1.2 Features ............................................................................................................................... 3

1.3 Central Processing Unit (CPU) ............................................................................................... 4

1.3.1 Memory ................................................................................................................... 4

1.4 Explosion-proof Enclosure .................................................................................................... 4

1.4.1 Physical Security ....................................................................................................... 5

1.5 I/O ........................................................................................................................................ 6

1.6 Power Options...................................................................................................................... 6

1.7 Communications .................................................................................................................. 7

1.8 Human-Machine Interface (HMI) Module .............................................................................. 7

1.9 FBxWifi™ Communications .................................................................................................. 8

1.9.1 FBxWifi Antennas ..................................................................................................... 9

1.10 Software Tools ........................................................................................................... 9

1.11 Autonomous Measurement Mode ............................................................................ 10

1.12 RoHS2 Compliance .................................................................................................. 10

1.13 Secure Gateway ....................................................................................................... 10

May 2022

Section 2: Installation 11

2.1 Hazardous Locations .......................................................................................................... 11

2.2 Environmental Specifications ............................................................................................. 12

2.3 Required Tools ................................................................................................................... 12

2.4 Site Considerations ............................................................................................................ 13

2.5 General Wiring Guidelines .................................................................................................. 14

2.6 Front or Rear End Caps ....................................................................................................... 14

2.6.1 Removing/Replacing Retaining Clamp on End Caps ................................................ 14

2.6.2 Removing the Front or Rear End Caps ..................................................................... 15

2.6.3 Replacing the Front or Rear End Caps...................................................................... 16

2.7 Mounting the Enclosure ..................................................................................................... 16

2.7.1 Bolting Considerations ........................................................................................... 17

2.7.2 O-rings with Flange Adapters.................................................................................. 18

2.7.3 Direct Mount .......................................................................................................... 19

2.7.4 Indirect Mount ....................................................................................................... 19

2.7.5 Rotating the Housing ............................................................................................. 21

2.8 Grounding the Device ........................................................................................................ 22

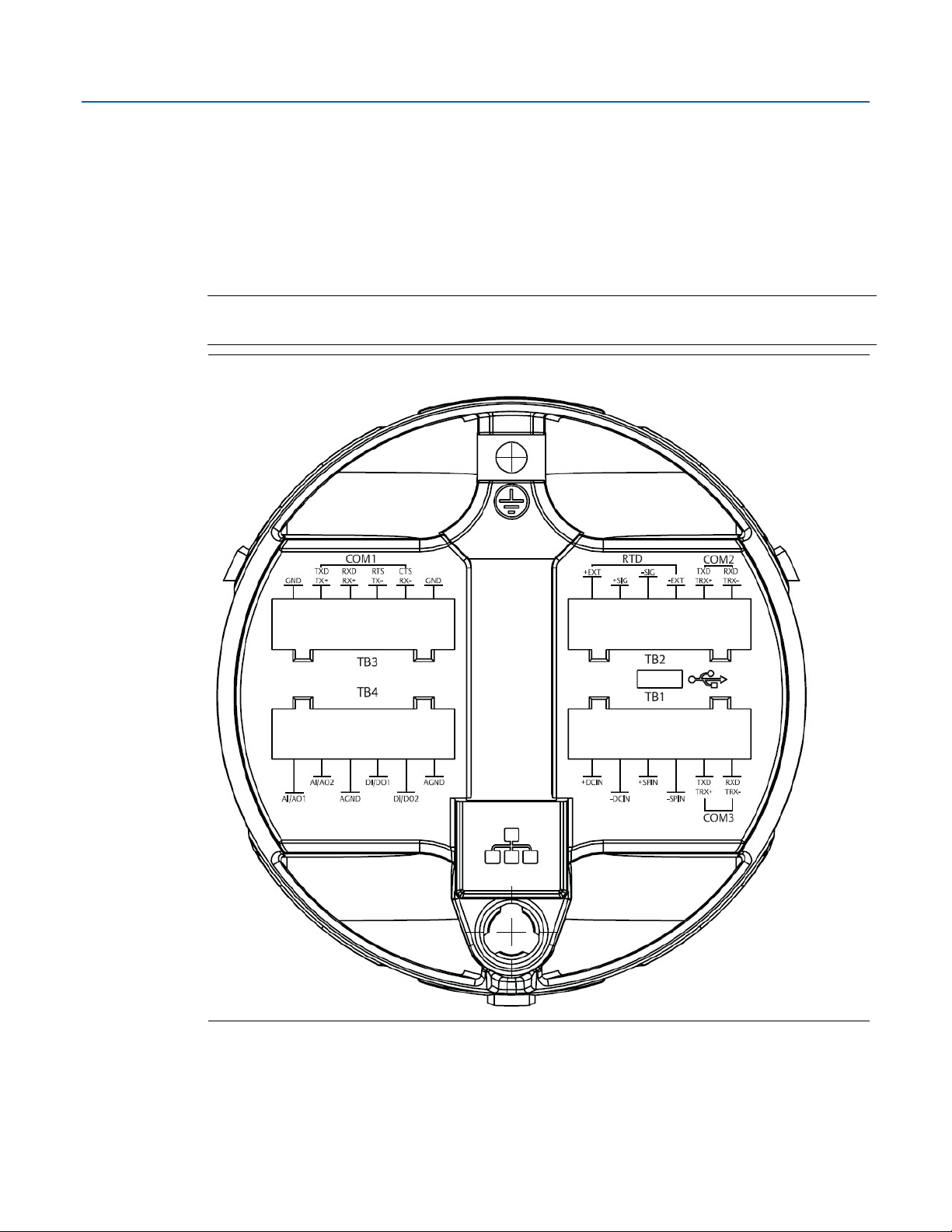

2.9 Terminal Plate .................................................................................................................... 23

2.10 Power Modes ........................................................................................................... 24

2.10.1 Low Power Mode .................................................................................................. 24

2.10.2 Standard Power Mode .......................................................................................... 24

2.10.3 Notes on Battery Life ............................................................................................ 25

2.11 Connecting Power .................................................................................................... 25

2.11.1 Connecting DC Power .......................................................................................... 26

2.11.2 Connecting Battery Power .................................................................................... 26

2.12 Installing the Optional Solar Panel ............................................................................ 27

2.12.1 Attach Mounting Hardware to the Solar Panel ...................................................... 28

Contents iii

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

2.12.2 Mounting the Solar Panel (Integral Mount) ........................................................... 29

2.12.3 Mounting the Solar Panel (Remote Mount) ........................................................... 30

2.12.4 Connecting Solar Power ....................................................................................... 31

2.12.5 Adjusting the Optional Solar Panel Tilt Angle ........................................................ 32

2.13 Connecting Communication Ports ........................................................................... 33

2.13.1 Connecting to COM1 ............................................................................................ 34

2.13.2 Connecting to COM2 and COM3 .......................................................................... 35

2.14 Connecting the RTD ................................................................................................. 38

2.15 Wiring the Digital Output ......................................................................................... 39

Section 3: Operation 41

3.1 Powering Up/Powering Down the Device ........................................................................... 41

3.2 Establishing Communications ............................................................................................ 41

3.2.1 Communicating with the SCADA Host .................................................................... 41

3.2.2 Communicating with a Laptop Using One of the Serial Ports ................................... 42

3.2.3 Communicating with a Laptop Wirelessly with FBxWifi ........................................... 43

3.3 Communicating using the HMI Module .............................................................................. 43

Section 4: Service and Troubleshooting 47

4.1 Returning the Unit for Repairs ............................................................................................ 48

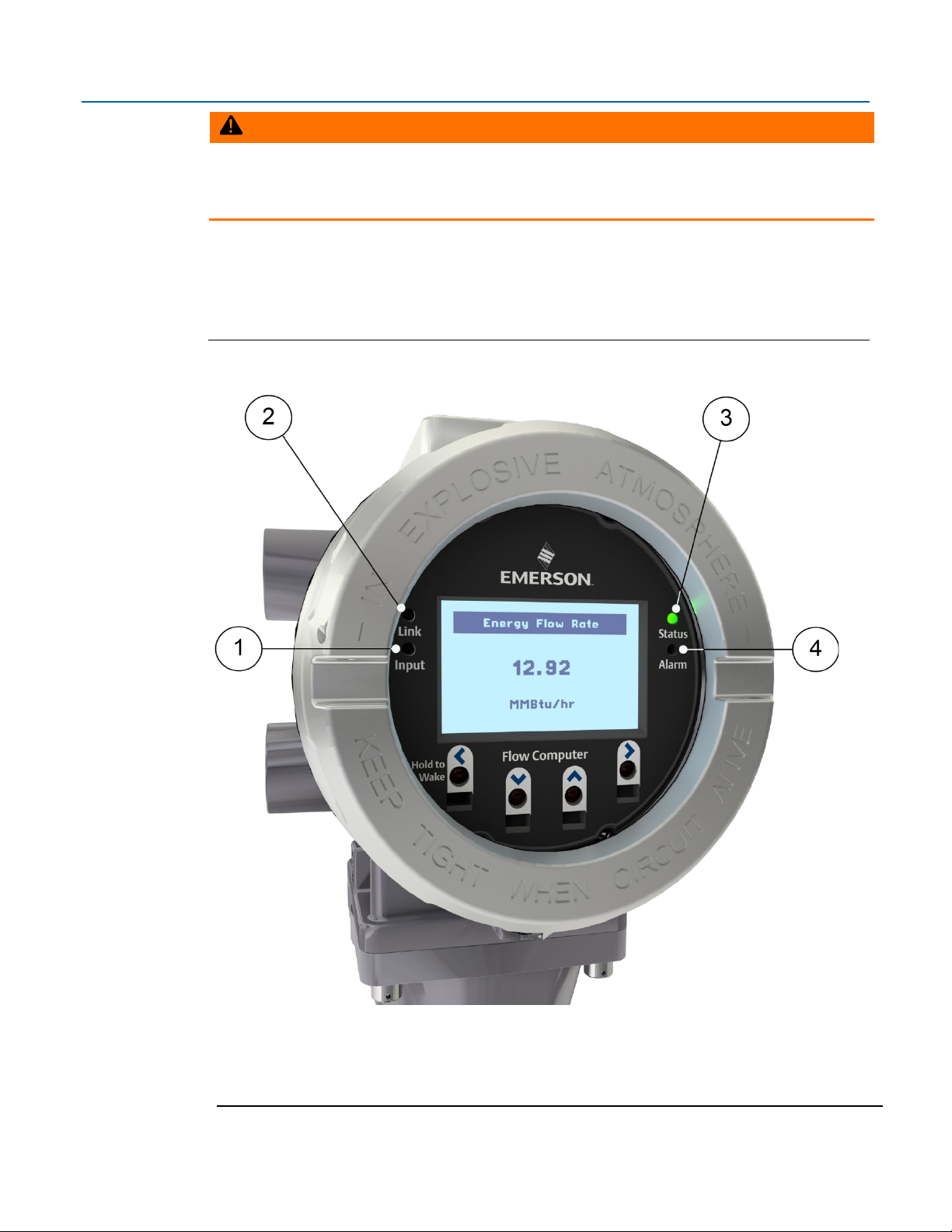

4.2 Interpreting the Status LEDs ............................................................................................... 49

4.3 Switch and Buttons ............................................................................................................ 51

4.4 Removing/Replacing the HMI Module ................................................................................ 51

4.5 Replacing the Main Battery Pack ......................................................................................... 52

4.6 Removing/Replacing the SRAM Battery .............................................................................. 55

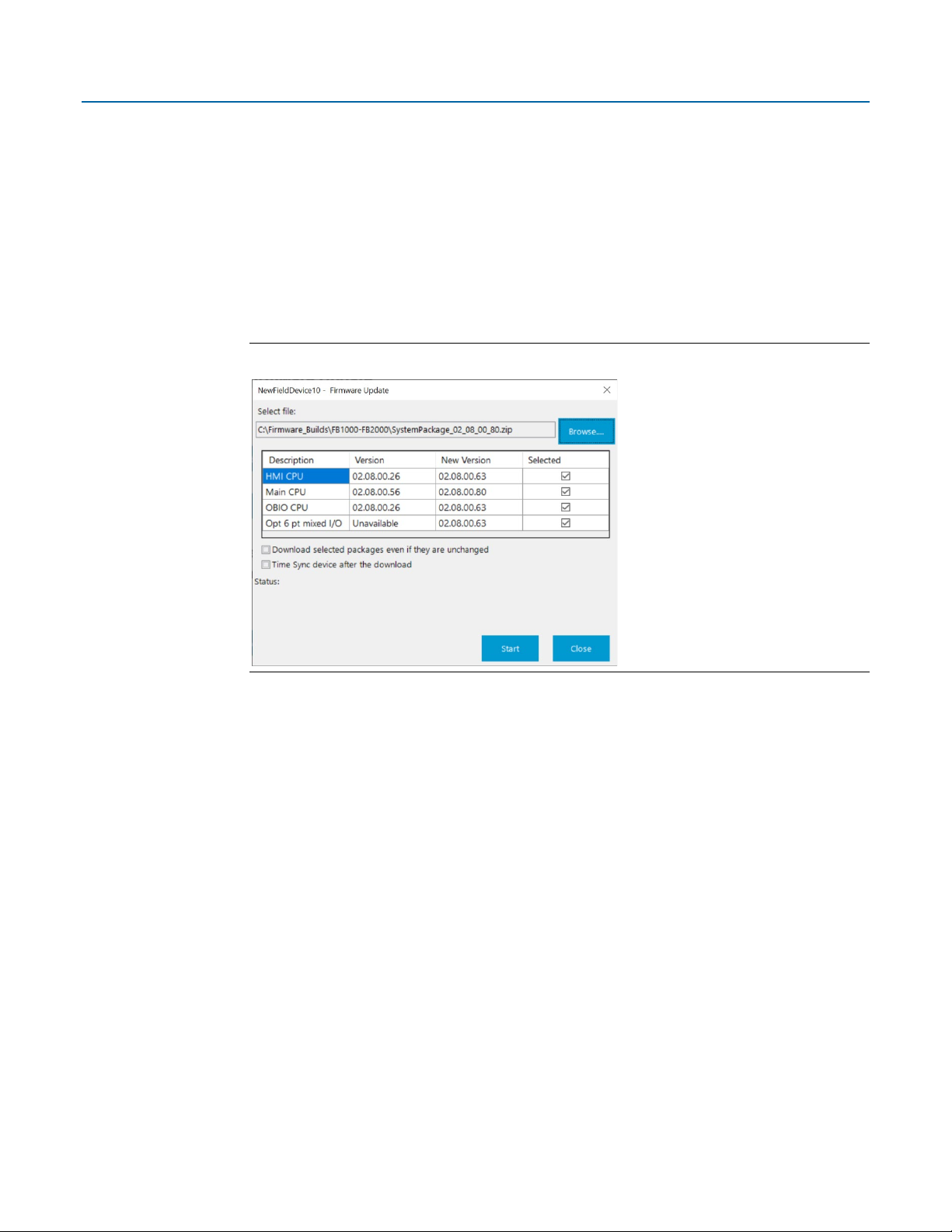

4.7 Upgrading System Firmware .............................................................................................. 56

Appendix A: Special Instructions for Class I Division 2 Locations 59

Appendix B: Special Instructions for Class I Division 1 Locations 63

Appendix C: ATEX Non-Sparking Zone 2 Certifications 69

Appendix D: ATEX Flame-Proof Zone 1 Certifications 71

Appendix E: Autonomous Mode Requirements 73

Index 75

iv Contents

Section 1: Introduction

This section covers the following topics:



Safety Labels

Features



Central Processing Unit (CPU)



Explosion-proof Enclosure



Physical Security



I/O



Power Options



Communications



Human-Machine Interface (HMI) Module



FBxWifi™ Communications

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022



Software Tools



Autonomous Measurement Mode



RoHS2 Compliance



Secure Gateway

The Emerson FB1100 Flow Computer measures pressure, differential pressure, and temperature for a single meter run of natural gas. This manual describes how to install and configure the Emerson FB1100 Flow Computer hardware.

™

For information on using the FBxConnect accompanies FBxConnect.

configuration software, see the online help that

Introduction 1

Emerson FB1100 Flow Computer Instruction Manual

HMI module

Front end cap (cover)

Data plate

Rear end cap (cover)

Conduit fittings

Enclosure

Sensor module

D301752X012 May 2022

Figure 1-1: FB1100 Flow Computer

2 Introduction

Safety Labels

DANGER

WARNING

CAUTION

SAFETY FIRST

This product may display safety label(s) to identify potential hazards. The same types of notices appear within the documentation. Whenever you see an exclamation point (!) enclosed within a triangle (shown to the left), consult the documentation for additional safety information about the hazard and how to avoid it. The labels used are:

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

MAY CAUSE DEATH

Observe all precautionary signs posted on the equipment.

Failure to do so may result in death or serious injury to personnel.

DANGER TO PERSONNEL AND EQUIPMENT

Observe all precautionary signs posted on the equipment.

Failure to do so may result in injury to personnel or cause damage to the equipment.

MAY CAUSE INJURY TO PERSONNEL OR DAMAGE EQUIPMENT.

Observe all precautionary signs posted on the equipment.

Failure to do so may result in injury to personnel or cause damage to the equipment.

Features

Introduction 3

General instructions and safety reminders.

The FB1100 Flow Computer includes the following key features:



Enclosure suitable for use in Class I Division 1 explosion proof and Ex db Zone 1 flame-proof environments



Enclosure suitable for use in Class I Division 2 non-incendive and Ex nA Zone 2 non-sparking environments



Integral multi-variable sensor for measurement of Pressure (P) and Differential Pressure (DP)



Connections for customer-supplied resistance temperature detector (RTD) for measurement of temperature (T)



Single digital output

Emerson FB1100 Flow Computer Instruction Manual

Memory

Usage

8 MB SRAM

Holds in-use configuration, current state of all variables

Holds firmware image, historical logs, configuration backup (if saved to flash),

D301752X012 May 2022



Power from a DC power supply, a lithium battery, or an optional lead acid battery/solar panel combination



Serial communication options for RS-232, RS-485 (2-wire), RS-485/422 (4-wire).



HMI module with optional display and back light for local operator interaction



Optional Wi-Fi from a laptop without physical cable connection



Application software supports AGA3, AGA8, ISO 5167, ISO 6976, and API 21.1 calculations in U.S., metric, or other natural gas standard units



Support for one-year autonomous measurement without external power (lithium battery option)

transceiver (802.11 b/g) for field technician to access the flow computer

Central Processing Unit (CPU)

The flow computer’s CPU is a NXP® Kinetis® K61 series CPU with an ARM® Cortex® M4 processor that operates at 4 to 60 MHz depending on the power mode. The CPU runs the Micrium operating system.

1.3.1 Memory

The flow computer includes both static and flash memory.

Table 1-1: Memory

128 MB Flash

and the executing program

Explosion-proof Enclosure

The FB1100 Flow Computer includes an explosion-proof enclosure made of either aluminum or stainless steel. The enclosure consists of the main housing, two threaded covers, and four conduit entry points.

The four conduit entry points are ¾ in NPT pipe threaded holes that permit entry of field conduit for I/O and communication wiring. ATEX installations use a ¾ in NPT to M20 thread reducer. Unused apertures shall be closed with suitable blanking elements.

The FB1100 Flow Computer can operate in an unprotected outdoor environment. Wiring for I/O, communications, and power enters the enclosure through the four conduit fittings with appropriate protective seals and connects to the terminal plate.

The front end cap (cover) provides a viewing window for the HMI module. You can access the terminal plate by removing the rear end cap (cover).

4 Introduction

The FB1100 Flow Computer has North American certification for Class I Division 1 Groups C and D

Retaining clamp (For ATEX & IEC approved products only)

Tie holes in end caps

Tie holes in coupling screws

(explosion proof) and Class I Division 2 Groups A, B, C and D (non-incendive) hazardous locations or non-hazardous locations. See Appendix A and Appendix B for more information.

The FB1100 Flow Computer has European certification for EExd Zone 1 (flame-proof) and EExd Zone 2 (non-sparking) hazardous locations or non-hazardous locations. See Appendix C and

Appendix D for more information.

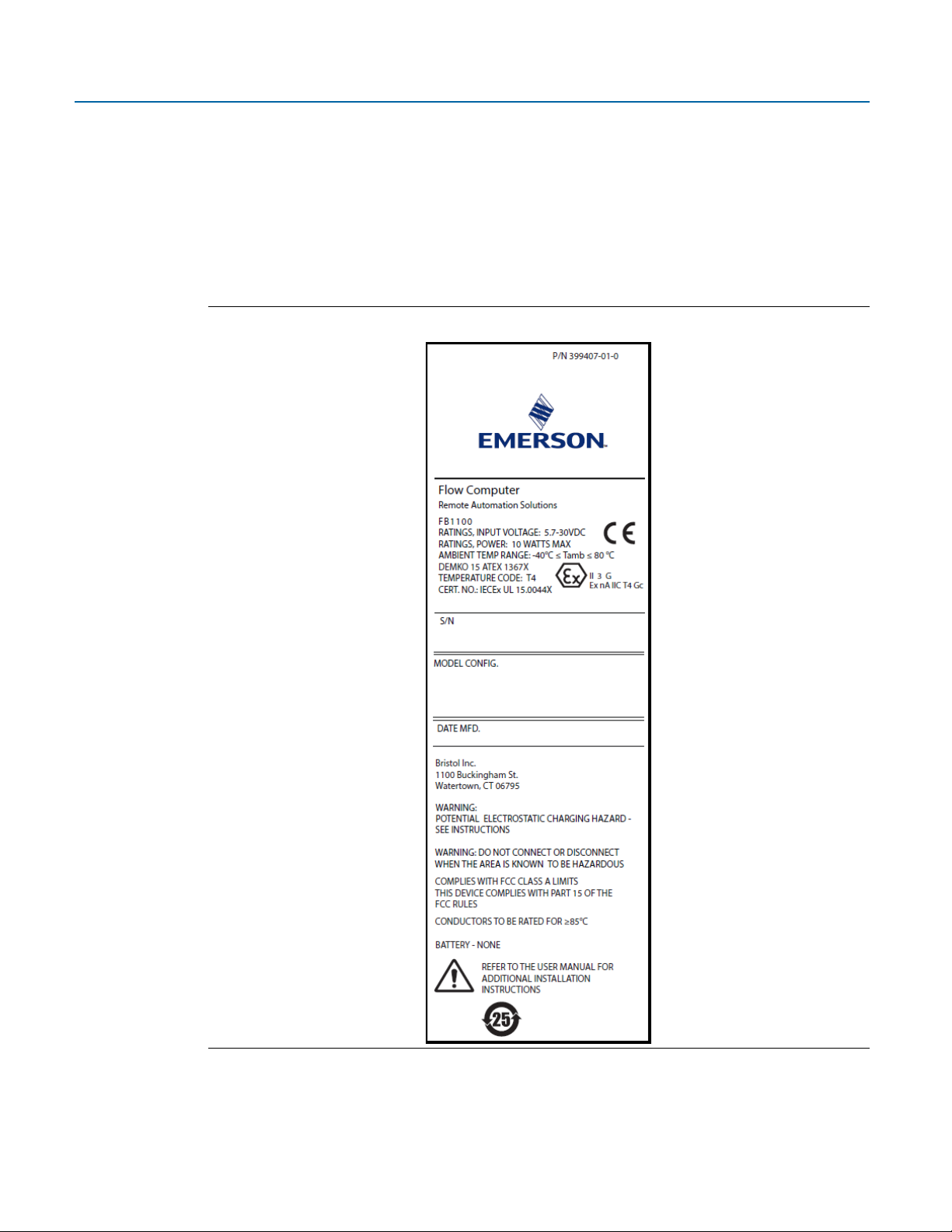

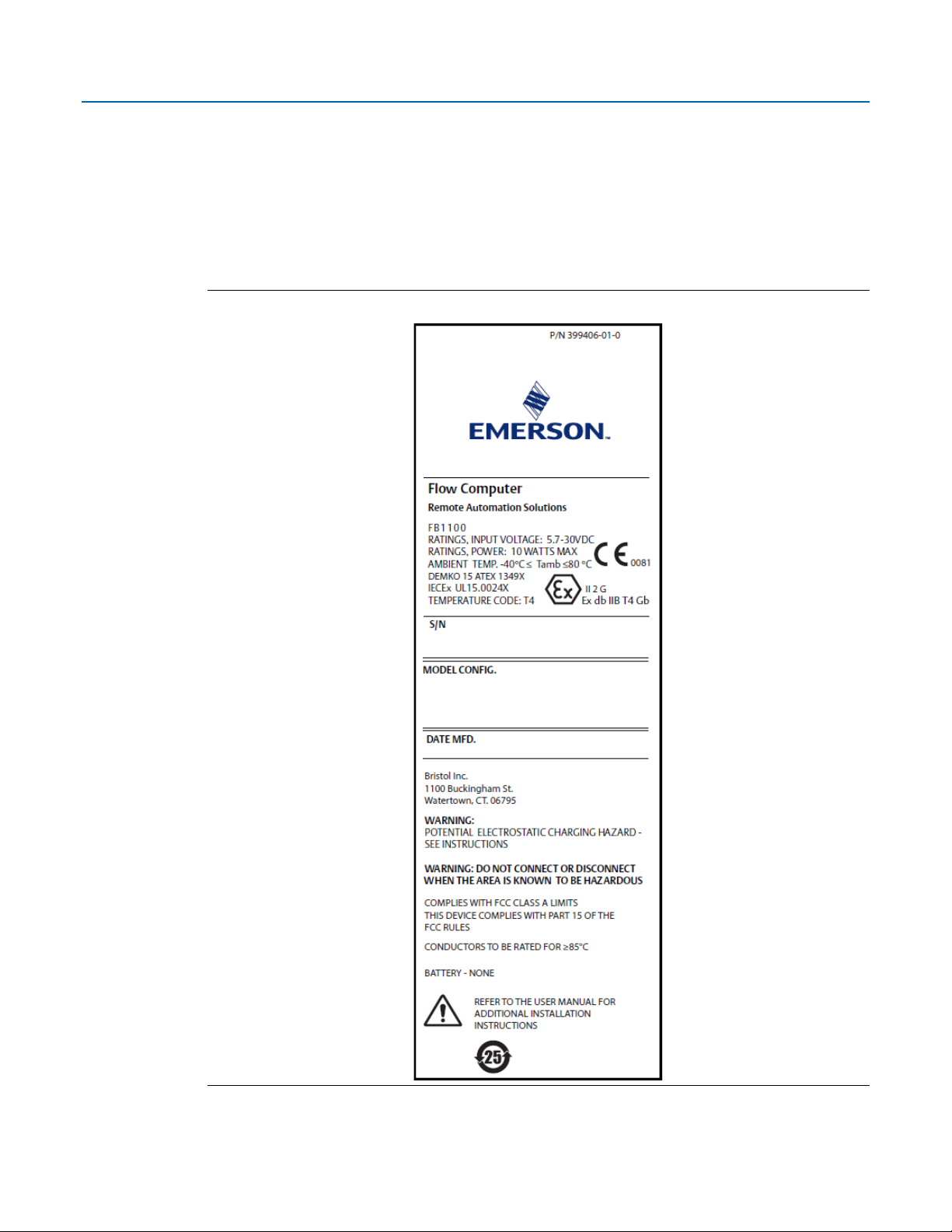

Details on certification information are included on the data plate screwed to the top of the enclosure.

1.4.1 Physical Security

The flow computer end caps include retaining clamps for ATEX/IEC applications. In addition, if local regulations require it, you can wire a tamper-resistant seal using the tie holes located in the front and rear end caps, and in the coupling screws.

Figure 1-2: Retaining Clamps and Tie Holes for Tamper-resistant Seals

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

Introduction 5

Emerson FB1100 Flow Computer Instruction Manual

Option

Usage

External DC Power

Lead Acid Battery Pack



6.0 Vdc

Lithium Battery Pack



10 Vdc

D301752X012 May 2022

I/O

The flow computer comes with base I/O from both the CPU and the built-in multi-variable (MV) sensor. Base I/O consists of:



Pressure (P) input from the MV sensor



Differential pressure (DP) input from the MV sensor



Connections for temperature (T) input from a customer-supplied RTD



Single general purpose digital output (DO) - for use with an odorizer or other device

Power Options

You can power the flow computer using an external DC input, an internal battery, or an internal rechargeable battery connected to a solar panel.

Important

Use only batteries supplied with the flow computer or sold by Emerson Remote Automation Solutions as spare parts for this flow computer. If you substitute a battery you obtain elsewhere will void your certification unless it is the identical part from the same manufacturer as that supplied with the flow computer from Emerson.

you

Table 1-2: Power Options

Supply

5.7 Vdc to 30 Vdc external supply (Max power at 10 watts)



4.5Ah



Not suitable with ATEX or IECEx applications



Can be optionally charged by a 6-watt solar panel



41 Ah (approximate)



Not suitable with ATEX or IECEx applications



Required when using autonomous measurement mode



In autonomous measurement mode allows operation for one year

6 Introduction

Communications

Port

Type

Use

COM1  Serial communications

RS-232, RS-485 (2-wire), RS-485/422 (4-wire) COM2  Serial communications

RS-232 or RS-485 (2-wire) communication to

COM3  Serial communications

RS-232 or RS-485 (2-wire) communication to

The flow computer includes three serial communication ports. The serial ports allow communication using DNP3, Modbus, BSAP, and ROC protocols.

Table 1-3: Serial Ports



Software-selectable for RS-232, RS485 (2-wire), RS-485/422 (4-wire) operation



4-wire



Software-selectable for RS-232, or RS-485 (2-wire) operation



2-wire

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

communication to host or other devices. 4wire used with external radio.

host or other devices.



Software-selectable for RS-232, or RS-485 (2-wire) operation



2-wire

host or other devices.

Human-Machine Interface (HMI) Module

The flow computer includes an HMI module with an optional liquid crystal display (LCD) for local operator access to the device. The LCD, if present, shows a series of menus that sequentially display the current values of particular process variables. A configuration parameter in FBxConnect determines whether you must log in first to view the menus. If required, you log in by selecting alphanumeric characters by scrolling through a list until you select the correct character.

The HMI module includes four LEDs to provide status information. Units with the display include four infrared (IR) buttons for operator interaction.

To conserve power, the HMI module enters sleep mode after a period of inactivity. Sleep mode disables FBxWifi communication. In FBxConnect, you can configure the number of minutes of inactivity triggering sleep mode through the LCD Sleep Time parameter. Setting this parameter to 0 disables sleep mode which keeps the HMI module on but uses significantly more power.

Introduction 7

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

Figure 1-3: HMI Module with LCD

Figure 1-4: HMI Module without LCD

Note

If your flow computer does not include the LCD option, you still have the status LEDs and a single IR button for waking up the device (shown in Figure 1-4).

FBxWifi™ Communications

The flow computer has an optional Wi-Fi® transceiver (FBxWifi) that enables you to connect via a laptop or tablet from some small distance away.

This capability allows an operator to potentially remain outside the hazardous location and still communicate with the flow computer. The operator's laptop must have Wi-Fi capability, line-ofsight access to the HMI module, and must be loaded with FBxConnect configuration software. Once connected, the operator can view process values, edit configuration parameters, and collect logs.

Note

The FBxWifi electronics reside inside the HMI module. The HMI module must be awake to use FBxWifi communications You can wake it up manually by holding a finger against the front cover glass over the Hold to Wake button (the left-most button) for typically from five to ten seconds.

8 Introduction

1.9.1 FBxWifi Antennas

FBxWifi supports two antenna options:



Option J1 uses the internal antenna located inside the HMI module. This option has a line-ofsight range of approximated 100 ft (30 m) from the front of the flow computer or 60 ft (18 m) from the back and sides of the flow computer.



Option J2 uses a factory-installed external antenna. This option has a line-of-sight range of approximately 300 ft (90 m) from the flow computer in all directions. This option is available with either Class 1 Div 2

Figure 1-5. External Wifi Antenna

Emerson FB1100 Flow Computer Instruction Manual

, IEC Ex N, or ATEX Ex N hazardous area approvals.

cULus

D301752X012

May 2022

Software Tools

FBxConnect provides a series of wizards that allow you to perform configuration activities for the flow computer. You connect a PC running FBxConnect to the flow computer using one of the communication ports or through a wireless connection. You can then:

Introduction 9

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022



Set parameters within your application



Configure I/O channels



Specify the serial communication method for a port (RS-232 to RS-485) as needed



View or collect audit trail information such as alarm, event, or historical logs



Update system firmware

Autonomous Measurement Mode

You can configure the FB1100 Flow Computer to operate as a low power measurement device that operates independently for one year. In this autonomous measurement mode, the flow computer operates similarly to earlier generation chart recorders, collecting data from non-critical, low-flow applications and storing it for later retrieval.

Autonomous measurement mode supports collection of data from the multi-variable sensor and RTD only. This mode requires the lithium battery pack; no external power supply is required.

You can interact with the device through the HMI module's infrared buttons or through a laptop running FBxConnect. To maintain low power consumption for the battery, using this mode limits you to 30 minutes of interaction per month.

See Appendix E for more information.

RoHS2 Compliance

Device with Integral MVS:

RoHS (2) EU Directive 2011/65/EU: This product may be considered out-of-scope when used for the intended design purpose in a Large Scale Fixed Installation (LSFI).

Consult https://www.emerson.com/compliance for up-to-date product information.

Secure Gateway

For enhanced data security when using an IP/Ethernet connection or a serial connection into an IP terminal server, Emerson Remote Automation Solutions recommends adding an industrial router with VPN and firewall security. Recommended solutions include the MOXA EDR‐810, the Hirschman Eagle One, or the Phoenix mGuard rs4000 (or equivalents). An example of how to install one of these devices to the RTU can be found in the Emerson Remote Automation Solutions MOXA® Industrial Secure Router Installation Guide (part number D301766X012). For further information, contact your Emerson Impact Partner or the individual vendor’s website.

10 Introduction

Section 2: Installation

This section covers the following topics:

Hazardous Locations



Environmental Specifications



Required Tools



Site Considerations



General Wiring Guidelines



Front or Rear End Caps



Mounting the Enclosure



Grounding the Device



Terminal Plate



Power Modes

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022



Connecting Power



Installing the Optional Solar Panel



Connecting Communication Ports



Connecting the RTD



Wiring the Digital Output

The flow computer ships from the factory fully assembled, except for the optional solar panel assembly.

2.1 Hazardous Locations

The housing for the FB1100 Flow Computer is an explosion-proof case designed to operate in hazardous locations.

For North America the FB1100 Flow Computer has certifications for Class I, Division 1 (Groups C & D) explosion-proof, Class I Division 2 (Groups A, B, C & D) non-incendive, and non-hazardous locations only. Appendix A contains special information for Class I Division 2 installations; Appendix B contains special information for Class I Division 1 installations.

For Europe the FB1100 Flow Computer has certifications for Ex db Zone 1 flame-proof and for Ex nA Zone 2 non-sparking installations and non-hazardous locations only. Appendix C contains special information for Ex nA Zone 2 installations; Appendix D contains special information for Ex db Zone 1 installations.

All certifications are listed on the data plate located on the top of the device.

Installation 11

Emerson FB1100 Flow Computer Instruction Manual

Specification

Range

-40°C to +80 °C (-40 °F to +176 °F) - no battery, C1D1/C1D2

Maximum Process Connection Humidity

5% to 95% non-condensing

Vibration

2g over 10 to 150 Hz; 1g over 150 to 200 Hz

Tool

Use

Torque wrench

For bolting/mounting the flow computer

2.5 mm hexagonal wrench

For manipulating rotation set screw

3 mm hexagonal wrench

For screw for M4 x 0.7 end cap retaining clamp 9/16 in hexagonal wrench

For installing/removing ¾ in NPT conduit plugs

1 1/16 in combination wrench

For installing/removing ¾ in NPT to M20 thread #1 Phillips-head screwdriver

For screws on HMI module

#2 Phillips-head screwdriver

For screws on other modules and boards

1/8 inch flat-head screwdriver

For 5.08 mm pitch terminal block connections

Laptop PC running Field Tools with FBxConnect

D301752X012 May 2022

2.2 Environmental Specifications

This section summarizes the environmental specifications for the device. For full details, refer to the product data sheet FB1100 Flow Computer (D301781X012).

Table 2-1: Environmental Specifications

-40°C to +80 °C (-40°F to +176 °F) - lead acid battery, C1D1/C1D2

Ambient Temperature

-40°C to +80 °C (-40 °F to +176 °F) - lithium battery, C1D1/C1D2

-40°C to +80 °C (-40 °F to +176 °F) - no battery, ATEX/IEC Ex db

-40°C to +80 °C (-40 °F to +176 °F) - no battery, ATEX/IEC Ex nA

Temperature

2.3 Required Tools

Certain tools and equipment are required for installing and servicing the flow computer.

Table 2-2: Required Tools

120 °C (248 °F)

(ATEX required)

configuration software

12 Installation

reducer (ATEX required)

For software configuration

Emerson FB1100 Flow Computer Instruction Manual

2.4 Site Considerations

The flow computer must reside in an accessible location for configuration and service. Refer to the dimensional drawings for information on the space required.



Ensure the installation location provides easy access to the HMI module.



If your unit includes the optional solar panel, ensure the installation location provides sufficient space to mount the solar panel and adequate sunlight to charge the battery.



If your unit includes the optional FBxWifi ensure the installation location provides line-ofsight access to the transceiver.

Figure 2-1: FB1100 Flow Computer Dimensions – Multivariable Sensor

D301752X012

May 2022

Installation 13

Emerson FB1100 Flow Computer Instruction Manual

End Cap

Screw

Retaining Clamp

D301752X012 May 2022

2.5 General Wiring Guidelines

The flow computer’s pluggable terminal blocks use compression-type terminals that accommodate wire between 28 and 12 AWG.



When making a connection, insert the bare end of the wire (approx. 1/4" max) into the clamp adjacent to the screw and secure the screw.



To prevent shorts, ensure that no bare wire is exposed.



Allow some slack in the wire while making terminal connections. Slack makes the wires more manageable and helps minimize mechanical strain on the terminal blocks.



Use twisted pair, shielded and insulated cable for communication and I/O wiring to minimize signal errors caused by electromagnetic interference (EMI), radio frequency interference (RFI), and transients. When using shielded cable, ground all shields at only one point in the appropriate system. This prevents circulating ground current loops that can cause signal errors.

2.6 Front or Rear End Caps

The flow computer includes two threaded covers (end caps). The front end cap includes a window for viewing the HMI module; the rear end cap provides access to the terminal plate for power and I/O wiring.

2.6.1 Removing/Replacing Retaining Clamp on End Caps

For flameproof ATEX/IEC applications, each end cap includes a retaining clamp which screws down to prevent the end cap from being unscrewed.

Figure 2-2: Front End Cap with Retaining Clamp Fitted

14 Installation

Emerson FB1100 Flow Computer Instruction Manual

DANGER

D301752X012

May 2022

Figure 2-3. Retaining Clamp in Place

To loosen or tighten the screw, use a 3mm hexagonal wrench. When tightening, torque to 12 in-lbs (1.4 N m).

Figure 2-4. Retaining Clamp and Screw

2.6.2 Removing the Front or Rear End Caps

EXPLOSION HAZARD: Never remove end cap(s) in a hazardous location. Removing end cap(s) in a hazardous location could result in an explosion.

Note

If you need more leverage place a long screwdriver or other appropriate tool across the two notches in the end cap to act as a pry bar (see Figure 2-5).

Figure 2-5: Removing or Tightening the End Cap with Long Screwdriver

Remove the retaining clamp (if present). (See Section 2.6.1.)

Grasp the end cap (front or rear).

Installation 15

Emerson FB1100 Flow Computer Instruction Manual

DANGER

D301752X012 May 2022

Figure 2-6: Front (left) and Rear (right) End caps

Unscrew the end cap turning it counter-clockwise until it comes off. Set it aside in a safe

3. location.

Figure 2-7: Front (left) and Rear (right) End Caps Removal

2.6.3 Replacing the Front or Rear End Caps

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Grasp the end cap (front or rear).

Carefully align the end cap threads with the threads of the enclosure.

Important

When replacing the rear end cap, ensure wires connecting to the terminal plate do not get crimped or caught between the end cap threads and the enclosure.

Screw the end cap clockwise (eight full turns) until it is tightly sealed to the enclosure.

Replace the retaining clamp (if required). (See Section 2.6.1.)

Note

If you need more leverage place a long screwdriver or other appropriate tool across the two notches in the end cap to act as a pry bar (see Figure 2-5).

2.7 Mounting the Enclosure

You can mount the flow computer either directly to a manifold on the pipeline or indirectly on a two-inch pipe or pole.

16 Installation

Installations use either a traditional mounting kit or a coplanar mounting kit.

DANGER

2.7.1 Bolting Considerations

If the flow computer installation requires assembly of a process flange, a manifold, or flange adapters, follow these assembly guidelines to ensure a tight seal for optimal performance characteristics of the flow computer.

Only use bolts supplied with the flow computer or sold by Emerson Remote Automation Solutions as spare parts. Refer to the figure for common flow computer assemblies with the bolt length required for proper flow computer installation.

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Note

For all other manifolds, contact your local Emerson Sales office or Emerson Impact Partner.

Bolts are typically carbon steel or stainless steel. Confirm the material by viewing the markings on the head of the bolt and referencing the figure. If bolt material is not shown in the figure, contact your local Emerson Remote Automation Solutions representative for more information.

Figure 2-8: Transmitter with Coplanar Flange

Figure 2-9: Transmitter with Coplanar Flange and Optional Flange Adapters

Installation 17

Figure 2-10: Transmitter with Traditional Flange and Optional Flange Adapters

Emerson FB1100 Flow Computer Instruction Manual

Bolt Material

Head markings

Initial Torque

Final Torque

Bolt

Sensor module

DANGER

D301752X012 May 2022

Use the following bolt installation procedure:

Carbon steel bolts do not require lubrication. Stainless steel bolts are factory-coated with a

1. lubricant to ease installation. Do not apply any additional lubricant when installing either type of bolt.

Finger-tighten the bolts.

Torque the bolts to the initial torque value using a crossing pattern. See Table 2-3 for initial

3. torque value.

Torque the bolts to the final torque value using the same crossing pattern. See Table 2-3 for

4. final torque value.

Verify that the flange bolts protrude through the sensor module before applying pressure.

Table 2-3: Torque Values for the Flange and Flange Adapter Bolts

Carbon Steel (CS)

Stainless Steel (SST)

Figure 2-11: Proper Bolt Installation

300 in. -lbs. (33.9 N m)

150 in. -lbs.

(16.9 N m)

650 in. -lbs.

(73.4 N m)

300 in. -lbs.

(33.9 N m)

2.7.2 O-rings with Flange Adapters

18 Installation

Failure to install proper flange adapter O-rings may cause process leaks, which can result in death or serious injury. Only use the O-ring that is designed for its specific flange adapter.

Emerson FB1100 Flow Computer Instruction Manual

Flange

O-ring

Square PTFE-based profile

Round Elastomer profile

DANGER

Figure 2-12: O-rings with Flange Adapters

Whenever the flange or adapters are removed, visually inspect the O-rings.

Replace the O-rings if there are any signs of damage, such as nicks or cuts.

If the O-rings are replaced, re-torque the flange bolts and alignment screws after installation

3. to compensate for seating of the O-rings.

D301752X012

May 2022

2.7.3 Direct Mount

Direct mount installations use either a traditional mounting kit or a coplanar mounting kit. Mount the flow computer directly to the natural gas pipeline only if the pipeline includes a process manifold.

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Place taps in the top or side of the line.

Mount the flow computer beside or above the taps.

2.7.4 Indirect Mount

You can mount the flow computer to a two-inch pipe or pole. Indirect mount can use the coplanar, or traditional flange mounting kits.

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Installation 19

Emerson FB1100 Flow Computer Instruction Manual

2.0 in. pipe diam. U-bolt assembly (5/16-18 x 4.0 LG) with (2) nuts (item 3)

Mounting bracket

Apply Loctite® 222™ Low Strength Purple Threadlocker to nuts. Torque nuts to 30 4

D301752X012 May 2022

Figure 2-13: Traditional Flange Mounting Kit

in-lbs (3.4 N m) 7/16-20 x .625 cs/zinc cobalt screws (4). Torque to 30 in-lbs (3.4 N m)

Figure 2-14: Coplanar Mounting Kit

20 Installation

Tubular L-shaped bracket

3/8-16 x 1 ½ in socket head wire lockable screw (2) – Apply Killark® LUBG-6 Thread Lubricant to threads. Torque screws to 30 in

Split 3/8 lock washer (2)

5/16-18 keps nut (2). Apply Loctite 222 Low Strength Purple Threadlocker to nuts. Torque nuts to 30 in

-lbs (3.4 N m)

U-bolt bracket

Set Screw (one each side)

-inch diameter pipe U-bolt

2.7.5 Rotating the Housing

To improve accessibility to the HMI module or to ease wiring, you can optionally rotate the housing.

Important

Never rotate the housing more than 180 degrees from its original (as-shipped) position. Overrotation can break electronics within the unit.

Figure 2-15: Housing Rotation Set Screw (1 each side)

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

-lbs (3.4 N m)

Installation 21

Emerson FB1100 Flow Computer Instruction Manual

DANGER

Ground lug

DANGER

D301752X012 May 2022

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Loosen the two housing rotation set screws.

Rotate the housing

Re-tighten the two housing rotation set screws. Torque to 6 in-lbs. (0.7 N m).

no more than 180 degrees from its original (as-shipped) position.

2.8 Grounding the Device

The flow computer includes a grounding lug on the terminal plate.

Figure 2-16: Ground Lug

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.



Once you have installed the unit, run a ground wire between the ground lug and a known good earth ground. You route the ground wire through one of the conduit fittings.



Use stranded copper wire to earth ground and keep the length as short as possible.



Clamp or braze the ground wire to the ground bed conductor (typically a stranded copper AWG 0000 cable installed vertically or horizontally).

22 Installation



Run the ground wire so that any routing bend in the cable has a minimum radius of 30.5 cm (12 inches) below ground and 20.4 cm (8 inches) above ground.



For more information on grounding or if your installation uses cathodic protection, refer to

Site Considerations for Equipment Installation, Grounding, and Wiring (D301452X012).

2.9 Terminal Plate

The terminal plate includes the various terminal blocks (TB) for power and I/O connections.

Note

AI/AO and DI connections are disabled in the FB1100 Flow Computer.

Figure 2-17: Terminal Plate

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

Installation 23

Emerson FB1100 Flow Computer Instruction Manual

Description

Power Usage (mW) at 6Vdc

Base flow computer with integral multivariable DP and

Additional Load Options:

Display and backlight active

296

FBxWifi

315

FBxWifi and display active

340

DO active (1 Hz, 50:50 duty cycle, no load)

D301752X012 May 2022

2.10 Power Modes

To keep power consumption to a minimum, especially for remote sites, the flow computer can run in two different power modes: Low Power Mode (4 or 8 MHz CPU clock speed) or Standard Power Mode (60 MHz CPU clock speed).

2.10.1 Low Power Mode

The flow computer normally runs in low power mode for typical metering applications. The radio Power Control function (configurable in FBxConnect) switches the flow computer into standard power mode at specified times when serial communications are required, then it reverts to low power mode when the communication period is over.

The local display (HMI module) with FBxWifi communications and FBxWifi uses additional power. You can configure it in FBxConnect to shut down after a period of inactivity.

Table 2-4: Typical Power Usage – Low Power Mode at Room Temperature

pressure sensor and temperature measurement for a single meter run

Historical configuration supports maximum of:



4 averages



12 Station 1 history points (Group 4)



10 User Periodic history points (Group 1)

Important

If you increase the number of history points/averages beyond any of the maximum limits detailed in

Table 2-4, the flow computer

power mode.

cannot operate in low power mode and automatically runs in standard

2.10.2 Standard Power Mode

When serial communication is active the flow computer operates in standard power mode. The unit also uses standard power mode when:

24 Installation

 The HMI module display is ON

 FBxWifi is active

Emerson FB1100 Flow Computer Instruction Manual

Description

Power Usage

(mW) at 6Vdc

Power Usage

(mW) at 12Vdc

Power Usage

(mW) at 24Vdc

Base flow computer with integral

Additional Load Options:

Display and backlight active

162

168

178

FBxWifi

189

185

200

FBxWifi and display active

204

207

221

DO active (1 Hz, 50:50 duty cycle, no

 Power control zone enabled

Table 2-5: Typical Power Usage – Standard Power Mode at room temperature

D301752X012

May 2022

multivariable DP and pressure sensor and temperature measurement for a single meter run

load)

2.10.3 Notes on Battery Life

Battery life varies based on numerous factors including temperature, communication usage, and various load options. To achieve the maximum battery life noted in the product data sheet requires that you:



Limit use of the display, backlight, and FBxWifi options.



Limit communication activity.



Disable power to all I/O (except for the MV or static pressure sensor, or RTD). To do this, click Configure > I/O Setup > I/O Configuration > Properties and select Disable for each I/O module.

209 224 265

21 23 20

Refer to the product data sheet FB1100 Flow Computer (D301781X012) for information on the additional power load of various options.

2.11 Connecting Power

Power can come from an external DC supply, a lead acid battery pack with a solar panel, or a lithium battery pack.

Power connections are made through conduit fittings to the terminal plate. Remove the rear cover for access to the terminal plate.

Installation 25

Emerson FB1100 Flow Computer Instruction Manual

DANGER

To External power supply

DANGER

D301752X012 May 2022

For solar power connections, refer to Section 2.12.4.

2.11.1 Connecting DC Power

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

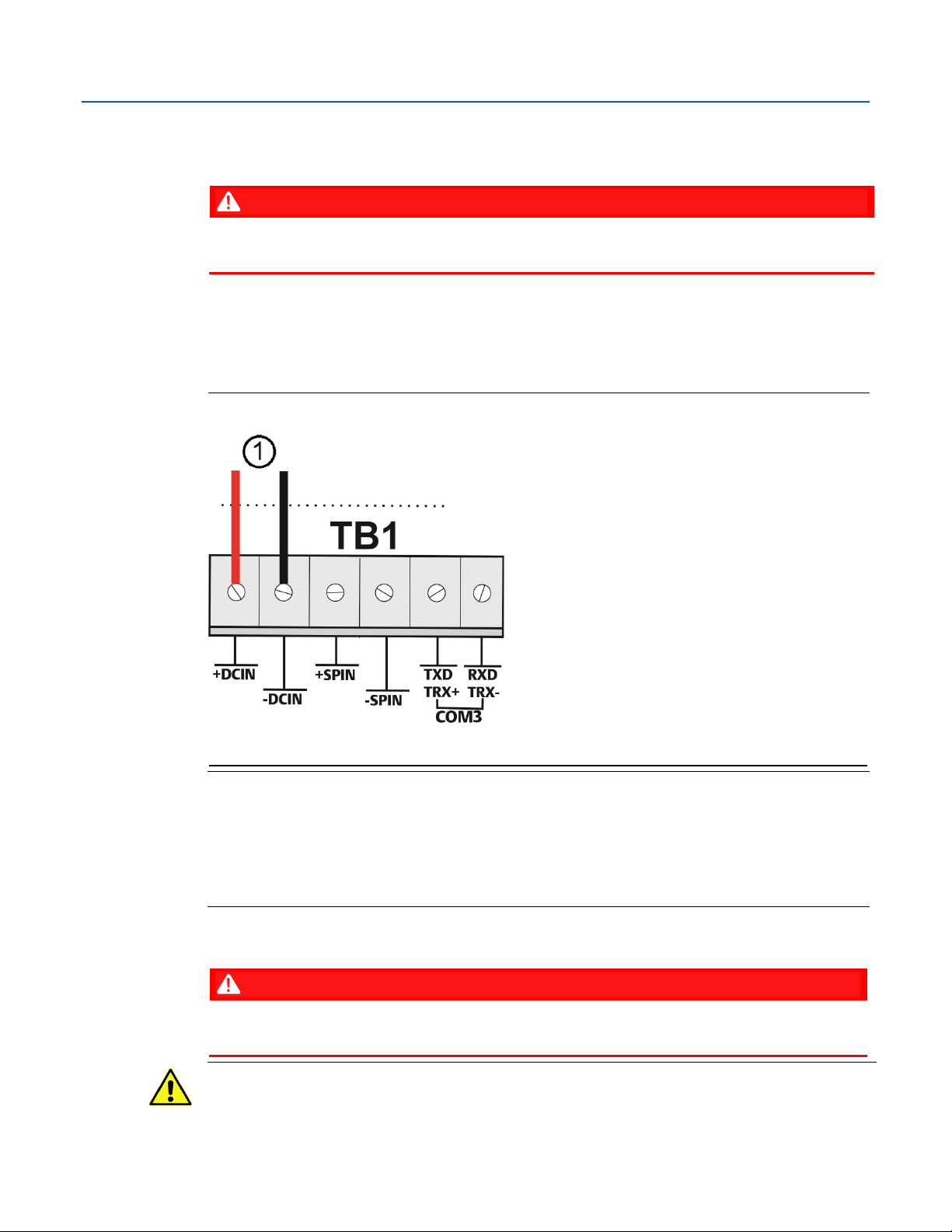

When power comes from an external DC supply, connect using the +DCIN and –DCIN terminals. Use standard copper wire (#18 AWG minimum). The device supports 6V, 12V and 24V power supplies. It accepts DC voltage from 5.7 to 30V; the amount of power required varies depending upon the options used.

Figure 2-18: DC Power Connections

Note

If your flow computer does not power on, check that the polarity of the DC input voltage wiring connections match Figure 2 triggers a polyfuse (positive coefficient temperature thermistor) to protect the device from damage. Once the polarity is corrected, the polyfuse resets automatically to allow for proper operation.

18. If you accidentally reversed the polarity of the connectors, it

‐

2.11.2 Connecting Battery Power

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Important

If you purchased this device with the rechargeable lead acid battery pack, be aware that the lead acid battery pack must always be stored in a charged state. If you do not intend to install the flow

26 Installation

Emerson FB1100 Flow Computer Instruction Manual

Left Battery Connector

Right Battery Connector

DANGER

D301752X012

May 2022

computer immediately, make provisions to “top-off” the lead acid battery at six-month intervals. Failure to do so could sharply reduce battery life or result in a dead battery.

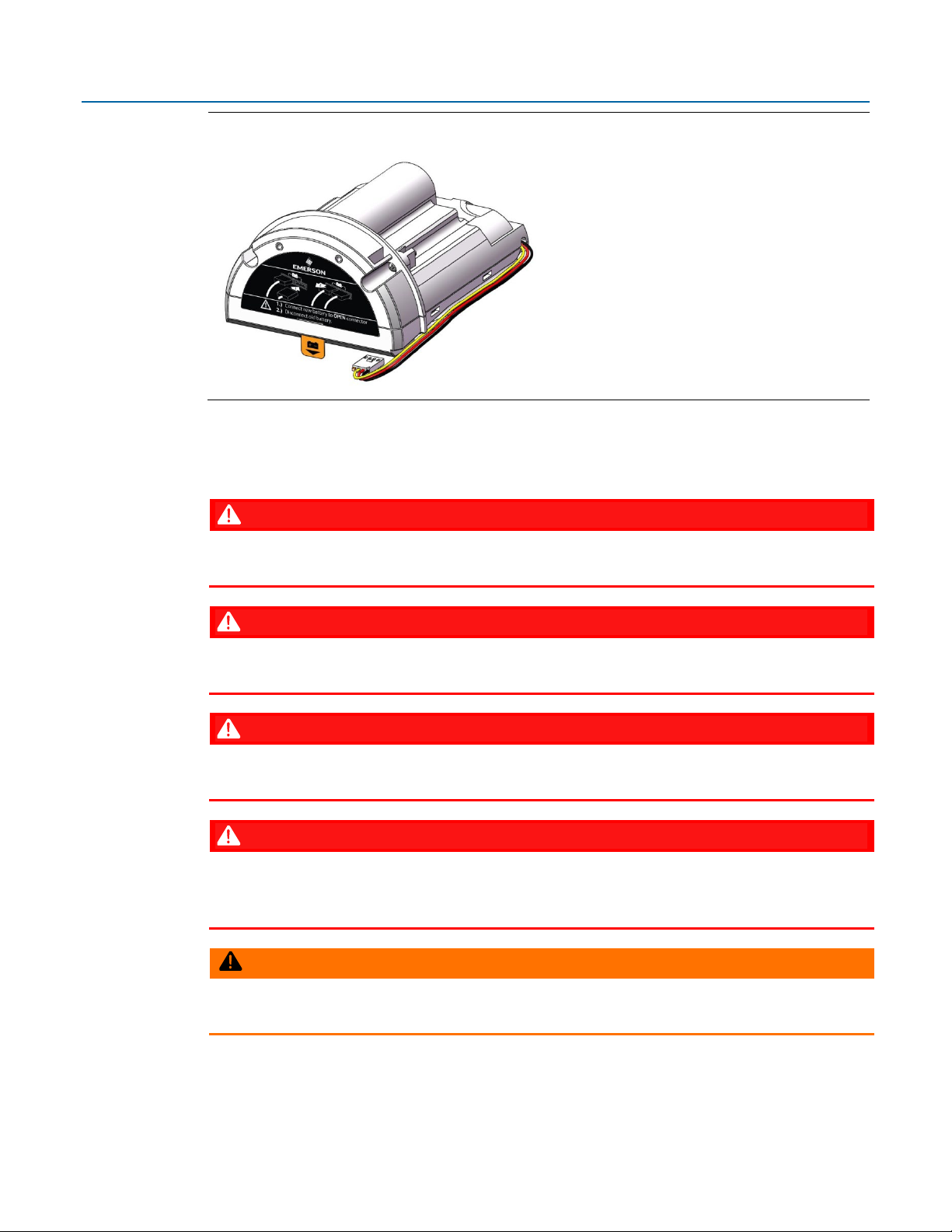

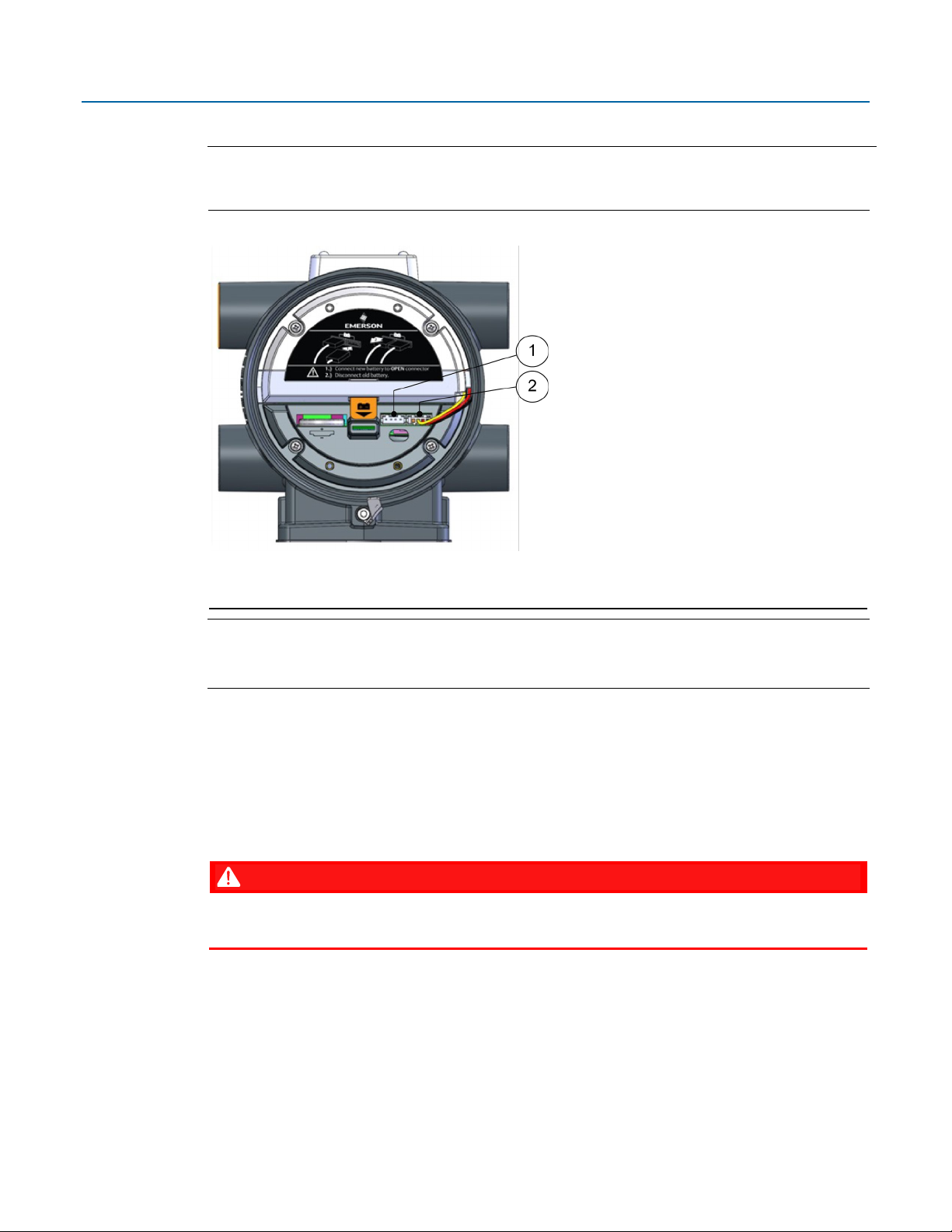

When power comes from an internal battery pack, the battery pack plugs into one of two connectors.

Figure 2-19: Connecting the Battery Pack

Restriction

The solar panel and lead acid battery combination cannot be used with ATEX/IECEx applications.

2.12 Installing the Optional Solar Panel

If you purchased the lead acid battery/solar panel kit for main power, you need to install the supplied 6W solar panel.

If you purchased the lead acid battery with a solar regulator but you are supplying your own solar panel, follow the manufacturer’s instructions for remote mounting.

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Solar panel installation involves:



Attaching mounting hardware to the solar panel (if not attached prior to shipment).



Mounting the solar panel in one of two ways:

•

Integral mount (solar panel attaches directly to the flow computer)

Installation 27

Remote mount (solar panel mounts to a pole)

•

Emerson FB1100 Flow Computer Instruction Manual

6V, 6W solar panel

Aluminum tilt bracket (2)

10-32 x ½ pan head screw (4). Note: Matching hex nuts and washers not visible in this 4

5/16 flat washer (4); only two visible in this graphic

5/16-18 x .75 LG hex head bolt (2)

5/16-18 hex nut (2); only one visible in this graphic

Mounting bracket

D301752X012 May 2022



Wiring power to the solar panel.



Setting the tilt angle of the panel for maximum solar exposure.

2.12.1 Attach Mounting Hardware to the Solar Panel

DANGER

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Attach mounting hardware to the solar panel as shown in Figure 2-20.



Attach aluminum tilt brackets (Item 2) to solar panel using the provided pan head screws (Item 3), hex nuts (Item 10 in Figure 2-21), and #10 lock washers (Item 9 in Figure 2-21).



Apply Loctite 222 threadlocker removable adhesive sparingly to threads of hex nuts (Item 6). Attach mounting bracket to tilt brackets using provided hex nuts (Item 6), hex bolts (Item 5), washers (Item 4), and spring lock washers (Item 7). The spring lock washer goes between the washer and the nut. Torque to 30 in-lbs (3.4 N m).

Figure 2-20: Attaching Mounting Hardware to the Solar Panel

graphic; see Items 9 and 10 in Figure 2-22

5/16 flat spring lock washer (2) only one visible; placed on bolt between washer and nut

28 Installation

Emerson FB1100 Flow Computer Instruction Manual

DANGER

6V, 6W solar panel

Aluminum tilt bracket (2)

10-32 x ½ pan head screw (4).

5/16 flat washer (4); only two visible in this graphic

2.12.2 Mounting the Solar Panel (Integral Mount)

D301752X012

May 2022

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Restriction

The solar panel and lead acid battery combination cannot be used with ATEX/IECEx applications. The integral mount solar panel remote mounted with the solar panel in a safe area.

Figure 2-21: Integral Mounted Solar Panel

cannot be used in a Class I Division 1 area; C1D1 solar panels must be

Installation 29

Emerson FB1100 Flow Computer Instruction Manual

5/16-18 x .75 LG hex head bolt (2)

Mounting bracket

#10 lock washer (4)

#10-32 hex nut (4)

¾ NPT pipe cap

U-bolt 1 1/8 in. diam. pipe x ¼ -20 x 2 inch long

Pipe threads (2)

¾ NPT 90 degree female x male elbow pipe

Conduit fitting

D301752X012 May 2022

¾ NPT x 8 inch long threaded pipe

Apply Loctite

pipe (Item 15) to the flow computer conduit opening (Item 16); torque to 50 in-lbs (5.6 N m).

Apply Loctite 380 adhesive sparingly to threads of pipe (Item 14).

Attach pipe (Item 14) to elbow pipe (Item 15). Torque to 50 in-lbs (5.6 N m).

Attach pipe cap (Item 11) to top of pipe (Item 14). Torque to 50 in-lbs (5.6 N m).

Apply Loctite 222 threadlocker removable adhesive sparingly to threads of U-bolt (Item 12).

Attach solar panel assembly to pipe (Item 14) using U-bolt (Item 12).

Attach a ground wire at the back of the solar panel. For more information on grounding,

refer to Site Considerations for Equipment Installation, Grounding, and Wiring Manual

(D301452X012).

Adjust swivel and tilt angle for maximum solar exposure (see Section

380™ Black Instant Adhesive to threads of elbow pipe (Item 15). Attach elbow

2.12.3 Mounting the Solar Panel (Remote Mount)

DANGER

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

2.12.5).

Restriction

The solar panel and lead acid battery combination cannot be used with ATEX/IECEx applications.

Apply Loctite 222™ threadlocker sparingly to threads of U-bolt (Item 12 in Figure 2-22.)

Attach solar panel assembly to pole using U-bolt (Item 12). Torque to 30 in-lbs (3.4 N m).

Adjust swivel and tilt angle for maximum solar exposure (see Section

30 Installation

2.12.5).

Emerson FB1100 Flow Computer Instruction Manual

6V, 6W solar panel

U-bolt 1 1/8 in. diam. pipe x ¼ -20 x 2 inch long

pole (customer supplied)

DANGER

Figure 2-22: Remote Mounted (pole mounted) Solar Panel

D301752X012

May 2022

mounting bracket

2.12.4 Connecting Solar Power

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

When power comes from a solar panel/lead acid battery combination, connect using the +SPIN and –SPIN terminals and standard copper wire (#18 AWG minimum).

Installation 31

Emerson FB1100 Flow Computer Instruction Manual

To solar panel

DANGER

Tilt angle adjustment

D301752X012 May 2022

Figure 2-23: Wiring Solar Power

Restriction

The solar panel and lead acid battery combination cannot be used with ATEX/IECEx applications.

2.12.5 Adjusting the Optional Solar Panel Tilt Angle

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

The mounting brackets allow you to adjust the solar panel for maximum solar exposure. You can adjust the swivel of the panel by adjusting the U-bolt.

Figure 2-24: Adjusting Solar Panel Tilt Angle

32 Installation



Point the solar panel surface due south (in the northern hemisphere) or due north (in the southern hemisphere) at an angle determined by the latitude of the site. Table 2-6 shows the

Emerson FB1100 Flow Computer Instruction Manual

Latitude

Installation Angle

21 to 45°

Add 10° from the local latitude

46 to 65°

Add 15° from the local latitude

66 to 75°

80° from horizontal

DANGER

D301752X012

angle (from horizontal) at which you should install the solar panel to maximize annual energy output. At most latitudes, you can improve performance by reducing the angle during the summer and increasing the angle during the winter. If no seasonal adjustments in panel direction are needed, then adjust the position for the worst-case December-February angle.



Solar insolation is the amount of solar energy in hours received each day by an optimally tilted panel during the worst month of the year. An insolation rating of one hour means that the site, on average, would receive one hour of solar energy at the panel's rated power level (1000W/m2 per day). This rating varies from less than one hour in northern Canada to more than six hours in the Sahara Desert.

Table 2-6: Solar Panel Tilt Angle

0 to 4° 10° from horizontal

5 to 20° Add 5° from the local latitude

May 2022

2.13 Connecting Communication Ports

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

The communication ports allow you either to connect to a PC or laptop running FBxConnect software or to other devices.

Access the three serial communication ports on the terminal plate under the rear cover. Route communication cables through the conduit fittings and connect the cables on the terminal plate.

Installation 33

Emerson FB1100 Flow Computer Instruction Manual

RS-232 port (COM1) on FB device

RS-232 port on external device

RS-485/422 (4-wire) port (COM1) on FB device

RS-485/422 (4-wire) port on external device

D301752X012 May 2022

2.13.1 Connecting to COM1

COM1 can be configured for RS-232, RS-485 (2-wire) or RS484/422 (4-wire) communications.

When connecting COM1 to another device using RS-232, use a cable with configurations as shown in Figure 2-25:

Figure 2-25: Connecting a Device to COM1 Using RS-232

When connecting COM1 to another device using RS-485/422 (4-wire) use a cable with configurations as shown in Figure 2-26:

Figure 2-26: Connecting a Device to COM1 Using RS-485/422 (4-wire)

34 Installation

Emerson FB1100 Flow Computer Instruction Manual

RS-485 (2-wire) port (COM1) on FB device

RS-485 (2-wire) port on external device

D301752X012

May 2022

When connecting COM1 to another device using RS-485 (2-wire), use a cable with configurations as shown in Figure 2-27:

Figure 2-27: Connecting a Device to COM1 Using RS-485 (2-wire)

Regardless of the interface standard (RS-232, RS-485 [2-wire] or RS485/422 [4-wire]), you must use FBxConnect to configure the port for proper usage.

2.13.2 Connecting to COM2 and COM3

COM2 and COM3 operate identically. Each can be configured for either RS-232 or RS-485 (2-wire) communication.

When connecting COM2 or COM3 to an RS-232 port on another device (a PC or another controller/flow computer) use a cable with configurations as shown in Figure 2-28.

Note

Neither COM2 nor COM3 has its own GND terminal. Use either GND terminal on the COM1 terminal block.

Installation 35

Emerson FB1100 Flow Computer Instruction Manual

RS-232 port (COM2) on FB device

RS-232 port on external device

RS-232 port (COM3) on FB device

D301752X012 May 2022

Figure 2-28: Connecting a Device to COM2 or COM3 Using RS-232

When connecting COM2 or COM3 to an RS-485 (2-wire) port on another device (for example, a transmitter), use a cable with configurations as shown in Figure 2-29.

Note

Neither COM2 nor COM3 has its own GND terminal. Use either GND terminal on the COM1 terminal block.

36 Installation

Emerson FB1100 Flow Computer Instruction Manual

RS-485 port (2-wire) (COM2) on FB device

RS-485 port (2-wire) on external device

RS-485 port (2-wire) (COM3) on FB device

Figure 2-29: Connecting a Device to COM2 or COM3 Using RS-485 (2-wire)

D301752X012

May 2022

Regardless of the interface standard (RS-232 or RS-485 2-wire), you must use FBxConnect to configure the port for proper usage.

Installation 37

Emerson FB1100 Flow Computer Instruction Manual

DANGER

2-Wire RTD

3-Wire RTD

4-Wire RTD

D301752X012 May 2022

2.14 Connecting the RTD

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

RTD connections reside on the terminal plate under the rear cover. The flow computer supports 2wire, 3-wire, and 4-wire operation for a PT100 RTD. Route the RTD cable through the conduit fittings and connect them on the terminal plate (as shown on Figure 2-30).

Note

The device defaults to the 4-wire RTD configuration; you can change this setting in FBxConnect.

Figure 2-30: Wiring for 2-Wire, 3-Wire, and 4-Wire RTD

38 Installation

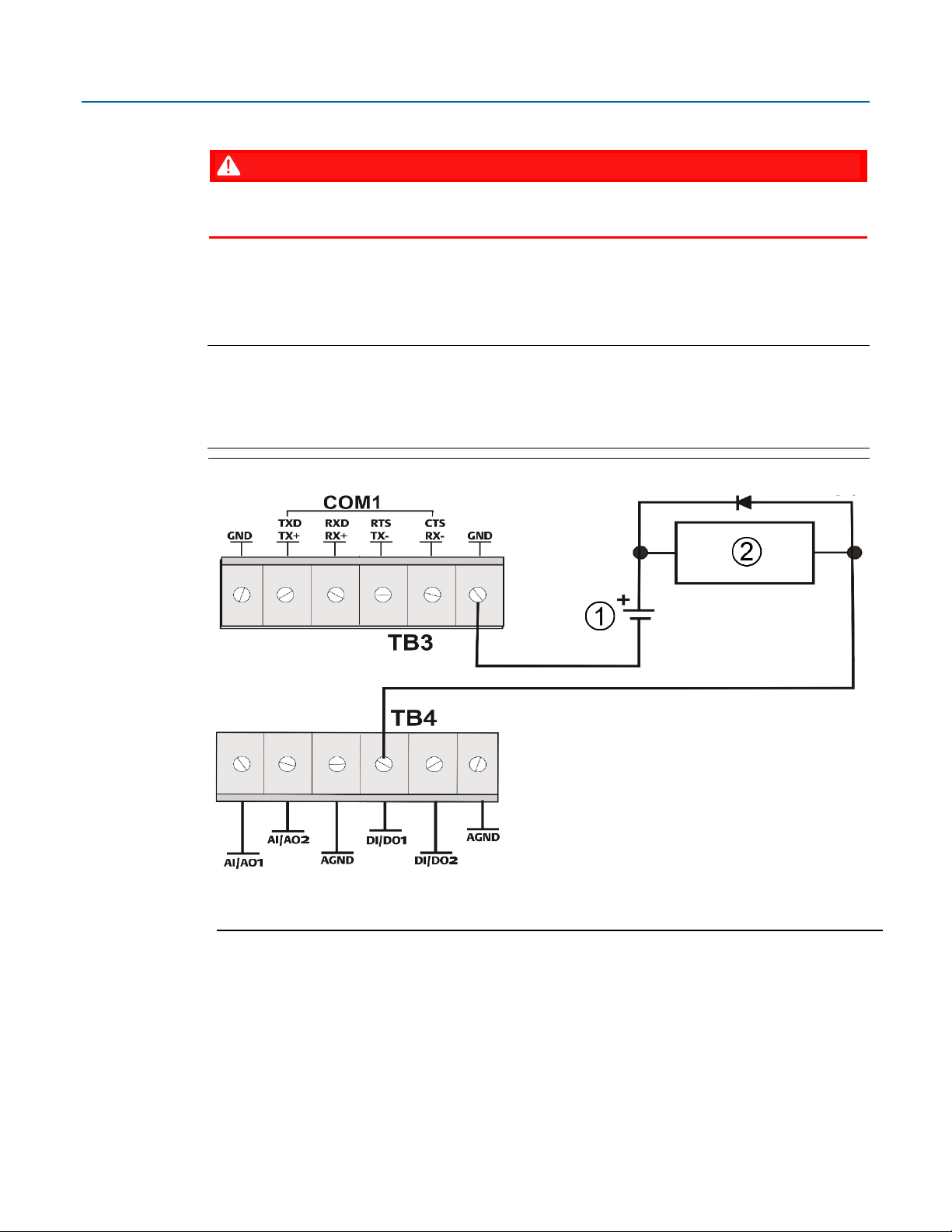

2.15 Wiring the Digital Output

DANGER

30Vdc (max)

500 mA Max Load

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

The digital output connection is on the terminal plate under the rear cover. Route the DO wires through the conduit fittings and connect them on the terminal plate. There is one connection for the DO and another for ground.

Note

When using the digital output to drive an inductive load (such as a relay coil), place a suppression diode across the load. This protects the DO from the reverse Electro-Motive Force (EMF) spike generated when the inductive load is switched off.

Figure 2-31: Wiring the External Powered DO

Installation 39

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

40 Installation

Section 3: Operation

DANGER

This section covers the following topics:

Powering Up/Powering Down the Device



Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

Establishing Communications



Communicating using the HMI Module



This section describes day-to-day operation of the flow computer including how to turn it on and off and how to communicate with it.

3.1 Powering Up/Powering Down the Device

Do not attempt to connect or disconnect power from the unit in a hazardous area. Ensure the area is non-hazardous. Failure to do so could result in an explosion.

Remove the front end cap.

Terminal block TB1 includes connections for DC power (+DCIN, -DCIN) and solar power

(+SPIN, -SPIN). Battery power (which is also used with solar power) has its own internal connections.



Plug in TB1 to activate DC or solar power. If your device uses an internal battery and it is not connected, connect it as discussed in Section 2.12.2 Connecting Battery Power.

Unplug TB1 to deactivate DC or solar power. If your device uses an internal battery, disconnect the main battery.

This turns on (or shuts off) power from either an external power supply or the battery pack/solar panel.

Note

When you turn power on, the backlight on the HMI module lights, momentarily turns off and then remains lit while the INPUT LED blinks. After approximately one minute the initialization process finishes and the HMI starts to display live data.

3.2 Establishing Communications

The flow computer supports three ways to establish communications: through the host SCADA system, through a local laptop computer running FBxConnect, or through the HMI module.

3.2.1 Communicating with the SCADA Host

Communication to the flow computer through a SCADA host computer requires you to configure the host computer software, which varies depending upon whether you are using OpenEnterprise

Operation 41

Emerson FB1100 Flow Computer Instruction Manual

DANGER

D301752X012 May 2022

or another host software package. Much of this configuration is beyond the scope of this topic, but no matter which host you are using, there are certain steps you must take:

Decide how the SCADA host should communicate with the flow computer. This could be

through connection with one of the communication ports. A serial port connection could be a cable directly connected to the SCADA host or there could be intermediate connections through a radio or modem.

Decide which communication protocol you will use. This could be DNP3, ROC, or BSAP. See

these documents for more information:



Emerson FB Flow Computer DNP3 Protocol Specifications Manual (D301806X012)



ROC Protocol Specifications Manual for (for Emerson FBx-series) (D301828X012)



BSAP Communication Guide for FB1000/FB2000 Series Flow Computers (D301808X012)

Provide the SCADA host with information about the various parameters it needs to extract

from the application running in the flow computer. Typically, the SCADA host software includes a utility that allows you to identify this information so it can be incorporated into the database at the SCADA host.

Using whatever human-machine interface (HMI) tools exist for the SCADA host, create

graphical displays or reports that include the parameters from the application required for successful operator interaction (setpoints, flow variables and so on).

3.2.2 Communicating with a Laptop Using One of the Serial Ports

To communicate with a laptop using a serial port:



Your laptop must have Field Tools software with FBxConnect software installed.



You must know a valid username/password combination for the flow computer.



If the flow computer is not awake, you must wake it up first. (See Section 3.3)

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Connect a cable between a serial port (or serial/USB adapter) on your laptop and port COM2

on the flow computer.

Launch Field Tools and add a new serial connection for this device; this launches FBxConnect

configuration software. (If you already have an existing saved serial connection for this device in Field Tools, just double-click on it in the Connections list.)

42 Operation

Log into the flow computer if prompted.

Use the FBxConnect configuration software to view or change any desired parameters.

When finished, log off the flow computer and disconnect the cable from its serial port.

Emerson FB1100 Flow Computer Instruction Manual

WARNING

D301752X012

3.2.3 Communicating with a Laptop Wirelessly with FBxWifi

You must have purchased the flow computer with the optional FBxWifi communications feature to connect to a laptop PC wirelessly. Additionally:



Ensure that you and your laptop PC are in a non-hazardous area.

must be configured and working on your laptop PC.

Wi-Fi

Your laptop PC must have Field Tools software with FBxConnect installed.

You must know a valid username/password combination for the flow computer.

You must know the name of the wireless network and the security key required to connect to it.

Your laptop PC must be within line-of-sight with either the front display of the flow computer or of an external antenna for the FBxWifi communications module.

If the flow computer is not awake, you must wake it up first. (See Section 3.3)

May 2022

Launch Field Tools software and add a new wireless connection. (If you already have a saved

wireless connection for this device in Field Tools, double-click on the device in the Connections list and skip to Step 4.)

Select the wireless network to which the flow computer belongs and enter the appropriate

security key.

Click

Connect to start the FBxConnect software.

Log into the flow computer if prompted.

Use the FBxConnect software to view or change any desired parameters.

When finished, log off the flow computer and disconnect from the wireless network.

3.3 Communicating using the HMI Module

You must have purchased the flow computer with the HMI module version that includes the optional display. Not all models include the display. Units without the display still include a button to wake up the device and status LEDs.

Notes

Operation 43



If the device is configured to require logins to view data, you must know a valid username/password combination for the flow computer.



Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

The operator “awakens” the device by holding a finger against the front cover glass over the Hold to Wake button (the left-most button) for typically five to ten seconds. You can also pre-define a number of automatic wake-up times during the day from the Power Control screen in FBxConnect.

To temporarily keep the HMI module out of sleep mode, maintain an active FBxConnect connection. So long as communications remain active, the HMI module does not sleep.

Go to the front of the flow computer and touch your finger on the glass above the

Wake button until the display lights up. (This may take several seconds.)

Figure 3-1: Waking the Display

Hold to

If prompted, login using a valid username/password combination (Data Entry Mode). For

information on how the buttons work, see Table 3-1.

The display enters Screen Saver Mode where it sequentially presents a series of screens

showing details about the meter run flow rates, totals, and current process variables.

44 Operation

Figure 3-2: Infrared (IR) Button Location

Left Infrared (IR) Button

Down Infrared (IR) Button

Up Infrared (IR) Button

Right Infrared (IR) Button

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

Operation 45

Note

When using the IR buttons, aim your finger at the round spot just below the arrow.

Emerson FB1100 Flow Computer Instruction Manual

Button

Mode

Use



Tap once to move up or down one item through list

Tap (UP) once to move the cursor to the previous



Tap once to move the cursor to the left.Hold to



Tap once to move the cursor to the right.Hold to

Symbol

Meaning

Alarm: The parameter value shown is in an alarm state (such as High Alarm, Low Alarm, etc.).

Override: The parameter value shown is in override mode (that is, a userentered fixed value).

Fault: The parameter value shown is somehow invalid.

Unverified: For parameter values that require additional validation (beyond

the parameter value shown.

D301752X012 May 2022

Table 3-1: Infrared (IR) Buttons on HMI Module

Screen Saver

of parameters.



Hold to stay on current parameter.

Data Entry



character in the list or (DOWN) once to move the cursor to the next character in the list.Hold (UP) or

(DOWN) to scroll more quickly through the character list.

Idle Mode Hold to wake the display (if screen is off)

Screen Saver Log out (if logged on)

Data Entry

perform action shown on screen (such as “Hold to Accept”)

Data Entry

perform action shown on screen (such as “Hold to Cancel”)

Symbol(s) representing the status of a value may appear in the upper right of the display next to the description. Multiple symbols may display. If there are no data quality issues, no symbols display.

Table 3-2: Symbols on Display

simple database min/max range checking), the firmware has not yet validated

46 Operation

Emerson FB1100 Flow Computer Instruction Manual

Section 4: Service and Troubleshooting

This section covers the following topics:

Returning the Unit for Repairs



D301752X012

May 2022

Interpreting the Status LEDs



Switch and Buttons



Removing/Replacing the HMI Module



Replacing the Main Battery Pack



Removing/Replacing the SRAM Battery



Upgrading System Firmware



To maintain hazardous location certifications, you can only replace components in the field with the exact same part so that the model string on the data plate remains correct. This means you cannot add any hardware not reflected in the model string or upgrade a hardware component to a newer version; any such upgrades are prohibited and void the hazardous location certification.

For a list of user serviceable parts contact your Emerson Remote Automation Solutions sales representative or Emerson Impact Partner.

This chapter describes the service tasks that everyone needs to know such as replacing batteries or installing a firmware upgrade. A separate series of field replacement guides covers major field replaceable components.

Any replacement not covered in this chapter or in the field replacement guides (such as adding or upgrading hardware or replacing sensors) can only be performed at an Emerson-authorized repair facility.

Important

Use only batteries supplied with the flow computer or sold by Emerson as spare parts for this flow computer. If you substitute a battery you obtain elsewhere you will void your certification unless it is the identical part from the same manufacturer as that supplied with the flow computer from Emerson.

Service and Troubleshooting 47

Emerson FB1100 Flow Computer Instruction Manual

Front end cap (cover)

HMI module

Battery pack

Data plate

Rear end cap (cover)

Threaded ¾ in NPT to M20 x 1.5 conduit fitting (2 of 4 shown)

Housing/Enclosure

Sensor Module

Mounting hardware

D301752X012 May 2022

Figure 4-1: FB1100 Flow Computer Components

4.1 Returning the Unit for Repairs

Only certain field replacement procedures are allowed under warranty and hazardous location certification. Other types of repairs cannot be performed in the field. In those cases, you must ship the unit to an Emerson-authorized repair facility. Contact Emerson Remote Automation Solutions for a return authorization number and instructions for where to ship the unit.

48 Service and Troubleshooting

Emerson FB1100 Flow Computer Instruction Manual

WARNING

Input LED

Link LED

Status LED

Alarm LED

International safety regulations restrict the shipment of lithium batteries. If you need to return the flow computer, remove the lithium battery before you ship the unit. Failure to remove the lithium battery may delay or prevent shipment of the flow computer.

4.2 Interpreting the Status LEDs

The flow computer display has four (4) status LEDs. The meaning of each LED varies depending upon the color displayed or whether the LED flashes.

Figure 4-2: LED Locations

D301752X012

May 2022

Service and Troubleshooting 49

Emerson FB1100 Flow Computer Instruction Manual

LED

Color/State

Meaning

An active wired Ethernet connection exists.

GREEN

One of the IR buttons is being pressed.

CPU booting or CPU has not yet recognized HMI module when HMI first powered on; goes

OK – Main power battery pack charged or not

Main power battery pack low. Replace/re-

soon. (If FB1100

FB1100 Flow Computer with lithium battery

internal to battery pack. Replace battery pack

Off

No power

Flashing GREEN

Main power battery pack charging

GREEN

No alarms.

HMI firmware update in progress.

RED

Alarms are present.

LED Sequence

Color/State

HMI module failed. Replace with spare or

Link and Alarm alternately flash RED; sequence

CPU stuck in boot mode. Contact technical

D301752X012 May 2022

Table 4-1: LED Descriptions

Link LED GREEN

Input LED

Flashing YELLOW

GREEN

Flashing RED

Status LED

Flashing YELLOW

Otherwise it is off. (FB1200/FB2200 only)

off when recognized.

in use.

charge lead acid battery pack Flow Computer with lithium battery pack– replace battery pack.)

pack only: Unit has switched to C cell battery

soon.

Alarm LED

Table 4-2: Special LED Sequences using Multiple LEDs

Link, Input, Status, and Alarm all solid RED

repeats

50 Service and Troubleshooting

Flashing RED

return for repairs.

support.

Emerson FB1100 Flow Computer Instruction Manual

DANGER

Button Name

Purpose

Procedure

SYSTEM RESET

Resets power. This momentary switch

Move the SYSTEM RESET switch

Clears memory (SRAM). The SRAM

Currently undefined

None

DANGER

D301752X012

May 2022

Switch and Buttons

A momentary switch and two push-buttons on the HMI module provide trouble-shooting options for the flow computer.

EXPLOSION HAZARD: Never remove end cap(s) in a hazardous location. Removing end cap(s) in a hazardous location could result in an explosion.

Table 4-3: Switch and Buttons

interrupts power to the flow computer to reset it. Used if system is powered on but is non-functional; this attempts a reboot.

memory holds current data values and pending alarm messages. If unit has unexpectedly stopped operating, you can depress this button on power-up to clear that information from memory (hard reset). Try this if a SYSTEM RESET alone does not work.

either up or down. Unit powers off and then restarts.

Press and hold the A button.

While continuing to hold the A

button, move the SYSTEM RESET switch either up or down to initiate a reset.

Release the A button. The system

clears SRAM during the power up sequence.

4.4 Removing/Replacing the HMI Module

You do not need to power down the unit to replace the HMI module if you are in a non-hazardous area.

Ensure the flow computer is in a non-hazardous area. Never remove/replace the HMI module in a hazardous area.

Important

The HMI module includes the FBxWifi transceiver; once you remove the HMI module; Wi-Fi communication with the flow computer ceases.

Service and Troubleshooting 51

Remove the retaining clamp from the front end cap (if present). (See Section 2.6.1)

Unscrew the front end cap.

Loosen the four captive fastening screws on the HMI module.

Emerson FB1100 Flow Computer Instruction Manual

WARNING

4.7V You must replace the battery

D301752X012 May 2022

Figure 4-3: Captive Fastening Screws

Grasp the HMI module and remove it by gently pulling it straight out away from the unit.

To replace the HMI module, line up the printed circuit board (PCB) with the slot on the back

5. and gently press it back on. Tighten the four captive fastening screws.

Replace the end cap. Screw the end cap clockwise (eight full turns) until it is tightly sealed to

6. the enclosure. Re-attach the retaining clamp, if applicable (see Section 2.6.1).

4.5 Replacing the Main Battery Pack

Periodically you must replace the main battery pack. FBxConnect provides a battery life indicator to show the number of days in use. In addition, if you use a lithium battery for main power, the Status LED shows yellow when the battery is low and needs to be replaced.

If lead acid battery voltage falls below charging system considers the battery dead.

, the battery can no longer be recharged, and the

52 Service and Troubleshooting

Emerson FB1100 Flow Computer Instruction Manual

DANGER

WARNING

D301752X012

May 2022

Figure 4-4: Main Battery Pack

The device provides two battery connectors, enabling you to hot-swap the battery pack in a nonhazardous location. Slide out the first battery pack (leaving it connected), attach the new battery to the second (available) connector (so both batteries are connected), and then disconnect the old battery pack.

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

EXPLOSION HAZARD: Do not disconnect equipment unless power has been removed or the area is known to be non-hazardous.

EXPLOSION HAZARD: Substitution of any components may impair suitability for Class I, Division 1 or Class I, Division 2.

EXPLOSION HAZARD: Do not replace batteries unless power has been switched off or the area is known to be non-hazardous. Batteries must only be changed in an area known to be nonhazardous.

Service and Troubleshooting 53

There are no user-serviceable parts inside the battery pack. Do not open the battery pack as you may damage the battery pack or injure yourself.

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

Note

Use these cells only in devices where a trained technician is responsible for servicing the cell circuit and replacing the lithium cells.

Restriction

Battery packs cannot be used with ATEX or IECEx applications.

Keep the replacement battery pack handy during the procedure.

Remove the retaining clamp from the front end cap (if present). (See Section 2.6.1)

Remove the front end cap.

Loosen the two bottom captive fastening screws on the HMI module. Leave the two top

3. screws connected to the battery pack.

Grasp the HMI module and gently pull it and the battery pack out of the enclosure, leaving

4. the battery still connected.

Figure 4-5: Removing the Battery Pack

Connect the new battery to the open connector. Route the wires so they are in the recessed

5. area. Make sure the wires won’t get caught in the end cap threads.

Disconnect the old battery pack’s connector from the unit and set the old battery pack aside.

Slide the new battery pack into the unit.

Loosen the top captive fastening screws on the HMI module to separate it from the old

8. battery pack.

Align the HMI module with the new battery pack and the tab on the CPU carrier board

9. (bezel). Gently press the new battery pack on, being careful not to pinch the battery wires. Tighten all four screws.

Replace the end cap. Screw the end cap clockwise (eight full turns) until it is tightly sealed to

10. the enclosure. Re-attach the retaining clamp, if applicable (see Section 2.6.1).

54 Service and Troubleshooting

Emerson FB1100 Flow Computer Instruction Manual

DANGER

4.6 Removing/Replacing the SRAM Battery

A lithium coin cell battery provides backup power for the SRAM and the real time clock. The SRAM backup battery can last for up to 10,000 hours of cumulative operation and runs power system fails. In a non-hazardous area, you do not need to power down the unit to replace the SRAM backup battery.

Important

• If the unit is ever powered down without the SRAM battery installed, SRAM data is lost. Always back up your data be off.

before you remove the SRAM battery if you know that main power will also

D301752X012

May 2022

only if the main

• Replacement SRAM backup batteries must be either the Rayovac® Model BR2335 or the Panasonic

Ensure the flow computer is in a non-hazardous area. Never remove end caps in a hazardous area.

Do not disconnect equipment unless power has been removed or the area is known to be nonhazardous.

EXPLOSION HAZARD: Substitution of any components may impair suitability for Class I, Division 1 or Class I, Division 2.

EXPLOSION HAZARD: Do not replace batteries unless power has been switched off or the area is known to be non-hazardous. Batteries must only be changed in an area known to be nonhazardous.

Model BR2330.

Service and Troubleshooting 55

Remove the retaining clamp from the front end cap (if present). (See Section 2.6.1)

Remove the front end cap.

Remove the HMI module.

Grasp the coin cell battery and remove it from its slot.

Emerson FB1100 Flow Computer Instruction Manual

CAUTION

DANGER

D301752X012 May 2022

Figure 4-6: Removing/Replacing the Coin Cell Battery

Insert the new coin cell battery in the slot. The positive side (+) must be on top.

When inserting the SRAM coin cell battery, push the battery gently into its slot until it stops. The battery should slide in easily. Do not use excessive force.

Replace the HMI module.

Replace the end cap. Screw the end cap clockwise (eight full turns) until it is tightly sealed to

7. the enclosure. Re-attach the retaining clamp, if applicable (see Section 2.6.1).

4.7 Upgrading System Firmware

Periodically Emerson releases new system firmware for the flow computer to introduce new features or update system functions.

You must know a valid username/password combination for the flow computer to complete this process.

EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion.

Important

 A power loss occurring during a firmware update to a unit with a dead SRAM coin cell battery

can corrupt SRAM memory and place the flow computer in a continuous boot cycle, requiring you to return the device to the factory for repairs. To avoid this, be sure to replace the SRAM coin cell battery when its power is low. To check this in FBxConnect, click Power and look at the SRAM Battery Status field on the display.

Services > System

56 Service and Troubleshooting

 When upgrading system firmware version 01.xx.xx.xx to version 2.05.xx.xx or newer, allow up to

10 minutes to complete the upgrade and

1. Launch Field Tools and use FBxConnect to connect to the flow computer.

do not power cycle the unit.

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

2. Click the Services tab, then click Firmware Update.

3. Click Configuration Save to save the flow computer’s configuration.

4. Click History Collection to save the historical data contained in the flow computer.

5. Click Firmware Update.

6. In the Firmware Update dialog box, click Browse and navigate to the zip file containing your new system firmware. The grid updates with details of the firmware version currently in the device, and the firmware version in the zip file.

Figure 4-7: Firmware Update Dialog Box

7. Select the checkbox in the Selected column to choose the firmware. If you are downloading the same version that is already installed on the device, select

8. Select Time Sync device after the download if you want to sychronize the flow computer’s clock with your PC clock after the download completes.

9. Click Start to begin the firmware download. Allow the download to proceed to completion. If you choose to cancel the firmware download before it completes, the system restores the current version already in the device.

Download Even If Unchanged.

Service and Troubleshooting 57

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

58 Service and Troubleshooting

Emerson FB1100 Flow Computer Instruction Manual

DANGER

Appendix A: Special Instructions for Class I Division 2 Locations

The Emerson FB1100 Flow Computer is listed by Underwriters Laboratories (UL) as non-

1. incendive and is suitable for use in Class I, Division 2, Groups A, B, C and D hazardous locations or non-hazardous locations. Read this appendix carefully before installing a nonincendive Emerson FB1100 Flow Computer. Refer to the other chapters of this manual for general information. In the event of a conflict between the other chapters of this manual and this appendix, always follow the instructions in this appendix.

The Emerson FB1100 Flow Computer includes both non-incendive and unrated field circuits.

2. Unless a circuit is specifically identified in this appendix as non-incendive, the circuit is unrated. Unrated circuits must be wired using wiring methods as specified in Article 501-4(b) of the National Electrical Code (NEC), NFPA 70 for installations in the United States, or as specified in Section 18-152 of the Canadian Electrical Code for installation in Canada.

All communication ports terminate on the terminal plate within the enclosure. Wiring to the

3. connectors is unrated. No connections may be made to communication ports unless the user ensures that the area is known to be nonhazardous. Connections to the "Local Port" are temporary and must be short in duration to ensure that flammable concentrations do not accumulate while it is in use.

D301752X012

May 2022

An RTD may be supplied with the Emerson FB1100 Flow Computer. Connection to the RTD is

4. approved as a non-incendive circuit so that Division 2 wiring methods are not required.

I/O connections are unrated and must be wired using Division 2 wiring methods.

EXPLOSION HAZARD: Do not disconnect equipment unless power has been removed or the area is known to be non-hazardous.

EXPLOSION HAZARD: Substitution of any components may impair suitability for Class I, Division 1 or Class I, Division 2.

EXPLOSION HAZARD: Do not replace batteries unless power has been switched off or the area is known to be non-hazardous. Batteries must only be changed in an area known to be nonhazardous.

Special Instructions for Class I Division 2 Locations 59

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

Figure A-1: Data Plate (No Battery) – Class I Division 2 Non-incendive (UL)

60 Special Instructions for Class I Division 2 Locations

Emerson FB1100 Flow Computer Instruction Manual

Figure A-2: Data Plate (Lead Acid Battery) – Class I Division 2 Non-incendive (UL)

D301752X012

May 2022

Special Instructions for Class I Division 2 Locations 61

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

Figure A-3: Data Plate (Lithium Battery) – Class I Division 2 Non-incendive (UL)

62 Special Instructions for Class I Division 2 Locations

Emerson FB1100 Flow Computer Instruction Manual

DANGER

Appendix B: Special Instructions for Class I

Division 1 Locations

The Emerson FB1100 Flow Computer is listed by Underwriters Laboratories (UL) as explosion

1. proof and is suitable for use in Class I, Division 1, Groups C and D hazardous locations or nonhazardous locations. Read this appendix carefully before installing an Emerson FB1100 Flow Computer. Refer to the other chapters of this manual for general information. In the event of a conflict between the other chapters of this manual and this appendix, always follow the instructions in this appendix.

The Emerson FB1100 Flow Computer includes both non-incendive and unrated field circuits.

D301752X012

May 2022

Though the Emerson FB1100 Flow Computer has a local port for local interrogation, it should not be accessed with the cover removed in a Class I Division 1 area unless it has first been verified that no flammable concentrations exist in that area. The local port may be wired through a conduit, using seals, to an unclassified or Division 2 area.

All communication ports terminate on the terminal plate within the enclosure. Wiring to the

An RTD may be supplied with the Emerson FB1100 Flow Computer. Connection to the RTD is

4. approved as a non-incendive circuit.

Note

A bendable RTD (with a plastic bushing, as utilized in Division 2 installations) may not be used in a Division 1 area as it renders the area non-explosion proof. Use an RTD connection head and explosion-proof conduit for Division 1 installations.

I/O connections are unrated and must be wired using wiring methods as specified in Article

501-4(b) of the National Electrical Code (NEC), NFPA 70 for installations in the United States, or

as specified in Section 18-152 of the Canadian Electrical Code for installation in Canada.

Special Instruction for Class I Division 1 Locations 63

EXPLOSION HAZARD: Do not disconnect equipment unless power has been removed or the area is known to be non-hazardous.

Emerson FB1100 Flow Computer Instruction Manual

DANGER

D301752X012 May 2022

EXPLOSION HAZARD: Substitution of any components may impair suitability for Class I, Division 1 or Class I, Division 2.

EXPLOSION HAZARD: Do not replace batteries unless power has been switched off or the area is known to be non-hazardous. Batteries must only be changed in an area known to be nonhazardous.

Note

These cells are to be used only in devices where servicing of the cell circuit and replacement of the lithium cells will be done by a trained technician.

The area must be known to be non-hazardous before servicing the unit and before installing or removing I/O wiring.

64 Special Instructions for Class I Division 1 Locations

Emerson FB1100 Flow Computer Instruction Manual

Figure B-1: Data Plate (No Battery) – Class I Division 1 Explosion Proof (UL)

D301752X012

May 2022

Special Instruction for Class I Division 1 Locations 65

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

Figure B-2: Data Plate (Lead Acid Battery) – Class I Division 1 Explosion Proof (UL)

66 Special Instructions for Class I Division 1 Locations

Emerson FB1100 Flow Computer Instruction Manual

Figure B-3: Data Plate (Lithium Battery) – Class I Division 1 Explosion Proof (UL)

D301752X012

May 2022

Special Instruction for Class I Division 1 Locations 67

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

68 Special Instructions for Class I Division 1 Locations

Emerson FB1100 Flow Computer Instruction Manual

Replacement Part

Kit Number

Field Replacement Guide document number:

Appendix C: ATEX Non-Sparking Zone 2

Certifications

This appendix includes notes on ATEX certifications. For full details, please refer to the Emerson

FB1100 Flow Computer Safe Use Instructions (D301768X012).

Special Conditions of Use:

 Make provisions to ensure, in the event of transient disturbances, that the rated voltage does

not exceed 140% of the peak rated voltage.

 Impact tests on the display were conducted based on Group II values for the low risk of

mechanical danger, in accordance with Table 13 of both EN 60079-0:2012+A11:2013 and IEC 60079-0 6 is low.



Lithium Battery, Lead Acid Battery, and Solar Panel options are not for use in ATEX/ IECEx applications.

Edition. Install flow computers with displays in areas where the risk of impact

D301752X012

May 2022



For Zone 2 installation, take care to install and use the flow computer in such a way that excludes the danger of electrostatic charge.



Refer to field replacement guides for replacement of the following parts:

End Caps 399122-01-0 and

399123016-KIT

HMI Module Display Assembly 399379-01-0, 621627011-

KIT, 399380-01-0, 621627020-KIT

CPU Board 399134018-KIT D301802X012

Termination Board and Terminal Block

Sensor Assembly Variable Kit Number D301842X012

Coin Cell Battery 395620-03-1 D301854X012

This device was evaluated according to the following standards:



IEC 60079-0 6th Edition

399185-01-1, 400216010KIT, 395791014-KIT 395803000-KIT

D301814X012

D301816X012

D301820X012

ATEX Non-Sparking Zone 2 Certifications 69



IEC 60079-15 4th Edition



EN 60079-0 :2012+A11:2013



EN 60079-15:2010

Enclosure Rating: IP66

Terminal blocks for the FB1100 Flow Computer have the following characteristics:

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022



Terminal blocks can accommodate two conductors per channel.



Stranded or solid wire allowed.



Torque values: NM 0.5-0.6



Wire size: 28-12 AWG (0.08 – 3.3 mm2); (0.32 – 2.05 mm)

Bristol Inc. d.b.a. Remote Automation Solutions 1100 Buckingham Street Watertown, CT 06795 U.S.A.

Figure C-1: Data Plate – ATEX nA Non-Sparking

70 ATEX Non-Sparking Zone 2 Certifications

Emerson FB1100 Flow Computer Instruction Manual

Appendix D: ATEX Flame-Proof Zone 1

Certifications

The data plate and certain conditions of use are shown below. For full details refer to the Emerson

FB1100 Flow Computer Safe Use Instructions (D301768X012).

Figure D-1: Data Plate – ATEX Ex db Flame-proof

D301752X012

May 2022

ATEX Flame Proof Zone 1 Certifications 71

Emerson FB1100 Flow Computer Instruction Manual

Replacement Part

Kit Number

Field Replacement Guide document number:

D301752X012 May 2022

Special Conditions of Use / Schedule of Limitations:



Contact your authorized sales and service representative for any maintenance or repair beyond the maintenance of the FB1100 Flow Computer. Do not alter or disassemble any of the flameproof joints of the FB1100 Flow Computer.



The Model 4088 and Model 215 Scalable Pressure Transmitters provided with the FB1100 flow computers contain a thin-wall diaphragm. Installation, maintenance, and use must take into account the environmental conditions to which the diaphragm is subjected. Follow the manufacturer’s instructions for installation and maintenance to ensure safety during the device’s lifetime.



Refer to field replacement guides for replacement of the following parts:

End Caps 399122-01-0 and

D301814X012

399123016-KIT

HMI Module Display Assembly 399379-01-0, 621627011-

D301816X012 KIT, 399380-01-0, 621627020-KIT

CPU Board 399134018-KIT D301802X012

Termination Board and Terminal Block

399185-01-1, 400216010KIT, 395791014-KIT

D301820X012

395803000-KIT

Sensor Assembly Variable Kit Number D301842X012

Coin Cell Battery 395620-03-1 D301854X012

This device was evaluated according to the following standards:

 IEC 60079-0, 6th Edition  IEC 60079-1, 7th Edition  EN 60079-0:2012+A11:2013  EN 60079-1:2014

72 ATEX Flame-Proof Zone 1 Certifications

Emerson FB1100 Flow Computer Instruction Manual

WARNING

will not

Appendix E: Autonomous Mode Requirements

The FB1100 Flow Computer operating in “autonomous mode” runs off a single battery for up to 12 months without recharging. The 12-month battery life is based on the FB1100 running in low power mode on a typical remote application with a local collection of history and use of the optional display for up to 30 minutes per month. This configuration makes the FB1100 an ideal replacement for chart recorders, significantly reducing measurement uncertainty and providing a complete electronic audit trail. The 12-month battery life is achieved under an ambient

temperature of 25

The solar powered option provides up to 25 days of autonomous operation without charge.

To achieve 12 months of autonomous operation, you must configure the FB1100 Flow Computer to meet the following requirements:

C/77oF; refer to Table E-2.

If you exceed these requirements, the FB1100 Flow Computer autonomous operation.

Table E-1. Autonomous Mode Requirements

> I/O Configuration > Properties Tab > Module Power Control).

month or less. Usage exceeding 30 minutes per month impacts the life of the battery.

achieve 12 months of

history points in History Group 1.

in History Group 2.

in History Group 3.

history points in History Group 4.

Autonomous Mode Requirements 73

Emerson FB1100 Flow Computer Instruction Manual

Ambient Temperature

Impact on Total Battery Life

D301752X012 May 2022

Table E-2. Estimated Effect of Ambient Temperature on Battery Life

25oC or 77oF 0%

–30oC or –22oF Reduced by 23%

0oC or 32oF Reduced by 19%

55oC or 131oF Reduced by 34%

72oC or 161.6oF Reduced by 38%

74 Autonomous Mode Requirements

Index

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

Adjusting solar panel tilt angle ................................. 32

ATEX certification

notes on Zone 1 ................................................... 71

notes on Zone 2 ................................................... 69

Autonomous Measurement Mode ..................... 10, 73

Battery

connecting ........................................................... 27

low power status LED ........................................... 50

replacing the main battery pack ........................... 52

replacing the SRAM battery .................................. 55

shipping restrictions ............................................. 49

Bolting ..................................................................... 17

Buttons .................................................................... 51

Case

rotating ................................................................ 21

Class I Division 1 ....................................................... 63

Class I Division 2 ....................................................... 59

COM1

wiring ................................................................... 34

COM2

wiring ................................................................... 35

COM3

wiring ................................................................... 35

Communicating via the HMI module ........................ 43

Communication

establishing .......................................................... 41

to a laptop using a serial port ................................ 42

to a laptop with wirelessly .................................... 43

with SCADA Host .................................................. 42

Communication ports

connecting ........................................................... 33

overview ................................................................ 7

Configuration software .............................................. 9

Connecting

battery ................................................................. 27

power .................................................................. 25

RTD ..................................................................... 38

Coplanar mounting kit ............................................ 20

Covers

clamp .................................................................. 14

removing........................................................ 14, 15

replacing ............................................................. 16

CPU ............................................................................4

Daily operation ....................................................... 41

Digital output

wiring .................................................................. 39

Direct mounting ..................................................... 19

Display

replacing ............................................................. 51

Enclosure

explosion-proof ......................................................4

mounting ............................................................ 16

End caps

removing........................................................ 14, 15

replacing ............................................................. 16

Environmental specifications .................................. 12

Explosion-proof Enclosure ..........................................4

FBxWifi................................................................. 8, 43

Features .....................................................................3

Figures

1-1. FB1100 Flow Computer ...................................2

1-2. Retaining Clamps and Tie Holes for Tamper-

resistant Seals .....................................................5

1-3. HMI Module with LCD ......................................8

1-4. HMI Module without LCD .................................8

1-5. External FBxWifi Antenna .................................9

2-1. FB1100 Dimensions (w/Multivariable Sensor) 13

2-2. Front End Cap (w/Retaining Clamp) .............. 14

2-3. Retaining Clamp in Place .............................. 15

2-4. Retaining Clamp and Screw .......................... 15

2-5. Removing/Tightening the End Cap with Prybar

........................................................................ 15

Index 75

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

2-6. Front and Rear End Caps ................................ 16

2-7. Removing Front and Rear End Caps ............... 16

2-8. Transmitter with Coplanar Flange .................. 17

2-9. Transmitter (w/Coplanar Flange & Optional

Flange Adapters) .............................................. 17

2-10. Transmitter (w/Traditional Flange & Optional

Flange Adapters) .............................................. 17

2-11. Bolt Installation ........................................... 18

2-12. O-rings (w/Flange Adapters ......................... 19

2-13. Traditional Flange Mounting Kit ................... 20

2-14. Coplanar Mounting Kit ................................ 20

2-15. Housing Rotation Set Screws ....................... 21

2-16. Ground Lug ................................................. 22

2-17. Terminal Plate ............................................. 23

2-18. DC Power Connections ................................ 26

2-19. Connecting the Battery Pack ....................... 27

2-20. Attaching Mounting Hardware to the Solar

Panel ................................................................ 28

2-21. Integral mounted solar panel ....................... 29

2-22. Solar panel remote mounted (pole mounted)

......................................................................... 31

2-23. Wiring Solar Power ...................................... 32

2-24. Adjusting Solar Panel Tilt Angle ................... 32

2-25. Connecting a Device to COM1 Using RS-232 34 2-26. Connecting a Device to COM1 Using RS-

485/422 4-wire ................................................. 34

2-27. Connecting a Device to COM1 Using RS-485

(2-wire) ............................................................ 35

2-28. Connecting a Device to COM2 or COM3 Using

RS-232 .............................................................. 36

2-29. Connecting a Device to COM2 or COM3 Using

RS-485 (2-wire)................................................. 37

2-30. Wiring for 2-, 3-, and 4-Wire RTD ................. 38

2-31. Wiring for DO .............................................. 39

3-1. Waking the Display ........................................ 44

3-2. Infrared (IR) Button Location ......................... 45

4-1. FB1100 Flow Computer Components ............ 48

4-2. LED Locations ............................................... 49

4-3. Captive Fastening Screws .............................. 52

4-4. Main Battery Pack .......................................... 53

4-5. Removing the Battery Pack ............................ 54

4-6. Removing/Replacing the Coin Cell Battery ..... 56

4-7. Firmware Update Dialog ................................ 57

A-1. Data Plate (No Battery) – Class I Div 2 Non-

incendive (UL) ................................................... 60

A-2. Data Plate (Lead Acid Battery) – Class I Div 2

Non-incendive (UL) ........................................... 61

A-3. Data Plate (Lithium Battery) – Class I Div 2 Non-

incendive (UL) ................................................... 62

76 Index

B-1. Data Plate (No Battery) – Class I Div 1 Explosion

Proof (UL) ........................................................ 65

B-2. Data Plate (Lead Acid Battery) – Class I Div 1

Explosion Proof (UL) ......................................... 66

B-3. Data Plate (Lithium Battery) – Class I Div 1

Explosion Proof (UL) ......................................... 67

C-1. Data Plate - ATEX nA Non-Sparking ............... 70

D-1. Data Plate – ATEX Ex db Flame-proof ............ 71

Firmware

upgrading ........................................................... 56

Flame-proof

ATEX Zone 1 certification notes ........................... 71

FLASH memory

amount of ..............................................................4

Grounding .............................................................. 22

Hazardous locations ................................................ 11

Class I Division 1 .................................................. 63

Class I Division 2 .................................................. 59

notes on ATEX Zone 1 .......................................... 71

notes on ATEX Zone 2 .......................................... 69

HMI module ...............................................................7

communicating using .......................................... 43

replacing ............................................................. 51

Housing

rotating ............................................................... 21

I/O

digital output ...................................................... 39

options ...................................................................6

Indirect mounting ................................................... 19

Installation .............................................................. 11

LCD

replacing ............................................................. 51

LEDs

meaning .............................................................. 49

Memory

clearing SRAM ..................................................... 51

FLASH

amount of ................................................................. 4

Mounting

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

bolting considerations .......................................... 17

direct ................................................................... 19

indirect ................................................................ 19

Mounting kit

coplanar ............................................................... 20

traditional flange .................................................. 20

Non-sparking

ATEX Zone 2 certification notes ............................ 69

Operation ................................................................ 41

O-rings .................................................................... 18

Physical Security ........................................................ 5

Ports

connecting ........................................................... 33

Power

battery connections ............................................. 27

connecting ........................................................... 25

connecting solar power ........................................ 31

DC connections .................................................... 26

Options .................................................................. 6

Powering Up/Powering Down the Device ................. 41

Replacing the SRAM battery ..................................... 55

Required equipment ................................................ 12

Resetting the flow computer .................................... 51

Retaining clamp ....................................................... 14

Returning the unit for repairs ................................... 48

RoHS2 Compliance .................................................. 10

Rotating the housing ............................................... 21

RTD

connecting ........................................................... 38

Safety Labels .............................................................. 3

Secure gateway ....................................................... 10

Security seals ............................................................. 5

Serial communications............................................. 42

Service ..................................................................... 47

Site considerations................................................... 13

Software Tools ........................................................... 9

Solar panel

adjusting the tilt angle.......................................... 32

installing the optional ........................................... 27

integral mounting ............................................... 29

power connection ............................................... 31

remote mount (pole mount) ............................... 30

remote mounted (pole mounted) ........................ 31

SRAM

amount of ..............................................................4

clearing ............................................................... 51

SRAM battery

replacing ............................................................. 55

Standard Power Mode ............................................. 24

Status LEDs ............................................................. 49

Switch ..................................................................... 51

System firmware

upgrading ........................................................... 56

SYSTEM RESET button ............................................. 51

Tables

1-1. Memory...........................................................4

1-2. Power Options .................................................6

1-3. Serial Ports ......................................................7

2-1. Environmental Specifications ........................ 12

2-2. Required Tools ............................................. 12

2-3. Bolt Torque Values ....................................... 18

2-4. Typical Power Usage (Low Power Mode) ....... 24

2-5. Typical Power Usage (Standard Power Mode) 25

2-6. Solar Panel Tilt Angle .................................... 33

3-1. Infrared (IR) Buttons on HMI Module ............. 46

3-2. Symbols on Display ....................................... 46

4-1. LED Descriptions........................................... 50

4-2. Special LED Sequences.................................. 50

4-3. Switch and Buttons ....................................... 51

E-1. Autonomous Mode Requirements ................ 73

E-2. Estimated Effect of Ambient Temperature on

Battery Life ...................................................... 74

Terminal Plate ......................................................... 23

Tools

required .............................................................. 12

Traditional flange mounting kit ............................... 20

Troubleshooting ..................................................... 47

Upgrading system firmware .................................... 56

Wi-Fi .................................................................... 8, 43

Wiring

guidelines ............................................................ 14

Index 77

Emerson FB1100 Flow Computer Instruction Manual D301752X012 May 2022

Zone 1

ATEX certification notes ...................................... 71

Zone 2

ATEX certification notes ...................................... 69

78 Index

Emerson FB1100 Flow Computer Instruction Manual

D301752X012

May 2022

Index 79

Emerson FB1100 Flow Computer Instruction Manual

For customer service and technical support,

Global Headquarters, North America, and Latin America:

owners.

Europe:

Middle East/Africa:

Asia-Pacific:

T +65 6777 8211| F +65 6777 0947

D301752X012 May 2022

visit www.Emerson.com/SupportNet

Emerson Automation Solutions Remote Automation Solutions 6005 Rogerdale Road Houston, TX 77072 U.S.A. T +1 281 879 2699 | F +1 281 988 4445

www.Emerson.com/RemoteAutomation

Emerson Automation Solutions Remote Automation Solutions Unit 1, Waterfront Business Park Dudley Road, Brierley Hill Dudley DY5 1LX UK T +44 1384 487200

Emerson Automation Solutions Remote Automation Solutions Emerson FZE P.O. Box 17033 Jebel Ali Free Zone – South 2 Dubai U.A.E. T +971 4 8118100 | F +971 4 8865465

Emerson Automation Solutions Remote Automation Solutions 1 Pandan Crescent Singapore 128461

This publication is for informational purposes only. While every effort has been made to ensure accuracy, this publication shall not be read to include any warranty or guarantee, express or implied, including as regards the products or services described or their use or applicability. Remote Automation Solutions (RAS) reserves the right to modify or improve the designs or specifications of its products at any time without notice. All sales are governed by RAS terms and conditions which are available upon request. RAS accepts no responsibility for proper selection, use or maintenance of any product, which remains solely with the purchaser and/or end-user. Emerson Automation Solutions, Emerson, and the Emerson logo are trademarks and service marks of Emerson Electric Co. All other marks are the property of their respective

Remote Automation Solutions

Remote Automation Solutions Emerson FB1100 Flow Computer Instruction Manual Manuals & Guides

Specifications and Main Features

Frequently Asked Questions

User Manual

Section 1: Introduction

Safety Labels

Features

Central Processing Unit (CPU)

1.3.1 Memory

Explosion-proof Enclosure

1.4.1 Physical Security

I/O

Power Options

Communications

Human-Machine Interface (HMI) Module

FBxWifi™ Communications

1.9.1 FBxWifi Antennas

Software Tools

Autonomous Measurement Mode

RoHS2 Compliance

Secure Gateway

Section 2: Installation

2.1 Hazardous Locations

2.2 Environmental Specifications

2.3 Required Tools

2.4 Site Considerations

2.5 General Wiring Guidelines

2.6 Front or Rear End Caps

2.6.1 Removing/Replacing Retaining Clamp on End Caps

2.6.2 Removing the Front or Rear End Caps

2.6.3 Replacing the Front or Rear End Caps

2.7 Mounting the Enclosure

2.7.1 Bolting Considerations

2.7.2 O-rings with Flange Adapters

2.7.3 Direct Mount

2.7.4 Indirect Mount

2.7.5 Rotating the Housing

2.8 Grounding the Device

2.9 Terminal Plate

2.10 Power Modes

2.10.1 Low Power Mode

2.10.2 Standard Power Mode

2.10.3 Notes on Battery Life

2.11 Connecting Power

2.11.1 Connecting DC Power

2.11.2 Connecting Battery Power

2.12 Installing the Optional Solar Panel

2.12.1 Attach Mounting Hardware to the Solar Panel

2.12.2 Mounting the Solar Panel (Integral Mount)

2.12.3 Mounting the Solar Panel (Remote Mount)

2.12.4 Connecting Solar Power

2.12.5 Adjusting the Optional Solar Panel Tilt Angle

2.13 Connecting Communication Ports

2.13.1 Connecting to COM1

2.13.2 Connecting to COM2 and COM3

2.14 Connecting the RTD

2.15 Wiring the Digital Output

Section 3: Operation

3.1 Powering Up/Powering Down the Device

3.2 Establishing Communications

3.2.1 Communicating with the SCADA Host

3.2.2 Communicating with a Laptop Using One of the Serial Ports

3.2.3 Communicating with a Laptop Wirelessly with FBxWifi

3.3 Communicating using the HMI Module

Section 4: Service and Troubleshooting

4.1 Returning the Unit for Repairs

4.2 Interpreting the Status LEDs

Switch and Buttons

4.4 Removing/Replacing the HMI Module

4.5 Replacing the Main Battery Pack

4.6 Removing/Replacing the SRAM Battery

4.7 Upgrading System Firmware

Appendix A: Special Instructions for Class I Division 2 Locations

Appendix E: Autonomous Mode Requirements

Index
