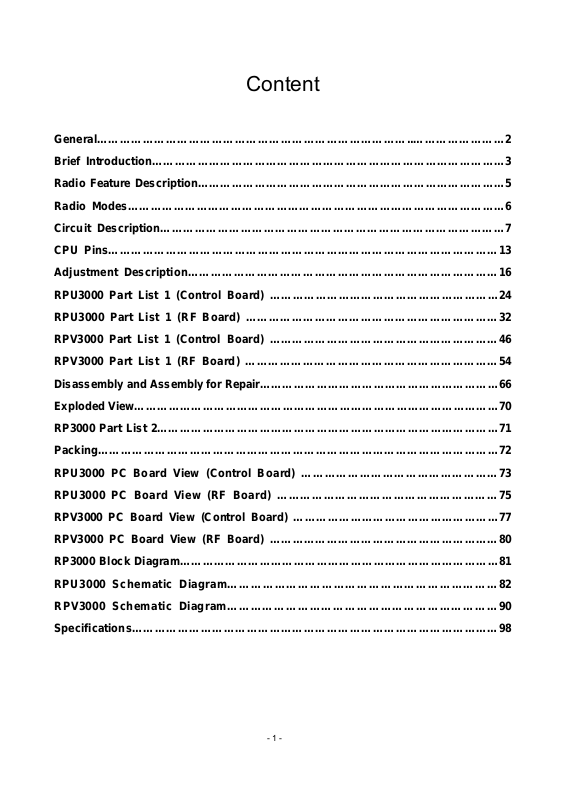

Content
General………………………………………………………………………..……………………2
Brief Introduction…………………………………………………………………………………3
Radio Feature Description………………………………………………………………………5
Radio Modes………………………………………………………………………………………6
Circuit Description………………………………………………………………………………7
CPU Pins…………………………………………………………………………………………13
Adjustment Description………………………………………………………………………16
RPU3000 Part List 1 (Control Board) ……………………………………………………24
RPU3000 Part List 1 (RF Board) …………………………………………………………32
RPV3000 Part List 1 (Control Board) ……………………………………………………46
RPV3000 Part List 1 (RF Board) …………………………………………………………54
Disassembly and Assembly for Repair………………………………………………………66
Exploded View……………………………………………………………………………………70
RP3000 Part List 2………………………………………………………………………………71
Packing……………………………………………………………………………………………72
RPU3000 PC Board View (Control Board) ……………………………………………73
RPU3000 PC Board View (RF Board) …………………………………………………75
RPV3000 PC Board View (Control Board) ………………………………………………77
RPV3000 PC Board View (RF Board) ……………………………………………………80
RP3000 Block Diagram…………………………………………………………………………81
RPU3000 Schematic Diagram……………………………………………………………82
RPV3000 Schematic Diagram……………………………………………………………90
Specifications……………………………………………………………………………………98
- 1 -
RP3000 General
General
Manual Scope
This manual is intended for use by experienced technicians familiar with similar types of communication
equipment. It contains all service information required for the equipment and is current as of the
publication date.
User Safety Information
The following precautions are recommended for personnel safety:
z DO NOT transmit until all RF connectors are verified secure and any open connectors are properly
terminated.
z SHUT OFF and do not operate this equipment near electrical blasting caps or in an explosive
atmosphere.
z When in vehicles with an airbag, do not place a portable radio in the area over an airbag or in the
airbag deployment area.
z Do not expose the radio to direct sunlight for a long time nor place it close to a heating source.
z Do not use any portable radio with a damaged antenna. If a damaged antenna comes into contact
with your skin, a minor burn may result.
z When transmitting with a portable radio, hold the radio in a vertical position with its microphone
about 5 centimeters away from your mouth.
z If you wear a portable radio on your body, be sure to keep the antenna at least 2.5 centimeters away
from your head or body when transmitting.
z This equipment should be serviced by a qualified technician only.
- 2 -
Brief Introduction
RP3000 Brief Introduction
(1) Antenna
Used to transmit/receive signals.
(2) LED
Following table indicates LED indication and corresponding radio status.
LED Status
No display Standby
Glow green Receive
Glow red Transmit
Flashing green Scan
Flashing red Low battery voltage
Flashing orange Call waiting
(3) Channel Selector
Used to select wanted channel.
(4) Programmable key [A]
(5) Power/Volume Control Knob
Rotate the Power/Volume Knob clockwise until a “click” is heard to turn the radio on, fully counter
clockwise to turn the radio off. When the radio is on, turn the knob to adjust volume.
(6) Battery Latch
Used to fasten the battery.
(7) Speaker
Used to output sounds.
- 3 -
RP3000 Brief Introduction
(8) Microphone
Used to input sounds.
(9) External Jack
Used to connect with external earphone or programming cable.
(10) Belt Clip
Used to clip the radio on your belt.
(11) Battery Pack
(12) PTT key
Hold down PTT, radio operates in transmit mode. Release PTT, radio returns to receive mode.
(13) Programmable Key [B]
(14) Programmable Key [C]
The following table shows the key function when short pressed, long pressed and held down:
Key function
Key Function Short Press Long Press Hold Down
Emergency Siren Enable emergency siren Disable emergency siren
Monitor
－ －
Scan Enable/Disable scan Enable/Disable scan
Nuisance Delete
Select High/Low
Power
Repeater/Talk Around
Repeater/Reverse
Frequency
Delete nuisance channel
in scan
Select High/Low Power Select High/Low Power
Select Repeater or Talk
Around Mode
Select Repeater or
Reverse Frequency Mode
Delete nuisance channel in
scan
Select Repeater or Talk
Around Mode
Select Repeater or
Reverse Frequency Mode
Call Transmit a Call Transmit a Call
Selective Call Transmit Selective Call Transmit Selective Call
Group Call Transmit Group Call Transmit Group Call
Vibration Toggle Vibration On/Off Toggle Vibration On/Off
－
Monitor
－
－
－
－
－
－
－
－
－
Note: You can program emergency siren feature to [A] key only. Once [A] key is programmed as
emergency siren key, you can’t program it with other features. Monitor feature can be programmed to [B]
or [C] key only. After programmed as monitor key, [B]/[C] key can’t be programmed with other features.
- 4 -
Radio Feature Description
1. CTCSS/CDCSS/2-Tone/5-Tone
2. Channel Spacing 25KHz/12.5KHz (Wide/Narrow)
3. Programmable key
4. Squelch Tail Elimination
5. Priority Channel Scan/Nuisance Delete
6. Busy Channel Lockout
7. High/Low Power
8. Emergency Siren
9. Repeater/Talk Around
10. Call
11. TOT
12. VOX
13. Battery Save
14. Low Battery Alert
15. Voice Compander
16. Software Upgrade
17. Wired Clone
18. PC Programming
19. Vibration
RP3000 Radio Feature Description
- 5 -
RP3000 Radio Modes
Radio Modes
Frame of Radio Modes
User Mode
Clone Mode
Power On
Program Download
Adjustment Mode
All Reset Mode
Entry for Mode Startup
User Mode
Turn the power on to enter User Mode. This mode is for normal operation.
Clone Mode
1) Turn the power on while holding down [PTT] key and programmable key [B] simultaneously. After
two seconds, a BEEP sounds and LED glows orange indicating that the radio enters clone mode.
2) In clone mode, press programmable key [B] to begin wired clone. Then press [PTT] key, MCU
transmits data directly through UART port. During cloning, LED of source radio flashes red and
that of target radio flashes green. A BEEP sounds when cloning is complete.
3) Press programmable key C to enter wireless clone mode. Press and hold PTT key, the radio
transmits data on the default frequency. To receive the data, the target radio should enter wireless
clone mode. User mode is reset when cloning is completed.
- 6 -
RP3000 Radio Modes
Program Download
1) Connect the radio with the PC through download cable, after two seconds, the radio enters
download mode. LED glows orange.
2) You can update software and provide second development feature for the user via PC update
program. LED flashes orange during program download.
All Reset Mode
Turn on the power while holding down PTT and programmable key A simultaneously (or short circuit the
two SELF points) to enter all reset mode. The EEPROM data is all reset. A BEEP sounds and LED
glows orange when All Reset is complete.
Adjustment Mode
Turn the power on while holding down PTT and programmable key C, after two seconds, the radio
enters adjustment mode. LED glows orange. Rotate channel selector knob to select corresponding test
item. Hold down PTT key to switch between wideband and narrowband. Briefly press PTT to transmit or
switch among center, low and high frequency. Briefly press A key to save data. Press B key to adjust
upwards and C downwards.
CH1-CH16 are defined as following:
CH1: Transmitting VCO; CH2: Receiving VCO;
CH3: CTCSS balance; CH4: Frequency Accuracy;
CH5: High power; CH6: Low power;
CH7: CDCSS balance; CH8: MIC sensitivity;
CH9: Maximum frequency deviation; CH10: CTCSS deviation;
CH11: CDCSS deviation; CH12: TONE deviation;
CH13: Receiving sensitivity; CH14: Squelch level;
CH15: Low battery alert level; CH16: VOX sensitivity.
- 7 -
RP3000 Circuit Description
Circuit Description
1. Power Supply
Power supply of the radio is derived from the battery, which supplies battery B+ after passing
through fuse 3A and then feeds through power switch. The power supplies voltage for three AVRs.
IC505 supplies 5V (5M) voltage for the control circuit. IC9 supplies 5V (5C) voltage for the shared
circuit. And IC6 supplies voltage for the transmit/receive circuit. In transmit mode, 5TC becomes low
voltage and Q3 is turned on to supply 5V(5T) voltage for the transmit circuit. In receive mode, 5RC
becomes low voltage and Q2 is turned on to supply 5V (5R) voltage for the receive circuit.
BATT FUSE
PROTECT
SW
AVR
AVR
AVR
SAVE
5M
5C
SW
5RC
SW
5TC
BUFF
5R
5T
1/2BIAS
Fig. 1 Power Supply Block Diagram
2. PLL Frequency Synthesizer
PLL circuit generates the first local oscillator signal for reception and RF signal for
transmission.
T/R
VCO
CV
Q310
BUFF SW
Q416
BUFF
D103
SW
D100
To Drive Amp
UL
IC500
CPU
IC400
PLL
CLK,DAT,EN
Fig2. PLL circuit
X401
TCXO
- 8 -
To Mixer
MB
RP3000 Circuit Description
1) PLL
IC400 is a divider. Step frequency of PLL circuit is 2.5 KHz or 6.25 KHz. A 16.8MHz reference
oscillator signal is divided at IC400 by a fixed counter to generate a 2.5 KHz or 6.25 KHz reference
frequency. Output signal from VCO is buffer amplified by Q416 and divided at IC400 by a frequency
divider. Divided signal is compared in the phase comparator with 2.5 KHz or 6.25KHz reference
signal of IC400. Output signal from phase comparator is filtered through a low pass filter and
passed to the VCO to control oscillator frequency.
2) VCO
The operating frequency is generated by Q352 in transmit mode and by Q350 in receive mode.
Operating frequency generates a control voltage by phase comparator to control varactor diodes so
that the oscillator frequency is consistent with the MCU preset frequency (D350, D352, D354 and
D355 in transmit mode and D351, D353, D356 and D357 in receive mode). T/R pin is set high level
in receive mode and low in transmit mode. The output from Q352 and Q350 is amplified by Q354
and sent to buffer amplifier.
3) Unlock Detector
An unlock condition appears if low level appears at LOCK pin of IC400. Transmission is forbidden if
this condition is detected by microprocessor.
3. Receiver
The receiver utilizes double conversion superheterodyne.
ANT
CF201,202
C
ANT
SW
BPF Q201
RF AMP
BPF
MIXER
IF AMP
IC218
1st Local OSC
(PLL)
Q216
Fig.3 Receiver Section Configuration
1) Front-end Amplifier
The signal from antenna is amplified at RF amplifier (Q201) after passing through a
transmit/receive switch circuit and a band pass filter. The amplified signal is filtered
through a band pass filter to remove unwanted signals before it passes the first mixer.
2) First Mixer
The signal from RF amplifier is mixed with the first local oscillator signal from PLL frequency
synthesizer circuit at the first mixer (IC218) to create a 44.85MHz first IF signal. The first IF signal is
then fed through a crystal filter (XF201) to further remove spurious signals from adjacent channel.
MCF
XF201
IF AMP
Q222
IF,MIX,DET
IC204
2nd Local OSC
AF AMP
IC720 SP
- 9 -
RP3000 Circuit Description
3) IF Amplifier
The first IF signal is amplified by Q216 before passing through crystal filter and by Q222 after crystal
filter and then enters IF processing chip IC204. The signal is mixed with the second local oscillator
signal again in IC204 to create a 455KHz second IF signal. The second IF signal then passes
through a 455KHz ceramic filter (wideband: CF201/narrowband: CF202) to eliminate unwanted
signals before it is amplified and detected in IC204.
4) Narrowband/Wideband Switch Circuit
Turn on ceramic filter CF201 (wideband)/CF202 (narrowband) to set each channel as wideband or
narrowband. W/N pin of IC500 outputs wideband (high level) and narrowband (low level) signal.
5) AF Amplifier
The result AF signal from IC204 is amplified by IC606, and then passes through AF processing chip
IC601 and compander IC603. The processed AF signal is then amplified by an AF power amplifier
(IC720) to drive the speaker.
4. Transmitter
1) AF and Signaling
Modulating signal from the microphone passes through Q700 switch and compander IC603 before
it enters AF processing chip IC601. CPU generates CTCSS/CDCSS signaling and IC601 produces
DTMF/2-Tone/5-Tone signaling, which then pass through MOD and enter VCO together with the
modulating signal for direct FM modulation. (See fig.5)
2) RF Amplifier
The transmit signal from VCO buffer amplifier (Q310) is amplified by Q101 and Q102. The
amplified signal is then amplified by the power amplifier Q105 and Q107 (include a two-stage FET
amplifier) to create 4.0W RF power. (See fig.4)
AMP
Q103.Q104
B SW
Q101.102
5T
DET
D
C
DRIVE AMP
Q105
APC
IC100
Q109
SW
FINAL AMP
Q107
ANT SW
D101 LPF
ANT
B
B
APC
TH101
5T
A
SW
Q110
5T
Q108
SW
5T
5TC
Q106
SW
RX
ANT SW
D201.202
Title
Fig.4 APC System
- 10 -
RP3000 Circuit Description
3) Antenna Switch and LPF
Output signal from RF amplifier passes through a low-pass filter network and a transmit/receive
switch circuit comprised of D101, D201 and D202 before it reaches the antenna terminal. D201 and
D202 is turned on (conductive) in transmit mode and off (isolated) in receive mode.
4) APC
The automatic power control (APC) circuit stabilizes the transmit output power by detecting the
drain current of final stage amplifier FET. IC100 (2/2) compares the preset reference voltage with
the voltage obtained from final current. APC voltage is proportional to the difference between auto
detect voltage and reference voltage output from IC100 (1/2). The output voltage controls FET
power amplifier and keeps the transmitter output power constant. The output voltage can be varied
by the microprocessor, which hence controls the transmitter output power.
5. Signalling Section
The block diagram of signaling section is shown as figure 5.
BYPATH
EXT_MIC
MIC
Q700
SW
Q701
SW
EXT_SP_SEL
EXT_MIC_SEL
IC606
BUFF AMP
Vbias
LIMITTER
IC611
FILTER
MIC
D601
X601
IC603
COMPANDER
COMPRESSOR EXPANDER
MIC_FB
BASEBAND PROCESSOR
BBP_RPL
BBP_IRQN
Vbias
IC601
AUDIO
AF PA
BBP_CLK
BBP_CMD
BBP_CSN
AF PA
IC710
EXT_SPK+
IC605
BUFFER
Q710
SW
SP
AUDIO_EN
Ver
MB
MOD
Fig.5 AF and Signalling Circuit
In the transmit section, CTCSS/CDCSS signaling are produced by MCU and DTMF/2-Tone/5-Tone
by IC601 under the control of MCU. Signalings then enter VCO together with AF signal from MIC
for modulation.
In the receive section, after buffer amplified together with IF demodulation signals, the signallings
enter CPU and IC601 respectively for decode.
- 11 -
RP3000 Circuit Description
6. Control System
The IC500 CPU operates at 9.8304MHz.
The block diagram of MCU control system is shown as following:
E2PROM FLASH
CTC/CDC Codec
RESET
AF Processor
MCU
TXD/RXD
APC/TV
SAVE
BEEP
LED
AP SW I/E
MUTE
5TC
5RC
W/N
T/R
CH Encode
VOL Level
BATT Det
KEY SW
PTT
RSSI
PLL IC
Fig.6 MCU Block Diagram
Circuit in this section is mainly comprised of MCU, EEPROM, FLASH and reset IC etc.
MCU control circuit accomplishes the following functions: accomplish the reset initialization
according to the programmed feature of the radio when power on; detect key signal and monitor
battery voltage; send necessary frequency data to PLL according to encode of the channel; switch
and control transmit/receive according to the signal input from PTT; turn on/off the mute circuit
according to the input signaling decode signal and squelch level signal; output control signal to
control the light/off of LED; control signaling process IC to perform tasks.
- 12 -
RP3000 CPU Pins
CPU Pins
No. Port Name I/O Feature Description
1 P94 O Ver Frequency accuracy adjustment
2 P93 O APC/TV Transmit power/receiving sensitivity adjustment
3 P92 I MOTCON Motor control
4 P91 I External option judgement NC
5 P90 I SELF All reset mode control; ground this pin to enter all reset mode
6 BYTE I VCC 8 bit external data bus
7 CNVSS I GND MCU operates in single-chip mode after reset
8 P87 I Key2 NC
9 P86 I Key3 NC
10 RESET I Reset IC MCU reset when low level is input
11 Xout O Crystal oscillator output 9.8304M crystal oscillator
12 Vss I GND Ground
13 Xin I Crystal oscillator input 9.8304M crystal oscillator
14 Vcc I VCC Power supply
15 P85 I NMI Connect with high level
16 P84 I EN0 Channel selector knob input
17 P83 I SW1 A key
18 P82 I BBP_IRQN CMX881 interrupt output
19 P81 I BBP_RPL CMX881 data output
20 P80 O BBP_CLK CMX881 clock input
21 P77 O BBP_CMD CMX881 data input
22 P76 O BBP_CSN CMX881 data enable, low level: Enable
23 P75 O AUDIO_EN AF amplifier control H: Enable L: Standby
24 P74 O CTC_COD CTCSS output
25 P73 O BYPATH Compander enable L: Enable H: Disable
26 P72 O W/N Narrowband/wideband H: Wideband L: Narrowband
27 P71 I/O EEPROM_DATA EEPROM data
28 P70 O EEPROM_CLOCK EEPROM clock input
29 P67 O MIC_SEL
30 P66 I MIC_JUG
31 P65 I LOCK PLL unlock detect H: PLL lock L: PLL unlock
32 P64 O PLL_EN PLL IC strobe
33 P63 O TXD Serial data output
34 P62 I RXD Serial data input
35 P61 I Key4 NC
-13 -
RP3000 CPU Pins
36 P60 I SOFT_SW NC
37 P57 O VCC Clock output, connected to high level (Null)
38 P56 NULL
39 P55 I VCC HOLD pin, connected to high level (Null)
40 P54 NULL
41 P53 NULL
42 P52 O OE Flash data output enable, active low
43 P51 NULL
44 P50 O WE Flash data input enable, active low
45 P47 I OPTION2 External accessory select
46 P46 I OPTION1 External accessory select
47 P45 O T/R
48 P44 O CE Flash chip select, active low
49 P43 NULL
50 P42 O A18 Flash address
51 P41 O A17 Flash address
52 P40 O A16 Flash address
53 P37 O A15 Flash address
54 P36 O A14 Flash address
55 P35 O A13 Flash address
56 P34 O A12 Flash address
57 P33 O A11 Flash address
58 P32 O A10 Flash address
59 P31 O A9 Flash address
60 Vcc I VCC
61 P30 O A8 Flash address
62 Vss I GND
63 P27 O A7 Flash address
64 P26 O A6 Flash address
65 P25 O A5 Flash address
66 P24 O A4 Flash address
67 P23 O A3 Flash address
68 P22 O A2 Flash address
69 P21 O A1 Flash address
70 P20 O A0 Flash address
71 P17 I SW3 C key
72 P16 I SW2 B key
Transmit/receive PLL select
H: receive L: transmit
-14 -
RP3000 CPU Pins
73 P15 I PTT PTT key
74 P14 O LR Red LED control H: light L: off
75 P13 O LG Green LED control H: light L: off
76 P12 O SAVE Battery save control H: off L: on
77 P11 O 5TC
78 P10 O 5RC
79 P07 I/O D7 Flash data
80 P06 I/O D6 Flash data
81 P05 I/O D5 Flash data
82 P04 I/O D4 Flash data
83 P03 I/O D3 Flash data
84 P02 I/O D2 Flash data
85 P01 I/O D1 Flash data
86 P00 I/O D0 Flash data
87 P107 I EN3 Channel selector knob input
88 P106 I EN2 Channel selector knob input
89 P105 I EN1 Channel selector knob input
90 P104 I CTCSS_DEC CTCSS input
91 P103 I BATTD Low battery level detect (analogue)
92 P102 I SQL Squelch level input (analogue)
93 P101 I RSSI RSSI detect pin (analogue)
94 Avss I VCC A/D conversion power supply input
95 P100 I VOL Volume knob input (analogue)
96 Vref I VCC Battery detect reference voltage
97 Avcc I VCC A/D conversion power supply input
98 P97 NULL
99 P96 O PLL_DATA PLL IC data input
100 P95 O PLL_CLK PLL IC clock
Transmit circuit power supply control
H: off L: on
Receive circuit power supply control
H: off L: on
-15 -
RP3000 Adjustment Description
Adjustment Description
Button Layout
1
1. Antenna
2
2. Channel Selector knob
4
9
7
8
Required Test Instrument
Radio communication test set 1 set
Scanner 1 set
3A/10V power supply 1 set
Digital voltmeter 1 set
3A Ammeter 1 set
3
5
6
3. Power/Volume Control Knob
4. LED indicator
5. Programmable Key A
6. External Jack
7. Programmable Key B
8. Programmable Key C
9. PTT key
Preparation
Open the programming software in PC and operate as the following instructions.
1. Programme Download
Connect the radio with the computer via download cable. And then turn the power on. LED glows orange.
Click “Programme Download” on the interface to select wanted programme. Click “Open” to begin
download and LED flashes orange. When download is completed, click “End” and turn the power off.
And then disconnect the download cable.
2. Initialization
Turn the power on while holding down [PTT] and [A] key simultaneously. LED glows orange and a BEEP
sounds. Radio channel frequency and setting data are initialized.
-16 -
RP3000 Adjustment Description
3. Destination Set
Connect the radio with the computer via programming cable. And then turn the power on. LED glows red.
Set “frequency range” on the programming software interface. And then click “Programme” →
“ Writing”.
4. Factory Setting
The compander is open. Squelch level 2. Adjustment mode is disabled.
Adjustment Method
1) Turn the power on while holding down PTT and programmable key C, after two seconds, the radio
enters adjustment mode.
2) CH1-CH16 are defined as following:
CH1: Transmitting VCO;
CH2: Receiving VCO;
CH3: CTCSS balance
CH4: Frequency Accuracy;
CH5: High power;
CH6: Low power;
CH7: CDCSS balance;
CH8: MIC sensitivity;
CH9: Maximum frequency deviation;
CH10: CTCSS deviation;
CH11: CDCSS deviation;
CH12: TONE deviation;
CH13: Receiving sensitivity;
CH14: Squelch level;
CH15: Low battery alert level;
CH16: VOX sensitivity.
-17-
RP3000 Adjustment Description
A
A
VCO
Measurement Adjustment
Item Condition
1. Setting Power supply 7.5V
2.Transmit
VCO lock
voltage
3. Receiving
VCO lock
voltage
1.Turn to CH1. Press
PTT. TX High
2. Press PTT again.
TX Low
1. Turn to CH2. Press
PTT. TX High
2. Press PTT again.
TX Low
Test
Instrument
Digital
Voltmeter
Terminal Part Method
Check
Check
Check
Check
CV
TC350
TC351
Transmitter
Item Condition
1. CTCSS
balance
2. Transmit
frequency
Turn to CH3.
Press PTT.
Turn to CH4.
Press PTT.
Test Instrument Terminal Part Method
Measurement Adjustment
Oscillograph
Radio
Communication
Test Set
ANT
ANT
VR601
[B] (up)
[C] (down)
djust variable
resistor to rectify the
waveform to balance.
Press [A] to save.
djust to center
frequency. Press [A]
to save.
Specification/
Remarks
3.1V±0.2V
1.0V±0.2V
3.1V±0.2V
1.0V±0.2V
Specification/
Remarks
Error≤150Hz
-18 -
A
A
A
A
A
A
A
A
3. Power
4. CDCSS
balance
High
Low
Wideband
Narrow-
band
1. Turn to CH5.
Press PTT.
Center frequency
2. Press PTT.
Frequency changes
to low frequency.
3. Press PTT again.
Frequency changes
to high frequency.
1. Turn to CH6.
Press PTT.
Center frequency.
2. Press PTT.
Frequency changes
to low frequency.
3. Press PTT again.
Frequency changes
to high frequency.
1. Turn to CH7.
Press PTT.
The radio operates
with wideband.
Center frequency.
2. Press PTT.
Frequency changes
to low frequency.
3. Press PTT again.
Frequency changes
to high frequency.
4. Press PTT for
two seconds. LED
flashes indicating
that the radio
operates with
narrowband.
Center frequency.
djust narrowband
following the above
steps.
Radio
Communication
Test Set
mmeter
Radio
Communication
Test Set
LPF: 15KHz
ANT
ANT
RP3000 Adjustment Description
djust to 4.0 W,
I≤1.6A.
Press [A] to save.
djust to 4.0 W,
[B] (up)
[C] (down)
[B] (up)
[C] (down)
I≤1.6A.
Press [A] to save.
djust to 4.0 W,
I≤1.6A.
Press [A] to save.
djust to 2.0 W,
I≤1.2A.
Press [A] to save.
djust to 2.0 W,
I≤1.2A.
Press [A] to save.
djust to 2.0 W,
I≤1.2A.
Press [A] to save.
Rectify the
waveform to
square wave.
Press [A] to
save.
4.0W±0.3W
2W±0.3W
-19 -
RP3000 Adjustment Description
A
A
A
A
A
1. Turn to CH8.
Press PTT.
The radio operates
with wideband.
Center frequency.
2. Press PTT.
5. MIC Sensitivity
(Wideband)
Wideband
6. Maximum
frequency
deviation
Narrow-band
Frequency
changes to low
frequency.
3. Press PTT
again. Frequency
changes to high
frequency.
1. Turn to CH9.
Press PTT.
The radio operates
with wideband.
Center frequency.
2. Press PTT.
Frequency
changes to low
frequency.
3. Press PTT
again. Frequency
changes to high
frequency.
4. Press PTT for
two seconds. LED
flashes indicating
that the radio
operates with
narrowband.
Center frequency.
djust narrowband
following the above
steps.
Radio
Communication
Test Set
LPF:15KHz
F: 1KHz 24mV
Radio
Communication
Test Set
LPF:15KHz
F:1KHz
200mV
ANT
MIC Jack
ANT
MIC Jack
[B] (up)
[C] (down)
[B] (up)
[C] (down)
Check Frequency
deviation
2.9±0.1KHz.
Press [A] to save.
djust it to
4.0KHz±100Hz.
Press [A] to save.
djust it to
2.0KHz±100Hz.
Press [A] to save.
Adjust as
wideband.
-20 -
A
A
A
A
A
A
7.CTCSS
deviation
8.CDCSS
deviation
1. Turn to CH10.
Press PTT.
The radio operates
with wideband.
Center frequency.
Wideband
Narrow-band
Wideband
Narrow-band See CTCSS deviation
2. Press PTT.
Frequency changes
to low frequency.
3. Press PTT again,
frequency changes to
high frequency.
4. Press PTT for two
seconds. LED flashes
indicating that the
radio operates with
narrowband.
High frequency.
5. Press PTT.
Frequency changes
to center frequency.
6. Press PTT.
Frequency changes
to low frequency.
Turn to CH11.
See CTCSS deviation
adjustment.
adjustment.
Radio
Communication
Test Set
LPF: 3KHz
F：1KHz OFF
Radio
Communication
Test Set
LPF: 3KHz
F：1KHz OFF
RP3000 Adjustment Description
djust deviation to
0.70KHz±50Hz.
Press [A] to save.
ANT
ANT
[B] (up)
[C] (down)
[B] (up)
[C] (down)
djust deviation to
0.35KHz±50Hz.
Press [A] to save.
djust deviation to
0.70KHz±50Hz.
Press [A] to save.
djust deviation to
0.35KHz±50Hz.
Press [A] to save.
-21-
RP3000 Adjustment Description
A
A
A
9.TONE
deviation
10. Low battery alert level
11.VOX Sensitivity
Wideband
Narrow-band
Turn to CH12.
See CTCSS deviation
adjustment.
See CTCSS deviation
adjustment.
Turn to CH15. Adjust
voltage to 6.1V.
Turn to CH16.
djust it to 3KHz
Radio
Communication
Test Set
LPF: 3KHz
Digital Voltmeter Press [A] to save.
Radio
Communication
Test Set
LPF: 15KHz
F: 1KHz 3mV
ANT
ANT
MIC Jack
[B] (up)
[C] (down)
Press [A] to save.
±0.1KHz.
Press [A] to save.
djust it to 1.45KHz
±0.05KHz
Press [A] to save.
-22-
Receiver
A
A
A
Item Condition
Sensitivity
Wideband
Squelch
Narrow-band
1. Turn to CH13.
Press PTT.
Center frequency.
2. Press PTT.
Frequency changes to
low frequency.
3. Press PTT.
Frequency changes to
high frequency.
1. Turn to CH14.
Press PTT.
The radio operates
with wideband.
Center frequency.
2. Press PTT.
Frequency changes to
low frequency.
3. Press PTT.
Frequency changes to
high frequency.
4. Press PTT for two
seconds. LED flashes
indicating that the
radio operates with
narrowband.
High frequency.
5. Press PTT.
Frequency changes to
center frequency.
6. Press PTT.
Frequency changes to
low frequency.
RP3000 Adjustment Description
Measurement Adjustment
Test Instrument Terminal Part Method
djust the
Scanner
Radio
Communication
Test Set
SSG output:
-118dBm
MOD: 1KHz
DEV: ±3KHz
FILTER:
0.3-3.4KHz
Radio
Communication
Test Set
SSG output:
-118dBm
MOD:1KHz
DEV:±1.5KHz
FILTER:
0.3-3.4KHz
ANT
ANT
Speaker
Jack
T1
[B] (up)
[C] (down)
waveform.
Press [A] to
save.
djust radio
communication
test set.
SSG output:
SINAD: 15dB
Press [A] to
save.
djust radio
communication
test set.
SSG output:
SINAD: 15dB
Press [A] to
save.
Specification/
Remarks
-23 -
RPU3000 Part List 1(Control Board)
RPU3000 Part List 1（Control Board）
No. Ref. No. Material No. Specification Print No.
1 R501 01020002 0Ω B3B
2 R502 NC T3C
3 R503 NC T3B
4 R504 01024732 47KΩ T3C
5 R505 01021012 100Ω B2B
6 R506 01021012 100Ω B3B
7 R507 01020002 0Ω B3B
8 R508 01020002 0Ω B3B
9 R510 01024732 47KΩ B2B
10 R511 01024732 47KΩ B2B
11 R532 01024732 47KΩ B2B
12 R533 01020002 0Ω B3B
13 R535 NC T3B
14 R536 01024732 47KΩ T3C
15 R537 01021022 1KΩ T3C
16 R538 01020002 0Ω T3B
17 R539 01024732 47KΩ T2C
18 R540 01024732 47KΩ T2C
19 R541 NC B1B
20 R542 NC B1B
21 R550 01024732 47KΩ B3B
22 R551 01021042 100KΩ B3C
23 R556 01021042 100KΩ B3C
24 R557 01021042 100KΩ B3C
25 R558 01021042 100KΩ B3C
26 R560 01024732 47KΩ T3C
27 R562 01024732 47KΩ B3B
28 R563
29 R564
30 R565
31 R567
32 R568
33 R570 01020002 0Ω T1B
34 R571 01023322 3.3KΩ B2C
35 R601 01021022 1KΩ
36 R602
37 R603
38 R604
39 R605 01021042 100KΩ B3C
40 R606 01021541 150KΩ 1% B3C
01024732
01024732
01024732
01024732
01024732
01024732
01024732
01024732
47KΩ B1C
47KΩ B1C
47KΩ B2C
4.7KΩ B3B
4.7KΩ B3B
B2C
47KΩ B2C
47KΩ B3C
47KΩ B3C
Remarks
-24 -
RPU3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
41 R607
42 R608 01020002 0Ω B2C
43 R609 01021242 120KΩ T1B
44 R610 01024732 47KΩ B2D
45 R611 01023032 30KΩ B2C
46 R612 01020002 0Ω B2C
47 R613 01021042 100KΩ T2B
48 R614 01025632 56KΩ T2B
49 R615 01021541 150KΩ 1% T2B
50 R616 01021042 100KΩ T2B
51 R617 01024732 47KΩ B1D
52 R618 01021541 150KΩ 1% B3C
53 R619 01021042 100KΩ B3C
54 R620 01021002 10Ω B1C
55 R621 01022232 22KΩ T1B
56 R622 01023932 39KΩ T1B
57 R623 01023032 30KΩ B1C
58 R624 01021522 1.5KΩ B2D
59 R625 01021002 NC B1B
60 R626 01023932 39KΩ B3C
61 R627 01021042 100KΩ B3C
62 R628 01021842 180KΩ B3C
63 R629 01024722 4.7KΩ T2B
64 R630 01021022 1KΩ T3B
65 R631 01021022 1KΩ T3B
66 R632 01021022 1KΩ T3B
67 R633 01021022 1KΩ T3B
68 R634 01021022 1KΩ B1C
69 R635 01021042 100KΩ B1C
70 R635A 01021042 100KΩ
71 R637 01021842 180KΩ T2B
72 R639 01021852 1.8M B3C
73 R642 01023332 33KΩ B2C
74 R643 01023332 33KΩ B3C
75 R644 01021032 10KΩ
76 R645 01023332 33KΩ B3C
77 R646 01023332 33KΩ B3C
78 R647 01021032 10KΩ B3C
79 R648 01023322 3.3KΩ B3C
80 R649 01021852 1.8M B3C
81 R650 01021042 100KΩ B2D
82 R651 01023922 3.9KΩ B2D
01024732
47KΩ B3C
B3C
Remarks
-25 -
RPU3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
83 R652 01021541 150KΩ 1% B2D
84 R653 01021541 150KΩ 1% B2D
85 R654 01023922 3.9KΩ B2D
86 R655 01023322 3.3KΩ B2D
87 R656 01021541 150KΩ 1% B2D
88 R657 01021541 150KΩ 1% B2D
89 R659 01022222 2.2KΩ B2D
90 R660 01024722 4.7KΩ B1C
92 R662 01026822 6.8KΩ T2B
93 R663 01022732 27KΩ B1C
94 R665 01024722 4.7KΩ B1C
95 R666 01021232 12KΩ B1C
96 R667 01021032 10KΩ B1C
97 R669 01022732 27KΩ T2B
98 R670 01023322 3.3KΩ B2C
99 R671 01023942 390KΩ T2B
100 R672 01021541 150KΩ 1% T2B
101 R673 01021022 1KΩ B1C
102 R674 01021032 10KΩ B1C
103 R675 01021532 15KΩ B1C
104 R676 01021042 100KΩ B3C
105 R677 01021242 180KΩ B3C
106 R678 01021042 100KΩ T2B
107 R679 01021242 120KΩ B3C
108 R680 01026822 6.8KΩ B3C
109 R681 01020002 0Ω B3C
110 R682 01020002 0Ω B3C
111 R683 01023322 33KΩ B3C
112 R684 01026822 6.8KΩ B3C
113 R685 01024732 47KΩ B3C
114 R686 01028232 82K B2C
115 R687 01028232 82K T3B
116 R688 01028232 82K B3C
117 R689 01028232 82K B3C
118 R690 01028232 82K T3B
119 R691 01028232 82K T3B
120 R692 01021042 100KΩ B3C
121 R702 01024712 470Ω B3D
122 R703 01024712 470Ω B3D
123 R704 01021822 1.8KΩ B3D
124 R705 01021042 100KΩ B3D
125 R712 01021042 100KΩ B3D
Remarks
-26 -
RPU3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
126 R714 01021022 1KΩ B4D
127 R723 01024742 470KΩ B3D
128 R724 01023032 30KΩ B3C
129 R731 01024742 470KΩ B3C
130 R738 01021012 100Ω B3D
131 R739 01021012 100Ω B3C
132 R750 01026802 68Ω B3C
133 R771 01022232 22KΩ T3B
134 R772 01023032 30KΩ B3D
135 R773 01021002 10Ω B4C
136 R798 01021032 10KΩ B3C
137 R799 01021032 10KΩ B3D
138 CP501 012D473J 47K×2 B2B
139 CP502 012D473J 47K×2 B2B
140 CP504 012D473J 47K×2 B3B
141 TH601 0135472A Thermal Resistor 4.7K B3C
142 VR601 0122473H Adjustable Resistor 47K T3B
143 C501 0202103K 0.01u B1C
144 C502 0202103K 0.01u B2B
145 C503 0202103K 0.01u B3B
146 C504 0202270J 27p T3C
147 C505 0202103K 0.01u T3C
148 C506 0202270J 27p T3C
149 C507 0202101J 100p B4B
150 C508 0202101J 100p B4B
151 C509 0202101J 100p B4B
152 C510 0202101J 100p B4C
153 C511 0202101J 100p B4C
154 C512 02024713 470p B4B
155 C514 0202101J 100p B4B
156 C515 0202101J 100p B4B
157 C516 0202101J 100p B4B
158 C517 0202101J 100p B4C
159 C518 0202101J 100p B4C
160 C519 0202101J 100p B4B
161 C522 0202101J 100p B4B
162 C523 0202101J 100p B4B
163 C524 0202101J 100p B4B
164 C525 0202101J 100p B4B
165 C526 0202101J 100p B4B
166 C527 0202101J 100p B4B
167 C528 0202101J 100p B4B
Remarks
-27 -
RPU3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
168 C530 0202101J 100p B4B
169 C531 0202101J 100p B4B
170 C532 0202101J 100p B4B
171 C533 0202101J 100p B4B
172 C534 0202101J 100p B4B
173 C535 0202101J 100p B4B
174 C536 0202101J 100p B4B
175 C553 02024713 470p B3C
176 C554 02024713 470p B3C
177 C555 02024713 470p B3C
178 C557 02024713 470p B3C
179 C558 0202103K 0.01u B3C
180 C559 02024713 470p B3B
181 C560 02022733 0.027u B3B
182 C561 02022733 0.027u B3B
183 C570 02024713 470p B2C
184 C572 02024713 470p B2C
185 C573 02024713 470p B2C
186 C601 0202105Z 1u B3C
187 C603 0202101J 100p B2C
188 C604 0202104Z 0.1u B3C
189 C605 0202104Z 0.1u T2B
190 C609 0202103K 0.01u B2C
191 C612 NC B2C
192 C613 0202104Z 0.1u T2B
193 C614 0202104Z 0.1u T2B
194 C615 0202103K 0.01u B2C
195 C617 02024713 470p T2B
196 C619 NC B2C
197 C620 0202105Z 1u B1C
198 C627 0202105Z 1u B1D
199 C628 0202104Z 0.1u B1C
200 C630 0202101J 100p T2B
201 C632 0202104Z 0.1u T1B
202 C635 0202101J NC B1B
203 C636 0202105Z 1u T1B
204 C638 02022712 270p T2B
205 C639 0202101J NC B1C
206 C640 0202102K 1000p T2B
207 C642 02024702 47p B3C
208 C643 0202104Z NC B1B
209 C645 0202103K 0.01u B3C
Remarks
-28 -
RPU3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
210 C646 0202101J 100p B2D
211 C647 02024713 470p B3C
212 C649 0202103K 0.01u T2B
213 C650 0202103K 0.01u B3C
214 C651 0202104Z 0.1u B2D
215 C652 02023333 0.033u B2D
216 C654 02023333 0.033u B2D
217 C657 02023333 0.033u T2A
218 C658 0202103K 0.01u B2D
219 C660 0202104Z 0.1u B2D
220 C661 02026833 0.068u B2D
221 C664 02023323 3300p B3C
222 C665 02023313 330p B3C
223 C666 0202103K 0.01u B3C
224 C667 0202105Z 1u B3C
225 C668 02023323 3300p B3C
226 C669 0202102K 1000p B3C
227 C670 02023333 0.033u B3C
228 C671 02025623 5600p B3C
229 C674 0202105Z 1u T2B
230 C675 0202105Z 1u T2B
231 C676 0202103K 0.01u B1C
232 C677 0202104Z 0.1u B1C
233 C678 0202102K 1000p B1C
234 C679 02026833 0.068u B1C
235 C680 02023333 0.033u B1C
236 C681 0202105Z 1u B1C
237 C682 0202104Z 0.1u B1C
238 C684 02022233 0.022u B3C
239 C691 02024713 470p B3C
240 C693 02024733 0.047u B3C
241 C694 0202102K 1000p B3C
242 C733 0202101J 100p B4C
243 C734 0202101J 100p B3C
244 C735 0202101J 100p B3D
245 C736 0202101J 100p B4D
246 C737 0202101J 100p B3C
247 C738 0202101J 100p B4C
248 C739 0202101J 100p B4C
249 C740 0202101J 100p B4C
250 C741 0202101J 100p B4D
251 C742 0202101J 100p B4D
-29 -
Remarks
RPU3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
252 C743 0202101J 100p B4D
253 C744 0202104Z 0.1u B3D
254 C747 0202104Z 0.1u B3D
255 C748 0202104Z 0.1u B3C
256 C750 0202102K 1000p B3D
257 C752 0202104Z 0.1u B4C
261 C663 02031053 1u B2C
262 C683 02031053 1u B3C
265 C689 02031053 1u B3C
266 C749 0206106Z 10u T3A
267 C751 0206106Z 10u T3A
268 C556 T0510475 4.7u10 T3B
269 C571 T0510475 4.7u10 B2C
270 C610 T0506106 10u6.3 T2B
259 C611 T0506156 15u6.3 B3C
271 C616 T0506106 10u6.3 T2B
260 C618 T0506106 10u6.3 T3B
272 C625 T0510225 2.2u10 B1D
273 C626 T0506106 10u6.3 B1D
274 C629 T0506106 10u6.3 B1C
275 C633 T0510225 2.2u10 B1C
276 C634 T0506106 10u6.3 B1C
277 C648 T0510475 4.7u10 T3B
278 C655 T0506106 10u6.3 B2D
279 C673 T0510475 4.7u10 T2B
263 C685 T0506156 15u6.3 B2C
264 C686 T0506156 15u6.3 B3C
280 C692 T0506106 10u6.3 T3B
281 C702 T0506106 10u6.3 T3A
282 L512 0313121P Chip Bead B3B
283 L523 0313121P Chip Bead B1C
284 L524 0313121P Chip Bead B1C
285 L528 0313121P Chip Bead T3B
286 L601 03301010 100n B2C
287 L603 03301010 100n B2C
288 IC500 074102GP T2C
289 IC501 0729C020 T1C
290 IC502 0724C064 T3C
291 IC503 07111N42 T3B
292 IC505 0701P502 T3B
293 IC506 07625002 T2B
294 IC601 07000881 T2B
Remarks
-30 -
RPU3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
295 IC603 07850701 T2A
296 IC604 NC B1C
297 IC605 0775S01F T2B
298 IC606 077551FU T3B
299 IC607 077551FU B1C
300 IC608 077551FU T3B
301 IC612 077551FU T3B
302 IC720 0778547T T3A
303 Q501 0506114E B2C
304 Q502 05011132 T1B
305 Q601 05025343 T2B
306 Q602 05025343 B2D
307 Q603 05025343 B2D
308 Q604 05025343 B1C
309 Q605 05025343 B3C
310 Q606 05025343 B3C
311 Q609 0506114Y B1D
312 Q700 06002430 B3D
313 Q701 0509672T T3A
314 Q710 0506114Y B3C
315 Q711 01020002 B3D
316 D501 04072S11 B2C
317 D601 0407S077 B1C
318 D611 04077420 T3B
319 D612 04077420 T2B
320 D700 0410SA61 B4C
321 D719 0410Z680 B4D
322 D720 0410Z680 B4C
323 D721 0410Z680 B4D
324 D722 0410Z680 B4D
325 X500 10098304 9.8304MHz T3C
326 X601 10018432 18.432MHz T2A
327 J501 0811012P
328 J502 0811040P 40pin Socket Connector T4C
329 J703 0811020P 20pin Socket Connector T4B
330 1411331A CPU Shield Sheet (lower) T2C
2pin Jack
T1C
Remarks
-31 -
RPU3000 PC Part List 1 (RF Board)
RPU3000 Part List 1（RF Board）
No. Ref. No. Material No. Specification Print No. Remarks
1 R1 01024732 47KΩ B3D
2 R2 01020002 0Ω B4D
3 R3 01024722 4.7KΩ B3D
4 R4 01028212 820Ω T2F
5 R5 01023312 330Ω T2F
6 R6 01021032 10KΩ T4E
7 R7 01021052 1MΩ B2F
8R8
9R9
10 R10
11 R11
12 R12
13 R13 01024732 NC B3D
14 R14
15 R15 01020002 0Ω B1E
16 R106 01023322 3.3KΩ T2C
17 R107 01024732 47KΩ T2C
18 R108 01023312 330Ω T2C
19 R109 01022202 22Ω T2C
20 R110 01026812 680Ω T2C
21 R111 01022202 22Ω T2C
22 R112 01021522 1.5KΩ T2C
23 R113 01023312 330Ω T2C
24 *R115 01021002 10Ω T2C
*R115 01021002 10Ω T2C RPU3000A
25 *R117 01023912 390Ω T2C
*R117 01022232 22KΩ T2C RPU3000A
26 R118 01024732 47KΩ T2C
27 R119 01024722 4.7KΩ B2D
28 R120 01020002 0Ω T2C
29 R121 01024702 47Ω T2C
30 R122 01021022 1KΩ B2D
31 R124 01021022 1KΩ B2D
32 R125 01021832 18KΩ T2C
33 R126 01024732 47K
34 *R127 NC T2C
*R127 01020002 0Ω T2C RPU3000A
35 R128 01024702 47Ω T2C
36 R133 01021541 150KΩ 1% B1D
01022222
01021032
01021532
01021032
01021042
01024732
NC B3D
NC B3D
NC B3D
NC B3D
NC B3D
NC B4D
Ω T2C
-32 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
37 R134 01021541 150KΩ 1% B2D
38 R135 01021541 150KΩ 1% B1D
39 R136 01021541 150KΩ 1% B1D
40 R137 01021541 150KΩ 1% B2D
41 R138 01021541 150KΩ 1% B2D
42 R140 01021032 10KΩ B1D
43 R141 01024732 47KΩ B2D
44 R142 01021052 1MΩ B1D
45 R143 01020002 0Ω B2D
46 R144 01022222 2.2KΩ B2D
47 R145 01021842 180KΩ B2D
48 R146 01021042 100KΩ B2D
49 R148 01020002 0Ω B2D
50 R150 01021022 1KΩ B2D
51 R152 01023912 390Ω B2D
52 R153 01023322 3.3KΩ B2D
53 R174 01021032 10KΩ T2C
54 R201 01021042 100KΩ T3D
55 R202 01021042 100KΩ T3E
56 R203 01021022 1KΩ B2B
57 R204 01021042 100KΩ T3E
58 R204a 01021232 12KΩ B3B
59 R205 01025112 510Ω B3B
60 R206 01022722 2.7KΩ T4D
61 R207 01021042 100KΩ B2C
62 R208 01022222 2.2KΩ T3D
63 R208a 01022712 270Ω T3D
64 R209 01021802 18Ω T3C
65 R210 01022712 270Ω T3D
66 R216 (NC)
67 R217 (NC)
68 R218 (NC)
69 R219 (NC)
70 R220
71 R222
72 R225 (NC)
73 R226 (NC)
74 R227 (NC)
75 R228
76 R228a
77 R229
78 R230
01021042
01021042
01021802
01022R72
01020002
01024712
100KΩ B2C
100KΩ B3C
18Ω T2C
2.7Ω B2B
0Ω B2C
470Ω T3C
-33 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
79 R232
80 *R233
*R233 01024712 470Ω T3C RPU3000A
81 R234
82 R235
83 R236
84 R237 (NC)
85 R238
86 R239
87 R240
88 R242
89 R243
90 R246
91 R247
92 R256
93 R260
94 R271
95 R273
96 R277
97 R282
98 R284
99 R293
100 R294
101 R297
102 R299
103 R310
104 R311
105 R312
106 R313
107 R314
108 R315
109 R345
110 *R350
*R350
111 R351
112 R352
113 R353
114 R354
115 R355
116 R356
117 R357
118 *R358
01026822
01022212
01021022
01021022
01022702
01022222
01024722
01026822
01022232
01022232
01022232
01022232
01024722
01021232
01021832
01020002
01021002
01023922
01021842
01023322
01024712
01021832
01026842
01023322
01025622
01022712
01023322
01021002
01023322
01024722
01021042
01021042
01021032
01024732
01021012
01021012
01021042
01021812
01021512
01023342
6.8KΩ T3C
220Ω T3C
1KΩ T3C
1KΩ T3D
27Ω T3C
2.2KΩ T3C
4.7KΩ T3E
6.8KΩ B3B
22KΩ T3E
22KΩ T3E
22KΩ T3E
22KΩ T3E
4.7KΩ T4E
12KΩ T4E
18KΩ T3D
0Ω T3D
10Ω T3E
3.9KΩ T3D
180KΩ T3D
3.3KΩ T3D
470Ω T4C
18KΩ T3D
680KΩ T4D
3.3KΩ T3B
5.6KΩ T3B
270Ω T3B
3.3KΩ T3B
10Ω T2B
3.3KΩ T2B
4.7KΩ T3B
100KΩ T2B
100KΩ T2B RPU3000A
10KΩ T2B
47KΩ T3B
100Ω T3B
100Ω T3B
100KΩ T3B
180Ω T3B
150Ω T3B
330K
Ω T3B
-34 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
*R358
119 R359
120 R401
121 R402
122 R403
123 R404
124 R419
125 R420
126 R438
127 R454
128 R484
129 R496
130 R497
131 R16
132 R123
133 R139
134 R154
135 R0 NC B2D
136 R130 0106R502 0.5Ω 0.5% B2D
137 R131 0106R502 0.5Ω 0.5% B2D
138 R132 0106R502 0.5Ω 0.5% B2D
139 CP401 014D102J 1K×4 T2B
140 TH101 0140473B 47K T2D
141 TH200 NC T3D
142 C1 0202471K 470p B3C
143 C2 0202471K 470p T3E
144 C4 0202471K 470p B3D
145 C5 0202471K 470p B3D
146 C6 0202104Z 0.1u B3E
147 C8 0202471K 470p B3D
148 C9 0202471K 470p T3E
149 C10 0202103K 0.01u T3E
150 C11 0202103K 0.01u T3F
151 C12 0202103K 0.01u T3E
152 C13 0202103K 0.01u T3F
153 C14 0202471K 470p B4D
154 C15 0202104Z 0.1u B3D
155 C16 0202103K 0.01u T1D
156 C17 0202103K 0.01u T3F
157 C18 0202103K 0.01u T1D
158 C19 0202103K 0.01u T1C
159 C21 NC
01022242
01021012
01025602
01026832
01022732
01022222
01021022
01021042
01021012
01024722
01022212
01021022
01020002
01030002
01030002
01032712
01032712
220KΩ T3B RPU3000A
100Ω T3B
56Ω T2B
68KΩ B2E
27KΩ B2E
2.2KΩ T2B
1KΩ T2B
100KΩ T2B
100Ω B2E
4.7KΩ T2B
220Ω T2B
1KΩ T2B
0Ω T1B
0Ω B3D
0Ω T1D
270Ω B2B
270Ω B2B
-35 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
160 C22
161 C23
162 C24
163 C25
164 C26
165 C27
166 C28
167 C29
168 C30
169 C31
170 C32
171 C33
172 C34
173 C35
174 C36
175 C37
176 C38
177 C39
178 C40
179 C41
180 C42
181 C43
182 C44
183 C45
184 C46
185 C47
186 C48
187 C60
188 C106
189 C107
190 *C108
*C108
191 C109
192 C110
193 *C111
*C111
194 C112
195 C113
196 C114
197 C115
198 C116
199 *C118
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202101J
0202104Z
0202104Z
0202471K
0202471K
0202471K
0202070B
0202070B
0202471K
0202471K
0202080B
0202080B
0202471K
0202104Z
0202471K
0202471K
0202102K
02023902
100p B2F
100p B2F
100p B2F
100p B2F
100p B1F
100p B1F
100p B1F
100p B1F
100p B1F
100p B1F
100p B1F
100p B1F
100p B1F
100p B1F
100p B2F
100p B2F
100p B2F
100p B2F
100p B2F
100p B2F
100p B2F
100p B2F
100p B2F
100p B2F
100p B2F
0.1u B2F
NC B4D
470p B4C
470p T2C
470p T2C
7p T2C
7p T2C RPU3000A
470p T2C
470p T2C
8p T2C
8p T2C RPU3000A
470p B2D
0.1u T2C
470p T2C
470p B2D
1000p T2C
39p T2C
-36 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
*C118
200 C119
201 C120
202 C121
203 C123
204 C132
205 C134
206 C139
207 C141
208 *C142
*C142
209 *C148
*C148
210 C154a
211 C156
212 C157
213 C165
214 *C201
*C201
215 C202
216 *C203
*C203
217 C204
218 C205
219 C206 NC
220 C207
221 C207a
222 C208
223 C209a
224 C210
225 C210a
226 C211 NC
227 C212
228 *C213
*C213
229 C214
230 C214a
231 *C215
*C215
232 C215a
233 *C216
*C216
02023302
0202102K
0202471K
0202471K
0202102K
0202471K
0202101J
0202471K
0202471K
02021502
02021502
02021502
02021502
0202471K
0202104Z
0202471K
0202471K
02026R80
02026R80
0202090B
0202040B
0202040B
0202090B
02022002
0202104Z
0202104Z
0202104Z
0202101J
0202103K
0202104Z
0202070B
0202100D
0202100D
02022213
0202104Z
02023R6B
02023R6B
0202101J
0202040B
0202040B
33p T2C RPU3000A
1000p T2C
470p T1C
470p T2C
1000p T2C
470p B1D
100p B1D
470p B1D
470p B1D
15p T2C
15p T2C RPU3000A
15p T2C
15p T2C RPU3000A
470p T3C
0.1u T2C
470p T2C
470p B2D
6.8p T2E
6.8p T2E RPU3000A
9p T2E
4p T3E
4p T3E RPU3000A
9p T3E
20p T3E
0.1u T3E
0.1u B3B
0.1u T4E
100p B2B
0.01u T4D
0.1u B2B
7p B2C
10p B2C
10p B2C RPU3000A
220p T3D
0.1u B3B
3.6p T2E
0.5p T2E RPU3000A
100p B3C
4p B2C
4p B2C RPU3000A
-37 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
234 C217
235 C218
236 C219
237 C220
238 C221
239 C222
240 C223
241 C225
242 C230
243 C230a
244 C231
245 C231a (NC)
246 C232
247 C233
248 C234
249 C235
250 C236
251 C237
252 C238
253 C239
254 C240
255 C241
256 C242
257 C247
258 C248
259 C249
260 C251
261 C261
262 C263 (NC)
263 C264
264 C265 (NC)
265 C268
266 C269
267 C271
268 C273
269 C278
270 C280
271 *C281
*C281
272 C295 NC
273 C310
274 C311
0202090B
02027R5B
0202101J
0202104Z
0202101J
02028202
02022213
0202103K
02021802
0202471K
02023302
0202103K
02028202
0202103K
0202103K
0202103K
0202102K
0202104Z
02021812
0202103K
0202104Z
0202104Z
0202104Z
0202104Z
0202104Z
0202103K
0202040B
0202102K
02021202
0202070B
02022202
02022202
0202471K
0202103K
0202060B
0202060B
02022202
0202471K
9p B2C
7.5p B2C
100p T3E
0.1u T3E
100p B3B
82p T3D
220p T3D
0.01u T4C
27p T3D
470p T3D
33p T4D
0.01u T3D
82p T3D
0.01u T3C
0.01u T3C
0.01u T3C
1000p T3C
0.1u T4D
180p T3D
0.01u T3C
0.1u T3D
0.1u T3D
0.1u T3D
0.1u T3D
0.1u T3E
0.01u T3E
4p T2C
1000p T4E
12p T2C
7p T2C
22p T4E
22p T4E
470p T3C
0.01u B3C
6p T3D
6p T3D RPU3000A
22p T3B
470p T3B
-38 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
275 C312
276 C313
277 C314
278 *C315
*C315
279 C348
280 C352
281 C352a
282 C354a
283 C357
284 C359
285 C360
286 C363
287 C364
288 C365
289 C430
290 C433
291 C434
292 C438
293 C440
294 C442
295 C443
296 C444
297 C445
298 C449
299 C450
300 C453
301 C458
302 C481
303 C485
304 C495
305 C482
306 C496
307 C3
308 C124
309 C125
310 C126
311 C128
312 C129
313 *C130
*C130
314 *C130a
0202471K
0202471K
0202104Z
0202060B
0202060B
0202471K
0202102K
0202102K
0202471K
0202102K
0202471K
0202060B
0202471K
0202101J
0202102K
0202102K
0202050B
0202471K
0202030B
0202050B
0202102K
0202100D
0202100D
0202100D
0202471K
0202050B
0202102K
0202471K
0202104Z
0202471K
0202471K
0202471K
0202471K
02031053
0203030B
02034713
02031053
02031033
02034713
02031502
0203090B
02031202
470p T2B
470p T3B
0.1u T2B
6p T2B
6p T2B RPU3000A
470p T3B
1000p T4B
1000p T3B
470p T4B
1000p T3B
470p T3B
6p T3B
470p T2B
100p T3B
1000p T3B
1000p T2B
5p T2B
470p B2E
3p T2B
5p T2B
1000p B2E
10p T2B
10p B2E
10p B2E
470p T2B
5p T2B
1000p T2B
470p T2B
0.1u T2B
470p T2B
470p T1B
470p T2B
470p T1B
1u B3D
3p T2D
470p T2D
1u T2D
0.01u T2D
470p T2D
15p T2D
9p T2D RPU3000A
12p T2D
- 39 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
*C130a
315 C131
316 C135
317 *C136
*C136
318 *C136a
*C136a
319 *C138
*C138
320 *C140
*C140
321 C143
322 C144
323 C145
324 C146
325 *C147
*C147
326 *C149
*C149
327 *C150
*C150
328 *C151
*C151
329 C153
330 *C154
*C154
331 C155 NC T1E
332 *C347 0203050B 5p T3B
*C347 (NC) T3B RPU3000A
333 *C350
*C350
334 *C351 0203050B 5p T3B
*C351
335 C353
336 *C354 0203050B 5p T3B
*C354
337 *C355
*C355
338 *C356
*C356
339 C358
340 *C366
02031202
02031043
0203010B
0203060B
0203070B
0203050B
0203030B
02034713
02031012
0203010B
0203010B
02034713
02034713
02034713
02031033
02031R5B
0203010B
0203010B
02031R5B
0203040B
0203050B
0203020B
0203010B
0203040B
0203020B
02031R5B
02032702
02031502
0203040B
02030R5B
0203040B
0203030B
0203030B
0203060B
0203050B
02030R5B
02033902
12p T2D RPU3000A
0.1u T2D
1p T2D
6p T1D
7p T1D RPU3000A
5p T1D
3p T1D RPU3000A
470p T2D
100p T2D RPU3000A
1p T1D
1p T1D RPU3000A
470p B2B
470p B2C
470p T2E
0.01u B2C
1.5p T1E
1p T1E RPU3000A
1p T2E
1.5p T2E RPU3000A
4p T2E
5p T2E RPU3000A
2p T2E
1p T2E RPU3000A
4p T2E
2p T2E
1.5p T2E RPU3000A
27p T3B
15p T3B RPU3000A
4p T3B RPU3000A
0.5p T2B
4p T3B RPU3000A
3p T3B
3p T3B RPU3000A
6p T3B
5p T3B RPU3000A
0.5p T3B
39p T3B
- 40 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
*C366
341 *C367 0203050B 5p T3B
*C367
342 *C368
*C368
343 *C369 0203050B 5p T3B
*C369
344 *C370
*C370
345 C370
346 C371
347 *C372 NC T3B
*C372
348 C373
349 C436
350 C490
351 TC350
352 TC351
353 C7
354 C49
355 C52
356 C127
357 C209
358 C277
359 C292
360 C297
361 C346
362 C426
363 C479
364 L1
365 *L101
*L101
366 *L102
*L102
367 L103
368 L104
369 L105
370 L106 03193580 8T T2D
371 L107
372 L109
373 *L112
*L112
02033302
0203040B
0203060B
0203040B
0203040B
02031001
0203060B
02031001
02030R5B
02030R5B
0203010B
0203474Z
02031043
022Z10A0
022Z10A0
T0506106
T0506106
T0510475
T0510475
T0506106
T0506156
T0506156
T0520474
T0506156
T0510475
T0506106
031360SN
0318180J
0318180J
0318150J
0318150J
0313121P
03081R0J
031360SN
031360SN
03022210
03193540
03193530
33p T3B RPU3000A
4p T3B RPU3000A
6p T3B
4p T3B RPU3000A
4p T3B RPU3000A
10p T3B
6p T3B RPU3000A
10p T3B
0.5p T3B
0.5p T3B RPU3000A
NC T3B
0.47u T2B
0.1u T2B
10pF/3 T3B
10pF/3 T3B
10u6.3 B3E
NC B4D
4.7u10 B4D
4.7u10 B2D
10u6.3 T4D
15u6.3 T3D
15u6.3 T3D
0.47u16(NC) T3D
15u6.3 T4B
4.7u10 T2B
10u6.3 T2B
Chip Bead B3D
18n T2C
18n T2C RPU3000A
15n T2C
15n T2C RPU3000A
Chip Bead T2C
1u T2C
Chip Bead T1C
Chip Bead T2D
220n B2B
4T T2E
3T T2E RPU3000A
- 41 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
374 *L113
*L113
375 *L114
*L114
376 L118
377 *L119
*L119
378 *L120a
*L120a
379 *L120
*L120 NC T2C RPU3000A
380 L201
381 L202
382 *L203
*L203
383 L204
384 L204a
385 L205
386 L206
387 L207
388 L210
389 L211
390 L213
391 L215
392 L217
393 L240
394 *L310
*L310
395 L350
396 L351
397 L352
398 L353
399 *L356
*L356
400 *L357
*L357
401 L358
402 L359
403 L360
404 L361
405 L362
406 L363
03193550
03193540
03193540
03193530
03021020
03302N7S
031810A2
0318180J
0318180J
031810A2
03191250
03191250
032922NJ
032922NJ
03231020
0329R18J
032922NJ
03191250
03191250
0329R15J
0329R15J
03193540
0318150J
0318150J
03293910
03183900
03183300
03063320
03063320
03063320
03063320
032922NJ
032922NJ
03292700
03292700
03291010
03291010
03063320
03063320
0313121P
03181800
5T T2E
4T T2E RPU3000A
4T T2E
3T T2E RPU3000A
1u B2B
2.7n T2C
2.2n T2C RPU3000A
18n T2C
18n T2C RPU3000A
2.2n T2C
5T T2E
5T T3E
22n(Q) B3B
22n(Q) B3B RPU3000A
1u T4E
180n(Q) B2B
22n(Q) B2C
5T B3C
5T B3C
150n(Q) T3D
150n(Q) T3C
4T T2E
15n T2C
15n T2C
390n(Q)(NC) T2D
39n T3B
33n T3B RPU3000A
3.3u T3B
3.3u T4B
3.3u T3B
3.3u T4B
22n(Q) T2B
22n(Q) T2B RPU3000A
27n(Q) T3B
27n(Q) T3B RPU3000A
100n T3B
100n T3B
3.3u T3B
3.3u T3B
Chip Bead T3B
18n T3B
- 42 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
407 L403
408 L405
409 L406
410 L409
411 L410
412 L411
413 T201
414 T202
415 IC6
416 IC9
417 IC100
418 IC204
419 IC218
420 IC400
421 Q1
422 Q2
423 Q3
424 Q4
425 Q5
426 Q6
427 Q7
428 Q8
429 Q9
430 Q101
431 Q102
432 Q103
433 Q104
434 Q105
435 Q106
436 Q107
437 Q108
438 Q109
439 Q110
440 Q201
441 Q206
442 Q207
443 Q209
444 Q215
445 Q216
446 Q222
447 Q226
448 Q308
03074R7K
0313121P
0313121P
0318120J
0318390J
0313121P
03174189
03174189
0701P502
07TK1125
072904V0
07311360
07MS2827
07ADF411
0506144E
06002430
05041745
06002430
05025343
05025343
05001362
0506144E
05001980
05025108
05024988
06011824
05107170
06013475
06011824
06013476
0506114E
0505144E
0506114T
05141511
0505144E
0506144E
0506144E
05025108
05023356
05025108
0505114E
05025343
4.7u B2E
Chip Bead T2B
Chip Bead T2B
12n T2B
39n T2B
Chip Bead T2B
Inverter Transformer T3C
Inverter Transformer T3C
B4D
B3D
B1D
T3D
B3D
T2B
B4D
B4D
B3D
B3D
T4E
T4E
NC B4D
NC B3D
NC B3D
T2C
T2C
B2D
B2D
T2C
B2D
T2D
B2D
B2D
B2D
B2B
T3E
T3E
T3D
NC T3D
T3C
T4D
T3D
T3B
- 43 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
449 Q310
450 Q350
451 Q351
452 Q352
453 Q353
454 Q354
455 Q416
456 D1
457 D2
458 D3
459 D4
460 D5
461 D6
462 D7
463 D8
464 D9
465 D10
466 D100
467 D101
468 D103
469 D201
470 D202
471 D204
472 D205
473 D206
474 D207
475 D208
476 D215
477 D216
478 D217
479 D306
480 D350
481 D351
482 D352
483 D353
484 D354
485 D355
486 D356
487 D357
488 D358
489 X401
490 X202
05025108
05045080
06002430
05045080
0508UMC4
05025108
05025108
04151540
01030002
0410Z680
0410Z680
0410Z680
0410Z680
0402190R
0402190G
04032220
0410Z680
0407S077
04077700
0407S077
0407S077
0407S077
0411350B
0411350B
0411350B
0411350B
04113820
04032220
041188AS
04032220
04072S11
0411350B
0411350B
0411350B
0411350B
0411350B
0411350B
0411350B
0411350B
0417B179
1016801A
10044395
T3B
T3B
T3B
T3B
T3B
T3B
T2B
B2D
B4E
T1D
T3E
T1D
T1C
T2F
T2F
NC B3D
NC B3D
T2C
T2D
T2C
T2E
T2E
B2C
B2C
T2E
T3E
NC T2D
T3E
B3B
T3E
T3B
T3B
T4B
T3B
T4B
T3B
T3B
T4B
T4B
T3B
TCXO(16.8MHz) B2E
44.395MHz T3E
- 44 -
RPU3000 Part List 1 (RF Board)
No. Ref. No. Material No. Specification Print No. Remarks
491 XF201
492 CF201
493 CF202
494 CD201
495 F1 0103A32V 3.0A/32V B3D
496 J1
497 J2
498 JP1
499 PB1
500 PB2
501 PB3
502 PB4
503
504
505
506
507
508
509
510
511
512
513
514 1411328A heat slug
11004485
1104550K
1104550G
1245500K
0811040P
0811120P
0811003P
1903006A
1903006A
1903006A
1903006A
1411346B LPF(1) shield sheet (lower)
1411333B LPF(2) shield sheet (lower)
1411335B IF shield sheet (lower)
1411335B IF shield sheet (lower)
1411349B mixer (1) shield sheet (lower)
1411337B mixer (2) shield sheet (lower)
1411339B transmit shield sheet (lower)
1411341B PLL shield sheet (lower)
1411341B PLL shield sheet (lower)
1411343B VCO shield sheet (lower)
1411345B
44.85MHz T3C
455KHz B3C
455KHz B3B
455KHz B3C
40pin socket connector T2A
20pin Jack B3E
Jack (battery) B3D
filter shield sheet (lower)
T1E
T3F
T1D
T1C
- 45 -
RPV3000 Part List 1 (Control Board)
RPV3000 Part List 1（Control Board）
No. Ref. No. Material No. Specification Print No.
1 R501 01020002 0Ω B3B
2 R502 NC T3C
3 R503 NC T3B
4 R504 01024732 47KΩ T3C
5 R505 01021012 100Ω B2B
6 R506 01021012 100Ω B3B
7 R507 01020002 0Ω B3B
8 R508 01020002 0Ω B3B
9 R510 01024732 47KΩ B2B
10 R511 01024732 47KΩ B2B
11 R532 01024732 47KΩ B2B
12 R533 01020002 0Ω B3B
13 R535 NC T3B
14 R536 01024732 47KΩ T3C
15 R537 01021022 1KΩ T3C
16 R538 01020002 0Ω T3B
17 R539 01024732 47KΩ T2C
18 R540 01024732 47KΩ T2C
19 R541 NC B1B
20 R542 NC B1B
21 R550 01024732 47KΩ B3B
22 R551 01021042 100KΩ B3C
23 R556 01021042 100KΩ B3C
24 R557 01021042 100KΩ B3C
25 R558 01021042 100KΩ B3C
26 R560 01024732 47KΩ T3C
27 R562 01024732 47KΩ B3B
28 R563
29 R564
30 R565
31 R567
32 R568
33 R570 01020002 0Ω T1B
34 R571 01023322 3.3KΩ B2C
35 R601 01021022 1KΩ
36 R602
37 R603
38 R604
01024732
01024732
01024732
01024732
01024732
01024732
01024732
01024732
47KΩ B1C
47KΩ B1C
47KΩ B2C
4.7KΩ B3B
4.7KΩ B3B
B2C
47KΩ B2C
47KΩ B3C
47KΩ B3C
Remarks
- 46 -
RPV3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
39 R605 01021042 100KΩ B3C
40 R606 01021541 150KΩ 1% B3C
41 R607
42 R608 01020002 0Ω B2C
43 R609 01021242 120KΩ T1B
44 R610 01024732 47KΩ B2D
45 R611 01023032 30KΩ B2C
46 R612 01020002 0Ω B2C
47 R613 01021042 100KΩ T2B
48 R614 01025632 56KΩ T2B
49 R615 01021541 150KΩ 1% T2B
50 R616 01021042 100KΩ T2B
51 R617 01024732 47KΩ B1D
52 R618 01021541 150KΩ 1% B3C
53 R619 01021042 100KΩ B3C
54 R620 01021002 10Ω B1C
55 R621 01022232 22KΩ T1B
56 R622 01023932 39KΩ T1B
57 R623 01023032 30KΩ B1C
58 R624 01021522 1.5KΩ B2D
59 R625 01021002 NC B1B
60 R626 01023932 39KΩ B3C
61 R627 01021042 100KΩ B3C
62 R628 01021842 180KΩ B3C
63 R629 01021532 15KΩ T2B
64 R630 01021022 1KΩ T3B
65 R631 01021022 1KΩ T3B
66 R632 01021022 1KΩ T3B
67 R633 01021022 1KΩ T3B
68 R634 01021022 1KΩ B1C
69 R635 01021042 100KΩ B1C
70 R635A 01021042 100KΩ
71 R637 01021842 180KΩ T2B
72 R639 01021852 1.8M B3C
73 R642 01023332 33KΩ
74 R643 01023332 33KΩ B3C
75 R644 01021032 10KΩ B3C
76 R645 01023332 33KΩ B3C
77 R646 01023332 33KΩ B3C
78 R647 01021032 10KΩ B3C
79 R648 01023322 3.3KΩ B3C
80 R649 01021852 1.8M B3C
01024732
47KΩ B3C
B2C
Remarks
- 47 -
RPV3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
81 R650 01021042 100KΩ B2D
82 R651 01023922 3.9KΩ B2D
83 R652 01021541 150KΩ 1% B2D
84 R653 01021541 150KΩ 1% B2D
85 R654 01023922 3.9KΩ B2D
86 R655 01023322 3.3KΩ B2D
87 R656 01021541 150KΩ 1% B2D
88 R657 01021541 150KΩ 1% B2D
89 R659 01022222 2.2KΩ B2D
90 R660 01024722 4.7KΩ B1C
92 R662 01025622 5.6KΩ T2B
93 R663 01022732 27KΩ B1C
94 R665 01024722 4.7KΩ B1C
95 R666 01021232 12KΩ B1C
96 R667 01021032 10KΩ B1C
97 R669 01022732 27KΩ T2B
98 R670 01023322 3.3KΩ B2C
99 R671 01023942 390KΩ T2B
100 R672 01021541 150KΩ 1% T2B
101 R673 01021022 1KΩ B1C
102 R674 01021032 10KΩ B1C
103 R675 01021532 15KΩ B1C
104 R676 01021042 100KΩ B3C
105 R677 01021242 180KΩ B3C
106 R678 01021042 100KΩ T2B
107 R679 01021242 120KΩ B3C
108 R680 01021232 12KΩ B3C
109 R681 01020002 0Ω B3C
110 R682 01020002 0Ω B3C
111 R683 01023322 33KΩ B3C
112 R684 01026822 6.8KΩ B3C
113 R685 01024732 47KΩ B3C
114 R686 01028232 82K B2C
115 R687 01028232 82K T3B
116 R688 01028232 82K B3C
117 R689 01028232 82K B3C
118 R690 01028232 82K T3B
119 R691 01028232 82K T3B
120 R692 01021042 100KΩ B3C
121 R702 01024712 470Ω B3D
122 R703 01024712 470Ω B3D
123 R704 01021822 1.8KΩ B3D
Remarks
- 48 -
RPV3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
124 R705 01021042 100KΩ B3D
125 R712 01021042 100KΩ B3D
126 R714 01021022 1KΩ B4D
127 R723 01024742 470KΩ B3D
128 R724 01023032 30KΩ B3C
129 R731 01024742 470KΩ B3C
130 R738 01021012 100Ω B3D
131 R739 01021012 100Ω B3C
132 R750 01026802 68Ω B3C
133 R771 01022232 22KΩ T3B
134 R772 01023032 30KΩ B3D
135 R773 01021002 10Ω B4C
136 R798 01021032 10KΩ B3C
137 R799 01021032 10KΩ B3D
138 CP501 012D473J 47K×2 B2B
139 CP502 012D473J 47K×2 B2B
140 CP504 012D473J 47K×2 B3B
141 TH601 0135472A Thermal Resistor 4.7K B3C
142 VR601 0122473H Adjustable Resistor 47K T3B
143 C501 0202103K 0.01u B1C
144 C502 0202103K 0.01u B2B
145 C503 0202103K 0.01u B3B
146 C504 0202270J 27p T3C
147 C505 0202103K 0.01u T3C
148 C506 0202270J 27p T3C
149 C507 0202101J 100p B4B
150 C508 0202101J 100p B4B
151 C509 0202101J 100p B4B
152 C510 0202101J 100p B4C
153 C511 0202101J 100p B4C
154 C512 02024713 470p B4B
155 C514 0202101J 100p B4B
156 C515 0202101J 100p B4B
157 C516 0202101J 100p B4B
158 C517 0202101J 100p B4C
159 C518 0202101J 100p B4C
160 C519 0202101J 100p B4B
161 C522 0202101J 100p B4B
162 C523 0202101J 100p B4B
163 C524 0202101J 100p B4B
164 C525 0202101J 100p B4B
165 C526 0202101J 100p B4B
Remarks
- 49 -
RPV3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
166 C527 0202101J 100p B4B
167 C528 0202101J 100p B4B
168 C530 0202101J 100p B4B
169 C531 0202101J 100p B4B
170 C532 0202101J 100p B4B
171 C533 0202101J 100p B4B
172 C534 0202101J 100p B4B
173 C535 0202101J 100p B4B
174 C536 0202101J 100p B4B
175 C553 02024713 470p B3C
176 C554 02024713 470p B3C
177 C555 02024713 470p B3C
178 C557 02024713 470p B3C
179 C558 0202103K 0.01u B3C
180 C559 02024713 470p B3B
181 C560 02022733 0.027u B3B
182 C561 02022733 0.027u B3B
183 C570 02024713 470p B2C
184 C572 02024713 470p B2C
185 C573 02024713 470p B2C
186 C601 0202105Z 1u B3C
187 C603 0202101J 100p B2C
188 C604 0202104Z 0.1u B3C
189 C605 0202104Z 0.1u T2B
190 C609 0202103K 0.01u B2C
191 C612 NC B2C
192 C613 0202104Z 0.1u T2B
193 C614 0202104Z 0.1u T2B
194 C615 0202103K 0.01u B2C
195 C617 02024713 470p T2B
196 C619 NC B2C
197 C620 0202105Z 1u B1C
198 C627 0202105Z 1u B1D
199 C628 0202104Z 0.1u B1C
200 C630 0202101J 100p T2B
201 C632 0202104Z 0.1u T1B
202 C635 0202101J NC B1B
203 C636 0202105Z 1u T1B
204 C638 02022712 270p T2B
205 C639 0202101J NC B1C
206 C640 0202102K 1000p T2B
207 C642 02024702 47p B3C
Remarks
- 50 -
RPV3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
208 C643 0202104Z NC B1B
209 C645 0202103K 0.01u B3C
210 C646 0202101J 100p B2D
211 C647 02024713 470p B3C
212 C649 0202103K 0.01u T2B
213 C650 0202103K 0.01u B3C
214 C651 0202104Z 0.1u B2D
215 C652 02023333 0.033u B2D
216 C654 02023333 0.033u B2D
217 C657 02023333 0.033u T2A
218 C658 0202103K 0.01u B2D
219 C660 0202104Z 0.1u B2D
220 C661 02026833 0.068u B2D
221 C664 02023323 3300p B3C
222 C665 02023313 330p B3C
223 C666 0202103K 0.01u B3C
224 C667 0202105Z 1u B3C
225 C668 02023323 3300p B3C
226 C669 0202102K 1000p B3C
227 C670 02023333 0.033u B3C
228 C671 02025623 5600p B3C
229 C674 0202105Z 1u T2B
230 C675 0202105Z 1u T2B
231 C676 0202103K 0.01u B1C
232 C677 0202104Z 0.1u B1C
233 C678 0202102K 1000p B1C
234 C679 02026833 0.068u B1C
235 C680 02023333 0.033u B1C
236 C681 0202105Z 1u B1C
237 C682 0202104Z 0.1u B1C
238 C684 02022233 0.022u B3C
239 C691 02024713 470p B3C
240 C693 02024733 0.047u B3C
241 C694 0202102K 1000p B3C
242 C733 0202101J 100p B4C
243 C734 0202101J 100p B3C
244 C735 0202101J 100p B3D
245 C736 0202101J 100p B4D
246 C737 0202101J 100p B3C
247 C738 0202101J 100p B4C
248 C739 0202101J 100p B4C
249 C740 0202101J 100p B4C
Remarks
- 51 -
RPV3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
250 C741 0202101J 100p B4D
251 C742 0202101J 100p B4D
252 C743 0202101J 100p B4D
253 C744 0202104Z 0.1u B3D
254 C747 0202104Z 0.1u B3D
255 C748 0202104Z 0.1u B3C
256 C750 0202102K 1000p B3D
257 C752 0202104Z 0.1u B4C
261 C663 02031053 1u B2C
262 C683 02031053 1u B3C
265 C689 02031053 1u B3C
266 C749 0206106Z 10u T3A
267 C751 0206106Z 10u T3A
268 C556 T0510475 4.7u10 T3B
269 C571 T0510475 4.7u10 B2C
270 C610 T0506106 10u6.3 T2B
259 C611 T0506156 15u6.3 B3C
271 C616 T0506106 10u6.3 T2B
260 C618 T0506106 10u6.3 T3B
272 C625 T0510225 2.2u10 B1D
273 C626 T0506106 10u6.3 B1D
274 C629 T0506106 10u6.3 B1C
275 C633 T0510225 2.2u10 B1C
276 C634 T0506106 10u6.3 B1C
277 C648 T0510475 4.7u10 T3B
278 C655 T0506106 10u6.3 B2D
279 C673 T0510475 4.7u10 T2B
263 C685 T0506156 15u6.3 B2C
264 C686 T0506156 15u6.3 B3C
280 C692 T0506106 10u6.3 T3B
281 C702 T0506106 10u6.3 T3A
282 L512 0313121P Chip Bead B3B
283 L523 0313121P Chip Bead B1C
284 L524 0313121P Chip Bead B1C
285 L528 0313121P Chip Bead T3B
286 L601 03301010 100n B2C
287 L603 03301010 100n B2C
288 IC500 074102GP T2C
289 IC501 0729C020 T1C
290 IC502 0724C064 T3C
291 IC503 07111N42 T3B
292 IC505 0701P502 T3B
Remarks
- 52 -
RPV3000 Part List 1 (Control Board)
No. Ref. No. Material No. Specification Print No.
293 IC506 07625002 T2B
294 IC601 07000881 T2B
295 IC603 07850701 T2A
296 IC604 NC B1C
297 IC605 0775S01F T2B
298 IC606 077551FU T3B
299 IC607 077551FU B1C
300 IC608 077551FU T3B
301 IC612 077551FU T3B
302 IC720 0778547T T3A
303 Q501 0506114E B2C
304 Q502 05011132 T1B
305 Q601 05025343 T2B
306 Q602 05025343 B2D
307 Q603 05025343 B2D
308 Q604 05025343 B1C
309 Q605 05025343 B3C
310 Q606 05025343 B3C
311 Q609 0506114Y B1D
312 Q700 06002430 B3D
313 Q701 0509672T T3A
314 Q710 0506114Y B3C
315 Q711 01020002 B3D
316 D501 04072S11 B2C
317 D601 0407S077 B1C
318 D611 04077420 T3B
319 D612 04077420 T2B
320 D700 0410SA61 B4C
321 D719 0410Z680 B4D
322 D720 0410Z680 B4C
323 D721 0410Z680 B4D
324 D722 0410Z680 B4D
325 X500 10098304 9.8304MHz T3C
326 X601 10018432 18.432MHz T2A
327 J501 0811012P
328 J502 0811040P 40pin Socket Connector T4C
329 J703 0811020P 20pin Socket Connector T4B
330 1411331A CPU Shield Sheet (lower) T2C
2pin Jack
T1C
Remarks
- 53 -
RPV3000 Part List 1 (RF Board)
RPV3000 Part List 1（RF Board）
Ref. No. Material No. Specification Print No. Remarks
R1 01024732 47KΩ B3D
R2 01020002 0Ω B4D
R3 01024722 4.7KΩ B3D
R4 01028212 820Ω T2F
R5 01023312 330Ω T2F
R6 01021032 10KΩ T4E
R7 01021052 1MΩ B2F
R8 01024722 4.7KΩ B3D
R9 01020002 0Ω B1E
R106 01023322 3.3KΩ T2C
R107 01024732 47KΩ T2C
R108 01023312 330Ω T2C
R109 01022202 22Ω T2C
R110 01026812 680Ω T2C
R111 01022202 22Ω T2C
R112 01021522 1.5KΩ T2C
R113 01023312 330Ω T2C
R117 01024732 47KΩ T2C
R118 01026832 68KΩ T2C
R119 01024722 4.7KΩ B2D
R120 01021802 18Ω T2C
R121 01024702 47Ω T2C
R122 01021022 1KΩ B2D
R124 01021022 1KΩ B2D
R125 01022732 27KΩ T2C
R126 01026832 68KΩ T2C
R127 01020002 0Ω T2C
R128 01024702 47Ω T2C
R133 01021541 150KΩ 1% B1D
R134 01021541 150KΩ 1% B2D
R135 01021541 150KΩ 1% B1D
R136 01021541 150KΩ 1% B1D
R137 01021541 150KΩ 1% B2D
R138 01021541 150K
R140 01021032 10KΩ B1D
R141 01024732 47KΩ B2D
R142 01021052 1MΩ B1D
R143 01020002 0Ω B2D
R144 01022222 2.2KΩ B2D
R145 01021842 180KΩ B2D
Ω 1% B2D
- 54 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
R146 01021042 100KΩ B2D
R146a 01021042 100KΩ B2D
R148 01020002 0Ω B2D
R150 01021022 1KΩ B2D
R152 01023912 390Ω B2D
R153 01023322 3.3KΩ B2D
R174 01021032 10KΩ T2C
R201 01021042 100KΩ T3D
R202 01021042 100KΩ T3E
R203 01021022 1KΩ B3B
R204 01021042 100KΩ T2E
R204a 01021232 12KΩ T3E
R205 01025112 510Ω B3B
R206 01022722 2.7KΩ T4D
R207 01021042 100KΩ B3C
R208 01022222 2.2KΩ T3D
R208a 01022712 270Ω T3D
R209 01021802 18Ω T3C
R210 01022712 270Ω T3D
R220 01021042 100KΩ B2C
R222 01021042 100KΩ B3C
R226 01021012 100Ω T3D
R228a 01022R72 2.7Ω B3B
R230 01024712 470Ω T3C
R232 01026822 6.8KΩ T3C
R233 01022212 220Ω T3C
R234 01021022 1KΩ T3C
R235 01021022 1KΩ T3D
R236 01022702 27Ω T3C
R238 01022222 2.2KΩ T3C
R239 01024722 4.7KΩ T3E
R239a 01020002 0Ω T3E
R240 01026822 6.8KΩ B3B
R240a 01022732 27K T3E
R242 01022232 22KΩ T3E
R243 01022232 22KΩ T3E
R246 01022232 22KΩ T3E
R247 01022232 22KΩ T3E
R256 01024722 4.7KΩ T3E
R256a 01020002 0Ω T4E
R260 01021232 12KΩ T4E
R271 01021532 15KΩ T3D
- 55 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
R277 01021002 10Ω T3E
R282 01023922 3.9KΩ T3D
R284 01021842 180KΩ T3D
R293 01023322 3.3KΩ T3D
R294 01024712 470Ω T4C
R297 01021832 18KΩ T3D
R299 01026842 680KΩ T4D
R310 01023322 3.3KΩ T3B
R311 01025622 5.6KΩ T3B
R312 01022712 270Ω T3B
R313 01023322 3.3KΩ T3B
R314 01021002 10Ω T2B
R315 01023322 3.3KΩ T2B
R345 01024722 4.7KΩ T3B
R350 01021541 150KΩ T2B
R350a 01024732 47KΩ T2B
R351 01024732 47KΩ T3B
R354 01026832 68KΩ T3B
R355 01021042 100KΩ T3B
R356 01022712 270Ω T3B
R357 01022712 270Ω T3B
R358* 01021242 120KΩ T3B
R359 01021012 100Ω T3B
R401 01021022 1KΩ B2E
R402 01021022 1KΩ B2E
R403 01021022 1KΩ B2E
R404 01021022 1KΩ B2E
R405 01024732 47KΩ B2E
R406 01021022 1KΩ B2E
R407 01021022 1KΩ B2E
R408 01021042 100KΩ B2E
R410 01021002 10Ω B2E
R411 01020002 0Ω B2E
R413 01026812 680
R414 01022222 2.2KΩ B2E
R416 01021842 180KΩ B2E
R417 01021012 100Ω T2B
R418 01021842 180KΩ T2B
R419 01021842 180KΩ T2B
Ω B2E
L365 01021032 10KΩ T3B
R412 01030002 0Ω B2E
- 56 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
F1
L405 01030002 0Ω B2E
R130
R131
R132
R139 01032712 270Ω B2B
R154 01032712 270Ω B2B
R352 01031042 100KΩ T3B
TH101 0140473B 47K T2D
C1 0202102K 1000p B3C
C2 0202102K 1000p T3E
C4 0202102K 1000p B3D
C5 0202102K 1000p B3D
C6 0202104Z 0.1u B3E
C8 0202102K 1000p B3D
C9 0202102K 1000p T3E
C10 0202103K 0.01u T3E
C11 0202103K 0.01u T3F
C12 0202103K 0.01u T3E
C13 0202103K 0.01u T3F
C14 0202102K 1000p B4D
C15 0202104Z 0.1u B3D
C16 0202103K 0.01u T1D
C17 0202103K 0.01u T3F
C18 0202103K 0.01u T1D
C19 0202103K 0.01u T1C
C22 0202101J 100p B2F
C23 0202101J 100p B2F
C24 0202101J 100p B2F
C25 0202101J 100p B2F
C26 0202101J 100p B2F
C27 0202101J 100p B1F
C28 0202101J 100p B1F
C29 0202101J 100p B1F
C30 0202101J 100p B1F
C31 0202101J 100p B1F
C32 0202101J 100p B1F
C33 0202101J 100p B1F
C34 0202101J 100p B1F
C35 0202101J 100p B1F
C36 0202101J 100p B2F
0103A32V
0106R502
0106R502
0106R502
3.0A/32V B3D
0.5Ω 0.5% B2D
0.5Ω 0.5% B2D
0.5Ω 0.5% B2D
- 57 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
C37 0202101J 100p B2F
C38 0202101J 100p B2F
C39 0202101J 100p B2F
C40 0202101J 100p B2F
C41 0202101J 100p B2F
C42 0202101J 100p B2F
C43 0202101J 100p B2F
C44 0202101J 100p B2F
C45 0202101J 100p B2F
C46 0202101J 100p B2F
C47 0202101J 100p B2F
C60 0202102K 1000p B4C
C106 0202102K 1000p T2C
C107 0202102K 1000p T2C
C108
C109 0202102K 1000p T2C
C110 0202102K 1000p T2C
C112 0202102K 1000p B2D
C113 0202104Z 0.1u T2C
C114 0202102K 1000p T2C
C115 0202102K 1000p B2D
C116 0202102K 1000p T2C
C118
C119 0202102K 1000p T2C
C120 0202102K 1000p T1C
C121 0202102K 1000p T2C
C123 0202102K 1000p T2C
C132 0202102K 1000p B1D
C134 0202101J 100p B1D
C139 0202102K 1000p B1D
C141 0202102K 1000p B1D
C142 02021502 15p T2C
C148 02021502 15p T2C
C154a 0202102K 1000p T3C
C156 0202104Z 0.1u T2C
C157 0202102K 1000p T2C
C165 0202102K 1000p B2D
C201 02022702 27p T2E
C201a 0202102K 1000p T2E
C202
C203 0202100D 10p T3E
C204
0202270J
02022202
02021502
02024702
27p T2C
22p T2C
15p T3E
47p T3E
- 58 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
C204a 02021512 150p T3E
C205 0202102K 1000p T3E
C206 0202102K 1000p B3C
C207 0202104Z 0.1u T3E
C207a 0202104Z 0.1u T3E
C208 0202104Z 0.1u T4E
C209a 0202102K 1000p B3B
C210 0202103K 0.01u T4D
C211 0202102K 1000p B3C
C212 0202103K 0.01u B3B
C213
C214
C214a 0202104Z 0.1u B3B
C215
C215a 0202102K 1000p B3C
C216 02021502 15p B3C
C217
C217a
C218 0202103K 0.01u B2C
C218a
C219 0202101J 100p T3E
C220 0202104Z 0.1u T3E
C221 0202102K 1000p T3E
C222
C223
C225 0202103K 0.01u T4D
C228
C230*
C230a 0202102K 1000p T3D
C231
C232 0202103K 0.01u T3D
C233
C234 0202103K 0.01u T3C
C235 0202103K 0.01u T3C
C236 0202103K 0.01u T3C
C237 0202102K 1000p T3C
C238 0202104Z 0.1u T4D
C239 02021812 180p T3D
C240 0202103K 0.01u T3C
C241 0202104Z 0.1u T3D
C242 0202104Z 0.1u T3D
C247 0202104Z 0.1u T3D
02023302
02022213
02024702
02021202
02021802
0202270J
02028202
02022213
02021802
02022002
02023302
02028202
33p B3C
220p T3D
47p T2E
12p B3C
18p B3C
27p B2C
82p T3D
220p T3D
18p T2C
20p T3D
33p T4D
82p T3D
- 59 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
C248 0202104Z 0.1u T3D
C249 0202104Z 0.1u T3E
C251 0202103K 0.01u T3E
C261
C264 0202102K 1000p T4E
C268
C269
C271
C273
C278 0202103K 0.01u T3C
C280 0202103K 0.01u B2C
C280a 0202100D 10p B3C
C295 0202102K 1000p B3C
C310 02021502 15p T3B
C311 0202102K 1000p T3B
C312 0202102K 1000p T2B
C313 0202102K 1000p T3B
C314 0202104Z 0.1u T2B
C315
C348 0202102K 1000p T3B
C352 0202102K 1000p T4B
C352a 0202102K 1000p T3B
C354a 0202102K 1000p T4B
C357 0202102K 1000p T3B
C359 0202102K 1000p T3B
C360
C364 0202102K 1000p T3B
C365 0202102K 1000p T3B
C366 0202102K 1000p T3B
C401
C402 0202104Z 0.1u B2E
C403
C404 0202102K 1000p B2E
C406 0202104Z 0.1u B2E
C407 0202102K 1000p B2E
C408 0202100D 10p T2B
C409 0202100D 10p T2B
C410 0202104Z 0.1u T2B
C411 0202102K 1000p T2B
C412 0202102K 1000p T2B
C417 0202101J 100p T2B
C418 0202101J 100p T2B
0202040B
02021802
02021802
0202270J
02022202
02022202
02023302
02021802
0202070B
4p T2C
18p T2C
18p T2C
27p T4E
22p T4E
22p T2B
33p T2B
18p B2E
7p B2E
- 60 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
C419 0202101J 100p T2B
C420 0202100D 10p B2E
C125 02031023 1000p T2D
C126
C128
C129 02031023 1000p T2D
C130 02035602 56P T2D
C131
C136 02031502 15P T1D
C137 02032702 27pF T2D
C138 02031023 1000p T2D
C140 02032002 20P T1D
C143 02031023 1000p B2B
C144 02031023 1000p B2C
C145 02031023 1000p T2E
C146
C147
C149 02032002 20P T2E
C150
C151 02035R61 5.6P T2E
C153
C154 02031202 12P T2E
C155 02031502 15P T1E
C3
C347
C350 0203R75B 0.75p T2B
C351 02031023 1000p T3B
C353 02032202 22p T3B
C354
C355
C358 02030R5B 0.5p T3B
C363 02031512
C366a 02035602 56P T3B
C367 02032202 22p T3B
C368
C370
C371 02030R5B 0.5p T3B
C372 02031023 1000p T3B
C414 02052243 0.22u 10V B2E
C209
C413
02031053
02031033
02031043
02031033
02031001
02032402
02031802
02031053
02031802
0203050B
02031802
0203050B
02031802
T0506106
T0506106
1u T2D
0.01u T2D
0.1u T2D
0.01u B2C
10P T1E
24P T2E
18p T2E
1u B3D
18p T3B
5p T3B
18p T3B
150p
5p T3B
18p T3B
10u6.3 T4D
10u6.3 T2B
T3B
- 61 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
C7
C277 T0506156 15u6.3 T3D
C292 T0506156 15u6.3 T3D
C346 T0506156 15u6.3 T4B
C297 T0510225 2.2u 10V T2D
C127 T0510475 4.7u 10 B2D
C405 T0510475 4.7u 10 B2E
C52 T0510475 4.7u 10 B4D
C416 T0510684 0.68u 10V B2E
C415 T0610685 6.8uF 10V B2E
T0506106
10u6.3 B3E
L1
L100 03181800 18n T2C
L101 03186800 68n T2C
L102 03186800 68n T2C
L103
L104 03181800 18nH T2C
L105
L106
L107 03182200 22nH T2D
L108 03193580 8T T2D
L108a
L109 03195030 3T T2D
L110 03193550 5T T2D
L111 03022210 220nH B2B
L112 03193540 4T T2E
L113 03193550 5T T2E
L114 03193550 5T T2E
L118
L200 03193580 8T T2E
L201 03191250 5T T2E
L202 03191050 5T T3E
L204
L204a 03016800 68n B3B
L206 03191250 5T B3C
L206a 03181500 15n B3B
L207 03191250 5T B3C
L207a 03181500 15n B2C
L210
L211
L217 03183900 39n T2C
L310 03181010 100n T3B
0313600S
0313121P
0313600S
03081020
0313600S
03231020
03231020
0329R15J
0329R15J
Chip Bead B3D
Chip Bead T2C
Chip Bead T1C
1uH T2C
Chip Bead T2D
1u B2B
1u T4E
150n(Q) T3D
150n(Q) T3C
- 62 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
L350 03066820 6.8u T3B
L351 03066820 6.8u T3B
L352 03023300 33nH T3B
L353 03066820 6.8u T4B
L354 03066820 6.8u T4B
L355 03066820 6.8u T4B
L356 03292200 22n(Q) T3B
L357 03066820 6.8u T3B
L362
L363 03186800 68n T3B
L364 03186800 68n T3B
L401
L402 03074R7K 4.7u T2B
L403 03185600 56n B2E
L404 03185600 56n B2E
L406 03066820 6.8u B2E
T201 03174189 Inverter Transformer T3C
T202 03174189 Inverter Transformer T3C
TC350 022Z10A0 10pF T3B
TC351 022Z10A0 10pF T3B
D01
D02 04003730 B4E
D03
D04
D05
D06
D07
D08
D100 0407S077 T2C
D101 0407S077 T2D
D103 0407S077 T2C
D201 0407S077 T2E
D202 0407S077 T2E
D205 04113620 B2C
D206 04113620 T2E
D207 04113620 T3E
D208 04113620 T2D
D215 04032220 T3E
D217 04032220 T3E
D306 04072S11 T3B
D350 0411350B T3B
D351 0411350B T4B
0313121P
0313121P
04151540
0410Z680
0410Z680
0410Z680
0410Z680
0402190R
0402190G
Chip Bead T3B
Chip Bead B1E
B2D
T1D
T3E
T1D
T1C
T2F
T2F
- 63 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
D352 0411350B T3B
D353 0411350B T4B
D354 0411350B T3B
D355 0411350B T3B
D356 0411350B T4B
D357 0411350B T4B
D364 0417B179 T3B
D401 04072S11 B2E
Q1 05061440 B4D
Q2 06002430 B4D
Q3 05041745 B3D
Q4 06002430 B3D
Q5 05025343 T4E
Q6 05025343 T4E
Q101
Q102 05024988 T2C
Q103 06011824 B2D
Q104 05107170 B2D
Q105 06013475 T2C
Q106 06011824 B2D
Q107 06013476 T2D
Q108 0506114E B2D
Q109 0506144E B2D
Q110 0506114T B2D
Q201 05141511 B2B
Q206 0506144E T3E
Q207 05061440 T3E
Q209 05061440 T3D
Q216 05023356 T3C
Q222
Q226 0505114E T3D
Q308 05025343 T3B
Q310
Q350 05045080 T3B
Q351 06002430 T3B
Q352 05045080 T3B
Q353 0508UMC4 T3B
Q354
Q401
IC6 0701P502 B4D
IC400 071511P0 B2E
IC100 072904V0 B1D
05025108
05025108
05025108
05025108
05025108
T2C
T4D
T3B
T3B
B2E
- 64 -
RPV3000 Part List 1 (RF Board)
Ref. No. Material No. Specification Print No. Remarks
IC204 07311360 T3D
IC218 07MS2827 B3D
IC9 07TK1125 B3D
JP1 0811002P B3D
J1 0811040P 40pin Socket Connector T2A
X401 1016801B TCXO(16.8MHz) T2B
X202 10044395 44.395MHz T3E
XF201
CF202 1104550G 455KHz B3B
CF201 1104550K 455KHz B3C
CD201
PB1
PB2
PB3
PB4
11004485
1245500K
1903600T
1903600T
1903600T
1903600T
44.85MHz T3C
455KHz B3C
T1E
T3F
T1D
T1C
- 65 -
RP3000 Disassembly and Assembly for Repair
Disassembly and Assembly for Repair
Disassemble the radio
1. Turn off the radio.
2. Remove the battery:
a. Press the release at top of the battery downwards.
b. Separate top of the battery from the radio.
c. Lift the battery off. (See fig.1)
3. Remove the antenna. (See fig.2)
Fig. 1
Fig. 2
- 66 -
RP3000 Disassembly and Assembly for Repair
4. Remove the knob. (See fig.3)
Fig. 3
5. Separate the chassis from PCB:
a. Insert a screwdriver (Material No. 99050312) into the clearance between chassis and the case.
b. Push the screwdriver downwards to separate the chassis from the case.
c. Lift the bottom of the chassis and pull it out of the PCB. (See fig.4)
Fig.4
6. Remove the main PCB:
a. Remove the two screw caps on top of the unit.
b. Remove the five screws between PCB and the chassis.
c. Loosen the weld between antenna pedestal and PCB using a soldering iron.
d. Lift the PCB off. (See fig.5)
Fig.5
- 67 -
RP3000 Disassembly and Assembly for Repair
7. Remove the small PCB: Loosen the screw to remove the small PCB. And then loosen the socket
of flexible PCB. (See fig.6)
Fig.6
8. Disassemble PTT key: Push the tab on PTT out of the hole on the case to disassemble PTT key.
(See fig.7)
Fig.7
Assemble the radio
1. Attach PTT: Align the tab on PTT with the corresponding hole on the case.
(See fig.8)
Fig.8
- 68 -
RP3000 Disassembly and Assembly for Repair
2. Assemble the small PCB:
a) Insert the flexible PCB into the socket on the small PCB and lock it up.
b) Insert the bottom of the small PCB into the underside of the two tabs under the case.
c) Tighten the screws. (See fig.9)
Fig.9
3. Assemble the chassis and PCB
a) Insert the switch shaft in front of the PCB into the corresponding holes on the case.
b) Press the bottom of the chassis downwards until a click is heard. (See fig.10)
Fig.10
4. Attach the battery:
a) Insert the two extensions at the bottom of the battery into the two slots on the case.
b) Press the top of the battery toward the radio until a click is heard. (See fig.11)
Fig.11
- 69 -
RP3000 Exploded View
Exploded View
- 70 -
RP3000Part List 2
No. Material No. Name
A 14066090 Screw M2.50X4 (antenna pedestal)
B
1 1511111A Belt Clip
2 1411307A Pin
3 14093160 Planar spring
4 15091051 Holder (belt clip)
5 19110041 Battery Pack
6 1411312A Spring
7 1511107A Release
8 1411301A Chassis
9 14113101 Antenna Pedestal
10 1411305A Screw cap(switch)
11 1611203A Waterproof ring (main unit)
12 1511103A Cap(PTT)
13 1611201A PTT key
14 1911901A Antenna
15 1511109A Light guide
16 1511105A Cap(channel selector knob)
17 1511106A Cap(volume knob)
18 14113110 Liner (Knob)
19 1711905A PVC sheet(ear microphone)
20 1711903A Black PVC sheet(ear microphone)
21 1411304A Screw (Earplug Cover)
22 1511108A Earplug Cover
23 1511101A Front Case
24 R-0930000010 Small PCB
25 13112412 Speaker
26 R-0930000010 Main PCB
27 1411328A Heat slug
28
29 1611204A Waterproof ring (connector)
30 1511604A key
31 1611601A Washer
1411310A
1611206A Gasket (FET)
Screw ST1.9X4 (PCB)
RP3000 Part List 2
- 71 -
RP3000 Packing
Packing
Owner's Manual
Vacuum extracting plastic (top)
Power Supply Cord
Strap
Antenna
Belt Clip
Adapter
Battery
Vacuum extracting plastic (bottom)
Charger
Main Unit
Gift Box
- 72 -
RP3000 Specifications
Specifications
Item Specification
Frequency Range
Channel Number 16
Channel Spacing 25KHz/12.5KHz
Frequency Stability ±2.5ppm
IF Frequency 44.85MHz/455KHz
VHF: 136-162MHz 145-175MHz
UHF: 350-390MHz 400-430MHz 440-470MHz
Antenna Impedance
Speaker Impedance
Operation Voltage 7.2V
Operating Temperature -30~+50ºC
Sensitivity 0.25uV (Wide)/0.35uV (Narrow)
S/N 45 (Wide) /40dB (Narrow)
Modulation Acceptance 2*7.5KHz/2*3.5KHz
Adjacent Channel Selectivity 70dB (Wide) /60dB (Narrow)
Co-channel Rejection -8dB (Wide) /-12dB (Narrow)
Blocking 85dB
Spurious Response 70dB
Intermodulation Rejection 65dB
Audio Response From 6 dB/oct. De-Emphasis. +2dB -6dB
AF Power 500mW
Audio Distortion 3%
50Ω
24Ω
Receiver
Transmitter
Carrier Frequency Error
Output Power
Modulation Limit 5K (Wide)/2.5K (Narrow)
Adjacent Channel Power 70dB (Wide)/60dB (Narrow)
Modulate Sensitivity
Modulate Distortion 3% (Wide) /5% (Narrow)
Audio Response
Conducted Spurious Emission
Transmit Current
±2.5ppm
UHF: 4W (High)/2W(Low)
VHF: 5W(High)/2W(Low)
21±3mV
From 6dB/oct. Pre-Emphasis ±3dB
-70dB/-36dBm
UHF: 1.6A/0.7A
VHF: 1.7A/0.7A
- 98 -
Loading...
