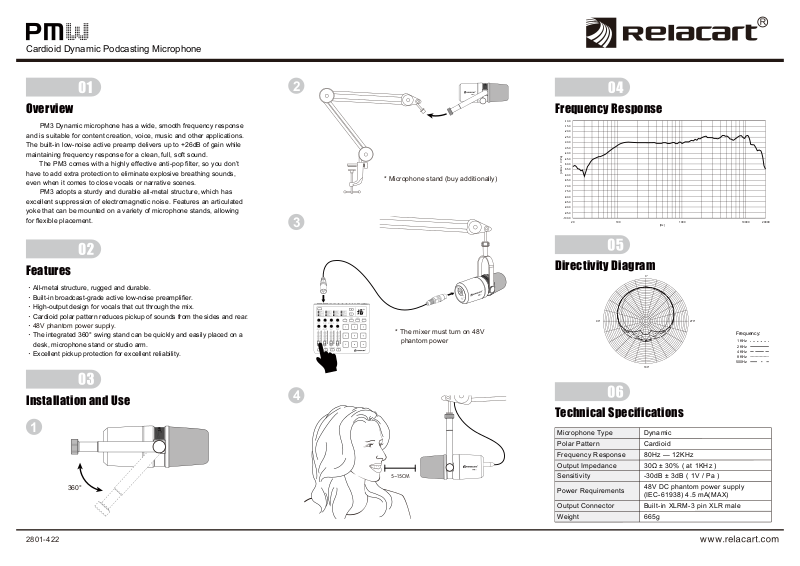

Relacart PM3 User guide

Page 1

Cardioid Dynamic Podcasting Microphone

Overview

PM3 Dynamic microphone has a wide, smooth frequency response

and is suitable for content creation, voice, music and other applications. The built-in low-noise active preamp delivers up to +26dB of gain while maintaining frequency response for a clean, full, soft sound.

The PM3 comes with a highly effective anti-pop filter, so you don’t have to add extra protection to eliminate explosive breathing sounds,

even when it comes to close vocals or narrative scenes.

PM3 adopts a sturdy and durable all-metal structure, which has

excellent suppression of electromagnetic noise. Features an articulated

yoke that can be mounted on a variety of microphone stands, allowing

for flexible placement.

Features

·All-metal structure, rugged and durable.

·Built-in broadcast-grade active low-noise preamplifier.

·High-output design for vocals that cut through the mix.

·Cardioid polar pattern reduces pickup of sounds from the sides and rear.

·48V phantom power supply.

·The integrated 360° swing stand can be quickly and easily placed on a

desk, microphone stand or studio arm.

·Excellent pickup protection for excellent reliability.

Frequency Response

-10.0

-15.0

-20.0

-25.0

-30.0

-35.0

-40.0

-45.0

-50.0

-55.0

[dB re 1 V /Pa]

-60.0

* Microphone stand (buy additionally)

* The mixer must turn on 48V

phantom power

-65.0

-70.0

-75.0

-80.0

-85.0

-90.0

-95.0

-100.0

20 100 1000 10000 20000

Directivity Diagram

90° 270°

[Hz]

0°

180°

Frequency:

1KHz 2KHz 4KHz 8KHz

500Hz

Installation and Use

360°

2801-422

Technical Specifications

5-15CM

Microphone Type

Polar Pattern

Frequency Response

Output Impedance

Sensitivity

Power Requirements

Output Connector

Weight

Dynamic

Cardioid

80Hz — 12KHz

30Ω ± 30% ( at 1KHz )

-30dB ± 3dB ( 1V / Pa )

48V DC phantom power supply (IEC-61938) 4.5 mA(MAX)

Built-in XLRM-3 pin XLR male

665g

Page 2

心形动圈播客麦克风

Cardioid Dynamic Podcasting Microphone

概述

PM3 动圈话筒具有宽阔、平滑的频率响应，适用于内容创作、

语音、音乐等应用。内置低噪声有源前置放大器可提供高达 +26dB 的增益，同时保持频率响应，获得干净、饱满、柔和的声音。

PM3 带有高效的防噗声滤网，使您不必额外增加保护措施以消

除爆发性呼吸声，哪怕是近距离人声或叙述场景。

PM3 采用了坚固耐用的全金属结构，对电磁杂声具有出色的抑

制性。具有可节的轭架，可安装在各种话筒支架上，从而实现灵活放置。

特点

·金属结构，坚固耐牢。

·内置广播级有源低噪声前置放大器。

·符合人声话音表现的高输出设计。

·心形指向性动圈式收音头结构。

·48V幻像电源。

·集成的 360°摆动支架可快速轻松地放置在桌面、话筒支架或工作室臂上。

·出色的拾音头保护，可实现卓越的可靠性。

频率响应曲线
