DIGITAL CAMCORDER

DVC-540

USER MANUAL

CONTENTS

1. PREPARING FOR USING .................................................................3

1.1 PARTS OF THE CAMERA ............................................................3

1.2 INSERTING THE BATTERY AND MEMORY CARD .....................................4

2. BASIC OPERATION ......................................................................6

2.1 TURN ON AND OFF ................................................................6

2.2 SETTING THE DATE AND TIME .....................................................6

2.3 FORMATTING THE MEMORY CARD .................................................7

2.4 CHANGING THE MODE .............................................................8

2.5 DISPLAY ON THE LCD SCREEN .....................................................8

2.6 SETTING THE CAMERA............................................................10

3. RECORDING VIDEO ....................................................................11

3.1 VIDEO MODE MENU...............................................................12

4. TAKING STILL IMAGES .................................................................13

4.1 CAPTURE MODE MENU............................................................14

5. PLAYBACK.............................................................................16

5.1 PLAYBACK MODE MENU...........................................................17

6. MAKE CONNECTIONS ..................................................................17

6.1 CONNECTING THE CAMERA TO A HDTV ............................................17

6.2 CONNECTING THE CAMERA TO A COMPUTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

6.3 WI-FI CONNECTING...............................................................19

6.4 HOW TO USE THE PC CAMERA FUNCTION..........................................20

7. SPECIFICATION ........................................................................21

1. PREPARING FOR USING

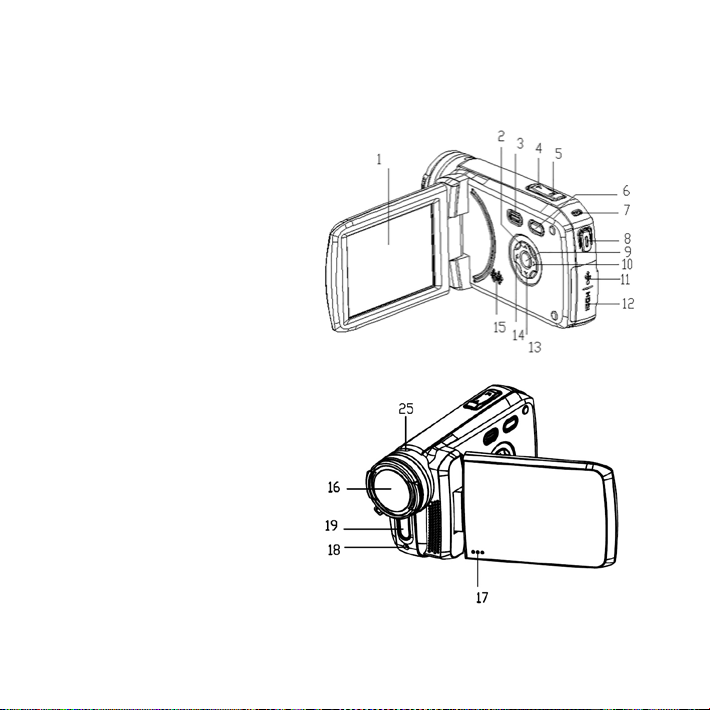

1.1 Parts of the camera

1. LCD screen

2. Up/Playback button

3. Power button

4. T/Zoom in button

5. W/Zoom out button

6. Mode button

7. Charging indicator light

8. Shutter button

9. OK/MENU button

10. Right/LED lamp button

11. USB jack

12. HDMI jack

13. Down / Wi-Fi button

14. Left button

15. Speaker

16. Lens

17. Microphone

18. Self timer indicator light

19. LED lamp

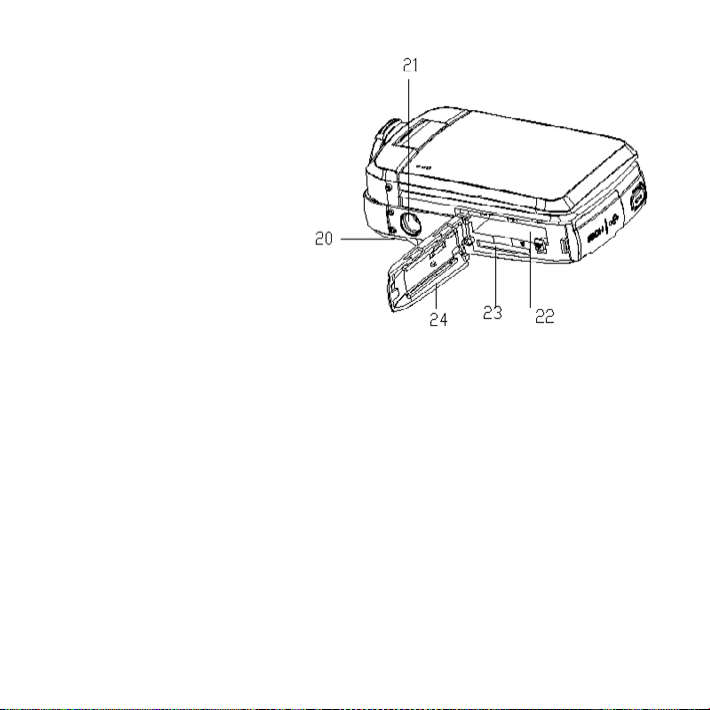

20. Wrist strap

21. Tripod slot

22. Battery slot

23. SD card slot

24. Plastic cover

25. Long shots / Microspur

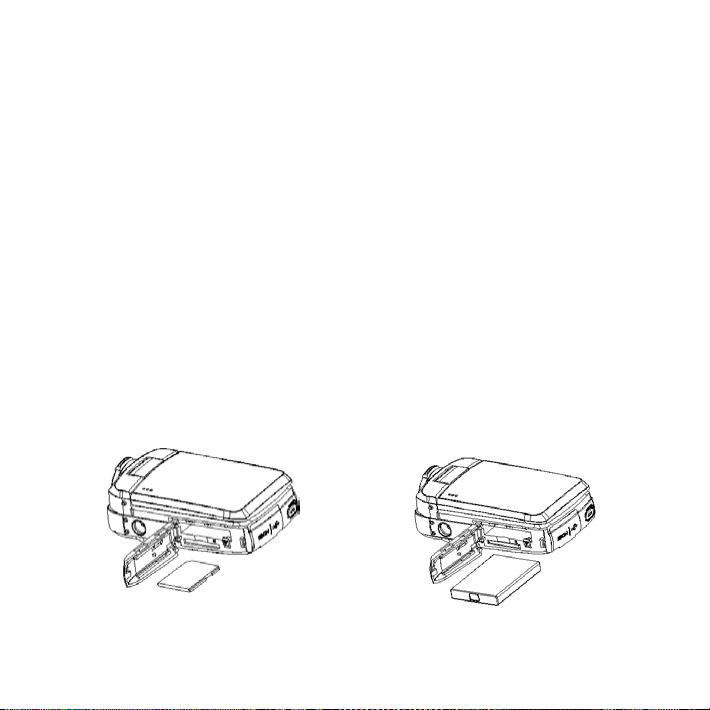

1.2 Inserting the battery and memory card

1. Slide and open the bottom plastic cover as per the direction showing on the cover.

2. Find the battery slot and SD card slot.

3. Insert the lithium battery into the bigger slot as shown in

the following gure(a). Please make sure the +/- symbols on the battery are matching the +/- symbols on the camera.

4. Insert the SD card (upto 32GB) into another slot as shown in following gure(b).Please pay attention to the direction,

do not try to insert the card forcibly.

(a) (b)

Note: Please connect the camera to a computer via the USB

cable to charge the battery for the rst time using. Once the battery is fully charged, the busy indicator light will turn off.

And the camera body may be warm after extended use.

2. BASIC OPERATION

The camera has a 3” HD resistance touch screen.You can operate it by tapping the screen or pressing the button.

2.1 Turn on and off

Turn on: Press the Power button or turn over the LCD screen to turn on the camera. Turn off: Press the Power button or close the LCD screen to turn the power off.

2.2 Setting the date and time

1. Turn on the camera.

2. Press the Menu button(ortouch the “MENU” icon on the

screen) to enter menu interface. Then press the Right

button to enter the setup menu.

3. Press Up and Down button(or touch the “Date&Time”

on the screen) to select the date option. Then press OK button(ortouch the “OK” icon on the screen) to enter the

setting interface.

4. Press the Up/Down/Right/Left button(ortouch the ”Up/ Down/Right” icon on the screen) to select the option that

you want to modify. And press OK button to conrm and

exit.

5. Press the Left button to turn back.Press the Mode

button(ortouch the ”Back” icon on the screen)to exit the

setup menu.

2.3 Formatting the memory card

It is important to formatting the memory card for the rst time using. All the data including protected les will be deleted, please ensure that you copy the important les to your com-

puter before formatting.

1. Turn on the camera.

2. Press the Menu button to enter the menu interface, then press the Right button to enter the setup menu.

3. Select the Format option by pressing Up/Down button. Then press OK button to enter the sub menu.

4. Press the Up/Down to select YES, and then press the OK button to start formatting the memory card.

5. Press Left button can exit the setup menu.

2.4 Changing the mode

The camera has 3 different modes: capture mode, video mode and playback mode.Press the Mode button(ortouch the ”MODE“ icon on the bottom right of screen) can change to different mode.

Icon Title Description

Capture mode For taking still photos.

Video mode For recording movie clips.

Playback mode For playing recorded les.

2.5 Display on the LCD screen

Video Mode

1. Video mode

2. Resolution

3. Loop recording

4. Voice recording

5. Stabilizer

6. Memory card capacity

7. Battery level

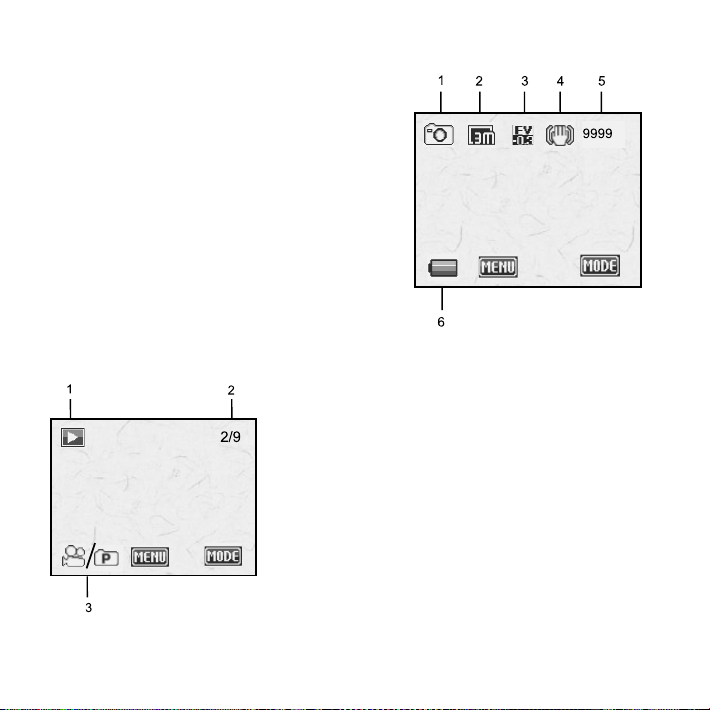

Capture Mode

1. Capture mode

2. Resolution

3. Exposure

4. Stabilizer

5. Memory card capacity

6. Battery level

Playback Mode

1. Playback mode

2. The sequence of current le/

the total number of recorded

les

3. File type:video/photos

2.6 Setting the camera

Before taking photographs or recording videos, turn on the camera to set the camera rstly. Press Menu button to enter

the mode menu.Then press the Right button to bring up the setup menu as below, press the Right/Left/Up/Down/OK button to set the option and exit.

Menu Function

Set the sounds and volume of shutter, start-up and beep.

Shutter: [on]/ [off]

Sounds

Back Light

LED Set the LED state.Options: [on]/ [off].

Power Save

Date&Time

Language

Power Frequency

Start-up: [none]/ [1]/ [2]/ [3] Beep: [on]/ [off] Volume: [0]/ [1]/ [2]/ [3] Set the duration of back light.Options: [1min]/ [3min]/ [5min]/ [on].

For saving power, the camera will turn off automatically after

a period of time if you did not operate it.Options: [1min]/ [3min]/ [5min]/ [off]. Set the date and time of the camera.Press Up/Down/Left/Right button to set correct time. Set the on-screen language: [English]/ [German]/ [Italian]/ [Spanish]/ [Portuguese]/ [Dutch]/ [French]/ [Russian]

Light Frequency should be set depending on your region: [50HZ]/ [60HZ].

Menu Function

USB

Format

Reset All

Set the default mode when connect the camera to a computer by USB cable: [MSDC]/ [UVC].

Format your SD card will delete all les including the protected les.Please copy important les before format.

Options: [Yes]/ [No].

Restores the camera to default settings: Options: [Yes]/ [No].

3. RECORDING VIDEO

1. Turn on the camera, press the Mode button to set the camera to video mode. An icon will show on the top

left corner of the screen.

2. View the target subject on LCD screen, and press the W/T button to zoom in/zoom out the image.

3. Press the Shutter button to start recording.The recording duration will shown on the top right cover of the screen.

4. Press the Up button to pause recording.Press the Shutter button again to stop recording.The camera will stop recording automatically when the memory capacity is full.

• The LCD screen can rotate 270°.

• During recording, press Left button, the screen will turn

black(for saving power)while the camera is still working.

Press Left button again to light up the screen.

• The camera has the function of manual focusing.

Rotating the lens can alternate long shots[ photography[

]. Rotate the lens to the left, the camera is

] and macro

switched to long shots state. Rotate the lens to the right, the camera is switched to macro shooting state. In macro photography mode, you can record video that will show small objects clearly.

3.1 Video Mode Menu

Menu Function

Set the video resolution. Select small movie size can record

Movie Size

White Balance

Video Quality Set the video quality.Options: [Super Fine]/ [Fine]/ [Normal].

Stabilizer

Voice Rec Record the voice when recording video.[On]/ [Off].

longer time.

Options: [1920×1080(30fps)]/ [1280×720(60fps)]/ [1280×720(30fps)].

Set the white balance to adapt different light sources.Options: [Auto]/ [Daylight]/ [Cloudy]/ [Fluorescent]/ [Tungsten].

Use the function to avoid our hands shaking when taking pictures. [On]/ [Off].

Menu Function Loop

Recording

Motion Detect

Slow Motion [On]/ [Off]

Time-lapse

Time-lapse Duration

Date Stamp

Set the time of loop recording.Options: [Off]/ [1min]/ [3min]/ [5min].

The camera will detect the motion state automatically after

open this function.If it detect a period time of stationary, the camera will stop recording.If detect motion again, it will restart

to recording. [On]/ [Off].

Set the time-lapse recording. Options: [Off]/ [3sec]/ [5sec]/ [10sec]/ [30sec]/ [1min]/ [3min].

Set the duration of time-lapse recording.Options: [Unlimited]/ [3min]/ [5min]/ [10min]/ [15min]/ [20min]/ [30min]/ [60min].

Stamp the date and time on the recorded video les.Options: [Off]/ [Date]/ [Date&Time].

4. TAKING STILL IMAGES

1. Turn on the camera, and press the Mode button to set the camera to capture mode. An icon will show on the top left corner of the screen.

2. View the target subject on LCD screen, and press the W/T button to zoom in/zoom out the image.

3. Press the Shutter button to take a picture.After the image

has been taken, the LCD will display the image for a brief

seconds.

• The memory capacity in the top right of screen will decrease one as each image is taken.

• The LCD screen can rotate 270°.

• During taking pictures, press Left button, the screen will

turn black(for saving power)while the camera is still

working.Press Left button again to light up the screen.

• The camera has the function of manual focusing.

Rotating the lens can alternate long shots[ photography[

]. Rotate the lens to the left, the camera is

] and macro

switched to long shots state. Rotate the lens to the right, the camera is switched to macro shooting state. In macro photography mode, you can take pictures that will show small objects clearly.

4.1 Capture Mode Menu

Menu Function

Resolution

White Balance

Video Quality

Set the resolution of pictures. Options: [20M]/ [16M]/ [12M]/ [8M]

Set the white balance to adapt different light sources.Options: [Auto]/ [Daylight]/ [Cloudy]/[Fluorescent]/ [Tungsten].

Set the image quality. Options: [Super Fine]/ [Fine]/ [Normal].

Menu Function Metering [Center]/ [Multi]/ [Spot] Sharpness [Hard]/ [Normal]/ [Soft]

ISO

Exposure

Stabilizer

Auto Review

Self-Timer

Photo Burst

Time-lapse

Time-lapse Duration

Date Stamp

Set the level of light sensitivity to adapt the surrounding environment.Options: [Auto]/ [50]/ [100]/ [200]/ [400]/ [800]/ [1600].

Set the exposure value manually to compensate light in unusual condition. Options: [–2.0]/ [–1.7]/ [–1.3]/ [–1.0]/ [–0.7]/ [–0.3]/ [0.0]/

[+0.3]/ [+0.7]/ [+1.0]/ [+1.3]/ [+1.7]/ [+2.0].

Use the function to avoid our hands shaking when taking pictures. [On]/ [Off].

Keep the photo displaying on the screen for seconds after press the Shutter button.Options: [Off]/ [1sec]/ [3sec]/ [5sec].

Set the time of taking pictures automatically. Options: [Off]/ [2sec]/ [10sec].

Once press the Shutter button, the camera will take several

photos continuously. Options: [Off]/ [3]/ [5]/ [10].

Set the time-lapse taking pictures. Options: [Off]/ [3sec]/ [5sec]/ [10sec]/ [30sec]/ [1min]/ [3min].

Set the duration of time-lapse.Options: [Unlimited]/ [3min]/ [5min]/ [10min]/ [15min]/ [20min]/ [30min]/ [60min].

Stamp the date and time on the photo les.Options: [Off]/ [Date]/ [Date&Time].
