REITEL ERGORET MINI Operating Instructions Manual

Operating Instructions

LABORATORY EQUIPMENT

IN

ST

AINLESS STEEL

ERGORET MINI

REITEL Feinwerktechnik GmbH

Senfdamm 20 | 49152 Bad Essen

Phone: [phone] | Fax: [phone]

www.reitel.com | [e-mail]

II

Dear Customer!
The ERGORET MINI table top workstation fits on every worktable and keeps dusts and

gases away from the environment. All work is done behind safety glass on a skin-friendly
beech plate with good visibility through an energy-saving bright work light. The extractor can
be connected to an existing installation or alternatively to the DUSTY extractors.

Any other use or usage beyond this scope is considered unintended use. The manufacturer
shall not be responsible for any damages that may result thereby.
Prior to installation of the device operating instructions and especially the safety instructions
must be read and followed by all personnel who use this device.
After having unpacked the device, please check carefully whether transportation damages of
any kind have occurred. If that is the case, the carrier or manufacturer must be notified within
3 days. The company will not be responsible for any damages found after that.
These operating instructions must be read and followed by all personnel who use this device.
Store it at a safe place near the device. This documentation is protected by copyright.
Transmittal or reproduction of this document in whole or in part and disclosure of its contents
is not permitted. If the operation manual gets lost an extra copy can be ordered from the
manufacturer.

III

INDEX

TECHNICAL DESCRIPTION ......................................................................................... 4

BASIC EQUIPMENT ....................................................................................................... 4

SPECIAL ACCESSORIES ................................................................................................ 4

DEVICE COMPONENTS .................................................................................................. 5

TECHNICAL DATA ......................................................................................................... 5

SAFETY NOTES ................................................................................................ ........... 6

GENERAL SAFETY NOTES ............................................................................................ 6

SPECIFIC SAFETY NOTES ............................................................................................. 7

INSTALLATION ............................................................................................................ 8

INSTALLATION .............................................................................................................. 8

MOUNT EXTRACTOR ..................................................................................................... 8

MOUNTING THE MAGNIFYING GLASS (OPTIONAL) ............................................................ 8

OPERATION ................................................................................................................. 9

CHRONOLOGICAL RUN OF OPERATION ........................................................................... 9

TROUBLESHOOTING .................................................................................................. 9

MAINTENANCE ............................................................................................................ 9

WARRANTY.................................................................................................................10

DISPOSAL REGULATIONS ........................................................................................13

SPARE PARTS LIST ...................................................................................................13

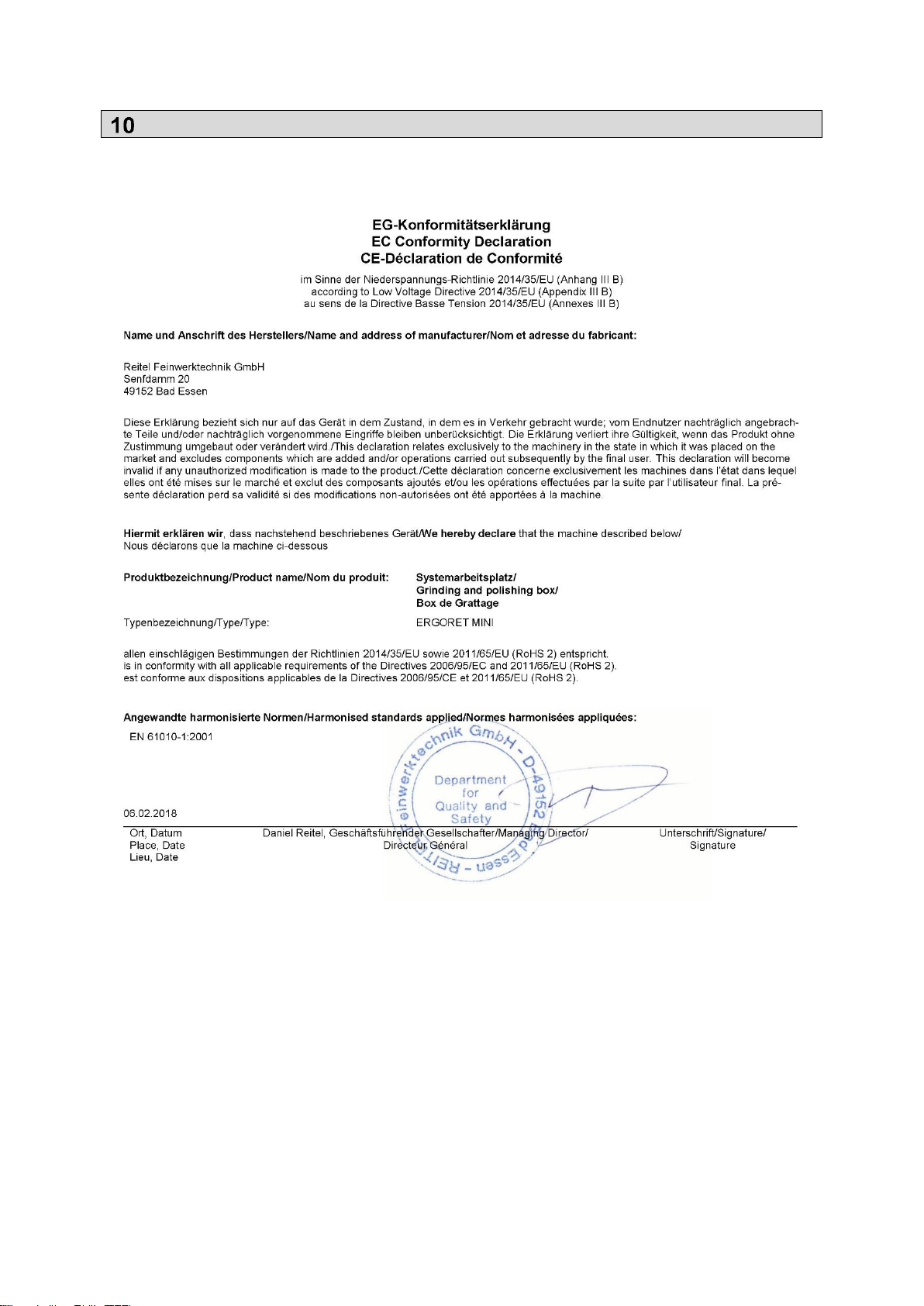

EC CONFORMITY DECLARATION .............................................................................14

4

Technical Description

Basic Equipment

• ERGORET MINI table top workstation

• Filing vice

• Suction connection elbow

Special accessories

• Order-No.: 12900000 Extractor DUSTY MINI

• Order-No.: 17902000 Extractor DUSTY COMFORT

• Order-No.: 24800000 VARIO-Lifting table

• Order-No.: 23205000 Magnifying glass

• Order-No.: 23203000 Extraction adapter for several brands, e.g. Freuding,

Strohm+Maier, KaVo, etc.

5

Device components

1 Main switch
2 Cover incl. protective film
3 Wood panel
4 Suction tube incl. cap
5 Filing vice
6 Magnifying glass incl. holder and ball joint (optional)
7 LED lamp (inside the cover)

Technical Data

Line voltage

230 V/50–60 Hz

Current consumption

18 W

Height/width/depth

300/490/400 mm

Weight

14 kg

Sound level

≥ 85 dB(A)

Housing

Stainless steel, wood

Order-No.:

16801000

Made in Germany (Subject to modifications)

Fig.: Device view

2 1 3 4 5 6 7

6

Safety Notes

General Safety Notes

• All equipment undergoes final inspection and testing before leaving our factory. However,
if equipment is damaged during shipping or through any other circumstances, it must not
be used in service. Please check the device regularly for damages. Damaged parts
should be replaced immediately.

• All power/air/water/gas sources should be rated for the demands of the device as listed in
the technical data sheets. Maximum ratings must not be exceeded. All VDE (Verein
Deutscher Elektro-Ingenieure) standards should be followed. Equipment should be
grounded according to standards.

• Adherence to valid regulations regarding necessary checks (e.g. according to Accident
Prevention & Insurance or electrical equipment) is exclusively taken over by the
buyer/user of this product.

• This device has been designated to be used only for its intended purpose. All other
applications must be prohibited for safety reasons as otherwise the manufacturer’s
warranty expires.

• The device should be set-up in a clean, well-ventilated room, if necessary under a hood.

• Supporting surfaces should be straight, flat and adequately stable.

• Don’t place anything on top of the machine.

• To avoid injury, appropriate protection should be worn (e.g. gloves, safety glasses, safety

shoes, hearing protection etc.)

• If the machine is defective or working improperly it must be taken out of service. In case
of further use of the machine the owner will be held responsible for any consequential
damage.

• To prevent accidents from water, fire or explosion, all power/air/water/gas sources should
be turned off after working hours and during breaks, and secured against unauthorized
access.

• When carrying out maintenance works or repairs or when opening the device always turn
off the main power switch and unplug the whole unit.

• Repairs should be carried out only by the manufacturer or by qualified and certified
personnel appointed according to chapter 7 – warranty.

• In case of leaking water out of housing or tank shut down device and call service.

• Check all hose connections for leak tightness, if necessary tighten hose clamps again.

7

Specific Safety Notes

Note:

The protective hood with extraction prevents flying grinding chips. If, nevertheless, the risk
of accidents, e.g. by working with grinding equipment or similar (please note the
manufacturer's instructions), appropriate protective measures must be taken.

8

Installation

The equipment delivered is ready for immediate use. The sealed plug can be connected
directly to the mains supply 230 V / 16 A. For installation, please refer to chapter 2.

Installation

1. Place the real wood panel (3) in the desired position.

2. Insert the filing vice (5) into the opening provided.

3. Then cover the workplace with the help of the plexiglass hood (2).

Mount extractor

1. Attach the extractor to the suction tube (4) with a suction hose (optional adapter
available) and make the electrical supply.

2. Check the extraction for a tight fit (the extraction can be connected to the front or rear of
the ERGORET MINI.) The unused pipe end must be closed with the sealing cap.

Mounting the magnifying glass (optional)

1. Remove the cap nut in the center of the cover plate.

2. Turn the ball holder onto the thread.

3. Turn the magnifying glass with holder onto the thread of the ball joint. Lock the ball joint
with the locking screw.

9

Operation

Chronological run of operation

1. Make the electrical connections.

2. Switch on the device via the main switch (1) and then start the extraction.

3. After completing the work switch off the device at the main switch (1) again.

Troubleshooting

Device doesn’t turn on.

Check the building’s main fuse.

LED lamp is defective.

Disconnect the power plug and then
replace the lamp.

Insufficient suction power.

a. Check extraction openings for blockage

(also in the filing vice).

b. Check suction for clogging → replace

filter bag if necessary.

Maintenance

• Check the condition of the device regularly. Pay attention to e.g. visible damage to
housing or power cord.

• Clean the protective cover (2) and the magnifying glass (6) (optional) regularly with a
damp cloth.

• If necessary, replace the LED lamp (7).

• Replace the protective film on the inside of the glass if necessary. (see spare parts list)

10

Warranty

We, REITEL Feinwerktechnik GmbH, offer a 1 year’s warranty beginning from the proven

date of purchase. This warranty covers all defects traceable to materials, design or
workmanship. The following warranty regulations are applicable:

Within the warranty period Reitel Feinwerktechnik GmbH or an authorized distributor agrees
at its sole option, to perform repair or replace this product at no charge covering all defects
traceable to materials, design or workmanship. Warranty only applies to appropriate use and
regular maintenance of this product according to the operating instructions. Claims under
warranty are restricted to complementary performance. Additional claims, especially claims
for indemnifications, are not covered by this warranty.

1.

Warranty claims have to be addressed to the distributor the product was purchased from or
directly to our service department.

Contact:
REITEL Feinwerktechnik GmbH
Senfdamm 20

49152 Bad Essen
Germany

Phone: [phone] (Service Department)
Phone: [phone] (Reception)
Fax-No: [phone]

2.

In case of warranty claim application the sales receipt or your purchase invoice showing the
date of purchase of the product and the serial number must be furnished. Securely pack and
ship the device, freight charges prepaid, at your own risk to us, along with a report describing
the defect. We reserve the right to decline warranty if this information has been removed or
modified after purchase of the product or if they are not included in case of warranty claims.

3.

Warranty repairs have to performed by REITEL Feinwerktechnik GmbH or by authorised
distributors. Repairs performed by non-authorised companies will void the claim for refund
since damages to the product resulting hereof are not covered by warranty.

4.

11

If the unit sent in for repair or replacement is still under the original warranty then warranty is
to the end of the original 1 year warranty.

5.

If the unit is destined to be operated in another country than originally intended and
manufactured for, modifications to the product might be necessary to comply to special
technical and /or safety standards of that specific country. Such modifications are no defects
traceable to materials, design or workmanship. and are therefore expressly excluded from
warranty claims.

Modification costs or damages arising from operation of the product under deviating
conditions are not covered by warranty.

6.

Exclusions from warranty:

− Service and maintenance work as well as repair and replacement of consumables

according to our consumables‘ list

− Transportation cost of the machine or installation and dismounting expenses incurred

− Damages due to use of the product other than for its intended purpose

− Damages due to faulty installation or insufficient maintenance of the product (e.g.

decalcification)

− Damages due to natural disaster e.g. lightning, water, fire, act of nature beyond

control, war, inadequate line voltage, insufficient ventilation, no decalcification,
insufficient care and cleaning or non-adherence to operation and maintenance
instructions according to the accompanying operation guide.

− Damage due to use of the product other than in accordance with the instructions

provided by REITEL Feinwerktechnik GmH;

− The warranty does not cover the cost of removal and replacement of parts and

accessories, unless supplied as original equipment by REITEL Feinwerktechnik
GmbH

− All kind of damages occurred not directly at the device as well as consequential

damages (e.g. damages to furniture due to a lack of water, downtime of the machine,
material, lost working hours, wages and other consequential damages).

This warranty shall be rendered null and void if:

− the product has been subject to any modification, repair or replacement other than as

authorised by REITEL Feinwerktechnik GmbH

− the product is continued to be operated despite a functional defect

12

7.

The warranty is device specific and may be claimed, within the warranty period, by any
person who has legally acquired the device.

8.

Consumables are excluded from warranty. Spare parts are subject to a warranty coverage of
6 months against all defects traceable to materials, design or workmanship according to
these warranty regulations.

9.

Legal default claims on the part of the purchaser remain unaffected by this warranty.

10.

We reserve the right to charge a fee if repair of the device is rejected and the device is
destined to be sent back unrepaired.

11.

Please note:

Upon repair or replacement of this unit, personal data and settings might get lost or

damaged. We don’t accept liability for all kind of data loss. The customer is advised to

backup essential programs and data before sending for service.

12.

This warranty shall be interpreted in accordance with German law to the exclusion of UN
sales law. Place of jurisdiction is our business location.

13.

If any provisions of this warranty are judged to be illegal or unenforceable, the continuation in
full force and effect of the remaining provisions will not be prejudiced. The provisions of this
warranty judged to be illegal or unenforceable shall be construed so as to give effect to the
intent manifested by the provision held invalid, illegal or unenforceable and to give effect to
section 13 hereof.

14.

Should you need to borrow a device while your device is being repaired, please contact
Messrs. REITEL or your distributor. These loans are a service for which availability cannot
necessarily be guaranteed. After the warranty period, a free may be charged for loan
equipment as well as for shipping and packaging.

13

Disposal regulations

According to valid laws our devices are properly disposed of according to B2B –
regulations for proper disposal. Please contact your local dealer for additional
information.

Spare Parts List

E6246720

Adapter Plexiglas für Absauganschluss-Winkel
Plexiglass adapter for suction connection elbow

1

Stck

piece

E6187700

Dichtung
Sealing

1

Stck

piece

E6249100

Feilkloben Buche mit Absaug-Löchern
Filing vice made of beechwooch with suction holes

1

Stck

piece

E6230710

Folie Frontschutz 5 St./Pack
Front protection foil

1

Pack
pack

E7336220

LED Lampe, mit Clips, ohne Trafo
LED lamp, incl. Clips and end caps

1

Stck

piece

23205000

Lupe inclusive Halter und Kugel-Gelenk
Magnifier incl. Holder and ball joint

1

Stck

piece

E6248900

Lupenglas - 2fach mit Halter
Two lens glasses with holder

1

Stck

piece

E6310100

Platte, Acryl
Acrylic plate

1

Stck

piece

E6064800

Schalter 2-polig mit Lampe grün
Double pole switch, green illuminated

1

Stck

piece

E6065000

Schutzkappe für Schalter
Switch protection cap

1

Satz

set

14

EC Conformity Declaration

15

We manufacture in compliance with Quality Management ISO 9001:2015 incorporating
established standards.

REITEL Feinwerktechnik GmbH

Senfdamm 20 | 49152 Bad Essen

Phone: [phone] | Fax: [phone]

www.reitel.com | [e-mail]

062019
