Technical Description of IR 12 Heating Controller

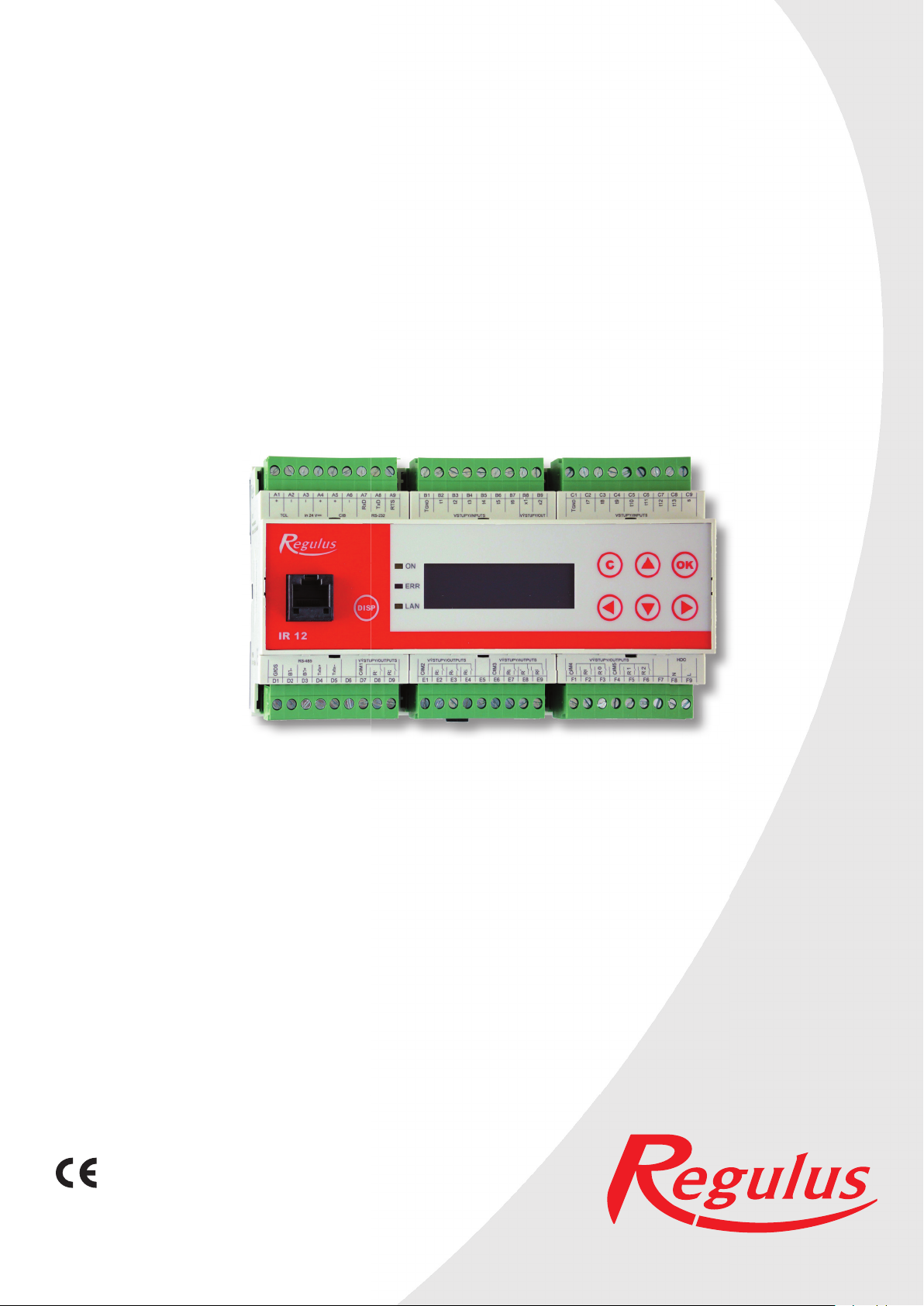

IR 12 Heating Controller (ver. IR12_KRB) is a heating system controller. The controller can
handle up to 2 heating zones (one with a mixing valve, one unmixed with a return mixing
valve OR two mixed zones with no return mixing valve), DHW heating, DHW and space
heating by a fireplace, and a solar thermal system with 1-3 solar storage tanks. The

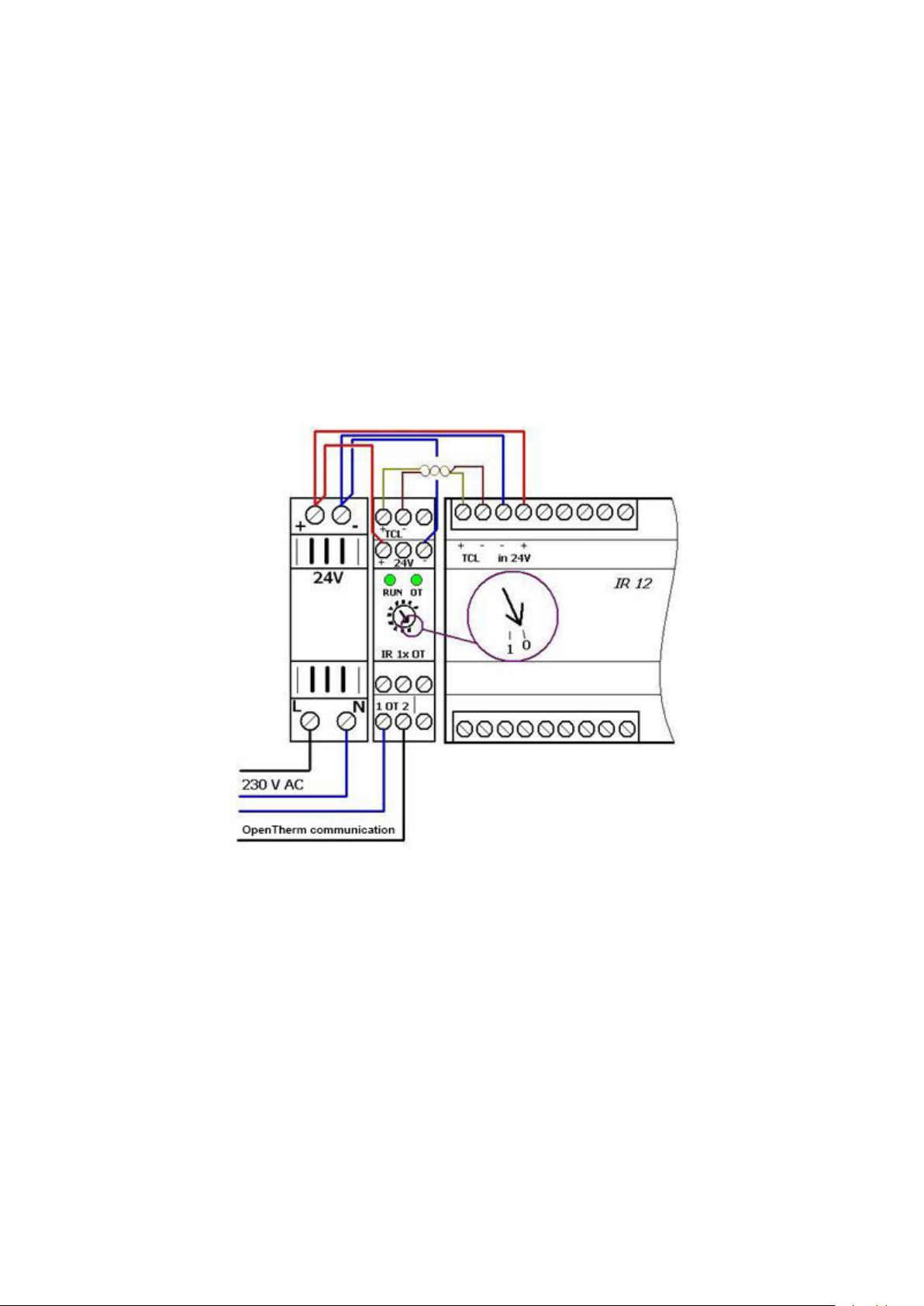

controller can be upgraded with an OpenTherm communication module and module for third
solar storage tank, universal output and two universal inputs for temperature sensors.
IR 12 Heating Controller is controlled by 6 keys. Information is shown on a 4-line display. The
Controller features 13 inputs for temperatures measured (by Pt 1000 temperature sensors)
and one input for Ripple control signal. Further it features 10 relay outputs (250V 3A) and two
triac outputs (250V 1A).
The Controller is f itted with an Ethernet interface enabling connection to a tablet, PC or from
a mobile phone. Servicing, firmware upgrade or elementary visualization of the concerned
heating system can be performed via this interface. The Controller also features an RS 232
communication interface. A gas boiler can be controlled from an OT (OpenTherm) module.
1. How to operate IR 12 Controller

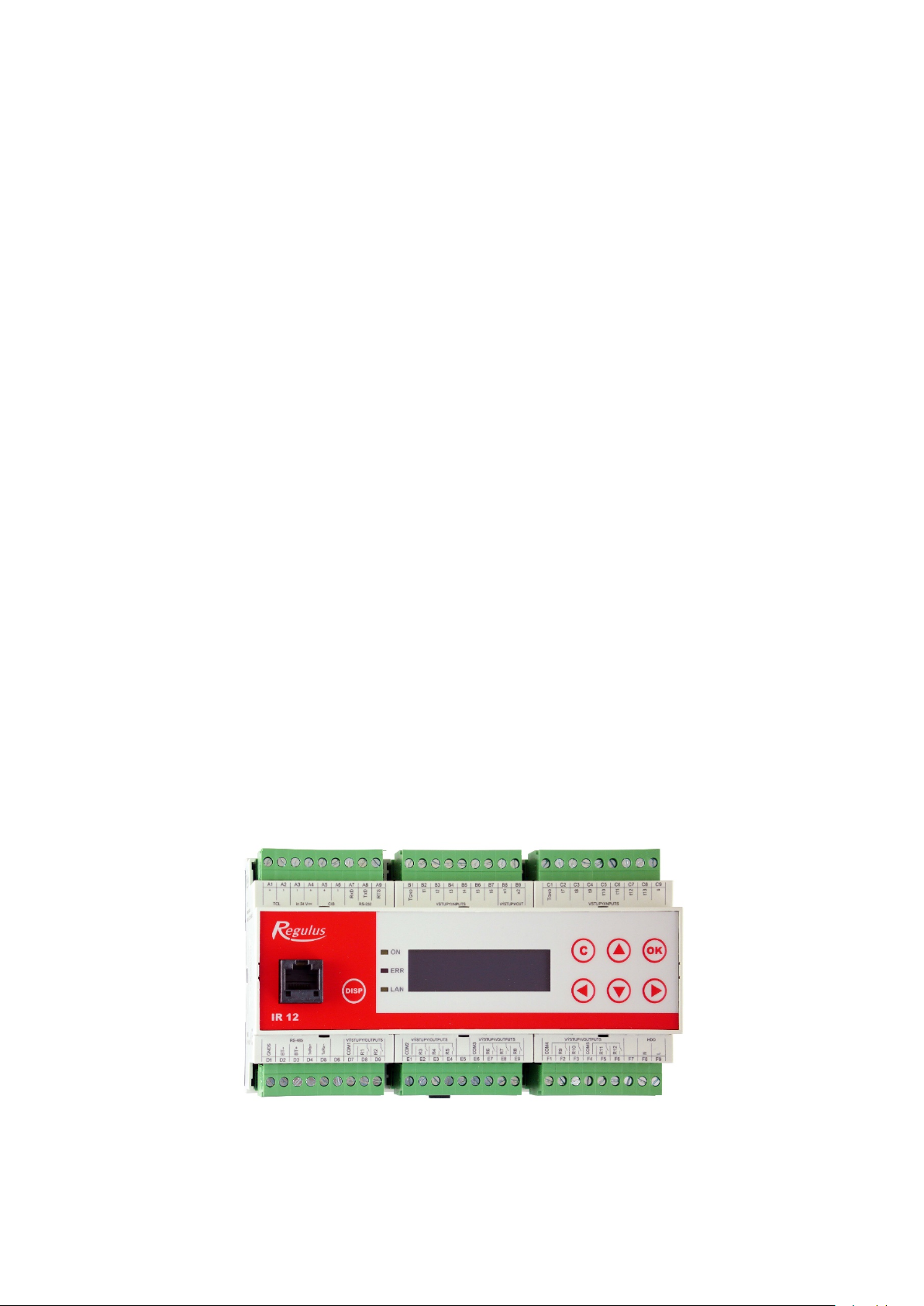

The controller is operated using 6 keys , , , , C, OK on its front panel.
The DISP key switches between User and Service display.
Note: The Service display is intended to show info on the Controller itself and therefore it is
not needed during common operation.
3
The keys , are used to browse in the menu. In order to edit a parameter, press OK and
3 1 2
4
5
1
2 7 6 3 4
5
a cursor appears on the parameter. The values of numeric parameters can be
increased/decreased by pressing / keys. Selection parameters (e.g. ON/OFF) are
chosen by pressing keys , . When finished, pressing OK will move the cursor to the next
parameter in the same display. Parameter editing can be also exited without saving by
pressing the key C.
1.1 Basic User Menu
Pressing C in the basic User menu will always bring back the first – basic display.

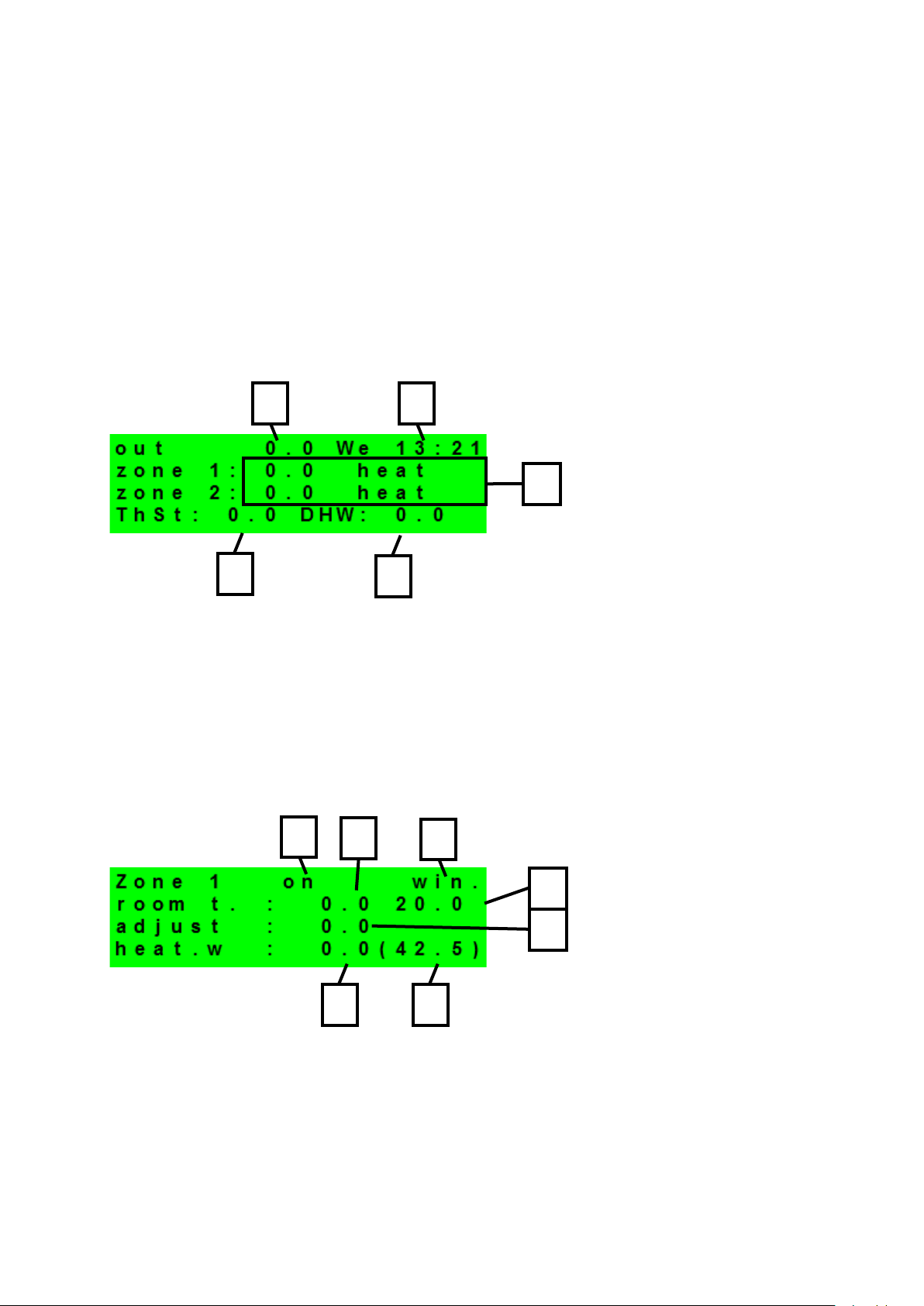

1 – outdoor temperature
2 – weekday and time
3 – temperature in zone (if room temp. sensor is used) / heating water temp.
4 – temperature in Thermal Store
5 – temperature in DHW storage tank
Heating zone display (zone 1, zone 2):
1 – zone ON / OFF / NO (switched off in service menu)
2 – controller mode winter / summer (zone heating off)
4
3 – current room temperature. If no ro om sensor is used, the rea l temperature is shown as 0°C.
1
2
3
4
Temperature for zone 1 only.
4 – desired room temperature.
5 – adjustment t o the desired room t emperature. When RC2 1 IR room unit is used, “ PJ“ appears
and the adjustment made by this unit is shown.
6 – desired heating water temperature for the zone
7 – current heating water temperature
The desired temperature can be changed by the user. If a room unit is used (for zone 1), the
temperature can be modified through this unit. Otherwise the desired temperature can be
adjusted via the parameter “adjust”.

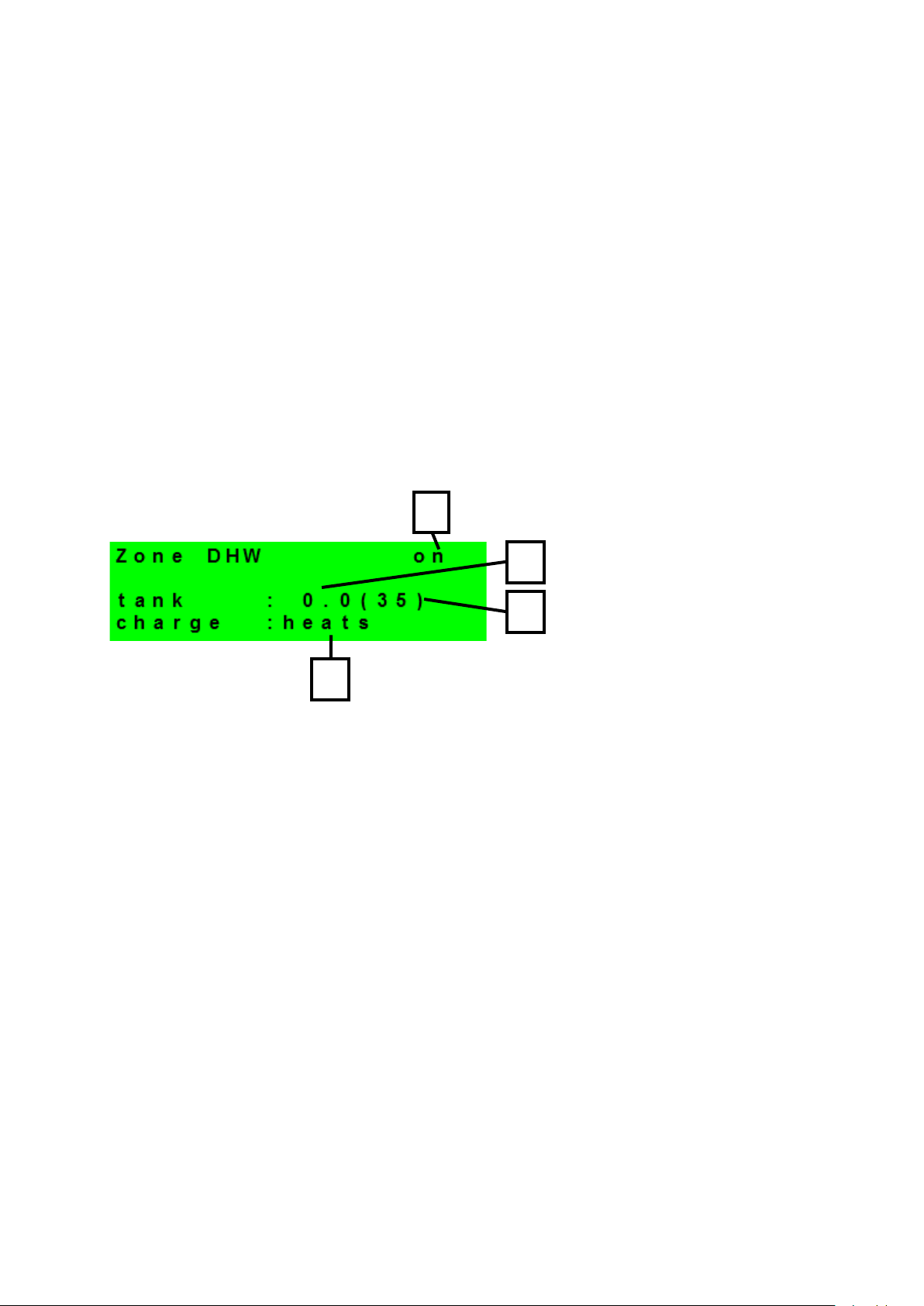

Hot water zone display (DHW):
1 – hot water storage tank heating condition: ON / OFF / NO (switched off in service menu)
2 – current temperature in the hot water storage tank
3 – desired temperature in the hot water storage tank
4 – information if the tank is being charged by the boiler (heat / noheat)
5

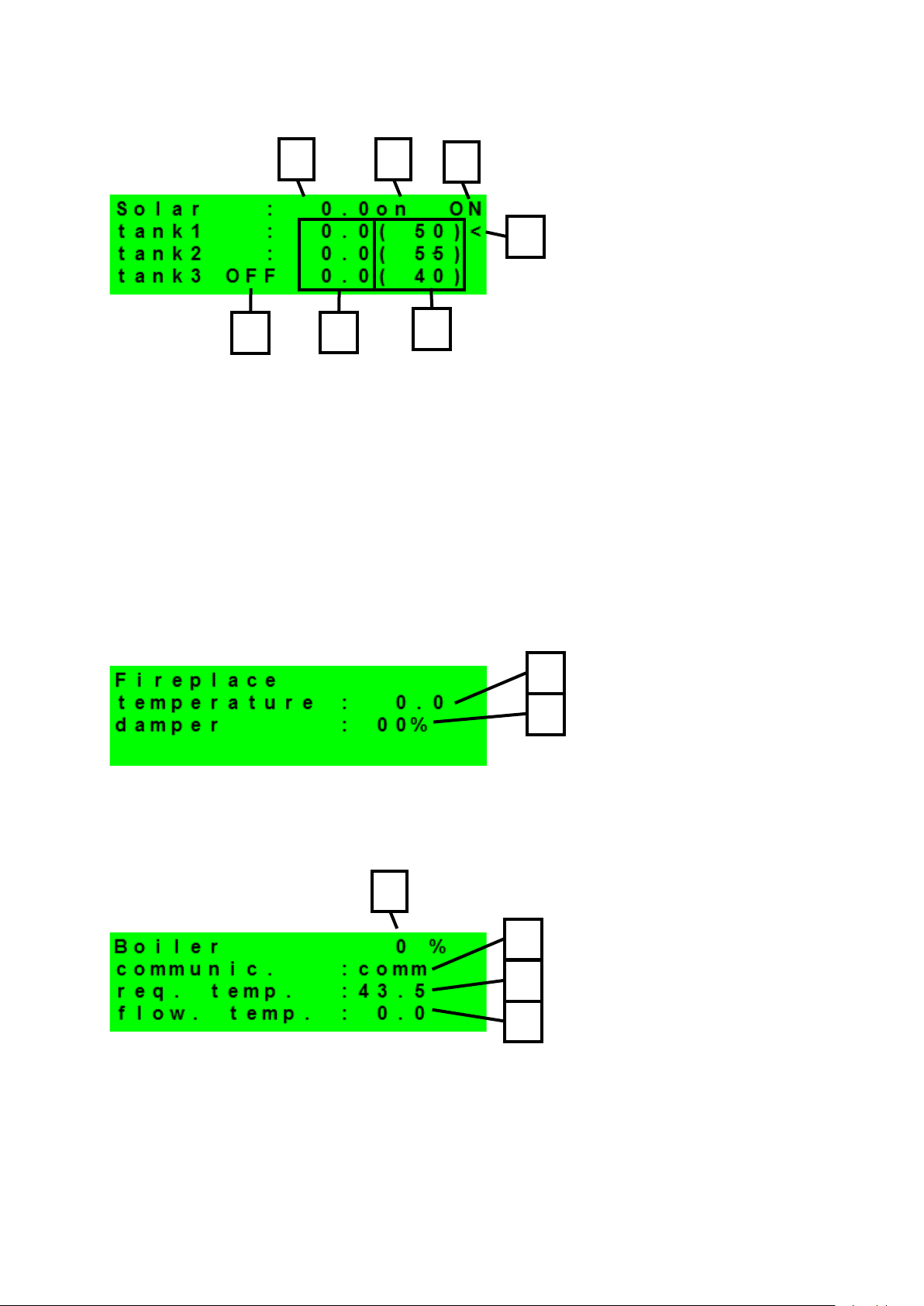

Solar thermal system display:
7 1 2 3 4 6 5 1 2 3 4 1 2
1 – solar collector temperature
2 – system ON
3 – ON = solar pump running
4 – currently charged tank mark
5 – desired temp. for tanks when charged from solar
6 – current temp. in tanks
7 – hot water storage tank OFF
Fireplace display
1 – fireplace current flow temperature
2 – flue gas damper position (% open)
Boiler display:
1 – relative boiler modulation
2 – state of controller communication with boiler: comm (OK) / error
6
3 – desired flow temperature
1 2 3
4 – current flow temperature

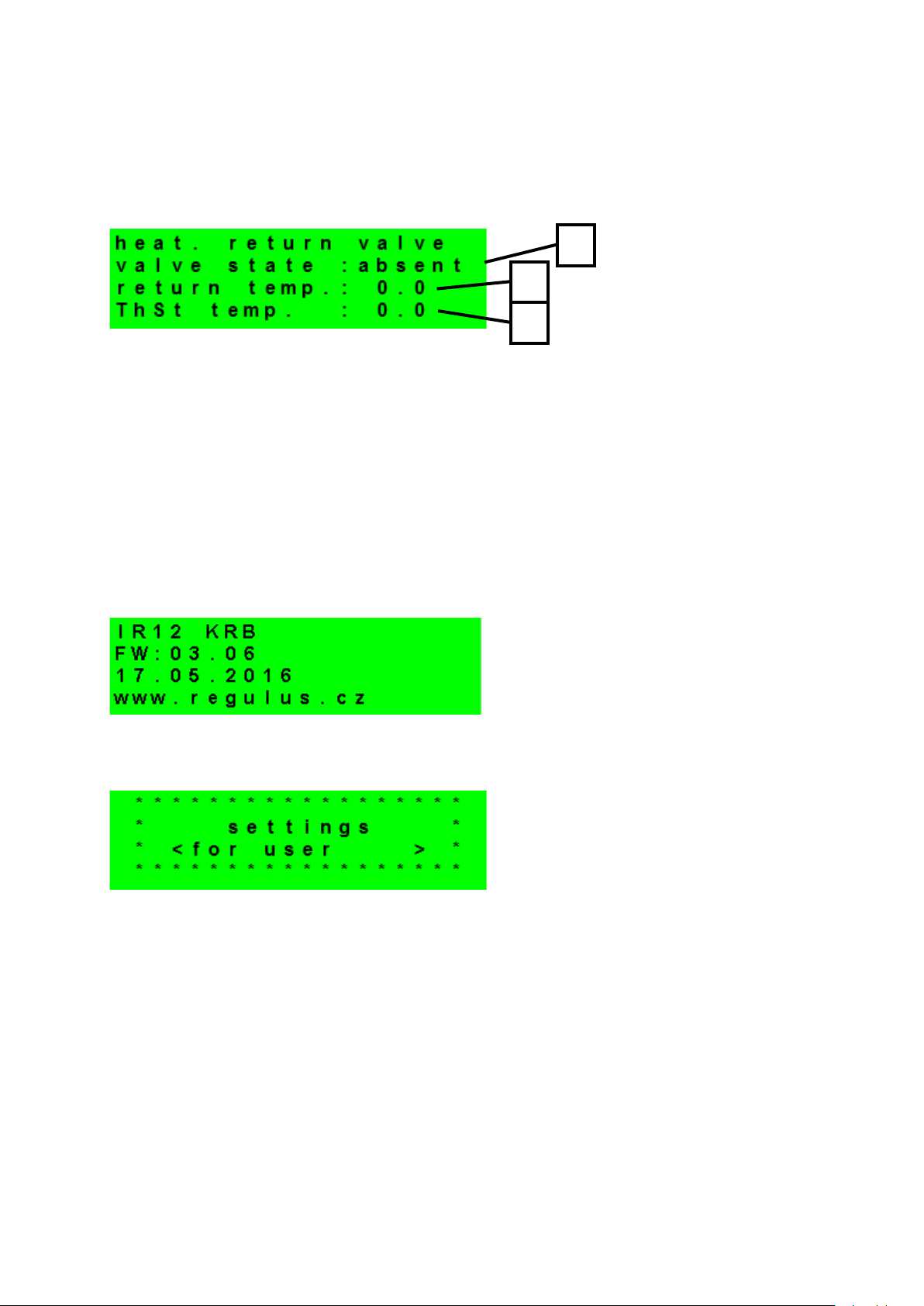

Return heating water valve display:
1 – state of return water v alve (absent – return water valve is not prese nt; mixing – return water to
boiler is mixed from r eturn heating water and preheated water in Thermal Store; toBoil – return
heating water is diverte d directly into bo iler; toThSt – return h eating water is diver ted into Thermal
Store for preheating)
2 – return heating water temperature
3 – Thermal Store water temperature
Firmware version and release date display:
Menu:
While in MENU, use arrow keys , to select user or service menu, or switch circulation on
immediately.
User Menu is intended to set zones, time schedules, OTC curve, date and time.

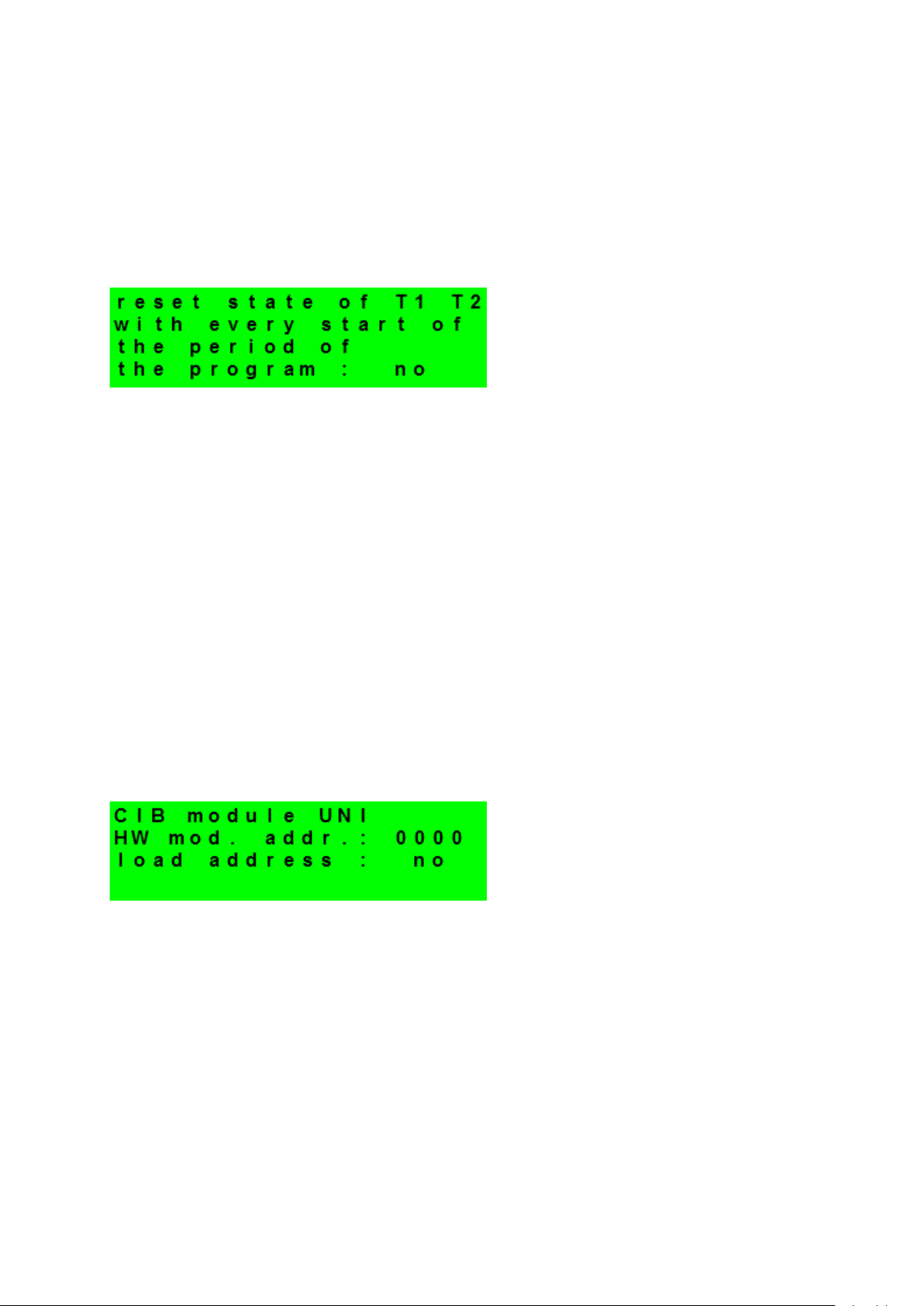

Add. Modules – this item will make available basic information on additional CIB modules (if
present).
7
UNI module universal module extending both inputs and outputs – absent/active (shows
whether the module is connected to PLC controller)
output state of the module’s universal output (a function adjustable on the service level)
t1, t2 temperatures at temperature sensors of the module
Service Menu is intended for more detailed adjustments to zones, sources, solar thermal
system and other parameters.

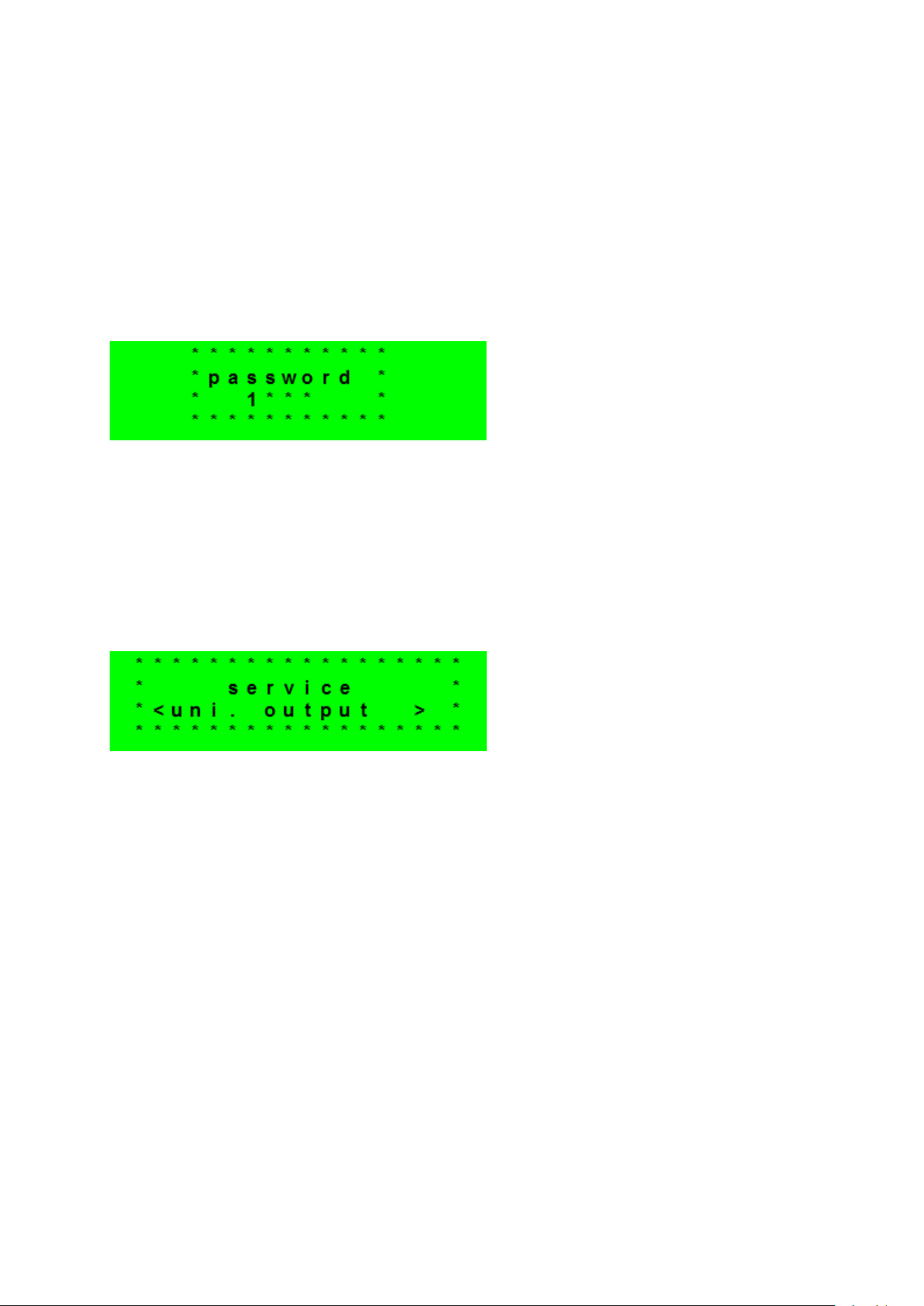

Access to the Service Menu is password protected and parameter adjustments are not
intended for laymen!

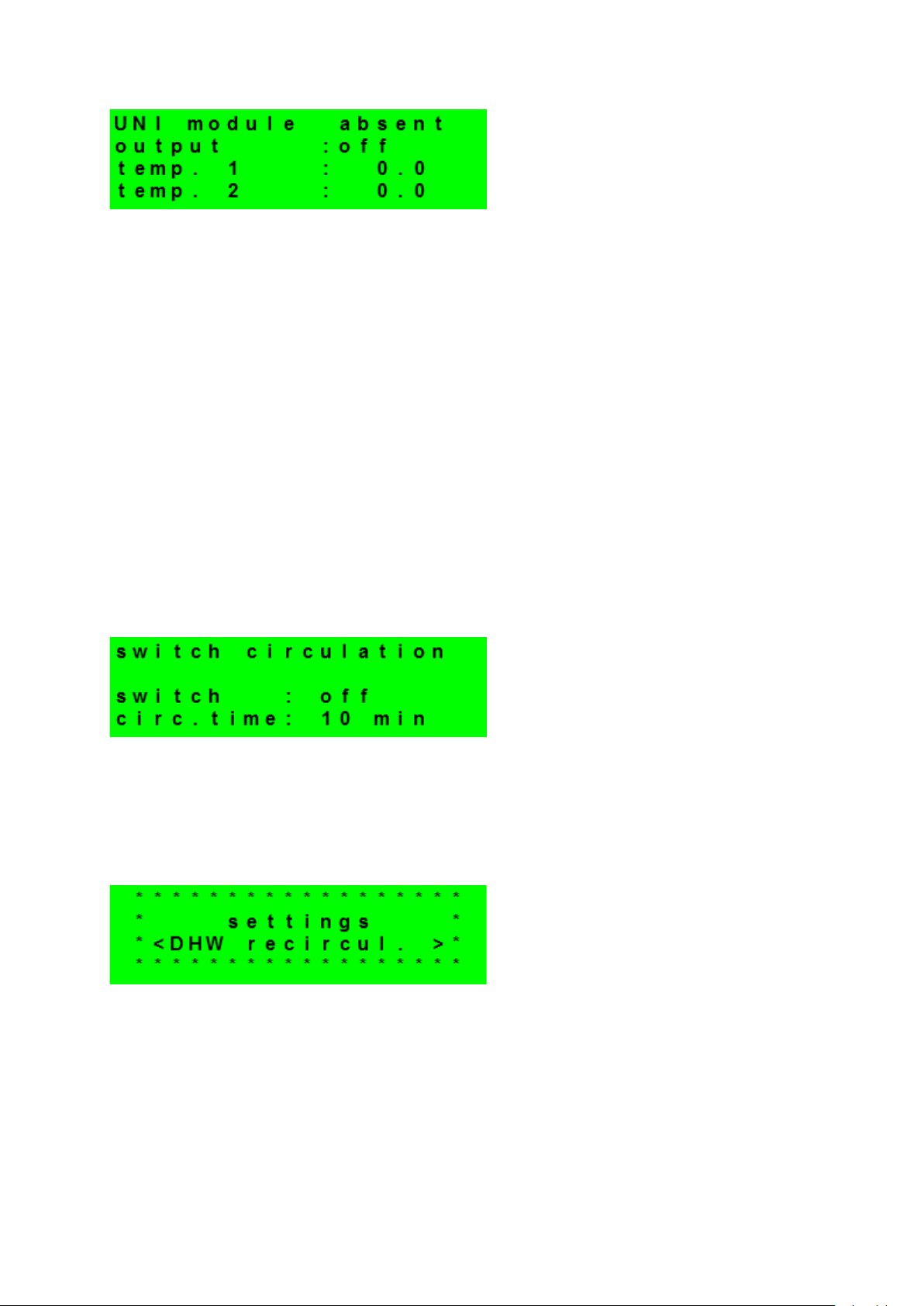

Immediate circulation is designed to switch DHW circulation immediately, with selected
parameters.
switch DHW circulation switched on immediately
circ.time how long the circulation will be on
2. User menu
8
User menu is comprised of:
• zone 1
• zone 2
• DHW zone
• DHW recircul.
• time program (time programs)
• OTC Curves
• operation data (temperatures and outputs condition)
• time, date
• other (adjusting other parameters)
• SMS settings (automatic text messaging)
• heat measurement (heat measured between two sensors)
The keys , enable browsing, and the selected item can be entered by pressing OK.
2.1 Heating zones
In this Menu, a user can adjust these parameters:
zone on switching on the zone on t he User level. When a zone gets switched off on
this level, also the circ ulation pump and valve outlets switch off as well. The
pump and valve outlets c an be activate d by frost pr otection funct ion if it is on.
In this controller vers ion, switching off zone 1 will switch off zone 2 as well!
Mode Auto will activate the summer/winter mode.

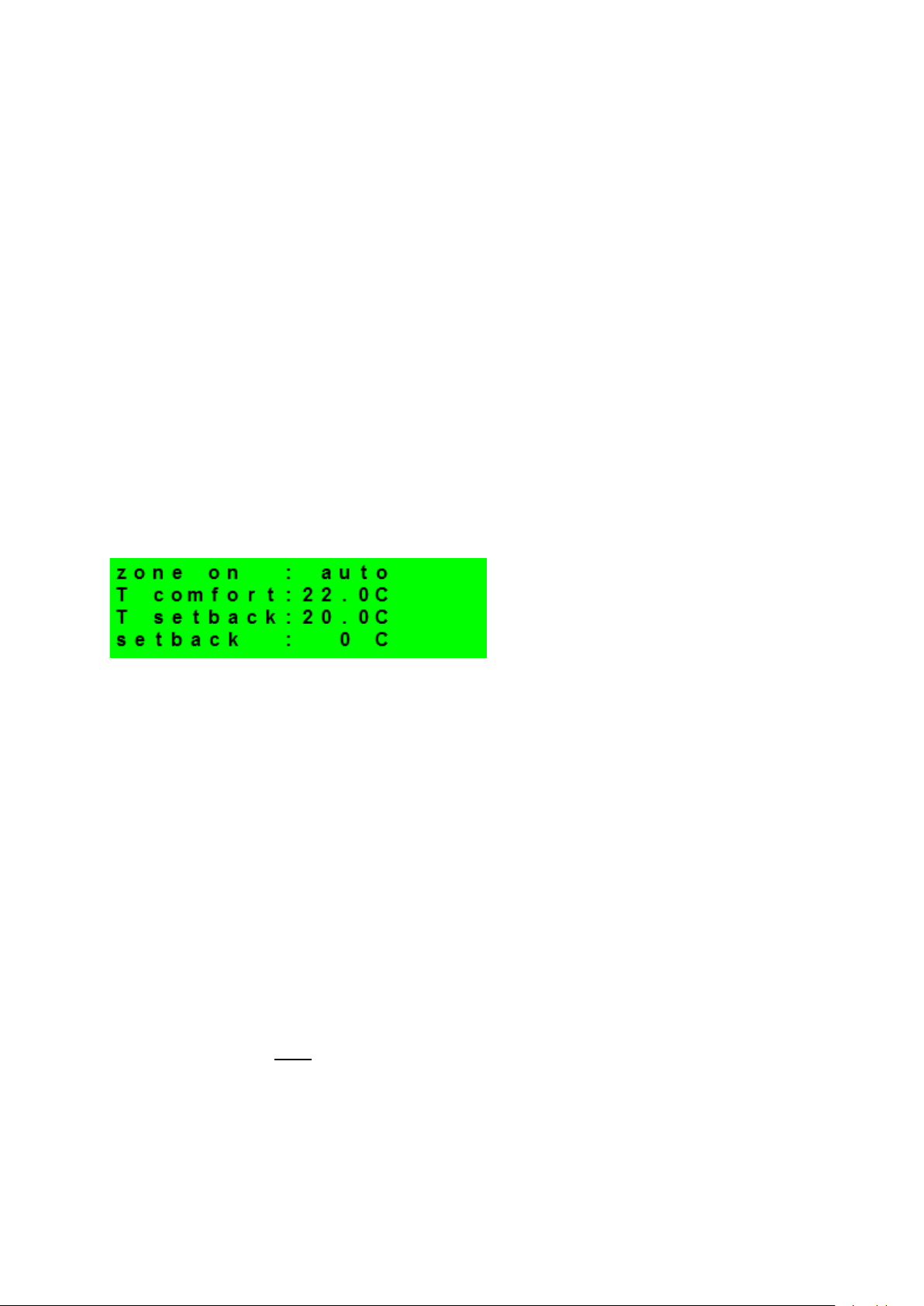

T comfort setting comfort temperat ure in zone. This parameter mak es sense only when
a room sensor is used.
T setback setting setbac k temperature in zone. T his parameter makes sens e only when
a room sensor is used.
Note: During a day, the controller switches the desired zone temperatures
between T day and T night by the preset time schedule.
9
setback setting heating water temperature reduction calculated from the OTC curve
when the mode changes from comfort to setback as preset by the time
schedule.

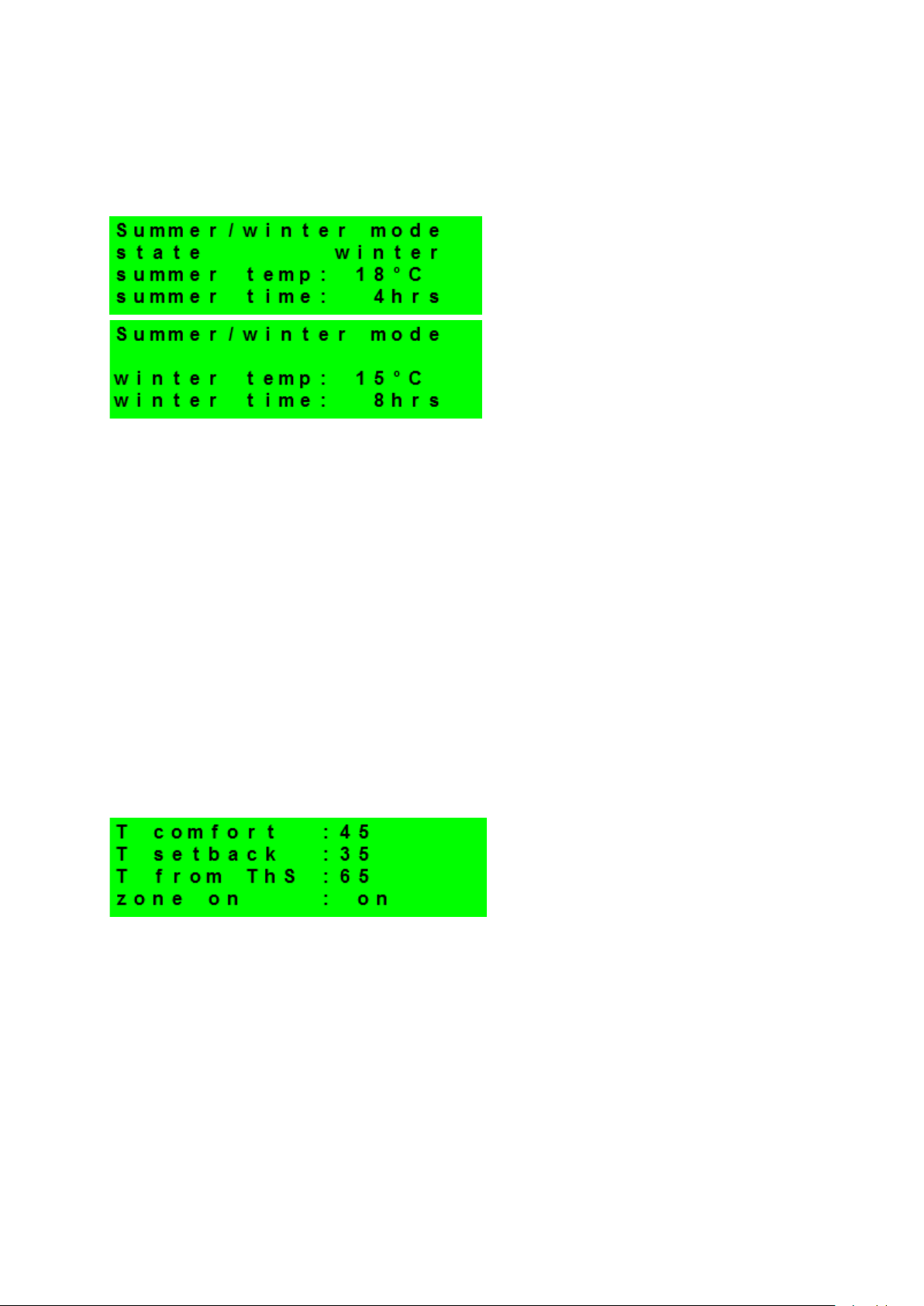

The Winter/Summer function is active if the zone is in Auto mode. The Controller will set the
zone temperatures by the parameters set. If the outdoor temperature equals or exceeds the
preset one for the specified number of hours, the zone will switch to Summer mode.
state shows the current mode. If the W inter/Summer function is turned off, W inter is
shown permanently here.
summer temp temperature threshold to switch to Summer mode.
summer time waiting time before switching to Summer mode.
winter temp temperature threshold to switch to Winter mode.
winter time waiting time before switching to Winter mode.
2.2 Setting temperatures for hot water storage tank
When there is demand for hot water storage tank t o be heated up, the boiler is switched on
to max. output temperature, however no more than 70°C, and the DHW diverter valve is
shifted.
T comfort comfort temperature. H ot water storage tank gets heated up to t his temperature if the
program is set to “Comfort” at the moment.
10
T setback setback temperat ure. Hot water storage tank g ets heated up t o this temper ature if the
program is set to “Setback“ at the moment.
T from ThS hot water storage tank is heated to this temperature (at DHWL sensor) from this
function disregarded of time schedules and comfort/setback temperatures selected.
zone on DHW zone heated by heat pump switched on by User.

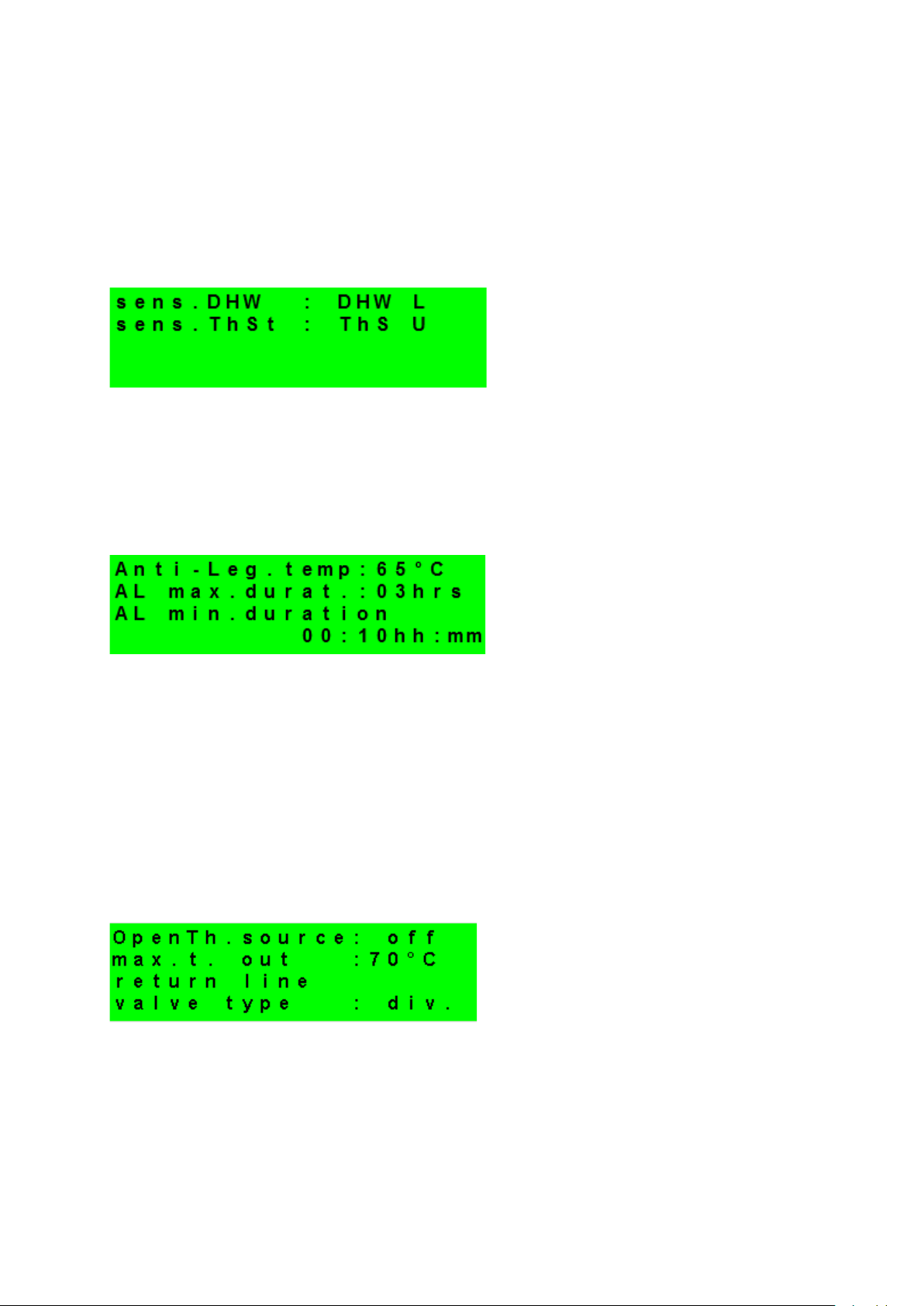

Anti Legionella:

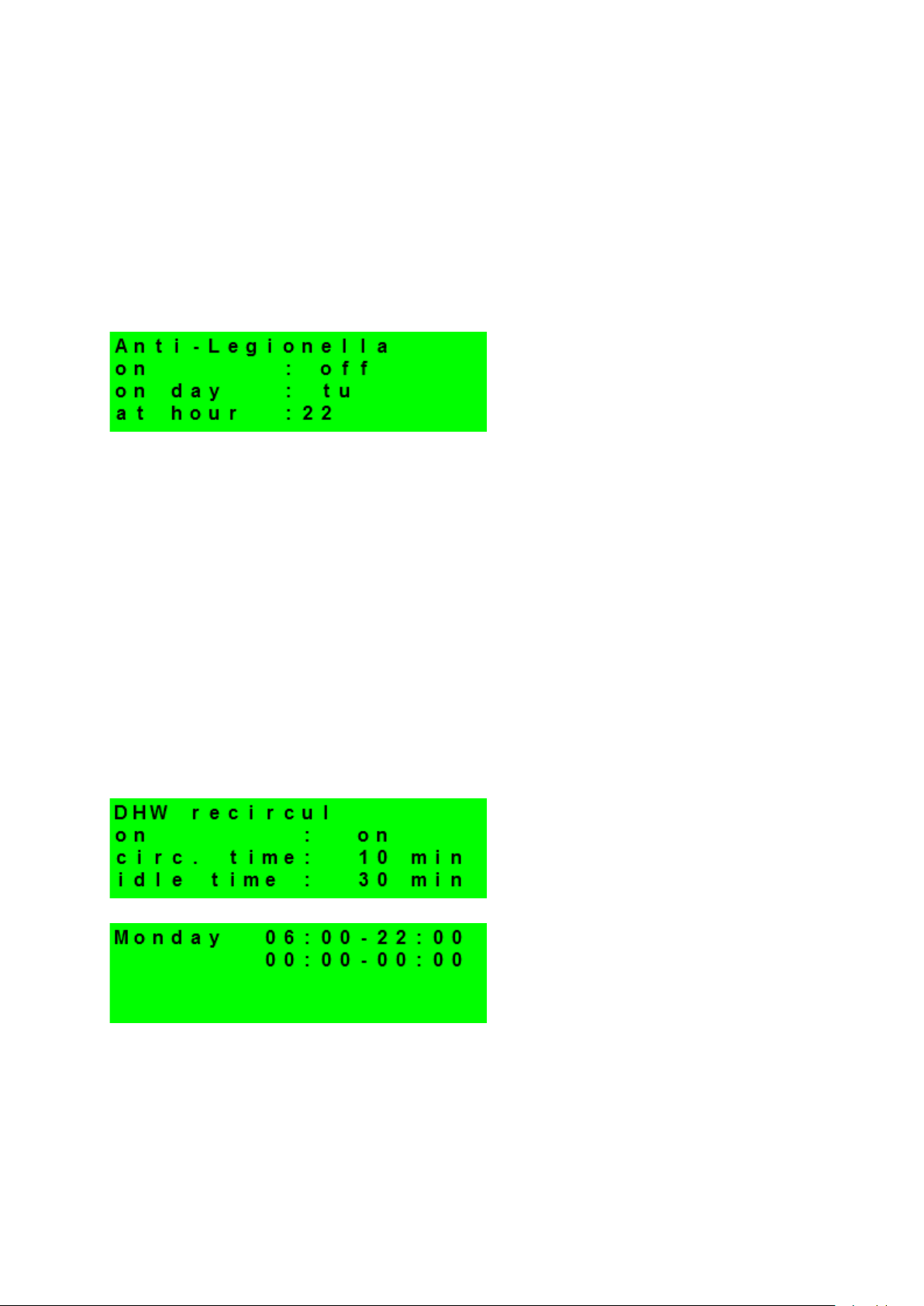

Anti-Legionella function helps “disinfect” hot water storage tanks, namely it kills Legionella
bacteria.
When this function is ON, the hot water storage tank heats up t o 65°C once in a week, at a
preset time on a preset day. Heating is switched off either when this temperature is reached,
or after two hours of heating disregarded of the temperature.
on turns Anti Legionella function on.
day (weekday: mo-su) day when heating up starts.
hour hour when heating up starts.
2.3 DHW recirculation
Here DHW recirculation is enabled and the time schedule of the pump set. When
recirculation is on, it is performed following the time schedule set for each day. The time
11
schedule defines from-to operation times. For this period, circulation time and idle time can
be set if continuous operation is not desired. E.g. Monday from 6.00 a.m. to 10.30 p.m. the
recirculation pump will always run for 10 min. and then idle for 15 min.
on (off / on) recirculation switched on.
circ. time (min) circulation time setting.
idle time (min) idle time setting.
circulation times time sett in g for s epar ate da y s w hen rec irc ulation is on ( 7 displays – Monday to
Sunday).
2.4 Time programs

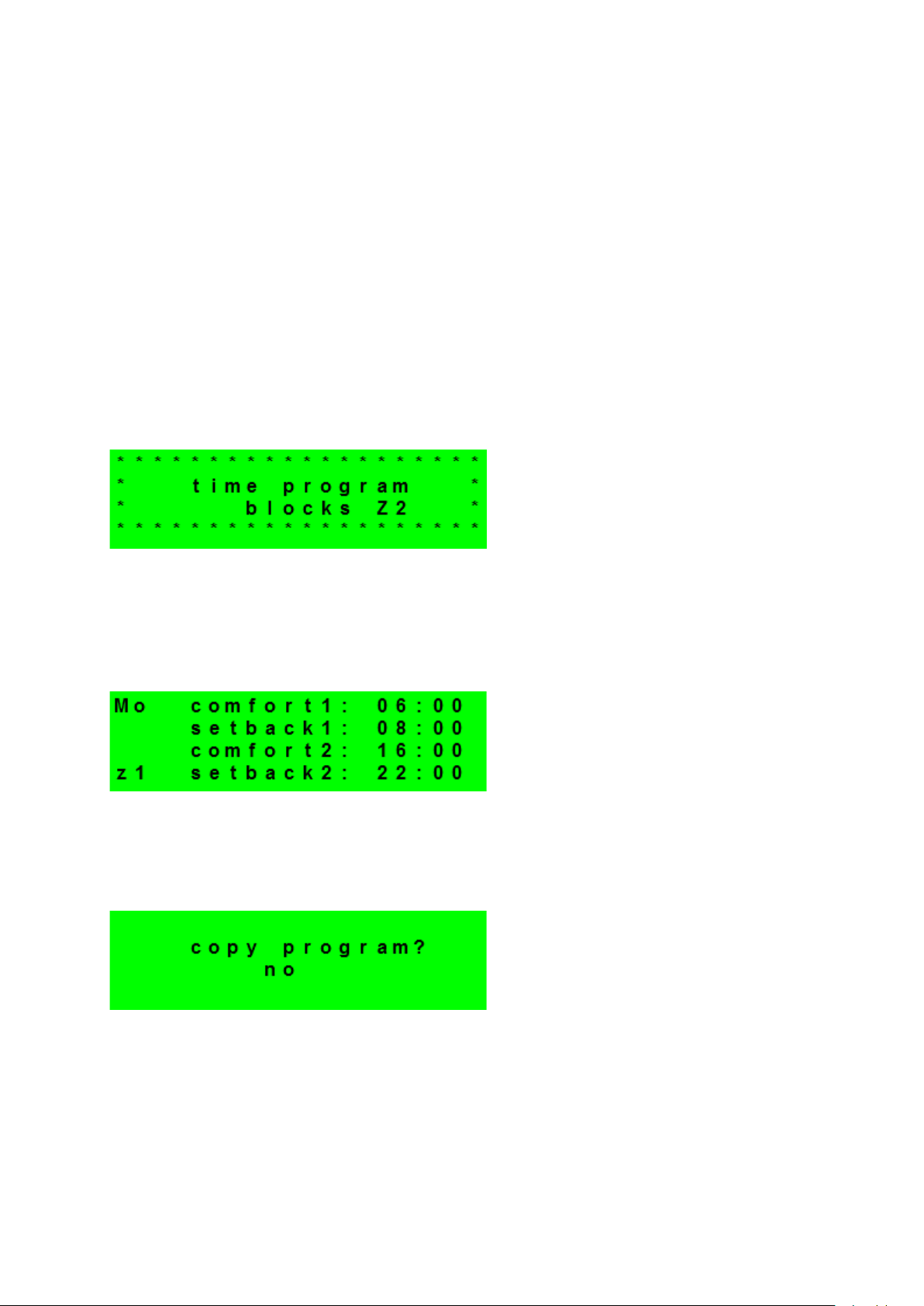

Time programs can be set either for separate days, or in blocks Mo-Fr and Sa-Su.
When the program is being set for separate days, there are 2 transitions from Comfort to
Setback and 2 from Setback to Comfort for each day.
When the program is being set in blocks, there are similarly 2 transitions from Comfort to
Setback and 2 from Setback to Comfort for the blocks Mo-Fr and Sa-Su. An swering YES to
the question Copy program? will rewrite the respective time program blocks.
If program copying is not desired, let the question be with no and leave the menu by pressing
C.
12

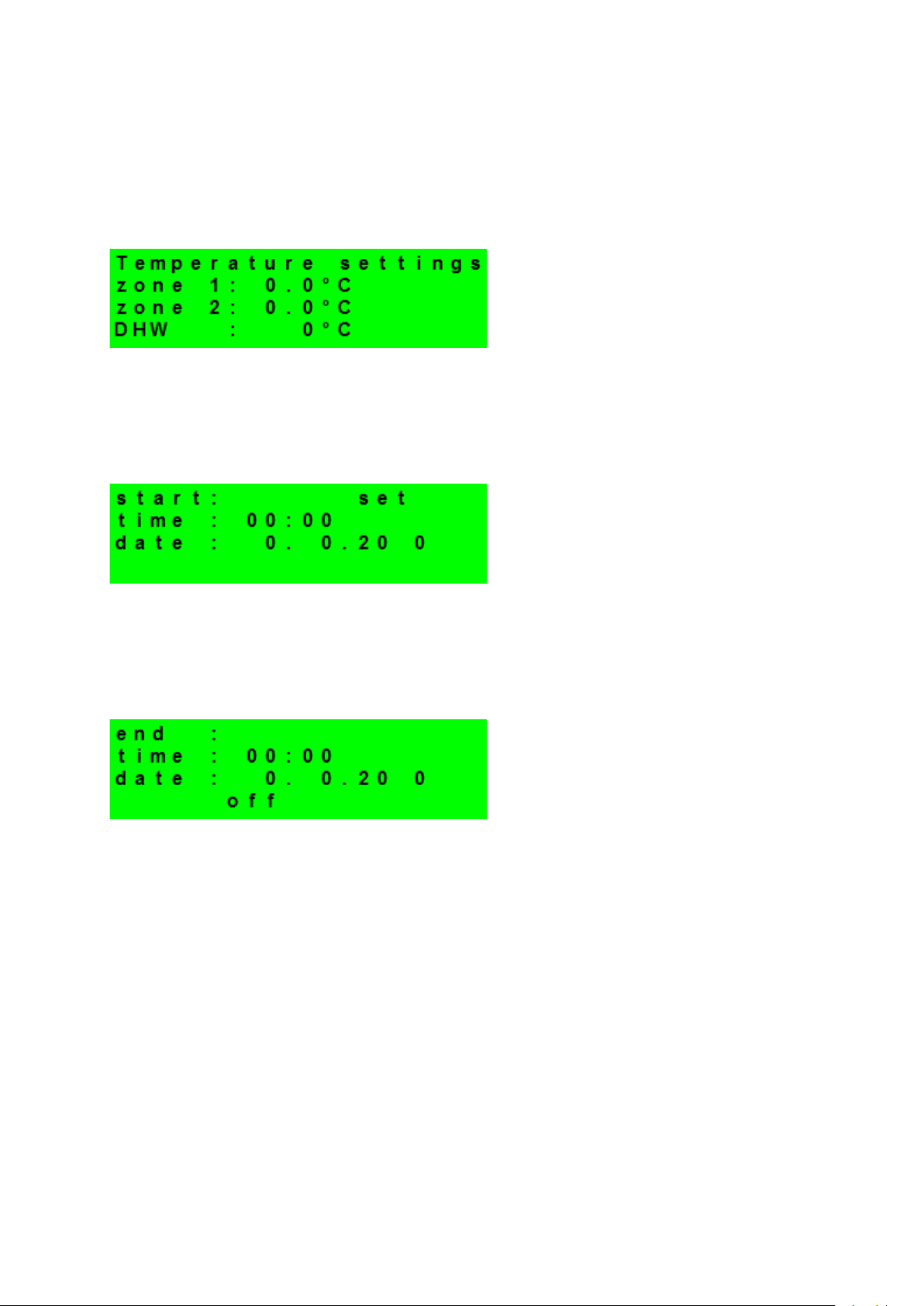

Holidays:
Temperature control of separate zones following a special tim e schedule. Temperatures in
zones can be set, as well as the date and time for the beginning and end of the time
program.
zone 1 desired temperature in zone 1.
zone 2 desired temperature in zone 2.
DHW desired DHW temperature.
start date and time of Holidays time program beginning
set / today selecting today will save c urrent date and time as the beginning of H olidays
time program
end date and time of Holidays time program end
off / on turning on / off Holidays time program
2.5 OTC curves

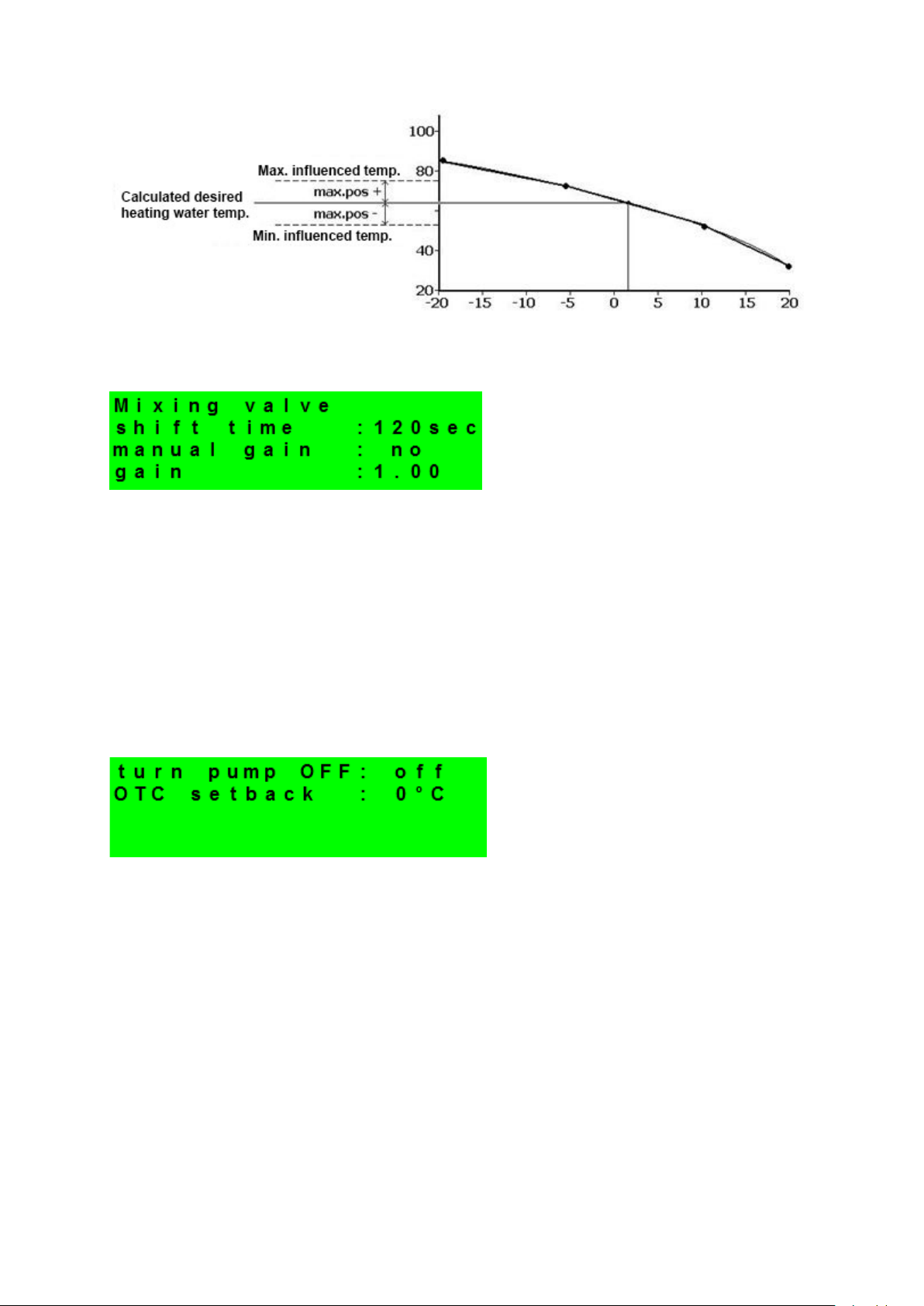

The controller works with a linear characteristics between separate points of the curve
showing how heating water temperature depends on the outdoor temperature. The real OTC

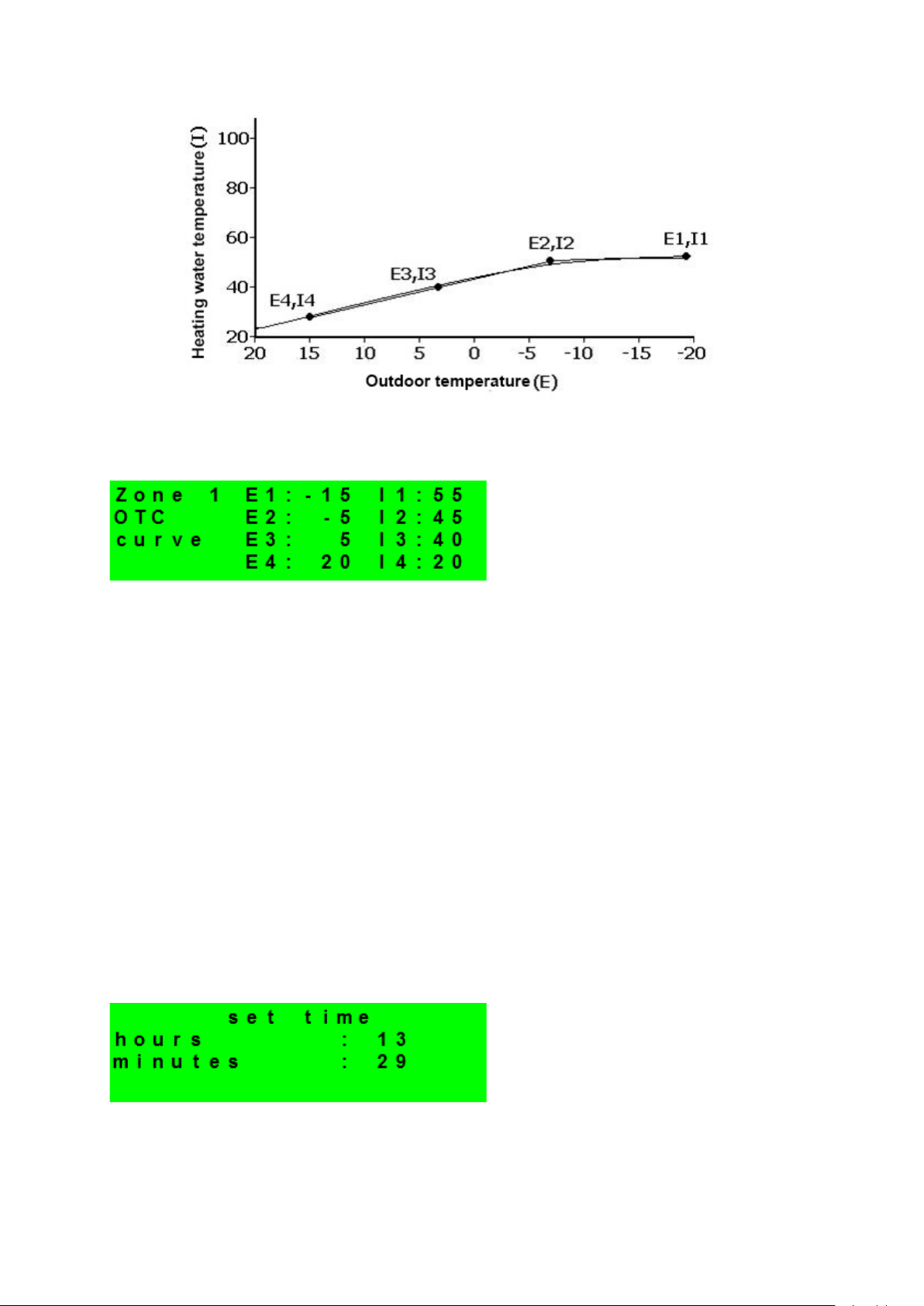

curve is entered into the controller using a 4-point polyline (see Fig.) with points E1; I1 to E4;
I4 (cf. the display picture).
13
OTC points settings:
Point I1 represents the highest temperature that can be calculated by the controller, while
point I4 represents the lowest temperature that can be calculated.
2.6 Operation data
All temperature inputs and logical output values of the controller are displayed here. The
logical value of 0 means a valve closed, pump not running; 1 means a valve open, pump
running. Temperatures shown in brackets mean desired values.

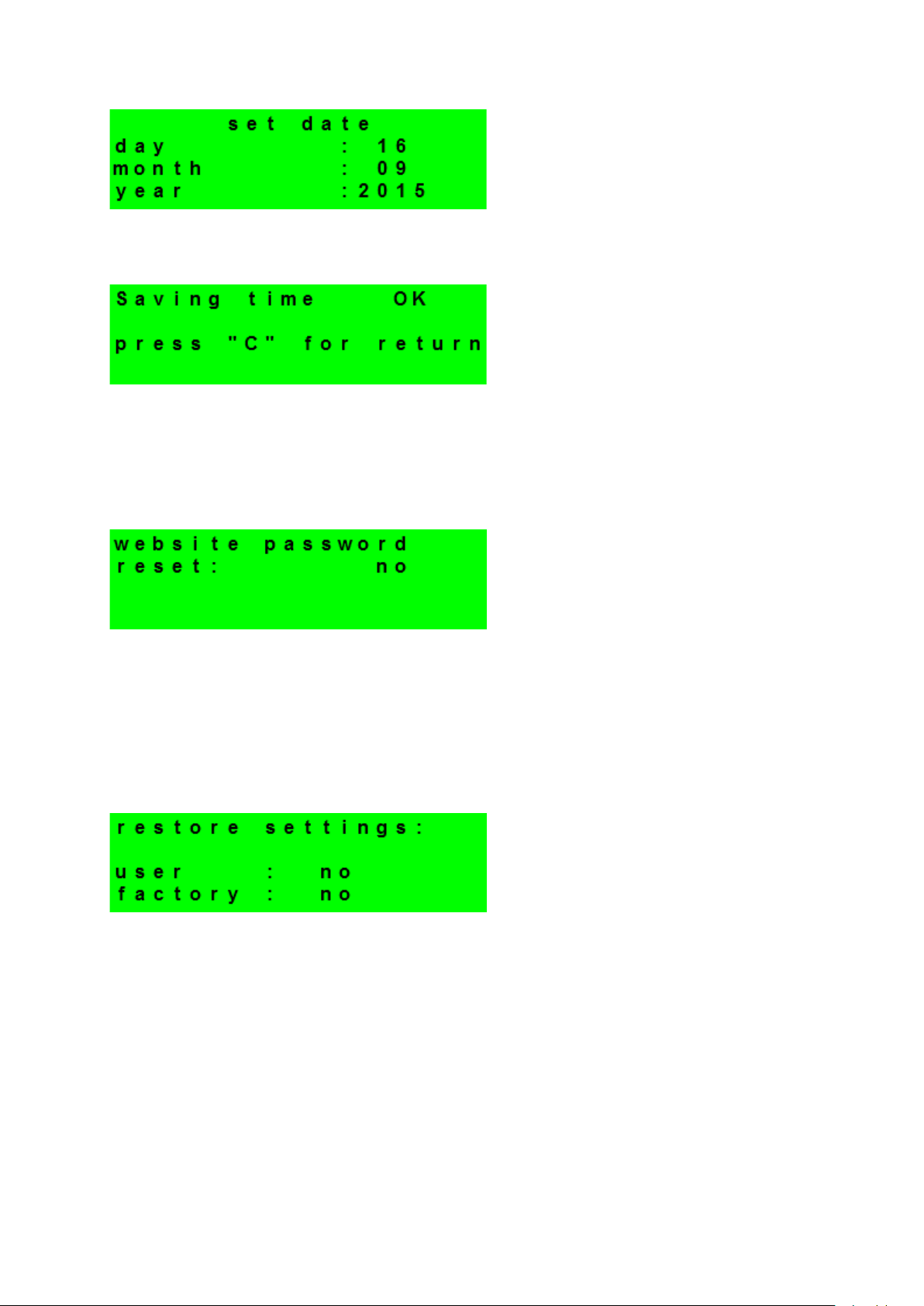

2.7 Setting system date and time
Time and Date shall be set to ensure proper operation of the controller’s time program.
The clock features 24-hour format.
Setting date and time:
14
Having set time and date, press and the following display appears:
When this display is shown, time and date are being saved into the real-time circuit of the
controller.
2.8 Setting other parameters
website password reset Selecting yes will reset the website password and
username to the default username: user and
password: user.
Restore settings:
user the last saved user settings (saved every 10 min.) will be restored
factory default settings will be restored
15
2.9 Setting SMS
This function can be accessed only in combination with a GSM modem and its description
can be found in its specific Manual.
2.10 Heat and energy measurement

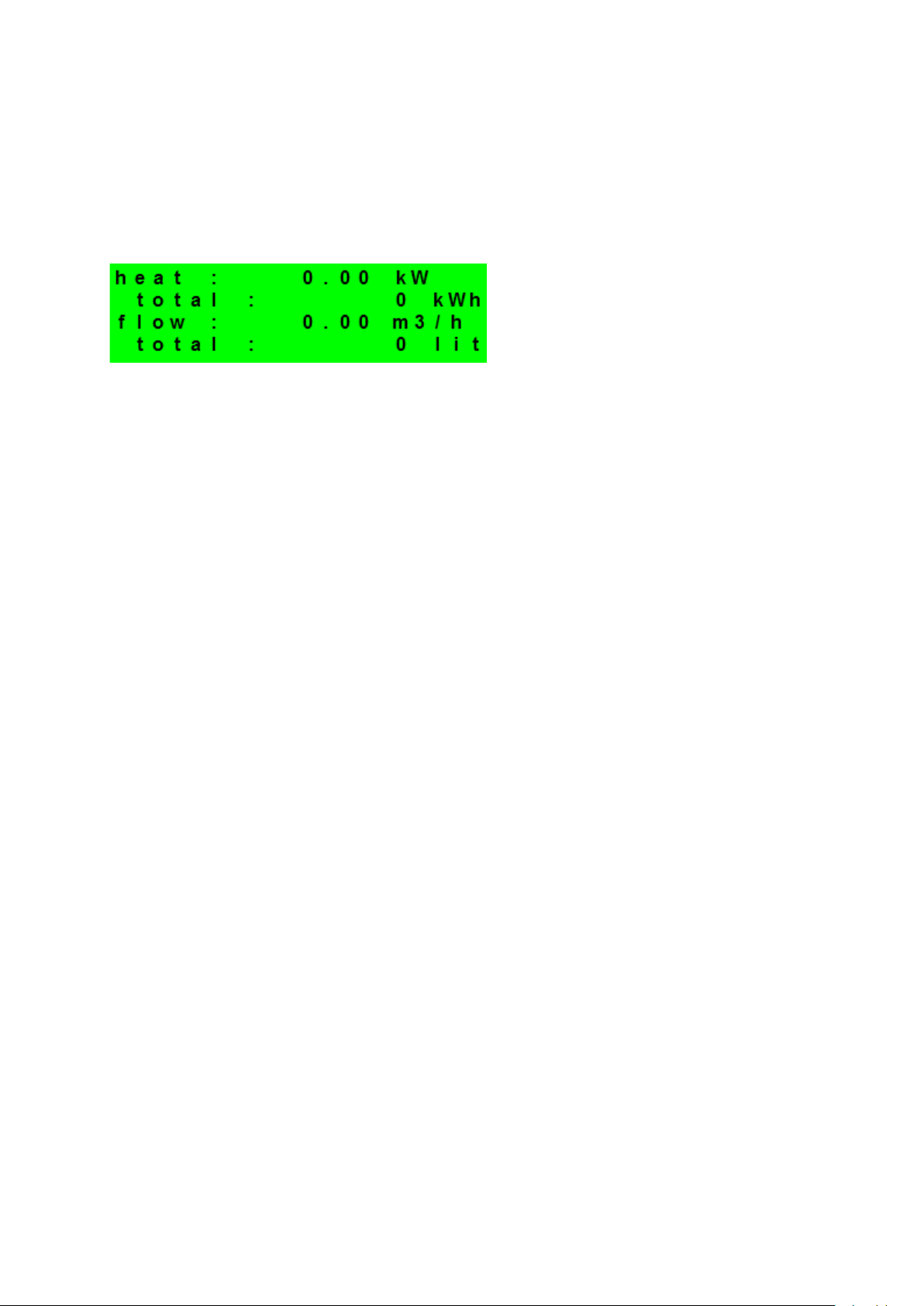

This display offers information on the momentary heat output (in Kw), on the total heat
supplied (in kWh) and information on the current flow rate (in m3/h) and on total volume
flown through (in liters). Measurement points and other necessary data are set in the Ser vice
menu.
16
3. Web interface
3.1 Introduction
The controller contains integrated web pages displaying an overview of t he heating system
and user settings.
In order to get access to the web pages of the cont roller, it shall be connected either to a
LAN or directly to a PC through a crossover network cable. IP address of the controller can
be displayed by pressing the DISP k ey and key. This displays information on the controller
network settings. For return to User Menu, press DISP again.
Having connected the controller to a LAN, enter its IP address into the address bar of your

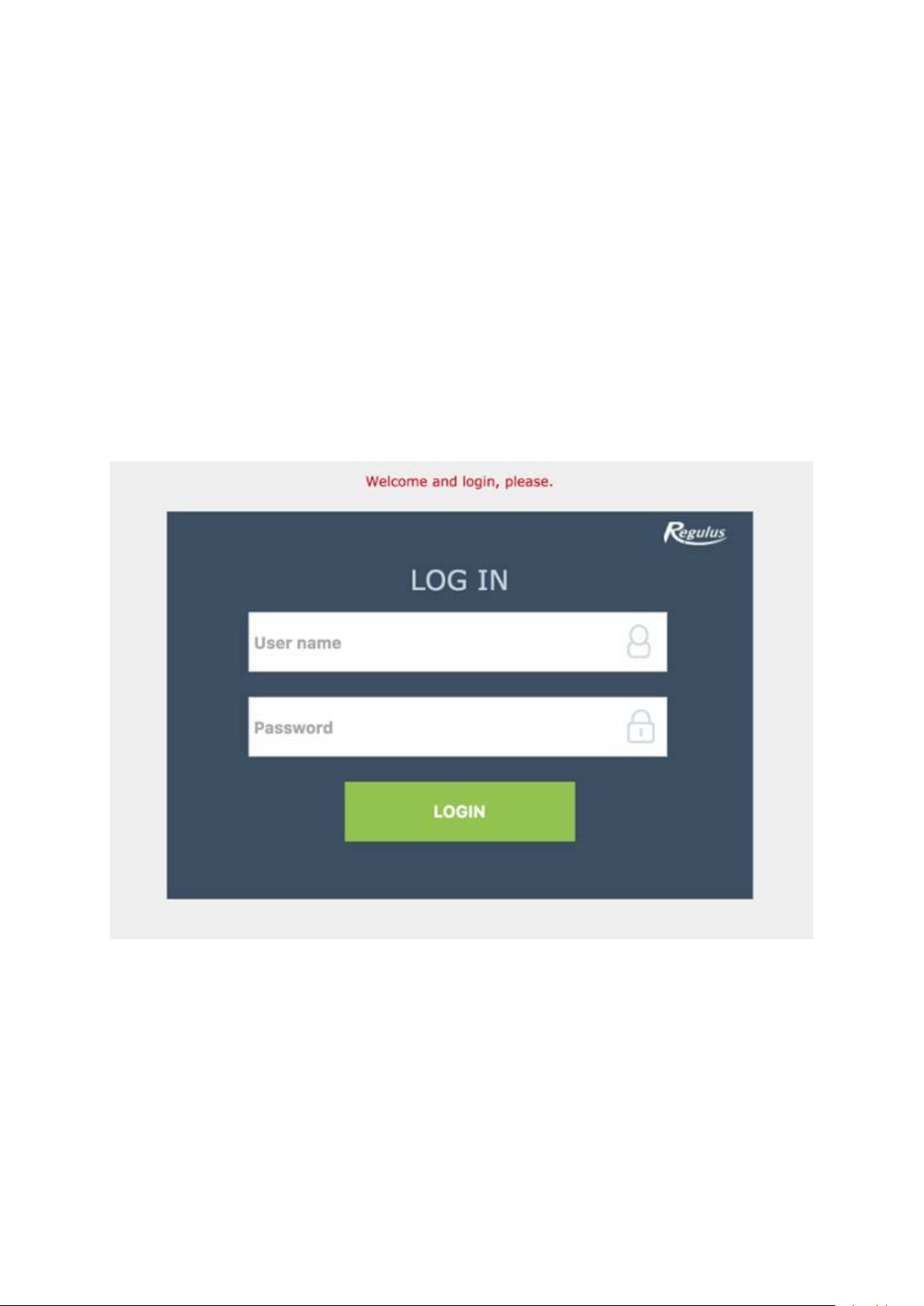

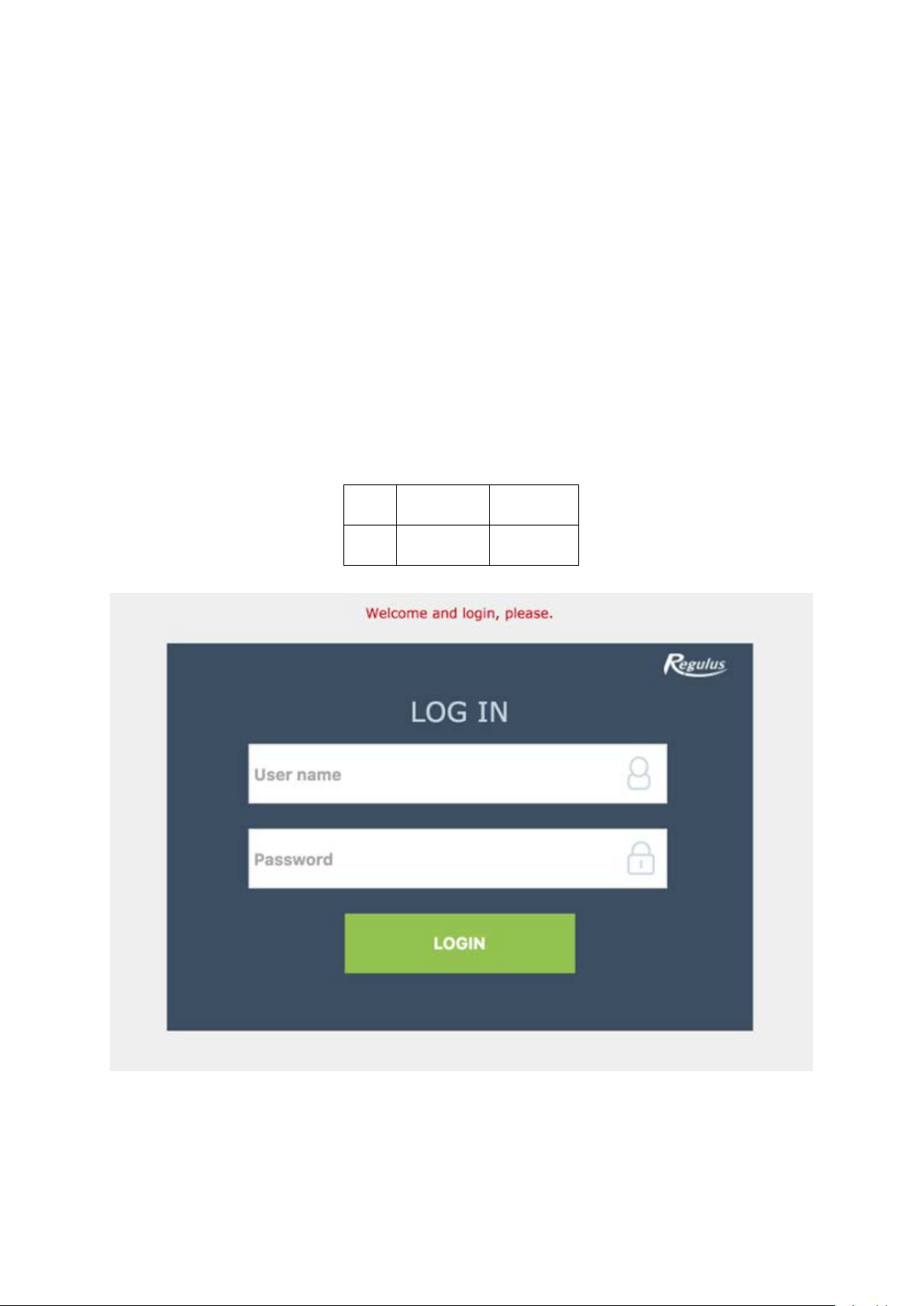

browser and the initial log-in window will be displayed:
Username for User level is: user (default setting)
Password for User level is: user (default setting)
After login, the initial menu of the User level appears that enables access to settings pages.
17
3.2 Functions Adjustable from a Web Browser
All parameters accessible in the menu on the controller’s display can be adjusted via the web
browser. The web environment further enables adjustment of parameters that are accessible
from the browser only. These involve password change, synchronization settings, adjusting
and displaying weather forecast, e-mail notifications, displaying charts and some selected
statistics.
18
Service Manual for IR 12 Controller
IR12_KRB
FW 4.01
S 1 – Controller wiring ..........................................................................................................20
S 1.1 – Technical parameters of IR 12 controller ..............................................................20
S 1.2 - Technical parameters for OpenTherm™ module IR 1x OT ....................................21
S 1.3 – Controller installation ............................................................................................22
S 2 – Service menu ..............................................................................................................23
S 2.1 – Heating zones setting (1,2) ...................................................................................24
S 2.2 – Solar Zone Service Parameters Setting ................................................................27
S 2.3 – DHW Zone Service Parameters Setting ...............................................................30
S 2.4 –OpenTherm source Service Parameters Setting ....................................................31
S 2.5 – ON/OFF source Service Parameters Setting ........................................................33
S 2.6 – Nastavení servisních parametrů modulovaného (0-10 V) zdroje ...........................34
S 2.7 – Fireplace Service Parameters Setting ..................................................................34
S 2.8 – Other service parameters .....................................................................................37
S 2.9 – Temperature Sensor Management (15 screens for 15 temperature sensors) .......39
S 2.10 – Universal Outputs ...............................................................................................39
S 2.11 – SMS Setting .......................................................................................................43
S 2.12 – Heat and Flow Rate Measurement Settings .......................................................43
S 2.13 – Total statistics.....................................................................................................45
S 2.14 – Control type ........................................................................................................45
S 2.15 – Output test ..........................................................................................................46
S 2.16 – Universal CIB module .........................................................................................46
S 2.17 – HW Address Setting for CIB Modules .................................................................49
S 2.18 – IP Addresses ......................................................................................................50
S 2.19 – RegulusRoute.....................................................................................................50
S 3 – Web Server – service level ..........................................................................................52
S 3.1 - Access to Service web interface, checking the IP address of the Controller ..........52
S 4 - RC21 IR Room Unit, wiring ..........................................................................................53
19

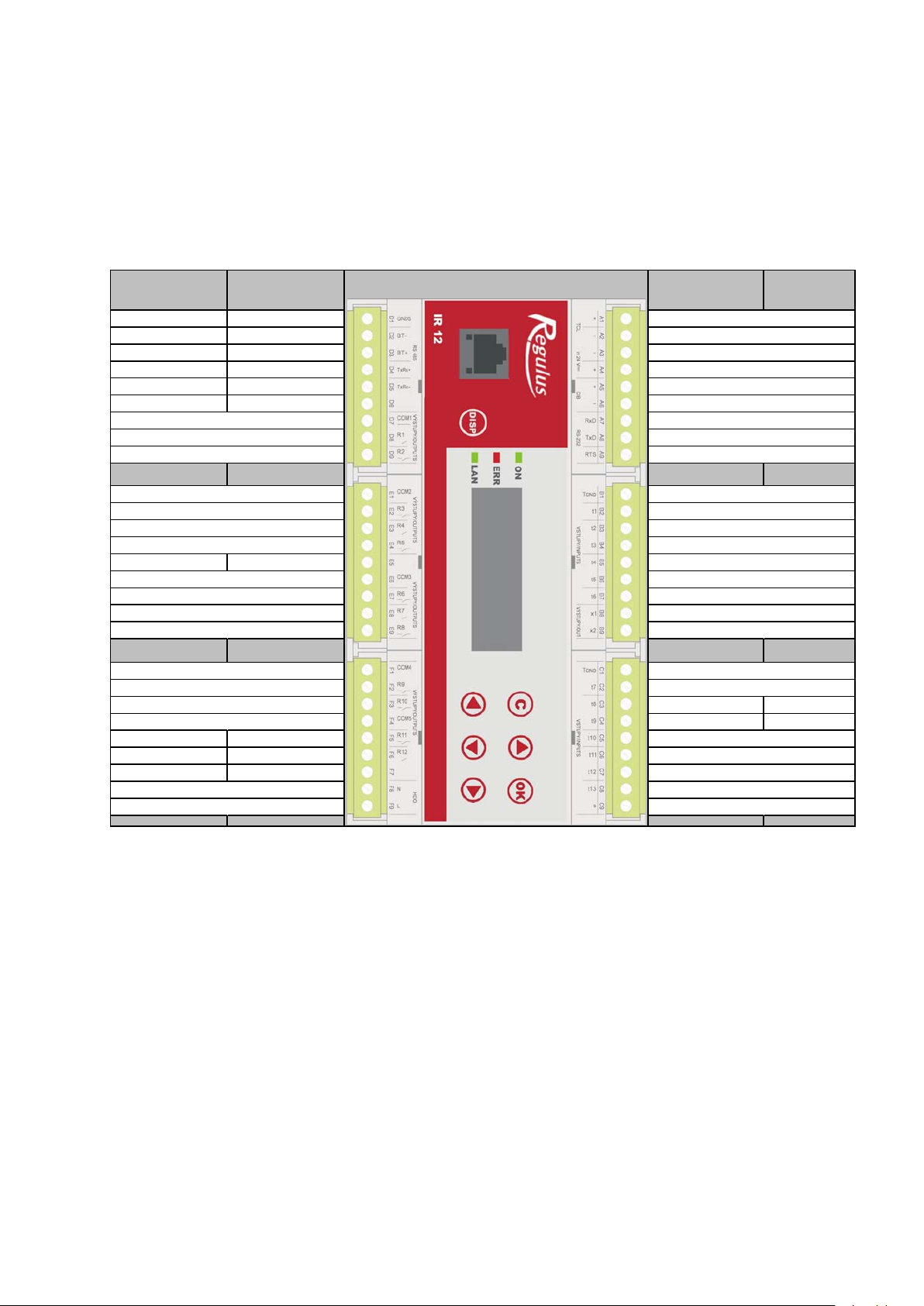

S 1 – Controller wiring
Scheme No.
9,10,20,21,31,32
Other schemes Other schemes
Scheme No.
9,10,20,21,31,32
zone 2 boiler return
heating wat er - z one 1 heating ret urn
return valve opens zone 1 valve opens
return valve clos es zone 1 valve closes
Ripple Control N
outside
Ripple Control L
flow meter
sens or 2 (RC)
ON/OFF s ource
UNI1 - (zone 1 pump)
power L
heating wat er - z one 2
sens or 1 (RC)
zone 1
DHW from ThSt pum p
UNI output 0-10V 1 - (DHW recirc . pum p)
fire pump
UNI output 0-10V 2 - (fire damper)
power L
sens or common ground
UNI2 - (zone 2 pump)
DHW upper
ThSt lower
power L
ThSt upper
sens or common ground
zone 2 valve opens
solar
zone 2 valve closes
DHW l o wer
power L
GSM m odem RxD
solar pum p
GSM m odem TxD
diverter val ve sol. t ank 2
GSM m odem RTS
OT modul com m . +
OT modul com m . -
power -24V
power +24V
CIB modules (e. g. UNI module)
CIB modules (e. g. UNI module)
DHW (diverter valve or s ourc e)
fire outlet
power L
Warning: Controller wiring may be performed by authorized staff only. Improper setting of the Controller may cause damage to system components.
Key to terminal wiring
S 1.1 – Technical parameters of IR 12 controller
Power supply
Power supply voltage 24 V DC ± 5%
Power input 9.6 W max.
Installation fuse board, on DIN rail
IP rat i ng IP 10B
Operating temperatures 0-50 °C
Relative humidity 10-95%, non condensing
20
R1,R2 Outputs
COM terminal max. current 2 A
Relay current 1 A (230 V AC)
Relay type semi-conductor
R3-R12 Outputs
COM terminal max. current 10 A
Relay current 3 A (12-230 V AC)
Relay type electromechanical
0-10V Output
Output voltage 0-10V DC
Common wire T
GND
Max. current 10 mA
Inputs:
Temperature inputs resistance type sensors Pt 1000 (-90 °C to 250 °C)
Common terminal T
GND
S 1.2 - Technical parameters for OpenTherm™ module IR 1x OT
Power supply:
Power supply voltage 24 V DC ± 5%
Power input 0.24 W max.
Installation fuse board, on DIN rail
IP rating IP 10B
Operating temperatures 0-50 °C
Relative humidity 10-95%, non condensing
21
S 1.3 – Controller installation
The Controller is designed for installation on a DIN rail in a fuse board.
It may be installed by authorized staff only!
The controller, power supply unit and optional OpenTherm communication module shall be
installed close to each other (cf. the interconnection fig.). Prior to turning the Controller on,
the ADR rotation knob shall be pointed to “0”. Pay attention to the right polarity of power
supply and interconnection between the Controller and IR 1x OT module! The recommended
min. cross section for power supply wires is 0.75 mm
2
. The recommended cable for
connection between the Controller and IR 1x OT module is JYTY 0.5
22
S 2 – Service menu
Warning: This Service Menu may be edited by qualified staff only. Improper parameter
setting in the Service menu may cause damage to system components in both heating and
solar circuits.
In order to enter Service Menu, select “service“ in the User Menu and press OK.
Password to enter Service menu:
Pressing OK will move from one password digit to the next. Digits that are not being edited
are not visible and shown as *. After all digits are entered, pressing the key (down arrow)
will bring you to Service Menu.
It is recommended to change the default password to your own!
Service Menu consists of these items:
zone 1 setting service parameters for zone 1
zone 2 setting service parameters for zone 2
solar setting service parameters for solar system
DHW setting service parameters for DHW heating
source OT setting service parameters for OpenTherm source control communication
source on/off setting service parameters for an on/off source
fireplace setting service parameters for fireplace control
other setting other service param eters (pas sword, te mperatu re differe nce con troller,
frost protection, anti-seize functions)

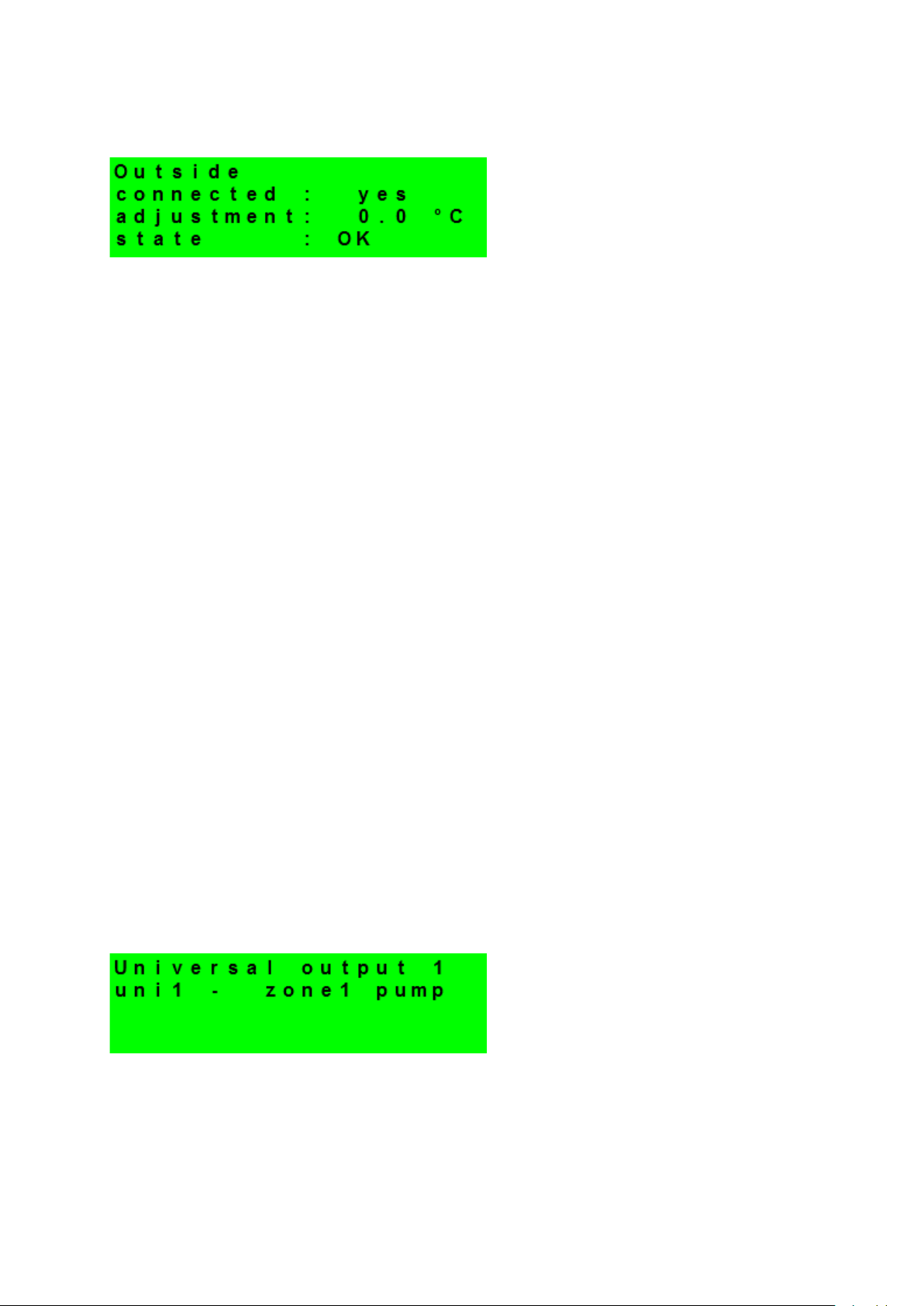

sensors temperature sensor management (offset, sensor state)
23
uni. output universal output 1 (controller universal terminal)
uni. output 2 universal output 2 (controller second universal terminal)
sms switching on SMS function (adjustable from user interface)
heat settings for heat and flowrate measurements
statistics statistics for some parameters

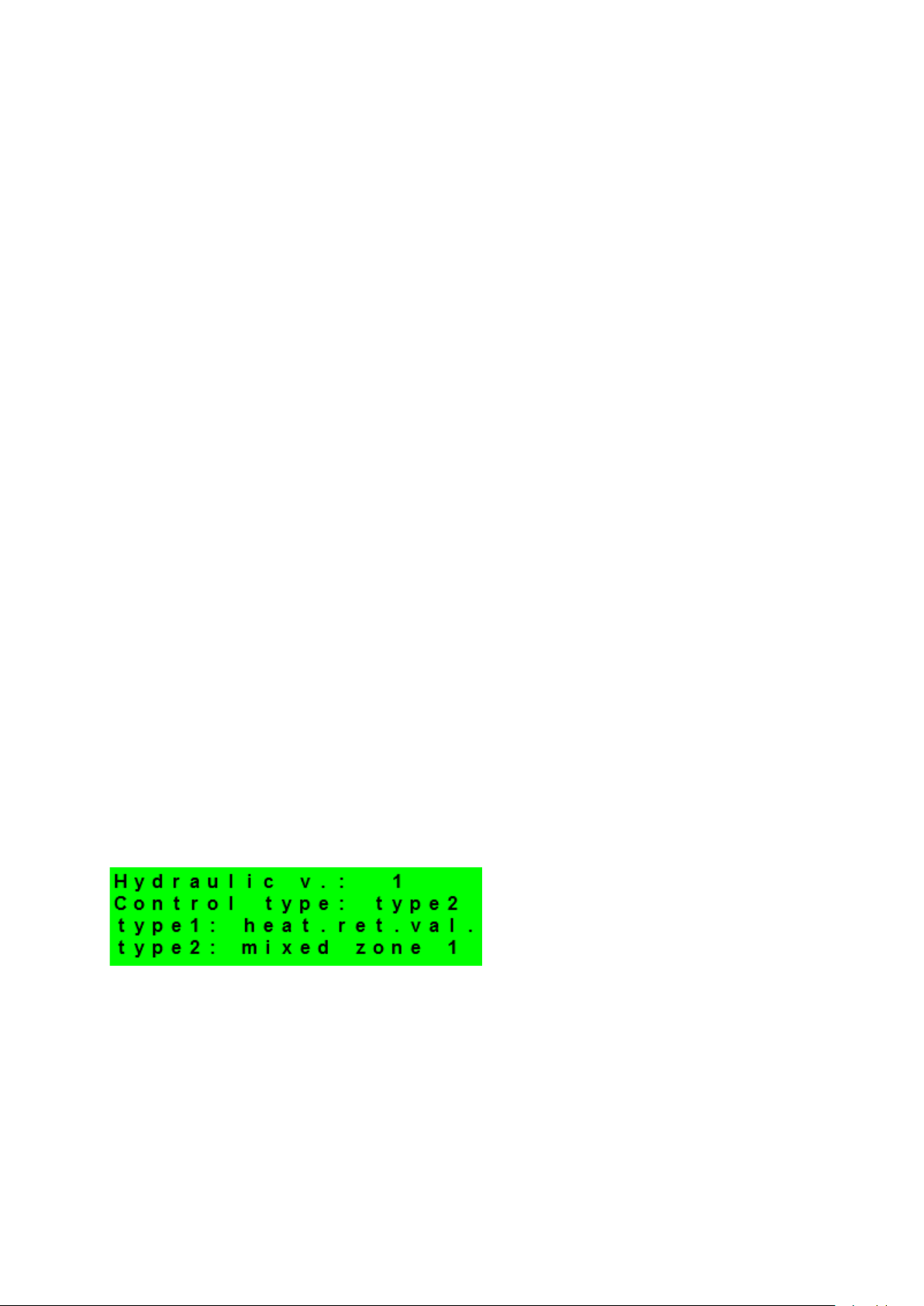

control type control type choice (mixed zone 1/heating return valve)
test controller outputs test
module UNI universal CIB module configuration
CIB address HW addresses for additional CIB modules
IP address set IP address, subnet mask, default gateway and DNS server
RegulusRoute settings to TecoRoute service
S 2.1 – Heating zones setting (1,2)
Settings are identical for both heating zones.

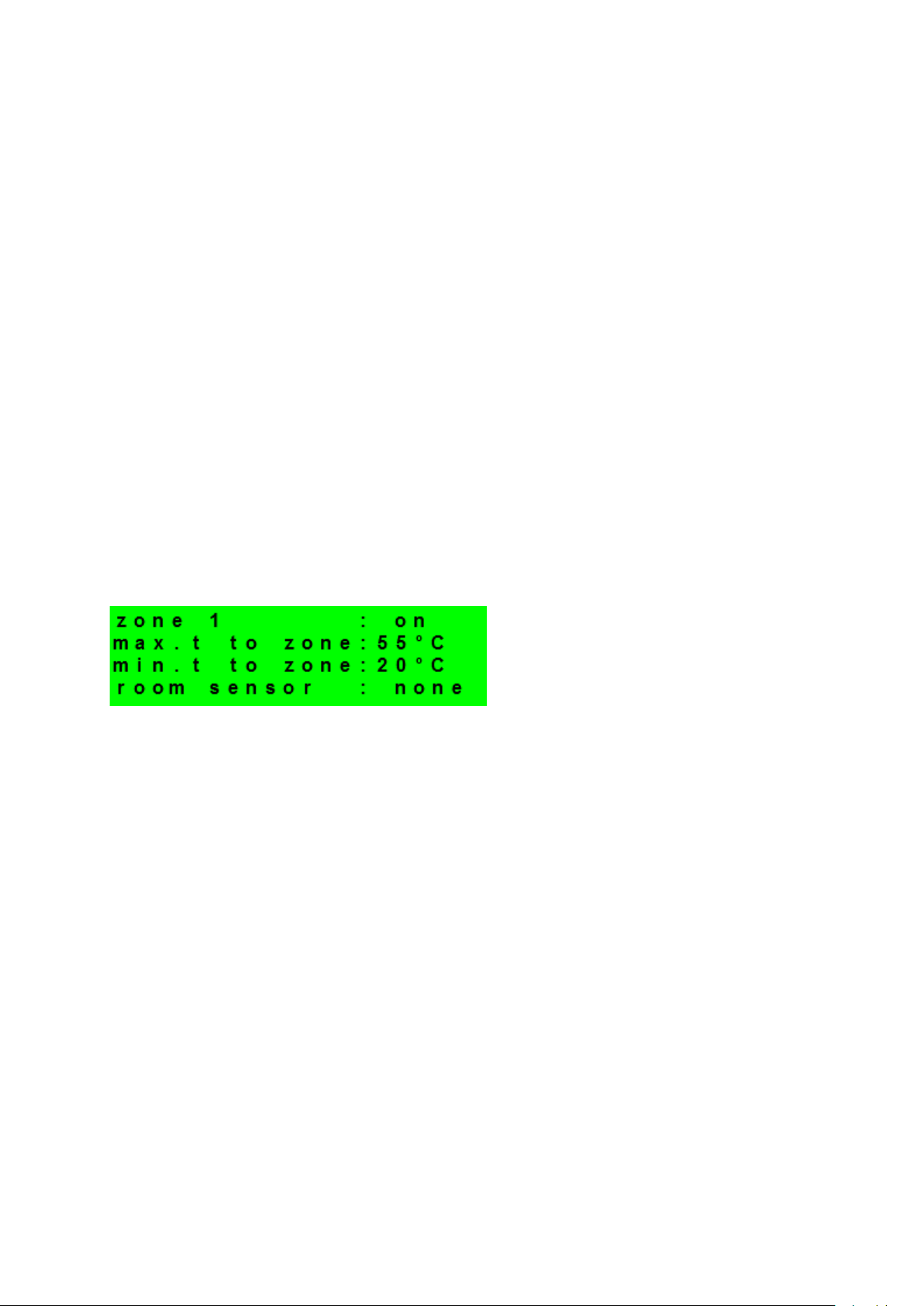

zone (on/off) Turning zone on/ off from service level. In a zone tur ned off this way the frost
protection is disabled.
max.t to zone (°C) Setting max. heating water temperature to zone. Temperature calculated by
the controller shall not be higher than this value. Max. temperatur e to zone 2
cannot be higher than max. temperature to zone 1; when attempted to set
higher, it will be adjusted to the max. temperature of zone 1!!
min.t to zone (°C) Setting min. heating water temperature to zone. Temperature calculated by
the controller shall not be lower than this value.
room sensor Choose whether a Pt1000 room sensor (Pt) used in t he zone, or RC21 room
unit (RC21) or no room sen sor ( none). Or you can choose thermostat ( therm)
for switching between c omfort and setback temperature. For zone 2 there is
24
an extra option (fromZ1) and in suc h a case th e data fr om RC21 unit w ired to
zone 1 are valid for zone 2.

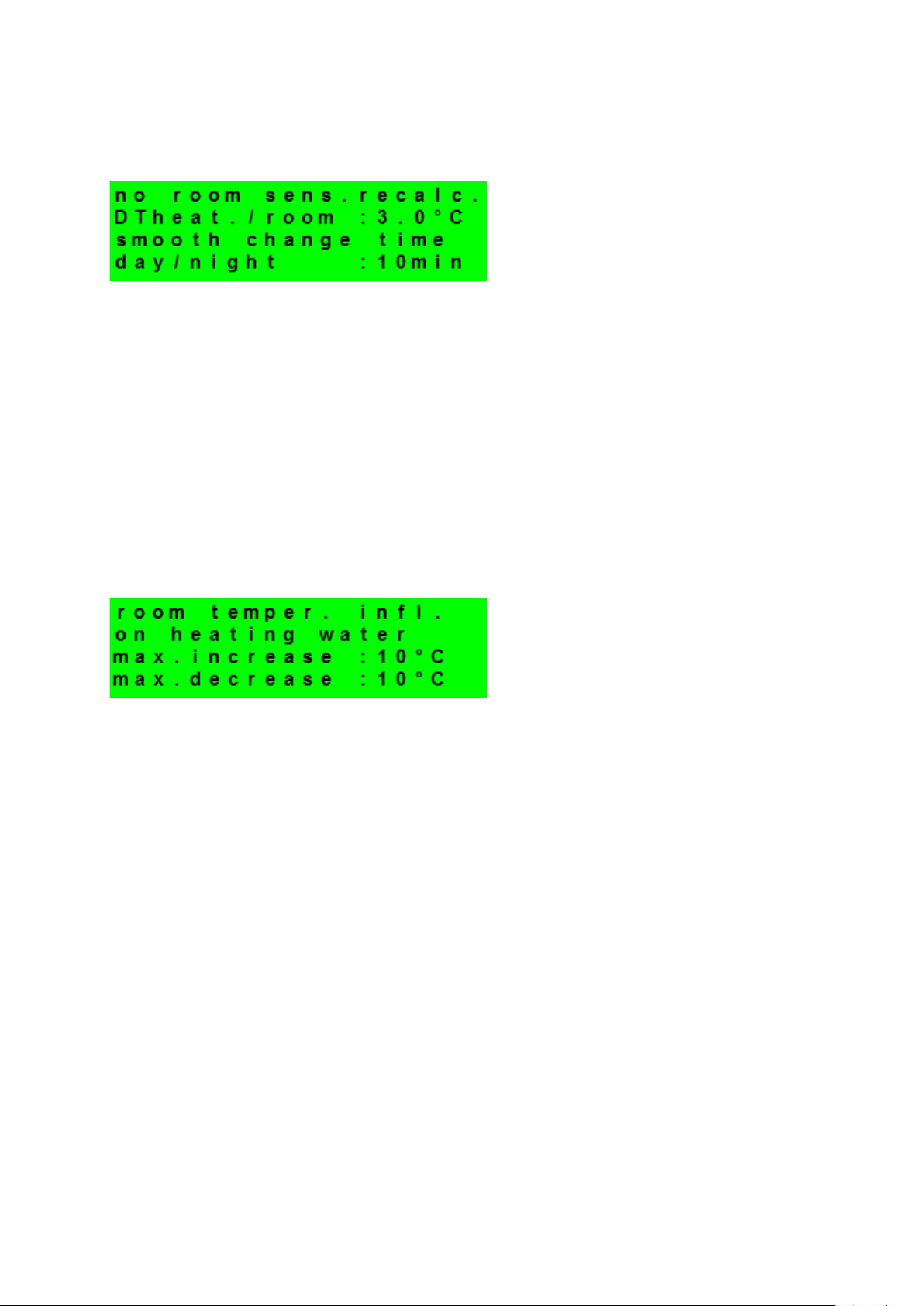

no room sens.recalc. DTheat./room (°C) Temperature drop setting between heati ng water and
room temperature. E.g. the value 3 means that a desired change in room
temperature by 1°C needs a heating water te mperatur e change by some 3 °C.
This parameter is applied for operation without any room sensors.
smooth change time day/night (min) Time adjustm ent of how many minutes the co ntroller
will need to change from comfort to setback temperature during daily
scheduled transition between day and night modes and vice versa.
The influence of room temperature on heating water:
max. increase (°C) Setting the max . permitted positive influence o n the OTC curve c alculated by
the Controller based on the difference between the real and desired
temperatures in zone (see fig. below).
max. decrease (°C) Setting the max. permitted negative influenc e on the OTC curv e calculated by
the Controller based on the difference between the real and desired
temperatures in zone (see fig. below).
25
Mixing valve:

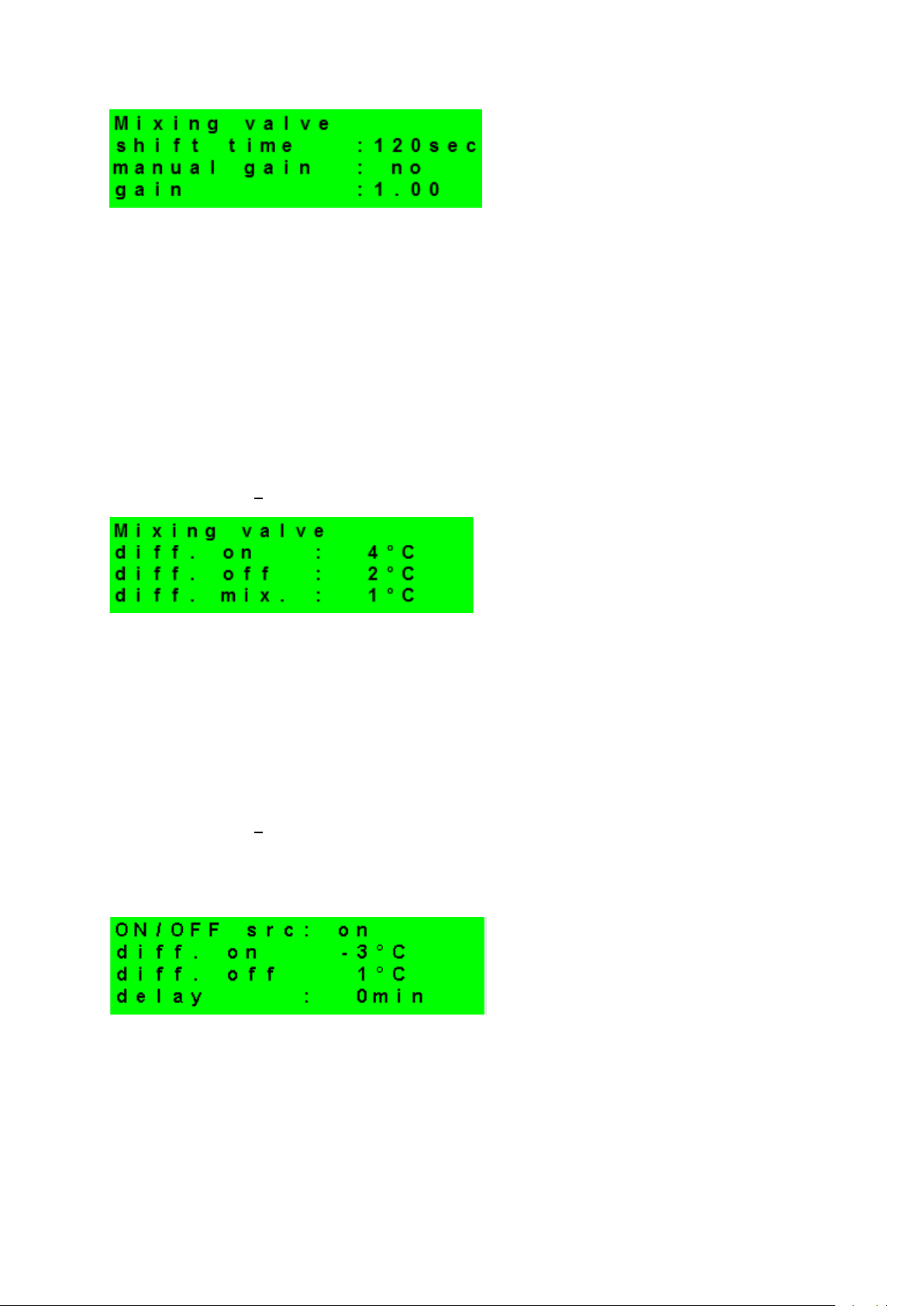

shift time (sec) Setting the shift time between end positions of the mixing valve.
manual gain If the preset value is not acceptable and the control shall be slowed
down/speeded up, the swit ch shall be turned to yes. Then the fol lowing item,
gain, can be changed.
gain determines the speed of c ontrol. The lower the parameter, the slower is the
control. It is not recommended to use values above 1.5. Such values can
cause valve cycling.
turn pump OFF (on/off) If this function is on, the zone circulat ion pum p will swi tch off when t he
temperature in zone reaches the desired value (with ± 0.3 °C
difference).
OTC setback (°C) Setting the heating water temper ature drop for transition from Day to
Setback mode.
26

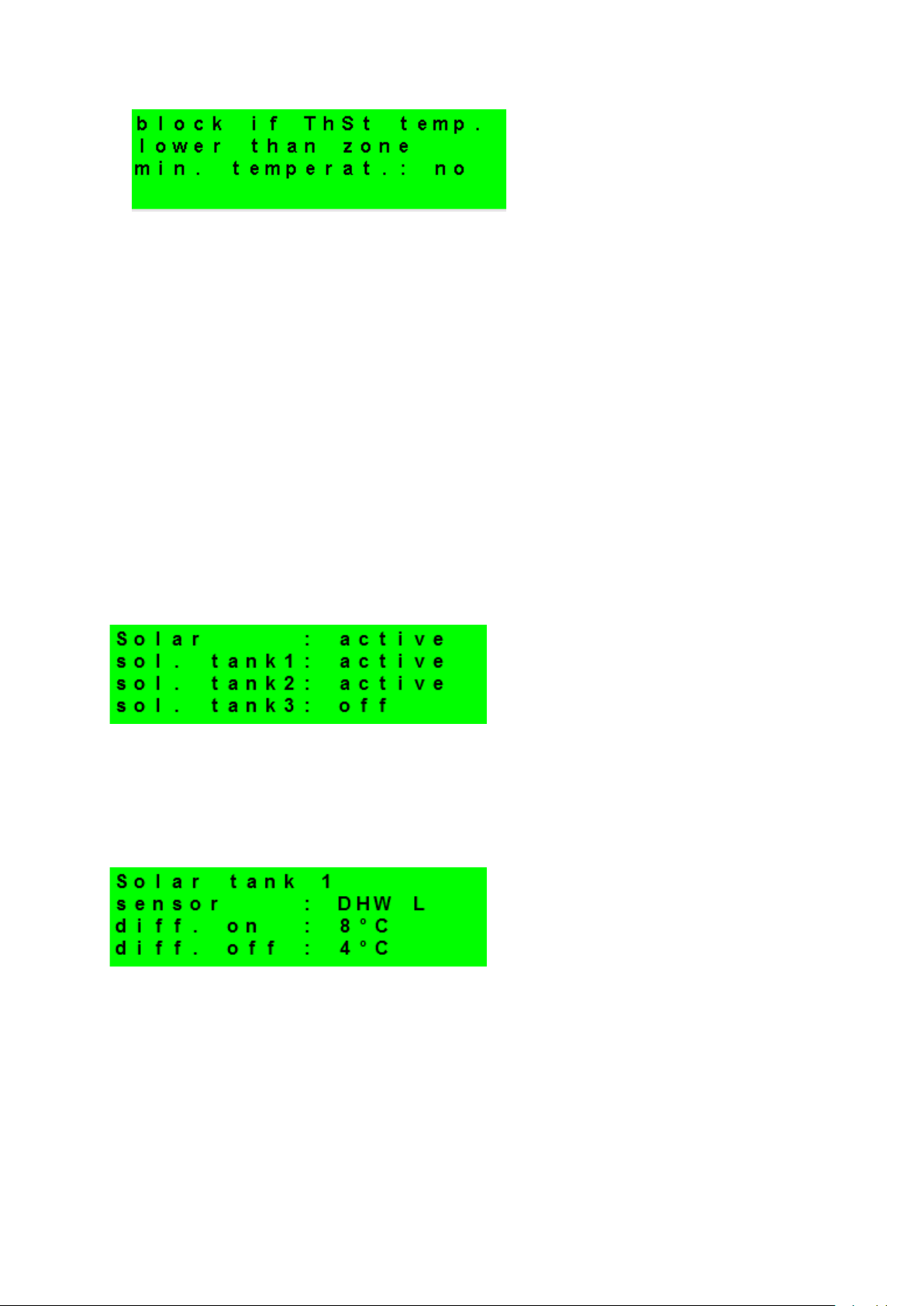

block if ThSt temp. lower than zone min. te m p erat. (yes/no) Blocks the zone when ThSt
temperature (ThSt upper sensor) is lower than min. heating water
temperature. Prevents extensive cooling of the thermal store.
S 2.2 – Solar Zone Service Parameters Setting

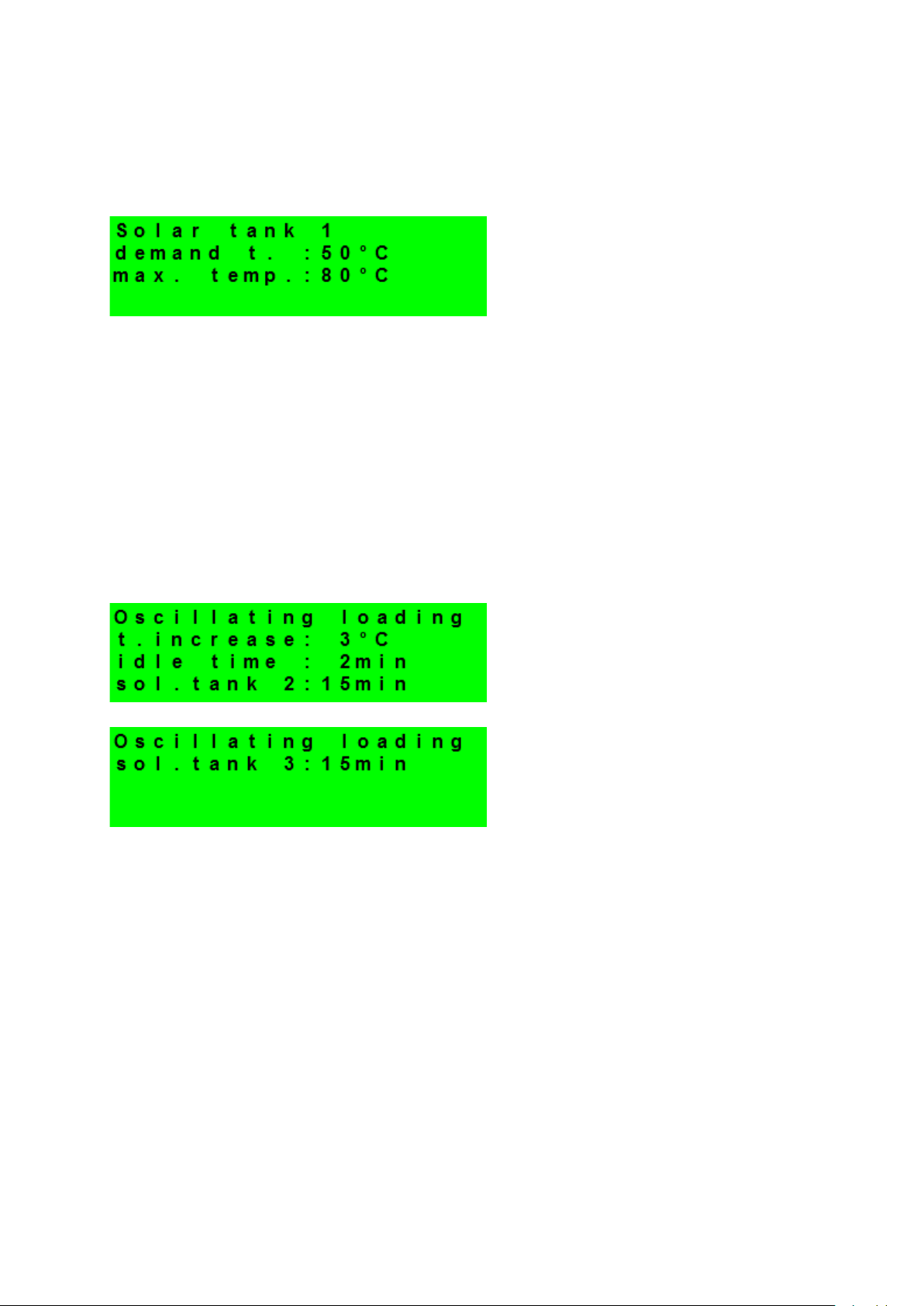

Solar system may work with one, two or three hot water storage tanks. Their heating is
controlled by so call oscillating heating, i.e. the Controller tries to heat up Tank No. 1 first. If
this is not possible due to a low temperature difference between a solar collector and the
tank, and at the same time the difference for heating Tank 2 is sufficient, the Controller starts
heating Tank 2 for the preset time. After that time, the Controller interrupts heat ing Tank 2
and tests if a collector temperature grows. If not, heating Tank 2 continues. If the collector
temperature grows, the Controller waits until the temperature difference is fulfilled for Ta nk 1
and then its heating is started. Heating to Tank 3 is controlled in a similar way.
Solar (active/off) Switching on solar zone.
tank 1,2,3 (active/off) Switching on separate solar tanks.
The following two displays are the same for all the three tanks:
sensor (sensor list) Choice of temperature sensor in a solar tank.
For control type 2 the heating return sensor is replaced by the flow sensor in zone 1!!!
27
dif. on (°C) Difference to switc h o n s o l ar c irc uit. Dif fer enc e b etwe en s o lar c o llector
and temperature sensor set in parameter sensor.
dif. off (°C) Difference to switch off solar circuit.
demand t. (°C) The desired temperature. Under the normal solar circuit mode, the tank is
heated up to this te mperature. As soon as a ll sw itch ed-on tanks are heate d u p
to the demand temperature, the Controller continues heating up to max.
temperature.
max. temp. (°C) Max. temperature. Maximum temperature the solar tank is heated to under
normal mode (the function of solar collectors cooling is turned off).
Oscillating loading:
t.increase (°C) Temperature increase during oscillating loading. If a solar tank of a
higher priority cannot b e lo aded , t he Controller waits for the t ime s et in
parameter idle time. If the temperature rises after this time by the
value set in parameter t. increase, the Controller keeps idling. This
repeats until the tank sw itch-on differe nce is reac hed. If this condi tion
is not reached, the tank of lower priority is loaded, supposed the
28
condition of switching difference is met – cf. more details in the
description of Oscillating loading function.
idle time (min) Time period the Controller idles, waiting if the solar collector
temperature rises. The description see parameter t. increase.
sol.tank 2(3) (min) If a tank of higher priority canno t be loaded, a tank of lower priority is
loaded for the time period set in this parameter.

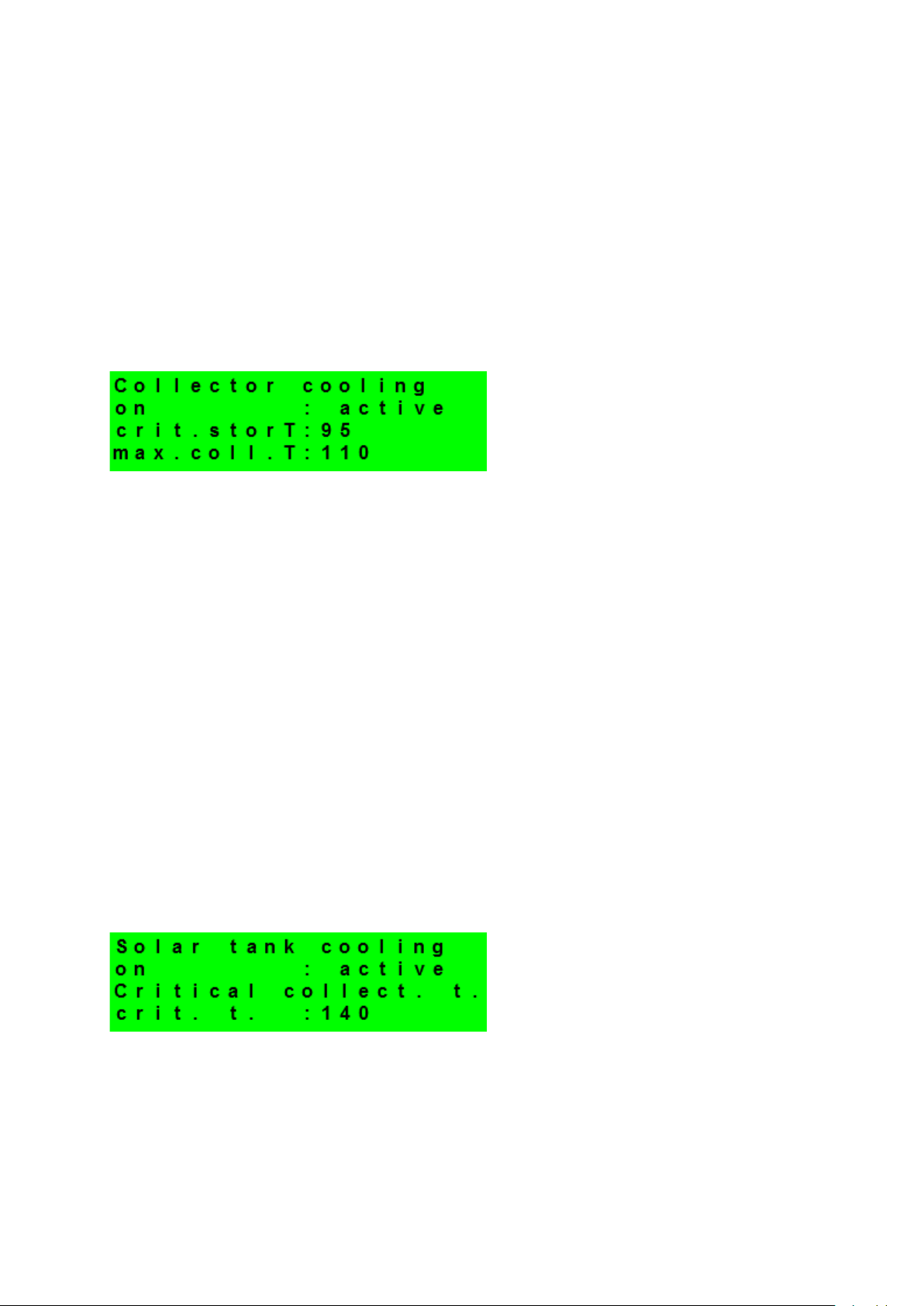

Collector cooling function:
When this function is on, solar collector is cooled. As soon as the max. temperature is
reached (in all tanks), tanks loading is stopped. When the solar collector temperature
exceeds the preset max. collector temperature, the circulation pump starts and the collector
is cooled by heating tank X. If the temperature in tank X exceeds the preset critical
temperature, collector cooling is stopped. Tank number (X) is set in parameter nmbr. of
solar tank for collect. cooling and tank cooling (see Solar tank cooling function).
on (active/off) Switching on the function of collector cooling.
crit.storT (°C) Setting the critical tank temperature. Collector cooling by heating tank 1 may
run only until the tank temperatur e set by this param eter is reached. When this
temperature is exceeded in tank 1, the collector stops cooling.
max.coll.T (°C) Max. collector temperat ure. When this value is ex ceeded, collect or cooling by
heating tank 1 is started, supposed this function is on.
Tank cooling function + Critical collector temp.:
29
If the temperature in tank X is higher than that set in param eter Max. temp. tank X (e.g. due
to collector cooling), tank X will get cooled via the collector. Cooling shall start if the collector
is cooler by at least 6°C than tank X. Tank number (X) is set in parameter nmbr . of solar
tank for collect. cooling and tank cooling.
If the temperature set in parameter crit.t. is exceeded in the collector, the solar pump is
blocked. This function protects other solar components from damage by too hot solar fluid.
on (active/off) Switching on tank cooling function.
crit. t. (°C) Critical temperature of solar collector.

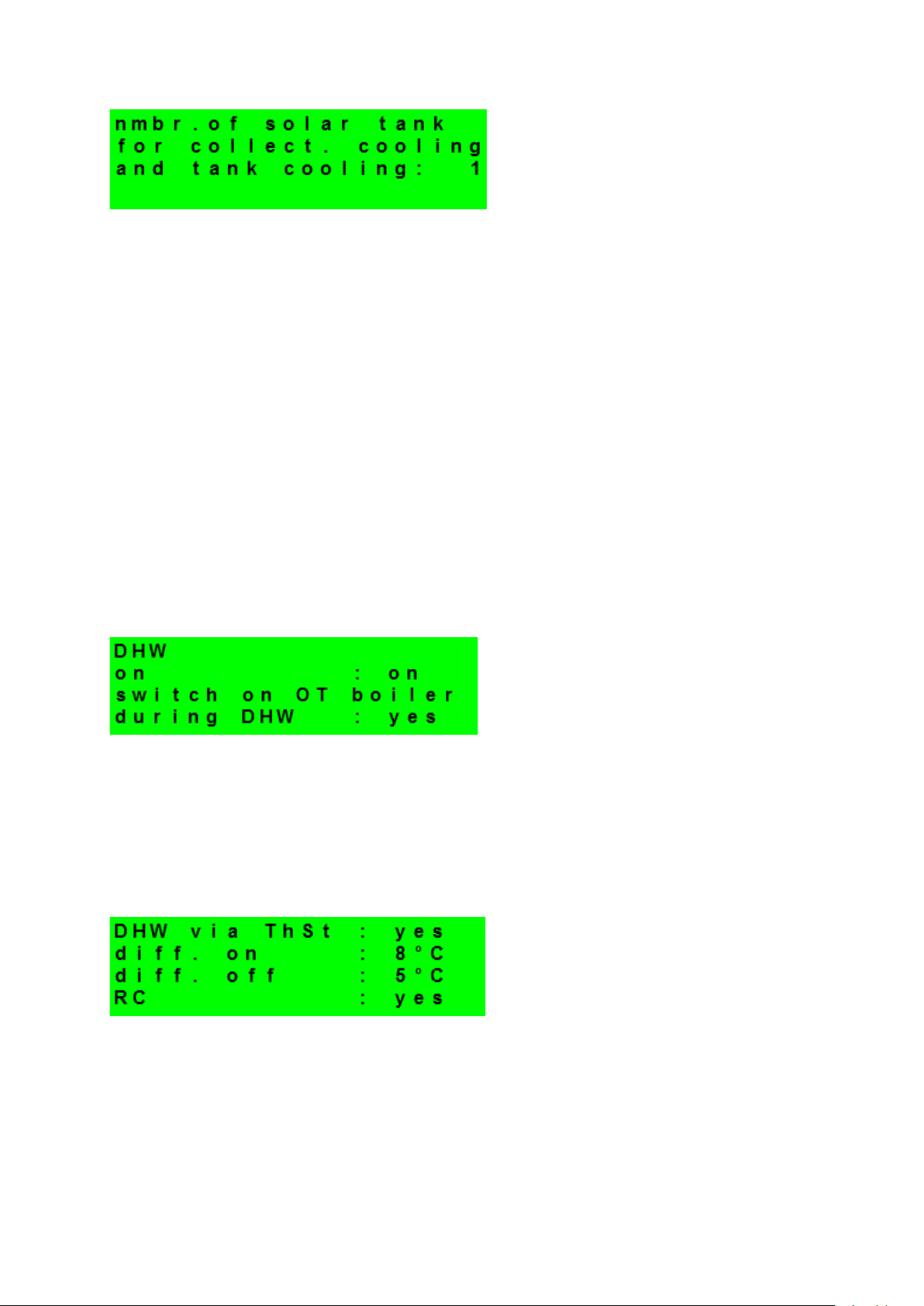

nmbr. of solar tank for collect. cooling a n d tank cooling Number of the solar tank t hat
will perform safety functions of collector cooling and tank cooling.
S 2.3 – DHW Zone Service Parameters Setting
on (on/off) Switching on DHW from the Service. level.
switch on OT boiler during DHW (yes/no) OT boiler will be switched on when DHW
demand appears.
DHW tank heated from Thermal Store:
DHW via ThSt (yes/no) Switching on DHW tank to be heated from Thermal Store.
30
diff. on (°C) Setting the difference between Thermal Store and DHW tank that
controls starting the DHW pump.
diff. off (°C) Setting the difference between Thermal Store and DHW tank that
controls stopping the DHW pump.
RC (yes/no) Option if DHW tank loading is blocked from RC signal.
sens.DHW (sensor list) Choice of sensor in DHW tank for t he function of DHW via Thermal
Store.
sens.ThSt (sensor list) Choice of sensor in Thermal Store for the function of DHW via
Thermal Store.
Anti-Leg.temp (°C) Desired temperature for Anti-Legionella function
AL max.durat. (hrs) Max. d urati on of Anti-L egio nella funct ion. After this tim e expir es, DHW
will be heated by standard temperature values set in the DHW menu.
AL min.duration (hh:mm) Minimum duration o f Anti-Legionella te mperature in or der to finish the
Anti-Legionella function successfully.
S 2.4 –OpenTherm source Service Parameters Setting
OpenTh. source (on/off) Switching OpenTherm source on in service level. When off is
selected, the Controller adjusts the boiler state to stop heating.
31
However the source might r un and keep circulation pump running for
some time which is caused by safety algorithms of the source that
cannot be overridden by the Control ler.
max. t. out. (°C) Setting the max. flow temperature from an OpenTherm source. This
value will be sent to the source to limit its max. flow temperature.
return line valve type (div./mix.) Setting the valve type in the heating return line. A diverter
diverts the return line either directly to the boiler, or to the Thermal
Store for preheating, depe nding on the return line and Ther mal Store
temperatures. A mixing va lve mixes the ret urn line temperatur e to the
desired value.
For control type 2 no heating return valve i s used.

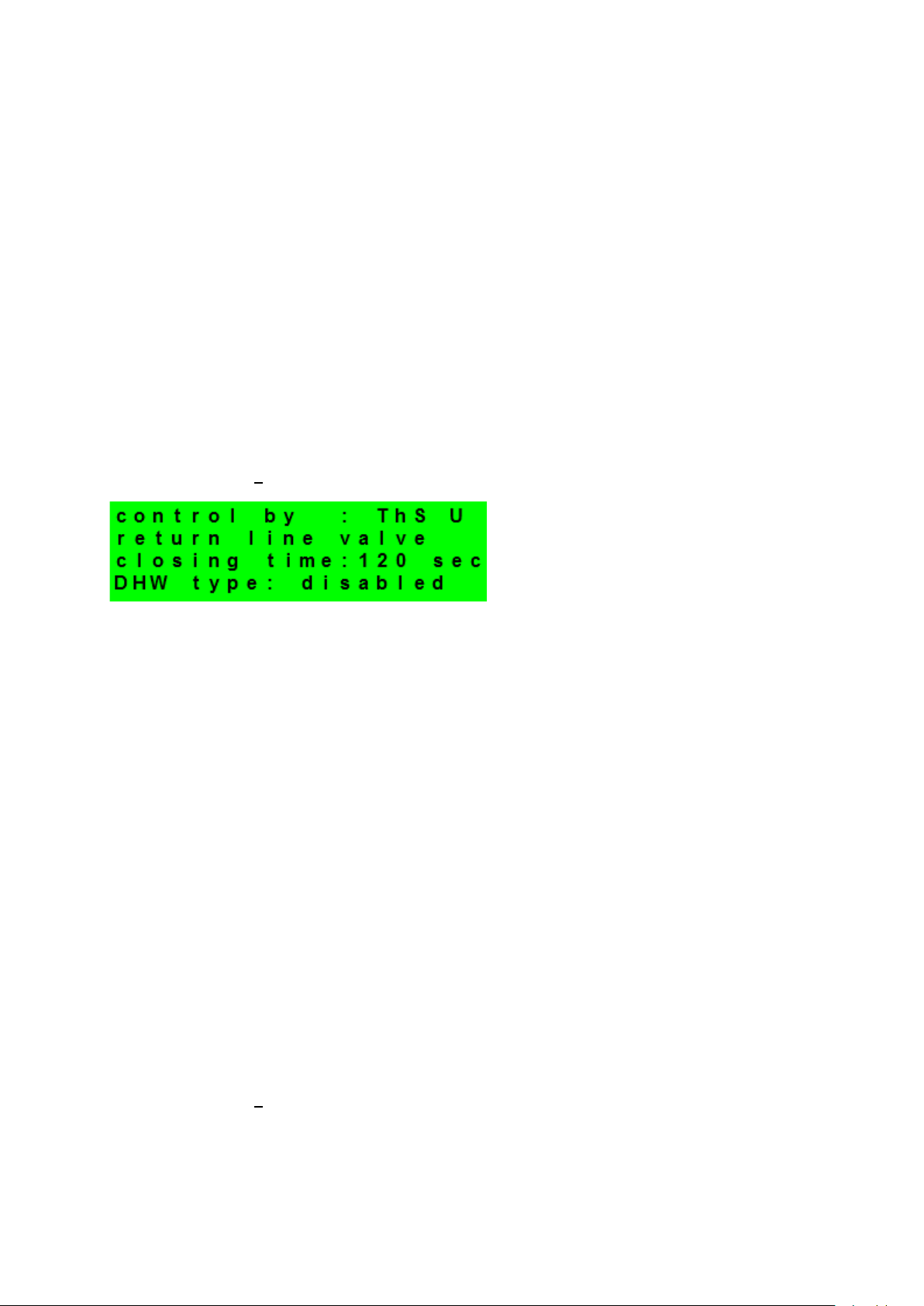

control by (ThS U, ThS L) Selecting a sensor to be decisive for a return line diverter
switching.
return line valve closing time Closing time for the return l ine valve after the deman d to heat
hot water is finished. The valve closes for the set time and
then the function is rele ased and the v alve is again control led
by its own logic (diverter/mixer).
DHW type (disabled, therm., own logic) Configuration manner for heating of DHW zone in a
source controlled by OpenTherm protocol. The option
“disabled” indicates the independent DHW heating in the
source is switched off. With the option “therm.” set, DHW is
heated up depending on t he sensor in the hot water storage;
and when the option “own logic“. is set, DHW heating is
controlled by a dedicated DHW sensor.
For control type 2 no heating return valve i s used.
32
shift time (sec) Setting of mixing valve shift time from one end position to the other one.
manual gain If the preset value is not acceptable and the control shall be slowed
down/speeded up, the swit ch shall be turned to yes. Then the fol lowing item,
gain, can be changed.
gain Determines the spe ed of control. The lower th e parameter, the slower is the
control. It is not recommended to use values above 1.5. Such values can
cause valve cycling.
For control type 2 no heating return valve i s used.
diff. on The difference betw een Thermal Store ( higher) and re turn line (lower) th at makes the
heating return valve divert to Thermal Store.
diff. off The switch-off difference for the preceding function, to divert the valve to the boiler.
diff. mix. If the temperatur e in Thermal Store is higher than the des ired one + this difference,
the return line valve will switch to the mixing mode.
For control type 2 no heating return valve i s used.
S 2.5 – ON/OFF source Service Parameters Setting
Decisive sensors can be switched on the third screen of ON/OFF source parameters setting.
ON/OFF src. (on/off) Source 2 turned on in service level.
33
diff. on (°C) Setting the difference between boiler return temperature and that
demanded by a heating system, for source 2 to be switched on.
diff. off (°C) Setting the difference between boiler return temperature and that
demanded by a heating system, for source 2 to be switched off.
delay (min) Setting the delay in boiler start after the demand based on
temperature difference appeared.

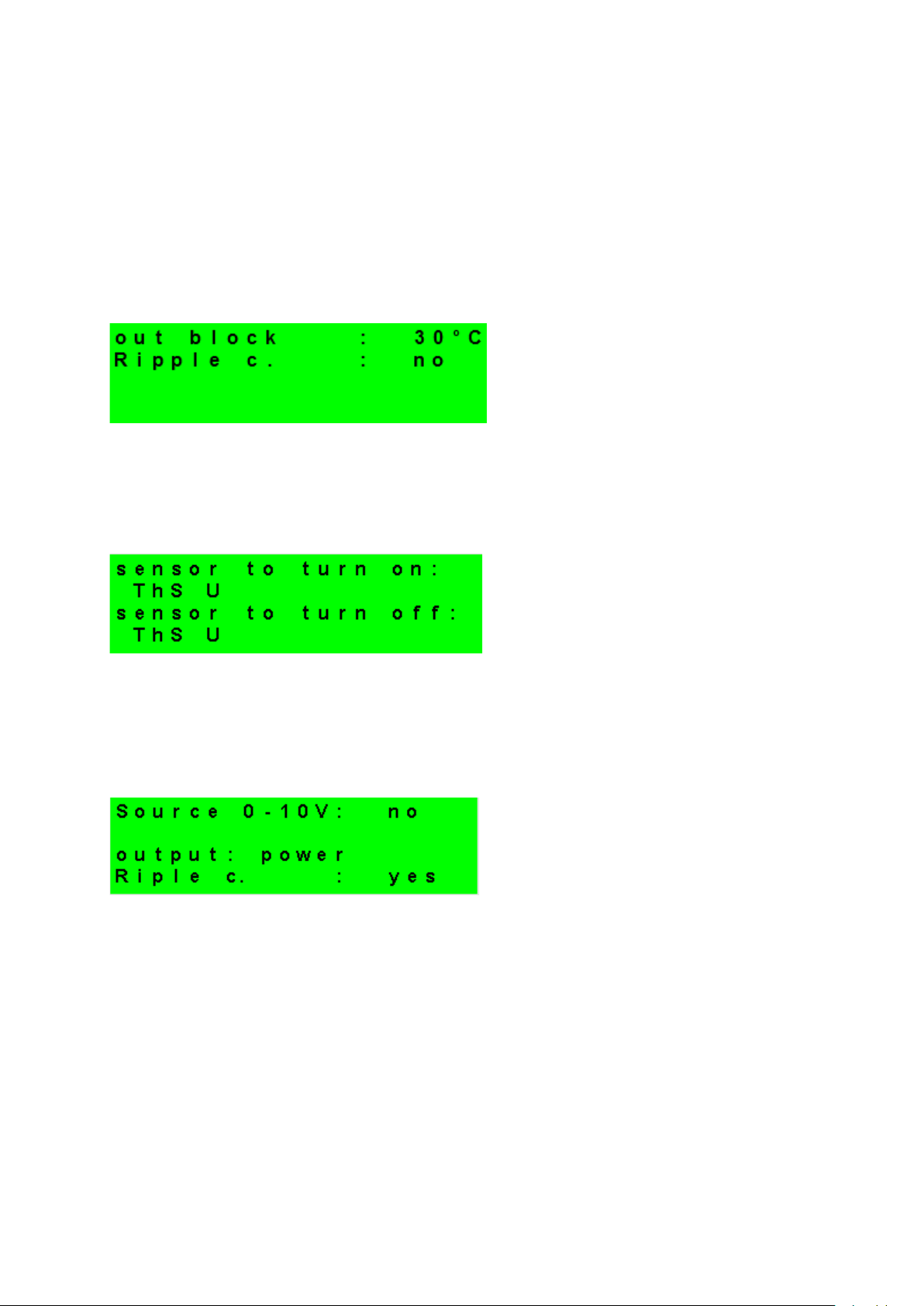

out block (°C) Setting the outdoor temperature limit above which the Source 2 will be
blocked.
Ripple c. (yes/no) Setting Source 2 control via Ripple control.
sensor to turn on (sensor list) Decisive sensor to turn the source on.
sensor to turn off (sensor list) Decisive sensor to turn the source off.
S 2.6 – Setting service parameters of a modulated (0-10V) heat source
Control sensor for the source can be selected on the second settings screen.
source 0-10V (yes/no) Switching on a 0-10V signal controlled heat souce on service level.
output (power/temp.) Setting the type of output signal. With power selected, the 0-10V
signal is in direct relationship to the desired source output (in the
range adjustable on the respective adjustment page). With temp.
34
selected, the 0-10V output signal is in direct relationship to the
desired temperature.
Ripple c. (yes/no) Settings for 0-10V source control by Ripple control signal.
sensor (sensor list) Control sensor for a 0-10V sourc e.

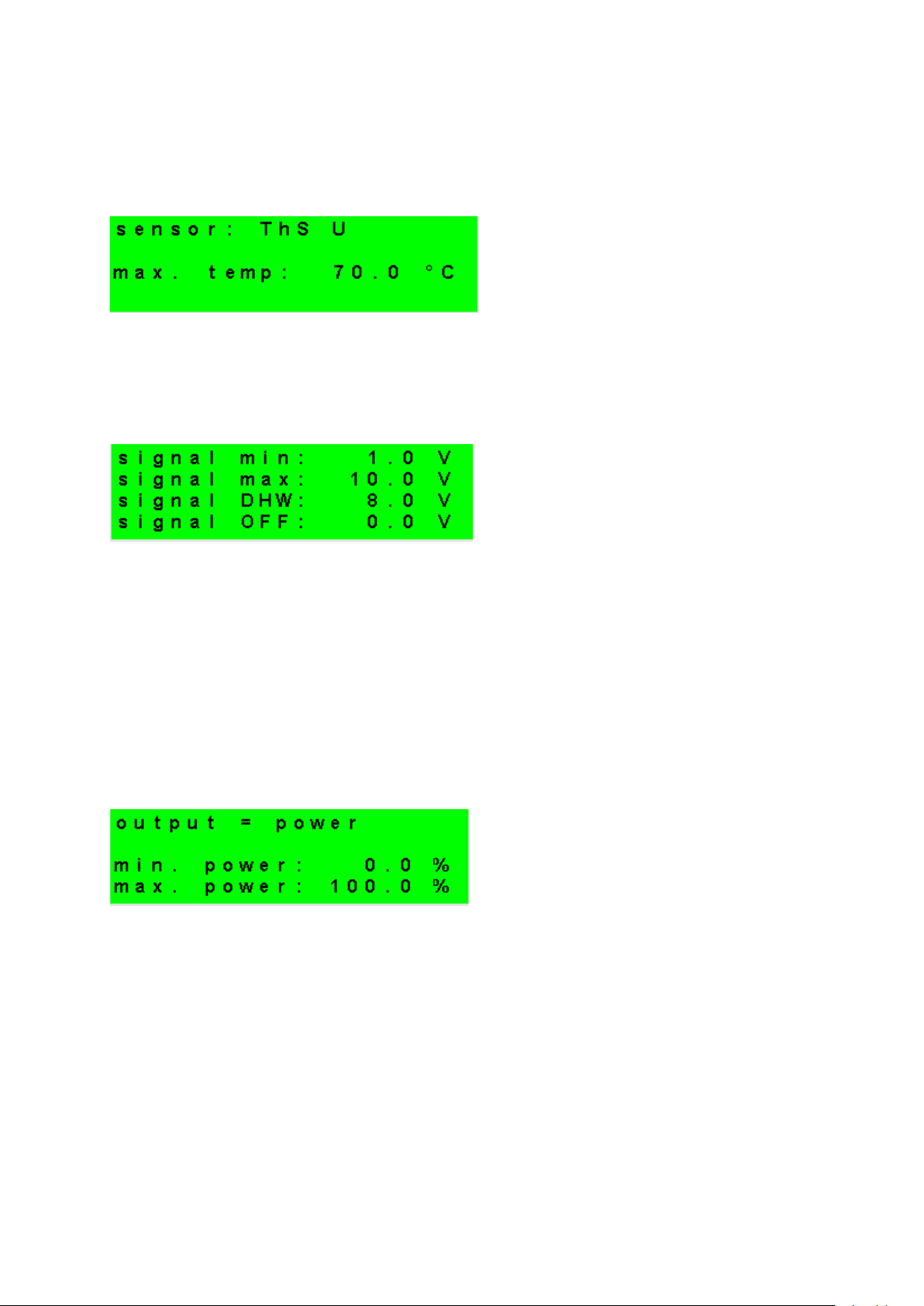

max. temp. (°C) Setting of max. flow te mp erat ure fr om a hea t s ourc e. T his tem per at ur e
will be used as the upper limit value for a desired boiler temperature.
signal min (V) Minimum signal level (cor responds to the min. temperature/output –
see further screens).
signal max (V) Maximum signal level (corresponds to the max. temperature/output –
see further screens).
signal DHW (V) Output value set for a DHW demand (independent of the desired
temperature).
signal OFF (V) Output value set for the source being off.
Parameter settings for the output signal of power type (see the first adjustment screen).
min. power (%) Min. power, corresponding to signal min. parameter.
max. power (%) Max. power, corresponding to signal max. parameter.
35

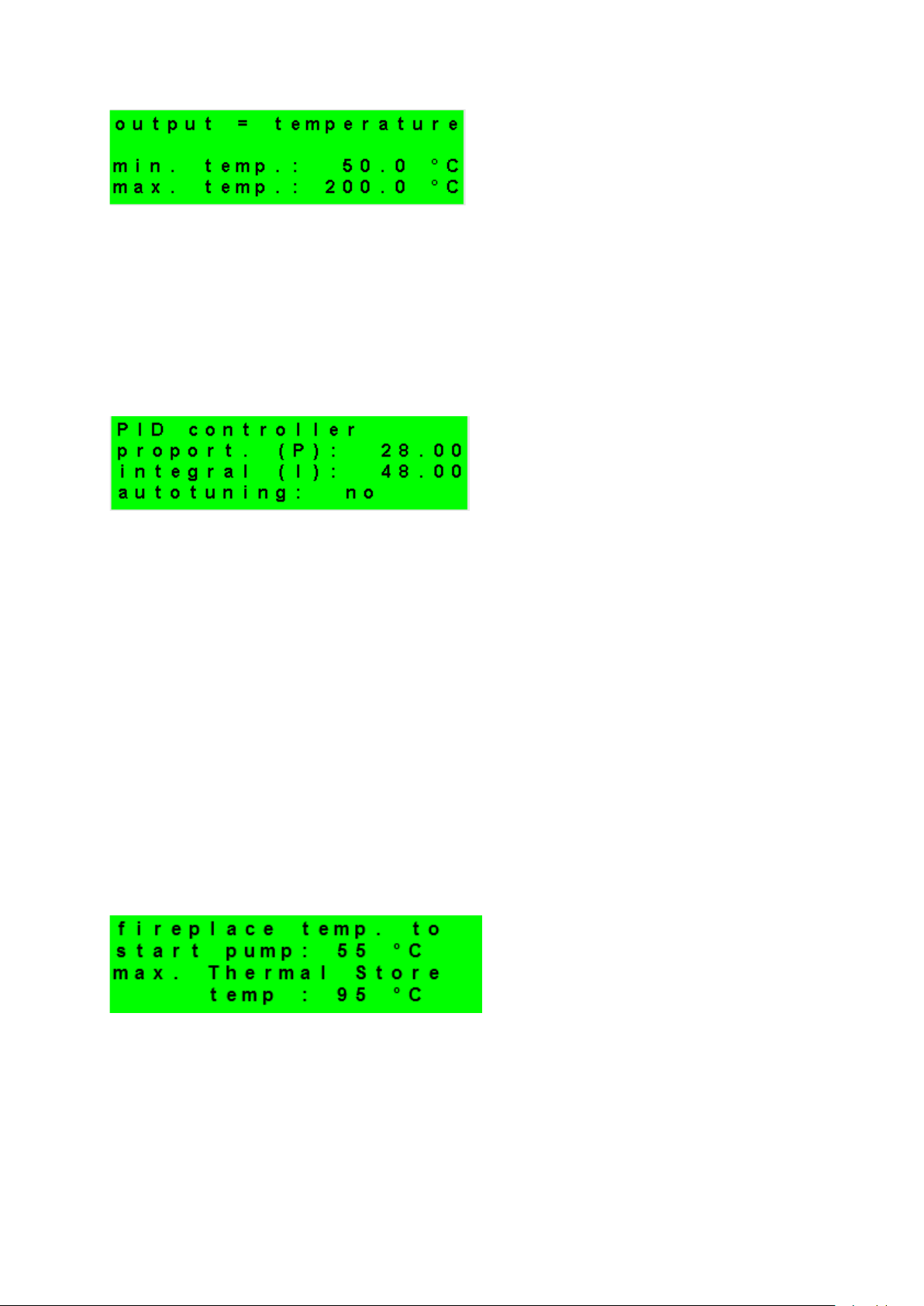

Parameter settings for the output signal of temp. type (see the first adjustment screen).
min. temp. (°C) Min. temperature, corresponding to signal min. parameter.
max. temp. (°C) Max. temperature, corresponding to signal max. parameter. This is
just to set the output signal level which does not need to correspond to
the max. source temperature.
Adjusting controller’s PID parameters for the output signal of power type (see the first
adjustment screen).
proport. (P) PID controller proportional gain.
integral. (I) Integral time constant of the power.
autotuning (yes/no) Automatic finding coefficients of the PID controller. It is advisable to
run controller Autotuning after the boiler is connected to a heating
system, before current operation starts. The source will not react to
any requirements during the autotuning procedure! Autotuning will
switch off automatically when finished.
S 2.7 – Fireplace Service Parameters Setting
36
fireplace temp. to start pump (°C) Setting the temperature of water outgoing from
fireplace above which the fireplace circulation pump
starts.
max. Thermal Store temp (°C) The max. Therm al Store temperatur e for the fireplace
function. When this tem perature is exceeded, the fire
pump is turned off.

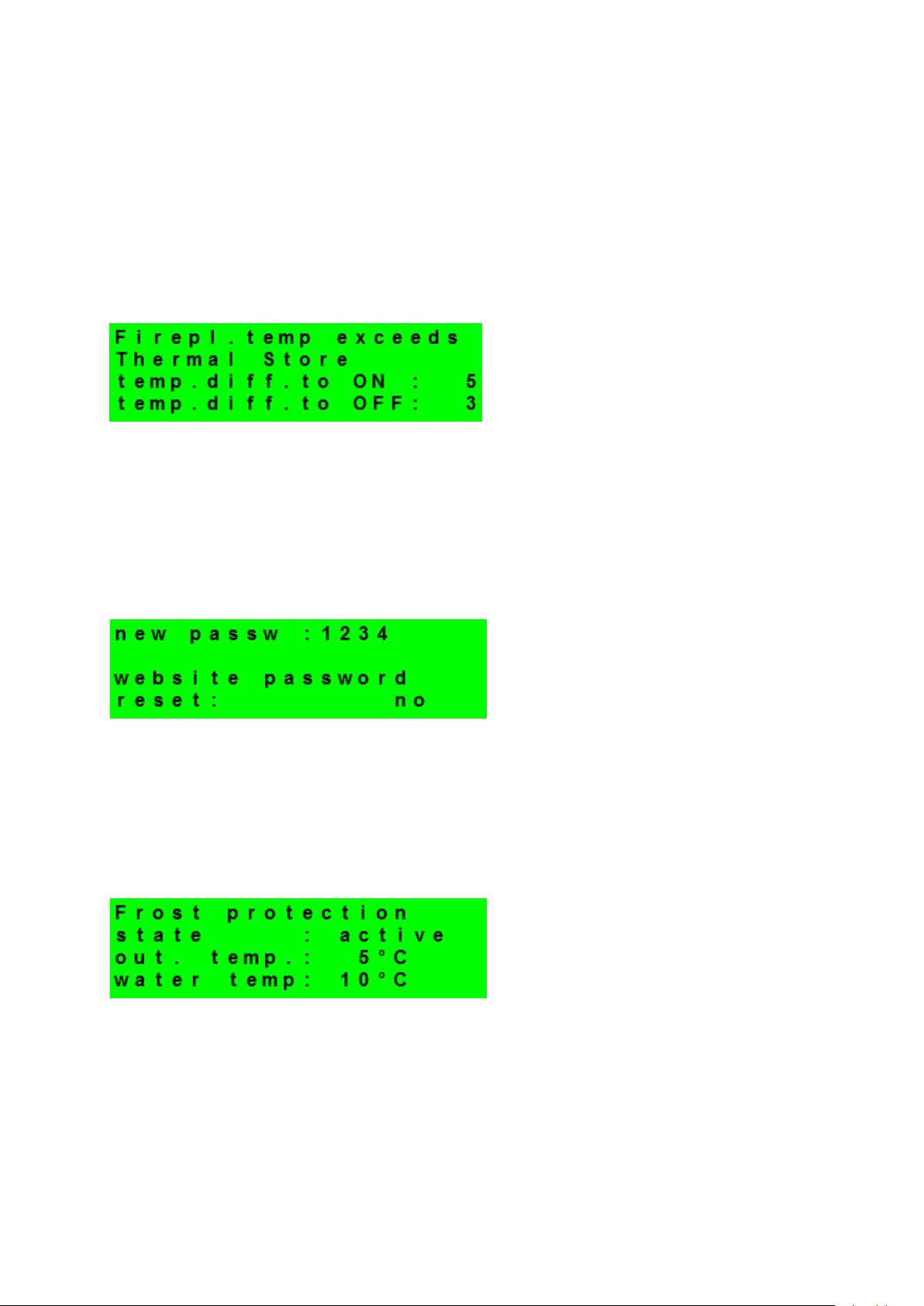

temp.diff.to ON (°C) Switch-on differenc e to start the fire pump, i.e. f ireplace temp. above
the Thermal Store Lower value.
temp.diff.to OFF (°C) Switch-off difference for the fire pump.
S 2.8 – Other service parameters
new passw Setting a numeric code for access to Service level of menu.
website password reset (yes/no) Selecting yes will reset the password and username for
controller website access to the default values.
Frost protection:
When Frost protection is on, the temperature is monitored for a switched off zone. Should the
outdoor temperature drop below the value set in parameter out. temp., then the heating
water temperature is kept at value set by parameter water temp..
37
state (active/off) Turning frost protection on/off.
out. temp. (°C) Setting outdoor temperature limit below which Frost protection is activated.
water temp. (°C) Heating water tem per at ure k ept in a zone when Fros t protec ti on is activ e.

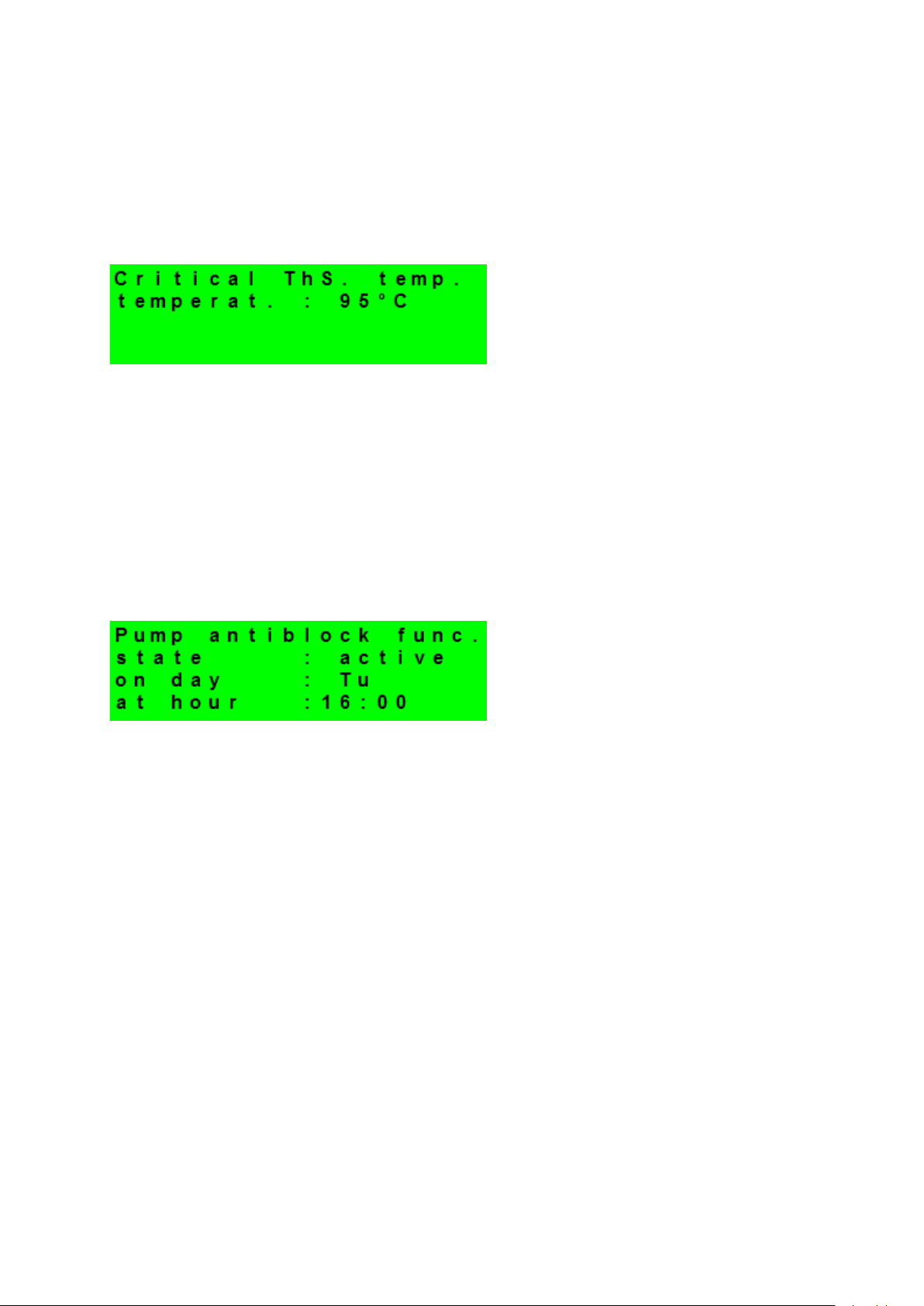

Critical temperature in Thermal Store:
If the temperature in Thermal Store exceeds the set critical temperature, cooling will start
with heating into all zones switched on in Service level, i.e. incl. those switched off in User
level. During cooling, the zone pump is on and the max. temperature is set for the zone
(Max.t to zone). Cooling will be finished when the Thermal Store temperature sinks by 5°C.
temperat. (°C) Setting the critical temperature for Thermal Store.
Anti-block function:
When this function is active, selected heating elements (pumps, valves) are spun f or a while
once a week (at a preset day and time). If any of these components was in operation the
previous week due to the Controller intervention, this anti-block function will not apply.
state (active/off) Switching on (off) the function of component spin.
day (Mo - Su) Selection of day when the spin shall occur.
hour (0 - 23) Hour when the spin starts.
38
S 2.9 – Temperature Sensor Management
The temperature measured by the Controller may differ from a real temperature due to
defects. The measured value may be affected e.g. by the preciseness of the temperature
sensor, the length and cross section of the cable used f or sensors, by the quality of contact
between the temperature sensor and the medium measured. The temperature data can be
adjusted by offset in the range from -9.0 to +9.0 °C.
connected “No“ option sh all be s e lect e d in cas e no t emperature sensor is c onn ect ed (t o av o i d the
program reporting an error when the sensor is disconnected). The default option is
“Yes”.
adjustment Temperature sensor offset.
state The sensor state – if the sensor is in an error state (either a too high or a t oo low
temperature is sensed), the text fault is displayed.
S 2.10 – Universal Outputs
The universal output 1 (uni1) – the F3 terminal can be used to control a diverter valve for
solar tank No. 3 (option div.v.sol3), control a DHW recirculation pump (option circulat.),
control a heating zone 1 circulator (option zone 1 pump), or it may be used as a uni versal
thermostat (option thermostat).
Eventually the universal output can be switched off completely. The universal output 2 (uni2)
– the E4 terminal can be used to control heat ing zone 2 circulator (option zone 2 pump) or it
can be used as a universal thermostat (option thermostat). Eventually the universal output
can be switched off completely.
uni1 Selection of the universal output type (cf. above).
39
The following displays enable adjusting the function of universal thermostat (uni1 thermostat
or uni2 thermostat).
sens 1,2 Temperature sensor selection for universa l ther mostat functions.
For control type 2 the heating return sensor is replaced by the flow sensor in zone 1!!!
The universal thermostat features the following functions:
• thermostat 1
• thermostat 2
• differential thermostat
• delay
• overrun
• timer
The function logic is designed in such a way that the output is closed when the universal
thermostat is switched on and all the permitted functions are fulfilled, see fig. below. A
function not permitted is equivalent to a closed switch.

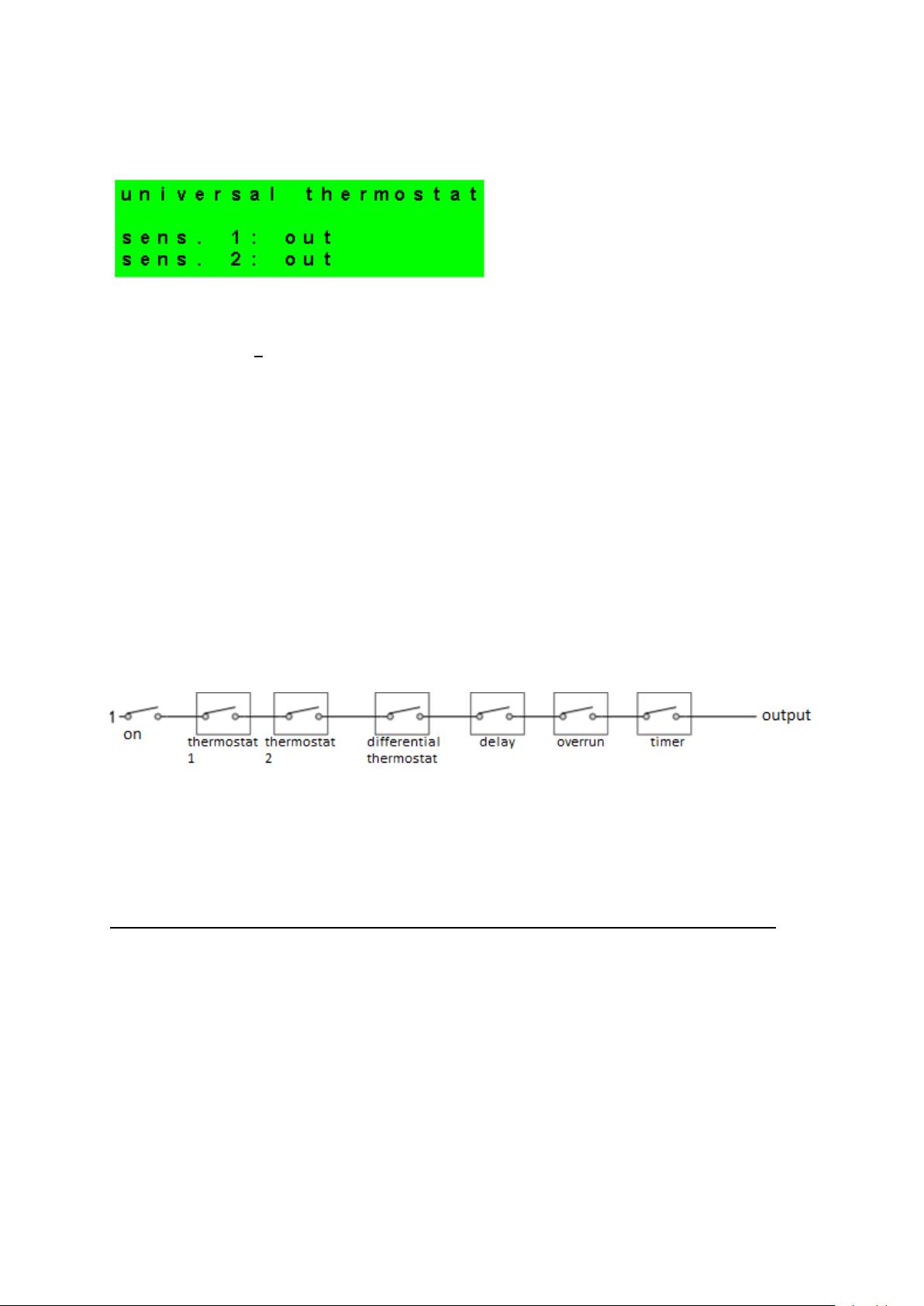

It is obvious from the picture that the Delay function can delay signal from thermostat and
diff. thermostat functions, the Overrun function can hold disconnection (switching off) from
thermostat, diff. thermostat and delay functions. The Timer function is superior over the
preceding functions.
Description of separate functions and parameters of the universal thermostat 1 (2)

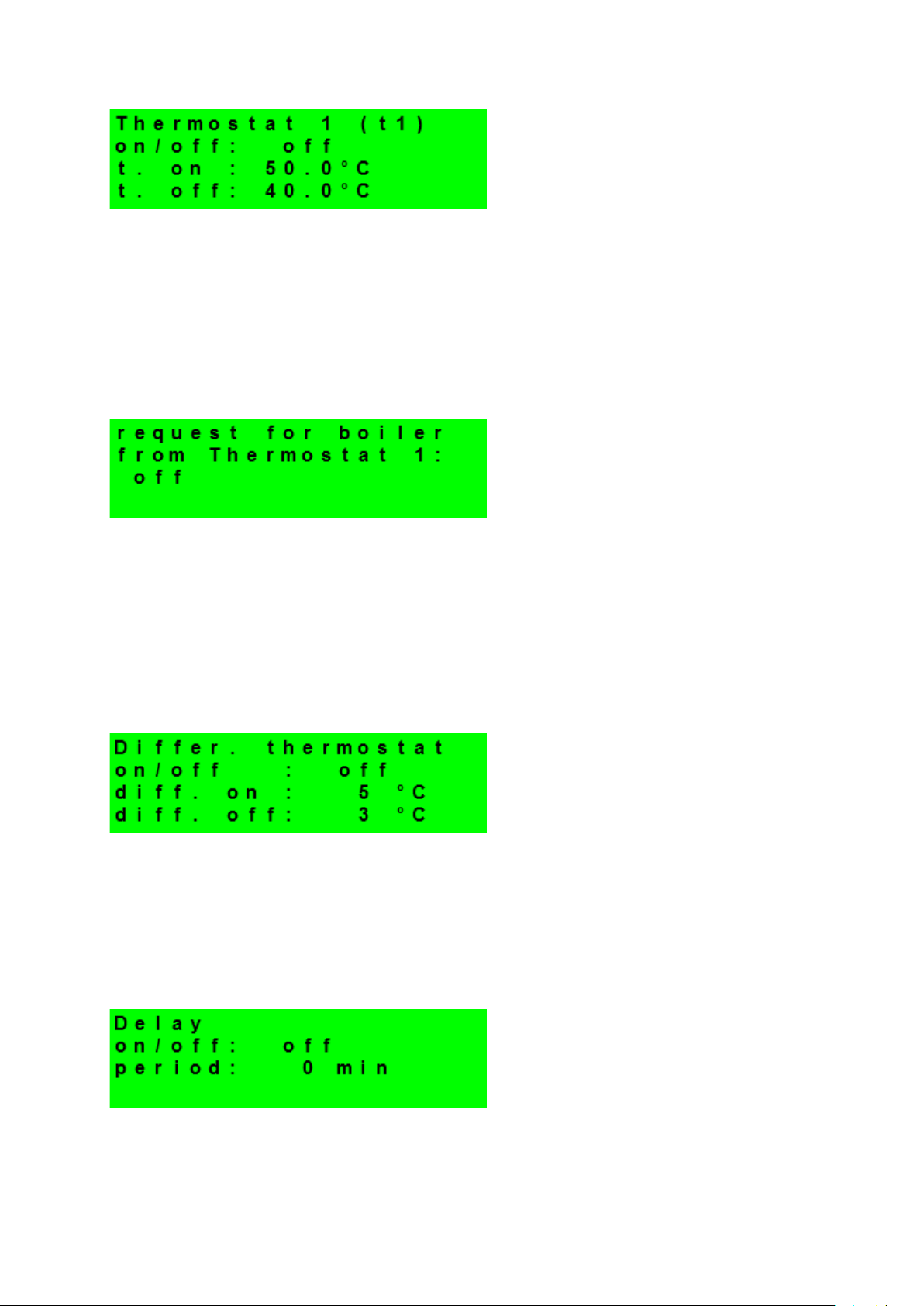

Thermostat 1 (2): t hermostat function related to temperature input 1 (sensor 1) or 2
(sensor 2)
40
on/off (on/off) Switching thermostat 1 function on/off.
t. on (°C) Switch-on temperature for thermostat 1.
t. off (°C) Switch-off temperature for thermostat 1.
If the switch-on temperature is higher than the switch-off temperature, thermostat 1 works in
a “cooling” mode, if vice versa, it works in a “heating” mode.
request for boiler from Thermostat 1/2 (on/off) Switch-off temperature f or Thermostat 1/2 will
be taken over as the desired temperature for heat sources. Valid only if
Thermostat 1/2 is set in Heating mode. When Timer func tion is also On, the
request will be taken over during active time period only.
Differential thermostat: differential thermostat function between sensors 1 and 2
on/off (on/off) Switching differential thermostat function on/off.
diff. on (°C) Switch-on difference between temperatures t1 and t2.
diff. off (°C) Switch-off difference between temperatures t1 and t2.
Delay: output delay function
41
on/off (on/off) Switching the delay function on/off.
period (minutes) Delay time in case when all the preceding functions are fulfilled.

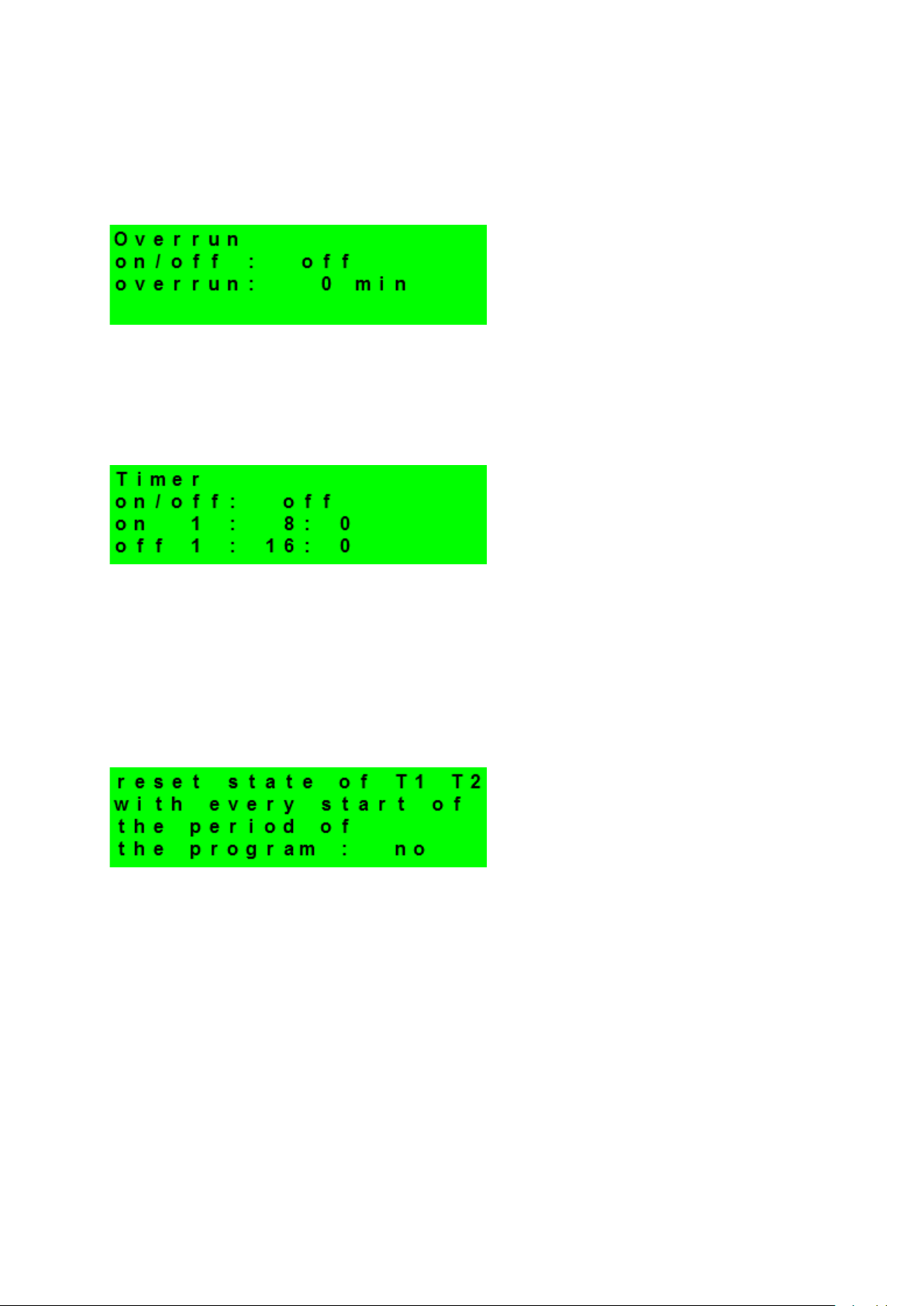

Overrun: overrun function (output delayed switch-off)
on/off (on/off) Switching the overrun function on/off.
overrun (minutes) Overrun time after the preceding functions are switched off.
Timer: timer functions with two time periods
on/off (on/off) Switching the timer function on/off.
on 1 (hh:mm) The first period switch-on time.
off 1 (hh:mm) The first period switch-off time.
on 2 (hh:mm) The second period switch-on time.
off 2 (hh:mm) The second period switch-off time.
reset state of T1 T2 with every start of the period of the program When this function is
On, at every start of time period in time program the state of both
thermostats will be reset according to the current temperature.
42

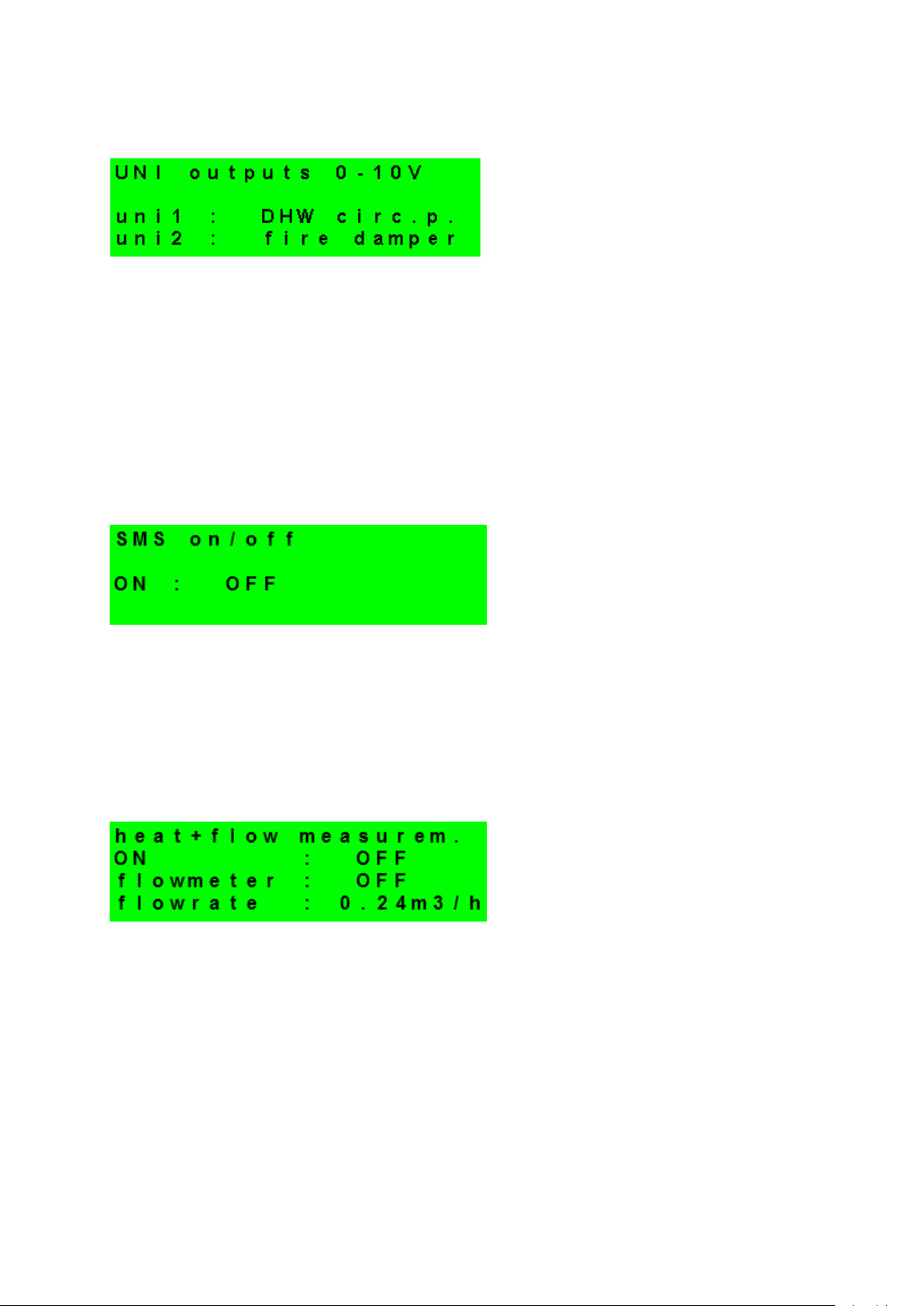

S 2.11 – Universal outputs 0-10V
uni1, uni2 Assign universal analogue outputs, options are:
off output is not used
fire damper damper on the fireplace combustion air inlet is assigned
DHW circ.p. DHW recirculation pump (switched) is assigned to this output
src. 0-10V 0-10V source signal is assigned to this output
S 2.12 – SMS Setting
ON (ON/OFF) Turning on (off) the text message functions (text functions will be
available for settin g in the User Menu on t he web and on the dis play
as well).
S 2.13 – Heat and Flow Rate Measurement Settings
ON (ON/OFF) Turning on (off) the heat and flowrate measurement function.
flowmeter (ON/OFF) Option ON shall be selected when the flowrate is me a s ured by a puls e
flowmeter wired to the logical input terminal, marked C9 on the
Controller.
43
flowrate (m3/h) If no pulse flowme ter is present, the flowrate value shall be entered
manually.

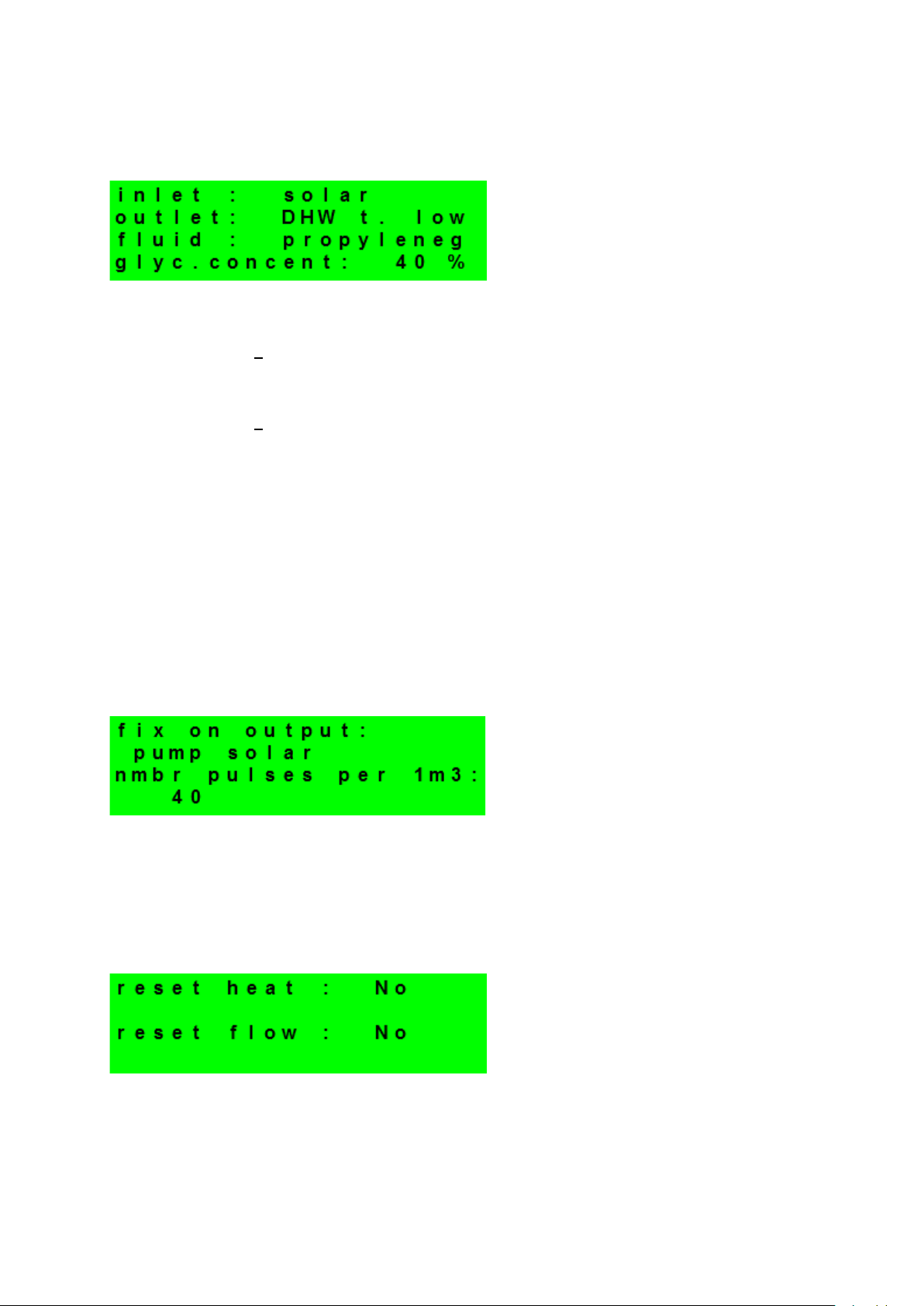

inlet Inlet temperature sensor for the purpose of heat measurements (select).
For control type 2 the heating return sensor is replaced by the flow sensor in zone 1!!!
outlet Outlet temperature sensor for the purpose of heat measurements (select).
For control type 2 the heating return sensor is replaced by the flow sensor in zone 1!!!
fluid Fluid circulating between selected sensors (options: water, ethylene glycol,
propylene glycol).
glyc.concent Glycol concentration in the mixture (if the fluid selected is either ethylene
glycol or propylene glycol).
Selected inlet and outlet sensors swap automatically depending on actual t emperatures (the
temperature at an inlet sensor must be always higher than that at an outlet sensor).
Measurement fixed to input:
Measurement fixed to output (pump) means that heat and flow rate will be measured only
when the input is active (pump is running). This fixation can be cancelled, then heat and flow
rate will be measured continuously, independent of the pumps.
nmbr pulses per 1m3: Number of pulses per 1 m3 (resolution of flowmeter).
44
reset heat (Yes/No) Measured heat values are reset (all statistics, from hourly to total
values).
reset flow (Yes/No) Measured values of flow rate and fluid volume passed through are
reset (all statistics, from hourly to total values).
S 2.14 – Total statistics
Statistics of sources and all pumps operation and of solar tanks heating, in HH:MM format.
S 2.15 – Control type
Warning: Changing the number of hydraulic variant will cause most settings to be
overwritten. Always change the hydraulic variant first, before starting to
adjust other values.
Here the setting of the hydraulic variant is done, following the document: IR12 Intelligent
Controller - typical designs of hydraulic variants that is enclosed. T he document can be also
downloaded from the service level of the controller website.
After you select the Hydraulic variant number (press OK in the display shown, set the desired
number using up/down arrows in the range 1 to 34 and confirm by pressing OK), the control
type will be set automatically as well as all the other variables concerning the selected
variant.
For the control type 1, the heating return valve and temperature sensor are connected and
Zone 1 is unmixed. For the control type 2, Zone 1 is mixed (i.e. a zone mixing valve is
installed instead of a heating return valve) and a Zone 1 heating water temper ature sensor is
connected instead of a heating return temperature sensor. In that case the system features
no heating return valve.
Hydraulic v. (1 to 33) Choosing control manner.
45
S 2.16 – Output test
When Output test in Service Menu is entered, all outputs from the Controller are switched off.
Then separate outputs can be tested. The output turns on when a displa y with the name of
the output in question is shown and the option test = 1 selected. On leaving a display with the
option test = 1, the respective output switches off.
termin Terminal number for the respective Controller output.
operat Name of the output function.
test (0,1) Output setting for test, 1 means output on.
S 2.17 – Universal CIB module
This is a universal add-on module for IR12 controllers.
The module features the following functions:
• turning the module on
• thermostat 1
• thermostat 2
• differential thermostat
• delay
• overrun
• timer
The function logic is designed in such a way that the output is closed when the add-on
module is switched on and all the permitted functions are fulfilled, see fig. below. A function
not permitted is equivalent to a closed switch.
It is obvious from the picture that the Delay function can delay signal from thermostat and
diff. thermostat functions, the Overrun function can hold disconnection (switching off) from
46
thermostat, diff. thermostat and delay functions. The Timer function is superior over the
preceding functions.
Description of separate functions and parameters of the add-on module

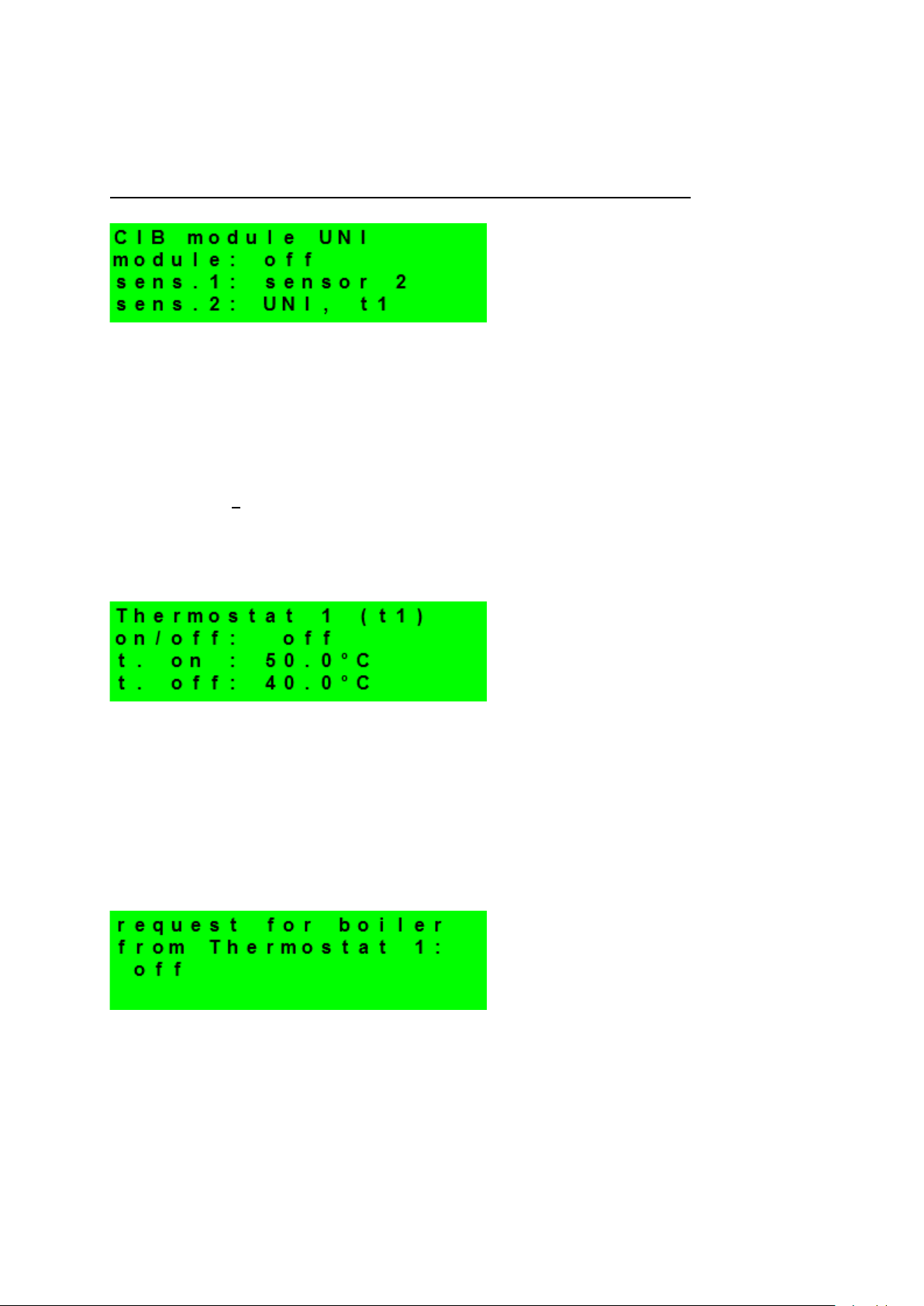

module (on/off) Add-on module switching on (entering the right HW address is a
precondition for its proper operation – see 2.16).
sens 1, 2 Temperature sensors for thermostat functions (thermostat 1, 2 and
differential thermostat)
For control type 2 the heating return sensor is replaced by the flow sensor in zone 1!!!
Thermostat 1 (2): thermos tat function related to temperature input 1 (sensor 1) or 2
(sensor 2)
on/off (on/off) Switching thermostat 1 function on/off.
t. on (°C) Switch-on temperature for thermostat 1.
t. off (°C) Switch-off temperature for thermostat 1.
If the switch-on temperature is higher than the switch-off t emperature, thermostat 1 works in
a “cooling” mode, if vice versa, it works in a “heating” mode.
request for boiler from Thermostat 1/2 (on/off) Switch-off temperature f or Thermostat 1/2 will
be taken over as the desired temperature for heat sources. Valid only if
47
Thermostat 1/2 is set in Heating mode. When Timer func tion is also On, the
request will be taken over during active time period only.

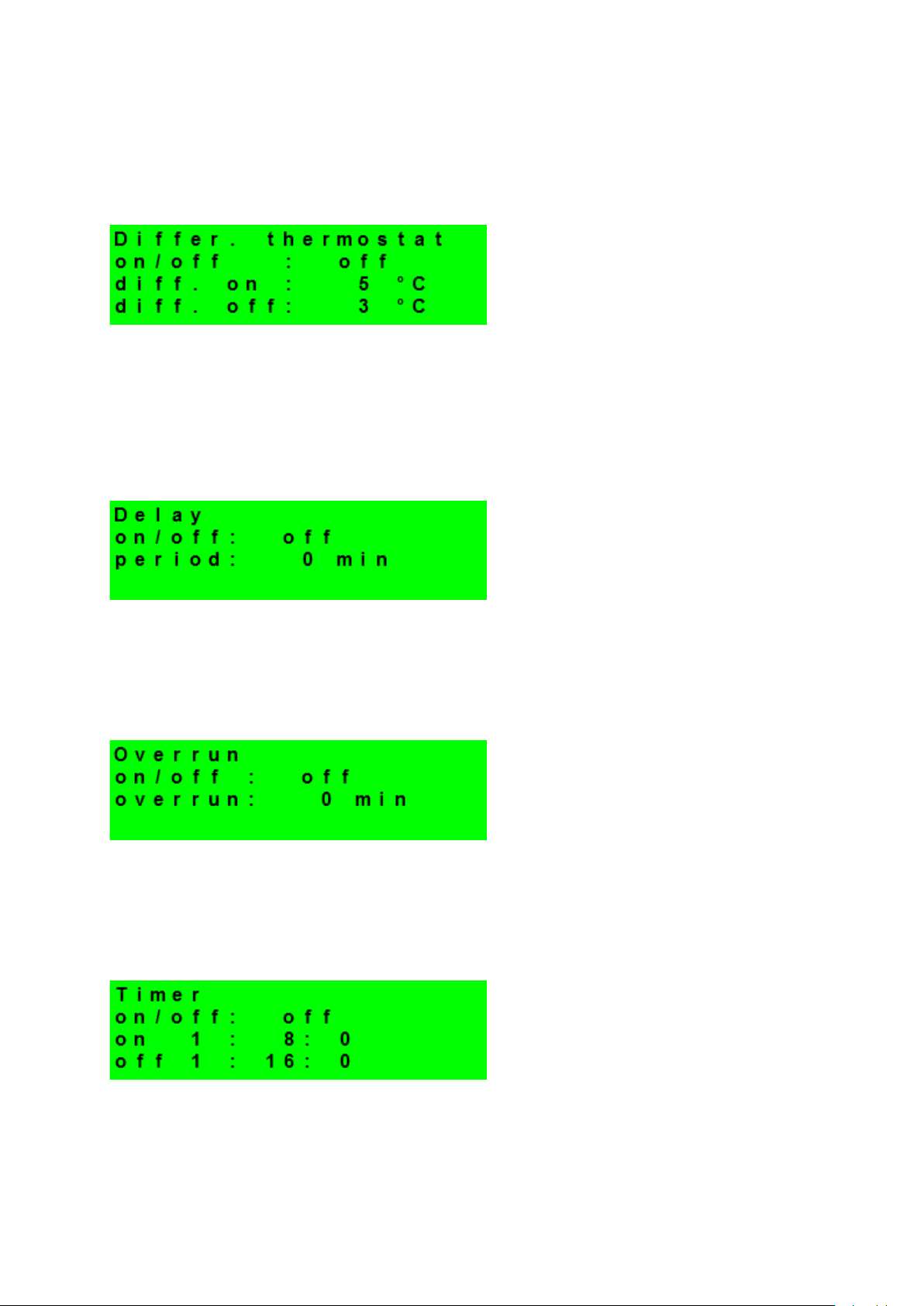

Differential thermostat: differential thermostat function between sensors 1 and 2
on/off (on/off) Switching differential thermostat function on/off.
diff. on (°C) Switch-on difference between temperatures t1 and t2.
diff. off (°C) Switch-off difference between temperatures t1 and t2.
Delay: output delay function
on/off (on/off) Switching the delay function on/off.
period (minutes) Delay time in case when all the preceding functions are fulfilled.
Overrun: overrun function (output delayed switch-off)
on/off (on/off) Switching the overrun function on/off.
overrun (minutes) Overrun time after the preceding functions are switched off.
Timer: timer functions with two time periods
48
on/off (on/off) Switching the timer function on/off.
on 1 (hh:mm) The first period switch-on time.
off 1 (hh:mm) The first period switch-off time.
on 2 (hh:mm) The second period switch-on time.
off 2 (hh:mm) The second period switch-off time.
reset state of T1 T2 with every start of the period of the program When this function is
On, at every start of time period in time program the state of both
thermostats will be reset according to the current temperature.
S 2.18 – HW Address Setting for CIB Modules
An add-on module can be connected to the Controller on CIB bus. The module is also
power-supplied from this bus. After the module is connected, its HW address shall be set
using either the web interface or the Controller display; otherwise the module will not work
together with the Controller.
Check the module HW address (it is printed on its side) and fill it in the HW module address
line and press Load address. After that, the module should start working with the IR12
Controller.
HM mod. addr. HW address of the module, entered in hexadecimal format.
load address A key to confirm the addr ess. If the address is enter ed right, the low er line will
read OK.
49

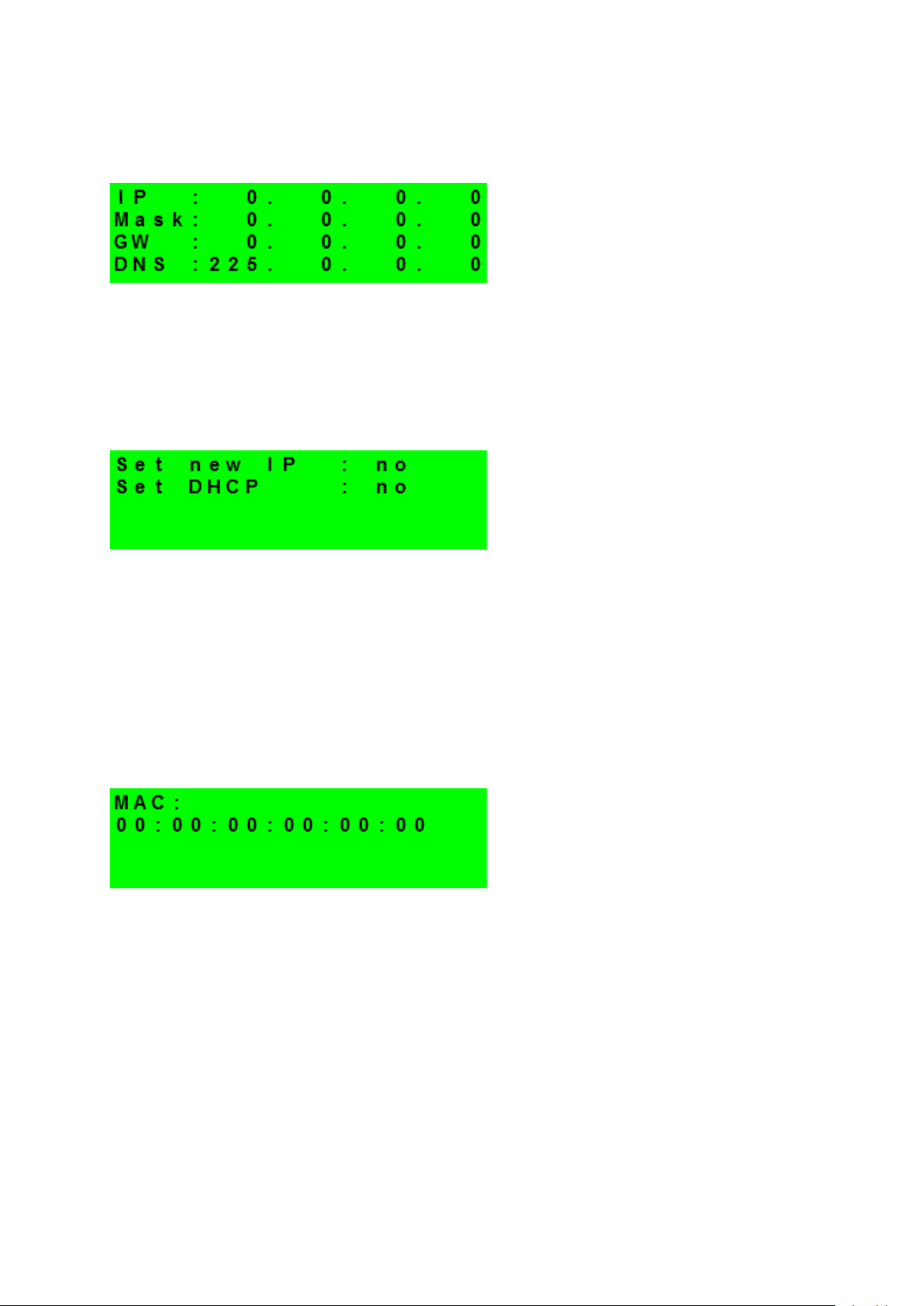

S 2.19 – IP Addresses
Setting the IP address, network mask, gateway, DNS server address, possibly also DHCP.
IP (192.168.100.014) Controller IP address.
Mask (255.255.252.000) Network mask the controller is connected to.
GW (000.000.000.000) IP address of the default gateway the controller is connected to.
DNS (008.008.008.008) IP address of DNS server.
Set new IP (yes/no) Confir mation of th e new I P addr esses set. The C ontrol ler w ill not work
with the new IP addresses without this confir m ati on.
Set DHCP (yes/no) When Yes is selected, the Controller will rec eive the a ddress fr om the
DHCP server. If the I P address cannot be rec eived within 4 seconds
(e.g. DHCP server is not present in the LAN), the IP address set
above will be used as a replacement configuration.
MAC (00.00.00.00.00.00) MAC address of the Controller.
S 2.20 – RegulusRoute
RegulusRoute service enables remote access to the Controller avoiding the need to use a
public IP address. If you wish to have this service configured, kindly contact Regulus.
50

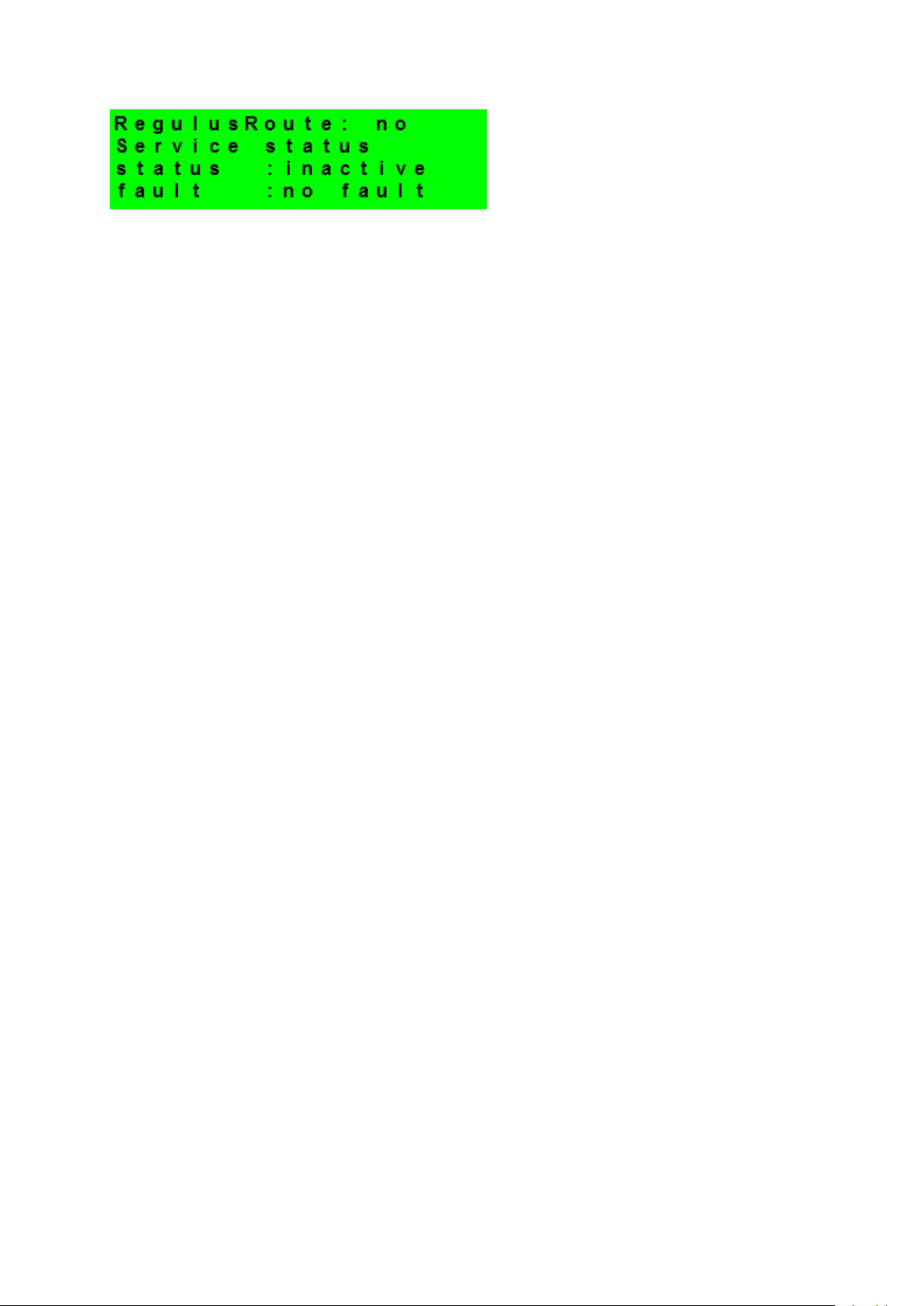

RegulusRoute (yes/no) Enabling RegulusRoute service.
status Service state.
51
S 3 – Web Server – service level
IR12 Controller is equipped with integrated web server that enables displaying either User or
Service screen
S 3.1 - Access to Service web interface, checking the IP address of the Controller
In order to access the Controller’s interface via web browser, you need to know its IP
address.
The IP address set in the Controller can be revealed by hitting DISP key. Then pressing
arrow down key will display the IP address of the device, its mask and gateway.
Entering the IP address into the address bar of your browser will open a log-in window that
enables visiting either User or Service level.
level username password
user
user user
After successful login the welcome screen appears with the Service Menu.
52
S 4 - RC21 IR Room Unit, wiring
RC21 IR Room unit can be connected to the Controller. It involves a temperature sensor,
keys for temperature correction and for a permanent temperature level, either Comfort or
Setback.
The room unit shall be wired to the Controller with a shielded twisted cable 4x0.5 or 3x0.5, or
4x0.78 or 3x0.75 (e.g. JYTY).

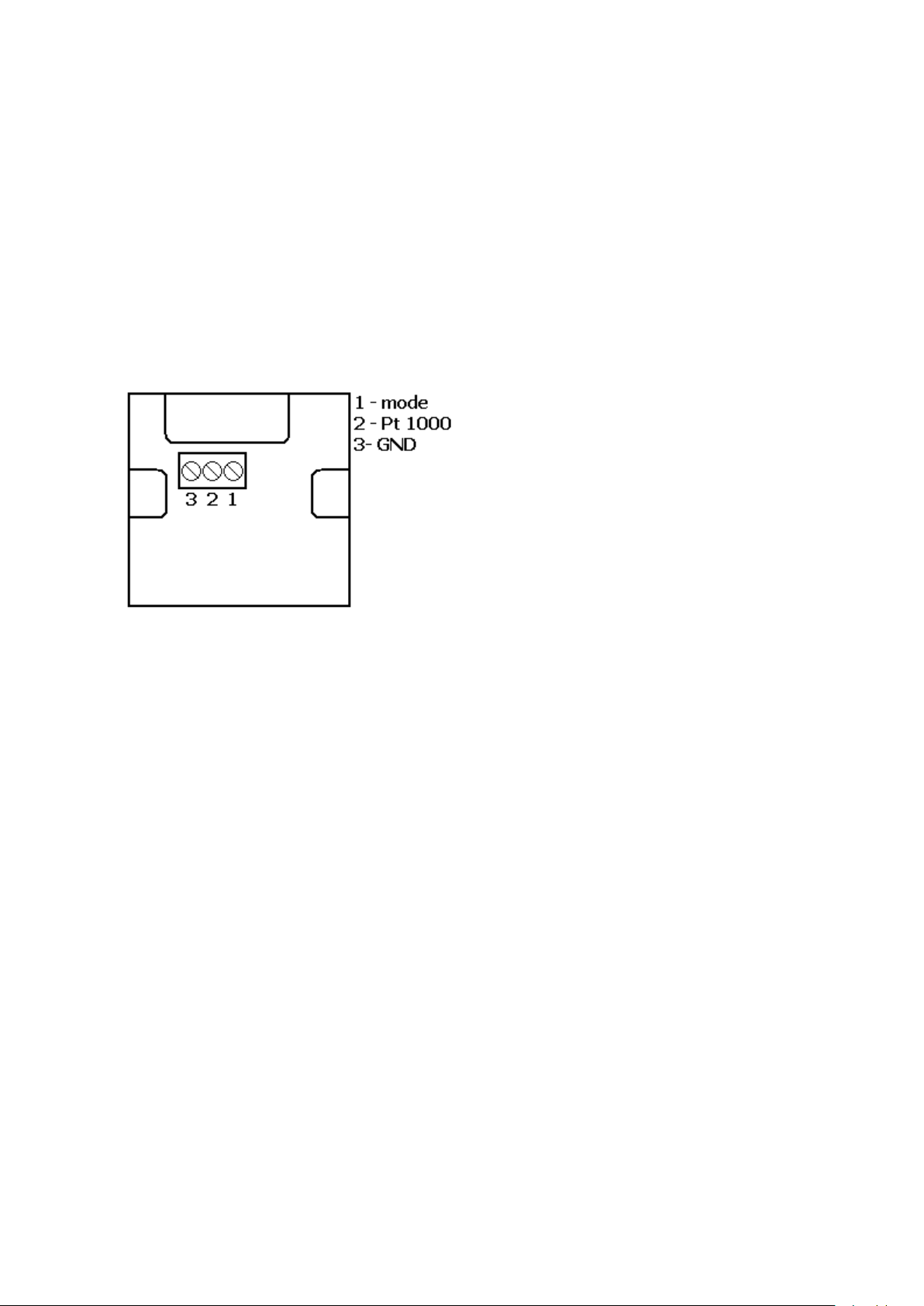

Terminal board description:
Room unit connection to the Controller:
Room unit in Zone 1:
Unit terminal 1 → IR12 terminal C6 (t11) (sensor 1)
Unit terminal 2 → IR 12 terminal C7 (t12) (Zone 1)
Unit terminal 3 → IR 12 terminals B1,C1 (T
GND
)
The RC21 sensor type needs to be enabled on the Service level.
53
WARRANTY CERTIFICATE
IR 12 Heating Controller
Seller: ................................................. Date of Purchase: ......................................
WARRANTY CONDITIONS
1. The warranty period is 24 months from the date of purchase.
2. The product shall be installed and commissioned by a competent company or a person
trained by the manufacturer.
3. When claiming warranty, this Warranty Certifi cate must be submitted together with the
purchase receipt.
4. The warranty is valid only when the technical conditions set by the Manufacturer,
installation manual and instructions in the documentation and on the product itself are
maintained.
5. The warranty does not cover defects caused by external conditions or improper
operation conditions, defects caused by usual wear and tear, further when the
product is not used in compliance with its purpose and when the defect was caused
by mechanical damage, improper handling, tampering by a third person, improper
installation, improper stocking, natural disaster etc.
COMMISSIONING
Company: ………………………………..
Date: ……………………..
Rubber stamp print and signature of the installing person:
Importer:
REGULUS spol. s r.o.
Do Koutů 1897/3
143 00 Praha 4
CZECH REPUBLIC
02/2017
http://www.regulus.eu
E-mail: sales@regulus.eu
Loading...
