Corrigo E - User Manual
Heating
DISCLAIMER
The information in this manual has been carefully checked and is believed to be correct. Regin however, makes no
warranties as regards the contents of this manual and users are requested to report errors, discrepancies or ambiguities to
Regin, so that corrections may be made in future editions. The information in this document is subject to change
without prior notification.
The software described in this document is supplied under licence by Regin and may be used or copied only in
accordance with the terms of the licence. No part of this document may be reproduced or transmitted in any form, in
any fashion, electronically or mechanically, without the express, written permission of Regin.
COPYRIGHT
© AB Regin. All rights reserved.
TRADEMARKS
Corrigo E, E-tool, EXOdesigner, EXOreal, EXO4, EXOline, EXO4 Web Server, Optigo, Regio and Regio Tool
©
are
registered trademarks of AB Regin.
Windows, Windows 2000, Windows XP, and Windows Server 2003 are registered trademarks of Microsoft
Corporation.
Some product names mentioned in this document are used for identification purposes only and may be the registered
trademarks of their respective companies.
Revision G, Dec 2007
Document Revision: 1.7-1-01
Table of contents
Chapter 1 About the manual 4
Chapter 2 About Corrigo E 5
Chapter 3 Installation and wiring 8
Chapter 4 Commissioning 15
Chapter 5 Functional description 17
Chapter 6 Display, LEDs and buttons 22
Chapter 7 Access rights 24
Chapter 8 Configuration 26
Chapter 9 Settings 38
Chapter 10 Time settings 41
Chapter 11 Actual / Setpoint 43
Chapter 12 Manual / Auto 45
Chapter 13 Energy / Cold water 47
Chapter 14 Other functions 49
Chapter 15 Index 50
Corrigo E Heating manual, revision G Chapter 1 About the manual 4
Chapter 1 About the manual
This manual covers all the models in the Corrigo E series of heating controllers. This revision
covers program revision 1.7-1-01.
More information
More information about Corrigo E can be found in:
• Manual E-tool – Manual of how to configure the controllers
• Lon-interface variable list – Variable list for the Corrigo E series
• Network variables for EXOline and Modbus – Variable list for EXOline and Modbus
communication
• CE - Declaration of conformity, Corrigo E
The information is available for download from Regin’s homepage, www.regin.se
.
Corrigo E Heating manual, revision G Chapter 2 About Corrigo E 5
Chapter 2 About Corrigo E
Corrigo E for heating is a complete new range of programmable controllers for control of building
heating systems.
Corrigo E series for heating comprises three model sizes: 8, 15 or 28 in-/outputs.
Available with or without front panel display and buttons. For units without front panel display and
buttons a separate, cable-connected terminal E-DSP with display and buttons is available.
All programming and normal handling can be done using the display and buttons or from a
connected computer running Corrigo E-tool.
The temperature controllers are PI-controllers for heating control and tap hot-water control with a
pre-programmed set of control modes. To the controllers can be bound a number of different control
functions and analogue and digital input and output functions. The choice of which functions are to
be used is free, the only restriction lying in the physical number of inputs and outputs that the
different models have.
The Corrigo is designed for DIN-rail mounting.
The program for a heating unit contains, apart from other things, the following functions:
Heating sequence control:
Control of 1 - 3 individual heating circuits.
Tap hot water control:
1 or 2 tap hot water circuits and 1 storage-tank charger circuit.
Differential pressure control
One constant differential pressure control circuit
Boiler control
Basic two step boiler control.
Timer outputs
Up to 5 individually settable timer outputs for control of, for example, lighting, door locks etc.
Timer control
Year-base clock, individual schedulers, holiday scheduler.
Water consumption
Energy consumption
Corrigo E Heating manual, revision G Chapter 2 About Corrigo E 6
Corrigo E hardware overview
Model 8 8D 15 15D 28 28D
Analogue Inputs 2 2 4 4 4 4
Digital Inputs 3 3 4 4 8 8
Universal Inputs - - - - 4 4
Analogue Outputs 1 1 3 3 5 5
Digital Outputs 2 2 4 4 7 7
RS485 Yes Yes Yes Yes Yes Yes
LON Option Option Option Option Option Option
TCP/IP Option Option Option Option Option Option
Display No Yes No Yes No Yes
Ext. display Option No Option No Option No
Technical data
Protection class ..................................................................................................................IP20
Display........................................................4 rows of 20 characters. Background illumination.
LEDs
Yellow.......................................................................................................Settable parameter
Red.................................................................................................................................Alarm
Clock ..................................................................Year base 24 hour clock with battery backup.
Automatic summer-/winter-time changeover.
Operating system..........................................................................................................EXOreal
Supply voltage...................................................................................................24 V AC, 6 VA
Dimensions....................................................................148x123x60 (WxHxD incl. terminals)
Casing......................................................................................................... Standard Euronorm
Mounting................................................................................................................On DIN-rail
Operation
Climatic conditions according to IEC 721-3-3........................................................Class 3k5
Ambient temperature................................................................................................. 0...50°C
Ambient humidity..............................................................................................Max 95% RH
Mechanical requirements according to IEC721-3-3 ..............................................Class 3M3
Vibration..........................................................IEC60068-2-6, Test FC, vibration Sinusoidal
Shock................................................................................................IEC60068-2-27, Test Ea
Transport
Climatic conditions according to IEC 721-3-2........................................................Class 2k3
Ambient temperature..............................................................................................-20...70°C
Air humidity ......................................................................................................Max 95% RH
Mechanical requirements according to IEC721-3-2 ..............................................Class 2M2
Vibration..........................................................IEC60068-2-6, Test FC, vibration Sinusoidal
Shock................................................................................................IEC60068 -2-27, Test Ea
Free fall............................................................................................ IEC60068-2-27, Test Ed
Storage
Climatic conditions according to IEC 721-3-1........................................................Class 1k3
Ambient temperature..............................................................................................-20...70°C
Air humidity ......................................................................................................Max 95% RH
Battery
Type....................................................................................................Replaceable Lithium cell
Battery life....................................................................................................Better than 5 years
Warning.................................................................................................... Low battery warning
Battery backup...............................................................................Memory and real time clock
Communication
EXOline Port 1, insulated via a built-in RS485 contact.
The basic version of Corrigo E can communicate with Modbus. You do not need an activation code.
Corrigo E can be ordered with a communication port for TCP/IP or LON.
Corrigo E Heating manual, revision G Chapter 2 About Corrigo E 7
CE-marking
Conforms with the EMC standards: CENELEC EN61000-6-3:2001, CENELEC EN61000-61:2001.
Inputs
Analogue inputs AI..............................................Settable 0…10 V DC or PT1000, 12 bit A/D
Digital inputs DI.......................................................................................Potential free closure
Universal inputs UI...........................................Can be set to act as either an analogue input or
a digital input with specifications as above
Outputs
Analogue outputs AO....................................................... Settable 0…10 V DC; 2…10 V DC;
10…0 V DC or 10…2 V DC
8 bit D/A short-circuit protected
Digital outputs DO .................................................. Triac outputs, 24 V AC, 0.5 A continuous
Options
LON................................................................... FT3150, gives a second communication route
TCP/IP..................................................Replaces RS485 for EXOline (Port 1) communication
External hand terminal, E-DSP ...........................For use with Corrigo E units without display
Position of the terminals on Corrigo E
Corrigo E Heating manual, revision G Chapter 3 Installation and wiring 8
Chapter 3 Installation and wiring
3.1 Installation
Corrigo E can be mounted in a DIN-standard casing (minimum 9 modules), on a DIN-rail in a
cabinet or, using a suitable front-mounting kit, in a cabinet door or other control panel.
Ambient temperature: 0…50°C.
Ambient humidity. Max. 95 %RH, non-condensing.
3.2 Wiring
At the end of this chapter there are wiring diagrams showing the factory set configuration. We have
also included blank diagrams. Since the function of most of the inputs and outputs depends on the
programming of the unit the final wiring diagram cannot be filled in until the installer has decided
how to use the inputs/outputs. It is important to make sure that the wiring is correctly done and in
accordance with the instructions given in this manual.
3.2.1 Supply voltage
24 V AC ±15%, 50/60 Hz. 6 VA
If the Corrigo E and the actuators connected to it share the same transformer it is essential that the
same transformer-pole is used as reference for all the equipment. Failure to do so will prevent the
equipment from functioning as intended and may also lead to damages.
3.2.2 Inputs and outputs
The list of input and output functions in section 3.2.3 is a handy instrument to help you keep track
of which inputs and outputs you will need to configure.
Analogue inputs
Analogue inputs must refer to an A-gnd terminal placed in the same terminal block as the input
being wired.
Analogue inputs can, depending on the configuration, be used for either PT1000 temperature
sensors or for 0…10 V DC analogue input signals, for example from a pressure transmitter.
Digital inputs
Digital inputs must refer to C+ on terminal 4. Digital inputs may only be wired to voltage-free
contacts. Any external voltage applied to a digital input may harm the unit.
Universal inputs
A universal input can be configured to act as either an analogue input or as a digital input.
A universal input configured as analogue input must refer to an A-gnd terminal placed in the same
terminal block as the input being wired.
A universal inputs configured as an analogu e input can, dep ending on the con figuration, b e used for
either PT1000 temperature sensors or for 0…10 V DC analogue input signals, for example from a
pressure transmitter.
A universal input configured as a digital input must refer to C+ on terminal 4. It may only be wired
to voltage-free contacts.
Corrigo E Heating manual, revision G Chapter 3 Installation and wiring 9
Analogue outputs
Analogue outputs must refer to the A-gnd terminal placed in the AO terminal block.
All analogue outputs can be individually set to any one of the following signals:
0…10 V DC
2…10 V DC
10…0 V DC
10…2 V DC
If the Corrigo E and the actuators connected to it share the same transformer it is essential that the
same transformer-pole is used as reference for all the equipment. Failure to do so will prevent the
equipment from functioning as intended and may also lead to damages.

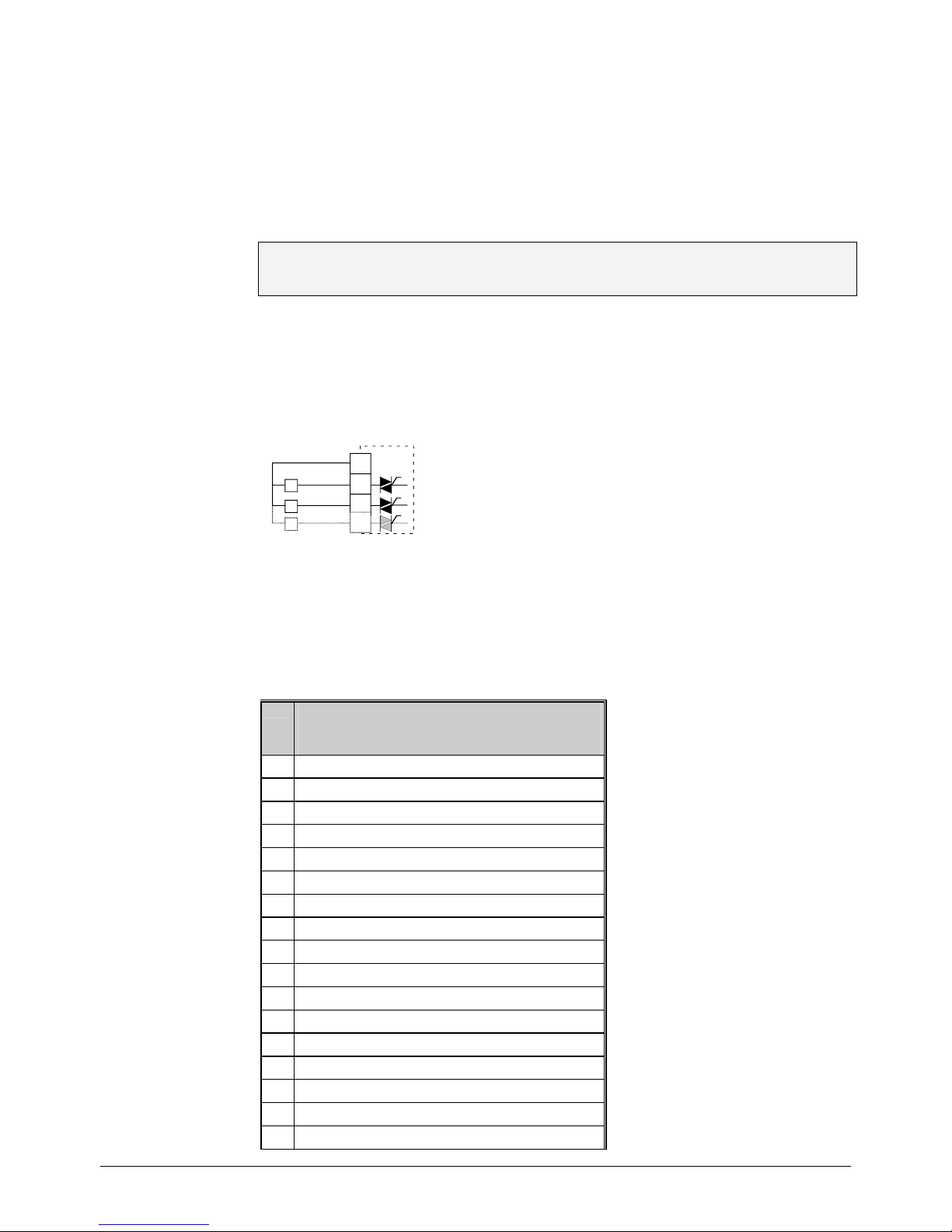

Digital outputs
Digital outputs must refer to G on terminal 10.
All the digital outputs are triac controlled. The outputs will deliver 24 V AC, 0.5 A continuous. The
outputs cannot be used to drive DC relays.
10
11
12
3.2.3 Input and output lists
Use these lists during commissioning to help you keep track of which input and output functions
you wish to use.
Analogue inputs
9
Analogue input signal
Outdoor temperature sensor
Supply temperature Heating sequence1
Tap hot water circuit 1, supply temperature
Return temperature Heating sequence1
Tap hot water circuit 2, supply temperature
Storage tank supply temperature
Storage tank return temp erature
Wind-speed transmitter, 0…10 V DC
Differential pressure transmitter, 0…10 V DC
Supply temperature Heating sequence2
Return temperature Heating sequence2
Room temperature Heating sequence2
Room temperature Heating sequence1
Supply temperature Heating sequence3
Return temperature Heating sequence3
Room temperature Heating sequence3
Boiler temperature
Corrigo E Heating manual, revision G Chapter 3 Installation and wiring 10
Digital inputs
9
Digital input signal
Run-indication/alarm circulation pump, P1A-HS1
Run-indication/alarm circulation pump, P1B-HS1
Run-indication/alarm circulation pump, P1A-HS2
Run-indication/alarm circulation pump, P1B-HS2
Run-indication/alarm circulation pump, P1-HW1
Volume pulses, heating usage
Volume pulses, cold water usage 1
Energy pulses, heating usage
Pressure switch, expansion vessel pressure
External alarm
Boiler alarm
Run-indication/alarm circulation pump, P1A-HS3
Run-indication/alarm circulation pump, P1B-HS3
Run-indication/alarm frequency converter for
pressure control
Run-indication/alarm storage tank ch arge pump
P1-HP
External power limitation
Volume pulses, cold water usage 2
Energy pulses, electricity meter
Note: The universal inputs on Corrigo E28 can, individually, be configured as either analogue
inputs using any of the analogue input signals above or as digital inputs using any of the digital
input signals above.
Analogue outputs
9
Analogue output signal
Valve actuator, Heating sequence1, HS1
Valve actuator, hot water circuit 1, HW1
Valve actuator, Heating sequence2, HS2
Valve actuator, Heating sequence3, HS3
Valve actuator, hot water circuit 2, HW2
Frequency converter, pressure control
Split of any one of the above circuits
Corrigo E Heating manual, revision G Chapter 3 Installation and wiring 11
Digital outputs
9
Digital output signal
Start/stop pump, P1A-HS1
Start/stop pump, P1B-HS1
Actuator HS1 increase
Actuator HS1 decrease
Start/stop pump, P1-HW1
Start/stop pump, P1A-HS2
Start/stop pump, P1B-HS2
Actuator HS2 increase
Actuator HS2 decrease
Start/stop pump, P1A-HS3
Start/stop pump, P1B-HS3
Actuator HS3 increase
Actuator HS3 decrease
Actuator HW1 increase
Actuator HW1 decrease
Actuator HW2 increase
Actuator HW2 decrease
Start/stop charge pump for storage tank, P1-HP1
Start frequency converter for diff pressure control
Start step 1, boiler
Start step 2, boiler
Time channel 1
Time channel 2
Time channel 3
Time channel 4
Time channel 5
Sum alarm A
Sum alarm B
Sum alarm A + B
Corrigo E Heating manual, revision G Chapter 1 12
Wiring diagram Corrigo E28 factory configuration
(See also picture of the position of the terminals on page 7)
1 G 50 B
2 G0
Supply voltage 24 V AC, ±15%. 50/60 Hz
51 A
3 Protective earth 52 N
4 +C +24 V DC. Reference for digital inputs DI. 53 E
RS485 EXOline / Modbus
10 G Reference for digital outputs DO. 57 Net+
11 DO1
Start/stop pump, P1A-HS1
58 Net12 DO2
Start/stop pump, P1B-HS1
59 Egnd
LON-connection (LON-versions only)
13 DO3
Actuator HS1 increase
14 DO4
Actuator HS1 decrease
71 DI1
Run-indication/alarm pump, P1A-HS1
15 DO5
Start/stop pump, P1-HW1
72 DI2
Run-indication/alarm pump, P1B-HS1
16 DO6
Start/stop pump, P1A-HS2
73 DI3
Run-indication/alarm pump, P1A-HS2
17 DO7 Sum alarm A + B 74 DI4 Run-indication/alarm pump, P1-HW1
75 DI5 Volume pulse, heating usage meter
30 Agnd Reference pole for analogue inputs AI 76 DI6 Energy pulse, heating usage meter
31 AI1 Outdoor temperature sensor 77 DI7 Volume pulse, cold water usage 1
32 AI2 Supply temp, heating sequence 1, HS1 78 DI8 Pressure switch, expansion vessel
33 Agnd Reference pole for analogue inputs AI
34 AI3 Supply temp, hot water sequence 1, HW1 90 Agnd Reference for analogue outputs AO
35 AI4 Return temp, heating sequence 1, HS1 91 AO1 Actuator Heating sequence1, HS1
92 AO2 Actuator Heating sequence2, HS2
40 Agnd Reference pole for universal inputs UI 93 AO3 Actuator Heating sequence3, HS3
41 UI1 Supply temp, heating sequence 2, HS2 94 AO4
42 UI2 Return temp, heating sequence 2, HS2 95 AO5
43 Agnd Reference pole for universal inputs UI
44 UI3 Room sensor heating sequence 1, HS1
45 UI4 Room sensor heating sequence 2, HS2
Wiring diagram Corrigo E15H factory configuration
1 G 50 B
2 G0
Supply voltage 24 V AC, ±15%. 50/60 Hz
51 A
3 Protective earth 52 N
4 +C +24 V DC. Reference for digital inputs DI. 53 E
RS485 EXOline / Modbus
10 G Reference for digital outputs DO. 57 Net+
11 DO1
Start/stop pump, P1A-HS1
58 Net12 DO2
Start/stop pump, P1B-HS1
59 Egnd
LON-connection (LON-versions only)
13 DO3 Start/stop pump, P1-HW1
14 DO4 Sum alarm A + B 71 DI1
Run-indication/alarm pump, P1A-HS1
72 DI2
Run-indication/alarm pump, P1B-HS1
30 Agnd Reference pole for analogue inputs AI 73 DI3 Run-indication/alarm pump, P1-HW1
31 AI1 Outdoor temperature sensor 74 DI4 Pressure switch, expansion vessel
32 AI2 Supply temp, heating sequence 1, HS1
33 Agnd Reference pole for analogue inputs AI 90 Agnd Reference for analogue outputs AO
34 AI3 Supply temp, hot water sequence 1, HW1 91 AO1 Actuator Heating sequence1, HS1
35 AI4 Return temp, heating sequence 1, HS1 92 AO2 Actuator Heating sequence2, HS2
93 AO3 Actuator Heating sequence3, HS3
Corrigo E Heating manual, revision G Chapter 1 13
Wiring diagram Corrigo E8H factory configuration
1 G 50 B
2 G0
Supply voltage 24 V AC, ±15%. 50/60 Hz
51 A
3 Protective earth 52 N
4 +C +24 V DC. Reference for digital inputs DI. 53 E
RS485 EXOline / Modbus
10 G Reference for digital outputs DO. 57 Net+
11 DO1
Start/stop pump, P1A-HS11
58 Net12 DO2
Start/stop pump, P1B-HS11
59 Egnd
LON-connection (LON-versions only)
30 Agnd Reference pole for analogue inputs AI 71 DI1
Run-indication/alarm pump, P1A-HS1
31 AI1 Outdoor temperature sensor 72 DI2
Run-indication/alarm pump, P1B-HS1
32 AI2 Supply temp, heating sequence 1, HS1 73 DI3 Pressure switch, expansion vessel
90 Agnd Reference for analogue output AO
91 AO1 Actuator Heating sequence1, HS1
Empty wiring diagram Corrigo E28H
1 G 50 B
2 G0
Supply voltage 24 V AC, ±15%. 50/60 Hz
51 A
3 Protective earth 52 N
4 +C +24 V DC. Reference for digital inputs DI. 53 E
RS485 EXOline / Modbus
10 G Reference for digital outputs DO. 57 Net+
11 DO1 58 Net12 DO2 59 Egnd
LON-connection (LON-versions only)
13 DO3
14 DO4 71 DI1
15 DO5 72 DI2
16 DO6 73 DI3
17 DO7 74 DI4
75 DI5
30 Agnd Reference pole for analogue inputs 76 DI6
31 AI1 77 DI7
32 AI2 78 DI8
33 Agnd Reference pole for analogue inputs
34 AI3 90 Agnd Reference for analogue outputs AO
35 AI4 91 AO1
92 AO2
40 Agnd Reference pole for analogue inputs 93 AO3
41 UI1 94 AO4
42 UI2 95 AO5
43 Agnd Reference pole for analogue inputs
44 UI3
45 UI4
Corrigo E Heating manual, revision G Chapter 1 14
Empty wiring diagram Corrigo E15H
1 G 50 B
2 G0
Supply voltage 24 V AC, ±15%. 50/60 Hz
51 A
3 Protective earth 52 N
4 +C +24 V DC. Reference for digital inputs DI. 53 E
RS485 EXOline / Modbus
10 G Reference for digital outputs DO. 57 Net+
11 DO1 58 Net12 DO2 59 Egnd
LON-connection (LON-versions only)
13 DO3
14 DO4 71 DI1
72 DI2
30 Agnd Reference pole for analogue inputs 73 DI3
31 AI1 74 DI4
32 AI2
33 Agnd Reference pole for analogue inputs 90 Agnd Reference for analogue outputs AO
34 AI3 91 AO1
35 AI4 92 AO2
93 AO3
Empty wiring diagram Corrigo E8H
1 G 50 B
2 G0
Supply voltage 24 V AC, ±15%. 50/60 Hz
51 A
3 Protective earth 52 N
4 +C +24 V DC. Reference for digital inputs DI. 53 E
RS485 EXOline / Modbus
10 G Reference for digital outputs DO. 57 Net+
11 DO1 58 Net12 DO2 59 Egnd
LON-connection (LON-versions only)
30 Agnd Reference pole for analogue inputs 71 DI1
31 AI1 72 DI2
32 AI2 73 DI3
90 Agnd Reference for analogue outputs AO
91 AO1
Corrigo E Heating manual, revision G Chapter 4 Commissioning 15
Chapter 4 Commissioning
General
Before the Corrigo can be used it must be configured, inputs and outputs must be assigned and all
relevant parameters must be set.
All commissioning can be done using the Corrigo front panel display and buttons or using the
display unit E-DSP.
Corrigo E-tool
The best way however, is to configure the Corrigo E by using Corrigo E-tool.
Corrigo E-tool is a PC-based configuration program specially developed to simplify the
commissioning of the Corrigo E-series.
When using E-tool the whole configuration and all settings can be done on the computer and then
downloaded to the Corrigo. An infinite number of different configurations can be saved in computer
memory for later use.
4.1 How to do it?
For configuration using E-tool, see the E-tool manual.
For configuration using the front panel there are two ways to go depending on how much help you
need.
Option 1:
• Jump straight to chapter 6 and 7, Display, buttons and LEDs and Access rights.
• After mastering the button and menu system, connect power to your Corrigo, log on at
System level and go to the menu Configuration.
• For the time being, skip the configuration menu Inputs/Outputs and start by configuring
Control functions.
• Run through the configuration menus in order and set whatever functions and parameters
you wish to include. Use chapter 4 of this manual for reference. Keep track of which inputs
and outputs you will need. To help you, there is a list of input and output functions
provided in chapter 3, (3.2.3 Input / Output list.)
• Finally, configure Inputs/Outputs.
• Exit Configuration and go to Settings
• Set the control values in Settings
• Set the clock and scheduler functions in Timers.
• Set the control setpoints in Actual/Setpoint.
Your Corrigo should now be ready to run.
Option 2:
Read this manual in the order given below: The manual has been designed to act as a guide through
the commissioning. The last chapters of the manual, not listed below, cover menus and function s
that are not used during commissioning.
Corrigo E Heating manual, revision G Chapter 4 Commissioning 16
Functional description
Start by reading the chapter 5. Functional description below. Some functions are essential to the
working of the unit and must be included. Others are more of the nature of optional extras which
can be excluded.
At the end of each function description there is a table of the necessary inputs and outputs to
implement the function. At the end of the manual there is a list of all the analogue and digital inputs
and outputs. As you read, mark in the list the inputs and outputs you will be using for the
application you are building. Note that the universal inputs in Corrigo E28 can, individually, be
configured as either analogue or digital inputs.
Display, buttons and LEDs
Read chapter 6 on how to use the front panel buttons to navigate the Corrigo E menu system.
Access rights
Chapter 7. Learn how to log in on the Corrigo E.
Configuration
Chapter 8. Configuration.
Connect power to the Corrigo. Using the buttons and menu system, go through th e configuration
menus covering the functions yo u wish to use.
On delivery the units already have the inputs and outputs assigned to various functions. These can,
of course, be changed. In chapter 3 Installation and wiring there are two sets of wiring diagrams,
one set showing the pre-configured input / outpu t configuration and one set where you can fill your
own configuration choices.
Settings
Set the control parameters, P-band, I-time for the temperature control loops in use.
Set the alarm parameters; alarm levels and delay times.
Timer settings
Set the clock and calendar functions
Setpoints
Set all the setpoints for all active control loops.
Hand/Auto
Learn to use manual control. Very useful for testing out your system.
Corrigo E Heating manual, revision G Chapter 5 Functional description 17
Chapter 5 Functional description
5.1 Heating systems
5.1.0 General
Corrigo E can be configured for 1 to 3 heating systems (radiator groups), HS1, HS2 and HS3.
5.1.1 Controllers
The heating system controllers are PI-controllers with settable P-band and I-time.
5.1.2 Control curves
The controllers have individual outdoor temperature / supply temperature control curves.
Each curve has 8 fix points. The default setting of the outdoor temperature values for the fix points
are -20, -15, -10, -5, ±0, +5, +10, +15. These can not be changed using the Corrigo front panel but
can be changed using E-tool. The corresponding supply temperature values ar e settable using the
front panel or E-tool.
5.1.3 Adaptation of curves
Room sensors can be used to correct the control curves. The average room temperature error over
24 hours is calculated. Values 1 hour befo re and 1 hour after a day/night or night/day change-over
are ignored. The curves are corrected once daily using the average room temperature error and a
settable correction factor. The correction will be a parallel displacement of the entire curve using the
following formula:
Displacement = (Room setpoint - Average temp)*Factor
5.1.4 Pump control
Each system can have single or double pumps. Double pumps are run one at a time with auto matic,
weekly change over and automatic start of the backup pump on malfunction of the active pump.
Outdoor temperature dependent pump stop can be configured.
Pumps are exercised for 5 minutes at 3 pm daily.
5.1.5 Frost protection
If a controller is set to Off or Man(ual control) and the outdoor temperature is below a settable value
a minimum, settable supply temperature will be maintained and the pump will run.
5.1.6 Wind compensation
To compensate for wind chilling it is possible to connect a wind sensor and generate a setpoint
displacement according to a settable factor (°C per m/s).
Corrigo E Heating manual, revision G Chapter 5 Functional description 18
5.1.7 Building inertia and boost
The building inertia is settable to one of three levels: None, Medium, High.
The set inertia dictates the influence of outdoor temperature.
With no inertia, the outdoor temperature is used directly, with medium inertia a one-hour average is
used and with high inertia a 12-hour average is used.
Boost is used to speed up the raising of the indoor temperature when switching from night set back
temperature to normal comfort temperature. This is done by temporarily displacing the supply
temperature set-point curve. The following conditions must be met:
• Average outdoor temperature lower than 1 7° C
• Supply set-point value higher than 25°C
• Night set-back more than 2°C (room temperature)
The displacement is calculated as follows:
Displacem.=Factor*(17 - outdoor temp)*night set-back
Where Factor is settable 0…10 where 0 gives no boost and 10 gi ves hig h b oost.
The time in minutes that boost will be active is calculated as follows:
Time = 1.6*(17 - Outdoor temp)
Time is limited to maximum 60 minutes.
5.1.8 Night set-back
Lowering of the night temperature is set in room temperature degrees. The corresponding lowering
of the supply temperature is calculated by the controller by multiplying the value by 3. The Corrigo
has individual schedules for each heating system with two comf ort-temperature periods per day.
5.1.9 Power limitation
Using a digital input the power to the heating systems can be temporarily restricted. When activated,
the setpoints are lowered by a settable factor (% relative to 20°C). The limitation applies to all
configured heating systems.
The limitation is calculated as below:
Limited setpoint=20+(Setpoint-20)*Factor/100
Factor 100 gives no setpoint reduction, 0 gives full reduction to 20°C.
5.2 Tap hot water
5.2.0 General
Corrigo E can be configured for one or two tap hot-water systems HW1 and HW2. These have
constant supply-temperature control.
5.2.1 Controllers
The heating system controllers are PID-controllers with settable P-band, I-time and D-time.
5.2.3 Night set-back
The Corrigo E has individual schedules for each hot water system with two normal-temperature
periods per day.
Corrigo E Heating manual, revision G Chapter 5 Functional description 19
5.2.4 Pump control (HW1 only)
Corrigo E has a digital output signal that can be used to con trol the hot-water circulation pump in
HW1. The pump will run according to the settings of the night set-back sch edule, running during
normal temperature periods and standing still during periods with reduced temperature.
5.2.5 Periodic overheating
Once daily, at 02:00 am the temperature set-point can be increased to 62°C to prevent growth of
Legionella bacteria. The raised set-point is maintained until the supply temperature reaches 60°C
but not shorter than 1 minute and not longer than 5 minutes. If the pump is stopped it will start and
run for the duration of the overheating pe ri o d pl us 2 minutes.
5.3 Storage tank
A storage tank function can be enabled.
The storage tank load pump, P1-HP1 is started depending on the storage tank supply water and
return water temperatures.
Loading is started if the return water temperature is lower than the set start temperature.
Loading is stopped when the supply temperature is higher than the set stop temperature and the
return temperature is higher than the set start temperature + the set differential.
5.4 Pressure control
Corrigo E can, using an analogue output signal, control a variable speed pump to maintain a
constant settable pressure. A digital output signal is available to give a start signal to the frequ ency
converter. This output is enabled as soon as the converter control signal rises above 0.1 V.
5.5 Boiler control
A simple boiler control can be enabled.
When the boiler temperature falls below Start temperature 1 the digital signal Start 1 will be
activated. Should the temperature fall below Start temperature 2 the digital output Start 2 will be
activated.
Any active outputs will be deactivated when the boiler temperature rises above the set Stop
temperature.
5.6 Cold-water monitoring
One or two circuits monitoring the cold-water usage can be configured each using a digital pulseinput from a water meter. The pulse constant is settable. Maximum pulse rate is 2 Hz.
5.6.1 Values
The following values are calculated
• 24 hour usage in litres, today
• 24 hour usage in litres, yesterday
• 24 hour usage in litres, day before yesterday
• Lowest hourly usage in litres, today
• Lowest hourly usage in litres, yesterday
• Usage total in m
3
. The value is resettable
• Water-flow (litres / min)
Corrigo E Heating manual, revision G Chapter 5 Functional description 20
5.6.2 Alarms
Pulse error If no pulses are detected within a settable time an alarm is activated. Setting
the time to 0 inhibits the alarm function.
High usage If the daily usage is higher than a settable value an alarm is activated.
Leakage control If the lowest hourly usage during the previous day is higher than a settable
value an alarm is activated.
5.7 Energy monitoring
One digital pulse function can be configured for heating energy monitoring. The pulse constant is
settable.
5.7.1 Usage values
The following usage values are calculated:
• 24 hour usage in kWh, today
• 24 hour usage in kWh, yesterday
• 24 hour usage in kWh, day before yesterday
• Total usage in kWh or MWh. The value is resettable
5.7.2 Power values
Heating power is calculated by measuring the time between the energy pulses. The following power
values are calculated:
• Instantaneous value for a certain time or after a certain number of pulses
• Average of the above instantaneous value for the last hour
• Maximum value for the above instantaneous value
5.7.3 Leakage monitoring
Once a week, the control valves will be closed and the energy usage measured for a preset time. An
alarm is generated if the energy leakage is larger than a settable value, default 3000 W. The time for
and duration of the leakage monitoring is settable. Default is Sundays at 2:00 am for 30 minutes.
5.7.4 Alarms
Pulse error If no pulses are detected within a settable time an alarm is activated. Setting
the time to 0 inhibits the alarm function.
High usage If the daily usage is higher than a settable value an alarm is activated.
5.8 Electricity meter
One digital pulse function can be configured for electricity energy monitoring. The pulse constant is
settable.
5.8.1 Usage values
Total usage in MWh. The value is resettable.
Corrigo E Heating manual, revision G Chapter 5 Functional description 21
5.9 Timer channel outputs
Up to 5 digital outputs can be used as timer controlled outputs.
These can be used for controlling, for example, door locks, lighting, laundry-room equipment etc.
Each timer has its own scheduler with two activation periods for each day of the week and a yearbased holiday calendar.
5.10 Alarms
5.10.1 Alarm handling
Alarms are indicated by the alarm LED on the front.
All alarms can be monitored, acknowledged and bl ocked using the display and buttons.
5.10.2 Alarm priorities
Alarms can be given different priority levels. Digital outputs can be bound to act as alarm outputs
for different priority levels.
Using the front panel it is possible to change the alarm priority level (A-/B-/C-alarm/Not active) of
any alarm.
Corrigo E Heating manual, revision G Chapter 6 Display, LEDs and buttons 22
Chapter 6 Display, LEDs and buttons
This section is applicable to Corrigo E units with display and buttons but also to the hand termina l
E-DSP which can be connected to Corrigo E units without display and buttons.
6.1 Display
The display has 4 rows of 20 characters.
It has background illumination. The illumination will normally be off but will activ ated as soon as
any button is pressed. The illumination will be turned off again after a period of inactivity.
6.2 LEDs
There are two LEDs on the front: The alarm LED marked with the symbol. The “write enable”
LED marked with the symbol.
The four LEDs placed next to the upper terminal strip will be described later.
6.3 Buttons
There are seven buttons: 4 arrow buttons which will be called UP, DOWN, RIGHT and LEFT. The
menus in the Corrigo E are organized in a horizontal tree structure. The UP / DOWN-buttons are
used to move between menus at the present menu level. The RIGHT / LEFT buttons are used to
move between menu levels. When changing parameters the UP / DOWN buttons are used to
increase / decrease the value of the parameter and the RIGHT / LEFT buttons to move between
digits within the parameter.
• The OK button is used to confirm the choice of a parameter setting.
• The C button is used to abort an initiated parameter change and restore the original value.
• The ALARM button, marked with a red button top, is used to access the alarm list.
AlarmLED
Write LED
Up
Right
Down
Left
Alarm
OK
C
Corrigo E Heating manual, revision G Chapter 6 Display, LEDs and buttons 23
6.4 Navigating the menus
The start display, the display normally shown, is at the root of the menu tree.
Pressing DOWN ª will move you through the menu choices at this, the lowest level. UP © will
move you back through the choices.
To enter a higher menu level, use UP or DOWN to place the display marker opposite the menu you
wish to access and press RIGHT ¨ . If you have sufficient log on privileges the display will change
to the menu you have chosen.
At each level there may be several new menus through which you may move using the UP / DOWN
buttons.
Sometimes there are further submenus linked to a menu or menu item. This is indicated by an arrow
symbol at the right-hand edge of th e display. To choose one, use RIGHT again. To back down to a
lower menu level, use LEFT.
Change parameter
In some menus there are parameters that can be set. This will be indicated by the LED flashing.
To change a parameter, first press the OK button. A cursor will appear at the first settable value. If
you wish to change the value, do so by pressing the UP / DOWN buttons.
In numbers containing several digits you can move between the digits using the LEFT / RIGHTbuttons.
When the desired value is displayed press OK.
If there are further settable values displayed the cursor will automatically move to the next one.
To pass a value without changing it, press RIGHT.
To abort a change and return to the initial setting, press and hold the C-button until the cursor
disappears.
Corrigo E Heating manual, revision G Chapter 7 Access rights 24
Chapter 7 Access rights
There are 3 different log on levels, System level which has the highest authority, Operator level and
the basic “no-log on” level. System level gives full read / write access to all settings and parameters
in all menus. Operator level gives read-only access to all settings and parameters and write access to
all settings and parameters in all menus except Configuration. The basic level permits read-only
access to all settings and parameters.
Repeatedly press down-arrow when the start-up display is shown un til the arrow-marker to the left
of the text-list points to Access rights. Press right-arrow.
Log on
Log off
Change password
7.1 Log on
Log on
Enter password:****
Actual level:None
In this menu it is possible to log on to any level by entering the appropriate 4-digit code. The log on
menu will also be displayed should you try to gain access to a menu or try to do an operation
requiring higher authority than you have.
Press the OK-button and a cursor marker will appear at the first digit position. Repeatedly press the
up-arrow until the correct digit is displayed. Press the right-arrow to move to the next position.
Repeat the procedure until all four digits are displayed. Then press OK to confirm. After a short
while the text on the line: Present level will change to display the new log on level. Press left-arrow
to leave the menu.
7.2 Log off
Use this menu to log off from the present level to the basic "no-log on" level.
Log off?
No
Actual level:System
Logoff is also initiated automatically 5 minutes after the last time a button is pressed.
7.3 Change password
As default Corrigo comes with the following passwords for the different levels:
System 1111
Operator 3333
Basic 5555
You can only change the password fo r log on levels lower or equal to the presently active level, i. e.
if you are logged in as System you can change all passwords, but as Operator you can only change
the Operator and Basic passwords. There is no point in changing the Basic password since access to
that level is granted automatically to all users.
Corrigo E Heating manual, revision G Chapter 7 Access rights 25
Change password for
level:Operator
New password: ****
7.4 Forgotten your password?
If the password for System has been changed and then lost, a temporary password can be obtained
from Regin. This code is date dependent and only valid for one day.
Corrigo E Heating manual, revision G Chapter 8 Configuration 26
Chapter 8 Configuration
Start by logging on at System level. See section Access rights above.
Using DOWN, set the display marker opposite the menu-title Configuration and press RIGHT.
The main configuration menu will be shown.
Inputs/Outputs
HS Supply
Return temp
Pump stop
Twin/Single pump
Run ind/Motor prot
Actuator type
Actuator run time
Actuator exercise
Leakage monitoring
Pulse inputs
Alarm config.
Other params
System
8.1 In- and Outputs
Analogue inputs
Digital inputs
Universal inputs
Analogue outputs
Digital outputs
General
Free configuration
Any control signal can be bound to any input/output, the only restriction being that digital signals
cannot be bound to analogue inputs and vice versa. It is up to the user doing the binding to make
sure that activated functions are bound to appropriate signals.
Delivery setting
On delivery all the physical inputs and outputs have already been bound to a signal.
The delivery settings are suggestions only and can easily be changed.
8.1.1 Analogue inputs AI
Analogue input 1
Sign: Outdoortemp
Raw value: 18.3
Compensation: 0.0°C
All analogue inputs are for PT1000 or 0-10 Volts.
Input signals can be compensated for example for wiring resistance.
The Raw value will show the actual uncompensated input value. If an input has been assigned to
pressure control the following submenu will be available:
AI2 Pressure at
0V: 0.0 kPa
10V: 10.0 kPa
Filter factor: 0.2
Corrigo E Heating manual, revision G Chapter 8 Configuration 27
8.1.2 Digital inputs DI
Digital input 1
NO/NC: NO Signal:
HS1-PumpA
Status: Off
To simplify adaptation to external functions, all digital inputs can be configured to be either
normally open, NO, or normally closed, NC.
The inputs are as standard normally open, i. e. if the input is closed, the function connected to the
input in Corrigo is activated.
8.1.3 Universal inputs UI
On the largest hardware version, E28 there are universal inputs. These can individually be
configured as either analogue inputs or as digital inputs. When conf igured as analogue inputs they
can be bound to any of the analogue signals described under Analogue signals.
When configured as digital inputs they can be bound to any of the digital signals described under
Digital signals.
Universal input 1 Æ
Choose AI or DI sign
AI sign: HS2 Supply
DI sign: Not active
After choosing AI or DI signal (the unused alternative must be set to Not active) there is a sub-menu
with settings used when the input is configured as an AI-input. Th is menu is accessed by pressing
RIGHT.
Universal AI1
Sign: HS2 Supply
Raw value:38.5
Compensation: 0.0°C
Input signals can be compensated for example for wiring resistance.
The Raw value will show the actual uncompensated input value.
If an input has been assigned to pressure control the following submenu will be available:
UAI1 Pressure at
0V: 0.0 kPa
10V: 10.0 kPa
Filter factor: 0.2
Universal DI1
NO/NC: NO Signal:
HS1-PumpA
Status: Off
To simplify adaptation to external functions, all universal inputs configured as digital inputs can be
set as either normally open, NO, or normally closed, NC.
The inputs are as standard normally open, i. e. if the input is closed, the function connected to the
input in Corrigo is activated.
8.1.4 Analogue outputs
Analogue outputs are 0…10 V DC.
Analogue output 1
Sign: HS1 Actuator
Auto
Value: 2.3 V
Corrigo E Heating manual, revision G Chapter 8 Configuration 28
8.1.5 Digital outputs
Digital output 1
Signal: HS1-PumpA
Auto
Status: On
8.2 HS Heating System, supply
8.2.1 Parallel displacement
To each of the set control curves can be added a parallel displacement.
Parallel displacemnt
HS1: 0.0 °C
HS2: 0.0 °C
HS3: 0.0 °C
8.2.2 Maximum limit
A maximum supply temperature can be set individually for each heating system.
Maximum limit
HS1: 98 °C
HS2: 98 °C
HS3: 98 °C
8.2.3 Minimum limit
A minimum supply temperature can be set individually for each heating system .
Minimum limit
HS1: 0 °C
HS2: 0 °C
HS3: 0 °C
8.2.4 Auto-correction of setpoint
Room sensors can be used to correct the control curves. The average room temperature error over
24 hours is calculated. Values 1 hour befo re and 1 hour after a day/night or night/day change-over
are ignored. The curves are corrected once daily using the average room temperature error and a
settable correction factor. The correction will be a parallel displacement of the entire curve using the
following formula:
Displacement = (Room setpoint - Average temp)*Factor
Auto-correction
Setpoint HS1
On Æ
Corr. factor HS1
2.0
Present correction
0.6°C
Corrigo E Heating manual, revision G Chapter 8 Configuration 29
8.3 Return water temperature
Individual maximum and minimum return water temperatures can be set for the heating systems.
Should the water temperature go outside the set limits the supply water temperature will be adjusted
to correct. The adjustment will be the temperature offset multiplied by the set limiting factor.
8.3.1 Maximum temperature
Max. return temp.
HS1:Active Æ
HS2:Inactive
HS3:Inactive
Max. return temp
HS1: 50°C
HS2: 50°C
HS3: 50°C
8.3.2 Minimum temperature
Min. return temp.
HS1:Active Æ
HS2:Inactive
HS3:Inactive
Min. return temp
HS1: 0°C
HS2: 0°C
HS3: 0°C
8.3.3 Limiting factor
Return limit factor.
HS1: 1.00
HS2: 1.00
HS3: 1.00
8.4 Pump stop
Each heating system has individual day and night stop temperatures. An active circulation pump
will stop if the outdoor temperature is higher than the set value and there is no h eating demand. Th e
pump will start if the temperature falls below the set stop temperature less the set hysteresis. Night
is between 00:00 am and 05:00 am.
All pumps, even resting twin-pumps, are exercised once daily for 5 minutes at 3 pm.
Pump stop HS1:On
Temp stop day: 17°C
Temp stop night 17°C
Hysteresis: 2.0°C
Corrigo E Heating manual, revision G Chapter 8 Configuration 30
8.5 Twin pump / Single pump
Each heating system can be configured for either a single pump or twin pumps.
When twin pumps are configured, the pumps are alternated weekly on Tuesd ays at 10:00 am. On
activation of the pump alarm for the active pump the Corrigo will automatically switch to the other
pump.
Twin/Single pump
HS1: Twin pumps
HS2: Single pump
HS3: Single pump
8.6 Run indication/Motor protection
Inputs are used either for indication of the motor running or for monitoring of motor protection
contacts.
Run indication input should be normally closed. Open contact when the motor is running, i.e. motor
control output is activated, will generate an alarm.
Motor protection should be normally open. Closed contact when the motor is running, i.e. motor
control output is active, will generate an alarm.
Run ind/Motor prot
HS1: Motor prot
HS2: Motor prot
HS3: Motor prot
Run ind./Motor prot
HW1: Motor prot
HP1: Motor prot
Freq.Con: Motor prot
8.7 Actuator type
Choose output signals to the actuators connected to the analogue control outputs: 0…10 V DC,
2…10 V DC, 10…0 V DC or 10…2 V DC.
Actuator type
HS1: 0-10V
HS2: 0-10V
HS3: 0-10V
Actuator type
HW1: 0-10V
HW2: 0-10V
Freq: 0-10V
Note that although many manufacturers state 0…10 V DC as control signal, for many actuators the
actual control signal is more often than not 2…10V DC. Check the actuator documentation
carefully. If uncertain, choose 0…10V DC. Although control might be less accurate, it will ensure
that the valve always can be driven to its fully opened and fully closed positions.
8.8 Running time, 3-pos. actuators
These parameters have no function if analogue actuators are configured.
The values are used to determine the control parameters for 3-position actuators.
It is important to set correct values since incorrect values lead to sloppy control.
Corrigo E Heating manual, revision G Chapter 8 Configuration 31
Actuator run time
HS1: 255 sec
HS2: 255 sec
HS3: 255 sec
Actuator run time
HW1: 80 sec
HW2: 80 sec
8.9 Valve exercising
The valves can be exercised once daily. Default time is 3:00 pm but can be set to any time. The
actuators will be forced to either endpoint for the set actuator ru nning time. The pu mps will run and
the temperature offset alarm will be blocked for the duration of the exercising.
Actuator exercise
HS1: Off
Hour for exerc.: 15
Minute for ex.: 00
8.10 Leakage monitoring
Once a week, the control valves will be closed and the energy usage measured for a preset time. An
alarm is generated should the energy leakage be larger than a settable value, default 3.0 kW.
The time for and duration of the leakage monitoring is settable. Default is Sundays at 2:00 am for 30
minutes.
Leakage mon:Off
Weekday:Sunday
Hour: 2
Duration: 30 min
Permitted leakage
3.00 kW
Start monitoring now
No
8.11 Pulse inputs
Energy pulse heating
100.0 kWh/Pulse
Volume pulse heating
10.0 liters/Pulse
Cold water 1
10.0 liters/Pulse
Cold water 2
10.0 liters/Pulse
Electric meter
100.0 kWh/Pulse
Corrigo E Heating manual, revision G Chapter 8 Configuration 32
8.12 Alarm configuration
Permits configuration of all alarms.
Select the appropriate alarm number (from the alarm list). The alarm text for the alarm will be
displayed and the alarm priority can be set: A-alarm, B-alarm, C-alarm or not active.
Alarm no (1-65): 1
Malfunction P1A-HS1
Æ
Malfunction P1A-HS1
Priority: B-alarm
Alarm list
Values in the Priority column show the factory set values.
Alarm text Pri Description
1 Malf. P1A-HS1 B Malfunction pump P1A-HS1
2 Malf. P1B-HS1 B Malfunction pump P1B-HS1
3 Malf. P1A-HS2 B Malfunction pump P1A-HS2
4 Malf. P1B-HS2 B Malfunction pump P1B-HS2
5 Malf. P1A-HS3 B Malfunction pump P1A-HS3
6 Malf. P1B-HS3 B Malfunction pump P1B-HS3
7 Malf. Frequenc B Malfunction frequency converter
8 Malf. P1-HWC A Malfunction pump P1-HWC
9 Malf. P1-VVB - Malfu nction pump P1-VVB
10 Exp. vessel A Expansion vessel alarm
11 External alarm A External alarm
12 Boiler alarm A Boiler alarm
13 Deviation HS1 A Supply temp HS1 deviates too much from the
setpoint for too long.
14 Deviation HS2 A Supply temp HS2 deviates too much from the
setpoint for too long.
15 Deviation HS3 A Supply temp HS3 deviates too much from the
setpoint for too long.
16 Deviation HWC1 A Supply temp HWC1 deviates too much from the
setpoint for too long.
17 Deviation HWC2 A Supply temp HWC2 deviates too much from the
setpoint for too long.
18 Sensor error B Malfunction of a connected sensor
19 High HWC1 B HWC1 temperature too high
20 High HWC2 B HWC2 temperature too high
21 Boiler high B Boiler temperature too high
22 Boiler low B Boiler temperature too low
23 Pulse error volume B No pulses from water volume meter
24 Pulse error energy B No pulses from energy meter
25 High cold water B 24 hour cold water usage higher than limit
26 High energy B 24 hour energy usage higher than limit
Corrigo E Heating manual, revision G Chapter 8 Configuration 33
Alarm text Pri Description
27 High cold water/hour B Cold water usage / hour higher than min. limit
28 High leakage B Leakage higher than set value
29 Malf. P1A&B-HS1 A Malfunction both circulation pumps P1A and P1B in
HS1
30 Malf. P1A&B-HS2 A Malfunction both circulation pumps P1A and P1B in
HS2
31 Malf. P1A&B-HS3 A Malfunction both circulation pumps P1A and P1B in
HS3
32 Pulse error CW1 B No pulses from cold water meter 1.
33 Pulse error CW2 B No pulses from cold water meter 2.
34 HS1 manual C HS1 in manual mode
35 HS2 manual C HS2 in manual mode
36 HS3 manual C HS3 in manual mode
37 HWC1 manual C HWC1 in manual mode
38 HWC2 manual C HWC2 in manual mode
39 Press. manual C Pressure control in manual mode
40 Boiler manual C Boiler in manual mode
41 P1A-HS1 manual C P1A-HS1 in manual mode
42 P1B-HS1 manual C P1B-HS1 in manual mode
43 P1A-HS2 manual C P1A-HS2 in manual mode
44 P1B-HS2 manual C P1B-HS2 in manual mode
45 P1A-HS3 manual C P1A-HS3 in manual mode
46 P1B-HS3 manual C P1B-HS3 in manual mode
47 P1-HWC1 manual C P1-HWC1 in manual mode
48 P1-HWC2 manual C P1-HWC2 in manual mode
49 P1-Freq. Manual C P1- frequency controlled in manual
50 HS1 Supply max B HS1 supply temp maximum limit activated
51 HS2 Supply max B HS2 supply temp maximum limit activated
52 HS3 Supply max B HS3 supply temp maximum limit activated
53 HS1 Supply min B HS1 supply temp minimum limit activated
54 HS2 Supply min B HS2 supply temp minimum limit activated
55 HS3 Supply min B HS3 supply temp minimum limit activated
56 HS1 Return max B HS1 return temp maximum limit activated
57 HS2 Return max B HS2 return temp maximum limit activated
58 HS3 Return max B HS3 return temp maximum limit activated
59 HS1 Return min B HS1 return temp minimum limit activated
60 HS2 Return min B HS2 return temp minimum limit activated
61 HS3 Return min B HS3 return temp minimum limit activated
62 HS1 Frost B HS1 frost protection active
63 HS2 Frost B HS2 frost protection active
64 HS3 Frost B HS3 frost protection active
65 Battery error B Malfu nction of the internal memory-backup battery
Corrigo E Heating manual, revision G Chapter 8 Configuration 34
8.13 Other parameters
A collection of different parameters that did not fit into any of the other menus.
8.13.1 Building inertia and boost
For detailed information, see 5.1.7 Building inertia and boost.
The building inertia is settable to one of three levels: None, Medium or High.
The displacement is calculated as follows:
Displacem.=Factor*(17 - outd. temp)*night set-back
Where Factor is a settable factor 0…10 where 0 gives no boost and 10 gives maximum boost.
Boost duration time is calculated as below:
Time=1.6*(17 - outdoor tem p)
Building inertia
None
Boost factor (0-10)
1
8.13.2 Power limitation
Using a digital input the power to the heating systems can be temporarily restricted. When activated,
the setpoints are lowered by a settable factor (% relative to 20°C). The limitation applies to all
configured heating systems. The limitation is calculated as below:
Limited setpoint=20+(Setpoint-20)*Factor/100
Power limitation
100% rel +20°C
Factor 100 gives no setpoint lowering, 0 gives full lowering to 20°C.
8.13.3 Frost protection
If the controller is in mode Off or Manual and the outdoor temperature falls below a settable value,
a settable, minimum supply temperature will be maintained. Circulation pumps will be activated.
Frost protect.:Off
Outdoor temp activ.
Frost prot:0.0°C
Min sup. temp:10.0°C
8.13.4 Split of output signal
Any one of the temperature control output signals HS1, HS2, HS3, HWC1 or HWC2 can be sp lit in
two.
Split of any
temp sequence:
No split
Corrigo E Heating manual, revision G Chapter 8 Configuration 35
8.13.5 Periodical heating
Periodical heating
HW1: No
HP1: No
8.14 System
8.14.1 Change language
Use this menu to change the display language.
Choose language
English
Note: This menu is also directly accessible by holding the OK-button depressed during powe r-up.
8.14.2 Choose start screen; the text normally shown on the
display
There are 4 different to choose from.
Type 1
The second line shows date and time.
The third line shows the text HS1.
The fourth line shows the present temperature setpoint and actual values for HS1.
Heating Regulator
04:03:15 11:28
HS1
Sp:32.8°C Act:33.1°C
Type 2
The second line shows date and time.
The third line shows the text HWC1.
The fourth line shows the present temperature setpoint and actual values for HWC1.
Heating Regulator
04:03:15 11:28
HWC1
Sp:55.0°C Act:54.8°C
Type 3
The second line shows the text HS1/HWC1.
The third line shows the present temperature setpoint and actual values for HS1.
The fourth line shows the present temperature setpoint and actual values for HWC1.
Heating Regulator
HS1/HWC1
Sp:32.8°C Act:33.1°C
Sp:55.0°C Act:54.8°C
Corrigo E Heating manual, revision G Chapter 8 Configuration 36
Type 4
The second line shows the outdoor temperature.
The third line shows the text HS1.
The fourth line shows the present temperature setpoint and actual values for HS1.
Heating Regulator
Outdoor temp: 8.2°C
HS1
Sp:32.8°C Act:33.1°C
8.14.3 Automatic summer time adjustment
The internal clock is normally configured for automatic summertime/wintertime adjustment. The
function can be disabled in this menu. When enabled , the clock will be advanced on e hour at 02:00
am the last Sunday of March and retarded one hour at 03:00 am the last Sunday of October.
Automatic summer/
winter time change
over
Yes
8.14.4 Address
Corrigo E uses the addresses below when connecting to Corrigo E-tool, and when multiple
controllers are connected in a network. E-tool normally uses the addresses below, so if an address is
changed, the new address must also be entered in E-tool. If several Corrigo are connected in a
network, all the units must have the same ELA address, but each unit must have a unique PLA
address.
Address
PLA: 254
ELA: 254
8.14.5 Display anywhere (Remote control)
If multiple Corrigo units are connected in a network, it is possible to remote con trol a unit in the
network from a unit with display. You do this by entering the address of the unit you wish to remote
control in the unit with display. The function is aborted by pressing the buttons UP, OK and DOWN
simultaneously.
Address for
remote communication
(PLA:ELA) 00:00
8.14.6 Communication code Modbus
If Corrigo is to be wired to a network for Modbus communication, a special code must be purchased
from Regin. Entering the code unlocks the unit so the addresses can be changed.
The code is unique for each Corrigo and is serial-number dependent.
Communication code
for modbus
0
Modbus: Not Active
Modbus Address: 1
Speed: 9600 bps
Two stop bits:Yes
Parity:No
Corrigo E Heating manual, revision G Chapter 8 Configuration 37
8.14.7 Dial-up modem
With the help of a dial-up modem, Corrigo can be connected to a supervisor Exo-system. We
recommend the modem Westermo TD-32-B. The default password is exo.
DialUpModem: No
Number:
Password:
exo
8.14.8 Alarm forwarding via SMS
Via a connected GSM modem, Corrigo can send an alarm message to up to 3 different recipients.
To use this function, you first have to purchase a lock-up code from Regin. When there is an alarm,
Corrigo sends an alarm message to the first number on the list. The message consists of an alarm
text, the unit name (the same text that is shown in the first row of the start display) and the time
when the alarm occurred. If the recipient does not send an SMS within 5 minutes to confirm that the
message has been received, Corrigo will send the message to the next number on the list.
Code to enable
SMS function:
0
SMS: Not Active
Nbr1:
Nbr2:
Nbr3:
Corrigo E Heating manual, revision G Chapter 9 Settings 38
Chapter 9 Settings
In this menu group all settings for all activated functions should be available. Depending on what
choices have been made during configuration, some of the alternatives in this menu group may not
be shown.
Settings
Control temp Æ
Control pressure Æ
Alarm settings
9.1 Control temp
9.1.1 HS1, HS2 and HS3
Control parameters for the three heating system controllers.
HS1
P-band: 100.0 °C
I-time: 100.0 sec
9.1.2 HWC1 and HWC2
Control parameters for the two hot water controllers.
HWC1
P-band: 100.0 °C
I-time: 150.0 sec
D-time: 1.0 sec
9.2 Control pressure
9.2.1 Control pressure
Control parameters for pressure control. Only accessible if pressure control has been configured.
Pressure control
P-band: 25.0 kPa
I-time: 100.0 sec
Min.output: 0%
9.3 Alarm settings
Alarm settings
Alarm limits Æ
Alarm delay Æ
Corrigo E Heating manual, revision G Chapter 9 Settings 39
9.3.1 Alarm limits
Control deviation, HS1, HS2 and HS3
Control deviation
HS1: 20.0 °C
HS2: 20.0 °C
HS3: 20.0 °C
Control deviation HWC1 and HW C2
Control deviation
HWC1: 20.0 °C
HWC2: 20.0 °C
Scalding limit
Scalding
HWC1: 65.0 °C
HWC2: 65.0 °C
Boiler limits
High boiler temp
70.0 °C
Low boiler temp
30.0 °C
High water usage
High 24h water usage
10000.0 liters
High 1h water usage
10000.0 liters
High energy usage
High 24h energy usage
10000.0 kWh
Maximum time between pulses
Max between Vpulse
0 min
Max between Epulse
0 min
Max between CW1pulse
0 min
Max between CW2pulse
0 min
Permitted leakage
Permitted leakage
3.00 kW
Corrigo E Heating manual, revision G Chapter 9 Settings 40
9.3.2 Alarm delays
Control deviation, HS1, HS2 and HS3
Control deviation
HS1: 60 min
HS2: 60 min
HS3: 60 min
Control deviation HWC1 and HW C2
Control deviation
HWC1: 60 min
HWC2: 60 min
Scalding limit
Scalding
HWC1: 300 sec
HWC2: 300 sec
Boiler limits
High boiler temp
0 sec
Low boiler temp
0 sec
Expansion vessel / External alarm
Expansion vessel
60 sec
External alarm
60 sec
Corrigo E Heating manual, revision G Chapter 10 Time settings 41
Chapter 10 Time settings
General
Corrigo has a year-base clock function. This means that a week-schedule with holiday periods for a
full year can be set. The clock has an automatic summer- winter-time changeover.
Individual schedules for each week-day plus a separate holiday setting. Up to 24 individual holiday
periods can be configured. Holiday schedules take precedence over other schedules.
Each day has up to two individual running periods. For two-speed fans and pressure controlled fans
there are daily individual schedules for normal speed and reduced speed , each with up to two
running periods.
Up to five separate digital timer outputs can be configured. Each with individual week-schedules
with two activation periods per day. These outputs can be used to control lighting, doorlocks etc.
Time/Date Æ
HS1 Night setback Æ
HS2 Night setback Æ
HS3 Night setback Æ
HWC1 Night setback Æ
HWC2 Night setback Æ
Timer output1 Æ
Timer output2 Æ
Timer output3 Æ
Timer output4 Æ
Timer output5 Æ
Holidays Æ
10.1 Time / Date
This menu shows and permits the setting of time and date.
Time is shown in 24 hour format.
Date is shown in the format YY:MM:DD.
Time: 18:21
Date: 04:02:23
Weekday: Monday
10.2 HS_ Night Set-back
HS1 Night Setback
On Æ
5.0 room-degrees
Setting comfort temperature periods.
For each control system there are 8 separate setting menus, one for each weekday and one extra for
holidays.
Holiday schedules take precedence over other schedules.
For 24 hour running, set a period to 00:00 – 24:00.
To disable a period, set it to 00:00 – 00:00.
HS1 Comfort time
Monday
Per 1: 07:00 – 16:00
Per 2: 00:00 - 00:00
Corrigo E Heating manual, revision G Chapter 10 Time settings 42
10.3 HWC_ Night set-back
HWC1 Night setback
On Æ
5.0 °C
Pump stop: Off
Setting comfort temperature periods.
For each control system there are 8 separate setting menus, one for each weekday and one extra for
holidays.
Holiday schedules take precedence over other schedules.
For 24 hour running, set a period to 00:00 – 24:00.
To disable a period, set it to 00:00 – 0:00.
HWC1 Comfort time
Monday
Per 1: 07:00 – 16:00
Per 2: 00:00 - 00:00
10.4 Timer outputs 1…5
Up to 5 digital outputs can be configured as timer outputs, each with a separate week-schedule with
two activation periods per day. Holiday schedules take precedence over other schedules.
Timer output 2
Wednesday
Per 1: 05:30 – 08:00
Per 2: 17:00 – 23:00
10.5 Holidays
Up to 24 separate holiday periods for a full year can be set.
A holiday period can be any number of consecutive days from one and upwards. The dates are in
the format: MM:DD
When the current date falls within a holiday period, the scheduler will use the settings for the
weekday “Holiday”.
Holidays (mm:dd)
1: 01:01 - 02:01
2: 09:04 – 12:04
3: 01:05 - 01:05
Corrigo E Heating manual, revision G Chapter 11 Actual / Setpoint 43
Chapter 11 Actual / Setpoint
In this menu group all actual current values and setpoint values are displayed and, providing a
sufficiently high log on level is used, all setpoints can be changed.
The following menus are available providing that the corresponding input is activated.
11.1 Setpoint Heating systems HS1, HS2 and HS3
Outdoortemp: 18.4°C
HS1
Act.: 19.8°C SetpÆ
Setp: 20.0°C
Submenu: Setpoint
In-between-values are calculated using straight lines between breakpoints. Setpoints for
temperatures lower than the lowest breakpoint and higher than the highest breakpoint are calculated
by extending the line between the two last breakpoints at either end. Example: At the lower end the
setpoint is increasing by 14°C for every 5 °C lowering of the outdoor temperature. So the setpoint at
–23°C would be 77+3/5 * 14°C = 85.4°C.
Outd. comp. setp.HS1
-20 °C = 77 °C
-15 °C = 63 °C
-10 °C = 59 °C
Outdoor comp. setp.
-5 °C = 54 °C
0 °C = 53 °C
5 °C = 43 °C
Outdoor comp. setp.
10°C = 35 °C
15°C = 25 °C
11.2 Room sensor HS1, HS2 and HS3
Room sensor HS1
Actual: 20.8°C
Setpoint: 21.0°C
Return temp: 20.0°C
11.3 Return water temperature
Return temp.
HS1: 20.0°C
HS2: 24.0°C
HS3: 23.0°C
Corrigo E Heating manual, revision G Chapter 11 Actual / Setpoint 44
11.4 Supply temp HWC1 and HWC2:
Supply temp. HWC1
Actual: 54.8°C
Setpoint: 55.0°C
11.5 Storage tank
Supply temp. HP1
45.8°C Æ
Return temp. HP1
38.3°C
Loading HP1
Start temp: 46.0 °C
Stop temp: 55.0 °C
Diff.temp: 2.0 °C
11.6 Boiler temp
Boiler temp: 68.6°C
Start temp1: 65.0°C
Start temp2: 60.0°C
Stop temp: 70.0°C
11.7 Return temp boiler
Return temp
Boiler: 28.7°C
11.8 Pressure control
Pressure control
Actual: 48.8 kPa
Setp.: 50.0 kPa
11.9 Wind speed
Wind speed
Actual: 4.6 m/s
Scale factor:
1.0 m/s/V
Compensation
HS1: 0.00 °C/m/s
HS2: 0.00 °C/m/s
HS3: 0.00 °C/m/s
Corrigo E Heating manual, revision G Chapter 12 Manual / Auto 45
Chapter 12 Manual / Auto
General
In this menu the running mode of the un it and all the configured outputs can be manually controlled.
This is a very handy feature which simplifies the checking of individual functions in the Corrigo.
It is also possible to manually control each of the temperature output signals individually.
All the configured digital outputs can be set to On, Off or Auto.
Since leaving any of the outputs in manual control will disrupt the n ormal control, an alarm will be
generated as soon as any output is set to a manual mode.
Since the menus vary according to the configuration of the outputs only the most common ones will
be shown here. For the digital signals you can normally choose between Auto and On and Off or
similar words indicating the two possible manual states of the digital output.
Heating systems HS1, HS2 and HS3
Manual/Auto
HS1
Auto
Manual set: 0.0
Hot water circuits HWC1 and HWC2
Manual/Auto
HWC1
Auto
Manual set: 0.0
Pressure control
Pressure control
Auto
Manual set: o.o
Minmum set: 0.0
Pumps HS1, HS2 and HS3
Manual/Auto HS1
P1A:Auto
P1B: Auto
Pump HWC1
Manual/Auto
HWC1:Auto
Frequency converter start
Manual/Auto
Frequency conv.:Auto
Corrigo E Heating manual, revision G Chapter 12 Manual / Auto 46
Boiler start
Manual/Auto
Boiler:Auto
Corrigo E Heating manual, revision G Chapter 13 Energy / Cold water 47
Chapter 13 Energy / Cold water
In this menu the pulse-counter input results are administered. The pulse constants (pulses/unit) are
set in the menu Configuration/Pulse constants.
Heating meter
Cold water meter 1
Cold water meter 2
Electricity meter
Leakage monitoring
13.1 Heating meter
Energy total
1532 MWh
Hot water total
387 m3
These values can be reset.
Energy
Today: 28.15 kWh
Yesterday:123.45 kWh
D B Y-day:132.11 kWh
Usage
Today: 28.15 lit
Yesterday:123.45 lit
D B Y-day:132.11 lit
Power usage
Instant: 2.1kW
Average/h: 3.2kW
Max aver.: 5.3
13.2 Cold water meters CW1 and CW2
CW1 Usage total
276.2 m3
CW1 Flow
6.4 l/min
CW1 Usage
Today: 88.1 lit
Yesterday:4123.4 lit
D B Y-day:5012.1 lit
Lowest CW1 usage
Today: 0.1 lit./h
Yest.: 0.2 lit./h
Corrigo E Heating manual, revision G Chapter 13 Energy / Cold water 48
13.3 Electricity meter
Energy total
1866.54 mWh
The value can be reset.
13.4 Leakage monitoring
Leakage power
1.31 kW
Corrigo E Heating manual, revision G Chapter 14 Other functions 49
Chapter 14 Other functions
14.1 Alarm handling
If an alarm condition occurs the Alarm LED on the front panel on units with display will start
flashing. The LED will continue to flash as long as there are unacknowledged alarms.
Alarms are logged in the alarm list. The list shows type of alarm, date and time for the alarm and the
alarm class (A, B or C alarm)
To access the alarm list, press the alarm button, the front panel button with the red button-top.
Sensor error
24 Feb 10:43 Class:B
Reset d
If there are multiple alarms, this is indicated by up / down arrow symbols at the right-hand edge of
the display.
Use the UP and DOWN buttons to access the other alarms.
At the left end of the bottom display line the alarm status is shown. For active, un acknowledged
alarms the space is blank. For alarms that have reset the text: “Reset” is shown., Acknowledged,
still active or blocked alarms are indicated by Acknowledged or Blocked.
Alarms are acknowledged by pressing the OK button. You are then given the choice of
acknowledging the alarm or blocking the alarm.
Acknowledged alarms will remain on the alarm-list until the alarm input signal resets.
Blocked alarms remain on the alarm-list until the alarm has reset and the block has been removed.
New alarms of the same type will not be activated as long as the block remains.
Since blocking alarms can be potentially hazardous, you need a high log on authority to block
alarms.
Class A and B alarms will activate alarm output(s) if these have been configured.
Class C alarms do not activate the alarm output(s).
Class C alarms are removed from the alarm list when the alarm input resets even if the alarm has not
been acknowledged.
14.2 Revision numbers
If RIGHT is pressed once when the start-display is shown, see section 8.14.2, a menu showing the
program revision number and id-number will be displayed.
14.3 Free text
If RIGHT is pressed twice when the start-display is shown, see section 8.14.2, a menu showing text
of your choice is displayed. The text can be used to show information concerning the
commissioning company, name and phone number to service personnel etc. Text is entered using Etool. Up to 4 lines of 20 characters can be entered.
Chapter 15 Index
A
Access rights, 24
Actual/Setpoint, 43
Address, 36
Alarm configuration, 32
Alarm list, 32
Alarm settings, 38
Alarms, 21
Alarm handling, 49
Alarm list, 32
Analogue inputs, 8
Analogue outputs, 9
B
Boiler control, 19
Boost, 34
Building inertia, 34
Buttons, 22
C
Change language, 35
Cold water meters, 47
Cold-water monitoring, 19
Configuration, 26
Inputs and outputs, 26
Running time, 3-pos. actuators, 30
D
Dial-up modem, 37
Digital inputs, 8
Digital outputs, 9
Display, 22
Display, LEDs and buttons, 22
E
Electricity meter, 20, 48
Energy / Cold water, 47
Energy monitoring, 20
Exercising, 31
F
Free text, 49
Frost protection, 34
H
Hand / Auto, 45
Heating meter, 47
Heating systems, 17
Holidays, 42
HS Heating System, supply, 28
HS_ Night Set-back, 41
HWC_ Night set-back, 42
I
Inputs and outputs, 8, 26
Analogue inputs, 8
Analogue outputs, 9
Digital inputs, 8
Digital outputs, 9
Input and output lists, 9
Universal inputs, 8
L
Leakage monitoring, 31, 48
LEDs, 22
Log off, 24
Log on, 24
M
Menus, 23
Modbus, 36
N
Navigating the menus, 23
O
Outputs. See Inputs and outputs
P
Password, 24
Power limitation, 34
Pressure control, 19
Settings, 38
Pulse inputs, 31
Pump stop, 29
R
Remote control, 36
Return water temperature, 29
Revision number, 49
Run indication / Motor protection, 30
Running time, 3-pos. actuators, 30
S
SMS, 37
Split of output signal, 34
Start screen, 35
Storage tank, 19
Summer time adjustment, 36
T
Tap hot water, 18
Temperature control
Settings, 38
Time / Date, 41
Timer channel outputs, 21
Timer outputs, 42
U
Universal inputs, 8
AB Regin
Box 116, SE-428 22 Kållered, Sweden
Visiting address: Bangårdsvägen 35
Phone: +46 31 720 02 00
Fax: +46 31 94 01 46
www.regin.se, info@regin.se
Loading...
