Regency Z2510L User Manual

www.regency-ﬁ re.com

WarmHearth Fireplace

Owners &

Installation Manual

Tested by:

908-200

Regency WarmHearth High Efﬁ ciency EPA Certiﬁ ed Fireplace MODEL: Z2510L

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

11/16/07

Thank-you for purchasing a

REGENCY FIREPLACE PRODUCT.

The pride of workmanship that goes into each of our products will give you years of trouble-free enjoyment. This product has been certiﬁ ed by the Environmental Protection Agency of the United States. This means that it meets the strictest standards in providing you with the latest in clean burning technology and efﬁ ciency. Speciﬁ cations may vary widely. Consult with your Regency Dealer for local considerations.

Keep those REGENCY FIRES burning.

Regency Z2510 WarmHearth2

TABLE OF CONTENTS

SAFETY LABEL

Safety Label for Z2510L ................................................4

INSTALLATION

The Regency Warmhearth ............................................5

Product Details ..............................................................5

Options ..........................................................................5

Dimensions and Speciﬁ cations ....................................6

Clearances and Height .................................................7

Requirements ................................................................7

Fireplace Enclosure Framing ........................................7

Hearth Extension ...........................................................8

Framing Details .............................................................8

Location of Fireplace .....................................................8

Chimney System Considerations ..................................9

Before You Start ........................................................10

Assembly Steps ........................................................... 10

Installing the Stand-offs ...............................................10

Set The Warmhearth Into Position .............................. 11

Installing the Chimney System .................................... 11

Installing the Outside Air Kit ........................................13

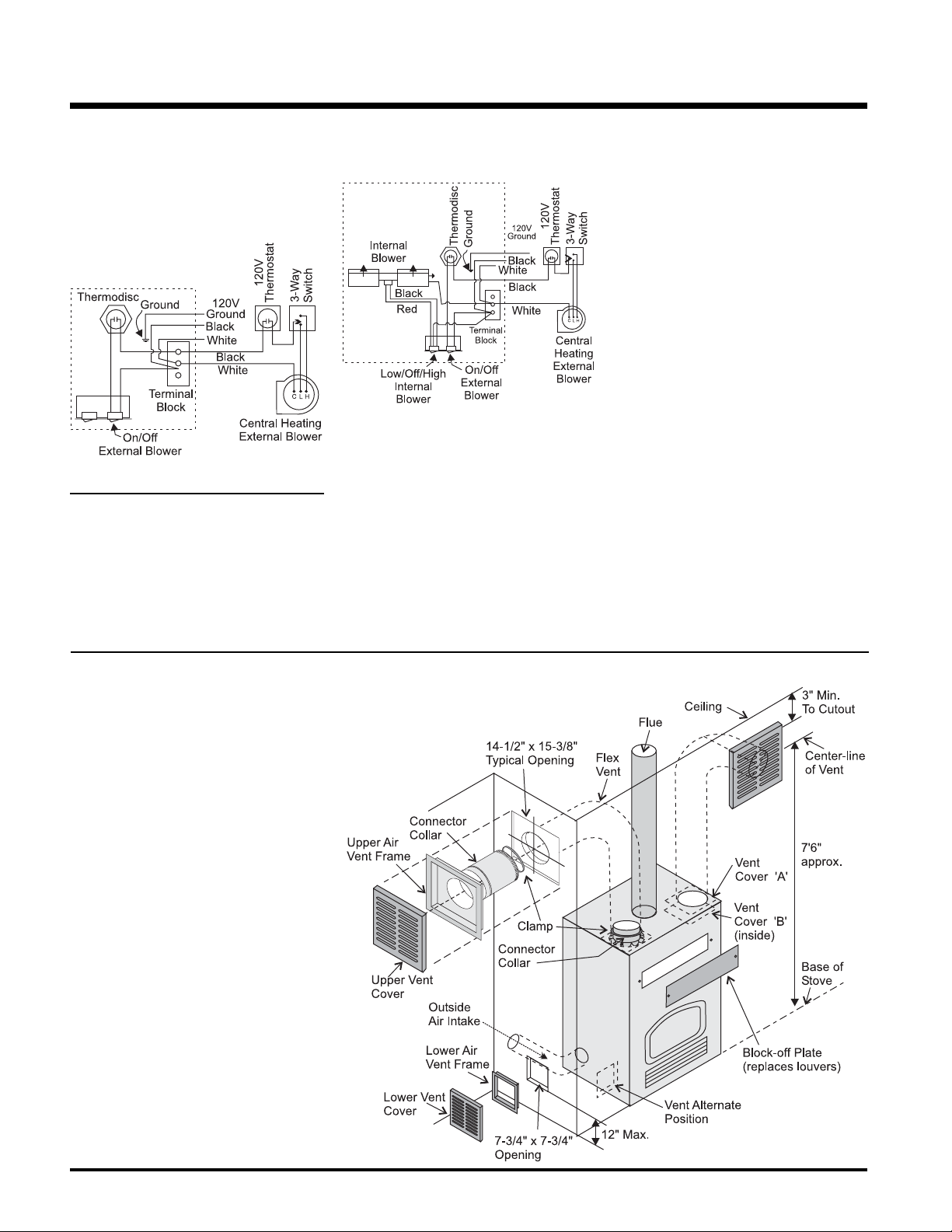

Wiring the Warmhearth ................................................13

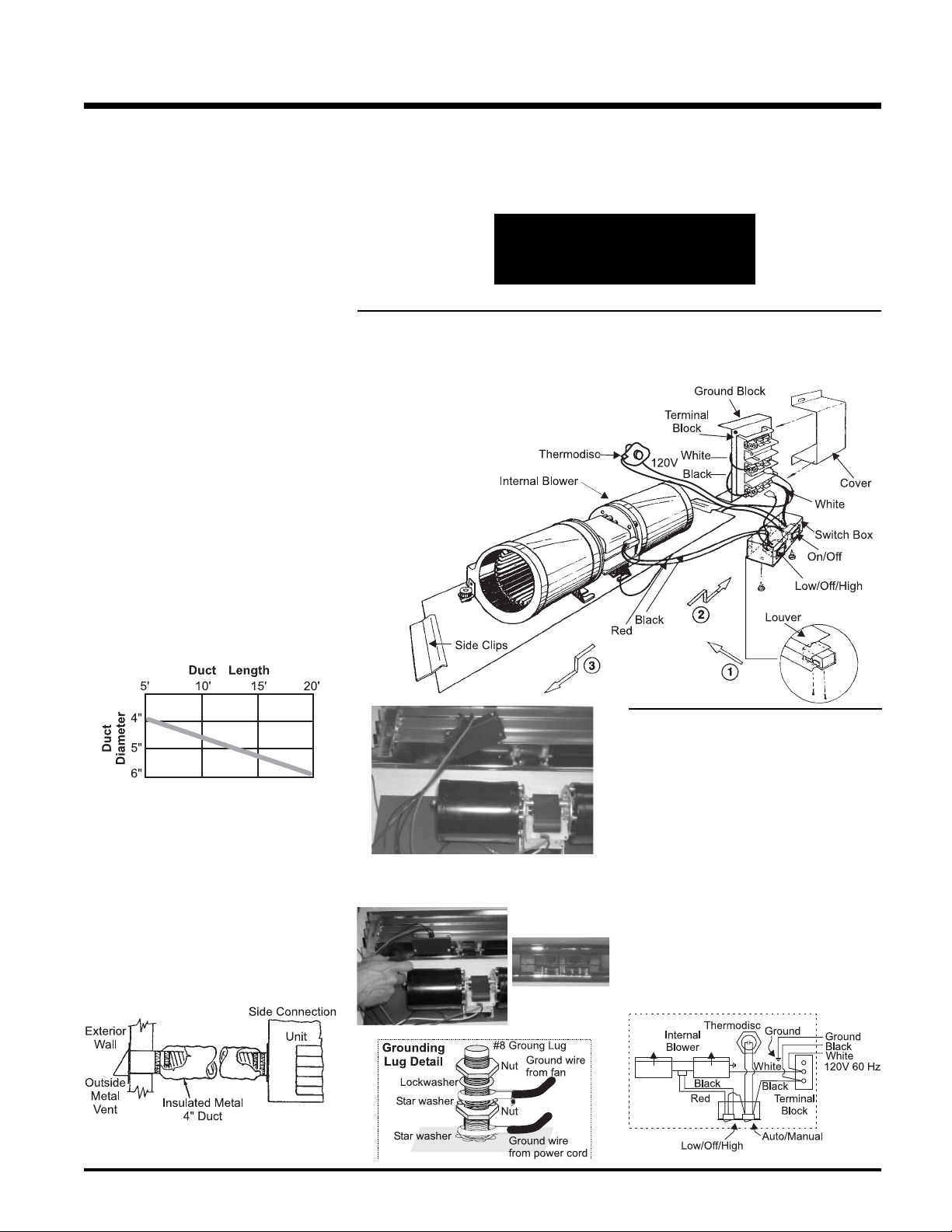

Installing the Blower Systems .....................................13

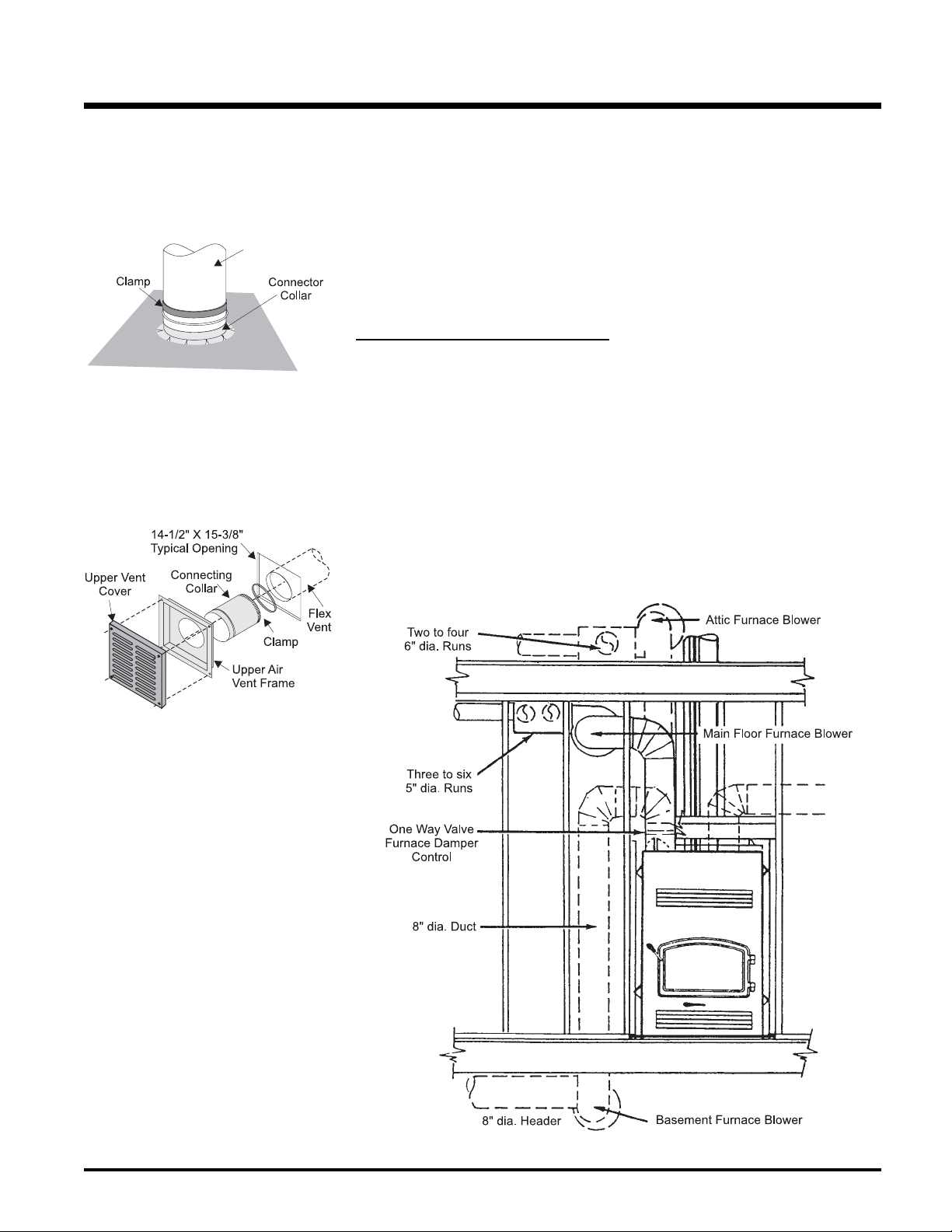

Gravity Air Feed Kit Option ..........................................14

Installing Your Central Heating System .......................15

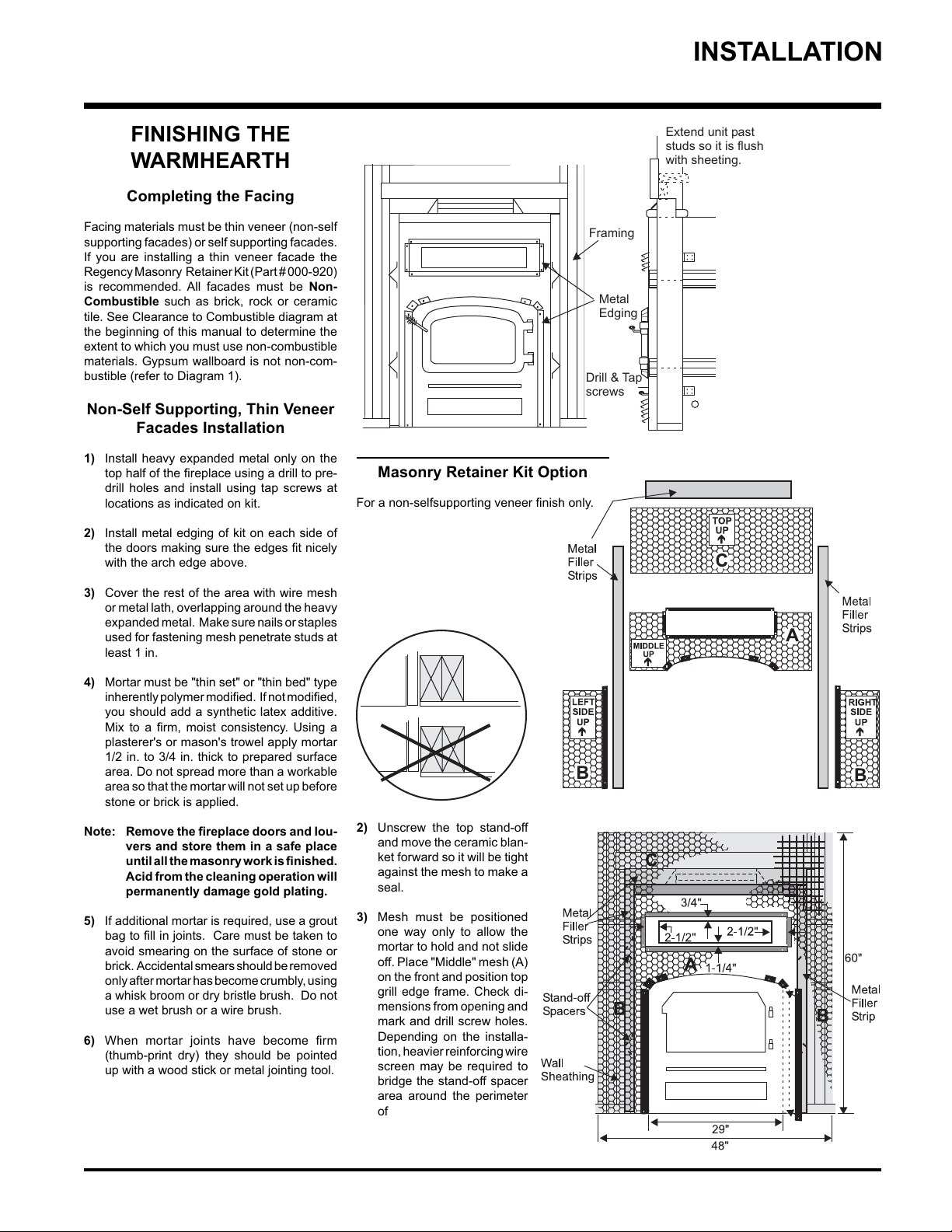

Finishing The Warmhearth ..........................................17

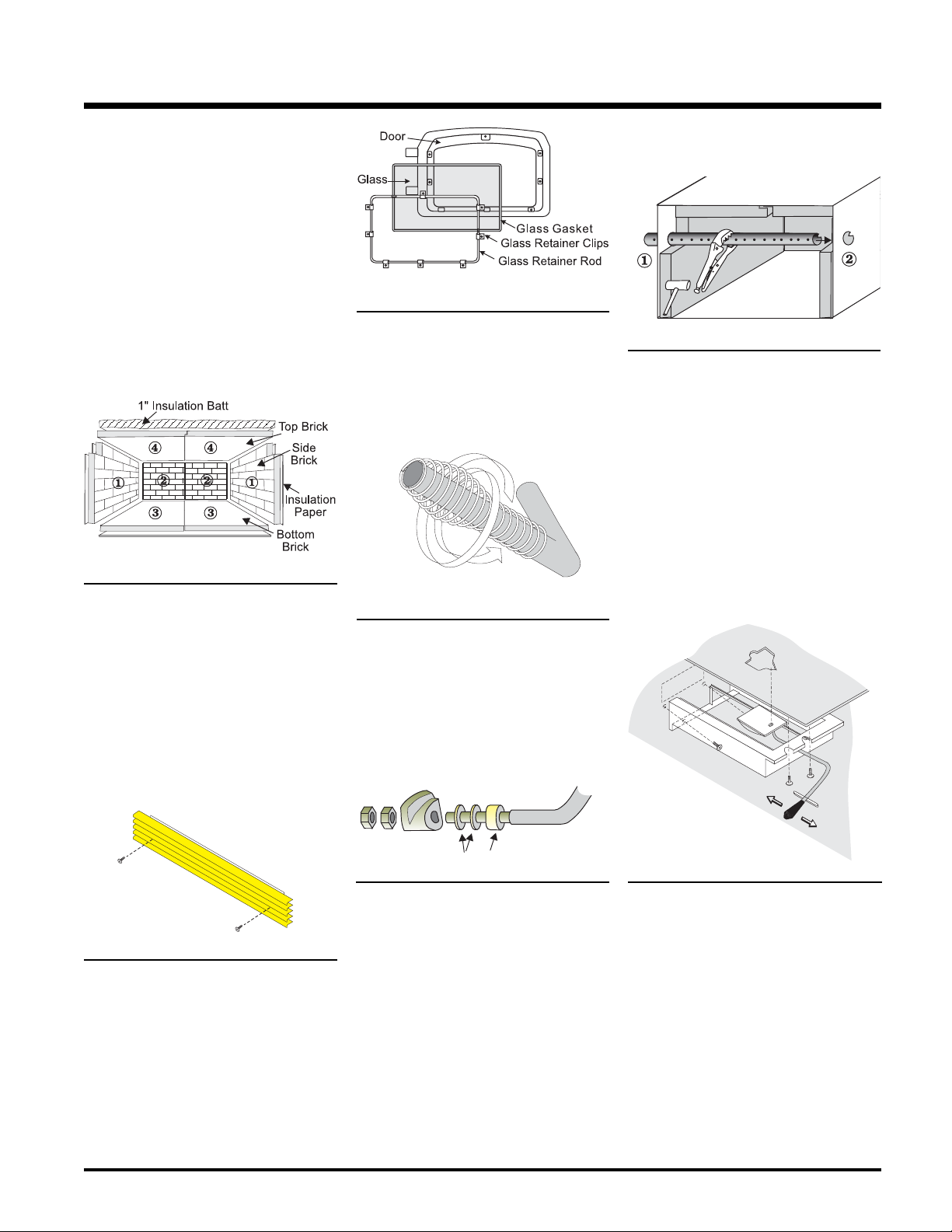

Masonry Liner/Bricks ...................................................19

Louvers ........................................................................19

Glass Installation .........................................................19

Door Handle ................................................................19

Latch Adjustment .........................................................19

Secondary Air Tube Installation ..................................19

Operating Instructions .................................................19

First Fire ......................................................................19

Safety Guidelines ........................................................20

MAINTENANCE

Maintenance ................................................................20

PARTS LIST

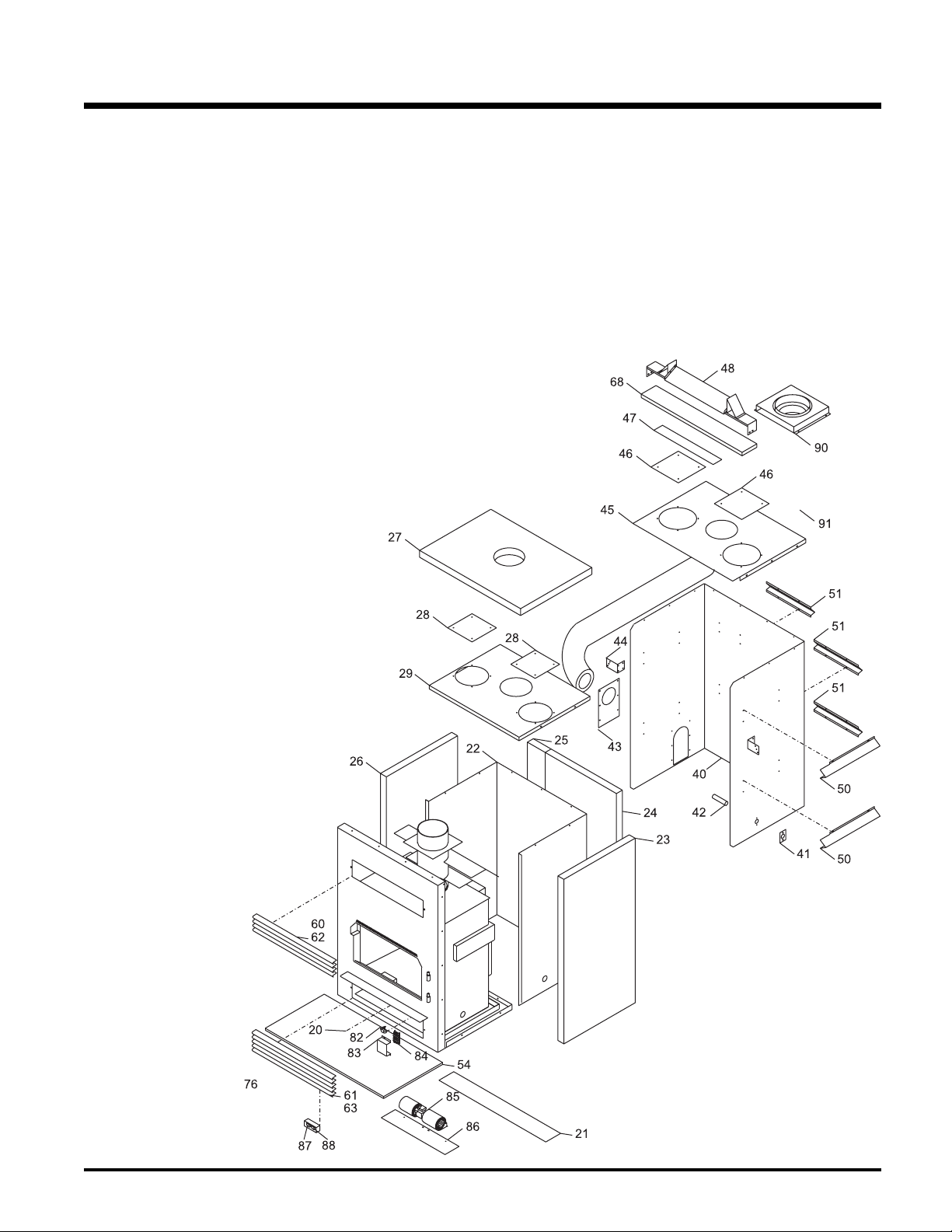

Firebox & Body ............................................................21

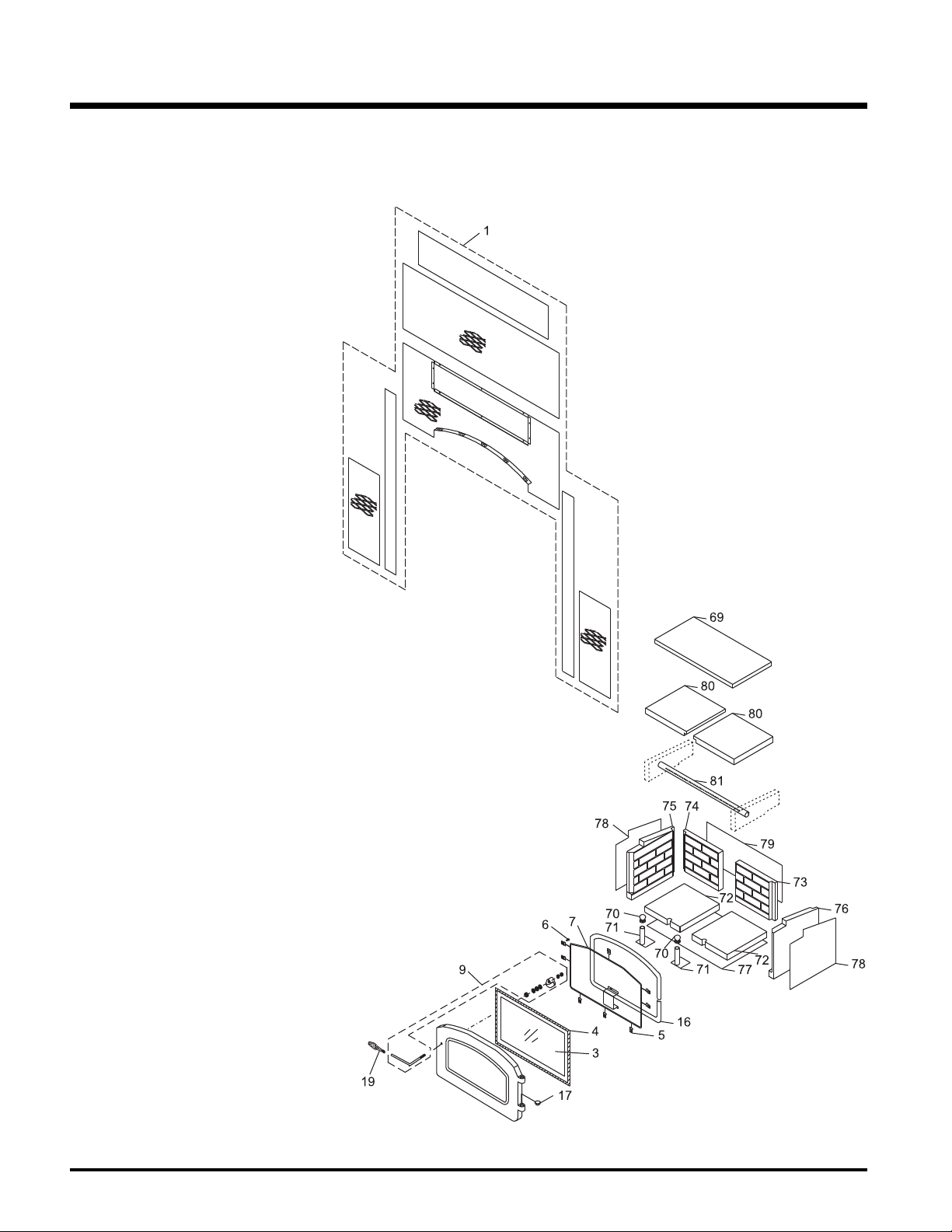

Bafﬂ es, Door, Options .................................................22

WARRANTY

Warranty ......................................................................23

Regency Z2510 WarmHearth 3

SAFETY LABEL

This is a copy of the label that accompanies each Regency WarmHearth. It is located inside the lower louver opening on the left side. We have printed a copy of the contents here for your review.

NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

SAFETY LABEL FOR Z2510L

Regency Z2510 WarmHearth4

THE REGENCY WARMHEARTH

1) Optional 24 Karat Gold-plated Louvers

2) Clean Glass Air Wash System

3) High Safety Ceramic Glass

4) Optional 24 Karat Gold-plated Door

5) Andirons

6) Convection Air Inlet

7) Optional 150 CFM 2-speed Blower

8) Convection Chamber

9) Secondary Air Source

INSTALLATION

10) Primary Air Source

11) 7-inch Flue Pipe

12) High Heat Refractory Lining

PRODUCT DETAILS

EPA Certiﬁ ed YES, Phase 2

Emissions 5.2 Gms/Hr.

Efﬁ ciency (DEQ) 70.7%

BTU/HR (EPA) 10,600-39,500

Flue Size 7 " diameter or 8" with Adaptor (#000-924)

OPTIONS

Blower 150 CFM, 2 speed

Central Forced Air 433 CFM Blower* Heating System

Gold Door 24 kt. Gold Plated

Gold Louvers 24 kt. Gold Plated

Log Size 22"

Weight: shipping 715 lbs. stripped weight: 460 lbs.

Regency Z2510 WarmHearth 5

Masonry Retainer Kit Part # 000-920

*Not supplied by Regency, see your Regency Dealer or heating contractor.

INSTALLATION

READ BEFORE YOU INSTALL

THE REGENCY WARMHEARTH

HIGH EFFICIENCY EPA

CERTIFIED FIREPLACE

This installation manual will enable you to make a safe, efﬁ cient and dependable installation of your ﬁ replace and chimney system. Please read and understand these instructions before beginning your installation.

Do not alter or modify the ﬁ replace or its components under any circumstances. Any modiﬁ cation or alteration of the ﬁ replace system, including but not limited to the ﬁ replace, chimney components and accessories, may void the warranty, listing and approvals of this system and could result in an unsafe and potentially dangerous installation.

PLEASE RETAIN THIS MANUAL FOR

FUTURE REFERENCE.

IMPORTANT: Please read and follow these rules for safety.

1) Before starting your ﬁ replace installation,

read these installation instructions carefully to be sure you understand them in their entirety. Failure to follow them could cause a ﬁ replace malfunction resulting in serious injury and/or property damage.

2) Always check your local building codes.

The installation must comply with all local, regional and state codes and regulations.

3) This model ﬁ replace must be installed with

one of the chimney systems listed in the Chimney Section in this manual. These systems are intended for use as a residential type appliance. The chimney must always vent to the outside of the building.

4) To ensure a safe ﬁ replace system and to

prevent the build-up of soot and creosote, inspect and clean the ﬁ replace and chimney prior to use and periodically during the heating season.

8) NEVER leave children unattended when

there is a ﬁ re burning in the ﬁ replace.

9) Allow the ﬁ replace to cool before servicing.

Always shut off any electricity to the ﬁ replace while working on it. This will prevent any possible electrical shock.

10) Regency is not responsible for any smoking or related problems that may result from the lack of adequate combustion air. It is the responsibility of the installer to ensure that adequate combustion air has been provided for the ﬁ replace.

11) Regency Industries Ltd. does not warranty

“smoke free” operation nor are we responsible for inadequate system draft caused by mechanical systems, general construction conditions, inadequate chimney heights, adverse wind conditions and/or unusual environmental factors or conditions beyond our control.

12) DO NOT use a ﬁ replace insert or any other product not speciﬁ ed by Regency for use with this ﬁ replace.

13) Never, under any circumstances, install a ﬁ replace, chimney component or any accessories, supplied by Regency, that have visible or suspected physical damage as a result of handling or transportation. These items should be inspected by a Regency dealer or qualiﬁ ed factory representative to ensure safe condition. When in doubt, consult your Regency dealer.

14) It is recommended that power is supplied to the terminal block of the unit to allow for the installation of blower components now or at a future date.

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

DIMENSIONS AND

SPECIFICATIONS

The WarmHearth is a woodburning ﬁ replace featuring a self-contained heat-circulating system and cast-iron door with large viewing window. Options available are a Central Heating System or an Internal Blower. A set of andirons are installed in the ﬁ rebox to properly position the ﬁ re, do not remove them.

Note: Illustrations shown reﬂ ect “typical”

installations with nominal dimensions and are for design and framing reference only. Actual installations may vary due to individual design preferences. However, always maintain minimum clearances to combustible materials and do not violate any speciﬁ c installation requirements.

The WarmHearth ﬁ replace has been tested and listed by Warnock Hersey Inc. to UL. 127 Standard for U.S. installations and ULC. S610 standard for Canadian installations. This unit

is intended for installation in conventional homes and buildings of conventional construction, not in mobile homes.

This ﬁ replace system is designed for installation in accordance with the National Fire Protection Standard for chimneys, ﬁ replaces and solid fuel burning appliances; NFPA 211 and in accordance with codes such as the BOCA Basic National Codes, the Standard Mechanical Code, Uniform Building Codes, Canadian National Building Codes or applicable local codes.

5) Use solid fuel only. DO NOT use artiﬁ cial logs

containing petroleum products, chemical chimney cleaners, gas logs, gas lighters, salt contaminated wood or ﬂ ame colorants in your ﬁ replace. When using compressed sawdust logs use only at 1/3 capacity since these get very hot and expand.

6) DO NOT use charcoal or coal under any

circumstances.

7) NEVER use gasoline, gasoline-type lantern

fuel, kerosene, charcoal lighter ﬂ uid, or any liquid to start or “freshen up” a ﬁ re in this ﬁ replace. Keep any ﬂ ammable liquid a safe distance from the ﬁ replace.

Unit Dimensions

Regency Z2510 WarmHearth6

INSTALLATION

FAILURE TO USE PARTS MANUFACTURED BY REGENCY FIREPLACE INDUSTRIES OR VARIATIONS IN TECHNIQUES AND CONSTRUCTION MATERIAL DESCRIBED IN THIS MANUAL MAY CREATE A FIRE HAZARD AND VOID REGENCY’S WARRANTY.

The WarmHearth main unit consists of the following:

1) The main ﬁ re box and heat exchanger

2) The large door with ceramic glass

3) A full brick lining and ﬂ ue bafﬂ e

4) The upper and lower louvers

5) The insulated outside air duct

6) The hearth extension ﬂ oor protector used

for ﬂ ush mount installations

7) Hearth Safety Strip

8) The internal blowers system (optional)

9) A Furnace Damper Control (optional)

10) The Masonry Retainer Kit (Optional)

11) Furnace Blower (optional)

CLEARANCES AND

HEIGHT

REQUIREMENTS

The WarmHearth may be placed on or near construction materials. The combustion air kit, ﬁ re stop spacer and roof ﬂ ashings (not chase ﬂ ashings) may be placed directly on or against normal construction materials. The chimney

requires a minimum 2 in. (50 mm) clearance. A combustible mantle (to a depth of 10 in.) may be installed no closer than 18 in. (457 mm) above the warm air vent.

The chimney must be enclosed when installed in or passing through a living area where combustible material or people may come in contact with it. This is important to prevent possible personal injury or ﬁ re hazard.

For any further information, please call your dealer. Special restrictions apply to the front and facing of the ﬁ replace and nearby walls.

WARNING: If insulation is used, do not place the unit against it. Insulation or vapor barriers, if used, must be secured to assure insulation and vapor barriers remain in place and do not affect the required air spaces.

WARNING: Do not pack or ﬁ ll required air spaces with insulation or other material. No material of any kind is allowed in these areas.

NOTE:

No Combustibles on Face of Unit

Combustibles May Not Extend to Unit Face

Do not notch wallboard around standoffs

1) Do not insulate the chase cavity with blown

or ﬁ ll type insulation materials.

2) Local codes may not require ﬁ restopping at

the ceiling level for outside chase installations; however, it is recommended for safety and the reduction of heat loss.

3) We recommend that you insulate at least

the ﬁ rst ﬂ oor of the chase to prevent heat loss.

4) Some local codes require 1 hour ﬁ re rating

on one or all sides of ﬁ re chases. Check with your local authorities.

FIREPLACE

ENCLOSURE FRAMING

As per the diagram, the framing of the main enclosure should not infringe on the area above the ﬁ replace to the ceiling level. The rear and side walls as well as the face above the ﬁ replace must not extend into the area above the unit. The only structure allowed above the unit is on the stand-offs at the front of the unit supporting the header.

The enclosure walls can be framed using any suitable material (2 x 4 - 2 x 6 studs, plywood, gyproc, etc.), 2 x 6 is not acceptable for header.

Normally, framing will be set back to allow sheathing to be ﬂ ush with the front of the ﬁ replace.

Framing Speciﬁ cations

When framing in the header (directly above the ﬁ replace) DO NOT bring any combustible mate- rial lower than the top of the stand-offs.

Be sure to seal the space between the ﬁ replace and the enclosure above with Wonderboard, Durock or other similar non-combustible sheeting to prevent hot air from entering the enclosure.

CAUTION: ONLY NON-COMBUSTIBLE MATERIAL LIKE EXPANDED METAL OR CONCRETE BOARDS SUCH AS WONDERBOARD AND DUROCK ETC. MAY BE USED IN THE SPACE BETWEEN THE UNIT AND THE FRAMING.

Clearances to Combustibles

Regency Z2510 WarmHearth 7

INSTALLATION

Note: If the ﬁ replace is being cantilevered

through an outside wall, the entire enclosure (ﬂ oor, wall and false ceiling) up to the ﬁ rst ceiling level must be completely insulated and vapor sealed and sheathed, to avoid transfer of cold air through the ﬁ replace when not in use.

FRAMING DETAILS

Note: Ducting is tested at 1 in. clearance to framing for the ﬁ rst 6 feet and 1/2 in. thereafter

and no stand-offs are required.

Building Structures Cannot

Encroach on Chase

LOCATION OF

FIREPLACE

Carefully select the proper location for heat circulation, aesthetics, chimney obstructions and clearance to side wall(s). With proper pre-planning, a slight adjustment of a few inches can save considerable time and expense later during construction and assembly.

Carefully consider the position of the ﬁ replace opening with respect to the location of adjacent or nearby stairwells, bath or kitchen exhaust fans and/or return air registers for forced air furnaces/air conditioners that could cause a smoking ﬁ replace condition if the house is tightly insulated.

HEARTH EXTENSION

Note: When the unit is raised 4 inches above

the ﬂ oor the Regency Hearth Extension (Part# 000-910) is not required. If you plan to raise the ﬁ replace and hearth extension, build the platform assembly then position ﬁ replace and hearth extension on top. If you are not raising the unit, check that you will have sufﬁ cient clearance under the bottom louver for your ﬁ nishing material on top of the hearth extension, i.e. tiles, concrete board, etc.

1) Insert the metal safety strip, packaged with

the ﬁ replace beneath the ﬁ replace as illustrated below. The safety strip should be tacked down to prevent possible shifting and should overlap for continual coverage of the ﬂ oor.

Note: A safety strip is not required when the

ﬁ replace rests on a non-combustible surface.

Note: Install the hearth extension only as

illustrated.

The safety strip should extend 2 in. (51 mm)

in front and on the sides of the ﬁ replace. In the event a wooden support is used to elevate the ﬁ replace above the ﬂ oor, a “Z” type safety strip should be fabricated from 20 gauge galvanized sheet steel and used to protect the front surface of the wood

Regency Z2510 WarmHearth8

INSTALLATION

support as well as the ﬂ oor beneath the hearth extension.

Note: The “Z” type safety strip is not

supplied by Regency and must be fabricated locally.

2) Refer to ﬁ replace Dimensions and Speciﬁ -

cations section for framing dimensions and details. The framing header may be positioned directly on top of the front ﬁ replace stand-offs.

IMPORTANT: Under no circumstances can the ﬁ replace top or side spacers be removed or modiﬁ ed. Do not notch the header to be installed closer than the ﬁ replace outside facing spacers.

3) Fireplace must be anchored to the framing

to prevent movement or rocking; use wall grips or seismic brackets which have been supplied. These angle brackets are installed by attaching them to the side of the unit and to the back side of the 2 x 4 or further back on 2 x 6 framing.

In Canada:

Any factory built chimney listed and certiﬁ ed to ULC-S629. Also any of the following chimney covered by ULC-S610 or ULC S604.

1) GSW Heating Products Model JFC

2) Oliver McLeod Ltd. Model PRO-JET3103

3) Security Chimney Ltd. Model ASHT

4) Selkirk Metalbestos Model SS

5) ICC Excel 103 HT

6) ICC Excel 2100

In U.S.A.

Any of the following chimney systems covered by UL-103HT may be used.

1) American Metal Product AMERI-TEC Model HS

2) GSW Heating Products Model FC

3) Oliver McLeod Ltd. Model PRO-JET3103

4) Security Chimney Ltd. Model ASHT

5) Security Chimney Ltd. Model S2100

6) Security Chimney Ltd. Model Sentinel

7) Selkirk Metalbestos Model SS II

8) Simpson Dura-Vent Model Dura-Plus

9) ICC Excel 103 HT

10) ICC Excel 2100

Note: Anchor Plate/Fireplace Adaptor must be purchased with Chimney system.

The use of only one of these systems is permitted when installing the WarmHearth. Do not alter or mix parts from other systems as this may cause a potential hazard and void Regency’s limited warranty.

Ventilated Chase Pan

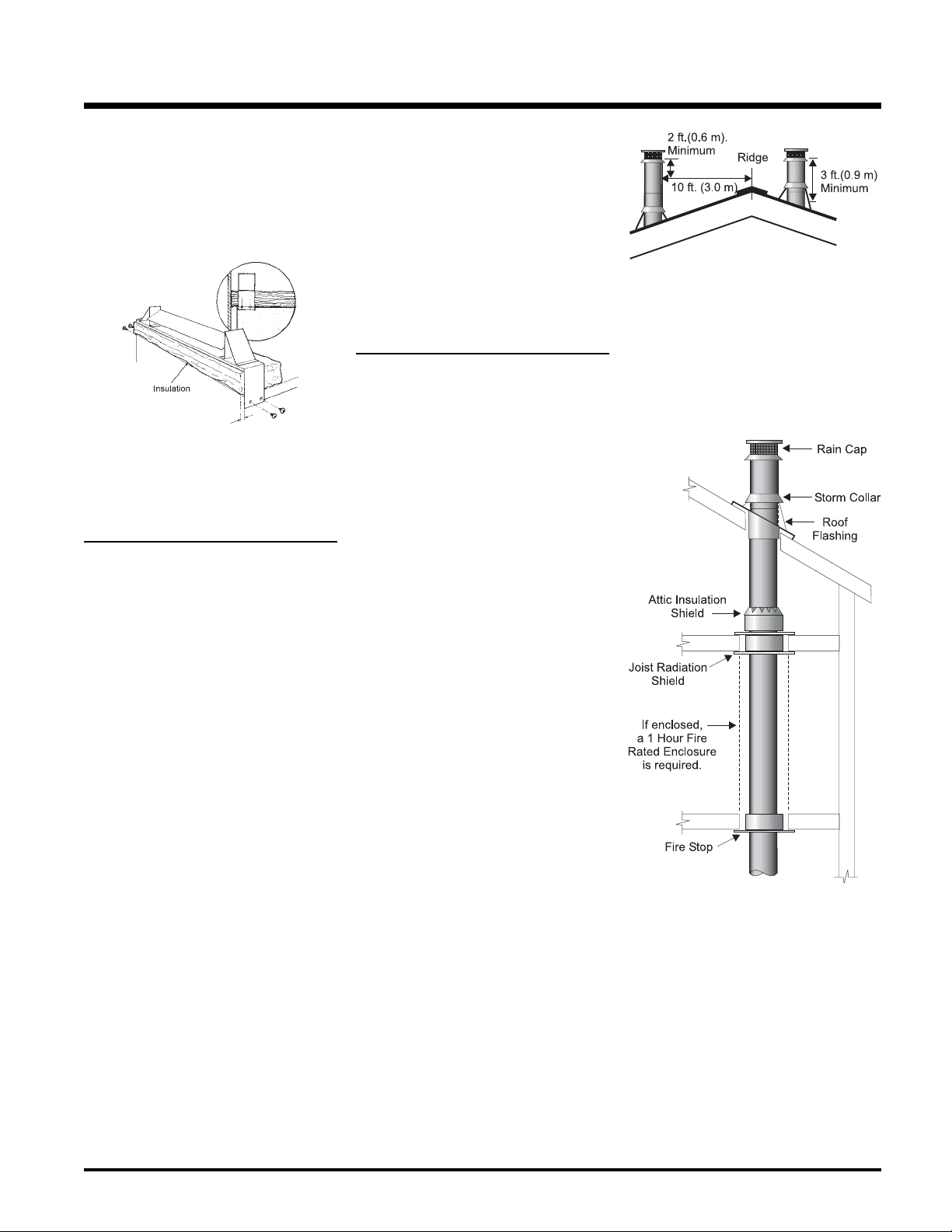

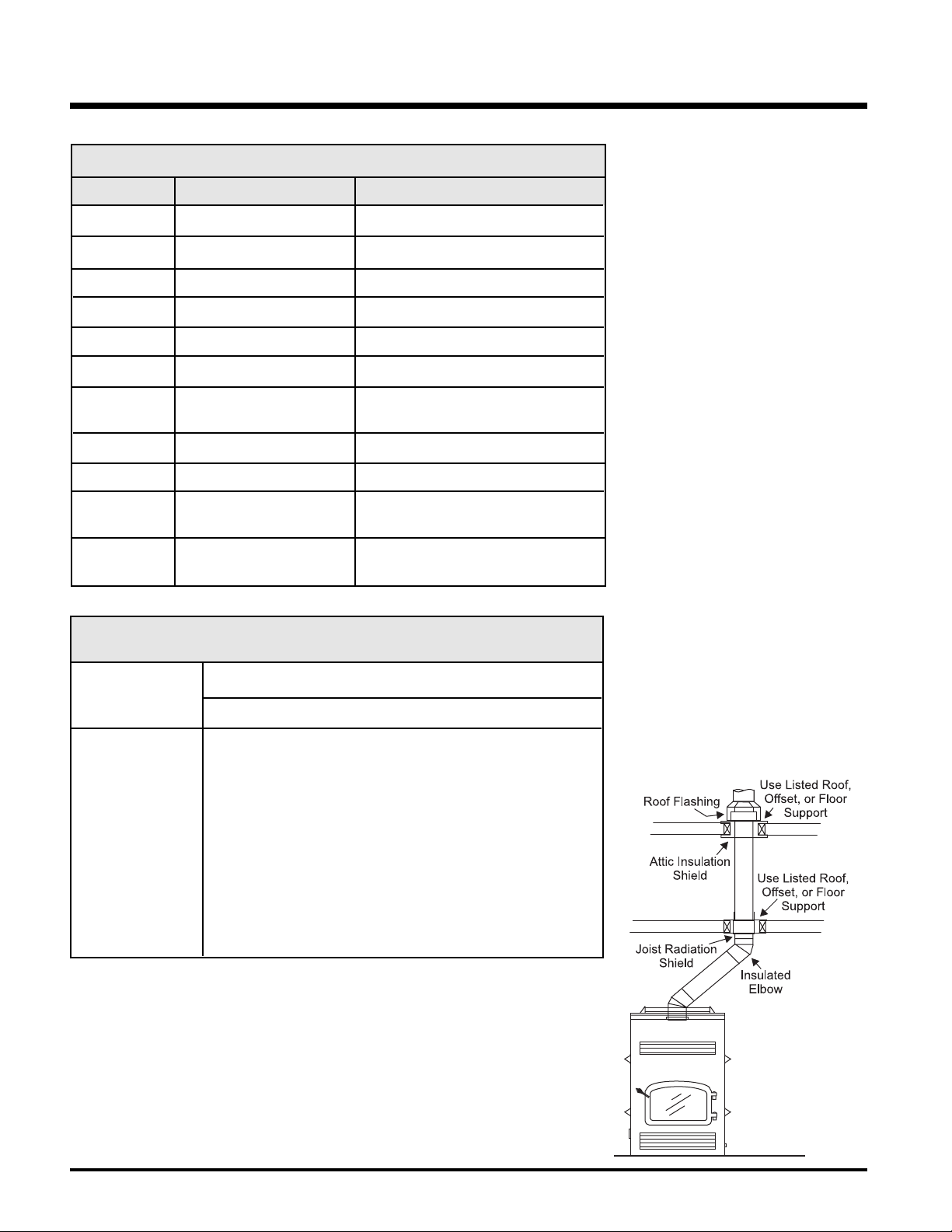

Chimney Height

The total height of your WarmHearth ﬁ replace system from the surface the ﬁ replace rests on to the chimney top must not exceed 36 ft. and must also meet minimum system height chart. Please refer to the Flue Manufacturer's Instructions for speciﬁ c details (refer to the Minimum Flue System Heights section).

Chase Enclosure

A chase is a vertical box-like structure constructed to surround the ﬁ replace and chimney. A ventilated chase cap is highly recommended. Refer to ﬂ ue manufacturer's instructions for reduced ﬂ ue heights above chase terminations. ICC and Dura-Vent allow for reduced height with ventilated chase ﬂ ashing. As with all chimney installations, avoid overhead obstructions such as trees, power lines, etc.

A chase should be constructed just like any outside wall. In a cold climate, we recommend the base of the chase be insulated between the solid continuous ﬂ oor beneath the ﬁ replace and the chase bottom. If used, the value and amount of chase insulation in a cold climate installation is optional and not required for safety. Insulation is recommended to avoid heat loss.

Note: Insulation does not come in contact with Chimney. Maintain a 2 in. clearance.

CHIMNEY SYSTEM CONSIDERATIONS

Regency’s WarmHearth Fireplace is to be installed with one of the following Chimney Systems only. Chimney systems going from 7 in. to 8 in. diameter (with adaptor #000-924) may be used.

Regency Z2510 WarmHearth 9

INSTALLATION

BEFORE YOU START

Check your inventory list to be sure you have all the necessary parts supplied in good usable condition. Check for any concealed damage. Check the operation of the combustion air damper. When the damper is in the fully closed position, the damper handle should be to the right. When damper is in the fully open position, the damper handle must be in the left position.

Installation Components

ASSEMBLY STEPS

Note: The following steps represent the nor-

mal sequence of installation. Each installation is unique, however, and might require different steps. Each step is dealt with in detail in the following pages.

1) Install stand-offs and insulation strip to the

unit (refer to the Installation Components Diagram).

2) Complete Framing for the WarmHearth (refer

to the Framing section).

IMPORTANT: Remove all gold accesso-

ries such as door, louvers while installing to avoid marking.

Position ﬁ rebox prior to framing or into pre-

pared framing (refer to the Framing Details section).

3) Install the chimney system (refer to the

Chimney System Considerations section).

4) Install outside combustion air kit (refer to

Installing the Outside Air Kit section).

5) Hook-up the Wiring (see Wiring the Warm-

Hearth section).

6) Install the Blowers (refer to the Installing the

Blower Systems).

7) Gravity Air Feed Option (refer to the Gravity

Air Feed Kit Option).

8) Install Central Heat Kit, if applicable (refer to

the Installing Your Central Heating System section).

9) Complete ﬁ nish wall material, surround and

hearth extension to your individual taste ( refer to the Finishing the WarmHearth).

10) Position masonry liner/bricks and ceramic

ﬁ ber insulation in the unit. Attach gold louvers, glass, door, spring handles (refer to the Masonry Liner / Bricks section).

INSTALLING THE

STAND-OFFS

Stand-offs are installed to provide reduced temperatures and proper clearances for the safe installation of your product. They consist of four 1 in. stand-offs on the back, two 2 in. stand-offs on each side and one 6 in. stand-off on the top of the unit.

Attach these stand-offs where indicated in the pre-drilled holes on the unit body.

Regency Z2510 WarmHearth10

INSTALLATION

IMPORTANT: It is absolutely necessary to attach stand-offs to the unit to avoid combustion problems. Serious overheating of combustible framing and possible ﬁ re may result if stand-offs are not properly installed.

IMPORTANT: Insulation extends forward to seal against the back of the WarmHearth masonry or noncombustible face.

SET THE

WARMHEARTH

INTO POSITION

1) Estimate the total weight of the ﬁ replace

system and surround materials such as brick, stone, etc., to be installed. Shipping weight is 715 lbs. and stripped weight is 460 lbs. Stripped weight refers to the weight of the product with bricks, door and any accessories removed.

2) Measure the square footage of the ﬂ oor

space to be occupied by the system, surrounds and hearth extensions.

3) Note the ﬂ oor construction, i.e. 2 x 10’s, (51

x 250 mm), single or double joists, type and thickness of ﬂ oor boards and consult your local building code to determine if you need additional support.

4) Remove door, ﬁ rebox bricks, louvers etc.

Note: Set aside Gold doors and louvers away

from harsh chemicals and away from abrasive materials to avoid damage, e.g. muriatic acid for masonry wash will strip the gold plate on the door. Firebricks are fragile and should be handled with caution.

The ﬁ replace may be installed directly on a combustible ﬂ oor or raised on a platform of an appropriate height. Do not place ﬁ replace on carpeting, vinyl or other soft ﬂ oor coverings. It may, however, be placed on ﬂ at wood, plywood, particle board or other hard surfaces. Be sure the ﬁ replace rests on a solid continuous ﬂ oor

or platform for support and to prevent cold air from entering the room from under the ﬁ replace, if against an outside wall.

The ﬁ replace may be positioned and then the framing built around it, or the framing may be constructed and the ﬁ replace positioned into the opening.

The minimum ceiling height is 7 feet. When the unit is raised 4 inches above the ﬂ oor the Regency Hearth Extension (Part# 000-910) is not required. A suitable non-combustible hearth pad is mandatory in all installations.

INSTALLING THE

CHIMNEY SYSTEM

Following are a set of general guidelines for installation of the chimney system. The more detailed installation manual supplied with the speciﬁ c chimney system must be followed.

1) Using standard construction framing

techniques, construct the opening for the chimney route up through the ceiling(s) and roof or through an outside chase. Framing must maintain adequate minimum air space clearance at all times.

CAUTION: Allow a minimum 2 in. chimney

air space or as speciﬁ ed by the owner's manual for the chimney, to combustible framing members throughout vertical or offset chimney installation.

2) Attach anchor plate/ﬁ replace adaptor to

the top of the ﬁ replace. It is important that a tight seal be made with this part and the unit’s collar. This must be purchased with the chimney system.

3) Install ﬁ restop, radiation shield, or attic

insulation shield as required at each ﬂ oor penetration (refer to Table 1 in this section). Check chimney manufacturer's framing opening sizes to allow for correct clearances. All parts must be listed.

4) The roof ﬂ ashing should be installed making

sure that alignment is correct with openings below.

5) Chimney lengths may now be added until

the required height is reached. A minimum ﬂ ue height of 16 ft. from the ﬂ oor (or 12 ft. from the top of the unit) is mandatory (refer to Table 2, in this section for Flue Heights).

The performance of your unit is governed to a

very large extent by the chimney system. Too short a chimney can produce poor drafting which in turn can cause difﬁ cult start-up, dirty glass, smoking out door and even reduced heat output. Too tall a chimney may prompt excessive draft which can result in very short burn times and excessive heat output. The

chimney must extend at least 3 ft. above its point of penetration of the roof and be at least 2 ft. higher than any point on the roof, wall, or building within 10 ft. of it.

6) The raincap and storm collar should now

be fastened to the top of the chimney. Install additional support(s) as indicated by chimney manufacturer's instructions.

SPECIAL NOTES:

1) Negative Pressure In The House. When

there is no ﬁ re in your unit there still should be sufﬁ cient draft to draw smoke from a burning piece of paper held under the bafﬂ e. If your installation is correct, smoke will go up the ﬂ ue. If however, there is a problem with your installation, cold air may be coming down the ﬂ ue into the room. This may be the case if your unit smokes on start-up with the door open, until the unit heats up. To overcome this problem, try closing an upstairs window and open a nearby window to pressurize the house. Note: the door can be open brieﬂ y to start your ﬁ re but must

Regency Z2510 WarmHearth 11

INSTALLATION

TABLE 1

REQUIRED FIRESTOP, RADIATION SHIELD, OR ATTIC INSULATION SHIELD

Model 1st Floor 2nd Floor into Attic

AMERI-TEC 3103 Firestop Assembly (FSA) FSA with Attic Insulation Shield (AIS)

GSW JFC Firestop/Radiation Shield (FRS) Firestop Attic Insulation Shield (JSC-FAIS)

GSW FC Firestop Radiation Shield (FRS) Firestop Attic Insulation Shield(JSC-FAIS)

ICC Excel 103HT Radiation Shield (RS) Radiation shield (RS) with Storm Collar (SC)

ICC Excel 2100 Radiation Shield (RS) Radiation shield (RS) with Storm Collar (SC)

O.M. PRO-JET Firestop Radiation Shield Joist Shield with Attic Insulation Shield

Security ASHT Firestop Radiation Shield (RS) Radiation Shield with Attic Insulation Shield (RS,RSA)

Security 2100 Radiation Shield (XRSA) Radiation Shield (XRSA)

Selkirk SS Radiation Dustshield Attic Insulation Shield

Selkirk SSII Firestop Wallspacer Firestop Wallspacer with Attic Insulation Shield

Simpson Firestop Radiation Shield Firestop Radiation Shield with Attic DURA-PLUS Insulation Shield

TABLE 2

MINIMUM RECOMMENDED FLUE HEIGHTS IN FEET

(Measured from the top of the solid fuel appliance)

# OF ELBOWS ELEVATION (FT)

ABOVE SEA LEVEL 0 2 x 15

0-1000 12.00 13.00 14.00 15.0 18.00 16.00 20.0

o

4 x 15o 2 x 30o 4 x 30o 2 x 45o 4 x 45

o

1000-2000 12.48 13.52 14.56 15.6 18.72 16.64 20.0

2000-3000 12.96 14.04 15.12 16.2 19.44 17.28 21.6

3000-4000 13.44 14.56 15.68 16.8 20.16 17.92 22.4

4000-5000 13.92 15.08 16.24 17.4 20.88 18.56 23.2

5000-6000 14.40 15.60 16.80 18.0 21.60 19.20 24.0

6000-7000 14.88 16.12 17.36 18.6 22.32 19.84 24.8

7000-8000 15.36 16.64 17.92 19.2 23.04 20.48 25.6

8000-9000 15.84 17.16 18.48 19.8 23.76 21.12 26.4

9000-10000 16.32 17.68 19.04 20.4 24.48 21.76 27.2

b. Clear family members out of the area.

c. Call the ﬁ re department.

d. Use a dry chemical ﬁ re extinguisher,

baking soda or sand to control the ﬁ re.

Do not use water, it will create a steam explosion.

e. Check for hot embers around the unit

and outside your home; extinguish.

f. Do not use your ﬁ replace again until it has

been inspected by a qualiﬁ ed person.

Offset Chimney Installation

Chimney elbows may be used in the installation of the system. A maximum of four 45 degree elbows are allowed. This may be achieved by combining 30 degree and 15 degree elbows together if necessary and allowed by the chimney manufacturer. Offset angles of 45, 30 and 15 degrees are allowed with a maximum of 2 offsets.

1) Install the ﬁ replace and chimney as de-

scribed above. When you require an elbow, proceed as follows:

2) Install the insulated elbow. Turn the elbow

to the required direction and fasten it with screws or locking bands depending on ﬂ ue design as speciﬁ ed by the manufacturer.

3) Turn the chimney lengths clockwise to

lock them together, then secure them with screws at each joint or locking bands; see the manufacturers requirements.

4) Use another elbow to return the chimney to

vertical.

be closed during regular operation because the unit uses outside air for combustion, not room air.

2) Multiple Terminations. When you install

more than one chimney in the same chase or within the same general area, we suggest that their terminations be separated by at least 16 in. (410 mm) horizontally and 18 in. (460 mm) vertically. This separation is to prevent smoke migrating from one chimney to another.

3) Chimney Maintenance. It is important that you inspect your chimney regularly and keep it clean. If you note more than 1/8 in. creosote build up in your chimney have it cleaned as per instructions of the chimney manufacturer.

4) Chimney Fires. If you do have a chimney ﬁ re, refer to the following:

a. Close the fireplace doors and air

damper.

5) Install an offset

support in the joist at the ceiling. Resupport above each offset; elbows are not designed to carry the weight of the ﬂ ue system.

Regency Z2510 WarmHearth12

INSTALLING THE OUTSIDE AIR KIT

Combustion air is fed to the ﬁ rebox through a connection on the rear lower left side of the unit. A free ﬂ owing supply of air must be available to this opening at all times. Combustion air may be taken from inside the building if the local building code allows, but performance may suffer. Also, it must go through the 4 in. duct to the connection on the left hand side.

INSTALLATION

WIRING THE WARMHEARTH

Field wire main power supply to ﬁ replace for fan kit. (All electrical connections should only be performed by a licensed/certiﬁ ed electrician).

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

Air drawn from the interior of the building will affect the performance of gas or oil furnaces, and exhaust fans and fan driven appliances. This may cause a negative pressure in the house allowing smoke to back into the home. The preferred source of combustion air is from outside the building. If possible, install the kit on the wind loading side of the building not the leeward or (negative pressure) side.

Note: Do not obtain combustion air from

attic, garage or other enclosed space.

1) Put the supplied insulated air duct to a nearby

exterior wall. Maximum length of duct is 20 ft. (6.1m). Duct length should be kept to a minimum and as straight as possible. Note: 5 ft. only is supplied with unit. If more than 5 ft. is used, increase the diameter of the duct. Termination should be in an area with good air ﬂ ow.

2) Ensure that your air source is not close to

automobile exhaust, gas meters or other vents.

3) Cut a 4-1/4 in. hole through the wall and

mount the outside air kit.

4) Attach the two ends of the duct (making

sure not to damage the insulating cover) after installing the ﬂ ange on the ﬁ replace side. Duct must be secured by screws or clamp.

INSTALLING THE BLOWER SYSTEMS

The WarmHearth Fireplace has been designed to meet a wide range of heating requirements. The radiant heat (through the large glass area) combined with the naturally convected heat, allows the WarmHearth Fireplace to adequately heat an average sized room. A blower is recommended to assist in heating a larger area or one with wall separations. Through the use of two separate blower systems, Regency has developed the three basic blower wiring options listed in the diagrams below. Please read all the descriptions before deciding which option is best suited for your application.

OPTION 1

Internal Blower with Thermo-Disc

The thermodisc provides the user with more convenient control. By leaving the auto/man switch on AUTO, the thermodisc will shut the fan off automatically when the ﬁ replace is too cool to provide adequate heat.

Blower switch box slides into bottom louver

assembly and is screwed into place. Place

label on outside of louver as shown.

1) Slide blower under side clips (see directional

arrows on diagram) and wire to terminal box. Note: hardwire terminal box before drywalling.

2) Blower switch box slides onto bottom louver

and is screwed into place.

3) Place sticker on outside of bottom louver.

Outside Air Inlet must be 6 ft. below

the chimney termination point

Regency Z2510 WarmHearth 13

INSTALLATION

OPTION 2

External Blower with Thermo-Disc

The thermodisc allows the ﬁ replace to warm up properly before the blower will switch on. The blower is also switched off if the ﬁ replace temperature falls below suitable heating levels.

OPTION 3

Internal and External Blowers

with a Thermodisc

When both blowers are used the thermodisc should be connected to the external blower.

Note: There are two holes provided for attach-

ing the thermodisc to the ﬁ replace. The holes are on the right hand side just below the ashlip.

FAN PART NUMBERS

The parts listed below are available from Regency. Please see your Regency Dealer for prices.

000-912 Internal Blower Assembly: Includes 150 CFM, 2 speed blower,

Blower Switch Kit and Thermo-Disc Kit.

000-928 Blower Switch Kit:

Includes switch box, two way switch and a three way switch.

(Fastens to louvers) 000-918 One-way Damper: Eight inch diameter butterﬂ y valve

necessary for external blower installation.

The remainder of the components discussed here are optional and are available from your Regency dealer or local heating supply outlet. Below is the listed speciﬁ cations required for these parts:

External Blower: 8 inch diameter inlet a mini-

mum capacity of 433 CFM at a static pressure of 0.75 in. w.c. and is listed in the country where the blower is to be used.

Wall Switch: 1 speed blower requires 2-way switch 2 speed blower requires 3-way switch etc.

Wall Thermostat: For both wall switch and

thermostat see your Regency dealer or heating supplier for compatible parts.

GRAVITY AIR FEED KIT OPTION

The Gravity Air Feed Kit is designed to extend the heat output vent above the WarmHearth or to the front or the side. The upper louver opening is blocked off and ﬂ ex duct is connected to the vent holes in the top of the unit and run to vent grills installed above the unit or to the side. Both 8" diameter insulated Flex pipes must be used along with the air vent to bring additional air into the chase.

Qty.

1 Block-off plate 6-1/2" x 26" 4 Connector collars 4 Adjustable clamps 2 Upper air vent frame 2 5' lengths of ﬂ exible vent pipe (8" dia.) 2 Large upper vent covers 1 Small lower vent cover 1 Lower air vent frame

2 Insulation sleeves for ﬂ exible vent pipe

1) Remove the screws from both of the vent hole

covers (Vent cover A) on top of the unit.

2) Take the connector collar and rotate it in the

hole to cut through 4" of insulation. Remove the insulation from pipe.

3) Remove the screws on the lower cover (Vent

cover B) and slide it back under the insulation.

Parts List

4) Slide the connector collar into the ﬂ ex duct and

secure with an adjustable clamp.

Regency Z2510 WarmHearth14

INSTALLATION

5) Install the connector collar into the unit

making sure it is pushed all the way down. Reach through the upper louver opening and snip and bend out the lower edge of the collar in at least 4 places inside the ﬁ replace with pliers so it can't be pulled out.

Flex Vent

6) Slide the collar into the ﬂ ex duct. secure with

an adjustable clamp. Snip and bend out the outer edge of the collar in at least 4 places inside the frame so it can't be pulled out.

7) Drill holes or use nails to attach the Vent

Frame to the wall. Note: holes in frame are used to attach the Vent cover.

Use high temperature silicone to seal the

block-off plate to the unit. If necessary drill extra holes in the plate and the unit and secure with extra screws.

Note: Make sure the block-off plate is ﬂ ush and fastened tightly to the WarmHearth.

Important: A tight joint between masonry and the ﬁ replace is necessary to prevent heat from rolling up the front to the Face Header.

INSTALLING YOUR

CENTRAL HEATING

SYSTEM

The WarmHearth may be used as a central forced air heating unit by adding ducting and a fan.

Materials Required:

1) Blower requirements: see Options 2 and

3 in section "F) Installing the Blower Systems"

2) Metal ducting, grills and distribution boxes.

(Installer Supplied)

3) Ducting is tested at 1 in. clearance to fram-

ing for the ﬁ rst 6 feet and 1/2 in. thereafter and no stand-offs are required. All ducting should be insulated to reduce heat loss.

CAUTION: Blowers must meet speciﬁ cations listed (refer to Installing the Blower Systems section). A home ﬁ re may result from the use of substitute parts.

Installation

1) Remove screws from one of the vent hole

covers "A" (but not both) on top of the WarmHearth.

2) Take one way duct vent pipe and rotate

in hole to cut through 4 in. of insulation. Remove insulation from pipe.

3) Remove screws on cover "B" and slide it to

the back.

4) Install the one way valve making sure it is

pushed all the way down. Shutters should

IMPORTANT: Make sure the front edge of the collar is ﬂ ush with the front edge of the air vent frame.

Note: The ﬂ ex duct can easily be trimmed

shorter or stretched longer.

Note: Termination boxes require a 14-1/2"W x 15-3/8"H opening in com-

bustible materials.

8) Locate and install the lower air vent next.

A 7-3/4" x 7-3/4" opening is required to ﬁ t the frame that is supplied. The vent must be installed in the chase and should be within 12" of the ﬂ oor.

WARNING: Lower air vent MUST be installed in all applications, otherwise serious overheating of the chase may result.

9) Fasten the block-off plate to the WarmHearth

using the existing holes that normally secure the louvers, using the louver screws. Make sure the top edge is up.

Regency Z2510 WarmHearth 15

Central Heat Option

INSTALLATION

be at the top so they lie ﬂ at. Bend out the lower edge of the valve at 4 places inside the ﬁ replace with pliers so that it can't be pulled out again (refer to Diagram 2).

Diagram 1

Diagram 2

5) Locate the blower in a convenient location

near the ﬁ replace. In a 2 story home one good location would be in the ceiling of the basement because you must be able to access it for oiling and replacement.

Note: The blower can be installed almost

anywhere in the home. However, some thought should be put into the planning, to ensure blower noise is kept away from rooms that want quiet. Length of runs should be kept to a minimum to conserve space and minimize cost. Maximum duct length should normally not be more than 50 feet between the ﬁ replace through the fan to the outlet farthest away. There is a loss of about 15% performance at 50 feet.

6) Connect the inlet of the blower to the outlet

of the valve using 8 inch diameter metal ducting (rigid or ﬂ ex). Any other size will not work properly.

7) Duct-work can then be run to the desired rooms following good warm air distribution practices. Up to six 5 in. diameter runs can be installed from this system.

Note: The cross sectional area of the distri-

bution system must total at least 50 square inches. For example: If 5 in. pipe is used for distribution, the cross section of each is 20 square inches. Three runs of 5 in. pipe is minimum. Shut-offs must not be installed on the registers feeding the room with the thermostat. To prevent the duct and motor from overheating 50 square inches of grill/duct must remain open during operation.

WARNING: When the central heating blower is in operation it actually removes air from the room containing the ﬁ replace. If this room can be closed off from the rest of the house, (i.e. with a door) a grille with at least 100 square inch open area must be installed to allow the air to get back to the ﬁ replace. Otherwise periodic smoking of the ﬁ replace will be experienced.

8) When installing the blowers for the cen-

tral heating option, a thermodisc must be installed (supplied with one-way damper). Install thermodisc on the inside (top right side) against the back surface using the two screws, lock washers and nuts supplied (refer to diagram 3).

9) Wire fan to a 120 volt, 15 amp breaker through the line voltage thermostat (refer to wiring diagrams in the Installing the Blower

Diagram 3

Systems section). If used, the thermostat should be located in the principal room heated through the duct system. Do not install it in the room the ﬁ replace is built in. Near the ﬁ replace a simple shut-off switch must be installed in series with the thermostat. If the internal blower (Part # 000-912) is also installed, the shut-off switch will be mounted just beside the variable speed control.

Note: Do not install an independent variable

speed control on the central heating fan, unless the manufacturer of the central heating fan permits it.

10) Frame around ﬁ replace and ducting as

shown. Use metal ducting only; don't use plastic in the chase. The diagram shows some ways of ducting the hot air from the fan. You are not restricted in the size of pipe, as long as the total cross sectional area of all runs combined is not less than 50 square inches. The diagram shows alternate fan locations. Only one external fan is allowed.

11) Ducting is tested at 1 in. clearance to fram-

ing for the ﬁ rst 6 feet and 1/2 in. thereafter and no stand-offs are required. All ducting should be insulated to reduce heat loss. Use only approved insulation.

WARNING: The WarmHearth may be tied into your home's central warm air duct system by linking into the HOT air duct in any position you may choose, however, caution must be used to ensure that hot air produced by the WarmHearth cannot be drawn back into the central heating furnace.

Typical Floor Register

Regency Z2510 WarmHearth16

a

aaa

a

aaa

a

aa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

a

aaa

INSTALLATION

FINISHING THE WARMHEARTH

Completing the Facing

Facing materials must be thin veneer (non-self supporting facades) or self supporting facades. If you are installing a thin veneer facade the Regency Masonry Retainer Kit (Part # 000-920) is recommended. All facades must be Non- Combustible such as brick, rock or ceramic tile. See Clearance to Combustible diagram at the beginning of this manual to determine the extent to which you must use non-combustible materials. Gypsum wallboard is not non-combustible (refer to Diagram 1).

Non-Self Supporting, Thin Veneer

Facades Installation

1) Install heavy expanded metal only on the

top half of the ﬁ replace using a drill to predrill holes and install using tap screws at locations as indicated on kit.

2) Install metal edging of kit on each side of

the doors making sure the edges ﬁ t nicely with the arch edge above.

3) Cover the rest of the area with wire mesh

or metal lath, overlapping around the heavy expanded metal. Make sure nails or staples used for fastening mesh penetrate studs at least 1 in.

.

Diagram 1

Masonry Retainer Kit Option

For a non-selfsupporting veneer ﬁ nish only.

1) Framing and plywood cannot ex-

tend past the side and top stand-off spacers. Allow for the thickness of the wall sheathing when framing so that the front of the WarmHearth and the wall sheathing are ﬂ ush.

2" (51mm) x 4" (102mm)

Framing

Metal Edging

Drill & Tap screws

Extend unit past studs so it is flush with sheeting.

a

a a a a a a a a a

a

a a a a a a a a

a

Do not restrict air ﬂ ow through the inlet and outlet louvers of the ﬁ replace. This will cause overheating and possible ignition of surrounding materials.

a

a a a a a a a a

a

aaa

a

aaa

a

aaa

a

4) Mortar must be "thin set" or "thin bed" type

a

inherently polymer modiﬁ ed. If not modiﬁ ed, you should add a synthetic latex additive. Mix to a ﬁ rm, moist consistency. Using a plasterer's or mason's trowel apply mortar 1/2 in. to 3/4 in. thick to prepared surface area. Do not spread more than a workable area so that the mortar will not set up before

a

stone or brick is applied.

Note: Remove the ﬁ replace doors and lou-

vers and store them in a safe place until all the masonry work is ﬁ nished. Acid from the cleaning operation will permanently damage gold plating.

5) If additional mortar is required, use a grout

bag to ﬁ ll in joints. Care must be taken to avoid smearing on the surface of stone or brick. Accidental smears should be removed only after mortar has become crumbly, using a whisk broom or dry bristle brush. Do not use a wet brush or a wire brush.

6) When mortar joints have become ﬁ rm

(thumb-print dry) they should be pointed up with a wood stick or metal jointing tool.

Regency Z2510 WarmHearth 17

2) Unscrew the top stand-off

and move the ceramic blanket forward so it will be tight against the mesh to make a seal.

3) Mesh must be positioned

one way only to allow the mortar to hold and not slide off. Place "Middle" mesh (A) on the front and position top grill edge frame. Check dimensions from opening and mark and drill screw holes. Depending on the installation, heavier reinforcing wire screen may be required to bridge the stand-off spacer area around the perimeter of the unit. Hold in position with 2 screws while the door arch is centered.

a









INSTALLATION

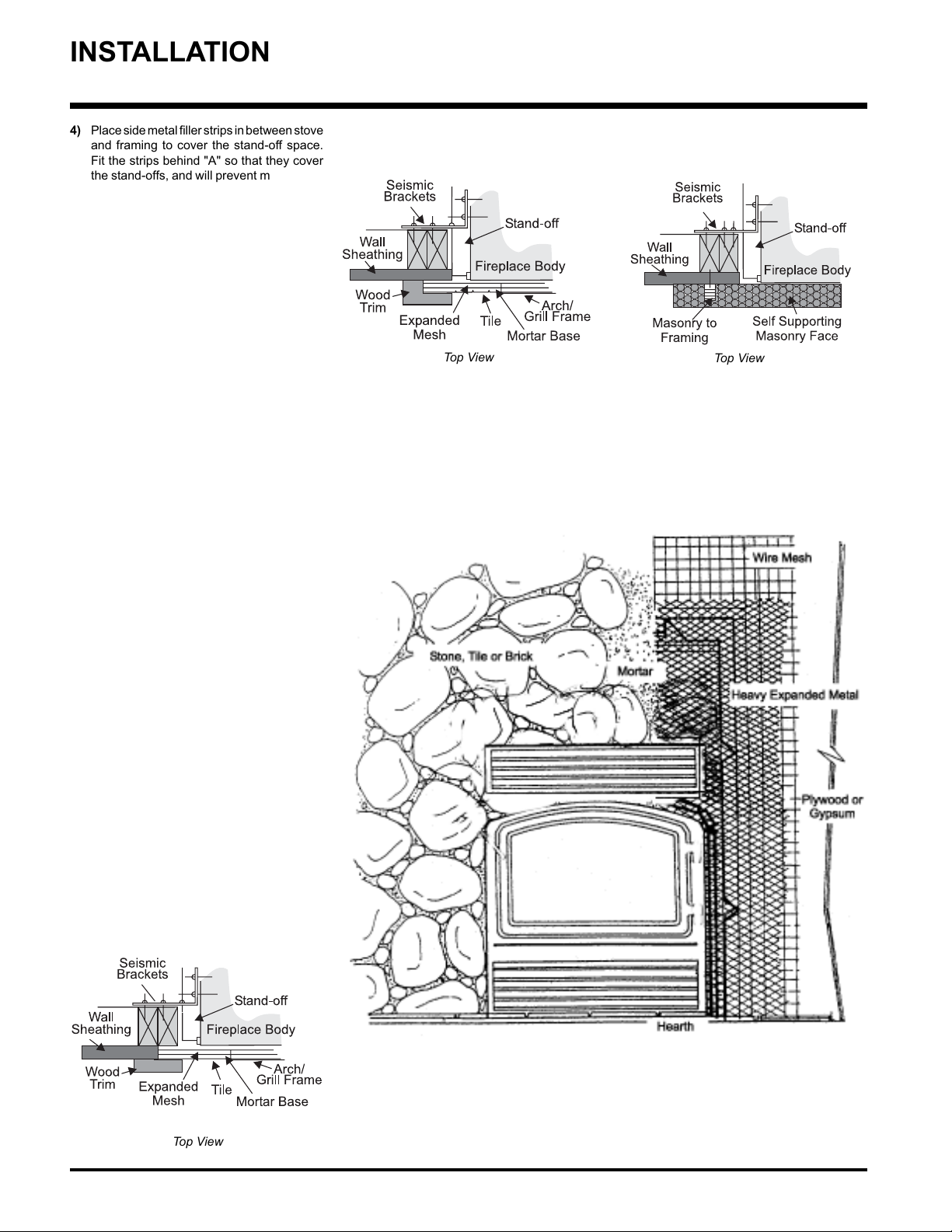

4) Place side metal ﬁ ller strips in between stove

and framing to cover the stand-off space. Fit the strips behind "A" so that they cover the stand-offs, and will prevent mortar from falling through the mesh.

5) Center door arch edge, mark and drill holes.

Note the top of the side pieces meet up with the edges of the center arch. Attach arch edge and bottom of grill edge to unit. The door arch ﬂ oats at each end so that it can be adjusted to match the curve of the door.

6) Depending on the height of the hearth in

front of the unit, it may be necessary to trim the bottom of the mesh sides "B" to ﬁ t. Mark and drill holes for side pieces. Attach with washers and screws.

7) Place the top metal ﬁ ller strip in between

stove and framing to cover the stand-off space. Fit the strips behind Top mesh "C" so that it covers the stand-off, and will prevent mortar from falling through the mesh.

8) Put the door on the unit and check that the

veneer on the door hinge side does not interfere with the door swing.

9) Use washers and screw top mesh "C" to top

of grill frame. This is attached with the top edge of the grill frame on piece "B".

Example 2:

Face of Fireplace Flush with Wall Sheathing.

Top View

Completing the Mantle

A stone mantle may be placed directly above or below the warm air outlet. If a wood or other combustible mantle is desired, it must be at least 18 inches above the grill opening and may project up to 10 inches in front.

Top View

10) Now fasten mesh to wall sheathing and

blend in.

11) Use only non-combustible masonry prod-

ucts to ﬁ nish ﬁ replace front.

Finishing Details

Consideration must be given to ﬁ replace placement when deciding on how to complete the facing.

IMPORTANT: A tight joint between masonry and ﬁ replace is necessary to prevent heat from rolling up the front to the Face Header.

Example 1:

Face of Fireplace Flush with Wall Framing.

Top View

Regency Z2510 WarmHearth18

INSTALLATION

MASONRY LINER/

BRICKS

Insulated refractory panels are included to extend the life of the ﬁ replace and help radiate heat more evenly. Make sure Insulating Paper is in place along the bottom, side and rear before bricks are put into place. Insulation batt, 1 in. thick is placed above the top brick bafﬂ e.

Using the diagram to ﬁ nd the correct location of the panels install in the following sequence: sides, rear, bottom, top. Care should be taken not to damage the panels during installation.

THE LOG ANDIRONS SHOULD NOT BE REMOVED.

LOUVERS

DOOR HANDLE

The unit comes with a standard black door or optional gold plated door. After the unit has been installed and the facing completed place the door onto the door hinges. Put hinge cover caps on top of hinge to complete the door. Install the gold spring handle onto the handle bar.

to be a snug ﬁ t in order to prevent it from falling out when a ﬁ re is burning.

OPERATING

INSTRUCTIONS

Draft Control

Both the primary and air wash drafts are controlled by the control rod located under your ash lip. To increase your draft, push left for open, to decrease push right for closed. The draft control box is removable should it require attention. From time to time a high temp lubricant may be needed to keep the draft control sliding easily. It must, however, be re-sealed with RTV, high temperature silicone, when replaced.

The unit comes with standard black louvers but can have Gold Plated Louvers as an option. There are 2 sets of louvers: the top consists of 4 louvers and the bottom has 5 louvers.

To attach the louvers ﬁ rst slide 2 spring nuts into place making sure the smaller holes are on the back of the unit. Louvers are held in place by feeding the two screws through the spring nuts. Louvers can be removed by inserting a screw driver between the louvers and removing the screws.

GLASS INSTALLATION

Remove the wire retainer from the door, and place the glass in the door, making sure that the glass gasketing will properly seal your unit. The retainer should be resting on the gasketing not on the glass. Tighten securely, but do not wrench down on the glass as this may cause breakage. Do not substitute materials. If your glass door breaks, do not use your unit until it has been replaced (refer to the Glass Replacement section).

LATCH ADJUSTMENT

The door latch may require adjustment as the door gasket material compresses after a few ﬁ res. Removal of the spacer washer shown in the diagram below will allow the latch to be moved closer to the door frame, causing a tighter seal. Remove and replace the nuts, washer and spacer as shown.

Washers Spacer

SECONDARY AIR TUBE

INSTALLATION

1) Slide air tube into the hole on the left hand

side of the ﬁ rebox as far as it will go. The notch in the air tube should be facing the right hand side of the ﬁ rebox.

2) Slide the air tube back towards the right side

until it locks into place. To lock into position, use a pair of vise grips and tap them with a mallet until the tube locks into place. The air holes should be pointing down toward the primary air opening just inside the bottom of the door opening. The air tube will be difﬁ cult to snap into place because it has

FIRST FIRE

When your installation is completed and inspected you are ready for your ﬁ rst ﬁ re.

1) Open draft control fully. To the left is open,

to the right is closed.

2) Open ﬁ rebox door and build a small ﬁ re

using paper and dry kindling. Secure door on the ﬁ rebox and wait a few minutes for a good updraft in the ﬂ ue to establish the ﬁ re. Leaving the door slightly open will help your ﬁ re start more rapidly and keep glass clean. Add more kindling; then 2 x 2 or 2 x 4 softwood to establish a hot coal bed before adding larger cordwood.

Regency Z2510 WarmHearth 19

MAINTENANCE

CAUTION: Never leave unit unattended if door is left open. This procedure is for ﬁ re start-up only, as unit may overheat if door is left open for too long. The door is to be opened for a maximum of 5 minutes while loading or for ignition purposes only.

3) With the draft still in the fully open position

add two or three seasoned logs to your ﬁ re. Form a trench in the ash bed to allow air to reach the rear of the ﬁ rebox prior to closing the door.

4) During the ﬁ rst few days it may be more difﬁ cult to start the ﬁ re. As you dry out your ﬁ rebrick, your draft will increase.

Due to the large quantity of ﬁ rebrick, which has a high water content, it may take many ﬁ res (20 or more) to thoroughly cure the ﬁ rebrick. The ﬁ rebrick will become lighter in colour as it dries out.

5) After about 15 to 20 minutes, when your wood has begun to burn strongly, adjust your draft control down to keep the ﬁ re at a moderate level.

WARNING: Never build a roaring ﬁ re in

a cold stove. Always warm your stove up slowly!

6) Once a bed of coals has been established,

you may adjust the draft control to a low setting to operate the unit at its most efﬁ cient mode.

7) For the ﬁ rst few days, the stove will give off an odour from the paint and oil burn off. This is to be expected as the high temperature paint becomes seasoned. Windows and/or doors should be left open to provide adequate ventilation while this temporary condition exists. Burning the stove at a very high temperature the ﬁ rst few times may damage the paint. Burn ﬁ res at a moderate level the ﬁ rst few days.

8) For those units installed at higher elevations drafting problems may occur. Consult an experienced dealer on methods of increasing your draft (refer to the Flue Height Chart).

9) Some cracking and popping noises may be experienced during the heating up process. These noises will be minimal when your unit reaches temperature.

10) Before opening your door to reload, open draft fully for approximately 10 to 15 seconds until ﬁ re has been re-established. This will minimize any smoking.

11) All fuel burning appliances consume oxygen

during operation. It is important that you supply a source of fresh air to your unit while burning.

12) Green or wet wood is not recommended

for your unit since most of the energy will be used to drive off the moisture instead of heating your home. As well, green or wet wood can result in dirty glass.

13) Always maintain clean glass. Clean glass

means a clean ﬂ ue; if you are experiencing dirty glass you may be operating a ﬁ re that is set too low. Ask your dealer for details.

14) Keep your spark arrester on the ﬂ ue clean. It

should be checked and maintained regularly, at least monthly.

SAFETY GUIDELINES

1) Never use gasoline, gasoline type lantern

fuels, kerosene, charcoal lighter fuel or similar liquids to start or ‘freshen up’ a ﬁ re in your ﬁ replace. Keep all such liquids well away from the unit while in use.

2) Keep the door closed during operation and

maintain all seals in good condition.

3) Do not burn large quantities of paper in your

ﬁ replace.

4) If you have smoke detectors, prevent smoke

spillage as this may set off a false alarm.

5) Do not overﬁ re ﬁ replace. If overﬁ ring takes

place, stop adding fuel and close the draft control. Overﬁ ring can cause extensive damage to your unit including warpage and premature steel corrosion. Overﬁ ring will

void your warranty.

6) Do not permit creosote or soot build-up

in the chimney system. Check and clean chimney at regular intervals.

7) The ﬁ replace face can be very hot. You

may be seriously burned if you touch the unit while in operation. Warn children of the burn hazard.

8) Do not connect this unit to a chimney ﬂ ue

serving another appliance.

9) Do not use grates or andirons or other

methods for supporting fuel. Burn directly on the bricks.

10) When refuelling the ﬁ re turn off blowers, open

draft prior to slowly opening the door. Failure to do so could result in smoke spillage.

11) Your unit should burn dry, standard ﬁ rewood

only. The use of “mill ends” is discouraged as this fuel can easily overheat your ﬁ replace. Evidence of excessive overheating will void your warranty.

As well, a large portion of sawmill waste is

chemically treated lumber, which is illegal

to burn in many areas. Salt drift wood, chemically treated ﬁ re logs and pressure treated woods must not be burned in your woodstoves.

12) Do not store any fuel closer than 2 feet from

your unit.

13) IMPORTANT: Do not obstruct the convec-

tion louvers at any time. Blocking air into this area will cause excessively high ﬁ rebox temperatures and a potentially dangerous situation.

MAINTENANCE

Gold Plated Doors and Louvers

The optional gold electroplated ﬁ nish on the doors and louvers requires little maintenance and needs only to be cleaned with a damp cloth. DO NOT use abrasive materials or chemical cleaners, as they may harm the ﬁ nish and void the warranty. Keep doors and louvers off during construction to avoid damage.

Door Gasket

If the door gasket requires replacement, your must use 7/8 in. dia. oval, high density material, 6-1/2 ft. long. A proper high temperature gasket adhesive is required. Contact your dealer for the Regency Gasket Repair Kit, Part # 846-570.

Door Hinges

Grease door hinges with high temperature grease regularly for smooth operation and to avoid squeaks.

Glass Cleaning

Only clean your glass window when it is cool. Your local retailer can supply you with a recommended glass cleaner if plain water and a soft cloth does not remove all deposits. Do not use oven cleaner on the glass as it will etch the glass.

Glass Removal/Replacement

Allow the stove to cool before removing or replacing glass. Remove the door from the insert and remove the glass retainer. Use caution when removing broken glass to avoid injury. When placing the replacement glass in the door, make sure that the glass gasketing will properly seal your unit. Replace the retainer and tighten securely, but do not wrench down on the glass as this may cause breakage. Do not substitute materials. If your glass door breaks, do not use your unit until it has been replaced (refer to Glass Installation section).

Regency Z2510 WarmHearth20

PARTS LIST- FIREBOX & BODY

Part # Description Part # Description

20) 948-102 Spring Handle - Small

21) 000-198 Hearth Extension Connector

22) * Shell Inner Sides & Back

23) * Insulation - Right

24) * Insulation - Rear

25) * Insulation - Rear - 6" wide

26) * Insulation - Left

27) * Insulation - Top

28) 000-058 Cover Duct Inner

29) * Shell Inner Top

000-912 Fan Assembly with switches (Optional)

85) 910-157/P Blower/Fan Motor (120 V)

86) * Fan Base

87) 910-138 Switch - Auto/Manual On/Off (2-way)

88) 910-140 Fan HI/OFF/LOW Switch

90) 000-924 7" - 8" Flue Adaptor (Optional)

91) 948-300 Insulated Outside Air Duct 948-216 Regency Logo 908-200 Manual

PARTS LIST

40) * Shell Outer Side & Back

41) * Electrical Tube Plate

42) 000-207/16 Electrical Tube

43) 000-205 Cover Plate Outer Shell Vent

44) 000-929 Wall Grip Pkg.

45) * Shell Outer Top

46) 000-059 Cover Outer Duct

47) 836-174 Insulation Top Heat Shield

48) 000-532 Standoff Top Assembly

50) 000-127 Standoff Side

51) 820-100 Standoff Back

54) 000-910 Hearth Extension (Optional)

000-914 Black Louver (set)

60) * Black Louver Assy-Top

61) * Black Louver Assy-Bottom

000-916 Gold Louver (set)

62) * Gold Louver Assy-Top

63) * Gold Louver Assy-Bottom

68) 836-175 Insulation - Top Standoff Assy

82) 000-927 Thermodisc Kit with wires (Optional)

83) 000-201 Terminal Block Cover

84) 910-184 Terminal Block

* Not available as a replacement part.

Regency Z2510 WarmHearth 21

PARTS LIST

PARTS LIST - BAFFLES, DOOR, OPTIONS

Part # Description

1) 000-920 Masonry Retainer Kit (Optional) 846-911 Door Assembly- Gold 846-917 Door Assembly- Black

3) 846-300 Glass - Replacement

4) 936-243 7/8" Adhesive Tape

5) 846-920 Glass Retainer Clips (set of 8)

6) * Screw 1/4-20 x 3/8"

7) 948-174/P Glass Retainer

9) 846-973 Door Handle Assembly

16) 846-570 Med. Density Door Gasket Kit

17) 846-918 Hinge Caps (2/set)

19) 948-101 Spring Handle - Large

69) 836-171 Bafﬂ e Insulation

70) * Globe

71) * Retainer Post

72) 902-108 Brick - Bottom

73) 902-107 Brick - Back Right

74) 902-106 Brick - Back Left

75) 902-112 Brick - Side Left

76) 902-113 Brick - Side Right

77) 836-132 Insulation - Bottom Brick

78) 836-133 Insulation - Side Brick

79) 836-131 Insulation - Back Brick

80) 000-955 Brick - Bafﬂ e (2/Set)

81) 000-954 Air Tube (each)

000-930 Gravity Air Kit (Optional) 000-918 One Way Damper (Optional)

* Not available as a replacement part.

Regency Z2510 WarmHearth22

WARRANTY

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our door. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a Regency Product. This warranty is not transferable.

The Warranty: Lifetime

Covered under the agreement are the following components:

Firebox, ceramic bafﬂ e, vermiculite bafﬂ e, steel bafﬂ es (H2100), convector airmate, castings, ashdrawer, glass (thermal breakage), gold plating (against defective manufacture), airtubes (against warpage) and door handles.

The above will be covered for parts and subsidized labour for the ﬁ rst ﬁ ve years and parts only thereafter with the exception of the ﬁ reboxes (see below).

FPI is not liable for freight or labor on any wood burning appliance replaced in ﬁ eld.

Electrical components such as blowers, switches and thermodisc's are covered for two years parts and one year subsidized labour* from date of purchase.

Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship from unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the ﬁ eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing, ﬁ rebrick or trim. It does not cover installation and operational related problems such as over-ﬁ ring, use of corrosive driftwood, downdrafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains, inadequate venting or ventilation, excessive offsets, negative air pressures caused by mechanical systems such as furnaces, fans, clothes dryers etc.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured. ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty on this product.

* Subsidy according to job scale as predetermined by FPI.

Regency Z2510 WarmHearth 23

Regency ﬁ replace products are designed

with reliability and simplicity in mind. In

addition, our internal Quality Assur-

ance Team carefully inspects each

unit thoroughly before it leaves our

door.

Fireplace Products Internation-

al Ltd. is pleased to extend this

Limited Lifetime Warranty to the

original purchaser of a Regency

Product.

See the inside back cover for details.

Register your Regency online at

http://www.regency-ﬁ re.com

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________

___________________________________________________________________

Installer: ___________________________________________________________

Phone #: ___________________________________________________________

Date Installed: ______________________________________________________

Serial No.: __________________________________________________________

Regency and Classic are trademarks of FPI Fireplace Products International Ltd.

Printed in Canada

Regency Z2510L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
