Figure 1: To open Cam,
point arrow toward Cam
Pin hole. To lock Cam,
turn clockwise.

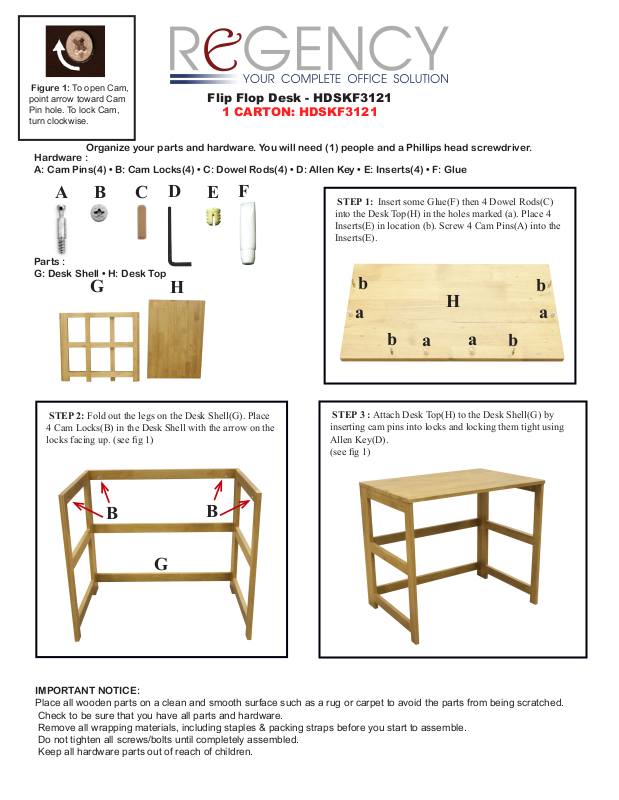

Flip Flop Desk - HDSKF3121
1 CARTON: HDSKF3121
Hardware :
A: Cam Pins(4) • B: Cam Locks(4) • C: Dowel Rods(4) • D: Allen Key • E: Inserts(4) • F: Glue
A B C
Parts :
G: Desk Shell • H: Desk Top
Organize your parts and hardware. You will need (1) people and a Phillips head screwdriver.
F
STEP 1: Insert some Glue(F) then 4 Dowel Rods(C)
into the Desk Top(H) in the holes marked (a). Place 4
Inserts(E) in location (b). Screw 4 Cam Pins(A) into the
Inserts(E).
b
G
D
H
E
H
a
STEP 2: Fold out the legs on the Desk Shell(G). Place
4 Cam Locks(B) in the Desk Shell with the arrow on the
locks facing up. (see g 1)
b
STEP 3 : Attach Desk Top(H) to the Desk Shell(G) by
inserting cam pins into locks and locking them tight using
Allen Key(D).
(see g 1)
a
a
b
a
b
B
B
G
IMPORTANT NOTICE:
Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being scratched.
Check to be sure that you have all parts and hardware.
Remove all wrapping materials, including staples & packing straps before you start to assemble.
Do not tighten all screws/bolts until completely assembled.
Keep all hardware parts out of reach of children.
