Regency P33CE User Manual

Download

Regency P33CE

Owners &

Installation Manual

Gas Fireplace

MODEL: P33CE-NG Natural Gas

33CE-LP Propane

WARNING: If the information in these instructions are not followed exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁ ed installer, service agency or the gas supplier.

Tested by:

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

919-125

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

www.regency-ﬁ re.com

FOR YOUR SAFETY What to do if you smell gas:

Do not try to light any appliance Do not touch any electrical switch:

do not use any phone in your building.

Immediately call your gas supplier

from a neighbour's phone. Follow the gas supplier's instructions.

If you cannot reach your gas

supplier, call the ﬁ re department.

06/12/12

To the New Owner:

Congratulations! You are the owner of a state-of-the-art Gas Fireplace by FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. The P33CE has been designed to provide you with all the warmth and charm of a wood ﬁ replace at the ﬂ ick of a switch. The P33CE has been approved by Warnock Hersey/Intertek for both safety and efﬁ ciency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many features of your Regency® Fireplace.

P33CE Direct Vent Gas Fireplace

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency® product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2009/CSA 2.33-2009 and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES CAN/CGA-2.17-M91. This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFP A 70 in the

U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada. The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,

with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

Ensure that structural members are not cut or weakened during installation.

This Regency® Mobile/Manufactured Home Listed appliance comes factory equipped with a means to secure the unit.

This Regency® Mobile/Manufactured Home listed appliance comes equipped with a dedicated #8 ground lug to which an 18 gauge copper wire from the steel chassis ground must be attached.

This appliance may be installed in an aftermarket permanently located, manufactured (mobile) home, where not prohibited by local codes.

This appliance is only use with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases, unless a certiﬁ ed kit is used.

P33CE Direct Vent Gas Fireplace

SAFETY LABEL

Safety Label...................................................................5

REQUIREMENTS

MA CODE - CO DETECTOR.........................................6

INSTALLATION

Important Message ......................................................7

Before You Start ............................................................7

General Safety Information............................................7

Manufactured Mobile Home

Additional Requirements .............................................7

Installation Checklist .................................................... 8

Locating your ﬁ replace ..................................................8

Duct System Option.......................................................8

Unit Dimensions ............................................................9

Clearances ..................................................................10

Combustible Mantels ...................................................11

Mantel Leg Clearances ...............................................12

Framing Dimensions....................................................13

Framing & Finishing.....................................................14

Venting Introduction .....................................................16

Exterior Vent Termination Locations ............................17

Regency® Direct Vent ﬂ ex System ..............................18

Installation Procedures ................................................19

Rigid Pipe Venting Systems ........................................20

4” x 6-5/8” Rigid Pipe Cross Reference Chart .............21

Rigid Pipe Venting Arrangements ...............................23

Vertical Termination with Co-Linear Flex System ...... 29

Venting Arrangements - Vertical Terminations ............30

Unit installation with Horizontal termination .................31

Unit installation with Vertical Termination ..................32

Gas Line Installation .................................................. 32

Pilot Adjustment ...........................................................33

High Elevation .............................................................33

Gas Pipe Pressure Testing ..........................................33

886 S.I.T. Valve Description .........................................33

Conversion from NG to LP ..........................................34

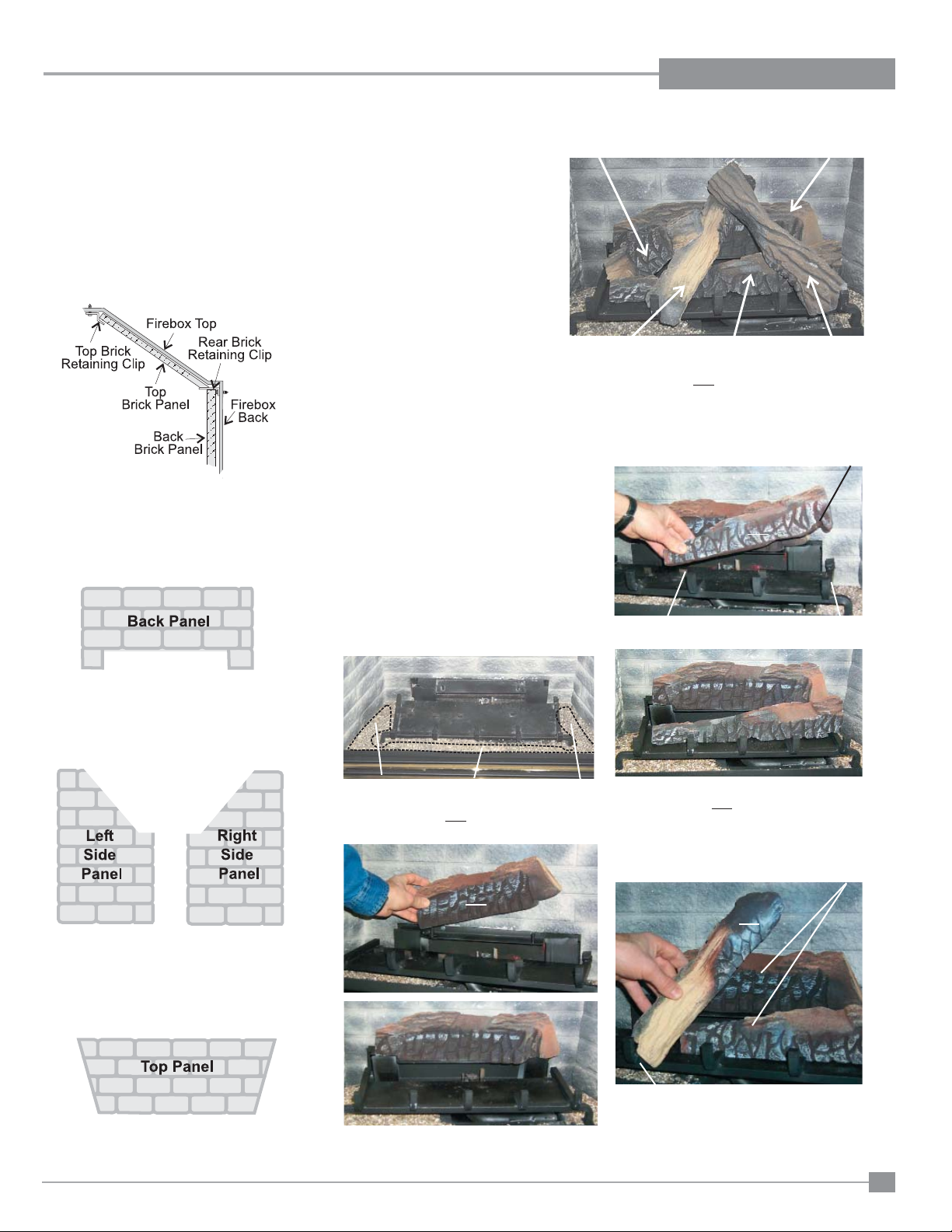

Optional Brick Panels ................................................ 35

Log Set Installation ......................................................35

Standard Flush Door and screen.................................36

Optional 4-sided faceplate installation .........................40

Optional mantel installation .........................................41

Wall Thermostat ..........................................................42

Remote Control ...........................................................42

Wall Switch ..................................................................42

Wiring Diagrams .........................................................43

AC power adaptor installation (for sureﬁ re systems) ...44

Installing the Optional Fan (Prior to unit installation) ..45

Optional fan Wiring Diagram .....................................46

Installing the Optional Fan (installed unit) ..................46

OPERATING INSTRUCTIONS

Copy of the Lighting Plate Instructions .......................48

Operating Instructions ...............................................49

First Fire .....................................................................49

Lighting Procedure ....................................................49

Shutdown Procedure ................................................. 49

Aeration Adjustment .................................................. 49

Maintenance Instructions............................................50

General Vent Maintenance ........................................ 50

Log Replacement .......................................................50

Normal Operating Sounds of Gas Appliances ........... 50

Glass Gasket ..............................................................51

Door Glass..................................................................51

MAINTENANCE

Removing Valve ..........................................................52

Installing Valve ............................................................52

Main Assembly ...........................................................53

Burner & Log Assembly ..............................................54

WARRANTY

Warranty......................................................................55

P33CE Direct Vent Gas Fireplace

SAFETY LABEL

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE

407

Minimum supply pressure Manifold pressure high Manifold pressure low Orifice size Minimum input Maximum input Altitude

NATURAL GAS: Model P33CE-NG

PROPANE: Model -LPP33CE

Minimum supply pressure Manifold pressure high Manifold pressure low Orifice size Minimum input Maximum input Altitude

DOOR SEAL: Please check that

the door is properly sealed

FPI Fireplace Products International Ltd.

Delta, BC, Canada

Minimum Clearances to Combustibles

Degagement Minimum De Materiaux Combustibles

(See Instruction Manual for Detailed Instructions)

Serial No./ No de serie

919-122

5" WC (1.25 kPa)

3.5" WC (0.87 kPa)

1.6" WC (0.39 kPa) # 44 DMS

0-4500 ft/pi (0-1372 m)

14,000 Btu/h (4.10 kW) 20,000 Btu/h (5.86 kW)

APPAREIL FONCTIONNANT AU NATURAL GAS CONCU POUR ETRE POELE:

Pression d'allimentation minimum Pression a la tubulure d' chappement lev e Pression a la tubulure d' chappement basse Grandeur de l'injecteur D bit Califorique minimum selon D bit Caliorfique maximum selon l'altitude

Modéle -NGP

33CE

ééé é

é é

APPAREIL FONCTIONNANT AU PROPANE CONCU POUR ETRE POELE:

Modéle -LPP

33CE

ééé é

é é

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.

Listed: Certified for/Certifi e pour: Tested to:

VENTED GAS FIREPLACE HEATER

CANADA and U.S.A.é

CAN/CGA-2.17-M91(R2009)

ANSI Z21.88-2009/CSA 2.33-2009

Model/Modele:

-NGP

33CE

Model/Modele:

-LPP

33CE

Made in Canada / Fabrique au Canada

11" WC (2.73 kPa) 10" WC (2.49 kPa)

6.4" WC (1.59 kPa) # 54 DMS

0-4500 ft/pi (0-1372 m)

16,500 Btu/h (4.83 kW) 20,000 Btu/h (5.86 kW)

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1. This appliancemust be installedin accordance with the StandardCAN/CSA Z240MH, Mobile Housing, in Canada,or with theManufactured Home Constructionand Safety Standard,Title 24 CFR,Part 3280, inthe United States,or whensuch a standardis notapplicable, ANSI/NCSBCSA225.1/NFPA501A, Manufactured HomeInstallations Standard This appliance is onlyfor use with the type of gasindicated on the rating plate and maybe installed in an aftermarket, permanently located,manufactured (mobile) home where not prohibited bylocal codes. See owner's manualfor details. Installer l'appareilselon lescodes ou règlementslocaux, ou,en l'absence detels règlements,selon les codesd'installation ANSIZ223.1, NationalFuel Gas Codeou CSA-B149.1en vigueur. Installer l'appareilselon la norme CAN/CSA-Z240, Série MM, Maison mobilesou CAN/CSA-Z240VC, Véhicules decamping, ou lanorme 24CFR Part 3280,Manufactured Home Constructionand SafetyStandard. Si cesnormes nesont pas pertinentes,utilisez lanorme ANSI/NCSBCSA225.1/NFPA501A, Manufactured HomeInstallations Standard.

For usewith glassdoors certified withthe applianceonly

This ventedgas fireplaceheater is notfor usewith air filters. Nepas utiliser defiltre àair avec cefoyer augaz à évacuation.

Fan (Part# 432-917)

Electrical supply/ Électrique115VAC,1.13A, 60Hz.

Cet appareil doitêtre utilize uniquement avec letype de gaz indiqué surla plaque signalétique. Cet appareilpeut être installé dans unemaison préfabriquée ou mobile (É.-U.seulement) installée à demeure siles règlements locauxle permettent.Voir lanotice de l'utilisateurpour plusde renseignements. Cetappareil nepeut pas êtreutilisé avecd'autres gaz saufsi unetrousse de conversioncertifiée estfournie.

Pour utilisationuniquement avecles portes enverre certifiéesavec l'appareil

VENTED GAS FIREPLACE HEATER - NOT FOR USE WITH SOLID FUELS.

NE PAS UTILISER AVEC DUCOMBUSTIBLE SOLIDE.FOYER AU GAZ À ÉVACUATION -

4001172

Minimum Clearances to Combustibles

Degagement Minimum De Materiaux Combustibles

Floor

Wall

Ceiling

0" Clearance to combustibles from:

Ceiling Clearances from Top Opening of Unit:

Side Wall Clearance from Side Opening of Unit:

Sides, bottom and rear of unit *Top - 3-1/2" (89mm) non-combustible material required above unit.

(A) 30" (762mm)

B) 9"(229mm)

Floor Clearance:

Alcove Clearances

C) 0”

D)E)Min. Width 84" (1219mm)

Max. Depth 36" (914mm)

This is a copy of the label that accompanies each P33CE Zero Clearance Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review. The safety label is located on the front inside base of the unit, visible when the bottom louver is open.

NOTE: Regency® units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

SAFETY LABEL

For the State of Massachusetts, installation

P33CE Direct Vent Gas Fireplace

and repair must be done by a plumber or gasﬁ tter licensed in the Commonwealth of Massachusetts.

For the State of Massachusetts, ﬂ exible con- nectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with battery back up in the same room where the gas appliance is installed.

REQUIREMENTS

MA Code - CO Detector

(for the State of Massachusetts only)

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

P33CE Direct Vent Gas Fireplace

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The P33CE-NG or P33CE-LP Direct V ent Fireplace must be installed in accordance with these instructions. Carefully read all the instructions in this manual ﬁ rst. Consult the "authority having jurisdiction" to determine the need for a permit prior to starting the installation. It is the responsibility of the installer to ensure this ﬁ replace is installed in compliance with manufacturer's instructions and all

applicable codes.

BEFORE YOU ST ART

Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:

INSTALLATION AND REPAIR SHOULD BE DONE BY AN AUTHORIZED SERVICE PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, BEDDING MATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD ST AY AW A Y TO A VOID BURNS OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME AREA AS THE APPLIANCE. TODDLERS, YOUNG CHILDREN AND OTHERS MAY BE SUSCEPTIBLE TO ACCIDENTAL CONTACT BURNS. A PHYSICAL BARRIERS IS RECOMMENDED IF THERE ARE AT RISK INDIVIDUAL IN THE HOUSE. TO RESTRICT ACCESS TO A FIREPLACE OR STOVE, INSTALL AN ADJUSTABLE SAFETY GATE TO KEEP TODDLERS, YOUNG CHILDREN AND OTHER AT RISK INDIVIDUALS OUT OF THE ROOM AND AWAY FROM HOT SURFACES.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

ANY SAFETY SCREEN, GUARD, OR BARRIER REMOVED FOR SERVICING THE APPLIANCE, MUST BE REPLACED PRIOR TO OPERATING THE APPLIANCE.

IF THE BARRIER BECOMES DAMAGED, THE BARRIER SHALL BE REPLACED WITH THE MANUFACTURER'S BARRIER

FOR THIS APPLIANCE.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform with

local codes or, in the absence of local codes, with the current Canadian or National Gas Codes, CAN1-B149 or ANSI Z223.1 Installation Codes.

2) The appliance when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code, ANSI/NFP A 70 or CSA C22.1 Canadian Electrical Code.

3) See general construction and assembly instructions. The appliance and vent should be enclosed.

4) This appliance must be connected to the speciﬁ ed vent and termination cap to the outside of the building envelope. Never vent to another room or inside a building. Make sure that the vent is ﬁ tted as per Venting instructions.

5) Inspect the venting system annually for blockage and any signs of deterioration.

6) Venting terminals shall not be recessed into a wall or siding.

7) Any safety glass removed for servicing must be replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who is unfamiliar with the operation to use the ﬁ replace.

9) Wear gloves and safety glasses for protection while doing required maintenance.

10) Be aware of electrical wiring locations in walls and ceilings when cutting holes for termination.

11) Under no circumstances should this appliance be modiﬁ ed. Parts that have to be removed for servicing should be replaced prior to operating this appliance.

12) Installation and any repairs to this appliance should be done by a qualiﬁ ed service person. A professional service person should be called to inspect this appliance annually. Make it a practice to have all of your gas appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid fuels

(wood, paper, cardboard, coal, etc.) be used in this appliance.

15) The appliance area must be kept clear and free of combustible materials, (gases and other ﬂ ammable vapours and liquids).

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut or

weakened during installation.

2) Ensure proper grounding using the #8 ground lug provided. Refer to "Wiring Diagram" Section.

P33CE Direct Vent Gas Fireplace

INSTALLATION

CHECKLIST

1) Locate appliance

a) Room location (Refer to "Locating Y our Fireplace" Section) b) Clearances to Combustibles (Refer to "Clearances" Section) c) Mantle Clearances (Refer to "Combustible Mantels" Section) d) Framing & Finishing Requirements (Refer

to "Framing & Finishing" Section) e) Venting Requirements (Refer to "Venting" Sections)

2) Assemble Top Facing Support and Side

Nailing Strips (Refer to "Unit Assembly Prior to Installation" Section). NOTE: Must be done before installing unit into ﬁ replace.

3) Install vent (Refer to "Venting" Sections)

4) Make gas and electrical connections. T est the

pilot. Must be as per diagram.

(Refer to "Gas Line Installation" and "Pilot

Adjustment" Section).

Convert to Propane if desired. (Refer to "Conversion Kit from NG to LPG"

Section).

5) Install 4-AA batteries into the battery pack or

optional AC power adaptor.

6) Install standard and optional features. Refer to

the following sections: a. Optional Brick Panels b. Log Set Installation c. Standard Flush Door d. Optional Wall Thermostat e. Optional Remote Control f. Optional Wall Switch g. Installing the Optional Fan

7) Final check.

Before leaving this unit with the customer, the installer must ensure that the appliance is ﬁ ring correctly and operation fully explained to

customer. This includes:

1) Clocking the appliance to ensure the correct

ﬁ ring rate (rate noted on label) after burning

appliance for 15 minutes.

2) If required, adjusting the primary air to ensure that the ﬂ ame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that causes sooting or carboning that results in damage is not the responsibility of the manufacturer.

LOCATING YOUR

FIREPLACE

1) When selecting a location for your ﬁ replace,

ensure that the clearances outlined on this page are met.

2) Provide adequate clearances for servicing.

3) The appliance must be installed on a ﬂ at,

solid, continuous surface (e.g. wood, metal, concrete). This may be the ﬂ oor, or raised up on a platform to enhance its visual impact. If the appliance is going to be installed on carpeting, combustible linoleum tile or other combustible material other than wood ﬂ ooring, the appliance must be installed on a metal or wood panel extending the full width and depth of the appliance.

4) The P33CE can be installed in a recessed position or framed out into the room as in A, B, C, D. See Diagram 1 below.

5) This appliance is Listed for bedroom installations when used with a Listed Millivolt Thermostat. Some areas may have further requirements, check local codes before installation.

6) The P33CE Direct Vent Gas Fireplace is approved for alcove installations, which meet the clearances listed on the "Clearances" Section.

7) We recommend that you plan your installation on paper using exact measurements for clearances and ﬂ oor protection before actually installing this appliance. Have a qualiﬁ ed

inspector, dealer, or installer review your plans before installation.

Note: For vent terminations see "Exterior Vent

Termination Locations" Section.

A) Flat on Wall B) Flat on Wall Corner C) Recessed into Wall/Alcove D) Corner

Diagram 1

DUCT SYSTEM OPTION

Kit #946-556

The HeatWave Air Duct Kit increases the effectiveness of your ﬁ replace by dispersing warm air from the ﬁ replace to remote locations in the same room or other rooms in your home.

Up to two kits may be installed on the ﬁ replace. Please Note: Only 1 HeatWave kit may be operated at one time. This includes the internal blower option as well.

P33CE Direct Vent Gas Fireplace

16"

407mm

23"

584mm

INSTALLATION

UNIT DIMENSIONS

34-9/16" [878mm]

16"

(406mm)

26"

660mm

29-7/16"

747mm

4 SIDED FACEPLATE DIMENSIONS

42-5/16"

(1074mm)

543mm

21-3/8"

(76mm)

NAILING STRIP

29-1/4"

742mm

(229mm)

MANTEL DIMENSIONS

47-9/16"

(1207mm)

26-1/16"

(662mm)

5-1/8"

(130mm)

2-1/2"

[64mm]

29-1/4"

742mm

(76m

P33CE Direct Vent Gas Fireplace

6-3/8"

(162mm)

36-3/4"

(933mm)

(51mm)

(229mm)

35-1/2"

(901mm)

21-1/2"

29-9/16"

(750mm)

52-1/8"

(1324mm)

(545mm)

(127mm)

8-1/8"

(206mm)

INSTALLATION

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

A major cause of chimney related ﬁ res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this ﬁ replace and vent system be installed only in accordance with these instructions.

The top, back and sides of the ﬁ replace are deﬁ ned by

Caution Requirements

standoffs. The metal ends of the standoff may NOT

be recessed into combustible construction.

Fire hazard is an extreme risk

WARNING

if these clearances (air space) to combustible materials are not

adhered to. It is of greatest importance that this ﬁ replace and vent

system be installed only in accordance with these instructions.

Clearance: Dimension Measured From:

A: *Front Floor Clearance (min.) B: *Sidewall (on one side)

C: *Ceiling (room and/or alcove)

D: Alcove Width E: Alcove Depth F: Mantel G: Mantel Clearances

0" Underside of Unit

9" (229mm) Side Opening of Unit

30" (762mm) Top Opening of Unit

84" (1219mm) Sidewall to Sidewall (Minimum)

36" (914mm) Front to Back Wall (Maximum)

12" (305mm)

15-3/4" (400mm)

From Top Opening of Unit

Close to Ceiling

Flue Clearances

Horizontal - Top 2-1/2"

Horiztonal - Side 1-1/2"

Horiztonal - Bottom 1-1/2"

Vertical (Flex Vent) 1-1/2"

Vertical (Rigid) 1-1/4"

Warning

Fire hazard is an extreme risk if these clearances are not adhered to.

P33CE Direct Vent Gas Fireplace

INSTALLATION

COMBUSTIBLE MANTELS

Because of the extreme heat this ﬁ replace emits, the mantel clearances are critical. Combustible mantel clearances from top of unit are shown in the

diagram below.

Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible board.

This drawing is to scale at 1:6 (one inch = 6 inches). Mantel can be installed anywhere in shaded area or higher using the above scale.

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or the paint may discolour.

Combustible mantel leg clearances as per diagrams below:

15-3/4" (400mm)

Mantel Clearances

810

12" (305mm)

7-1/2"(191mm)

0” - 3-1/2" (89mm)

13-3/4"(349mm)

24-1/4"(616mm)

to floor

11-3/4"(298mm)

Top opening of Unit

Drywall

Non-combustible material

3"(76mm)

Standoff

P33CE Direct Vent Gas Fireplace

Side View

INSTALLATION

Combustible mantel leg clearances from side of unit as per diagram:

MANTEL LEG CLEARANCES

Top View

Side opening of Unit

Maximum 1-1/2" projection at 2" minimum clearance.

0-3

6-3/4"

Allowable mantel leg projection

P33CE Direct Vent Gas Fireplace

DETAILN

SCALE 1 : 6

2X4 HEADER

Non-combustible

Header

(steel stud

on edge)

INSTALLATION

FRAMING DIMENSIONS

NOTE: If this is an outside corner, the

minimum distance between the vent and the outside corner is 6" (15cm) with AstroCap termination cap or 12" (30cm) with Rigid Vent termination cap.

(For example Dura-Vent)

Floor

Framing Dimensions Description P33CE P33CE

With Non-Combustible Board Only

(i.e. Painted Finish)

G Framing Width 35"(889mm) 35"(889mm)

H Framing Height * 31-3/4" (806mm) 31-3/4" (806mm)

I Framing Rise from Floor 0"

J Framing Depth Vertical

K Corner Wall Length 39-1/4" (988mm) 38-15/16" (988mm)

L Corner Facing Wall Width 55-1/2" (1410mm) 54-1/2" (1410mm) M Framed Chase Ceiling* 36" (914mm) Rigid 32" (812mm) Flex 36" (914mm) Rigid 32" (812mm) Flex

P Gas Connection Inset* 7-3/16" (183mm) 7-3/16" (183mm)

Q Gas Connection Width* 3" (76mm) 3" (76mm)

* Measured from base of unit

P33CE Direct Vent Gas Fireplace

Horizontal

Vent Centerline Height* 30" (762mm) Rigid 26" (660mm) Flex 30" (762mm) Rigid 26" (660mm) Flex

Gas Connection Height* 1 1/2" (38mm) 1 1/2" (38mm)

(when not using a surround / mantel)

23-1/4" (578mm) Vertical Rise

20-1/4" (502mm) Rigid / 16-1/2" (406mm) Flex

Opening for gas

connection

With Tile, Stone, Brick, Slate,

Modera Mantel, Verona Surround

or other Non-Combustible ﬁ nish

2" min (w/ Modera Mantel)

3-5/16" min (w/ Verona Surround)

22-3/4" (578mm) Vertical Rise

19-3/4" (502mm) Rigid / 16" (406mm) Flex

INSTALLATION

FRAMING & FINISHING

1. There are 8 (eight) side nailing strips and one top nailing strip available on the unit. One set of four (4) are for a clean ﬁ nish (board only, painted) installation,

the other set are for a non-combustible ﬁ nish (ex. tile, concrete, mantel, surround) as they are set back 1/2" (13mm). The top nailing strip is adjustable to 1/2" (13mm).

2. Bend the required four (4) nailing strips to 90º.

3. Attach top nailing strip with one (1) screw (located at the back of the nailing strip). Adjust to required position, flush or back 1/2" and tighten screw.

Adjustable Top

Nailing Strip

Nailing strip for

Clean Finish (set

ﬂ ush with unit)

Nailing strip for

Tile Finish (set

back 1/2")

Nailing strip for

Tile Finish (set

back 1/2")

Nailing strip for

Clean Finish (set

ﬂ ush with unit)

1. Frame in the enclosure for the unit with framing material.

Note: When constructing the framed opening, please ensure there is access to install the gas lines when the unit is installed.

2. For exterior walls, insulate the enclosure to the same degree as the rest of the house, apply vapour barrier and drywall, as per local installation codes. (Do not insulate the ﬁ replace itself.)

WARNING: Failure to insulate and add vapor barriers to the inside of the exterior wall will result in operational and performance problems

including, but not limited to: excessive condensation on glass doors, poor ﬂ ame package, carbon, blue ﬂ ames etc. These are not product related issues.

3. The unit does not have to be completely enclosed in a chase. You must maintain clearances from the vent to combustible materials: See "Clearances"

section. Combustible materials can be laid against the side and back standoffs and the stove base.

4. Tile Finish Option 1: Drywall may be installed onto the unit as shown below to create a surface to apply ﬁ nishing materials such as tile, slate, etc.

Drywall cannot extend onto the metal surface of the unit.

5. Tile Finish Option 2: If applying a non-combustible ﬁ nishing material (tile,slate,brick, stone, mantel, surround etc) the material can be installed directly onto the metal surface of the unit in the area shown below.

TILE - STONE - BRICK - MANTEL - SURROUND FINISH

Combustible Material

21-3/8"

[542mm]

Non-combustible Finishing Material (ie. tile)

Ensure finished material is brought to lip

Non-combustible Material (3-1/2" x 34-9/16")

Nailing Strip

-1/2" back from unit face

Supplied with Unit

29-7/16"

747mm

Non-combustible Finishing Material (ie. tile)

1-1/2

(38mm)

Combustible Material

P33CE Direct Vent Gas Fireplace

INSTALLATION

6) If applying a non-combustible facing it may be installed over the metal surface of the ﬁ rebox of the unit in the area shown belo w.

NON-COMBUSTIBLE BOARD ONLY (PAINTED FINISH)

NON COMBUSTIBLE BOARD SUPPLIED WITH UNIT

34-9/16"

878mm

33-7/16"

[849mm]

Combustible and Non-combustible Facing and Finishing

Materials around unit.

NOTE: The 3-1/2" x 34-9/16" non combustible material supplied with this unit can be replaced if trying to achieve a clean ﬁ nish. A large piece of non com-

bustible material (ie. 4' x 8' x 1/2") can be used to eliminate taped seams on or near unit.

7) Non-combustible material (ie. tile, slate, etc) may be brought up to the edge of the glass door of the unit. Minimum clearances must be adhered to, this

will assure ease of glass door removal and access to the lower panel.

NOTE: Non-combustible ﬁ nishing materials may be of any thickness desired.

NON COMBUSTIBLE BOARD SUPPLIED WITH UNIT

No Combustible

Materials in this Area

1/2" DRYWALL

DO NOT EXTEND DRYWALL ONTO METAL SURFACE OF UNIT.

3-1/2" [89mm]

5-3/16"

[132mm]

WOOD STUD

NON-COMBUSTIBLE FACING

FOR CLEAN LOOK (ie. PAINTED FINISH)

1/2" DRYWALL

Combustible

Material

Non-combustible Material (3-1/2" x 34-9/16")

Non-combustible Finishing Material

Ensure finished material is brought to lip

Non-combustible Finishing Material

Nailing Strip

Combustible Material

No Combustible

Materials in this Area

-flush with unit

1-1/2

(38mm)

Supplied with Unit

[849mm]

33-7/16"

[542mm]

NO FACING OR

21-3/8"

FINISHING MATERIAL

IN THIS AREA

29-7/16"

2-1/2"

[64mm]

747mm

34-9/16"

878mm

Minimum Clearances for Finishing Materials Trim materials

IMPORTANT FINISHING DETAIL NOTE:

Before placing unit into ﬁ nal position - it is important to know the total thickness / height of ﬁ nished hearth (tile, carpet, ﬂ ooring etc.) The Verona Surround or the Modera Mantel must be level to or higher than the ﬁ nished hearth height.

J Style trim or metal corner bead may be used to finish edges

29-7/16"

747mm

Note: All non-combustible facing material should butt up cleanly

to the ﬂ anges around the ﬁ rebox opening.

Rough edges may be visible from an angle.

To maintain a clean ﬁ nished edge - facing material edges

may be ﬁ nished with a J-style trim or metal cornerbead (both materials available at your local building or hardware store).

IMPORTANT: Materials used must be NON-COMBUSTIBLE.

21-3/8"

[542mm]

P33CE Direct Vent Gas Fireplace

INSTALLATION

VENTING INTRODUCTION

The P33CE uses the "balanced ﬂ ue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.

There are 5 vent systems approved for use with the P33CE: the Regency® Direct Vent Flex System for Horizontal Terminations only and the Simpson Dura-Vent Pro, Selkirk Direct-Temp, Amerivent Direct Vent, Metal-Fab Sure Seal, Security Secure Vent and ICC Excel Direct for Horizontal and Vertical Terminations (see following "Venting" Sections for more details).

Note: These ﬂ ue pipes must not be connected to any other appliance.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited. (See "Rigid Pipe Venting System" for more details and exceptions).

NOTE: Ensure compliance with the outside vent terminal location before cutting hole as both dimensions must be met.

P33CE Direct Vent Gas Fireplace

EXTERIOR VENT TERMINATION LOCATIONS

INSTALLATION

Minimum Clearance Requirements

Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)

Clearance to window or door that may be opened 12"(30cm) 9" (23cm)

Clearance to permanently closed window **

D Vertical clearance to ventilated sofﬁ t located above the terminal within a horizontal distance of 2 feet (61cm)

from the center line of the terminal (check with the local code)

Clearance to unventilated sofﬁ t 15"(38cm) 15"(38cm)

Clearance to outside corner: with AstroCap Termination Cap. 6"(15cm) 6"(15cm)

Clearance to outside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)

Clearance to inside corner: with AstroCap Termination Cap 6"(15cm) 6"(15cm)

Clearance to inside corner: with all other approved Termination Caps. 12"(30cm) 12"(30cm)

Clearance to each side of center line extended above meter/regulator assembly 36"(90cm)

Clearance to service regulator vent outlet 36"(90cm) *

Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)

L Clearance to a mechanical air supply inlet

#3' (91cm) above if within 10' (3m) horizontally.

Clearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)

Clearance under veranda, porch, deck, or balcony 12"(30cm)

In accordance with current CSA B149.1, Natural Gas and Propane Installation Code

In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code

┼

A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.

‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the ﬂ oor.

Clearance in accordance with local installation codes and the requirements of the gas supplier

3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly

3 feet (91cm) above - if within 10 feet (3m) horizontally

Canada

18"(46cm) 18"(46cm)

72"(1.8m) 36"(90cm)

┼

‡

USA

P33CE Direct Vent Gas Fireplace

INSTALLATION

REGENCY® DIRECT VENT FLEX SYSTEM

Horizontal Terminations Only

This venting system, in combination with the P33CE Direct Vent Gas Fireplace, have been tested and listed as a direct vent heater system by Warnock Hersey/ Intertek. The location of the termination cap must conform to the requirements in the "Exterior Vent Terminal Locations" Section .

Regency® Direct Vent Flex Termination Kit (Part # 946-513) includes all the parts needed to install the P33CE with a maximum run of 2 feet. If installing the P33E with a continuous vent length of more than 2 ft (.6m) to a maximum of 10 ft. (3.0m) use Kit # 946-515 (4 ft) or 946-516 (10 ft) or see "Rigid Pipe

Venting Systems" Section for alternate venting arrangements.

1) 6-7/8" dia. ﬂ exible liner (2 ft. length)

2) 4" dia. ﬂ exible liner (2 ft. length)

3) spring spacers (3)

4) thimble (2)

5) AstroCap termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1-1/2" drill point,

stainless steel (4)

Notes:

1) Liner sections should be continuous without any joints or seams.

2) Only Flex pipe purchased from Regency may be used for Flex installations.

4" (102mm)

dia. flue pipe

Wall Thimble (2 pc)

(required in

Canada only)

spring spacer

6-7/8"

(173mm)

dia. Flue pipe

AstroCap

Termination Cap

(Part# 946-523/P)

MINIMUM

RIGID PIPE CENTER-LINE

FLEX KIT CENTER-LINE

MINIMUM

Note: for P33E-NG4 with contemporary faceplate - unit must be raised by 1".

See Figure 1 below for

Alternate Caps.

Alternate

Horizontal

Termination

Caps

Figure 1

Wherever necessary due to external location of cap, the AstroCap can be replaced with the FPI Riser Vent T ermination Cap or the Dura-Vent Snorkel Termination Cap.

P33CE Direct Vent Gas Fireplace

INSTALLATION PROCEDURES

for Regency® Direct Vent System (Flex)

INSTALLATION

1) Locate the unit in the framing, rough in the gas (preferably on the right side of the unit) and the electrical (Junction block is on the left side) on the left. Locate the centerline of the termination and mark wall accordingly. Cut a 10"(254mm) hole in the wall (inside dimension).

Note: To make the installation more aesthetically

pleasing, we recommend framing out a square to mount the terminal to.

Note: A 2-1/2" (64mm) horizontal top and

1-1/2" (38mm) horizontal sides & bottom clearance around the liner must be maintained except that only a 1" (25mm) clearance is needed at the termination end. We recommend framing a 10"(254mm) x 10"(254mm) (inside dimensions) hole to give structural rigidity for mounting the termination.

Note: If installing termination on a siding

covered wall, furring strips must be used to ensure that the termination is not recessed into the siding.

2) Level the ﬁ replace and fasten it to the framing

using nails or screws through the nailing strips.

3) Assemble the vent assembly by applying Mill Pac to the 4"(100mm) inner collar of the termination and slipping the 4"(100mm) liner over it at least 1-3/8" (35mm). Fasten with the 3 screws (drilling pilot holes will make this easier). Apply Mill Pac or high temperature silicone to the 6-7/8"(175mm) ﬂ ex pipe and slip it over the 6-7/8" outer collar of the vent terminal at least 1-3/8"(35mm) and fasten with the 3 screws.

4) Separate the 2 halves of the wall thimble and securely fasten the one with the tabs to the outside wall making sure that the tabs are on top and bottom. Fasten the other thimble half to the inside wall. The thimble halves slip inside each other and can be adjusted for 2 x 4 or 2 x 6 walls. The liners must slip over the collars

a minimum of 1-3/8".

*If this is an outside corner, the minimum distance between the vent and the outside corner is 6" (15cm) with AstroCap termination cap or 12" (30cm) with Dura-Vent termination cap. See "F" in the diagram in "Exterior Vent T ermination Locations" Section.

Minimum and Maximum Vent Clearances

5) Slip the assembled liner and termination assembly through the thimble making sure the termination cap faces up (there are markings on the cap that show which way is up). This will position the termination cap with proper down slope for draining water. Fasten the cap to the outer wall with the 4 supplied screws.

6) Pull the centre 4"(100mm) liner and outer 6-7/8"(175mm) liner out enough to slip over the ﬂ ue collars of the ﬁ replace.

7) Apply Mill Pac over the ﬁ replace inner collar and slip the 4"(100mm) liner down over it and attach with 3 supplied screws.

4" (102mm)

dia. flue pipe

with spring spacer

Screws

(3 per

connection)

6-7/8"

(175mm)

dia. air intake

8) Do the same with the 6-7/8"(175mm) liner.

9) Apply a bead of silicone between the thimble

and termination and around the outer edge of the terminal at the wall in order to keep the water out.

IMPORTANT: Do not locate termination hood where excessive snow or ice buildup may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental blockage of venting system. When using snow blowers, make sure snow is not directed

towards vent termination area.

2”x4”or2”x6”

(21mm x 102mm

or 21mm x 152mm)

Termination Cap

Screws

(4 per connection)

P33CE Direct Vent Gas Fireplace

Wall Thimble 2 pieces

(10" (254mm) Outer Diameter)

INSTALLATION

The minimum components required for a basic horizontal termination are:

1 AstroCap Horizontal Termination Cap 1 45o Elbow 1 Rigid Pipe Adaptor 1 Wall Thimble 1 Length of pipe to suit wall thickness (see chart)

RIGID PIPE VENTING SYSTEMS

Horizontal or Vertical Terminations

Vertical

Terminal

Storm Collar

Vinyl Siding

Standoff (Optional)

Flashing

For siding other than vinyl furring strips may be used, instead of the vinyl siding standoff, to create a level surface to mount the vent terminal. The Terminal must not be recessed into siding.

If a Vinyl Siding Standoff is required (it must be used with vinyl siding), measure to outside surface of wall without siding and add 2 inches.

Alternate

Horizontal

Termination

Caps

Ceiling Firestop

Pipe Length

90 Elbow

24" Length

Pipe Length

45 Elbow

Rigid Pipe Adapter

# 510-994

Horizontal

Termination Cap

# 946-523/P

Wall Thimble

Horizontal

Termination Cap

#946-523/P

Vinyl Siding

Standoff (Optional)

Wall Thimble

WARNING:

Do not combine venting components from different venting systems.

However use of the AstroCapTM and FPI Riser is acceptable with all systems.

This product has been evaluated by Intertek for using a Rigid Pipe Adaptor in conjunction with Duravent Direct-Vent , Selkirk Direct-T emp,

Flat Wall Installation

Max. Wall Vent Length

Thickness (inches) Required (inches)

7 - 1/4" 6"

Ameri Vent Direct venting and Security Secure Vent systems. Use of these systems with the Rigid Pipe adaptor is deemed acceptable and does not affect the Warnok Hersey/Intertek listing of components.

10 - 1/4" 9"

19-3/4"

(502mm)

27"

(686mm)

The FPI AstroCap American Metal Products Ameri Vent Direct Vent, Security Secure Vent®, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

13 - 1/4" 12" 12-1/4" - 15-7/8" 11" - 14-5/8" Adj. Pipe 18-1/4" - 25-1/4" 11" - 14-5/8" Adj. Pipe

and FPI Riser Vent terminal are certiﬁ ed for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent Pro,

When using Rigid Vent other than

Simpson Dura-Vent, 3 screws must be

used to secure rigid pipe to adaptor.

P33CE Direct Vent Gas Fireplace

INSTALLATION

4” X 6-5/8” RIGID PIPE CROSS REFERENCE CHART

Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

Components from different Manufacturers may not be mixed. Not all rigid pipe components are available directly from Regency.

Description

6” Pipe Length-Galvanized 46DVA-06 4DT-6 N/A 4D6 SV4L6 TC-4DL6

6” Pipe Length-Black 46DVA-06B 4DT-6B N/A 4D6B SV4LB6 TC-4DL6B

7” Pipe Length-Galvanized N/A N/A 4D7 N/A N/A N/A

7” Pipe Length-Black N/A N/A 4D7B N/A N/A N/A

9” Pipe Length-Galvanized 46DVA-09 4DT-9 N/A N/A N/A N/A

9” Pipe Length-Black 46DVA-09B 4DT-9B N/A N/A N/A N/A

12” Pipe Length-Galvanized 46DVA-12 4DT-12 4D12 4D12 SV4L12 TC-4DL1

12” Pipe Length-Black 46DVA-12B 4DT-12B 4D12B 4D12B SV4LB12 TC-4DL1B

18” Pipe Length-Galvanized 46DVA-18 4DT-18 4D18 4D18 SV4LA TC-4DL18

18” Pipe Length-Black 46DVA-18B 4DT-18B 4D18B 4D18B SV4LA TC-4DL18B

24” Pipe Length-Galvanized 46DVA-24 4DT-24 4D24 4D24 SV4L24 TC-4DL2

24” Pipe Length-Black 46DVA-24B 4DT-24B 4D24B 4D24B SV4LB24 TC-4DL2B

36” Pipe Length-Galvanized 46DVA-36 4DT-36 4D36 4D36 SV4L36 TC-4DL3

36” Pipe Length-Black 46DVA-36B 4DT-36B 4D36B 4D36B SV4LB36 TC-4DL3B

48” Pipe Length-Galvanized 46DVA-48 4DT-48 4D48 4D48 SV4L48 TC-4DL4

48” Pipe Length-Black 46DVA-48B 4DT-48B 4D48B 4D48B SV4LB48 TC-4DL4B

60” Pipe Length-Galvanized 46DVA-60 4DT-60 N/A N/A N/A N/A

60” Pipe Length-Black 46DVA-60B 4DT-60B N/A N/A N/A N/A

Adjustable Length 3”-10”-Galvanized N/A N/A N/A 4DAL N/A TC-4DLT

Adjustable Length 3”-10”-Black N/A N/A N/A 4DALB N/A TC-4DLTB

Adjustable Length 7”-Galvanized N/A N/A 4D7A N/A N/A N/A

Adjustable Length 7”-Black N/A N/A 4D7AB N/A N/A N/A

Extension Pipe 8-1/2”-Galvanized 46DVA-08A N/A N/A N/A N/A N/A

Extension Pipe 8-1/2”-Black 46DVA-08AB N/A N/A N/A N/A N/A

Adjustable Length 12”-Galvanized N/A N/A 4D12A N/A SV4LA12 N/A

Adjustable Length 12”-Black N/A N/A 4D12A N/A SV4LBA12 N/A

Extension Pipe 16”-Galvanized 46DVA-16A N/A N/A N/A N/A N/A

Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A N/A N/A

4” X 6- 5/8” RIGID PIPE CROSS REFERENCE CHART

Simpson

Direct Vent Pro

Selkirk

Direct Temp™

American Metal

Products®

Amerivent Direct

Metal-Fab™

Sure Seal

Security

Secure- Vent®

ICC Excel

Direct

45º Elbow-Galvanized 46DVA-E45 4DT-EL45 4D45L N/A N/A TE-4DE45

45º Elbow-Black 46DVA-E45B 4DT-EL45B 4DT-EL45B N/A N/A TE-4DE45B

45º Elbow Swivel-Galvanized See 46DVA-E45 N/A N/A 4D45L SV4E45 N/A

45º Elbow Swivel-Black See 46DVA-E45B N/A N/A 4D45LB SV4EB45 N/A

90º Elbow-Galvanized 46DVA-E90 4DT-EL90S 4DT-EL90S N/A N/A TE-4DE90

90º Elbow-Black 46DVA-E90B 4DT-EL90SB 4DT-EL90SB N/A SV4EBR90-1 TE-4DE90B

90º Elbow, Swivel-Galvanized See 46DVA-E90 N/A N/A 4D90L SV4E90-1 N/A

90º Elbow, Swivel-Black See 46DVA-E90B N/A N/A 4D90LB SV4EB90-1 N/A

90º Starter Elbow, Swivel-Galvanized N/A N/A N/A 4D90A N/A N/A

Adaptor* N/A N/A N/A 4D90L N/A N/A

Ceiling Support N/A 4DT-CS 4DFSP 4DSP SV4SD TE-4DE45

Cathedral Support Box 46DVA-CS 4DT-CSS 4DRSB 4DRS SV4CSB TE-4DE45B

Wall Support/Band 46DVA-WS 4DT-WS/B 4DWS 4DWS SV4BM N/A

Offset Support

Wall Thimble-Black 46DVA-WT 4DT-WT 4DWT 4DWT SV4RSM TE-4DE90

Wall Thimble Support/Ceiling Support 46DVA-DC N/A N/A N/A SV4PF TE-4DE90B

Firestop Spacer 46DVA-FS 4DT-FS 4DFSP 4DFS SV4BF N/A

Trim Plate-Black N/A 4DT-TP 4DFPB 4DCP SV4LA N/A

46DVA-ES (N/A - FPI)

4DT-OS N/A N/A SV4SU N/A

P33CE Direct Vent Gas Fireplace

INSTALLATION

Description

Attic Insulation Shield 12” 46DVA-IS N/A@ FPI N/A 4DAIS12 N/A SV4RSA N/A

Attic Insulation Shield -

Basic Horizontal Ter mination Kit (A) Disc. 4DT-HKA 4DHTK2 4DHTKA SV-SHK N/A

Horizontal Ter mination Kit (B) 46DVA-KHA

Vertical Termination Kit Disc. 4DT-VKC 4DHTK 4DHTK SV-FK N/A

High Wind Vertical Cap 46DVA-VCH N/A N/A N/A N/A TM-4VT

High Wind Horizontal Cap 46DVA-HC N/A N/A N/A N/A TM-4DHT

Horizontal Square Ter mination Cap See

Vertical Termination Cap 46DVA-VC 4DT-HVC 4DVC 4DVT SV4CGV-1 TM-4VT

Storm Collar 46DVA-08A 4DT-SC 4DSC 4DSC SV4FC TM-SC

Adjustable Flashing 0/12-6/12 46DVA-F6 4DT-ST14 4D12S 4DST14 SV4STC14 TF-4FA

Adjustable Flashing 6/12-12/12 46DVA-FLA 4DT-ST36 4D36S 4DST36 SV4STC36 TF-4FB

Vinyl Siding Standoff 46DVA-VSS 4DT-VS N/A 4DVS SV4VS TM-VSS

Vinyl Siding Shield Plate N/A 4DT-VSP N/A N/A SV4VS N/A

Snorkel Termination 14” 46DVA-SNKL N/A N/A N/A N/A TM-4ST14

Snorkel Termination 36” N/A N/A N/A N/A N/A TM-4ST36

Restrictor Disk N/A N/A N/A N/A N/A TM-4DS

Extended Vertical Termination Cap N/A N/A N/A N/A N/A N/A

Chimney Conversion Kit A (USA only) 46DVA-KCA N/A N/A N/A N/A TM-4CA6

Chimney Conversion Kit B (USA only) 46DVA-KCB N/A N/A N/A N/A TM-4CA7

Chimney Conversion Kit C (USA only) 46DVA-KCC N/A N/A N/A N/A TM-4CA8

Chimney Conversion Kit Masonry (USA only)

Wall Firestop 46DVA-WFS N/A N/A N/A N/A TM-4TR

Colinear Flex Connectors 46DVA-ADF N/A N/A N/A N/A N/A

Cold Climates 36” N/A N/A 4DAIS12 N/A N/A TM-4AS

Simpson

Direct Vent Pro

(Changed Components)

46DVA-HC 4DT-HHC 4DHC 4DHT SV4CHC-1 TM-4HT

46DVA-KMC N/A N/A N/A N/A N/A

Selkirk

Direct Temp™

4DT-HKB 4DHTK1 4DHTKB SV-HK N/A

American Metal

Products®

Amerivent Direct

Metal-Fab™

Sure Seal

Security

Secure- Vent®

ICC Excel

Direct

FPI

946-506/P Vent Guard (Optional) for AstroCap 946-205 Vinyl Siding Shield for Riser Vent Terminal

510-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal

640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap

946-605 Starter Collar Increaser 4” x 6-5/8” to 5” x 8” 946-206 Vinyl Siding Standoff for AstroCap

Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).

Offset Pipe Selection: Use this table to determine offset pipe lengths.

Pipe Length

(L)

0” (0mm) 4-7/8” (124mm) 13-7/8” (340mm) Simpson Direct Vent Pro: www.duravent.com

6” (152mm) 8” (203mm) 16-1/2” (419mm) Selkirk Direct-Temp: www.selkirkcorp.com

9” (229mm) 10-1/8” (257mm) 18-5/8” (473mm) American Metal Products: www.americanmetalproducts.com

12” (305mm) 12-1/4” (311mm) 20-3/4” (527mm) Metal-Fab Sure Seal: www.mtlfab.com

24” (610mm) 20-5/8” (524mm) 29-1/8” (740mm) Security Secure Vent: www.securitychimneys.com

36” (914mm) 29” (737mm) 37-1/2” (953mm) Industrial Chimney Company: www.icc-rsf.com

48” (1219mm) 37-7/16” (951mm) 45-15/16” (1167mm)

Note: Horizontal runs of vent must be level, or have a 1/4” rise for every 1 foot of run towards the termination. Never allow the vent to run downward - this could cause high temperatures and may present a possible ﬁ re hazard.

4” x 6-5/8” Venting For speciﬁ c instructions on venting components - visit the

Run (X) Rise (Y)

manufacturers website listed below.

P33CE Direct Vent Gas Fireplace

INSTALLATION

RIGID PIPE VENTING ARRANGEMENTS

Vertical Terminations

(Propane & Natural Gas)

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using one 90o elbow, with rigid pipe vent systems for Propane and Natural Gas.

• Vent must be supported at offsets.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• Maintain clearances to combustibles.

• When using Contemporary Faceplate, unit must be raised 1".

Note: Must use optional rigid pipe adapter when using rigid vent systems (Part # 510-994).

P33CE Direct Vent Gas Fireplace

INSTALLATION

The P33CE is approved for a maximum 40 ft. straight vertical, with rigid pipe vent systems for Propane and Natural Gas.

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations with rigid pipe vent systems for Propane and Natural Gas. Maximum two 45

• Vent must be supported at offsets.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• Maintain clearances to combustibles.

• When using Contemporary Faceplate, unit must be raised 1".

elbows allowed.

P33CE Direct Vent Gas Fireplace

INSTALLATION

RIGID PIPE VENTING ARRANGEMENTS

Horizontal Terminations

REGENCY

This diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 45o and one 90o elbow (two 45o elbows equal one 90o elbow).

Note: Must use optional rigid pipe adaptor (Part # 510-994) when using rigid pipe vent systems. (Refer "Rigid Pipe Venting Systems" Section)

DIRECT VENT SYSTEM (FLEX)

(Propane & Natural Gas)

Minimum

Simpson Dura-Vent Center-Line

A vent guard should be used whenever the termination is lower than the speciﬁ ed minimum or as per local codes.

Note: Regency

is only approved for horizontal terminations.

• Maintain clearances to combustibles.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• When using Contemporary Faceplate, unit must be raised 1".

Direct Vent System (Flex)

Minimum

Flex Kit Center-Line

P33CE Direct Vent Gas Fireplace

INSTALLATION

Horizontal Venting with Two (2) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H + H1

A) 1' Min. 3' Max. B) 2' Min. 4' Max. C) 3' Min. 5' Max. D) 4' Min. 6' Max. E) 5' Min. 7' Max. F) 6' Min. 8' Max.

With these options, maximum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Horizontal Venting with Three (3) 90

One 90o elbow = Two 45o elbows.

Option H V H + H 1 + H 2

A) 1' Max. 1' Min. 3' Max. B) 2' Max. 3' Min. 5' Max. C) 3' Max. 5' Min. 6' Max. D) 4' Max. 7' Min. 7' Max. E) 5' Max. 9' Min. 8' Max.

F) 6' Max. 11' Min. 9' Max.

Elbows

With these options, maximum total pipe length is 30 feet with minimum of 11 feet total vertical and maximum 9 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Horizontal Venting with Two (2) 90o Elbows

One 90o elbow = Two 45o elbows.

Option H V H + H1

A) 1' Max. 1' Min. 3' Max. B) 2' Max. 2' Min. 5' Max. C) 3' Max. 4' Min. 6' Max. D) 4' Max. 6' Min. 7' Max. E) 5' Max. 8' Min. 8' Max.

With these options, maximum total pipe length is 30 feet with minimum of 8 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

P33CE Direct Vent Gas Fireplace

Horizontal Venting with Three (3) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H V + V1 H + H1

A) 2' Min. 1' Max. 3' Min. 4' Max.

B) 3' Min. 2' Max. 4' Min. 5' Max. C) 4' Min. 3' Max. 6' Min. 6' Max. D) 5' Min. 4' Max. 8' Min. 7' Max. E) 6' Min. 5' Max. 10' Min. 8' Max. F) 7' Min. 6' Max. 12' Min. 9' Max.

INSTALLATION

With these options, maximum total pipe length is 30 feet with minimum of 12 feet total vertical and maximum 9 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Vertical Venting with Two (2) 90

One 90o elbow = Two 45o elbows.

Option V H V + V1

A) 1' Min. 4' Max. 2' Min. B) 2' Min. 5' Max. 3' Min. C) 3' Min. 6' Max. 4' Min. D) 4' Min. 7' Max. 5' Min. E) 5' Min. 8' Max. 6' Min.

Elbows

With these options, maximum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Vertical Venting with Two (2) 90o Elbows

One 90o elbow = Two 45o elbows.

Option H + H1 V

A) 2' Max. 2' Min. B) 3' Max. 3' Min. C) 4' Max. 4' Min. D) 5' Max. 5' Min. E) 6' Max. 6' Min.

With these options, maximum total pipe length is 30 feet with minimum of 6 feet total vertical and maximum 6 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

P33CE Direct Vent Gas Fireplace

For additional vertical venting with 2 x 90o elbows, refer to "Rigid Pipe Venting Arrangements" Section.

INSTALLATION

One 90o elbow = Two 45o elbows.

Vertical Venting with Three (3) 90o Elbows

Option H V H + H1 V + V1 A) 1' Max. 1' Min. 3' Max. 3' Min. B) 2' Max. 2' Min. 4' Max. 5' Min. C) 3' Max. 3' Min.' 5' Max. 7' Min. D) 4' Max. 4' Min. 6' Max. 9' Min. E) 5' Max. 5' Min. 7' Max. 11' Min.

With these options, max. total pipe length is 30 feet with min. of 11 feet total vertical and max. 7 feet total horizontal.

Please note min. 1 foot between 90o elbows is required.

Vertical Venting with Three (3) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H + H1 V + V1 A) 2' Min. 3' Max. 4' Min. B) 3' Min. 4' Max. 6' Min. C) 4' Min. 5' Max. 7' Min. D) 5' Min. 6' Max. 8' Min. E) 6' Min. 7' Max. 9' Min. F) 7' Min. 8' Max. 10' Min.

With these options, max. total pipe length is 30 feet with min. of 10 feet total vertical and max. 8 feet total horizontal.

Please note min. 1 foot between 90o elbows is required.

P33CE Direct Vent Gas Fireplace

VERTICAL TERMINATION

WITH CO-LINEAR FLEX SYSTEM

INSTALLATION

THE APPLIANCE MUST NOT BE

CONNECTED TO A CHIMNEY FLUE SERVING

A SEPARATE SOLID FUEL

BURNING APPLIANCE.

This appliance is designed to be attached to two 3" (76mm) co-linear aluminium ﬂ ex running the full length of the chimney. See the "Venting Arrangements - Vertical Terminations" Section for minimum and maximum heights.

Required Parts:

Part # Description

946-529 Co-linear DV Vertical Termination Cap 948-305 3" Flex - 35 ft. 946-563 Co-Axial to Co-Linear Adapter Kit which contains the following: Co-linear Flex Adapter Outer Pipe Inner Pipe Adapter 510-994 Rigid Pipe Adaptor 46DVA-E45 45o Elbow

Alternate Approved Caps

46dva-VC Vertical Termination Cap 46dva-VCH High Wind Cap 46dva-GK

3" Co-linear Adapter with ﬂ ashing

Masonry chimneys may take various contours which the ﬂ exible liner will accommodate. However, keep the ﬂ exible liner as straight as possible, avoid unnecessary bending.

The Air Intake pipe must be attached to the inlet air collar of the termination cap.

Co-linear DV

Vertical Termination

Cap # 946-529

A maximum

of two certified

joiner kits

may be used

per length.

Flex Liner

#948-305

35 ft (11m)

Exhaust

Flue

Pipe Length

Rigid Pipe Adapter

# 510-994

Outer

Pipe

with Kit#

946-563

45 Elbow

Air Intake

Co-Linear

Flex

Adapter

with Kit# 946-563

Inner Pipe

Adapter

with Kit#

946-563

P33CE Direct Vent Gas Fireplace

INSTALLATION

VENTING ARRANGEMENTS - VERTICAL TERMINATIONS

with Co-linear Flex System for both Residential & Manufactured Homes

into Masonry Fireplaces

30' (9.1m) Max.

Vertical Height (feet)

2’ (51mm) max.

8' (2.4m) Min.

30”

(762mm)

Horizontal Distance (Feet)

When using Contemporary Faceplate, unit must be raised 1".

The shaded area in the diagrams show

the allowable vertical terminations.

P33CE Direct Vent Gas Fireplace

UNIT INSTALLATION WITH HORIZONTAL TERMINATION

Install the vent system according to the manufacturer's instructions included with the components.

1) Set the unit in its desired location. Check to determine if wall studs or roof rafters are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the unit. Rough in the gas preferably on the right side of the unit and the electrical (junction block is on the left side) on the left.

2) Direct Vent pipe and ﬁ ttings are designed with special twist-lock connections to connect the venting system to the appliance ﬂ ue outlet. A twist-lock appliance adaptor is an available option that must be used in conjunction with the Simpson Dura-Vent Direct Vent system.

3) Put a bead of silicone inside the outer section of the adapter and a bead of Fireplace Mate on the inner collar. Slip the adapter over the existing inner and outer ﬂ ue collar and fasten to the outer collar only with the 3 supplied screws (drilling pilot holes will make this easier). Level the ﬁ replace and fasten it to the framing using nails or screws through the nailing strips.

4) Assemble the desired combination of pipe and elbows to the appliance adaptor and twist-lock for a solid connection.

Note:

a) Twist-lock procedure: Four indentations,

located on the female ends of pipes and ﬁ ttings, are designed to slide straight onto the male ends of adjacent pipes and ﬁ ttings, by orienting the four pipe indentations so they match and slide in to the four entry slots on the male ends, Dia. 1. Push the pipe sections completely together, then twist-lock one section clockwise approximately one-quarter turn, until the two sections are fully locked. The female locking lugs will not be visible from the outside, on the Black Pipe or ﬁ ttings. They may be located by examining the inside of the female ends.

Diagram 1

NOTE: For best results and optimum performance with each approved venting system, it is highly recommended to apply “Mill-Pac” sealant (supplied) to every inner pipe connection. Failure to do so may result in drafting or performance issues not covered under warranty. Silicone (red RTV) is optional.

b) Horizontal runs of vent must be supported

every three feet. Wall straps are available for this purpose.

5) Mark the wall for a 10" x 10" square hole. The center of the square hole should line up with the centerline of the horizontal pipe. Cut and frame the 10 inch square hole in the exterior wall where the vent will be terminated. If the wall being penetrated is constructed of non-combustible material, i.e. masonry block or concrete, a 7"(178mm) diameter (7-1/2"(191mm) dia. for ﬂ ex) hole is acceptable.

Note:

a) The horizontal run of vent must be level, or

have a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a ﬁ re.

b) The location of the horizontal vent

termination on an exterior wall must meet all local and national building codes, and must not be blocked or obstructed. See "Exterior Vent Terminal Locations" Section.

c) Snorkel Terminations: For installations requiring a vertical rise on

the exterior of the building, 14-inch and 36inch tall Snorkel T erminations and the Riser Vent as shown in Dia. 2 & 2a are available. Follow the same installation procedures as used for standard Horizontal Termination. NEVER install the snorkel upside down.

Below Grade Snorkel Installation

If the Snorkel T ermination must be installed

below grade, i.e. basement application,

Diagram 2

*As speciﬁ ed in CGA B149 Installation Code. Local codes or regulations may require different clearances.

INSTALLATION

Diagram 2a

proper drainage must be provided to prevent water from entering the Snorkel Termination. Refer to DuraVent Installation instructions for details. Do not attempt to enclose the Snorkel within the wall, or any other type of enclosure.

6) The arrow on the vent cap should be pointing up. Insure that the 1-1/2"

clearances to combustible materials are maintained (Dia. 3). Install the termination cap. AstroCap Termination Cap may be used.

The four wood screws provided should

be replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

Diagram 3

Note: If installing termination on a siding

covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding.

7) Before connecting the horizontal run of vent

pipe to the vent termination, slide the Wall Thimble (Part # 620-926) over the vent pipe.

Riser Vent

Termination

Min. 6-1/4"*

(159mm)

or Dura-Vent Horizontal

P33CE Direct Vent Gas Fireplace

INSTALLATION

8) Slide the appliance and vent assembly towards the wall carefully inserting the vent pipe into the vent cap assembly. It is important that the vent pipe extends into the vent cap sufﬁ cient distance so as to result in a minimum pipe overlap of 1-1/4 inches. Secure the connection between the vent pipe and the vent cap 3 sheet metal screws.

9) Install wall thimble in the center of the 10" square and attach with wood screws (Diagram 4).

Diagram 4

UNIT INSTALLATION

WITH VERTICAL

TERMINATION

1) Maintain the 1-1/2" clearances (air spaces) to

combustibles when passing through ceilings, walls, roofs, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air spaces with insulation. Check "Venting" Sections for the maximum vertical rise o f the venting system and the maximum horizontal offset limitations.

2) Set the gas appliance i n its desired location. Drop a plumb bob down from the ceiling t o the position of the appliance ﬂ ue exit, and mark the location where the vent will penetrate the ceiling. Drill a small hole at this point. Next, drop a plumb bob from the roof to the hole previously drilled i n the ceiling, and mark the spot where the vent will penetrate the roof.

3) A Firestop spacer must be installed in the ﬂ oor or ceiling of every level. To install the Firestop spacer in a ﬂ at ceiling or wall, cut a 10 inch square hole. Frame the hole as shown in Diagram 2 and install the ﬁ restop.

Diagram 2

Diagram 1

4) Assemble the desired lengths of pipe and elbows. Ensure that all pipes and elbow connections are in the fully twist-locked position and sealed.

5) Cut a hole in the roof centered on the small

drilled hole placed in the roof in Step 2. The hole should be of sufﬁ cient size to meet the minimum requirements for clearance to combustibles of 1-1/2". Slip the ﬂ ashing under the shingles (shingles should overlap half the ﬂ ashing) as per Diagram 3.

Diagram 3: The upper half of the ﬂ ashing is in-

stalled under the rooﬁ ng material and not nailed

down until the chimney is installed. This allows

for small adjustments.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic to

avoid obstructions, it is important to support the vent pipe every 3 feet, to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose.

Galvanized pipe is desirable above the rooﬂ ine

due to its higher corrosion resistance. Continue to add pipe sections through the ﬂ ashing until the height of the vent cap meets the minimum height requirements speciﬁ ed in Dia. 4 or local codes. Note that for steep roof pitches, the vertical height must be increased. A poor draft, or down drafting can result from high wind conditions near big trees or adjoining roof lines, in these cases, increasing the vent height may solve the problem.

7) Ensure vent is vertical and secure the base of the ﬂ ashing to the roof with rooﬁ ng rails, slide storm collar over the pipe section and seal with a mastic.

Diagram 4

Roof Pitch Minimum Vent Height Feet Meters ﬂ at to 7/12 2 0.61 over 7/12 to 8/12 2 0.61 over 8/12 to 9/12 2 0.61 over 9/12 to 10/12 2.5 0.76 over 10/12 to 11/12 3.25 0.99 over 11/12 to 12/12 4 1.22 over 12/12 to 14/12 5 1.52 over 14/12 to 16/12 6 1.83 over 16/12 to 18/12 7 2.13 over 18/12 to 20/12 7.5 2.29 over 20/12 to 21/12 8 2.44

8) Install the vertical termination cap by twistlocking it.

Note: Any closets or storage spaces, which

the vent passes through must be enclosed.

GAS LINE

INSTALLATION

The gas line is brought through the right side of the appliance. The gas valve is situated on the right hand side of the unit and the gas inlet is on the right hand side of the valve.

The gas line connection may be made of rigid pipe, copper pipe or an approved ﬂ ex connector. (If you are using rigid pipe, ensure that the valve can be removed for servicing.) Since some municipalities have additional local codes it is always best to consult with your local authorities and the CAN/ CGA B149 installation code.

For USA installations follow local codes and/or the current National Fuel Gas Code, ANSI Z223.1.

When using copper or ﬂ ex connectors use only approved ﬁ ttings. Always provide a union so that gas lines can be easily disconnected for servicing. Flare nuts for copper lines and ﬂ ex connectors are usually considered to meet this requirement.

Important: Always check for gas leaks with a soap and water solution or gas leak detector. Do not use open ﬂ ame for leak testing.

P33CE Direct Vent Gas Fireplace

INSTALLATION

PILOT ADJUSTMENT

Periodically check the pilot ﬂ ames. Correct ﬂ ame pattern has two strong blue ﬂ ames: 1 ﬂ owing around the ﬂ ame sensor and 1 ﬂ owing across the burner (it does not have to be touching the burner).

Burner

Flame Sensor

Pilot

Note: If you have an incorrect ﬂ ame pattern,

contact your Regency further instructions.

Incorrect ﬂ ame pattern will have small, probably yellow ﬂ ames, not coming into proper contact with the rear burner or ﬂ ame sensor.

Ignitor

dealer for

HIGH ELEVATION

This unit is approved in Canada for altitude to 4500 ft. (CAN/CGA-2.17-M91). For Natural Gas installations above 4500 ft. follow current CAN/ CGA-B149.1.

P33CE-NG System Data

Burner Inlet Oriﬁ ce Sizes: #44 Max. Input Rating 20,000 Btu/h Min. Input Rating 14,000 Btu/h Supply Pressure min.5.0" w.c.

Manifold Pressure (High)

3.5"+/- 0.2" w.c.

P33CE-LP System Data

Burner Inlet Oriﬁ ce Sizes: #54 Max. Input Rating 20,000 Btu/h Min. Input Rating 16,500 Btu/h Supply Pressure min.1 1.0" w.c.

Manifold Pressure (High)

10"+/-

0.2"w.c.

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pressures over 1/2 psig.

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

Note: To properly check gas pressure, both

inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the switch is in the "OFF" position.

2) Loosen the "IN" and/or "OUT" pressure tap(s),

turning counterclockwise with a 1/8" wide ﬂ at screwdriver.

3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a 5/16" ID hose.

4) Light the pilot by turning the switch to "ON" position.

5) The pressure check should be carried out with the unit burning and the setting should be within the limits speciﬁ ed on the safety label.

6) When ﬁ nished reading manometer, turn off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" ﬂ at screwdriver.

Note: Screw should be snug, but do not over tighten.

1) Manual high/low adjustment

2) Pilot adjustment

3) Outlet Pressure Tap

4) Inlet Pressure Tap

5) Pilot Outlet

6) Main Gas Outlet

7) Main Gas Inlet

P33CE Direct Vent Gas Fireplace

886 S.I.T. VALVE DESCRIPTION

INSTALLATION

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER IF IN DOUBT

CONVERSION FROM NG TO LP

For P33CE Using SIT 886 NOVA Gas Valve

DO NOT DO THIS CONVERSION!!

Each Kit contains one LPG Conversion Kit

LPG Conversion Kit Contains: Qty. Part # Description

1 904-163 Burner Oriﬁce #54 1 918-590 Decal "Converted to

LPG" 1 908-528 Red "LPG" label 1 904-529 5/32" Allen Key 1 910-101 LPG Injector

(Pilot Oriﬁce) 1 911-009 Hi/Lo Conversion LP 1 919-139 Instruction Sheet

Installation of the LPG Conversion Kit:

1. Shut off the gas supply.

2. Remove the glass door.

a) Release the two hooks from the bottom of the glass door.

5. Undo clip and remove pilot cap to expose pilot oriﬁce.

ClipPilot Cap

6. Unscrew the pilot oriﬁce with the Allen

key and replace with the LPG pilot oriﬁce in the kit and replace pilot cap.

8. Reinstall new burner oriﬁce LPG

stamped #54 and tighten.

9. Remove regulator and discard. Install the

Hi/Lo pressure regulator onto the valve

with 2 screws as shown below.

10. Attach the label “This unit has been

converted to LPG” near or on top of the serial # decal.

11. Replace yellow “NG” label with red “LPG”

label.

12. Reverse step 3 - 1

13. Check for gas leaks.

14. Check inlet and outlet pressures.

15. Check operation of ﬂame control.

b) Swing the door out 45 degrees from

the bottom - then lift up and out.

3. Remove logs and brick panels if

installed.

4. Remove the 2 screws holding the Burner

Assembly to the ﬁrebox base. Push the Burner Assembly to the left and lift out.

Installer Notice:

These instructions must be

left with the appliance.

7. Remove burner oriﬁce with a 1/2"

wrench and discard. Use another wrench to hold on to the elbow behind the oriﬁce.

P33CE Direct Vent Gas Fireplace

INSTALLATION

OPTIONAL BRICK

PANELS

1) Undo the bottom 2 door latches and open and

remove glass door. Remove logs.

2) Attach the 2 Rear Brick Retaining clips to the rear wall. Loosen the screws in the top and rear wall of the ﬁ rebox and slide the retaining clips into position (tight against the ﬁ rebox top) and then tighten the screws.

Note: The logs must not be in the unit.

3) Insert the back brick panel by carefully

slipping it between the back wall of the ﬁ rebox and the rear log bracket.

LOG SET INSTALLATION

D) 251 A) 250

Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken logs can interfere with the pilot operation.

The 3-digit numbers (i.e. 250) are

molded into the rear of each log.

Log Kit # 431-930 contains the following pieces:

A) 250 Rear Log B) 254 Middle Cross Log C) 253 Front Left Cross Log D) 251 Rear Left Log E) 252 Front Right Cross Log F) Embers 902-156 G) Vermiculite 902-179 H) Rock Wool 902-153 I) Platinum Embers 946-669

NOTE: If you will be installing the optional

1) Carefully remove the logs from the box and unwrap them. The logs are fragile, handle with care - do not force into position.

2) Sprinkle the vermiculite and embers around the ﬁ rebox base.

(supplied with packaged manual)

Brick Panels, install the Brick Panels prior to installing the logs.

C) 253

4) Place Log 254 on the front right side of the burner. Push the back of the log against the 2 brackets with the notch on the bottom right side of the log ﬁ tting into the right side of the grate.

Bracket

B) 254 E) 252

Notch

254

Bracket

4) Put the side panels in next. Slide them in from the front and push them ﬂ at up against the wall. Be very careful not to scratch them on the ﬁ rebox hardware.

5) Slide the T op Brick Panel into position and slide

the Top Brick Retaining clips so that they hold the Top Brick Panel in place and tighten down the screws.

Vermiculite

3) Place the Log 250 on the rear log support pins with the ﬂ at side to the back.

Vermiculite

250

Vermiculite

250

254

5) Position Log 253 across the cutouts in Logs 250 and 254 with the notch on the left side of the log ﬁ tting into the 2nd grate tab.

Cutouts

253

250

254

2nd Grate Tab

P33CE Direct Vent Gas Fireplace

INSTALLATION

250

253

254

6) Place the bottom left front edge of Log 251 against the left edge of the burner tray and rest the log on the cutout on Log 253.

250

8) Pull off ember size pieces of rock wool and gently place them on the front of the burner tray in the places shown in the photo below. Do not compress the rock wool, leave it loose.

Separate platinum embers and place them

on the front of the burner on and around the rock wool.

& Screen Door

251

253

7) Position Log 252 across the cutouts in Logs 254 and 253. The notch in the bottom right end ﬁ tting against the 5th grate tab.

252

253

254

5th Grate Tab

254

Cutout

Place rock wool in these 2 locations

on the burner tray.

9) Test ﬁ re to ensure proper light off (make sure ﬂ ame ﬂ ows smoothly from one end of burner to the other). If there is any ﬂ ame hesitation, check that area for any blockage of the burner ports.

STANDARD FLUSH DOOR AND

SCREEN

Both the standard ﬂ ush door and glass screen

guard come with a black frame. To install the glass screen guard simply hook the over top of the ﬂ ush glass door see Diagram 1. Install both screen and glass door by hooking the top door ﬂ ange onto the top of the unit and swing the door towards the unit, Diagram 2. Be careful that the glass gasket does not roll up; there must be a gap between the gasket and the door lip to ensure that the door sits securely on the unit. See Diagram 3.

Diagram 2

Diagram 3

Use the hook to pull the spring out until you can put the hook into the slot on the bottom door bracket. Repeat for 2nd spring. See diagram 3.

251

253

254

250

252

Screen Door

Glass Door

Diagram 4

To remove the ﬂ ush door, reverse the above steps.

Diagram 1

P33CE Direct Vent Gas Fireplace

GT REMOTE INSTALLATION

INSTALLATION

1) Shut off the gas supply and disconnect all power to the unit.

2) Remove the louvers, bay door or faceplate if installed.

3) Disconnect battery pack - located on the ﬂ oor of the unit, as shown

below and discard.

4) Remove DFC (digital ﬁ rebox control box) from the ﬂ oor of the unit.

8) Plug in receiver DC supply wire - as shown below.

9) Install 4 - AA batteries into the receiver, ensure correct polarity.

10) Plug receiver wires into the back of the receiver and bundle wires

with the wire clip as shown below.

5) Disconnect wire harness, ground wire and spark wire from DFC.

See attached wiring diagram for details.

6) Identify wires in the GT remote wiring harness. (see wiring diagram.)

7) Connect the TPTH and TH wires - green to green and white to white as shown below. See attached wiring diagram for details.

TPTH

(white)

(green)

Wire Clip

11) Install the heat shield to the receiver with two screws and attach to

the ﬂ oor of the unit with a velcro pad.

Heat Shield

12) Reverse steps 5 and 4.

13) Match the remote control to the receiver - see remote control

instructions.

P33CE Direct Vent Gas Fireplace

14) Reverse steps 2 and 1.

15) Check to ensure there are no gas leaks.

INSTALLATION

GTM REMOTE INSTALLATION

1) Shut off the gas supply and disconnect all power to the unit.

2) Remove the louvers, bay door or faceplate if installed.

3) Disconnect battery pack - located on the ﬂ oor of the unit, as shown

below and discard.

4) Remove DFC (digital ﬁ rebox control box) from the ﬂ oor of the unit.

6) Identify wires in the GTM/GTMF remote wiring harness.

(see wiring diagram.)

7) Connect the TPTH and TH wires - green to green and white to white as shown below.

TPTH

8) Plug in receiver DC supply wire - as shown below.

5) Disconnect wire harness, ground wire and spark wire from DFC.

DFC

9) Remove the hi/lo knob if installed by removing 2 screws as shown below.

P33CE Direct Vent Gas Fireplace

INSTALLATION

10) Install the stepper motor in the same location the hi/lo knob was removed from - with 2 screws as shown below.

11) Remove the receiver if installed - unplug the motor wire from the

back of the receiver - as shown below.

15) Install 4-AA batteries into the receiver.

16) Bundle all wires together and clip with supplied wire clip - as

shown below.

17) Install the heat shield to the receiver with two screws and attach

to the ﬂ oor of the unit with a velcro pad - also peel off paper on back side of wire clip and place wires conveniently in appliance.

12) Reattach wires from step 5.

13) Plug the stepper motor into the ‘motor wire as shown below.

Motor wire

14) To unattach these wires - un-clip from the wires on the stepper

motor side as shown below.

Press down this tab

Heat shield

18) Match the remote control to the receiver - see remote control instructions.

19) Reverse steps 2 and 1.

20) Check to ensure there are no gas leaks.

P33CE Direct Vent Gas Fireplace

INSTALLATION

OPTIONAL 4-SIDED FACEPLATE INSTALLATION

If installing the optional faceplate ensure the combustible and non combustible material around the unit are installed ﬂ ush with the unit. (See Diagram 1 below). The faceplate cannot be installed if materials are not ﬂ ush.

Combustible Material

Non-combustible Material (3-1/2" x 36")

Nailing Strip

Combustible Material

-1/2" back from unit face

3. Line up the middle rib on backside of faceplate with middle indent on bracket. This will centre the faceplate and allow 1/16" adjustment from side to side.

Middle Rib on Faceplate

Diagram 4 -Line up faceplate and bracket.

4. Lift faceplate up and lower gently onto bracket.

Diagram 1- Materials ﬂ ush w/unit.

1. Install 2 middle screws on unit face - do not tighten. Slide bracket over screws then tighten. Install 2 outer screws .

Install middle 2 screws on

to unit ﬁ rst

Diagram 2 -Bracket screw locations on unit.

2. Install four (4) wood screws, two (2) on each side of the bracket into the wall studs as shown below.

Diagram 5 -Hang faceplate on bracket

Diagram 6 -Final Install

Diagram 3 -Bracket screw locations.

P33CE Direct Vent Gas Fireplace

OPTIONAL MANTEL INSTALLATION

INSTALLATION

If installing the optional mantel ensure the combustible and non combustible material around the unit are installed ﬂ ush with the unit. (See Diagram 1 below). The mantel cannot be installed if materials are not ﬂ ush.

Combustible Material

Non-combustible Material (3-1/2" x 36")

Nailing Strip

Combustible Material

Diagram 1- Materials ﬂ ush w/unit.

1. Install 2 middle screws on unit face - do not tighten. Slide bracket over screws then tighten, install 2 outer screws .

-1/2" back from unit face

3. Repeat steps 1 and 2 to install lower bracket - screw locations are shown below.

4. Line up ﬂ ange on hearth portion of mantel, with opening between bracket and unit.

Install middle 2 screws on

to unit ﬁ rst

Diagram 2 -Bracket screw locations on unit.

2. Install four (4) wood screws, two (2) on each side of the bracket into the wall studs as shown below.

Diagram 3 -Bracket screw locations into stud.

P33CE Direct Vent Gas Fireplace

5. Lift up mantel and line up the middle rib on backside of faceplate with middle indent on bracket. This will centre the faceplate and allow 1/16" adjustment from side to side.

Diagram 6 -Final Install

INSTALLATION

Optional

WALL THERMOSTAT

A wall thermostat may be installed if desired, connect the wires as per the wiring diagram. Use table below to determine the maximum wire length.

Note: Preferable if the thermostat is installed

on an interior wall.

Regency® offers an optional programmable thermostat but any 250-750 millivolt rated nonanticipator type thermostat that is CSA, ULC or UL approved may be used.

CAUTION

Do not wire millivolt

wall thermostat wires

to 120V wire.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA. 50 Ft.

16 GA. 32 Ft.

18 GA. 20 Ft.

20 GA. 12 Ft.

22 GA. 9 Ft.

Optional

REMOTE CONTROL

Use the Regency® Remote Control Kit approved for this unit. Use of other systems may void your warranty.

The remote control kit comes with a hand held transmitter, a receiver and a wall mounting plate.

1) Choose a convenient location on the wall to install the receiver and the receptacle box (protection from extreme heat is very important). Run wires from the ﬁ replace to that location.

2) Connect the two wires to the gas valve. See wiring diagram. Optional wall switch GT/GTM/ GTMF using wire 0.584.907

CAUTION

Do not wire millivolt

remote control wires

to 120V wire.

3) Install 3 AAA alkaline batteries in transmitter and

4 AA alkaline batteries in the receiver. Install the receiver and its cover in the wall. Switch the remote receiver to "remote" mode. The remote control is now ready for operation.

Optional

WALL SWITCH

1) Run the supplied 10' of wire through the right

or left side gas inlet opening. Be careful not to damage wire.

Note: We recommend a maximum of 10' of

wire but if you wish to go with a longer run, use the Thermostat Wire Table.

2) Connect the wire to a wall switch and install

into the receptacle box. Also attach wires to the valve as shown below.

CAUTION

Do not wire millivolt

wall switch wires

to 120V wire.

BATTERY INSTALLATION

1) 4 AA batteries must be installed in the battery pack to operate the burner switch.

2) Install 2 AA batteries per side and connect as shown below.

P33CE Direct Vent Gas Fireplace

INSTALLATION

Proflame System Configuration 886 GTMF Wire Diagram

WIRING DIAGRAMS

This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/thermostat will continue to operate. However, a 120V A.C. power supply is needed for the fan/blower operation.

(Do not cut the ground terminal off under any circumstances.)

NOTE: Even if the fan is not purchased with the unit, it is still a good idea to bring power to the receptacle box (provided with the unit) in case the

fan is installed at a later date.

Proame System 886 ON/OFF Stand Alone Illustrated Wire Diagram

Surere Switch (IPI / CPI)

Standard Main ON/OFF Switch or Optional Wall Switch

886 Proame Valve

Pilot Ground Wire

Chassis Ground

DFC Wire Harness Assembly

Spark Electrode

EI Pilot

Proame DFC Board

Note: 4 AA batteries must be installed to operate the burner switch.

Battery Holder

IMPORTANT:

If the optional remote control is used, the AA batteries normally installed into the battery holder must be removed. The AA batteries in the

receiver now operate the unit. Having AA batteries in both the battery holder and receiver will damage the gas valve.

Do not use a 9 volt battery.

Sense Electrode

P33CE Direct Vent Gas Fireplace

SureFire™ Switch

INSTALLATION

AC POWER ADAPTOR INSTALLATION (FOR SUREFIRE SYSTEMS)

An optional AC power adaptor may be installed as a constant power source for the SureFire system.

This will avoid battery leakage and power drainage. 4-AA Battery pack may be re-installed into receiver during power outages.

NOTE: For all Gas Fireplaces 120 volt power must be brought to the receptacle box inside the ERWWRPRIWKH¿UHER[(provided with the unit).

All Freestanding Gas Stoves & Gas Inserts will need a receptacle box located outside / near the unit

INSTALL AC ADAPTOR WITH SUREFIRE WALL RECEIVER SWITCH ONLY - (WITHOUT REMOTE)

1) Locate “DC Supply” tag on wire harness. For location in unit

see remote installation page in owners manual.

IMPORTANT: Recommend removing the 4-AA batteries in the SureFire receiver.

so that the AC Power Adaptor can be plugged in.

2) Connect the male end from AC adaptor to the female end tagged “DC Supply” on wiring harness in unit.

Plug AC adaptor into 120V wall outlet (or into 120V receptacle if

LQVWDOOHGLQVLGHWKHJDV¿UHSODFH¿UHER[

INSTALL AC ADAPTOR WITH SUREFIRE PROFLAME GT / GTM REMOTE

1) Connect the male end of the AC adaptor to the female end of the

wire adaptor (supplied with AC adaptor) together as shown

Wire adaptor

Locate FCM - COM connector on the Remote wire harness -

see manual for location in unit.

AC adaptor

4) Neatly tuck any loose AC Power Adaptor wires neatly underneath / inside the appliance.

Note: (QVXUHWKDWZLUHVGRQRWWRXFKWKHXQGHUVLGHRIWKH¿UHER[

(keep wires away from the heat as much as possible).

Plug in wire adaptor to FCM - COM connector - be careful not

WRGDPDJHHQGV7KLVRQO\¿WVRQHZD\

wire adaptor

4) Plug AC adaptor into 120V wall outlet (or into 120V receptacle if

LQVWDOOHGLQVLGHWKHJDV¿UHSODFH¿UHER[

5) Neatly tuck any loose AC Power Adaptor wires neatly underneath / inside the appliance.

FCM - COMAC adaptor

Note: (QVXUHWKDWZLUHVGRQRWWRXFKWKHXQGHUVLGHRIWKH¿UHER[

(keep wires away from the heat as much as possible).

FCM - COM

P33CE Direct Vent Gas Fireplace

INSTALLATION

INSTALLING THE OPTIONAL FAN (PRIOR TO UNIT INSTALLATION)

An optional fan can been installed prior to unit installation by following these steps.

1. Remove lower base cover by tilting forward and removing one screw on each

side to release. (Diagram 1).

Lower Base

Cover

Bottom Panel

Diagram 1

2. Loosen four (4. screws (two on each side)inside of the bottom panel of the clean front, slide panel out.

Diagram 2

3. Turn the fan base on its side (with the base facing towards you) and then slide the fan in towards the rear of the unit. Turn the fan upright and slip it over the two mounting studs. Take care not to damage the insulation on the fan base.

Ensure that the fan blades do not rub against the valve tubing.

6. Attach the fan control box to the Control Plate. (Diagrams 5 & 6.

Fan Control Box

Control Mounting Plate

Diagram 5

7. Position the control plate assembly on the left hand side of the

ﬁ rebox. Diagram 7

8. Secure the control plate assembly with 1 screw as shown in Diagram

Diagram 7

9. Secure the fan wires and power cord by attaching one of the ad-

hesive backed wire holder clips (Part #910-199. onto the Fireplace base. Use the second clip to bundle up the wires approximately 4" from the control box. Ensure that there is no interference with the wires when the faceplate and trim are installed and that no wires will touch the hot metal surfaces or sharp edges.

Diagram 6

Diagram 8

Diagram 3

4. Connect fan ground cable to ground lug. Refer to wiring diagram.

5. Slide the thermodisc/cover assembly into the bracket clip on the underside of

the ﬁ rebox (Diagram 4 ).

Check that no wires will touch hot surfaces.

Diagram 4

P33CE Direct Vent Gas Fireplace

10. Plug the fan power cord into the rear end of the receptacle box to

provide the maximum clearance.

TO REMOVE THE FAN

1. Shut the power off.

2. Follow Steps 2 - 7 of `Installing the optional fan after unit is installed`.

3. Reverse Step 8 of `Installing the optional fan after unit is installed`.

Note: The bearings are lubricated for life. Do not lubricate them.

Make sure you vacuum the fan area on a regular basis.

IMPORTANT: These fans collect a lot of dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming out the fan blades and housing using a soft brush nozzle.

INSTALLATION

OPTIONAL FAN WIRING DIAGRAM

Lockwasher

Star washer

#8 Ground Lug

(for mobile home)

120V AC 60 Hz

Neutral

Live

Nut

Fan

ground wire

INSTALLING THE OPTIONAL FAN (INSTALLED UNIT)

120 Volt AC power is needed for the fan switch and blower. The fan can be hard wired if desired. The grounded duplex receptacle should be installed into the supplied receptacle box by a qualiﬁ ed electrician. The neutral (wider) slot of the polarized receptacle should be at the top.

Ground

ON OFF

Green

Fan

Black Red Red

Rotary Speed

Control

NOTE: Wiring schematics for P36E-4 (120 Volts), plug-in fan circuit with speed control switch on wall.

6. Slide burner to the left and lift out.(See Diagram 2).

Fan Thermodisc

(normally open)

Unit must be grounded at all times. Do not cut the ground terminal off under any circumstances.

1. Shut the power off.

2. Remove Flush door (See instructions in this Manual).

3. Remove inner panels (See instructions in this Manual).

4. Remove logs.

5. Remove the burner by removing 2 screws in the locations shown below.

Diagram 1: Remove the 2 screws to remove

burner.

Diagram 2

7. Remove 2 screws to remove Rear Log Stand (See Diagram 3).

screws

Diagram 3

P33CE Direct Vent Gas Fireplace

Rear Log Stand

INSTALLATION

8. Remove the 12 screws securing the valve tray assembly in place (Diagram 4) and then lift the entire assembly out.

Diagram 4 Valve Tray Assembly

9. Manoeuvre fan into valve tray opening at base of ﬁ rebox.

13. Remove lower base cover by removing 2 screws and lifting out (Diagram 8).

Diagram 8

14. Attach the fan control box to the Control Plate. (Diagrams 9 & 10.

Control Mounting Plate

15. Position the control plate assembly on the left hand side of the ﬁ rebox.

Diagram 11

16. Secure the control plate assembly with one (1) screw as shown in

Diagram 12.

Fan Control Box

Diagram 9

Diagram 10

Diagram 5

10. Secure fan by pushing fan down onto mounting pins located on ﬂ oor of unit. Take care not to damage the insulation on the fan base. Ensure that the fan blades do not rub against the valve tubing. Diagram

Diagram 6

11. Connect fan ground cable to ground lug. Refer to wiring diagram.

12. Slide the thermodisc/cover assembly into the bracket clip on the

underside of the ﬁ rebox (Diagram 7).

Check that no wires will touch the hot surfaces.

Diagram 11

Diagram 12

17. Secure the fan wires and power cord by attaching one of the adhe-

sive backed wire holder clips (Part #910-199) to the Fireplace base. Use the second clip to bundle up the wires approximately 4" from the control box. Ensure that there is no interference with the wires when the faceplate and trim are installed and that no wires will touch the hot metal surfaces or sharp edges.

18. Plug the fan power cord into the rear end of the receptacle box to

provide the maximum clearance.

TO REMOVE THE FAN

1. Shut the power off.

2. Reverse the above instructions.

Note: The bearings are lubricated for life. Do not lubricate them.

Make sure you vacuum the fan area on a regular basis.

IMPORTANT: These fans collect a lot of dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming out the fan blades and housing using a soft brush nozzle.

Diagram 7

P33CE Direct Vent Gas Fireplace

OPERATING INSTRUCTIONS

COPY OF THE LIGHTING PLATE INSTRUCTIONS

FOR YOUR SAFETY READ BEFORE LIGHTING

This appliance must be installed in accordance with local codes, if any;

if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or gas supplier. AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions dans la présente notice risquede déclencher un incendie ou une explosion entraînant des dommages, des blessures ou la mort. Une installation, d'ajustement, de modiﬁ cation, de service ou d'entretien peut provoquer des blessures ou des dommages matériels. Reportez-vous au manuel du propriétaire de l'information fournie avec cet appareil. Pour obtenir de l'aide ou des informations supplémentaires consulter un installateur qualiﬁ é, une agence de service ou fournisseur de gaz.

A) This appliance is equipped with an ignition device which automatically lights the pilot.

Do not try to light the pilot by hand.

B) BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the ﬂ oor because some gas is heavier than air and will settle on the ﬂ oor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electric switch, do not use any phone in your building.

- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the ﬁ re department.

C) Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and replace any part of the control system and any gas control which has been underwater.

A) Cet appareil est muni d’un dispositif d’allumage qui allume automatiquement la veilleuse. Ne tentez pas d’allumer la veilleuse manuellement.

B) AVANT DE FAIRE FONCTIONNER, reniﬂ ez tout autour de l’appareil pour déceler une odeur de gaz. Reniﬂ ez près du plancher, car certains gaz sont pluslourds que l’air et peuvent s’accumuler au niveau du sol. QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil

• Ne touchez à aucun interrupteur; ne pas vous servir des téléphones se trouvant dans le bâtiment.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur, appelez le service des incendies

C) N’utilisez pas cet appareil s’il a été plongé dansl’eau, même partiellement. Faites inspecter l’appareil par un tech-

nicien qualiﬁ é et remplacez toute partie du système de contrôle et toute commande qui ont été plongés dans l’eau.

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface temperatures keep children, clothing and furniture, gasoline and other liquids having ﬂ ammable vapors away. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.

1) Turn on ON/OFF switch

2) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.

3) The unit will turn on.

Note: The ﬁ rst attempt to ignition will last approximately 60 seconds. If there is no ﬂ ame ignition (rectiﬁ cation) the board will stop sparking for approximately 35 seconds. After this wait time, the board will start a second try for ignition by sparking for approximately 60 seconds. If there is still no positive ignition after the second attempt the board will go into lock out. The system will need to be reset as follows (after going into lock out mode): a) Wait 5 minutes - turn the system off using ON/OFF switch. b) After approximately 2 seconds turn on ON/OFF switch or press ON/OFF button if using optional

c) Unit will repeat step 2.

1) Appuyez le bouton ON / OFF

2) Attendre 4 secondes. Le système d’allumage produira des étincelles pendant 60 secondes aﬁ n d’amorcer

3) Les ﬂ ammes s’allumeront. Remarque : Au premier allumage, le système tente d’allumer les ﬂ ammes pendant 60 secondes. Si l’essai est infructueux, le système fait une pause de 35 secondes. C’est ce qu'on appelle l'étape de rectiﬁ cation. Ce délai écoulé, le système tente à nouveau d'allumer les ﬂ ammes en produisant des étincelles pendant 60 secondes. Si les ﬂ ammes ne s’allument toujours pas, le système se met en mode verrouillage. Il faut alors le réinitialiser en suivant les étapes ci-dessous (pour le déverrouiller) : a) Attendre 5 minutes et éteindre l’appareil en réglant l’interrupteur à la position « OFF »; b) Attendre 2 secondes et rallumer le système à l’aide de l’interrupteur ou de la télécommande. c) L'unité répétera l'étape 2.

1) Turn off ON/OFF switch

2) If service is to be performed - you must disconnect power to the unit, from the battery pack, refer to

Appuyez sur le bouton ON / OFF

2) Si le service est effectuée, vous devez débrancher l'appareil, du bloc-piles, voir le manuel d'instruction

remote.

le brûleur principal.

manual.

pour plus de détails.

Natural Gas and Propane Installation Codes, CSA B149.1.

LIGHTING INSTRUCTIONS

TO TURN OFF GAS APPLIANCE

DO NOT REMOVE THIS INSTRUCTION PLATE

918-628b

P33CE Direct Vent Gas Fireplace

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the door frame is

properly positioned. Never operate the appliance with the glass removed.

5) Verify that the venting and cap are unobstructed.

6) Ensure that the brick panels are installed.

7) Verify log placement. If the pilot cannot be

seen when lighting the unit, the logs have been incorrectly positioned.

8) The unit should never be turned off, and on again without a minimum of a 60 second wait.

FIRST FIRE

The ﬁ rst ﬁ re in your ﬁ replace is part of the paint curing process. To ensure that the paint is properly cured, it is recommended that you burn your ﬁ replace for at least four (4) hours the ﬁ rst time you use it with the fan on.

When ﬁ rst operated, the unit will release an odour caused by the curing of the paint, the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours.

The glass panel may require cleaning after the unit has cooled down. DO NOT A TTEMPT T O

CLEAN THE GLASS WHILE IT IS HOT.

Note: When the glass is cold and the

appliance is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.

LIGHTING

PROCEDURE

IMPORTANT To ignite or reignite the pilot, you must ﬁ rst remove the glass door.

1) Press and release on ON/OFF button once

on the remote control or ON/OFF switch.

2) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.

3) The unit will turn on.

Note: The ﬁ rst try for ignition will last approxi-

mately 60 seconds. If there is no ﬂ ame ignition (rectiﬁ cation) the board will stop sparking for approximately 35 seconds. After wait time , the board will start second try for ignition by sparking for approximately 60 seconds . If there is still no positive ignition the board will go into lock out.

The system will need to be reset as follows:

a) Turn the system off using ON/OFF switch

or press ON/OFF button - if using optional remote.

b) After approximately 2 seconds turn on ON/

OFF switch or press ON/OFF button if using optional remote.

c) Repeat step 2.

SHUTDOWN

PROCEDURE

1) Turn the wall mounted switch or remote to

the "OFF" position.

2) Press "OFF" on the remote control.

3) Turn the gas control knob to the "OFF" posi-

tion to turn off the pilot.

AERATION

ADJUSTMENT

The air shutter can be adjusted by moving the adjusting wire up or down. The wire is accessed through the bottom opening. Open the air shutter for a blue ﬂ ame or close for a yellower ﬂ ame. The burner aeration is factory set but may need adjusting due to either the local gas supply or altitude.

Minimum Air Shutter Opening: 3/16" Natural Gas - Oriﬁ ce # 44

3/8" Propane - Oriﬁ ce # 54

CAUTION: Carbon will be produced if air shutter is closed too much.

Air

shutter

wire

Adjustment Wire: push to close

or pull to open aeration cap

Closed - Tall yellow

Open - Short blue

Note: Any damage due to carboning

resulting from improperly setting the aeration controls is NOT covered under warranty.

Note: Aeration Adjustment should only

be performed by an authorized Regency® Installer at the time of installation or service.

DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT IN PLACE.

During the ﬁ rst few ﬁ res, a white ﬁ lm may develop on the glass front as part of the curing process. The glass should be cleaned or the ﬁ lm will bake on and become very difﬁ cult to remove. Use a non-abrasive cleaner and NEVER clean the glass while it is hot.

P33CE Direct Vent Gas Fireplace

4949

MAINTENANCE

NORMAL OPERATING

SOUNDS OF

GAS APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

Blower:

Regency® gas appliances use high tech blowers to push heated air farther into the room. It is not unusual for the fan to make a "whirring" sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan speed control.

Burner Tray:

The burner tray is positioned directly under the burner tube(s) and logs and is made of a different gauge material from the rest of the ﬁ rebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. Y ou should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel ﬁ reboxes.

Blower Thermodisc:

When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.

Pilot Flame: While the pilot ﬂ ame is on it can make a very slight "whisper" sound.

Gas Control Valve: As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

Unit Body/Firebox: Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

MAINTENANCE

INSTRUCTIONS

1) Always turn off the gas valve before cleaning.

For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year. When cleaning the logs, use a soft clean paint brush as the logs are fragile and easily damaged.

2) Clean appliance and door with a damp cloth (never when unit is hot). Never use an abrasive cleaner. The glass should be cleaned with a gas ﬁ replace glass cleaner.

The glass should be cleaned when it starts looking cloudy.

3) The heater is ﬁ nished in a heat resistant paint and should only be reﬁ nished with heat resistant paint. Regency® uses StoveBright Paint - Metallic Black #6309.

4) Make a periodic check of burner for proper position and condition. Visually check the ﬂ ame of the burner periodically, making sure the ﬂ ames are steady; not lifting or ﬂ oating. If there is a problem, call a qualiﬁ ed service person.

5) The appliance and venting system must be inspected before use, and at least annually, by a qualiﬁ ed ﬁ eld service person, to ensure that the ﬂ ow of combustion and ventilation air is not obstructed.

Note: Never operate the appliance without the

glass properly secured in place.

6) Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and to replace nay part of the control system and any gas control which has been under water.

7) Verify operation after servicing.

GENERAL VENT

MAINTENANCE

Conduct an inspection of the venting system semi-annually. Recommended areas to inspect as follows:

1) Check the Venting System for corrosion in areas that are exposed to the elements. These will appear as rust spots or streaks, and in extreme cases, holes. These components should be replaced immediately.

2) Remove the Cap, and shine a ﬂ ashlight down the Vent. Remove any bird nests, or other foreign material.

3) Check for evidences of excessive condensation, such as water droplets forming in the inner liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and ﬁ ttings. It may be caused by having excessive lateral runs, too many elbows, and exterior portions of the system being exposed to cold weather.

4) Inspect joints, to verify that no pipe sections or ﬁ ttings have been disturbed, and consequently loosened. Also check mechanical supports such as Wall Straps, or plumbers' tape for rigidity.

LOG REPLACEMENT

The unit should never be used with broken logs. Turn off the gas valve and allow the unit to cool before opening door and carefully remove the logs. (The pilot light generates enough heat to burn someone.) If for any reason a log should need replacement, you must use the proper replacement log. The position of these logs must be as shown in the diagrams under Log Installation.

Note: Improper positioning of logs may

create carbon build-up and will severely alter the unit's performance which is not covered under warranty.

P33CE Direct Vent Gas Fireplace

MAINTENANCE

GLASS GASKET

If the glass gasket requires replacement use 5/8" ﬂ at glass gasket for the Bay Front (Part # 936-243) and a tadpole glass gasket for the Flush Front (Part # 936-155).

DOOR GLASS

Your Regency® ﬁ replace is supplied with high temperature, 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. If your glass requires cleaning, we recommend using an approved glass cleaner available at all authorized dealers. Do not use abrasive materials. Do not clean the glass when hot.

In the event that you break your glass by impact, purchase your replacement from an authorized Regency® dealer only, and follow our step-bystep instructions for replacement.

WARNING: Do not operate the appliance with the glass panels removed, cracked or broken. Replacement of the glass panels should be done by a licensed or qualiﬁ ed service person.

Flush Glass Replacement

Remove the ﬂ ush door front. Remove the 4 glass clips from each corner. Slide in the new replacement glass. Push the 4 glass clips back onto the frame. The glass must have

gasketing around it.

Caution: Wear gloves when removing damaged or broken glass.

P33CE Direct Vent Gas Fireplace

MAINTENANCE

REMOVING VALVE

1. Shut off the gas supply.

2. Open the ﬂ ush door (see instructions in this manual) and remove

the door.

3. Remove the burner/grate assembly by removing the two screws and then lift the burner assembly out.

7. Remove the 12 screws securing the valve tray assembly in place (Diagram 4) and then lift the entire assembly out.

Diagram 4 Valve Tray Assembly

8. Remove valve tray assembly.

Diagram 1: Remove the left and right screws and then lift out the

4. Remove the rear log stand by removing the 2 screws.

5. Disconnect the inlet gas line.

6. Disconnect the EV1, EV2, and ground wires from the valve - as shown

below.

burner/grate assembly.

screws

Diagram 2

Rear Log Stand

Ground

Diagram 5: Lift out Valve Tray Assembly

INSTALLING VALVE

1. Install new valve assembly.

2. Reverse steps 7-1.

Diagram 3

EV1 EV2

Regency® P33CE Zero Clearance Direct Vent Gas Fireplace

MAIN ASSEMBLY

Part # Description

1 Burner Assembly 2 770-523 Thermodisc cage 3 437-515 Valve Assembly 4 432-917 Fan Assembly 5 437-024 Screen glass guard 6 433-538 Glass Door Assembly 7 ** Clean Front Assembly 8 ** Firebox Assembly

** Not a replacement part

Part # Description

Oriﬁ ce # 44 NG 904-163 Oriﬁ ce # 54 LP 911-004 886 Proﬂ ame V alve

919-125 Manual

PARTS LIST

BURNER & LOG ASSEMBLY

Part Description

53) 430-055 Gasket - Valve Access Plate - NG/LP

54) 910-421 Pilot ON/OFF Extension Knob

55) 910-422 Flame HI/LOW Extension Knob 433-574E/P Valve Assy - Natural Gas

433-576E/P Valve Assy - Propane

57) 911-004 Valve SIT - NG 911-005 Valve SIT - LP

58) * V alve Bracket

59) * Firebox Base

60) * V alve T ray

66) 911-006 Pilot Assy - 886 - S.I.T. - NG 911-007 Pilot Assy - 886 - S.I.T. - LP 904-568 Oriﬁ ce #44 - Natural Gas 904-163 Oriﬁ ce #54 - Propane 936-170 Oriﬁ ce Gasket

67) * Pilot Holder

68) W840470 Pilot Assembly Gasket

79) 433-525 Burner Assy - NG/LP

82) 433-024 Burner Grate Assembly - NG/LP

83) * Rear Log Support Bracket - NG/LP

85) 431-930 Log Set

86) 430-097 Air Deﬂ ector-Left

87) 433-018 Air Deﬂ ector-Right

83 86

*Not available as a replacement part.

P33CE Direct Vent Gas Fireplace

Regency Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects

e e

thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purc Regency Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs, brick panels and gold plating (against defective manufacture only) are covered under the Limite Warranty for ﬁ ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for ﬁ ve (5) years and parts only thereafter from date of purchase.

External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and subsidized labour* for three (3) years fro of purchase and parts only thereafter.

Special Finishes - One year on brushed nickel and antique copper full screens and doors. You can expect some changes in color as the product "ages" with consta and cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors a ie. ﬁ nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly co and gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered r continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replac

FPI venting components are covered parts and subsidized labour* for three (3) years from date of purchase.

Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.

Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agen that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

Porcelain/Enamel - Absolute perfection is neither guaranteed nor commercially possible. Any chips must be reported and inspected by an authorized dealer within thr installation. Reported damage after this time will be subject to rejection.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and for manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Regency product. FPI will not be liable for results or costs of workma unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the ﬁ eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including custo purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once man ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, n or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by m systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

ƔZ

PVSƔ8B8BSS

BOUZƔBOEƔCFƔBVUPNBUJDB

MMZƔFOUFSFEƔUP

www.regency-ﬁ re.com

Reasons to register your product online today!

• View and modify a list of all your registered products.

• Request automatic email notiﬁ cation of new product updates.

• Stay informed about the current promotions, events, and special offers on related products.

7).Ɠ!Ɠ&)2%4!",%

2EGISTERƓONLINEƓATƓ

IUUQSFHFODZGJSFDPNƔ $VTUPNFS$BSFBTQY

4FFƔXFCTJUFƔGPSƔTXFFQTUBLFTƔSVMFT

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________

Printed in Canada

Regency P33CE User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
