Regency P121LC, P121RC, P121, P131 User Manual

P121 / P121LC / P121RC / P131

Zero Clearance Direct Vent Gas Fireplace

Owners &

Installation Manual

STYLE MODEL

See Thru P121-NG1 Natural Gas P121-LP1 Propane
Left Corner P121LC-NG1 Natural Gas P121LC-LP1 Propane
Right Corner P121RC-NG1 Natural Gas P121RC-LP1 Propane
Pier P131-NG1 Natural Gas P131-LP1 Propane

WARNING:
If the information in these instructions are not followed
exactly, a fire or explosion may result causing property
damage, personal injury or loss of life.

FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapours and
liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualified
installer, service agency or the gas supplier.

Tested by:

918-107a

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

FOR YOUR SAFETY
What to do if you smell gas:

Do not try to light any appliance
Do not touch any electrical switch: do not use any
phone in your building.
Immediately call your gas supplier from a neighbour's
phone. Follow the gas supplier's instructions.
If you cannot reach your gas supplier, call the fire
department.

08/08/03

To the New Owner:

Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY. The P121/
P121LC/P121RC/P131 is a hand crafted appliance and has been designed to
provide you with all the warmth and charm of a wood fireplace at the flick of a switch.
The model P121/P121LC/P121RC/P131 has been approved by Warnock Hersey
for both safety and efficiency. As it also bears our own mark, it promises to provide
you with economy , comfort and security for many trouble free years to follow . Please
take a moment now to acquaint yourself with these instructions and the many features
of your Regency Fireplace.

IMPORT ANT: If the unit is to be installed into a bathroom, optional Neo ceramic glass
Part# 360-946 Front or Part# 360-948 Side must be purchased and installed in place
of the tempered glass supplied with the unit.

MANUFACTURED MOBILE HOME REQUIREMENTS

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards:
VENTED GAS FIREPLACE HEATERS ANSI Z21.88a-2000/CSA 2.33a-2000 and GAS-FIRED APPLIANCES FOR USE AT HIGH
ALTITUDES CAN/CGA 2.17-M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard
in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence
of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in
the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This Regency mobile/manufactured home listed appliance comes factory equipped with four 1/4" diameter holes located near each
corner of the base. Fasten the fireplace in place using screw, inserted through the holes.

This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable
to local codes. See page 28.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,
with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where
not prohibited by local codes.

This appliance can only be used with the type of gas indicated on the
rating plate. This appliance is not convertible for use with other cases,
unless a certified kit is used.

Ensure that structural members are not cut or weakened during
installation.

2

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

TABLE OF CONTENTS

Safety Label

Safety Label............................................................... 4

Installation

Manufactured Mobile Home Requirements ................. 2

Important Message .................................................... 5

Before You Start ........................................................ 5

General Safety Information ......................................... 5

Installation Checklist .................................................. 5

Specifications ............................................................ 6

Locating Your Fireplace ............................................. 8

Clearances................................................................. 9

Combustible Mantel Clearances................................. 9

Framing and Finishing...............................................10

Facing and Finishing Requirements ..........................11

Unit Assembly Prior to Installation

Top Standoff Assembly.......................................11

Venting Introduction ..................................................11

Exterior Vent Termination Locations..........................12

Venting: Direct Vent System (Flex)...........................13

Venting: Simpson Dura Vent Direct Vent GS ............14

Venting: Simpson Dura Vent Components List..........14

Venting Arrangements

Horizontal Terminations ......................................15

Vertical Terminations ..........................................17

Venting - Dura-Vent Horizontal Installations ..............19

Venting - Dura-Vent Vertical Termination...................20

Venting - Installation Procedures for Direct Vent

System (Flex).....................................................21

Converion to Propane ................................................22

System Data.............................................................23

High Elevation ...........................................................23

Gas Line Installation..................................................23

Pilot Adjustment .......................................................23

Gas Pipe Pressure Test ............................................23

SIT Valve Description ................................................23

Log Set Installation ...................................................24

Glass Door Removal..................................................26

Finishing Trim ...........................................................26

Louvers and Grills......................................................26

Remote Control (optional)..........................................27

Remote Wall Switch (optional) ..................................27

Wall Thermostat (optional) ........................................27

Wiring Diagram .........................................................28

Operating Instructions

Operating Instructions ...............................................29

Lighting Procedure ....................................................29

Shutdown Procedure .................................................29

First Fire ...................................................................29

Aeration Adjustment..................................................29

Normal Operating Sounds of

Gas Appliances ..................................................29

Lighting Plate Instructions .........................................30

Maintenance

Maintenance Instructions ..........................................30

General Vent Maintenance ........................................31

Log Replacement ......................................................31

Thermopile/Thermocouple .........................................31

Glass Gasket............................................................31

Door Glass................................................................31

Gold-Plated Accessories...........................................31

Removing Valve.........................................................31

Installing Valve ..........................................................32

Fan Replacement......................................................33

Parts List

Replacement/Spare Parts List...................................34

Warranty

Warranty ...................................................................39

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 3

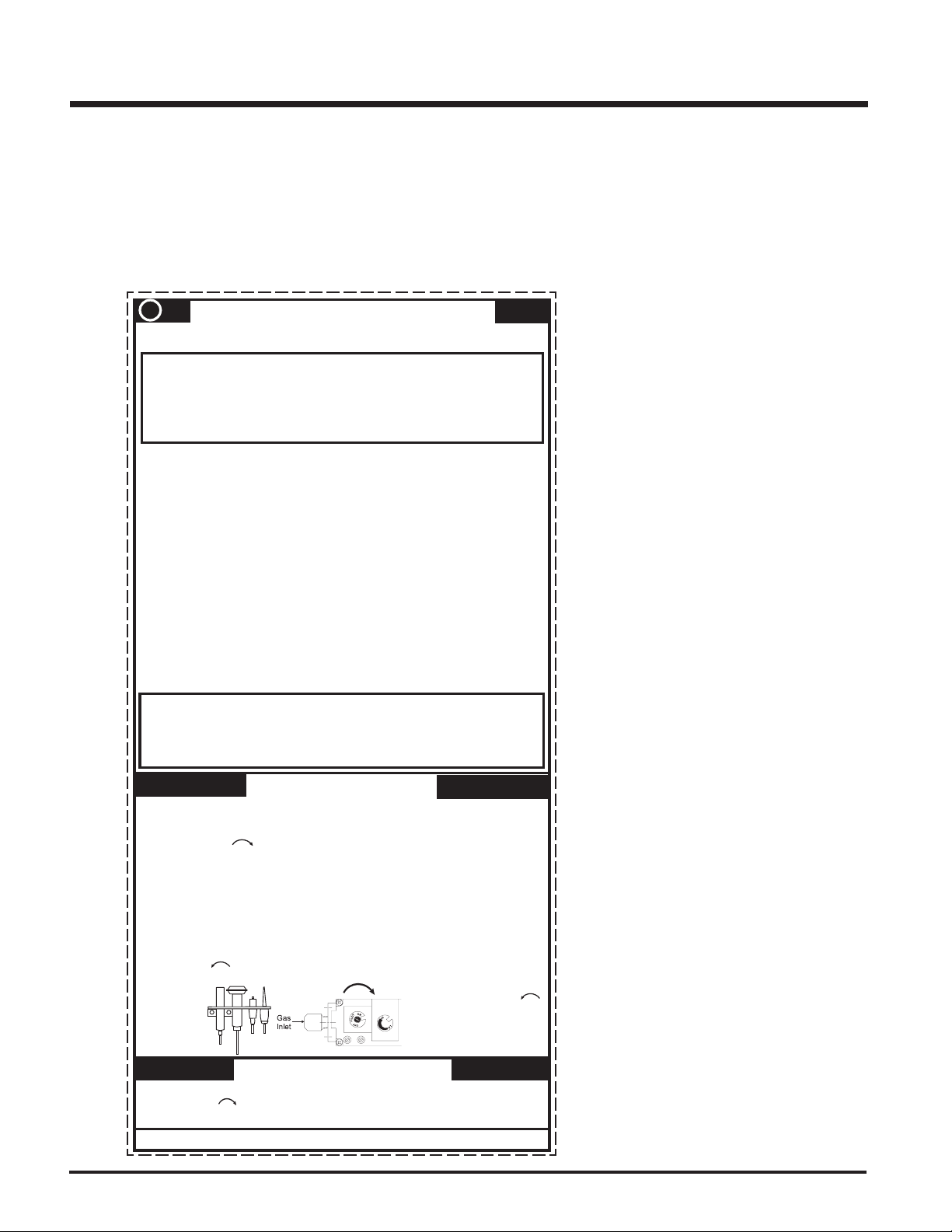

SAFETY LABEL

This is a copy of the label that accompanies
each P121-1/P121LC-1/P121RC-1/P131-1 Zero
Clearance Direct Vent Gas Fireplace. We have
printed a copy of the contents here for your
review. The safety label is located on the front
inside base of the unit, visible when the bottom
louver is open.

NOTE: Regency units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is the
correct one.

For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfitter licensed in the Commonwealth of
Massachusetts.

For the State of Massachusetts, flexible
connectors shall not exceed 36 inches in
length.

For the State of Massachusetts, the appli­ances individual manual shut-off must be a
t-handle type valve.

4

Copy of Safety Decal for P121/P121LC/P121RC/P131

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

IMPORTANT:

SAVE THESE

INSTRUCTIONS

The Panorama P121/P121LC/P121RC/P131­NG1 or P121/P121LC/P121RC/P131-LP1 Direct
Vent Fireplace must be installed in accordance
with these instructions. Carefully read all the
instructions in this manual first. Consult the
"authority having jurisdiction" to determine the
need for a permit prior to starting the installation.
It is the responsibility of the installer to ensure
this fireplace is installed in compliance with
manufacturer's instructions and all applicable
codes.

BEFORE YOU START

Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of the
following:

INSTALLATION AND REPAIR SHOULD
BE DONE BY A QUALIFIED SERVICE
PERSON. THE APPLIANCE SHOULD BE
INSPECTED BEFORE USE AND AT
LEAST ANNUALLY BY A PROFESSION­AL SERVICE PERSON. MORE FREQUENT
CLEANING MAY BE REQUIRED DUE TO
EXCESSIVE LINT FROM CARPETING,
BEDDING MATERIAL, ETC. IT IS IMPER­ATIVE THAT CONTROL COMPART­MENTS, BURNERS AND CIRCULATING
AIR PASSAGEWAYS OF THE APPLI­ANCE BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED OUT
OF TRAFFIC AND AWAY FROM FURNI­TURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE A
SERIOUS HOUSE FIRE.

CLOTHING OR OTHER FLAMMABLE MA­TERIAL SHOULD NOT BE PLACED ON
OR NEAR THE APPLIANCE.

CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPECIAL­LY THE FIREPLACE GLASS, AND
SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE

CAREFULLY SUPERVISED WHEN THEY
ARE IN THE SAME ROOM AS THE AP­PLIANCE.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform
with local codes or, in the absence of
local codes, with the current Canadian or
National Gas Codes, CAN1-B149 or ANSI

Z223.1 Installation Codes.

2) See general construction and assembly
instructions. The appliance and vent should
be enclosed.

3) This appliance must be connected to the
specified vent and termination cap to the
outside of the building envelope. Never
vent to another room or inside a building.
Make sure that the vent is fitted as per
Venting instructions.

4) Inspect the venting system annually for
blockage and any signs of deterioration.

5) Venting terminals shall not be recessed into
a wall or siding.

6) Any safety glass removed for servicing
must be replaced prior to operating the
appliance.

7) To prevent injury, do not allow anyone who
is unfamiliar with the operation to use the
fireplace.

8) Wear gloves and safety glasses for pro­tection while doing required maintenance.

9) Be aware of electrical wiring locations in
walls and ceilings when cutting holes for
termination.

10) Under no circumstances should this appli­ance be modified. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.

11) Installation and any repairs to this appliance
should be done by a qualified service per­son. A professional service person should
be called to inspect this appliance annually.
Make it a practice to have all of your gas
appliances checked annually.

12) Do not slam shut or strike the glass door.

13) Under no circumstances should any solid
fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.

14) The appliance area must be kept clear and

free of combustible materials, (gases and
other flammable vapours and liquids).

Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.

INSTALLATION

CHECKLIST

Note: These units are

non-load bearing.

1) Locate appliance
a) Room location, page 8.
b) Clearances to Combustibles,

page 9.
c) Mantle Clearances, page 9.
d) Framing & Finishing Requirements,

page 10.
e) Venting Requirements, pages 11-19.

2) Assemble Top Standoffs, page (NOTE:
page 11 must be done before installing unit
into fireplace.)

3) Install vent, pages 19-21.

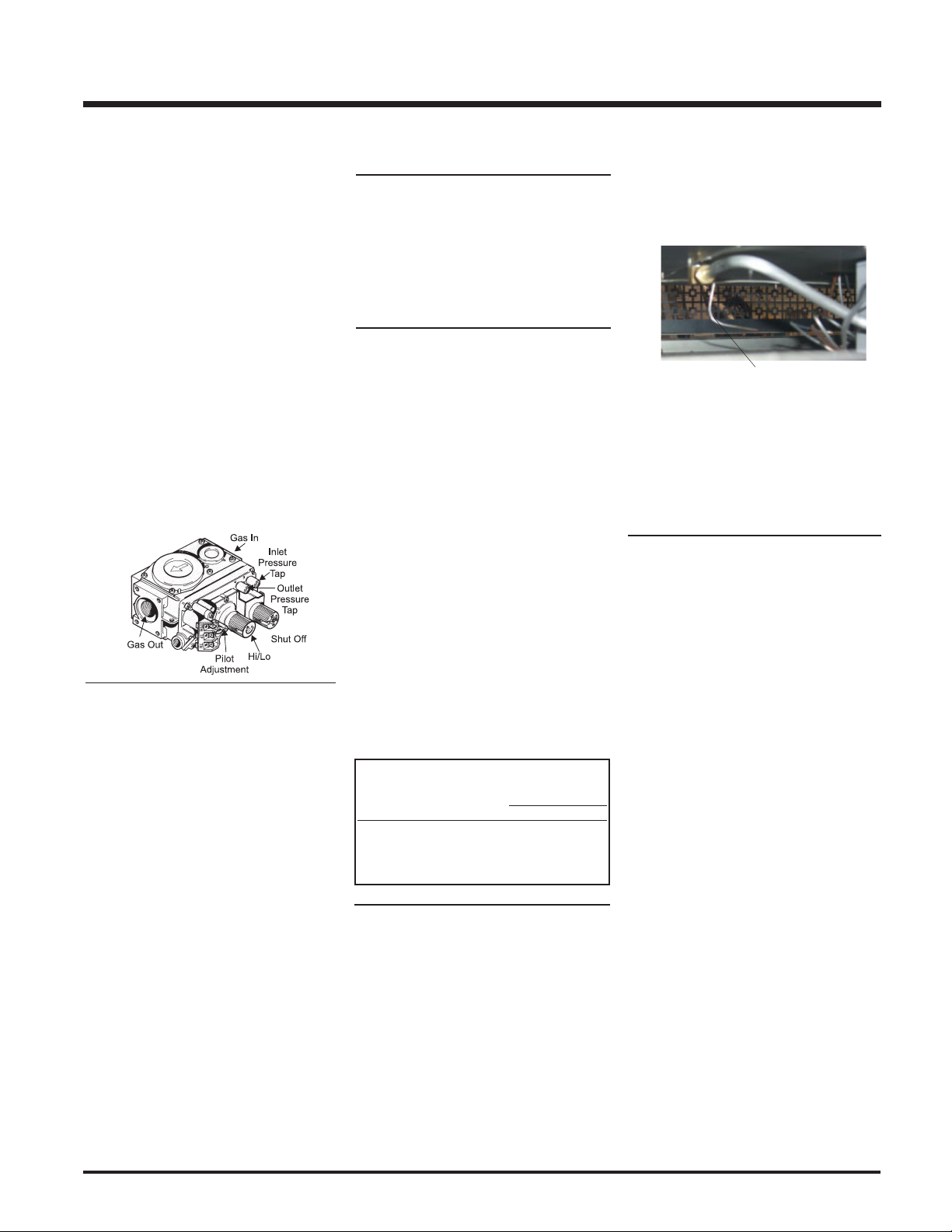

4) Make gas connections. Test the pilot. Must
be as per diagram. Page 22.

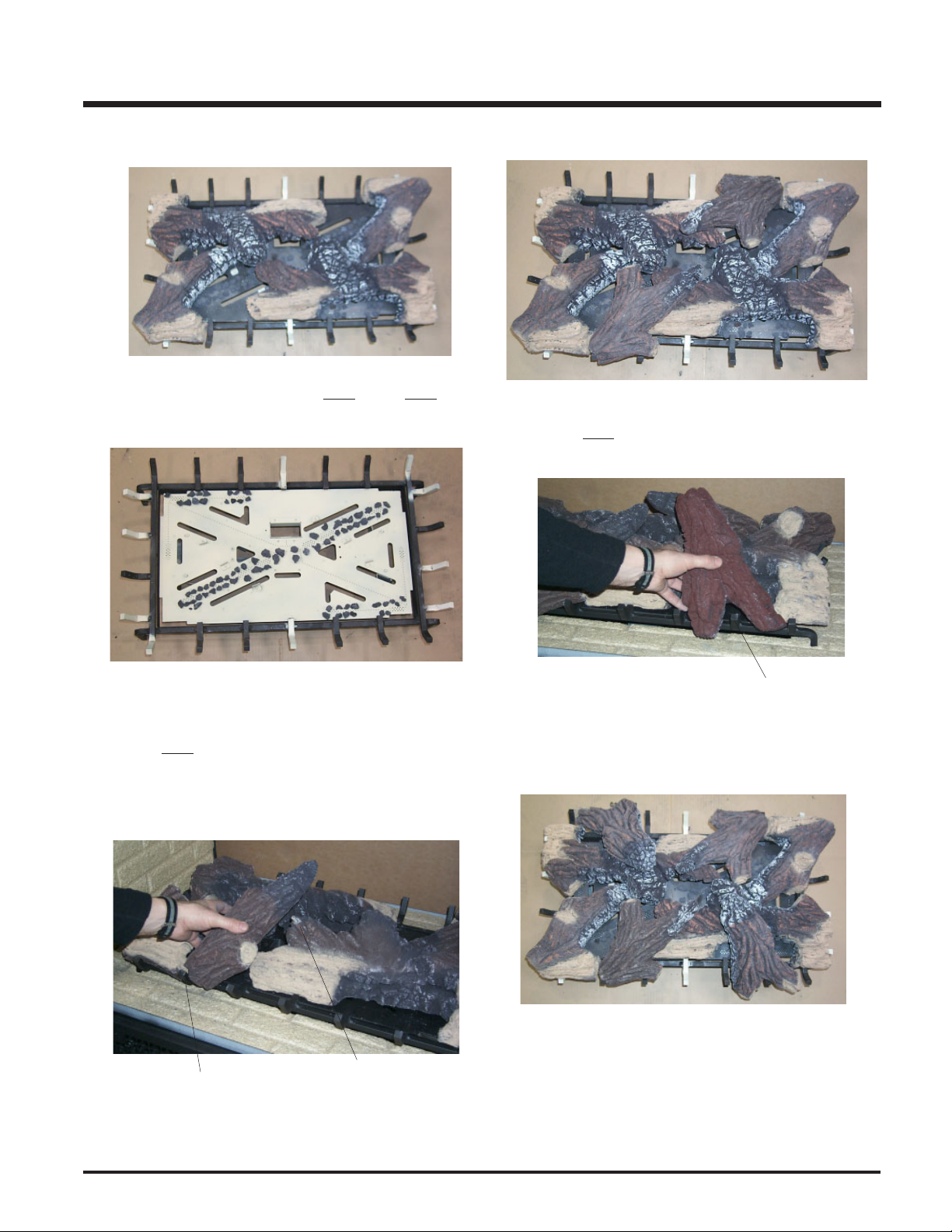

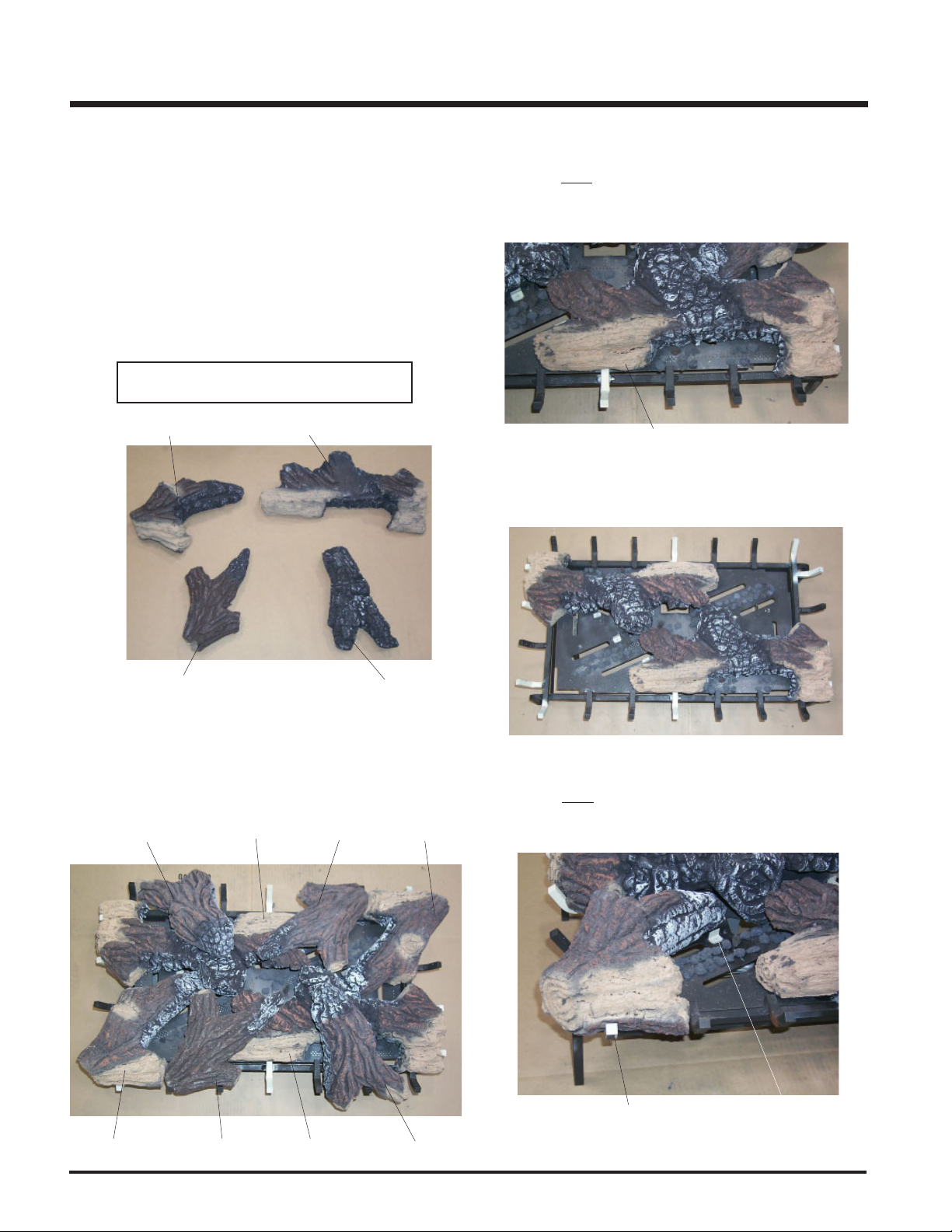

5) Install log set where indicated on
page 24-25.

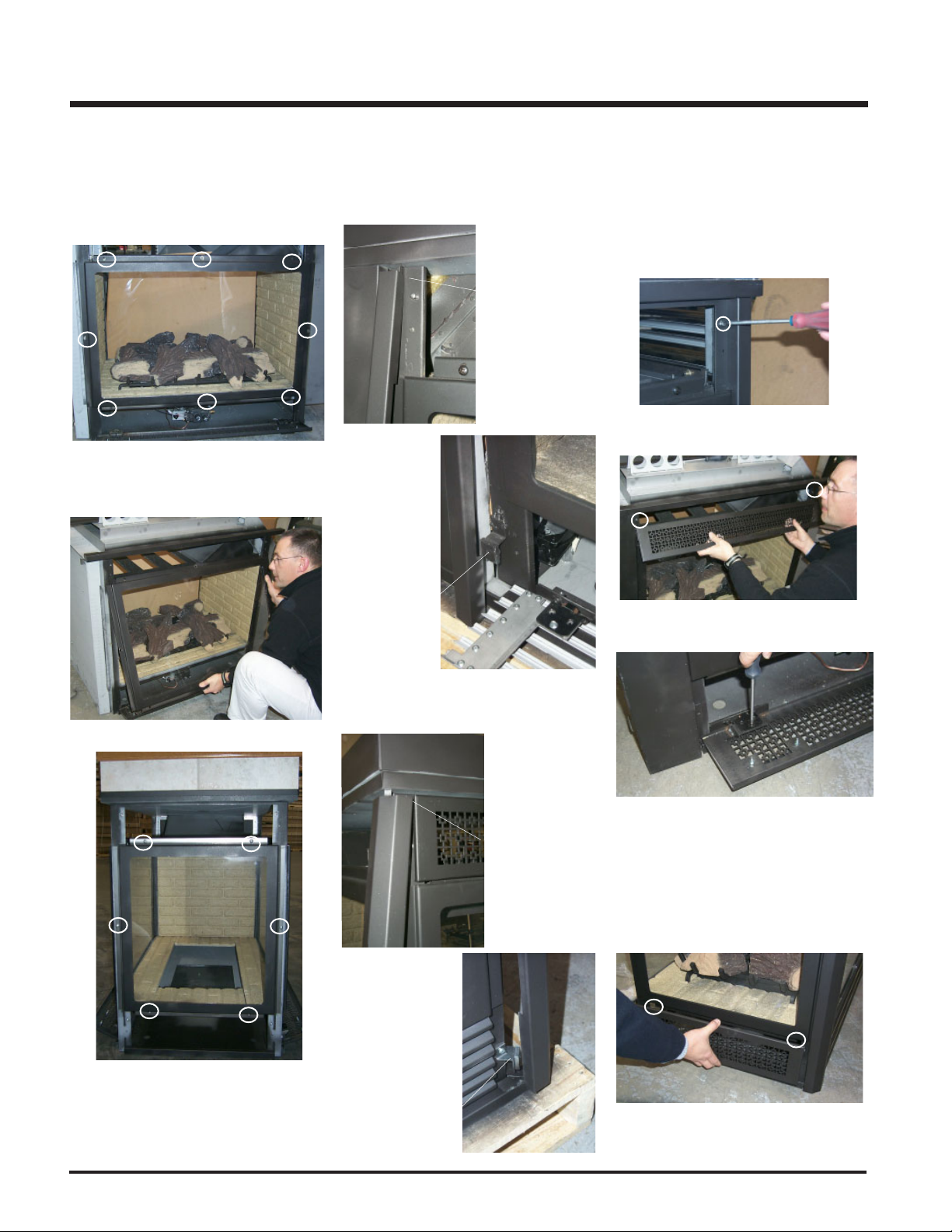

6) Glass Door Removal (page 26), Louvers
or Grills (page 26), and Finishing Trim
(page 26).

7) Install optional Wall Switch, Remote Con­trol, or Wall Thermostat, page 27.

8) Final check.

Before leaving this unit with the customer, the
installer must ensure that the appliance is firing
correctly and operation fully explained to cus­tomer.

This includes:

1) Clocking the appliance to ensure the cor­rect firing rate (rate noted on label 40,000
Btu/h NG, and 39,000 Btu/h LP) after burn­ing appliance for 15 minutes.

2) If required, adjusting the primary air to
ensure that the flame does not carbon.
First allow the unit to burn for 15-20 min.
to stabilize.

CAUTION: Any alteration to the product
that causes sooting or carboning that
results in damage is not the responsi­bility of the manufacturer.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 5

INSTALLATION

SPECIFICATIONS

P121-1 See Thru

Note: These units are
non-load bearing.

P131-1 Pier

6

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

P121LC-1 Left Corner Unit

INSTALLATION

Note: These units are
non-load bearing.

P121RC-1 Right Corner Unit

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 7

INSTALLATION

LOCATING YOUR

GAS FIREPLACE

1) When selecting a location for your stove,
ensure that the clearances are met as
outlined on page 9.

2) Provide adequate clearances for servic­ing.

3) The appliance must be installed on a flat,
solid, continuous surface (e.g. wood, met­al, concrete). This may be the floor, or
raised up on a platform to enhance its
visual impact. If the appliance is going to be
installed on carpeting, combustible linole­um tile or other combustible material other
than wood flooring, the appliance must be
installed on a metal or wood panel extend­ing the full width and depth of the appli­ance.

4) The Direct Vent Gas Fireplace can be
installed as follows:

A) P121-1 See Thru

Model # Position
A) P121-1: See Thru
B) P131-1: Pier
C) P121LC-1: Left Corner
D) P121RC-1: Right Corner

5) This appliance is Listed for bedroom instal­lations when used with a Listed Millivolt
Thermostat. Some areas may have further
requirements, check local codes before
installation.

6) The P121-1/P121LC-1/P121RC-1/P131-1
Direct Vent Gas Fireplace is approved for
alcove installations, which meet the clear­ances listed on this page.

7) We recommend that you plan your instal­lation on paper using exact measurements
for clearances and floor protection before
actually installing this appliance. Have a
qualified inspector, dealer, or installer re­view your plans before installation.

Note: For Exterior Vent Termination

Locations see page 12.

.

B) P131-1 Pier

C) P121LC-1 Left Corner

D) P121RC-1 Right Corner

8

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated (refer to diagrams on page 8):

Clearance to Combustibles from:

Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)

CAUTION REQUIREMENTS: The top, back and sides of the fireplace are defined by
standoffs. The metal ends of the standoffs may
tible construction.

Determine the total thickness of the finished floor (eg. tile, carpet, slate) to allow
the finished surface to be flush with the base of the unit.

Ceiling Height from Floor 72" (1828mm)

NOT be recessed into combus-

Fire hazard is an extreme risk

if these clearances (air space)

to combustible materials are

not adhered to. It is of greatest

importance that this fireplace

and vent system be installed

only in accordance with these

INSTALLATION

WARNING:

instructions.

Mantel Height from Base of Unit:

39" min. (991mm)

Horizontal Vent Clearances:

Top 2-1/2"(64mm)
Side 1-1/2"(38mm)
Bottom 1-1/2"(38mm)

Vertical Vent Clearances 1-1/4" (32mm)

COMBUSTIBLE MANTELS

Because of the extreme heat this fireplace emits, the mantel clearanc­es are critical. Combustible mantel clearances from top of unit are shown in

Diagram to the right.

Note: A non-combustible mantel may be installed at a lower height if

the framing is made of metal studs covered with a non­combustible board.

This drawing is to scale at 1:6 (one inch = 6 inches)
Mantel can be installed anywhere in shaded area or higher using this scale.

Caution: Ensure the paint that is used on the mantel and the facing is

"heat resistant" or the paint may discolour.

Mantel Clearances

* If the 3" metal extension trim is removed it must be replaced with a 3" non­combustible material.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 9

INSTALLATION

FRAMING AND FINISHING

1) For ease of installation, frame your fireplace after it is positioned and
the vent system is installed. Remember to install the top standoffs.
See page 11 for assembly. Use 2x4's and frame to local building
codes.

CAUTION: Verify your fireplace dimensions, framing methods
and finished wall facing details before framing. Determine the
total thickness of facing material - drywall plus ceramic tiles,
slate, etc. Allow the finish surface to be flush with the front or
side of the unit. Total facing thickness can vary from 1/2"
(13mm) to 1-1/4" (32mm) thick.

2) When locating your appliance on an exterior wall or in a chase, apply
a vapour barrier and drywall, as per local building codes. DO NOT

INSULATE THE FIREPLACE ITSELF.

CAUTION: The unit does not have to be completely enclosed in
a chase. The clearance on top of the unit is 0" to the standoffs
so combustible building materials can be laid directly on top of
the standoffs. You must maintain clearance from the vent to
combustible materials for both rigid and flex, see Vent Clear­ances, page 9.

P121-1 - See Thru

Framing Dimensions

P121-1 (See Thru) P131-1 (Pier) P121LC-1 / P121RC-1

(Corner Unit)

A 25"(635mm) 25"(635mm) 26-13/16"

minus two times minus two times minus one time
the finishing the finishing the finishing
material thickness* material thickness* material thickness*

B 42-1/2"(1080mm) 42-1/2"(1080mm) 42-1/2"(1080mm)
C 46-3/4"(1187mm) 45" (1143mm) 45"(1143mm)

minus one time minus one time
the finishing the finishing
material thickness* material thickness*

* Finish material thickness includes: drywall, ceramic tile, slate, etc.

P121LC-1 - Corner Unit

P131-1 - Pier

C

B

Note: These units are
non-load bearing.

10

P121RC-1 - Corner Unit

A

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

FACING & FINISHING REQUIREMENTS

This fireplace is supplied with a 3" metal extension trim above the fireplace. The extension trim may be replaced if the framing is faced with a non­combustible material placed flush with the front and side face of the unit and extending from the top of the unit. (ie. tile, slate, etc.)

UNIT ASSEMBLY

PRIOR TO

INSTALLATION

The 4 Top Standoffs must be correctly positioned and attached to the top before unit is slipped
into position.

Top Standoff Assembly

The top standoffs are shipped in a flat position and must be folded into shape and attached.

1) Remove the standoffs from the fireplace
top.

2) Take each standoff and bend into the
correct shape. Bend up at the bend lines
until the screw holes in the standoff and the
pre-punched screw holes on the fireplace
top line up.

3) Attach the standoff securely to the top with
4 screws per standoff (on opposite cor­ners).

VENTING

INTRODUCTION

The P121-1/P121LC-1/P121RC-1/P131-1 uses
the "balanced flue" technology Co Axial
system. The inner liner vents products of com­bustion to the outside while the outer liner
draws outside combustion air into the combus­tion chamber thereby eliminating the need to use
heated room air for combustion and losing
warm room air up the chimney.

Note: These flue pipes must not be con-

nected to any other appliance.

The gas appliance and vent system must be
vented directly to the outside of the building, and
never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Each direct vent gas appliance must use it's
own separate vent system. Common vent sys­tems are prohibited.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 11

INSTALLATION

EXTERIOR VENT TERMINATION LOCATIONS

18"

24"

Vertical

Termination

A

L

V

N

j

H

V

B

Closed

Fixed

B

A

K

V

Area where terminal is not permited

A

Inside

corner detail

V

G

Vertical

Termination

the centerline of the regulator.

any other appliance *(12"/30cm)

V

Openable

B

V

B

H = Not to be installed above a meter/regulator assembly within (3'/90cm) horizontally from

J= Clearance to service regulator vent outlet *(min 36"/90cm)

K= Clearance to non-mechanical air supply inlet to building or the combustion air inlet to

*(min. 84"/2.1m)

L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)

M= Clearance above paved sidewalk or a paved driveway located on public property

N= Clearance under veranda, porch, deck, or balcony *(min. 12"/30cm)

Air supply outlet

A

Openable

Fixed

Closed

C

A

V

.

B

24"

E

V

D

M

V

B

V

F

Vent terminal

V

12

distance of (24"/60cm) from the centerline of the terminal (min. 18"/46cm) check with

local code.

Vent Termination Cap (14"/36cm)

Vent Termination Cap (12"/30cm)

A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm)

B= Clearance to window or door that may be opened *(12"/30cm)

C= Clearance to permanently closed window *(min. 12"/30cm)

D= Vertical clearance to ventilated soffit located above the terminal within a horizontal

E= Clearance to unventilated soffit (min. 20"/51cm)

F= Clearance to outside corner: with AstroCap Termination Cap (min 6"/15cm), with Dura-

G= Clearance to inside corner: with AstroCap Termination Cap (min 6"/15cm), with Dura-

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

Note:

- A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.

- Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.

- If the vent termination is accessible, a certified guard shall be installed.

* As specified in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.

INSTALLATION

VENTING ARRANGEMENT - HORIZONTAL TERMINATIONS

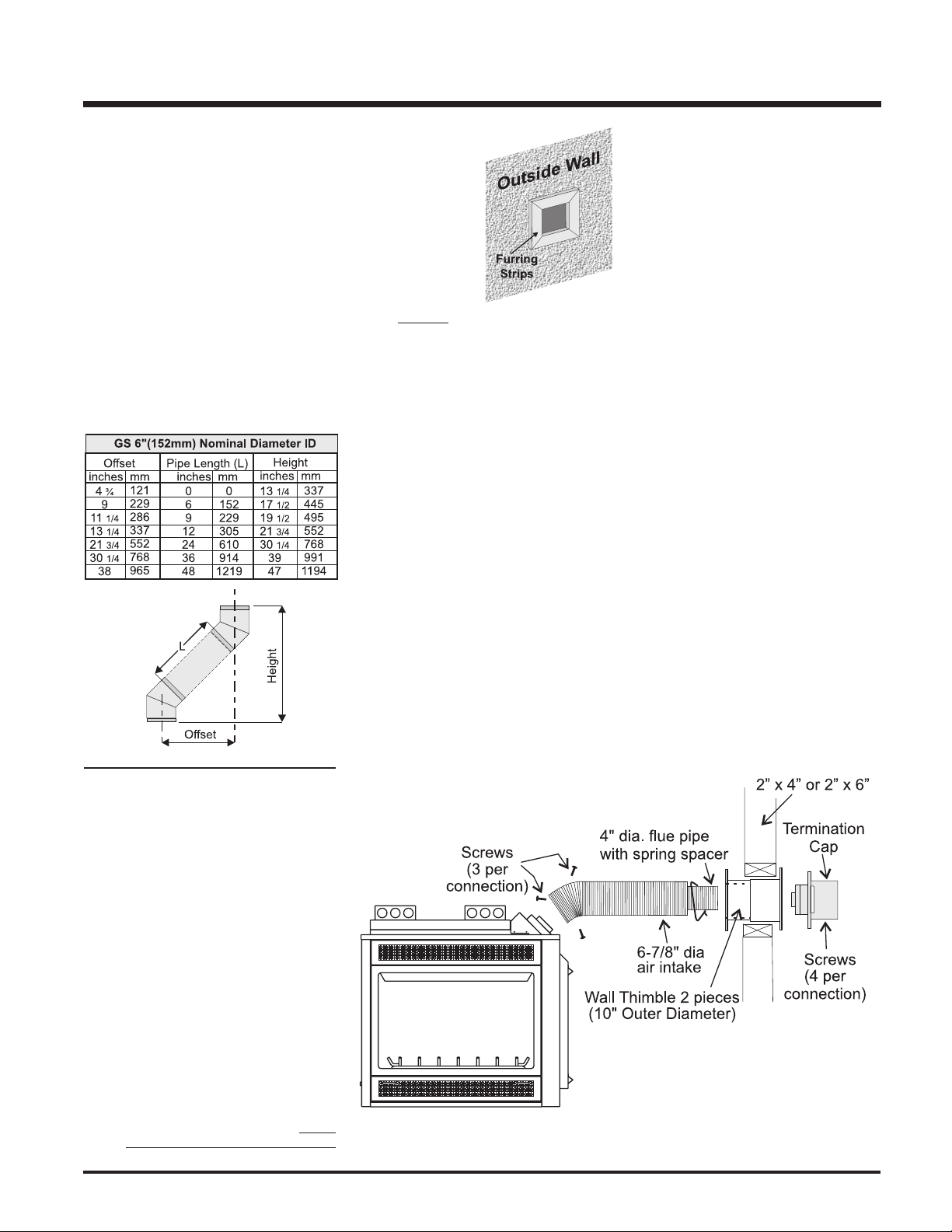

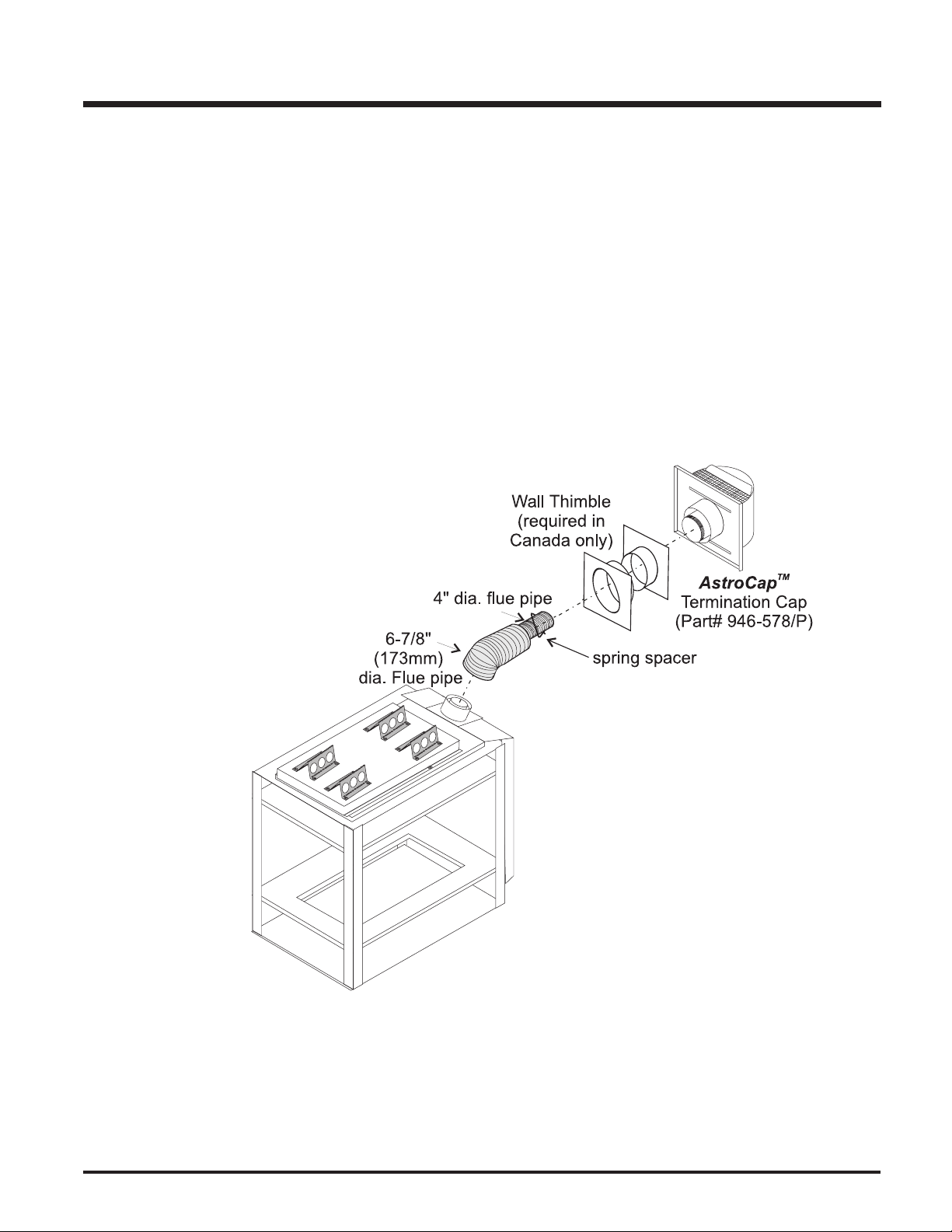

Regency Direct Vent System (Flex) Horizontal Terminations Only

These venting systems, in combination with the P121-1/P121LC-1/P121RC-1/P131-1 Direct Vent Gas Fireplace, have been tested and listed as
a direct vent heater system by Warnock Hersey. The location of the termination cap must conform to the requirements in the Vent Terminal Locations
diagram on page 12.

Regency Direct Vent (Flex) System Termination Kit (Part# 946-513) includes all the parts needed to install the P121-1/P121LC-1/
P121RC-1/P131-1 with a maximum run of 2 feet.

1) 6-7/8" dia. flexible liner (2 ft. length)

2) 4" dia. flexible liner (2 ft. length)

3) spring spacers (3)

4) thimble (2)

5) AstroCap termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1-1/2" drill point, stainless steel (4)

Notes:

1) Liner sections should be continuous without any joints or seams.

2) Only Flex pipe purchased from Regency may be used for Flex installations.

3) Regency Direct Vent System (Flex) is only approved for horizontal terminations.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 13

INSTALLATION

SIMPSON DURA-VENT VENTING

Horizontal or Vertical Terminations

The Simpson Dura-Vent Direct Vent System offers a complete line of component parts for installation of both horizontal and vertical installations.
Many items are offered in decorative black, as well as galvanized finish. We recommend using the galvanized finish for installation with the P121­1/P121LC-1/P121RC-1/P131-1.

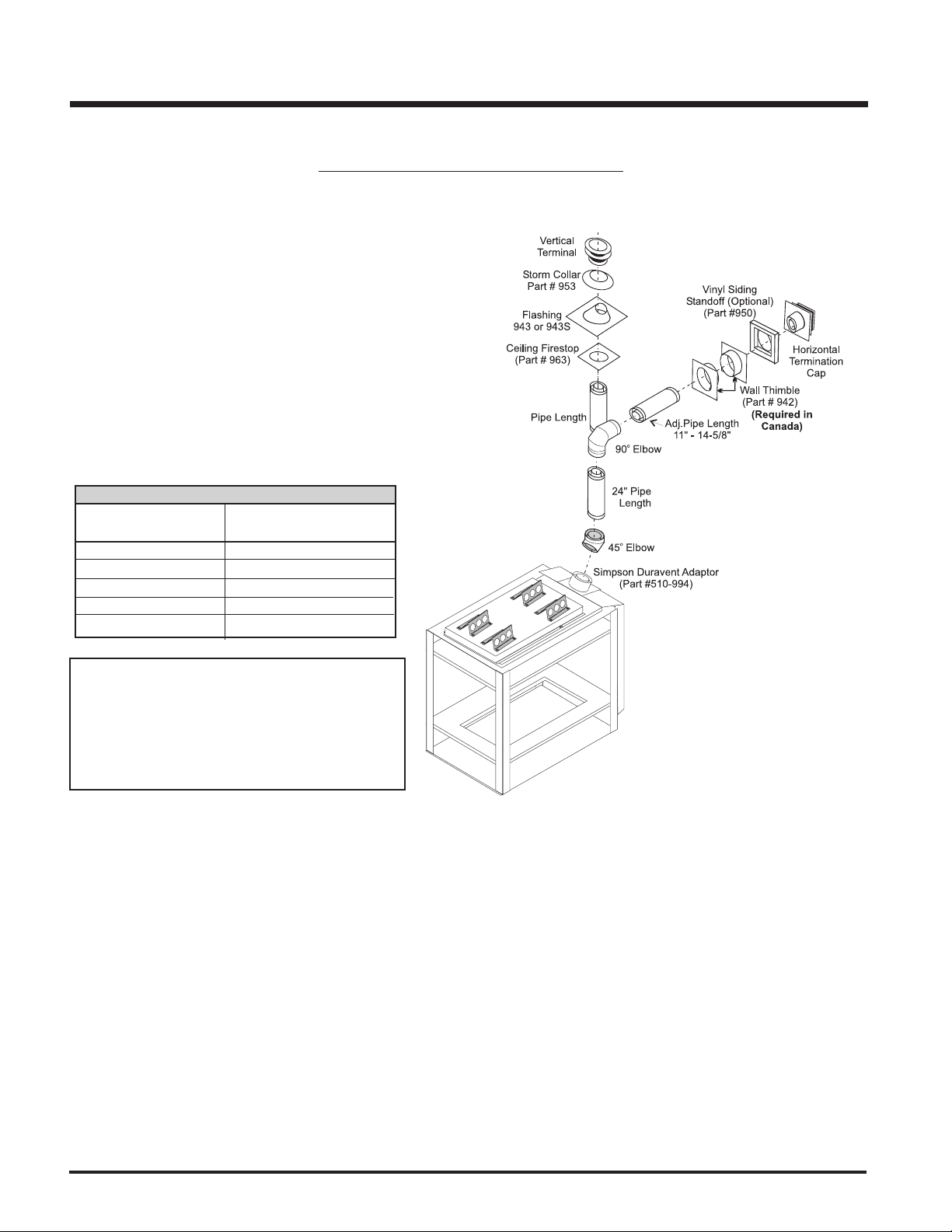

The minimum components required for a
basic horizontal termination are:

1 Simpson Duravent Adaptor
1 Horizontal Termination Cap

o

145

Elbow
1 Flue Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness

(see chart)

Wall thickness is measured from the back
standoffs to the inside mounting surface of
termination cap. For siding other than vinyl
furring strips may be used, instead of the

Flat Wall Installation

vinyl siding standoff, to
create a level surface to
mount the vent terminal.
The Terminal must not be
recessed into siding. Meas­ure the wall thickness in­cluding furring strips.

If a Vinyl Siding Standoff is
required (it must be used
with vinyl siding), measure
to outside surface of wall
without siding and add 2
inches.

Wall Thickness Vent Length

(inches) Required (inches)

4" - 5-1/2" 6"
7" - 8-1/2" 9"

10" - 11-1/2" 12"

9" - 14-1/2" 11" - 14-5/8" Adj. Pipe

15" - 23-1/2" 17" - 24" Adj. Pipe

The Regency AstroCap
venting systems as well as Simpson Dura-Vent® and Direct
Vent GS.

TM

is certified for installations using FPI

Simpson
Dura-Vent
Direct Vent GS

RegencyTM, and Regency AstroCapTM are the proprietary trade­marks of FPI Fireplace Products International Ltd.

Dura-Vent® and Direct Vent GS are registered and/or propri­etary trademarks of Simpson Dura-Vent Co. Inc.

SIMPSON DURA-VENT VENTING COMPONENTS LIST

All Simpson Dura-Vent components are available directly from Regency.

Part # Description Part # Description Part # Description

971 Horiz. Termination Kit includes:
90o black elbow, wall thimble cover, horiz.
square termination cap, 24" black pipe, and 11"

-14" 5/8" adjustable black pipe
970 Basic Horiz. Termination. Kit includes:

90o black elbow, wall thimble cover,
horiz. square termination cap

978 Vert. Termination Kit includes 0/12 -

6/12 pitch adjustable flashing, storm

collar, low profile term. cap
908B 6" Pipe Length - Black
907B 9" Pipe Length - Black
906 12" Pipe Length - Galv.
906B 12" Pipe Length - Black
904 24" Pipe Length - Galv.
904B 24" Pipe Length - Black
903 36" Pipe Length - Galv.
903B 36" Pipe Length - Black

14

902 48" Pipe Length - Galv.
902B 48" Pipe Length - Black
911B 11"-14 5/8" Adjustable Pipe Length -

Black
917B 17"- 24" Adjustable Length - Black
945 45O Elbow - Galv.
945B 45O Elbow - Black
945G 45O Elbow - Swivel - Galv.
945BG 45O Elbow - Swivel - Black
990 90O Elbow - Galv.
990B 90O Elbow - Black
990G 90O Elbow - Swivel - Galv.
990BG 90O Elbow - Swivel - Black
991 High Wind Termination Cap (Vertical)
980 Vertical Termination Cap
984 Horizontal Square Termination Cap
985 Horiz. Square High Wind Termination

Cap

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

982 Snorkel - 14" Rise Termination Cap
981 Snorkel - 36" Rise Termination Cap
940 Wall Thimble - Support/Box
941 Cathedral/Ceiling - Support/Box
3951 Brass Trim for Wall Thimble/Ceiling Sup.
963 Firestop Spacer
943 Flashing 0/12-6/12
943S Flashing 7/12-12/12
953 Storm Collar
950 Vinyl Siding Standoff
988 Wall Strap
942 Wall Thimble

Parts not supplied by Dura-Vent

946-506/P Vent Guard (Optional)
510-994 Dura-Vent Flue Adaptor
640-530/P Riser Vent Terminal
946-205 Vinyl Siding Shield for Riser

946-206 AstroCap Standoff

Vent Terminal

INSTALLATION

VENTING ARRANGEMENTS - HORIZONTAL TERMINATIONS

SIMPSON DURA-VENT DIRECT VENT GS SYSTEM (Propane & Natural Gas)

The diagram below shows examples of horizontal termination arrangements using one, two, or three 90o elbows (two 45o elbows equal one 90
elbow).

Note:

1) A maximum of three 90o elbows are permitted.

2) Minimum distance between elbows is 1 ft. (305mm).

• Maintain clearances to combustibles as listed on page 9.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each floor level and whenever passing through a wall.

• Must use optional flue adapter (Part# 510-994) when using Simpson Dura-Vent pipe.

• A vent guard should be used whenever the termination is lower than the specified minimum or as per local codes.

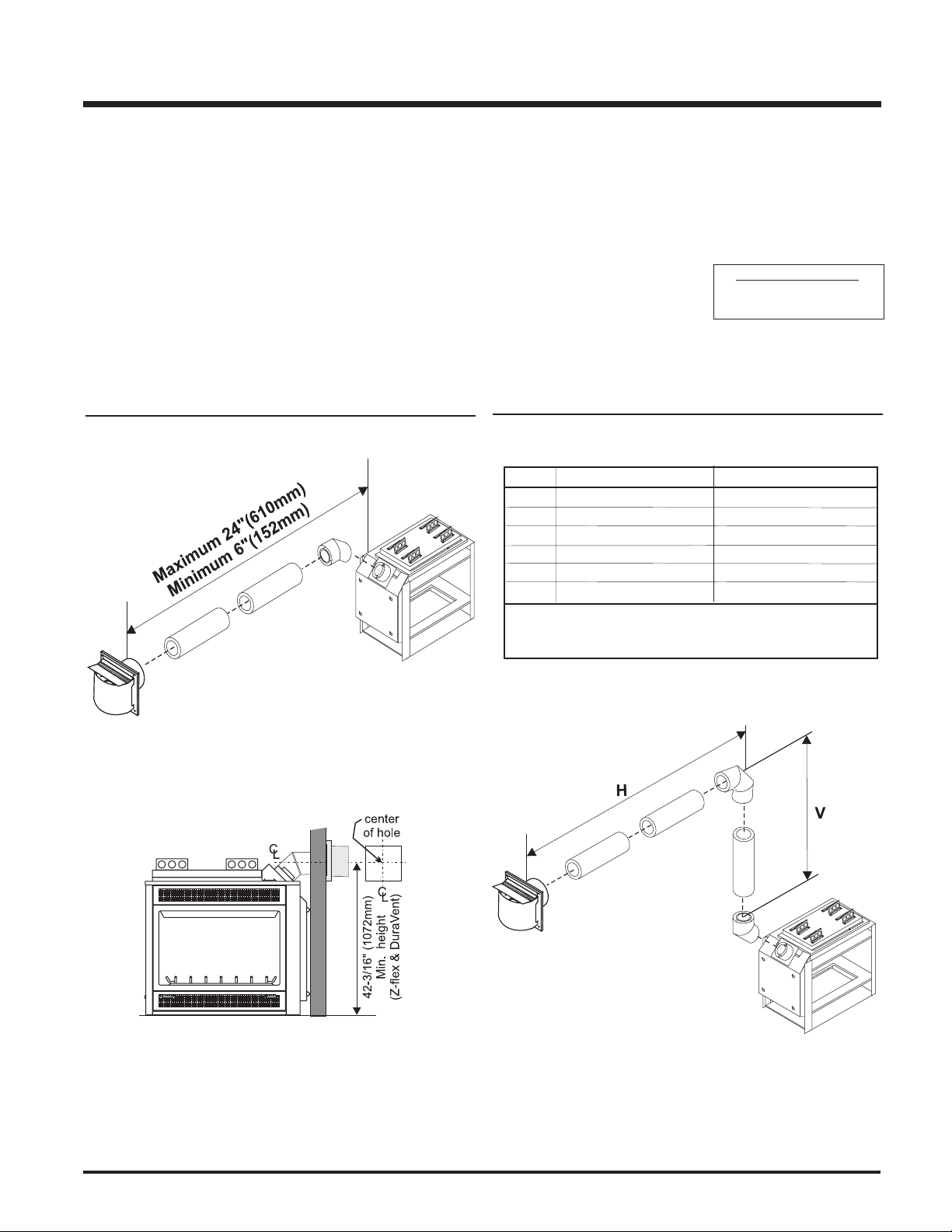

Straight Out Horizontal Venting

Horizontal Venting with One (1) 90o Elbow

Simpson Dura-Vent
4" inner diameter
6-5/8" outer diameter

Option V H

A) 1' (305mm) Minimum 3' (914mm) Maximum
B) 2' (610mm) Minimum 6' (1.86m) Maximum
C) 3' (914mm) Minimum 9' (2.7m) Maximum
D) 4' (1.22m) Minimum 12' (3.6m) Maximum
E) 5' (1.5m) Minimum 15' (4.5m) Maximum
F) 6' (1.86m) Minimum 17' (5.1m) Maximum

With the above options, maximum total pipe length if 37 feet with
minimum of 6 feet total vertical and maximum 17 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

o

Diagram 1

Diagram 2

Please note the minimum centerline
for basic install shown above.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 15

INSTALLATION

Horizontal Venting with Two (2) 90o Elbows

Option V H + H1

A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 5' (1.5m) Maximum
C) 3' (914mm) Minimum 8' (2.4m) Maximum
D) 4' (1.22m) Minimum 11' (3.35m) Maximum
E) 5' (1.5m) Minimum 14' (4.27m) Maximum
F) 6' (1.86m) Minimum 15' (4.5m) Maximum

With the above options, maximum total pipe length if 37 feet with
minimum of 6 feet total vertical and maximum 15 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

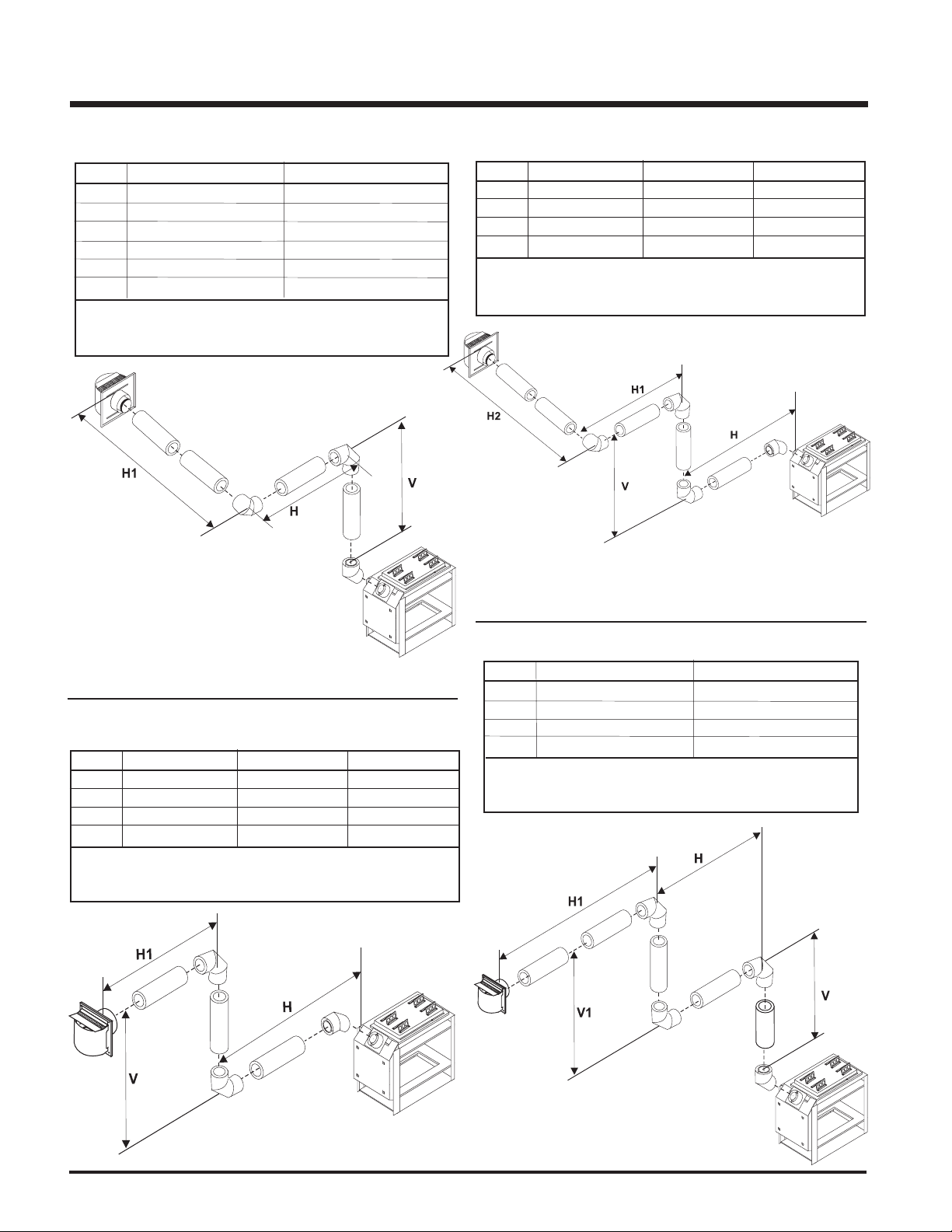

Horizontal Venting with Three (3) 90o Elbows

Option V H H + H1 + H2

A) 2' (610mm) Min. 1' (305mm) Max. 3' (914mm) Max.
B) 3' (914mm) Min. 3' (914mm) Max. 6' (1.86m) Max.
C) 4' (1.22mm) Min. 5' (1.5m) Max. 9' (2.7m) Max.
D) 5' (1.5m) Min. 7' (2.13m) Max. 12' (3.6m) Max.

With the above options, maximum total pipe length if 37 feet with
minimum of 5 feet total vertical and maximum 12 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

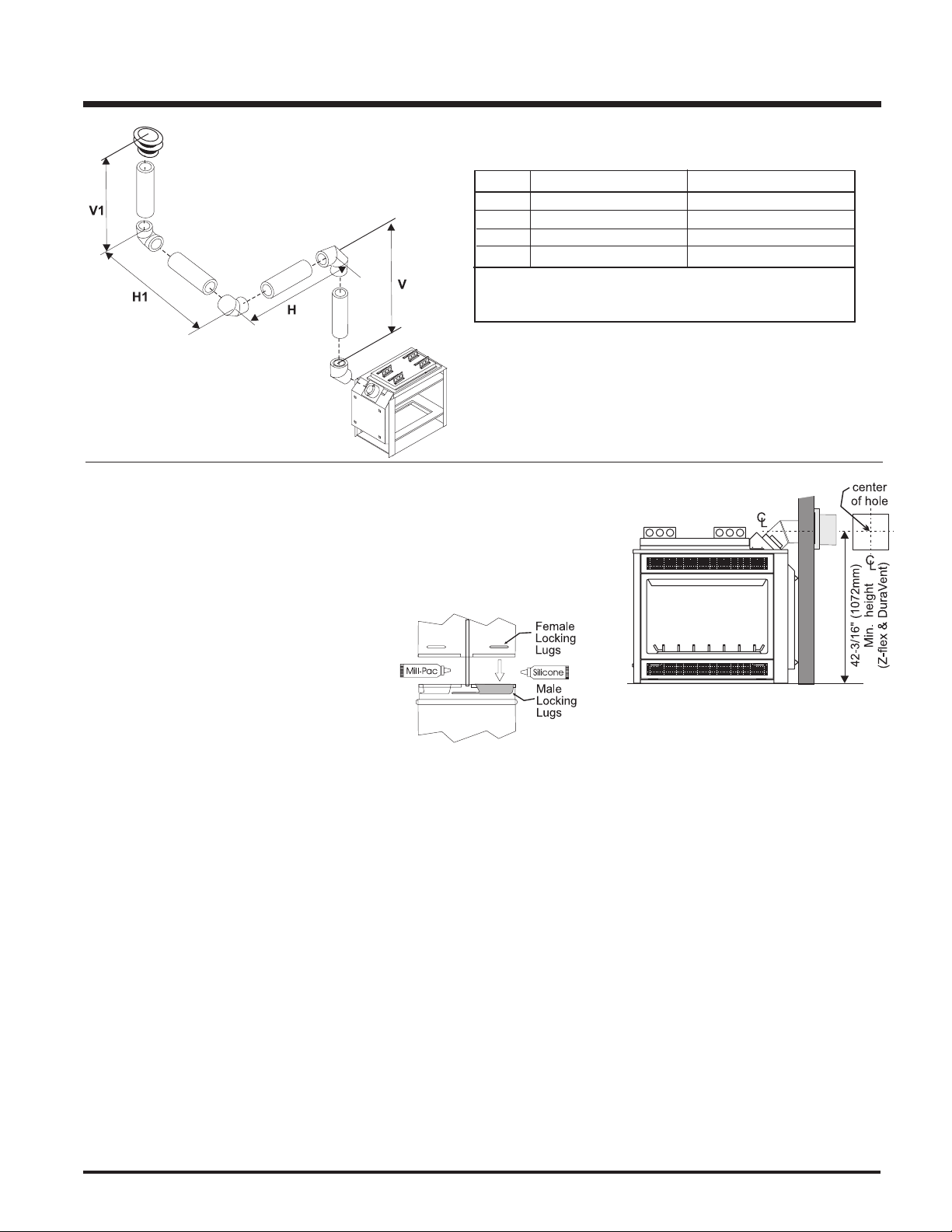

Diagram 5

Diagram 3

Horizontal Venting with Two (2) 90o Elbows

Option V H H + H1

A) 1' (305mm) Min. 1' (305mm) Max. 3' (914mm) Max.
B) 2' (610mm) Min. 3' (0.91m) Max. 6' (1.86m) Max.
C) 3' (914mm) Min. 5' (1.5m) Max. 9' (2.7m) Max.
D) 5' (1.5m) Min. 8' (2.4m) Max. 12' (3.6m) Max.

With the above options, maximum total pipe length if 37 feet with
minimum of 5 feet total vertical and maximum 12 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Horizontal Venting with Three (3) 90o Elbows

Option V + V1 H + H1

A) 2' (610mm) Minimum 3' (914mm) Maximum
B) 3' (914mm) Minimum 6' (1.86m) Maximum
C) 4' (1.22m) Minimum 9' (2.7m) Maximum
D) 5' (1.5m) Minimum 12' (3.6m) Maximum

With the above options, maximum total pipe length if 37 feet with
minimum of 5 feet total vertical and maximum 12 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

16

Diagram 4 Diagram 6

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

VENTING ARRANGEMENTS - VERTICAL TERMINATIONS

SIMPSON DURA-VENT DIRECT VENT GS SYSTEM (Propane & Natural Gas)

• Vent must be supported at offsets

• Maintain clearances to combustibles as listed on page 9.

• Firestops are required at each floor level and whenever passing through a wall.

• Must use optional flue adapter when using Simpson Dura-Vent pipe (Part# 510-994).

The P121-1/P121LC-1/P121RC-1/P131-1 is approved for a maximum 35 ft. (10.7m) straight vertical, with Simpson Dura-Vent Direct Vent GS
vent systems for Propane and Natural Gas, as per diagram 7 below.

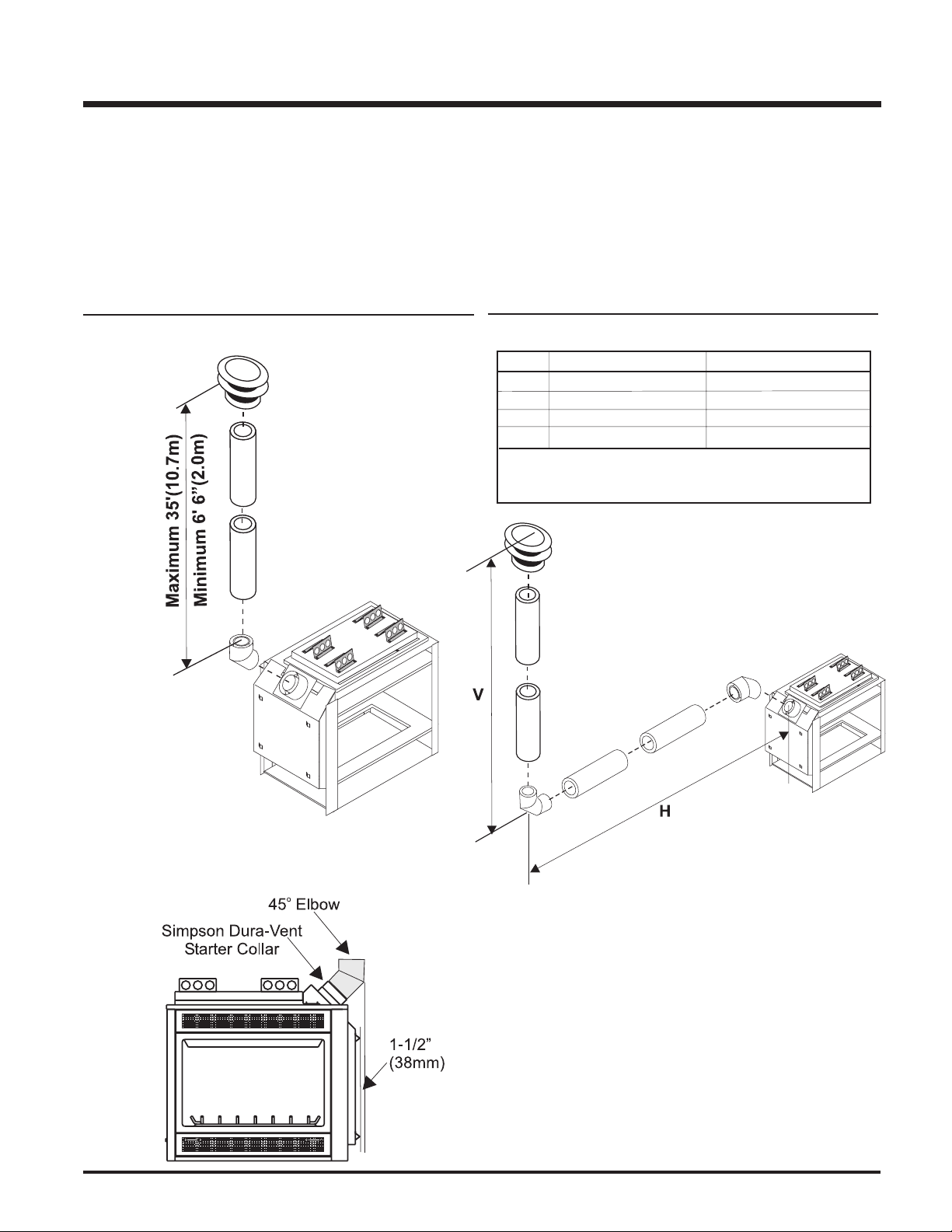

Straight Up Vertical Venting

Vertical Venting with One (1) 90o Elbow

Option V H

A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 4' (1.22m) Maximum
C) 3' (914mm) Minimum 6' (1.86m) Maximum
D) 4' (1.22m) Minimum 8' (2.4m) Maximum

With the above options, maximum total pipe length if 37 feet with
minimum of 4 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

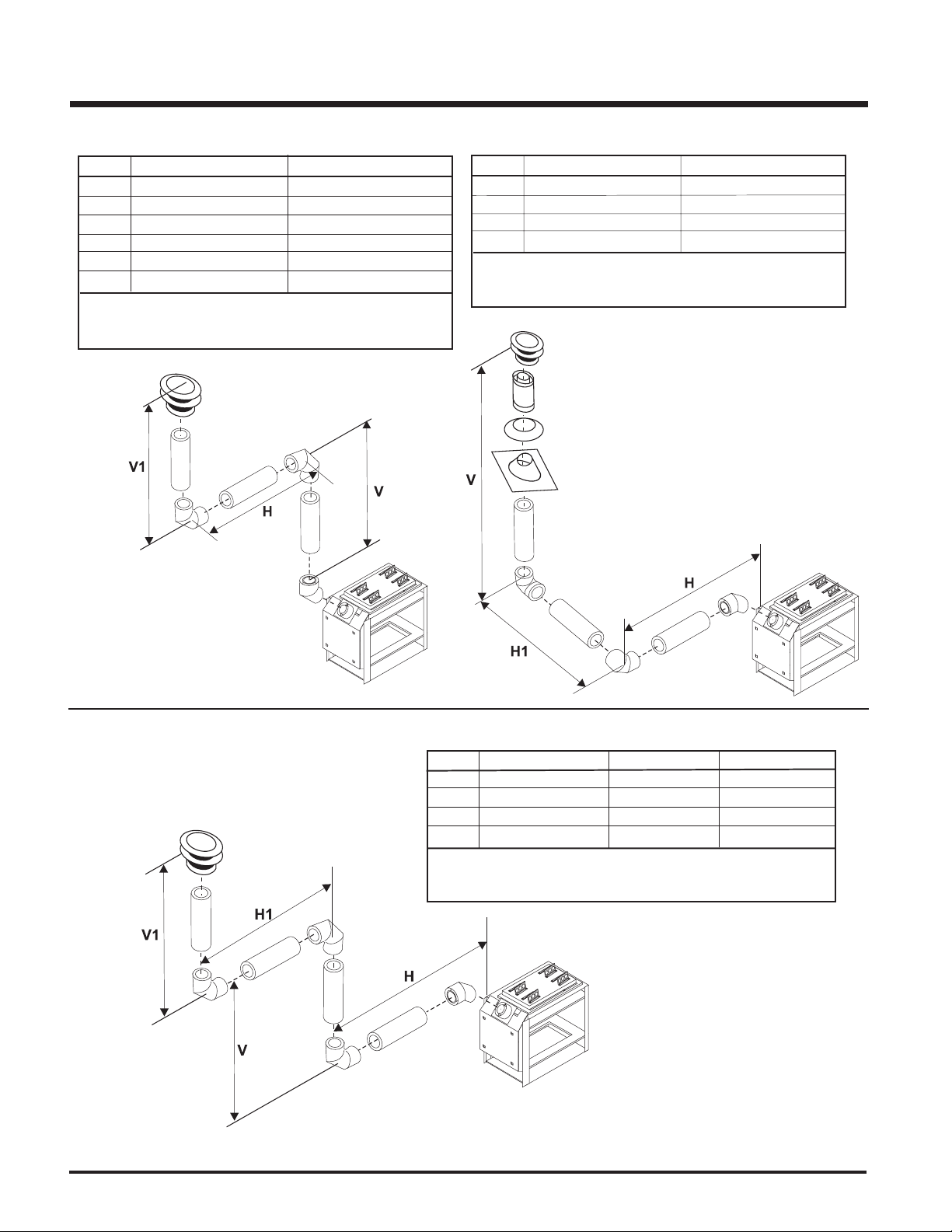

Diagram 7

Diagram 8

IMPORTANT

When installing this unit vertically, the 45o elbow when installed in
conjunction with the Simpson Dura-Vent Adaptor will pertrude past the
unit 1-1/2" (38mm) when measured from the rear standoffs.

Note: A 1-1/4" (32mm) clearance from the elbow must also be maintained.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 17

INSTALLATION

Vertical Venting with Two (2) 90o Elbows

Option V H

A) 1' (305mm) Minimum 4' (1.22m) Maximum
B) 2' (610mm) Minimum 6' (1.86m) Maximum
C) 3' (914mm) Minimum 9' (2.7m) Maximum
D) 4' (1.22m) Minimum 12' (3.6m) Maximum
E) 5' (1.5m) Minimum 15' (4.5m) Maximum
F) 6' (1.86m) Minimum 17' (5.1m) Maximum

With the above options, maximum total pipe length if 37 feet with
minimum of 6 feet total vertical and maximum 17 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Vertical Venting with Two (2) 90o Elbows

Option V H + H1

A) 1' (305mm) Minimum 2' (610mm) Maximum
B) 2' (610mm) Minimum 4' (1.22m) Maximum
C) 3' (914mm) Minimum 6' (1.86m) Maximum
D) 4' (1.22m) Minimum 8' (2.4m) Maximum

With the above options, maximum total pipe length if 37 feet with
minimum of 4 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Diagram 9

Diagram 10

Vertical Venting with Three (3) 90o Elbows

Option V + V1 H H + H1

A) 2' (610mm) Min. 1' (305mm) Max. 2' (610mm) Max.
B) 3' (914mm) Min. 4' (1.22m) Max. 5' (1.5m) Max.
C) 4' (1.22mm) Min. 6' (1.86m) Max. 8' (2.4m) Max.
D) 5' (1.5m) Min. 8' (2.4m) Max. 12' (3.6m) Max.

With the above options, maximum total pipe length if 37 feet with
minimum of 5 feet total vertical and maximum 12 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

18

Diagram 11

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

Vertical Venting with Three (3) 90o Elbows

Option V + V1 H + H1

A) 2' (610mm) Minimum 3' (914mm) Maximum
B) 3' (914mm) Minimum 6' (1.86m) Maximum
C) 4' (1.22m) Minimum 9' (2.7m) Maximum
D) 5' (1.5m) Minimum 12' (3.6m) Maximum

With the above options, maximum total pipe length if 37 feet with
minimum of 5 feet total vertical and maximum 12 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Diagram 12

INSTALLATION

HORIZONTAL

INSTALLATIONS

Install the vent system according to the
manufacturer's instructions included
with the components.

1) Set the unit in its desired location. Check to

determine if wall studs or roof rafters are in
the way when the venting system is at­tached. If this is the case, you may want to
adjust the location of the unit. Rough in the
gas.

2) Direct Vent pipe and fittings are designed
with special twist-lock connections to con­nect the venting system to the appliance flue
outlet. A twist-lock appliance adaptor is an
available option that must be used in con­junction with the Simpson Dura-Vent Direct
Vent GS system.

3) Put a bead of silicone inside the outer section
of the adapter and a bead of Mill Pac on the
inner collar. Slip the adapter over the exist­ing inner and outer flue collar and fasten to
the outer collar only with the 3 supplied
screws (drilling pilot holes will make this
easier). Level the fireplace and fasten it to
the framing using nails or screws through
the nailing strips.

4) Assemble the desired combination of pipe
and elbows to the appliance adaptor and
twist-lock for a solid connection.

Note:

a) Twist-lock procedure: Four indentations,

located on the female ends of pipes and
fittings, are designed to slide straight
onto the male ends of adjacent pipes and
fittings, by orienting the four pipe inden­tations so they match and slide in to the
four entry slots on the male ends, Dia-

gram 1. Push the pipe sections com­pletely together, then twist-lock one
section clockwise approximately one­quarter turn, until the two sections are
fully locked. The female locking lugs will
not be visible from the outside, on the
Black Pipe or fittings. They may be
located by examining the inside of the
female ends.

Diagram 1

Note: Apply sealant "Mill-Pac" to inner

pipe and high temperature sili­cone sealant to outer pipe on eve­ry twist-lock joint.

b) Horizontal runs of vent must be sup-

ported every three feet. Wall straps are
available for this purpose.

5) Mark the wall for a 10" x 10" square hole.
The center of the square hole should line up
with the centerline of the horizontal pipe.
Cut and frame the 10 inch square hole in the
exterior wall where the vent will be termi­nated. If the wall being penetrated is con­structed of non-combustible material, i.e.
masonry block or concrete, a 7"(178mm)
dia. (7-1/2"(191mm) dia. for flex) hole is
acceptable.

Note: With Dura-Vent, the minimum height
is achieved by installing a 45o elbow di­rectly to the flue adaptor.

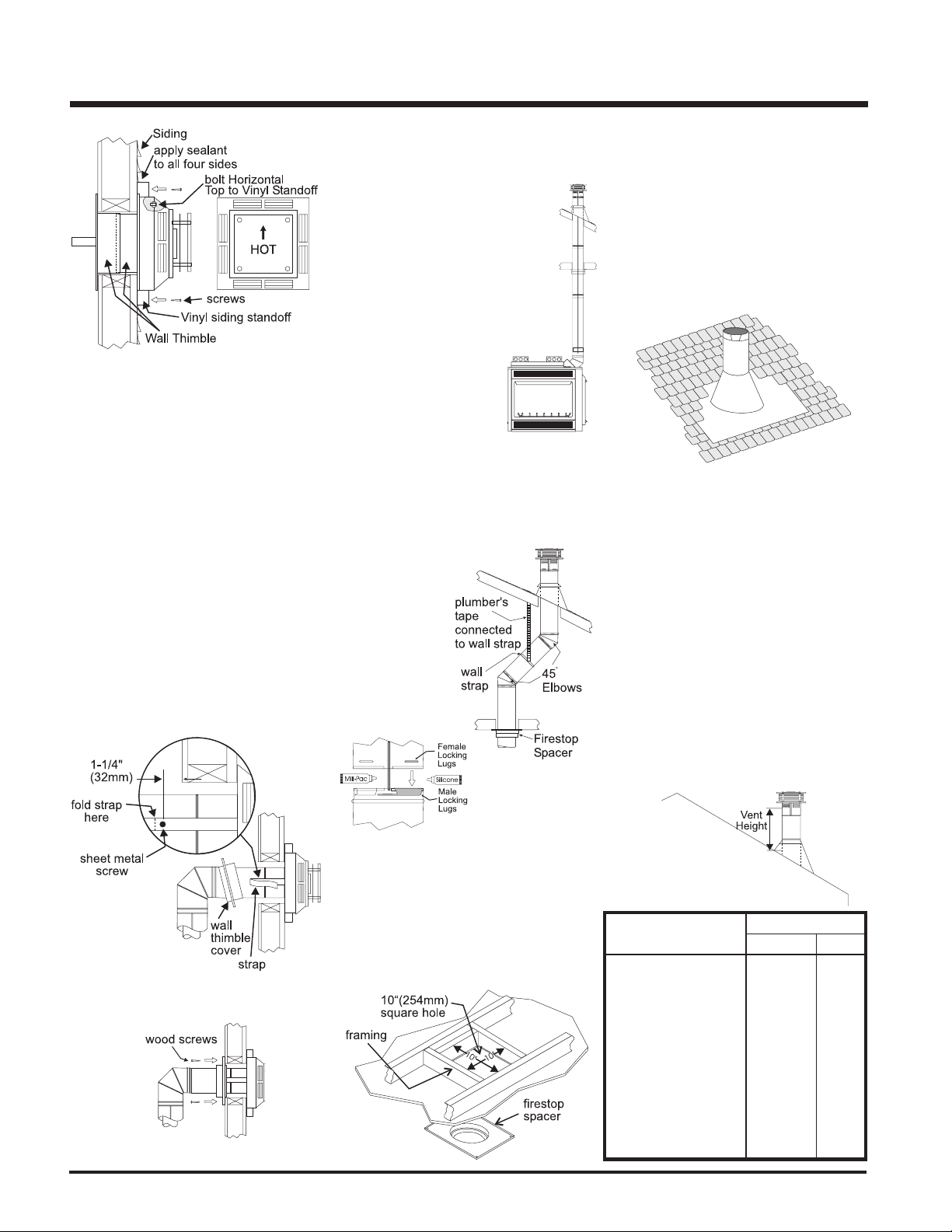

Diagram 2

Note:

a) The horizontal run of vent must be level,

or have a 1/4 inch rise for every 1 foot
of run towards the termination. Never
allow the vent to run downward. This
could cause high temperatures and
may present the possibility of a fire.

b) The location of the horizontal vent ter-

mination on an exterior wall must meet
all local and national building codes, and
must not be blocked or obstructed. For
External Vent Terminal Locations, see
diagram on page 12.

6) The arrow on the vent cap should be

pointing up. Insure that the 1-1/2" clear-

ances to combustible materials are main­tained (Diagram 3 on page 16). Install the
termination cap.

The four wood screws provided should be
replaced with appropriate fasteners for
stucco, brick, concrete, or other types of
sidings.

Note: If installing termination on a siding

covered wall, a vinyl siding stand­off or furring strips must be used

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 19

INSTALLATION

Diagram 3

to ensure that the termination is
not recessed into the siding.

7) Before connecting the horizontal run of

vent pipe to the vent termination, slide the
Wall Thimble (Part # 942) over the vent pipe.

8) Slide the appliance and vent assembly to­wards the wall carefully inserting the vent
pipe into the vent cap assembly. It is impor­tant that the vent pipe extends into the vent
cap sufficient distance so as to result in a
minimum pipe overlap of 1-1/4 inches. Se­cure the connection between the vent pipe
and the vent cap by attaching the two sheet
metal strips extending from the vent cap
assembly into the outer wall of the vent
pipe. Use the two sheet metal screws
provided to connect the strips to the pipe
section. See Diagram 4.

9) Install wall thimble in the center of the 10"
square and attach with wood screws (Di­agram 5).

VERTICAL

TERMINATION

1) Maintain the 1-1/4" clearances (air

spaces) to combustibles when
passing through ceilings, walls,
roofs, enclosures, attic rafter, or
other nearby combustible surfac­es. Do not pack air spaces with
insulation. Check pages 17-19 for
the maximum vertical rise of the
venting system and the maximum
horizontal offset limitations.

2) Set the gas appliance in its
desired location. Drop a
plumb bob down from the
ceiling to the position of
the appliance flue exit, and
mark the location where
the vent will penetrate the

ceiling. Drill a small hole at his point. Next,
drop a plumb bob from the roof to the hole
previously drilled in the ceiling, and mark the
spot where the vent will penetrate the roof.
Determine if ceiling joists, roof rafters or
other framing will obstruct
the venting system. You may
wish to relocate
the appliance or
to offset, as
shown in Dia­gram 2 to avoid
cutting load
bearing mem­bers.

Diagram 1

Diagram 2

4) Assemble the desired lengths of pipe and
elbows. Ensure that all pipes and elbow
connections are in the fully twist-locked
position and sealed.

5) Cut a hole in the roof centered on the small
drilled hole placed in the roof in Step 2. The
hole should be of sufficient size to meet the
minimum requirements for clearance to com­bustibles of 1-1/4". Slip the flashing under
the shingles (shingles should overlap half
the flashing) as per Diagram 4.

Diagram 4: The upper half of the flashing is

installed under the roofing material and not

nailed down until the chimney is installed.

This allows for small adjustments.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic

to avoid obstructions, it is impor­tant to support the vent pipe every
3 feet, to avoid excessive stress
on the elbows, and possible sep­aration. Wall straps are available
for this purpose (Diagram 2).

Galvanized pipe is desirable above the roof­line due to its higher corrosion resistance.
Continue to add pipe sections through the
flashing until the height of the vent cap meets
the minimum height requirements specified in
Diagram 5 or local codes. Note that for steep

20

Diagram 4

Diagram 5

Note: Apply sealant "Mill-Pac" to inner

pipe and high temperature sili­cone sealant to outer pipe on eve­ry twist-lock joint.

3) A Firestop spacer must be installed in the

floor or ceiling of every level. To install the
Firestop spacer in a flat ceiling or wall, cut
a 10 inch square hole. Frame the hole as
shown in Diagram 3 and install the firestop.

Diagram 3

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

Roof Pitch Minimum Vent Height
Feet Meters
flat to 7/12 2 0.61
over 7/12 to 8/12 2 0.61
over 8/12 to 9/12 2 0.61
over 9/12 to 10/12 2.5 0.76
over 10/12 to 11/12 3.25 0.99
over 11/12 to 12/12 4 1.22
over 12/12 to 14/12 5 1.52
over 14/12 to 16/12 6 1.83
over 16/12 to 18/12 7 2.13
over 18/12 to 20/12 7.5 2.29
over 20/12 to 21/12 8 2.44

Diagram 5

INSTALLATION

roof pitches, the vertical height must be
increased. A poor draft, or down drafting
can result from high wind conditions near big
trees or adjoining roof lines, in these cases,
increasing the vent height may solve the
problem.

7) Ensure vent is vertical and secure the base
of the flashing to the roof with roofing rails,
slide storm collar over the pipe section and
seal with a mastic.

8) Install the vertical termination cap by twist­locking it.

Note: Any closets or storage spaces,

which the vent passes through
must be enclosed.

Offset Chart

Note: To make the
installation more
aesthetically pleas­ing, we recom­mend framing out a
square to mount
the terminal to.

be used to ensure that the termi­nation is not recessed into the
siding.

2) Level the fireplace and fasten it to the

framing using nails or screws through the
nailing strips.

3) Assemble the vent assembly by applying
Mill Pac to the 4"(100mm) inner collar of the
termination and slipping the 4"(100mm) liner
over it at least 1-3/8" (35mm). Fasten with
the 3 screws (drilling pilot holes will make
this easier). Apply Mill Pac or high temper­ature silicone to the 6-7/8"(175mm) flex pipe
and slip it over the 6-7/8" outer collar of the
vent terminal at least 1-3/8"(35mm) and
fasten with the 3 screws.

NOTE: Horizontal sections must be sup-

ported at intervals not exceeding 3
feet (0.9 meter). (Flame picture and
performance will be affected by
sags in the liner).

4) Separate the 2 halves of the wall thimble and

securely fasten the one with the tabs to the
outside wall making sure that the tabs are
on top and bottom. Fasten the other thimble
half to the inside wall. The thimble halves slip

inside each other and can be adjusted for
2 x 4 or 2 x 6 walls. The liners must slip

over the collars a minimum of 1-3/8".

5) Slip the assembled liner and termination
assembly through the thimble making sure
the termination cap faces up (there are
markings on the cap that show which way
is up). This will position the termination cap
with proper down slope for draining water.
Fasten the cap to the outer wall with the 4
supplied screws.

6) Pull the centre 4"(100mm) liner and outer
6-7/8"(175mm) liner out enough to slip over
the flue collars of the fireplace. (You may
wish to cut the liner shorter to make it more
workable.) Do not bend liner more than 45o.

7) Apply Mill Pac over the fireplace inner collar
and slip the 4"(100mm) liner down over it
and attach with 3 supplied screws.

8) Do the same with the 6-7/8"(175mm) liner.

9) Apply a bead of silicone between the thim-

ble and termination and around the outer
edge of the terminal at the wall in order to
keep the water out.

IMPORTANT: Do not locate termination
hood where excessive snow or ice build­up may occur. Be sure to check vent
termination area after snow falls, and clear
to prevent accidental blockage of venting
system. When using snow blowers, make
sure snow is not directed towards vent
termination area.

INSTALLATION

PROCEDURES

for Regency AstroCapTM Direct

Vent System (Flex)

1) Locate the unit in the framing, rough in the

gas. Locate the centerline of the termina­tion and mark wall accordingly. Cut a
10"(254mm) hole in the wall (inside dimen­sion).

Note: A 1-1/2"(38mm) clearance around

the liner must be maintained ex­cept that only a 1" (25mm) clear­ance is needed at the termination
end. We recommend framing a
10"(254mm) x 10"(254mm) (inside
dimensions) hole to give struc­tural rigidity for mounting the ter­mination.

Note: If installing termination on a siding

covered wall, furring strips must

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 21

INSTALLATION

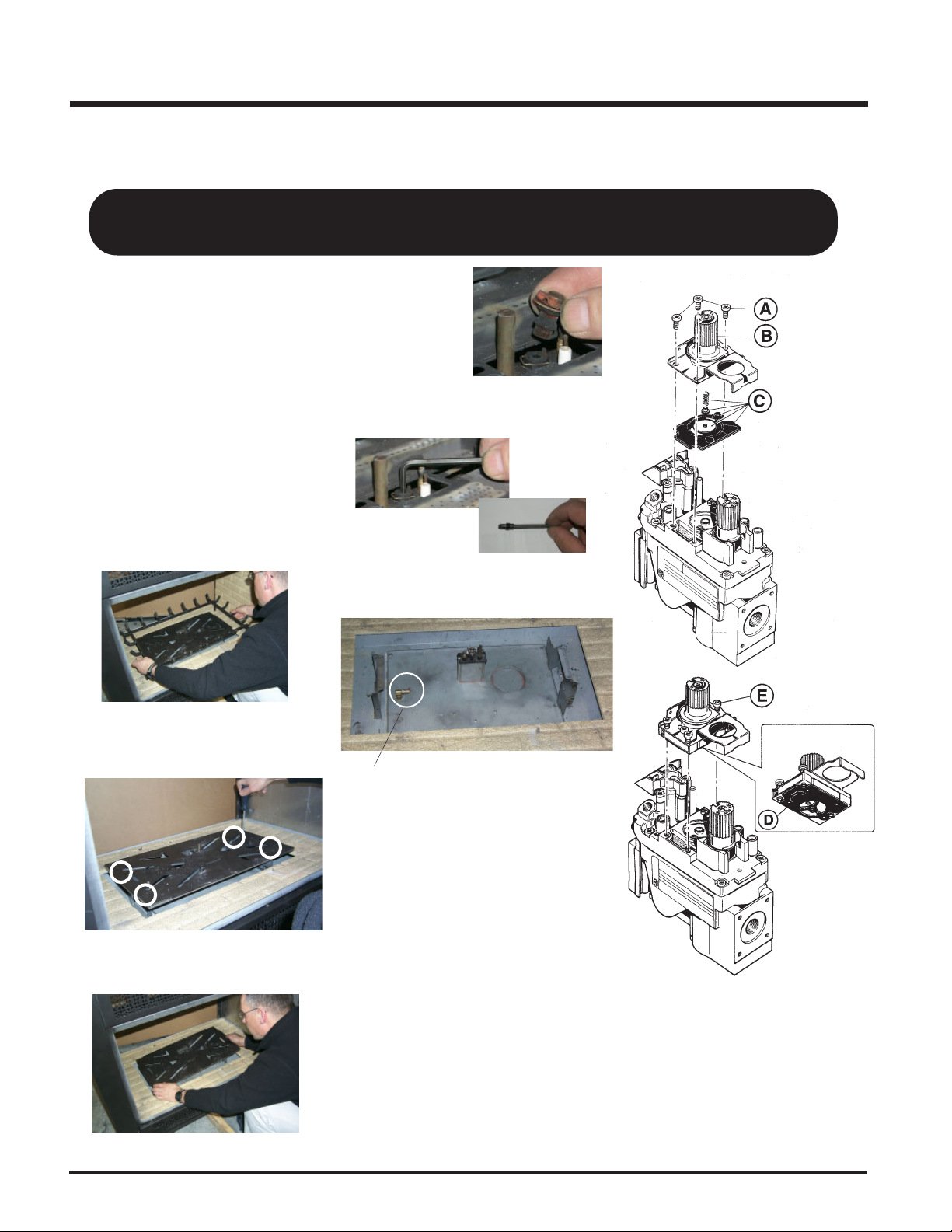

CONVERSION KIT FROM NATURAL GAS TO PROPANE MODEL #730-969

FOR P121-1/P121LC-1/P121RC-1/P131-1 USING SIT 820 NOVA GAS VALVE

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER

IF IN DOUBT DO NOT DO THIS CONVERSION !!

Conversion Kit Contains:
Qty. Part # Description

1 910-018 SIT Conversion Kit-50%

Turndown LP
1 910-037 LP Injector (Pilot Orifice)
1 * Burner Orifice #50
1 908-255 Decal "Converted to Propane"
1 908-529 5/32" Allen Key
1 918-032 Instruction Sheet

1) Remove the louvers and trim kit. Remove the

front door.

2) Remove the logs, embers.

3) Remove the grate by lifting straight up.

Remove the side brick panels (if installed).
The brick panel is very fragile - handle

with care.

4) Remove the burner assembly by removing

the 4 Phillips head screws and then slide
the burner assembly away from the orifice
and lift out.

5) Pull off the pilot
cap to expose the
pilot orifice.

6) Unscrew the pilot orifice with the allen key
and replace with the LP pilot orifice in the kit
and replace pilot cap.

7) Remove burner orifice with a 1/2" wrench
and discard. Use another wrench to hold
on to the elbow behind the orifice.

Burner Orifice

8) Reinstall new burner orifice LP stamped #50
and tighten.

Diagram 1: Remove the left and right
screws and then slide the burner assembly
away from the orifice and lift out.

22

9) Remove and discard the 3 pressure regu­lator mounting screws (A), pressure regu­lator tower (B) and diaphragm (C).

10) Insure that the rubber gasket (D) is properly
positioned and install the new HI/LO pres­sure regulator assembly to the valve using
the new screws (E) supplied with the kit.
Tighten screws securely.

11) Reverse steps 4) to 1).

12) Attach clear label "This unit has been con­verted to Propane" near or on the serial #
decal. Attach white label "This valve has
been converted from NG to LPG using SIT
conversion Kit Code 0.907.202" onto the
valve.

13) Replace yellow "Natural Gas" label with red
"Propane" label

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

14) Check for gas leaks.

15) Check inlet and outlet pressures.

16) Check operation of flame control.

17) Check for proper flame appearance and
glow on logs.

INSTALLATION

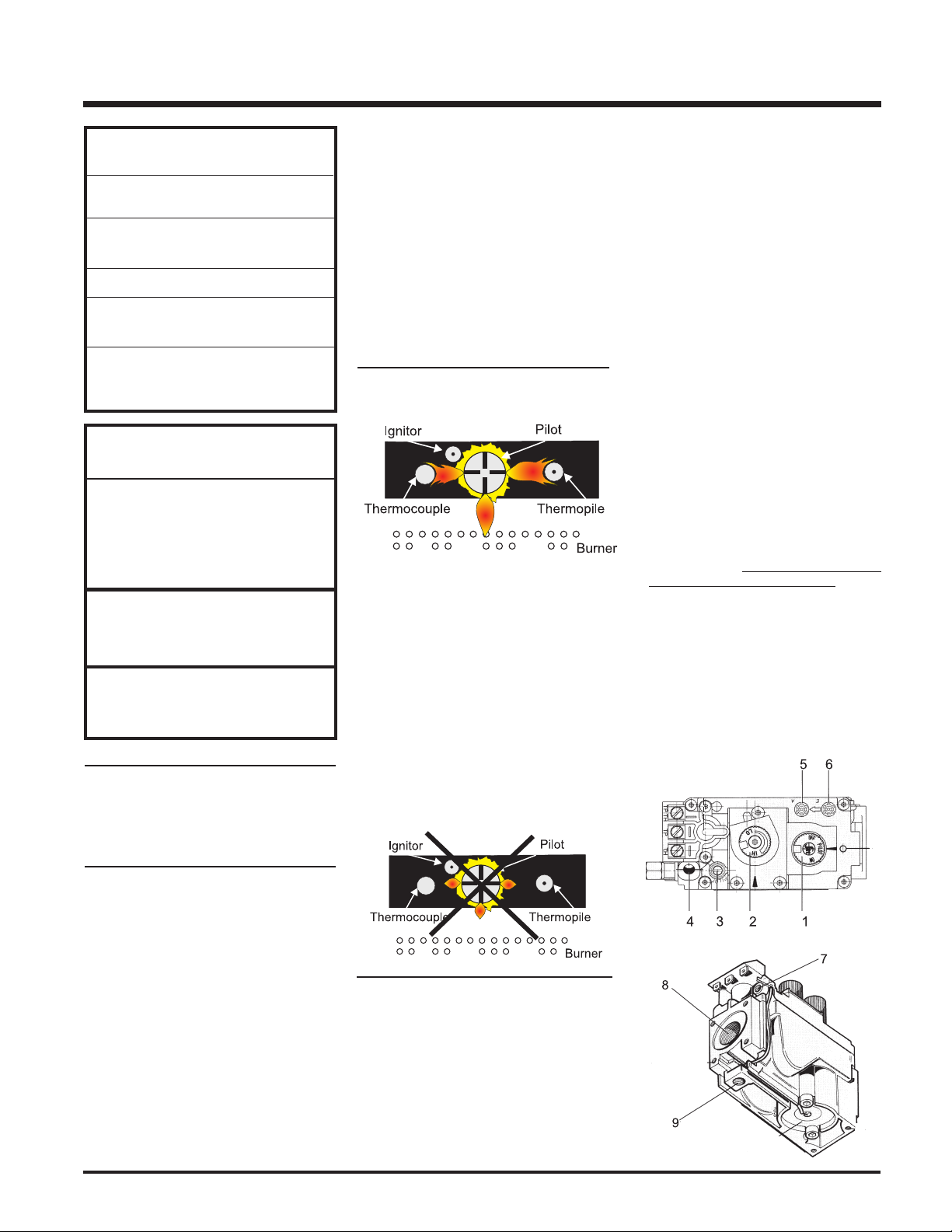

P121/P121LC/P121RC/P131-NG1

System Data

For 0 to 4500 feet altitude

Burner Inlet Orifice Sizes: #31
Max. Input Rating 40,000 Btu/h

Min. Input Rating 20,500 Btu/h
Supply Pressure min.5.0" w.c.

Manifold Pressure

(High) 3.8"+/- 0.2"w.c.

Log Set: Ceramic fibre, 8 per set.
Vent System: Regency AstrocapTM, Re-

gency Direct Vent System (Flex) and Simp­son Dura-Vent Direct Vent System

P121/P121LC/P121RC/P131-LP1

System Data

Conversion Kit# 730-969
For 0 to 4500 feet altitude

Burner Inlet Orifice Sizes: #50
Max. Input Rating 39,000 Btu/h
Min. Input Rating 20,600 Btu/h

Supply Pressure min.12.0" w.c.

Manifold Pressure

(High) 11"+/- 0.2" w.c.

Log Set: Ceramic fibre, 8 per set.
Vent System: Regency AstrocapTM, Re-

gency Direct Vent System (Flex) and Simp­son Dura-Vent Direct Vent System

HIGH ELEVATION

For USA installations follow local codes and/or
the current National Fuel Gas Code, ANSI
Z223.1.

When using copper or flex connectors use only
approved fittings. Always provide a union so
that gas lines can be easily disconnected for
servicing. Flare nuts for copper lines and flex
connectors are usually considered to meet this
requirement.

Important: Always check for gas leaks
with a soap and water solution or gas
leak detector. Do not use open flame for
leak testing.

PILOT ADJUSTMENT

Periodically check the pilot flames. Cor­rect flame pattern has three strong blue
flames: 1 flowing around the thermopile,
1 around the thermocouple and 1 flowing
across the burner (it does not have to be
touching the burner).

Note: If you have an incorrect flame pat-

tern, contact your Regency dealer
for further instructions.

Incorrect flame pattern will have small,
probably yellow flames, not coming into
proper contact with the rear burner or
thermopile or thermocouple.

The manifold pressure is controlled by a regu­lator built into the gas control, and should be
checked at the pressure test point.

Note: To properly check gas pressure,

both inlet and manifold pressures
should be checked using the valve
pressure ports on the valve.

1) Make sure the valve is in the "OFF" position.

2) Loosen the "IN" and/or "OUT" pressure

tap(s), turning counterclockwise with a
1/8" wide flat screwdriver.

3) Attach manometer to "IN" and/or "OUT"
pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON"
position.

5) The pressure check should be carried out
with the unit burning and the setting should
be within the limits specified on the safety
label.

6) When finished reading manometer, turn off
the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8"
flat screwdriver.

snug, but do not over tighten.

Note: Screw should be

S.I.T. VALVE DESCRIPTION

1) Gas cock knob

2) Manual high/low adjustment

3) Pilot Adjustment

4) Thermocouple Connection - option

5) Outlet Pressure Tap

6) Inlet Pressure Tap

7) Pilot Outlet

8) Main Gas Outlet

9) Alternative TC Connection

Point

This unit is approved in Canada for altitude 0 to
4500 ft. (CAN1 2.17-M91).

GAS LINE

INSTALLATION

The gas line can be brought through either the
right, the left side or the bottom of the appliance.
The gas valve is situated on the bottom of the
unit.

The gas line connection may be made of rigid
pipe, copper pipe or an approved flex connec­tor. (If you are using rigid pipe, ensure that the
valve can be removed for servicing.) Since
some municipalities have additional local codes
it is always best to consult with your local
authorities and the CAN/CGA B149 installation
code.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 23

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at test
pressures equal to or less than 1/2 psig. (3.45
kPa). Disconnect piping from valve at pres­sures over 1/2 psig.

INSTALLATION

LOG INSTALLATION

Read the instructions below carefully and refer to the diagrams.
If logs are broken do not use the unit until they are replaced.
Broken logs can interfere with the pilot operation.

The gas log kit (Part # 360-930) contains the following pieces:
a) 02-79 Front Right Log 902-326

b) 02-80 Front Left Log 902-327
c ) 02-81 Middle Right Log 902-328
d) 02-82 Middle Left Log 902-329
e) Embers 902-154

Please note that there are 2 of each log. This
log set is mirrored front and back.

02-80

02-79

1) Carefully remove the logs from the box and unwrap them. The logs
are fragile, handle with care - do not force into position.

2) Place Log 02-79 on the front right side of the burner. Ensure that the
notches on the far right side of the log fit into the grate posts. Push
back side of the left end of the log up against the tab on the burner.

02-79

Push back side of the left end of the log up

against the tab on the burner.

Repeat step 2 on the opposite side of the burner.

02-82

The "02" reference numbers (i.e. 02-79) are

molded into the rear of each log.

The image below shows all of the logs in place.

02-79

02-8202-81 02-80

02-79

02-79

02-81

3) Place Log 02-80 on the front left side of the burner. Position
the right end of the log in between the two tabs and the left
end of the log into the grate post.

02-80

24

Grate Post

02-8102-80 02-82 02-79

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

Tab on Burner

INSTALLATION

Repeat step 3 on the opposite side of the burner.

02-80

02-80

4) Embers should be placed in front of Log
down the middle between the logs as shown in the image below.

02-79 and Log 02-80 and also

Repeat step 5 on the opposite side of the burner.

02-82

02-82

6) Place Log 02-81 on the middle right side of the burner. Ensure that
the log fits over the 2nd grate post from the right.

Caution: Do NOT cover burner ports.

5) Place Log 02-82 on the middle left side of the burner. Rest the bottom
of the Log onto the second grate post from the left. Ensure that the log
fits into a pin that is on Log 02-79.

02-82

02-79

02-81

Grate Post

Repeat step 6 on the opposite side of the burner.

02-81

02-81

Grate Post

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 25

Place Log 02-82 onto pin.

INSTALLATION

GLASS DOOR

REMOVAL

1) Remove the 8 screws that secure the
glass door.

2) Pull the door slightly out on an angle and
then lift up and pull completely out.

FINISHING TRIM

1) Slide the Side Finishing Trim up into the slot
in the top flange of the fireplace. Push tight
against the magnet at the base of the unit.

Slide Trim into

slot.

Push trim tight

against magnet.

LOUVERS & GRILLS

1) Attach the screws provided to the top left
and right corners.

NOTE: Do not tighten the screw entirely,
ensure that some room is left to be able
to hang the grill or louver over the screw.

2) Hang the Top Louver or Grill onto the 2

screws in the top fireplace opening.

3) Attach the Bottom Louver or Grill to the
hinges on the bottom flange of the fireplace.

3) P131 & P121LC/P121RC Corner Model:
Remove the 6 screws that secure the
glass door and repeat step 2.

2) Slide the Corner Finishing Trim up into the
slot in the top flange of the fireplace. Push
tight against the magnet at the base of the
unit.

Slide Trim into

slot.

Push trim tight

against magnet.

P121-1 & P131-1 Corner Models

4) Attach the screws provided to the top and
bottom, left and right corners similar to step

1.

5) Hang the top and bottom louver or grill onto
the screws in the top and bottom, left and
right sides of the fireplace opening.

The Top and Bottom Side Louver or Grill is

installed the same way.

26

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

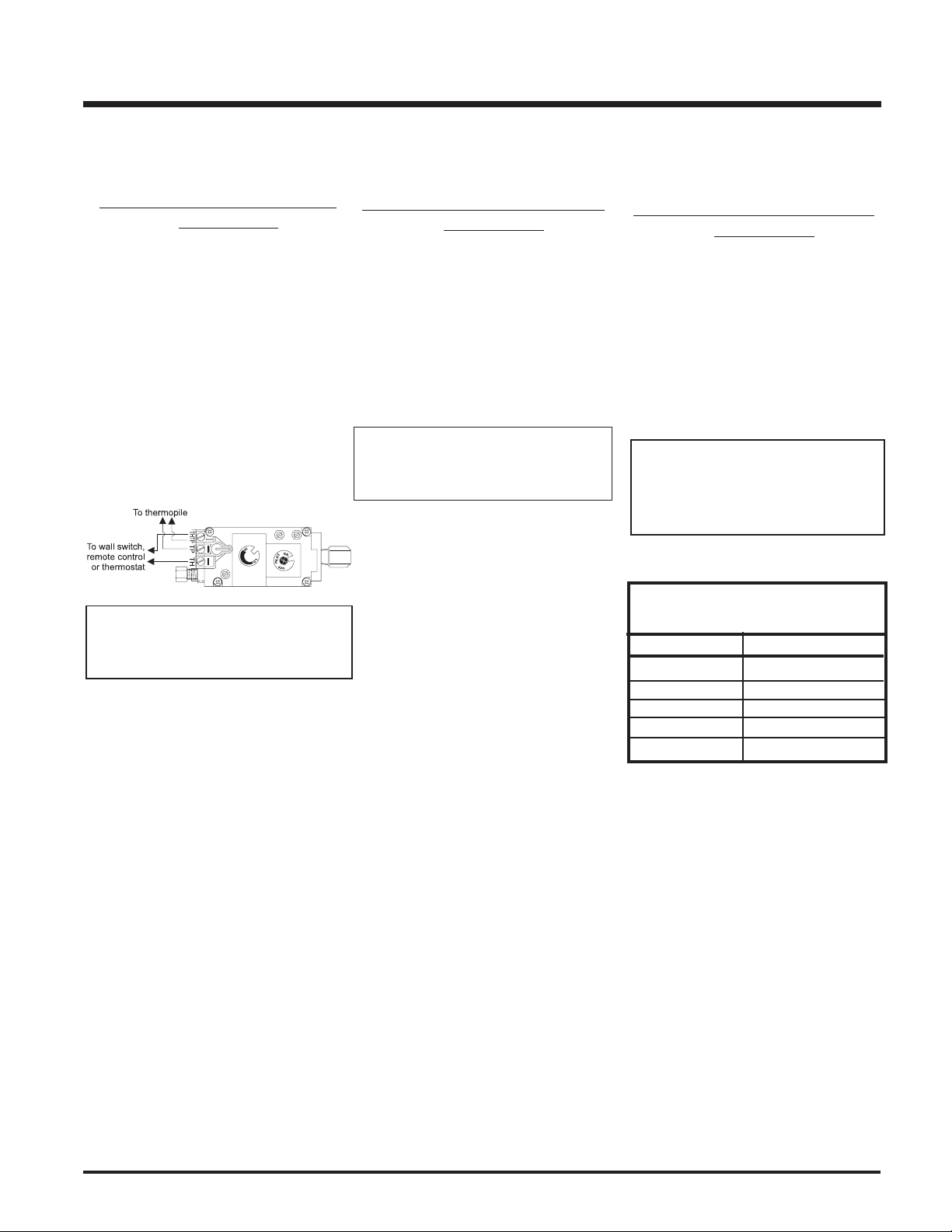

INSTALLATION

Option 1:

REMOTE CONTROL

Can be used with Option 2 or 3

but not both.

Use the Regency Remote Control Kit approved
for this unit. Use of other systems may void your
warranty.

The remote control kit comes with a hand held
transmitter, a receiver and a wall mounting
plate.

1) Choose a convenient location on the wall to
install the receiver and the receptacle box
(protection from extreme heat is very im­portant). Run wires from the fireplace to
that location. Use the Thermostat Wire Ta­ble.

2) Connect the two wires to the gas valve.
See diagram below.

CAUTION

Do not connect millivolt remote

control wires to a 120V wire.

3) Install 3 AAA alkaline batteries in transmitter

and 4 AA alkaline batteries in the receiver.
Install the receiver and its cover in the wall.
Switch the remote receiver to "remote"
mode. The remote control is now ready for
operation.

Option 2:

WALL SWITCH

Can be used with Option 1 or 3

but not both.

1) Run the supplied 15' of wire through the
back gas inlet opening. Be careful not to
damage wire.

Note: We recommend a maximum of 15'

of wire but if you wish to go with a
longer run, use the Thermostat
Wire Table.

2) Connect the wire to the supplied wall switch

and install into the receptacle box.

CAUTION

Do not connect millivolt

wall switch wire to a 120V wire.

Option 3:

WALL THERMOSTAT

Can be used with Option 1 or 2

but not both.

A wall thermostat may be installed if desired,
connect the wires as per the wiring diagram.
Use the table below to determine the maximum
wire length.

Note: Preferable if the thermostat is in­stalled on an interior wall.

Regency offers an optional programmable ther­mostat but any 250-750 millivolt rated non­anticipator type thermostat that is CSA, ULC or
UL approved may be used.

CAUTION

Do not connect millivolt

wall thermostat wires

to a 120V wire.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA.
16 GA.
18 GA.
20 GA.
22 GA.

50 Ft.
32 Ft.
20 Ft.
12 Ft.

9 Ft.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 27

INSTALLATION

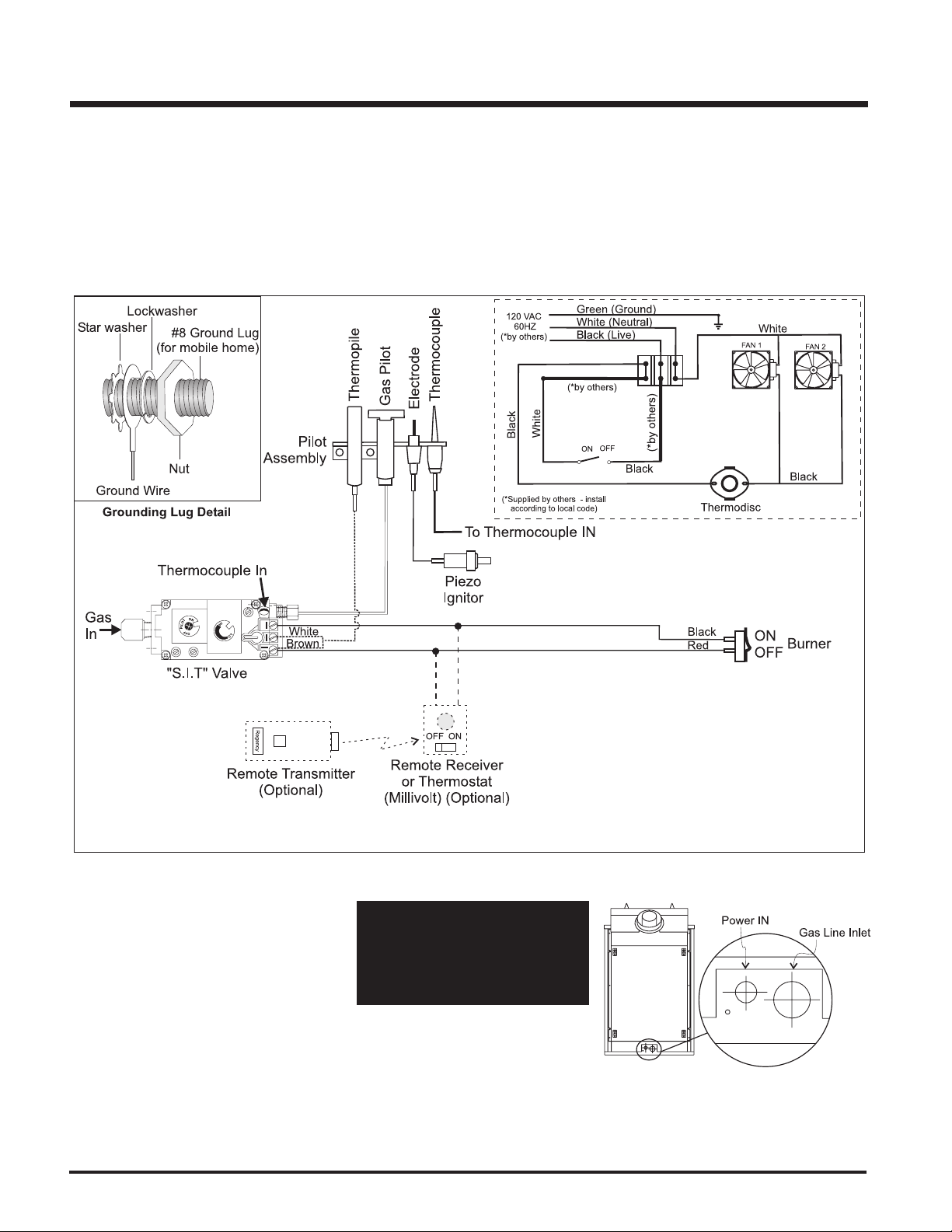

WIRING DIAGRAM

No electrical power supply is required for the
gas control to operate. 120 Volt AC power is
needed for the fan switch and blower. The fan
can be hard wired if desired. A terminal block
is provided on the left hand side of the unit. A

three wire power cord can also be used and
plugged into a suitable receptacle.

(Do not cut the ground terminal off under
any circumstances.)

Caution: Ensure that the wires do
not touch any hot surfaces and are
away from sharp edges.

28

CAUTION: Label all wires
prior to disconnection when
servicing controls. Wiring er­rors can cause improper and
dangerous operation.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and
enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the door frame is

properly positioned. Never operate the ap­pliance with the glass removed.

5) Verify that the venting and cap are unob­structed.

6) Ensure that the brick panels are installed.

7) Verify log placement. If the pilot cannot be

seen when lighting the unit, the logs have
been incorrectly positioned.

8) The unit should never be turned off, and on
again without a minimum of a 60 second
wait.

6) Rotate the flame height regulator to adjust
the flame height higher or lower.

SHUTDOWN

PROCEDURE

1) Use the wall switch, thermostat or remote

control to turn off the main burner.

2) Turn the main gas control clockwise to the
"OFF" position to turn off the pilot.

FIRST FIRE

DO NOT BURN THE APPLIANCE
WITHOUT THE GLASS FRONT IN
PLACE.

The first fire in your stove is part of the paint
curing process. To ensure that the paint is
properly cured, it is recommended that you burn
your fireplace for at least four (4) hours the first
time before you use it with the fan on.

When first operated, the unit will release an
odour caused by the curing of the paint, the
burning off of any oils remaining from manufac­turing. Smoke detectors in the house may go off
at this time. Open a few windows to ventilate the
room for a couple of hours.

CAUTION: Carbon will be produced if air
shutter is closed too much.

Note: Any damage due to carboning re-

sulting from improperly setting
the aeration controls is NOT cov­ered under warranty.

Adjustment Wire - Pull down to open or

push up to close aeration cap.

Closed - Tall yellow

Open - Short Blue

Note: Aeration Adjustment should only

be performed by an authorized
Regency Installer at the time of
installation or service.

NORMAL OPERATING

SOUNDS OF GAS

APPLIANCES

LIGHTING

PROCEDURE

IMPORTANT Gas cock knob cannot be
turned from "PILOT" to "OFF" unless it is
partially depressed.

1) Turn burner OFF using "ON/OFF" switch.

2) Turn gas control knob so indicator points to

"OFF" position and allow 5 minutes for any
gas in the combustion chamber to escape.

3) Turn gas control knob counterclockwise
so indicator points to the "PILOT" position.
Depress the gas control knob fully. De­press the igniter button several times until
the pilot lights. After approximately one
minute, release the gas control knob. The
pilot flame should continue to burn. If the
pilot does not remain lit, repeat operation
allowing a longer period before releasing
gas control knob.

4) When the pilot stays lit, turn the gas knob
further counterclockwise to the "ON" po­sition.

5) Use the wall switch, thermostat or remote
control to turn on the unit.

Note: When the glass is cold and the

appliance is lit, it may cause con­densation and fog the glass. This
condensation is normal and will
disappear in a few minutes as the
glass heats up.

During the first few fires, a white film
may develop on the glass front as part of
the curing process. The glass should be
cleaned after the unit has cooled down
or the film will bake on and become very
difficult to remove. Use a non-abrasive
cleaner and DO NOT ATTEMPT TO CLEAN
THE GLASS WHILE IT IS HOT.

AERATION

ADJUSTMENT

The air shutter can be adjusted by moving the
adjusting wire up or down. The wire is ac­cessed through the bottom louver opening.
Open the air shutter for a blue flame or close for
a yellower flame. The burner aeration is factory
set but may need adjusting due to either the local
gas supply or altitude.

Minimum Air Shutter Opening:

3/16" Natural Gas
3/8" Propane

It is possible that you will hear some sounds
from your gas appliance. This is perfectly nor­mal due to the fact that there are various gauges
and types of steel used within your appliance.
Listed below are some examples. All are nor-
mal operating sounds and should not be
considered as defects in your appliance.

Blower:

Regency gas appliances use high tech blowers
to push heated air farther into the room. It is not
unusual for the fan to make a "whirring" sound
when ON. This sound will increase or decrease
in volume depending on the speed setting of
your fan speed control.

Burner Tray:

The burner tray is positioned directly under the
burner tube(s) and logs and is made of a
different gauge material from the rest of the
firebox and body. Therefore, the varying thick­nesses of steel will expand and contract at
slightly different rates which can cause "tick­ing" and "cracking" sounds. You should also be
aware that as there are temperature changes
within the unit these sounds will likely re-occur.
Again, this is normal for steel fireboxes.

Blower Thermodisc:

When this thermally activated switch turns ON
it will create a small "clicking" sound. This is the
switch contacts closing and is normal.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 29

OPERATING INSTRUCTIONS

Pilot Flame:

While the pilot flame is on it can make a very
slight "whisper" sound.

Gas Control Valve:

As the gas control valve turns ON and OFF, a
dull clicking sound may be audible, this is normal
operation of a gas regulator or valve.

Copy of the Lighting Plate Instructions

FOR YOUR SAFETY READ BEFORE LIGHTING

This appliance must be installed in accordance with local codes, if any; if not, follow

the current CAN1-B149/ANSI Z 223.1 (Australia: AG601, New Zealand: NZS 5261)

WARNING: If you do not follow these instructions exactly, a fire or
explosion may result causing property damage, personal injury or loss
of life. Improper installation, adjustment, alteration, service or maintenance
can cause injury or property damage. Refer to the owner’s information
manual provided with this appliance. For assistance or additional
information consult a qualified installer, service agency or gas supplier.

A)This appliance has a pilot which

must be lighted by hand. When
lighting the pilot, follow these
instructions exactly.

B)BEFORE LIGHTING smell all around

the appliance area for gas. Be sure to
smell next to the floor because some
gas is heavier than air and will settle
on the floor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance

- Do not touch any electric switch, do
not use any phone in your building

- Immediately call your gas supplier
from a neighbours phone. Follow the
gas supplier’s instructions.

- If you cannot reach your gas supplier,
call the fire department.

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due
to high surface temperatures keep children, clothing and furniture, gasoline
and other liquids having fammable vapors away. Keep burner and control
compartment clean. See installation and operating instructions

accompanying appliance.

LIGHTING INSTRUCTIONS

STOP! Read the safety information
above on this label.

1) Push in gas control knob slightly and
turn clockwise to “OFF”. Knob
cannot be turned from “PILOT” to “OFF”
unless knob is pushed in slightly. Do
not force.

2) Wait five (5) minutes to clear out any
gas. If you then smell gas STOP! follow
“B” in the safety information above on
this label. If you don’t smell gas, go to
the next step.

3) Turn knob on gas control counter­clockwise to“PILOT”.

PILOT BURNER

VEILLEUSE

THERMOPILE
ELEMENT

THERMO­ELECTRIQUE

TO TURN OFF GAS APPLIANCE

1) Push in the gas control knob slightly and
turn clockwise to “OFF”. Do not force.

You may shut off the pilot during prolonged non use periods to conserve fuel.

DO NOT REMOVE THIS INSTRUCTION PLATE

Unit Body/Firebox:

Different types and thicknesses of steel will
expand and contract at different rates resulting
in some "cracking" and "ticking" sounds will be
heard throughout the cycling process.

C)Use only your hand to push in or turn

the gas control knob. Never use tools.
If the knob will not push in or turn by
hand, don’t try to repair it, call a qualified
service technician. Force or attempted
repair may result in a fire or explosion.

D)Do not use this appliance if any part has

been under water. Immediately call a
qualified service technician to inspect the
appliance and to replace any part of the
control system and any gas control which
has been under water.

This appliance needs fresh air for safe
operation and must be installed so there are
provisions for adequate combustion and
ventilation air.

4) Push in control knob all the way and
hold in. Continually push and release
the black button on spark igniter until
pilot lights. Continue to hold the
control knob in for about 1/2 minute
after the pilot is lit. Release knob and
it will pop back up. Pilot should remain
lit. If it goes out, repeat steps 1) to 4).
If knob does not pop up when released,
stop and immediately call your service
technician or gas supplier. If the pilot will
not stay lit after several tries, turn the gas
control knob to “OFF” and call your
service technician or gas supplier.

2)Turn off all electric power to the

5)Turn gas control knob

OFF

counterclock-wise
to “ON”.

6) Use rocker switch to op­erate main burner.

appliance if service is to be performed.

908-017a

MAINTENANCE

INSTRUCTIONS

1) Always turn off the gas valve before

cleaning. For relighting, refer to lighting
instructions. Keep the burner and control
compartment clean by brushing and vacu­uming at least once a year. When cleaning
the logs, use a soft clean paint brush as the
logs are fragile and easily damaged.

2) Clean appliance and door with a damp cloth
(never when unit is hot). Never use an
abrasive cleaner. The glass should be
cleaned with a gas fireplace glass cleaner.

The glass should be cleaned when it
starts looking cloudy.

3) The heater is finished in a heat resistant
paint and should only be refinished with
heat resistant paint. Regency uses Stove­Bright Paint - Metallic Black #6309.

4) Make a periodic check of burner for proper
position and condition. Visually check the
flame of the burner periodically, making
sure the flames are steady; not lifting or
floating. If there is a problem, call a qualified
service person.

5) The appliance and venting system must be
inspected before use, and at least annual­ly, by a qualified field service person, to
ensure that the flow of combustion and
ventilation air is not obstructed.

Note: Never operate the appliance with-

out the glass properly secured in
place.

6) Do not use this appliance if any part has

been under water. Immediately call a qual­ified service technician to inspect the ap­pliance and to replace nay part of the
control system and any gas control which
has been under water.

7) In the event this appliance has been serv­iced check that the vent-air system has
been properly resealed & reinstalled in
accordance with the manufacturer's in­structions.

8) Verify operation after servicing.

General Vent Maintenance

Conduct an inspection of the venting system
semi-annually. Recommended areas to inspect
as follows:

1) Check the Venting System for corrosion in
areas that are exposed to the elements.
These will appear as rust spots or streaks,
and in extreme cases, holes. These com­ponents should be replaced immediately.

30

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

MAINTENANCE

2) Remove the Cap, and shine a flashlight

down the Vent. Remove any bird nests, or
other foreign material.

3) Check for evidences of excessive con­densation, such as water droplets forming
in the inner liner, and subsequently dripping
out the joints, Continuous condensation
can cause corrosion of caps, pipe, and
fittings. It may be caused by having exces­sive lateral runs, too many elbows, and
exterior portions of the system being ex­posed to cold weather.

4) Inspect joints, to verify that no pipe sections
or fittings have been disturbed, and conse­quently loosened. Also check mechanical
supports such as Wall Straps, or plumbers'
tape for rigidity.

LOG REPLACEMENT

The unit should never be used with broken logs.
Turn off the gas valve and allow the unit to cool
before opening door and carefully remove the
logs. (The pilot light generates enough heat to
burn someone.) If for any reason a log should
need replacement, you must use the proper
replacement log. The position of these logs
must be as shown in the diagrams under Log
Installation.

GLASS GASKET

If the glass gasket requires replacement use
a tadpole glass gasket (Part # 936-155).

DOOR GLASS

Your Regency fireplace is supplied with high
temperature 5mm-Tempered glass & 5mm-Ce­ramic glass. If your glass requires cleaning, we
recommend using an approved glass cleaner
available at all authorized dealers. Do not use
abrasive materials.

CAUTION & WARNINGS:

* Do not clean when the glass is hot.
* The use of substitute glass will void all product
warranties.
* Care must be taken to avoid breakage of the
glass.
* Do not strike or abuse the glass.
* Do not operate this fireplace without the glass
front or with a cracked or broken glass front.
* Wear gloves when removing damaged or
broken glass.
* Replacement of the glass panels should be
done by a licensed or qualified service per
son.

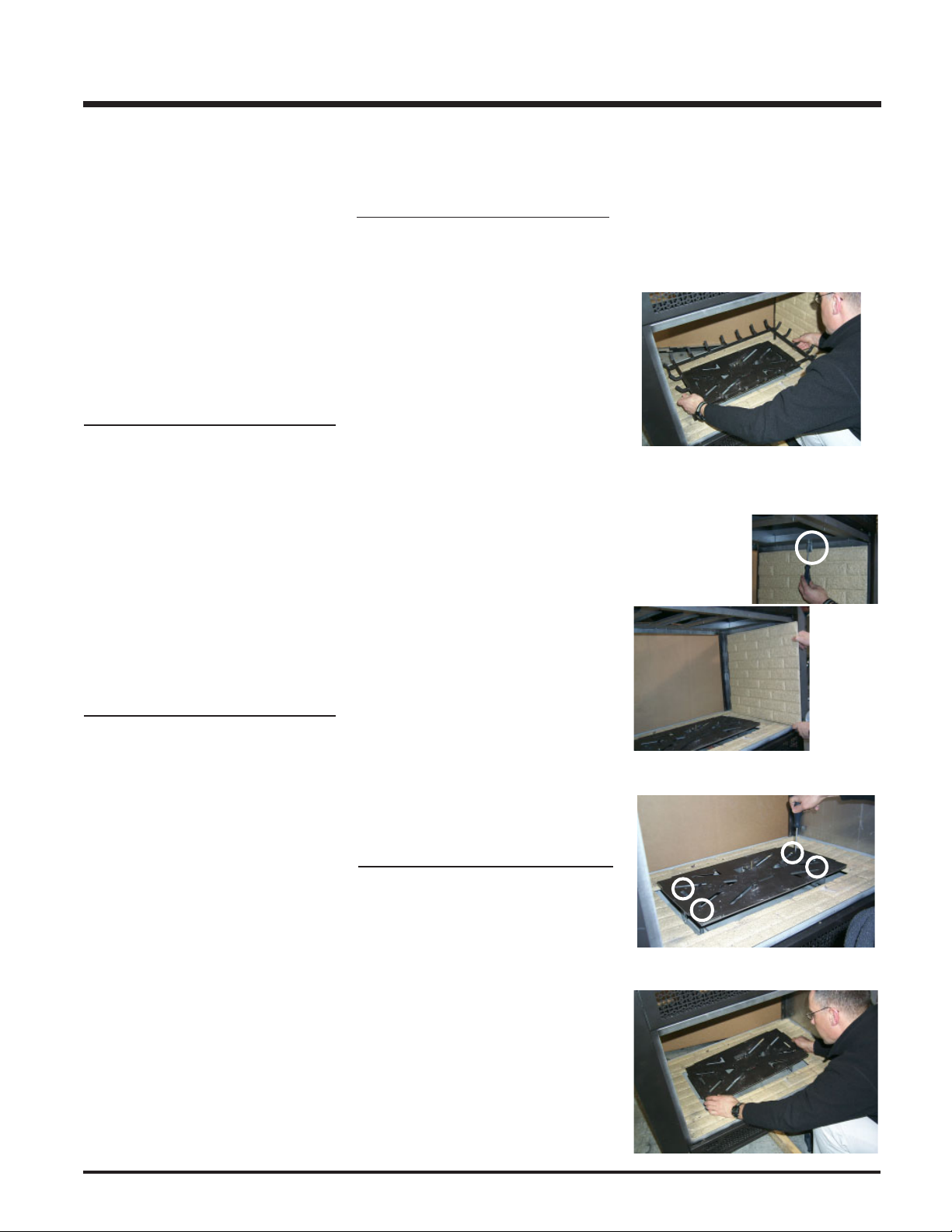

REMOVING VALVE

1) Shut off the gas supply.

2) Remove the louvers and trim kit. Remove the
front door.

3) Remove the logs, embers.

4) Remove the grate by lifting straight up.

5) Remove the side brick clip in the top of the
firebox and then slide the Side Brick Panel
out. The brick panels are very fragile

- handle with care.

Note: Improper positioning of logs may

create carbon build-up and will
severely alter the unit's perform­ance which is not covered under
warranty.

THERMOPILE/

THERMOCOUPLE

1) Open the Bottom Louvers or Grills. Remove
the Top Louver or Grill.

2) Remove the Trim Kit, Glass Door, Log Set,
Grate and Burner Assembly (see page 26).

3) Disconnect thermocouple by loosening nut
from the valve with a 9mm wrench. Discon­nect thermopile by loosening 2 screws
marked TP on the valve.

4) Remove 2 screws from the pilot assembly
and pull up far enough to be able to loosen
the thermocouple or thermopile with a 7/16"
wrench. NOTE: the pilot line is very fragile,
use caution when pulling it up.

5) Drop the thermocouple or thermopile down
through the extrusion and pull it out of the
unit.

GLASS REPLACEMENT

In the event that you break your glass by impact,
purchase your replacement from an authorized
Regency dealer only. Replacement glass is
shipped already installed into the door frame.
Reinstall as per Glass Door Installation on page

22.

REPLACEMENT PARTS:

Front Door - Tempered (Part# 360-528)
Side Door - Tempered (Part# 360-529)
Front Door - Ceramic (Part# 360-538)
Side Door - Ceramic (Part# 360-539)

GOLD-PLATED
ACCESSORIES

The 24 carat gold-plated finish requires little
maintenance, and need only be cleaned with a
damp cloth. DO NOT use abrasive materials or
chemical cleaners, as they may harm the finish
and void the warranty. Clean any finger-

prints off before turning the unit on.

6) Remove the burner by removing the 4
screws.

7) Slide the burner assembly away from the
orifice and lift out.

6) Reinstall the new ones in reverse order.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 31

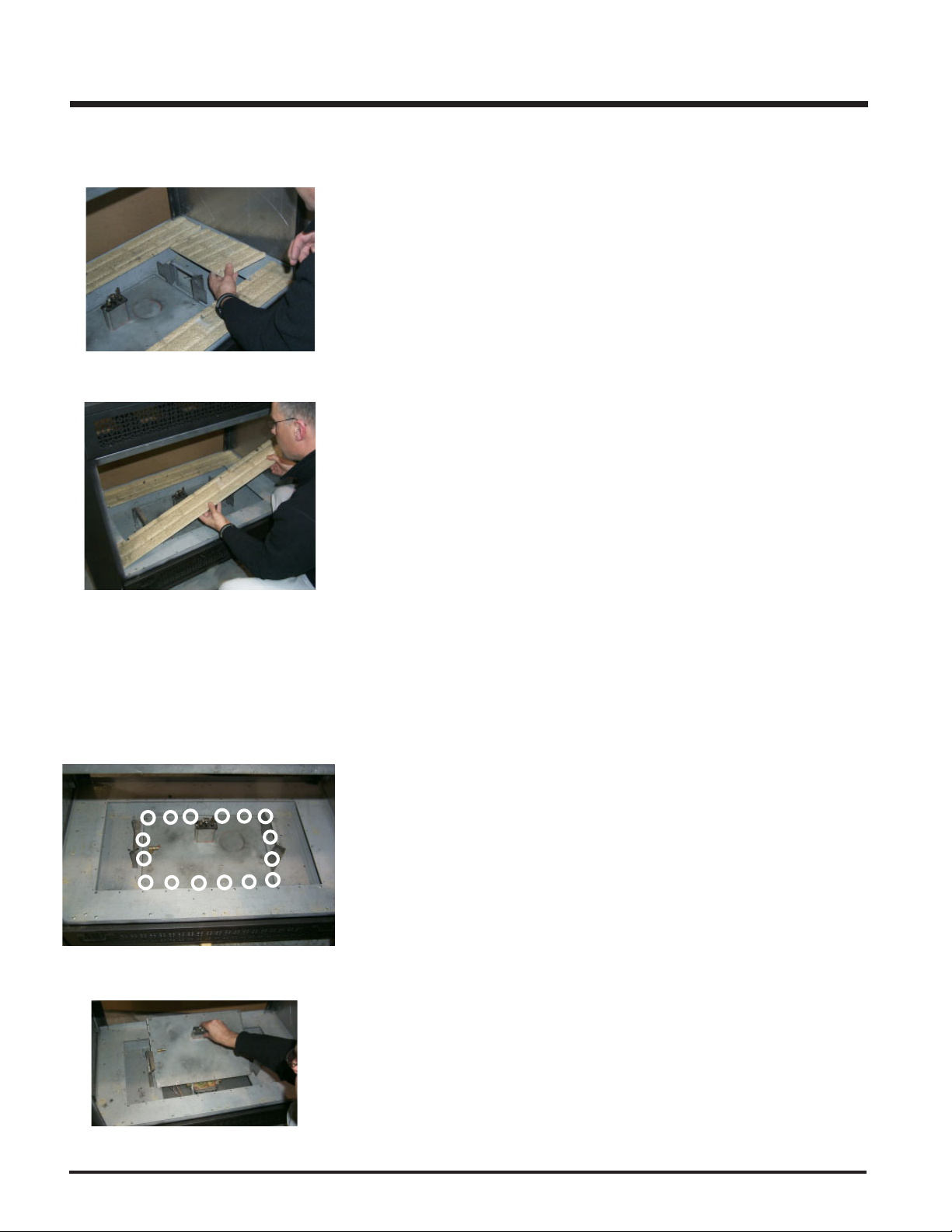

MAINTENANCE

8) Remove the Side Base Brick Panels and
finally the Long Base Brick Panels.

Remove Left & Right Side Base

Brick Panels

Remove the 2 Long Base Brick Panels

9) Disconnect the inlet gas line.

10) Disconnect the 2 TP wires and the 2 TH
wires from the valve.

11) Remove the 16 Phillips head screws secur­ing the valve tray.

13) Undo the pilot tube from the valve with a
7/16" wrench.

14) Undo the quick drop out thermocouple nut
on the valve with a 9mm (metric) wrench.

15) Remove the Piezo igniter wire and push
button assembly.

16) Undo the "gas out" flare nut with a 13/16"
wrench.

17)

Undo the "gas out" flare fitting with an
11/16" wrench.

18) Remove the 6 Phillips head screws from the
sides of the valve bracket and remove
valve.

Hint: If you are using black pipe, ensure

that there is a union by the valve,
otherwise removal will be almost
impossible.

INSTALLING VALVE

1) Attach the valve to the valve bracket with

the 6 (m5x8 metric) screws provided.

2) Reconnect the "gas out" flare fitting with an
11/16" wrench.

3) Reconnect the "gas out" flare nut with a 13/
16" wrench.

4) Install piezo ignitor push button assembly
and reconnect wire.

5) Reconnect the quick drop out thermocouple
nut with a 9mm wrench.

6) Reconnect the pilot tube nut with a 7/16"
wrench.

7) Scrape off the old gasket from the floor of
the firebox and from the valve tray assem­bly.

8) Install a new gasket and reinstall the valve
tray assembly.

Note: Failure to install a new gasket may
severely affect the appliance perform­ance.

9) Reinstall the 16 hold down screws.

10)Hook up the 2 TP and 2 TH wires to the

appropriate connections on the valve.

11)Reinstall the Burner Assembly.

13)Hook up the gas line and check for gas leaks

with a soap and water solution or a gas leak
detector. (Do not use open flame for leak
testing.)

12) Lift the entire assembly out.

32

14)Fire up the unit temporarily

15)Check the manifold pressure.

16)Reinstall the logs, grate and brick panels as

needed.

17)Reinstall the glass doors.

18)Fire up the unit again and check for proper

flame appearance.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

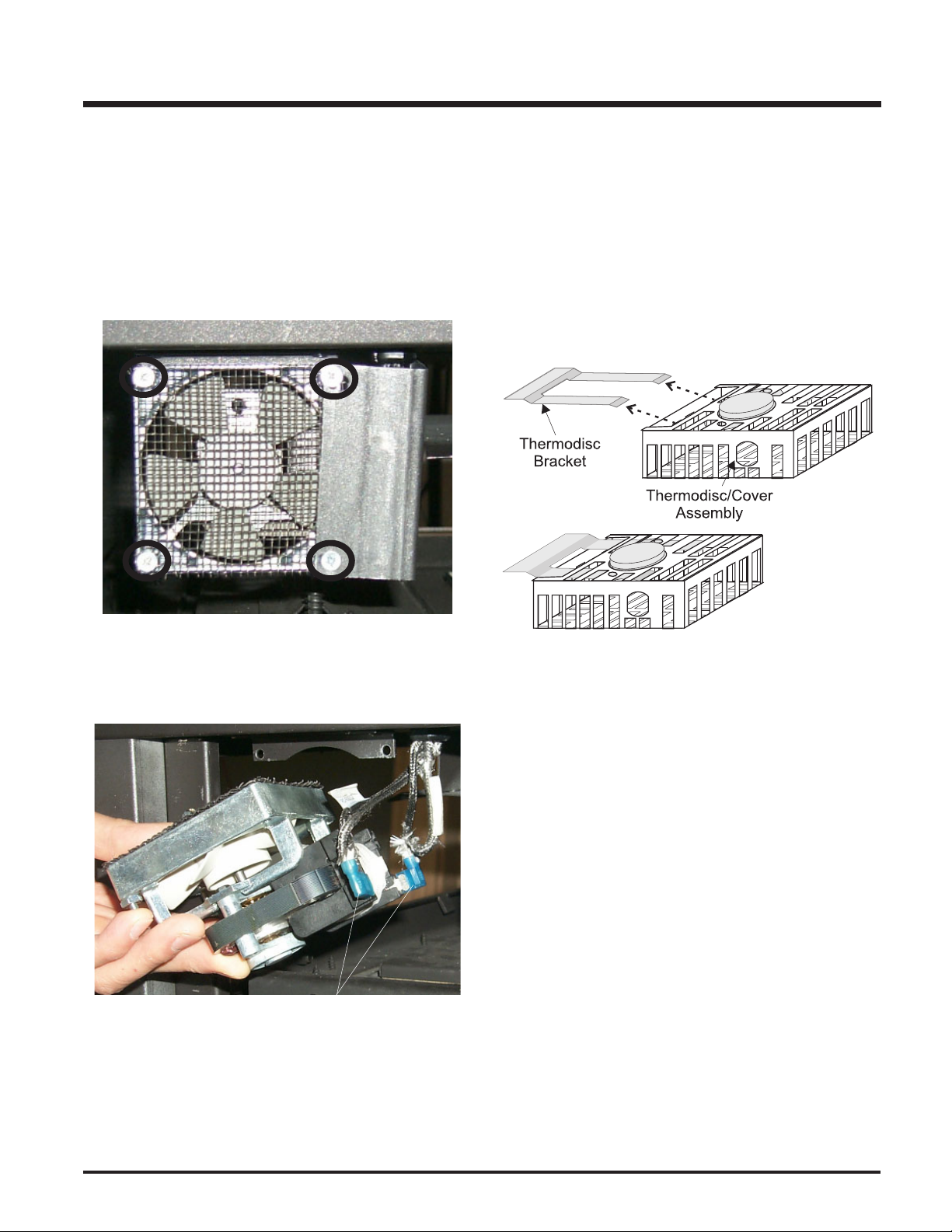

FAN REPLACEMENT

MAINTENANCE

1) Shut off power.

2) Remove top louvers.

3) Unplug power wires.

4) Remove 4 screws securing fan to mounting bracket.

6) Replace fan.

7) Repeat for opposite side/corner.

8) Reverse steps 1 - 5 for installation.

9) To remove the thermodisc, located at the back center of the unit, slide

the thermodisc/cover assembly away from the bracket clip on the under
side of the firebox. Reverse for installation. Ensure that no wires will touch
hot surfaces.

5) Remove 2 connector wires.

Connector wires

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 33

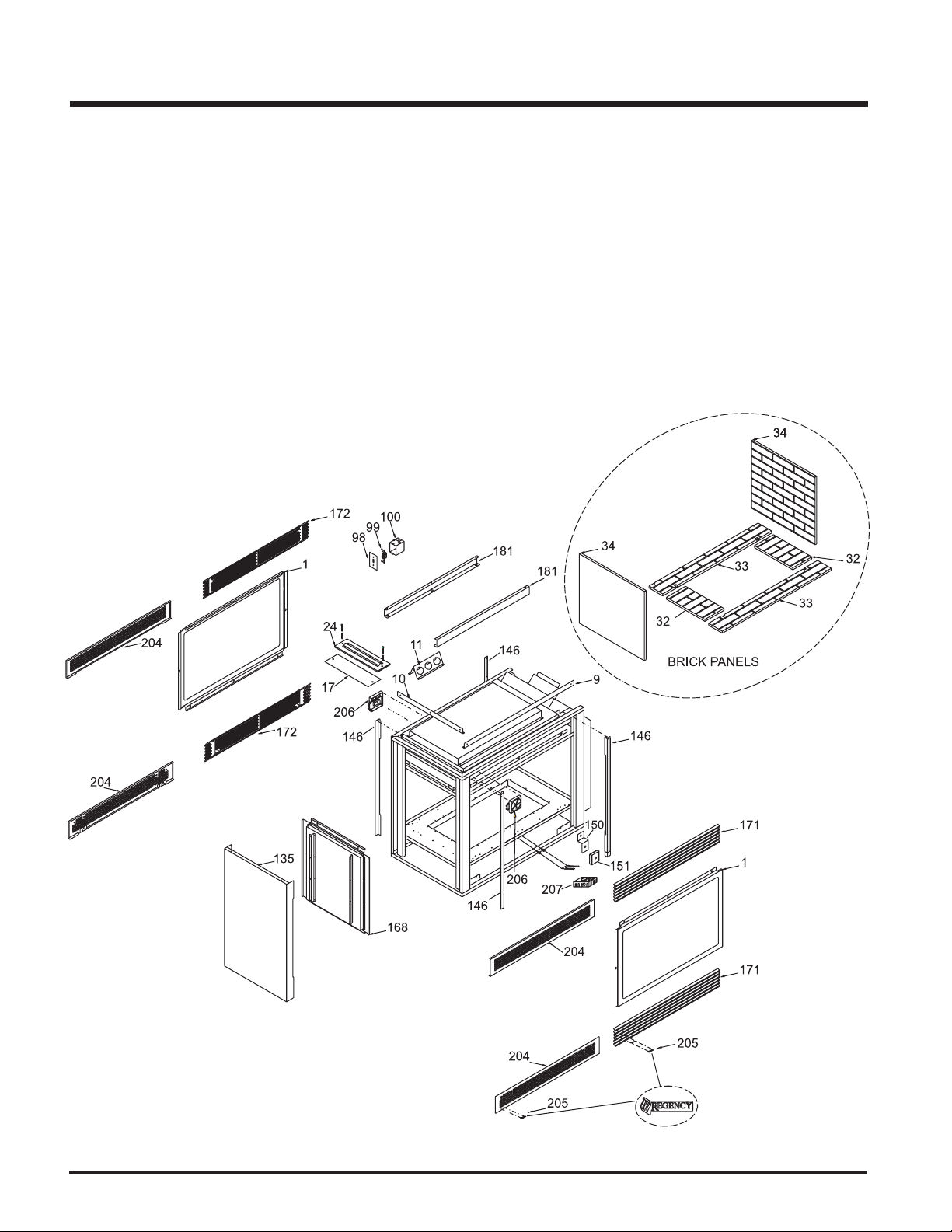

PARTS LIST

P121-1 (SEE THRU) MAIN ASSEMBLY

Part # Description Part # Description Part # Description

1) 360-528 Door Assy Front - Tempered
360-538 Door Assy Front - Ceramic

(Optional)

2) 360-529 Door Assy Side - Tempered
360-539 Door Assy Side - Ceramic

(Optional)

9) 360-046 Nailing Strip - Top - Front

10) 360-047 Nailing Strip - Top - Side

11) 430-001 Standoff - Top

17) 360-086 Gasket - Relief Door

24) * Relief Door Assembly

32) 902-296 Brick Panel - Base - Front

33) 902-297 Brick Panel - Base - Side

34) 902-298 Brick Panel - Side

98) 910-366 Switch Cover Plate

99) 910-363 Wall Switch

100)910-367 Switch Receptacle Plastic Box
910-882 Wire - Valve to Burner Switch

135)360-069 Heat Shield - Side

146)360-033 Left Side Door Trim
360-034 Right Side Door Trim

150)360-123 Magnet Bracket - Front

151)904-258 Magnet

168)360-068 Door Cover Assembly - Side

171)360-920 Louver Front - Black (set)
360-922 Louver Front - Black/Gold (set)
360-924 Louver Front - Black/Steel (set)

360-926 Louver Front - Black/Brass (set)

181)* Extension Trim - See Thru

204)360-940 Dec. Grill Front - Black (set)

205)948-216 Regency Logo Plate

206)910-171 Fan Axial 115V

207)910-142 Thermodisc
918-107a Manual

*Not available as a replacement part.

34

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

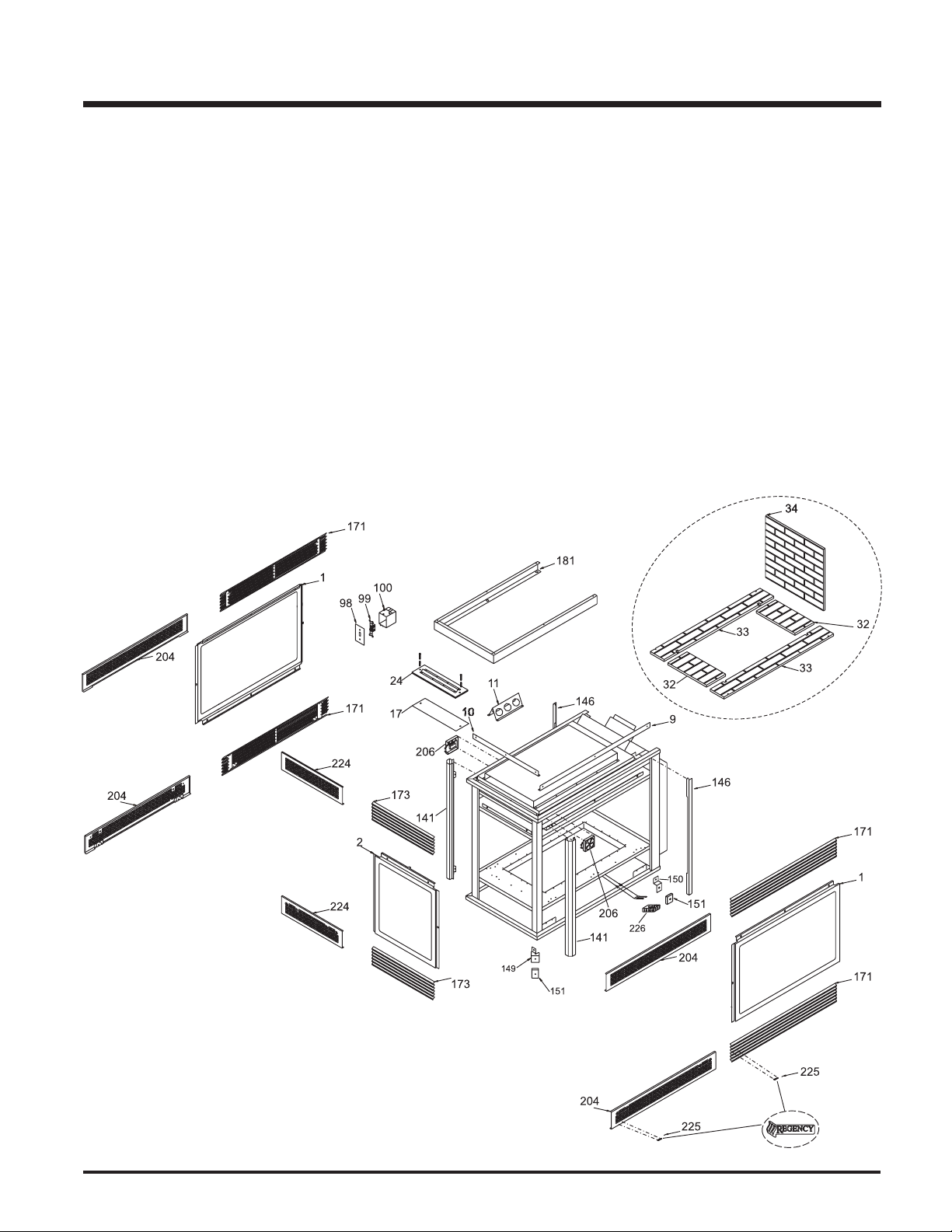

PARTS LIST

P131-1 (PIER) MAIN ASSEMBLY

Part # Description Part # Description Part # Description

1) 360-528 Door Assy Front - Tempered
360-946 Door Assy Front - Ceramic

(Optional)

2) 360-529 Door Assy Side - Tempered
360-948 Door Assy Side- Ceramic

(Optional)

9) 360-046 Nailing Strip - Top - Front

10) 360-047 Nailing Strip - Top - Side

11) 430-001 Standoff - Top

17) 360-086 Gasket - Relief Door

24) * Relief Door Assembly

32) 902-296 Brick Panel - Base - Side

33) 902-297 Brick Panel - Base - Front

34) 902-298 Brick Panel - Side

98) 910-366 Switch Cover Plate

99) 910-363 Wall Switch

100)910-367 Switch Receptacle Plastic Box
910-882 Wire - Valve to Burner Switch

141)360-031 Column Finishing Trim

146)360-035 Finishing Trim

149)360-122 Magnet Bracket - Corner

150)360-123 Magnet Bracket - Front

151)904-258 Magnet

171)360-920 Louver Front - Black (set)
360-922 Louver Front - Black/Gold (set)
360-924 Louver Front - Black/Steel (set)
360-926 Louver Front - Black/Brass (set)

173)360-932 Louver Side - Black (set)
360-934 Louver Side - Black/Gold (set)
360-936 Louver Side - Black/Steel (set)
360-938 Louver Side - Black/Brass (set)

181)* Extension Trim - Pier

204)360-940 Dec. Grill Front - Black (set)

206)910-171 Fan Axial 115V

224)360-942 Dec. Grill Side - Black (set)

225)948-216 Regency Logo Plate

226)910-412 Thermodisc
918-107a Manual

*Not available as a replacement part.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 35

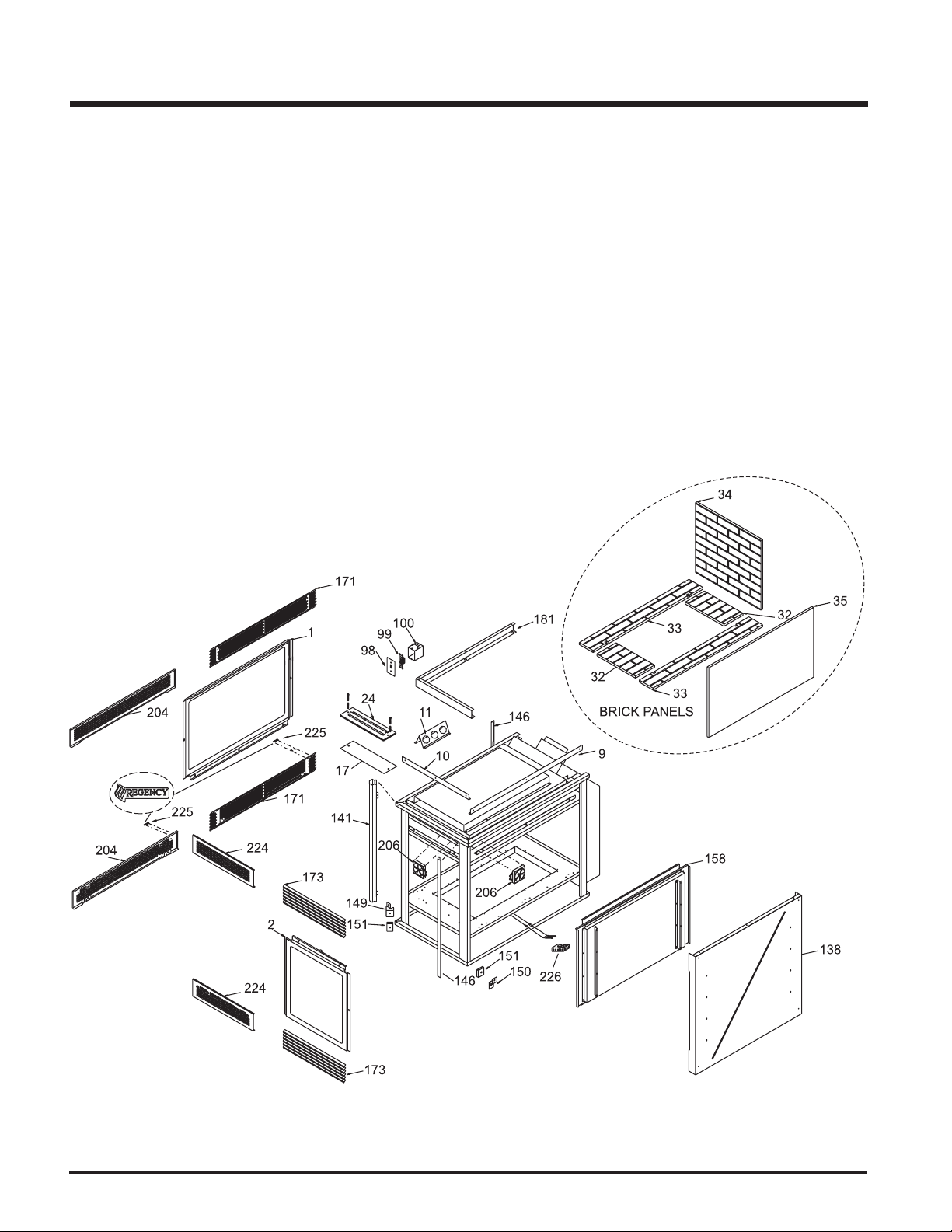

PARTS LIST

P121RC-1 (RIGHT CORNER) MAIN ASSEMBLY

Part # Description Part # Description Part # Description

1) 360-528 Door Assy Front - Tempered
360-538 Door Assy Front - Ceramic

(Optional)

2) 360-529 Door Assy Side - Tempered
360-539 Door Assy Side - Ceramic

(Optional)

9) 360-046 Nailing Strip - Top - Front

10) 360-047 Nailing Strip - Top - Side

11) 430-001 Standoff - Top
780-013 Standoff - Rear

17) 360-086 Gasket - Relief Door

24) * Relief Door Assembly

32) 902-296 Brick Panel - Base - Side

33) 902-297 Brick Panel - Base - Front

34) 902-298 Brick Panel - Side

35) 902-300 Brick Panel - Front

98) 910-366 Switch Cover Plate

99) 910-363 Wall Switch

100)910-367 Switch Receptacle Plastic Box
910-882 Wire - Valve to Burner Switch

138)360-063 Heat Shield - F r o n t

141)360-031 Column Finishing Trim

146)360-035 Finishing Trim - Left Side

149)360-122 Magnet Bracket - Corner

150)360-123 Magnet Bracket - Front

151)904-258 Magnet

158)360-060 Door Cover Assembly-Front

171)360-920 Louver Front - Black (set)
360-922 Louver Front - Black/Gold (set)
360-924 Louver Front - Black/Steel (set)
360-926 Louver Front - Black/Brass (set)

173)360-932 Louver Side - Black (set)
360-934 Louver Side - Black/Gold (set)
360-936 Louver Side - Black/Steel (set)
360-938 Louver Side - Black/Brass (set)

181)* Extension Trim

204)360-940 Dec. Grill Front - Black (set)

206)910-171 Fan Axial 115V

224)360-942 Dec. Grill Side - Black (set)

225)948-216 Regency Logo Plate

226)910-142 Thermodisc
918-107a Manual

*Not available as a replacement part.

36

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

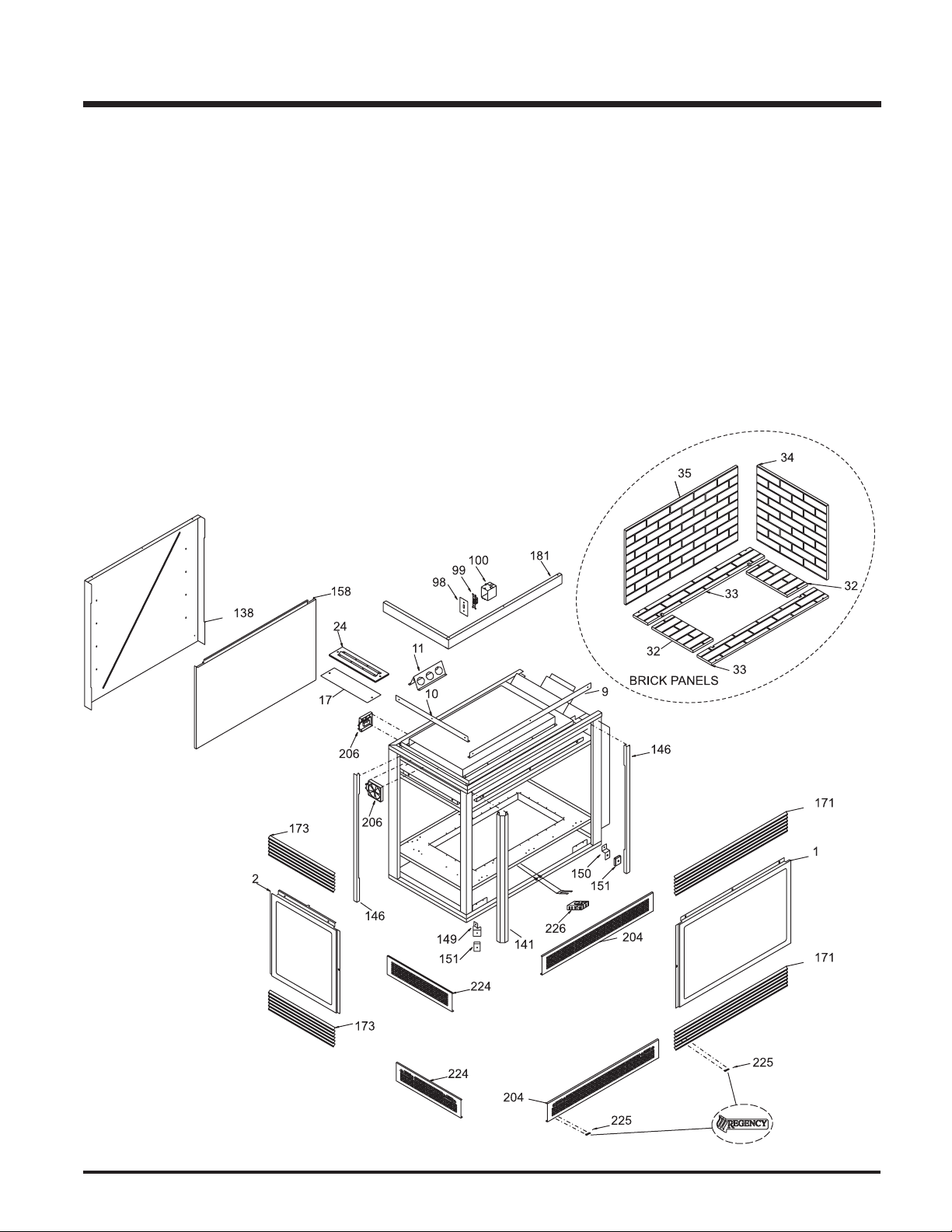

PARTS LIST

P121LC-1 (LEFT CORNER) MAIN ASSEMBLY

Part # Description Part # Description Part # Description

1) 360-528 Door Assy Front - Tempered
360-538 Door Assy Front - Ceramic

(Optional)

2) 360-529 Door Assy Side - Tempered
360-539 Door Assy Side - Ceramic

(Optional)

9) 360-046 Nailing Strip - Top - Front

10) 360-047 Nailing Strip - Top - Side

11) 430-001 Standoff - Top

17) 360-086 Gasket - Relief Door

24) * Relief Door Assembly

32) 902-296 Brick Panel - Base - Side

33) 902-297 Brick Panel - Base - Front

34) 902-298 Brick Panel - Side

35) 902-300 Brick Panel - Front

98) 910-366 Switch Cover Plate

99) 910-363 Wall Switch

100)910-367 Switch Receptacle Plastic Box
910-882 Wire - Valve to Burner Switch

138)360-069 Heat Shield - F r o n t

141)360-031 Column Finishing Trim

146)360-035 Finishing Trim

149)360-122 Magnet Bracket - Corner

150)360-123 Magnet Bracket - Front

151)904-258 Magnet

158)360-062 Door Cover Assembly-Front

171)360-920 Louver Front - Black (set)
360-922 Louver Front - Black/Gold (set)
360-924 Louver Front - Black/Steel (set)
360-926 Louver Front - Black/Brass (set)

173)360-932 Louver Side - Black (set)
360-934 Louver Side - Black/Gold (set)
360-936 Louver Side - Black/Steel (set)
360-938 Louver Side - Black/Brass (set)

204)360-940 Dec. Grill Front - Black (set)

206)910-171 Fan Axial 115V

224)360-942 Dec. Grill Side - Black (set)

225)948-216 Regency Logo Plate

226)910-142 Thermodisc
918-107a Manual

*Not available as a replacement part.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 37

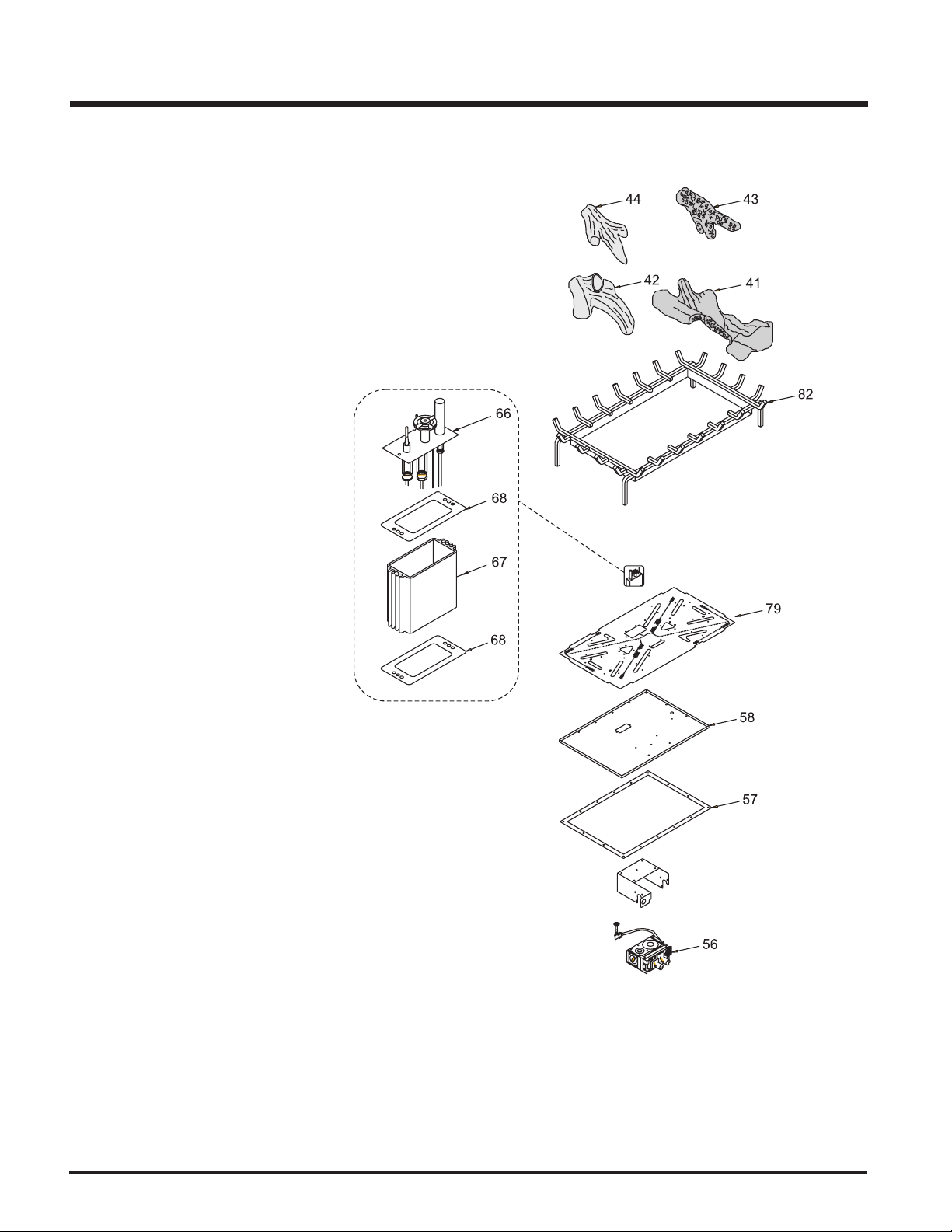

PARTS LIST

P121/P121LC/P121RC/P131-1 BURNER ASSEMBLY & LOG SET

Part # Description

360-930 Log Set

41) 904-326 Front Right Log

42) 904-327 Front Left Log

43) 904-328 Middle Left Log

44) 904-329 Middle Right Log
360-574/P Valve Assembly

56) 360-378/P Valve S.I.T. - NG

57) 360-090 Gasket - Valve Tray

58) * Valve Tray

66) 910-038 Pilot Assembly - NG

67) * Pilot Holder

68) W840470 Pilot Assembly Gasket

69) 910-190 Piezo Ignitor and Nut

79) 360-525 Burner Assembly

82) 360-027 Grate Assembly
904-690 Orifice #31 - NG
936-170 Orifice Gasket

*Not available as a replacement part.

38

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace

WARRANTY

Regency Fireplace Products, are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance
Team carefully inspects each unit thoroughly before it leaves our door. Regency Industries Ltd. is pleased to extend this limited
lifetime warranty to the original purchaser of a Regency Product.

The Warranty: Lifetime

Covered under the agreement are the following components: Combustion chamber, heat exchanger, burner tubes, logs, embers,
glass (thermal breakage) and all gold plating (against defective manufacture).

The above will be covered for parts and labour for the first five years and parts only thereafter. Electrical components such as blowers,
fan motor, switches, wiring, thermodiscs, remote control, thermopiles, thermocouples, pilot assemblies, and gas valves are
covered for one year from the date of purchase.

Conditions:

All installations must be performed by a qualified gas fitter and installed according to all applicable local and national codes. Also,
all service work must be carried out by a qualified gas service person who is recommended by the selling dealer. It is the
responsibility of the installer to ensure that the appliance is firing as per rating plate. Any part or parts of this unit which in our
judgement show evidence of such defect will be repaired or replaced at Regency's option, through an accredited distributor or agent
provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim. It does not cover installation
and operational related problems such as over-firing, downdrafts or spillage caused by environmental conditions, nearby trees,
buildings, hilltops, mountains, inadequate venting or ventilation, excessive offsets, negative air pressures caused by insufficient
make up air, mechanical systems such as furnaces, fans, clothes dryers etc.
The warranty does not extend to any part or parts which show evidence of misuse or abuse, neglect, accident or lack of maintenance.

Products made by other manufacturers and used in conjunction with the operation of this appliance without authorization from
Regency, may nullify your warranty on this product.

Regency Industries Ltd., shall in no event be liable for any special, indirect consequential damages of any nature whatsoever which
are in excess of the original purchase price of the product. Any alteration to the unit which causes sooting or carboning that results
in damage to the exterior facia is not the responsibility of Regency Industries Ltd.

Note: Warranty is not transferable.

Vent Components:

The venting components are under warranty from Simpson Dura-Vent Inc.

General:

It is essential that all submitted claims provide all of the necessary information including purchase date, serial #, type of unit and
part or parts requested.

Regency P121-1/P121LC-1/P121RC-1/P131-1 Zero Clearance Direct Vent Gas Fireplace 39

Regency fireplace products are designed

with reliability and simplicity in mind. In

addition, our internal Quality Assurance

T eam carefully inspect s each unit

thoroughly before it leaves our

door.

Fireplace Products International

Ltd. is pleased to extend this Lim-

ited Lifetime Warranty to the original

purchaser of a Regency Product.

See the inside back cover for details.

Register your Regency online at

http://www.regency-fire.com

Installer: Please complete the following information

Dealer Name & Address:______________________________________________

__________________________________________________________________
Installer: ___________________________________________________________
Phone #: ___________________________________________________________
Date Installed: ______________________________________________________
Serial No.: _________________________________________________________

Regency and Panorama are trademarks of FPI Fireplace Products International Ltd.
© FPI Fireplace Products International Ltd. 2003

Printed in Canada
