Regency L900-NG, L900-LP User Manual

www.regency-fi re.com

LIBERTY

TM

L900 Gas Fireplace

Owners &

Installation Manual

Unit requires 120V to

operate. See “Wiring Diagram”

section in manual for more

details. Receptacle is included

with manual package.

MODELS: L900-NG Natural Gas L900-LP Propane

WARNING:
If the information in these instructions are not followed exactly,
a fi re or explosion may result causing property damage,
personal injury or loss of life.

FOR YOUR SAFETY
Do not store or use gasoline or other fl ammable vapors and
liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualifi ed
installer, service agency or the gas supplier.

Tested by:

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

918-610c

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

FOR YOUR SAFETY
What to do if you smell gas:

 Do not try to light any appliance
 Do not touch any electrical switch:

do not use any phone in your
building.

 Immediately call your gas supplier

from a neighbour's phone. Follow
the gas supplier's instructions.

 If you cannot reach your gas

supplier, call the fi re department.

11/14/07

To the New Owner:

Congratulations!
You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The L900 has been
designed to provide you with all the warmth and charm of a wood fi replace at the fl ick of
a switch. The model L900 has been approved by Warnock Hersey for both safety and
effi ciency. As it also bears our own mark, it promises to provide you with economy, comfort
and security for many trouble free years to follow. Please take a moment now to acquaint

yourself with these instructions and the many features of your Regency

MANUFACTURED MOBILE HOME REQUIREMENTS

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency® product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards:
VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2005 / CSA 2.33-2005, GAS-FIRED APPLIANCES FOR USE AT HIGH
ALTITUDES CAN / CGA 2.17-M91 and ANSI Z21.50b-2003 / CSA 2.22b-2003.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the
Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for
Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard
in Canada.

®

Fireplace.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of
local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the
U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable
to local codes.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where not
prohibited by local codes.

This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with
other gases, unless a certifi ed kit is used.

Ensure that structural members are not cut or weakened during installation.

2

Regency® L900 Direct Vent Gas Fireplace

TABLE OF CONTENTS

SAFETY LABEL

Copy of Safety Decal .....................................................4

REQUIREMENTS

MA Code - CO Detector

(for the State of Massachusetts only) ............................5

UNIT DIMENSIONS

Unit Dimensions ..........................................................6

INSTALLATION

Important Message ......................................................7

Before You Start ............................................................7

General Safety Information ...........................................7

Installation Checklist ......................................................7

Manufactured Mobile Home Additional Requirements ..8

Locating Your Gas Fireplace .........................................8

Heatwave Duct Kit ........................................................8

Heat Release Kit ..........................................................8

Hearth Requirements ....................................................8

Clearances ....................................................................9

Mantel Clearances ......................................................10

Mantel Leg Clearances ...............................................10

Framing & Finishing .................................................... 11

Unit Assembly Prior To Installation ..............................12

Top Standoff Assembly ........................................ 12

Side Nailing Strips ...............................................12

Finishing Template .......................................................12

Venting Introduction .....................................................13

Vent Restrictor Position ...............................................13

Exterior Vent Termination Requirements .....................14

Venting Arrangements ................................................15

Horizontal Termination (Flex) ...............................15

Rigid Pipe Venting Systems ........................................16

Basic Horizontal & Vertical Terminations ............. 16

5” x 8” Rigid Pipe Cross Reference Chart ...................17

Venting Arrangements ................................................19

Allowable Horizontal Terminations ....................... 19

Venting Arrangements ................................................22

Allowable Vertical Terminations ........................... 22

Unit Installation with Horizontal Termination ................23

Unit Installation with Vertical Termination .................... 24

Horizontal Termination with Flex Vent System ............25

High Elevation .............................................................26

Gas Line Installation ....................................................26

Pilot Adjustment ...........................................................26

Gas Pipe Pressure Testing ..........................................26

SIT 825 Valve Description ...........................................26

Back-Up Battery Installation (within Power Module) ...27

Conversion Kit #546-969 from NG to LP .....................28

Brick Panel Installation ................................................34

Log Set Installation ......................................................36

Aeration Adjustment ....................................................38

Wiring Diagram ...........................................................38

OPERATING INSTRUCTIONS

Matching Remote Handset & Control Box ID Code ....39

Operating Instructions .................................................39

First Fire ......................................................................39

Lighting Procedure ......................................................39

OPERATING INSTRUCTIONS

Normal Operating Sounds of Gas Appliances .............40

Operation During Power Outage .................................40

Shutdown Procedure ...................................................40

Copy of Lighting Plate Instructions ..............................41

Maintenance Instructions ............................................42

General Vent Maintenance ..........................................42

Log Replacement ........................................................42

Thermopile / Thermocouple .........................................42

Glass Gasket ...............................................................42

MAINTENANCE

Door Glass ..................................................................42

Glass Replacement .............................................42

Back-Up Battery Replacement ....................................43

Power Module Replacement .......................................44

Control Module Replacement ......................................45

DC Sparker Replacement ...........................................46

Valve Tray Replacement ..............................................47

PARTS LIST

Main Assembly ............................................................49

Burner & Log Assembly ...............................................51

WARRANTY

The Warranty: Limited Lifetime ...................................55

Regency® L900 Direct Vent Gas Fireplace 3

SAFETY LABEL

This is a copy of the label that accompanies
each L900-NG and L900-LP Direct Vent Gas
Fireplace. We have printed a copy of the
contents here for your review. The safety label
is located on the right hand side of the unit,
visible when the exterior right side brick panel
is removed.

NOTE: Regency

®

units are constantly being
improved. Check the label on the unit and if
there is a difference, the label on the unit is

INSTALLATION

the correct one.

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ETIQUETTE

`

320

Serial No. / No de serie

Listed: VENTED GAS FIREPLACE HEATER
Tested to: ANSI Z21.88-2005/ CAN/CGA-2.17-M91,

ANSI Z21.50b-2003/ CSA 2.22b-2003
Certified for / Certifiée pour: CANADA AND U.S.A.

NATURAL GAS FIREPLACE: MODEL L900-NG

Model/Modele:

L900-NG

Factory Equipped For Altitude 0-4500ft. (0-1372m)

Min. Supply Pressure 5“ WC (1.25 kpa)
Low Setting Man. Pressure 1.6" WC (0.39 kpa)
Max. Manifold Pressure 3.5" WC (0.87 kpa)
Orifice Size (Front Burner) #47 DMS
Orifice Size (Back Burner) #30 DMS
Minimum Input 11,000 Btu/h (3.22 )
Maximum Input 48,000 Btu/h (14.06 kW)

PROPANE GAS FIREPLACE: MODEL L900-LP

Factory Equipped For Altitude 0-4500ft. (0-1372m)

Model/Modele:

L900-LP

Min. Supply Pressure 12" WC (2.98 kpa)
Low Setting Man. Pressure 3.6" WC (0.9 kpa)
Max. Manifold Pressure 10" WC (2.49 kpa)
Orifice Size (Front Burner) #56 DMS
Orifice Size (Back Burner) #50 DMS
Minimum Input 9,500 Btu/h (2.78 kW)
Maximum Input 46,500 Btu/h (13.62 kW)

CSA 2.33-2005,

kW

For the State of Massachusetts, installation
and repair must be done by a plumber or
gasfi tter licensed in the Commonwealth of
Massachusetts.

For the State of Massachusetts, fl exible
connectors shall not exceed 36 inches in
length.

For the State of Massachusetts, the appli­ances individual manual shut-off must be a
t-handle type valve.

COPY OF SAFETY DECAL

This appliance must be installed in accordance with the manufacturer’s installation
instructions and with local codes, if any; if none, follow the current ANSI Z223.1 in

For Manufactured Home Installation: This Direct Vent System Appliance must be
installed in accordance with the manufacturer's installation instructions and
Manufactured Home Construction and Safety Standard Title 24 CFR, Part 3280, or the
current Standard for Fire Safety Criteria for Manufactured Home Installation, Sites, and
Communities ANSI/NFPA501A, andwith CAN/CSA Z240 MH Mobile Home Standard in
Canada.
This appliance is only for use with the type of gas indicated on the rating plate and may
be installed in an aftermarket, permanently located, manufactured (mobile) home
where not prohibited by local codes. See owner's manual for details. This appliance is
not convertible foruse with other gases, unlessa certified kit isused (Kit #546-969).
Certified for usewith Heat Wave (Kit #946-556) andHeat Release (Kit #946-570).
For use withglass doors certified with theappliance only.

the USA or the current CAN 1-B149 in Canada.

This vented gas fireplace heater is not for use with air filters.

Electrical Supply: 115 V, 0.1 A, 60 Hz

NOT FOR USE WITH SOLID FUEL

Minimum Clearances to Combustibles from Fireplace

Side Walls *A 16" (406mm)

VENTED GAS FIREPLACE HEATER

Ceiling B 49" (1245mm)
Min. Mantel Height C 17-1/2" (445mm)
Max. Mantel Depth **D 13” (330mm)
Alcove Width E 84" (2134mm)
Alcove Depth F 36" (914mm)

Non-Combustible Hearth Extension

Hearth Height G 2" (51mm)
Hearth Width H 33-1/8” (841mm)

C

B

D

G

F

A

I

H

E

The State of Massachusetts requires the
installation of a carbon monoxide alarm in
accordance with NFPA 720 and a CO alarm
with battery back up in the same room where
the gas appliance is installed.

4

* Alcove side wall must have a min. of 16” (406mm) clearance on one side.

** Mantel depth taken at 27-1/2” (699mm) from front facing.

FPI Fireplace Products International Ltd., Delta BC, CANADA

MADE IN CANADA / FABRIQUE AU CANADA

918-609

Regency® L900 Direct Vent Gas Fireplace

REQUIREMENTS

MA Code - CO Detector

(for the State of Massachusetts only)

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for
residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than
seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall
be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled
equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is
installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery
operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure
served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of
qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon
monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of
thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon
monoxide detector with an alarm shall be installed.

INSTALLATION

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions
shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight
(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The
sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation
unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by
the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or
structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product
Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the
instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a
Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies
"special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and
detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,
all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of
the installation.

Regency® L900 Direct Vent Gas Fireplace 5

UNIT DIMENSIONS

INSTALLATION

6

Regency® L900 Direct Vent Gas Fireplace

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The L900 Direct Vent Fireplace must be installed
in accordance with these instructions. Carefully
read all the instructions in this manual fi rst.
Consult the "authority having jurisdiction" to
determine the need for a permit prior to starting
the installation. It is the responsibility of the
installer to ensure this fi replace is installed in
compliance with manufacturers instructions and
all applicable codes.

BEFORE YOU START

Safe installation and operation of this appliance
requires common sense, however, we are
required by the Canadian Safety Standards
and ANSI Standards to make you aware of
the following:

INSTALLATION AND REPAIR SHOULD
BE DONE BY AN AUTHORIZED
SERVICE PERSON. THE APPLIANCE
SHOULD BE INSPECTED BEFORE
USE AND AT LEAST ANNUALLY BY A
PROFESSIONAL SERVICE PERSON.
MORE FREQUENT CLEANING MAY
BE REQUIRED DUE TO EXCESSIVE
LINT FROM CARPETING, BEDDING
MATERIAL, ETC. IT IS IMPERATIVE
THAT CONTROL COMPARTMENTS,
BURNERS AND CIRCULATING AIR
PASSAGEWAYS OF THE APPLIANCE
BE KEPT CLEAN.

DUE TO HIGH TEMPERATURES, THE
APPLIANCE SHOULD BE LOCATED
OUT OF TRAFFIC AND AWAY FROM
FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS
APPLIANCE CORRECTLY WILL VOID
YOUR WARRANTY AND MAY CAUSE
A SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE
ALERTED TO THE HAZARDS OF HIGH
SURFACE TEMPERATURES, ESPE­CIALLY THE FIREPLACE GLASS, AND
SHOULD STAY AWAY TO AVOID BURNS
OR CLOTHING IGNITION.

YOUNG CHILDREN SHOULD BE
CAREFULLY SUPERVISED WHEN
THEY ARE IN THE SAME ROOM AS
THE APPLIANCE.

CLOTHING OR OTHER FLAMMABLE
MATERIAL SHOULD NOT BE PLACED
ON OR NEAR THE APPLIANCE.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform

with local codes or, in the absence of local
codes, with the current Canadian or National
Gas Codes, CAN1-B149 or ANSI Z223.1
Installation Codes.

2) The appliance when installed, must be

electrically grounded in accordance with
local codes, or in the absence of local codes
with the current National Electrical Code,
ANSI/NFPA 70 or CSA C22.1 Canadian
Electrical Code.

3) See general construction and assembly

instructions. The appliance and vent should
be enclosed.

4) This appliance must be connected to the

specifi ed vent and termination cap to the
outside of the building envelope. Never vent
to another room or inside a building. Make
sure that the vent is fi tted as per Venting
instructions.

5) Inspect the venting system annually for

blockage and any signs of deterioration.

6) Venting terminals shall not be recessed into

a wall or siding.

7) Any safety glass removed for servicing

must be replaced prior to operating the
appliance.

8) To prevent injury, do not allow anyone who

is unfamiliar with the operation to use the
fi replace.

9) Wear gloves and safety glasses for protection

while doing required maintenance.

10) Be aware of electrical wiring locations in

walls and ceilings when cutting holes for
termination.

11) Under no circumstances should this

appliance be modifi ed. Parts that have to be
removed for servicing should be replaced
prior to operating this appliance.

12) Installation and any repairs to this appliance

should be done by an authorized service
person. A professional service person should
be called to inspect this appliance annually.
Make it a practice to have all of your gas
appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid

fuels (wood, paper, cardboard, coal, etc.)
be used in this appliance.

15) The appliance area must be kept clear and

free of combustible materials, (gases and
other fl ammable vapours and liquids).

Emissions from burning wood or gas could
contain chemicals known to the State of
California to cause cancer, birth defects or
other reproductive harm.

INSTALLATION

CHECKLIST

1) Locate appliance

a) Room location (Refer to "Locating Your

Gas fi replace" section)

b) Clearances to Combustibles (Refer to

"Clearances" section)

c) Mantle Clearances (Refer to "Mantel

Clearances" section)

d) Framing & Finishing Requirements

(Refer to "Framing & Finishing"
section)

e) Venting Requirements (Refer to

"Venting" section)

2) Assemble Top Standoffs (Refer to "Unit

Assembly Prior to Installation).

3) Install back-up batteries. Refer to "Back-up

Battery Installation" section.

4) Convert to propane if desired (Refer to

"Conversion from NG to LP" section).

5) Slide unit into place.

6) Install vent (Refer to "Venting Arrangement"

sections).

7) Make gas connections (Refer to "Gas Line

Installation section).

8) Make electrical connections (Refer to "Wiring
Diagram" section). NOTE: Unit requires

120V to operate.

9) Test the pilot (Refer to "Pilot Adjustment"

section).

INSTALLATION

10) Test Gas Pressure (Refer to "Gas Pipe
Pressure Testing" section).

Regency® L900 Direct Vent Gas Fireplace 7

INSTALLATION

11) Install standard and optional features. Refer

to the following sections:

a) Interior Brick Panels
b) Log Set
c) Exterior Brick Panels
d) Remote Control - refer to "Matching

Remote Handset & Control Box
ID Code" section.

12) Final check.

INSTALLATION

Before leaving this unit with the customer, the
installer must ensure that the appliance is fi ring
correctly and operation fully explained to

customer.

This includes:

1) Clocking the appliance to ensure the correct

fi ring rate (rate noted on label 48,000 (NG)
Btu/h, 46,500 (LP) Btu/h) after burning
appliance for 15 minutes.

2) If required, adjusting the primary air to ensure

that the fl ame does not carbon. First allow
the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that
causes sooting or carboning that results
in damage is not the responsibility of the
manufacturer.

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

A) Flat on Wall
B) Flat on Wall Corner
C) Recessed into

Wall/Alcove
D) Corner

Diagram 1

4) This appliance is Listed for bedroom

installations using the standard FireWizard
Remote (millivolt thermostat system). Some
areas may have further requirements, check
local codes before installation.

5) The L900 Direct Vent Gas Fireplace is

approved for alcove installations, see
"Clearances" section for details.

6) We recommend that you plan your installation

on paper using exact measurements for
clearances and floor protection before
actually installing this appliance. Have an
authorized inspector, dealer, or installer
review your plans before installation.

Note: For vent terminations refer to

"Exterior Vent Termination Locations"
section.

HEATWAVE

DUCT KIT

HEAT RELEASE KIT

The Heat Release Kit expels warm air from the
fi replace to the outside of the building, allowing
the fi replace to be operated with less heat entering
the room. The kit may be used on either the left
or right side.

See Heat Release installation manual for complete
details and clearances from side only.

HEARTH

REQUIREMENTS

A minimum 33-1/8" (838mm) wide x 12" (305mm)
deep x 2" (51mm) thick non-combustible hearth
is required if the fi nished fl oor is not fl ush with the
base of the unit. The maximum height between
the fi nished fl oor and sub-fl oor is 1" (25mm).

2) Ensure proper grounding using the #8

ground lug provided. See "Wiring Diagram"
section.

LOCATING YOUR

GAS FIREPLACE

1) When selecting a location for your fi replace,

ensure that the clearances are met.

2) The appliance must be installed on a fl at,

solid, continuous surface (e.g. wood, metal,
concrete). This may be the fl oor, or raised up
on a platform to enhance its visual impact.
The appliance must be installed on a metal
or wood panel extending the full width and
depth of the appliance.

3) The L900 Direct Vent Gas Fireplace can be

installed in a recessed position or framed
out into the room as in A, B, C and D. See
Diagram 1.

8

The HeatWave Air Duct Kit increases the
effectiveness of your fi replace by dispersing
warm air from the fi replace to remote locations in
the same room or other rooms in your home.

Up to two kits may be installed on the fi replace.
Please Note: Only 1 HeatWave kit may be
operated at one time.

See HeatWave installation manual for complete
details and clearances from side only.

The HeatWave Duct Kit has different
clearance and framing requirements,
check the HeatWave manual for details.

12"

(305mm)

2” (51mm)

NOTE: No hearth is required when the unit is fl ush

with the fi nished fl oor as shown below.

The minimum fl oor clearance must be maintained
from the top surface of the carpet, etc. to the
unit base.

Regency® L900 Direct Vent Gas Fireplace

33-1/8" (838mm)

INSTALLATION

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

A major cause of chimney related fi res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest
importance that this fi replace and vent system be installed only in accordance with these instructions.

INSTALLATION

The top, back and sides of the fi replace are defi ned by

standoffs. The metal ends of the standoff may NOT be

Caution Requirements

recessed into combustible construction.

Clearance to Combustibles from:

Back 0" (0mm)
Side 0" (0mm)
Floor 0" (0mm)

Minimum Clearance from Top of Front Facing:

Mantel min. 17-1/2" (445mm)
Ceiling 49" (1245mm) from top of front facing

Side Wall to Unit:

16"* (406mm)

Horizontal Vent Clearances to Combustibles:

Top 3" (76mm)
Side 2" (51mm)
Bottom 2" (51 mm)

Vertical Vent Clearances to Combustibles:

All Sides 2" (51mm)

Alcove Clearances:

Min. Depth 36" (914mm)
Min. Width* 84" (2134mm)
Min. Height 84" (2134mm)

* Alcove side wall must have a minimum of 16" (406mm) clearance on one side.

if these clearances (air space) to combustible materials

Fire hazard is an extreme risk

are not adhered to. It is of greatest importance that this

fi replace and vent system be installed only in

accordance with these instructions.

WARNING

If converting this unit to LP, it is highly recommened
the conversion be done BEFORE the unit is slid into

IMPORTANT

position for ease of conversion. See "Conversion

from NG to LP" section for instructions.

Regency® L900 Direct Vent Gas Fireplace 9

INSTALLATION

MANTEL CLEARANCES

Because of the extreme heat this fi replace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing

are shown in the diagram below.

Note: A non-combustible mantel may be installed at a lower height if the framing is made of metal studs covered with a non-combustible

board.

INSTALLATION

Note: Ensure the paint that is used

on the mantel and the facing is
"heat resistant" or the paint may
discolour.

MANTEL LEG CLEARANCES

Combustible mantel leg clearances as per diagram:

10

Regency® L900 Direct Vent Gas Fireplace

FRAMING & FINISHING

1) Frame in the enclosure for the unit with framing material. The framed

opening for the assembled kit is 50-3/4" high x 52" wide x 26-1/2"
deep (1289mm x H 1321mm W x 673mm D). See Diagram 1. Also
see Diagram 2 for corner installations.

Header

(On Edge)

Drywall

INSTALLATION

Header

(On Edge)

INSTALLATION

50-3/4"

(1289mm)
52”

(1321mm)

Diagram 1

Diagram 2

Non-Combustible Requirements

53-3/4"

(1365mm)

Stud

83"

(2108mm)

Min. 26-1/2"

(673mm)

17-1/2” (445mm)

Non-Combustible

Material

5”

(127mm)

2”

(51mm)

12-1/4” (311mm)

6”

(152mm)

Note: When constructing the framed opening, please ensure

there is access to install the gas lines when the unit is installed.
See diagram 3 for details.

2) For exterior walls, insulate the enclosure to the same degree as the rest

of the house, apply vapour barrier and drywall, as per local installation
codes. (Do not insulate the fi replace itself.)

3) The unit does not have to be completely enclosed in a chase. You

must maintain clearances from the vent to combustible materials: See
"Clearances" section. Combustible materials can be laid against the
side and back standoffs and the stove base.

26-1/2”

(673mm)

Diagram 3

76” (1930mm)

Non-combustible

17-7/16"

(443mm)

Material

33-1/8"

(838mm)

52-1/2"

(1334mm)

IMPORTANT

If converting this unit to LP, it is highly recommened
the conversion be done BEFORE the unit is slid into

position for ease of conversion. See "Conversion

35-1/16”

(891mm)

32-1/16”

(814mm)

10-5/16"

(254mm)

Regency® L900 Direct Vent Gas Fireplace 11

3"

(76mm)

from NG to LP" section for instructions.

INSTALLATION

UNIT ASSEMBLY

PRIOR TO

INSTALLATION

The Top Facing Support, the Side Nailing Strips
and the 2 Top Standoffs must be correctly
positioned and attached to the top before unit
is slipped into position.

INSTALLATION

TOP STANDOFF ASSEMBLY

The top standoffs are shipped in a fl at position
and must be folded into shape and attached.

1) Remove the standoffs from the fi replace

top.

2) Take each standoff and bend into the correct

shape. Bend up at the bend lines until the
screw holes in the standoff and the pre­punched screw holes on the fi replace top
line up.

3) Attach the standoff securely to the top

with 2 screws per standoff (on opposite
corners).

SIDE NAILING STRIPS

The side nailing strips come attached to the unit.
There are 3 plates, one on the top and bottom
that can be folded out as required.

Side Nailing Strips shown folded out.

FINISHING TEMPLATE

In order to maintain a clean face; the L900
allows for a 1/8” in overlap of fi nishing material,
such as rock or tile, on both the left and right
hand sides of the unit (top and bottom sides do
not allow for an overlap), this overlap must not
be exceeded or the glass door will no longer
open properly.

Non-combustible wall board is installed up
to the fl anges on all sides of the unit. When
installing any additional facing material use
the Finishing Template (included with the unit)
to ensure that the fi nishing material does not
exceed the allowable overlap.

The Finishing Template uses two magnets to
attach itself to the fl ange on the left or right side
of the unit (see diagram below). Install the facing
material up to the outside edge (when facing
the unit) of the fi nishing template. This template
may be discarded after the facing material has
been installed.

12

Regency® L900 Direct Vent Gas Fireplace

INSTALLATION

VENTING

INTRODUCTION

The L900 uses the "balanced fl ue" technology
Co Axial system. The inner liner vents products
of combustion to the outside while the outer
liner draws outside combustion air into the
combustion chamber thereby eliminating the
need to use heated room air for combustion and
losing warm room air up the chimney.

Note: These flue pipes must not be

connected to any other appliance.

The gas appliance and vent system must be
vented directly to the outside of the building,
and never be attached to a chimney serving a
separate solid fuel or gas burning appliance.
Each direct vent gas appliance must use it's own
separate vent system. Common vent systems
are prohibited.

VENT RESTRICTOR

POSITION

Vent restriction is required for certain venting
installations, see the diagrams in the "Venting
Arrangements" section to determine if they are
required for your installation.

To set the vent restriction as indicated in the
venting arrangements diagrams, refer to the
instructions below;

1) Remove the glass door.

a. Release the 2 door latches on the left

and right side at the top of the fi rebox.

Latch Location

Latch

b. Swing the door out from the top and release

the hinges on the left and right side of the
door by lifting them up.

Screws for plugging the holes.
(all holes must be plugged with a screw).

Screw holes for fi xing the restrictor plate.

Factory Set Vent Restrictor Setting

(no adjustment required)

INSTALLATION

The Vent Restrictor plate is located on the inside
top of the fi rebox.

Vent Restrictor Plate

Hinge

Door

2) Remove the screws that hold the vent restric-

tor plate in place.

3) Adjust the vent restrictor plate to the required

vent restrictor position as per the diagrams
shown.

4) Once the vent restrictor plate is in the required

position, secure with screws.

Regency® L900 Direct Vent Gas Fireplace 13

INSTALLATION

INSTALLATION

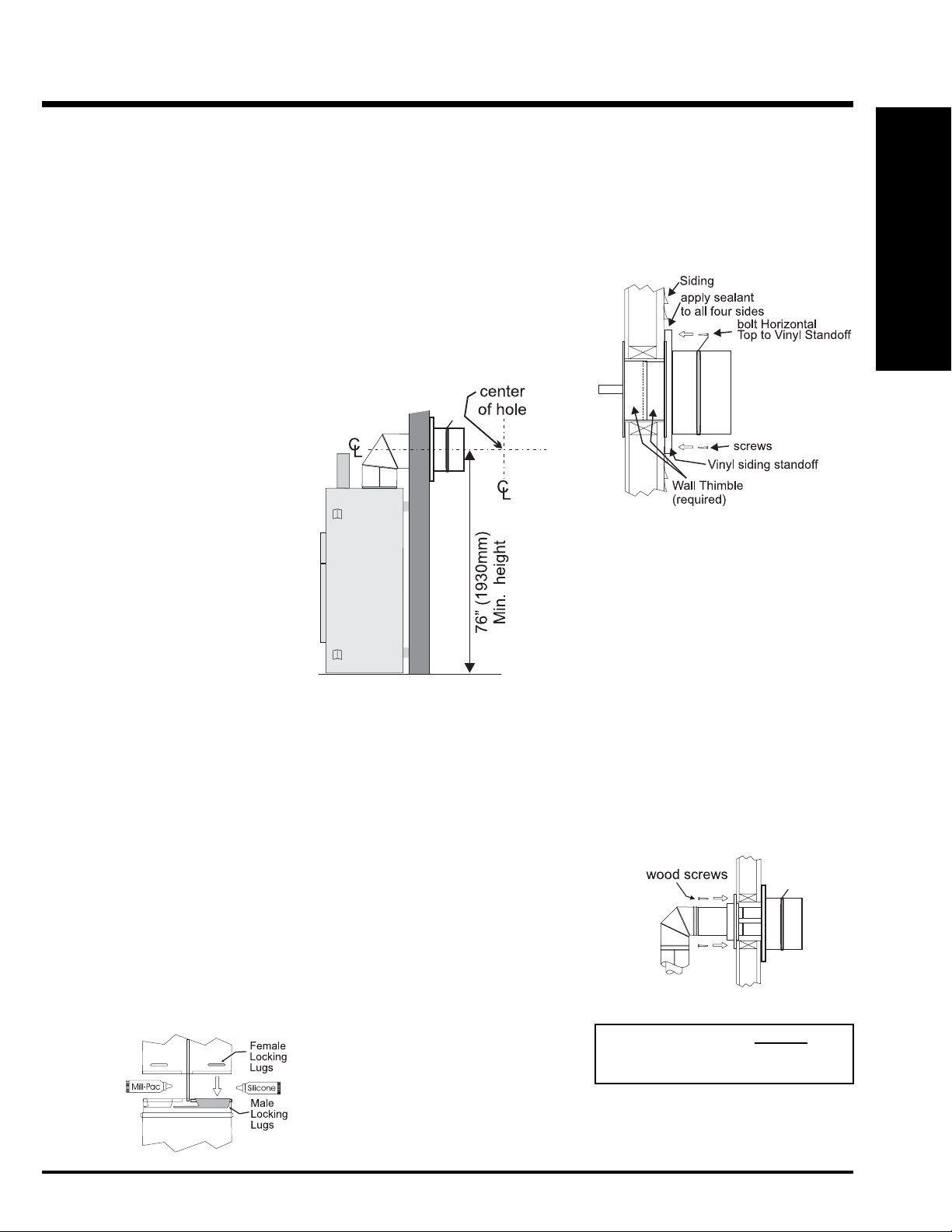

EXTERIOR VENT TERMINATION REQUIREMENTS

(min. 12"/30cm)

A= Clearance above grade,
B= Clearance to window or door that may be opened *(12"/30cm) #(9"/23cm)
C= Clearance to permanently closed window *(min. 12"/30cm)
D= Vertical clearance to ventilated soffi t located above the terminal within a horizontal distance of (24"/60cm) from the centerline of the terminal

(min. 33"/84cm) check with local code.

E= Clearance to unventilated soffi t (min. 33"/84cm)

= Clearance to outside corner: with AstroCap

F
G= Clearance to inside corner: with AstroCap Te rmination Cap (min. 18")
H= Not to be installed above a meter/regulator assembly within (3'/90cm) horizontally from the centerline of the regulator.

= Clearance to ser

J
K= Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance *
L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)
#3' (91cm) above if within 10' (3m) horizontally.
M= Clearance above paved sidewalk or a paved driveway located on public property *(min. 84"/2.1m)
N= Clearance under veranda, porch, deck, or balcony *(min. 33"/84cm)

Note:

- Excluding direct vent or non-condensing appliances, a vent shall not terminate directly above a sidewalk or paved driveway which is located
between two single family

- Only permitted if v

- If the vent termination is accessible, a certifi e d guard shall be installed.
* As specifi ed in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.
# In accordance with the current ANSI Z223.1/NFPA 54, Natioinal Fuel Gas Code.

eranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the fl oor.

veranda, porch, deck, or balcony

Termination Cap (min. 13")

ice regulator vent outlet *(min. 36"/90cm)

v

dwellings and serves both dwellings.

*

(12"/30cm) #(9"/23cm)

14

Regency® L900 Direct Vent Gas Fireplace

VENTING ARRANGEMENTS

INSTALLATION

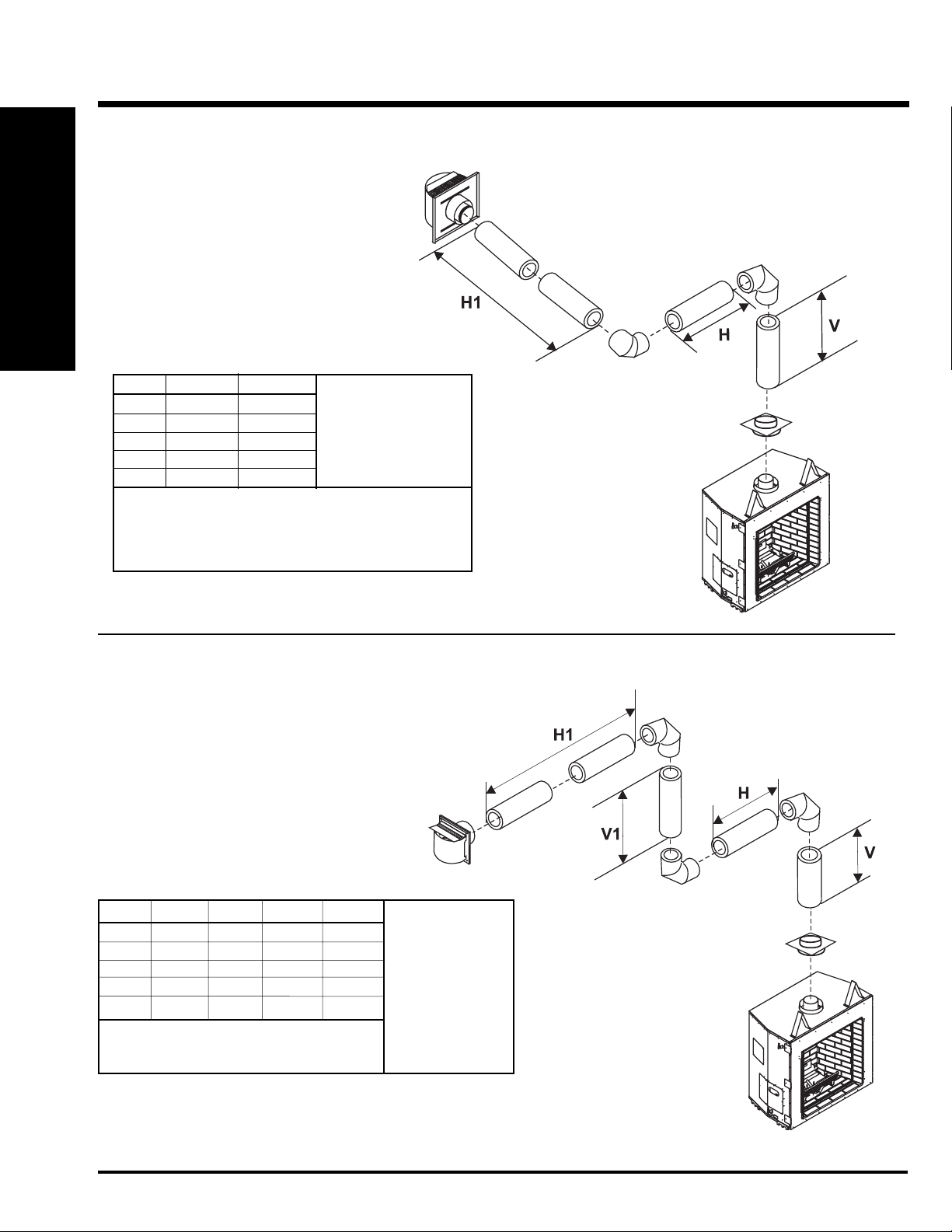

HORIZONTAL TERMINATION (FLEX)

Regency® Direct Vent System

These venting systems, in combination with the L900, have been tested and listed as a direct vent system by Warnock Hersey. The location of the
termination cap must conform to the requirements in the Vent Terminal Locations diagram from the "Exterior Vent Termination Locations" section.

FPI Direct Vent (Flex) System Termination Kits include all the
parts needed to install the L900 using a fl exible vent.

FPI Kit # Length Contains:

#946-618 6 Feet 1) 8” fl exible liner (Kit length)

#946-616 10 Feet

2) 5” fl exible liner (Kit length)

3) spring spacers (3)

4) thimble (2)

5) AstroCap termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) S.S. screws #8 x 1-1/2” drill point, (4)

10) vinyl siding standoff

Vinyl Siding

Standoff

Wall Thimble

(Mandatory in all

Horizontal Terminations)

AstroCap XL

Vent Guard - if required*

(Part #946-506/P)

TM

Termination Cap

(Part #946-623/P)

INSTALLATION

5” dia. flue pipe

8” dia.

Flue pipe

spring spacer

* A Vent Guard is required when the AstroCap

is installed above grade at 7 feet or lower.

Notes:

1) Liner sections should be continuous without any joints
or seams.

2) Only Flex pipe purchased from FPI may be used for Flex
installations.

3) Horizontal vent must be supported every 3 feet.

4) A wall thimble is mandatory for all horizontal terminations
due to high temperatures.

Regency® L900 Direct Vent Gas Fireplace 15

INSTALLATION

RIGID PIPE VENTING SYSTEMS

BASIC HORIZONTAL & VERTICAL TERMINATIONS

Rigid Pipe Vent Systems offer a complete
line of component parts for installation of both
horizontal and vertical installations. Many items
are offered in decorative black, as well as gal­vanized fi nish.

INSTALLATION

The minimum components required for a basic
horizontal termination are:

1 AstroCap XL
1 90o Elbow
1 Rigid Pipe Adaptor
1 Wall Thimble
1 Length of pipe to suit wall thickness

The minimum components required for a basic
vertical termination are:

1 Vertical Termination Cap
1 Rigid Pipe Adaptor
1 Lengths of pipe to adequately
penetrate roof
1 Ceiling Firestop
1 Flashing
1 Storm Collar

Wall thickness is measured from the back
standoffs to the inside mounting surface of
termination cap. For siding other than vinyl
furring strips may be used, instead of the vinyl
siding standoff, to create a level surface to
mount the vent terminal. The Terminal must
not be recessed into siding. Measure the wall
thickness including furring strips.

Vertical Terminal

Storm Collar

Flashing

Ceiling Firestop

Pipe Length

o

90 Elbow

24”

Pipe

Length

Rigid Pipe

Adapter

(770-994)

Vinyl Siding

Standoff (Optional)

Horizontal Terminations)

Adj.Pipe Length

11" - 14-5/8"

(Part #946-623/P)

Wall Thimble

(Mandatory in all

Vent Guard - if required*

(Part #946-506/P)

AstroCap XL

Termination Cap

If a Vinyl Siding Standoff is required (it must
be used with vinyl siding), measure to outside
surface of wall without siding and add 2
inches.

WARNING:

Alternate

Horizontal Termination

Caps

Part # 5DT-ST14 (14")
Part # 5DT-ST36 (36")

The FPI AstroCap XL
AstroCap XLTM is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent GS are registered and/or proprietary
trademarks of Simpson Dura-Vent Co. Inc.

16

TM

is certifi ed for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent GS and Selkirk Direct-Temp.

Do not combine venting components from
different venting systems.

Use of the the AstroCap XLTM is acceptable
with all systems.

This product has been evaluated by Intertek for
using a Rigid Pipe Adaptor in conjunction with
Duravent Direct-Vent GS and Selkirk Direct­Temp systems. Use of these systems with
the Rigid Pipe adaptor is deemed acceptable
and does not affect the Intertek WHI listing of
components.

* A Vent Guard is required when the AstroCap

is installed above grade at 7 feet or lower.

IMPORTANT NOTE

• The Simpson Dura-Vent and Selkirk Direct
Temp horizontal termination caps cannot
be used in any applications.

• Only the AstroCap XL and Snorkels are
certifi ed for horizontal terminations.

When using Rigid Vent other than

Simpson Dura-Vent, 3 screws must be

used to secure rigid pipe to adaptor.

Regency® L900 Direct Vent Gas Fireplace

INSTALLATION

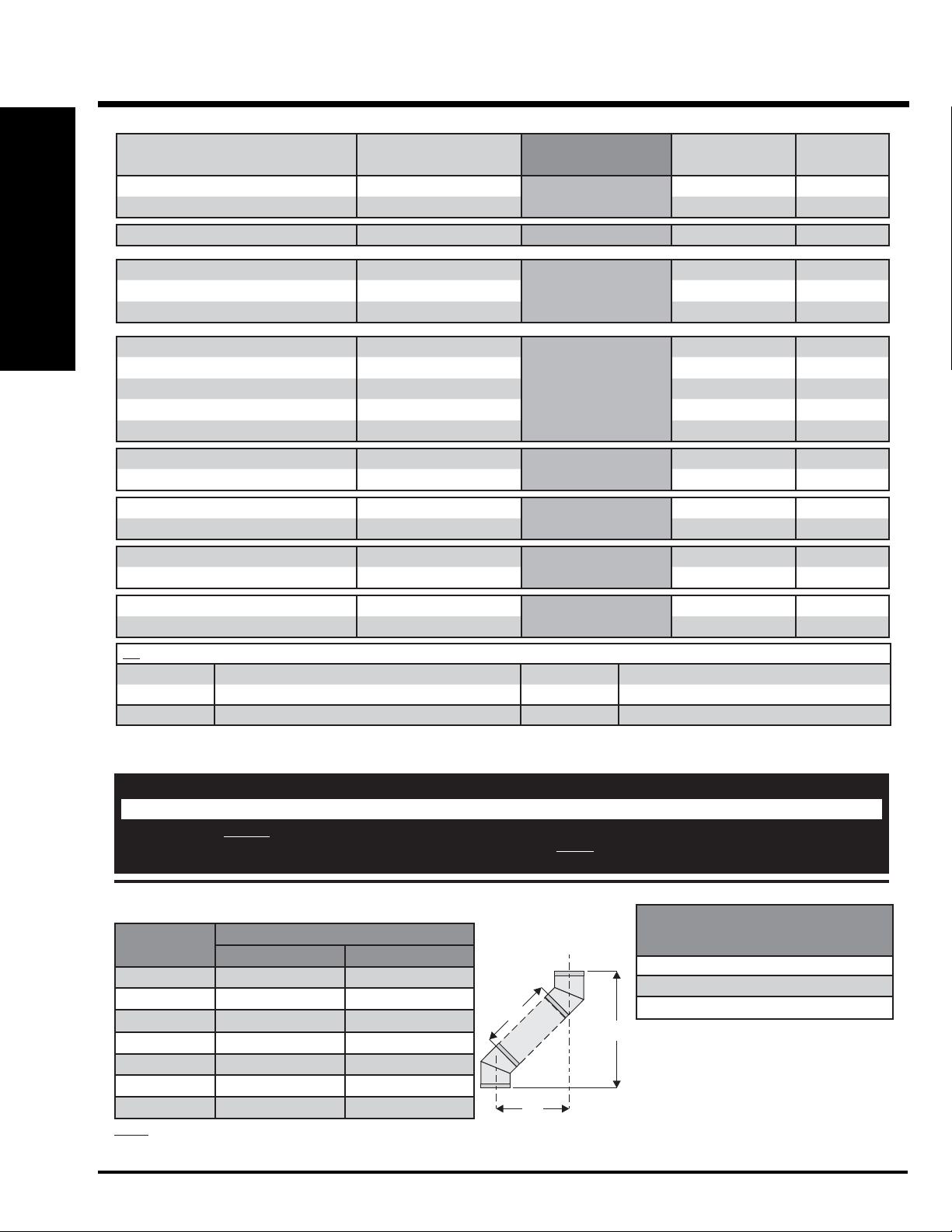

5” X 8” RIGID PIPE CROSS REFERENCE CHART

Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

Description

Simpson

Direct Vent Pro

®

Simpson

Direct Vent GS

Discontinued

Selkirk

®

Direct-Temp™

6” Pipe Length, Galvanized 58DVA-06 1208 5DT-6 5D6

6” Pipe Length, Black 58DVA-06B 1208B 5DT-6B 5D6B

9” Pipe Length, Galvanized 58DVA-09 1207 5DT-9 N/A

9” Pipe Length, Black 58DVA-09B 1207B 5DT-9B N/A

12” Pipe Length, Galvanized 58DVA-12 1206 5DT-12 5D12

12” Pipe Length, Black 58DVA-12B 1206B 5DT-12B 5D12B

18” Pipe Length, Galvanized 58DVA-18 58DVA-18 5DT-18 5D18

18” Pipe Length, Black

58DVA-18B - N/A from FPI 58DVA-18B - N/A from FPI

5DT-18B 5D18B

24” Pipe Length, Galvanized 58DVA-24 1204 5DT-24 5D24

24” Pipe Length, Black 58DVA-24B 1204B 5DT-24B 5D24B

36” Pipe Length, Galvanized 58DVA-36 1203 5DT-36 5D36

36” Pipe Length, Black 58DVA-36B 1203B 5DT-36B 5D36B

48” Pipe Length, Galvanized 58DVA-48 1202 5DT-48 5D48

48” Pipe Length, Black 58DVA-48B 1202B 5DT-48B 5D48B

60” Pipe Length, Galvanized 58DVA-60 58DVA-60 N/A N/A

60” Pipe Length, Black

58DVA-60B - N/A from FPI 58DVA-60B - N/A from FPI

N/A N/A

Metal-Fab

Sure Seal

®

INSTALLATION

Adjustable Length 3”-10”, Galvanized N/A N/A N/A 5DAL

Adjustable Length 3”-10”, Black N/A N/A N/A 5DALB

Adjustable Length 11”-14”, Galvanized

Adjustable Length 11”-14”, Black

Adjustable Length 17”-24”, Galvanized

Adjustable Length 17”-24”, Black

Extension Pipe 8-1/2”, Galvanized

Disc - See 58DV-08A Disc - See 58DV-08A

Disc - See 58DV-08AB Disc - See 58DV-08AB

Disc - See 58DV-16A Disc - See 58DV-16A

Disc - See 58DV-16AB Disc - See 58DV-16AB

58DVA-08A - N/A from FPI 58DVA-08A - N/A from FPI

5DT-AJ N/A

5DT-AJB N/A

N/A N/A

N/A N/A

N/A N/A

Extension Pipe 8-1/2”, Black 58DVA-08AB 58DVA-08AB N/A N/A

Extension Pipe 16”, Galvanized

58DVA-16A - N/A from FPI 58DVA-16A - N/A from FPI

N/A N/A

Extension Pipe 16”, Black 58DVA-16AB 58DVA-16AB N/A N/A

45º Elbow, Galvanized 58DVA-E45 1245 5DT-EL45 N/A

45º Elbow, Black 58DVA-E45B 1245B 5DT-EL45B N/A

45º Elbow, Swivel, Galvanized Disc - See 58DVA-E45 1245G N/A 5D45L

45º Elbow, Swivel, Black Disc - See 58DVA-E45B 1245BG N/A 5D45LB

90º Elbow, Galvanized 58DVA-E90 58DVA-E90 5DT-EL90S N/A

90º Elbow, Black 58DVA-E90B 58DVA-E90B 5DT-EL90SB N/A

90º Elbow, Swivel, Galvanized

90º Elbow, Swivel, Black

90º Starter Elbow, Swivel, Galvanized*

Adaptor*

Disc - See 58DVA-E90 Disc - See 58DVA-E90

Disc - See 58DVA-E90B Disc - See 58DVA-E90B

N/A N/A N/A 5D90A

N/A N/A N/A 5DDA

N/A 5D90L

N/A 5D90LB

Ceiling Support 58DVA-DC 1240 5DT-CS 5DSP

Cathedral Support Box 58DVA-CS 1241 5DT-CSS 5DRS

Wall Support/Band 58DVA-WS 1288 5DT-WS/B 5DWS

Offset Support

58DVA-ES - N/A from FPI

N/A 5DT-OS N/A

Wall Thimble, Black 58DVA-WT 1247 5DT-WT 5DWT

Wall Thimble Support Box/Ceiling Support

58DVA-DC - N/A from FPI

N/A N/A N/A

Firestop Spacer 58DVA-FS 1263 5DT-FS 5DFS

Trim Plate, Black 58DAV-WFS 1242 5DT-TP 5DCP

Regency® L900 Direct Vent Gas Fireplace 17

INSTALLATION

Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

Description

Round Support / Radiation Sheild N/A N/A N/A N/A

Flat Flashing N/A N/A N/A N/A

Attic Insulation Shield 12” 58DVA-IS - N/A from FPI 58DVA-IS - N/A from FPI N/A N/A

Basic Horizontal Termination Kit (A) N/A N/A 5DT-HKA N/A

INSTALLATION

Horizontal Termination Kit (B) 58DVA-KHA N/A 5DT-HKB N/A

Vertical Termination Kit 58DVA-VCH 1291 5DT-VKC N/A

High Wind Vertical Cap N/A N/A N/A N/A

High Wind Horizontal Cap DISC. 1285 N/A N/A

Horizontal Square Termination Cap N/A 1284 5DT-HHC 5DHT

Vertical Termination Cap N/A N/A 5DT-HVC 5DVT

Storm Collar 58DVA-SC 1253 5DT-SC 5DSC

Adjustable Flashing, 0/12-6/12 58DVA-F6 1243 5DT-AF6 5DF

Adjustable Flashing, 6/12-12/12 58DVA-F12 1243S 5DT-AF12 5DF-12

Vinyl Siding Standoff 58DVA-VSS 1250 5DT-VS 5DVS

Vinyl Siding Shield Plate N/A N/A 5DT-VSP N/A

Simpson

Direct Vent Pro

Simpson

®

Direct Vent GS

Discontinued

®

Selkirk

Direct-Temp™

Metal-Fab

Sure Seal

®

Snorkel Termination 14” 58DVA-SNK14 1282 5DT-ST14 5DST14

Snorkel Termination 36” N/A 1281 5DT-ST36 5DST36

Restrictor Disk 58DVA-RD N/A N/A N/A

Colinear Flex Liner Adapter (3” Ø) N/A N/A N/A N/A

FPI

946-604/P Simpson Direct Vent Vent Guard (Optional) 946-623/P AstroCap XL Horizontal Cap

770-994 Rigid Pipe Adapter (Must use with all Rigid Piping) 946-506/P Vent Guard (Optional)

946-625 Vinyl Siding Standoff - AstroCap XL

*NOTE: When using Metal-Fab Sure Seal Rigid Piping please note that either the Adaptor (5DDA) or 90º Starter Elbow
(5D90A) must be used in conjunction with FPI Rigid Pipe Adaptor (770-994).

L676 & L900 Direct Vent Fireplace

IMPORTANT NOTE

• A Vent Guard is required when the AstroCap is installed above grade at 7 feet or lower.

• The Simpson Dura-Vent and Selkirk Direct Temp horizontal termination caps cannot be used in any applications.

• Only the AstroCap XL and Snorkels are certifi ed for horizontal terminations.

Offset Pipe Selection:

Use this table to determine offset pipe lengths.

Pipe Length

0”(0mm) 5-11/16”(144mm) 15-5/16”(389mm)

6”(152mm) 8-13/16”(224mm) 18-7/16”(468mm)

9”(229mm) 10-15/16”(278mm) 20-9/16”(522mm)

12”(305mm) 13”(330mm) 22-11/16”(576mm)

24”(610mm) 21-7/16”(697mm) 31-1/16”(789mm)

36”(914mm) 29-13/16”(757mm) 39-7/16”(1002mm)

48”(1219mm) 38-1/4”(972mm) 47-7/8”(1216mm)

NOTE: Horizontal runs of vent must be level, or have a 1/4 inch rise for every 1 foot of run towards
the termination. Never allow the vent to run downward. This could cause high temperatures and
may present a possible fi re hazard.

5” x 8” Venting

Run (X) Rise (Y)

L

X

For specifi c instructions or details on particular
venting components please visit the following
websites:

Simpson Direct Vent Pro: www.duravent.com

Selkirk Direct-Temp: www.selkirkcorp.com

Metal-Fab Sure Seal: www.mtlfab.com

Y

18

Regency® L900 Direct Vent Gas Fireplace

VENTING ARRANGEMENTS

INSTALLATION

ALLOWABLE HORIZONTAL TERMINATIONS

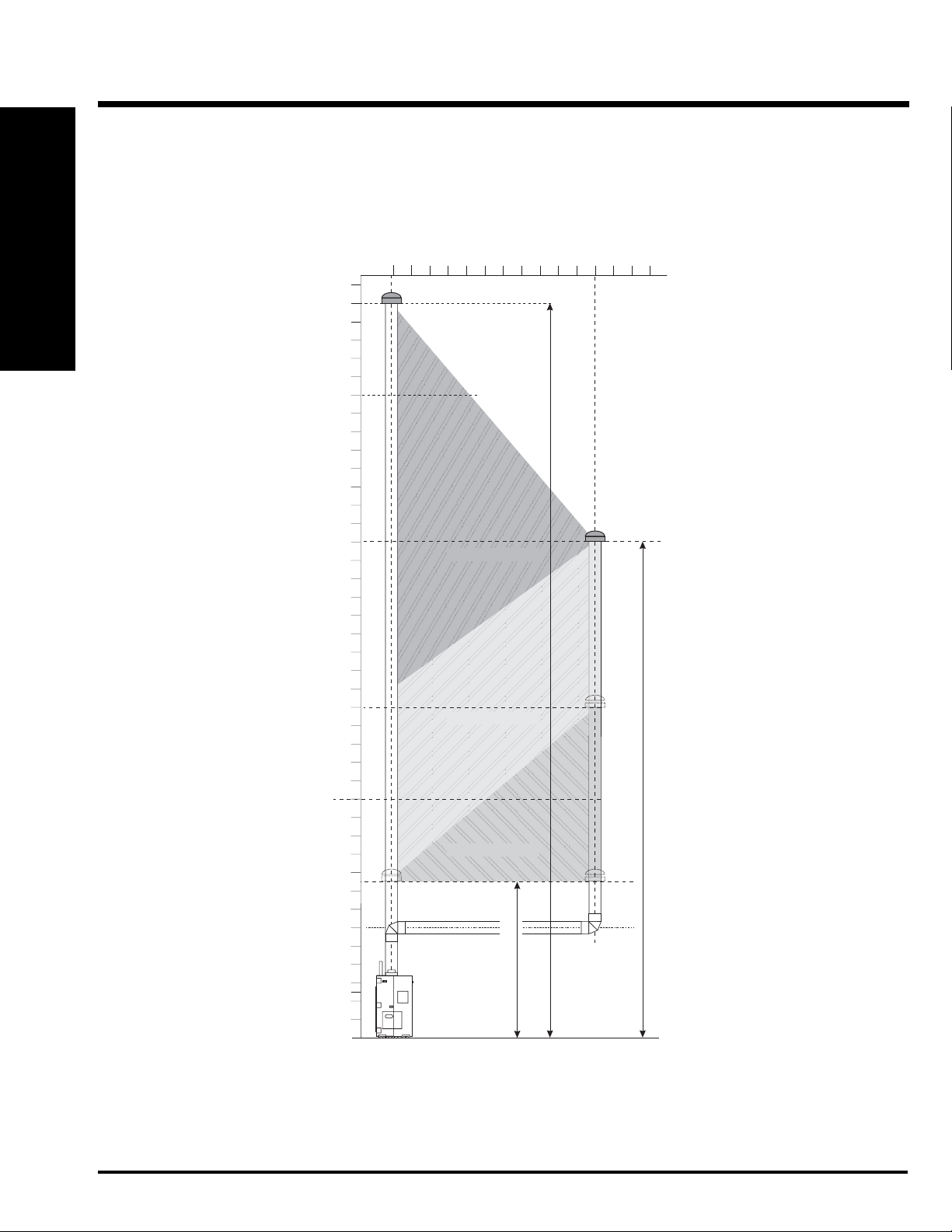

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o two 45o elbows equal one 90o elbow).

Note: Must use optional rigid pipe adapter (Part# 770-994) when using Rigid Pipe Venting Systems.

INSTALLATION

* A Vent Guard is required when the AstroCap

is installed above grade at 7 feet or lower.

IMPORTANT NOTE

• The Simpson Dura-Vent and Selkirk Direct Temp horizontal termination caps
cannot be used in any applications.

• Only the AstroCap XL and Snorkels are certifi ed for horizontal terminations.

VENT RESTRICTOR SETTING:
Vent restrictor at 0" - factory set, no adjustment required unless otherwise indicated.

Refer to the "Vent Restrictor Position" section for details on how to change the vent restrictor to Set 1, Set 2 or Set 3 if required.

A vent guard is required when the AstroCap is installed above grade at 7 feet or lower.
A vent guard may also be required in other installations as per local codes, refer to "Exterior Vent Termination Requirements" section
for details.

®

Note: Regency

• Maintain clearances to combustibles as listed in "Clearances" section

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each fl oor level and whenever passing through a wall.

• A wall thimble is mandatory for all horizontal terminations due to high temperatures.

Regency® L900 Direct Vent Gas Fireplace 19

Direct Vent System (Flex) is only approved for horizontal terminations.

INSTALLATION

INSTALLATION

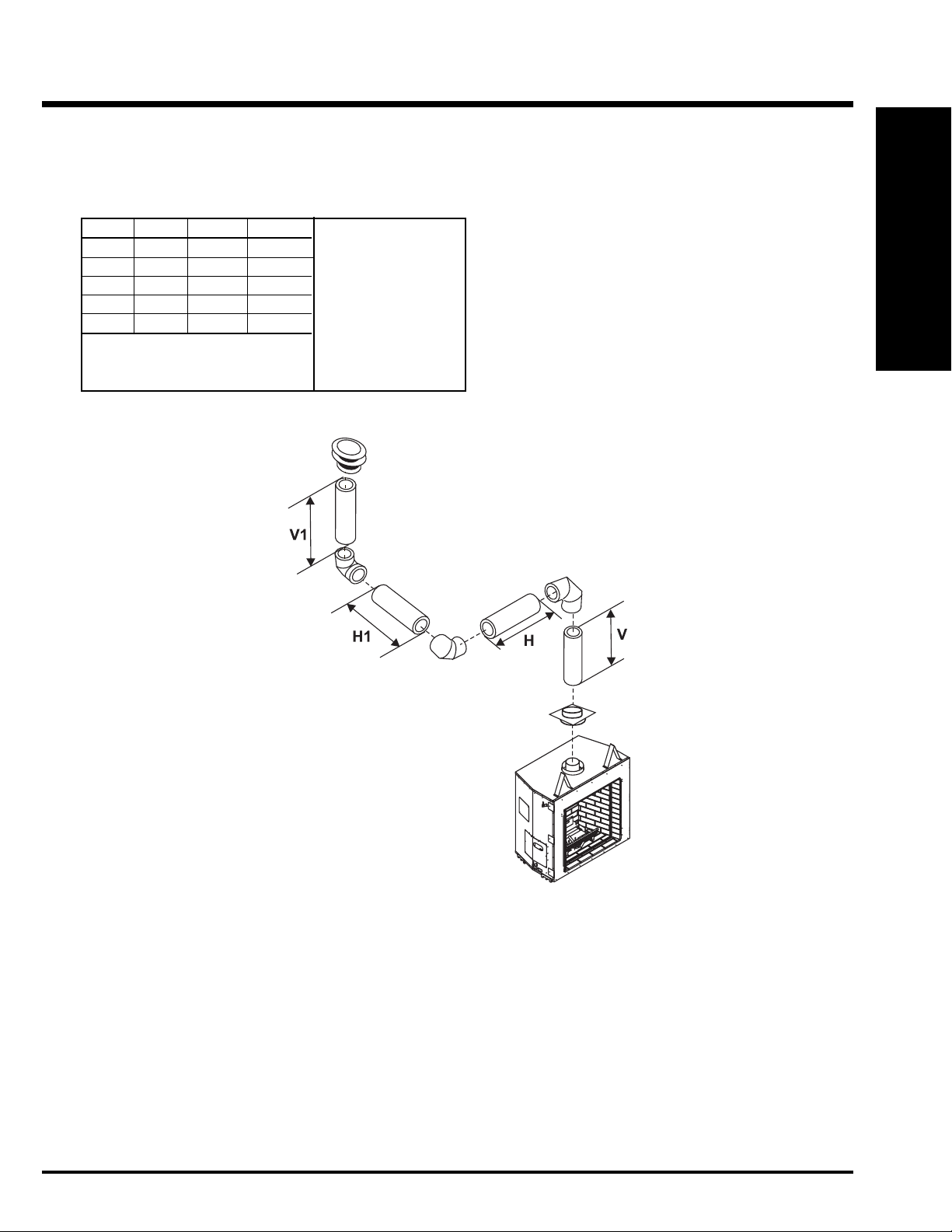

One 90o elbow = Two 45o elbows.

Option V H + H1

A) 3' Min. 2' Max.
B) 4' Min. 4' Max.
C) 6' Min. 8' Max.
D) 8' Min. 9' Max.
E) 10' Min. 10' Max.

Please note minimum 1 foot between 90o elbows is
required.

Horizontal Venting with Two (2) 90o Elbows

With these options,
maximum total pipe length
is 30 feet with minimum of
10 feet total vertical and
maximum 10 feet total
horizontal.

VENT RESTRICTOR SETTING:
Vent restrictor at 0" - factory set, no adjustment required.

Horizontal Venting with Three (3) 90

One 90o elbow = Two 45o elbows.

Option V H V + V1 H + H1

A) 2' Min. 1' Max. 5' Min. 2' Max.
B) 3' Min. 1' Max. 6' Min. 3' Max.
C) 4' Min. 3' Max. 8' Min. 6' Max.
D) 5' Min. 4 Max. 10' Min. 8' Max.
E) 5' Min. 4' Max. 11' Min. 10' Max.

VENT RESTRICTOR SETTING:
Vent restrictor at 0" - factory set, no adjustment
required.

With these options,
max. total pipe length
is 30 feet with min. of
11 feet total vertical
and max. 10 feet total
horizontal.

Please note min. 1
foot between 90

o

Elbows

o

20

Regency® L900 Direct Vent Gas Fireplace

Vertical Venting with Three (3) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H + H1 V + V1
A) 2' Min. 3' Max. 4' Min.
B) 3' Min. 4' Max. 6' Min.
C) 4' Min. 5' Max. 8' Min.
D) 5' Min. 6' Max. 9' Min.
E) 6' Min. 8' Max. 10' Min.

VENT RESTRICTOR SETTING:
Vent restrictor at 0" - factory set, no
adjustment required.

INSTALLATION

INSTALLATION

With these options, max.
total pipe length is 30 feet
with min. of 10 feet total
vertical and max. 8 feet
total horizontal.

Please note min. 1 foot
between 90o elbows is
required.

Regency® L900 Direct Vent Gas Fireplace 21

INSTALLATION

12 16

18

20 26

28

22 24

30

VENTING ARRANGEMENTS

ALLOWABLE VERTICAL TERMINATIONS

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using two 90o elbows, with
Rigid Pipe Venting Systems for Propane and Natural Gas. Two 45

2

0

INSTALLATION

40

38

36

34

32

30

28

26

24

22

o

elbows equal to one 90o elbow. Maximum of four 45o elbows allowed.

4

Vent Restrictor on Set 3

8

6

10 12

Maximum: 40 ft. (12.2m)

14

20

18

Vertical Height (Feet)

16

14

12

10

8

6

4

2

0

Vent Restrictor on Set 2

Maximum: 27 ft. (8.2m)

Vent Restrictor on Set 1

Minimum 8’6” (2.6m)

• Vent must be supported at offsets.

• Firestops are required at each fl oor level and whenever passing through a wall.

• Maintain clearances to combustibles as listed in the "Clearances" section.

• Refer to "Vent Restrictor Position" section for details on how to change the vent restrictor to Set 1, Set 2 or Set 3 if required.

Note: Must use optional fl ue adapter when using Rigid Pipe (Part # 770-994).

22

Regency® L900 Direct Vent Gas Fireplace

INSTALLATION

UNIT INSTALLATION

WITH HORIZONTAL

TERMINATION

(Rigid Vent Systems)

A top clearance of 3"(76mm) and side & bottom
clearance of 2"(51mm) must be maintained;
except when passing through a wall, ceil­ing, or at the termination where the use of a
fi restop or wall thimble reduces the required
clearance to 1-1/2" (38mm). We recommend
framing a 11"(279mm) x 11"(279mm) (inside
dimensions) hole to give structural rigidity
for mounting the termination.

Install the vent system according to the
manufacturer's instructions included with the
components.

1) Set the unit in its desired location. Check to

determine if wall studs or roof rafters are in
the way when the venting system is attached.
If this is the case, you may want to adjust
the location of the unit. Rough in the gas
preferably on the right side of the unit and
the electrical (junction block is on the left
side) on the left.

2) Direct Vent pipe and fi ttings are designed with

special twist-lock connections to connect the
venting system to the appliance fl ue outlet.
A twist-lock appliance adaptor is required.

3) In conjunction with the Simpson Dura-Vent

Direct Vent GS system. Install the adaptor
after the unit is set in its desired location.
Put a bead of high temperature silicone
inside the outer section of the adapter and
a bead of Mill Pack on the inner collar. Slip
the adapter over the existing inner and outer
fl ue collar. Fasten to the outer collar only with
the 3 supplied screws (drilling pilot holes will
make this easier).

4) Level the fi replace and fasten it to the framing

using nails or screws through the top and
side nailing strips.

5) Assemble the desired combination of pipe

and elbows to the appliance adaptor and
twist-lock for a solid connection.

Note: For best results and optimum

performance with each approved
venting system, it is highly
recommended to apply “Mill-Pac”
sealant (supplied) to every inner pipe
connection. Failure to do so may result
in drafting or performance issues not
covered under warranty. Silicone (red
RTV) is optional.

Horizontal runs of vent must be supported
every 3 feet (0.9meter). Wall straps are
available for this purpose.

6) Mark the wall for a 11" x 11" (279mm x

279mm) square hole. The center of the
square hole should line up with the center­line of the horizontal pipe. Cut and frame the
11 inch (279mm) square hole in the exterior
wall where the vent will be terminated. See
diagram 2 for center line requirements.

If the wall being penetrated is constructed of

non-combustible material, i.e. masonry block
or concrete, an 8" (203mm) diameter hole
is acceptable.

Diagram 2

Note:
a) The horizontal run of vent must be level,

or have a 1/4 inch rise for every 1 foot
of run towards the termination. Never
allow the vent to run downward. This
could cause high temperatures and may
present the possibility of a fi re.

b) The location of the horizontal vent

termination on an exterior wall must meet
all local and national building codes, and
must not be blocked or obstructed. See
"Exterior Vent Termination Locations"
section for more details.

7) Ensure that the pipe clearances to

combustible materials are maintained
(Diagram 5). Install the termination cap.

Note: If installing termination on a vinyl

siding covered wall, a vinyl siding
standoff or furring strips must be used
to ensure that the termination is not
recessed into the siding.

Diagram 5

The four wood screws provided should be re-

placed with appropriate fasteners for stucco,
brick, concrete, or other types of sidings.

8) Before connecting the horizontal run of vent

pipe to the vent termination, slide the Wall
Thimble over the vent pipe. The wall thimble
is required for all horizontal terminations.

9) Slide the appliance and vent assembly

towards the wall carefully inserting the vent
pipe into the vent cap assembly. It is important
that the vent pipe extends into the vent cap
suffi cient distance so as to result in a minimum
pipe overlap of 1-1/4 inches (32mm). Secure
the connection between the vent pipe and
the vent cap.

10) Install wall thimble in the center of the 11"

(279mm) square and attach with wood screws
(Diagram 7).

Diagram 7

NOTE: A Vent Guard is required when
the AstroCap is installed above grade
at 7 feet or lower.

INSTALLATION

Diagram 1

Regency® L900 Direct Vent Gas Fireplace 23

INSTALLATION

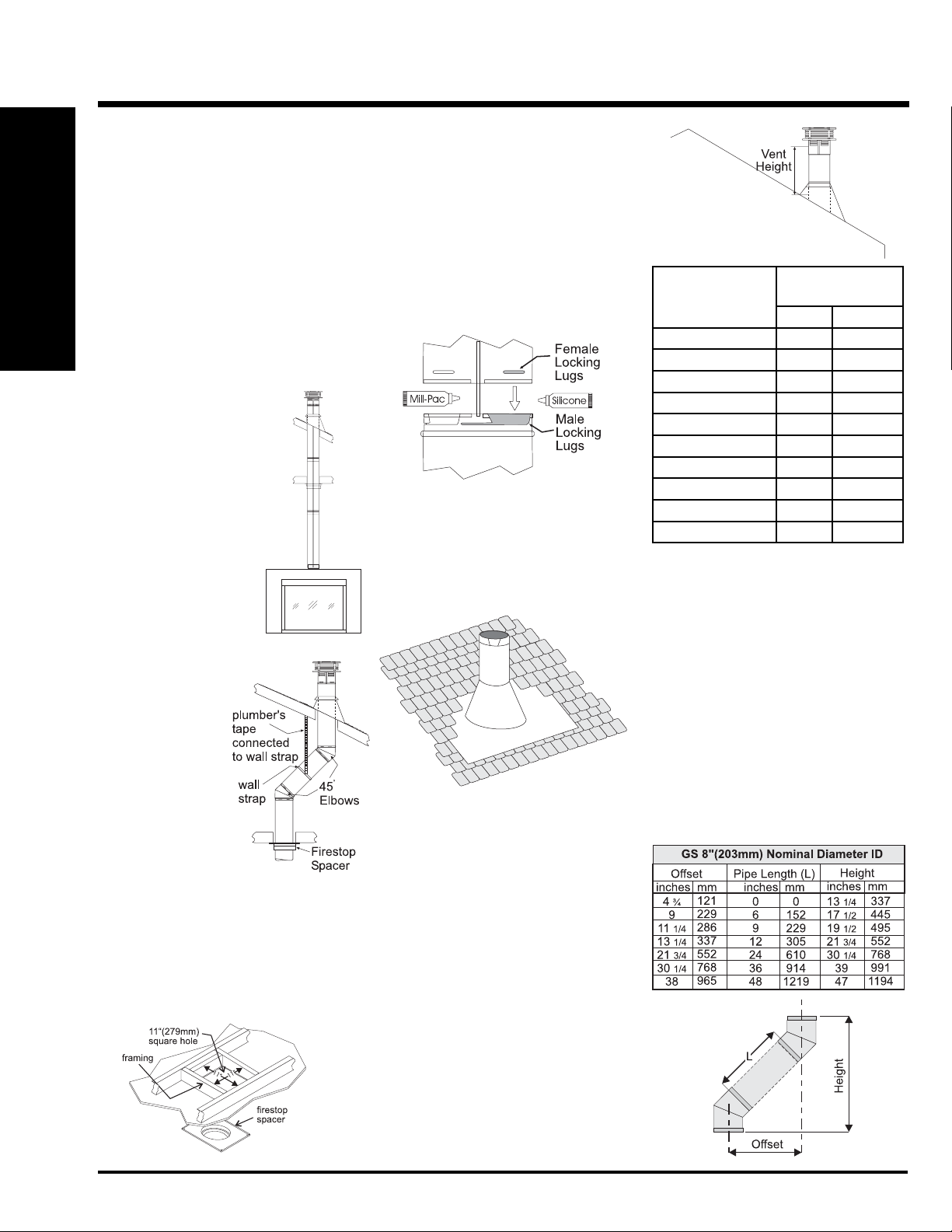

UNIT INSTALLATION

WITH VERTICAL

TERMINATION

(Rigid Vent Systems)

Note: A clearance of 2"(51mm) must be

maintained; except when passing
through a wall, ceiling, or at the

INSTALLATION

termination where the use of a fi restop
or wall thimble reduces the required
clearance to 1-1/2" (38mm). We
recommend framing a 11"(279mm) x
11"(279mm) (inside dimensions) hole
to give structural rigidity for mounting
the termination.

1) Maintain the 2" (51mm)

clearances (air spaces)
to combustibles when
passing through ceilings,
walls, roofs, enclosures,
attic rafter, or other nearby
combustible surfaces.
Do not pack air spaces
with insulation. Check
"Venting Arrangemnt

- Vertical Termination"
section for the
maximum vertical rise
of the venting system and
the maximum horizontal
offset limitations.

2) Set the gas appliance

in its desired location.
Drop a plumb bob
down from the ceiling
to the position of the
appliance fl ue exit,
and mark the location
where the vent will
penetrate the ceiling.
Drill a small hole at
his point. Next, drop
a plumb bob from
the roof to the hole
previously drilled in
the ceiling, and mark
the spot where the
vent will penetrate the roof. Determine if ceiling
joists, roof rafters or other framing will obstruct
the venting system. You may wish to relocate
the appliance or to offset, as shown in Diagram
2 to avoid cutting load bearing members.

3) A Firestop spacer must be installed in the fl oor

or ceiling of every level.

Diagram 3

Diagram 2

Diagram 1

4) Assemble the desired lengths of pipe and

elbows. Ensure that all pipes and elbow
connections are in the fully twist-locked
position and sealed.

Note:
For best results and optimum performance
with each approved venting system, it is
highly recommended to apply “Mill-Pac”
sealant (supplied) to every inner pipe connec­tion. Failure to do so may result in drafting
or performance issues not covered under
warranty. Silicone (red RTV) is optional.

5) Cut a hole in the roof centered on the small

drilled hole placed in the roof in Step 2. The
hole should be of suffi cient size to meet
the minimum requirements for clearance to
combustibles of 1-1/2"(38mm). Slip the fl ashing
under the shingles (shingles should overlap
half the fl ashing) as per Diagram 4.

Diagram 4: The upper half of the fl ashing is

installed under the roofi ng material and not

nailed down until the chimney is installed.

This allows for small adjustments.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic

to avoid obstructions, it is important
to support the vent pipe every 3
feet (0.9 meter), to avoid excessive
stress on the elbows, and possible
separation. Wall straps are available
for this purpose

(Diagram 2).

Galvanized pipe is desirable above the roofl ine

due to its higher corrosion resistance. Continue
to add pipe sections through the fl ashing until
the height of the vent cap meets the minimum
height requirements specifi ed in Diagram 5 or
local codes. Note that for steep roof pitches,
the vertical height must be increased.

Diagram 5

Minimum Vent

Roof Pitch

fl at to 7/12 2 0.61

over 7/12 to 8/12 2 0.61

over 8/12 to 9/12 2 0.61

over 9/12 to 10/12 2.5 0.76

over 10/12 to 11/12 3.25 0.99

over 11/12 to 12/12 4 1.22

over 12/12 to 14/12 5 1.52

over 14/12 to 16/12 6 1.83

over 16/12 to 18/12 7 2.13

over 18/12 to 20/12 7.5 2.29

A poor draft, or down drafting can result from

high wind conditions near big trees or adjoining
roof lines, in these cases, increasing the vent
height may solve the problem.

7) Ensure vent is vertical and secure the base

of the fl ashing to the roof with roofi ng rails,
slide storm collar over the pipe section and
seal with a mastic.

8) Install the vertical termination cap by twist-

locking it.

Note: Any closets or storage spaces, which

the vent passes through must be
enclosed.

Height

Feet Meters

Offset Chart

24

Regency® L900 Direct Vent Gas Fireplace

INSTALLATION

UNIT INSTALLATION

HORIZONTAL TERMINATION

WITH FLEX VENT SYSTEM

Note: A top clearance of 3"(76mm) and

side & bottom clearance of 2"(51mm)
must be maintained; except when
passing through a wall, ceiling, or
at the termination where the use of
a fi restop or wall thimble reduces the
required clearance to 1-1/2" (38mm).
We recommend framing a 11"(279mm)
x 11"(279mm) (inside dimensions)
hole to give structural rigidity for
mounting the termination.

1) Locate the unit in the framing, rough in the

gas (preferably on the right side of the unit)
and the electrical (Junction block is on the
left side) on the left. Locate the centerline of
the termination and mark wall accordingly.
Cut an 11"(279mm) hole in the wall (inside
dimension).

4) Separate the 2 halves of the wall thimble and

securely fasten the one with the tabs to the
outside wall making sure that the tabs are
on top and bottom. Fasten the other thimble
half to the inside wall. The thimble halves
slip inside each other and can be adjusted
for 2 x 4 or 2 x 6 walls.

5) Slip the assembled liner and termination

assembly through the thimble making sure
the termination cap faces up (there are
markings on the cap that show which way
is up). This will position the termination cap
with proper down slope for draining water.
Fasten the cap to the outer wall with the 4
supplied screws.

6) Pull the centre 5"(127mm) liner and outer
8"(203mm) liner out enough to slip over

the fl ue collars of the fi replace. (You may
wish to cut the liner shorter to make it more
workable.) Do not bend liner more than 90

The liners must slip over the collars a
minimum of 1-3/8".

7) Apply Mill Pac over the fi replace inner collar

and slip the 5"(127mm) liner down over it
and attach with 3 supplied screws.

8) Do the same with the 8"(203mm) liner.

o

IMPORTANT: Do not locate termination
hood where excessive snow or ice
buildup may occur. Be sure to check vent
termination area after snow falls, and clear
to prevent accidental blockage of venting
system. When using snow blowers, make
sure snow is not directed towards vent
termination area.

ASTROCAP XL

DIMENSIONS (946-623/P)

.

INSTALLATION

Note: If installing termination on a siding

covered wall, a vinyl siding standoff
or vinyl furring strips must be used
to ensure that the termination is not
recessed into the siding.

2) Level the fi replace and fasten it to the fram-

ing using nails or screws through the nailing
strips.

3) Assemble the vent assembly by applying

Mill Pac to the 5"(127mm) inner collar of
the termination and slipping the 5"(127mm)
liner over it at least 1-3/8" (35mm). Fasten
with the 3 screws (drilling pilot holes will
make this easier). Apply Mill Pac or high
temperature silicone to the 8"(203mm) fl ex
pipe and slip it over the 8" outer collar of
the vent terminal at least 1-3/8"(35mm) and
fasten with the 3 screws.

NOTE: Horizontal sections must be sup-

ported at intervals not exceeding 3
feet (0.9 meter). (Flame picture and
performance will be affected by sags
in the liner).

9) Apply a bead of silicone between the thimble

and termination and around the outer edge
of the terminal at the wall in order to keep
the water out.

Regency® L900 Direct Vent Gas Fireplace 25

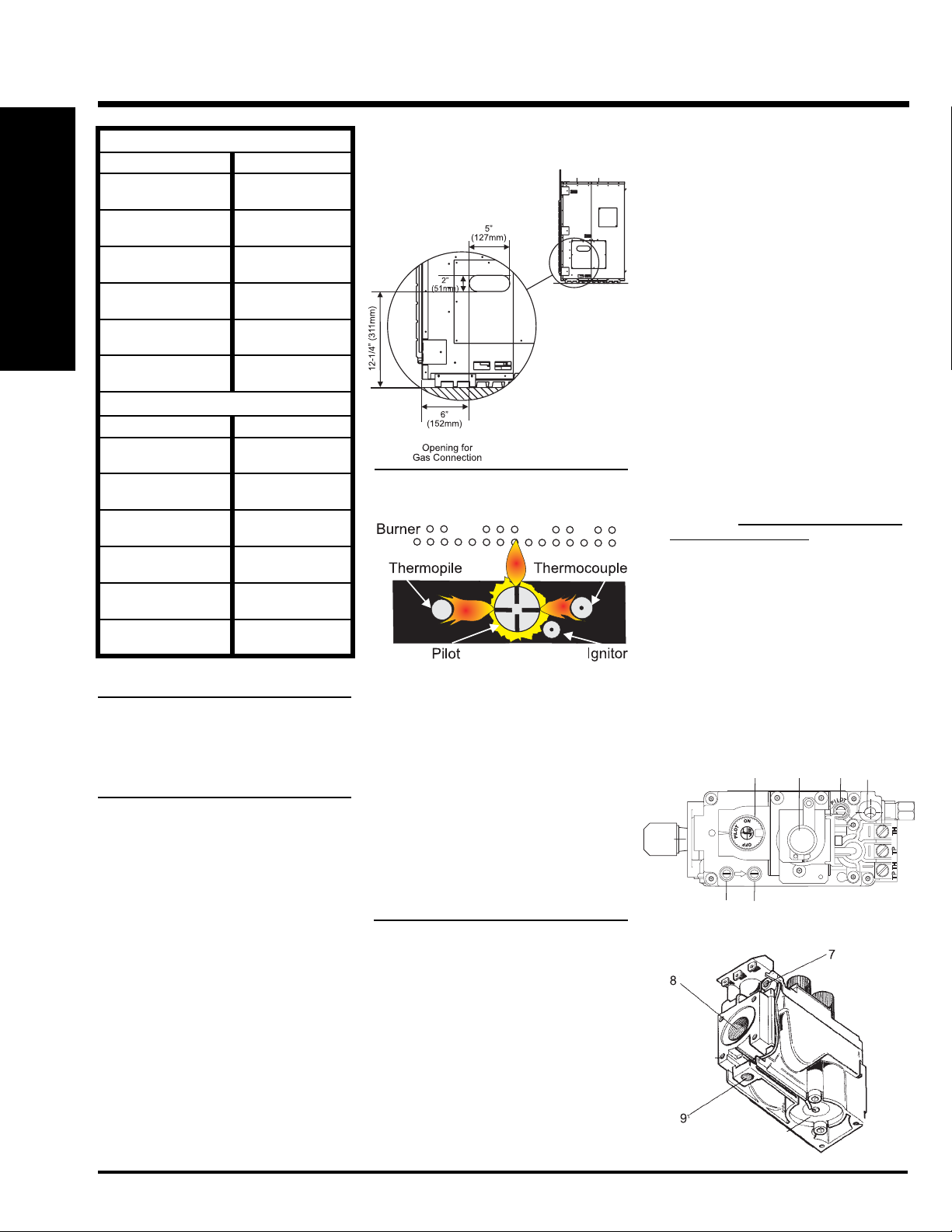

INSTALLATION

L900-NG SYSTEM DATA

Min. Supply Pressure 5" WC (1.25 kpa)

INSTALLATION

Low Setting Man.
Pressure

Max. Manifold
Pressure

Orifi ce Size (Front
Burner)

Orifi ce Size (Back
Burner)

Minimum Input 11,000 Btu/h

Maximum Input 48,000 Btu/h

1.6" WC (0.39 kpa)

3.5" WC (0.87 kpa)

#47 DMS

#30 DMS

(3.22 kW)

(12.3 kW)

L900-LP SYSTEM DATA

Min. Supply Pressure 12" WC (2.98 kpa)

Low Setting Man.
Pressure

Max. Manifold
Pressure

Orifi ce Size (Front
Burner)

Orifi ce Size (Back
Burner)

Minimum Input 9,500 Btu/h

Maxiumm Input 46,500 Btu/h

3.6" WC (2.49 kpa)

10" WC (2.98 kpa)

#56 DMS

#50 DMS

(2.64 kW)

(11.72 kW)

HIGH ELEVATION

This unit is approved in Canada for altitude 0
to 4500 ft. (CAN1 2.17-M91).

GAS LINE

INSTALLATION

Since some municipalities have additional
local codes it is always best to consult with
your local authorities and the CAN/CGA B149
installation code.

For USA installations follow local codes and/or
the current National Fuel Gas Code, ANSI
Z223.1.

When using copper or fl ex connectors use only
approved fi ttings. Always provide a union so
that gas lines can be easily disconnected for
servicing. Flare nuts for copper lines and fl ex
connectors are usually considered to meet this
requirement.

IMPORTANT: Always check for gas leaks
with a soap and water solution or gas leak
detector. Do not use open fl ame for leak
testing.

PILOT ADJUSTMENT

Periodically check the pilot fl ames. Correct
fl ame pattern has three strong blue fl ames:
1 fl owing around the thermopile, 1 around
the thermocouple and 1 fl owing across the
burner (it does not have to be touching the
burner).

Note: If you have an incorrect fl ame pattern,

contact your Regency® dealer for
further instructions.

Incorrect fl ame pattern will have small,
probably yellow fl ames, not coming into
proper contact with the rear burner or
thermopile or thermocouple.

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas
supply piping system by closing its individual
manual shut-off valve during any pressure
testing of the gas supply piping system at
test pressures equal to or less than 1/2 psig.
(3.45 kPa). Disconnect piping from valve at
pressures over 1/2 psig.

Note: To properly check gas pressure, both

inlet and manifold pressures should
be checked using the valve pressure
ports on the valve.

1) Make sure the valve is in the "OFF"

position.

2) Loosen the "IN" and/or "OUT" pressure

tap(s), turning counterclockwise with a

1/8" wide fl at screwdriver.

3) Attach manometer to "IN" and/or "OUT"

pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON"

position.

5) The pressure check should be carried out

with the unit burning and the setting should
be within the limits specifi ed on the safety
label.

6) When fi nished reading manometer, turn

off the gas valve, disconnect the hose and
tighten the screw (clockwise) with a 1/8" fl at
screwdriver. Note: Screw should be snug,

but do not over tighten.

SIT 825 VALVE DESCRIPTION

1) Gas on/off knob

2) Electronically Operated Hi/Lo

3) Pilot Adjustment

4) Thermocouple Connection - option

5) Outlet Pressure Tap

6) Inlet Pressure Tap

7) Pilot Outlet

8) Main Gas Outlet

9) Alternative TC Connection Point

13

IN OUT

6

2

5

4

26

The manifold pressure is controlled by a regulator
built into the gas control, and should be checked
at the pressure test point.

Regency® L900 Direct Vent Gas Fireplace

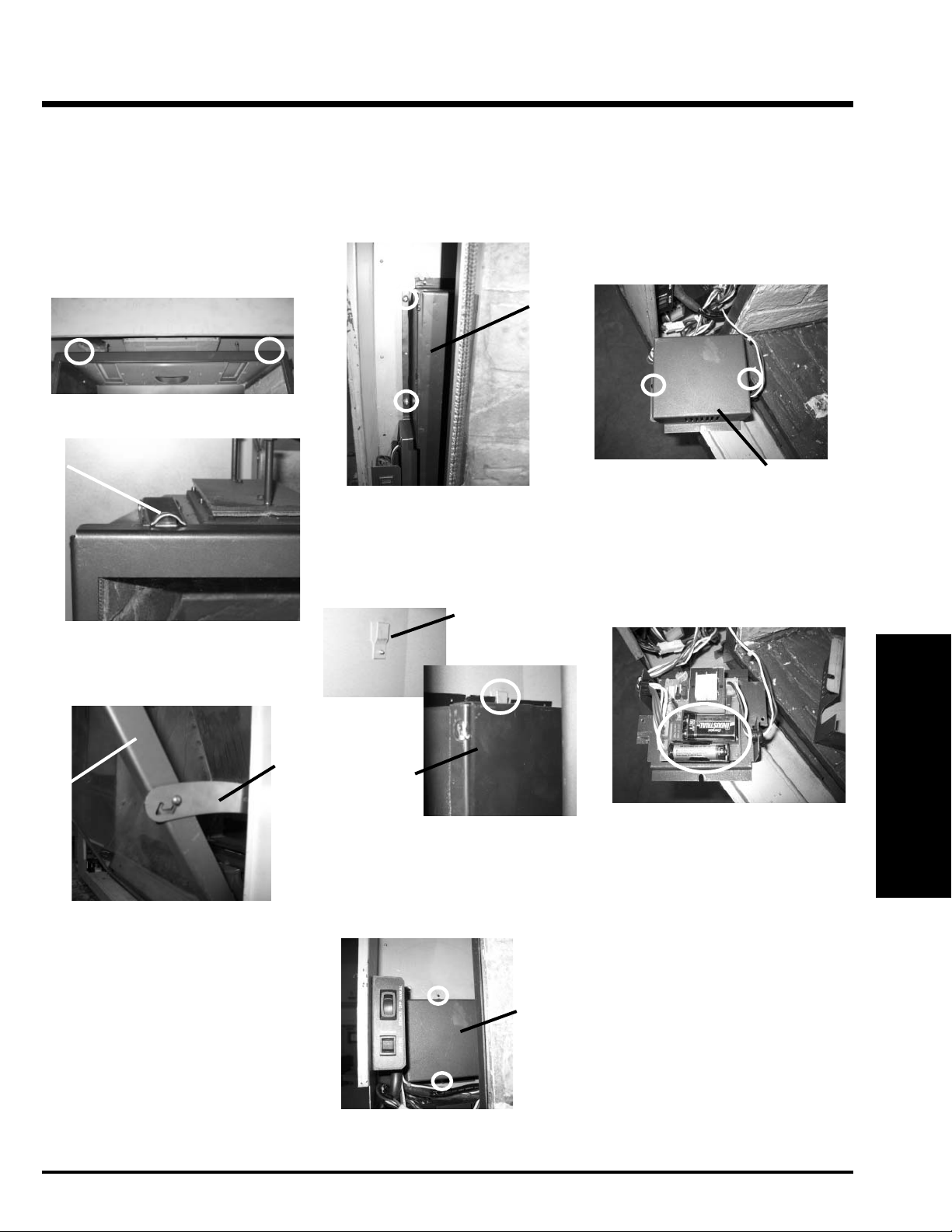

INSTALLATION

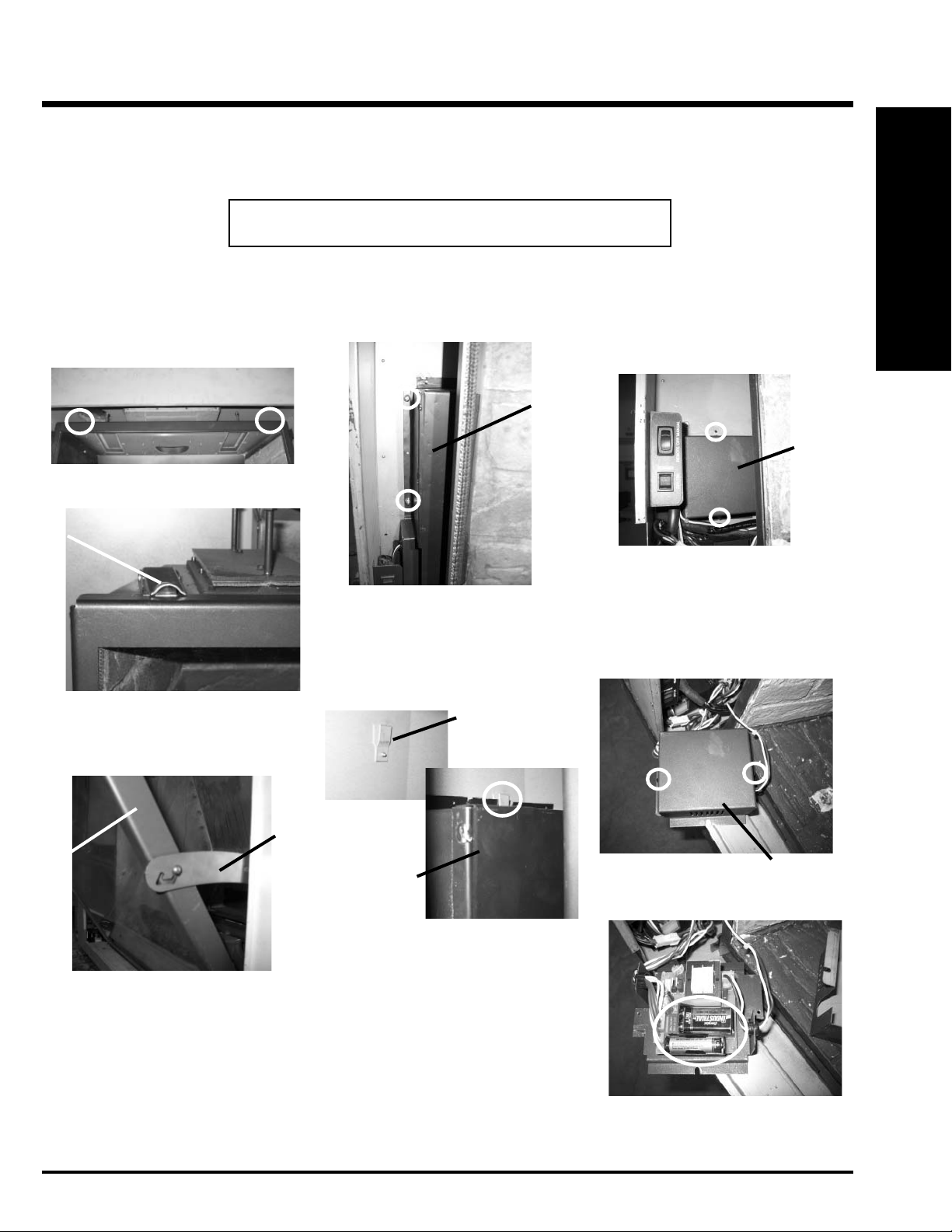

BACK-UP BATTERY INSTALLATION

(within Power Module)

The 9V battery operates the rear burner under power outage conditions.

The AA battery operates the DC Sparker for lighting the pilot.

INSTALLATION

1) Remove the glass door.

a. Release the 2 door latches on the left

and right side at the top of the fi rebox.

Latch Location

Latch

b. Swing the door out from the top and release

the hinges on the left and right side of the
door by lifting them up.

2) Loosen the 2 screws that hold the left side

heat shield in place.

Heat
Shield

3) Lift up and pull out the heat shield slightly

to clear the screwheads and then hang it
on the top bracket (located directly above
the heat shield).

Bracket

4) Unplug the power source.

5) Loosen the bottom screw and remove the

top screw from the power module.

Power
Module

6) Cut the cable tie that holds together the

wires for the power module and the pull
out the power module.

7) Remove the power module cover by

removing the 2 screws, one on each side.

Hinge

Door

Heat
Shield

8) Install the 9V battery and the AA battery.

c. Place the door on a soft surface to prevent

scratching.

9) Reverse steps 7 to 1.

Regency® L900 Direct Vent Gas Fireplace 27

Power Module

INSTALLATION

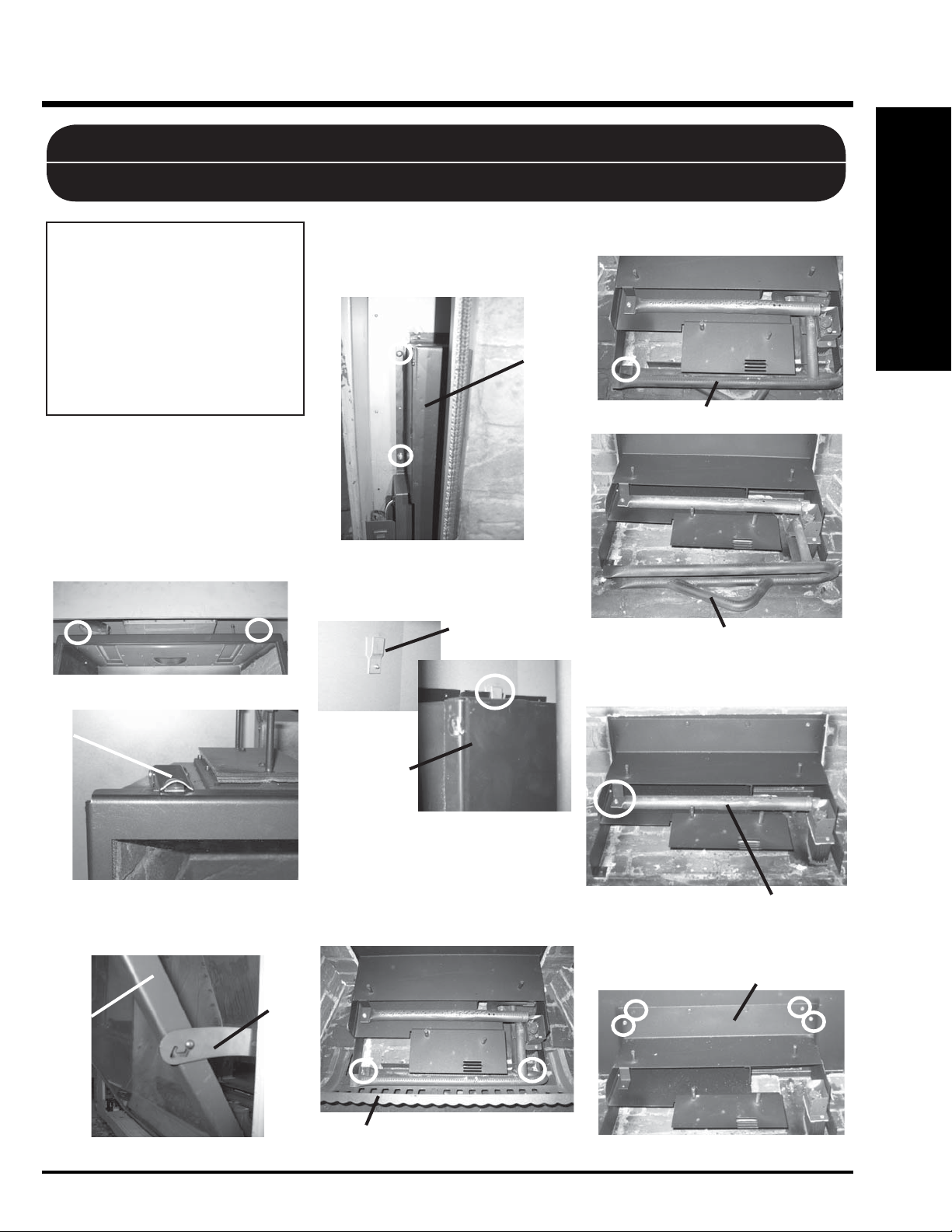

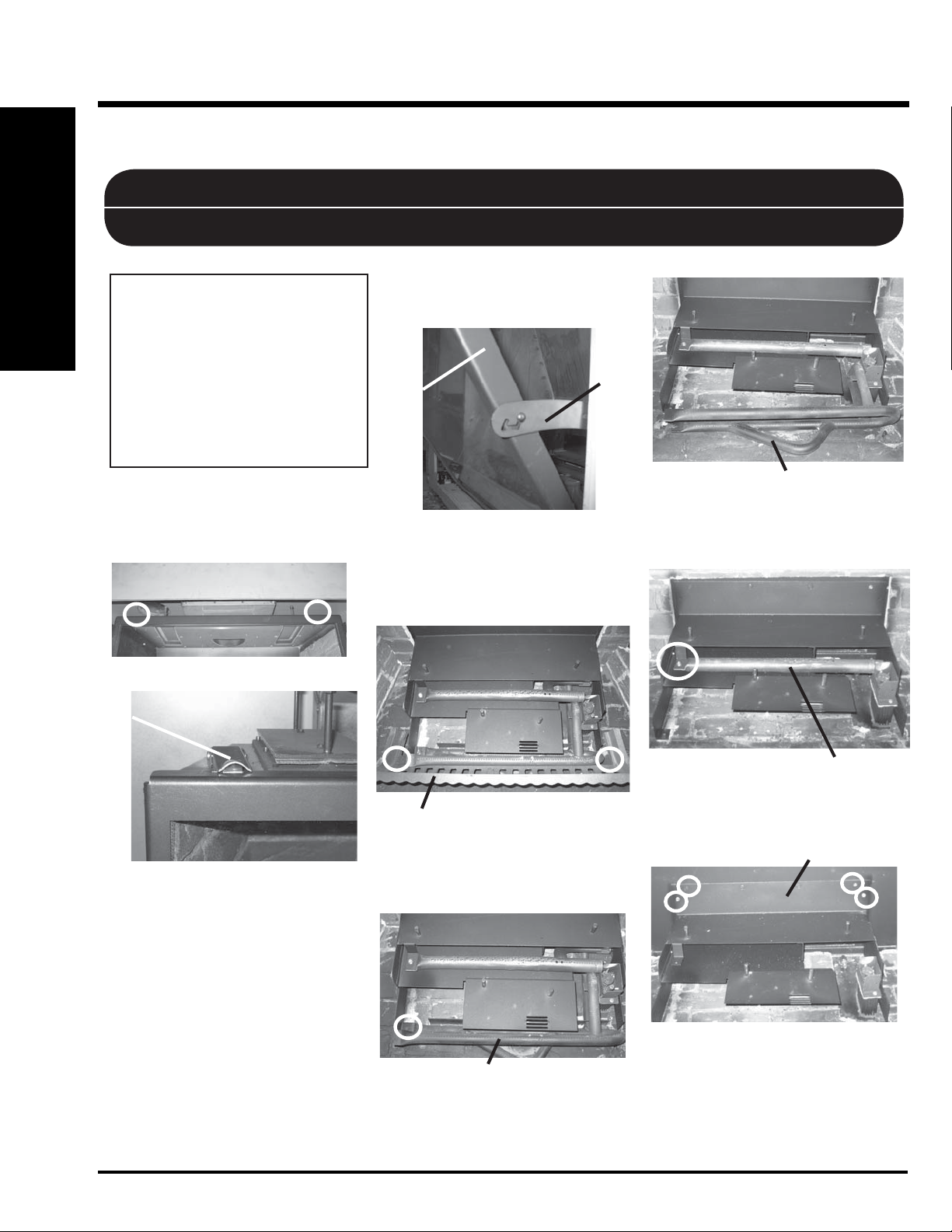

CONVERSION KIT #546-969 FROM NG TO LP

LP Conversion instructions for BEFORE UNIT INSTALLATION.

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER, IF IN DOUBT DO NOT DO THIS CONVERSION!!

INSTALLATION

LP Conversion Kit Contains:

Qty. Part # Description

1 910-462 LP Conversion Coil
1 904-573 Cable Tie
1 910-037 LP Pilot Orifi ce
1 904-641 Orifi ce #50 (back)
1 904-241 Orifi ce #56 (front)
1 904-529 Allen Key
1 918-590 LP Conversion Decal
1 908-528 Red Propane Label
1 918-608 Instruction Sheet

1) Remove the glass door.

a. Release the 2 door latches on the left

and right side at the top of the fi rebox.

Latch Location

Latch

b. Swing the door out from the top and

release the hinges on the left and right
side of the door by lifting them up.

Hinge

Door

c. Place the door on a soft surface to prevent

scratching.

2) Remove the grate by undoing the 2 screws
on the right and left side.

Front Burner Removed

4) Remove the back burner by removing the
screw.

28

Grate

3) Remove the front burner by removing the
screw.

Front Burner

Back Burner

5) Remove the rear log stand by removing
the 4 screws.

Rear Log Stand

Regency® L900 Direct Vent Gas Fireplace

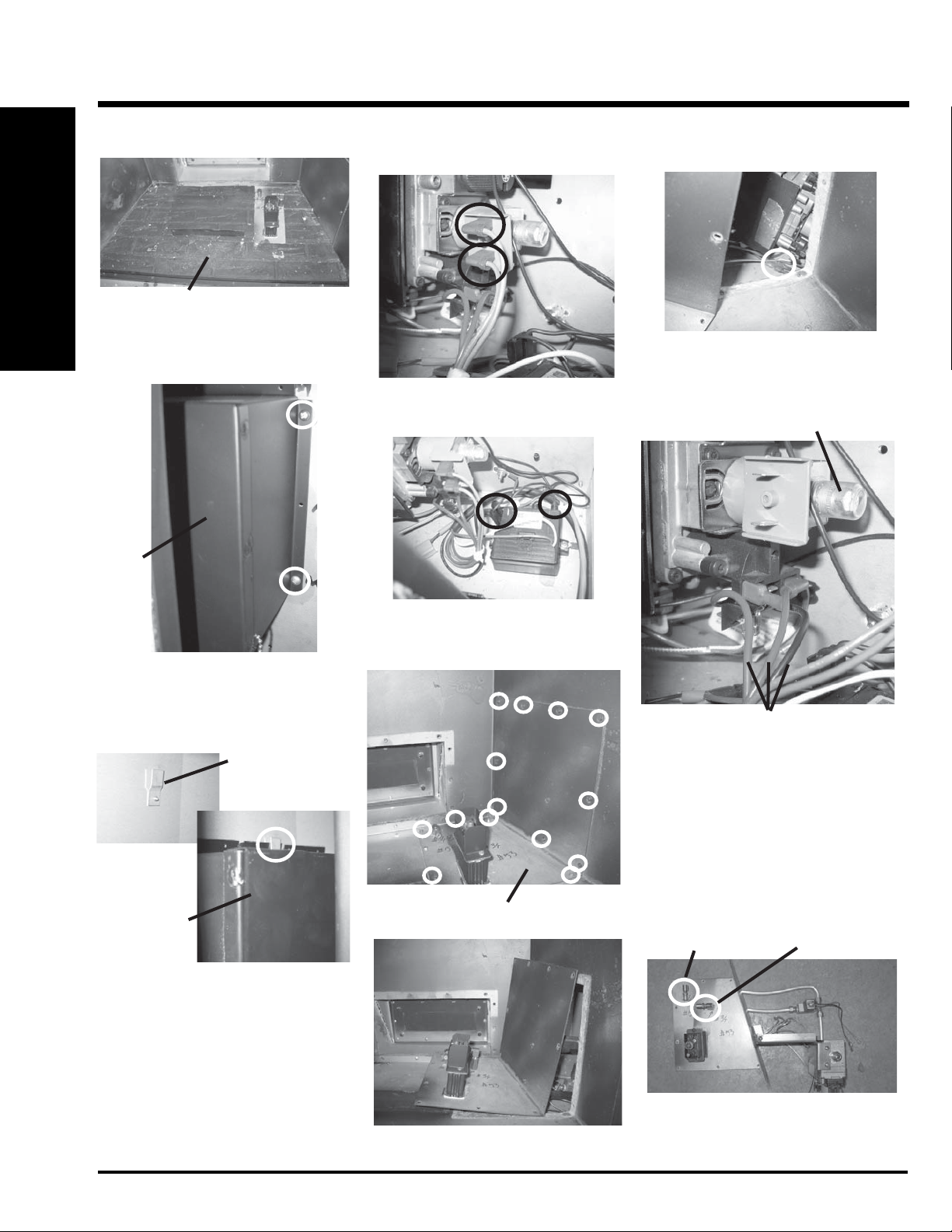

INSTALLATION

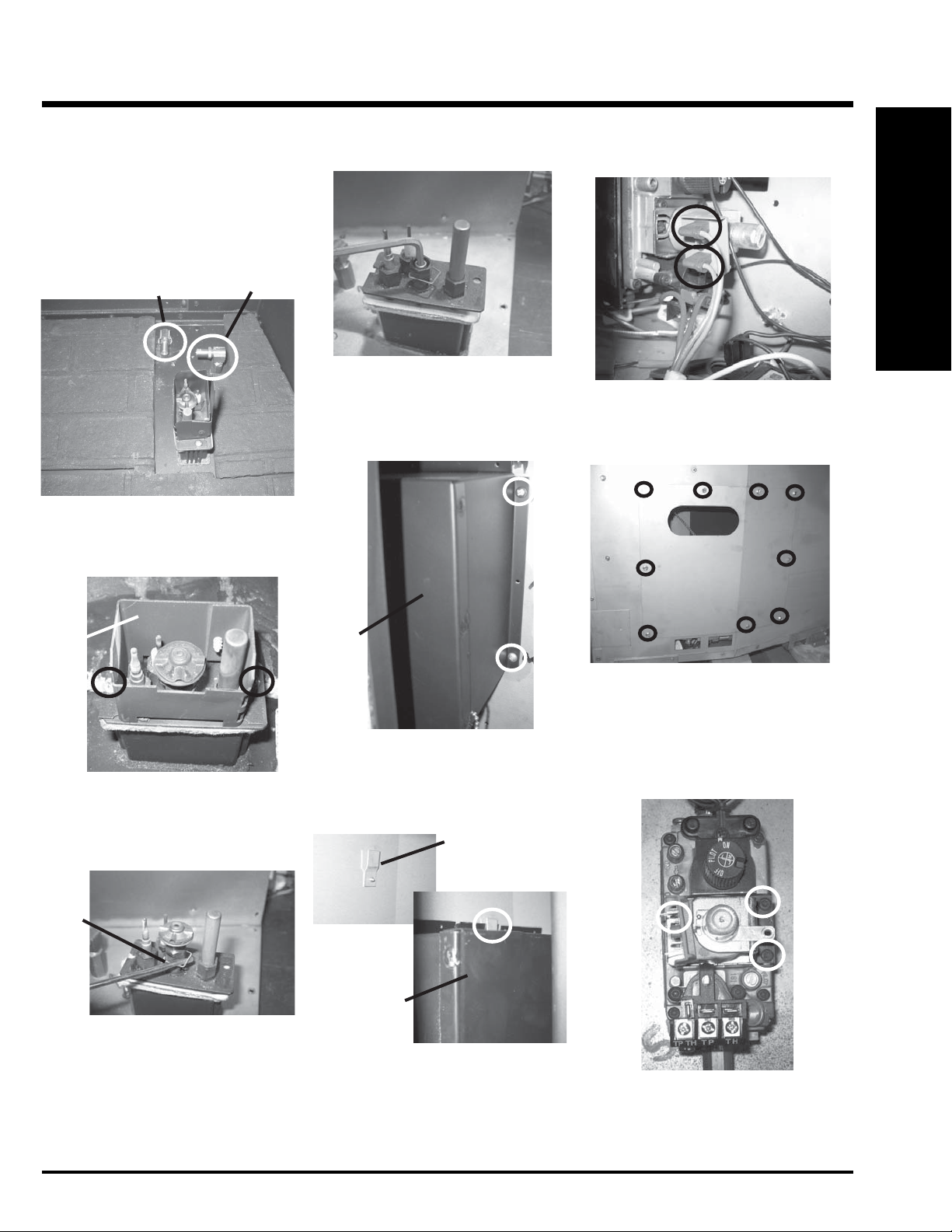

6) Replace the front burner orifi ce with orifi ce

#56. See image below. Use another wrench
to hold onto the elbow behind the orifi ce.

7) Replace the back burner orifi ce with orifi ce
#50. See image below. Use another wrench
to hold onto the elbow behind the orifi ce.

Front Burner

Orifi ce

8) Remove the pilot shield by removing the 2

screws.

Rear Burner

Orifi ce

10) Remove the NG pilot orifi ce with the Allen
Key and replace with LP pilot orifi ce.

11) Re-install the pilot head and pilot shield.

12) Loosen the 2 screws that hold the right

side heat shield.

14) Disconnect the 2 grey connectors from
the modulator coil.

INSTALLATION

15) Remove the right side panel by undoing the
9 screws.

Pilot

Shield

9) Remove the clip from the pilot head assembly
using a fl at head screw driver.

Clip

Heat
Shield

13) Lift up and pull out the heat shield slightly
to clear the head screws and then hang it
on the top bracket (located directly above
the heat shield).

Bracket

Heat
Shield

16) Using a Torx T20, remove and discard the
3 pressure regulator mounting screws.
Remove the modulator coil and the
gasket.

Regency® L900 Direct Vent Gas Fireplace 29

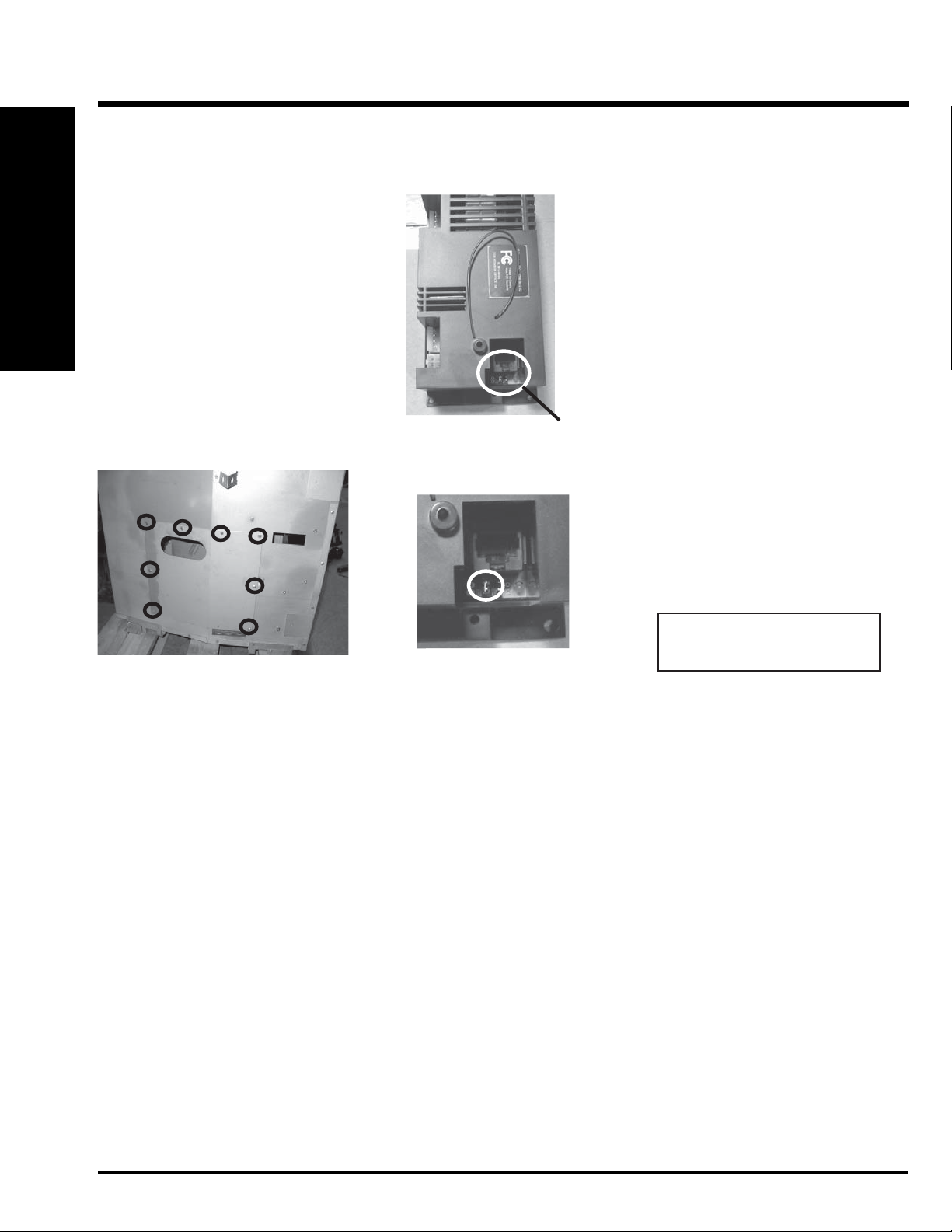

INSTALLATION

17) Ensure that the new rubber gasket (supplied

with coil) is properly positioned and install
the new modulating pressure regulator as­sembly to the valve using the screws sup­plied with the kit. Tighten screws securely.

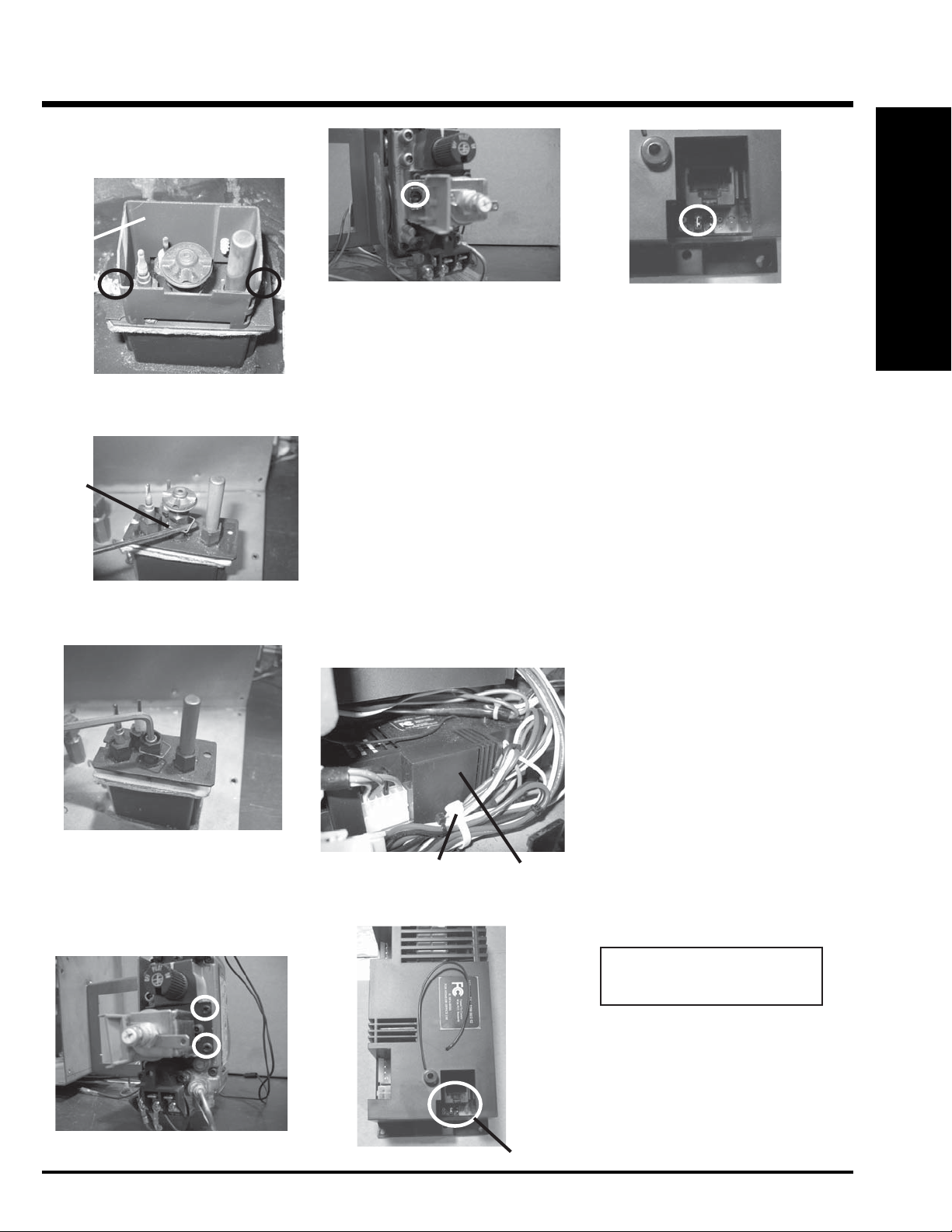

18) Install the enclosed identifi cation label to the
valve body where it can be easily seen.

19) Attach the LP conversion decal near or
on top of the serial no. decal.

INSTALLATION

20) Replace yellow "Natural Gas" label with red
"Propane" label.

21) Re-install the right side panel and all
electrical connections to the valve. (2 grey
wires to modulating coil.)

22) Remove the left side panel by undoing the
8 screws.

23) Locate the control box shown below and
remove the J9 jumper using needle nose
pliers.

J9 Jumper Location

24) Re-install the left side panel.

25) Re-install the rear log support bracket.

26) Adjust the burner aeration settings to the LP

settings and install the burners.

Front Burner 1/4"
Rear Burner 3/8"

27) Re-install the grate.

28) Re-install the glass door.

29) Re-install the right heat shield.

30) Continue with completing unit installation.

NOTE: Once the unit has been installed;

a) Turn on the gas supply and check for

gas leaks.

b) Check the inlet and outlet pressures.

c) Check operation of fl ame control using

the remote control. Refer to FireWizard
operation manual for details.

d) Check for proper fl ame appearance.

J9 Jumper

Installer Notice:
This instructions must be left
with the appliance.

30

Regency® L900 Direct Vent Gas Fireplace

INSTALLATION

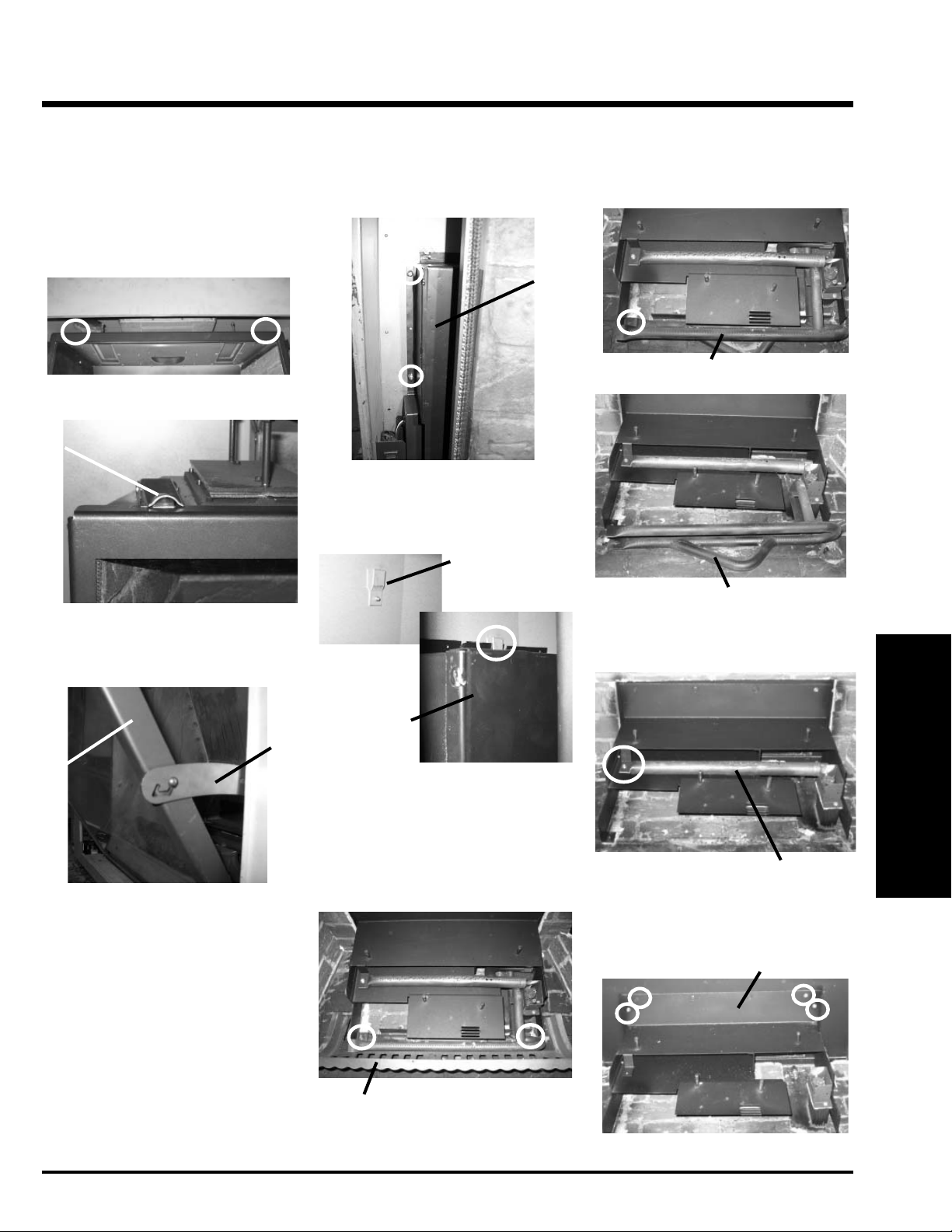

LP Conversion instructions for when unit is ALREADY INSTALLED.

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER, IF IN DOUBT DO NOT DO THIS CONVERSION!!

INSTALLATION

LP Conversion Kit Contains:

Qty. Part # Description

1 910-462 LP Conversion Coil
1 904-573 Cable Tie
1 910-037 LP Pilot Orifi ce
1 904-641 Orifi ce #50 (back)
1 904-241 Orifi ce #56 (front)
1 904-529 Allen Key
1 918-590 LP Conversion Decal
1 908-528 Red Propane Label
1 918-608 Instruction Sheet

1) Turn control knob to the OFF position and

shut off the gas supply to the valve.

2) Remove exterior brick panels, if installed.

3) Remove the glass door.

a. Release the 2 door latches on the left

and right side at the top of the fi rebox.

Latch Location

c. Place the door on a soft surface to prevent

scratching.

4) Loosen the 2 screws that hold the left side
heat shield in place.

Heat
Shield

5) Lift up and pull out the heat shield slightly
to clear the screwheads and then hang it
on the top bracket (located directly above
the heat shield).

Bracket

10) Remove the front burner by removing the
screw.

Front Burner

Front Burner Removed

11) Remove the back burner by removing the
screw.

Latch

b. Swing the door out from the top and

release the hinges on the left and right
side of the door by lifting them up.

Door

Hinge

Heat
Shield

6) Unplug the power source.

7) Remove the log set, if installed.

8) Remove interior brick panels, if installed.

9) Remove the grate by undoing the 2 screws

on the right and left side.

Grate

Back Burner

12) Remove the rear log stand by removing
the 4 screws.

Rear Log Stand

Regency® L900 Direct Vent Gas Fireplace 31

INSTALLATION

13) Carefully remove the bottom brick panel.

INSTALLATION

Bottom Brick Panel

14) Loosen the 2 screws that hold the right
side heat shield.

Heat
Shield

17) Disconnect the 2 connectors from the
modulating coil.

18) Remove the DC Sparker wires; 1 wire for
the ignitor and 2 wires to the module box.

20) Disconnect the black and red wires from
the solenoid valve.

21) Disconnect the 2 red wires and 1 black
wire from the valve.

Modulating Coil

15) Lift up and pull out the heat shield slightly
to clear the head screws and then hang it
on the top bracket (located directly above
the heat shield).

Bracket

Heat
Shield

16) Disconnect the inlet gas line from the

valve.

19) Remove the 16 screws that hold the valve
tray to the fi rebox and slightly pull out the
valve tray.

Valve Tray

Wires

22) Completely pull out the valve tray.

23) Replace the front burner orifi ce with orifi ce

#56. See image below. Use another wrench
to hold onto the elbow behind the orifi ce.

24) Replace the back burner orifi ce with orifi ce
#50. See image below. Use another wrench
to hold onto the elbow behind the orifi ce.

Front Burner

Orifi ce

Rear Burner

Orifi ce

32

Valve Tray Slightly Removed

Regency® L900 Direct Vent Gas Fireplace

25) Remove the pilot shield by removing the 2
screws.

Pilot

Shield

INSTALLATION

INSTALLATION

26) Remove the clip from the pilot head assembly
using a fl at head screw driver.

Clip

27) Remove the NG pilot orifi ce with the Allen
Key and replace with LP pilot orifi ce.

30) Ensure that the new rubber gasket (supplied
with coil) is properly positioned and install the
new modulating pressure regulator assem­bly to the valve using the screws supplied
with the kit. Tighten screws securely.

31) Install the enclosed identifi cation label to the
valve body where it can be easily seen.

32) Attach the LP conversion decal near or
on top of the serial no. decal.

33) Replace yellow "Natural Gas" label with red

"Propane" label.

34) Re-install valve tray and all electrical
connections to the valve and solenoid
valve.

35) Cut the cable tie that holds the wires
connected to the Control Module and pull
out.

Note: An extra cable tie is included with

the LP Kit for re-installation.

J9 Jumper

37) Re-install the control module.

38) Re-install the base brick panel.

39) Re-install the rear log support bracket.

40) Plug in the power source.

41) Re-install the left heat shield.

42) Install the interior brick panels.

43) Adjust the burner aeration settings to the LP

settings and install the burners.

Front Burner 1/4"
Rear Burner 3/8"

44) Re-install the grate.

45) Turn on the gas supply and check for gas

leaks.

46) Install the log set.

47) Re-install the glass door.

48) Check the inlet and outlet pressures.

49) Re-install the right heat shield.

50) Check operation of fl ame control using

the remote control. Refer to FireWizard
operation manual for details.

28) Re-install the pilot head and pilot shield.

29) Using a Torx T20, remove and discard the

3 pressure regulator mounting screws.
Remove the modulator coil and the
gasket.

Cable Tie

36) Remove the J9 jumper using needle nose
pliers.

Control Module

51) Check for proper fl ame appearance.

52) Install the exterior brick panels.

Installer Notice:
This instructions must be left
with the appliance.

J9 Jumper Location

Regency® L900 Direct Vent Gas Fireplace 33

INSTALLATION

IMPORTANT: Must install 1 set of brick panels. The operation of this unit without the brick panels is prohibited.

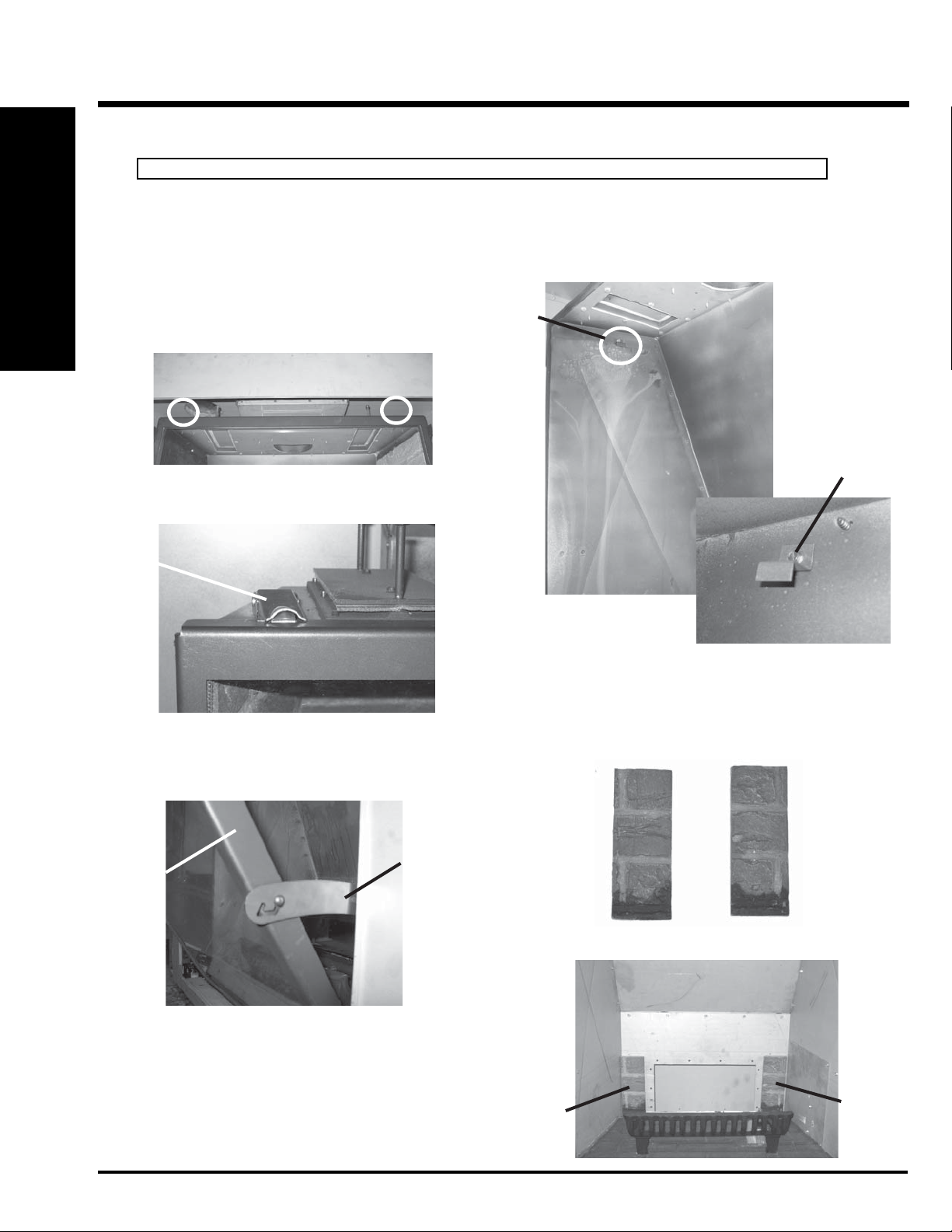

BRICK PANEL INSTALLATION

Dangerous operating conditions may occur if the panels are broken.

Handle with care. DO NOT FORCE INTO POSITION.

Interior Brick Panel Installation:

1) Remove the glass door.

INSTALLATION

a. Release the 2 door latches on the left and right side at the top of

the fi rebox.

Latch Location

Latch

3) Remove the 2 brick panel clips on the inside left and right side of the
fi rebox by removing the screw.

Brick
Panel
Clip

Screw

b. Swing the door out from the top and release the hinges on the left

and right side of the door by lifting them up.

Hinge

Door

c. Place the door on a soft surface to prevent scratching.

2) Unwrap the brick panels from the protective wrapping.

Note: The logs must not be in the unit.

4) Place the 2 small back brick panels at the base of the fi rebox on the

left and right side of the rear log tray.

Note: The left and right side back brick panels are different.

Left Side Back
Brick Panel

Left Side
Back Brick
Panel

Right Side Back
Brick Panel

Right Side
Back Brick
Panel

34

Regency® L900 Direct Vent Gas Fireplace

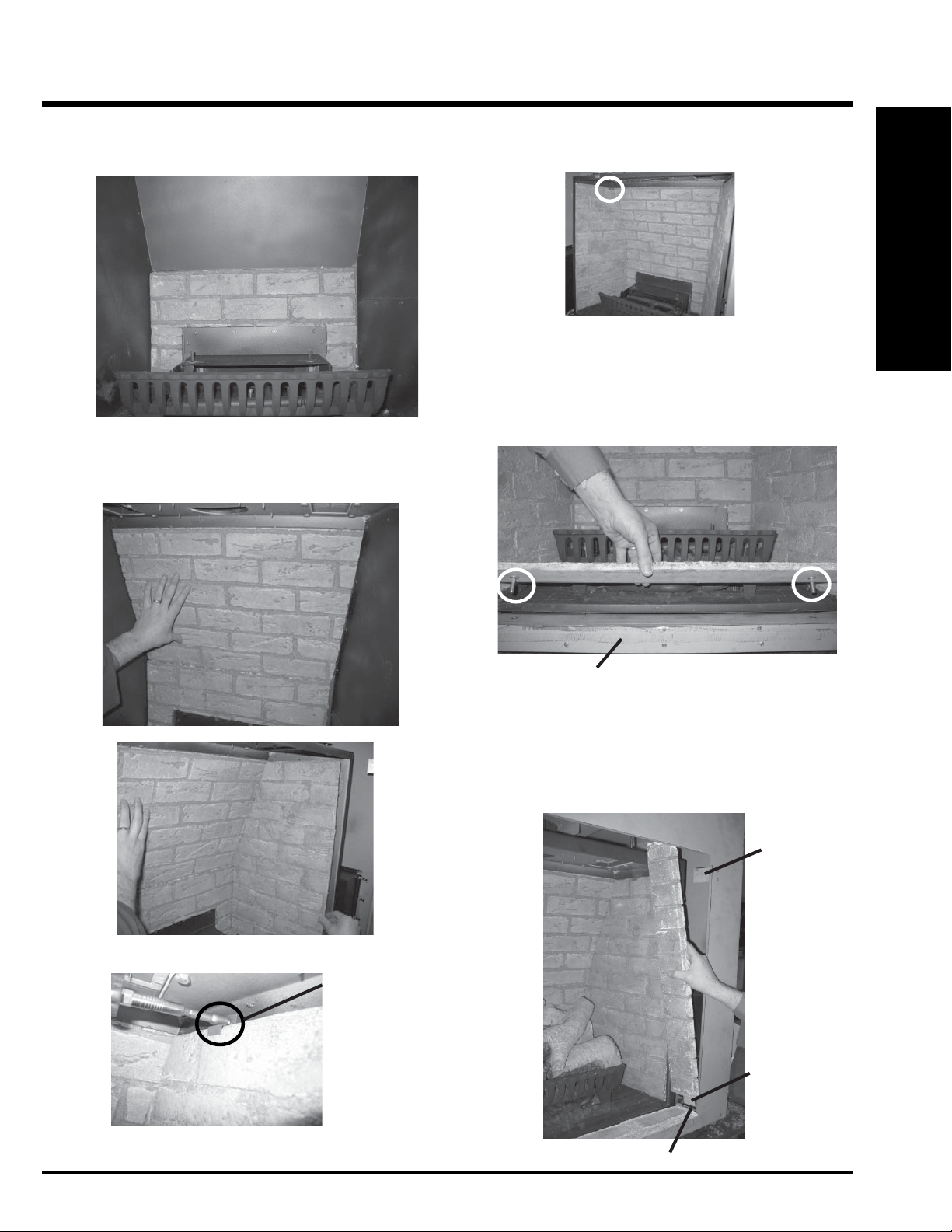

INSTALLATION

5) Install the back brick panel by carefully placing it against the back

wall of the fi rebox.

Back Brick Panel

6) Place the top brick panel into position and hold it in place while slid-

ing the right side brick panel into position and secure using the brick
panel clip that was removed in step 3.

7) Slide the left side brick panel into position and secure in place with
the brick panel clip that was removed in step 3.

INSTALLATION

Left
Side
Brick
Panel

Exterior Brick Panel Installation:

1) Ensure installation of the logs and glass door has been completed

before installing the exterior brick panels.

2) Line up the pins in the exterior base brick panel with the holes on
the outerbox of the fi rebox and fi t in place.

Top Brick Panel

Top Brick Panel

Outerbox of Firebox

3) Install the right side exterior brick panel by placing the bottom tab
into the slot of the exterior base brick panel.

The top of the brick panel is held in place by a magnet that sits

against the bracket as shown in the image below.

Repeat for left side exterior brick panel.

Right Side
Brick Panel

Bracket

Brick
Panel
Clip

Tab

Base Brick Panel Slot

Regency® L900 Direct Vent Gas Fireplace 35

INSTALLATION

Installation of Interior Brick Panels must be completed before installing the log set.

LOG SET INSTALLATION

Read the instructions below carefully and refer to the diagrams.
If the logs are broken do not use the unit until they are replaced.
Broken logs can interfere with pilot operation.

Log kit (Part No. 546-930 and 546-935) contain the following pieces:

INSTALLATION

a) 03-41 Log Rear
b) 03-42 Log Front Left
c) 03-43 Log Front Right
d) 03-44 Log Cross Left
e) 03-45 Log Cross Right
f) 902-154 Embers Lava
g) 902-179 Vermiculite

03-41

03-44

03-42

The "03" reference numbers (i.e. 03-41) are

molded into the rear of each log.

03-43

3) Place log 03-42 on the front left side of the burner. Place the right

end of the log into the pin and rest the notch on the left end of the
log on the grate.

03-42

Grate

03-45

4) Spread some vermiculite on the front log tray next to log 03-42 as

shown in the image below.

Note: Do not build up vermiculite as this will cause the next log

(03-43) not to sit all the way down. Vermiculite is only
needed to conceal the metal inbetween the left and right
front logs.

1) Carefully remove the logs from the box and unwrap them. The logs
are fragile, handle with care - do not force into position.

2) Place log 03-41 on the rear log support pins.

03-41

03-42

36

Regency® L900 Direct Vent Gas Fireplace

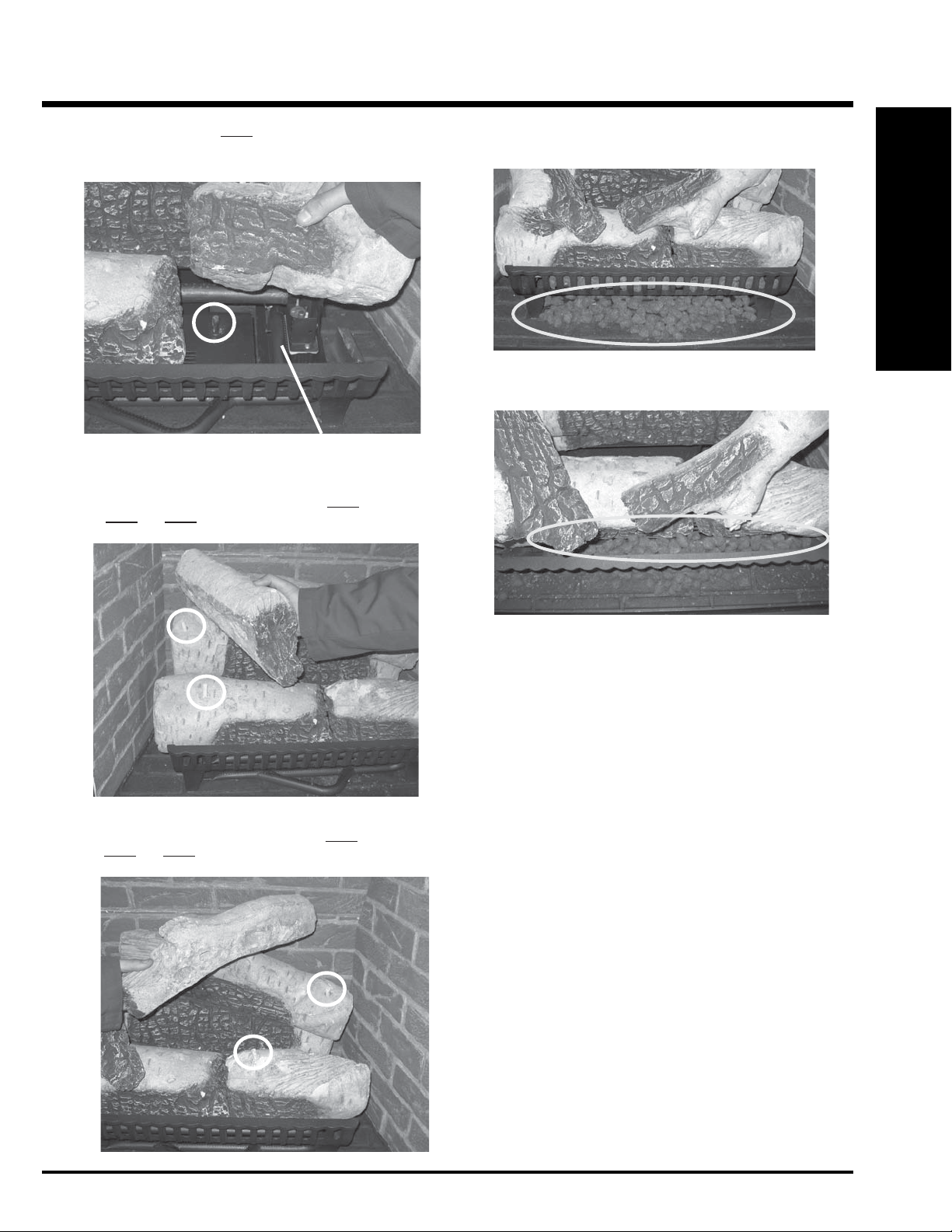

INSTALLATION

5) Place the left end of log 03-43 into the pin while fi tting the notch

onto the burner tube. Slide the right end of the log forward until it is
approximately 3/8" away from the back side of the grate.

03-43

Burner Tube

6) Line up the two holes on the underside of log 03-44 with the pins on
logs 03-41 and 03-42 and fi t in place.

03-44

8) Spread all of the Embers on the bottom brick panel around the burner

tube and on the inside of the grate as shown.

INSTALLATION

Embers on bottom brick panel.

03-41

03-42

7) Line up the two holes on the underside of log 03-45 with the pins on

logs 03-41 and 03-43 and fi t in place.

03-45

03-41

Embers on inside of grate.

9) Spread the vermiculite on the base brick panel covering the remaining
exposed base brick.

03-43

Regency® L900 Direct Vent Gas Fireplace 37

INSTALLATION

AERATION

ADJUSTMENT

The burner aeration is factory set but may need
adjusting due to either the local gas supply or
altitude. Open the air shutter for a blue fl ame or
close for a more yellow fl ame.

In order to adjust the aeration, the logs, grate
and burners will need to be removed to be able

INSTALLATION

to access the shutters.

A receptacle is provided on the left hand side
of the unit. 120 Volt AC power must be wired to
the receptacle and the control module plugged
in for the unit to operate fully. The front and
rear burners will operate on low, when the unit
is running on battery back-up.

Minimum Air Shutter Opening:

NG Front Burner 1/4"
Rear Burner 1/2"

LP Front Burner 1/4"
Rear Burner 3/8"

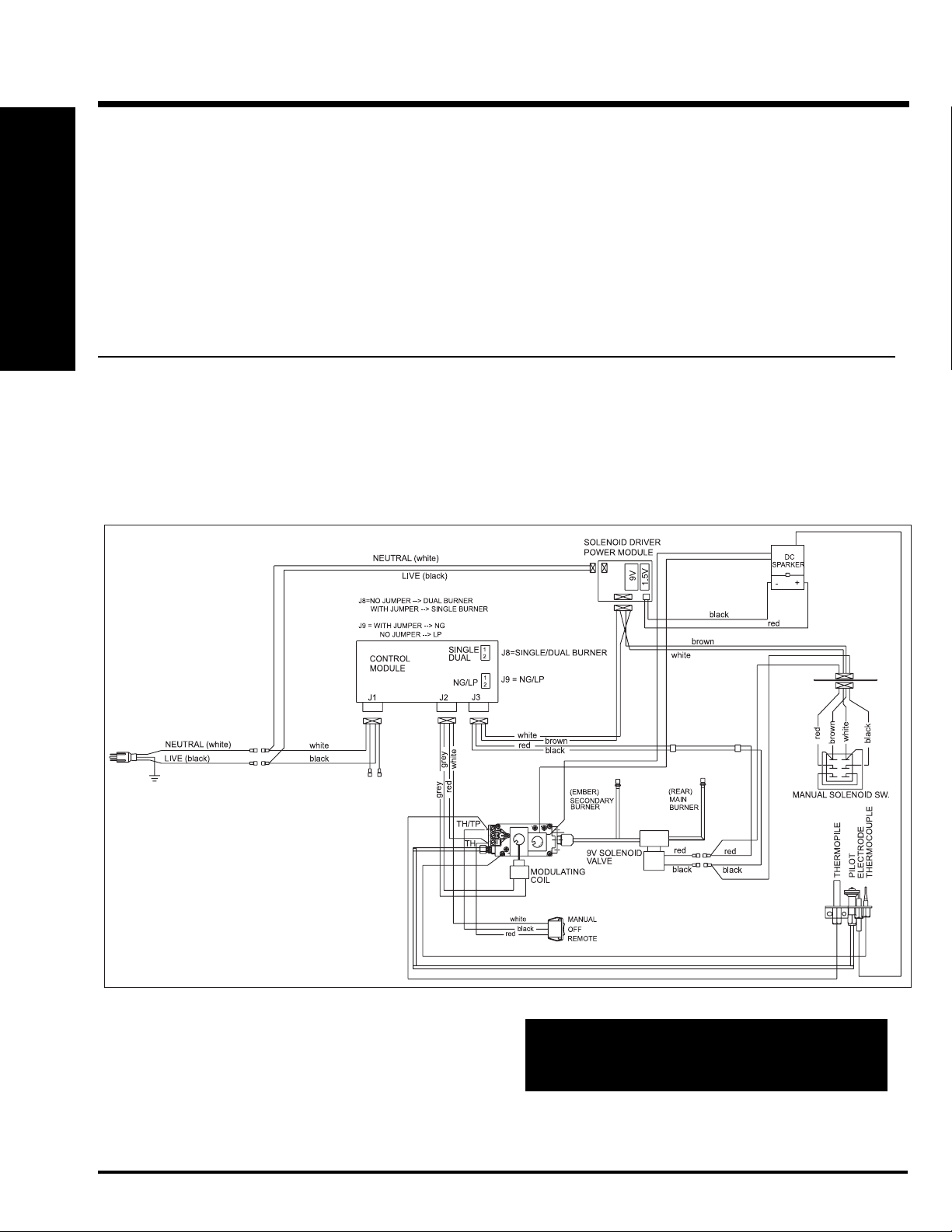

WIRING DIAGRAM

(Do not cut the ground terminal off under
any circumstances.)

CAUTION: Carbon will be produced if air shutter

is tightly closed.

Note: Any damage due to carboning

resulting from improperly setting
the aeration controls is NOT covered
under warranty.

Caution: Ensure that the wires do not touch any
hot surfaces and are away from sharp edges.

38

CAUTION: Label all wires prior to disconnection
when servicing controls. Wiring errors can
cause improper and dangerous operation.

Regency® L900 Direct Vent Gas Fireplace

OPERATING INSTRUCTIONS

MATCHING REMOTE

HANDSET & CONTROL

BOX ID CODE

The Remote Control Handset has a set of
unique ID codes that is pre-programmed into its
memory. This set of ID codes helps to differenti­ate one Remote Control Handset from another
so that only the control box with a matching ID
code will respond to the appropriate Remote
Control Handset.

To ensure the remote control is matched to
the receiver correctly, please follow the steps
below:

1. Ensure that the Remote Control and the

3-way switch located at the appliance are
both in the OFF position.

2. Ensure that the pilot is lit and the pilot

control knob is in the ON position on the
appliance.

3. Install the 2 x AAA alkaline batteries into the

Remote Control.

4. Unplug and re-plug the power cord. The

power cord is located on the left hand side
of the appliance and will be plugged into the
receptacle.

5. Switch the 3-way switch located on the ap-

pliance to the REMOTE position.

6. Press and hold the PROG and FAN buttons

simultaneously for up to 20 seconds. During
this time, the remote will display LC while it
is transmitting codes to the receiver. Once
it is successfully transmitted, one will hear
the solenoid click and the burners will come
on. If is does not work the fi rst time, repeat
steps 1 - 6.

OPERATING

INSTRUCTIONS

1) Read and understand these instructions

before operating this appliance.

2) Check to see that all wiring is correct and

enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the door frame is

properly positioned. Never operate the
appliance with the glass removed.

5) Verify that the venting and cap are

unobstructed.

6) Ensure that the brick panels are installed.

7) Verify log placement. If the pilot cannot be

seen when lighting the unit, the logs have
been incorrectly positioned.

8) The unit should never be turned off, and on

again without a minimum of a 60 second
wait.

FIRST FIRE

The FIRST FIRE in your heater is part of the paint
curing process. To ensure the paint is properly
cured, it is recommended you burn your fi replace
for at least four (4) hours the fi rst time.

When fi rst operated, the unit will release an
odour caused by the curing of the paint and the
burning off of any oils remaining from manufac­turing. Smoke detectors in the house may go off
at this time. Open a few windows to ventilate
the room for a couple of hours. The glass may
require cleaning.

DO NOT BURN THE APPLIANCE
WITHOUT THE GLASS FRONT IN
PLACE.

DO NOT ATTEMPT TO CLEAN THE
GLASS WHILE IT IS STILL HOT!

During the fi rst few fi res, a white fi lm
may develop on the glass front as part of
the curing process. The glass should be
cleaned after the unit has cooled down
or the fi lm will bake on and become very
diffi cult to remove. Use a non-abrasive
cleaner and DO NOT ATTEMPT TO CLEAN
THE GLASS WHILE IT IS HOT.

LIGHTING

PROCEDURE

IMPORTANT
To ignite or reignite the pilot, you
must fi rst remove the glass door.

Only when the pilot holds, without pressure
being applied to the control knob, resecure the
glass door to the unit. The unit must not be
operated with the glass door removed.

IMPORTANT Gas on/off knob cannot be
turned from "PILOT" to "OFF" unless it is
partially depressed.

Ensure that the 3 way switch on the manual
control panel is in the "Remote" position.

The manual control panel is located on the left
hand side of the fi rebox behind the left side
exterior brick panel.

OPERATION

7. Release both the PROG and FAN buttons.

The remote will revert back to normal, but
the burner will still be on.

8. Press the ON/OFF button on the remote

control 2 times to turn the burner off.

9. The remote control is now programmed to

the receiver and the appliance can now be
operated with it.

The control box will only learn the Remote ID
codes during the fi rst 30 seconds after power
is applied and will ignore this special command
from the Remote after the fi rst 30 seconds.

NOTE: This must only be performed by a quali­fi ed installer.

Regency® L900 Direct Vent Gas Fireplace 39

NOTE: The main burner will always start on

"HIGH" and resume it's last setting after
20 seconds of operation.

NOTE: When the glass is cold and the appliance

is lit, it may cause condensation and fog
the glass. This condensation is normal
and will disappear in a few minutes as
the glass heats up.

3-way Switch

OPERATING INSTRUCTIONS

NOTE: The control knob is located on the

right hand side of the fi rebox behind the
right side exterior brick panel.

1) Push in gas control knob slightly and turn

clockwise to “OFF”. Knob cannot be turned
from “PILOT” to “OFF” unless knob is pushed
in slightly. Do not force.

2) Wait fi ve (5) minutes to clear out any gas.

3) Turn knob on gas control counterclockwise

to “PILOT”.

4) Push in control knob all the way and hold in

until the pilot lights up. Continue to hold the
control knob in for about 20 seconds after
the pilot is lit. Release knob and it will pop
back up. Pilot should remain lit. If it goes out,
repeat steps 1) to 4). If knob does not pop
up when released, stop and immediately
call your service technician or gas supplier.
If the pilot will not stay lit after several tries,
turn the gas control knob to “OFF” and call
your service technician or gas supplier.

5) Turn gas control knob counterclock-wise to

OPERATION

“ON”.

6) Turn the unit on with the remote.

NOTE: When using the remote control refer

to the FireWizard manual for instructions.

SHUTDOWN

PROCEDURE

1) Turn the 3-way switch to the "OFF"

position.

2) Turn the main gas control clockwise to the

"OFF" position to turn off the pilot.

3) Turn off all electric power to appliance if

service is to be performed.

NORMAL OPERATING

SOUNDS OF

GAS APPLIANCES

It is possible that you will hear some sounds
from your gas appliance. This is perfectly normal
due to the fact that there are various gauges
and types of steel used within your appliance.
Listed below are some examples. All are normal
operating sounds and should not be considered
as defects in your appliance.

Burner Tray:

The burner tray is positioned directly under the
burner tube and logs and is made of a different
gauge material from the rest of the fi rebox and
body. Therefore, the varying thicknesses of steel
will expand and contract at slightly different
rates which can cause "ticking" and "cracking"
sounds. You should also be aware that as there
are temperature changes within the unit these
sounds will likely re-occur. Again, this is normal
for steel fi reboxes.

Pilot Flame:

While the pilot fl ame is on it can make a very
slight "whisper" sound.

Gas Control Valve:
As the gas control valve turns ON and OFF, a
dull clicking sound may be audible, this is normal
operation of a gas regulator or valve.

Unit Body/Firebox:
Different types and thicknesses of steel will
expand and contract at different rates resulting
in some "cracking" and "ticking" sounds will be
heard throughout the cycling process.

OPERATION DURING

POWER OUTAGE

Important:

If the unit is not used for a prolonged period of
time, we recommend turning the 3-way switch on
the manual control panel to "Off" (manual control
panel is located on the left hand side of the fi rebox
behind the left side exterior brick panel).

Also see "Lighting Plate Instructions" for details
on how to turn off the pilot.

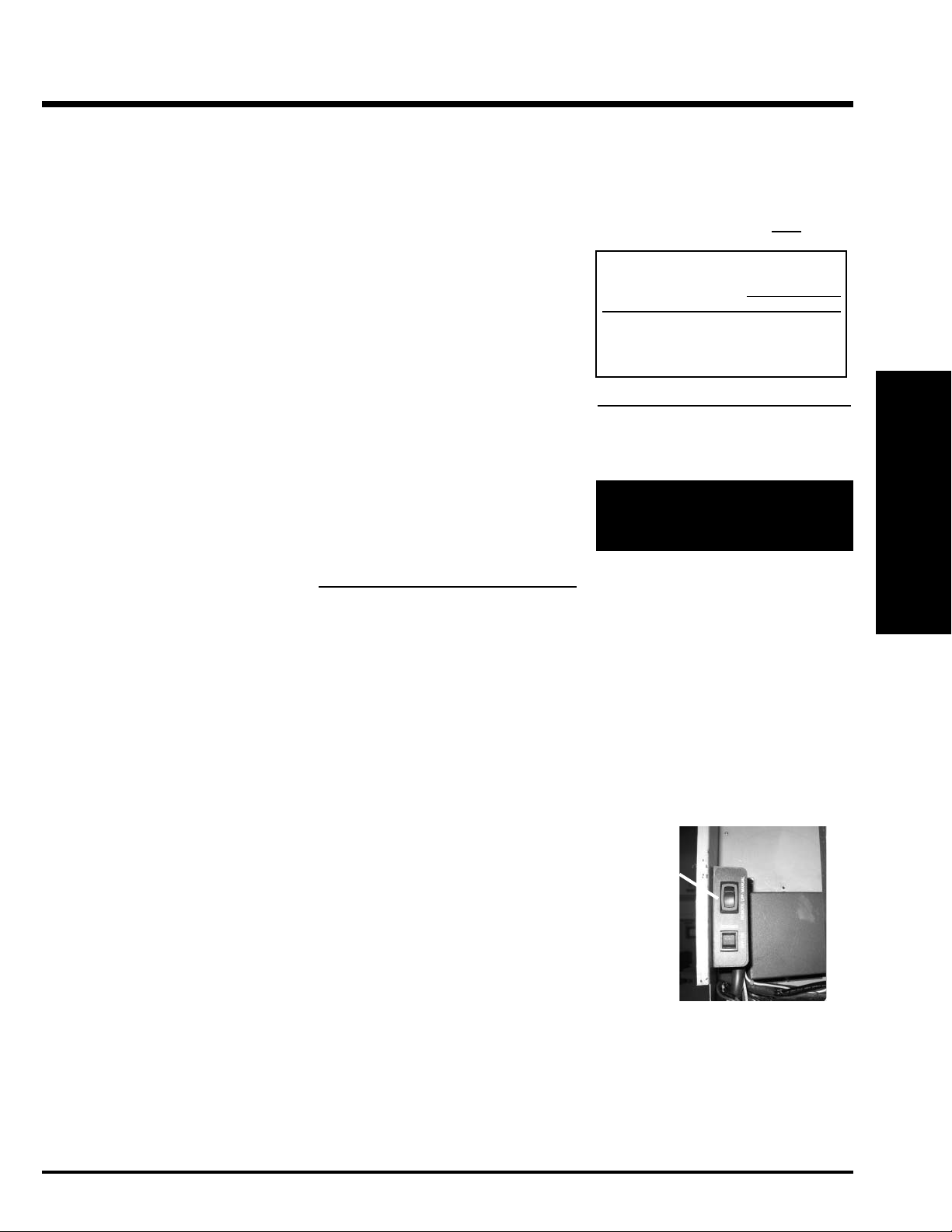

Manual Control Panel

3-way Switch

Rear Burner

Switch

Located on the left hand side of the

fi rebox behind the exterior brick panel.

When in "Remote" position;

In the event of a power failure, if the 3-way switch
is in the "Remote" position, the unit cannot be
operated with the Remote Control until after
power is restored.

To operate unit during a power failure;

NOTE: Both burners when on will operate at the

lowest fl ame setting. The BTU's for NG
will be 32,000 and 27,000 for LP.

Front Burner Operation:

1) Remove the left side exterior brick panel to
access to the Manual Control Panel.

2) To turn on the front burner, change the 3-way
switch to "Manual" position.

Rear Burner Operation:

1) Remove the left side exterior brick panel to
access to the Manual Control Panel.

2) To turn on the rear burner, change the Rear
Burner Switch to the "On" position. Changing
the switch to the "Off" postion will turn the
rear burner off.

Note: The rear burner will only operate if the

front burner is on.

When in "Manual" position;

In the event of a power failure, if the 3-way switch
is in the "Manual" position the front buner will
remain on at the lowest setting and will remain
on when power resumes. If the rear burner is
not in use, to operate see "Rear Burner Opera­tion" above.

Both burners when on will operate at the lowest
fl ame setting. The BTU's for NG will be 32,000
and 27,000 for LP.

When power resumes the unit will remain on at
the lowest setting until reset using the remote
control.

NOTE: When power is restored, reset the

3-way switch on the Manual Control
Panel to the "Remote" position to be
able to use the FireWizard
Control.

TM

Remote

40

Regency® L900 Direct Vent Gas Fireplace

OPERATING INSTRUCTIONS

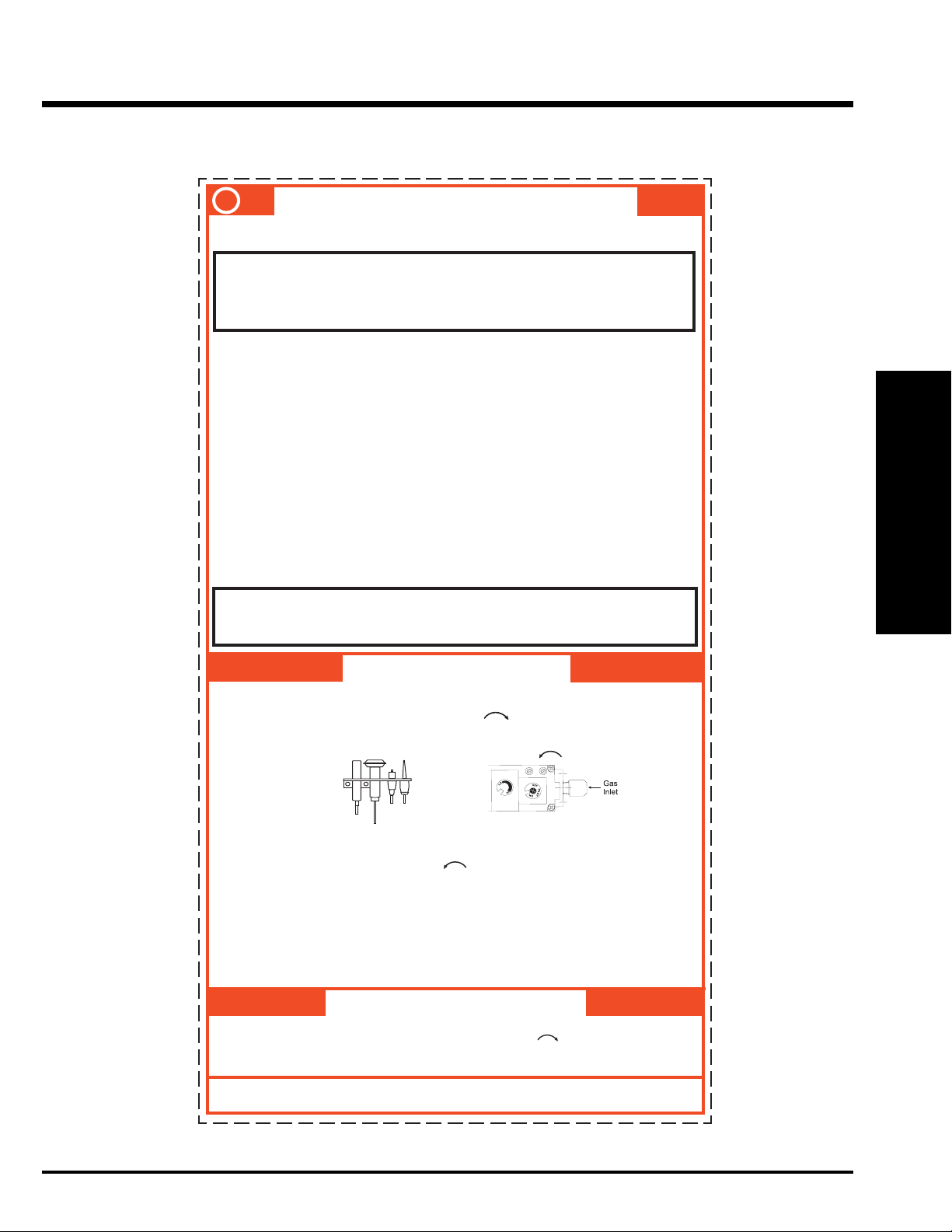

COPY OF LIGHTING PLATE INSTRUCTIONS

FOR YOUR SAFETY READ BEFORE LIGHTING

This appliance must be installed in accordance with local codes, if any; if none, follow the

National Fuel Gas Code, ANSI Z223.1/NFPA 54, or Natural Gas and Propane Installation Codes,

WARNING: If you do not follow these instructions exactly, a fire or explosion
may result causing property damage, personal injury or loss of life. Improper
installation, adjustment, alteration, service or maintenance can cause injury
or property damage. Refer to the owner’s information manual provided with
this appliance. For assistance or additional information consult a qualified
installer, service agency or gas supplier.

A) This appliance has a pilot which must be lighted by hand. When lighting the pilot, follow these

instructions exactly.

B) BEFORE LIGHTING smell all around the appliance area for gas. Be sure to smell next to the fl oor

because some gas is heavier than air and will settle on the fl oor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electric switch, do not use any phone in your building.

- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s
instructions.

- If you cannot reach your gas supplier, call the fi re department.

C) Use only your hand to push in or turn the gas control knob. Never use tools. If the knob will not

push in or turn by hand, don’t try to repair it, call a qualifi ed service technician. Forced or attempted
repair may result in a fi re or explosion.

D) Do not use this appliance if any part has been under water. Immediately call a qualifi ed service

technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.

E) This appliance needs fresh air for safe operation and must be installed so there are provisions for

adequate combustion and ventilation air.

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due
to high surface temperatures keep children, clothing and furniture, gasoline and
other liquids having fl ammable vapors away. Keep burner and control compartment
clean. See installation and operating instructions accompanying appliance.

CSA B149.1. (Australia: AS5601-2004, New Zealand: NZS 5261)

OPERATION

LIGHTING INSTRUCTIONS

STOP! Read the safety information above on this label.

1) Push in gas control knob slightly and turn clockwise to “OFF”. Knob cannot be turned from
“PILOT” to “OFF” unless knob is pushed in slightly. Do not force.

PILOT BURNER

VEILLEUSE

THERMOPILE

ELEMENT
THERMO­ELECTRIQUE

2) Wait fi ve (5) minutes to clear out any gas. If you then smell gas STOP! Follow step “B” in the Safety
Information above on this label. If you don’t smell gas, go to the next step.

3) Turn knob on gas control counterclockwise to“PILOT”.

4) Push in control knob all the way and hold in until the pilot lights up. Continue to hold the control
knob in for about 20 seconds after the pilot is lit. Release knob and it will pop back up. Pilot should
remain lit. If it goes out, repeat steps 1) to 4). If knob does not pop up when released, stop and
immediately call your service technician or gas supplier. If the pilot will not stay lit after several tries,
turn the gas control knob to “OFF” and call your service technician or gas supplier.

5) Turn gas control knob counterclock-wise to “ON”.

6) Turn the unit on.

OFF

TO TURN OFF GAS APPLIANCE

1) Turn off the unit.

2) Push in the gas control knob slightly and turn clockwise to “OFF”. Do not force.

3) Turn off all electric power to the appliance if service is to be performed.

You may shut off the pilot during prolonged non use periods to conserve fuel.

DO NOT REMOVE THIS INSTRUCTION PLATE

918-583

Regency® L900 Direct Vent Gas Fireplace 41

MAINTENANCE

MAINTENANCE

INSTRUCTIONS

1) Always turn off the gas valve before cleaning.

For relighting, refer to lighting instructions.
Keep the burner and control compartment
clean by brushing and vacuuming at least
once a year. When cleaning the logs, use a
soft clean paint brush as the logs are fragile
and easily damaged.

2) Clean appliance and door with a damp

cloth (never when unit is hot). Never use
an abrasive cleaner. The glass should be
cleaned with a gas fi replace glass cleaner.

The glass should be cleaned when it
starts looking cloudy.

3) The heater is fi nished in a heat resistant

paint and should only be refi nished with heat
resistant paint. Regency® uses StoveBright
Paint - Metallic Black #6309.

4) Make a periodic check of burner for proper

position and condition. Visually check the
fl ame of the burner periodically, making sure
the fl ames are steady; not lifting or fl oating.
If there is a problem, call a qualifi ed service
person.

5) The appliance and venting system must be

inspected before use, and at least annually,
by a qualifi ed fi eld service person, to ensure
that the fl ow of combustion and ventilation
air is not obstructed.

Note: Never operate the appliance without

the glass properly secured in place.

6) Do not use this appliance if any part has been

under water. Immediately call a qualifi ed
service technician to inspect the appliance
and to replace nay part of the control system
and any gas control which has been under
water.

MAINTENANCE

7) In the event this appliance has been

serviced check that the vent-air system
has been properly resealed & reinstalled
in accordance with the manufacturer's
instructions.

8) Verify operation after servicing.

These components should be replaced
immediately.

2) Remove the Cap, and shine a fl ashlight

down the Vent. Remove any bird nests, or
other foreign material.

3) Check for evidences of excessive

condensation, such as water droplets forming
in the inner liner, and subsequently dripping
out the joints, Continuous condensation can
cause corrosion of caps, pipe, and fi ttings.
It may be caused by having excessive
lateral runs, too many elbows, and exterior
portions of the system being exposed to
cold weather.

4) Inspect joints, to verify that no pipe

sections or fi ttings have been disturbed,
and consequently loosened. Also check
mechanical supports such as Wall Straps,
or plumbers' tape for rigidity.

LOG REPLACEMENT

The unit should never be used with broken logs.
Turn off the gas valve and allow the unit to cool
before opening door and carefully remove the
logs. (The pilot light generates enough heat to
burn someone.) If for any reason a log should
need replacement, you must use the proper
replacement log. The position of these logs
must be as shown in the diagrams under Log
Installation.

Note: Improper positioning of logs may

create carbon build-up and will
severely alter the unit's performance
which is not covered under
warranty.

THERMOPILE /

THERMOCOUPLE

1) Remove the valve tray by following the

procedures from "Valve Tray Replacement"
section.

2) Disconnect thermocouple by loosening

nut from the valve with a 9mm wrench.
Disconnect thermopile by loosening 2
screws marked TP on the valve.

GLASS GASKET

If the glass gasket requires replacement use a
tadpole glass gasket (Part # 936-155).

DOOR GLASS

Your Regency® fi replace is supplied with high
temperature 5mm-Ceramic glass. If your glass
requires cleaning, we recommend using an
approved glass cleaner available at all authorized
dealers. Do not use abrasive materials.

CAUTION & WARNINGS:

* Do not clean when the glass is hot.
* The use of substitute glass will void all product

warranties.

* Care must be taken to avoid breakage of the

glass.
* Do not strike or abuse the glass.
* Do not operate this fi replace without the

glass front or with a cracked or broken glass

front.
* Wear gloves when removing damaged or

broken glass.
* Replacement of the glass panel(s) should be

done by a licensed or qualifi ed service per

son.

GLASS REPLACEMENT

In the event that you break your glass by impact,
purchase your replacement from an authorized
Regency® dealer only.

Replacement glass is shipped already installed
into the door frame.

CAUTION: Wear gloves when
removing damaged or broken
glass.

WARNING: Do not operate the
appliance with the glass panels
removed, cracked or broken.
Replacement of the glass panels
should be done by a licensed or
qualifi ed service person.

GENERAL VENT

MAINTENANCE

Conduct an inspection of the venting system
semiannually. Recommended areas to inspect
as follows:

1) Check the Venting System for corrosion in

areas that are exposed to the elements.
These will appear as rust spots or
streaks, and in extreme cases, holes.

42

3) Remove 2 screws from the pilot assembly

and pull up far enough to be able to loosen
the thermocouple or thermopile with a 7/16"
wrench. NOTE: the pilot line is very fragile,
use caution when pulling it up.

4) Drop the thermocouple or thermopile down

through the extrusion and pull it out of the
unit.

5) Reinstall the new ones in reverse order.

Regency® L900 Direct Vent Gas Fireplace

BACK-UP BATTERY REPLACEMENT

(within Power Module)

MAINTENANCE

1) Remove the exterior brick panels.

2) Remove the glass door.

a. Release the 2 door latches on the left

and right side at the top of the fi rebox.

Latch Location

Latch

3) Loosen the 2 screws that hold the left side

heat shield in place.

Heat
Shield

4) Lift up and pull out the heat shield slightly

to clear the screwheads and then hang it
on the top bracket (located directly above
the heat shield).

Bracket

7) Pull out the power module.

8) Remove the power module cover by

removing the 2 screws, one on each side.

Power Module

9) Replace the 9V battery and the AA battery.

NOTE: The 9V battery operates the rear burner

under power outage conditions.

The AA battery operates the DC

Sparker for lighting the pilot.

b. Swing the door out from the top and release

the hinges on the left and right side of the
door by lifting them up.

Door

c. Place the door on a soft surface to prevent

scratching.

Hinge

5) Unplug the power source.

6) Loosen the bottom screw and remove the

Heat
Shield

top screw from the power module.

MAINTENANCE

10) Reverse steps to re-install.

Power
Module

Regency® L900 Direct Vent Gas Fireplace 43

MAINTENANCE

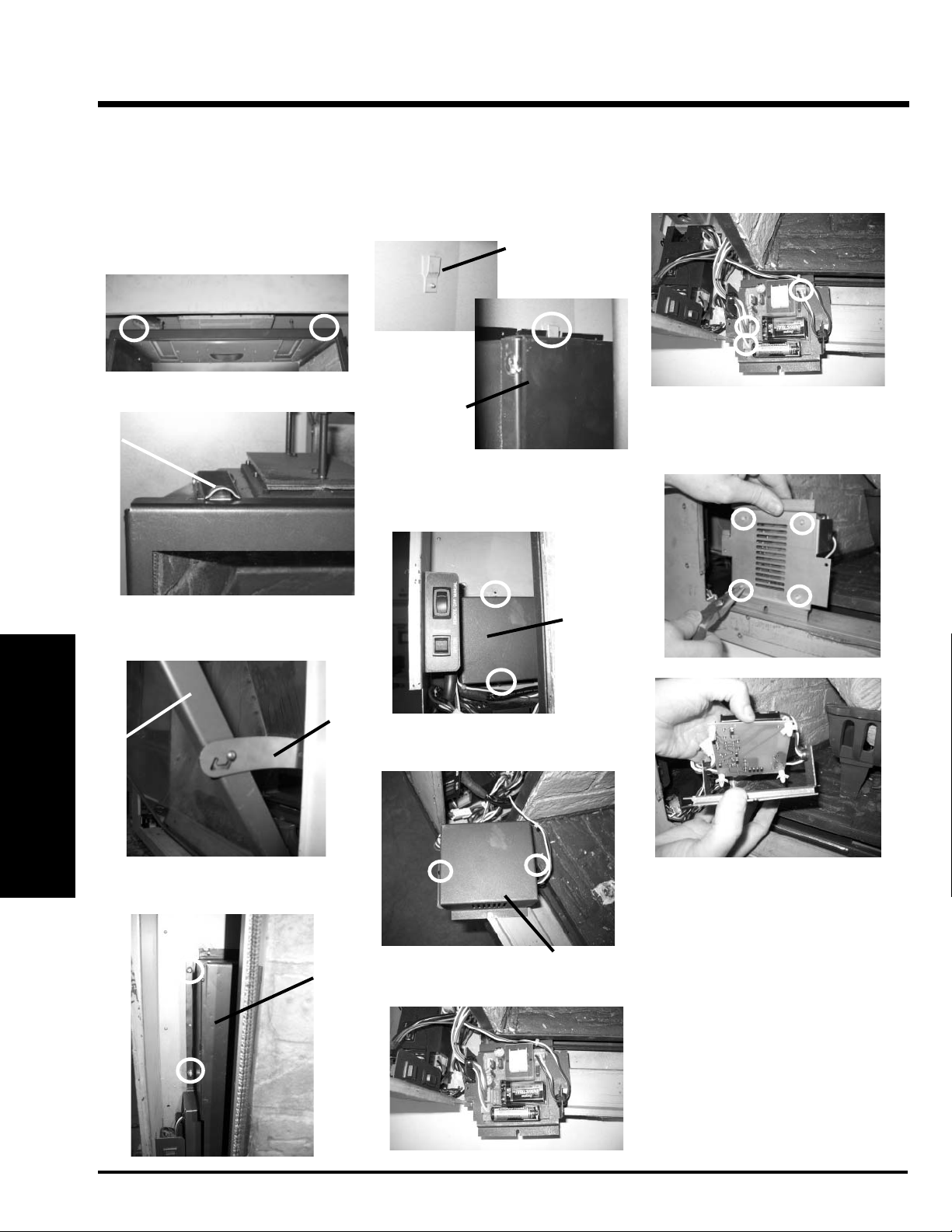

POWER MODULE REPLACEMENT

1) Remove the exterior brick panels.

2) Remove the glass door.

a. Release the 2 door latches on the left

and right side at the top of the fi rebox.

Latch Location

Latch

b. Swing the door out from the top and release

the hinges on the left and right side of the
door by lifting them up.

4) Lift up and pull out the heat shield slightly

to clear the screwheads and then hang it
on the top bracket (located directly above
the heat shield).

Bracket

Heat
Shield

5) Unplug the power source.

6 ) Remove the top screw and loosen the

bottom screw that hold the power module
in place.

Power
Module

8) Remove the 3 connectors from the circuit

board.

9) Remove the circuit board from the support

bracket by turning it around and pushing
the plastic pins with a plier.

Door

MAINTENANCE

3) Loosen the 2 screws that hold the left side

heat shield in place.

Hinge

Heat
Shield

7) Remove the power module cover by

removing the 2 screws, one on each side.

Circuit Board Removed

10) Replace the circuit board.

11) Reverse steps to re-install.

Power Module

Power Module with Cover Removed

44

Regency® L900 Direct Vent Gas Fireplace

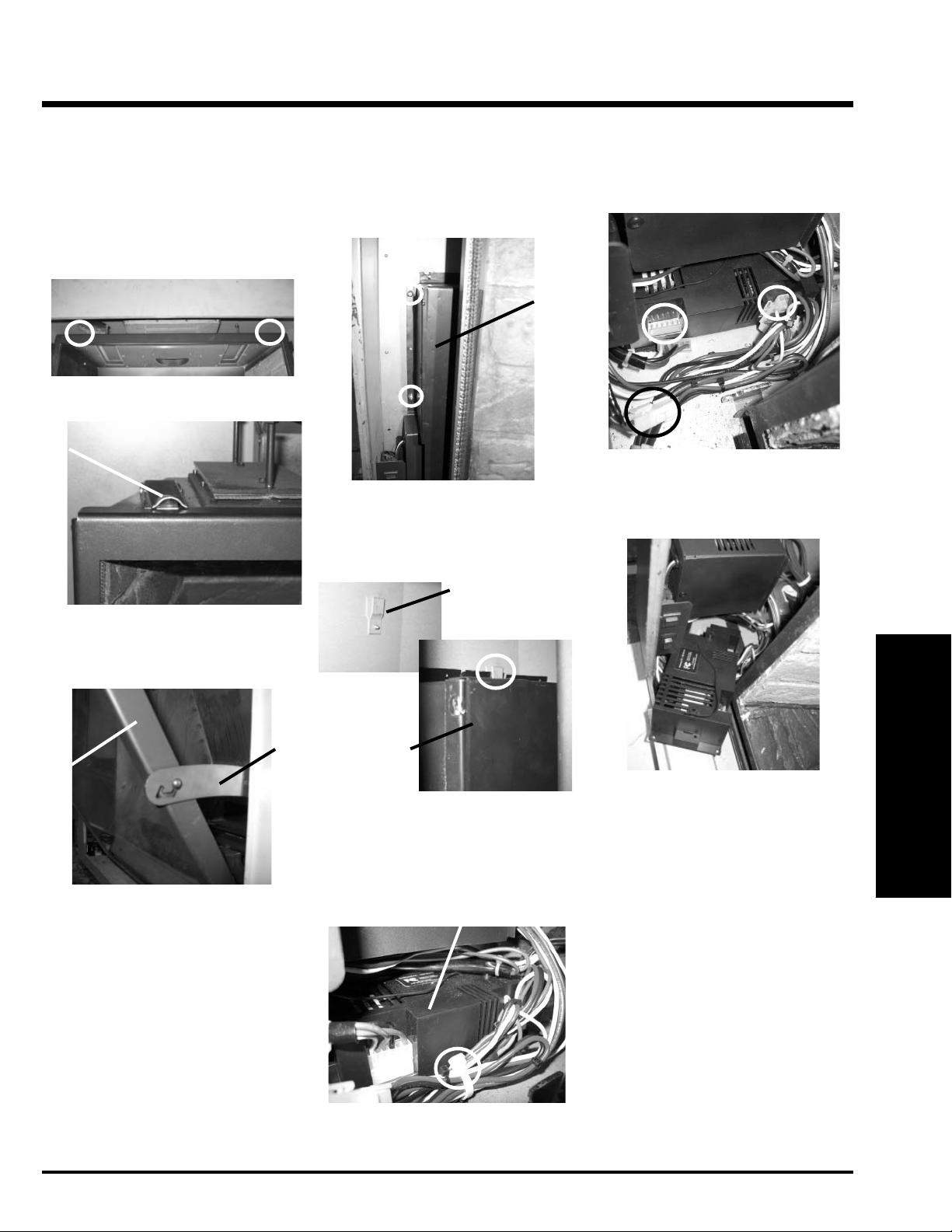

CONTROL MODULE REPLACEMENT

MAINTENANCE

1) Remove the exterior brick panels.

2) Remove the glass door.

a. Release the 2 door latches on the left

and right side at the top of the fi rebox.

Latch Location

Latch

3) Loosen the 2 screws that hold the left side

heat shield in place.

Heat
Shield

4) Lift up and pull out the heat shield slightly

to clear the screwheads and then hang it
on the top bracket (located directly above
the heat shield).

Bracket

7) Disconnect the 3 connectors from the

control module.

8) Pull out the control module.

NOTE: The control module is held in place

with velcro.

b. Swing the door out from the top and release

the hinges on the left and right side of the
door by lifting them up.

Door

c. Place the door on a soft surface to prevent

scratching.

Hinge

5) Unplug the power source.

6) Cut the cable tie that is holds the wires

Heat
Shield

connected to the control module.

Control Module

MAINTENANCE

9) Replace the control module

10) Reverse steps to re-install.

Regency® L900 Direct Vent Gas Fireplace 45

MAINTENANCE

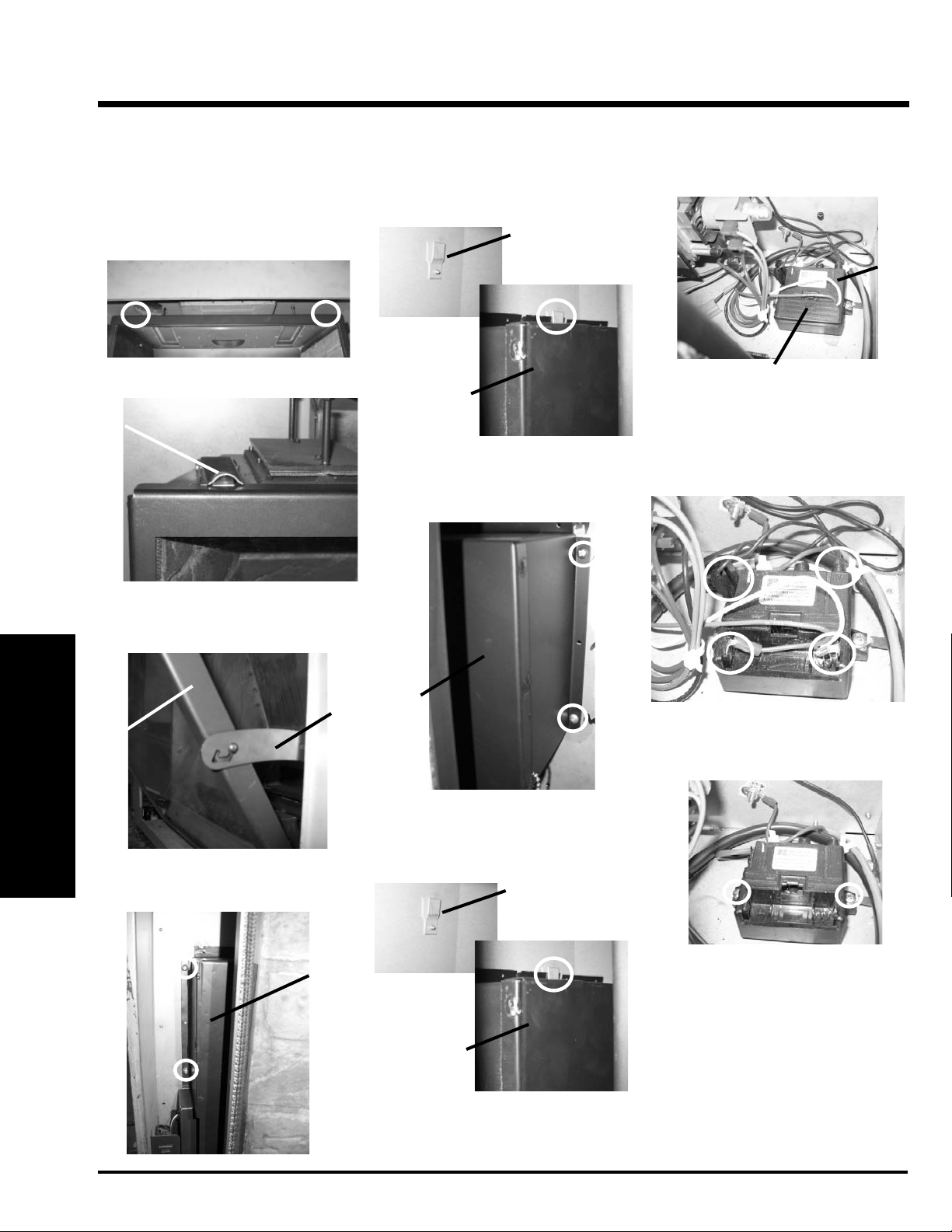

DC SPARKER REPLACEMENT

1) Remove the exterior brick panels.

2) Remove the glass door.

a. Release the 2 door latches on the left

and right side at the top of the fi rebox.

4) Lift up and pull out the heat shield slightly

to clear the screwheads and then hang it
on the top bracket (located directly above
the heat shield).

Bracket

8) Remove the battery cover from the DC

Sparker Box.

Latch Location

Latch

b. Swing the door out from the top and release

the hinges on the left and right side of the
door by lifting them up.

Door

MAINTENANCE

3) Loosen the 2 screws that hold the left side

heat shield in place.

Heat
Shield

5) Unplug the power source.

6) Loosen the 2 screws that hold the right

side heat shield.

Heat

Hinge

Shield

7) Lift up and pull out the heat shield slightly to

clear the head screws and then hang it on
the top bracket (located directly above the
heat shield).

Bracket

Battery Cover

9) Disconnect all the wires and connectors

from the DC sparker.

10) Remove the 2 screws that hold the DC

sparker.

46

Heat
Shield

11) Replace the DC sparker.

12) Reverse steps to re-install.

Heat
Shield

Regency® L900 Direct Vent Gas Fireplace

VALVE TRAY REPLACEMENT

MAINTENANCE

1) Remove the exterior brick panels.

2) Remove the glass door.

a. Release the 2 door latches on the left

and right side at the top of the fi rebox.

Latch Location

Latch

3) Loosen the 2 screws that hold the left side

heat shield in place.

Heat
Shield

4) Lift up and pull out the heat shield slightly

to clear the screwheads and then hang it
on the top bracket (located directly above
the heat shield).

Bracket

9) Remove the front burner by removing the
screw.

Front Burner

Front Burner Removed

b. Swing the door out from the top and release

the hinges on the left and right side of the
door by lifting them up.

Door

c. Place the door on a soft surface to prevent

scratching.

Hinge

Heat
Shield

5) Unplug the power source.

6) Remove the log set.

7) Remove the interior brick panels.

8) Remove the grate by undoing the 2 screws

on the right and left side.

10) Remove the back burner by removing the
screw.

MAINTENANCE

Back Burner

11) Remove the rear log stand by removing
the 4 screws.

Rear Log Stand

Grate

Regency® L900 Direct Vent Gas Fireplace 47

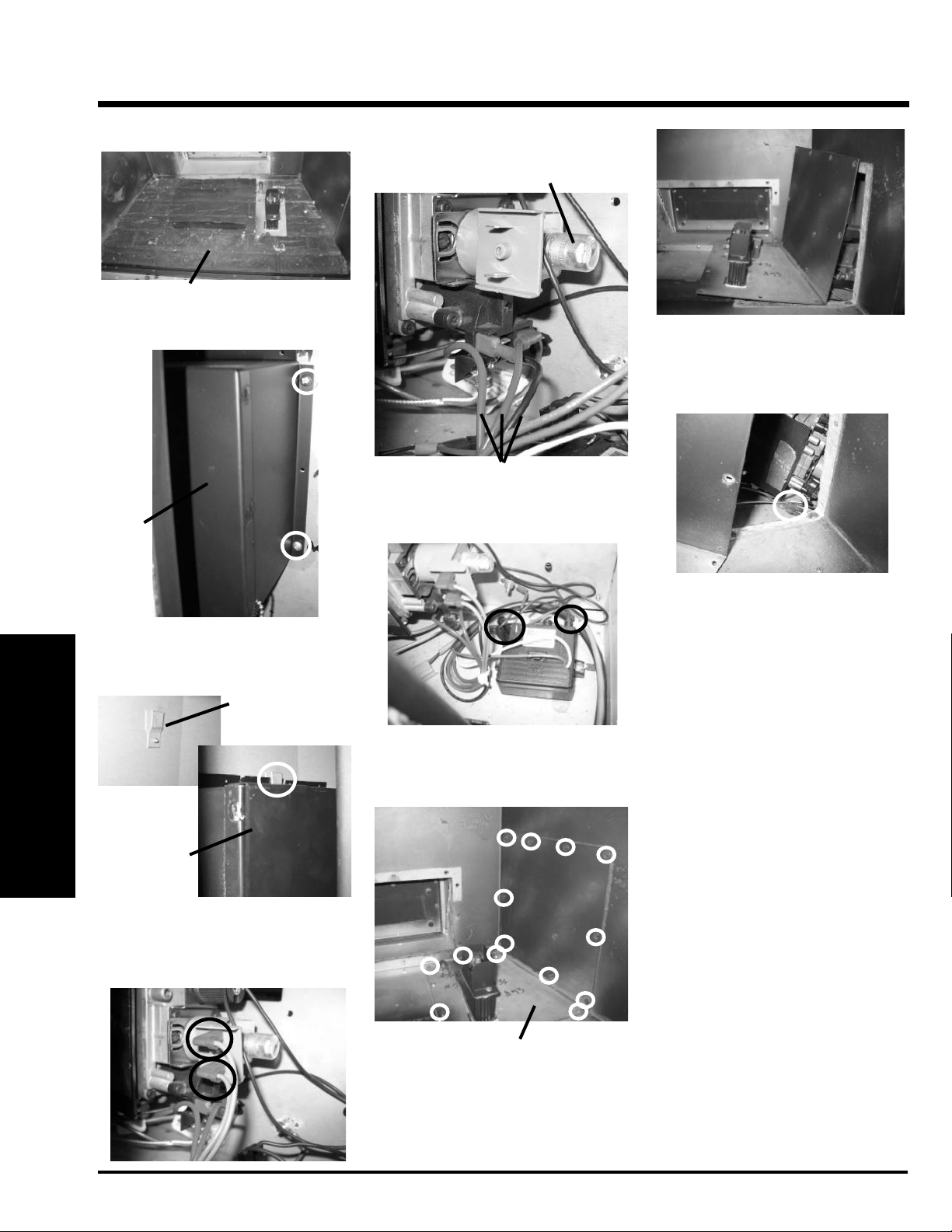

MAINTENANCE

12) Carefully remove the bottom brick panel.

Bottom Brick Panel

13) Loosen the 2 screws that hold the right

side heat shield.

Heat
Shield

17) Disconnect the 2 red wires and 1 black
wire from the valve.

Modulating Coil

Valve Tray Slightly Removed

19) Disconnect the black and red wires from
the solenoid valve.

Wires

18) Remove the DC Sparker wires; 1 wire for

the ignitor and 2 wires to the module box.

14) Lift up and pull out the heat shield slightly

to clear the head screws and then hang it
on the top bracket (located directly above
the heat shield).

Bracket

MAINTENANCE

Heat
Shield

15) Disconnect the inlet gas line from the
valve.

16) Disconnect the 2 connectors from the
modulating coil.

18) Remove the 16 screws that hold the valve

tray to the fi rebox and slightly pull out the
valve tray.

Valve Tray

20) Completely pull out the valve tray.

21) Replace the valve tray and reverse steps

to re-install.

22) Turn on the gas supply and check for gas

leaks.

23) Plug in the power source.

24) Re-install the left heat shield.

25) Re-install the grate.

26) Re-install the interior brick panels.

27) Re-install the log set.

28) Re-install the glass door.

29) Check the inlet and outlet pressures.

30) Re-install the right heat shield.

31) Check operation of fl ame control.

32) Check for proper fl ame appearance.

33) Re-install the exterior brick panels.

48

Regency® L900 Direct Vent Gas Fireplace

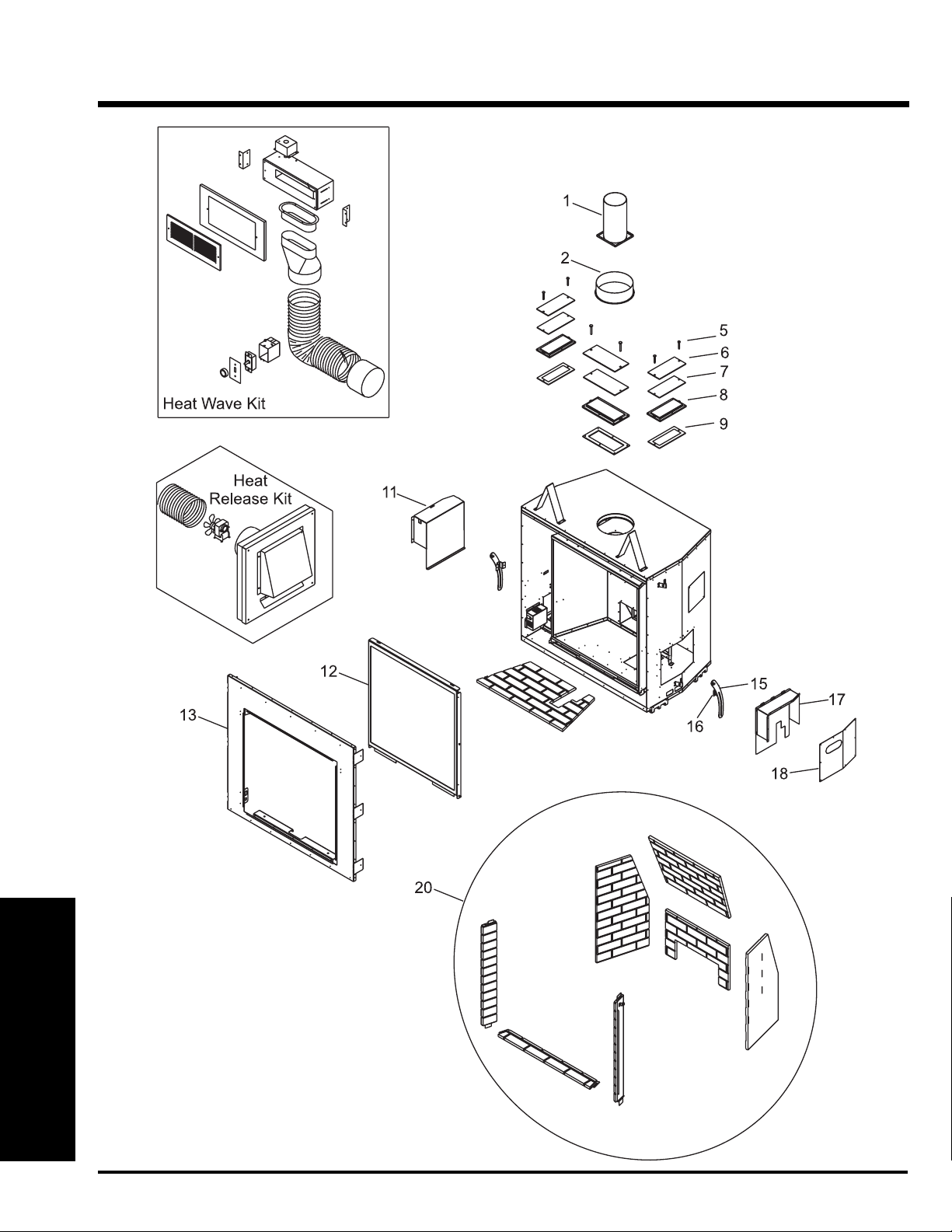

MAIN ASSEMBLY

Part # Description

1) 521-527 Flue Collar Inner Assembly

2) 502-008 Flue Collar Outer

5) 904-751 Capscrew 1/4 x 4-1/2

6) W260280 Gasket Top Relief Plate

7) 770-066F Top Relief Plate

8) 942-117 Top Relief Frame

9) W260260 Top Relief Frame Gasket

11) 546-064 Heat Shield ECS

12) 546-540 Door Frame Assembly with Glass
940-354/P Glass

13) 546-013 One Piece Faceplate

15) 521-021F Control Arm

16) 521-019 Bracket Control Arm

17) 546-070 Heat Shield Valve

18) 521-024 Gas Line Screen Plate

20) 546-901 Brick Panel Set - Standard Brown
546-902 Brick Panel Set - Standard Red

PARTS LIST

* Left Side Panel (Interior)
* Top Panel (Interior)
* Back Panel (Interior)
* Right Side Panel (Interior)

* Right Side Panel (Exterior)
* Base Panel (Exterior)
* Left Side Panel (Exterior)

946-556 Heat Wave Kit
946-570 Heat Release Kit

546-969 LP Converison Kit

918-610 Manual

* Not available as a replacement part.

PARTS LIST

Regency® L900 Direct Vent Gas Fireplace 49

PARTS LIST

PARTS LIST

50

Regency® L900 Direct Vent Gas Fireplace

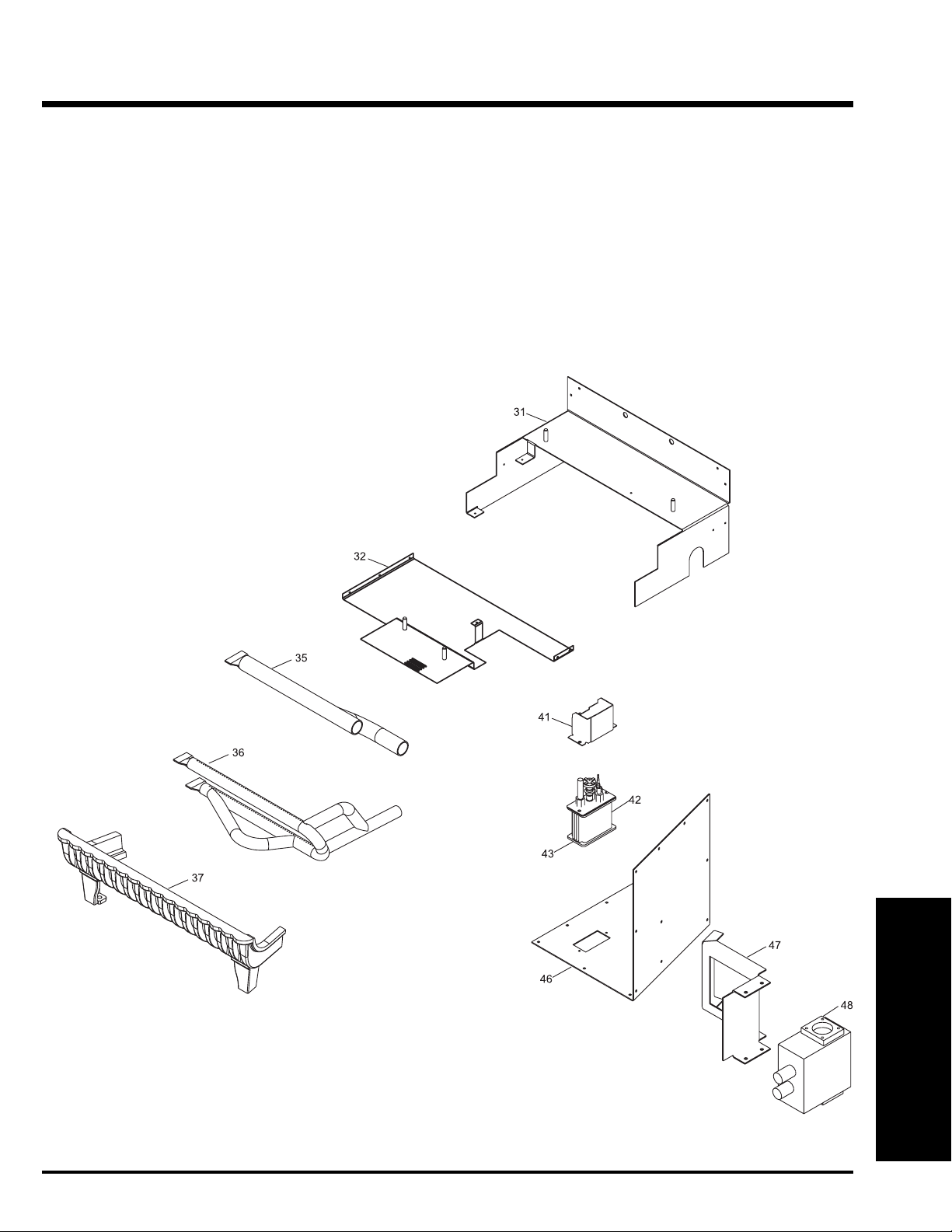

BURNER & LOG ASSEMBLY

PARTS LIST

Part # Description

30) 521-015 Bracket Log Tray

31) 546-016 Log Tray

32) 546-042 Defl ector Log Tray

35) 948-459 Burner Rear NG/LP

36) 948-458 Burner Front NG/LP

37) 546-050 Grate

41) 502-061 Pilot Shield

42) 380-013 Pilot Holder

43) W840470 Gasket Pilot Assembly

46) 521-007 Valve Tray

47) 546-025 Valve Bracket

48) 910-460 Valve NG 825 SIT Electric
910-461 Valve LP 825 SIT Electric

546-574/P Valve Assembly - NG
546-576/P Valve Assembly - LP

910-008 Pilot Assembly - NG
910-009 Pilot Assembly - LP
904-617 NG - Orifi ce #30
904-622 NG - Orifi ce #47
904-241 LP - Orifi ce #56
904-641 LP - Orifi ce #50

Part # Description

910-937 Valve Solenoid

910-929 Control Module
910-931 Power Module

910-930 FireWizardTM Remote Control
918-582 Manual FireWizardTM

Regency® L900 Direct Vent Gas Fireplace 51

PARTS LIST

NOTES

52

Regency® L900 Direct Vent Gas Fireplace

NOTES

Regency® L900 Direct Vent Gas Fireplace 53

NOTES

54

Regency® L900 Direct Vent Gas Fireplace

WARRANTY

Regency® Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit
thoroughly before it leaves our facility. FPI Fireplace Products International Ltd. is pleased to extend this limited lifetime warranty to the original purchaser of a
Regency® Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs, brick panels and gold plating (against defective manufacture only) are covered under the Limited Lifetime
Warranty for fi ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for fi ve (5) years and parts only thereafter from date of purchase.

External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and subsidized labour* for three (3) years from the date
of purchase and parts only thereafter.

Special Finishes - One year on brushed nickel and antique copper full screens and doors. You can expect some changes in color as the product "ages" with constant heating
and cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks,
ie. fi nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, FPI remote controls, spill switches, thermopiles, thermocouples, pilot assembly components,
and gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and
continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.

FPI venting components are covered parts and subsidized labour* for three (3) years from date of purchase.

Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty.

Repair/replacement parts purchased by the consumer from FPI after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any
item shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at FPI's option, through an accredited distributor or agent provided
that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

Porcelain/Enamel - Absolute perfection is either guaranteed nor commercially possible. Any chips must be reported and inspected by an authorized dealer within three days of
installation. Reported damage after this time will be subject to rejection.

It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated
for manufacturer defect.

The authorized selling dealer is responsible for all in-fi eld service work carried out on your Regency
unauthorized service persons or dealers.

At all times FPI reserves the right to inspect product in the fi eld which is claimed to be defective.

All claims must be submitted to FPI by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name,
purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim.

At no time will FPI be liable for any consequential damages which exceed the purchase price of the unit. FPI has no obligation to enhance or modify any unit once manufactured.
ie. as products evolve, fi eld modifi cations or upgrades will not be performed.

FPI will not be liable for travel costs for service work.

Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy.

Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy.

Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy.

The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence
or accident, spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical
systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer.

FPI will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from FPI, may nullify your warranty
on this product.

Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of FPI.

* Subsidy according to job scale as predetermined by FPI.

®

product. FPI will not be liable for results or costs of workmanship from

Regency® L900 Direct Vent Gas Fireplace 55

FPI fi replaces are designed with reliability and simplicity
in mind. In addition, our internal Quality Assurance Team
carefully inspects each unit thoroughly before it leaves
our door.

FPI Fireplace Products International Ltd. is pleased to extend
this Limited Lifetime Warranty to the original purchaser of
a FPI Product.

See the inside back cover for details.

Register your Regency® online at

http://www.regency-fi re.com

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________

___________________________________________________________________

Installer: ___________________________________________________________

Phone #: ___________________________________________________________

Date Installed: ______________________________________________________

Serial No.: __________________________________________________________

Regency, Liberty, AstroCap, HeatWave, Heat Release and FireWizard are trademarks of FPI Fireplace Products International Ltd.

© Copyright 2007, FPI Fireplace Products International Ltd. All rights reserved.

56

Regency® L900 Direct Vent Gas Fireplace

Printed in Canada
