Regency IG34 Owners & Installation

Download

Page 1

Owners & Installation

IG34 GAS INBUILT

Manual

LISTINGS AND CODE APPROVALS

These gas appliances have been tested in accordance with AS4553, NZS 5262 and

have been certied by the Australian Gas

Association for installation and operation as described in these Installation and Operating

Instructions.

Your unit should be serviced annually by an authorised service person.

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE

REFERENCE

WARNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to this manual. For assistance or additional information consult an authorised installer, service agency or the gas supplier.

FOR YOUR SAFETY Do not store or use gasoline or other ammable vapours and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by an authorised installer, service agency or the gas supplier.

Models: IG34-NG IG34-LPG IG34-ULPG

FOR YOUR SAFETY What to do if you smell gas: Do not try to light any appli-

ance

Do not touch any electri-

cal switch: do not use any phone in your building.

Immediately call your gas

supplier from a neighbour's phone. Follow the gas supplier's instructions.

If you cannot reach your

gas supplier, call the re

department.

918-793d

04.08.15

Page 2

REGENCY

GAS INBUILT FIREPLACE

TO THE NEW OWNER

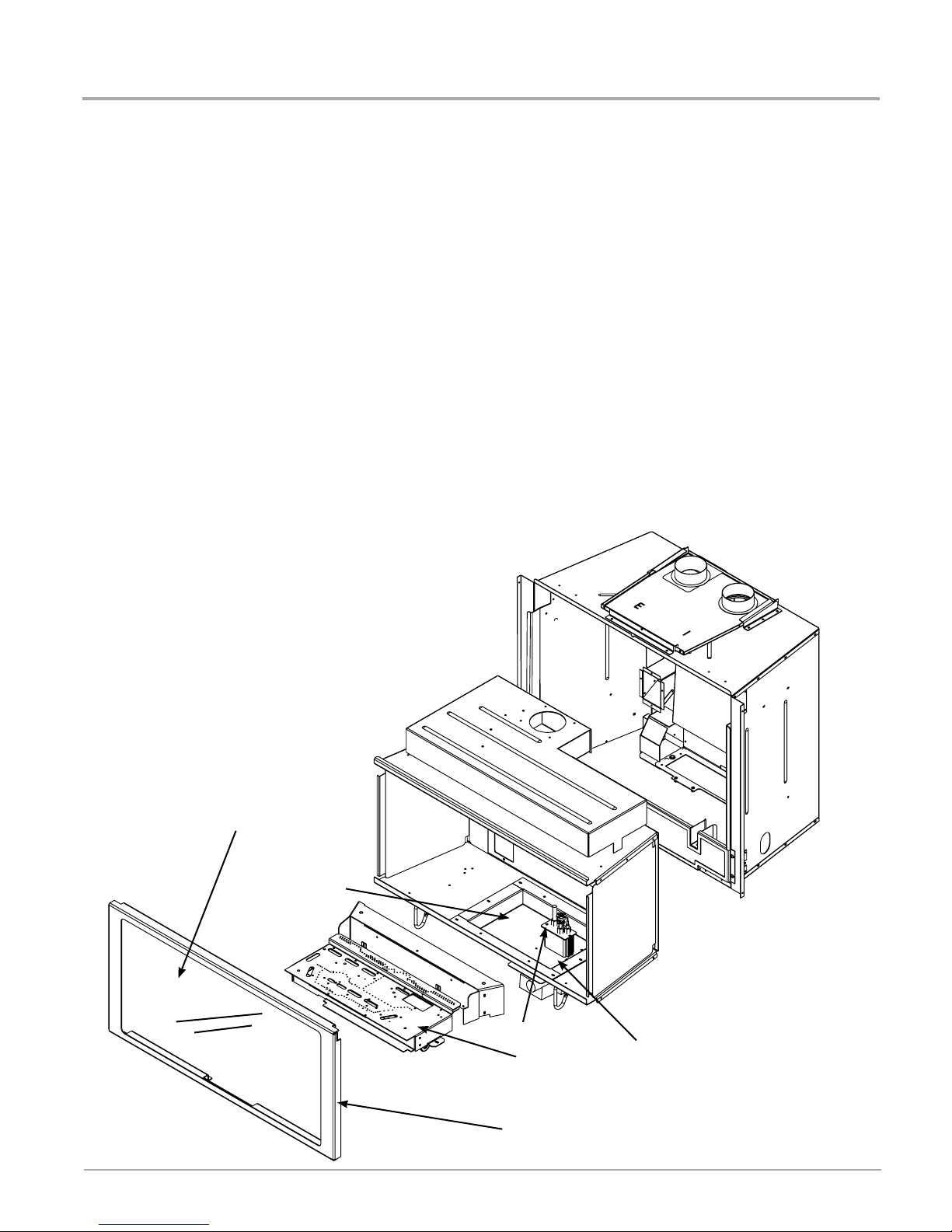

Congratulations! You are the owner of a state-of-the-art Gas Inbuilt Fireplace by FPI. The Regency Gas Fireplace Series of appliances has been designed to provide you with all the warmth and charm of a replace, at the ick of a switch. The model IG34 of this series has been approved by Australian Gas Association for both safety and efciency. As it also bears our own mark, it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these instructions and the many features of your Regency Fireplace.

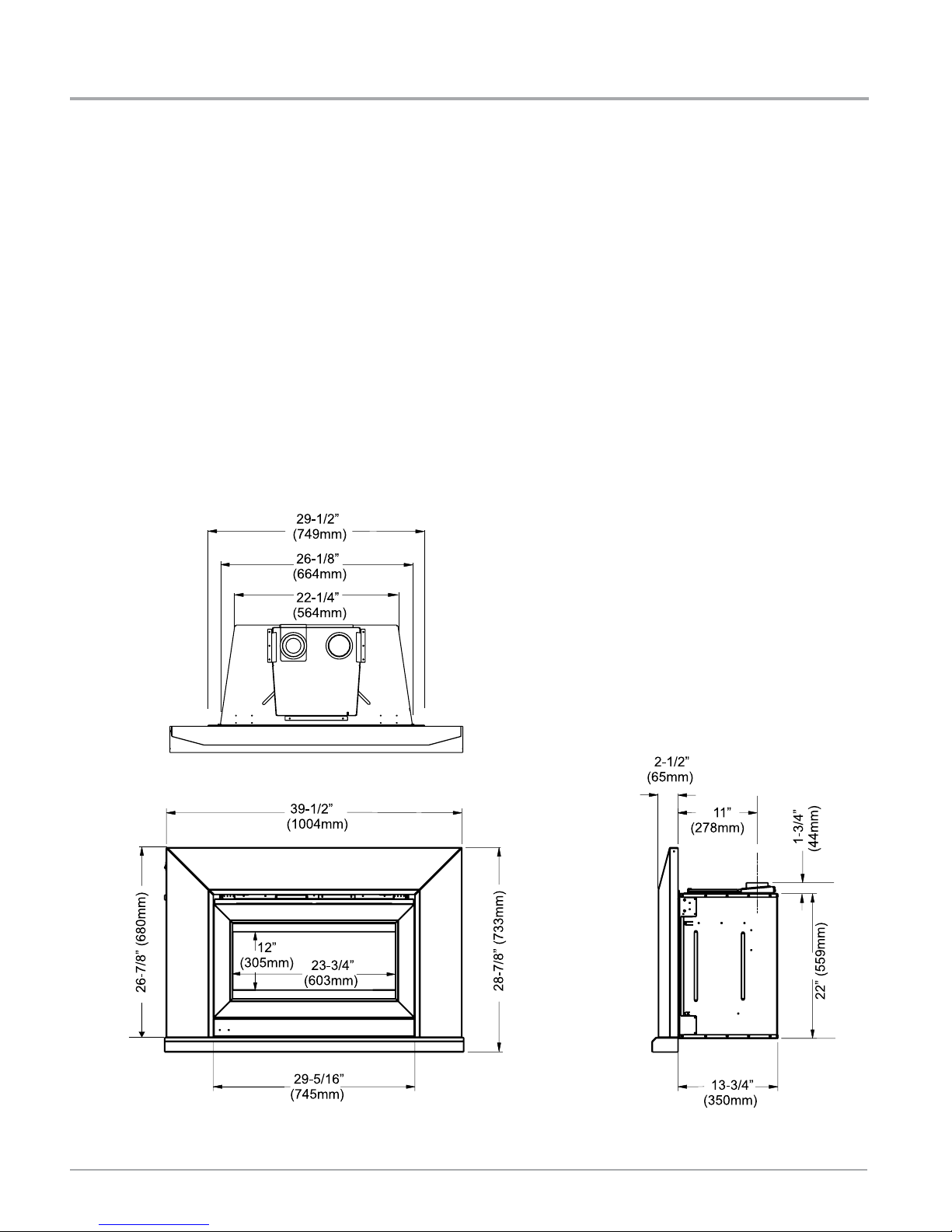

UNIT DIMENSIONS

Regency IG34 Gas Inbuilt Fireplace

Page 3

TABLE OF CONTENTS

DATA BADGE

Copy of Data Badge .....................................................4

INSTALLATION

Important Message ........................................................5

For Your Safety .............................................................. 5

Before You Start ............................................................5

Installation Checklist ......................................................5

Materials Required ........................................................5

Minimum Fireplace Dimensions ....................................6

Clearances To Combustibles ......................................... 6

Gas Connection ............................................................6

Flueing ...........................................................................6

Flue Liner Installation ....................................................7

Gas Pipe Pressure Testing ............................................ 7

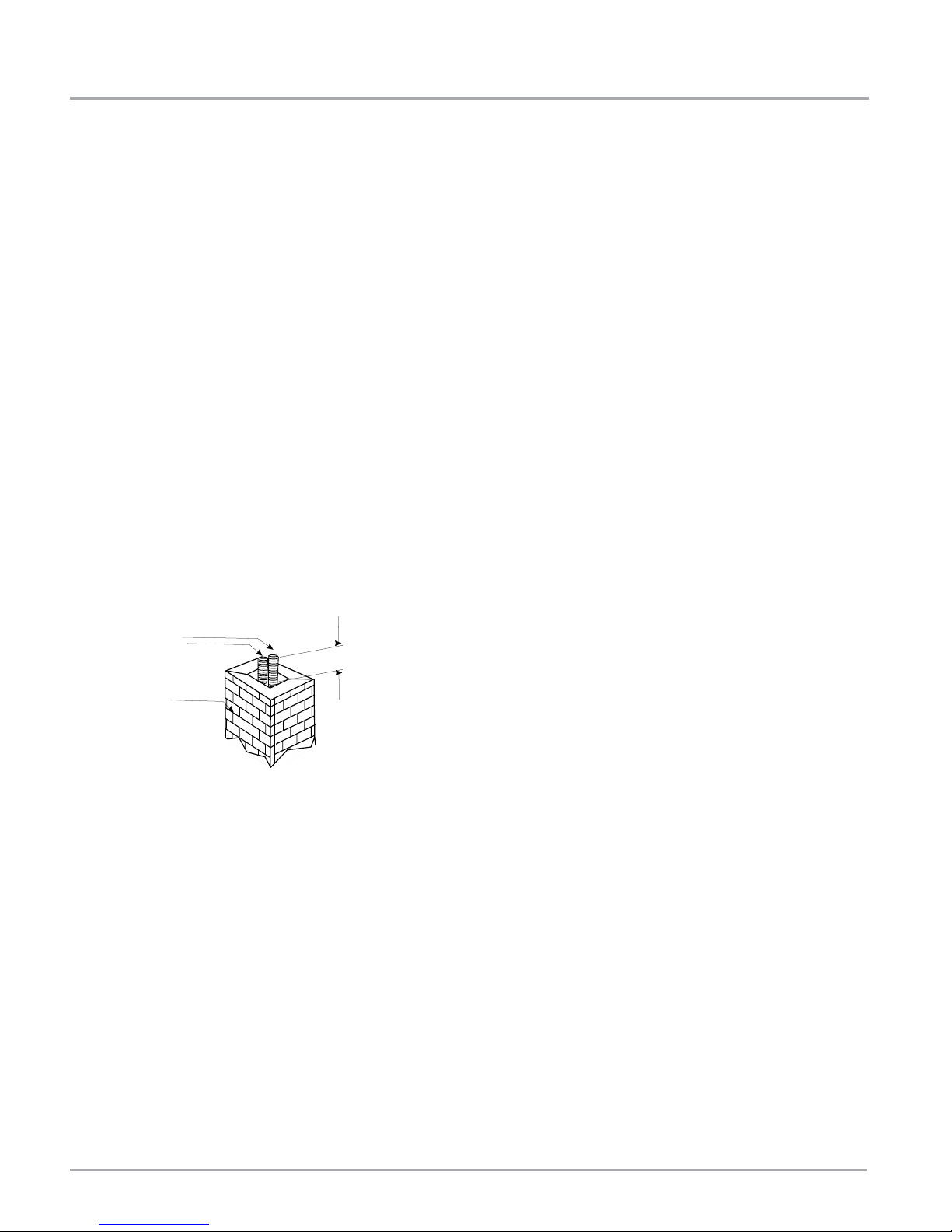

Installation in masonry or zero clearance chimney........8

Aeration Settings ...........................................................9

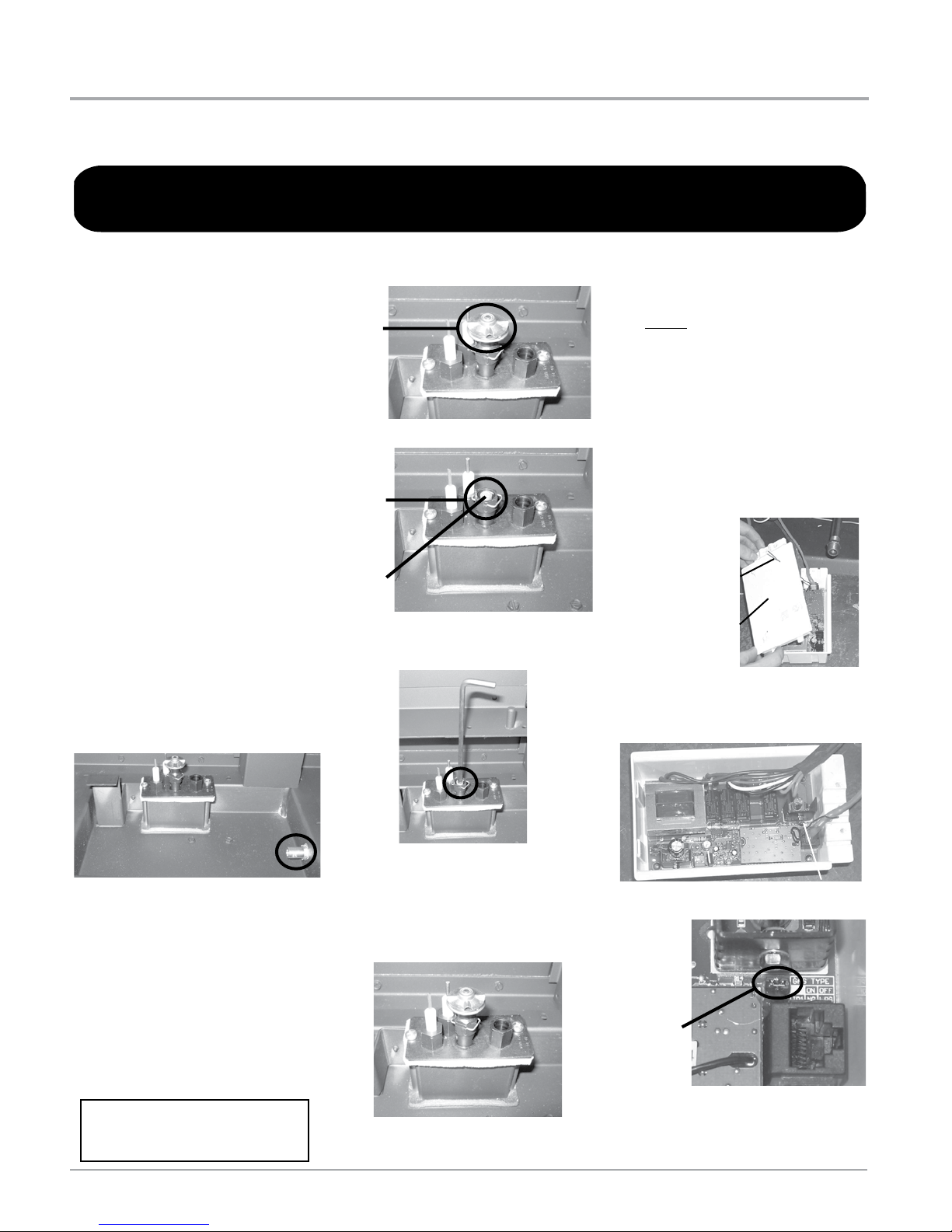

Conversion from NG to LPG........................................10

Conversion from NG to ULPG .....................................12

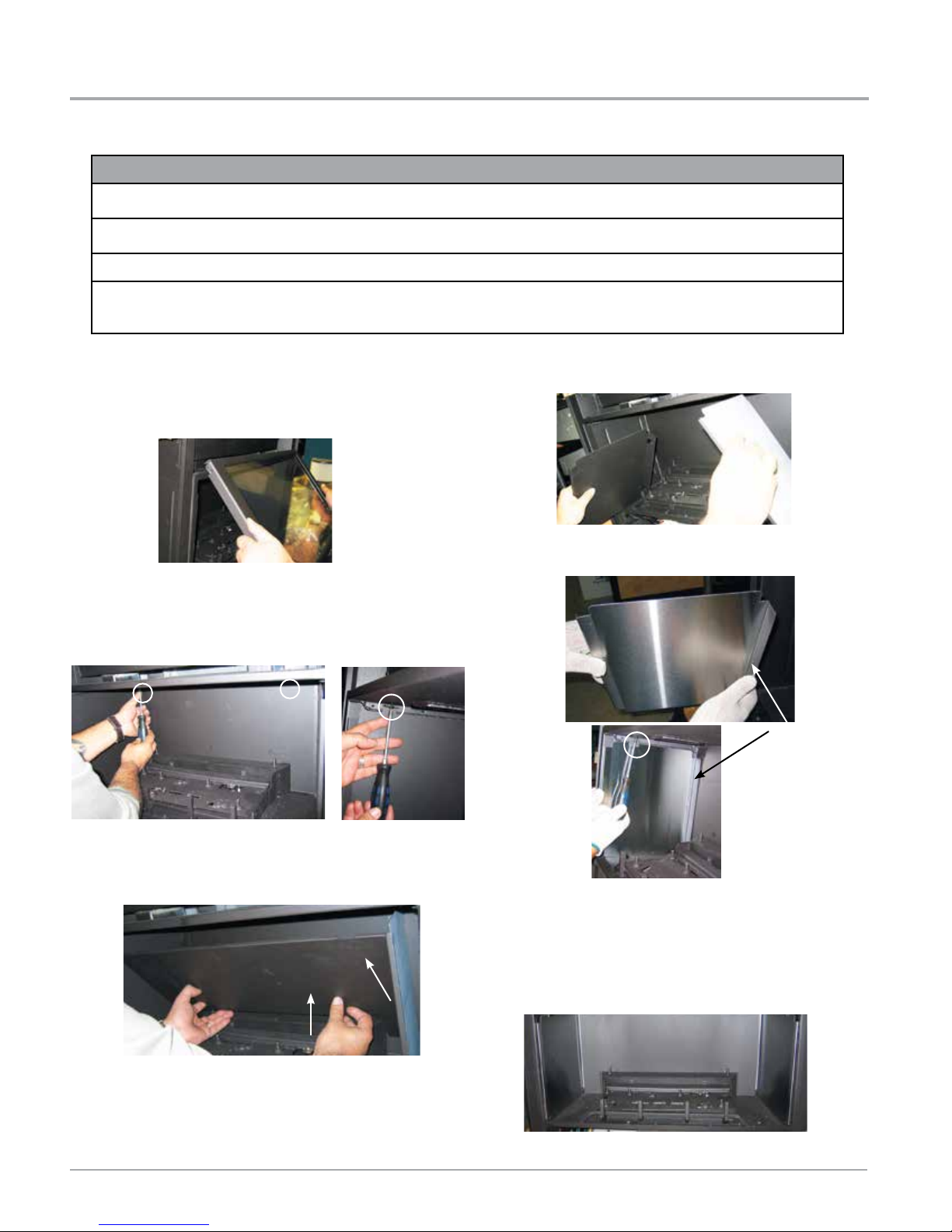

Optional Stainless steel inner panel install .................. 14

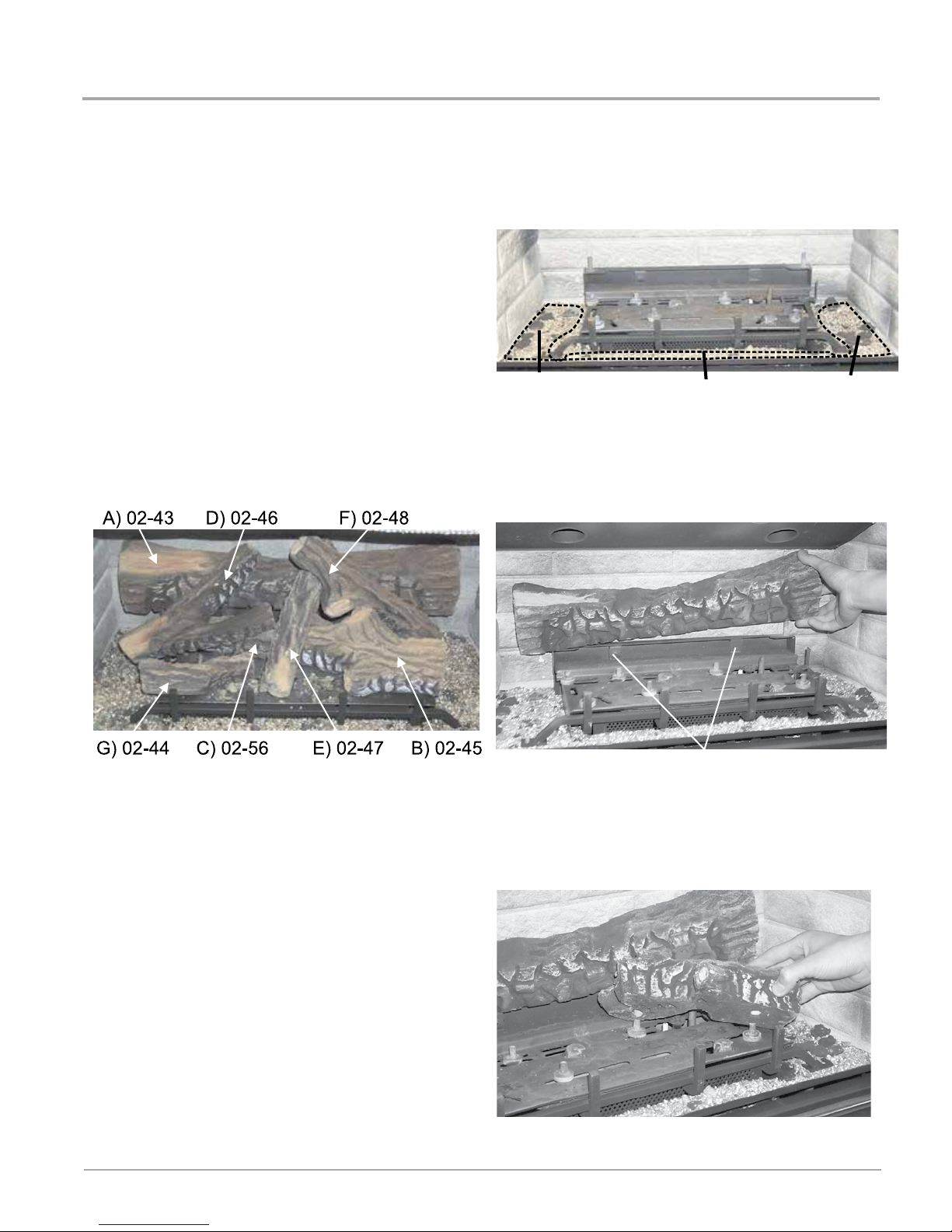

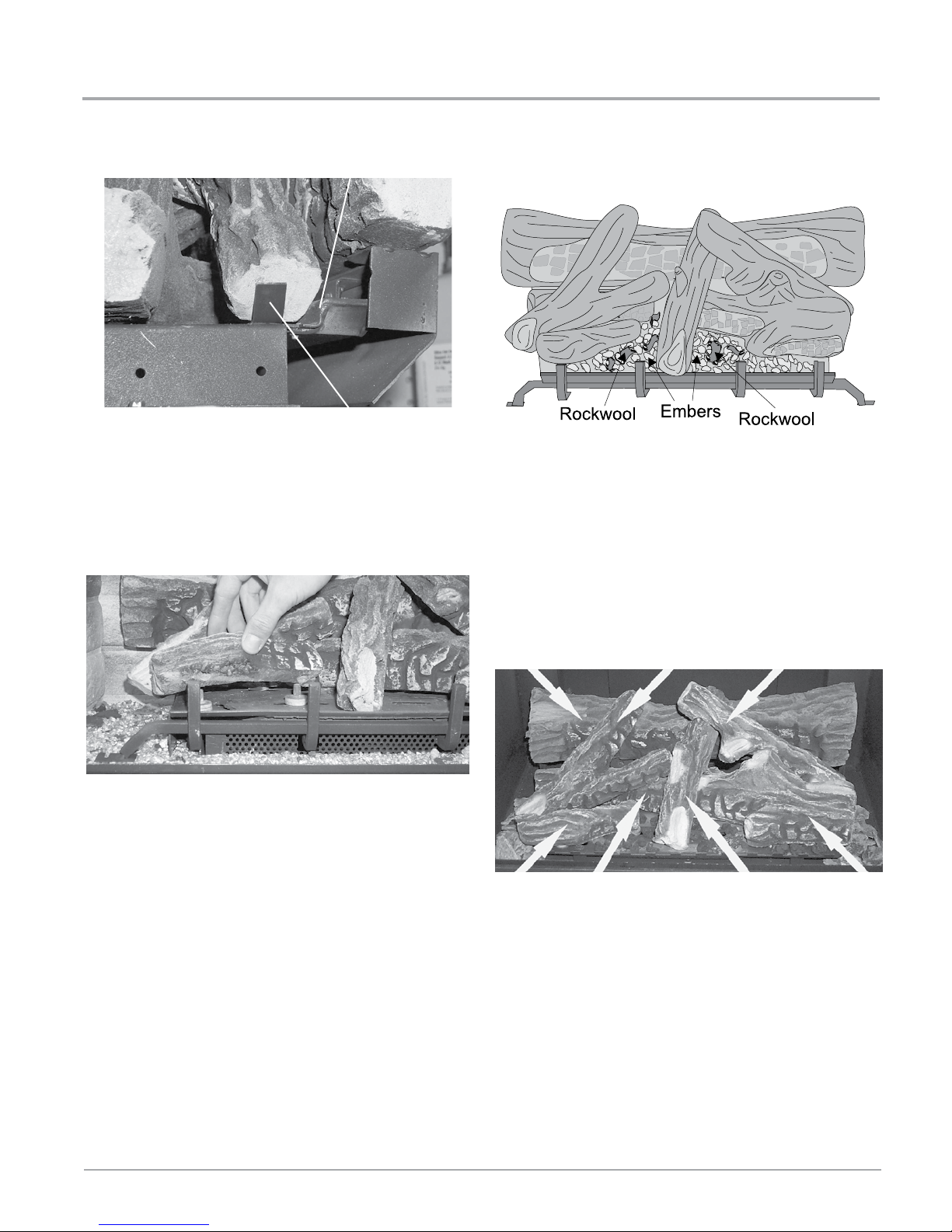

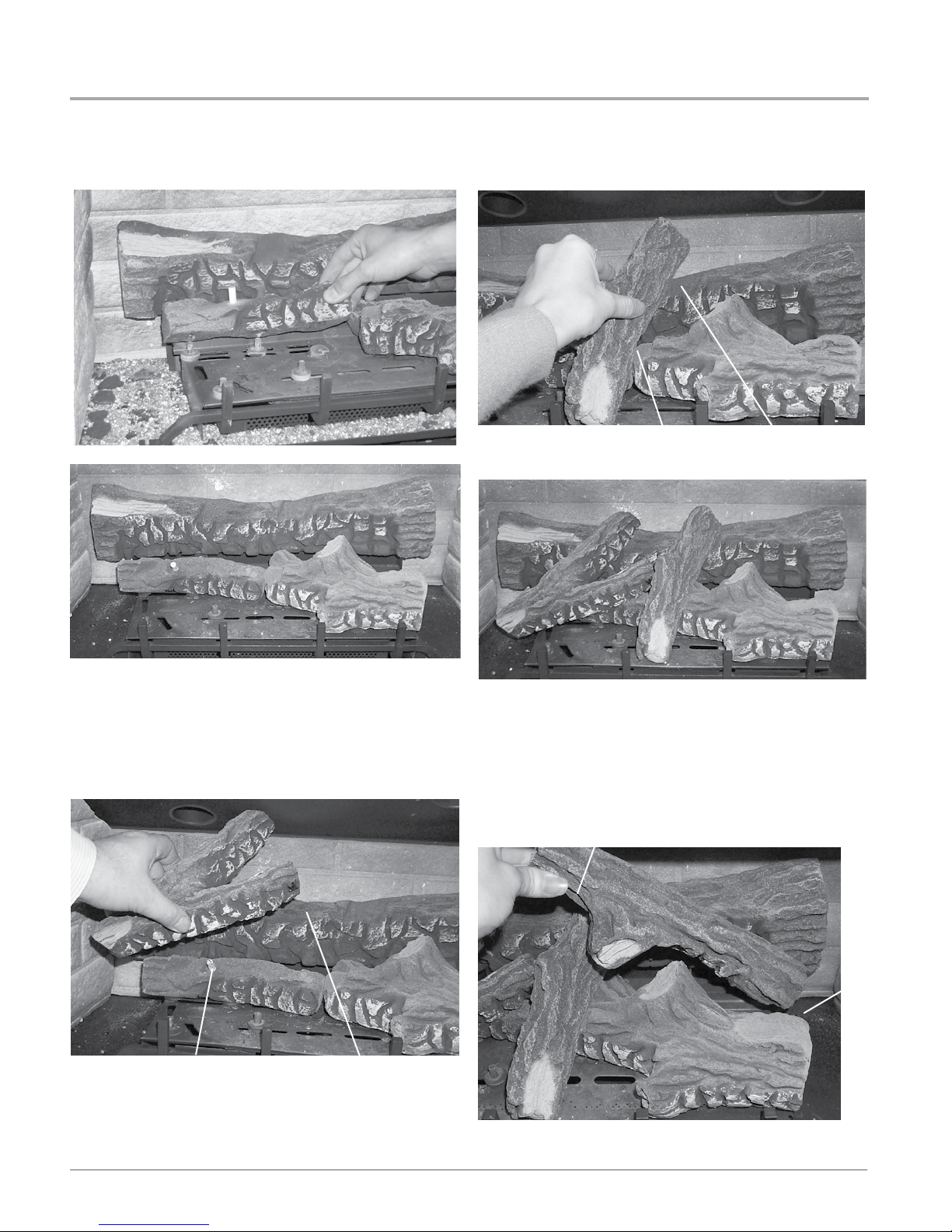

Log set installation .......................................................15

Glass Door installation.................................................18

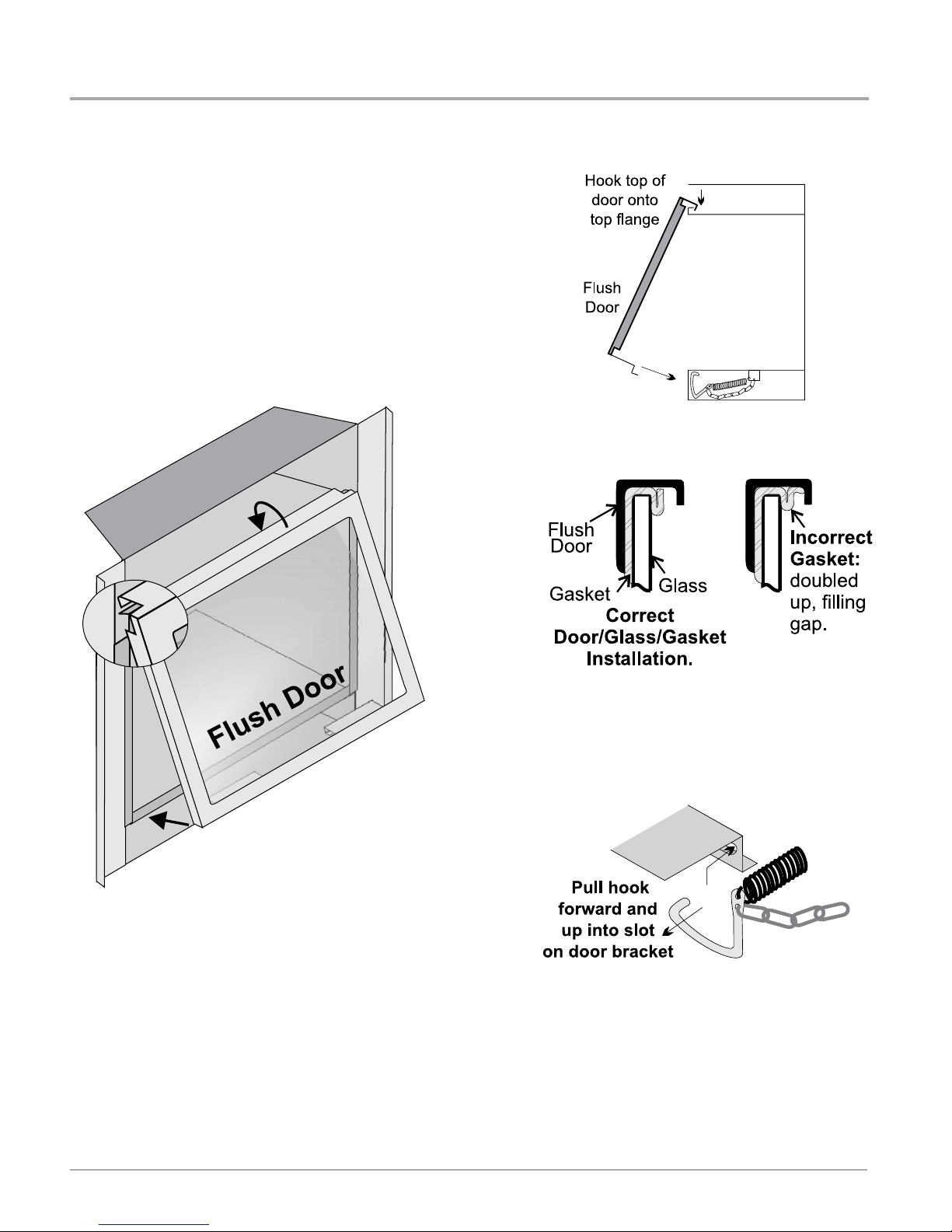

Standard Flush Door ...................................................18

Optional Flush Trim .........................................................

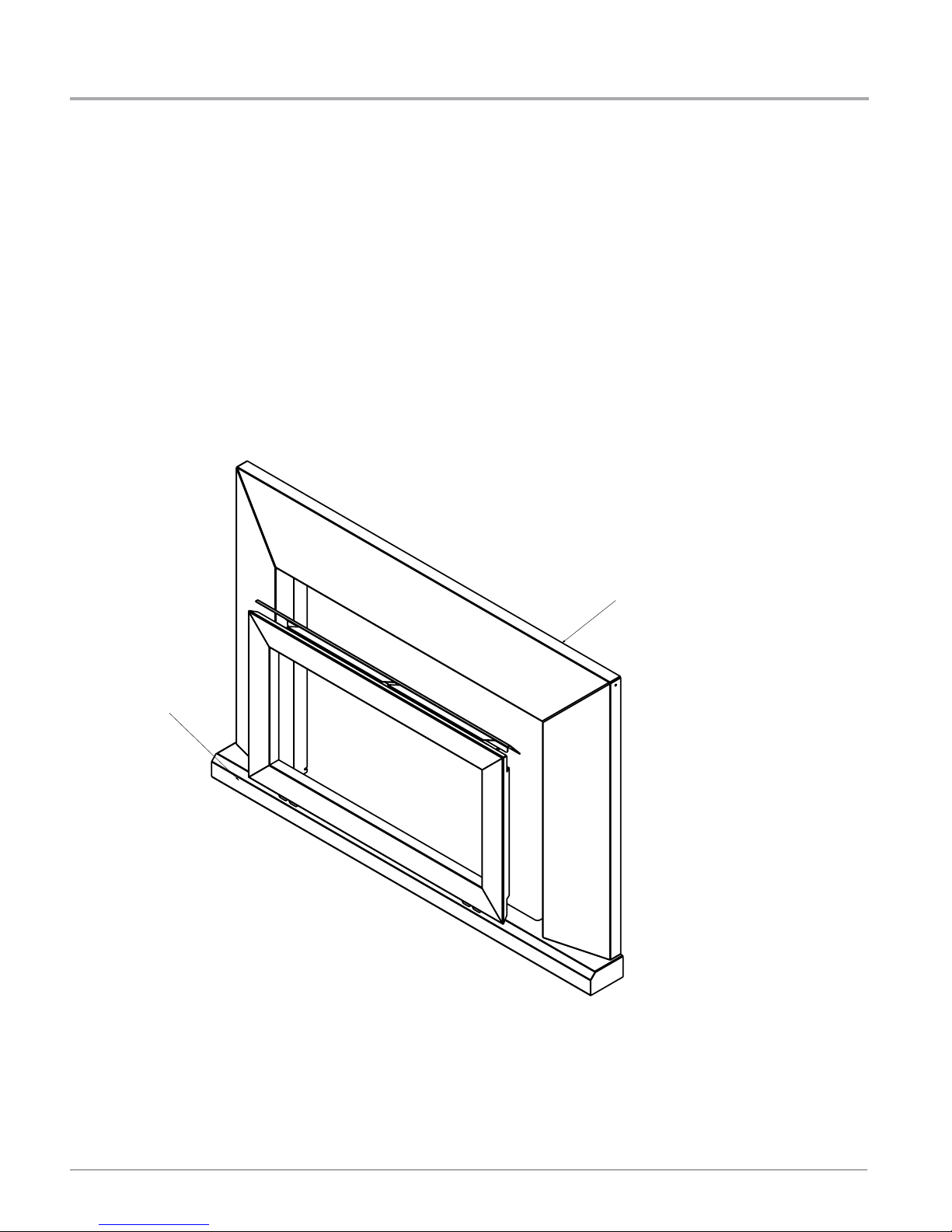

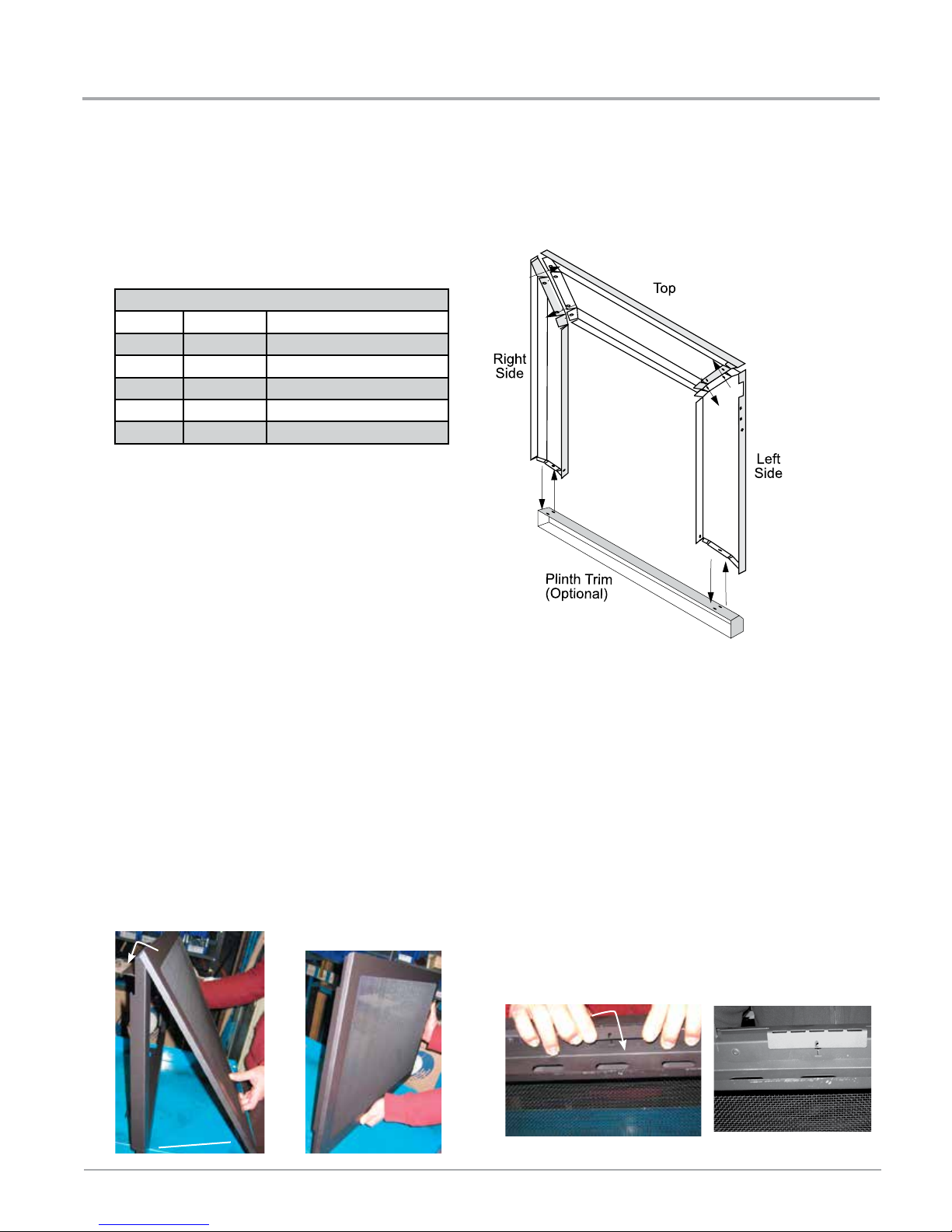

Faceplate & Optional plinth trim Assembly ..................19

Faceplate and door frame Installation .........................20

Thermodisc installation ................................................21

Final Check..................................................................22

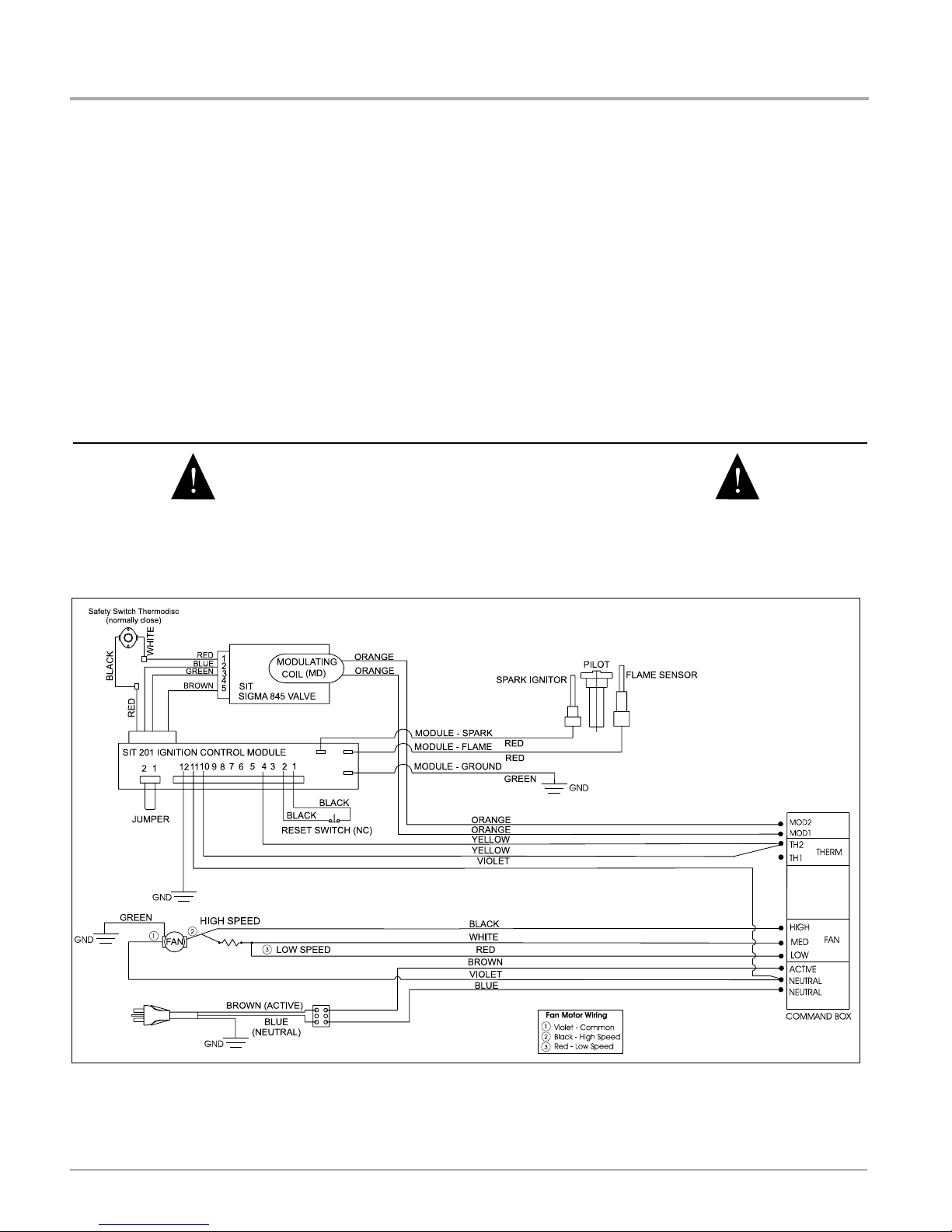

Wiring standard ...........................................................22

Operating Instructions ................................................23

Lighting Instructions.....................................................23

Shutdown Instructions .................................................23

First Fire ......................................................................23

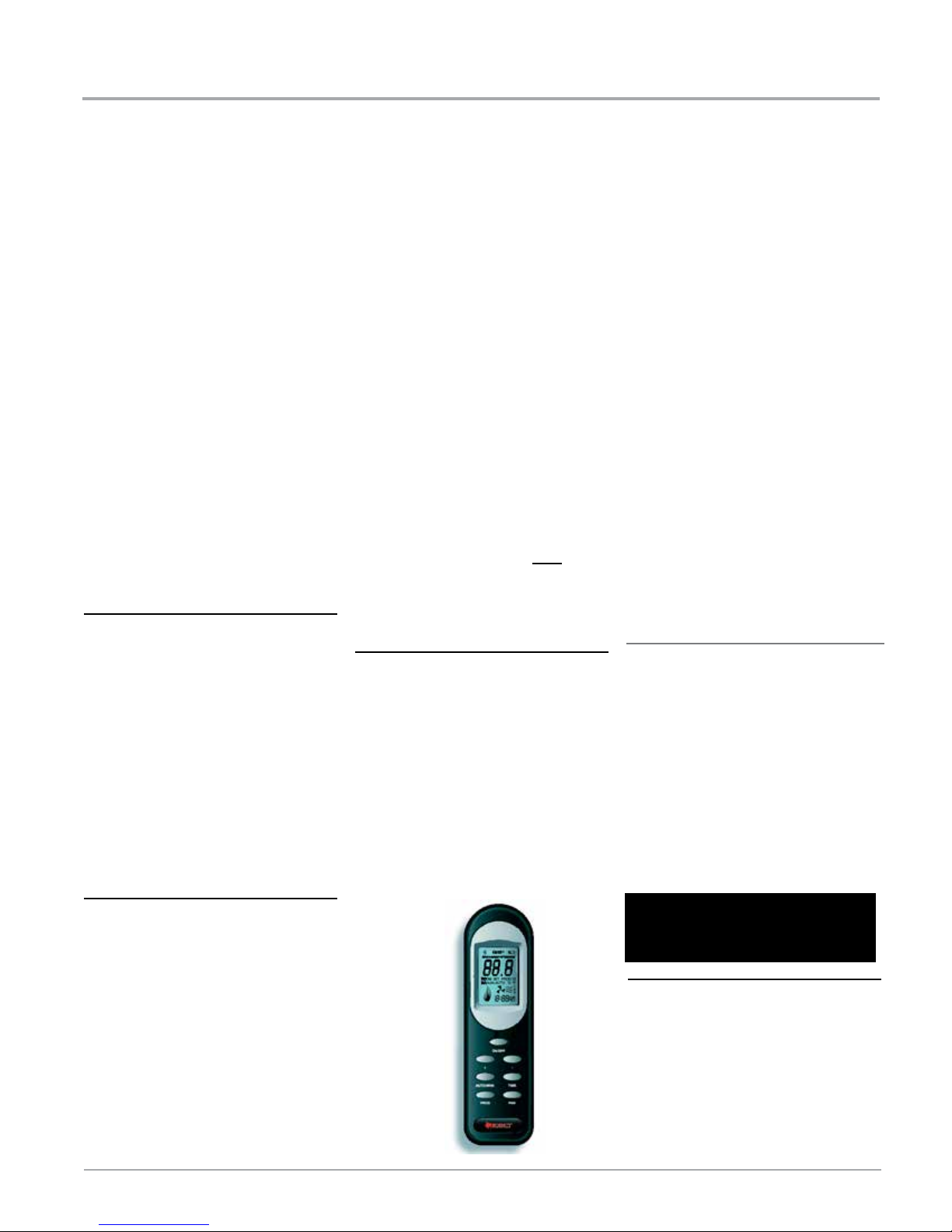

Remote Control ..........................................................23

Summary of Controls ..................................................23

Fan Operation..............................................................23

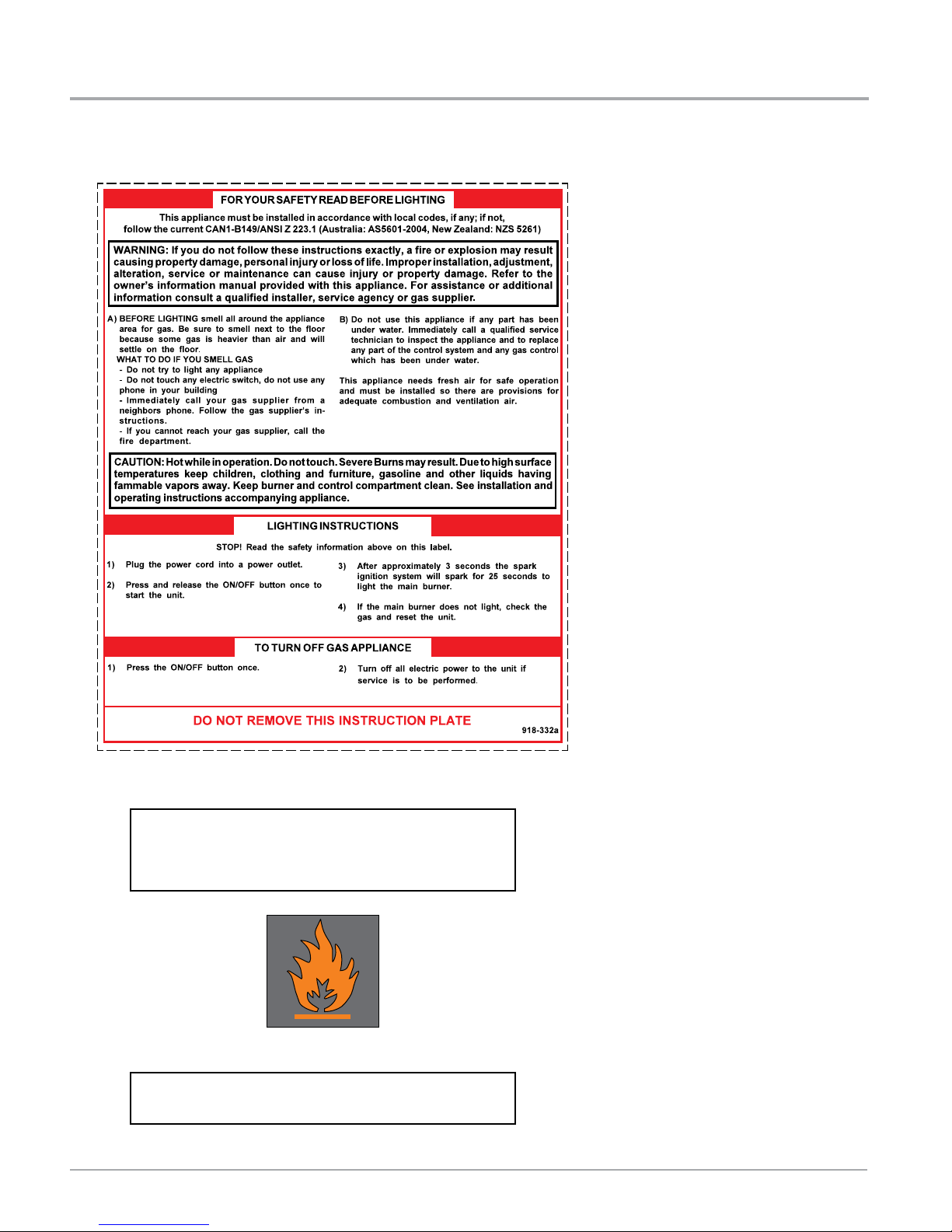

Copy Of Lighting Instruction Plate ............................... 24

Normal Operating Sounds Of Gas Appliances ............24

Resetting the unit.........................................................24

MAINTENANCE

Door Glass ..................................................................25

Replacement ...............................................................25

Glass Gasket ...............................................................25

Fan Maintenance .........................................................26

Valve assembly replacement .......................................27

PARTS LIST

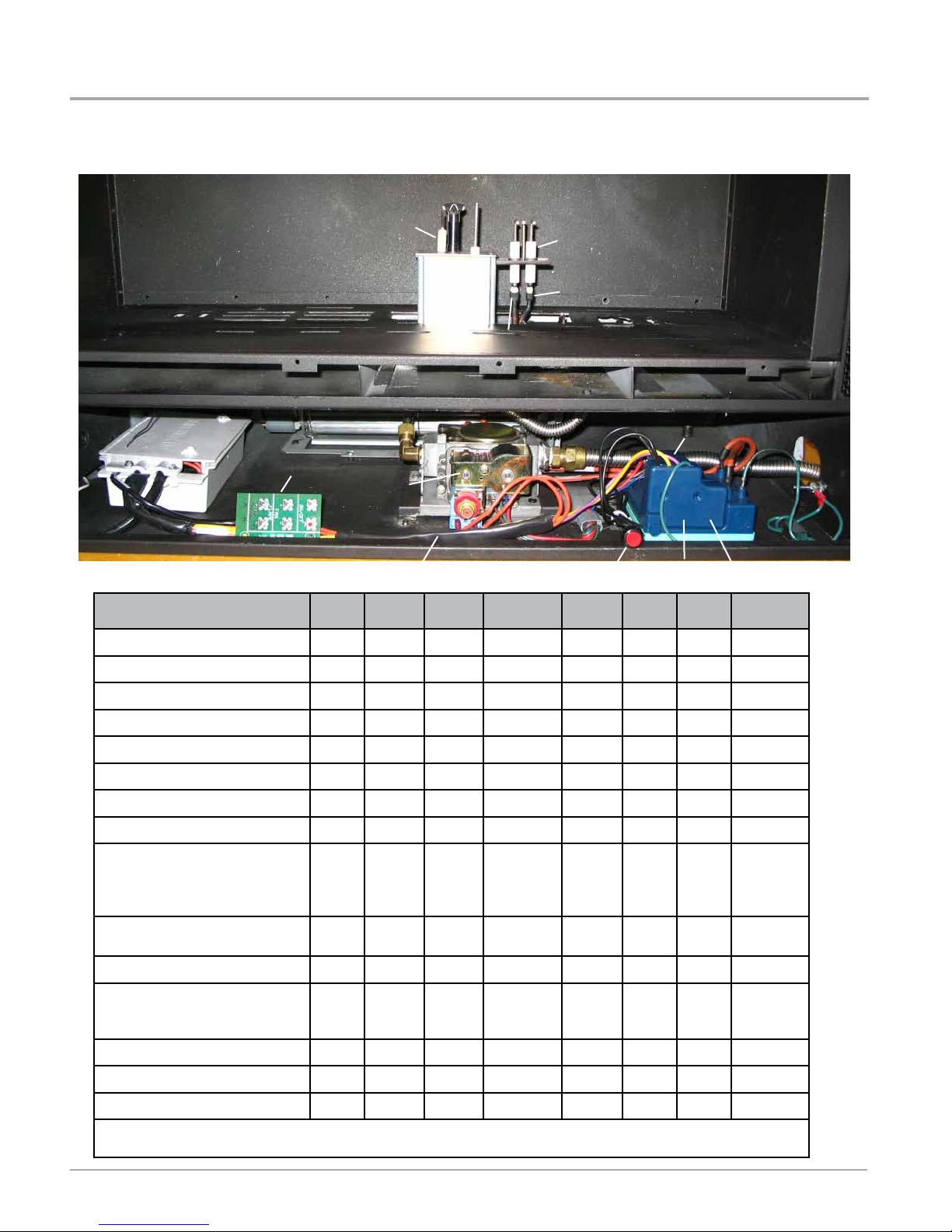

Electronic Components Parts List ...............................28

Main Assembly ............................................................29

Faceplate Assembly ....................................................30

WARRANTY

Regency IG34 Gas Inbuilt Fireplace

Warranty ......................................................................34

Page 4

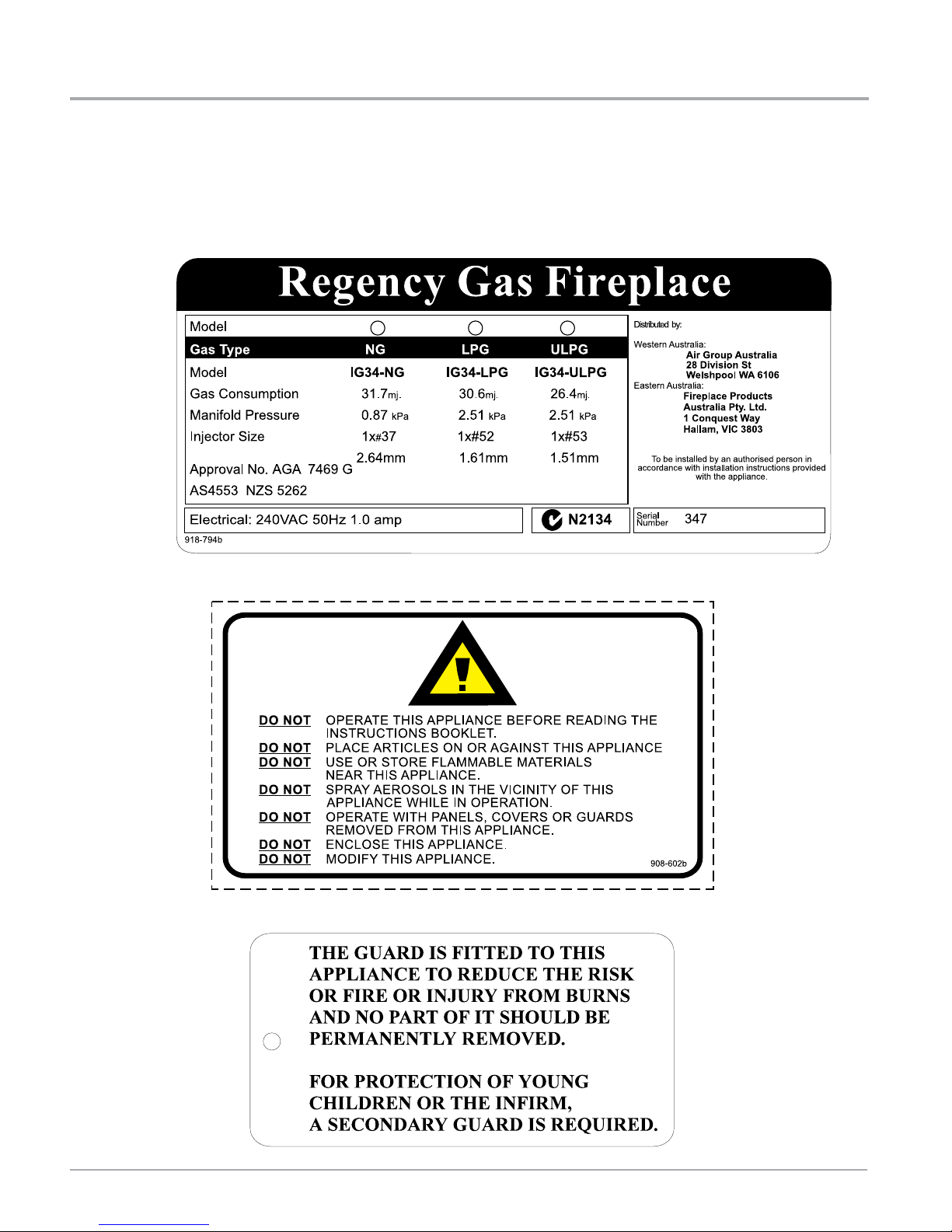

DATA BADGE

This is a copy of the label that accompanies each Regency IG34 Gas Inbuilt replace. We have printed a copy of the contents here for your

review.

DATA BADGE NOTE: Regency units are constantly being improved.

Check the label on the unit and if there is a difference, the label on the unit is the correct one.

(Australia Only)

Regency IG34 Gas Inbuilt Fireplace

Page 5

INSTALLATION

IMPORTANT MESSAGE

The Regency Gas Inbuilt must be installed in accordance with these instructions. Carefully read all the instructions in this manual rst.

Note: Failure to follow these instructions

could cause a malfunction of the heater which could result in death, serious bodily injury, and/or property damage. Failure to follow these

instructions may also void your re

insurance and/or warranty.

FOR YOUR SAFETY

This appliance requires air for proper combustion. Always provide adequate combustion and ventilation air. Follow instructions and information in the current AS5601, NZS 5262 or local codes. Consult the "authority having jurisdiction" to determine the need for a permit

prior to starting the installation.

MATERIALS REQUIRED

A 240 Volt AC power cord is hooked up to the unit. Plug 3 wire cord into a suitable receptacle. Do not cut the ground terminal off under any circumstances.

When connected with 240 volts, the appliance

must be electrically grounded in accordance

with local codes.

This unit is polarity sensitive and will not operate if polarity is incorrect.

WARNING:

Suitable for installation into a masonry replace only.

BEFORE YOU START

Installation is to be carried out ONLY by an authorised person.

1) The appliance shall be installed in accord-

ance with the manufacturer's installation instructions, local gas tting regulations, municipal building codes, water supply regulations, electrical wiring regulations, with AS5601. (AGA gas installation code) NZS 5262(New Zealand)

2) Installation and repair should be done ONLY by an authorised person.

3) The appliance should be inspected before

use and at least annually by an authorised service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passageways of the appliance be kept clean and free from excessive lint from carpeting.

4) See general construction and assembly instructions. This appliance may only be installed in a ued, non-combustible replace. The appliance and ue should be enclosed when installed or passing through a living area, where children may come in contact

with it.

5) Always connect this space heater to a chimney and ue to the outside of the building envelope. Never ue to another room. Make sure that the ue is properly sized and is of adequate height to provide the proper draft.

6) Inspect the ueing system annually for blockage and any signs of deterioration.

7) Any safety glass removed for servicing must

be replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who is unfamiliar with the operation to use the replace.

9) Installer must mechanically attach the supplied label to the inside of the rebox of the replace into which the gas replace insert

is installed.

INSTALLATION

CHECKLIST

Before installing vent system ensure that the damper plate is open and secure to prevent the damper plate from falling down and crushing

the liner.

The FPI Gas Inbuilt is installed as listed.

1) Check all clearances to combustibles, (Refer

to sections "Minimum Fireplace Dimensions and Clearances to Combustibles)

2) Make the gas connection. (Refer to section

"Gas Connection")

3) Install the 3" (76.2mm) ue liner to the sliding

connector plate. (Refer to section "Flue Liner Installation.")

4) Slide the unit half way into the replace.

5) Pull the vent connector plate through the

tapered brackets and fasten to the front plate. Refer to section "Flue Liner Installation.")

6) Slide the unit fully into the replace.

7) Test gas pressure (Refer to section "Gas

Pipe Pressure Testing"). Check aeration system (Refer to section "Gas Insert Aeration System").

8) Install standard and optional features. Refer

to the following sections:

a. Log Set

b. Faceplate & Door Trim

c. Inner Stainless Panels

9) Final check: Before leaving this unit with the

customer, the installer must ensure that the appliance is ring correctly. This includes:

a) Clocking the appliance to ensure the

correct ring rate.

b) Adjusting the primary air and restrictor

settings, if required, to ensure that the ame does not carbon.

Regency IG34 Gas Inbuilt Fireplace

"WARNING: This replace has been converted for use with a gas replace insert only and cannot be used for burning wood or solid fuels unless all original parts have been replaced, and the replace re-approved by the authority having jurisdiction."

TO BE INSTALLED ON A

NOTE:

NON- COMBUSTIBLE FLOOR.

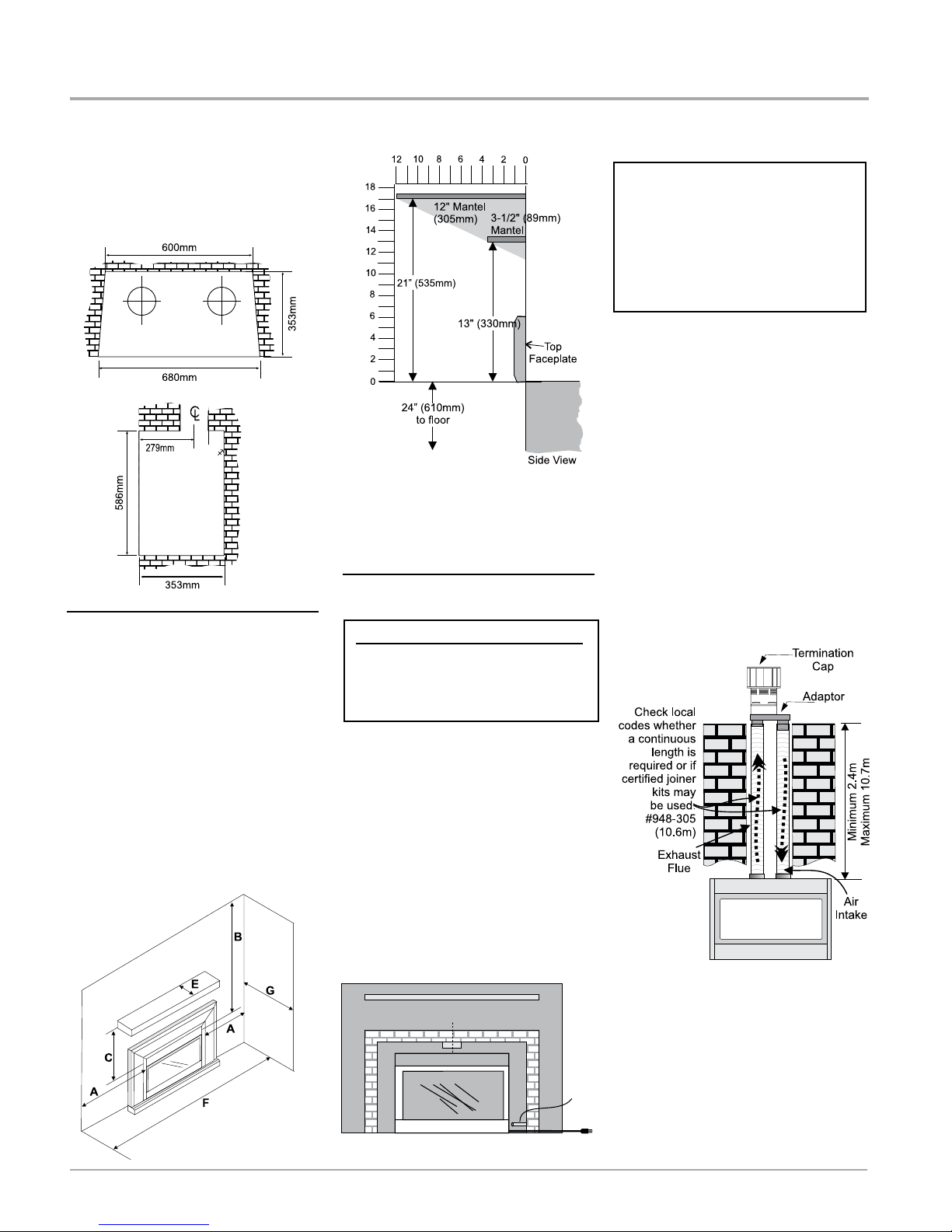

Page 6

INSTALLATION

MINIMUM FIREPLACE

DIMENSIONS

The minimum replace dimensions for the Regency gas space heater are shown in the following diagrams:

CLEARANCES TO

COMBUSTIBLES

Minimum Clearances to Combustibles

From Unit Sides A 10" / 255mm Ceiling B 47.5" / 1205mm Mantel C 13" / 330mm

Max. Mantle Depth E 12" / 305mm

(see Dia. 2)

Min. Alcove Width F 48" / 1220 mm Max. Alcove Depth G 36" / 915 mm

*No hearth required.

Mantel Clearances

Note: A non-combustible mantel may be

installed at a lower height if the framing is made of metal studs covered with a non-combustible board.

GAS CONNECTION

GAS CONNECTION WARNING: Only persons licensed to work

with gas piping may make the

necessary gas connections

to this appliance.

1) If the appliance is to be installed into an

existing chimney system, thoroughly clean the masonry replace.

2) The appliance is provided with an opening

on the right hand side of the control

compartment. The 9.5mm (3/8") exible gas hose provided needs to be brought in from behind this opening. Ensure all gas

connections are tight.

3) Locate the center point where the vent

will pass through the chimney above the appliance. Move the appliance into the exact location where it is to be installed. Ensure that the Insert is level.

FLUEING

THE APPLIANCE MUST NOT

BE CONNECTED TO A

CHIMNEY FLUE SERVING A

SEPARATE SOLID FUEL

BURNING APPLIANCE AND

MUST BE TERMINATED TO

THE OUTDOORS.

This appliance is designed to be attached to

two 3" (76mm) co-linear aluminium ex running the full length of the chimney. The ue length must be a minimum length of 8 ' (2.44m) and a maximum of 35' (10.7m). See chart below for minimum distances from roof. Periodically check that the vent is unrestricted.

Masonry chimneys may take various contours which the exible liner will accommodate.

However, keep the exible liner as straight as

possible, avoid unnecessary bending.

The Air Intake pipe must be attached to the inlet air collar of the termination cap.

Part # Description

948-305 76mm Flex - 10.6m 46dva-gk Simpson Duravent Adaptor 46dva-vch Simpson Vertical high wind cap

Note: When installing the ueing, identify

the ues.

Mark one exhaust and one intake as

indicated on the top of the unit.

Gas Inlet

Regency IG34 Gas Inbuilt Fireplace

Page 7

INSTALLATION

The Air Intake pipe must be attached to the inlet air collar of the termination cap.

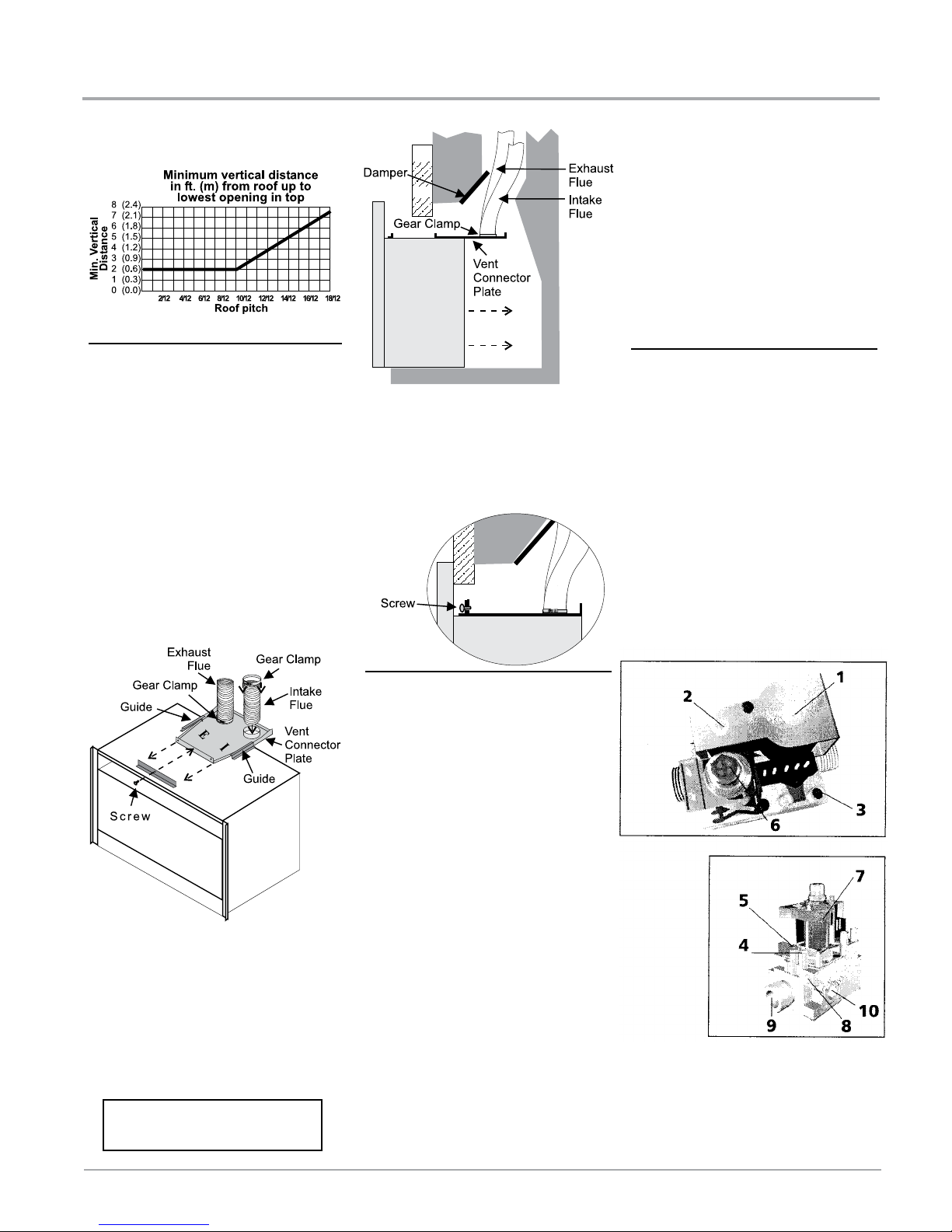

FLUE LINER

INSTALLATION

1) Cut the ex liner as required.

2) Mark the end of one liner to indicate Inlet.

3) Connect the other end of the above liner to

the inlet side of the termination adaptor, seal connection with high temperature silicone. Secure with gear clamp.

4) Connect the 2nd liner to the exhaust side

of the adaptor, seal connection with high

temperature silicone. Secure with gear clamp.

Be careful not to damage thermal insula-

tion when sliding on vent connector plate.

This could cause blockage.

9) Connect the 2nd liner to the exhaust collar

marked with an "E", seal connection with high temperature silicone. Secure with gear clamp.

4) Seal and or check the pilot outlet (# 8)

5) The pressure check should be carried out

with the unit burning and the setting should be within the limits specied on the safety

label.

6) When nished reading manometer, turn

off the gas valve, disconnect the hose and

tighten the screw (clockwise) with a 1/8" at screwdriver. Screw should be snug,

but do not over tighten.

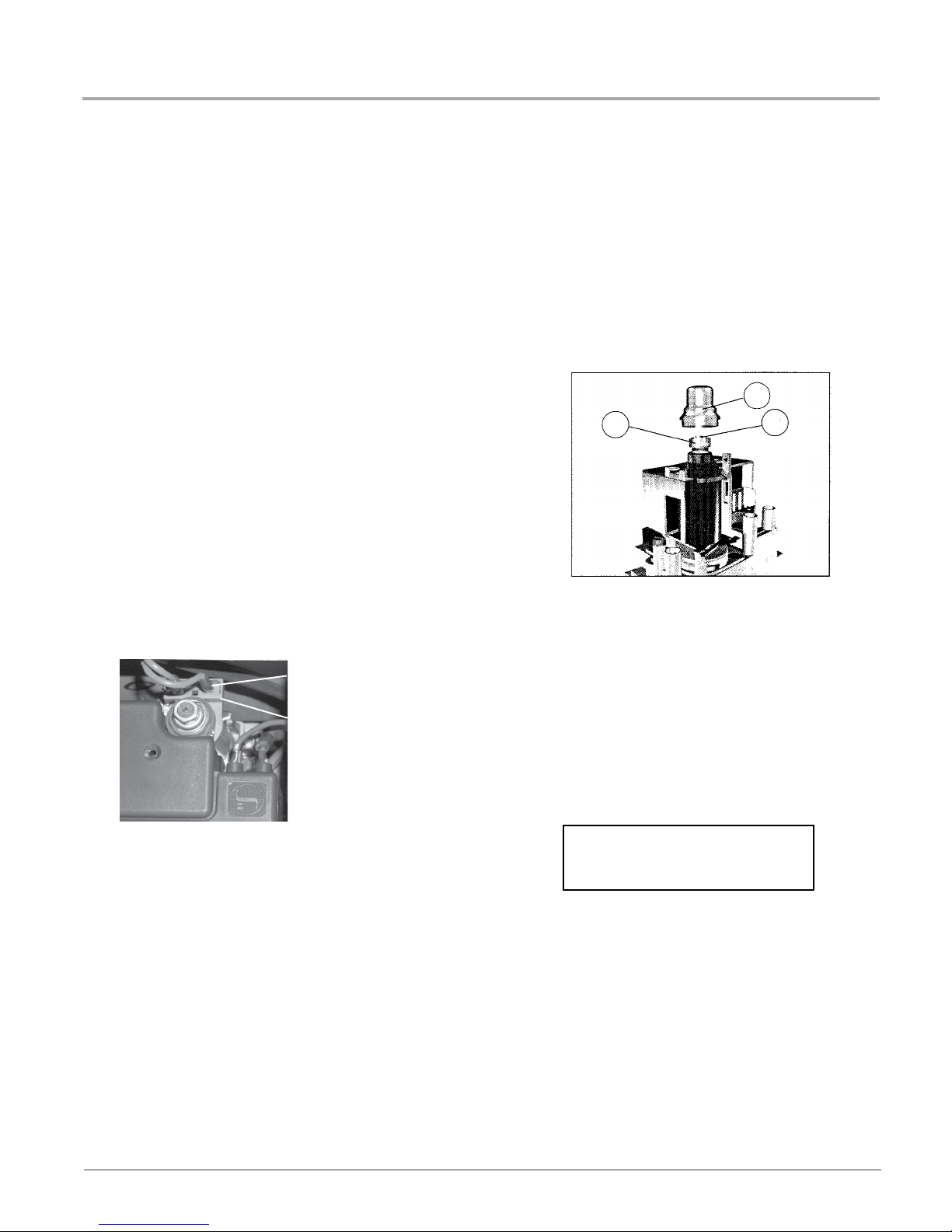

S.I.T. Valve Description

1) On-Off Solenoid Valve EV1

2) On-Off Solenoid Valve EV2

3) Inlet Pressure Test Point

4) Outlet Pressure Test Point

5) Connection for Pressure Regulator/

Combustion Chamber Compensation

6) Pressure Regulator for Minimum and

Maximum Outlet Pressure

7) Gas Outlet Pressure Electric Modulator

8) Pilot Outlet

9) Main Gas Outlet

10) Side Outlet

5) Install ashing.

6) Insert both liners into chimney, passing

through the damper opening.

7) Install termination cap.

8) Connect the marked end of the liner to the inlet

collar of the vent connector plate marked with an "I", seal connection with high temperature silicone. Secure with gear clamp.

Install to AS5601 (Australia) / NZS 5262 (New Zealand)

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pressures over 3.45 kPa (14" w.c.).

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

Note: To properly check gas pressure,

both inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the valve is in the "OFF"

position.

2) Loosen the "IN" (# 3) and/or "OUT" (# 4)

pressure tap(s), turning counterclockwise with a 1/8" wide at screwdriver.

3) Attach manometer to "IN" and/or "OUT"

pressure tap(s) using a 5/16" (8mm) ID

hose.

Regency IG34 Gas Inbuilt Fireplace

Page 8

INSTALLATION

51-76mm

Flex Liners

Existing Chimney

INSTALLATION IN MASONRY OR ZERO CLEARANCE CHIMNEY

1) Measure and record dimensions to determine total

Flex Liner length requirements (see instructions below for details).

2) Carefully feed the liner down the chimney (masonry or zero clearance) and out through the damper. One person should feed the liner through the chimney, and another person should pull the liner from the bottom.

3) After carefully feeding the Flex Liner down the chimney to the bottom, form and angle to line up the Flex

Liner with the vent opening on the appliance.

Important: Do not let the Flex Liner sag below the level

at which it will connect to the appliance or connector.

This could allow hot gas to become trapped and potentially become a re hazard. The Flex Liner path should always be sloped up toward the Termination Cap.

4) Temporarily secure the Flex Liner at the top of the chimney. Be sure to leave 2-3 inches of ex above the existing chimney to allow for connection to the Termination Kit (Baseplate and Adaptor).

Note: If you are planning to extend the height of the chimney using Direct Vent GS Pipe, please refer to the Direct Vent Installation Instructions for information concerning the proper procedure and restrictions of Direct

Vent Pipe.

Also, consult the appliance manufacturer for any height restrictions of the chimney.

9) Connect the Co-Linear Flex to the two outlets on the top of the appliance using four sheet metal screws each. See the appliance manufacturer's instructions for details. Make sure the Flex Liners do not sag behind the appliance. Finally, move the appliance into its appropriate place. Mount the Adaptor to the Baseplate using sheet metal screws.

5) Repeat Steps 1-4 for second length of Flex Liner.

6) At the top of the chimney, slide the Baseplate over

the tow ends of the Flex Liner and secure it to the surrounding masonry using masonry anchor bolts. Before installing the baseplate, run a bead of non-hardening seal and between the Baseplate and the masonry to prevent moisture from entering the chimney. Note: Verify that there is sufcient room to mount the Baseplate on to the masonry. You must have a level surface in order to install the Baseplate properly.

7) Attach the Flex Liner ends at the top of the chimney to the Co-Linear to Co-Axial Adaptor. Use four sheet metal screws to connect each Flex Liner run to the

Adaptor.

8) Twist lock the Vertical Termination Cap to the Adap- tor.

Regency IG34 Gas Inbuilt Fireplace

Page 9

System Data

IG34

IG34-NG: For 0 to 610 meters altitude IG34-LPG: For 0 to 610 meters altitude IG34-ULPG: For 0 to 610 meters altitude

Burner Inlet Orice Sizes: NG LPG ULPG Burner #37 #52 #53

Max. Input

NG 31.7 mj LPG 30.6 mj ULPG 26.4 mj

Min. Input

NG 21.1 mj LPG 25.1 mj ULPG 20.9 mj

Supply Pressure

NG 1.13 kPa LPG 2.75 kPa ULPG 2.75 kPa

INSTALLATION

Manifold Pressure HIGH LOW

NG 0.87 kPa 0.4kPa LPG 2.51 kPa 1.6kPa ULPG 2.51 kPa 1.6kPa

Electrical: 240 V. 50Hz. Circulation: High/Off/LO speed fan, 150/89 CFM. Log Set: Ceramic ber, 7 per set.

Aeration Setting

NG 13mm open LPG 13mm open ULPG 13mm open

AERATION SETTINGS

The burner aeration is factory set but may need adjusting due to either the local gas supply, air supply or altitude. This adjustment is performed by the installer. (Close the aeration for a more yellow ame, or open it to make the ame bluer). NG: 13mm open LPG: 13mm open ULPG: 13mm open

Note: Any damage due to carboning resulting from improperly setting the aeration and restrictor setting controls is NOT covered

under warranty.

Regency IG34 Gas Inbuilt Fireplace

Page 10

INSTALLATION

IG34

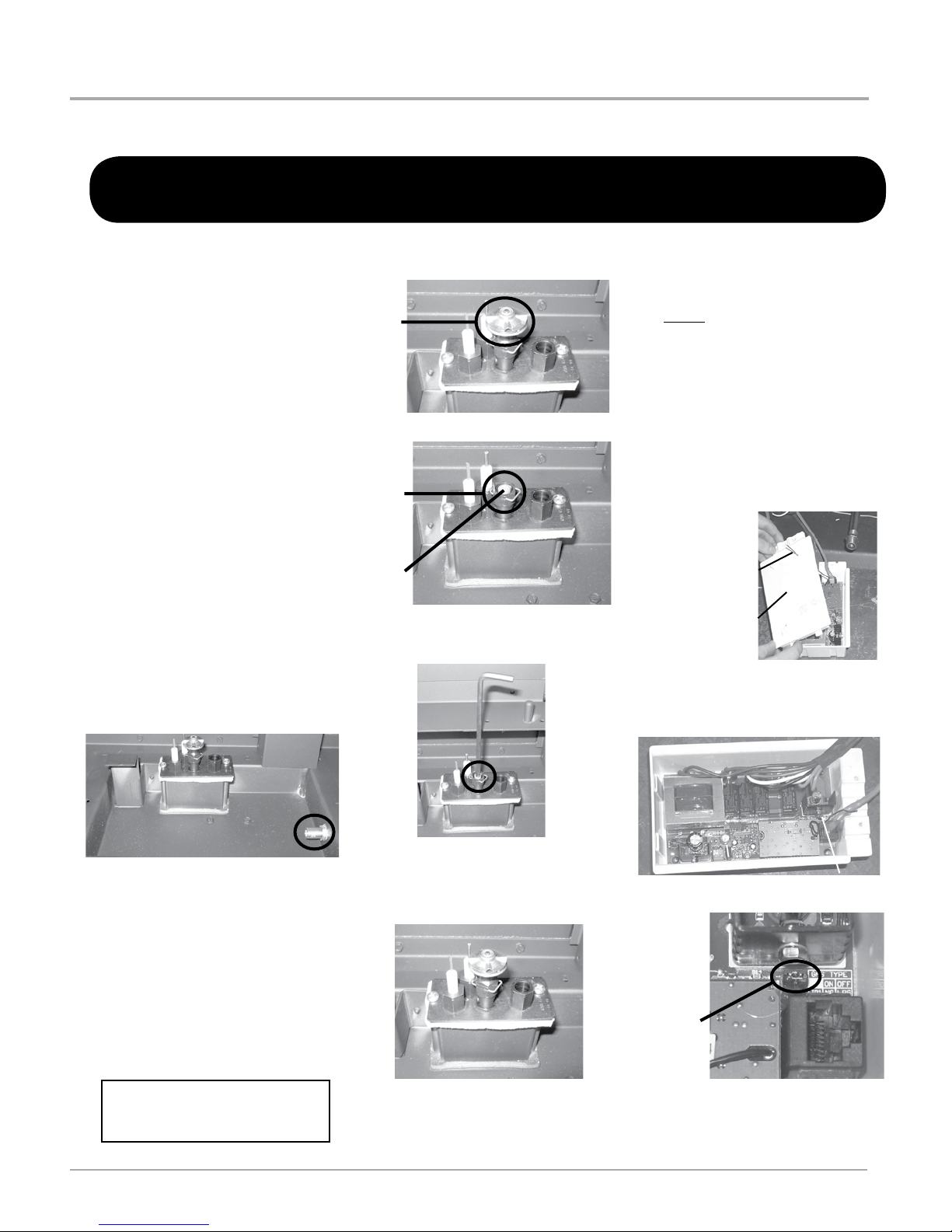

Conversion Kit #486-968 for NG to LPG Model

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER

onversion Kit 486-968 Contains:

IF IN DOUBT DO NOT DO THIS CONVERSION !!

Conversion Kit #486-968 for NG to LPG Model

12) Replace the yellow "NG" label with

9) Pull out the pilot hood by hand.

the red "ULPG" label.

. Part # Description 904-345 Burner Oriﬁ ce #51 918-273 Red "LPG" label 918-272 Label "Converted to LPG"

918-823 Instruction Sheet

Shut off the gas supply and unplug

the power cord.

Remove the glass door, logs and

lava rock.

Remove the rear log tray by removing the 2 screws. (Log tray must be rotated to clear the burner.)

Remove the grate.

Remove the burner and ensure the

aeration setting is 13 mm open.

Remove burner oriﬁ ce with a 1/2"

wrench and discard. Use a wrench to hold on to the elbow behind the oriﬁ ce.

Pilot

Hood

Pilot

Hood

removed

Pilot

Oriﬁ ce

10) Remove the pilot oriﬁ ce with the

allen key.

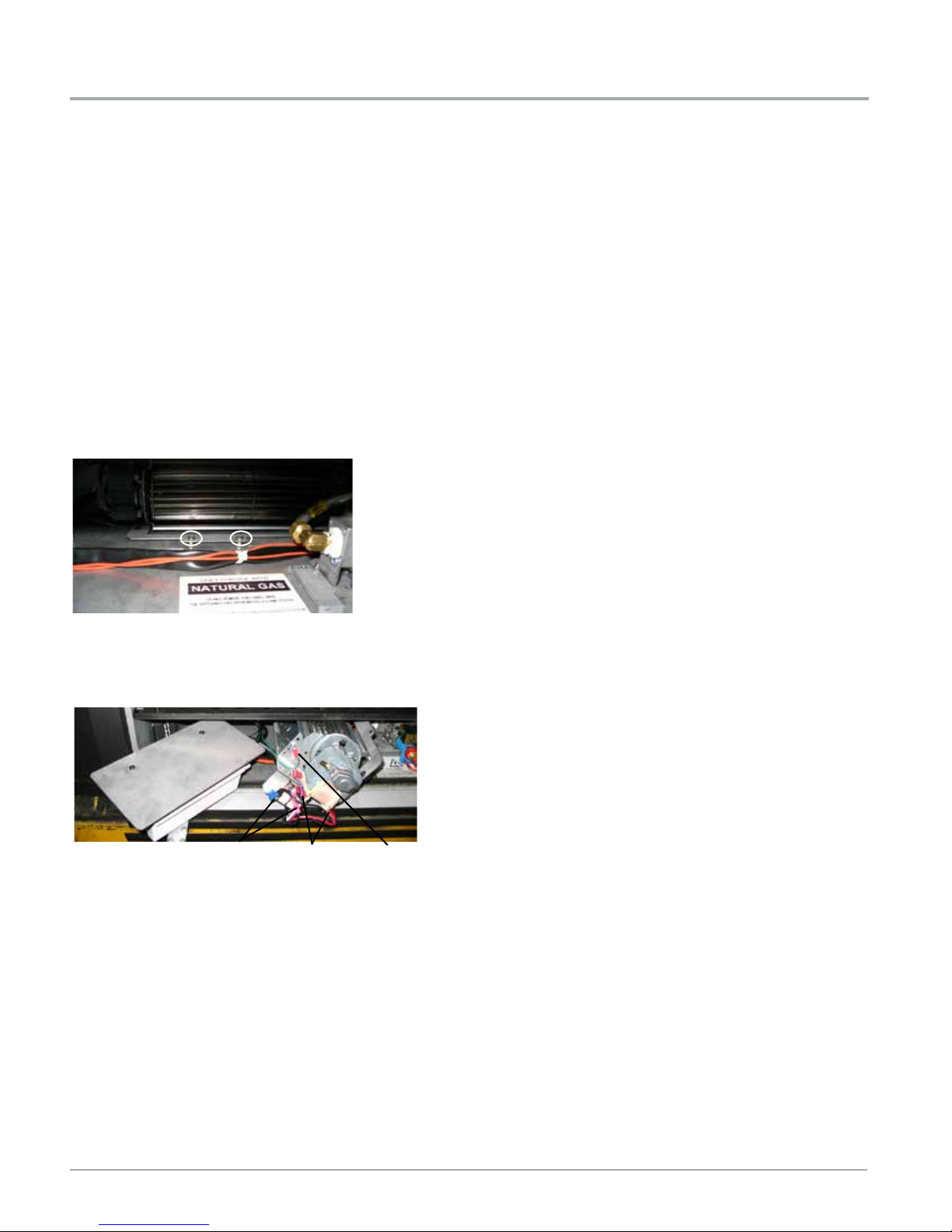

13) Carefully pull out the control box.

NOTE: The control box is held in

place with velcro.

14) Remove the heat shield from the

control box by removing the 2

screws.

15) Remove the control box cover by

undoing the 3 screws.

Manoeuvre through antenna.

Antenna

Control Box

Cover

16) Remove the jumper using a plier.

Burner

Reinstall new burner oriﬁ ce LPG

stamped #51 and tighten.

Apply the conversion label "This

unit has been converted to ULPG" over top of the serial number decal.

Note: Aeration settings do not need

to be adjusted.

11) Put in the new LPG oriﬁ ce with the

allen key. Then put back the pilot hood.

Jumper Location

Jumper

17) Reverse steps 13, 12, 11, 6, 5, 4, 3

& 2.

Regency IG34 Gas Inbuilt Fireplace

Page 11

INSTALLATION

IG34

18) Turn on gas supply and plug in

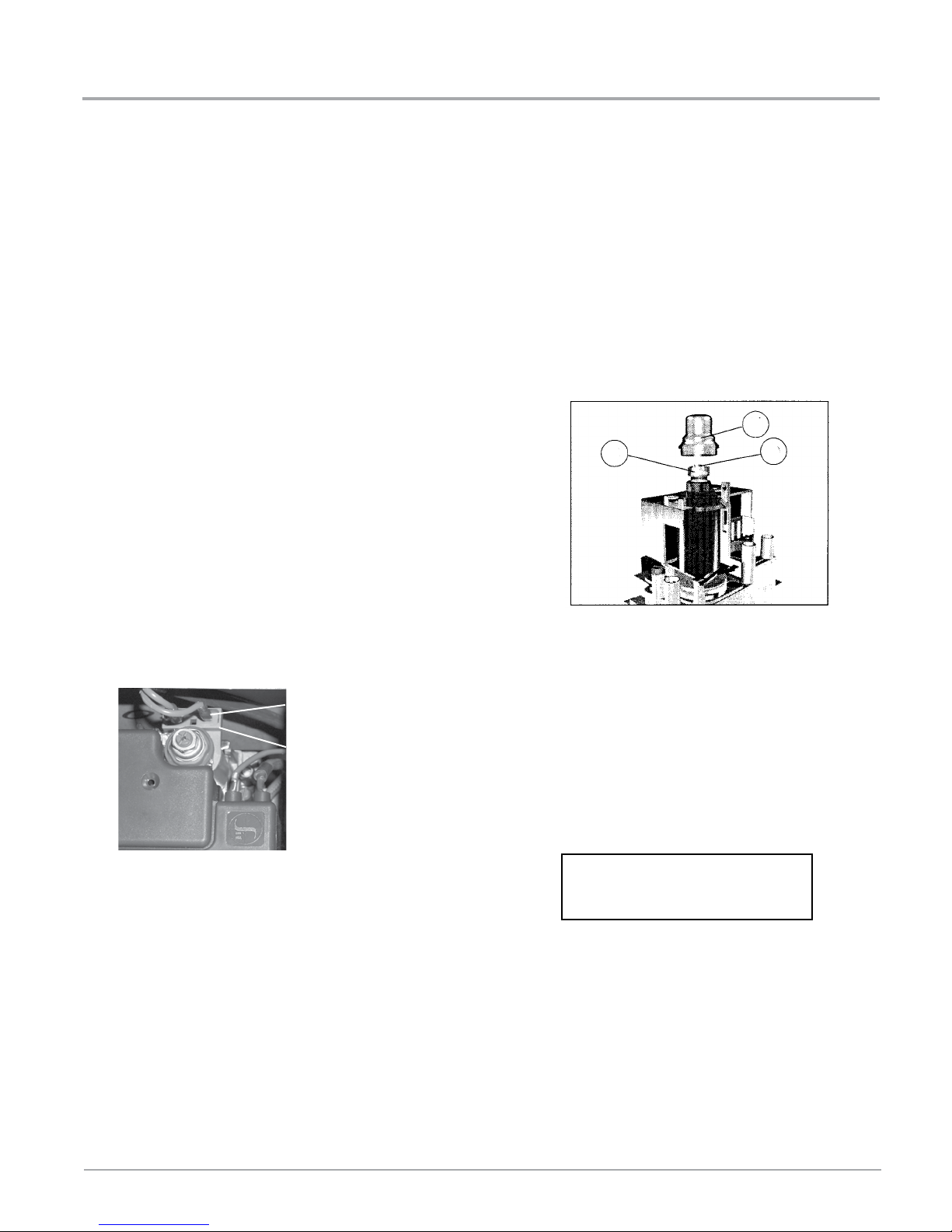

19) Adjusting the Outlet Pressure

All the adjustments must be carried out in the following order:

Remove the modulator plastic cap (A) using needle nose

pliers.

Maximum pressure: Turn the unit ON to its highest input

rating. Screw in the nut (B) to increase the outlet pressure and screw it out to decrease it. Use a 10 mm wrench.

power cord.

NOTE: The outlet pressure must be set to maximum 2.51

kPa.

Minimum pressure: Remove one of the cables connect-

ed to the electric modulator. While holding the nut (B) with a wrench, screw in the screw (C) to increase the pressure and screw it out to decrease it. Use a screwdriver 6 x 1 blade.

NOTE: The outlet pressure must be set to minimum 1.6

kPa.

After carrying out all adjustments, block the setting screws with paint, taking care not to obstruct the breather oriﬁ ce of the pressure.

Put back the modulator plastic cap.

WARNING: To ensure the correct operation of the modu-

lator it is necessary that the plastic cap (A) is returned to its original location.

20) Turn on gas supply and plug in power cord.

Cable

Electric

Modulator

21) At the end of all setting and adjustment operations, check

electrical installation and gas leaks.

22) Check operation of ﬂ ame control.

23) Check for proper ﬂ ame appearance and glow on logs.

Installer Notice: These instructions must be left with the appliance.

Regency IG34 Gas Inbuilt Fireplace

Page 12

INSTALLATION

IG34

Conversion Kit #486-967 for NG to ULPG Model

Conversion Kit #486-967 for NG to ULPG

THIS CONVERSION MUST BE DONE BY A QUALIFIED GAS FITTER

Conversion Kit 486-967 Contains:

Qty. Part # Description 1 904-345 Burner Oriﬁ ce #53 1 918-273 Red "ULPG" label 1 918-272 Label "Converted to ULPG" 1 910-037 LPG Pilot Injector 1 918-824 Instruction Sheet

1) Shut off the gas supply and unplug

the power cord.

2) Remove the glass door, logs and

lava rock.

3) Remove the rear log tray by remov-

ing the 2 screws. (Log tray must be rotated to clear the burner.)

4) Remove the grate.

5) Remove the burner and ensure the

aeration setting is 13 mm open.

6) Remove burner oriﬁ ce with a 1/2"

wrench and discard. Use a wrench to hold on to the elbow behind the oriﬁ ce.

IF IN DOUBT DO NOT DO THIS CONVERSION !!

9) Pull out the pilot hood by hand.

Pilot

Hood

Pilot

Hood

removed

Pilot

Oriﬁ ce

10) Remove the pilot oriﬁ ce with the

allen key.

12) Replace the yellow "NG" label with

the red "ULPG" label.

13) Carefully pull out the control box.

NOTE: The control box is held in

place with velcro.

14) Remove the heat shield from the

control box by removing the 2

screws.

15) Remove the control box cover by

undoing the 3 screws.

Maneuver through an

Antenna

Control Box

Cover

16) Remove the jumper using a plier.

tenna.

Burner

7) Reinstall new burner oriﬁ ce ULPG

stamped #53 and tighten.

8) Apply the conversion label "This

unit has been converted to ULPG" over top of the serial number decal.

Note: Aeration settings do not need

to be adjusted.

11) Put in the new LPG oriﬁ ce with the

allen key. Then put back the pilot hood.

Jumper Location

Jumper

17) Reverse steps 13, 12, 11, 6, 5, 4, 3

& 2.

Regency IG34 Gas Inbuilt Fireplace

Page 13

INSTALLATION

IG34

18) Turn on gas supply and plug in

19) Adjusting the Outlet Pressure

All the adjustments must be carried out in the following order:

Remove the modulator plastic cap (A) using needle nose

pliers.

Maximum pressure: Turn the unit ON to its highest input

rating. Screw in the nut (B) to increase the outlet pressure and screw it out to decrease it. Use a 10 mm wrench.

power cord.

NOTE: The outlet pressure must be set to maximum 2.51

kPa.

Minimum pressure: Remove one of the cables connect-

ed to the electric modulator. While holding the nut (B) with a wrench, screw in the screw (C) to increase the pressure and screw it out to decrease it. Use a screwdriver 6 x 1 blade.

NOTE: The outlet pressure must be set to minimum 1.6

kPa.

Cable

After carrying out all adjustments, block the setting scre

with paint, taking care not to obstruct the breather oriﬁ ce of the pressure.

Put back the modulator plastic cap.

WARNING: To ensure the correct operation of the modu-

lator it is necessary that the plastic cap (A) is returned to its original location.

20) Turn on gas supply and plug in power cord.

21) At the end of all setting and adjustment operations, check

electrical installation and gas leaks.

22) Check operation of ﬂ ame control.

Regency IG34 Gas Inbuilt Fireplace

Electric

Modulator

23) Check for proper ﬂ ame appearance and glow on logs.

Installer Notice: These instructions must be left with the appliance.

Page 14

INSTALLATION

IG34

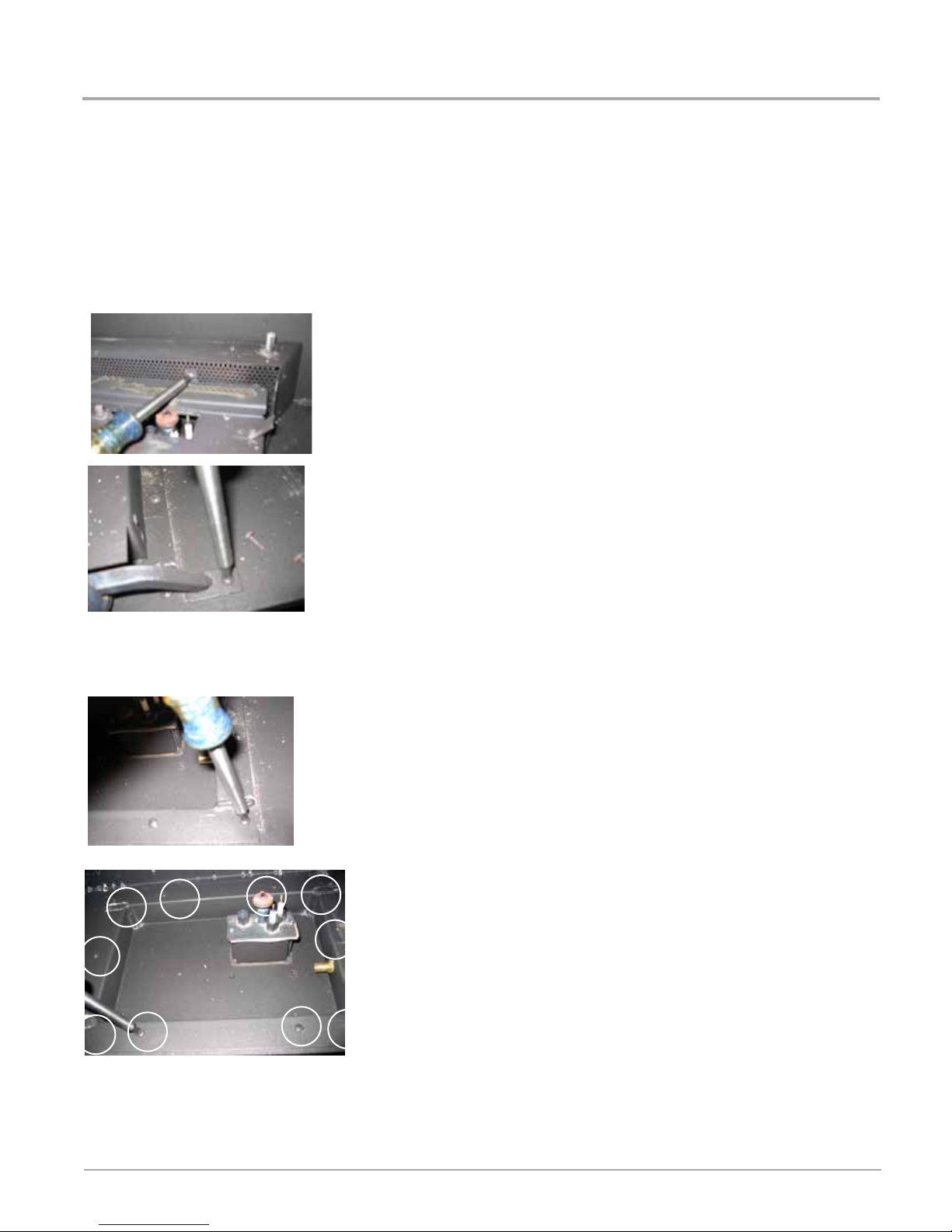

OPTIONAL STAINLESS STEEL INNER PANEL INSTALLATION

Final installation of optional stainless panels.

OPTIONAL STAINLESS STEEL INNER PANEL INSTALL

Before you start:

Stainless panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time. Claims for damage after installation will not receive consideration.

To protect the ﬁ nish during installation and handling - cotton gloves MUST be worn at all times while handling the panels (even when removing protective coating).

Stainless panels will discolor a little during normal operation. This is normal and should not be considered a defect.

All hand and ﬁ nger marks MUST be cleaned off with a soft cloth and a stainless steel cleaner. Most stainless steel cleaners leave a ﬁ lm/residue on the surface of the panels. Use an ammonia based cleaner (ie. glass cleaner) to remove this ﬁ lm before applying heat to the unit. Failure to do this will result in burn stains on panels which you will be unable to remove. This is not a warranty item.

1) Remove faceplate, inner door frame and screen if already installed. Refer to page 18 in the instruction manual.

2) Remove the glass door by undoing 2 latches - lift up and out. Refer to page 17 in the manual for detailed instructions.

3) Remove all the logs if installed and set aside carefully.

4) Loosen the 4 screws securing the brackets that hold the existing

back and side panels in place.

6) Remove the two side brackets and screws (set aside) - then remove the side panels by tilting the top in and lifting them out.

7) Orient the stainless side panels with the larger fold in the panel facing in towards the burner and facing the back of the ﬁ rebox.

5) Remove the two back brackets and screws (set aside) ﬁ rst, then remove the back panel by lifting it up slightly, tilt it forward, then lift it out.

Larger fold in the metal.

8) Secure the stainless panel with original bracket and screw - repeat procedure on the opposite side.

9) Reinstall the (original black) back panel - secure with 2 brackets and 2 screws (ones that were removed initially).

10) Reinstall the logs, glass door, inner door frame with screen and ﬁ nally the faceplate. See manual for detailed instructions.

Regency IG34 Gas Inbuilt Fireplace

Page 15

INSTALLATION

GAS INSERT

U31-2 / IG34

LOG SET INSTALLATION

Read the instructions below carefully and refer to the diagrams. If logs are broken do not use the unit until they are replaced. Broken logs can interfere with the pilot operation.

The gas log kit contains the following:

a) 02-43 Rear Log b) 02-45 Front Right Log c) 02-56 Middle Left Log d) 02-46 Left Top Log e) 02-47 Center Log f) 02-48 Middle Right Log g) 02-44 Front Left Log h) 902-154 Embers i) 902-153 Rockwool j) 902-179/P Vermiculite k) 946-669 Platinum Embers

(supplied with packaged manual)

Vermiculite

and embers

3) Place Rear Log A)02-43 on the two pins on the rear

log support.

Vermiculite

and embers

A)02-43

Vermiculite

and embers

The "02" refer numbers (i.e. 02-43) are

molded into the rear of each log.

Note: Install Optional Brick Panels prior to installing logs.

1) Carefully remove the logs from the box and unwrap them. The logs are fragile, handle with care - do not force into position.

2) Sprinkle the vermiculite around the ﬁ rebox base. Take

some of the embers (approx. 1/3 of the bag) and sprinkle over the vermiculite.

Regency IG34 Gas Inbuilt Fireplace

Pins on Rear Log Support

4) Place Front Right Log B)02-45 on the two pins as

shown.

B)02-45

Page 16

INSTALLATION

GAS INSERT

U31-2 / IG34

5) Place the Middle Left Log C)02-56 on the two pins as

shown.

C)02-56

7) Place the notch in Center Log E)02-47 over Log B)02-

45 and across the cutout on Log A)02-43.

E)02-47

B)02-45

Notch

Cutout

A)02-43

Logs A)02-43, C)02-56, and B)02-45 in position

6) Place the Left Top Log D)02-46 on the pin on Log C)02-56 and on top of the cutout on Log A)02-43.

D)02-46

A)02-43

C)02-56

Cutout

Logs D)02-46 and E)02-47 in position.

8) Position notch in Front Right Log F)02-48 on Log

E)02-47 and push the bottom right edge against the bracket on the burner tray and the front edge of the rear burner.

Notch

F)02-48

Bracket

E)02-47

B)02-45

Regency IG34 Gas Inbuilt Fireplace

Page 17

GAS INSERT

U31-2 / IG34

front

B)02-45

Separate platinum embers and place on and around

oid

ame

E) 02-45

Side View

F)02-48

Front edge of

rear burner

A)02-43

Bracket

10) Place the embers and Rockwool on the exposed

burner tray.

INSTALLATION

The bottom right edge of Log F)02-48 must sit snugly against

the bracket and the front edge of the rear burner.

9) Place Front Left Log G)02-44 onto the 2 front pins as

shown.

G)02-44

11)

the embers and rockwool on the burner tray. Av stacking platinum embers.

12) Test ﬁ re to ensure proper light off (make sure ﬂ

ﬂ ows smoothly from one end of burner to the other.

there is any ﬂ ame hesitation, check that area for any blockage of the burner port.

A) 02-43 D) 02-46

C) 02-44

B) 02-56

F) 02-47

G) 02-48

Regency IG34 Gas Inbuilt Fireplace

The "02" refer numbers (i.e. 02-43) are

molded into the rear of each log.

Page 18

INSTALLATION

GLASS DOOR INSTALLATION

STANDARD FLUSH DOOR

The standard ush door comes with a black frame. To install the frame and glass door, simply hook the top door ange onto the top of the unit and swing the door towards the unit, diagram 1. Be careful that the glass gasket does not roll up; there must be a gap between the gasket and the door lip to ensure that the door sits securely on the unit. See Diagram 2.

Diagram 1

Diagram 2

Use the hook to pull the spring out until you can put the hook into the slot on the bottom door bracket. Repeat for 2nd spring. See diagram 3. To remove the ush door, reverse the above steps.

Diagram 3

To remove the ush door, reverse the above steps.

Regency IG34 Gas Inbuilt Fireplace

Page 19

INSTALLATION

IG34

FACEPLAT E & OPTIONAL PLINTH TRIM ASSEMBLY

replace is higher than the hearth or to raise the

FACEPLATE & OPTIONAL PLINTH TRIM ASSEMBLY

1) Lay the faceplate panels ﬂ at, face down on something soft so they don't scratch.

2) Ta ke the top faceplate and align the holes in it with the holes in the side panels.

Secure with provided nuts and bolts.

3) Install faceplate on unit - see next page.

IG34 Faceplate Assembly / Plinth

1 336-914 Faceplate / Tr im Kit

1 366-942 Plinth Kit (optional)

1 336-016 Mesh Screen Door

1 336-072F Mesh Bottom Screen

6 904-576 #8 Phillips pan head screws

1 336-012 Bottom Door

Plinth Trim Option:

Plinth Trim Kits are an option that can be used to ﬁ nish off the installation when the bottom of the ﬁ ﬁ replace.

1) Lay the faceplate side panels ﬂ at, face down on something soft so they don't scratch.

2) Attach the Plinth Trim to the bottom of the faceplate side panels with the screws provided.

3) Install faceplate on unit - see next page.

SCREEN INSTALLATION

1) Hook the screen over the top of the door frame - lower until screen is ﬂ ush with the door frame.

2) Flip door frame and screen over - locate the bracket tab at the bottom of the door frame - fold the tab over 90º to secure the screen in place.

3) Install screen and door frame on to unit - follow directions on next page.

Regency IG34 Gas Inbuilt Fireplace

Page 20

INSTALLATION

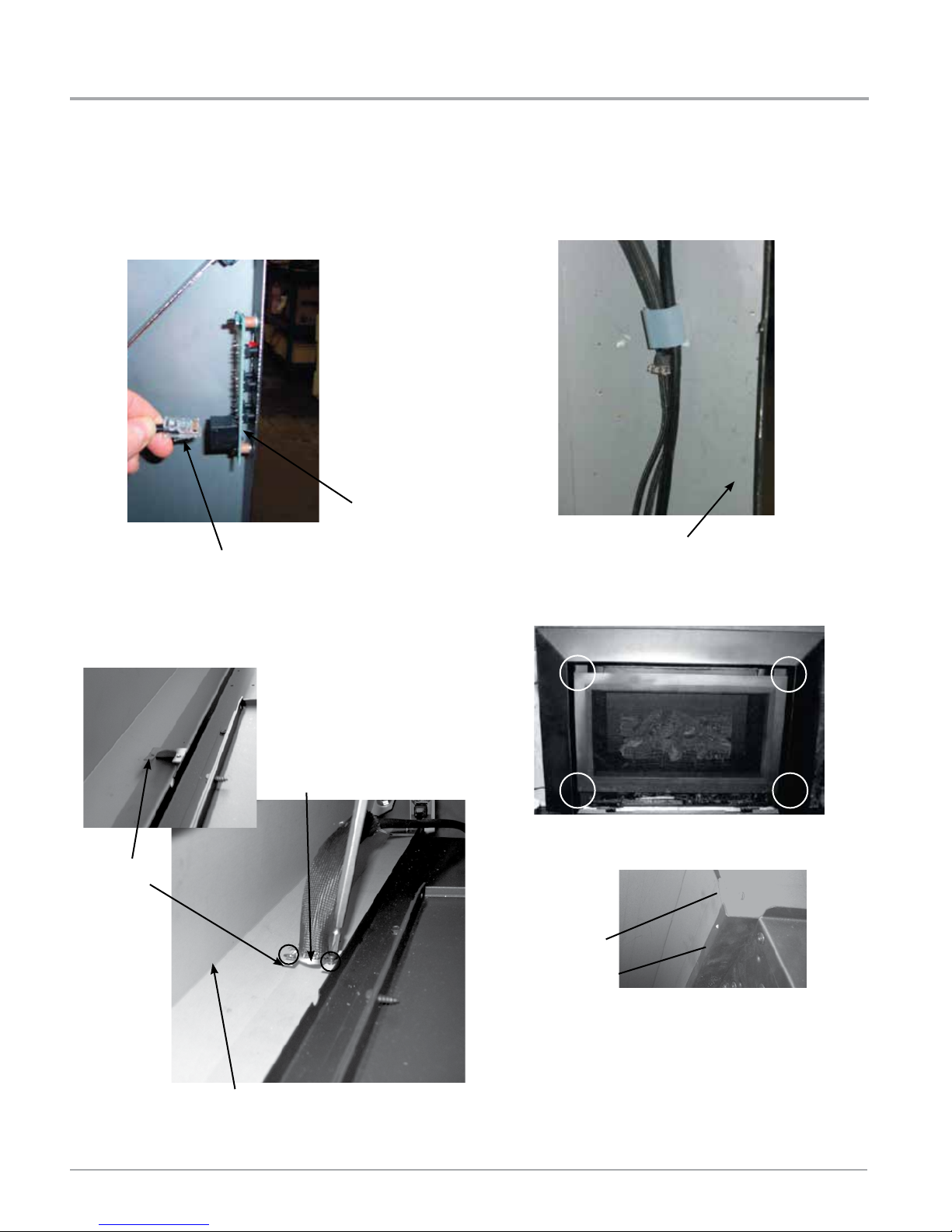

THERMODISC & FACEPLATE/DOORFRAME INSTALLATION

1) Position faceplate near the unit and plug the jack from the wiring harness from the unit into the back of the touch pad - as shown below.

3) Secure wiring along the vertical right side of the faceplate (facing the back of the faceplate) with supplied grey adhesive clips.

Back of Touch

Pad

Back of Faceplate

Jack

2) Take the limit switch harness from the unit and slide the thermodisc into the bracket located on the top backside of the faceplate. Secure with 2 screws as shown below.

4) Position faceplate on unit lining up screw holes on faceplate with screw holes on unit - secure with 4 screws.

Thermodisc

Bracket

Back of Faceplate

Note: Ensure that the ﬂ anges on the sides of the ﬁ rebox are on the outside, when installing the faceplate (see below).

Faceplate

Flange on ﬁ rebox

Regency IG34 Gas Inbuilt Fireplace

Page 21

IG34

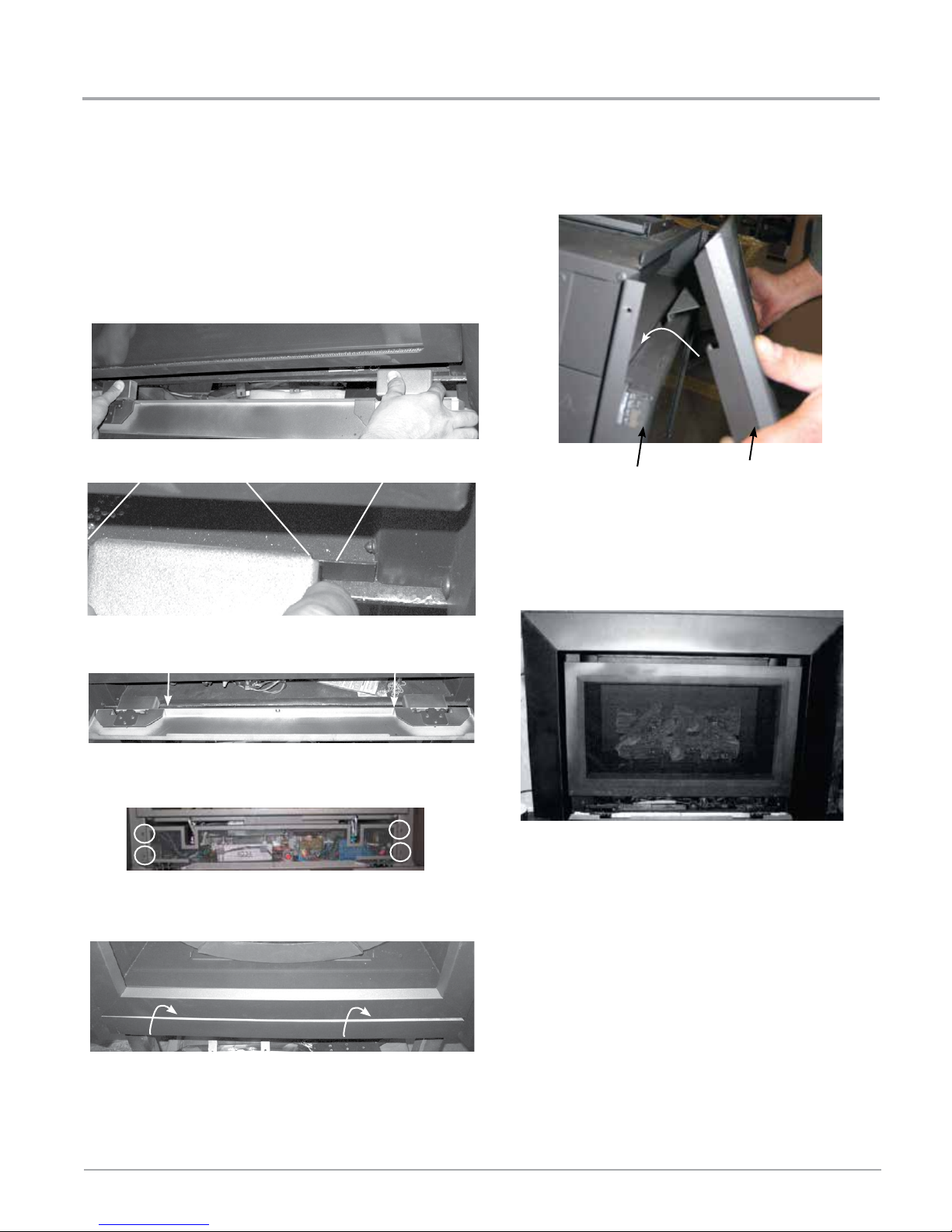

5) Fold down the 2 hinges on the bottom frame to a ﬂ at

FACEPLAT E AND DOOR FRAME INSTALLATION

position. The bottom frame is installed with a friction ﬁ t - the opening in the corner of each hinge slides over the metal lip located on the ﬂ oor of the unit.

Note: Ensure the bottom frame is positioned properly before installing, by making sure there is equal spacing on either side.

INSTALLATION

9) Install the door frame by hooking the top ﬂ ange over the top of the glass door.

Openings on hinge

6) Push both bottom frame hinges down on the metal lip until they are fully seated.

7) Install lower screw below glass door - secure with 4 screws.

Metal Lip

Glass Door

10) Lower the door frame gently into place.

11) To uninstall - reverse procedure.

12) Slide unit into ﬁ nal position.

Completed Faceplate & Door Frame Installation

with Safety Screen

Door Frame

8) Flip bottom louver up to close.

Regency IG34 Gas Inbuilt Fireplace

Page 22

INSTALLATION

FINAL CHECK

Before leaving this unit with the customer, the installer must ensure that the appliance is ring correctly. This includes:

1) Clocking the appliance to ensure the correct ring rate (rate noted on label) at 15 minutes.

2) If required, adjusting the primary air to ensure that the ame does not carbon. First allow the unit to burn for 15 min. to stabilize.

3) Check for proper draft.

CAUTION

Any alteration to the product that causes sooting or carboning that results in damage to the exterior facia is not the

responsibility of the manufacturer.

WIRING

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

This unit is polarity sensitive and will not operate if polarity is incorrect.

STANDARD WIRING

CAUTION: Label all wires prior to disconnection

when servicing controls. Wiring errors can cause improper and dangerous operation.

Regency IG34 Gas Inbuilt Fireplace

Page 23

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

Before operating this appliance, proceed through the following check list.

1) Read and understand these Instructions

before operating this appliance.

2) Check to see that all wiring is correct and

enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass door is in place. Never

operate the appliance with the door glass

removed.

5) Verify that all ueing and the cap is unob-

structed.

6) Verify log placement.

7) The unit should never be turned off and on

again without a minimum of a 60 second

wait.

8) When lighting the appliance, the inside of

the glass may fog up. This will burn off after a few minutes of operation.

FIRST FIRE

The FIRST FIRE in your heater is part of the paint curing process. To ensure that the paint is properly cured, it is recommended that you burn your replace for at least four (4) hours the rst time you use it with the fan on.

When rst operated, the unit will release an odour caused by the curing of the paint and the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours. The glass may require cleaning.

NOTE: The main burner will always start on

"HIGH" and resume it's last setting after

20 seconds of operation.

NOTE: When the glass is cold and the appliance

is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.

DO NOT ATTEMPT TO CLEAN THE GLASS WHILE IT IS STILL HOT!

DO NOT BURN THE APPLIANCE WITHOUT THE GLASS FRONT IN PLACE.

SUMMARY OF

CONTROLS

On/Off Button

If the unit is switched off, pressing and releasing this button once will switch the unit on. The unit will resume its last settings.

If the unit is switched on, pressing and releasing this button once will switch the unit off.

Flame:

Increase - If the unit is switched on, pressing and releasing the ame plus (+) button once will increase the ame height to the next available

high setting.

Decrease - If the unit is switched on, pressing and releasing the ame minus (-) button once will decrease the ame height to the next avail-

able low setting.

Fan:

Increase - If the unit is switched on, pressing and releasing the fan plus (+) button once will increase the fan speed to the next available

high setting.

Decrease - If the unit is switched on, pressing and releasing the fan minus (-) button once will decrease the fan speed to the next available

low setting.

LIGHTING

INSTRUCTIONS

1) Plug the power cord into a power outlet.

2) Press and release the ON/OFF switch once

to start the unit. The LED will be lit.

3) After approximately 8 seconds the spark

ignition system will spark for 8 seconds to light the main burner.

4) If the main burner does not light, repeat step

2 to restart the unit.

SHUTDOWN

INSTRUCTIONS

1) Press the ON/OFF switch once.

2) The LED will ash.

3) Turn off all electric power to the appliance

if service is to be performed.

REMOTE CONTROL

Use the Regency Remote Control Kit approved for this unit. Use of other systems may void your warranty.

The remote control kit comes with a hand held transmitter and a wall mounting plate.

1) Choose a convenient location to mount

the hand held transmitter, protection from extreme heat is very important.

By using the wall mounting plate to house the transmitter, the remote can also be used as a wall thermostat.

FAN OPERATION

Set the fan speed on the control panel at the top

rear of the unit to adjust to the desired speed.

Pressing and releasing the plus (+) FAN button

will change the fan speed as follows:

OFF -> MEDIUM -> HIGH -> OFF, etc.

Pressing and releasing the minus (-) FAN button

will be the reverse of the above.

Fan must be running at all times

when the unit is in operation.

ADJUSTING FLAME

HEIGHT

There are six ame settings that can be adjusted by pressing and releasing the plus (+) and minus (-) FLAME button.

Regency IG34 Gas Inbuilt Fireplace

Page 24

OPERATING INSTRUCTIONS

Part #: 918-332a (for ECS units, except for FG38)

COPY OF LIGHTING INSTRUCTION PLATE

NORMAL OPERATING

SOUNDS OF

GAS APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

Blower:

Regency gas appliances use high tech blowers to push heated air farther into the room. It is not unusual for the fan to make a "whirring" sound when ON. This sound will increase or decrease in volume depending on the speed setting of your fan speed control.

Burner Tray:

The burner tray is positioned directly under the burner tube(s) and logs and is made of a different gauge material from the rest of the rebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. You should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel reboxes.

WARNING:

DO NOT SPRAY AEROSOLS IN THE VICINITY OF

THIS APPLIANCE WHILE IN OPERATION.

"Appliances incorporating a live fuel effect, and designed to

operate with luminous ames, may exhibit slight carbon deposition."

Gas Control Valve:

As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

Unit Body/Firebox:

Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

RESETTING THE UNIT

If the appliance goes to 'lockout', the system

will have to be reset by depressing the reset button - located behind bottom louver.

*Important: Wait at least 5 min for any un-

burned gas to clear before resetting the appliance.

1) Open the bottom louver on the unit.

2) Press and release the reset button - once. The button is located near the gas valve.

3) Wait for approximately 3 seconds - the

pilot sparks can be heard and seen. It will take approximately 2 to 3 seconds for the

ame to be lit.

NOTE: Wait 30 seconds between reset attempts.

Regency IG34 Gas Inbuilt Fireplace

Page 25

MAINTENANCE

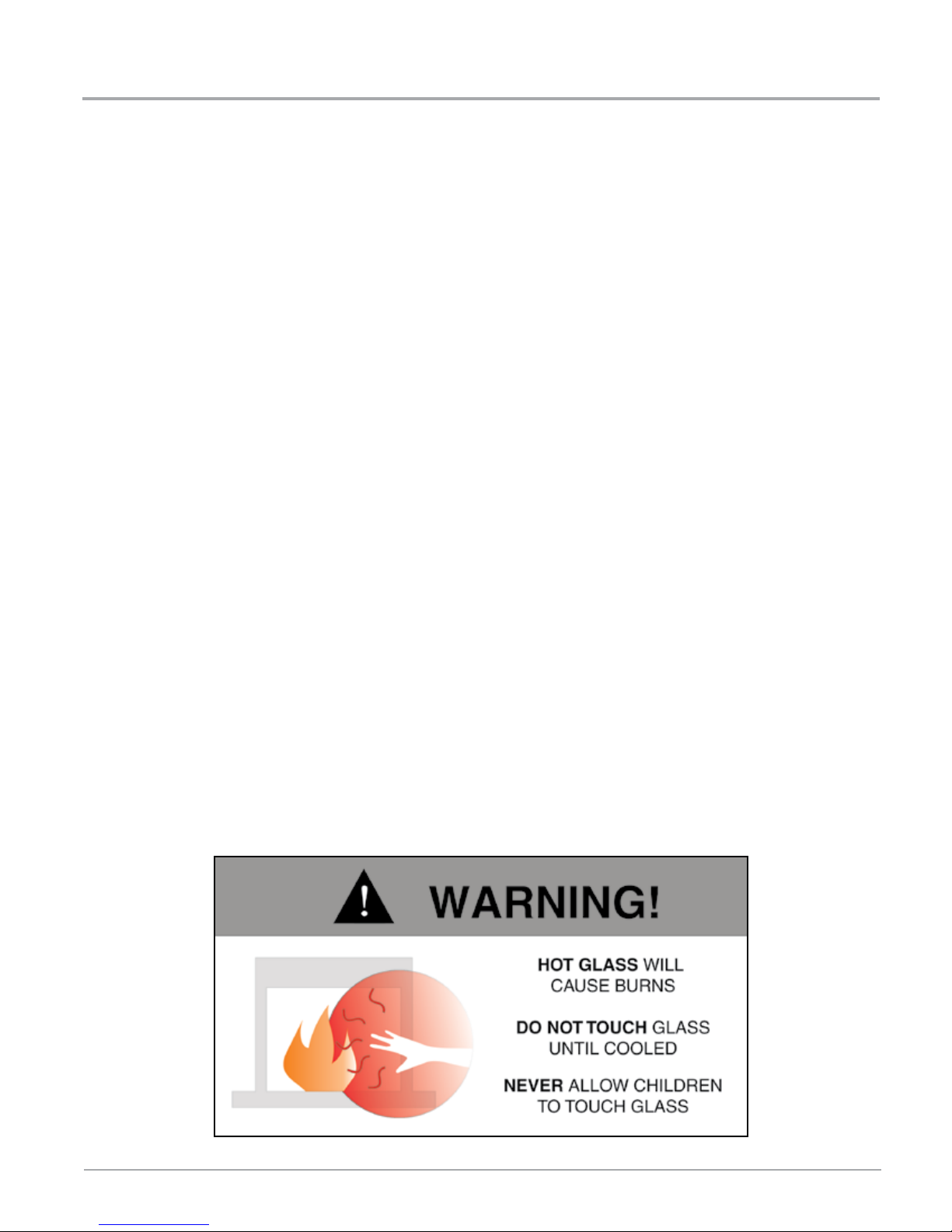

WARNING

HOT GLASS

DO NOT TOUCH

NEVER

WILL

CAUSE BURNS

GLASS

UNTIL COOLED

ALLOW CHILDREN

TO TOUCH GLASS

MAINTENANCE

INSTRUCTIONS

Any maintenance required accessing the

glass door of the unit must be performed by an authorized service person.

1) Always unplug the power cord before

cleaning. For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year. When cleaning the logs, use a soft clean brush as the logs are fragile and easily damaged.

2) Clean glass (never when unit is hot), appli-

ance, louvres, and door with a damp cloth. Never use an abrasive cleaner. The gold louvres (and optional gold door) may be scratched if abrasives are used to clean them.

The heater is nished in a heat resistant

paint and should only be renished with heat resistant paint (not with wall paint). Regency uses StoveBright Paint - Metallic Black #6309.

3) Make a periodic check of burner for proper

position and condition. Visually check the ame of the burner periodically, making sure the ames are steady; not lifting or oating. If there is a problem, call an authorized

service person.

4) The appliance and ueing system must be

inspected before use, and at least annually, by an authorized eld service person, to ensure that the ow of combustion and ventilation air is not obstructed.

During the annual service call, the burners

should be removed from the burner tray and cleaned. Replace the embers - do not block the burner ports.

5) Keep the area near the appliance clear and

free from combustible materials, gasoline and other ammable vapours and liquids.

6) Verify proper operation after servicing.

WARNING: CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURE AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION. YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME ROOM AS THE APPLIANCE.

CAUTION: ANY SAFETY SCREEN OR GUARD REMOVED FOR SERVICING AN APPLIANCE MUST BE REPLACED PRIOR TO OPERATING THE APPLIANCE.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. IMMEDIATELY CALL AN AUTHORIZED SERVICE TECHNI CIAN TO INSPECT THE APPLIANCE AND TO REPLACE ANY PART OF CONTROL SYSTEM AND ANY GAS CONTROL WHICH HAS BEEN UNDER WATER.

LOG REPLACEMENT

The unit should never be used with broken logs. Unplug the power cord and allow the unit to cool before opening door to carefully remove the logs. If for any reason a log should need replacement, you must use the proper replacement log. The position of these logs must be as shown in the diagram under Log Installation.

Note: Improper positioning of logs may

create carbon build-up and will alter the unit’s performance which is not covered under warranty.

DOOR GLASS

REPLACEMENT

Your Regency stove is supplied with high temperature, 5 mm Neoceram ceramic glass that will withstand the highest heat that your unit will produce. In the event that you break your glass by impact, purchase your replacement from an authorised Regency dealer only, and follow our step-by-step instructions for replacement.

WARNING: do not operate appliance with the glass front removed, cracked or broken. Replacement of the glass should be done by a licensed or authorised service person.

Flush Glass Replacement

Slide old glass out of the side frames and

replace with new glass.

GLASS GASKET

If the glass gasket requires replacement use glass gasket (Part # 936-155).

Regency IG34 Gas Inbuilt Fireplace

Page 26

MAINTENANCE

FAN MAINTENANCE

To Remove Fan:

1) Turn the unit off and allow it to cool to room temperature,

2) Unplug or disconnect power source to stove.

3) Open the bottom louvre.

4) Remove screws that secure protective screen.

5) Remove door frame and screen

6) Remove the ECS harness from the back clip.

7) Pull out the ECS box. NOTE: The ECS box is held in place with velcro.

8) Remove the 2 screws that secure the fan in place.

9) Carefully slide the fan to the front, rotate it 45 degrees and slide it out simultaneously with the ECS box.

Resistor

Connectors

10) Disconnect all the connectors from the fan and resistor.

11) Remove the fan ground cable.

12) Reverse the above steps to install the new fan.

Fan

Connectors

Fan Ground

Cable

Regency IG34 Gas Inbuilt Fireplace

Page 27

VALVE ASSEMBLY REPLACEMENT

1) Unplug or disconnect the power source to the stove and shut off gas supply.

2) open bottom louvre and remove protective screen.

3) Remove the door frame and safety screen.

4) Remove the glass door, logs, and black or stainless inner liner, if installed.

5) Remove the rear log tray, burner and grate.

MAINTENANCE

6) Disconnect gas line from the valve.

7) Remove the rebox base plate by removing the 10 screws which hold it in place.

8) Remove all the wire connectors from the valve and spark ignitor.

9) Remove the valve tray assembly.

10) To replace the valve tray assembly, simply reverse the above steps.

Regency IG34 Gas Inbuilt Fireplace

Page 28

PARTS LIST

Note: Depending on the model, the diagram below may not be exactly as shown - for reference purposes only.

ELECTRONIC COMPONENTS PARTS LIST

910-084

910-526

910-909 Fan Resistor

910-936 Intermittent Pilot

910-082 Direct Spark Ignitor

910-089 Flame Cable

910-088 Spark Cable

910-084 Control Box

910-527 Manual Control Switch

910-080 Valve

910-521 Control Box Cable (1) 910-522 Control Box Cable (2) 910-523 Control Box Cable (3) 910-525 Control Box Cable (4)

910-912 Ignition Module to

Valve Cable

911-161 Reset Switch

910-083 Ignition Module (1) 911-121 Ignition Module (2)

910-936

910-088

910-080

910-521, 910-522, 910-523

FG38 FG39 PG33 PG36 /

PG36D

910-082

910-089

910-906

PG121/

PG131

910-912

910-083 911-121

IG35 IG34

910-514

GF900L/C

       

N/A

  

   

N/A N/A N/A N/A

N/A

  

 

N/A N/A

        

N/A N/A N/A N/A



       

*N/A (2) (1)

N/A N/A

N/A

(1) (2)

   

(2) (2) (2) (2)

     

(1)

(3)

N/A*

N/A

(1)

(2)

 

(2) (2)

N/A

910-514 Jumper Wire

910-527 Manual Control Switch

910-935 Manual Control Switch

**Note: The Control Box Cable wires for the FG38 come separately: 910-502, 910-505, 910-506, 910-507, 910-509

N/A

   

 

N/A N/A

N/A N/A N/A N/A

    

Regency IG34 Gas Inbuilt Fireplace



N/A

Page 29

MAIN ASSEMBLY

Part # Description Part # Description

1) 910-169/P Fan Motor (240 V)**

2) 910-995 Thermodisc**

10) 910-936 Pilot Assy (NG) - 3 ame convertible top 910-947 Pilot Assy (LPG) - 3 ame convertible top

PARTS LIST

3) 486-968 LPG Conversion Kit** 486-967 ULPG Conversion Kit**

4) 336-574/P Valve Assembly - NG 336-576/P Valve Assembly - LPG

5) 910-080 SIGMA Valve 845

6) 336-001 Valve Tray Gasket**

7) 402-526 Grate Assembly**

8) 336-535 Burner Assembly - NG/LPG

9) 402-935 Log Set**

11) 904-240 Orice #37 (NG) 904-645 Orice #51 (LP)

12) 336-013 Glass Door Frame

13) 936-155 Gasket Tadpole Tape

14) 940-307/P Neoceram Glass

948-223 Logo Plate

918-793 Manual

*Not available as a replacement part. ** Part not shown.

Regency IG34 Gas Inbuilt Fireplace

Page 30

PARTS LIST

FACEPLATE ASSEMBLY

Part # Description

14) 366-942 Plinth Kit

15) 336-914 Faceplate & Trim Complete - Regular

16) 336-532 Flush Screen Door**

*Not available as a replacement part.

Regency IG34 Gas Inbuilt Fireplace

Page 31

NOTES

___________________________________________________

Regency IG34 Gas Inbuilt Fireplace

Page 32

NOTES

___________________________________________________

Regency IG34 Gas Inbuilt Fireplace

Page 33

NOTES

___________________________________________________

Regency IG34 Gas Inbuilt Fireplace

Page 34

WARRANTY

Regency® Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our door. Regency® is pleased to extend this limited lifetime warranty to the original purchaser of a Regency® Product. Regency® will repair or replace goods free of charge in the event of defects arising from faulty materials or workmanship in accordance with the warranty

terms in relation to Denitions, Warranty Conditions and Exclusions stated in this document.

The benets to the consumer given by this warranty are in addition to all other rights and remedies of the consumer under a law in relation to the goods or services to which the warranty relates.

Our goods come with the guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

The Warranty: Lifetime Covered under the agreement are the following components: The combustion chamber, heat exchanger, burner tubes/pans, logs, glass crystals, ceramic spa stones, pebbles, brick panels and gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty for ve (5) years for parts and labour and parts only thereafter.

External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and labour for one (1) year from the date of purchase and parts only thereafter.

Regency Fireplace Products is not liable for freight or labour on any gas appliance replaced in the eld.

Special Finishes - One year on stainless steel panels, nickel overlays, nickel faceplates, brushed nickel and antique copper full screens and doors. You can expect some changes in color as the product "ages" with constant heating and cooling. FPI warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical components such as fans, switches, ignition modules, wiring, thermodiscs, remote control, thermopiles, thermocouples and gas valves are covered for one year for parts and labour from the date of purchase.

The warranty on brass parts is for one year, no labour. The brass is not warranted against tarnishing.

Repair/replacement parts purchased by the consumer from Regency® after the original coverage has expired on the unit will carry a 90 day warranty valid with a receipt only. Any item shown to be defective will be repaired or replaced at our discretion. No labour coverage is included with these parts.

Conditions:

All installations must be performed by a qualied gas tter and installed according to all applicable local and national codes. Also, all service work must be carried out by a qualied gas service person provided by the selling dealer. It is the responsibility of the installer to ensure that the appliance is ring as per rating plate. Any part or parts of this unit which in our judgement show evidence of such defect will be repaired or replaced at Regency®'s option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested. In areas where there is not an approved service agent or the closest approved service agent is situated more than thirty (30) kilometres from the installation, Regency is not obliged to arrange warranty repairs and travel and/ or additional labour charges will apply.

Porcelain/Enamel - Absolute perfection is neither guaranteed nor commercially possible. Any chips must be reported and inspected by an authorised dealer within three days of installation. Reported damage after this time will be subject to rejection.

It is the general practice of Regency® to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to Regency and evaluated fro manufacturer defect.

At all time Regency reserves the right to inspect product in the eld which is claimed to be defective.

All claims must be submitted to Regency® by authorised selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasket or trim. It does not cover installation and operational related problems such as over-ring, down drafts or spillage caused by environmental conditions, nearby trees, buildings, hilltops, mountains, inadequate ueing or ventilation, excessive offsets, negative air pressures caused by insufcient make up air, mechanical systems such as furnaces, fans, clothes dryers etc.

Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy.

Regency® will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance.

Performance problems due to operator error will not be covered by this warranty policy.

The warranty does not extend to any part or parts which show evidence of misuse or abuse, neglect, accident, lack of maintenance, or improper installation.

Products made by other manufacturers and used in conjunction with the operation of this appliance without authorisation from Regency®, may nullify your warranty on this product.

Regency shall in no event be liable for any special, indirect consequential damages of any nature whatsoever which are in excess of the original purchase price of the product. Any alteration to the unit which causes sooting or carboning that results in damage to the exterior facia is not the responsibility of Regency Fireplace Products.

SUBJECT TO CHANGE.

Regency IG34 Gas Inbuilt Fireplace

Page 35

DISTRIBUTORS: Western Australia Eastern Australia

Air Group Australia

28-30 Division St.

Welshpool, WA 6106 Hallam, VIC 3803

08 9350 2200 03 9799 7277

Fireplace Products Australia PTY. Ltd.

1-3 Conquest Way

WARRANTY

NOTE: PLEASE RETAIN YOUR INVOICE AS PROOF OF PURCHASE FOR WARRANTY

INCORRECT INSTALLATION OR GAS PRESSURE SETTINGS ARE NOT COVERED BY

A SERVICE OR CALLOUT FEE WILL BE CHARGED IN THESE CIRCUMSTANCES.

VERIFICATION

WARRANTY

Regency IG34 Gas Inbuilt Fireplace

Page 36

www.regency-re.com.au

Reasons to register your product online today!

• View and modify a list of all your registered products.

• Request automatic email notication of new product updates.

• Stay informed about the current promotions, events, and special

offers on related products.

• Help assure you get the most out of your warranty.

• Eliminate confusion and frustration if warranty** service is required in

the future.

** Proof of purchase required at time of warranty request.

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________

___________________________________________________________________

Installer: ___________________________________________________________

Phone #: ___________________________________________________________

Date Installed: ______________________________________________________

Serial No.: __________________________________________________________

Printed in Canada
