Regency HZ30E User Manual

Download

Regency Horizon

Installer

: Please complete the details on the back cover

™

HZ30E

Owners &

Installation Manual

Gas Fireplace

MODELS: HZ30E-NG1 Natural Gas

HZ30E-LP1 Propane

Horizon HZ30E Product Video

WARNING: If the information in these instructions are not followed exactly, a ﬁ re or explosion may result causing property damage, personal injury or loss of life.

FOR YOUR SAFETY Do not store or use gasoline or other ﬂ ammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁ ed installer, service agency or the gas supplier.

919-272

Tested by:

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

Installer

Homeowner: Please keep these instructions for future reference.

: Please complete the details on the back cover

and leave this manual with the homeowner.

www.regency-ﬁ re.com

FOR YOUR SAFETY What to do if you smell gas: Do not try to light any appliance Do not touch any electrical switch:

do not use any phone in your building.

Immediately call your gas supplier

from a neighbour's phone. Follow the gas supplier's instructions.

If you cannot reach your gas

supplier, call the ﬁ re department.

09.25.13

MANUFACTURED MOBILE HOME REQUIREMENTS

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency standards: VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2009 / CSA 2.33-2009 and GAS-FIRED APPLIANCES FOR USE AT HIGH ALTITUDES CAN / CGA 2.17-M91.

This appliance may only be installed in an aftermarket permanently located, manufactured (U.S.A only) or mobile home, where not prohibited by local codes.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1

in Canada.

This appliance comes equipped with a dedicated #8 Ground Lug for attachment of the ground wire to the steel chassis as applicable to local codes.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

product has been tested and listed by Warnock Hersey/Intertek as a Direct Vent Wall Furnace to the following

This appliance can only be used with the type of gas indicated on the rating plate. This appliance is not convertible for use with other gases.

Ensure that structural members are not cut or weakened during installation.

This appliance may be installed as an OEM installation in a manufactured home (USA only) or mobile home and must be installed in accordance with the manufacturer's instruction and the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280, in the Untied States, or the Standard for Installation in Mobile Homes, CAN/CSA Z240 MH, in Canada.

WARNING

HOT GLASS

CAUSE BURNS

DO NOT TOUCH

UNTIL COOLED

WILL

GLASS

NEVER

ALLOW CHILDREN

TO TOUCH GLASS

Regency Horizon™ HZ30E-1 Gas Fireplace

To the New Owner:

Congratulations! You are the owner of a state-of-the-art Gas Fireplace by REGENCY®. The HZ30E has been designed to provide you with all the warmth and charm of a ﬁ replace at the ﬂ ick of a switch. The model HZ30E has been approved by Warnock Hersey/Intertek for both safety and efﬁ ciency . As it also bears our own mark, it promises to provide you with economy , comfort and security for many trouble free years to follow. Please take a moment now to acquaint yourself with these

instructions and the many features of your Regency

Fireplace.

Regency Horizon

Gas Insert Beneﬁ ts Video

Regency Horizon™ HZ30E-1 Gas Fireplace

Horizon HZ30E Product Video

TABLE OF CONTENTS

Copy of Safety Decal .....................................................5

REQUIREMENTS

MA Code - CO Detector.................................................6

(for the State of Massachusetts only) ............................6

Unit Dimensions ............................................................7

Faceplate and door frame Dimensions..........................7

INSTALLATION

Important Message ......................................................8

Before You Start ............................................................8

General Safety Information............................................8

Installation Checklist ......................................................9

Locating Your Gas Fireplace .........................................9

Clearances ..................................................................10

Mantel Clearances.......................................................11

Mantel Leg Clearances................................................11

Unit Assembly Prior To Installation ..............................12

Nailing Strips ........................................................12

Installation Access panel .....................................12

Wall mount On / Off Switch and receiver installation ...13 Required for all installations - including proﬂ ame remote

controls ........................................................................13

GT remote Installation .................................................13

Framing Dimensions....................................................14

Framing & Finishing.....................................................15

Framing & Finishing.....................................................16

Non-Combustible Requirements .................................16

Exterior Vent Termination Requirements .....................17

4” x 6-5/8” Rigid Pipe Cross Reference Chart only .....18

Vent Restrictor Position ...............................................20

Venting Introduction .....................................................21

Venting Arrangement for Horizontal Terminations .......21

Horizontal Terminations Flex Vent 4" x 6-7/8" .............22

Horizontal terminations ................................................23

Rigid Pipe 4" x 6-5/8" ...................................................23

Horizontal Terminations ...............................................24

Rigid Pipe 4" x 6-5/8" ...................................................24

Venting Arrangement for Vertical Terminations ............27

Venting Arrangements - Vertical Terminations ............28

Vertical Termination with Co-Linear Flex System ........29

Vertical Terminations ...................................................30

Rigid Pipe 4" x 6-5/8" ...................................................30

Unit Installation with Horizontal Termination ...............32

4" x 6-5/8" venting .......................................................32

Unit Installation with Horizontal Termination ...............33

Unit installation with Vertical Termination ....................34

4" x 6-5/8" venting .......................................................34

High Elevation .............................................................35

Gas Line Installation ....................................................35

Pilot Adjustment ...........................................................35

Gas Pipe Pressure Testing ..........................................35

880 S.I.T. Valve Description .........................................35

Aeration Adjustment ....................................................35

Wiring Diagram ............................................................36

Proﬂ ame Remote system GTMF .................................36

AC power adaptor installation (for sureﬁ re systems) ...37

Proﬂ ame remote system GTMF with optional fan .......38

Optional fan Wiring Diagram ......................................39

Without ProFlame GTMF system ................................39

Optional Remote Control .............................................40

Receiver Wall Switch ..................................................40

Optional wall thermostat installation ............................41

GTMF remote installation ............................................42

Optional fan Installation ...............................................44

Reﬂ ective Panel Installation ........................................46

Glass Crystals or optional stones ................................47

Installation On Burner ..................................................47

Optional log set Installation .........................................49

Glass door Installation .................................................52

4 pc. Faceplate Installation ..........................................53

Outer and inner door frame Installation .......................54

OPERATING INSTRUCTIONS

Operating Instructions .................................................55

First Fire ......................................................................55

Lighting Procedure ......................................................55

Shutdown Procedure ...................................................55

Normal Operating Sounds of Gas Appliances .............55

Copy of Lighting Plate Instructions ..............................56

Maintenance Instructions.............................................57

Glass Gasket ...............................................................57

Glass Door...................................................................57

Glass Replacement .............................................57

General Vent Maintenance ..........................................57

Valve assembly Replacement .....................................58

PARTS LIST

Main Assembly ............................................................60

Accessories .................................................................61

WARRANTY

The Warranty: Limited Lifetime ...................................63

Regency Horizon HZ30E Gas Fireplace

This is a copy of the label that accompanies each HZ30E-NG1 and HZ30E-LP1 Direct Vent Gas Fireplace. We have printed a copy of the contents here for your review.

NOTE: Regency

units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one.

Listed:

VENTED GAS FIREPLACE HEATER /

Certified for/Certifi e pour: Tested to: 4001172

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.

NATURAL GAS: Model HZ30E-NG1

Minimum supply pressure Manifold pressure Orifice size Maximum input Altitude

PROPANE GAS: Model HZ30E-LP1

Minimum supply pressure Manifold pressure Orifice size Maximum input Altitude

CAN/CGA-2.17-M91,ANSI Z21.88-2009/CSA 2.33-2009

5.0" (1.25 kPa)

3.5" (0.87 kPa) #50 DMS 14,000 Btu/h (4.10 kW) 0-4500 ft/pi (0-1372 m)

11“ WC/C.E (2.73 kpa) 10" (2..49 kPa) #57 DMS 13,000 Btu/h (3.81 kW) 0-4500 ft/pi (0-1372 m)

WC/C.E. WC/C.E.

WC/C.E.

CANADA and U.S.A.

COPY OF SAFETY DECAL

FOYER AU GAZ À ÉVACUATION

APPAREIL FONCTIONNANT AU NATURAL GAS CONCU POUR ETRE POELE: Mod le HZ30E-NG1

Pression d'allimentation minimum Pression à la tubulure d' chappement lev e Grandeur de l'injecteur D bit maximum selon

Calorifique

l'altitude

ÉÉ

QUIP A L'UISINE POUR GAZ PROPANE

CONCU POUR ETRE POELE: Mod le HZ30E-LP1

Pression d'allimentation minimum Pression à la tubulure d' chappement lev e Grandeur de l'injecteur D bit maximum selon

Calorifique

l'altitude

ééé

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE

SAFETY LABEL

Serial No./ No de serie

362

Minimum Clearances to Combustibles /

Degagement Minimum De Materiaux Combustibles

Side Walls

A 8” (203mm)

DOOR SEAL: Please

check that the door is

properly sealed

Ceiling

B 39” (991mm)

Min. Mantel Height

C 13-1/4" (337mm)

Max. Mantel Depth

D 12” (305mm)

Alcove Width

E 60" (1524mm)

Alcove Depth

F 36" (914mm)

(See Instruction Manual for

detailed instructions)

This appliance must be installed in accordance with local codes, if any; if none, follow the National Fuel Gas Code, ANSI Z223.1, or Natural Gas and Propane Installation Code, CSA B149.1. This appliancemust be installed inaccordance withthe Standard CAN/CSA Z240 MH,Mobile Housing,in Canada, or withthe ManufacturedHome Construction andSafety Standard,Title 24 CFR,Part 3280, in the UnitedStates, orwhen such astandard isnot applicable,ANSI/NCSBCSA225.1/NFPA 501A, ManufacturedHome Installations Standard orANSI A119.2ou NFPA 501CStandard for Recreational Vehicles This applianceis only for usewith thetype of gasindicated on the ratingplate andmay be installedin an aftermarket, permanentlylocated, manufactured(mobile) home wherenot prohibited by localcodes. See owner's manualfor details. Installer l'appareilselon lescodes ou règlementslocaux, ou,en l'absencede telsrèglements, selon lescodes d'installationANSI Z223.1,National FuelGas Codeou CSA-B149.1en vigueur. Installer l'appareil selon la norme CAN/CSA-Z240, Série MM, Maison mobiles ou CAN/CSA-Z240 VC, Véhicules de camping, ou la norme 24 CFR Part 3280, Manufactured Home Construction and Safety Standard. Si cesnormes ne sontpas pertinentes, utilisezla normeANSI/NCSBCS A225.1/NFPA 501A, Manufactured Home Installations Standard, ou ANSIA119.2 ou NFPA 501CStandard for Recreational Vehicles. Cet appareildoit être utilize uniquement avecle type de gazindiqué sur la plaque signalétique. Cetappareil peut être installédans une maison préfabriquée ou mobile(É.-U. seulement) installée àdemeure si les règlementslocaux lepermettent. Voirla noticede l'utilisateurpour plus derenseignements. Cetappareil nepeut pasêtre utilisé avecd'autres gazsauf siune troussede conversion certifiéeest fournie.

This ventedgas fireplaceheater is notfor usewith air filters. Ne pasutiliser defiltre à airavec cefoyer au gazà évacuation. FOR USEWITH GLASSDOORS CERTIFIED WITHTHE APPLIANCEONLY

Fan (Part # 316-917) Electrical supply / Électrique 115VAC, 1.13 A, 60Hz. NOT FOR USE WITH SOLID FUELS. /

NE PAS UTILISER AVEC DU COMBUSTIBLE SOLIDE.

POUR UTILISATION UNIQUEMENTAVECLES PORTES EN VERRECERTIFIÉES AVEC L'APPAREIL

Made in Canada/ Fabrique au Canada

FPI Fireplace Products International Ltd. Delta, BC, Canada

For the State of Massachusetts, installation and repair must be done by a plumber or gasﬁ tter licensed in the Commonwealth of Massachusetts.

For the State of Massachusetts, ﬂ exible con- nectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

The State of Massachusetts requires the installation of a carbon monoxide alarm in accordance with NFPA 720 and a CO alarm with battery back up in the same room where the gas appliance is installed.

919-273

Regency Horizon HZ30E Gas Fireplace

REQUIREMENTS

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

MA Code - CO Detector

(for the State of Massachusetts only)

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight (8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or structure used in whole or in part for residential purposes.

(c) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM PROVIDED. When the manufacturer of Product Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies "special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation.

Regency Horizon™ HZ30E-1 Gas Fireplace

30-9/16” (776mm)

28-11/16” (729mm)

DIMENSIONS

UNIT DIMENSIONS

10-3/4” (275mm)

14-1/2” (368mm)

14-1/4” (362mm)

1-1/2” (38mm)

12-7/8” (327mm)

27-5/8” (702mm)

24-7/8” (632mm)

10-1/8” (257mm)

FACEPLATE AND DOOR FRAME DIMENSIONS

33-1/4” (845mm)

3/4” (19mm)

14-9/16” (370mm)

5/8” (16mm)

6-1/8” (156mm)

27-1/16” (687mm)

25-11/16” (652mm)

6-3/8” (162mm)

32-3/8” (822mm)

25” (635mm)

19-1/2” (495mm)

Regency Horizon™ HZ30E-1 Gas Fireplace

10-1/2” (267mm)

24-7/8” (631mm)

10-1/8” (257mm)

27-5/8” (702mm)

14 ” (357mm)-1/16

18-1/16” (459mm)

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The Gas Fireplace must be installed in accordance with these instructions. Carefully read all the instructions in this manual ﬁ rst. Consult the "authority having jurisdiction" to determine the need for a permit prior to starting the installation. It is the responsibility of the installer to ensure this ﬁ replace is installed in compliance with manufacturers instructions and all applicable codes.

BEFORE YOU START

Safe installation and operation of this appliance requires common sense, however, we are required by the Canadian Safety Standards and ANSI Standards to make you aware of the following:

INSTALLATION AND REPAIR SHOULD BE DONE BY AN AUTHORIZED SERVICE PERSON. THE APPLIANCE SHOULD BE INSPECTED BEFORE USE AND AT LEAST ANNUALLY BY A PROFESSIONAL SERVICE PERSON. MORE FREQUENT CLEANING MAY BE REQUIRED DUE TO EXCESSIVE LINT FROM CARPETING, BEDDING MATERIAL, ETC. IT IS IMPERATIVE THAT CONTROL COMPARTMENTS, BURNERS AND CIRCULATING AIR PASSAGEWAYS OF THE APPLIANCE BE KEPT CLEAN.

YOUNG CHILDREN SHOULD BE CAREFULLY SUPERVISED WHEN THEY ARE IN THE SAME AREA AS THE APPLIANCE. TODDLERS, YOUNG CHILDREN AND OTHERS MAY BE SUSCEPTIBLE TO ACCIDENTAL CONTACT BURNS. A PHYSICAL BARRIERS IS RECOMMENDED IF THERE ARE AT RISK INDIVIDUAL IN THE HOUSE. TO RESTRICT ACCESS TO A FIREPLACE OR STOVE, INSTALL AN ADJUSTABLE SAFETY GATE TO KEEP TODDLERS, YOUNG CHILDREN AND OTHER AT RISK INDIVIDUALS OUT OF THE ROOM AND AWAY FROM HOT SURFACES.

CLOTHING OR OTHER FLAMMABLE MATERIAL SHOULD NOT BE PLACED ON OR NEAR THE APPLIANCE.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform with

local codes or, in the absence of local codes, with the current Canadian or National Gas Codes, CAN1-B149 or ANSI Z223.1 Installation Codes.

2) The appliance when installed, must be electrically grounded in accordance with local codes, or in the absence of local codes with the current National Electrical Code, ANSI/NFPA 70 or CSA C22.1 Canadian Electrical Code.

11) Under no circumstance should this appliance be modified. Parts that have to be removed for servicing should be replaced prior to operating this appliance.

12) Installation and any repairs to this appliance should be done by a qualiﬁ ed ser vice person. A professional service person should be called to inspect this appliance annually. Make it a practice to have all of your gas appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid fuels

(wood, paper, cardboard, coal, etc.) be used in this appliance.

15) The appliance area must be kept clear and free of combustible materials, (gases and other ﬂ ammable vapours and liquids).

Emissions from burning wood or gas could contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

DUE TO HIGH TEMPERATURES, THE APPLIANCE SHOULD BE LOCATED OUT OF TRAFFIC AND AWAY FROM FURNITURE AND DRAPERIES.

WARNING: FAILURE TO INSTALL THIS APPLIANCE CORRECTLY WILL VOID YOUR WARRANTY AND MAY CAUSE A SERIOUS HOUSE FIRE.

CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.

3) See general construction and assembly

instructions. The appliance and vent should be enclosed.

4) This appliance must be connected to the speciﬁ ed vent and termination cap to the outside of the building envelope. Never vent to another room or inside a building. Make sure that the vent is ﬁ tted as per Venting instructions.

5) Inspect the venting system annually for blockage and any signs of deterioration.

6) Venting terminals shall not be recessed into a wall or siding.

7) Any safety glass removed for servicing must be replaced prior to operating the appliance.

8) To prevent injury, do not allow anyone who is unfamiliar with the operation to use the ﬁ replace.

9) Wear gloves and safety glasses for protection while doing required maintenance.

10) Be aware of electrical wiring locations in walls and ceilings when cutting holes for termination.

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

CHECKLIST

1) Locate appliance

a) Room location (Refer to "Locating Y our Gas

ﬁ replace" section)

b) Clearances to Combustibles (Refer to

"Clearances" section)

c) Mantle Clearances (Refer to "Mantel

Clearances" section)

d) Framing & Finishing Requirements (Refer

to "Framing & Finishing" section)

e) Venting Requirements (Refer to "Venting"

section)

2) Position nailing strips (Refer to "Unit Assembly Prior to Installation).

3) Slide unit into place.

4) Remove installation access panel.

5) Install vent (Refer to "Venting Arrangement"

sections).

6) Make gas connections (Refer to "Gas Line Installation section).

7) Make electrical connections to receptacle

supplied with unit (recommended).

8) Install 4 AA batteries into receiver/switch box or optional AC power adaptor.

This includes:

1) Clocking the appliance to ensure the correct

ﬁ ring rate (rate noted on label 14,000 Btu/h (NG), 13,000 Btu/h (LP) after burning appliance for 15 minutes.

2) If required, adjusting the primary air to ensure that the ﬂ ame does not carbon. First allow the unit to burn for 15-20 min. to stabilize.

CAUTION: Any alteration to the product that causes sooting or carboning that results in damage is not the responsibility of the manufacturer.

LOCATING YOUR

GAS FIREPLACE

1) When selecting a location for your ﬁ replace,

ensure that the clearances are met.

2) The appliance must be installed on a ﬂ at, solid, continuous surface For example a wood, metal or concrete ﬂ oor or in a raised (on the wall) ap- plication. The appliance must be installed on a metal or wood panel extending the full width and depth of the appliance.

4) This appliance is Listed for bedroom installations using the standard Remote (millivolt thermostat system). Some areas may have further requirements, check local codes before installation.

5) The HZ30E Direct Vent Gas Fireplace is approved for alcove installations, see "Clearances" section for details.

6) We recommend that you plan your installation on paper using exact measurements for clearances and ﬂ oor protection before actually installing this appliance. Have an authorized inspector, dealer , or installer review your plans before installation.

Note: For vent terminations refer to "Exterior

Vent Termination Locations" section.

9) Test the pilot (Refer to "Pilot Adjustment"

section).

10) T est Gas Pressure (Refer to "Gas Pipe Pressure Testing" section).

11) Install standard and optional features. Refer to the following sections:

a) Glass Crystals/ Optional Ceramic Stones b) Optional Firebox Base Pebbles c) Optional Reﬂ ective Panels d) Optional Fan e) Faceplate f) Remote Control or Wall Thermostat

12) Reinstall installation access panel.

13) Wall Mounted ON/OFF Switch:

Use the toggle wall switch supplied with the

manual package. Use of a “decor” switch causes higher resistance which is a problem on gas ﬁ replaces.

14) Final check.

Before leaving this unit with the customer, the installer must ensure that the appliance is ﬁ ring correctly and operation fully explained to

customer.

3) The HZ30E Direct Vent Gas Fireplace can be

installed in a recessed position or framed out into the room as in A, B, C and D.

See Diagram 1.

Diagram 1

A) Flat on Wall B) Flat on Wall Corner C) Recessed into Wall/Alcove D) Corner

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

A major cause of chimney related ﬁ res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this ﬁ replace and vent system be installed only in accordance with these instructions.

The top, back and sides of the ﬁ replace are deﬁ ned by

standoffs. The metal ends of the standoff may NOT be

recessed into combustible construction.

if these clearances (air space) to combustible materials are not

adhered to. It is of greatest importance that this ﬁ replace and vent

system be installed only in accordance with these instructions.

Clearance: Dimension Measured From:

A: Sidewall (on one side) 8" (203mm) Side of Fireplace Opening

Caution Requirements

B: Ceiling (room and/or alcove)

C: Mantel Height (min.) 13-1/4" (330mm) Top of Fireplace Opening D: Mantel Depth (max.)

E: Alcove Width 60" (1524mm) Sidewall to Sidewall (Minimum) F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum) G: From Floor 21" (533mm) Top of Fireplace Opening Note: 0" No hearth required

39" (991mm) Top of Fireplace Opening

12" (305mm)

21-1/4" Above Fireplace Opening

Fire hazard is an extreme risk

WARNING

Flue Clearances to Combustibles

Horizontal - Top 3" Horiztonal - Side 2" Horiztonal - Bottom 2" Vertical 2"

Passing through wall/ floor/ceiling - when ﬁ restop is used.

1-1/2"

Installed Close

to Floor

Unit

Alcove

Regency Horizon™ HZ30E-1 Gas Fireplace

7”

Due to the extreme heat this ﬁ replace emits, the mantel clearances are critical. Combustible mantel

clearances from top of front facing are shown in the diagram on the right.

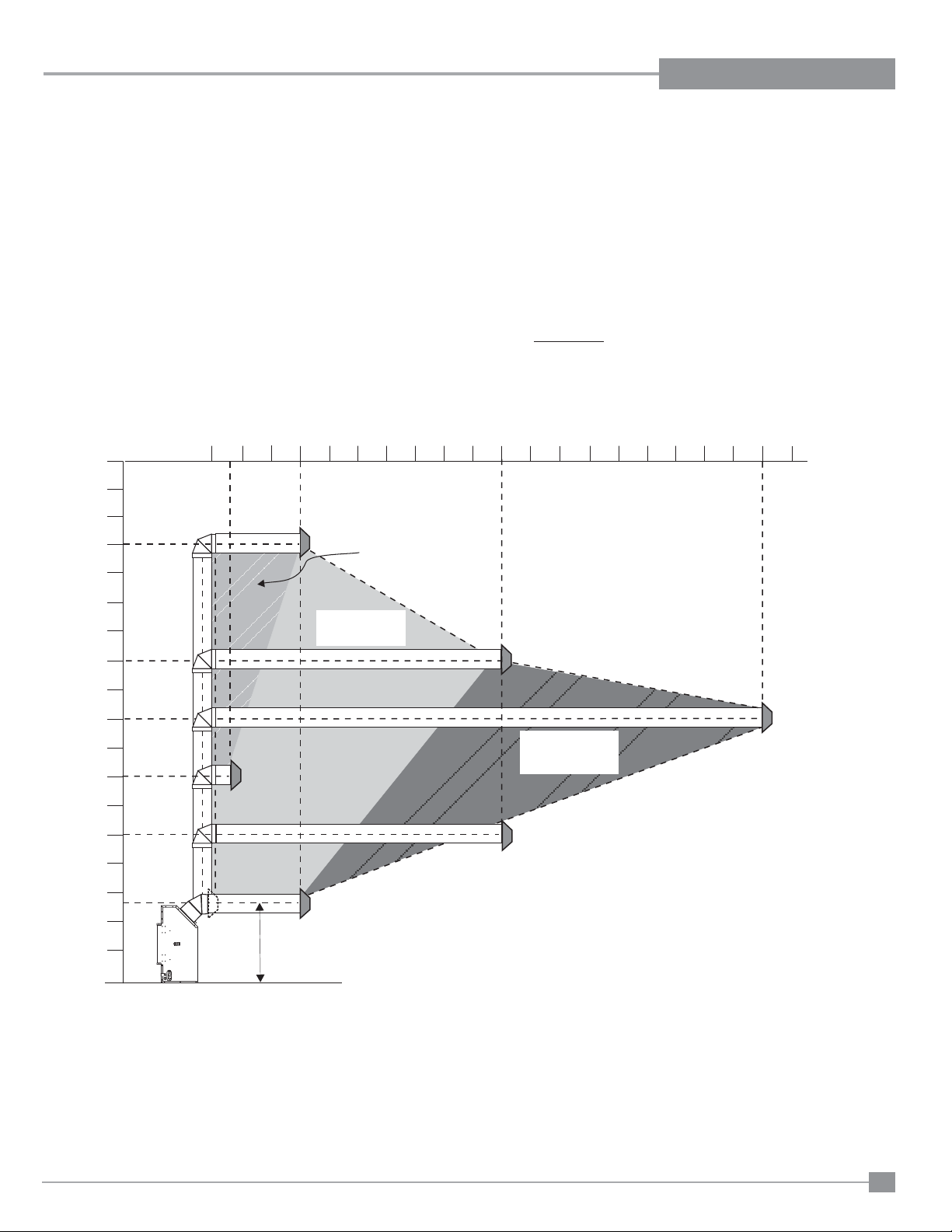

MANTEL CLEARANCES

810

INSTALLATION

Note: Ensure the paint that is used on the mantel

and the facing is "High Quality" or the paint may discolour.

To Unit

Base

21-1/4”

21”

12" (305mm)

1" (25mm)

13-1/4”

To p of Fireplace Opening

Combustible Material

Metal Stud (On Edge)

Non-combustible

Facing

Standoff

Combustible mantel leg clearances as per diagram:

Regency Horizon™ HZ30E-1 Gas Fireplace

MANTEL LEG CLEARANCES

MANTEL LEG

Allowable mantel leg projection

2”(51mm)

Non-Combustible

1.5" (38mm)

5-1/2” (140mm)

8” (203mm)

11” (279mm)

INSTALLATION

UNIT ASSEMBLY

PRIOR TO

INSTALLATION

The nailing Strips must be correctly positioned and attached before unit is slid into position.

NAILING STRIPS

The nailing strips come attached to the unit. There is 1 plate on each side, 1 on the top, and one on the bottom that can be folded out as required. The top and side nailing strips are secured to the framing. The bottom nailing strip is secured to the unﬁ nished ﬂ oor - if installing the unit directly on the ﬂ oor.

Framing depth measurement is noted with

IMPORTANT NOTE

the nailing strips set as far forward on the ﬁ rebox as possible. The nailing strips can be adjusted back up to 1-1/2” to allow for varying thicknesses in non-combustible material & wall ﬁ nishes.

INST ALLATION ACCESS P ANEL

The unit is equipped with a removable access panel for pre-ﬁ nish installation of optional components - this panel is located on the lower front face.

1) Remove 2 screws to remove access panel.

2) Easier access to gas connection with panel removed.

3) Install any optional components with access panel removed.

4) Reinstall access panel with 2 screws - prior to installing any facing material Note: Access panel is no longer usable once facing material installed.

Nailing Strips

Screw Locations

Installation Access Panel

Regency Horizon™ HZ30E-1 Gas Fireplace

WALL MOUNT ON / OFF SWITCH AND RECEIVER INSTALLATION

REQUIRED FOR ALL INSTALLATIONS - INCLUDING PROFLAME REMOTE CONTROLS

* Installation of the Receiver must be completed before installing facing materials.

IMPORTANT INSTALLATION NOTE:

The Receiver must be placed inside the supplied (Low Voltage)

junction type wall box and installed into the wall only.

DO NOT INSTALL WITHIN THE CONFINES OF THE FIREPLACE.

Wall Mounting

1. Install the junction box to the framing, at desired location within 10 ft. from ﬁ replace.

2. Feed the 12 pin connector through the opening at back of junction box.

3. Connect the 12 pin connector to the back of the receiver.

4. Install the Receiver in the Low Voltage Junction box, supplied with HZ30E.

5. Insert the 4 AA type batteries in the battery compartment with the correct polarity.

6. Place the slider into the cover plate.

7. Put the Receiver switch in the “OFF” position, to allow correct lineup for slider switch.

8. Make sure the Receiver and cover plate words “ON” and “UP” are on the same side.

9. Align the slider with the switch on the Receiver and couple the switch into the slider.

10. Align the screw holes.

11. Using the two (2) screws provided secure the cover plate to the Receiver.

GT REMOTE INSTALLATION

1. GT remote installation ing instructions.

see Proﬂ ame remote instructions for coding remote to receiver as well as operat-

INSTALLATION

Low Voltage Junction Box

12 pin connector - located

on outer right side of the

ﬁ rebox.

Slider Switch

J-Box

Receiver

Wall Plate

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

FRAMING DIMENSIONS

Framing Dimensions

A Framing Height 33-5/16” (946mm) B Framing Width 31 - 3/16" (792mm)

* Framing Depth*

D Minimum Height to Combustibles Rigid 35-1/2" (902mm) | Flex 32-7/8" (835mm) E Corner Wall Depth 40-7/8" ( 1308mm) F Corner Facing Wall Width 57-13/16" (1468mm) G Vent Centerline Height Rigid 29-1/4" (743mm) Flex 26-5/8" (676mm) H Non-combustible facing height 13-1/4” (367mm) I Gas Connection Opening Height 2" (51mm) J Gas Connection Height 3-1/4" (83mm) K Gas Connection Inset 4-1/8" (105mm) L Gas Connection Opening Width 3-1/2" (89mm)

Description HZ30E

C1 Horizontal Vent 14 - 1/4" (362mm) C2 Vertical Vent, vertical rise - terminating horizonally - 19-1/2" (495mm)

* Framing depth measurement is noted with the nailing strips set as far forward on the ﬁ rebox as possible.

The nailing strips can be adjusted back up to 1-1/2” to allow for varying thicknesses in non-combustible material & wall ﬁ nishes.

Drywall or other facing

Metal Stud (Header)

Note: All other framing may be of wood construction.

Non-Combustible

Facing

Metal Stud

on edge

Flex or Rigid Pipe

Finished Floor

Regency Horizon™ HZ30E-1 Gas Fireplace

FRAMING & FINISHING

INSTALLATION

1) Frame in the enclosure for the unit with framing material.

IMPORTANT: The framed opening must be of non-combustible material.

Note: When constructing the framed opening, please ensure there

is access to install the gas lines when the unit is installed.

2) For exterior walls, insulate the enclosure to the same degree as the

rest of the house, apply vapour barrier and drywall, as per local installation codes. (Do not insulate the ﬁ replace itself.)

WARNING: Failure to insulate and add vapor barriers to the inside

of the exterior wall will result in operational and performance problems including, but not limited to: excessive condensation on glass doors, poor ﬂ ame package, carbon, blue ﬂ ames etc. These are not product related issues.

3) The unit does not have to be completely enclosed in a chase. You

must maintain clearances from the vent to combustible materials: See "Clearances" section. Combustible materials can be laid against the side and back standoffs and the stove base.

4) Non-combustible material (ie. tile, slate, etc) may be brought up to and overlap the unit (top and bottom) ensuring that the maximum thickness does not go beyond the 1-1/2" as shown in the diagram below. The faceplate will not be able to be mounted if ﬁ nished material is beyond 1-1/2".

5) If material such as brick, stone, etc extends past the faceplate depth (1-1/2"), when ﬁ nishing around the faceplate, the minimum opening dimensions noted below must be adhered to ensuring for the removal of the faceplate and for the safe operation of this appliance.

37-1/4”

23-1/2”

33-11/16”

19-11/16”

Important: 1/2" gap required between faceplate and ﬁ nished wall when using part #316-924, 316-926, 316927 (4 pc. faceplate). When using part # 316-934, 316-936 and 316-937 (outer faceplate) the 1/2" gap is not necessary.

6) For material such as brick, stone, etc that extends less than 1-1/2" , the minimum opening dimensions noted below must be adhered, when ﬁ nishing around the faceplate. This is to ensure the removal of the faceplate and for the safe operation of this appliance.

29-1/8”

14-13/16”

7) If ﬁ nishing the unit with the inner faceplate only - the ﬁ nishing material may be brought up to the edge of the unit.

28-7/8”

14-9/16”

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

FRAMING & FINISHING

Finished Material

Nailing Strip

Position

1/2" 1"

1" 1/2"

1-1/2" 0" (ﬂ ush)

Nailing Strip 1” Forward

Unit

Nailing Strip ½” Forward

Unit

Nailing Strip Flush w/unit Factory Set

Note:

Depending on the material used for ﬁ nishing, the nailing strips must be set accordingly so that the ﬁ nished material is always at the 1-1/2" edge of the ﬂ ange.

Metal Stud

6-1/4”

(159mm)

Unit

NON-COMBUSTIBLE REQUIREMENTS

32-11/16" (830mm)

Non-combustible

13-1/8”

(333mm)

(379mm)

14-13/16”

Non-combustible Material

1-7/8”

(48mm)

Material

29-1/8”

14-13/16”

Non-combustible Material

Metal Stud (header)

on edge

Metal Stud

Non-combustible Material

1-7/8”

(48mm)

6-1/4”

(159mm)

27 -15/16" (709mm)

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

EXTERIOR VENT TERMINATION REQUIREMENTS

Minimum Clearance Requirements

Clearance above grade, veranda, porch, deck, or balcony 12"(30cm) 12"(30cm)

Clearance to window or door that may be opened 12"(30cm) 9" (23cm)

Clearance to permanently closed window **

Vertical clearance to ventilated sofﬁ t located above the terminal within a horizontal distance of 2 feet (61cm) from the center line of the terminal (check with the local code)

Clearance to unventilated sofﬁ t 15"(38cm) 15"(38cm)

Clearance to outside corner: with AstroCap Termination Cap. 6"(15cm) 6"(15cm)

Clearance to outside corner: with all other approved Termination Caps. 6"(15cm) 6"(15cm)

Clearance to inside corner: with AstroCap Termination Cap 6"(15cm) 6"(15cm)

Clearance to inside corner: with all other approved Termination Caps. 6"(15cm) 6"(15cm)

Clearance to each side of center line extended above meter/regulator assembly 36"(90cm)

Clearance to service regulator vent outlet 36"(90cm) *

Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance 12"(30cm) 9" (23cm)

Clearance to a mechanical air supply inlet #3' (91cm) above if within 10' (3m) horizontally. 72"(1.8m) 36"(90cm)

Clearance above paved sidewalk or a paved driveway located on public property 84"(2.1m)

Clearance under veranda, porch, deck, or balcony 12"(30cm)

In accordance with current CSA B149.1, Natural Gas and Propane Installation Code

In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code

┼

A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings

‡ Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the ﬂ oor

Clearance in accordance with local installation codes and the requirements of the gas supplier

3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly

3 feet (91cm) above - if within 10 feet (3m) horizontally

Canada

19"(48cm) 19"(48cm)

┼

‡

USA

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

4” X 6-5/8” RIGID PIPE

CROSS REFERENCE CHART ONLY

Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI.

Description

6” Pipe Length-Galvanized 46DVA-06 4DT-6 N/A 4D6 SV4L6 TC-4DL6

6” Pipe Length-Black 46DVA-06B 4DT-6B N/A 4D6B SV4LB6 TC-4DL6B

7” Pipe Length-Galvanized N/A N/A 4D7 N/A N/A N/A

7” Pipe Length-Black N/A N/A 4D7B N/A N/A N/A

9” Pipe Length-Galvanized 46DVA-09 4DT-9 N/A N/A N/A N/A

9” Pipe Length-Black 46DVA-09B 4DT-9B N/A N/A N/A N/A

12” Pipe Length-Galvanized 46DVA-12 4DT-12 4D12 4D12 SV4L12 TC-4DL1

12” Pipe Length-Black 46DVA-12B 4DT-12B 4D12B 4D12B SV4LB12 TC-4DL1B

18” Pipe Length-Galvanized 46DVA-18 4DT-18 4D18 4D18 SV4LA TC-4DL18

18” Pipe Length-Black 46DVA-18B 4DT-18B 4D18B 4D18B SV4LA TC-4DL18B

24” Pipe Length-Galvanized 46DVA-24 4DT-24 4D24 4D24 SV4L24 TC-4DL2

24” Pipe Length-Black 46DVA-24B 4DT-24B 4D24B 4D24B SV4LB24 TC-4DL2B

36” Pipe Length-Galvanized 46DVA-36 4DT-36 4D36 4D36 SV4L36 TC-4DL3

36” Pipe Length-Black 46DVA-36B 4DT-36B 4D36B 4D36B SV4LB36 TC-4DL3B

48” Pipe Length-Galvanized 46DVA-48 4DT-48 4D48 4D48 SV4L48 TC-4DL4

48” Pipe Length-Black 46DVA-48B 4DT-48B 4D48B 4D48B SV4LB48 TC-4DL4B

60” Pipe Length-Galvanized 46DVA-60 4DT-60 N/A N/A N/A N/A

60” Pipe Length-Black 46DVA-60B 4DT-60B N/A N/A N/A N/A

Adjustable Length 3”-10”-Galvanized N/A N/A N/A 4DAL N/A TC-4DLT

Adjustable Length 3”-10”-Black N/A N/A N/A 4DALB N/A TC-4DLTB

Adjustable Length 7”-Galvanized N/A N/A 4D7A N/A N/A N/A

Adjustable Length 7”-Black N/A N/A 4D7AB N/A N/A N/A

Extension Pipe 8-1/2”-Galvanized 46DVA-08A N/A N/A N/A N/A N/A

Extension Pipe 8-1/2”-Black 46DVA-08AB N/A N/A N/A N/A N/A

Adjustable Length 12”-Galvanized N/A N/A 4D12A N/A SV4LA12 N/A

Adjustable Length 12”-Black N/A N/A 4D12A N/A SV4LBA12 N/A

Extension Pipe 16”-Galvanized 46DVA-16A N/A N/A N/A N/A N/A

Extension Pipe 16”-Black 46DVA-16AB N/A N/A N/A N/A N/A

Simpson

Direct Vent Pro

Selkirk

Direct Temp™

American Metal

Products®

Amerivent Direct

Metal-Fab™

Sure Seal

Security

Secure- Vent®

ICC Excel

Direct

45º Elbow-Galvanized 46DVA-E45 4DT-EL45 4D45L N/A N/A TE-4DE45

45º Elbow-Black 46DVA-E45B 4DT-EL45B 4DT-EL45B N/A N/A TE-4DE45B

45º Elbow Swivel-Galvanized See 46DVA-E45 N/A N/A 4D45L SV4E45 N/A

45º Elbow Swivel-Black See 46DVA-E45B N/A N/A 4D45LB SV4EB45 N/A

90º Elbow-Galvanized 46DVA-E90 4DT-EL90S 4DT-EL90S N/A N/A TE-4DE90

90º Elbow-Black 46DVA-E90B 4DT-EL90SB 4DT-EL90SB N/A SV4EBR90-1 TE-4DE90B

90º Elbow, Swivel-Galvanized See 46DVA-E90 N/A N/A 4D90L SV4E90-1 N/A

90º Elbow, Swivel-Black See 46DVA-E90B N/A N/A 4D90LB SV4EB90-1 N/A

90º Starter Elbow, Swivel-Galvanized N/A N/A N/A 4D90A N/A N/A

Adaptor* N/A N/A N/A 4D90L N/A N/A

Ceiling Support N/A 4DT-CS 4DFSP 4DSP SV4SD TE-4DE45

Cathedral Support Box 46DVA-CS 4DT-CSS 4DRSB 4DRS SV4CSB TE-4DE45B

Wall Support/Band 46DVA-WS 4DT-WS/B 4DWS 4DWS SV4BM N/A

Offset Support

Wall Thimble-Black 46DVA-WT 4DT-WT 4DWT 4DWT SV4RSM TE-4DE90

Wall Thimble Support/Ceiling Support 46DVA-DC N/A N/A N/A SV4PF TE-4DE90B

Firestop Spacer 46DVA-FS 4DT-FS 4DFSP 4DFS SV4BF N/A

Trim Plate-Black N/A 4DT-TP 4DFPB 4DCP SV4LA N/A

46DVA-ES (N/A - FPI)

4DT-OS N/A N/A SV4SU N/A

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

Description

Attic Insulation Shield 12” 46DVA-IS N/A@ FPI N/A 4DAIS12 N/A SV4RSA N/A

Attic Insulation Shield -

Basic Horizontal Termination Kit (A) Disc. 4DT-HKA 4DHTK2 4DHTKA SV-SHK N/A

Horizontal Termination Kit (B) 46DVA-KHA

Vertical Termination Kit Disc. 4DT-VKC 4DHTK 4DHTK SV-FK N/A

High Wind Vertical Cap 46DVA-VCH N/A N/A N/A N/A TM-4VT

High Wind Horizontal Cap 46DVA-HC N/A N/A N/A N/A TM-4DHT

Horizontal Square Termination Cap See

Vertical Termination Cap 46DVA-VC 4DT-HVC 4DVC 4DVT SV4CGV-1 TM-4VT

Storm Collar 46DVA-08A 4DT-SC 4DSC 4DSC SV4FC TM-SC

Adjustable Flashing 0/12-6/12 46DVA-F6 4DT-ST14 4D12S 4DST14 SV4STC14 TF-4FA

Adjustable Flashing 6/12-12/12 46DVA-FLA 4DT-ST36 4D36S 4DST36 SV4STC36 TF-4FB

Vinyl Siding Standoff 46DVA-VSS 4DT-VS N/A 4DVS SV4VS TM-VSS

Vinyl Siding Shield Plate N/A 4DT-VSP N/A N/A SV4VS N/A

Snorkel Termination 14” 46DVA-SNKL N/A N/A N/A N/A TM-4ST14

Snorkel Termination 36” N/A N/A N/A N/A N/A TM-4ST36

Cold Climates 36” N/A N/A 4DAIS12 N/A N/A TM-4AS

Simpson

Direct Vent Pro

(Changed Components)

46DVA-HC 4DT-HHC 4DHC 4DHT SV4CHC-1 TM-4HT

Selkirk

Direct Temp™

4DT-HKB 4DHTK1 4DHTKB SV-HK N/A

American Metal

Products®

Amerivent Direct

Metal-Fab™

Sure Seal

Security

Secure- Vent®

ICC Excel

Direct

Restrictor Disk N/A N/A N/A N/A N/A TM-4DS

Extended Vertical Termination Cap N/A N/A N/A N/A N/A N/A

Chimney Conversion Kit A (USA only) 46DVA-KCA N/A N/A N/A N/A TM-4CA6

Chimney Conversion Kit B (USA only) 46DVA-KCB N/A N/A N/A N/A TM-4CA7

Chimney Conversion Kit C (USA only) 46DVA-KCC N/A N/A N/A N/A TM-4CA8

Chimney Conversion Kit Masonry (USA only)

Wall Firestop 46DVA-WFS N/A N/A N/A N/A TM-4TR

Colinear Flex Connectors 46DVA-ADF N/A N/A N/A N/A N/A

FPI

946-506/P Vent Guard (Optional) for AstroCap 946-205 Vinyl Siding Shield for Riser Vent Terminal

510-994 Rigid Pipe Adaptor (Must use with all rigid piping) 946-208/P Vent Guard (Optional) for Riser Vent Terminal

640-530/P Riser Vent Terminal 946-523/P AstroCap Horizontal Cap

946-605 Starter Collar Increaser 4” x 6-5/8” to 5” x 8” 946-206 Vinyl Siding Standoff for AstroCap

Note: When using Metal-Fab Sure Seal Rigid Piping - please note that the Adaptor (4DDA) must be used in conjunction with FPI Rigid Pipe Adaptor (510-994).

Offset Pipe Selection: Use this table to determine offset pipe lengths.

Pipe Length

(L)

0” (0mm) 4-7/8” (124mm) 13-7/8” (340mm) Simpson Direct Vent Pro: www.duravent.com

6” (152mm) 8” (203mm) 16-1/2” (419mm) Selkirk Direct-Temp: www.selkirkcorp.com

9” (229mm) 10-1/8” (257mm) 18-5/8” (473mm) American Metal Products: www.americanmetalproducts.com

12” (305mm) 12-1/4” (311mm) 20-3/4” (527mm) Metal-Fab Sure Seal: www.mtlfab.com

24” (610mm) 20-5/8” (524mm) 29-1/8” (740mm) Security Secure Vent: www.securitychimneys.com

36” (914mm) 29” (737mm) 37-1/2” (953mm) Industrial Chimney Company: www.icc-rsf.com

48” (1219mm) 37-7/16” (951mm) 45-15/16” (1167mm)

Note: Horizontal runs of vent must be level, or have a 1/4” rise for every 1 foot of run towards the termination. Never allow the vent to run downward - this could cause high temperatures and may present a possible ﬁ re hazard.

Run (X) Rise (Y)

46DVA-KMC N/A N/A N/A N/A N/A

4” x 6-5/8” Venting For speciﬁ c instructions on venting components - visit the

manufacturers website listed below.

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

VENT RESTRICTOR POSITION

Vent restriction is required for certain venting installations, see the diagrams in the "Venting Arrangements" section to determine if they are required for your installation.

The Vent Restrictor plate is located on the inside top of the ﬁ rebox. To set the vent restriction as indicated in the venting arrangements diagrams, refer to the following instructions;

1) Remove the glass door - see instructions in this manual.

2) Remove the screws that hold the vent restrictor plate in place.

3) Adjust the vent restrictor plate to the required vent restrictor position as per the diagrams shown.

4) Once the vent restrictor plate is in the required position, secure with screws.

SET 0

(Factory set)

VENT RESTRICTOR

AT 1-3/4””

SET 1

THIS HOLE SETS THE

VENT RESTRICTOR

AT 1-1/4”

SET 2

THIS HOLE SETS THE

VENT RESTRICTOR

AT 3/4”

1-3/4”

1-1/4”

3/4”

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

12 20

6 14

8 16

Vertical Height (Feet) from Centreline

VENTING INTRODUCTION

The HZ30E uses the "balanced ﬂ ue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing warm room air up the chimney.

Note: These ﬂ ue pipes must not be connected to any other appliance.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.

VENTING ARRANGEMENT FOR HORIZONTAL TERMINATIONS

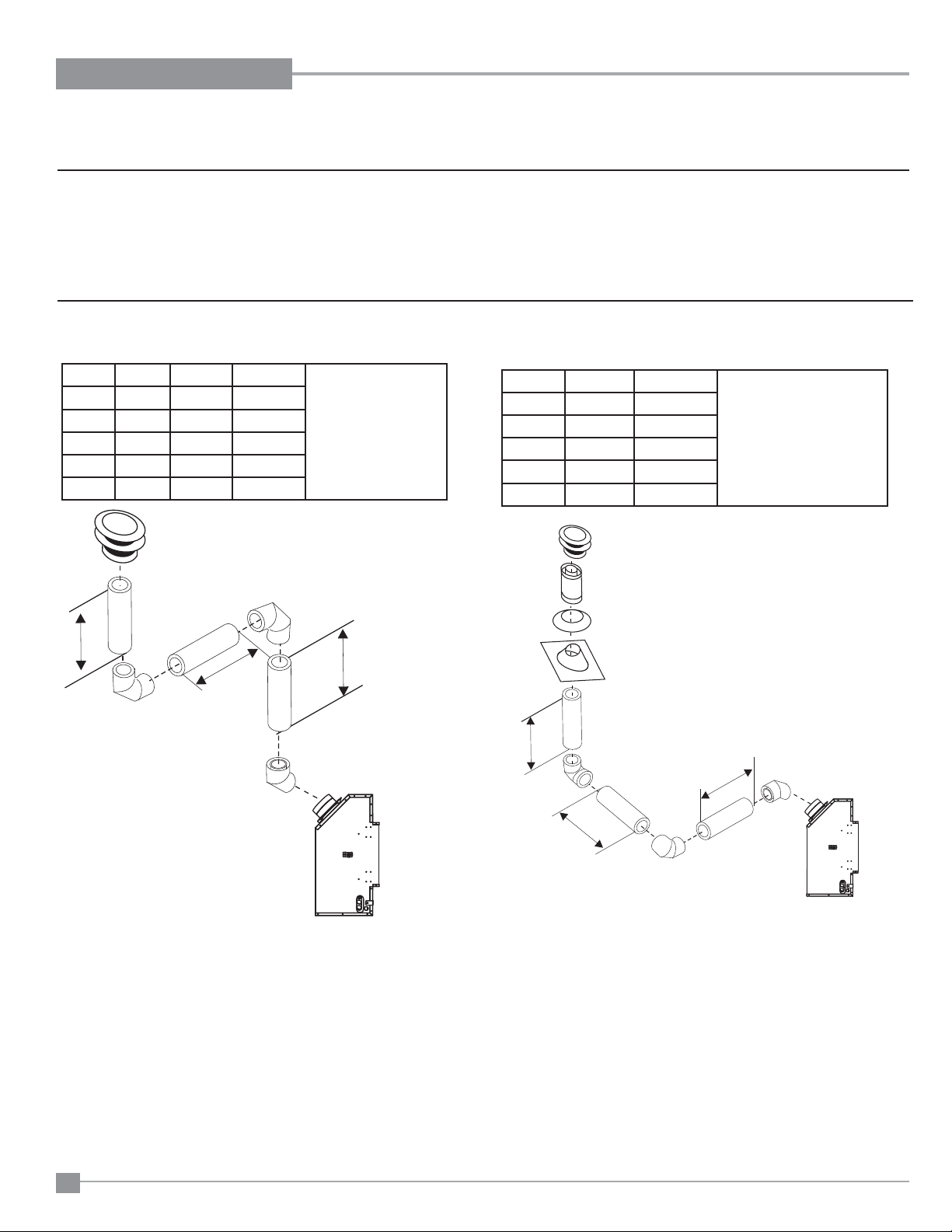

The diagram shows all allowable combinations of vertical runs with horizontal terminations, using one 90o (two 45o elbows equal one 90o elbow). (Not including the starting 45o elbow at the ﬂ ue collar when using rigid venting.)

Note: Must use optional rigid pipe adapter (Part# 510-994) when using Rigid Pipe Venting Systems.

Horizontal (Feet)

Vent Restrictor

on Set 2

Vent Restrictor

on Set 1

Vent Restrictor

29-1/4” (743mm)

Minimum Height

Requirement

on Set 0

(

Factory Set)

VENT RESTRICTOR SETTING: Vent restrictor factory set at Set 0.

Refer to the "Vent Restrictor Position" section for details on how to change the vent restrictor from the factory setting of Set 0 to Set 1 if required.

Note: For horizontal terminations the Regency Direct Vent Flex System may be used for installations with a maximum continuous vent

length of up to 10 feet. If longer runs are required, rigid pipe must be used.

• Maintain clearances to combustibles as listed in "Clearances" section

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• A vent guard should be used whenever the termination is lower than the speciﬁ ed minimum or as per local codes.

• Flex system can only be used up to 10 feet - otherwise rigid venting must be used.

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

HORIZONTAL TERMINATIONS

FLEX VENT 4" X 6-7/8"

These venting systems, in combination with the HZ30E Direct Vent Gas Fireplace, has been tested and listed as a direct vent heater system by Warnock Hersey/ Intertek. The location of the termination cap must conform to the requirements in the Vent Terminal Locations diagram in "Exterior Vent Termination Locations" section.

Regency® Direct Vent (Flex) System Termination Kits includes all the parts needed to install the HZ30E using a ﬂ exible vent.

FPI Kit # Length Contains:

#946-513 2 Feet 1) 6-7/8” ﬂ exible outer liner (Kit length)

#946-515 4 Feet

#946-516 10 Feet

Notes:

1) Liner sections should be continuous without any joints or seams.

2) 4” ﬂ exible inner liner (Kit length)

3) spring spacers

4) thimble

5) AstroCap termination cap

6) screws

7) tube of Mill Pac

8) plated screws

9) S.S. screws #8 x 1-1/2” drill point

2) Only Flex pipe purchased from Regency® may be used for Flex installations

3) Horizontal vent must be supported every 3 feet.

4) Regency® Direct Vent System (Flex) is only approved for horizontal terminations.

5) Flex system can only be used up to a maximum continuous vent length of up to 10 feet. If longer runs are required, rigid pipe must be used.

6-7/8"

(173mm)

dia. Flue pipe

Wall Thimble

4" dia. flue pipe

spring spacer

AstroCap

Termination Cap

(Part# 946-523/P)

Regency Horizon™ HZ30E-1 Gas Fireplace

HORIZONTAL TERMINATIONS

RIGID PIPE 4" X 6-5/8"

The minimum components required for a basic horizontal termination are:

1 Horizontal Termination Cap 1 45o Elbow 1 Rigid Pipe Adaptor (510-994) 1 Wall Thimble 1 Length of pipe to suit wall thickness (see chart)

Wall thickness is measured from the back standoffs to the inside mounting surface of termination cap. For siding other than vinyl furring strips may be used, instead of the vinyl siding standoff, to create a level surface to mount the vent terminal. The Terminal must not be recessed into siding. Measure the wall thickness including furring strips.

If a Vinyl Siding Standoff is required (it must be used with vinyl siding), measure to outside surface of wall without siding and add 2 inches.

Flat Wall Installation

Wall Thickness

(inches)

4" - 5-1/2" 6"

7" - 8-1/2" 9"

10" - 11-1/2" 12"

9" - 14-1/2' 11" - 14-5/8" Adj. Pipe

15" - 23-1/2" 17" - 24" Adj. Pipe

Vent Length Required

(inches)

45 Elbow

INSTALLATION

Horizontal

Termination Cap

Vinyl Siding

Standoff (Optional)

Wall Thimble

Adj.Pipe Length

WARNING:

Do not combine venting components from different venting systems.

However use of the the AstroCap Riser is acceptable with all systems.

This product has been evaluated by Intertek for using a Rigid Pipe Adaptor in conjunction with Duravent Direct-Vent, Selkirk Direct-T emp, Ameri Vent Direct Venting, ICC Excel Direct and Security Secure Vent systems. Use of these systems with the Rigid Pipe adaptor is deemed acceptable and does not affect the Intertek WHI listing of components.

The FPI AstroCap American Metal Products Ameri Vent Direct Vent, Security Secure Vent®, ICC Excel, Selkirk Direct-Temp. AstroCapTM is a proprietary trademark of FPI Fireplace Products International Ltd. Dura-Vent® and Direct Vent are registered and/or proprietary trademarks of Simpson Dura-Vent Co. Inc.

Regency Horizon™ HZ30E-1 Gas Fireplace

and FPI Riser Vent terminal are certiﬁ ed for installations using FPI venting systems as well as Simpson Dura-Vent® Direct Vent,

and FPI

Rigid Pipe Adapter

When using Rigid Vent other than

Simpson Dura-Vent, 3 screws must be

used to secure rigid pipe to adaptor.

INSTALLATION

HORIZONTAL TERMINATIONS

RIGID PIPE 4" X 6-5/8"

The diagrams below shows examples of horizontal termination arrangements using one, two, or three 90o elbows (two 45o elbows equal one 90o elbow)

1) A maximum of three 90o elbows are permitted (not including the starting 45o elbow at the ﬂ ue collar when using rigid venting).

2) Minimum distance between elbows is 1 ft. (305mm).

• Maintain clearances to combustibles as listed in the "Clearances" section.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• Must use optional rigid pipe adaptor (Part# 510-994) when using rigid pipe vent systems.

• A vent guard should be used whenever the termination is lower than the speciﬁ ed minimum or as per local codes.

• Flex system can only be used up to 10 feet - otherwise rigid venting must be used.

Straight Out Horizontal Venting

Maximum 36"(914mm)

Minimum 6"(152mm)

Diagram 1

center of hole

Min. height

(Rigid Pipe)

29-1/4" (737mm)

Horizontal Venting with One (1) 90o Elbow

Diagram 2

Option V H A) 1' (305mm) Minimum 3' (914mm) Maximum B) 2' (610mm) Minimum 6' (1.86m) Maximum C) 3' (914mm) Minimum 9' (2.7m) Maximum D) 4' (1.22m) Minimum 12' (3.6m) Maximum E) 5' (1.5m) Minimum 15' (4.5m) Maximum F) 6' (1.86m) Minimum 17' (5.1m) Maximum

With the above options, maximum total pipe length if 37 feet with minimum of 6 feet total vertical and maximum 17 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Please note the minimum centerline for basic install shown above.

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

Horizontal Venting with Two (2) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H + H1

A) 1' Min. 3' Max. B) 2' Min. 4' Max.

C) 3' Min. 5' Max. D) 4' Min. 6' Max. E) 5' Min. 7' Max. F) 6' Min. 8' Max.

Restrictor Position - Set 0 (factory setting)

With these options, maximum total pipe length is 28 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Horizontal Venting with Three (3) 90o Elbows

One 90o elbow = Two 45o elbows.

Option H V H + H 1 + H 2

A) 1' Max. 1' Min. 3' Max. B) 2' Max. 3' Min. 5' Max. C) 3' Max. 5' Min. 6' Max. D) 4' Max. 7' Min. 7' Max. E) 5' Max. 9' Min. 8' Max. F) 6' Max. 11' Min. 9' Max.

Restrictor Position - Set 0 (factory setting)

With these options, maximum total pipe length is 28 feet with minimum of 11 feet total vertical and maximum 9 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Horizontal Venting with Two (2) 90o Elbows

One 90o elbow = Two 45o elbows.

Option H V H + H 1

A) 1' Max. 1' Min. 3' Max. B) 2' Max. 2' Min. 5' Max. C) 3' Max. 4' Min. 6' Max. D) 4' Max. 6' Min. 7' Max. E) 5' Max. 8' Min. 8' Max.

Restrictor Position - Set 0 (factory setting)

With these options, maximum total pipe length is 28 feet with minimum of 8 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90 elbows is required.

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

Option V H V + V1 H + H 1

A) 2' Min. 1' Max. 3' Min. 4' Max.

B) 3' Min. 2' Max. 4' Min. 5' Max. C) 4' Min. 3' Max. 6' Min. 6' Max. D) 5' Min. 4' Max. 8' Min. 7' Max. E) 6' Min. 5' Max. 10' Min. 8' Max. F) 7' Min. 6' Max. 12' Min. 9' Max.

Horizontal Venting with Three (3) 90o Elbows

One 90o elbow = Two 45o elbows.

With these options, maximum total pipe length is 28 feet with minimum of 12 feet total vertical and maximum 9 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Restrictor Position - Set 0 (factory setting)

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

10 12

VENTING ARRANGEMENT FOR VERTICAL TERMINATIONS

Vertical Venting with One(1) 90o Elbows (1 - 90

The shaded area in the diagram shows all allowable combinations of straight vertical and offset to vertical terminations, using one 90o elbow, with Rigid Pipe Venting Systems.

Two 45

elbows equal to one 90o elbow, not including the

starting 45o elbow at the ﬂ ue collar.

• Vent must be supported at offsets.

• Minimum distance between elbows is 1 ft. (305mm).

• Maintain clearances to combustibles as listed in the "Clearances" section.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• Must use optional rigid pipe adaptor (Part# 510-994) when using rigid pipe vent systems.

• Refer to the "Vent Restrictor Position" section for details on how to change the vent restrictor from the factory setting of Set 0 to Set 1 or Set 2 if required.

o =

2 - 45o)

Horizontal (Feet)

Vertical Height (Feet)

Vent Restrictor on Set 2

Maximum: 28 ft. (8.2m)

Vent Restrictor on Set 1

Regency Horizon™ HZ30E-1 Gas Fireplace

(743mm)

Min. 29-1/4”

8’ (2.6m)

Minimum

8' (2.4m) Min.

29-1/4”

(742mm)

28' (8.5m) Max.

Horizontal Distance (Feet)

Vertical Height (feet)

Vent Restrictor

Set 2

3/4” open

8' (2.4m) Min.

Horizontal Distance (Feet)

Vertical Height (feet)

2’ (51mm) max.

29-1/4”

(742mm)

28' (8.5m) Max.

Vent Restrictor

Set 2

3/4” open

Horizontal Distance (Feet)

2’ (51mm) max.

Combined min. of 8’ (2.4m).

6’ (152mm) max.

Combined max. of .28' (8.5m) Max.

29-1/4”

(742mm)

Vent Restrictor

Set 2

3/4” open

INSTALLATION

VENTING ARRANGEMENTS - VERTICAL TERMINATIONS

with Co-linear Flex System for both Residential & Manufactured Homes

into Masonry Fireplaces

The shaded area in the diagrams show

the allowable vertical terminations when

using two- 3" co-linear aluminium ﬂ ex

and 4 x 6-5/8" rigid pipe.

Regency Horizon™ HZ30E-1 Gas Fireplace

VERTICAL TERMINATION

WITH CO-LINEAR FLEX SYSTEM

INSTALLATION

THE APPLIANCE MUST NOT BE

CONNECTED TO A CHIMNEY FLUE SERVING

A SEPARATE SOLID FUEL

BURNING APPLIANCE.

This appliance is designed to be attached to two 3" (76mm) co-linear aluminium ﬂ ex running the full length of the chimney. See the "Venting Arrangements - Vertical Terminations" Section for minimum and maximum heights.

Required Parts:

Part # Description

946-529 Co-linear DV Vertical Termination Cap 948-305 3" Flex - 35 ft. 946-563 Co-Axial to Co-Linear Adapter Kit which contains the following: Co-linear Flex Adapter Outer Pipe Inner Pipe Adapter 510-994 Rigid Pipe Adaptor 46DVA-E45 45o Elbow

Alternate Approved Caps

46DVA-VC Vertical Termination Cap 46DVA-VCH High Wind Cap 46DVA-GK

3" Co-linear Adapter with ﬂ ashing

Masonry chimneys may take various contours which the ﬂ exible liner will accommodate. However, keep the ﬂ exible liner as straight as possible, avoid unnecessary bending.

The Air Intake pipe must be attached to the inlet air collar of the termination cap.

Co-linear DV

Vertical Termination

Cap # 946-529

A maximum

of two certified

joiner kits

may be used

per length.

Flex Liner

#948-305

35 ft (11m)

Exhaust

Flue

Pipe Length

Rigid Pipe Adapter

# 510-994

Outer

Pipe with Kit# 946-563

45 Elbow

Air Intake

Co-Linear

Flex

Adapter

with Kit# 946-563

Inner Pipe

Adapter with Kit# 946-563

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

VERTICAL TERMINATIONS

RIGID PIPE 4" X 6-5/8"

• Two 45

• Vent must be supported at offsets.

• Minimum distance between elbows is 1 ft. (305mm).

• Maintain clearances to combustibles as listed in the "Clearances" section.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each ﬂ oor level and whenever passing through a wall.

• Must use optional rigid pipe adaptor (Part# 510-994) when using rigid pipe vent systems.

Option V H V + V 1

elbows equal to one 90o elbow. Maximum of four 45o elbows allowed, not including the starting 45o elbow at the ﬂ ue collar.

Vertical Venting with Two (2) 90o Elbows

One 90o elbow = Two 45o elbows.

With these options,

A) 1' Min. 4' Max. 2' Min.

B) 2' Min. 5' Max. 3' Min. C) 3' Min. 6' Max. 4' Min. D) 4' Min. 7' Max. 5' Min. E) 5' Min. 8' Max. 6' Min.

Restrictor Position - Set 0 (factory setting)

maximum total pipe length is 28 feet with minimum of 6 feet total vertical and maximum 8 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Vertical Venting with Two (2) 90o Elbows

Option H + H1 V

A) 2' Max. 2' Min. B) 3' Max. 3' Min. C) 4' Max. 4' Min. D) 5' Max. 5' Min. E) 6' Max. 6' Min.

One 90o elbow = Two 45o elbows.

With these options, maximum total pipe length is 28 feet with minimum of 6 feet total vertical and maximum 6 feet total horizontal.

Please note minimum 1 foot between 90o elbows is required.

Restrictor Position - Set 0 (factory setting)

Regency Horizon™ HZ30E-1 Gas Fireplace

Vertical Venting with Three (3) 90o Elbows

One 90o elbow = Two 45o elbows.

INSTALLATION

Option H V H + H1 V + V1 A) 1' Max. 1' Min. 3' Max. 3' Min. B) 2' Max. 2' Min. 4' Max. 5' Min. C) 3' Max. 3' Min.' 5' Max. 7' Min. D) 4' Max. 4' Min. 6' Max. 9' Min. E) 5' Max. 5' Min. 7' Max. 11' Min.

With these options, max. total pipe length is 28 feet with min. of 11 feet total vertical and max. 7 feet total horizontal.

Please note min. 1 foot between 90o elbows is required.

Restrictor Position - Set 0 (factory setting)

Vertical Venting with Three (3) 90o Elbows

One 90o elbow = Two 45o elbows.

Option V H + H1 V + V1 A) 2' Min. 3' Max. 4' Min. B) 3' Min. 4' Max. 6' Min. C) 4' Min. 5' Max. 7' Min. D) 5' Min. 6' Max. 8' Min. E) 6' Min. 7' Max. 9' Min. F) 7' Min. 8' Max. 10' Min.

With these options, max. total pipe length is 28 feet with min. of 10 feet total vertical and max. 8 feet total horizontal.

Please note min. 1 foot between 90o elbows is required.

Restrictor Position - Set 0 (factory setting)

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

UNIT INSTALLATION

WITH HORIZONTAL

TERMINATION

4" X 6-5/8"

VENTING

(Rigid Vent Systems)

Minimum Vent Clearances

to Combustibles

* Clearances noted below must be maintained; except when passing through a wall, ceiling or at the termination where the use of a ﬁ restop or wall thimble reduces clearance to 1-1/2" (38mm).

Horizontal Top* 3" (76mm)* Horizontal Side 2 " (51mm) Horizontal Bottom 2" (51mm) Vertical Vent 2" (51mm)

Below are the recommended framing dimensions (inside measurements) for the 4" x 6-5/8" rigid vent terminations - for use with a ﬁ restop or wall thimble.

Recommended Framed Opening

Size

Vent Size Framing Size

4" x 6 - 5/8" 10" x 10"

Install the vent system according to the manufacturer's instructions included with the components.

1) Set the unit in its desired location. Check to determine if wall studs or roof rafters are in the way when the venting system is attached. If this is the case, you may want to adjust the location of the unit. Rough in the gas preferably on the right side of the unit and the electrical (junction block is on the left side) on the left.

2) Direct Vent pipe and ﬁ ttings are designed with special twist-lock connections to connect the venting system to the appliance ﬂ ue outlet. A twist-lock appliance adaptor is required.

3) In conjunction with the Approved V ent system, install the adaptor after the unit is set in its desired location. Put a bead of high temperature silicone inside the outer section of the adapter and a bead of Mill Pack on the inner collar. Slip the adapter over the existing inner and outer ﬂ ue collar. Fasten to the outer collar only with the 3 supplied screws (drilling pilot holes will make this easier).

4) Level the ﬁ replace and fasten it to the framing using nails or screws through the top and side nailing strips.

5) Assemble the desired combination of pipe and elbows to the appliance adaptor and twist-lock for a solid connection.

Note: For best results and optimum performance

with each approved venting system, it is highly recommended to apply “Mill-Pac” sealant (supplied) to every inner pipe connection. Failure to do so may result in drafting or performance issues not covered under warranty. Silicone (red RTV) is optional.

Horizontal runs of vent must be supported every 3 feet (0.9meter). Wall straps are available for this purpose.

6) Mark the wall for a square hole.-see chart to left

for size. The center of the square hole should line up with the center-line of the horizontal pipe. Cut and frame the square hole in the exterior wall where the vent will be terminated. See diagram 2 for center line requirements.

If the wall being penetrated is constructed of

non-combustible material, i.e. masonry block or concrete, an 8" (203mm) diameter hole is acceptable.

Note: a) The horizontal run of vent must be level, or

have a 1/4 inch rise for every 1 foot of run towards the termination. Never allow the vent to run downward. This could cause high temperatures and may present the possibility of a ﬁ re.

b) The location of the horizontal vent

termination on an exterior wall must meet all local and national building codes,

center

of hole

(Rigid)

Min. height

29-1/4" (743mm)

Diagram 2

7) Ensure that the pipe clearances to combustible materials are maintained (Diagram 5). Install the termination cap.

Note: If installing termination on a vinyl siding

covered wall, a vinyl siding standoff or furring strips must be used to ensure that the termination is not recessed into the siding.

Diagram 5

The four wood screws provided should be

replaced with appropriate fasteners for stucco, brick, concrete, or other types of sidings.

8) Before connecting the horizontal run of vent pipe to the vent termination, slide the Wall Thimble over the vent pipe. The wall thimble is required for all horizontal terminations.

9) Slide the appliance and vent assembly towards the wall carefully inserting the vent pipe into the vent cap assembly. It is important that the vent pipe extends into the vent cap sufﬁ cient distance so as to result in a minimum pipe overlap of 1-1/4 inches (32mm). Secure the connection between the vent pipe and the vent cap.

10) Install wall thimble in the center of the framed hole and attach with wood screws (Diagram 7).

Diagram 7

Diagram 1

Regency Horizon™ HZ30E-1 Gas Fireplace

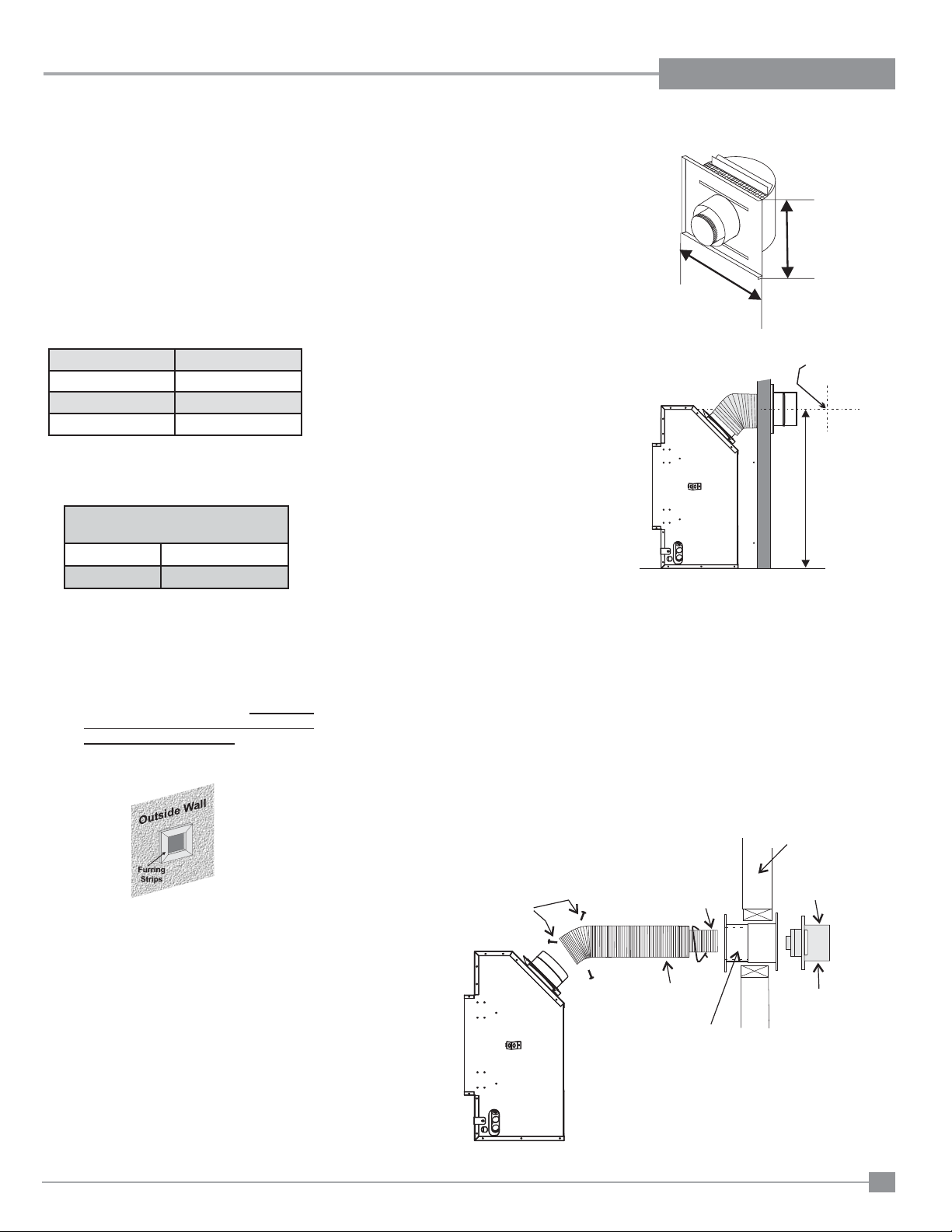

INSTALLATION

UNIT INSTALLATION

WITH HORIZONTAL

TERMINATION

4" X 6-5/8"

VENTING

(Flex Vent Systems)

Minimum Vent Clearances

to Combustibles

* Clearances noted below must be maintained; except when passing through a wall, ceiling or at the termination where the use of a ﬁ restop or wall thimble reduces clearance to 1" (25mm).

Horizontal Top* 3" (76mm)* Horizontal Side 2 " (51mm) Horizontal Bottom 2" (51mm) Vertical Vent 2" (51mm)

Below are the recommended framing dimensions (inside measurements) for the 4" x 6-5/8" and 5" x 8" rigid vent terminations - for use with a ﬁ restop or wall thimble.

Recommended Framed Opening

Size

Vent Size Framing Size

4" x 6 - 5/8" 10" x 10"

1) Locate the unit in the framing, rough in the gas (preferably on the right side of the unit). Locate the centerline of the termination and mark wall accordingly. Cut an square hole in the wall - see chart (inside dimension).

NOTE: Horizontal sections must be support-

ed at intervals not exceeding 3 feet (0.9 meter). (Flame picture and performance will be affected by sags in the liner).

4) Separate the 2 halves of the wall thimble and

securely fasten the one with the tabs to the outside wall making sure that the tabs are on top and bottom. Fasten the other thimble half to the inside wall. The thimble halves slip inside each other and can be adjusted for 2 x 4 or 2 x 6 walls.

5) Slip the assembled liner and termination assembly through the thimble making sure the termination cap faces up (there are markings on the cap indicating which way is up). This will position the termination cap with proper down slope for draining water. Fasten the cap to the outer wall with the 4 supplied screws.

6) Pull the centre inner and outer ﬂ ex liner out enough to slip over the ﬂ ue collars of the ﬁ replace. (You may wish to cut the liner shorter to make it more workable.) Do not bend liner more than 90

collars a minimum of 1-3/8".

7) Apply Mill Pac over the ﬁ replace inner ﬂ ue collar and slip the inner ﬂ ex liner down over it and attach with 3 supplied screws.

8) Do the same with the outer ﬂ ue collar and outer ﬂ ex liner.

9) Apply a bead of silicone between the thimble and termination and around the outer edge of the terminal at the wall in order to keep the water out.

. The liners must slip over the

ASTROCAP

DIMENSIONS (946-523/P)

11”

(294mm)

11”

(294mm)

center

of hole

Min. height

26-5/8” (676mm)

Using Flex System

Note: If installing termination on a siding cov-

ered wall, a vinyl siding standoff or vinyl furring strips must be used to ensure that the termination is not recessed into the siding.

2) Level the ﬁ replace and fasten it to the framing

using nails or screws through the nailing strips.

3) Assemble the vent assembly by applying Mill Pac to the inner ﬂ ue collar of the termination and slipping the inner ﬂ ex liner over it at least 1-3/8" (35mm). Fasten with the 3 screws (drilling pilot holes will make this easier). Apply Mill Pac or high temperature silicone to the outer ﬂ ex pipe and slip it over the outer ﬂ ue collar of the vent terminal at least 1-3/8"(35mm) and fasten with the 3 screws.

IMPORTANT: Do not locate termination hood where excessive snow or ice buildup may occur. Be sure to check vent termination area after snow falls, and clear to prevent accidental blockage of venting system. When using snow blowers, make sure snow is not directed towards vent termination area.

Screws

(3 per

connection)

4" (102mm) dia. flue pipe

with spring spacer

6-7/8" (173mm) dia. air intake

Wall Thimble 2 pieces

(10" (254mm)

Outer Diameter)

2”x4”or2”x6”

Termination

Cap

Screws

(4 per

connection)

Regency Horizon™ HZ30E-1 Gas Fireplace

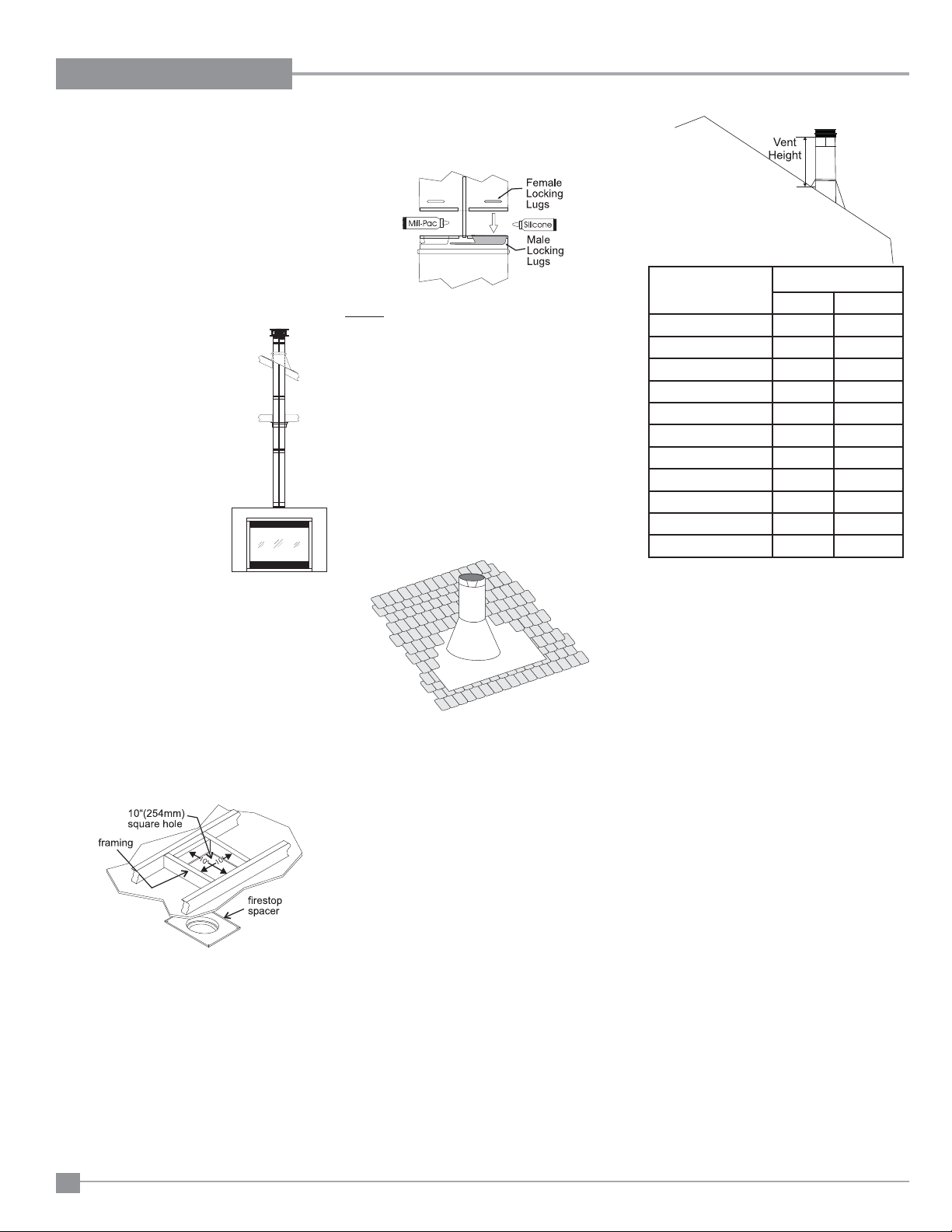

INSTALLATION

UNIT INSTALLATION

WITH VERTICAL

TERMINATION

4" X 6-5/8" VENTING

(Rigid Vent Systems)

1) Maintain the 1-1/2" clearances (air spaces) to combustibles when passing through ceilings, walls, roofs, enclosures, attic rafter, or other nearby combustible surfaces. Do not pack air spaces with insulation. Check "Venting" Sections for the maximum vertical rise of the venting system and the maximum horizontal offset limitations.

2) Set the gas appliance in its desired location. Drop a plumb bob down from the ceiling to the position of the appliance ﬂ ue exit, and mark the location where the vent will penetrate the ceiling. Drill a small hole at this point. Next, drop a plumb bob from the roof to the hole previously drilled in the ceiling, and mark the spot where the vent will penetrate the roof.

3) A Firestop spacer must be installed in the ﬂ oor or ceiling of every level. To install the Firestop spacer in a ﬂ at ceiling or wall, cut a 10 inch square hole. Frame the hole as shown in Diagram 2 and install the ﬁ restop.

Diagram 1

4) Assemble the desired lengths of pipe and elbows. Ensure that all pipes and elbow connections are in the fully twist-locked position and sealed.

NOTE: For best results and optimum performance with each approved venting system, it is highly recommended to apply “Mill-Pac” sealant (supplied) to every inner pipe connection. Failure to do so may result in drafting or performance issues not covered under warranty. Silicone (red RTV) is optional.

5) Cut a hole in the roof centered on the small

drilled hole placed in the roof in Step 2. The hole should be of sufﬁ cient size to meet the minimum requirements for clearance to combustibles of 1-1/2". Slip the ﬂ ashing under the shingles (shingles should overlap half the ﬂ ashing) as per Diagram 3.

Diagram 4

Roof Pitch

ﬂ at to 7/12 2 0.61

over 7/12 to 8/12 2 0.61

over 8/12 to 9/12 2 0.61

over 9/12 to 10/12 2.5 0.76

over 10/12 to 11/12 3.25 0.99

over 11/12 to 12/12 4 1.22

over 12/12 to 14/12 5 1.52

over 14/12 to 16/12 6 1.83

over 16/12 to 18/12 7 2.13

over 18/12 to 20/12 7.5 2.29

over 20/12 to 21/12 8 2.44

7) Ensure vent is vertical and secure the base of the ﬂ ashing to the roof with rooﬁ ng rails, slide storm collar over the pipe section and seal with a mastic.

8) Install the vertical termination cap by twistlocking it.

Note: Any closets or storage spaces, which the

vent passes through must be enclosed.

Minimum Vent Height

Feet Meters

Note: All vertical terminations are vented using 4" x 6-5/8" venting and rigid pipe adaptor #510-994.

Diagram 2

Diagram 3: The upper half of the ﬂ ashing is installed under the rooﬁ ng material and not nailed down until the chimney is installed. This allows for small

adjustments.

6) Continue to assemble pipe lengths.

Note: If an offset is necessary in the attic to

avoid obstructions, it is important to support the vent pipe every 3 feet, to avoid excessive stress on the elbows, and possible separation. Wall straps are available for this purpose.

Galvanized pipe is desirable above the rooﬂ ine

due to its higher corrosion resistance. Continue to add pipe sections through the ﬂ ashing until the height of the vent cap meets the minimum height requirements speciﬁ ed in Dia. 4 or local codes. Note that for steep roof pitches, the vertical height must be increased. A poor draft, or down drafting can result from high wind conditions near big trees or adjoining roof lines, in these cases, increasing the vent height may solve the problem.

Regency Horizon™ HZ30E-1 Gas Fireplace

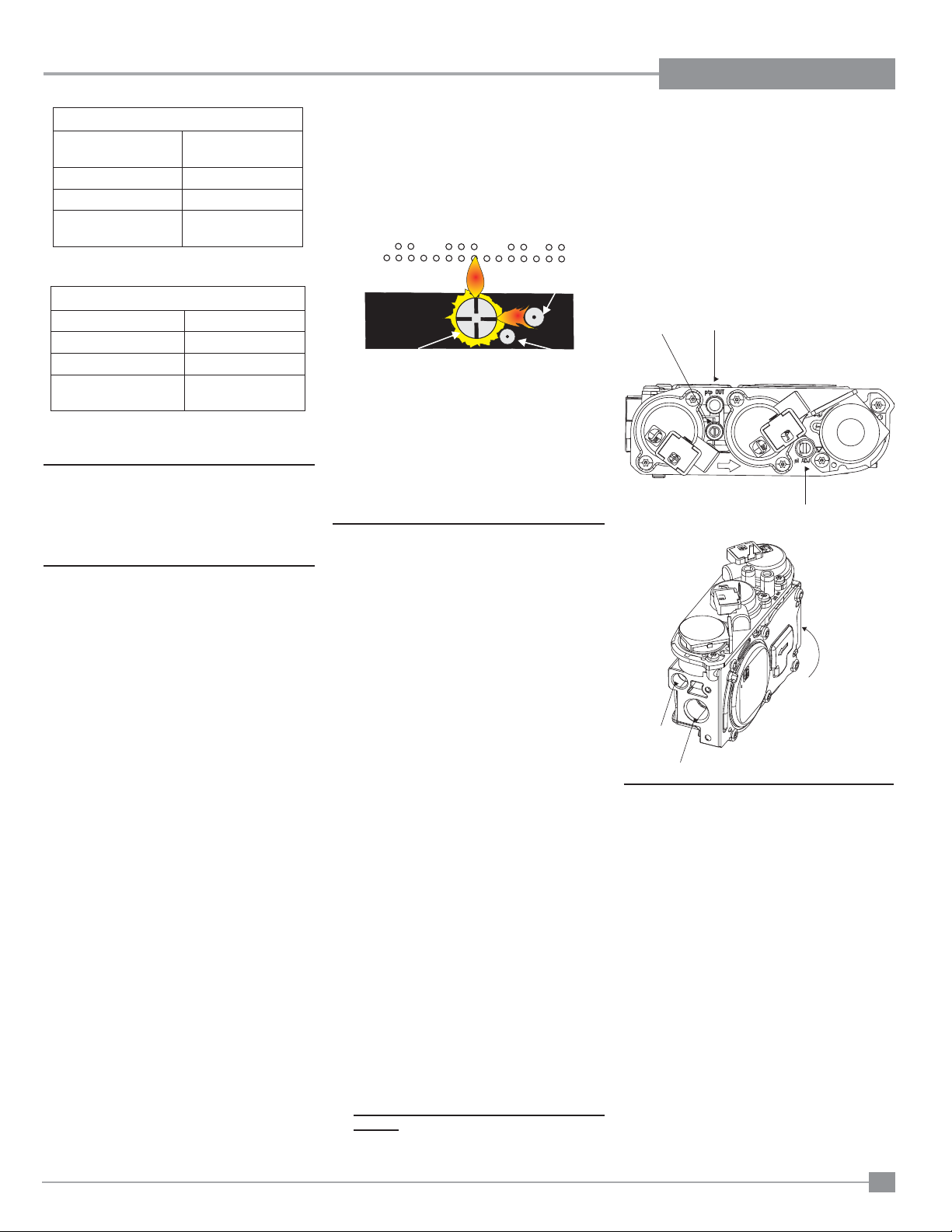

INSTALLATION

HZ30E-NG1 SYSTEM DATA

Min. Supply Pressure

Manifold Pressure 3.5" WC (0.87 kpa) Oriﬁ ce Size #50 DMS Maximum Input 14,000 Btu/h

5" WC (1.25 kpa)

(4.10 kW)

HZ30E-LP1 SYSTEM DATA

Min. Supply Pressure 11" WC (2.73 kpa) Manifold Pressure 10" WC (2.49 kpa) Oriﬁ ce Size #57 DMS Maximum Input 13,000 Btu/h

(3.81 kW)

HIGH ELEVATION

This unit is approved for altitude 0 to 4500 ft. (CAN1

2.17-M91).

GAS LINE

INSTALLATION

Since some municipalities have additional local codes it is always best to consult with your local authorities and the CAN/CGA B149 installation code.

For USA installations follow local codes and/or the current National Fuel Gas Code, ANSI Z223.1.

PILOT ADJUSTMENT

Periodically check the pilot ﬂ ames. Correct ﬂ ame pattern has two strong blue ﬂ ames: 1 ﬂ owing around the ﬂ ame sensor and 1 ﬂ owing across the burner (it does not have to be touching the burner).

Burner

Flame Sensor

Pilot

Note: If you have an incorrect ﬂ ame pattern,

contact your Regency® dealer for further instructions.

Incorrect ﬂ ame pattern will have small, probably yellow ﬂ ames, not coming into proper contact with the rear burner or ﬂ ame sensor.

Ignitor

GAS PIPE PRESSURE

TESTING

The appliance must be isolated from the gas supply piping system by closing its individual manual shut-off valve during any pressure testing of the gas supply piping system at test pressures equal to or less than 1/2 psig. (3.45 kPa). Disconnect piping from valve at pressures over 1/2 psig.

The manifold pressure is controlled by a regulator built into the gas control, and should be checked at the pressure test point.

880 S.I.T. VALVE

DESCRIPTION

1) Pilot adjustment

2) Outlet Pressure Tap

3) Inlet Pressure Tap

4) Pilot Outlet

5) Main Gas Outlet

6) Main Gas Inlet

When using copper or ﬂ ex connectors use only approved ﬁ ttings. Always provide a union so that gas lines can be easily disconnected for servicing. Flare nuts for copper lines and ﬂ ex connectors are usually considered to meet this requirement.

NOTE: A shutoff / dante valve should be supplied in or near the unit (or as per local codes) for ease of servicing this appliance.

IMPORTANT: Always check for gas leaks with a soap and water solution or gas leak detector. Do not use open ﬂ ame for leak testing.

Regency Horizon™ HZ30E-1 Gas Fireplace

Note: To properly check gas pressure, both

inlet and manifold pressures should be checked using the valve pressure ports on the valve.

1) Make sure the valve is in the "OFF" position.

2) Loosen the "IN" and/or "OUT" pressure tap(s),

turning counterclockwise with a

1/8" wide ﬂ at screwdriver.

3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a 5/16" ID hose.

4) Light the pilot and turn the valve to "ON" position.

5) The pressure check should be carried out with

the unit burning and the setting should be within the limits speciﬁ ed on the safety label.

6) When ﬁ nished reading manometer, turn off the gas valve, disconnect the hose and tighten the screw (clockwise) with a 1/8" ﬂ at screwdriver.

Note: Screw should be snug, but do not over tighten.

AERA TION ADJUSTMENT

The burner aeration is factory set but may need adjusting due to either the local gas supply or altitude. Open the air shutter for a blue ﬂ ame or close for a more yellow ﬂ ame.

Minimum Air Shutter Opening:

NG Fully Closed NG with Logs 3/16” NG with Stones 3/16”

LP ` 1/8" LP with Logs Full open LP with Stones Full open

Note: Any damage due to carboning resulting

from improperly setting the aeration controls is NOT covered under warranty.

INSTALLATION

WIRING DIAGRAM

This heater does not require a 120V A.C. supply for operation. In case of a power failure, the burner switch and the optional remote control/thermostat will continue to operate. However, a 120V A.C. power supply is needed for the fan/blower operation.

(Do not cut the ground terminal off under any circumstances.)

NOTE: Even if the fan is not purchased with the unit, it is still a good idea to bring power to the receptacle box (provided with the unit) in case the

fan is installed at a later date.

PROFLAME REMOTE SYSTEM GTMF

Proﬂ ame System

Proflame System

Conﬁ guration

Configuration

880 ON/OFF

886 GTMF Wire Diagram

Illustrated wire diagram

SureFire™ Switch

0.584.907

IMPORTANT:

receiver now operate the unit. Having AA batteries in both the battery holder and receiver will damage the gas valve.

If the optional remote control is used, the AA batteries normally installed into the battery holder must be removed. The AA batteries in the

0.880.001

Note: 4 AA batteries must be installed to operate the burner switch. Do not use a 9 volt battery.

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

AC POWER ADAPTOR INSTALLATION (FOR SUREFIRE SYSTEMS)

An optional AC power adaptor may be installed as a constant power source for the SureFire system.

This will avoid battery leakage and power drainage. 4-AA Battery pack may be re-installed into receiver during power outages.

NOTE: For all Gas Fireplaces 120 volt power must be brought to the receptacle box inside the ERWWRPRIWKH¿UHER[(provided with the unit).

All Freestanding Gas Stoves & Gas Inserts will need a receptacle box located outside / near the unit

NOTE: AC power adaptor is not required when using GTMF Remote

IMPORTANT: Recommend removing the 4-AA batteries in the SureFire receiver.

so that the AC Power Adaptor can be plugged in.

INSTALL AC ADAPTOR WITH SUREFIRE WALL SWITCH ONLY - (WITHOUT REMOTE)

1) Locate “DC Supply” tag on wire harness. For location in unit

see remote installation page in owners manual.

2) Connect the male end from AC adaptor to the female end tagged “DC Supply” on wiring harness in unit.

Plug AC adaptor into 120V wall outlet (or into 120V receptacle if

LQVWDOOHGLQVLGHWKHJDV¿UHSODFH¿UHER[

4) Neatly tuck any loose AC Power Adaptor wires neatly underneath / inside the appliance.

INSTALL AC ADAPTOR WITH SUREFIRE PROFLAME GT / GTM REMOTE

This method also applies for models, HZ30E - HZ40E - L390E - HZI390E

1) Connect the male end of the AC adaptor to the female end of the

wire adaptor (supplied with AC adaptor) together as shown

Wire adaptor

Locate FCM - COM connector on the Remote wire harness -

see manual for location in unit.

AC adaptor

Note: (QVXUHWKDWZLUHVGRQRWWRXFKWKHXQGHUVLGHRIWKH¿UHER[

(keep wires away from the heat as much as possible).

Plug in wire adaptor to FCM - COM connector - be careful not

WRGDPDJHHQGV7KLVRQO\¿WVRQHZD\'R1RW)RUFHLQZURQJZD\

wire adaptor

4) Plug AC adaptor into 120V wall outlet (or into 120V receptacle if

LQVWDOOHGLQVLGHWKHJDV¿UHSODFH¿UHER[

5) Neatly tuck any loose AC Power Adaptor wires neatly underneath / inside the appliance.

Note: (QVXUHWKDWZLUHVGRQRWWRXFKWKHXQGHUVLGHRIWKH¿UHER[

(keep wires away from the heat as much as possible).

FCM - COMAC adaptor

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

PROFLAME REMOTE SYSTEM GTMF WITH OPTIONAL FAN

Proflame System Configuration

880

886 GTMF Wire Diagram

SureFire™ Switch

0.584.907

Thermostat

(Optional)

Ground

880

See optional wall thermostat installation in this manual.

Fan

Black

Ground

120V AC 60 Hz

Neutral

Live

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

Black

Green

Black

Red

Black

Fan Thermodisc

(normally open)

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

Regency Horizon™ HZ30E-1 Gas Fireplace

Lockwasher

Star washer

Fan

ground wire

(for mobile home)

Nut

OPTIONAL FAN WIRING DIAGRAM

WITHOUT PROFLAME GTMF SYSTEM

#8 Ground Lug

120V AC 60 Hz

Neutral

Live

Ground

Black

Ground

Black

Green

INSTALLATION

Fan

Black

Red

Fan Thermodisc

(normally open)

Black

Ground

Power Switch

Black

Fan Speed Control

Red

Break Tab

Copper terminals

Black

Receptacle

in Unit

Ground

Do Not Break Tab

on Neutral (silver terminals)

AC Adaptor (see ACAdaptor in

Caution: Ensure that the wires do not touch any hot surfaces and are away from sharp edges.

To Fan (see above)

Electrical Connection Alternative Scheme "B",

Black (Hot)

White (Neutral)

120 Volts

Copper Ground

60 Hz

* = supplied with fan kit

Other parts are to be supplied by electrician or installer

Wire

Power at Switch

Wall Junction Box

*Speed Control Switch with lead wires

Wire Nuts

14 AWG wire

*Wire Clamp

*Receptacle Box

inside stove

*Receptacle

(dedicated use

by unit fan only)

Black White

Ground

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

Optional

REMOTE CONTROL

Use the Regency® Remote Control approved for this unit. Use of other systems may void your warranty.

The remote control comes with a hand held transmitter, a receiver is supplied with the unit.

Proﬂ ame GT remote control (HZ30E Sureﬁ re) 946-700 RF remote, ON/OFF Thermostat, ON/OFF Flame Control Large blue backlit LCD screen with temperature display. (Receiver comes with unit, not included with remote.)

Proﬂ ame GTMF remote control (HZ30E Sureﬁ re) 946-703 RF remote, ON/OFF Thermostat, ON/OFF Flame Control (Note: HZ30E has no ﬂ ame adjustment) ON/OFF fan control with 3-stage adjustment,. Requires a fan (if not included), to be installed for fan function to operate. Large blue backlit LCD screen with temperature display. (Receiver comes with unit, not included with remote.)

CAUTION

Do not wire millivolt

remote control wires

to 120V wire.

(Included with Unit)

RECEIVER WALL SWITCH

1) Run the supplied 10' of the wire harness through the right or left side gas

inlet opening- connect the ON/OFF wire harness. Be careful not to damage wire.

2) Choose a convenient location on the wall to install the receiver and the receptacle box (protection from extreme heat is very important). Run wires from the ﬁ replace to that location.

3) Connect the wire to the receiver wall switch and install into the low voltage receptacle box.

CAUTION

Do not wire millivolt

wall switch wires

to 120V wire.

Regency Horizon™ HZ30E-1 Gas Fireplace

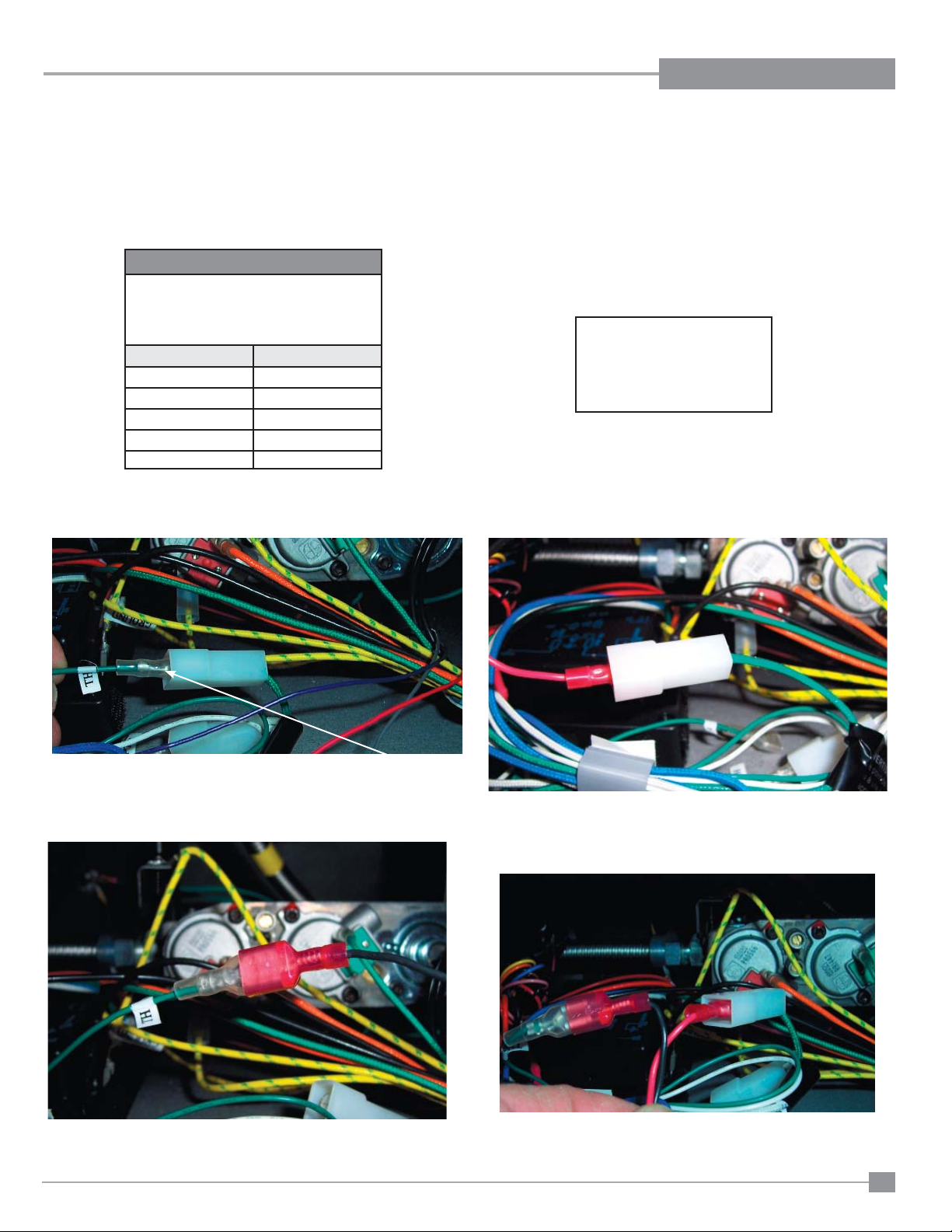

OPTIONAL WALL THERMOSTAT INSTALLATION

This installation must be completed during initial install with the front access panel removed.

A wall thermostat may be installed if desired. Recommended: Mount thermostat beside unit receiver.

1) Run wires from thermostat into the unit using the appropriate wire gauge - see chart below.

Thermostat Wire Table

Recommended Maximum Lead Length

(Two-Wire) When Using Wall

Thermostat (CP-2 System)

Wire Size Max. Length

14 GA. 50 Ft.

16 GA. 32 Ft.

18 GA. 20 Ft.

20 GA. 12 Ft.

22 GA. 9 Ft.

INSTALLATION

CAUTION

Do not wire millivolt

Thermostat wires

to 120V wire.

2) Remove the green wire marked (TH) at the white connector - shown below.

Disconnect TH wire

3) Connect one thermostat lead to female connector, using male spade connector - see pic below.

4) Connect one thermostat lead to male connector using female spade connector - see pic below.

When complete turn remote receiver to the ON position. Unit will now operate using the wall thermostat.

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

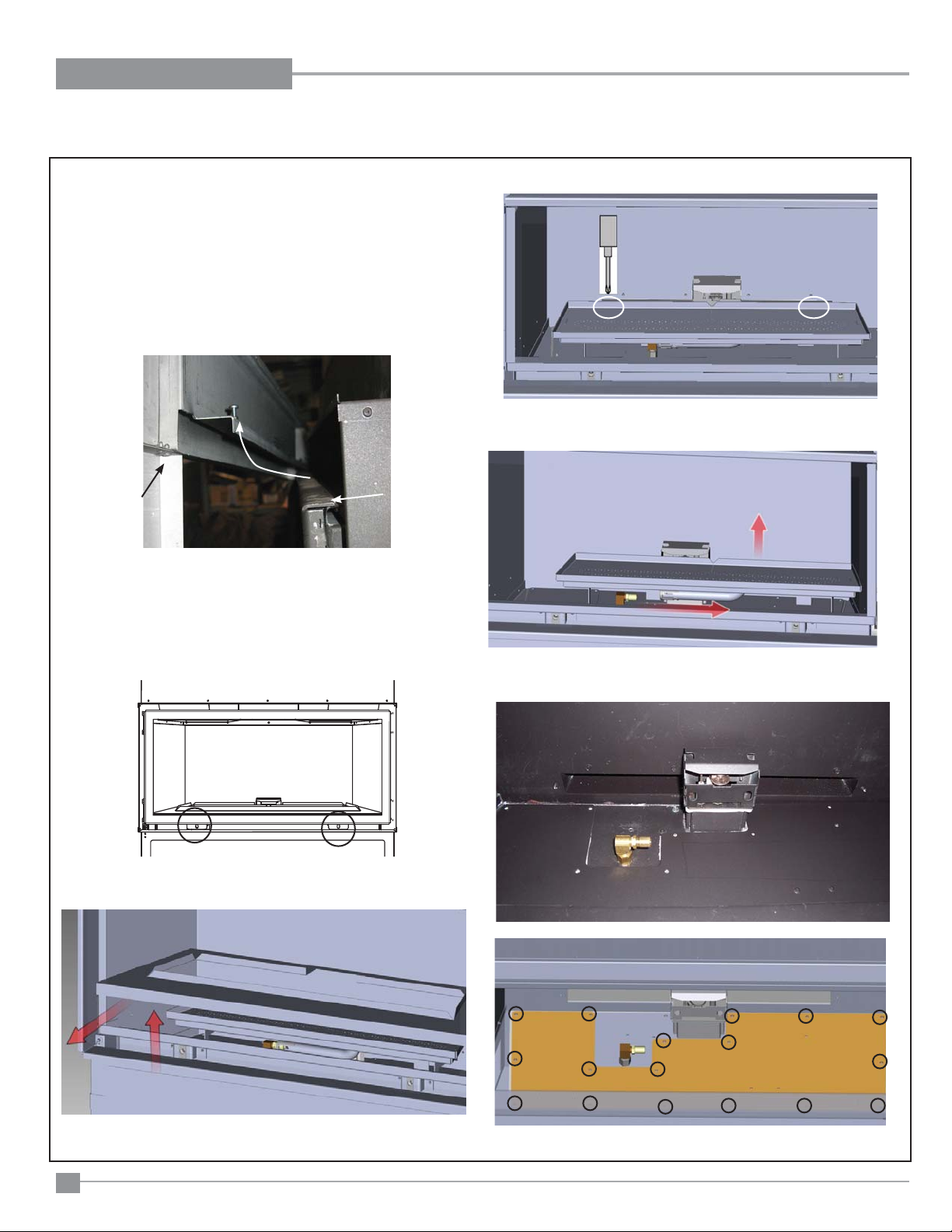

GTMF REMOTE INSTALLATION

120 Volt AC power is needed for the fan. The fan can be hard wired if desired. The receptacle box should be installed on the right hand side of the unit by a qualiﬁ ed electrician. The neutral (wider) slot of the polarized receptacle should be at the top.

Unit must be grounded at all times. Do not cut the ground terminal off under any circumstances.

1) Shut off the gas and power supply to the unit.

2) Remove the faceplate or door frame by lifting it up off the glass door.

a) If the the unit and facing material is already installed - continue to step

b) If this is a new install - proceed to step 8b

Faceplate

(4pc style

shown)

Glass Door

4) Remove the burner tray cover by lifting up and out as shown below.

* Prior to removing burner - remove crystals, pebbles, spa stones and inner

panels - if installed.

5) Loosen 2 screws at the back of the burner to release it.

3) Remove the glass door.

a) Remove the 2 screws shown below at the bottom of the glass

door.

b) Swing the door out 45o from the bottom and lift up and out.

6) Remove the burner by sliding it to the right - then lift out.

Regency Horizon™ HZ30E-1 Gas Fireplace

7) Remove the valve access plate by undoing the 17 outer screws - see

locations below.

INSTALLATION

10) Plug the fan power cord into the fan control module in the outlet marked

fan. Plug in the FCM wire (from the digital ﬁ rebox control box wire har- ness) into the location on the fan control module marked com

Location of screws on access plate

8) a) With the valve access plate removed - install the fan control module.

b) If this is a new installation - remove the installation access panel to

complete the installation.

Screw Locations

Installation Access Panel

9) The fan control module secures to the ﬂ oor of the unit with a velcro pad. The front of the fan control module should face toward the left. Plug the

fan control module into the receptacle in the unit.

FCM Wire

Com

11) See Proﬂ ame remote instructions for coding remote to receiver as well

as operating instructions.

Regency Horizon™ HZ30E-1 Gas Fireplace

Note: HZ30E does not have BTU turndown, therefore this feature is inactive

on the GTMF remote.

12) Reverse steps 10-1.

INSTALLATION

OPTIONAL FAN INSTALLATION

120 Volt AC power is needed for the fan switch and blower. The fan can be hard wired if desired. The receptacle box should be installed on the left hand side of the unit by a qualiﬁ ed electrician. The neutral (wider) slot of the polarized receptacle should be at the top.

Unit must be grounded at all times. Do not cut the ground terminal off under any circumstances.

1) Shut off the gas and power supply to the unit.

3) Remove the faceplate or door frame by lifting it up off the glass door.

Faceplate (4pc style

shown)

4) Remove the glass door.

a) Remove the 2 screws shown below at the bottom of the glass

door.

Glass Door

6) Loosen 2 screws at the back of the burner to release it.

7) Remove the burner by sliding it to the right - then lift out.

b) Swing the door out 45o from the bottom and lift up and out.

5) Remove the burner tray cover by lifting up and out as shown below.

8) Remove the valve access plate by undoing the 17 outer screws - see

locations below.

* Prior to removing burner - remove crystals, pebbles, spa stones and inner

panels - if installed.

Location of screws on access plate

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

9) Do not remove the screw just left of the pilot shield - this secures the

valve tray in position.

10) Manoeuvre the fan into position in the lower right corner at the base

of the unit.

13) Attach the green ground wire to the ground lug - located in the lower

left back corner of the unit.

14) Reposition the valve access plate - before securing with 17 screws

(see step 8 for screw locations) - slide in the thermodisc to the clip on the bottom of the access plate. Attach the 2 wires from the fan to the thermodisc as shown below.

11) Attach the thermodisc wires - (by sliding them on) to the fan as shown

below.

12) Secure the fan to the base of the unit with 2 screws.

15) Plug the fan into the receptacle located in the lower right front corner at

the base of the unit.

16) To remove the fan - reverse steps.

TO REMOVE THE FAN

1) Turn the power off.

2) Reverse the above instructions.

Maintenance: The sealed bearings are lubricated, there is no need to lu-

bricate them further. (Extra lubricant will cause more lint and dust buildup

- causing the bearings to prematurely fail). Regular cleaning and vacuuming of the fan area will add to the life of the motor.

IMPORTANT:

These fans collect a lot of dust from within your home. Ensure you maintain these fan motors on a regular basis by vacuuming the fan blades and housing using a soft brush nozzle.

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

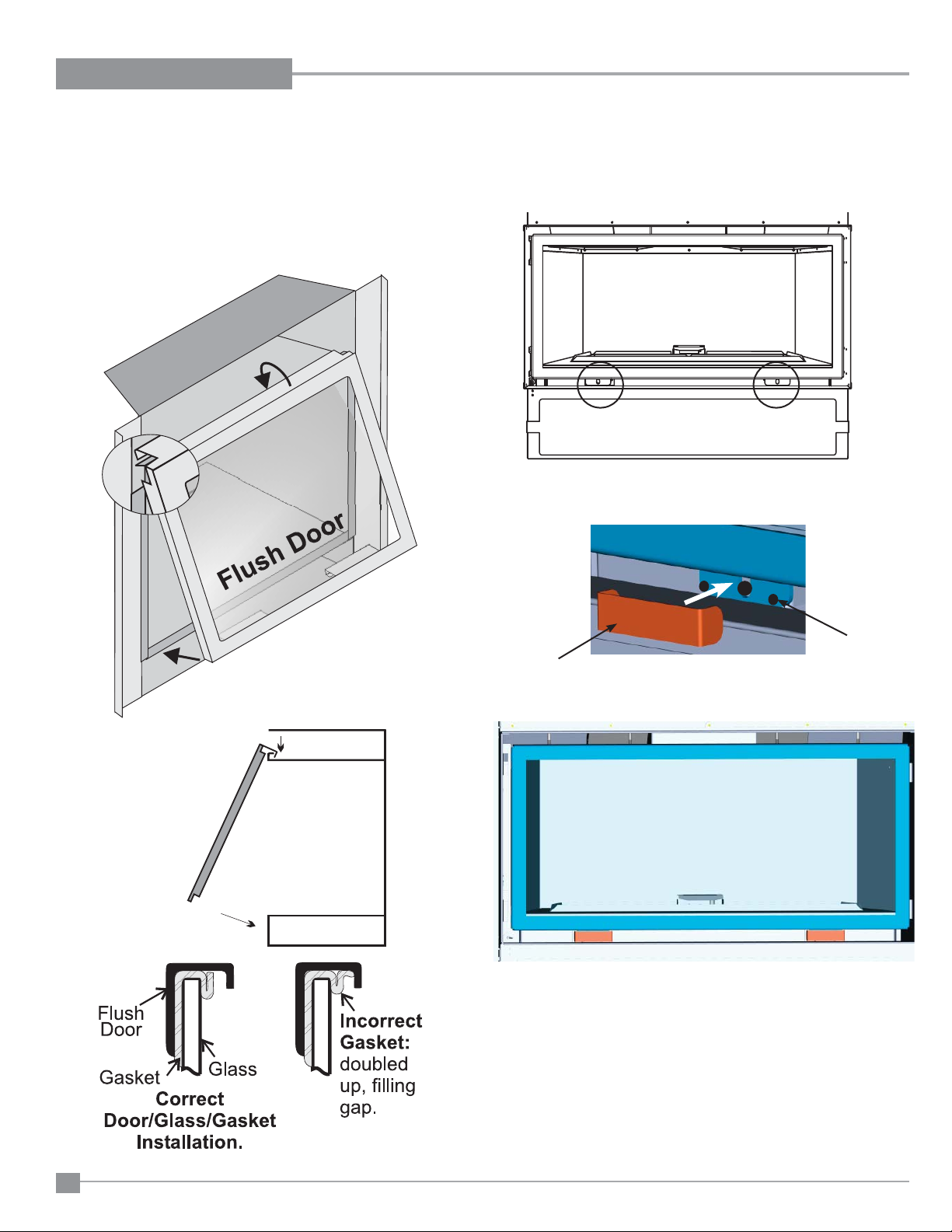

REFLECTIVE PANEL INSTALLATION

Before installation, panels must be handled and cleaned as per instructions noted below:

Black Enamel Panels

• Black Enamel panels must be inspected for scratches and dimples prior to installation. All claims to be recorded at this time.

Claims for damage after installation will not receive consideration.

• Black Enamel panels will discolor a little during normal operation. This is normal and should not be considered a defect.

All hand and ﬁ nger marks MUST be cleaned off with a soft cloth. Use an ammonia based cleaner (ie. glass cleaner) to remove any

ﬁ ngerprints before applying heat to the unit.

Failure to do this will result in burn stain on panels which you will be unable to remove. Not protected by product warranty.

1) Remove the faceplate and glass door if already installed - see

manual for instructions.

2) Install the back panel ﬁ rst. Tilt the panel forward - position the bottom of the panel ﬁ rst. Use care not to scratch or mar the panel on the pilot shield.

3) Install the left side panel - secure in position with one panel clip and one screw, as shown in the diagram below.

4) Install the right side panel - secure in position with one panel clip and one screw.

5) Reinstall glass door - reinstall faceplate.

6) Final installation

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

GLASS CRYSTALS OR OPTIONAL STONES

INSTALLATION ON BURNER

Spread the Glass Crystals or Stones evenly over the burner. Ensure the crystals/stones do not overlap excessively as this will affect the ﬂ ame pattern.

IMPORTANT NOTE:

Only the supplied approved Glass Crystals and Stones are to be used with these ﬁ replaces. Use of any other type of glass crystals or stones can alter the unit's performance, any damage caused by the use of any unapproved glass or stones will not be covered under warranty. When using Ceramic Spa/Volcanic Stones DO NOT cover burner ports or pilot light that lead to pilot ﬂ ame.

BURNER PACKAGES

Unit *Glass Crystals Stones - Spa / Ceramic / Volcanic

E18 5lbs 5lb Glass + 70 spa stones or 1 Box Volcanic stones

GF900C (AUS) 10lbs (2lbs burner + 8lbs ﬁ rebox) 10 lb Glass + 32 Volcanic Stones

HZ54E 3 lbs 1 lb Glass + 2 packages (140 Spa Stones)

HZ42 / HZ42E 2 lbs 1 lb Glass + 1 package (70 Spa Stones)

HZ42ST / HZ42STE 2 lbs 1 lb Glass + 1 package (70 Spa Stones)

HZ30E ** 1 lb 1 lb Glass + 1 package (70 Spa Stones)** / 1 lb Glass + 30 Volcanic Stones

HZ40E 2lbs 1.5 lb Glass + 30 Ceramic Stones or 1.5 lb Glass + 25 Volcanic Stones

HZ33CE 4lbs 4 lb Glass + 1 package (70 Spa stones) 4 lb Glass + 20 Volcanic Stones

HZI234E *** 3/4 lb 3/4 lb Glass + 1 package 70 Spa Stones)***

HZI390EB / HZI390PB 7 lbs [4 lbs burner + 3 lbs ﬁ rebox] 2 lb Glass + 1 package (70 Spa Stones)

HZI540EB HZI540PB

HZO42/HZO42 (AUS) 3 lbs 3 lb Glass + 35 Volcanic stones

HZO42 (AUS) 3 lbs 3 lb Glass + 50 Garden Stones

HZ965 12 lbs 2 package Spa Stones = (140 spa stones)

PTO28CIT 5 lbs 5 lb Glass + 14 Volcanic Stones (Recommended)

PTO28 Burner Only 6 lbs 6 lb glass + 14 Volcanic Stones (Recommended)

PTO30 / Plateau Series 10 lbs 1 Box Volcanic Stones

PTO60 20 lbs 2 Boxes Volcanic Stones

NOTE: * Glass Crystals are not supplied with the unit. Must purchase separately - see quantities above. Glass Crystals are available in 1lb and 5lb bags. Note: 1 Spa stone package contains 70 stones.

** Recommended - use only 40 of the 70 spa stones on the HZ30E burner. *** Recommended - use only 24 of the 70 spa stones on the HZI234E burner.

10 lbs [5 lbs burner + 5 lbs ﬁ rebox] 10 lb Glass + 1 package (70 Spa Stones) / 2 lb Glass + 40 Volcanic Stones

2 lb Glass + 35 Ceramic Stones or 2 lb Glass + 40 Volcanic Stones

1 lb Glass + 24 Ceramic Stones

4 lb Glass + 16 Ceramic Stones

2 lb Glass + 30 Ceramic Stones

OPTIONAL PEBBLES / GLASS CRYSTAL INSTALLATION FOR FIREBOX BASE (AROUND BURNER)

There are 2 optional packages to choose from to cover the ﬁ rebox base:

1) Natural River Pebbles

2) Glass Crystals (4 colors available)

Spread the pebbles / crystals evenly on the exposed base of the ﬁ rebox. Pebbles are NOT to be placed anywhere on the burner or over top of the Glass Crystals or optional Stones.

IMPORTANT NOTE: Only the supplied and approved pebbles / glass crystals are to be used with these ﬁ replaces. Use of any other type of pebbles,

glass crystals or other material can create a danger and will void the warranty.

HZ54E / HZ54EPV 6 lbs 2 packages (6 x bags pebbles)

HZ42 / HZ42E / HZ40E 5 lbs 2 packages (6 x bags pebbles)

HZ42ST / HZ42STE / HZ42STEPV 5 lbs 2 package (6 x bags pebbles)

HZ30E 2 lbs 1 package (3 x bags pebbles)

HZI540E 3 lbs 1-2/3 packages (5 x bags pebbles)

HZI390E /HZI390PB 3 lbs 1 package (3 x bags pebbles)

HZI234E 2 lbs 1 package (3 x bags pebbles)

HZO42 / HZO42 (AUS) 3 lbs 1 package (3 x bags pebbles)

Regency Horizon™ HZ30E-1 Gas Fireplace

Firebox (Around Burner) Packages

Unit Glass Crystals Pebbles

INSTALLATION

For Units HZ54E, , HZ42ST, HZ42STE, HZI234E, HZ42E, HZ42,

Glass Crystals shown on Burner

HZ30E,

HZO42, HZO42 (AUS) PTO30, PTO60, Plateau Series

Glass Crystals shown surrounding the Burner

Optional Spa Stones + Glass Crystals shown on burner.

For Units HZ54E, HZ42ST, HZ42STE, HZI234E, HZ42, HZ42E,

HZ30E

Natural River Pebbles shown surrounding the a Horizon Burner

Glass Crystals shown on Burner and Firebox Floor

For Units HZI390E, HZI540E

DO NOT block pilot area with glass crystals

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

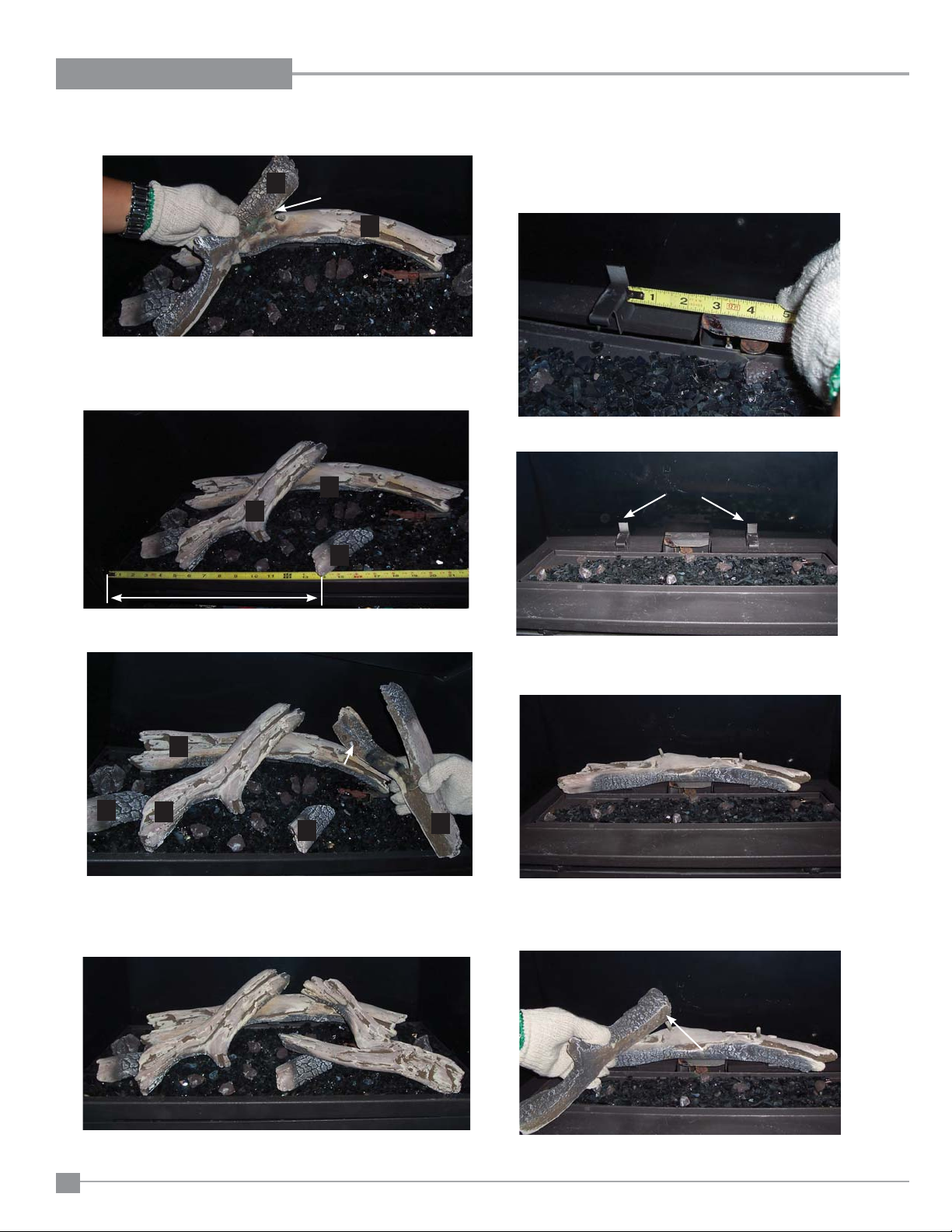

OPTIONAL LOG SET INSTALLATION

Read the instructions below carefully and refer to the images. If the logs are broken do not use the unit until they are replaced. Broken logs can interfere with pilot operation.

Improper positioning of the logs and lava embers may create carbon build-up and can alter the unit's performance which is not covered under warranty.

*Satin black paint is included if touch ups are required.

1 Rear Log

2 Right Log

3 Left Log

4 Front Right Log Piece

5 Front Left Log Piece - HZ33CE Only

Lava Embers/Rocks

Log Clip - HZ33CE only

Log Brackets - HZ33CE / HZ30E

6. Install log clip to lip on burner tray - position 9-1/2" from the left edge of the burner tray to the centre of clip.

9-1/2"

1. S hut off gas and electr ical supply, allow unit to cool to room temperature.

2. Remove ﬂ ush glass door (see unit manual).

3. Carefully remove the logs from the packaging and unwrap them.

The logs are fragile, handle with care -never force into position.

4. Ensure glass crystals are installed on the burner. HZ33CE = 4lbs HZ30E=1lb

HZ33CE INSTALL INSTRUCTIONS:

5. HZ33CE only- Install log bracket onto left side of burner with 2 screws

as shown below.

HZ33CE Log ClipHZ33CE Log Bracket

7. Install Rear Log (1), seat on log clip and rest on left log bracket.

Right side of log should sit ﬂ ush with the outside edge of the pilot hood.

Log 1 in position

8. Place Log 5 on the glass crystals on the left side.

Log 1 end of Log ﬂ ush with edge of pilot hood

HZ33CE shown - Logs 1 and 5 in position.

HZ33CE - install bracket, left side

Regency Horizon™ HZ30E-1 Gas Fireplace

9. Place Log 4 on the glass on the right side in location shown below.

HZ33CE shown - Logs 1,4 and 5 in position.

INSTALLATION

9. Place Left Log (2 ) match pin landing on Log 2 with pin on Log 1, the

bottom should rest on the glass as shown below.

HZ33CE use bottom pin landing

HZ33CE shown - Left Log (2) positioned to rest on Log 1 and

10. Adjust position of Log 4 – log should sit as shown below, 14" from the left outside of the burner tray.

glass crystals.

HZ30E INSTALL INSTRUCTIONS:

1. I nstall the log clips on the burner tray - measure 2-1/2" from theoutside

edge of the pilot hood to the outside edge of the log clip.

Log clips installed HZ30E

14"

11. Position Log 3, line up bottom pin landing on Log 3 with pin on Log 1. The remainder of Log 3 will rest on the burner tray.

HZ33CE use bottom pin

12. Place lava embers/rocks on glass - ensure rocks do not block pilot.

Do not place lava rocks/embers too close to logs as this may cause carboning.

13. Adjust aeration, see unit manual for setting.

landing

2. Position Back Log (1) by positioning centre of Log on centre of pilot hood.Rest Log 1 on log clips.

Each end should rest on the lip of the burner tray – as shown below.

HZ30E shown - Log 1 in position

3. Position Log 2, line up pin landing on Log 2 with pin on Log 1, remainder of Log 2 rests on the burner tray as shown below.

HZ33CE shown - Final Install

HZ30E use top pin landing

HZ30E shown - installing Log 2

Regency Horizon™ HZ30E-1 Gas Fireplace

4. Position Log 3, line up bottom pin landing on Log 3 with pin on Log 1. The remainder of Log 3 will rest on the burner tray.

HZ30E use top pin landing

HZ30E shown - Log 3 install

5. Place Left Log (4) piece on burner tray, par t of the Log should sit on the lip of the burner tray as shown below.

INSTALLATION

HZ30E shown - Log 3 install

6. Place lava embers/rocks on glass - ensure rocks do not block pilot. Do not place lava rocks/embers too close to logs as this may cause carboning.

7. Adjust aeration, see unit manual for setting.

HZ30E shown - Final Install

Regency Horizon™ HZ30E-1 Gas Fireplace

INSTALLATION

GLASS DOOR INSTALLATION

The glass door comes with a black frame.

1) To install the frame and glass door, simply hook the top door ﬂ ange onto

the top of the unit and swing the door towards the unit, Diagram 1.

Note: Be careful that the glass gasket does not roll up; there must be a gap between the gasket and the door lip to ensure that the door sits securely on the unit. See Diagram 2.

2) With the door in proper position - secure with 2 screws in locations shown in Diagram 3.

Diagram 3

3) Install cover plates over each screw with 2 magnets each as shown below.

Hook top of

door onto

top flange

Flush

Door

Diagram 1

Cover Plate

Magnet

Diagram 4

Cover Plates Installed

Diagram 5

Diagram 2

Regency Horizon™ HZ30E-1 Gas Fireplace

4 PC. FACEPLATE INSTALLATION

1) To install the 4 pc. faceplate - hook tabs (located on back of faceplate) over the top of glass door frame.

INSTALLATION

2) Lower the bottom of the faceplate gently - until it rests against the unit.

Regency Horizon™ HZ30E-1 Gas Fireplace

Important: 1/2" gap required between faceplate and ﬁ nished wall when using part #316-924, 316-926, 316927 (4 pc. faceplate).

INSTALLATION

OUTER AND INNER DOOR FRAME INSTALLATION

Note: HZ40E only - if installing optional mesh glass guard See optional mesh glass guard instruction in the manual.

1) Install 4 magnets onto 4 corners of glass frame prior to installing the inner door frame.

2) Install the inner door frame - ﬁ t it over the glass door frame.

Glass Door

Inner Door Frame

3) Install the outer door frame to the unit by hooking the left and right side

mounting brackets into the mounting slots at the side of the ﬁ rebox as shown below. It is recommended that you use the ﬁ rst mounting slot (the one closest to the door frame overlay) out of the 3 so that the faceplate and door frame overlay are ﬂ ush with one another.

NOTE: There are 3 mounting slots available, this is to accommodate

any ﬁ nishing that protrudes slightly beyond the faceplate.

Bracket in Unit

Tab on Faceplate

Completed inner door

frame and faceplate

installation

Note: Inner door frame may be installed by itself, or with the outer

door frame.

The outer door frame cannot be installed by itself - if install-

ing the outer door frame - the inner door frame must also be installed.

Regency Horizon™ HZ30E-1 Gas Fireplace

OPERATING INSTRUCTIONS

OPERATING

INSTRUCTIONS

1) Read and understand these instructions before

operating this appliance.

2) Check to see that all wiring is correct and enclosed to prevent possible shock.

3) Check to ensure there are no gas leaks.

4) Make sure the glass in the glass door frame

is properly positioned. Never operate the appliance with the glass removed.

5) Verify that the venting and cap are unobstructed.

6) The unit should never be turned off, and on

again without a minimum of a 60 second wait.

FIRST FIRE

The FIRST FIRE in your heater is part of the paint curing process. To ensure the paint is properly cured, it is recommended you burn your ﬁ replace for at least four (4) hours the ﬁ rst time.

When ﬁ rst operated, the unit will release an odour caused by the curing of the paint and the burning off of any oils remaining from manufacturing. Smoke detectors in the house may go off at this time. Open a few windows to ventilate the room for a couple of hours. The glass may require cleaning.

NOTE: When the glass is cold and the appliance

is lit, it may cause condensation and fog the glass. This condensation is normal and will disappear in a few minutes as the glass heats up.

DO NOT A TTEMPT TO CLEAN THE GLASS WHILE IT IS STILL HOT!

DO NOT BURN THE UNIT WITHOUT THE GLASS DOOR IN PLACE.

LIGHTING

PROCEDURE

IMPORTANT To ignite or reignite the pilot, you must ﬁ rst remove the glass door.

1) Press and release on ON/OFF button once

on the remote control or ON/OFF switch.

2) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.

3) The unit will turn on.

Note: The ﬁ rst try for ignition will last approxi-

mately 60 seconds. If there is no ﬂ ame ignition (rectiﬁ cation) the board will stop sparking for approximately 35 seconds. After wait time , the board will start second try for ignition by sparking for approximately 60 seconds . If there is still no positive ignition the board will go into lock out.

The system will need to be reset as follows:

a) Turn the system off using ON/OFF switch

or press ON/OFF button - if using optional remote.

b) After approximately 2 seconds turn on ON/

OFF switch or press ON/OFF button if using optional remote.

c) Repeat step 2.

SHUTDOWN

PROCEDURE

1) Turn the wall mounted switch or remote to

the "OFF" position.

2) Press "OFF" on the remote control.

NORMAL OPERATING

SOUNDS OF

GAS APPLIANCES

It is possible that you will hear some sounds from your gas appliance. This is perfectly normal due to the fact that there are various gauges and types of steel used within your appliance. Listed below are some examples. All are normal operating sounds and should not be considered as defects in your appliance.

Burner Tray:

The burner tray is positioned directly under the burner and is made of a different gauge material from the rest of the ﬁ rebox and body. Therefore, the varying thicknesses of steel will expand and contract at slightly different rates which can cause "ticking" and "cracking" sounds. You should also be aware that as there are temperature changes within the unit these sounds will likely re-occur. Again, this is normal for steel ﬁ reboxes.

Pilot Flame:

While the pilot ﬂ ame is on it can make a very slight "whisper" sound.

Gas Control Valve: As the gas control valve turns ON and OFF, a dull clicking sound may be audible, this is normal operation of a gas regulator or valve.

Unit Body/Firebox: Different types and thicknesses of steel will expand and contract at different rates resulting in some "cracking" and "ticking" sounds will be heard throughout the cycling process.

Blower Thermodisc:

When this thermally activated switch turns ON it will create a small "clicking" sound. This is the switch contacts closing and is normal.

During the ﬁ rst few ﬁ res, a white ﬁ lm may develop on the glass front as part of the curing process. The glass should be cleaned after the unit has cooled down or the ﬁ lm will bake on and become very difﬁ cult to remove. Use a non-abrasive cleaner and DO NOT ATTEMPT TO CLEAN THE GLASS WHILE IT IS HOT.

Regency Horizon™ HZ30 Gas Fireplace

3) Turn the gas control knob to the "OFF" position to turn off the pilot.

OPERATING INSTRUCTIONS

COPY OF LIGHTING PLATE INSTRUCTIONS

FOR YOUR SAFETY READ BEFORE LIGHTING

This appliance must be installed in accordance with local codes, if any;

if none, follow the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or

WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Refer to the owner’s information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or gas supplier. AVERTISSEMENT. Quiconque ne respecte pas à la lettre les instructions dans la présente notice risquede déclencher un incendie ou une explosion entraînant des dommages, des blessures ou la mort. Une installation, d'ajustement, de modiﬁ cation, de service ou d'entretien peut provoquer des blessures ou des dommages matériels. Reportez-vous au manuel du propriétaire de l'information fournie avec cet appareil. Pour obtenir de l'aide ou des informations supplémentaires consulter un installateur qualiﬁ é, une agence de service ou fournisseur de gaz.

A) This appliance is equipped with an ignition device which automatically lights the pilot.

Do not try to light the pilot by hand.

B) BEFORE OPERATING smell all around the appliance area for gas. Be sure to smell next to the ﬂ oor because some gas is heavier than air and will settle on the ﬂ oor.

WHAT TO DO IF YOU SMELL GAS

- Do not try to light any appliance.

- Do not touch any electric switch, do not use any phone in your building.

- Immediately call your gas supplier from a neighbours phone. Follow the gas supplier’s instructions.

- If you cannot reach your gas supplier, call the ﬁ re department.

C) Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and replace any part of the control system and any gas control which has been underwater.

A) Cet appareil est muni d’un dispositif d’allumage qui allume automatiquement la veilleuse. Ne tentez pas d’allumer la veilleuse manuellement.

B) AVANT DE FAIRE FONCTIONNER, reniﬂ ez tout autour de l’appareil pour déceler une odeur de gaz. Reniﬂ ez près du plancher, car certains gaz sont pluslourds que l’air et peuvent s’accumuler au niveau du sol. QUE FAIRE SI VOUS SENTEZ UNE ODEUR DE GAZ :

• Ne pas tenter d’allumer d’appareil

• Ne touchez à aucun interrupteur; ne pas vous servir des téléphones se trouvant dans le bâtiment.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur, appelez le service des incendies

C) N’utilisez pas cet appareil s’il a été plongé dansl’eau, même partiellement. Faites inspecter l’appareil par un tech-

nicien qualiﬁ é et remplacez toute partie du système de contrôle et toute commande qui ont été plongés dans l’eau.

CAUTION: Hot while in operation. Do not touch. Severe Burns may result. Due to high surface temperatures keep children, clothing and furniture, gasoline and other liquids having ﬂ ammable vapors away. Keep burner and control compartment clean. See installation and operating instructions accompanying appliance.

1) Turn on ON/OFF switch

2) After approximately 4 seconds the spark ignition system will spark for 60 seconds to light the main burner.

3) The unit will turn on.

Note: The ﬁ rst attempt to ignition will last approximately 60 seconds. If there is no ﬂ ame ignition (rectiﬁ cation) the board will stop sparking for approximately 35 seconds. After this wait time, the board will start a second try for ignition by sparking for approximately 60 seconds. If there is still no positive ignition after the second attempt the board will go into lock out. The system will need to be reset as follows (after going into lock out mode): a) Wait 5 minutes - turn the system off using ON/OFF switch. b) After approximately 2 seconds turn on ON/OFF switch or press ON/OFF button if using optional

c) Unit will repeat step 2.

1) Appuyez le bouton ON / OFF

2) Attendre 4 secondes. Le système d’allumage produira des étincelles pendant 60 secondes aﬁ n d’amorcer le brûleur principal.

3) Les ﬂ ammes s’allumeront.

Remarque : Au premier allumage, le système tente d’allumer les ﬂ ammes pendant 60 secondes. Si l’essai est infructueux, le système fait une pause de 35 secondes. C’est ce qu'on appelle l'étape de rectiﬁ cation. Ce délai écoulé, le système tente à nouveau d'allumer les ﬂ ammes en produisant des étincelles pendant 60 secondes. Si les ﬂ ammes ne s’allument toujours pas, le système se met en mode verrouillage. Il faut alors le réinitialiser en suivant les étapes ci-dessous (pour le déverrouiller) : a) Attendre 5 minutes et éteindre l’appareil en réglant l’interrupteur à la position « OFF »; b) Attendre 2 secondes et rallumer le système à l’aide de l’interrupteur ou de la télécommande. c) L'unité répétera l'étape 2.

1) Turn off ON/OFF switch

2) If service is to be performed - you must disconnect power to the unit, from the battery pack, refer to

Appuyez sur le bouton ON / OFF

2) Si le service est effectuée, vous devez débrancher l'appareil, du bloc-piles, voir le manuel d'instruction

remote.

manual.

pour plus de détails.

Natural Gas and Propane Installation Codes, CSA B149.1.

TO TURN OFF GAS APPLIANCE

LIGHTING INSTRUCTIONS

DO NOT REMOVE THIS INSTRUCTION PLATE

918-628b

Regency Horizon™ HZ30E-1 Gas Fireplace

MAINTENANCE

INSTRUCTIONS

1) Always turn off the gas and electrical supply

before cleaning. For relighting, refer to lighting instructions. Keep the burner and control compartment clean by brushing and vacuuming at least once a year.

2) Clean appliance and door with a damp cloth (never when unit is hot). Never use an abrasive cleaner. The glass should be cleaned with a gas

ﬁ replace glass cleaner. The glass should be cleaned when it starts looking cloudy.

3) The faceplate is ﬁ nished in a heat resistant paint and should only be reﬁ nished with heat resistant paint. Regency® uses StoveBright Paint - Metallic Black #6309.

Note: Faceplates and inner panels made from

stainless steel will naturally change color over time.

4) Make a periodic check of burner for proper

position and condition. Visually check the ﬂ ame of the burner periodically, making sure the ﬂ ames are steady; not lifting or ﬂ oating. If there is a problem, call a qualiﬁ ed service person.

5) The appliance and venting system must be inspected before use, and at least annually, by a qualiﬁ ed ﬁ eld service person, to ensure that the ﬂ ow of combustion and ventilation air is not obstructed.

Note: Never operate the appliance without the

glass properly secured in place.

GLASS GASKET

If the glass gasket requires replacement use a tadpole glass gasket (Part # 936-159).

GLASS DOOR

Your Regency® ﬁ replace is supplied with high temperature 5mm-Ceramic glass. If your glass requires cleaning, we recommend using an approved glass cleaner available at all authorized dealers. Do not use abrasive materials.

CAUTION & WARNINGS:

* Do not clean when the glass is hot. * The use of substitute glass will void all product

warranties.

* Care must be taken to avoid breakage of the

glass. * Do not strike or abuse the glass. * Do not operate this ﬁ replace without the glass

front or with a cracked or broken glass front. * Wear gloves when removing damaged or broken

glass. * Replacement of the glass panel(s) should be

done by a licensed or qualiﬁ ed service per son.

GLASS REPLACEMENT

In the event that you break your glass by impact, purchase your replacement from an authorized Regency® dealer only.

Replacement neo-ceramic glass is shipped with gasket.

GENERAL VENT

MAINTENANCE

Conduct an inspection of the venting system semiannually. Recommended areas to inspect as follows:

1) Check the Venting System for corrosion in areas that are exposed to the elements. These will appear as rust spots or streaks, and in extreme cases, holes. These components should be replaced immediately.

2) Remove the Cap, and shine a ﬂ ashlight down the Vent. Remove any bird nests, or other foreign material.

3) Check for evidences of excessive condensation, such as water droplets forming in the inner liner, and subsequently dripping out the joints, Continuous condensation can cause corrosion of caps, pipe, and ﬁ ttings. It may be caused by having excessive lateral runs, too many elbows, and exterior portions of the system being exposed to cold weather.

4) Inspect joints, to verify that no pipe sections or ﬁ ttings have been disturbed, and consequently loosened. Also check mechanical supports such as Wall Straps, or plumbers' tape for rigidity.

6) Do not use this appliance if any part has been under water. Immediately call a qualiﬁ ed service technician to inspect the appliance and to replace any part of the control system and any gas control which has been under water.

7) In the event this appliance has been serviced check that the vent-air system has been properly resealed & reinstalled in accordance with the manufacturer's instructions.

8) Verify operation after servicing.

CAUTION: Wear gloves when removing damaged or broken glass.

WARNING: Do not operate the appliance with the glass panels removed, cracked or broken. Replacement of the glass panels should be done by a licensed or qualiﬁ ed service person.

Regency Horizon™ HZ30E-1 Gas Fireplace

MAINTENANCE

V ALVE ASSEMBLY REPLACEMENT

1) Turn the unit off and allow it to cool down to room temperature.

2) Shut off the gas and power supply to the unit.

3) Remove the faceplate or door frame by lifting it up off the glass door.

Faceplate

(4pc style

shown)

4) Remove the glass door. a) Remove the 2 screws shown below at the bottom of the glass

door.

b) Swing the door out 45o from the bottom and lift up and out.

Glass Door

6) Loosen 2 screws at the back of the burner to release it.

7) Remove the burner by sliding it to the right - then lift out.

5) Remove the burner tray cover by lifting up and out as shown below.

* Prior to removing burner - remove crystals, pebbles, spa stones and inner

panels - if installed.

8) Remove the valve access plate by undoing the 17 outer screws - see locations below.

Location of screws on access plate

Regency Horizon™ HZ30E-1 Gas Fireplace

7) Partially lift out valve tray - use extreme caution, the thermodisc needs to be removed before valve tray is lifted out completely.

Gas Line

MAINTENANCE

8) Disconnect the inlet gas line and remove the valve assembly.

9) Replace valve assembly and reverse steps.

Regency Horizon™ HZ30E-1 Gas Fireplace

PARTS LIST

MAIN ASSEMBLY

Part # Description

1) 940-365 Neoceram ﬂ ush glass 316-010 Door Frame

2) 316-066 Bottom Cover NG / LP

3) 316-525 Burner Assembly -NG

4) 316-574/P Valve Assembly -NG 316-576/P Valve Assembly-LP

6) 911-024 Valve 820 (not shown)

7) 911-006 Pilot Assembly - NG 911-007 Pilot Assembly - LP

8) 316-064 Pilot Shield

9) 904-641 Oriﬁ ce # 50 (NG) 904-557 Oriﬁ ce # 57 (LP)

10) 316-917 Fan (optional)

316-008F Top Relief Plate 316-018F Flue Restrictor Plate 596-047F Relief plate door 316-060 Gasket Valve Tray 316-061 Gasket Valve Access Plate 316-063 Gasket Relief Door 316-055 Top nailing strip 316-056F Side nailing strip 316-053 Panel Clip 911-012 Ignition Board 911-015 Wire Harness 910-572 Receiver Sit GTM

910-882 Wire (Valve to Burner ON/OFF) 918-880 Manual

Regency Horizon™ HZ30E-1 Gas Fireplace

ACCESSORIES

PARTS LIST

Part # Description

10) 316-908 Black Enamel Inner Panels

11) 316-954 Faceplate Black 316-956 Faceplate Sunset Bronze 316-957 Faceplate Brushed Stainless

316-934 Outer Door Frame Black 316-936 Outer Door Frame Sunset Bronze 316-947 Outer Door Frame Stainless

316-944 Inner Door Frame Black 316-946 Inner Door Frame Sunset Bronze 316-947 Inner Door Frame Stainless

316-951 Verona Glass Surround Pure Black 316-953 Verona Glass Surround Classic Grey 316-955 Verona Glass Surround Chocolate Brown

Part # Description

946-700 GT Remote Control 946-702 GTMF Remote Control

1 pound bag of glass crystals 946-675 Black Reﬂ ective Crystals

946-676 Copper Crystals 946-677 Starﬁ re Crystals 946-678 Cobalt Blue Crystals

946-672 Natural River Pebbles 946-674 Ceramic Spa Stones

Regency Horizon™ HZ30E-1 Gas Fireplace

NOTES

Regency Horizon™ HZ30E-1 Gas Fireplace

WARRANTY

Regency® Fireplace Products are designed with reliability and simplicity in mind. In addition, our internal Quality Assurance Team carefully inspects each unit thoroughly before it leaves our facility. Regency® Fireplace Products is pleased to extend this limited lifetime warranty to the original purchaser of a Regency® Product. This warranty is not transferable.

The Warranty: Limited Lifetime

The combustion chamber, heat exchanger, burner tubes/pans, logs, glass crystals, ceramic spa stones, pebbles, brick panels and gold plating (against defective manufacture only) are covered under the Limited Lifetime Warranty for ﬁ ve (5) years for parts and subsidized labour* and parts only thereafter.

Glass is covered for lifetime against thermal breakage only, parts and subsidized labour* for ﬁ ve (5) years and parts only thereafter from date of purchase. External casting, surrounds and grills are covered against cracks and warps resulting from manufacturer defects, parts and subsidized labour* for three (3) years from the date of purchase

and parts only thereafter. Special Finishes - One year on stainless steel panels, nickel overlays,nickel faceplates, brushed nickel and antique copper full screens and doors. You can expect some changes in color

as the product "ages" with constant heating and cooling. Regency warranties the product for any manufacturing defects on the original product. However, the manufacturers warranty does not cover changing colors and marks, ie. ﬁ nger prints, etc applied after the purchase of the product. Damage from the use of abrasive cleaners is not covered by warranty.

Electrical and mechanical components such as blowers, switches, wiring, thermodiscs, Regency® remote controls, spill switches, thermopiles, thermocouples, pilot assembly components, and gas valves are covered for two years parts and one year subsidized labour* from the date of purchase. Blowers and valves replaced under warranty are considered repairs and continue as if new with appliance. ie. twelve (12) months from original purchase date of appliance with a minimum of three (3) months coverage from date of replacement.

Regency venting components are covered parts and subsidized labour* for three (3) years from date of purchase. Simpson Dura-Vent venting components (Direct Vent units) are covered by Simpson Dura-Vent Inc. warranty. Repair/replacement parts purchased by the consumer from Regency

shown to be defective will be repaired or replaced at our discretion. No labor coverage is included with these parts.

Conditions:

Any part or parts of this unit which in our judgement show evidence of such defects will be repaired or replaced at Regency's option, through an accredited distributor or agent provided that the defective part be returned to the distributor or agent Transportation Prepaid, if requested.

Porcelain/Enamel - Absolute perfection is either guaranteed nor commercially possible. Any chips must be reported and inspected by an authorized dealer within three days of installation. Reported damage after this time will be subject to rejection.

It is the general practice of Regency manufacturer defect.

The authorized selling dealer is responsible for all in-ﬁ eld service work carried out on your Regency® product. Regency will not be liable for results or costs of workmanship from unauthorized service persons or dealers.

At all times Regency reserves the right to inspect product in the ﬁ eld which is claimed to be defective. All claims must be submitted to Regency® by authorized selling dealers. It is essential that all submitted claims provide all of the necessary information including customer name, purchase

date, serial #, type of unit, problem, and part or parts requested, without this information the warranty will be invalid.

Exclusions:

This limited Lifetime Warranty does not extend to or include paint, door or glass gasketing or trim. At no time will Regency® be liable for any consequential damages which exceed the purchase price of the unit. Regency® has no obligation to enhance or modify any unit once manufactured.

ie. as products evolve, ﬁ eld modiﬁ cations or upgrades will not be performed.

Regency Installation and environmental problems are not the responsibility of the manufacturer and therefore are not covered under the terms of this warranty policy. Embers, rockwool, gaskets, door handles and paint are not covered under the terms of this warranty policy. Any unit which shows signs of neglect or misuse is not covered under the terms of this warranty policy. The warranty will not extend to any part which has been tampered with or altered in any way, or in our judgment has been subject to misuse, improper installation, negligence or accident,

spillage or downdrafts caused by environmental or geographical conditions, inadequate ventilation, excessive offsets, negative air pressure caused by mechanical systems such as furnaces, fans, clothes dryer, etc.

Freight damage to stoves and replacement parts is not covered by warranty and is subject to a claim against the freight carrier by the dealer. Regency will not be liable for acts of God, or acts of terrorism, which cause malfunction of the appliance. Performance problems due to operator error will not be covered by this warranty policy. Products made or provided by other manufacturers and used in conjunction with the operation of this appliance without prior authorization from Regency

this product. Any alteration to the unit which causes sooting or carboning that results in damage to the interior / exterior facia is not the responsibility of Regency® .

* Subsidy according to job scale as predetermined by FPI.

will not be liable for travel costs for service work.

to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to Regency and evaluated for

after the original coverage has expired on the unit will carry a 90 day warranty, valid with a receipt only. Any item

, may nullify your warranty on

Regency Horizon™ HZ30E-1 Gas Fireplace

www.regency-ﬁ re.com

Reasons to register your product online today!

• View and modify a list of all your registered products.

• Request automatic email notiﬁ cation of new product updates.

• Stay informed about the current promotions, events, and special offers on related products.

Installer: Please complete the following information

Dealer Name & Address: ______________________________________________ ___________________________________________________________________ Installer: ___________________________________________________________ Phone #: ___________________________________________________________ Date Installed: ______________________________________________________ Serial No.: __________________________________________________________

Horizon HZ30E Video

Printed in Canada

Regency HZ30E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
