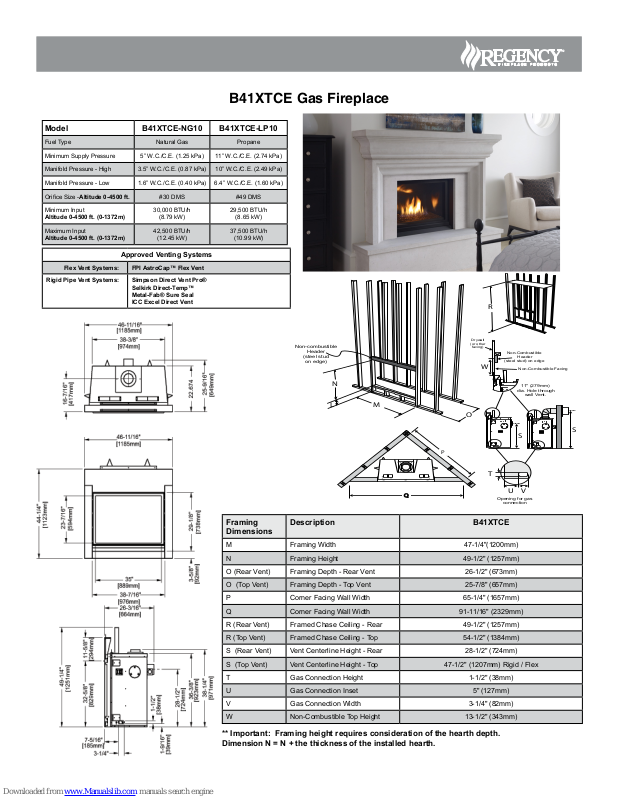

B41XTCE Gas Fireplace

Openingfor gas

connection

11"(279mm)

dia. Hole through

wall Vent.

Non-Combustible

Header

(steel stud) on edge

Drywall

(orother

facing)

Non-CombustibleFacing

Non-combustible

Header

(steel stud

on edge)

Model B41XTCE-NG10 B41XTCE-LP10

Fuel Type Natural Gas Propane

Minimum Supply Pressure 5” W.C./C.E. (1.25 kPa) 11” W.C./C.E. (2.74 kPa)

Manifold Pressure - High 3.5” W.C./C.E. (0.87 kPa) 10” W.C./C.E. (2.49 kPa)

Manifold Pressure - Low 1.6” W.C./C.E. (0.40 kPa) 6.4” W.C./C.E. (1.60 kPa)

Orice Size -Altitude 0-4500 ft. #30 DMS #49 DMS

Minimum Input

Altitude 0-4500 ft. (0-1372m)

Maximum Input

Altitude 0-4500 ft. (0-1372m)

Approved Venting Systems

Flex Vent Systems: FPI AstroCap™ Flex Vent

Rigid Pipe Vent Systems: Simpson Direct Vent Pro®

30,000 BTU/h

(8.79 kW)

42,500 BTU/h

(12.45 kW)

Selkirk Direct-Temp™ Metal-Fab® Sure Seal ICC Excel Direct Vent

29,500 BTU/h

(8.65 kW)

37,500 BTU/h

(10.99 kW)

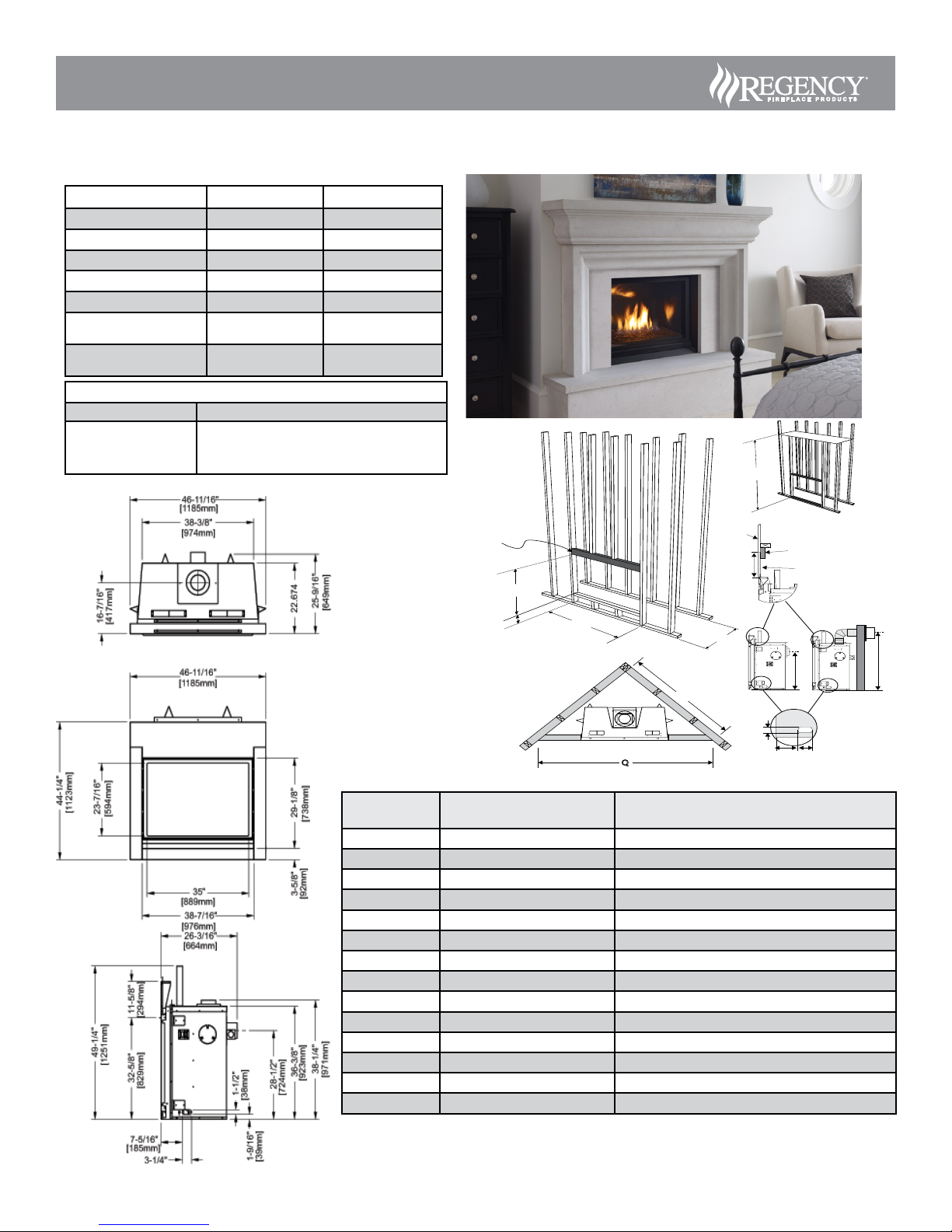

Framing

Description B41XTCE

Dimensions

M Framing Width 47-1/4"(1200mm)

N Framing Height 49-1/2" (1257mm)

O (Rear Vent) Framing Depth - Rear Vent 26-1/2" (673mm)

O (Top Vent) Framing Depth - Top Vent 25-7/8" (657mm)

P Corner Facing Wall Width 65-1/4" (1657mm)

Q Corner Facing Wall Width 91-11/16" (2329mm)

R (Rear Vent) Framed Chase Ceiling - Rear 49-1/2" (1257mm)

R (Top Vent) Framed Chase Ceiling - Top 54-1/2" (1384mm)

S (Rear Vent) Vent Centerline Height - Rear 28-1/2" (724mm)

S (Top Vent) Vent Centerline Height - Top 47-1/2" (1207mm) Rigid / Flex

T Gas Connection Height 1-1/2" (38mm)

U Gas Connection Inset 5" (127mm)

V Gas Connection Width 3-1/4" (82mm)

W Non-Combustible Top Height 13-1/2" (343mm)

** Important: Framing height requires consideration of the hearth depth. Dimension N = N + the thickness of the installed hearth.

Page 2

B41XTCE Gas Fireplace

Close to Ceiling

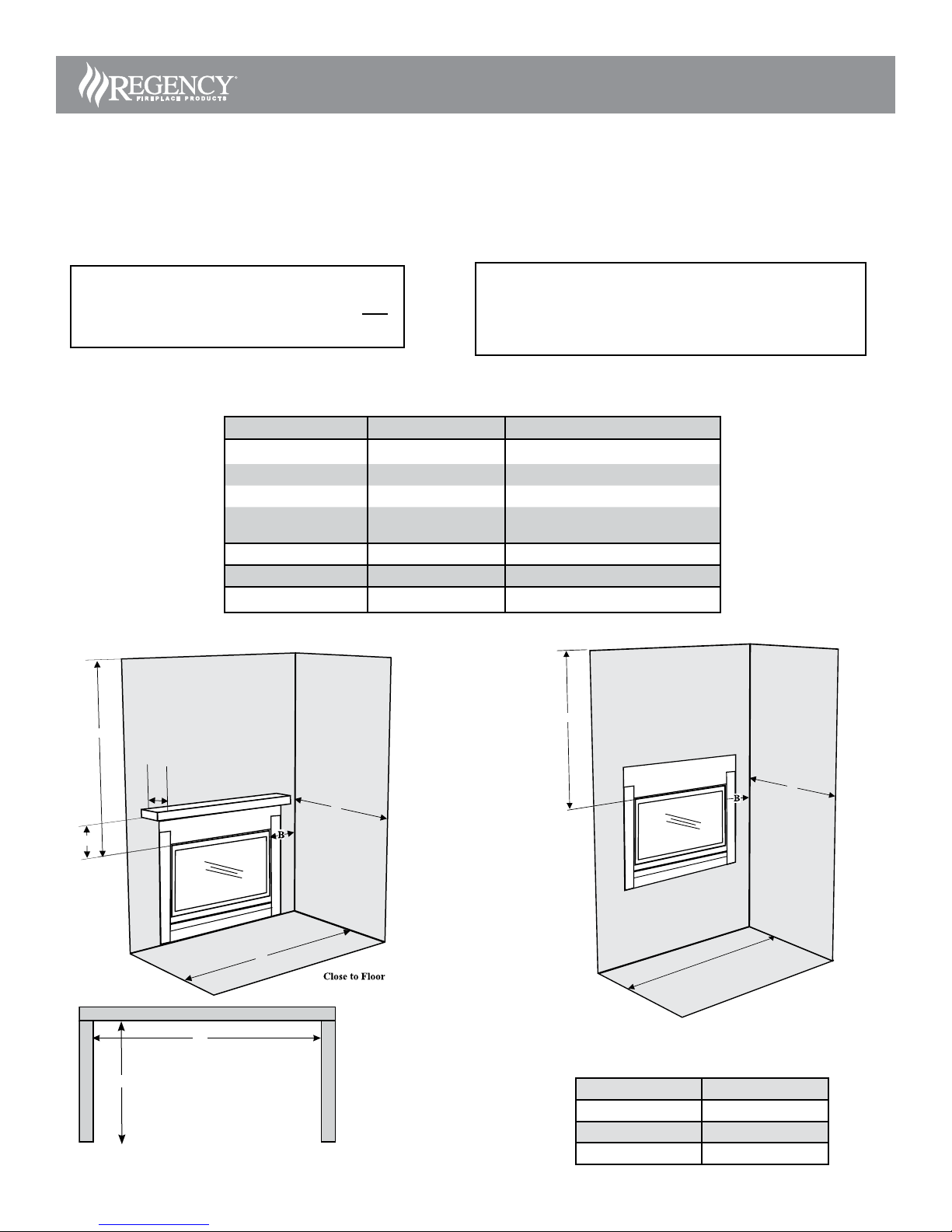

CLEARANCES

The clearances listed below are Minimum distances unless otherwise stated:

A major cause of chimney related res is failure to maintain required clearances (air space) to combustible materials. It is of the greatest importance that this replace and vent system be installed only in accordance with these instructions.

The top, back and sides of the ﬁreplace are deﬁned by

Caution Requirements

standoffs. The metal ends of the standoff may NOT

be recessed into combustible construction.

B41 XTCE Clearance Requirements

Clearance: Dimension Measured From:

A: Mantel Height (min.) 17-9/16" (446mm) Top of Fireplace Opening

B: Sidewall 9" (229mm) Side of Fireplace Opening

C: Ceiling 36-5/8" (930mm) Top of Fireplace Opening

D: Mantel Depth (max.) 12" (304mm) 25-13/16" (651mm)

E: Alcove Width 60" (1524mm) Wall to Wall (Minimum)

F: Alcove Depth 36" (914mm) Front to Back Wall (Maximum)

Notes: 0" No Hearth Required

Fire hazard is an extreme risk

WARNING

if these clearances (air space) to combustible materials are not

adhered to. It is of greatest importance that this replace and vent

system be installed only in accordance with these instructions.

from Top of Fireplace Opening

Alcove

Minimum Vent Clearances

to Combustibles

Horizontal Top 3" (76mm)

Horizontal Side 2 " (51mm)

Horizontal Bottom 2" (51mm)

Vertical Vent 2" (51mm)

Page 3

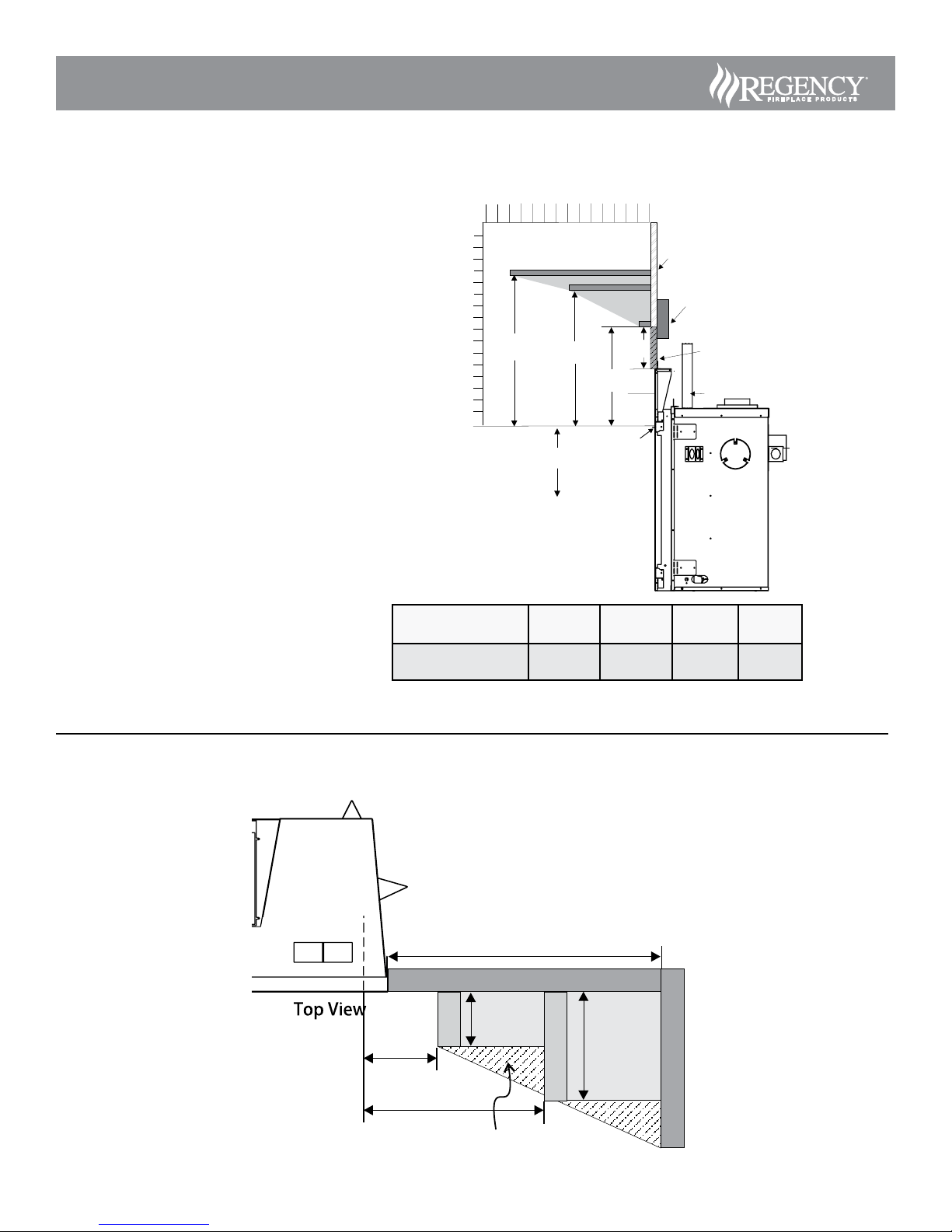

MANTEL CLEARANCES

Mantel Clearances

projection.

B41XTCE Gas Fireplace

Due to the extreme heat this replace emits, the

mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in the diagram on the right.

Note: A non-combustible mantel may be

installed at a lower height if the framing is made of metal studs covered with a non-combustible board.

Note: Ensure the paint that is used on the mantel

and the facing is "heat resistant" or the paint may discolour.

Inches

To Floor

Mantel Clearances B41XTCE

From Top of

Fireplace Opening

Combustible

6

64810

12

7

Top of

32-11/16"

(830mm)

Fireplace

Opening

A B C D

25-13/16"

(656mm)

Non-combustible

Header

(steel stud)

on edge

Non-combustible

Standoff

22-1/16"

(560mm)

17-9/16"

(446mm)

MANTEL LEG CLEARANCES

9 Side Wall

(Measured from side of

Fireplace Opening)

Mantel leg

1-1/2"

4

7

Allowable mantel leg

Mantel leg

Page 4

B41XTCE Gas Fireplace

Combustible Material

Non-combustible Finishing Materia

l(ie. tile)

Non-combustible Material (6" x 46-11/16")

Finishing Material (ie. tile)

Nailing Strip

-1/2" back from unit face

Combustible Material

Non-combustible

Supplied with Unit

1-1/2

(38mm)

Ensure finished material is brought to lip

Combustible

Material

Non-combustible Finishing Material

Non-combustible Material (6" x 46-11/16")

Finishing Material

Nailing Strip

-flush with unit face

Combustible Material

Non-combustible

Supplied with Unit

1-1/2

(38mm)

Ensure finished material is brought to lip

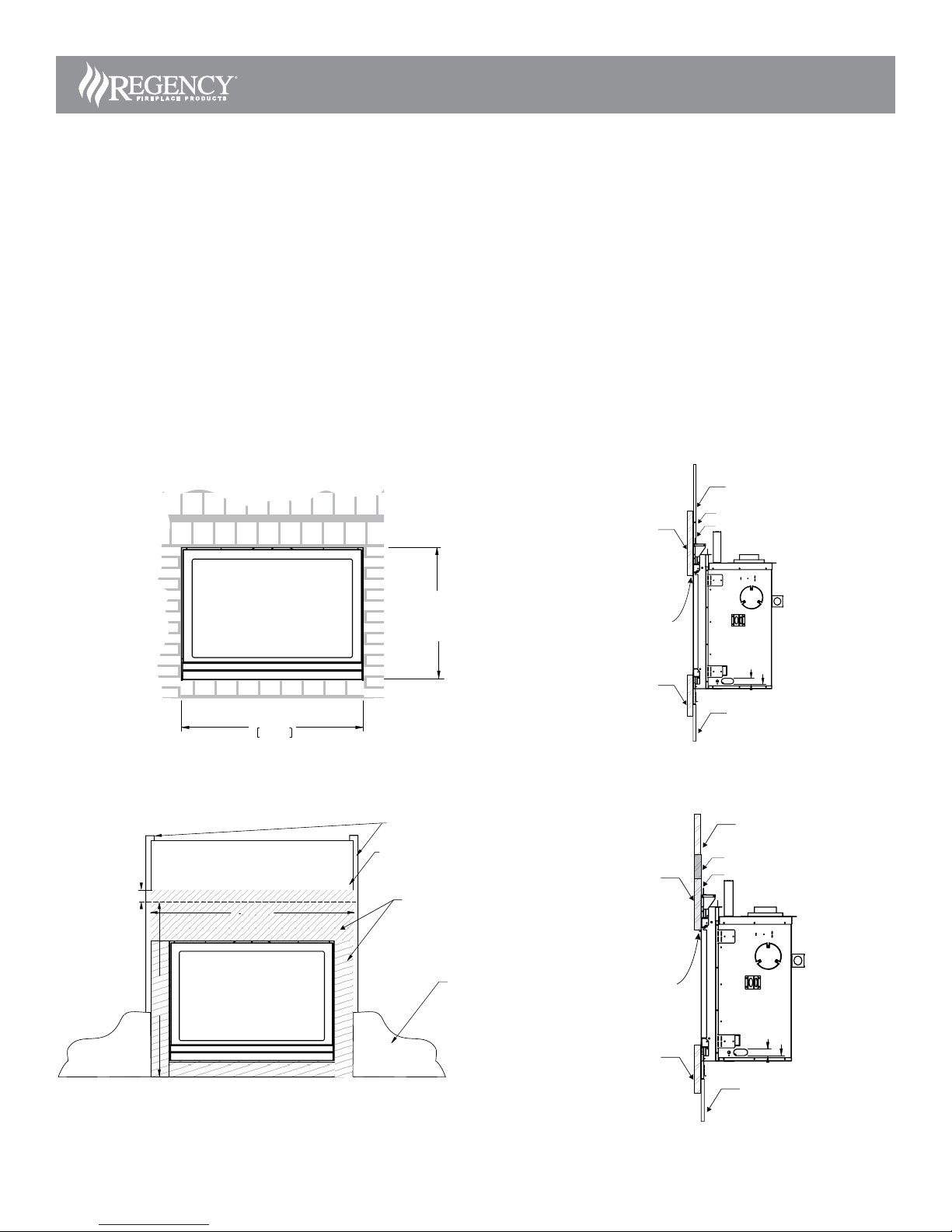

FRAMING & FINISHING

1. Frame in the enclosure for the unit with framing material.

Note: When constructing the framed opening, please ensure there is access to install the gas lines when the unit is installed.

2. For exterior walls, insulate the enclosure to the same degree as the rest of the house; apply vapour barrier and drywall, as per local installation codes.

(Do not insulate the replace itself.)

WARNING: Failure to insulate and add vapor barriers to the inside of the exterior wall will result in operational and performance problems

including, but not limited to: excessive condensation on glass doors, poor ame package, carbon, blue ames etc. These are not product

related issues.

3. The unit does not have to be completely enclosed in a chase. You must maintain clearances from the vent to combustible materials: See "Clearances"

section. Combustible materials can be laid against the side and back standoffs and the stove base.

4. Tile Finish Option 1: Drywall may be installed onto the unit as shown below to create a surface to apply ﬁnishing materials such as tile, slate, etc. Drywall cannot extend beyond the metal surface of the unit.

5. Tile Finish Option 2: If applying a non-combustible ﬁnishing material (tile,slate,etc) the material can be installed directly onto the metal surface (clean front) of the unit in the area shown below.

TILE FINISH

6. If applying a non-combustible facing it may be installed over the metal surface (clean front) of the unit in the area shown below.

CLEAN FINISH

[152mm]

NON COMBUSTIBLE BOARD SUPPLIED W/UNIT

44-1/4"

[1124mm]

38-7/16" 976mm

46-11/16"

[1186mm]

[737mm]

29"

WOOD STUD

1/2" DRYWALL

DO NOT EXTEND DRYWALL ONTO METAL SURFACE OF UNIT.

NON-COMBUSTIBLE FACING FOR CLEAN LOOK (ie. painted finish) (SUPPLIED BY OTHERS)

1/2" DRYWALL

NOTE: The 6" x 46-11/16" non combustible material supplied with this unit can be replaced if trying to achieve a clean ﬁnish. A large piece of non

Combustible and Non-combustible Facing and Finishing Materials around unit.

combustible material (ie. 4' x 8' x 1/2" can be used to eliminate taped seams on or near unit.

Page 5

B41XTCE Gas Fireplace

32-7/8"

835mm

25-5/8"

[651mm]

NO FACING OR

FINISHING MATERIAL

IN THIS AREA

No Combustible

Materials in this Area

41-5/8"

[1057mm]

40-5/8"

[1031mm]

4-1/8"

[105mm]

8-3/8"

[213mm]

3-7/8"

[98mm]

3-1/2"

[89mm]

Non combustible - supplied w/unit

J Style trim or metal corner bead may be used to finish edges

No Combustible

Materials in this Area

29"

[737mm]

38-7/16"

976mm

7. Non-combustible material (ie. tile, slate, etc) may be brought up to the edge of the glass door of the unit. Minimum clearances must be adhered to, this will assure ease of glass door removal and access to the lower panel.

NOTE: Non-combustible ﬁnishing materials may be of any thickness desired.

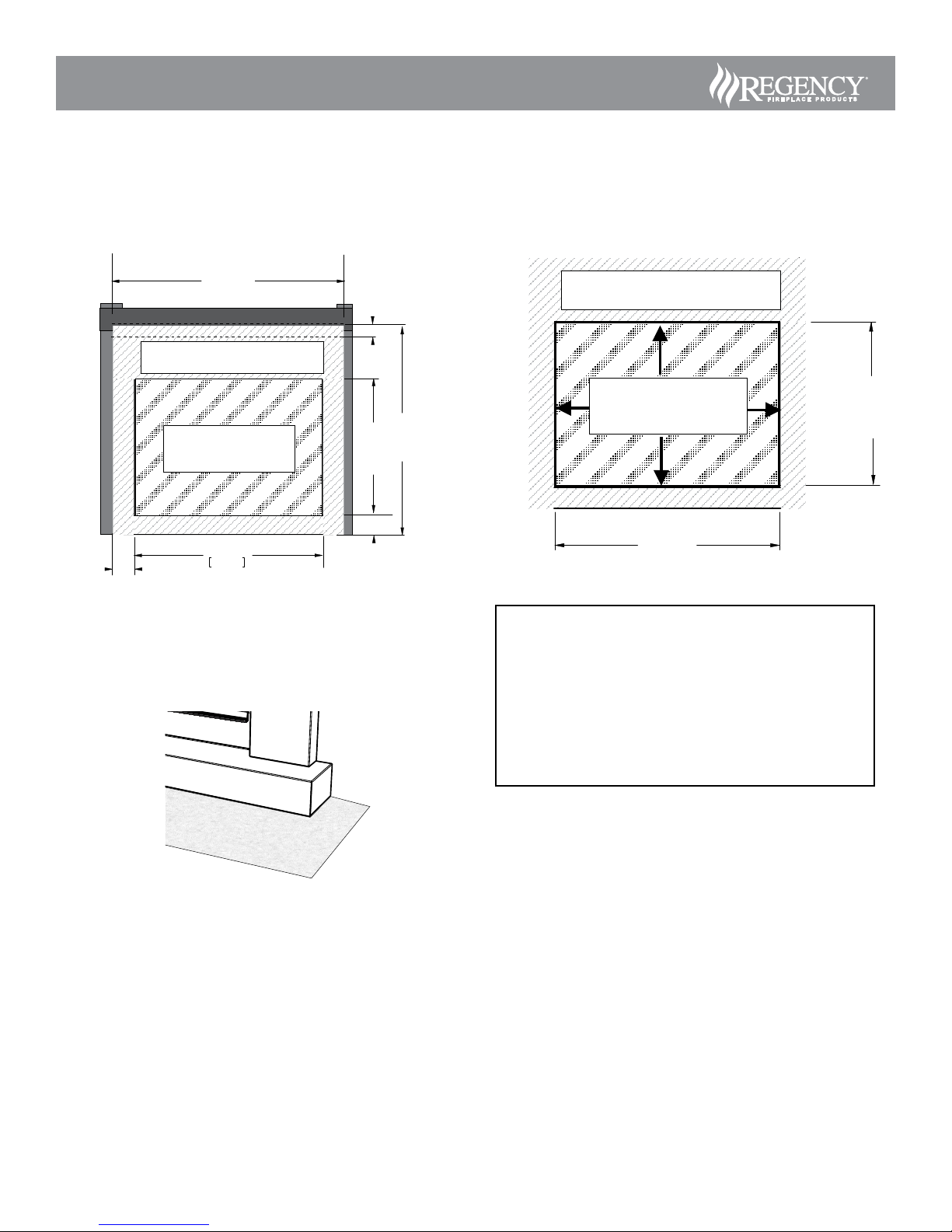

Minimum Clearances for Finishing Materials

IMPORTANT FINISHING DETAIL NOTE:

Before placing unit into nal position - it is important to know the total thickness / height of nished hearth (tile, carpet, etc.) The base of the replace, 4 sided faceplate or mantel should be level or higher than the nished hearth height.

Trim materials

Note: All non-combustible facing material should butt up cleanly

to the ﬂanges around the ﬁrebox opening.

Rough edges may be visible from an angle.

To maintain a clean ﬁnished edge - facing material edges

may be ﬁnished with a J-style trim or metal cornerbead (both materials available at your local building or hardware store).

IMPORTANT: Materials used must be NON-COMBUSTIBLE.

Page 6

B41XTCE Gas Fireplace

Vertical Height (Feet)

47-1/2"

Horizontal (Feet)

Vertical Height (Feet)

1/2"(0.7m)

Horizontal (Feet)

Rear Venting

VENTING ARRANGEMENTS FOR HORIZONTAL TERMINATIONS

The diagrams show all allowable combinations of vent runs with 5" x 8" venting using the Regency direct vent system or rigid vent system. A vent guard should be used whenever the termination is lower than the specied minimum or as per local codes.

For horizontal terminations the Regency Direct Vent Flex System may be used for installations upto a maximum continuous vent length of 10ft (3.0m).

Note: Must use optional rigid pipe adaptor (Part # 770-994) when using Rigid Pipe vent systems.

• Maintain clearance to combustibles.

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each oor level and whenever passing through a wall.

Max. 36"(0.9m)

FLEX VENT OR RIGID PIPE 5" X 8"

(1.2m)

Max. 36(0.9m)

Rigid or Flex

28 -

Vent Restrictor - Set 1

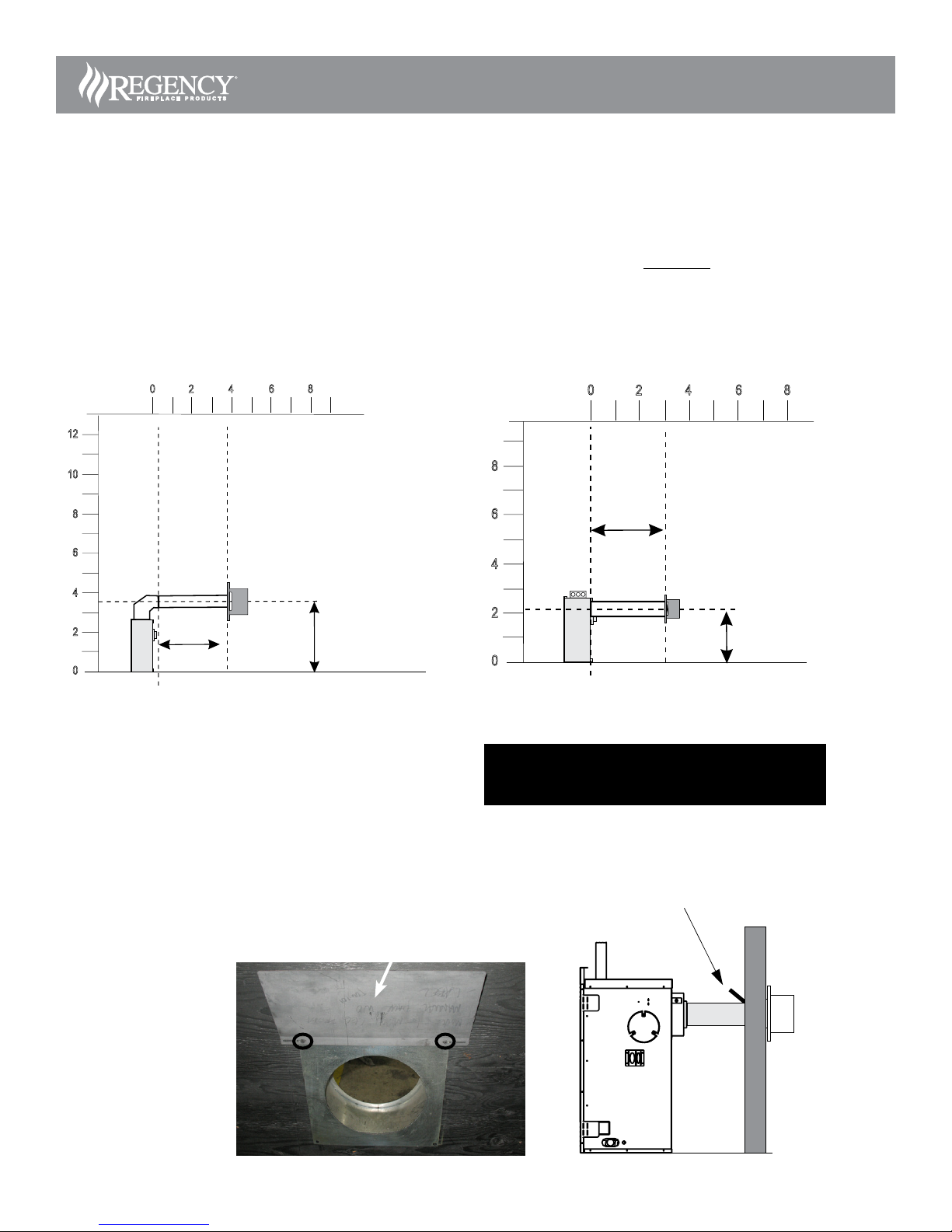

REAR VENTING DEFLECTOR INSTALLATION

FOR REAR VENTED HORIZONTAL TERMINATIONS

The Rear Vent Deector comes with the unit. When the unit is shipped the deector is slightly tucked underneath the top nailing strips located at the top of the rebox.

NOTE: The Rear Venting Deector must be installed before the unit is put in place.

1) Secure the rear venting

deector to the wall thimble using 2 screws as shown. Ensure to use the same screw

holes as the wall thimble.

Rear Venting Deector

Factory Setting - No Restrictor Required

IMPORTANT

Must use Rear Venting Deector packaged with unit in

rear vent horizontal termination applications.

Deflector

Page 7

Vertical Height (Feet)

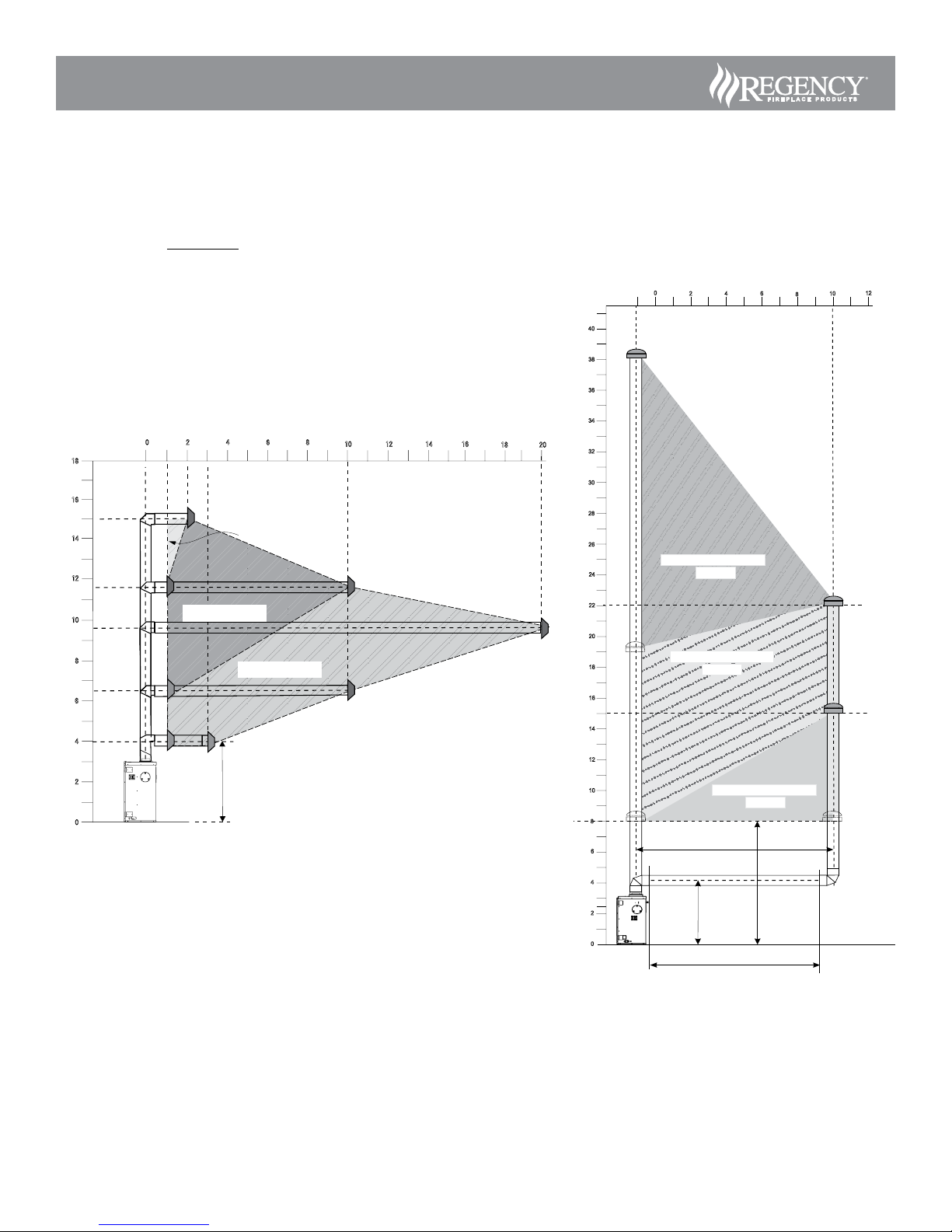

VENTING ARRANGEMENTS

Minimum

8 (2.4m)

Min. 47-1/2

(1.2m)

Vertical Height (Feet)

Horizontal (Feet)

4 10

Restrictor 1-1/2 Open

Maximum 10 Centerline to Centerline

Restrictor 2-1/2 Open

Maximum 8 Centerline to Centerline

Restrictor 3-1/2 Open

Set 2

Set 3

Set 1

FOR HORIZONTAL TERMINATIONS

The diagram shows all allowable combinations of vertical runs with horizontal

terminations, using one 90o (two 45o elbows equal one 90o elbow).

• Maintain clearances to combustibles as listed in "Clearances" section

• Horizontal vent must be supported every 3 feet.

• Firestops are required at each oor level and whenever passing through

a wall.

• A wall thimble is mandatory for all horizontal terminations due to high temperatures.

B41XTCE Gas Fireplace

VENTING ARRANGEMENTS

FOR VERTICAL TERMINATIONS

The shaded area in the diagram shows all allowable combinations of straight vertical and o󰀨set to vertical terminations, using two 90o elbows, with Rigid

Pipe Venting Systems for Propane and Natural Gas. Two 45 equal to one 90o elbow. Maximum of four 45o elbows allowed.

elbows

Restrictor 1-1/2 Open

Restrictor 2-1/2 Open

Set 2

Restrictor 3-1/2 Open

47-1/2" (1207mm) Minimum Height Requirement

Set 3

Set 1

10 14 16

18 20

Horizontal (Feet)

• Vent must be supported at o󰀨sets.

• Firestops are required at each oor level and whenever

passing through a wall.

• Maintain clearances to combustibles as listed in the "Clearances" section.

• Refer to the "Vent Restrictor Position" section for details on how to change the vent restrictor from the

factory setting to 2-1/4" opening ,1-5/8"opening and

to 1-1/16" opening.

Note: Must use optional ue adapter when using Rigid

Pipe (Part # 770-994..
