9.957.036 05
PROFLAME GTM SYSTEM
USE AND INSTALLATION INSTRUCTIONS
Read the instructions before use. This control must be installed in accordance with the rules in force.
English -
12
2
2
ENGLISH
The Proflame GTM is a modular remote control system that directs the functions of
a hearth appliance. The Proflame GTM is configured to control the on/off main
burner operation, its flame levels, and provides on/off and Smart thermostatic
control of the hearth appliance. Comfort control is advanced by the Smart
thermostat feature which automatically modulates flame height optimizing
temperature management and room ambiance.
The Proflame is specifically developed to be used together with the 829 NOVA mV
multifunctional gas control or with the 820 NOVA mV converted with the step
motor modulating kit.
3

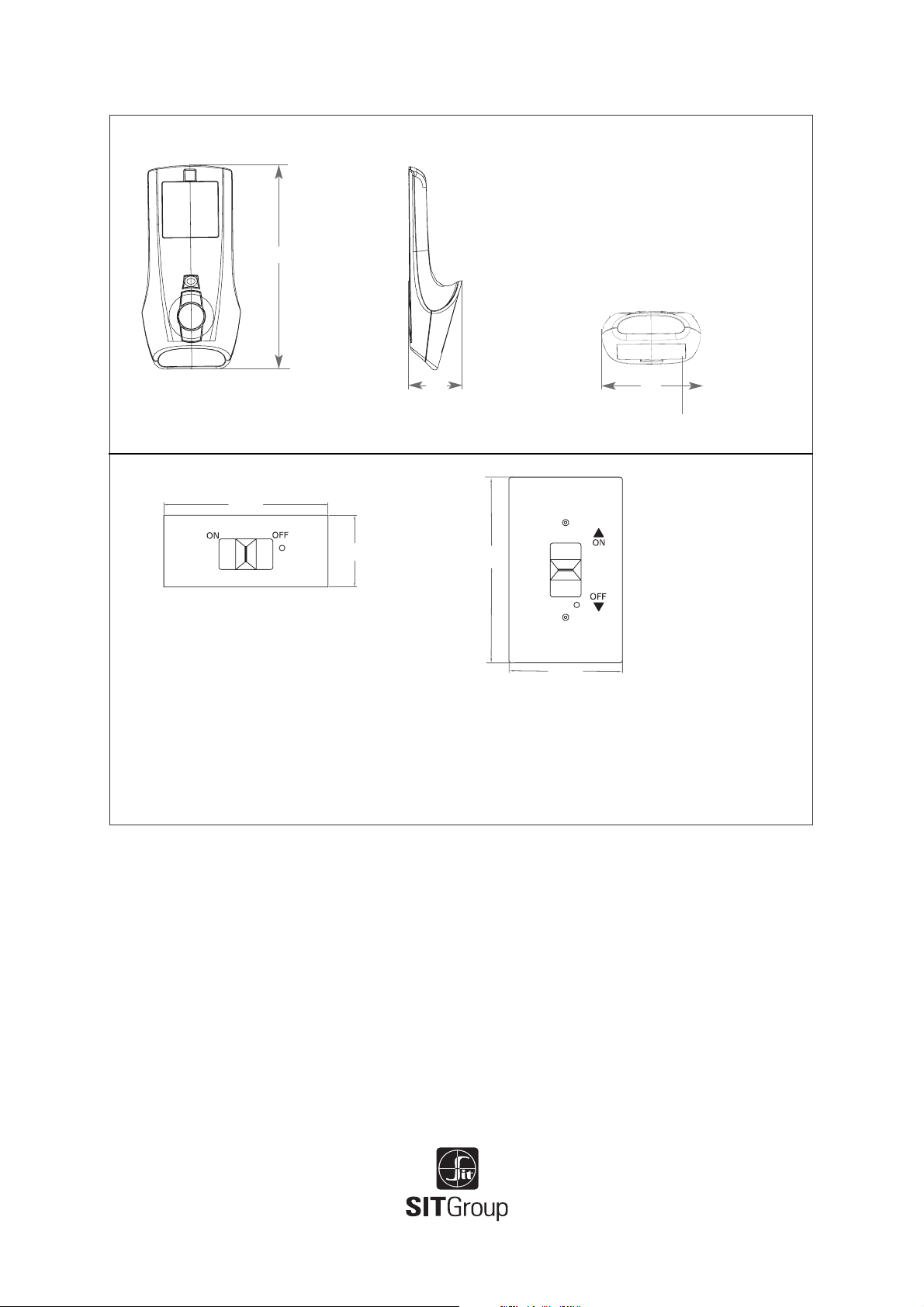

Remote Control
Supply voltage 4.5 V (three 1.5 V AAA batteries)
Ambient temperature ratings 0 - 50 °C (32 - 122 °F)
Radio frequency 315 MHz
Receiver
Supply voltage 6.0 V (four 1.5 V AA batteries)
Ambient temperature ratings 0 - 60 °C (32 - 140 °F)
Radio frequency 315 MHz
TECHNICAL DATA
ENGLISH
WARNING
THE TRANSMITTER AND RECEIVER ARE RADIO FREQUENCE DEVICES.
PLACING THE RECEIVER IN OR NEAR METAL MAY SEVERELY REDUCE THE SIGNAL
RANGE.
ATTENTION!
- TURN “OFF” THE MAIN GAS SUPPLY OF THE APPLIANCE DURING INSTALLATION
OR MAINTENANCE OF THE RECEIVER.
- PLACE THE RECEIVER’S 3 POSITION SLIDER SWITCH IN THE “OFF” POSITION
DURING INSTALLATION OR MAINTENANCE.
- TURN “OFF” MAIN GAS SUPPLY TO THE APPLIANCE PRIOR TO REMOVING OR
REINSERTING THE BATTERIES IN THE RECEIVER.
4
ENGLISH
The Proflame Remote Control System consists of two elements:
1. Proflame Transmitter.

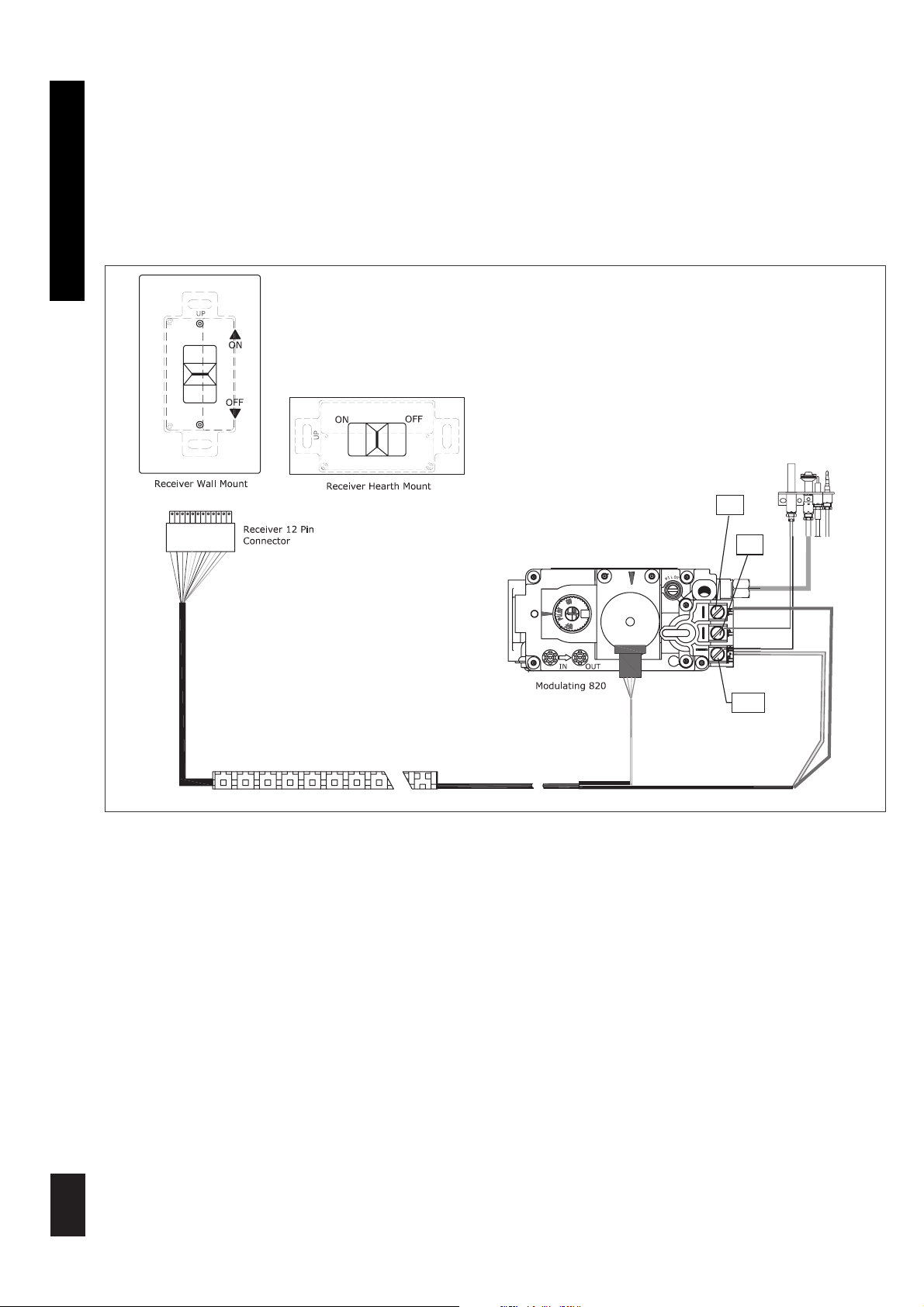

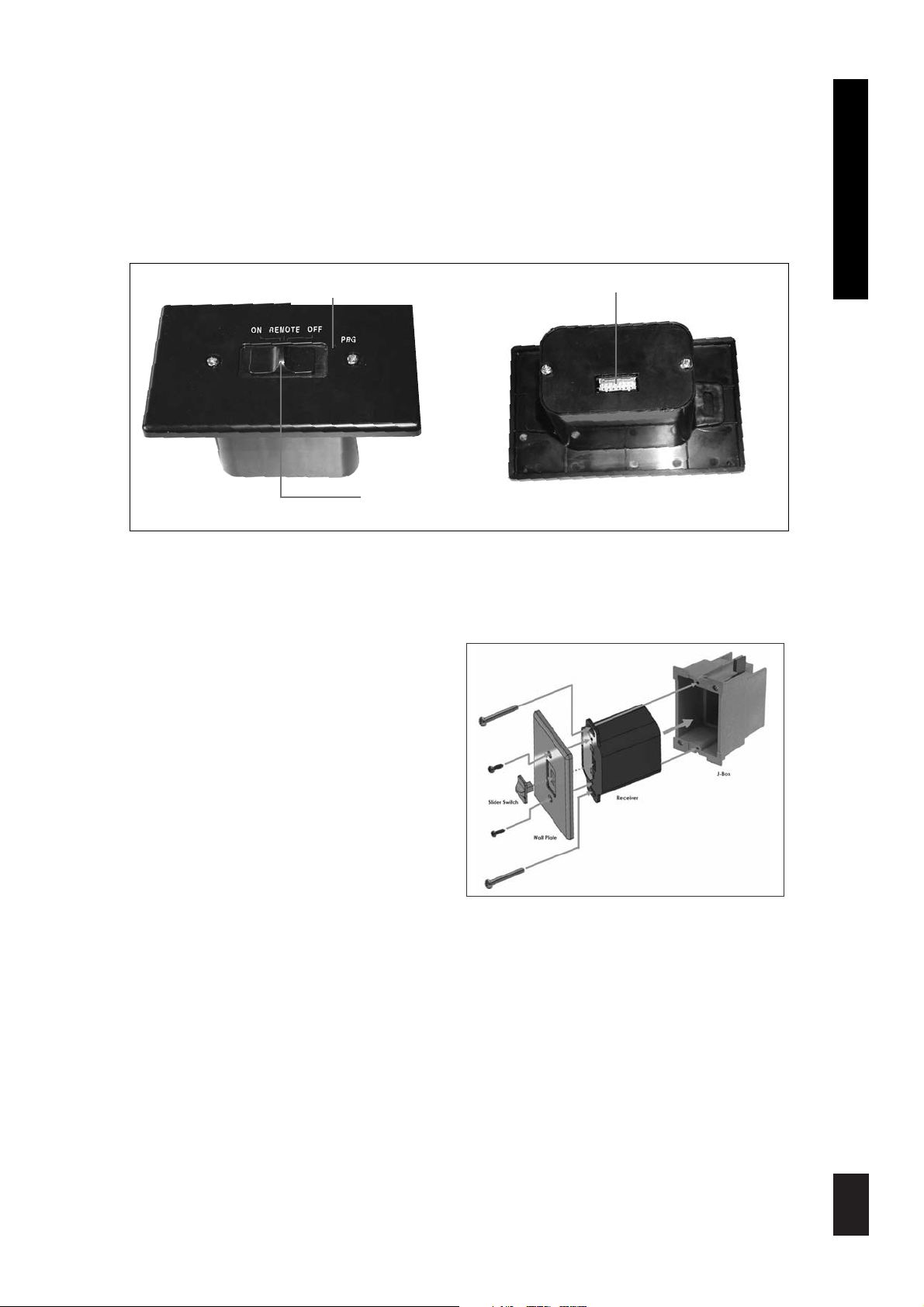

2. Proflame Receiver and a wiring harness to connect the Receiver to the gas valve and stepper
motor.
The Proflame Transmitter uses a streamline design with a simple button layout and informative
LCD display (Fig. 1).
The Transmitter is powered by 3 AAA type batteries.
A Mode Key is provided to Index between the features and a Thermostat Key is used to turn
on/off or index through thermostat functions (Fig. 1 & 2).
TRANSMITTER (REMOTE CONTROL WITH LCD DISPLAY)
Fig. 1: Proflame Transmitter.
Blue LCD display
UP/DOWN Arrow Key
ON/OFF Key
THERMOSTAT Key
MODE Key
Low battery alarm

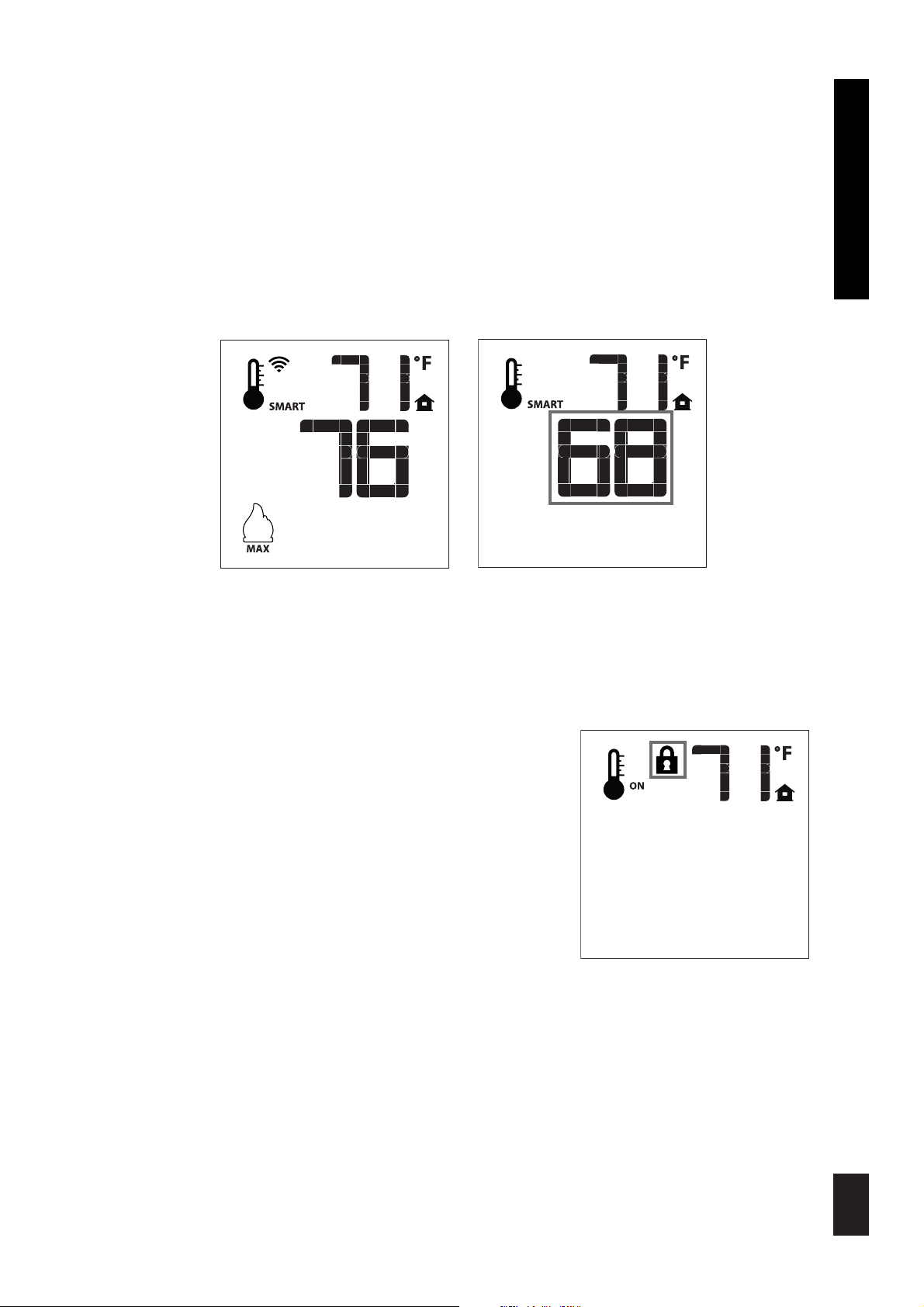

Child safety lock-out

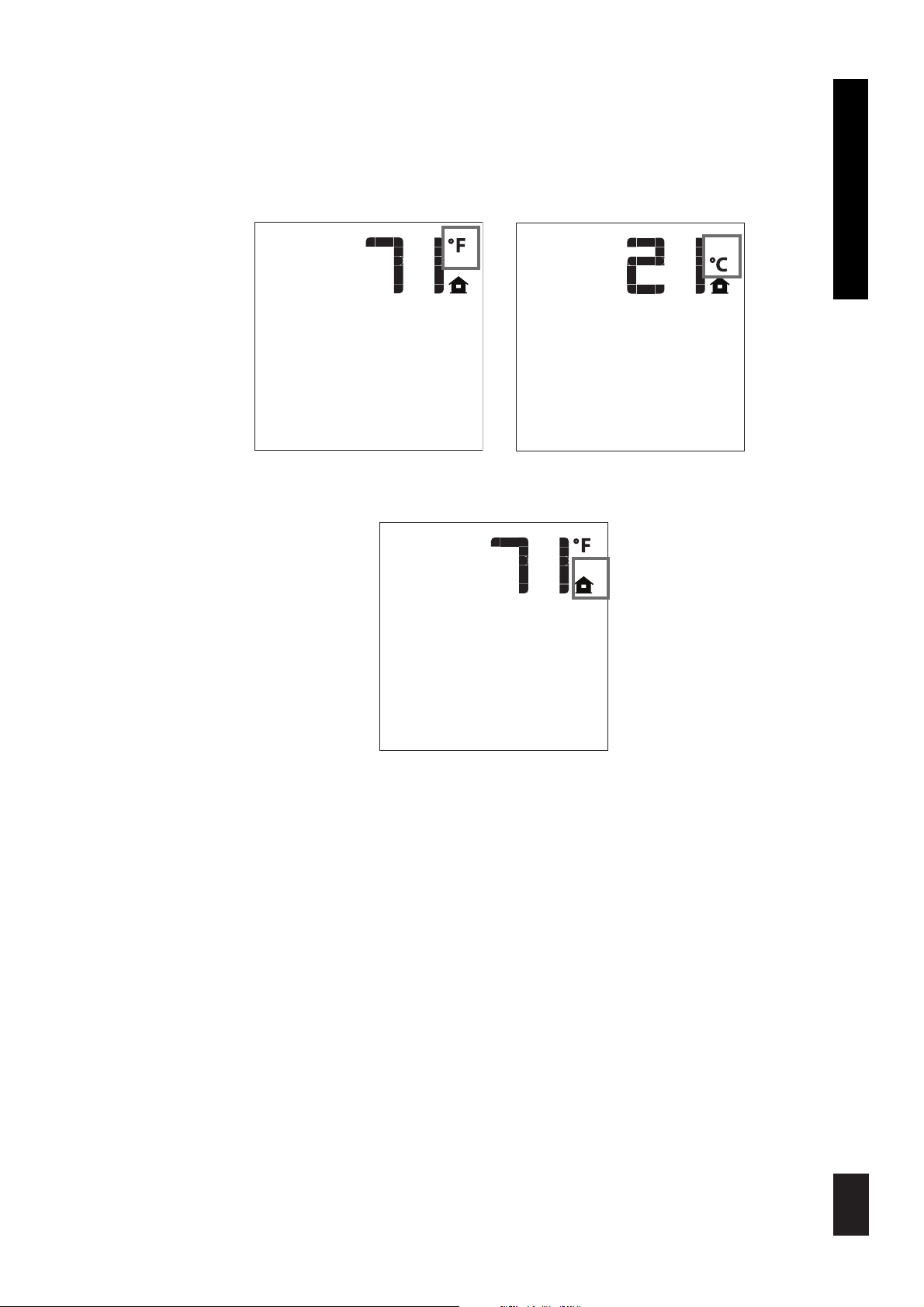

Room
Temperature
Aux ON
Set Point
Temperature/Level/State
Flame ON
Thermostat
OFF/ON/SMART
Fan

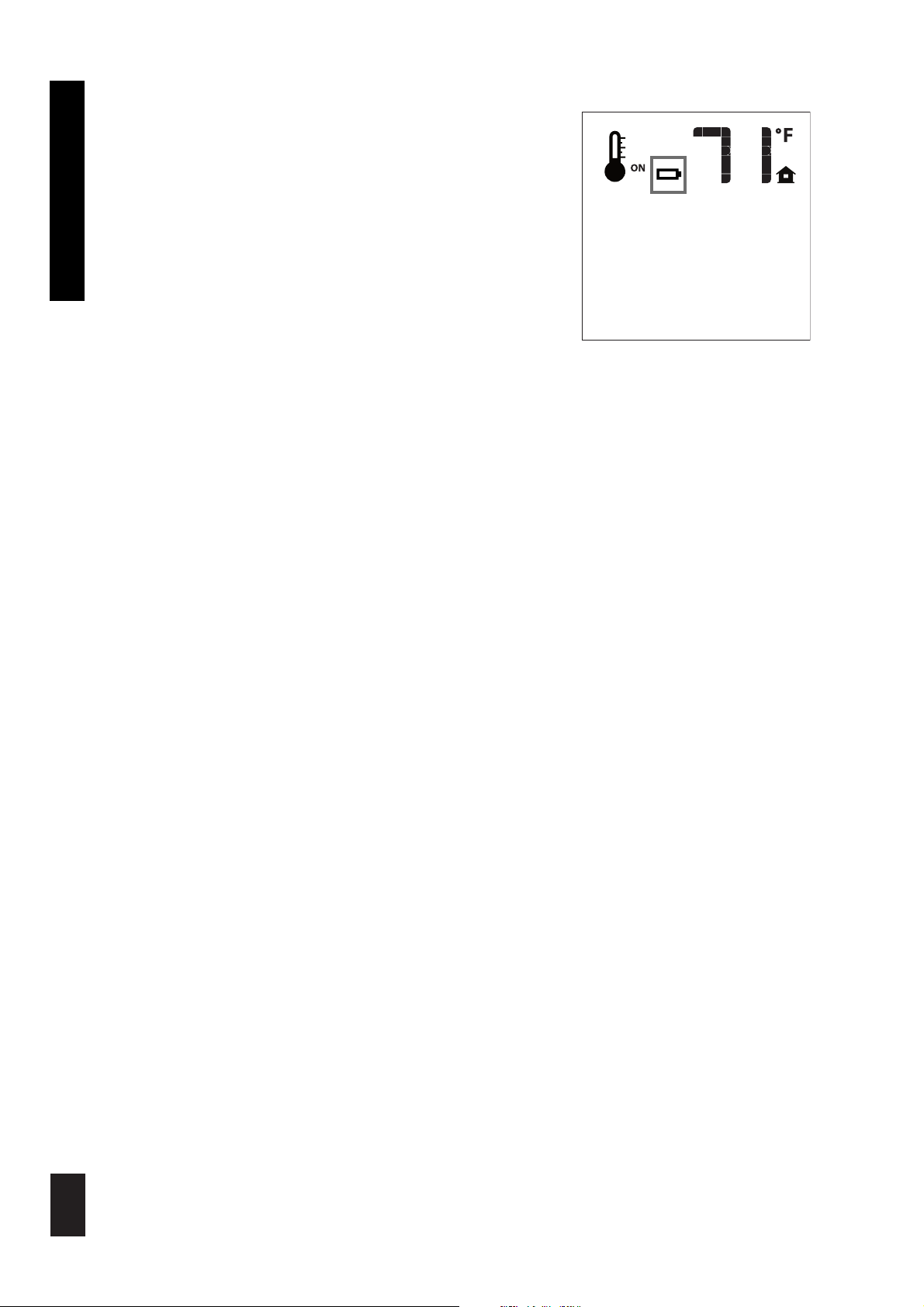

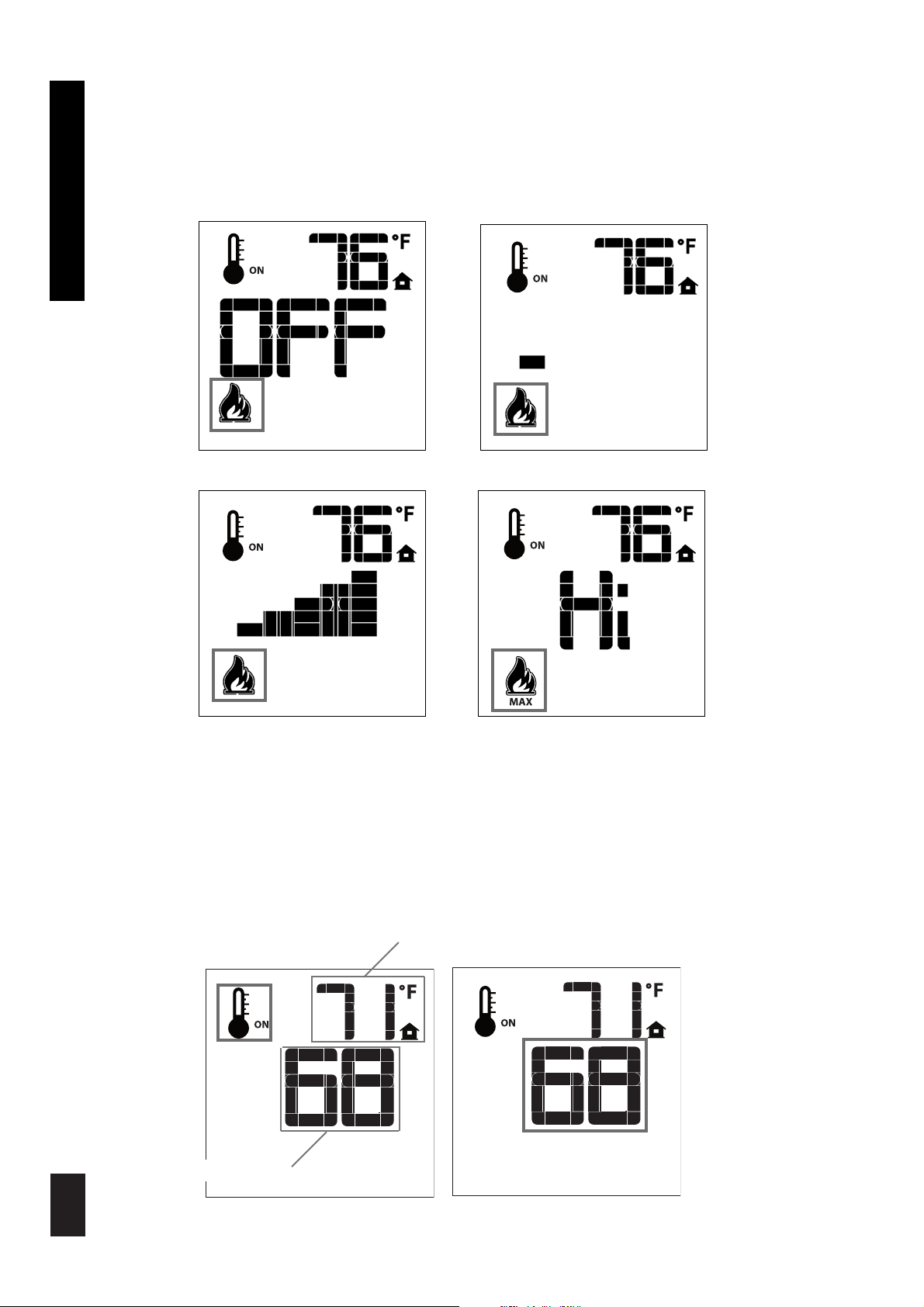

Fig. 2: Transmitter LCD display.
Transmission
SYSTEM DESCRIPTION
