P33 Gas Fireplace

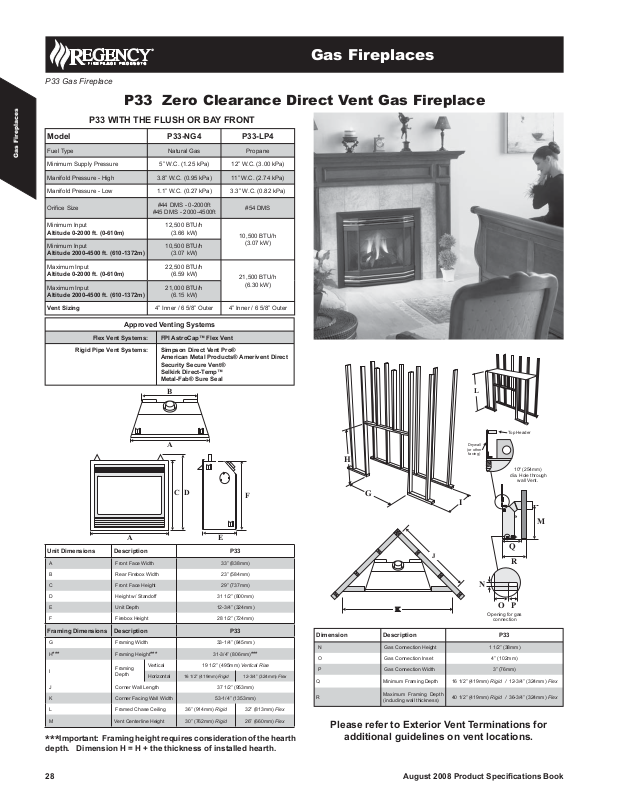

P33 Zero Clearance Direct Vent Gas Fireplace
P33 WITH THE FLUSH OR BAY FRONT
Model P33-NG4 P33-LP4
Fuel Type Natural Gas Propane
Gas Fireplaces
Minimum Supply Pressure 5” W.C. (1.25 kPa) 12” W.C. (3.00 kPa)
Manifold Pressure - High 3.8” W.C. (0.95 kPa) 11” W.C. (2.74 kPa)
Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 3.3” W.C. (0.82 kPa)
Orifi ce Size
Minimum Input
Altitude 0-2000 ft. (0-610m)
Minimum Input
Altitude 2000-4500 ft. (610-1372m)
Maximum Input
Altitude 0-2000 ft. (0-610m)
Maximum Input
Altitude 2000-4500 ft. (610-1372m)
Vent Sizing 4” Inner / 6 5/8” Outer 4” Inner / 6 5/8” Outer
Approved Venting Systems
Flex Vent Systems: FPI AstroCap™ Flex Vent
Rigid Pipe Vent Systems: Simpson Direct Vent Pro®
#44 DMS - 0-2000ft
#45 DMS - 2000-4500ft
12,500 BTU/h
(3.66 kW)
10,500 BTU/h
(3.07 kW)
22,500 BTU/h
(6.59 kW)
21,000 BTU/h
(6.15 kW)
American Metal Products® Amerivent Direct
Security Secure Vent®
Selkirk Direct-Temp™
Metal-Fab® Sure Seal
B
#54 DMS
10,500 BTU/h
(3.07 kW)
21,500 BTU/h
(6.30 kW)
Gas Fireplaces
L
A
DC
A
Unit Dimensions Description P33
A Front Face Width 33” (838mm)
B Rear Firebox Width 23” (584mm)
C Front Face Height 29” (737mm)
D Height w/ Standoff 31 1/2” (800mm)
E Unit Depth 12-3/4” (324mm)
F Firebox Height 28 1/2” (724mm)
Framing Dimensions Description P33
G Framing Width 33-1/4” (845mm)
H*** Framing Height*** 31-3/4” (806mm)***
I
J Corner Wall Length 37 1/2” (953mm)
K Corner Facing Wall Width 53-1/4” (1353mm)
L Framed Chase Ceiling 36” (914mm) Rigid 32” (813mm) Flex
M Vent Centerline Height 30” (762mm) Rigid 26” (660mm) Flex
Important: Framing height requires consideration of the hearth
***
depth. Dimension H = H + the thickness of installed hearth.
Framing
Depth
Vertical
Horizontal
19 1/2” (495mm) Vertical Rise
16 1/2” (419mm) Rigid 12-3/4” (324mm) Flex
F
E
Top Header
Drywall
(or other
H
facing)
10" (254mm)
dia. Hole through
wall Vent.
G
I
M
Q
J
R
N
O
K
Dimension Description P33
N Gas Connection Height 1 1/2” (38mm)
O Gas Connection Inset 4” (102mm)
P Gas Connection Width 3” (76mm)
Q Minimum Framing Depth 16 1/2” (419mm) Rigid / 12-3/4” (324mm) Flex
R
Maximum Framing Depth
(including wall thickness)
40 1/2” (419mm) Rigid / 36-3/4” (324mm) Flex
P
Opening for gas
connection
Please refer to Exterior Vent Terminations for
additional guidelines on vent locations.
28 August 2008 Product Specifi cations Book
Gas Fireplaces
Model
Contemporary
Faceplate
Fuel Type Natural Gas Propane
Minimum Supply Pressure 5” W.C. (1.25 kPa) 12” W.C. (3.00 kPa)
Manifold Pressure - High 3.8” W.C. (0.95 kPa) 11” W.C. (2.74 kPa)
Manifold Pressure - Low 1.1” W.C. (0.27 kPa) 3.3” W.C. (0.82 kPa)
Orifi ce Size #47 DMS #56 DMS
P33-NG4 w/
Minimum Input
Altitude 0-4500 ft. (0-1372m)
Maximum Input
Altitude 0-4500 ft. (0-1372m)
Vent Sizing 4” Inner / 6 5/8” Outer 4” Inner / 6 5/8” Outer
Approved Venting Systems
Flex Vent Systems: FPI AstroCap™ Flex Vent
Rigid Pipe Vent Systems: Simpson Direct Vent Pro®
9,800 BTU/h
(2.87 kW)
17,500 BTU/h
(5.13 kW)
American Metal Products® Amerivent Direct
Security Secure Vent®
Selkirk Direct-Temp™
Metal-Fab® Sure Seal
P33-LP4 w/
Contemporary
Faceplate
9,000 BTU/h
(2.64 kW)
15,500 BTU/h
(4.54 kW)
P33 Gas Fireplace
Gas Fireplaces
Unit Dimensions Description P33 with Contemporary Faceplate
A Front Face Width 33” (838mm)
B Rear Firebox Width 23” (584mm)
C Front Face Height 29” (737mm)
D Height w/ Standoff 31 1/2” (800mm)
E Unit Depth 12-3/4” (324mm)
F Firebox Height 29” (737mm)
Framing Dimensions Description P33 with Contemporary Faceplate
G Framing Width 33-1/4” (845mm)
** Framing Height** 31-3/4” (806mm)**
H
I*
J
K Corner Wall Length 37 1/2” (953mm)
L Corner Facing Wall Width 53-1/4” (1353mm)
M*** Framed Chase Ceiling*** 36” (914mm) Rigid*** 32” (813mm) Flex***
N Vent Centerline Height 30” (762mm) Rigid 26” (660mm) Flex
Framing Rise from Floor
Framing
Depth
Vertical
Horizontal
1” (25mm) minimum
19 1/2” (495mm) Vertical Rise
16 1/2” (419mm) Rigid 12-3/4” (324mm) Flex
*
Dimension Description P33S
O Gas Connection Height 1 1/2” (38mm)
P Gas Connection Inset 4” (102mm)
Q Gas Connection Width 3” (76mm)
R Minimum Framing Depth 16 1/2” (419mm) Rigid / 12-3/4” (324mm) Flex
S
Maximum Framing Depth
(including wall thickness)
40 1/2” (1028mm) Rigid / 36-3/4” (933mm) Flex
Important:
If the Contemporary Faceplate is used on the P33-NG4/P33-
LP4 Gas Fireplace, the burner orifi ce (Both NG/LP supplied in
package) must be replaced and an overlay decal (also supplied
with kit) must be affi xed to the current serial number decal
supplied with unit.
Note: Also see framing dimensions for this optional front if
installed on the P33-4 unit.
Note: Unit must be raised up by 1' to allow for faceplate
installation.
NG LP
Current P33-4 orifi ce size: #44 #54
Must replace with: #47 #56
Warning: Fire hazard is an extreme risk if these changes are
not adhered to.
* The unit must be raised a minimum of 1” above the fi nished fl oor.
** Dimension H = H + I (minimum)
*** Dimension M = M + I (minimum)
29August 2008 Product Specifi cations Book
P33 Gas Fireplace
Framing and Finishing
1) Determine the total thickness of facing material (e.g. drywall plus
ceramic tiles) to allow the fi nished surface to be fl ush with the front
of the unit. Total facing thickness can vary from 1/2” (13mm) to 1-¼”
(32mm) thick.
2) Frame in the enclosure for the unit with framing material.
Gas Fireplaces
3) For exterior walls, insulate the enclosure to the same degree as
the rest of the house, apply vapor barrier and drywall, as per local
installation codes. (Do not insulate the fi replace itself.)
4) The top of the unit must not be closer than 30” (762mm) to the
ceiling.
5) Combustible material may be brought up to the top and
sides of the unit and be covered with ceramic tiles, bricks,
rock or other suitable combustible finishing materials.
Note: The unit does not have to be completely enclosed in a
chase. The clearance on top of the unit is 0” to the standoffs
so combustible building materials can be laid directly on top
of the standoffs. You must maintain proper clearances from
the vent to combustible materials (See Below).
6) Use metal studs for framing where the minimum clearance from
the vent to combustible material cannot be maintained.
Clearance Requirements
Gas Fireplaces
Vent Clearances Clearance Dimension
Horizontal - Top 2-1/2” (64mm)
Horizontal - Side 1-1/2” (38mm)
Horizontal - Bottom 1-1/2” (38mm)
Vertical - Flex 1-1/2” (38mm)
Vertical - Rigid 1-1/4” (32mm)
Failure to maintain required clearances is a major cause of
chimney related fi res. Installation of this fi replace must comply
with these clearances.
Combustible Mantels
Because of the extreme heat this fi replace emits, the mantel
clearances are critical. Combustible mantel clearances from top of
the louvers are shown in the diagram below. Mantel may be installed
anywhere in the shaded area or higher.
WARNING
Mantel Clearances
12
64810
12"(305mm)
0
2
Drywall
C
D
A
F
B
B
E
Clearance: Dimension Measured From:
A: Mantel Height 7” (178mm) Minimum (Additional on this page)
B: Sidewall 7-1/2” (191mm) Side of installed front
C: Ceiling 30” (762mm) Top of installed unit
D: Mantel Depth 12” (305mm) Maximum (Additional on this page)
E: Alcove Width 48” (1219mm) Sidewall to Sidewall (Minimum)
F: Alcove Depth 36” (914mm) Front to back wall (Maximum)
Top of Hearth must not be higher than the base of the fi rebox.
7-1/2"(191mm)
3-1/2"(89mm)
B
C
Standoff
3” (76mm)
D
0
A
Mantel Clearances
Front 29” (737mm) 11” (279mm) 9” (229mm) 7” (178mm)
Note: If desired a non-combustible mantel may be installed at a
lower height.
Note: Ensure the paint that is used on the mantel and the facing
is “heat resistant” or the paint may discolour.
ABCD
To p o f
Unit
Side View
Mantel Leg Clearances
Combustible mantel leg clearances as per diagram below:
Clearances are from the fi nished edge of the unit or an installed front.
Maximum
1-1/2” projection at 2”
minimum clearance.
30 August 2008 Product Specifi cations Book
Gas Fireplaces
Clearance Requirements with
Contemporary Faceplate
C
*Note: All measurements are from the top/side
of the unit, not optional front.
Clearance: Dimension Measured
A: *Front Floor Clearance
(min.)
B: *Sidewall 7-1/2" (241mm) Side of Unit
C: *Ceiling
(room and/or alcove)
C
B
From:
1" (25mm) Underside of
Unit
30" (889mm) Top of Unit
Close to Ceiling
P33 Gas Fireplace
Combustible Mantels with
Contemporary Faceplate
Because of the extreme heat this fi replace emits, the mantel
clearances are critical. Combustible mantel clearances from top of
the louvers are shown in the diagram below. Mantel may be installed
anywhere in the shaded area or higher.
Gas Fireplaces
D: Alcove Width 48" (1219mm) Sidewall to
E: Alcove Depth 36" (914mm)
Sidewall
(Minimum)
Front to
Back Wall
(Maximum)
Flue Clearances to
Combustibles
Horizontal - Top 2-1/2"
Horiztonal - Side 1-1/2"
Horiztonal - Bottom 1-1/2"
Vertical (Flex Vent) 1-1/2"
Vertical (Rigid) 1-1/4"
WARNING
Failure to maintain required clearances is a major cause of chimney related fi res.
Installation of this fi replace must comply with these clearances
Please note: Due to ongoing product development, product appearance and specifi cations
are subject to change without notice.
The top, back and sides of the fi replace are defi ned by
standoffs. The metal ends of the standoff may NOT be
Caution Requirements
recessed into combustible construction.
Mantel Leg Clearances with
Contemporary Faceplate
Combustible mantel leg clearances from side of unit as per diagram
below:
Clearances are from the fi nished edge of the unit or an installed front.
Top View
WARNING
Fire hazard is an extreme risk
if these clearances (air space) to combustible materials are not
adhered to. It is of greatest importance that this fi replace and vent
system be installed only in accordance with these instructions.
0-3
31August 2008 Product Specifi cations Book
P33 Gas Fireplace

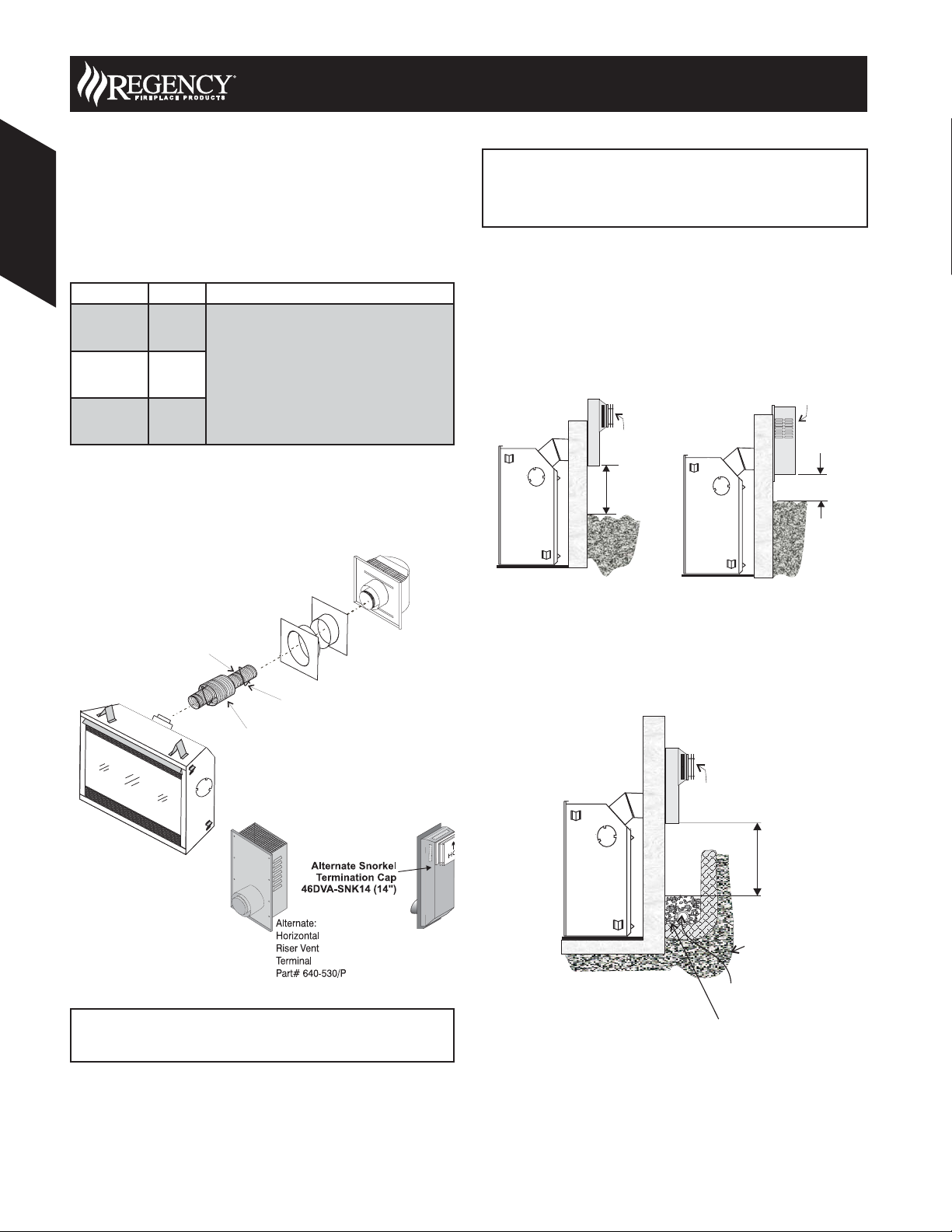

FPI Direct Vent System (Flex)
Horizontal Terminations Only
This venting system, in combination with the P33 Direct Vent Gas
Fireplace, have been tested and listed as a direct vent heater system by
Warnock Hersey. The location of the termination cap must conform to the
requirements in the Vent Terminal Locations diagram, see manual.
Gas Fireplaces
FPI Direct Vent (Flex) System Termination Kits include all the parts
needed to install the P33 using a fl exible vent.
FPI Kit # Length Contains:
#946-513 2 Feet 1) 6-5/8” fl exible liner (Kit length)
#946-515 4 Feet
#946-516 10 Feet
Notes:
1) Liner sections should be continuous without any joints or seams.
2) Only Flex pipe purchased from Regency may be used for Flex
installations.
3) Horizontal sections must be supported every 3 feet.
2) 4” fl exible liner (Kit length)
3) spring spacers (3)
4) thimble (2)
5) AstroCap termination cap (1)
6) screws (12)
7) tube of Mill Pac (1)
8) plated screws (8)
9) S.S. screws #8 x 1-1/2” drill point, (4)
Gas Fireplaces
When installing Cabinet Mantels: the wall thimble must be secured
fi rst and venting must be attached to unit before sliding into fi nal
position.
Snorkel Terminations
Snorkel Terminations:
For installations requiring a vertical rise on the exterior of the building,
14-inch and 36-inch tall Snorkel Terminations and the Riser Vents are
available. Follow the same installation procedures as used for standard
Horizontal Termination. NEVER install the snorkel upside down.
Important
Dura-Vent
Snorkel
Min. 12"*
(305mm)
Riser Vent
Termination
Min. 6-1/4"*
(159mm)
Wall Thimble (2 pc)
TM
4" (102mm)
dia. flue pipe
6-7/8"
(173mm)
dia. Flue pipe
spring
spacer
AstroCap
Termination Cap
(Part# 946-523/P)
Alternate Horizontal
Termination Caps
If required by the external termination location the listed
alternate termination caps may be used.
Below Grade Snorkel Installation (Dura-Vent Only)
If the Snorkel Termination must be installed below grade, i.e. basement
application, proper drainage must be provided to prevent water from
entering the Snorkel Termination. Refer to Rigid Pipe Installation
instructions for details. Do not attempt to enclose the Snorkel within the
wall, or any other type of enclosure.
Dura-Vent
Snorkel
(305mm)
Min. 12"*
Window
Well
Adequate
drainage
Gravel
32 August 2008 Product Specifi cations Book
Rigid Pipe Venting
6
8
10
12
10
12
12 16
18
20 26
28
22 24
30
Horizontal or Vertical Terminations
Gas Fireplaces
P33 Gas Fireplace
Gas Fireplaces
Alternate Horizontal
Termination Caps
40
38
36
34
32
30
28
26
24
22
0
2
4
8
6
10 12
Maximum: 40 ft. (12.2m)
14
20
If required by the external termination location the listed

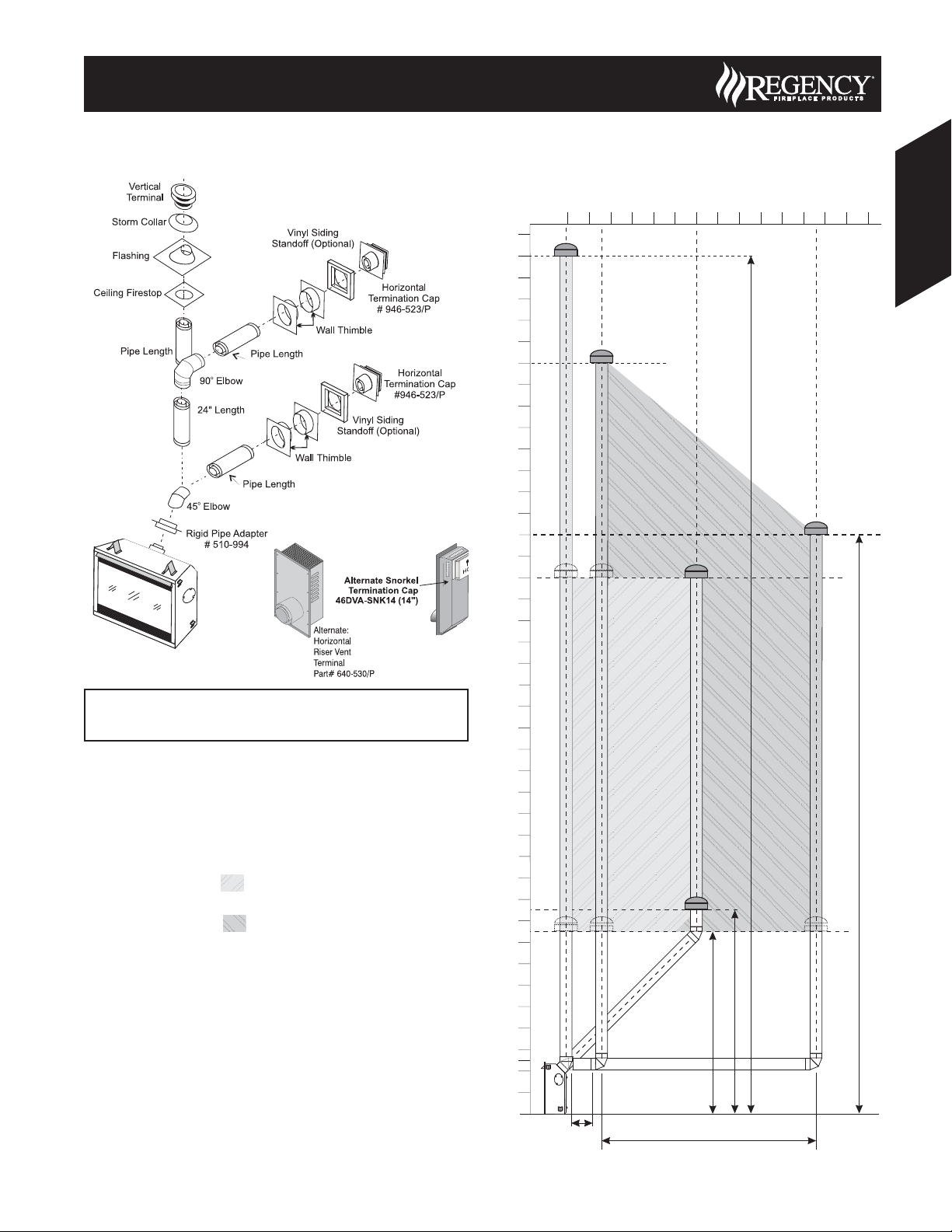

Venting Arrangements - Vertical
Terminations
Rigid Pipe System
(Propane & Natural Gas)
The P33 is approved for a maximum 40 ft. straight vertical, with Rigid
Pipe vent systems for Propane and Natural Gas.
The lightly shaded area,
confi gurations with a maximum two 45° elbows.
The darker shaded area,
confi gurations using one 45° and one 90° elbow.
18
Vertical Height (Feet)
, in the diagram shows allowable venting
16
14
12
10
Maximum: 27 ft. (8.2m)
, in the diagram shows allowable venting
8
alternate termination caps may be used. (Refer to Page 11)
• Vent must be supported at offsets.
• Horizontal sections must be supported every 3 feet.
• Firestops are required at each floor level and whenever
6
passing through a wall.
• Maintain clearances to combustible materials.
4
• Minimum of 1’ pipe section between elbows.
Minimum 9’6” (2.9m)
Note: Must use optional rigid pipe adapter when using Rigid Pipe
2
Minimum 8’6” (2.6m)
(Part # 510-994).
* Unit must be raised by 1” when using Contemporary Faceplate
0
Minimum 12” (305mm)
Max. 10’ (3m)(centerline to centerline)
33August 2008 Product Specifi cations Book
P33 Gas Fireplace
Vertical Venting with Two (2) 90° Elbows
- Initial vertical section.
Two 45° elbows = One 90° elbow
Gas Fireplaces
Vertical Venting with Three (3) 90°
Elbows - Initial vertical section.
Two 45° elbows = One 90° elbow
Gas Fireplaces
Option V H V+ V1 Maximum total pipe: length, of
A) 1’ Min. 4’ Max. 2’ Min.
B) 2’ Min. 5’ Max. 3’ Min.
C) 3’ Min. 6’ Max. 4’ Min.
D) 4’ Min. 7’ Max. 5’ Min.
E) 5’ Min. 8’ Max. 6’ Min.
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
Vertical Venting with Two (2) 90° Elbows
- Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H + H1 V Maximum total pipe: length, of
A) 2’ Max. 2’ Min.
B) 3’ Max. 3’ Min.
C) 4’ Max. 4’ Min.
D) 5’ Max. 5’ Min.
E) 6’ Max. 6’ Min.
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 6 feet.
Minimum of 1 foot between
90° elbows is required.
Option V H + H1 V+ V1 Maximum total pipe: length, of
A) 2’ Min. 3’ Max. 4’ Min.
B) 3’ Min. 4’ Max. 6’ Min.
C) 4’ Min. 5’ Max. 7’ Min.
D) 5’ Min. 6’ Max. 8’ Min.
E) 6’ Min. 7’ Max. 9’ Min.
F) 7’ Min. 8’ Max. 10’ Min.
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
Vertical Venting with Three (3) 90°
Elbows - Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H V H + H1 V+ V1 Maximum total pipe:
A) 1’ Max. 1’ Min. 3’ Max. 3’ Min.
B) 2’ Max. 2’ Min. 4’ Max. 5’ Min.
C) 3’ Max. 3’ Min. 5’ Max. 7’ Min.
D) 4’ Max. 4’ Min. 6’ Max. 9’ Min.
E) 5’ Max. 5’ Min. 7’ Max. 11’ Min.
length, of all sections,
must not exceed 30
feet.
Total horizontal sections
must not exceed 7
feet.
Minimum of 1 foot
between 90° elbows
is required.
34 August 2008 Product Specifi cations Book
Gas Fireplaces

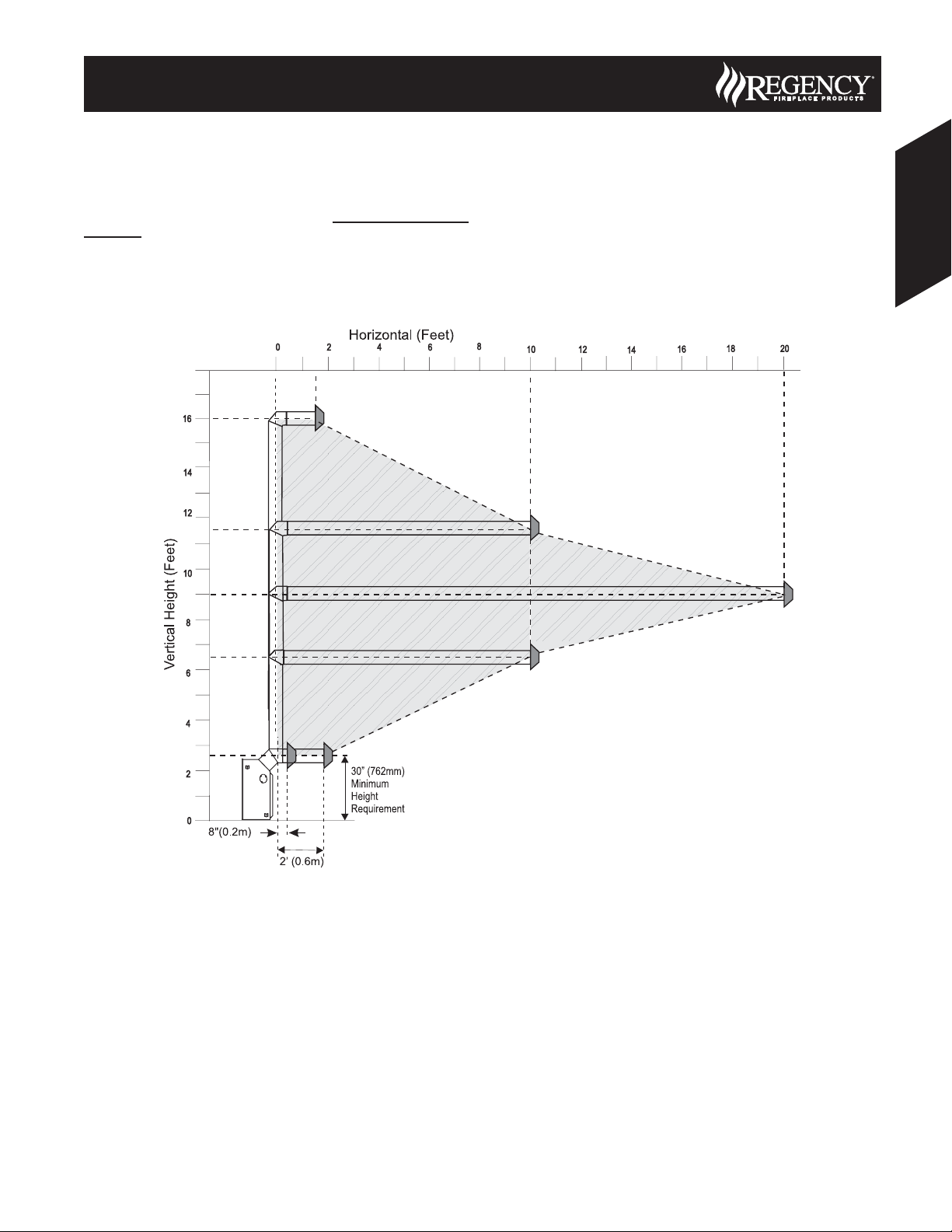

Venting Arrangements - Horizontal
Terminations
This lightly shaded area of the diagram shows allowable combinations
of vertical runs with horizontal terminations, using one 45° and one
90° elbow (two 45º elbows equal one 90° elbow).
Note: Must use optional rigid pipe adapter (Part # 510-994) when
using Rigid Pipe.
P33 Gas Fireplace
• Maintain clearances to combustibles.
• Horizontal vent must be supported every 3 feet.
• Firestops are required at each fl oor level and whenever passing
through a wall.
A vent guard may be required as per local codes, refer to Exterior
Vent Termination Locations.
Note: FPI Direct Vent System (Flex) is only approved for horizontal
terminations.
Gas Fireplaces
* Unit must be raised by 1” when using
Contemporary Faceplate
Please refer to Exterior Vent Terminations for
additional guidelines on vent locations.
35August 2008 Product Specifi cations Book
P33 Gas Fireplace

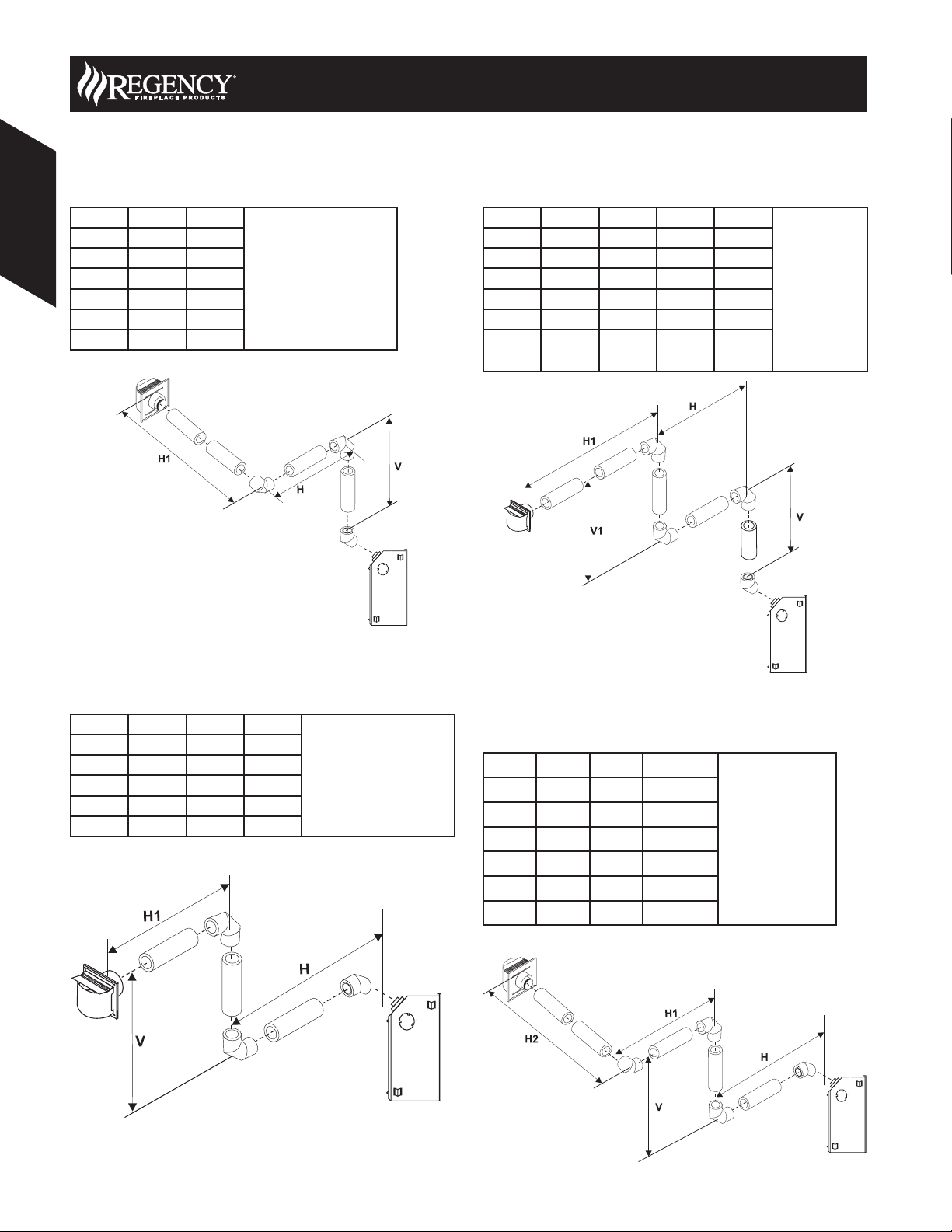

Horizontal Venting with Two (2) 90°
Elbows - Initial vertical section.
Two 45° elbows = One 90° elbow
Gas Fireplaces
Horizontal Venting with Three (3) 90°
Elbows - Initial vertical section.
Two 45° elbows = One 90° elbow
Gas Fireplaces
Option V H+ H1 Maximum total pipe: length, of
A) 1’ Min. 3’ Max.
B) 2’ Min. 4’ Max.
C) 3’ Min. 5’ Max.
D) 4’ Min. 6’ Max.
E) 5’ Min. 7’ Max.
F) 6’ Min. 8’ Max.
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
Horizontal Venting with Two (2) 90°
Elbows - Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H V H + H1 Maximum total pipe: length, of
A) 1’ Max. 1’ Min. 3’ Max.
B) 2’ Max. 2’ Min. 5’ Max.
C) 3’ Max. 4’ Min. 6’ Max.
D) 4’ Max. 6’ Min. 7’ Max.
E) 5’ Max. 8’ Min. 8’ Max.
all sections, must not exceed
30 feet.
Total horizontal sections must
not exceed 8 feet.
Minimum of 1 foot between
90° elbows is required.
Option V H V+ V1 H + H1 Maximum total
A) 2’ Min. 1’ Max. 3’ Min. 4’ Max.
B) 3’ Min. 2’ Max. 4’ Min. 5’ Max.
C) 4’ Min. 3’ Max. 6’ Min. 6’ Max.
D) 5’ Min. 4’ Max. 8’ Min. 7’ Max.
E) 6’ Min. 5’ Max. 10’ Min. 8’ Max.
F) 7’ Min. 6’ Max. 12’ Min. 9’ Max.
pipe: length, of
all sections, must
not exceed 30
feet.
Total horizontal
sections must not
exceed 8 feet.
Minimum of 1
foot between
90° elbows is
required.
Horizontal Venting with Three (3) 90°
Elbows - Initial horizontal section.
Two 45° elbows = One 90° elbow
Option H V H + H1 + H2 Maximum total pipe:
A) 1’ Max. 1’ Min. 3’ Max.
B) 2’ Max. 3’ Min. 5’ Max.
C) 3’ Max. 5’ Min. 6’ Max.
D) 4’ Max. 7’ Min. 7’ Max.
E) 5’ Max. 9’ Min. 8’ Max.
F) 6’ Max. 11’ Min. 9’ Max.
length, of all sections,
must not exceed 30
feet.
Total horizontal sections
must not exceed 7
feet.
Minimum of 1 foot
between 90° elbows
is required.
36 August 2008 Product Specifi cations Book
Gas Fireplaces

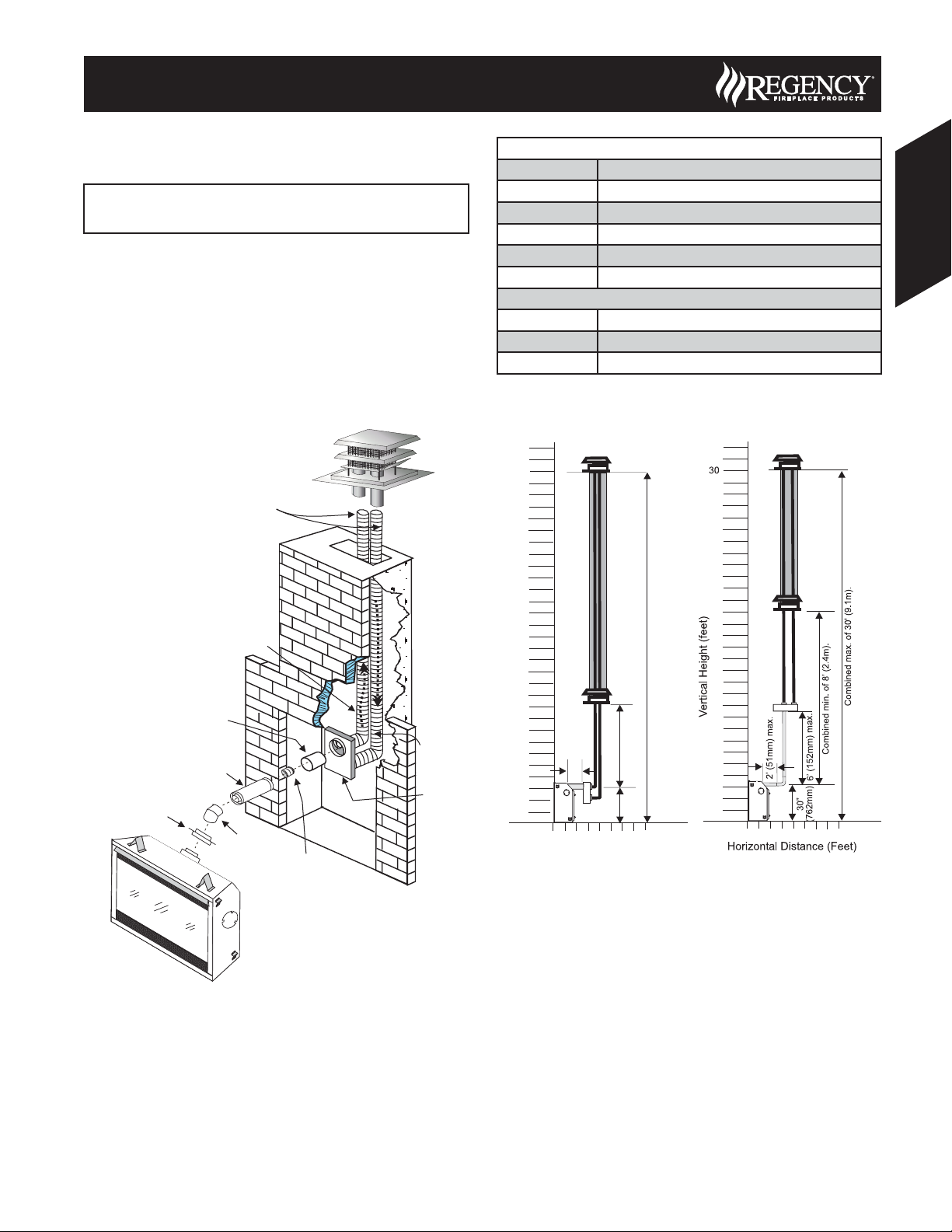

Vertical termination with co-linear
fl ex system
The appliance must not be connected to a chimney fl ue
serving a separate solid fuel burning appliance.
Masonry chimneys may take various contours which the fl exible liner
will accommodate. However, keep the fl exible liner as straight as
possible, avoid unnecessary bending.
The Air Intake pipe must be attached to the inlet air collar of the
termination cap.
This appliance is designed to be attached to two 3” (76mm) co-linear
aluminium fl ex running the full length of the chimney. See the Venting
Arrangements for minimum and maximum heights.
Co-linear DV
Vertical Termination
Cap # 946-529
A maximum
of two certified
joiner kits
may be used
per length.
#948-305
35 ft (11m)
Flex Liner
P33 Gas Fireplace
Required Parts:
Part # Description
946-529 Co-linear DV Vertical Termination Cap
948-305 3” Flex - 35 ft.
946-563 Coaxial to Co-linear Adapter Kit
510-994 Rigid Pipe Adapter
58dva-E45 45º Elbow
Alternate Approved Caps
46dva-VC Vertical Termination Cap
46dva-VCH High Wind Cap
46dva-GK
30
3” Co-linear Adapter with fl ashing
Gas Fireplaces
Rigid Pipe Adapter
# 510-994
Outer
Pipe
with Kit#
946-563
Pipe Length
Exhaust
Flue
o
45 Elbow
Inner Pipe
Adapter
with Kit#
946-563
Air Intake
Co-Linea
Flex
Adapter
with Kit#
946-563
30' (9.1m) Max.
Vertical Height (feet)
2’ (51mm) max.
Horizontal Distance (Feet)
8' (2.4m) Min.
30”
(762mm)
The shaded area in the diagrams show the allowable vertical
terminations.
Please refer to Exterior Vent Terminations for
additional guidelines on vent locations.
37August 2008 Product Specifi cations Book
Loading...
