Reese 45009 User Manual

You can take it with you.

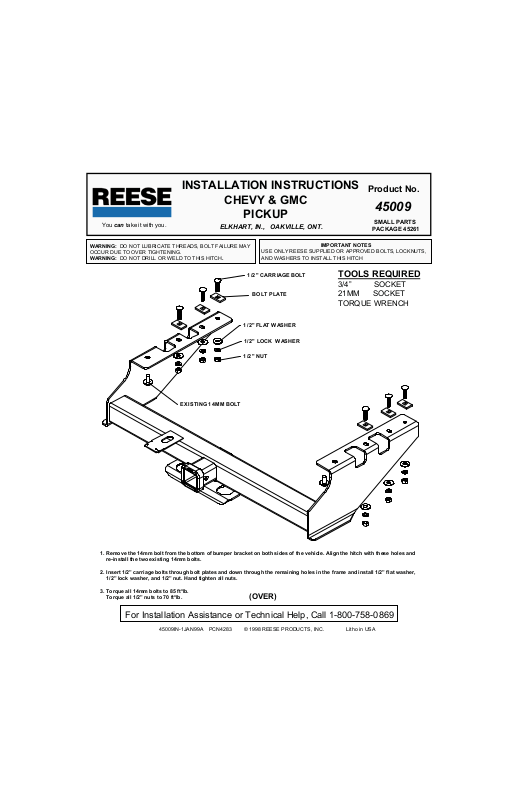

INSTALLATION INSTRUCTIONS

CHEVY & GMC

PICKUP

ELKHART, IN., OAKVILLE, ONT.

Product No.

45009

SMALL PARTS

PACKAGE 45261

WARNING: DO NOT LUBRICATE THREADS, BOLT FAILURE MAY

OCCUR DUE TO OVER TIGHTENING.

WARNING: DO NOT DRILL OR WELD TO THIS HITCH.

1/2" FLAT WASHER

1/2" LOCK WASHER

1/2" NUT

EXISTING 14MM BOLT

USE ONLY REESE SUPPLIED OR APPROVED BOLTS, LOCKNUTS, AND WASHERS TO INSTALL THIS HITCH

1/2" CARRIAGE BOLT

IMPORTANT NOTES

TOOLS REQUIRED

3/4” SOCKET

BOLT PLATE

21MM SOCKET TORQUE WRENCH

1. Remove the 14mm bolt from the bottom of bumper bracket on both sides of the vehicle. Align the hitch with these holes and re-install the two existing 14mm bolts.

2. Insert 1/2” carriage bolts through bolt plates and down through the remaining holes in the frame and install 1/2” flat washer, 1/2” lock washer, and 1/2” nut. Hand tighten all nuts.

3. Torque all 14mm bolts to 85 ft*lb. Torque all 1/2” nuts to 70 ft*lb.

(OVER)

For Installation Assistance or Technical Help, Call 1-800-758-0869

THIS PRODUCT COMPLIES WITH SAFETY SPECIFICATION AND REQUIREMENTS FOR THE STATE OF NEW YORK AND VESC REGULATION V-5 FOR CONNECTING DEVICES AND TOWING SYSTEMS. WEIGHT DISTRIBUTING HITCH RATING IS 14000 LB. MAX. GROSS TRAILER WEIGHT AND 1700 LB. MAX. TONGUE WEIGHT. WEIGHT CARRYING HITCH RATING IS 12000 LB MAX GROSS TRAILER WEIGHT AND 1200 LB MAX TONGUE WEIGHT. CONSULT VEHICLE OWNERS MANUAL FOR TOWING RECOMMENDATIONS AND LIMITATIONS.

Reese warrants its Hitches, custom Hitch Receivers, and Sway Controls from date of purchase against defects in material and workmanship under normal use and

LIMITED WARRANTY

service, ordinary wear and excepted, for the ownership life of the original consumer purchaser. Reese will replace FREE OF CHARGE any part which proves defective in material or workmanship when presented to any Reese dealer, Reese Warehouse or return to factory. TRANSPORTATION CHARGES PREPAID, at the address below. THIS WARRANTY IS LIMITED TO DEFECTIVE PARTS REPLACEMENT ONLY. LABOR CHARGES AND/OR DAMAGE INCURRED IN INSTALLATION OR REPLACEMENT AS WELL AS INCIDENTAL AND CONSEQUENTIAL DAMAGES CONNECTED THEREWITH ARE EXCLUDED. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Any damage to the Hitch, Custom Hitch receiver or Sway Control as a result of misuse, abuse, neglect, accident, improper installation, or any use violative of instructions furnished by us, WILL VOID THE WARRANTY. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. In the event of a problem Reese warrants its Hitches, Custom Hitch Receivers and Sway Controls from date of purchase against defects in material and workmanship under normal use and service, ordinary wear and tear excepted, for the ownership life of the original consumer purchaser. with warranty service or performance, you may be able to go to a small claims court, a state court, or a federal district court.

Reese Products, Inc. 51671 State Road 19-N Elkhart, IN 46514

Reese Products of Canada, Ltd. 475 Wyecroft Road Oakville, Ontario Canada L6K2H2
