REESE

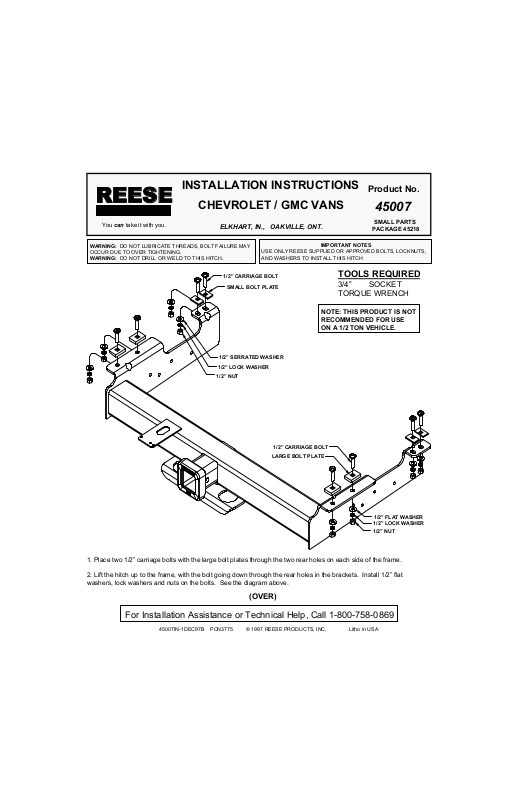

INSTALLATION INSTRUCTIONS
CHEVROLET / GMC VANS
Product No.
45007
You can take it with you.
WARNING: DO NOT LUBRICATE THREADS, BOLT FAILURE MAY
OCCUR DUE TO OVER TIGHTENING.
WARNING: DO NOT DRILL OR WELD TO THIS HITCH.
ELKHART, IN., OAKVILLE, ONT.
1/2” CARRIAGE BOLT
SMALL BOLT PLATE
1/2” SERRATED WASHER
1/2” LOCK WASHER
1/2” NUT
SMALL PARTS
PACKAGE 45218
IMPORTANT NOTES
USE ONLY REESE SUPPLIED OR APPROVED BOLTS, LOCKNUTS,
AND WASHERS TO INSTALL THIS HITCH
TOOLS REQUIRED
3/4” SOCKET
TORQUE WRENCH
NOTE: THIS PRODUCT IS NOT
RECOMMENDED FOR USE
ON A 1/2 TON VEHICLE.
1/2” CARRIAGE BOLT
LARGE BOLT PLATE
1/2” FLAT WASHER
1/2” LOCK WASHER
1/2” NUT
1. Place two 1/2” carriage bolts with the large bolt plates through the two rear holes on each side of the frame.
2. Lift the hitch up to the frame, with the bolt going down through the rear holes in the brackets. Install 1/2” flat
washers, lock washers and nuts on the bolts. See the diagram above.
(OVER)
For Installation Assistance or Technical Help, Call 1-800-758-0869
45007IN-1DEC97B PCN3775 © 1997 REESE PRODUCTS, INC. Litho in USA
3. Install 1/2” carriage bolts with the small bolt plates down through the front mounting locations. Be sure the bolt plates
are turned sideways as shown on the diagram on the other side. Be sure the plates are laying down flat on the bottom
of the frame.
4. Install 1/2” serrated washers, lock washers, and nuts on the bolts as shown on the other side.
5. Torque all nuts to 70 ft.*lb.
For Installation Assistance or Technical Help, Call 1-800-758-0869
THIS PRODUCT COMPLIES WITH SAFETY SPECIFICATION AND REQUIREMENTS FOR THE STATE OF NEW YORK AND VESC REGULATION V-5 FOR CONNECTING DEVICES AND
TOWING SYSTEMS. WEIGHT DISTRIBUTING HITCH RATING IS 14000 LB. MAX. GROSS TRAILER WEIGHT AND 1700 LB. MAX. TONGUE WEIGHT. WEIGHT CARRYING HITCH RATING IS
12000 LB MAX GROSS TRAILER WEIGHT AND 1200 LB MAX TONGUE WEIGHT. CONSULT VEHICLE OWNERS MANUAL FOR TOWING RECOMMENDATIONS AND LIMITATIONS.
LIMITED WARRANTY
Reese warrants its Hitches, custom Hitch Receivers, and Sway Controls from date of purchase against defects in material and workmanship under normal use and
service, ordinary wear and excepted, for the ownership life of the original consumer purchaser.
Reese will replace FREE OF CHARGE any part which proves defective in material or workmanship when presented to any Reese dealer, Reese Warehouse or return to
factory. TRANSPORTATION CHARGES PREPAID, at the address below. THIS WARRANTY IS LIMITED TO DEFECTIVE PARTS REPLACEMENT ONLY. LABOR
CHARGES AND/OR DAMAGE INCURRED IN INSTALLATION OR REPLACEMENT AS WELL AS INCIDENTAL AND CONSEQUENTIAL DAMAGES CONNECTED
THEREWITH ARE EXCLUDED. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may no
apply to you. Any damage to the Hitch, Custom Hitch receiver or Sway Control as a result of misuse, abuse, neglect, accident, improper installation, or any use violative
of instructions furnished by us, WILL VOID THE WARRANTY.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. In the event of a problem
Reese warrants its Hitches, Custom Hitch Receivers and Sway Controls from date of purchase against defects in material and workmanship under normal use and
service, ordinary wear and tear excepted, for the ownership life of the original consumer purchaser.
with warranty service or performance, you may be able to go to a small claims court, a state court, or a federal district court.
Reese Products, Inc.
51671 State Road 19-N
Elkhart, IN 46514
45007IN-1DEC97B PCN3775 © 1997 REESE PRODUCTS, INC. Litho in USA
Reese Products of Canada, Ltd.
475 Wyecroft Road
Oakville, Ontario
Canada L6K2H2
