Reelcraft TH9000 User Manual

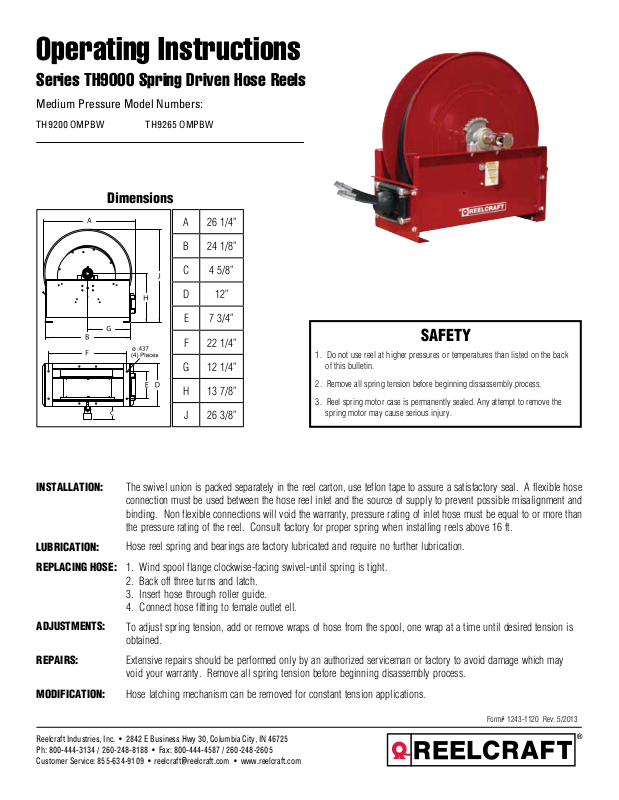

Operating Instructions
Series TH9000 Spring Driven Hose Reels
Medium Pressure Model Numbers:
TH9200 OMPBW TH9265 OMPBW
Dimensions
A 26 1/4”
B 24 1/8”
C 4 5/8”
D 12”
E 7 3/4”
INSTALLATION:
LUBRICATION:
REPLACING HOSE:
ADJUSTMENTS:
F 22 1/4”
1. Do not use reel at higher pressures or temperatures than listed on the back
G 12 1/4”
H 13 7/8”
J 26 3/8”
The swivel union is packed separately in the reel carton, use teflon tape to assure a satisfactory seal. A flexible hose
connection must be used between the hose reel inlet and the source of supply to prevent possible misalignment and
binding. Non flexible connections will void the warranty, pressure rating of inlet hose must be equal to or more than
the pressure rating of the reel. Consult factory for proper spring when installing reels above 16 ft.
Hose reel spring and bearings are factory lubricated and require no further lubrication.
1. Wind spool flange clockwise-facing swivel-until spring is tight.
2. Back off three turns and latch.
3. Insert hose through roller guide.
4. Connect hose fitting to female outlet ell.
To adjust spring tension, add or remove wraps of hose from the spool, one wrap at a time until desired tension is
obtained.
of this bulletin.
2. Remove all spring tension before beginning dissassembly process.
3. Reel spring motor case is permanently sealed. Any attempt to remove the
spring motor may cause serious injury.
SAFETY
REPAIRS:
MODIFICATION:
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
Extensive repairs should be performed only by an authorized serviceman or factory to avoid damage which may
void your warranty. Remove all spring tension before beginning disassembly process.
Hose latching mechanism can be removed for constant tension applications.
Form# 1243-1120 Rev: 5/2013
Series TH9000 Spring Driven Hose Reels
Item
Part #
#
3 S140-34 6 Snap Ring 1-3/8" I.D. 14 S32-136 2
#
Req
Description
Item
#
Part #
#
Req
Description
Self Tapping Screw 10-24 x 3/8"
Item
#
Part #
#
Req
Description
24 S260067-1 1 Latch Spring
4 S600416 2 Pillow Block Assembly 15 260948 1 Spool spacer 25 S393-2 1 Shoulder Screw 10-32 2A
5 S44-8 4
Machine Screw 3/8-16 x 1-3/4"
16 270007 1 Flange Disc 26 S44-2 8
Machine Screw 3/8-16 x 5/8"
6 600413-1 1 Spring Case Assembly 17 602364 1 Inlet Shaft 27 262436-2.968 2 Short Guide Roller
7 260888 1 Spring Arbor 18 S280-8 1 Hex Flange Nut 1/4-20 28 S270015 2 Short Guide Roller Pin
8 260898 1 Flange Sheave 19 260934 1 Latch Bracket 29 S270014 4 Guide Roller Post
7 260888 1 Spring Arbor 20 S82-15 1 Nyloc Nut 10-32 30 262436-5.468 2 Long Guide roller
8 260898 1 Flange Sheave 21 S600454 1 Latch Pawl Ass'y 31 S270016 2 Long Guide Roller Pin
10 S2-41 16 Hex Cap Screw 1/4-20 X 1/2" 22 S281-4 8
Hex Flange Nut 1/4-20 Whiz Loc
32 270011 1 Guide Roller Plate
13 270029 2 Hose Outlet Support 23 270009 2 Side Frame 33 270012 1 End Frame Support
Page 2
Item
Description
#
1 Swivel 2 S602033 S602033
2 Reducing Coupling 2 S290-5 S290-5
9 Inlet Shaft 1 602556 602556
11 Bushing 1" X 1/2" 2 S174-112 S174-112
12 90° Ell 1" 2 270039 270039
-- Hose Assembly -- None 600669-5
-- Hose Bumper -- None A600522
-- Hose ID and length -- None 1/2” x 65’
-- Working pressure -- 3000 PSI 2000 PSI
-- Max. temperature -- 210° F 210° F
#
TH9200 OMPBW TH9265 OMPBW
Req
