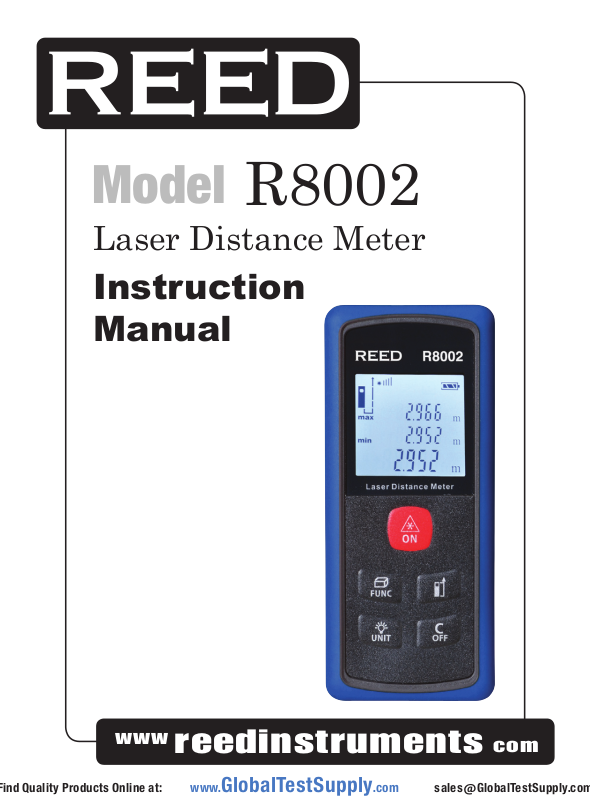

Model
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
R8002
Laser Distance Meter
Instruction
Manual
www
reedinstruments
www.GlobalTestSupply.com
com
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Table of Contents
Features .........................................................................................3
Specications ................................................................................ 3
Instrument Description .................................................................. 4
Operating Instructions ................................................................5-7
Setting the Reference Point ......................................................... 5
Area Measurements .................................................................... 5
Volume Measurements ...............................................................6
2-Point Indirect Measurements ................................................... 6
3-Point Indirect Measurements ................................................... 6
Continuous, Max/Min Measurement ........................................... 7
Data Records .............................................................................. 7
Battery Replacement ..................................................................... 7
Troubleshooting ............................................................................. 8
www
www.GlobalTestSupply.com
reedinstruments
com
2
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Features
• Measures Distance, Area, and Volume
• Indirect measurement using Pythagoras
• Max/Min Measurements
• Continuous Measurements
• Reference Setting
• Saves the last 10 measured records
Specifications
Measuring Range: 0.05 to 45m
Measuring Accuracy: Within 10m: ±2.00mm;
< 10m: ±2mm ± 0.05 x (Distance in Meters - 10)
Measuring Units: m, ft, in
Laser Type: Class II, < 1mW, 620 to 690nm
Measurement Time: 0.25 to 4 seconds
Operating Temperature: 0 to 40°C
Storage Temperature: -20 to 65°C
Power Supply: 2 x AAA Batteries
Weight: 120g
Dimensions: 112 x 48 x 25mm
www
www.GlobalTestSupply.com
reedinstruments
com
3
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Instrument Description
1. On/Measure Button
2. Function Button
3. Unit/Backlight Button
4. Reference Set Button
5. Clear/Off Button
Display Description
1. Signal Strength
2. Laser Icon
3. Reference Point
4. Max/Min Icon
5. Measurement Type
6. Battery Indicator
7. Record Number
8. Continuous Measurement
9. Hardware Error
10. Measurement Result
11. Unit of Measurement
www
www.GlobalTestSupply.com
reedinstruments
com
4
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Operating Instructions
Press the On button to turn the meter on. Press the Off button to turn the
meter off. The meter will automatically turn off after 3 minutes of inactivity.
Press the Measure button to activate the laser. Press the Measure button
again to take the measurement. While taking any measurement, press the
Clear button to cancel.
Press the Backlight button to turn the backlight on and off.
Press and hold the Unit button to change the measuring units.
Different measuring functions will be displayed as symbols on the LCD.
Area: Volume:
2-Point:
3-Point:
Setting the Reference Point
The default reference point is from the back of the meter. Press the
Reference Set button to switch between the front, back, or rear. The LCD
will display where the reference point with the below icons.
Front
Back
Rear
Area Measurements
1. While the meter is on, press the Function button till the Area
symbol appears on the LCD.
2. Press the Measure button to take the rst measurement.
Press the Measure button to take the second measurement.
3. The Area will be automatically calculated and displayed on the
LCD.
www
www.GlobalTestSupply.com
reedinstruments
com
5
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Volume Measurements
1. While the meter is on, press the Function button till the Volume
symbol appears on the LCD.
2. Press the Measure button to take the rst measurement.
Press the Measure button to take the second measurement.
Press the Measure button to take the third measurement.
3. The Volume will be automatically calculated and displayed on the
LCD.
2-Point Indirect Measurements
1. While the meter is on, press the Function button till the 2-Point
symbol appears on the LCD.
2. Aim at the top measurement point and press the Measure button
to take the rst measurement.
3. Turn the meter horizontal and press the Measure button to take
the second measurement.
4. Press the Measurement button again to display the result on the
LCD. Press the Clear button to return to single measurements.
3-Point Indirect Measurements
1. While the meter is on, press the Function button till the 3-Point
symbol appears on the LCD.
2. Aim at the top measurement point and press the Measure button
to take the rst measurement.
3. Turn the meter horizontal and press the Measure button to take
the second measurement.
4. Point the meter to the bottom of the measurement point and press
the Measure button to take the third measurement.
5. Press the Measurement button again to display the result on the
LCD. Press the Clear button to return to single measurements.
www
www.GlobalTestSupply.com
reedinstruments
com
6
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Continuous, Max/Min Measurement
1. While the meter is on, press and hold the Measure button to start
Continuous Measurement.
2. While measuring the Maximum and Minimum measurements will
appear on the rst and second rows on the LCD.
3. Press the Measure button to stop taking measurements.
The meter will automatically stop after taking 100 continuous
measurements.
Data Records
1. Press and hold the Feature button to access the last 10 recorded
measurements. The Record Number icon will appear on the LCD.
2. The records will appear in reverse order from the time they were
taken. Press the Function button to scroll through them.
3. Press the Measure or Clear button to return to single
measurements.
Battery Replacement
When the Battery Indicator is ashing you will need to replace the
batteries.
1. Turn the meter off and remove the battery compartment door on
the back of the meter.
2. Insert new batteries observing correct polarity.
3. Close the battery compartment door.
www
www.GlobalTestSupply.com
reedinstruments
com
7
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Troubleshooting
Error messages are displayed by a number code on the LCD.
Code Cause Remedy
101 Battery too low Change batteries
104 Calculation Error Repeat procedure
152 Temperature too high Cool down the meter
153 Temperature too low Warm up the meter
154 Out of range Put target between 0.05 & 45m
155 Signal too weak
156 Signal too strong
Measure error or background
157
brightness
160 Too much shaking Stabilize the meter
When the Hardware Error icon appears on the LCD, turn the meter on and
off several times. If the symbol still appears contact REED Instruments at
info@reedinstruments.com for repair.
Be sure to take care with the meter’s mirror. Avoid dirt, scratches, and
solvents. These may affect the accuracy and precision of the meter.
Ensure surface is at and
large enough
Darken or change target
www
www.GlobalTestSupply.com
reedinstruments
com
8
