Introduction
Thank you for purchasing your REED R6210 Heat Stress WBGT Meter.
Please read the following instructions carefully before using your instrument.
By following the steps outlined in this manual your meter will provide
years of reliable service.
Product Quality
This product has been manufactured in an ISO9001 facility and has been
calibrated during the manufacturing process to meet the stated product
specications. If a certicate of calibration is required please contact the
nearest authorized REED distributor or authorized Service Center. Please
note an additional fee for this service will apply.
Safety
• Never attempt to repair or modify your instrument. Dismantling your
product, other than for the purpose of replacing batteries, may cause
damage that will not be covered under the manufacturer's warranty.
Servicing should only be provided by an authorized service center.
• Avoid electromagnetic interference which may cause erratic readings.
• Do not touch the black ball during a test as the results may be inaccurate.
• If the black ball is damaged or deformed, it will provide inaccurate
measurement values.
CAUTION
Please place the meter in a warm temperature and low
humidity environment for 24 hours after the meter has been
exposed to an overly humid environment.
continued...
REED Instruments
1-877-849-2127 | [email protected] | www.reedinstruments.com
Page 4
WARNING
• Remove and immediately recycle or dispose of used batteries
according to local regulations and keep away from children. Do
NOT dispose of batteries in household trash or incinerate.
• Even used batteries may cause severe injury or death.
• Call a local poison control center for treatment information.
• Identication of compatible battery type: CR2032
• Nominal battery voltage: 3V
• Non-rechargeable batteries are not to be recharged.
• Do not force discharge, recharge, disassemble, heat above 140°F
(60°C) or incinerate. Doing so may result in injury due to venting,
leakage or explosion resulting in chemical burns.
• Ensure the batteries are installed correctly according to
polarity (+ and -).
• Do not mix old and new batteries, different brands or types of
batteries, such as alkaline, carbon-zinc, or rechargeable batteries.
• Remove and immediately recycle or dispose of batteries from
equipment not used for an extended period of time according to
local regulations.
• Always completely secure the battery compartment. If the battery
compartment does not close securely, stop using the product,
remove the batteries, and keep them away from children.
REED Instruments
1-877-849-2127 | [email protected] | www.reedinstruments.com
Page 5
Features
• Measures ambient temperature, humidity, wet bulb temperature, black
globe temperature, WBGT (wet bulb global temperature)
• Black Globe Temperature (TG) monitors the effects of direct solar radiation
on an exposed surface
• IN/OUT function displays the WBGT value with or without direct
sun exposure
• Multi-line backlit LCD display simultaneously displays 3 measurements
• User selectable unit of measure (°F or °C)
• User adjustable WBGT threshold alarm (audible)
• Flexible armband and tripod mount for long-term monitoring
• Low battery indicator
Includes
• Heat Stress WBGT Meter
• Flexible Armband
• Fastener for Armband with Screws
• Keyring
• Carabiner
• Silicone Elbow for Anti-Skid
• Screw for Silicone Elbow
• Battery
REED Instruments
1-877-849-2127 | [email protected] | www.reedinstruments.com
Page 6
Specifications
Temperature
Measuring Ranges: Air Temperature: 32 to 122°F (0 to 50°C)
Accuracy: Air Temperature: ±1.1°F (±0.6°C)
Resolution: 0.1°F/°C
Humidity
Measuring Ranges: 5 to 90% RH
Accuracy (@ 25°C): 30 to 90% RH: ±5%
Resolution: 0.1% RH
General Specifications
Sampling Interval: 20 seconds
Display: LCD
WBGT Alarm: Yes (audible)
Tripod Mountable: Yes
Low Battery Indicator: Yes
Battery Life: Approx. 500 hours
Power Supply: CR2032 Battery
Product Certications: CE, RoHS
Operating Temperature: 32 to 122°F (0 to 50°C)
Operating Humidity: <80% (non-condensing)
Storage Temperature: 32 to 140°F (0 to 60°C)
Storage Humidity: <70% (non-condensing)
Maximum Operating Altitude: 6561' (2000m)
Dimensions: 4.6 x 2.4 x 1.9" (116 x 60 x 50mm)
Weight: 2.8oz (80g)
Black Globe: 32 to 176°F (0 to 80°C)
WBGT: 32 to 122°F (0 to 50°C)
Black Globe: ±1.1°F (±0.6°C)
WBGT: ±3.6°F (±2.0°C)
Rest of Range: ±7%
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
Page 7

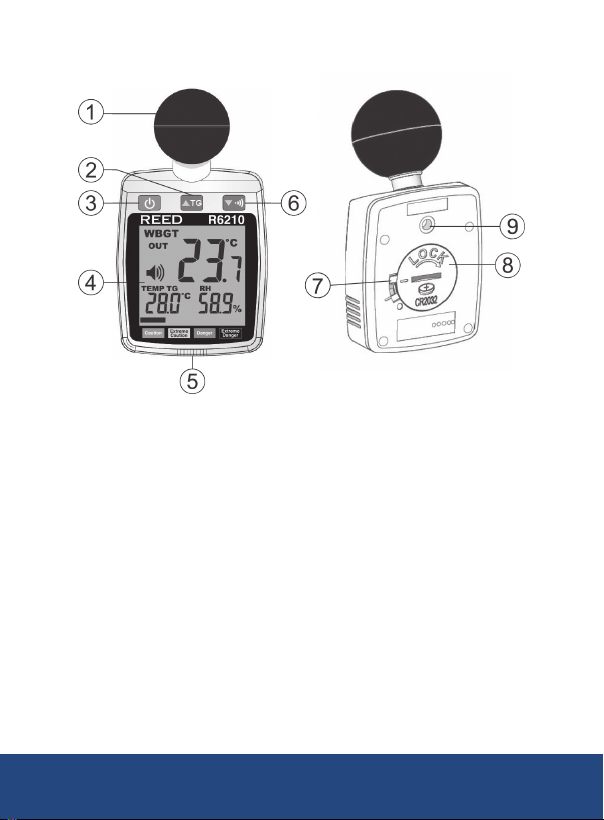

Instrument Description
1. Black Globe Sensor
2. Globe Temperature (TG)/
UP Button
3. POWER Button
4. LCD Display
5. Temperature/Humidity Sensor
6. Audible Alarm/DOWN Button
7. Locking Tab
8. Battery Cover
9. Tripod Mounting Screw
REED Instruments
1-877-849-2127 | [email protected] | www.reedinstruments.com
Page 8

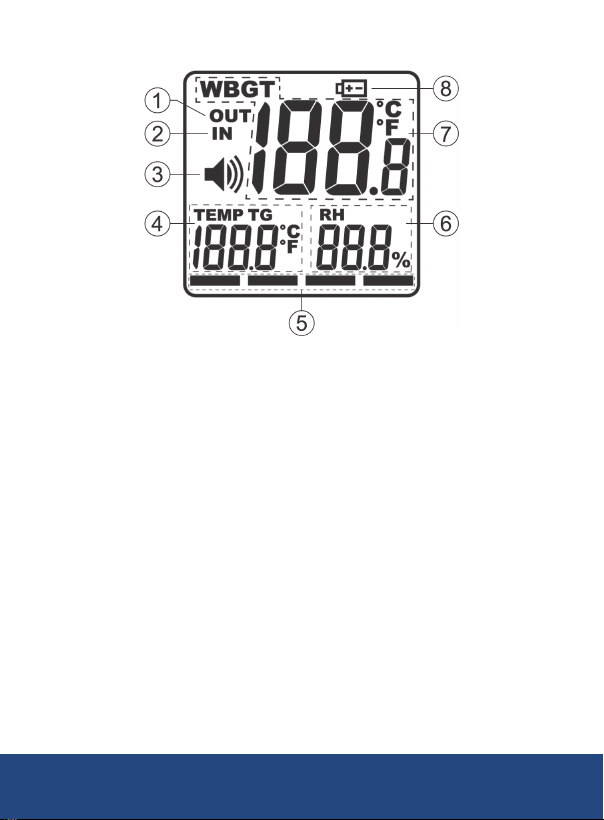

Display Description
1. Outdoor Index Indicator
2. Indoor Index Indicator
3. Alarm Indicator
4. Air Temperature (TEMP)/
Black Globe Temperature (TG)
Measurement Values
5. Heat Stress Level Indicator
6. Humidity Measurement Value
7. WBGT Measurement Value
8. Low Battery Indicator
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
8
Page 9
Operating Instructions
Application Types

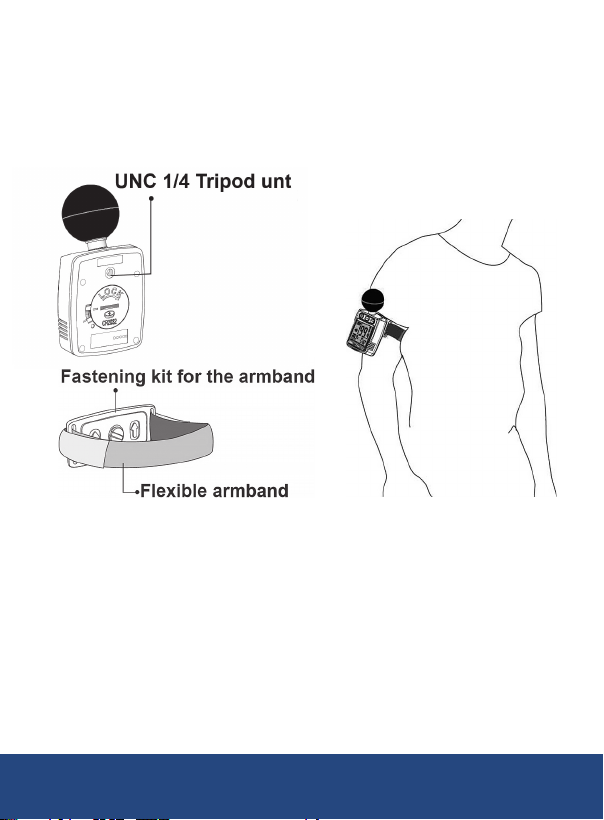

The R6210 can be mounted several ways to meet application requirements.
To wear the R6210 on your arm, assemble the kit as shown in Figure 1
and place around the arm as shown in Figure 2.
Figure 1
REED Instruments
1-877-849-2127 | [email protected] | www.reedinstruments.com
Figure 2
continued...
9
Page 10

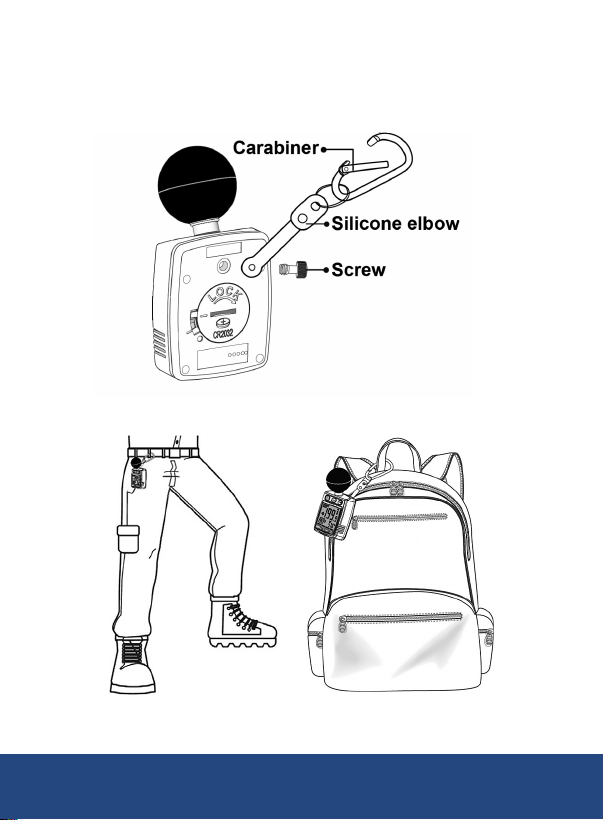

To hang the R6210, start by attaching the silicone elbow to the meter with
the included fastening screw into the mount located on the back of the
meter as shown in Figure 3. When attached, the meter can now be
fastened to the user's waist or backpack as shown in Figure 4 and 5.
Figure 3
Figure 5Figure 4
continued...
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
10
Page 11

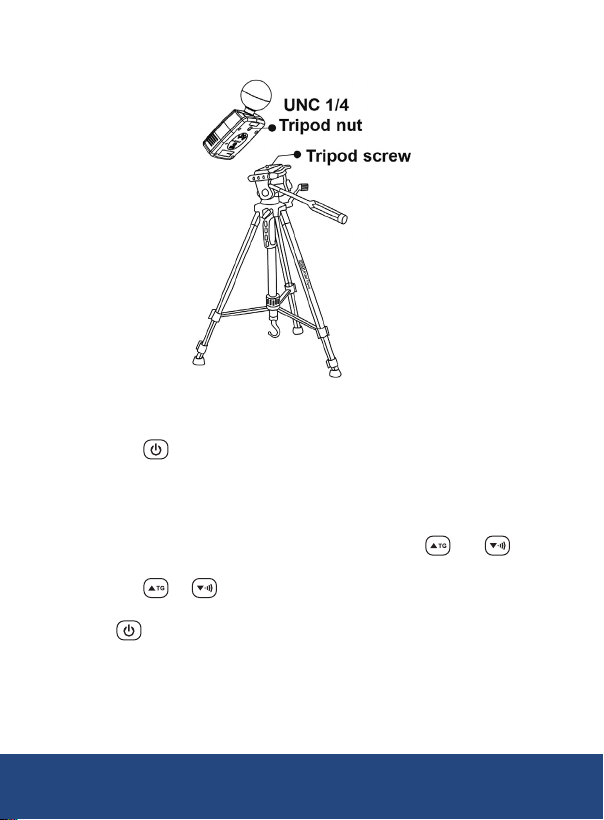

For Tripod applications, the meter can be mounted using the 1/4 inch
tripod mount located on the back of the meter as shown in Figure 6.
Figure 6
Power ON/OFF
1. Press the button to turn the meter ON or OFF.
2. When the meter is powered on, the LCD displays the previously
selected "Indoor (IN) or Outdoor (OUT)" WBGT measurement mode.
Indoor/Outdoor Temperature Mode Selection
1.
When the meter is powered on, press and hold the and buttons
to enter the setup mode as indicated by "SET1".
2. Press the or button to toggle between indoor (IN) or
outdoor (OUT) temperature.
3. Press to save the selection and skip to the next parameter.
When the temperature mode is selected, the instrument automatically
calculates the measurement using the following parameters:
1. For outdoors with direct sun exposure:
WBGT = 0.7 x Temp wet bulb + 0.2 x Temp globe + 0.1 x Temp air
continued...
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
11
Page 12
2. For indoors or outdoors without direct sun exposure:
WBGT = 0.7 x Temp wet bulb + 0.3 x Temp globe
Note: The meter will automatically exit out of Setup mode and resume
normal operation if no key is pressed within 15 seconds.
Turn Alarm Function ON/OFF
1. Press the or button to turn the alarm function ON (Flashing )
or OFF when "SET2" appears on the LCD display.
2.
Press the button to save the selection and skip to the next parameter
(SET3) or resume normal operation if alarm function is disabled.
Note: The meter will automatically exit out of Setup mode and resume
normal operation if no key is pressed within 15 seconds.
Setting WBGT Alarm Value
Note: This feature is only available if the meter's
1. Press the and buttons to adjust the WBGT alarm value when
"SET3" appears on the LCD display.
Note: When the alarm threshold is exceeded, the meter will beep for
15 seconds and repeatedly activate if the temperature continuously
exceeds the set value.
2. Press the button to save the selection and exit setup mode to
resume normal operation.
Note: The meter will automatically exit out of Setup mode and resume
normal operation if no key is pressed within 15 seconds.
Default Alarm Setting (Alarm Function is set to OFF)
Heat Stress Levels Temperature Baseline Default Alarm
Caution 69.8 to 77°F (21 to 25°C) Mute, LCD Caution Indicator
Extreme Caution
Danger
Extreme Danger >87.8°F (31°C)
alarm function is enabled.
77 to 82.4°F
(25 to 28°C)
82.4 to 87.8°F
(28°C to 31°C)
Beep for 4 seconds,
LCD Extreme Caution Indicator
Beep for 15 seconds,
LCD Danger Indicator
Beep for 3 seconds and pause for 2
seconds. Repeats for 15 seconds,
LCD Extreme Danger Indicator
continued...
REED Instruments
1-877-849-2127 | [email protected] | www.reedinstruments.com
Page 13
Switching the Temperature Unit of Measure
Press and hold the button while powering on the meter to switch
between °F and °C.
Viewing Black Globe Temperature Measurements
While the meter is powered on, the default display modes are WBGT
temperature, air temperature (AT) and relative humidity (RH).
1. Press the button to view the black globe temperature
(TG) measurement.
2. The meter will automatically revert back to displaying the air
temperature (AT) measurement after approximately 5 seconds.
Adjusting Alarm Volume
While the meter is powered on, press the button to adjust the alarm
volume between High ( ), Low ( ) and Mute (no icon appears on LCD).
Reset to Factory Settings
While the meter is off, press and hold the , and buttons for
approximately 5 seconds to reset to factory settings.
Note: When factory reset is complete, all calibration and user settings are
erased and restored to the original settings.
REED Instruments
1-877-849-2127 | [email protected] | www.reedinstruments.com
Page 14
Battery Replacement
When the low battery icon appears on the LCD, the battery needs to
be replaced.

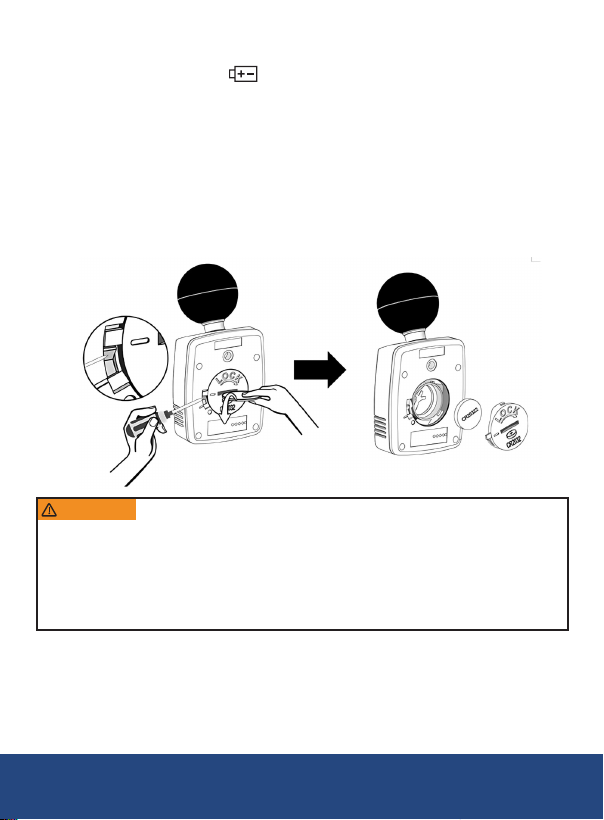

1. Use a athead screwdriver to gently unlock the locking tab.
2. Insert a coin into the slot and turn it counter clockwise to remove
the cover.
3. Remove the old CR2032 battery and insert the new CR2032 battery,
ensuring the + (positive) side faces up.
4. Align the cover and tighten it by turning the coin clockwise.
5. Lock the locking tab back in place using the athead screwdriver.
WARNING INGESTION HAZARD • DEATH or serious injury can occur
• A swallowed button cell or coin battery can cause Internal Chemical
Burns in as little as 2 hours • Keep new and used batteries OUT OF
REACH OF CHILDREN • Seek immediate medical attention if a battery
is suspected to be swallowed or inserted inside any part of the body
• For treatment information call: 1-800-498-8666.
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
14
Page 15
Applications
• Sports (leisure, organized, and professional)
• Monitor seasonal conditions to ensure safe environment at school
or daycare
• Ensuring safe work environments
Accessories and Replacement Parts
• CA-05A Soft Carrying Case
Don't see your part listed here? For a complete list of all accessories and
replacement parts visit your product page on www.REEDInstruments.com.
Product Warranty
REED Instruments guarantees this instrument to be free of defects in
material or workmanship for a period of one (1) year from date of shipment.
During the warranty period, REED Instruments will repair or replace, at no
charge, products or parts of a product that proves to be defective because
of improper material or workmanship, under normal use and maintenance.
REED Instruments total liability is limited to repair or replacement of the
product. REED Instruments shall not be liable for damages to goods,
property, or persons due to improper use or through attempts to utilize the
instrument under conditions which exceed the designed capabilities. In
order to begin the warranty service process, please contact us by phone
at 1-877-849-2127 or by email at [email protected] to discuss
the claim and determine the appropriate steps to process the warranty.
Product Disposal and Recycling
Please follow local laws and regulations when disposing or recycling
your instrument. Your product contains electronic components and
must be disposed of separately from standard waste products.
REED Instruments
1-877-849-2127 | [email protected] | www.reedinstruments.com
Page 16
Product Support
If you have any questions on your product, please contact your authorized
REED distributor or REED Instruments Customer Service by phone at
1-877-849-2127 or by email at [email protected].
Please visit www.REEDInstruments.com for the most
up-to-date manuals, datasheets, product guides and software.
Product specifications subject to change without notice.
All rights reserved. Any unauthorized copying or reproduction of this
manual is strictly prohibited without prior written permission from
REED Instruments.
REED Instruments
1-877-849-2127 | [email protected] | www.reedinstruments.com
Page 17
THERM
OISTURE
M
AL
THICKNESS
LIGHT
SOUND
CLAM
IM
LT
U
M
AIR VELOCITY
ETERS
P M
ETERS
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
Page 18
TEST & MEASURE
WITH CONFIDENCE
Access Our
Product Guide
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
Loading...
