Introduction
Thank you for purchasing your REED R5805 Voltage/Current Simulator. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will
provide years of reliable service.
Product Quality
This product has been manufactured to meet the stated product specications. If a certicate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply.
Safety
Never attempt to repair or modify your instrument. Dismantling your product, other than to replace batteries, may cause damage that will not be covered under the manufacturer's warranty. Servicing should only be provided by an authorized service center. To avoid injury to the user or damage to the instrument, please read the safety information below before initial use:
• Do not operate the instrument around ammable or explosive gas, vapor or dust.
• Never apply more than 30V between any two terminals, or between any terminal and ground terminal.
Note: For optimal accuracy, allow the instrument to warm up 5 minutes before operating.
Features
• Sources voltage and current
• Easy to read 6-digit LCD display
• Built-in LED ashlight
• Automatic calibration
• Low battery indicator and auto shut off
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
4
Page 5
Included
• Voltage/Current Simulator
• Test Leads
• Alligator Clips
• Batteries
Specifications
DC Voltage
Range: 10V Output Range: -1.000 to 11.000V Resolution: 0.001V Accuracy: ±0.05% rdg. +2mV
DC Current
Range: 30mA Output Range: 0.000 to 30.000mA Resolution: 0.001mA Accuracy: ±0.05% rdg. +4μA
General Specifications
Display: 6-Digit LCD Backlit Display: Yes Kick Stand: Yes Magnetic Hanger Compatible: Yes (R5900 sold separately) Built-In Flashlight: Yes Zero Adjustment Button: Yes Power Supply: 3 AA Batteries Battery Life: Approx. 20 hours Cold Junction
Compensation: Yes Auto shut off: Yes (up to 60 minutes/off)
continued...
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
5
Page 6
Low Battery Indicator: Yes Replaceable Test Leads: Yes Product Certications: CE Operating Temperature: 32 to 122°F (0 to 50°C) Operating Humidity Range: 0 to 85% Storage Temperature: 14 to 122°F (-10 to 50°C) Dimensions: 7.5 x 3.5 x 2.1" (191 x 90 x 53mm) Weight: 17.6oz (500g)
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
6
Page 7

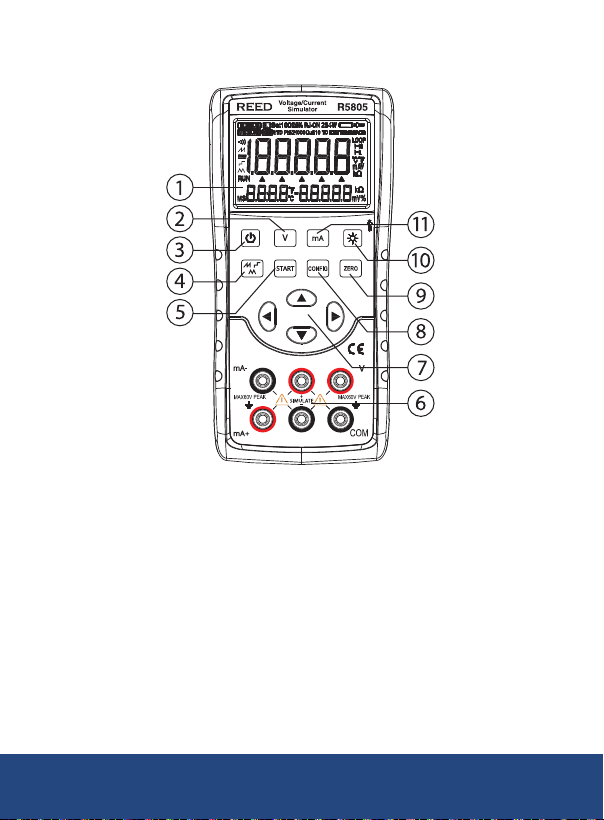

Instrument Description
1. LCD Display
2. Voltage Output Button
3. Power Button
4. Output Waveform Switch Button
5. Output Start Button
6. Input/Output Terminals
7. Output Selection/Setting Buttons
8. CONFIG Button
9. ZERO Button
10. Backlight/Flashlight Button
11. mA Button
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
Page 8

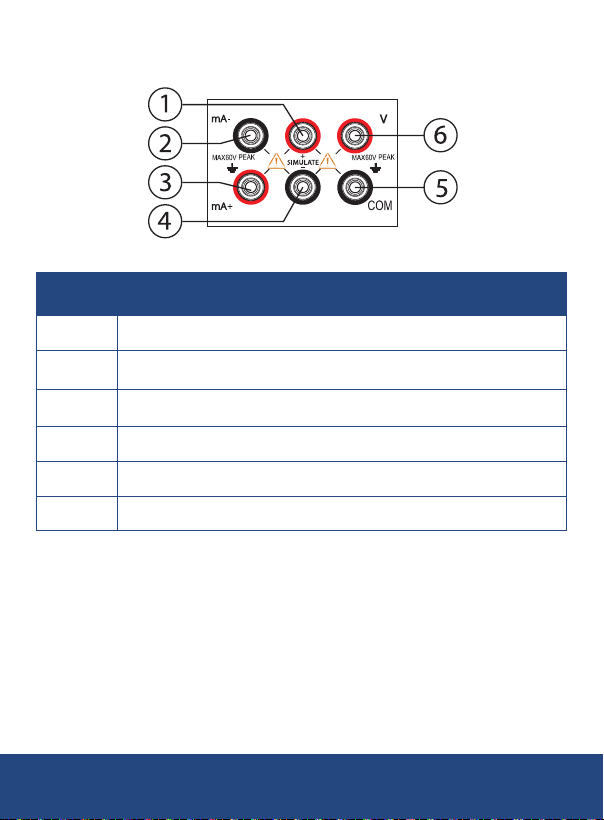

Input and Output Terminals
Terminal Function Description
1 SIMULATE output (+) terminal
2 mA-: DCI output (-) terminal
3 mA+: DCI output (+) terminal
4 SIMULATE output (-) terminal
5 COM: DCV output (-) terminal
6 V: DCV output (+) terminal
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
8
Page 9

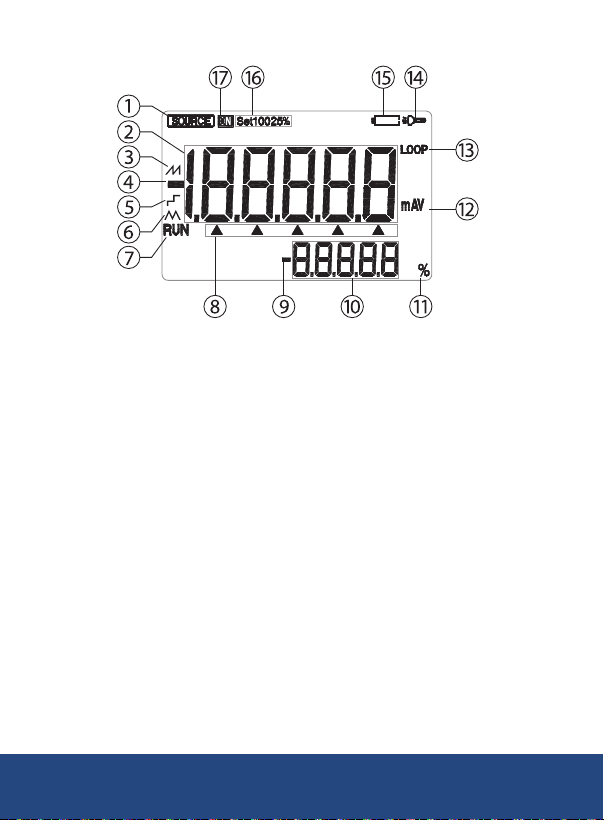

Display Description
1. Output Status Indicator
2. Input/Output Value
3. Auto Sawtooth Wave Mode (Output Current) Indicator
4. Output Polarity Indicator
5. Auto-Stepping Mode (Output Current) Indicator
6. Auto Triangular Wave Mode (Output Current) Indicator
7. Auto Waveform Operation Indicator (Output Current)
8. Selected Digit Indicator
9. Output Current Percentage Polarity Indicator
10. Output Current Percentage Data Display
11. Unit of Output Current Percentage Data
12. Output Function and Unit Indicator
13. 24V Internal Power on Indicator
14. Flashlight ON Indicator
15. Low Battery Indicator
16. Output Current Span Indicator
17. Output ON Indicator
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
9
Page 10
Operating Instructions
Power ON/OFF
Press the Power button to turn the instrument on. To turn the instrument off, press and hold the Power button.
Auto Power-Off
As a default, the instrument will automatically turn off after 5 minutes of inactivity. To turn off this feature, refer to the "Enabling/Disabling Auto Power OFF" section of this manual for additional details.
Backlight
Press the Backlight button to turn the LCD Backlight on or off. Note: The backlight automatically turns off after approximately 60
seconds by default. To turn it back on, press the Backlight button. The backlight illumination duration can be adjusted in the factory settings. For more information, refer to the "Setting Backlight Time" section of this manual for additional details.
Output Function
The calibrator is designed for outputting a DC signal.
To avoid electric shock, ensure that the voltage applied between the calibrator terminals or between any terminal and ground does not exceed the rated voltage specied for the calibrator. Do not use the calibrator in situations where the terminal-to-ground voltage exceeds 30V peak.
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
10
Page 11
Output Operation Procedure
DC Voltage Output

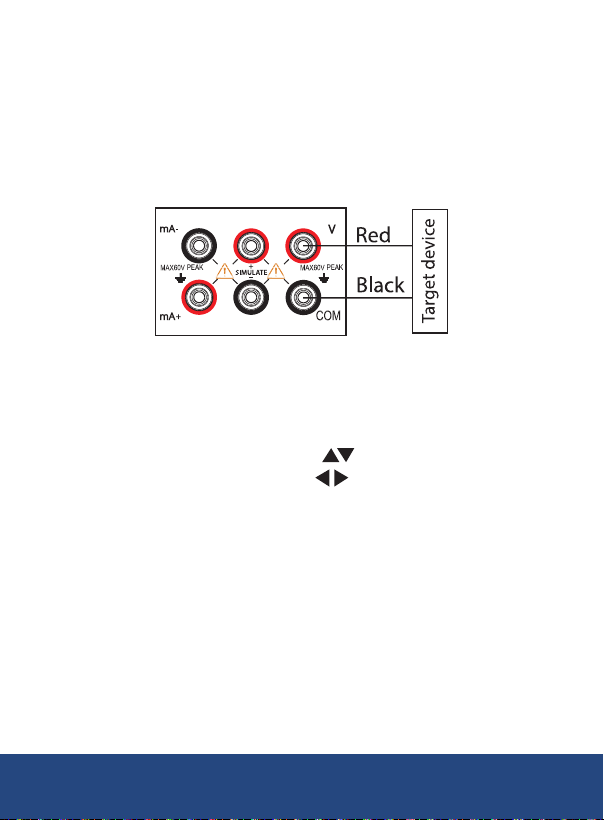

1. Connect the black lead to the COM terminal
2. Connect the red lead to the V terminal.
3. Attach the other ends of the leads to the signal terminals of the
controlled device, ensuring correct polarity.
4. Press the V button to switch to the voltage output function. The "V"
symbol will appear on the display screen, indicating that the DC voltage output function is active.
5. Step 2: Use the output setting buttons to adjust the output value:
6. Change the output value using the buttons.
7. Change the output digit using the
buttons.
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
11
Page 12
DC Current Output
1. Connect the black lead to the mA- terminal.
2. Connect the red lead to the mA+ terminal.
3. Attach the other ends of the leads to the signal terminals of the
controlled device, ensuring correct polarity.
4. Press the mA button to switch to the current output function. The
"LOOP" and "mA" symbols will appear on the screen, indicating that the DC current output function is active.
5. Press the CONFIG button to enter the DC current parameter setting
interface. The character "MAP.ER" will be displayed in the lower-right corner of the screen, indicating the manual step span setting. The main display area shows the parameters to be set.
6. Set the required span using the buttons:
• Parameter "0": Each press of the the output by 1 unit.
• Parameter "25": Each press of the buttons increases/ decreases the output by 25% of the measuring range.
• Parameter "100": Each press of the decreases the output by 100% of the measuring range.
7. Press the ZERO button to save the settings and automatically switch to the current output range setting interface. The character "SCALE" will appear in the lower-right corner of the screen.
8. Set the output range (0-20mA or 4-20mA) using the buttons.
9.
Press the ZERO button to save the settings and return to span setting.
10. Press the CONFIG button to exit the setting interface.
REED Instruments
1-877-849-2127 | [email protected] | www.reedinstruments.com
buttons increases/decreases
buttons increases/
continued...
12
Page 13
Note: The current output range setting applies to all current output functions.
11. Adjust the output value using the buttons.
12. Change the set output digit using the buttons.
Adjust the value using the buttons. Note: This step is only applies when the span is set to "0".
Automatic Stepping Output Mode for Output Current
1. In the current output function state, press the button to switch to the stepping mode of DC current. The corresponding symbol will light up on the display screen.
2. Press the CONFIG button to enter the DC current step mode parameter setting interface. The character "STEP" will appear in the lower-right corner, indicating the step size setting.
3. Use the 200 seconds).
4. Press the ZERO button to save the settings.
5. Press the CONFIG button to exit the settings interface.
6. Press the START button to initiate automatic stepping of the output current. The "RUN" symbol will light up on the display screen to indicate that the stepping process has begun.
7. To stop the automatic stepping of output current, press the START button again. The "RUN" symbol will go out, indicating the stepping process has ended.
buttons to set the required step time (from 1 to
Automatic Sawtooth Wave Output Mode for Output Current
1. In the current output function state, press the button to switch to the automatic sawtooth wave mode of DC current. The corresponding symbol will light up on the display screen.
2. Press the CONFIG button to enter the parameter setting interface for the sawtooth wave mode.
continued...continued...
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
13
Page 14
3. The character "START" will appear in the lower-right corner, indicating the start-point current setting.
4. Use the buttons to set the required start-point current.
5. Press the ZERO button to save the settings and proceed to the next setting item.
6. The character "STOP" will now appear, indicating the endpoint current setting.
7. Use the buttons to set the required endpoint current.
8. Press the ZERO button to save the settings and proceed to the next setting item.
9. The character "CYC" will appear, indicating the period setting.
10. Use the buttons to set the period (5-200 seconds).
11. Press the ZERO button to save the settings.
12. Press the START button to initiate the automatic sawtooth wave output current. The "RUN" symbol will light up on the display screen.
13. To stop the automatic sawtooth wave output, press the START button again. The "RUN" symbol will go out, indicating the process has ended.
Automatic Triangular Wave Output Mode for Output Current
1. In the current output function state, press the button to switch to the automatic triangular wave mode of DC current. The corresponding symbol will light up on the display screen.
2. Press the CONFIG button to enter the parameter setting interface for the triangular wave mode.
3. The character "START" will appear in the lower-right corner, indicating the start-point current setting.
4. Use the buttons to set the required start-point current.
5. Press the ZERO button to save the settings and proceed to the next setting item.
6. The character "STOP" will now appear, indicating the endpoint current setting.
7. Use the buttons to set the required endpoint current.
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
14
Page 15
8. Press the ZERO button to save the settings and proceed to the next setting item.
9. The character "CYC" will appear, indicating the period setting.
10. Use the buttons to set the period (5-200 seconds).
11. Press the ZERO button to save the settings.
12. Press the CONFIG button to exit the settings interface.
13. Press the START button to initiate the automatic triangular wave output current. The "RUN" symbol will light up on the display screen.
14. To stop the automatic triangular wave output, press the START button again. The "RUN" symbol will go out, indicating the process has ended.

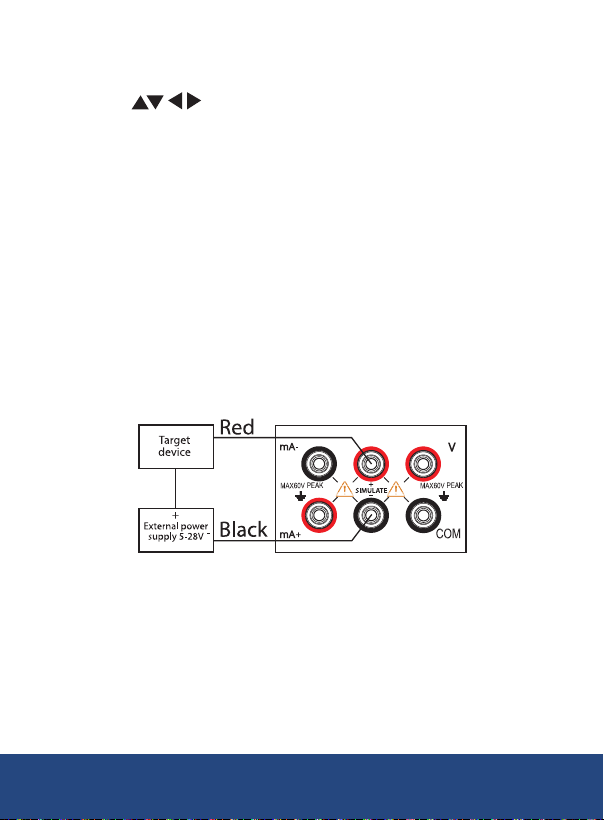

Output DC Current (Passive)

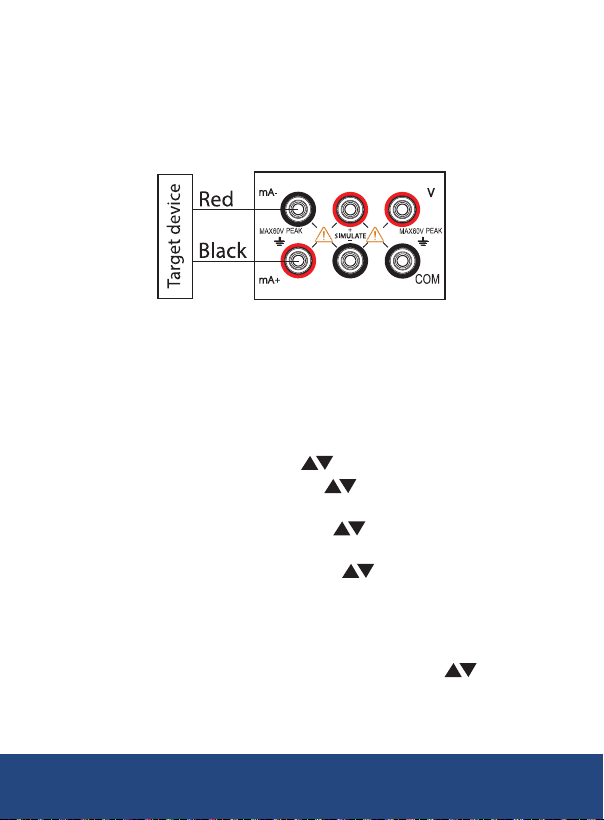

1. Connect the black lead to the SIMULATE - terminal.
2. Connect the red lead to the SIMULATE + terminal.
3. Attach the other ends of the leads to the input terminals of the controlled device, ensuring correct polarity.
4. Press the mA button to switch to the current output function. The "mA" symbol will light up on the display screen, indicating that the passive DC current output function is now active.
5. Refer to the active DC current function instructions for further operations.
Note: The passive DC current mode requires an external 5-28V DC power supply to function.
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
15
Page 16
Factory Settings Adjustment
Follow the steps below to access and change the default calibrator settings.
Accessing the Settings
1. Press and hold the Backlight button.
2. While holding the Backlight button, press the Power button to turn on the instrument.
3. Once the settings interface appears, release the Backlight button.
Enabling/Disabling Auto Power OFF
1. Upon entering the settings interface, "APOF" will appear on the display, indicating the automatic shutdown setting.
2. Use the buttons to adjust the automatic shutdown time between 0 and 60 minutes. A setting of 0 disables the automatic shutdown; other values represent the time in minutes after which the instrument will shut down.
3. Press the ZERO button to conrm selection. The display will show "SAVE," conrming that the new setting has been saved.
Note: You can turn the meter OFF and then back ON at any time to resume normal operation.
Setting Backlight Time
1. Press the V button until "BLOF" appears on the display, indicating the backlight time setting.
2. Use the buttons to adjust the backlight time setting between 0 and 3600 seconds. A setting of 0 disables the automatic backlight shutdown; other values represent the time in seconds after which the backlight will turn off.
3. Press the ZERO button to conrm selection. The display will show "SAVE," conrming that the new setting has been saved.
Note: You can turn the meter OFF and then back ON at any time to resume normal operation.
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
16
Page 17
Setting Flashlight Time
1. Press the V button until "LTOF" appears on the display, indicating the ashlight time setting.
2. Use the buttons to set the desired ashlight time settings between 0-30 minutes. A setting of 0 disables the automatic ashlight shutdown; other values represent the time in minutes after which the ashlight will turn off.
3. Press the ZERO button to conrm selection. The display will show "SAVE," conrming that the new setting has been saved.
Note: You can turn the meter OFF and then back ON at any time to resume normal operation.
Enabling/Disabling the Beeper Sound
1. Press the V button until "BEEP" appears on the display, indicating the buzzer setting.
2. Use the buttons to toggle between ON (Enabled) or OFF (Disabled).
3. Press the ZERO button to conrm selection. The display will show "SAVE," conrming that the new setting has been saved.
Note: You can turn the meter OFF and then back ON at any time to resume normal operation.
Selecting the Temperature Unit of Measure
1. Press the V button until "TEPU" appears on the display, indicating the temperature unit setting.
2. Use the buttons to select between °C and °F.
3. Press the ZERO button to conrm selection. The display will show "SAVE," conrming that the new setting has been saved.
Note: You can turn the meter OFF and then back ON at any time to resume normal operation.
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
17
Page 18
Factory Reset
1. Press the V button until the display shows "FACT" to enter the factory default settings.
Factory Default Settings:
APOF(AutoPowerO):5minutes
BLOF(BacklightO):60seconds
LTOF(LightTimeout):5minutes
BEEP: ON
TEPU(TemperatureUnit):°C
2. Use the
Note: NO: The settings will remain as they are and will not be restored to
factory defaults. YES: All settings will be restored to factory default settings.
3. Press the ZERO button to conrm selection.
Note: You can turn the meter OFF and then back ON at any time to resume normal operation.
buttons to select between YES and NO.
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
18
Page 19
Battery Replacement
Warning: To prevent electric shock, always remove the test leads from the calibrator before opening the battery compartment. Ensure the battery door is securely closed before using the calibrator.

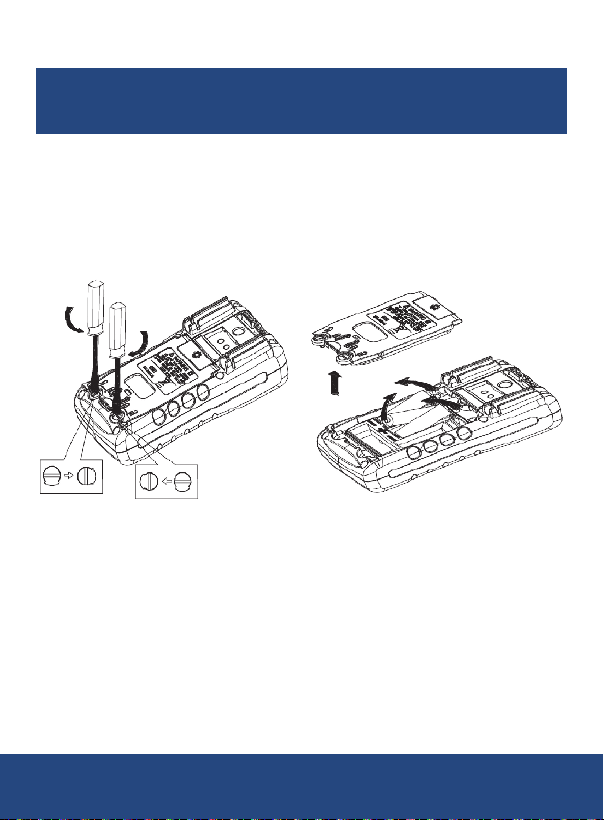

1. Turn off the calibrator and remove the test leads.
2. Use a athead screwdriver to turn the battery door screws a quarter turn counterclockwise and remove the door.
3. Replace the 3 x AA batteries in the battery compartment.
4. Close the battery door and securely tighten the screws.
Applications
• Testing and calibrating meters, data loggers, and process controllers
• Simulating sensor outputs for troubleshooting and diagnostics
• Conguringandverifyingindustrialcontrolsystems
• Providing precise voltage/current signals for automation testing
• Validating performance of power supplies and electrical circuits
• Ensuring accuracy in instrumentation used in HVAC, energy, and utilities
• Conducting educational and training demonstrations in electronics and
electrical engineering
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
19
Page 20
Accessories and Replacement Parts
CA-05A Soft Carrying Case R9940 Hard Shell Carrying Case R1000 Safety Test Lead Set R1020 Fused Test Lead Set R5900 Magnetic Meter Strap
Don't see your part listed here? For a complete list of all accessories and replacement parts visit your product page on www.REEDInstruments.com.
Product Care
To keep your instrument in good working order we recommend the following:
• Store your product in a clean, dry place.
• Change the battery as needed.
• If your instrument isn't being used for a period of one month or longer
please remove the battery.
• Clean your product and accessories with biodegradable cleaner. Do not
spray the cleaner directly on the instrument. Use on external parts only.
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
20
Page 21
Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. In order to begin the warranty service process, please contact us by phone at 1-877-849-2127 or by email at [email protected] to discuss the claim and determine the appropriate steps to process the warranty.
Product Disposal and Recycling
Please follow local laws and regulations when disposing or recycling your instrument. Your product contains electronic components and must be disposed of separately from standard waste products.
Product Support
If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at [email protected].
Please visit www.REEDInstruments.com for the most
up-to-date manuals, datasheets, product guides and software.
Product specifications subject to change without notice. All rights reserved. Any unauthorized copying or reproduction of this manual is strictly prohibited without prior written permission from REED Instruments.
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
21
Page 22
TEST & MEASURE
WITH CONFIDENCE
CHECK OUT OUR LATEST PRODUCTS!
www.REEDInstruments.com
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
Page 23
1-877-849-2127 | [email protected] | www.reedinstruments.com
REED Instruments
Loading...
