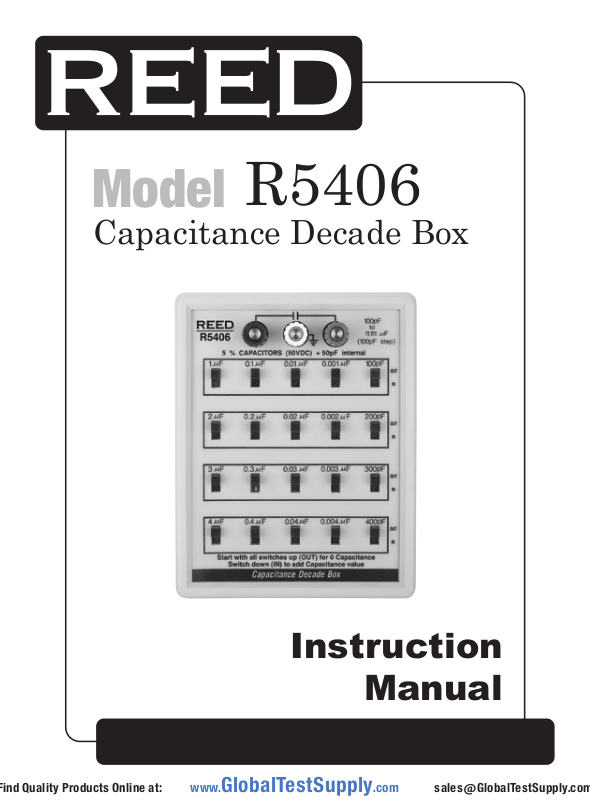

Model
Instruction
Manual
INSTRUMENTS
R5406
Capacitance Decade Box
www.GlobalTestSupply.com
INSTRUMENTS
Table of Contents
Features .......................................................................................................2
Applications .................................................................................................2
Specications ..............................................................................................3
Product Description ....................................................................................3
Operating Instructions .................................................................................4
Features
• Pocket size, accurate, reliable performance
• 100 pF to 11.111 uF, wide range and high resolution (100 pF per step)
• With ve decades of capacitance
• Slide switches that allow the user to simply add or subtract
for desired value
• Terminals with multi binding posts, one to switch shield case
• ABS plastic housing, rugged components
Applications
Troubleshooting, Maintenance, Education and Vocational training,
Production line testing, Radio and TV services, Working standards,
Research design & development and Physics laboratory work.
2
www.GlobalTestSupply.com
INSTRUMENTS
Specifications
Range 100 pF to 11.111 uF ( 100 pF per step )
Accuracy 5% capacitors used throughout;
@ < 1 uF, 1 KHz test frequency;
@ >= 1 uF, 100 Hz test frequency
Voltage 50 V DC, non-polarized capacitors
Internal Residual
Capacitance About 50 pF
Operating Temperature 0 to 50 degree C (32 to 122 degree F)
Operating Humidity Less than 80% RH
Weight 11oz (312g)
Dimension 5.79 x 4.61 x 2.01” (147 x 117 x 510mm)
Product Description
1. Range Select Switch
2. Capacitance Output Terminal
3. Ground Terminal
2
3
1
3
www.GlobalTestSupply.com
INSTRUMENTS
Operating Instructions
Testing Procedure
1. Start with all switches upward for minimum capacitance.
2. Turn the switches down to add capacitance.
3. The ground terminal is connected to the metal enclosure for all
of the switches. In some circumstances the ground terminal can
be connected to external equipment to prevent environment
interference.
Note: Do not add more then 50 V DC to the output capacitor
terminals.
For service on this or any other REED product or information on other
REED products, contact REED Instruments at info@reedinstruments.com.
