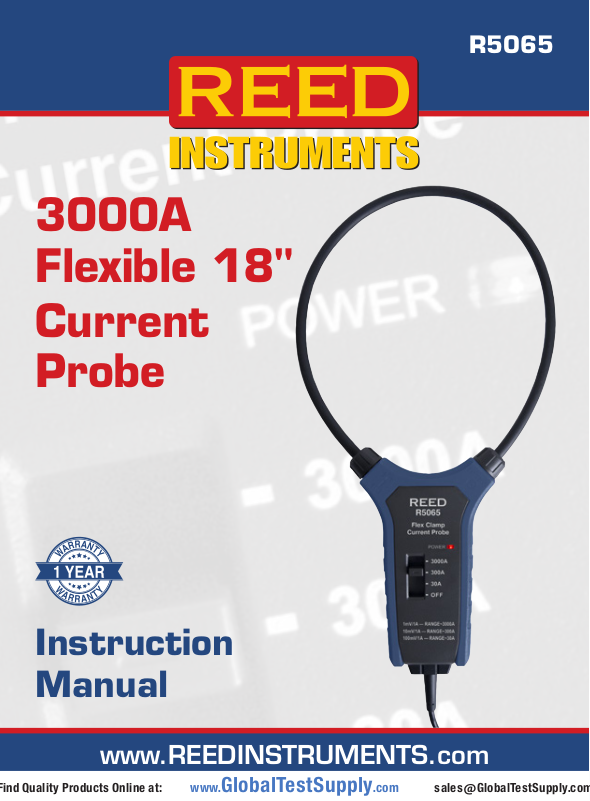

REED Instruments R5065 User manual

3000A Flexible 18"
Current Probe
Instruction Manual
www.REEDINSTRUMENTS.com
www.GlobalTestSupply.com
Table of Contents
Intoduction ................................................................................................. 3
Product Quality ........................................................................................... 3
Safety .........................................................................................................3-4
Electrical Symbols ...................................................................................... 4
Features ...................................................................................................... 4
Included ...................................................................................................... 5
Specications ............................................................................................. 5
Instrument Description ............................................................................... 6
Operating Instructions ............................................................................. 7-8
AC Current Measurement ................................................................... 7-8
Battery Replacement .................................................................................. 9
Applications ................................................................................................ 9
Accessories and Replacement Parts ......................................................... 9
Product Care .............................................................................................. 9
Product Warranty ..................................................................................... 10
Product Disposal and Recycling .............................................................. 10
Product Support ....................................................................................... 10
www.REEDINSTRUMENTS.com
www.GlobalTestSupply.com
2
Introduction
Thank you for purchasing your REED R5065 3000A Flexible 18" Current Probe. Please read the following instructions carefully before using your instrument. By following the steps outlined in this manual your meter will provide years of reliable service.
Product Quality
This product has been manufactured in an ISO9001 facility and has been calibrated during the manufacturing process to meet stated product specications. If a certicate of calibration is required please contact the nearest authorized REED distributor or authorized Service Center. Please note an additional fee for this service will apply.
Safety
• Read and understand this user manual before operating the meter.
• Never attempt to repair or modify your instrument. Dismantling your product, other than for the purpose of replacing batteries, may cause damage that will not be covered under the manufacturer’s warranty. Servicing should only be provided by an authorized service center.
• Improper use of this product can cause damage, shock, injury or death.
• Do not use the product if the rear cover or the battery cover is not properly secured into place.
• Do not touch bare cables, connectors, unoccupied input terminals or circuits being measured.
• Before measuring, the switch should be set to the correct range position. Do not switch positions while measuring.
• Do not use the device to measure current higher than the specied range. If the current value being measured is unknown, select the 3000A position and reduce accordingly.
• Do not use the clamp on any conductor with voltages higher than 1000V DC or 750V AC.
www.REEDINSTRUMENTS.com
www.GlobalTestSupply.com
continued...
3
• Remove the battery if the meter will be stored for an extended period of time.
• To avoid inaccurate readings, replace the battery if the "POWER" indicator light ashes.
Electrical Symbols
Symbol Description
Equipment protected throughout by double insulation or reinforced insulation
Earth (ground) Warming or Caution Alternating current Battery Caution, possibility of electric shock Complies with European Union Standards Conforms to UL STD 61010-1, 61010-2-032, 61010-031,
Certied to CSA STD C22.2 No. 61010-1, 61010-2-032, 61010-2-031
CAT IV
It is applicable to test and measuring circuits connected at the source of the building’s low-voltage mains instalation
Features
• Expands clamp meter measurement range to 3000A AC
• Flexible current probe provides access to large conductors in tight spaces
• Ergonomic design ts in your hand and can be used while wearing protective gloves
• Durable double molded plastic housing
• Cat. IV 600V safety rating
www.REEDINSTRUMENTS.com
www.GlobalTestSupply.com
4
Included
• BNC Adapter
• Batteries
The included BNC adapter can be used to connect the flexible
current sensor to read out on an oscilloscope. To avoid false
readings, do not use low input impedance settings when using
oscilloscopes as readouts.
Specifications
AC/DC Current
Range: 30, 300, 3000A Accuracy: AC: ±(3% rdg. +5 dgt.) Resolution: 0.1, 1, 10A
General Specifications
Power Supply: 3 x AAA batteries Low Battery Indicator: Yes Jaw Opening: 18" (457.2mm) Cable Length: 39" (991mm) Overvoltage Category: CAT. IV 600V Product Certications: CE, ETL Operating Temperature: 32 to 122°F (0 to 50°C) Storage Temperature: -4 to 140°F (-20 to 60°C) Dimensions: 10.5x 4.7 x 1.3" (267 x 119.4 x 34 mm) Weight: 9.2oz (260g)
www.REEDINSTRUMENTS.com
www.GlobalTestSupply.com
5
Instrument Description
R5065
Flex Clamp
Current Probe
1. Flexible Rogowski Coil
2. Flexible Clamp Lock
3. Fixed Clamp Nut
www.GlobalTestSupply.com
4. Power Status Indicator
5. OFF/Current Selector Switch
www.REEDINSTRUMENTS.com
6
Operating Instructions
AC Current Measurement
1. Insert the exible current probe into the negative COM terminal and
the red test lead into the positive V terminal of the meter.
2. Unlock the probe's exible tubing as shown below to wrap it around
the conductor under test.
NOTE: Make sure to close and lock it back into place before turning on the device under test.
R5065
Flex Clamp
Current Probe
3. Keep the probe coupling more than 1" (2.5cm) away from the conductor.
NOTE: For optimal accuracy, center the conductor in the exible current probe. If possible, avoid taking measurements close to other current-carrying conductors.
continued...
www.REEDINSTRUMENTS.com
www.GlobalTestSupply.com
7
R5065
Flex Clamp
Current Probe
4. Turn on the exible probe by setting it to the required current range.
5. Set the rotary function switch of the meter to the DC current position.
6. Turn on the conductor/device under test.
7. The LCD will display the reading.
www.REEDINSTRUMENTS.com
www.GlobalTestSupply.com
8
Battery Replacement
1. Remove the Phillips screw on the back of the meter.
2. Open the battery compartment.
3. Replace the 3x AAA batteries.
4. Properly secure the cover and tighten the screw.
Applications
• Industrial maintenance teams performing scheduled and preventative maintenance on electro-mechanical equipment and systems.
• Facilities, building maintenance and electricians looking to troubleshoot electrical equipment installation problems.
Accessories and Replacement Parts
CA-52A Small Soft Carrying Case
Don't see your part listed here? For a complete list of all accessories and replacement parts visit your product page on www.reedinstruments.com.
Product Care
To keep your instrument in good working order we recommend the following:
• Store your product in a clean, dry place.
• Change the battery as needed.
• If your instrument isn't being used for a period of one month or longer please remove the battery.
• Clean your product and accessories with biodegradable cleaner. Do not spray the cleaner directly on the instrument. Use on external parts only.
www.REEDINSTRUMENTS.com
www.GlobalTestSupply.com
9
Product Warranty
REED Instruments guarantees this instrument to be free of defects in material or workmanship for a period of one (1) year from date of shipment. During the warranty period, REED Instruments will repair or replace, at no charge, products or parts of a product that proves to be defective because of improper material or workmanship, under normal use and maintenance. REED Instruments total liability is limited to repair or replacement of the product. REED Instruments shall not be liable for damages to goods, property, or persons due to improper use or through attempts to utilize the instrument under conditions which exceed the designed capabilities. In order to begin the warranty service process, please contact us by email at 1-877-849-2127 or info@reedinstruments.com to discuss the claim and determine the appropriate steps to process the warranty.
Product Disposal and Recycling
Please follow local laws and regulations when disposing or recycling your instrument. Your product contains electronic components and must be disposed of separately from standard waste products.
Product Support
If you have any questions on your product, please contact your authorized REED distributor or REED Instruments Customer Service by phone at 1-877-849-2127 or by email at info@reedinstruments.com.
Please visit www.REEDINSTRUMENTS.com for the most
up-to-date manuals, datasheets, product guides and software.
Product specifications subject to change without notice. All rights reserved. Any unauthorized copying or reproduction of this manual is strictly prohibited without prior written permission from REED Instruments.
www.REEDINSTRUMENTS.com
www.GlobalTestSupply.com
10
