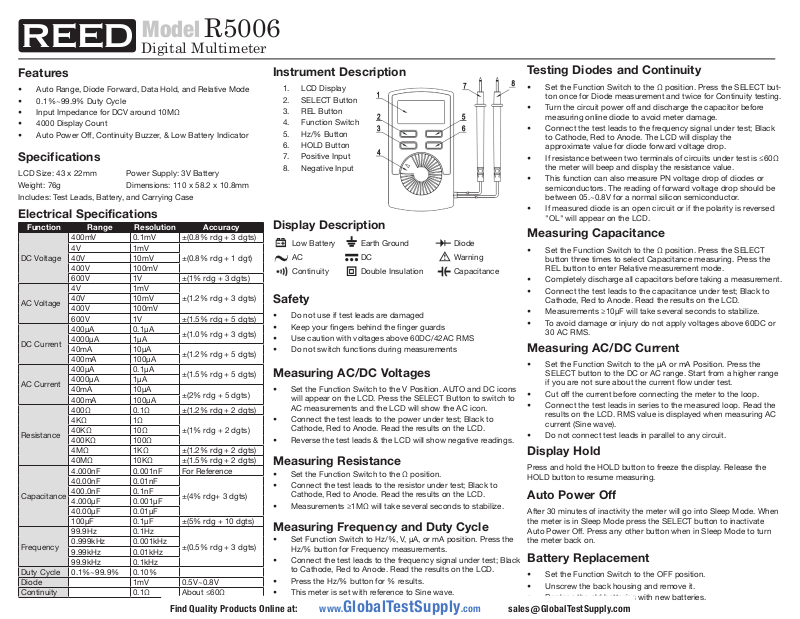

R5006
Digital Multimeter
Features
• Auto Range, Diode Forward, Data Hold, and Relative Mode
• 0.1%~99.9% Duty Cycle
• Input Impedance for DCV around 10MΩ
• 4000 Display Count
• Auto Power Off, Continuity Buzzer, & Low Battery Indicator
Specifications
LCD Size: 43 x 22mm Power Supply: 3V Battery
Weight: 76g Dimensions: 110 x 58.2 x 10.8mm
Includes: Test Leads, Battery, and Carrying Case
Electrical Specifications
Function Range Resolution Accuracy
400mV 0.1mV ±(0.8% rdg + 3 dgts)
4V 1mV
DC Voltage
400V 100mV
600V 1V ±(1% rdg + 3 dgts)
4V 1mV
AC Voltage
DC Current
AC Current
Resistance
Capacitance
Frequency
Duty Cycle 0.1%~99.9% 0.10%
Diode 1mV 0.5V~0.8V
Continuity 0.1Ω About ≤60Ω
400V 100mV
600V 1V ±(1.5% rdg + 5 dgts)
400µA 0.1µA
4000µA 1µA
40mA 10µA
400mA 100µA
400µA 0.1µA
4000µA 1µA
40mA 10µA
400mA 100µA
400Ω 0.1Ω ±(1.2% rdg + 2 dgts)
4KΩ 1Ω
400KΩ 100Ω
4MΩ 1KΩ ±(1.2% rdg + 2 dgts)
40MΩ 10KΩ ±(1.5% rdg + 2 dgts)
4.000nF 0.001nF For Reference
40.00nF 0.01nF
400.0nF 0.1nF
4.000µF 0.001µF
40.00µF 0.01µF
100µF 0.1µF ±(5% rdg + 10 dgts)
99.9Hz 0.1Hz
0.999kHz 0.001kHz
9.99kHz 0.01kHz
99.9kHz 0.1kHz
±(0.8% rdg + 1 dgt)40V 10mV
±(1.2% rdg + 3 dgts)40V 10mV
±(1.0% rdg + 3 dgts)
±(1.2% rdg + 5 dgts)
±(1.5% rdg + 5 dgts)
±(2% rdg + 5 dgts)
±(1% rdg + 2 dgts)40KΩ 10Ω
±(4% rdg+ 3 dgts)
±(0.5% rdg + 3 dgts)
Find Quality Products Online at: sales@GlobalTestSupply.com
Instrument Description
1. LCD Display
2. SELECT Button
3. REL Button
4. Function Switch
5. Hz/% Button
6. HOLD Button
7. Positive Input
8. Negative Input
Display Description
Low Battery Earth Ground Diode
AC DC Warning
Continuity Double Insulation Capacitance
Safety
• Do not use if test leads are damaged
• Keep your ngers behind the nger guards
• Use caution with voltages above 60DC/42AC RMS
• Do not switch functions during measurements
Measuring AC/DC Voltages
• Set the Function Switch to the V Position. AUTO and DC icons
will appear on the LCD. Press the SELECT Button to switch to
AC measurements and the LCD will show the AC icon.
• Connect the test leads to the power under test; Black to
Cathode, Red to Anode. Read the results on the LCD.
• Reverse the test leads & the LCD will show negative readings.
Measuring Resistance
• Set the Function Switch to the Ω position.
• Connect the test leads to the resistor under test; Black to
Cathode, Red to Anode. Read the results on the LCD.
• Measurements ≥1MΩ will take several seconds to stabilize.
Measuring Frequency and Duty Cycle
• Set Function Switch to Hz/%, V, µA, or mA position. Press the
Hz/% button for Frequency measurements.
• Connect the test leads to the frequency signal under test; Black
to Cathode, Red to Anode. Read the results on the LCD.
• Press the Hz/% button for % results.
• This meter is set with reference to Sine wave.
www.GlobalTestSupply.com
Testing Diodes and Continuity
• Set the Function Switch to the Ω position. Press the SELECT button once for Diode measurement and twice for Continuity testing.
• Turn the circuit power off and discharge the capacitor before
measuring online diode to avoid meter damage.
• Connect the test leads to the frequency signal under test; Black
to Cathode, Red to Anode. The LCD will display the
approximate value for diode forward voltage drop.
• If resistance between two terminals of circuits under test is ≤60Ω
the meter will beep and display the resistance value.
• This function can also measure PN voltage drop of diodes or
semiconductors. The reading of forward voltage drop should be
between 05.~0.8V for a normal silicon semiconductor.
• If measured diode is an open circuit or if the polarity is reversed
"OL" will appear on the LCD.
Measuring Capacitance
• Set the Function Switch to the Ω position. Press the SELECT
button three times to select Capacitance measuring. Press the
REL button to enter Relative measurement mode.
• Completely discharge all capacitors before taking a measurement.
• Connect the test leads to the capacitance under test; Black to
Cathode, Red to Anode. Read the results on the LCD.
• Measurements ≥10µF will take several seconds to stabilize.
• To avoid damage or injury do not apply voltages above 60DC or
30 AC RMS.
Measuring AC/DC Current
• Set the Function Switch to the µA or mA Position. Press the
SELECT button to the DC or AC range. Start from a higher range
if you are not sure about the current ow under test.
• Cut off the current before connecting the meter to the loop.
• Connect the test leads in series to the measured loop. Read the
results on the LCD. RMS value is displayed when measuring AC
current (Sine wave).
• Do not connect test leads in parallel to any circuit.
Display Hold
Press and hold the HOLD button to freeze the display. Release the
HOLD button to resume measuring.
Auto Power Off
After 30 minutes of inactivity the meter will go into Sleep Mode. When
the meter is in Sleep Mode press the SELECT button to inactivate
Auto Power Off. Press any other button when in Sleep Mode to turn
the meter back on.
Battery Replacement
• Set the Function Switch to the OFF position.
• Unscrew the back housing and remove it.
• Replace the old batteries with new batteries.
Loading...
