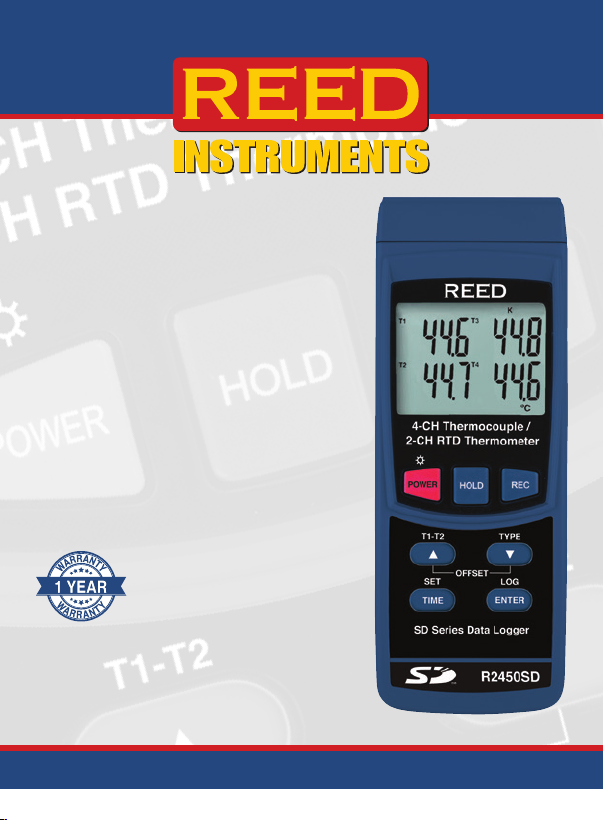

REED Instruments R2450SD-KIT6, R2450SD-KIT3, R2450SD-KIT, R2450SD-KIT4, R2450SD-KIT2 User manual

Data Logging
Thermometer

R2450SD

Instruction
Manual

www.GlobalTestSupply.com

Table of Contents

Introduction ................................................................................................ 3

Product Quality ........................................................................................... 4

Safety ......................................................................................................... 4

Features ..................................................................................................... 4

Included ..................................................................................................... 4

General Specications ............................................................................... 5

Range Specication ................................................................................... 6

Accuracy Specications .......................................................................... 6-7

Instrument Description ............................................................................... 8

Display Description .................................................................................... 9

Operating Instructions ........................................................................ 10-12

Power ON/OFF ................................................................................... 10

Temperature Modes ........................................................................... 10

Thermocouple Measurement Mode ................................................... 10

RTD (Pt100 Ohm) Measurement Mode .............................................. 10

Measuring the Difference Between Two Measurements (T1-T2) ....... 11

Data Hold ........................................................................................... 11

Recording Maximum and Minimum Readings ..............................11-12

Backlight ............................................................................................ 12

Setup Mode ........................................................................................ 12-15

Setting the Time and Date (dAtE) ....................................................... 13

Setting the Data Logging Sampling Rate (SP-t) ................................. 13

Enabling/Disabling Auto Power Off (PoFF) ........................................ 13

Enabling/Disabling the Beeper (bEEP) ............................................... 14

Setting Data Decimal Format (dEC) ................................................... 14

Formatting the SD Card (Sd F) .......................................................... 14

continued...

www.GlobalTestSupply.com

2

Selecting the Temperature Unit of Measure (t-CF) ............................ 14

Verify Set Time, Date and Sampling Rate .......................................... 15

Data Logging ....................................................................................... 15-17

Data Recording Modes ...................................................................... 15

Manual Data Logging Mode ............................................................... 15

Automatic Data Logging .................................................................... 16

Transferring Data from the SD Memory Card to a Computer ........ 16-17

Thermocouple Probe Offset Adjustment ................................................. 17

RTD Probe Offset Adjustment .................................................................. 18

Data Stream Output ................................................................................. 19

3.5mm Terminal to RS-232 Serial Connection ................................... 19

Battery Replacement ............................................................................... 20

Applications ............................................................................................. 20

Accessories and Replacement Parts ..................................................20-21

FAQ's ....................................................................................................... 21

Product Care ............................................................................................ 21

Product Warranty ..................................................................................... 22

Product Disposal and Recycling .............................................................. 22

Product Support ...................................................................................... 22

Introduction

Thank you for purchasing your REED R2450SD Data Logging Thermometer.
Please read the following instructions carefully before using your instrument.
By following the steps outlined in this manual your meter will provide years
of reliable service.

www.GlobalTestSupply.com

3

Product Quality

This product has been manufactured in an ISO9001 facility and has been
calibrated during the manufacturing process to meet the stated product
specications. If a certicate of calibration is required please contact the
nearest authorized REED distributor or authorized Service Center. Please
note an additional fee for this service will apply.

Safety

Never attempt to repair or modify your instrument. Dismantling your
product, other than for the purpose of replacing batteries, may cause
damage that will not be covered under the manufacturer's warranty.
Servicing should only be provided by an authorized service center.

Features

• Displays up to 4 separate measurements simultaneously

• Accepts Type K, J, R, S, E, T thermocouples and RTD probes

• Temperature differential (T1-T2), Max/Min and Data hold functions

• User selectable °C, °F

• Real-time data logger with integrated SD memory card

• User selectable sampling rate from 1 to 3600 seconds

• Easy-to-read backlit LCD display

• Tripod mount for long-term monitoring

• Low battery indicator and auto shut off

Included

• Beaded Wire Probe

• Soft Carrying Case

• Batteries

www.GlobalTestSupply.com

4

General Specifications

Resolution: 0.1 or 1°F/°C
Type: 4-Channel Thermocouple,

2-Channel RTD
Response Time: 1x/second
Display: Quad Display, LCD
Backlit Display: Yes
Data Hold: Yes
Min: Yes
Max: Yes
Differential Measurement (T1-T2): Yes
Datalogging Capabilities: Yes
Real-Time Clock and Date Stamp: Yes
Selectable Sampling Rate: Yes (1, 2, 5, 10, 30, 60, 120, 300,

600, 1800, 3600 seconds)
External Memory: Yes, expandable up to 16GB with

SD card (optional)
Auto Shut-off: Yes (after 10 minutes/off)
Kick Stand: Yes
Tripod Mountable: Yes
Low Battery Indicator: Yes
Power Supply: 6 x AA Batteries or

AC Adapter (optional)
Data Output: Yes (RS-232)
Product Certications: CE
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: 14 to 140°F (-10 to 60°C)
Operating Humidity Range: Less than 85% RH
Dimensions: 7.0 x 2.7 x 1.8" (177 x 68 x 45mm)
Weight: 0.6lbs (268g)

www.GlobalTestSupply.com

5

Range Specifications

Thermocouple Range Resolution

Type K

Type J

Type T

Type E

Type R
Type S

RTD Range Resolution

Pt100 Ohm

Note: RTD Pt100 Ohm is an optional accessory (R2450SD-RTD)

-148 to 2372°F

(-100 to 1300°C)

-148 to 2102°F

(-100 to 1150°C)

-148 to 752°F

(-100 to 400°C)

-148 to 1652°F

(-100 to 900°C)
32 to 3092°F (0 to 1700°C)
32 to 2732°F (0 to 1500°C)

-327.9 to 1562°F
(-199.9 to 850°C)

0.1°F (0.1°C)

1°F (1°C) ≥ 1000°

0.1°F (0.1°C)

1°F (1°C) ≥ 1000°

0.1°F (0.1°C)

0.1°F (0.1°C)
1°F ≥ 1000°

1°F (1°C)
1°F (1°C)

0.1°F (0.1°C)
1°F ≥ 1000°

Accuracy Specifications

Thermocouple Accuracy

-148.0 to -58.1°F, ± (0.4% + 1.8°F)

-58.0 to 999.9°F, ± (0.4% + 1°F)

Type K

1000 to 2372°F, ± (0.4% + 2°F)

-100.0 to -50.1°C, ± (0.4% + 1°C)

-50.0 to 999.9°C, ± (0.4% + 0.5°C)
1000 to 1300°C, ± (0.4% + 1°C)

www.GlobalTestSupply.com

continued...

6

Thermocouple Accuracy

-148.0 to -58.1°F, ±(0.4% + 1.8°F)

-58.0 to 999.9°F, ± (0.4% + 1°F)

Type J

1000 to 2102°F, ± (0.4% + 2°F)

-100.0 to -50.1°C, ± (0.4% + 1°C)

-50.0 to 999.9°C, ± (0.4% + 0.5°C)
1000 to 1150°C, ± (0.4% + 1°C)

-148.0 to -58.1°F, ± (0.4% + 1.8°F)

Type T

-58.0 to 752.0°F, ± (0.4% + 1°F)

-100.0 to -50.1°C, ± (0.4% + 1°C)

-50.0 to 400.0°C, ± (0.4% + 0.5°C)

-148.0 to -58.1°F, ± (0.4% + 1.8°F)

-58.0 to 999.9°F, ± (0.4% + 1°F)

Type E

1000 to 1652°F, ± (0.4% + 2°F)

-100.0 to -50.1°C, ± (0.4% + 1°C)

-50.0 to 900.0°C, ± (0.4% + 0.5°C)

Type R

Type S

32 to 3092°F, ± (0.5% + 5°F)
0 to 1700°C, ± (0.5% + 3°C)

32 to 2732°F, ± (0.5% + 5°F)
0 to 1500°C, ± (0.5% + 3°C)

RTD Range

-327.0 to 999.9°F, ± (0.4% + 1.8°F)

Pt100 Ohm

1000 to 1562°F, ± (0.4% + 2°F)

-199.9 to 850.0°C, ± (0.4% + 1°C)

Note: Stated Thermocouple RTD accuracy values are specic to the
meter. The accuracy of the input probe should be considered when
calculating overall accuracy.

www.GlobalTestSupply.com

7

Instrument Description

4

4-CH Thermocouple/

2

3

2-CH RTD Thermometer

POWER HOLD REC

TYPE

T1-T2

OFFSET

SET LOG

TIME ENTER

SD Series Datalogger

R2450SD

5

6

7

8

9

1. POWER/Backlight Button

2. Up/T1-T2 Button

3. TIME/SET Button

4. LCD Display

5. HOLD Button

6. REC Button

7. Down/TYPE Button

8. ENTER/LOG Button

9. Thermocouple Input Jacks
(T1-T4)

www.GlobalTestSupply.com

14

15

16

10

11

12

13

17

10. PT1 (RTD) Input Jack

11. PT2 (RTD) Input Jack

12. RS-232 Output Jack

13. Power Adapter Input

14. Tripod Mounting Screw

15. Battery Cover

16. Kickstand

17. SD Card Slot

8

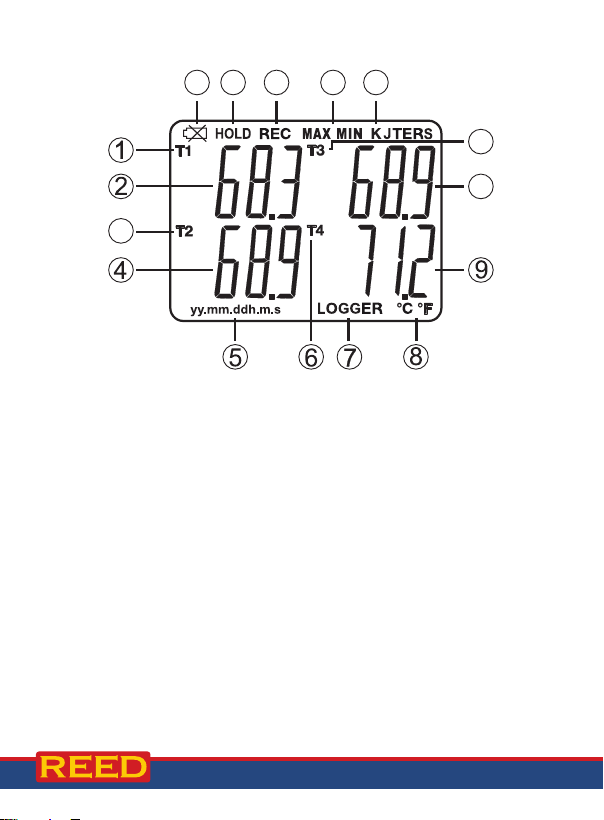

Display Description

1213141516

11

10

3

1. T1 (Channel 1) Thermocouple Input or PT1 RTD Input Indicator
Temperature Measurement for T1 Thermocouple or PT1 RTD Channel

2.

3. T2 (Channel 2) Thermocouple Input or PT2 RTD Input Indicator
Temperature Measurement for T2 Thermocouple or PT2 RTD Channel

4.

5. Date/Time Stamp

6. T4 (Channel 4) Thermocouple Input Indicator

7. Data Logging Status Indicator

8. Temperature Unit of Measure

9. Temperature Measurement for T4 Thermocouple Channel

10. Temperature Measurement for T3 Thermocouple Channel

11. T3 (Channel 3) Thermocouple Input

12. Thermocouple Input Type

13. Maximum and Minimum Indicator

14. Record Mode Indicator

15. Data Hold Indicator

16. Low Battery Indicator

www.GlobalTestSupply.com

9

Operating Instructions

Power ON/OFF

1. To turn the meter on or off press and hold the POWER button for
2 seconds.

Note: This meter can be powered by either 6 x "AA" batteries or an AC
adapter (sold separately).

Temperature Modes

This meter offers a thermocouple mode (thermocouple Types K, J, T, E, R,
or S) and a RTD mode (platinum 100 ohm).

Thermocouple Measurement Mode

1. Connect up to four (4) thermocouples to the input jacks located at
the top of the meter, identied as T1 through T4.

2. Once one or more thermocouples are connected press and hold the
TYPE button to scroll through the thermocouple types (K/J/T/E/R/S).
Continue to hold the TYPE button until the desired type appears on
the LCD and release to conrm selection.

3. The LCD will display the temperature values for the channels in use.
If an input jack is not in use or the measurement is out of temperature
range, the screen will display "- - - - -".

RTD (Pt100 Ohm) Measurement Mode

1. Connect up to two (2) RTD probes (R2450SD-RTD) to the RTD input
jacks labeled PT1 & PT2.

2. Once one or two RTD probes are connected press and hold the
TYPE button to scroll through the temperature sensor types until "Pt"
is displayed on the LCD. Release the TYPE button to conrm
the selection.

3. The LCD will display the temperature values for the channels in use.
If an input jack is not in use or the measurement is out of
temperature range, the screen will display "- - - - -".

www.GlobalTestSupply.com

continued...

10

Measuring the Difference Between Two Measurements (T1-T2)

T1

T

1. Insert either two thermocouple probes in the T1 & T2 input jacks, or
two RTD (Pt100 Ohm) probes in the PT1 & PT2 input jacks.

2. To view the temperature difference between the two thermocouple
probes (T1-T2) or two RTD (PT100 Ohm) probes (PT1 & PT2), hold
the "T1-T2" button for 2 seconds and release.

T1 °C

26.2

T2

°C

2

26.6

1-2

-0.4

°C

°C

T1-T2
Temperature

dierence value

3. To resume normal operation, press and hold the "T1-T2" button for
2 seconds.

Data Hold

1. While taking a measurement, press the HOLD button to freeze the
current measurement(s) on the display.

2. While in this mode a "HOLD" symbol will appear on the display.

3. Press the button again to resume normal operation.

Note: When the Data Hold feature is active all buttons except the POWER
button are disabled.

Recording Maximum and Minimum Readings

1. Press the REC button to enter recording mode as indicated by
"REC" on the LCD. The meter will now begin recording maximum
and minimum readings.

2. While in recording mode;
A) Press the REC button once and the maximum value will appear

on the display as indicated by "REC MAX".

www.GlobalTestSupply.com

continued...

11

B) Press the REC button again and the minimum value will appear

on the display as indicated by "REC MIN".

C) To exit recording mode and resume normal operation, press and

hold the REC button for two seconds.

When in recording mode the POWER button is disabled

and the meter cannot be turned off.

Backlight

After powering the meter ON, the LCD Backlight will turn on automatically.
Press the BACKLIGHT button to turn the LCD Backlight on or off.

Setup Mode

1. Press and hold the SET button for 2 seconds to enter Setup Mode.

2. Press the SET button continuously to scroll through the following
parameters.

Parameter Description

dAtE Set the time and date
SP-t Set the data logging sampling rate
PoFF Enable or disable the auto-power off function
bEEP Turn the beeper on or off
dEC Set the decimal format (USA (20.00) or European (20,00))
Sd F Format the SD memory card
t-CF Select the temperature unit of measure (°C or °F)

3. Once the appropriate parameter has been selected, follow the
instructions below.

Note: The meter will automatically exit out of the Setup mode if no key is
pressed within 7 seconds.

www.GlobalTestSupply.com

continued...

12

Setting the Time and Date (dAtE)

1. Press the ENTER button when "dAtE" appears on the LCD.

2. Press the and buttons to adjust the year as indicated by "YY".

3. Press the ENTER button to conrm selection.

4. Repeat steps 2 and 3 for month, day, hour, minute and seconds as
indicated by (mm/dd/h/m/s).

5. After each value has been selected and conrmed, the meter will
automatically skip to the next parameter.

Note: At any time, you can press the POWER button to exit the setup
mode and resume normal operation. The internal clock will keep accurate
time when the meter is powered off. When new batteries are installed the
clock will have to be reset.

Setting the Data Logging Sampling Rate (SP-t)

Follow steps 1 and 2 when "SP-t" appears on the LCD.

1. Press the
2, 5, 10, 30, 60, 120, 300, 600, 1800, and 3600 seconds.

2.

Press the

Note: At any time, you can press the POWER button to exit the setup
mode and resume normal operation.

and buttons to adjust the sampling rate between 0, 1,

ENTER

button to conrm selection and skip to next parameter.

Enabling/Disabling Auto Power Off (PoFF)

Follow steps 1 and 2 when "PoFF" appears on the LCD.

1. Press the
(disabled). With the Auto Power OFF feature enabled, the meter will
automatically switch OFF after 10 minutes of inactivity to preserve
battery life.

2.

Press the

Note: At any time, you can press the POWER button to exit the setup
mode and resume normal operation.

and buttons to select between YES (enabled) or NO

ENTER

button to conrm selection and skip to next parameter.

www.GlobalTestSupply.com

continued...

13

Enabling/Disabling the Beeper (bEEP)

Follow steps 1 and 2 when "bEEP" appears on the LCD.

1.

Press the and buttons to select between ON (enabled) or

OFF (disabled).

2.

Press the

Note: At any time, you can press the POWER button to exit the setup
mode and resume normal operation.

ENTER

button to conrm selection and skip to next parameter.

Setting Data Decimal Format (dEC)

Numeric formats vary in different countries. By default the meter is set to
USA mode where a decimal point is used to separate units, (i.e. 20.00). The
European format uses a comma (i.e. 20,00) to separate units. To change
this setting, follow steps 1 and 2 when "dEC" appears on the LCD.

1. Press the

2.

Press the

Note: At any time, you can press the POWER button to exit the setup
mode and resume normal operation.

and buttons to select between USA and Euro.

ENTER

button to conrm selection and skip to next parameter.

Formatting the SD Card (Sd F)

Follow steps 1 through 5 when "Sd F" appears on the LCD.

1. Press the
Select "NO" to abort.

2. Press the ENTER button to conrm selection.

3. Press the ENTER button again to re-conrm.

4. The meter will format the SD card while ashing "For-" and
automatically return to the Setup menu when formatting is complete.

5. Press the POWER button to exit Setup mode and resume
normal operation.

Note: It is recommended that new SD cards be formatted prior to rst
use. If the formatting process fails, the meter will display "Sd -E-".

and buttons to select "YES" to format the card.

Selecting the Temperature Unit of Measure (t-CF)

Follow steps 1 and 2 when "t-CF" appears on the LCD.

1. Press the

2. Press the ENTER button to conrm selection.

Note: At any time, you can press the POWER button to exit the setup
mode and resume normal operation.

and buttons to select between °C and °F.

continued...

14

www.GlobalTestSupply.com

Verify Set Time, Date and Sampling Rate

During normal operation press the TIME button to display the year,
month, day, hour, minute, seconds and selected sampling rate.

Data Logging

Data Recording Modes

Manual Data Logging: Press the LOG button to manually log up to 99
readings on a SD memory card (see Manual Data Logging Mode for details).

Automatic Data Logging: Setup the meter parameters in order to
automatically log data on a SD memory card. The number of data points
is limited by the size of the memory card.

Note:

It is recommended to use a class 4 SDHC memory card between 1Gb
and 16Gb. Insert the SD memory card in the slot at the bottom of the meter.
The card must be inserted with the label side facing the rear of the meter.

Manual Data Logging Mode

In manual mode, the LOG button is pressed to manually log a reading on
the inserted SD card at any time. In order to setup the meter for manual
data logging, follow steps 1 through 5 below.

1. Set the data logging sampling rate to "0" seconds (see Setting the

Data Logging Sampling Rate section for details).

2. Press and hold the LOG button for 2 seconds at which point the

lower portion of the LCD will display P-X (X = memory position
number between 1 and 99).

3. Press the and buttons to select one of the 99 data memory

positions in which to record.

4. Press the LOG button again to save a reading to memory. "LOGGER"

will ash each time a data point is stored.

5. To exit manual data logging mode, press and hold the LOG button 2

seconds to resume normal operation.

www.GlobalTestSupply.com

continued...

15

Automatic Data Logging Mode

In automatic mode the desired data logging sampling rate is set to 1, 2, 5,
10, 30, 60, 120, 300, 600, 1800 or 3600 seconds prior to recording
(see Setting the Data Logging Sampling Rate section for details). In order to
setup the meter for automatic data logging, follow steps 1 through 5 below.

1. To begin a data logging session press and hold the LOG button for

2 seconds. The meter will scan for a SD memory card. If a card is
not inserted or the card is defective, the meter will ash "Sd -E-"
indenitely. In this case, power the meter OFF and try again with
another SD memory card.

2. The Logger icon will appear on the LCD and will continuously ash

while in a data logging session.

3. To pause the data logging session press the LOG button and Logger

will stop ashing. To resume press the LOG button again.

4. To end the current data logging session press and hold the LOG

button for 2 seconds.

Transferring Data from the SD Memory Card to a Computer

1. While the meter is powered Off remove the SD memory card from the

SD card slot.

2. Insert the SD memory card into the computer.

3. Open the le(s) with Excel. See sample below:

Place Date Time Value Unit Value Unit Value Unit Value Unit
1 7/10/2019 4:13:07 22.7 T1 KTemp C 22.7 T2 KTemp C 22.7 T3 KTemp C 24 T4 KTemp C
2 7/10/2019 4:13:37 35 T1 KTemp C 38 T2 KTemp C 36 T3 KTemp C 37 T4 KTemp C
3 7/10/2019 4:14:07 40.2 T1 KTemp C 39 T2 KTemp C 39 T3 KTemp C 44 T4 KTemp C
4 7/10/2019 4:14:37 60 T1 KTemp C 67 T2 KTemp C 63 T3 KTemp C 59 T4 KTemp C
5 7/10/2019 4:15:07 87 T1 KTemp C 92 T2 KTemp C 90 T3 KTemp C 85 T4 KTemp C
6 7/10/2019 4:15:37 102.5 T1 KTemp C 101.5 T2 KTemp C 104 T3 KTemp C 107 T4 KTemp C
7 7/10/2019 4:16:07 55.4 T1 KTemp C 52 T2 KTemp C 49 T3 KTemp C 46 T4 KTemp C
8 7/10/2019 4:16:37 80.2 T1 KTemp C 81 T2 KTemp C 87 T3 KTemp C 85 T4 KTemp C
9 7/10/2019 4:17:07 90 T1 KTemp C 90 T2 KTemp C 92 T3 KTemp C 92 T4 KTemp C
10 7/10/2019 4:17:37 42.7 T1 KTemp C 43 T2 KTemp C 42.7 T3 KTemp C 57 T4 KTemp C
11 7/10/2019 4:18:07 75 T1 KTemp C 78 T2 KTemp C 76 T3 KTemp C 75 T4 KTemp C

www.GlobalTestSupply.com

continued...

16

The raw data can be used to create a graph in Excel. See sample below:

Thermocouple Probe Offset Adjustment

1. Select the desired thermocouple type.

2. Insert the thermocouple probe into the T1 (Channel 1) thermocouple

input jack.

3. Press and hold the OFFSET buttons (both up and down arrows) for

2 seconds to enter setup.

Note: "Err" will appear if the selected input does not have a probe inserted.

4. The last measurement value will be displayed on the left side of the

LCD, while the offset adjusted value will be displayed on the right as
shown below.

SEt oFS

23.7 23.7

5. Press the

6. Press the ENTER button to save the adjusted value and resume

normal operation.

Note: The above offset adjustment will be applied to all four inputs. At any
time, the offset adjustment can be cancelled by pressing the POWER button.

and buttons to adjust the offset value.

17

www.GlobalTestSupply.com

RTD Probe Offset Adjustment

1. Set the sensor input type to "Pt".

2. Insert the RTD Pt100 Ohm probe into the PT1 or the PT2 input jack.
Note: Only one Pt100 Ohm probe can be offset at a time.

3. Press and hold the OFFSET buttons (up and down arrows) for 2

seconds to enter setup.

SEt oFS
Pt 1 Pt 2

4. Press the
Note: "Err" will appear if the selected input does not have a probe inserted.

5. The last measurement value will be displayed on the left side of the

LCD, while the offset adjusted value will be displayed on the right as
shown below.

7. Press the

8. Press the ENTER button to save the adjusted value and resume

normal operation.

Note: The above offset adjustment will be made for the selected input
jack, not both. At any time, the offset adjustment can be cancelled by
pressing the POWER button to resume to normal operation.

or buttons to select between PT1 or PT2.

SEt oFS

23.7 23.7

and buttons to adjust the offset.

continued...

18

www.GlobalTestSupply.com

Data Stream Output

41010100000221 = Channel T1, +22.1°C

4

4

Using Terminal application, a data stream can be viewed from the RS-232
output, connect RS-232/USB cable between the product and terminal/PC
and use the following setting to view the data stream.
Terminal Settings:

• Bits per second: 9600

• Data bits: 8

• Parity: None

• Stop bits: 1

Reading

Decimal Place 0-3

Positive (+) = 0, Negative (-) = 1

°C = 01, °F = 02

Channel T1 = 1, T2 = 2, T3 = 3, T4 =

3.5mm Terminal to RS-232 Serial Connection

www.GlobalTestSupply.com

19

Battery Replacement

When the low battery icon appears on the LCD, the batteries must
be replaced.

1. Remove the two (2) Phillips screws on the back of the meter directly

located above the top of the kickstand.

2. Remove the battery cover.

3. Replace 6 x "AA" batteries.

4. Secure the battery cover with the two (2) Phillips screws.

Applications

• Medical

• Pharmaceutical

• Environmental Monitoring

• Industrial and Commercial Temperature Applications

• R&D and Educational Establishments

• Food Service

Accessories and Replacement Parts

R2920 Surface Thermocouple Probe
R2930 Right Angle Thermocouple Probe
R2940 Air/Gas Thermocouple Probe
R2950 Immersion Thermocouple Probe
R2960 Needle Tip Thermocouple Probe
TP-01 Beaded Thermocouple
R2450SD-RTD PT100 Ohm RTD Temperature Probe
R1500 Tripod
RSD-ADP-NA Power Supply, 110V
RSD-ADP-EU Power Supply, 220V
CA-05A Soft Carrying Case
R8888 Deluxe Hard Carrying Case

continued...

20

www.GlobalTestSupply.com

SD-4GB 4GB Class 4 SDHC Memory Card
RSD-16GB 16GB Micro SD memory Card w/ Adapter

Don't see your part listed here? For a complete list of all accessories and
replacement parts visit your product page on www.REEDInstruments.com.

FAQ's

I cannot turn off my meter, do you know why?

Often times, the meter cannot be turned off because it is in recording
mode ("REC" mode). Make sure to exit that function by holding down the

REC button before attempting to turn the meter off.

Can I use multiple Thermocouple types simultaneously (i.e. Type K in
channel 1 and Type J in channel 2)?

If using more than 1 channel, they must be the same thermocouple type.

How long can I record for?

Battery life will depend on a number of factors:

• Quality of Battery

• Whether the beeper is ON or OFF

• Whether the backlight is ON or OFF

• Environmental Conditions during data logging
As a reference, using alkaline batteries with both the backlight and beeper

on while automatic data logging at a 2 second sampling rate; the batteries
will last approximately 14 hours.

Product Care

To keep your instrument in good working order we recommend the following:

• Store your product in a clean, dry place.

• Change the battery as needed.

• If your instrument isn't being used for a period of one month or longer

please remove the battery.

• Clean your product and accessories with biodegradable cleaner. Do not

spray the cleaner directly on the instrument. Use on external parts only.

www.GlobalTestSupply.com

21

Product Warranty

REED Instruments guarantees this instrument to be free of defects in
material or workmanship for a period of one (1) year from date of shipment.
During the warranty period, REED Instruments will repair or replace, at no
charge, products or parts of a product that proves to be defective because
of improper material or workmanship, under normal use and maintenance.
REED Instruments total liability is limited to repair or replacement of the
product. REED Instruments shall not be liable for damages to goods,
property, or persons due to improper use or through attempts to utilize the
instrument under conditions which exceed the designed capabilities. In
order to begin the warranty service process, please contact us by phone
at 1-877-849-2127 or by email at [e-mail] to discuss
the claim and determine the appropriate steps to process the warranty.

Product Disposal and Recycling

Please follow local laws and regulations when disposing or recycling
your instrument. Your product contains electronic components and
must be disposed of separately from standard waste products.

Product Support

If you have any questions on your product, please contact your authorized
REED distributor or REED Instruments Customer Service by phone at
1-877-849-2127 or by email at [e-mail].

Please visit www.REEDInstruments.com for the most

up-to-date manuals, datasheets, product guides and software.

Product specifications subject to change without notice.
All rights reserved. Any unauthorized copying or reproduction of this
manual is strictly prohibited without prior written permission from
REED Instruments.

22

www.GlobalTestSupply.com

TEST & MEASURE

WITH CONFIDENCE

Access our

Product Catalog

Over 200 portable test and
measurement instruments

www.GlobalTestSupply.com

www.GlobalTestSupply.com
