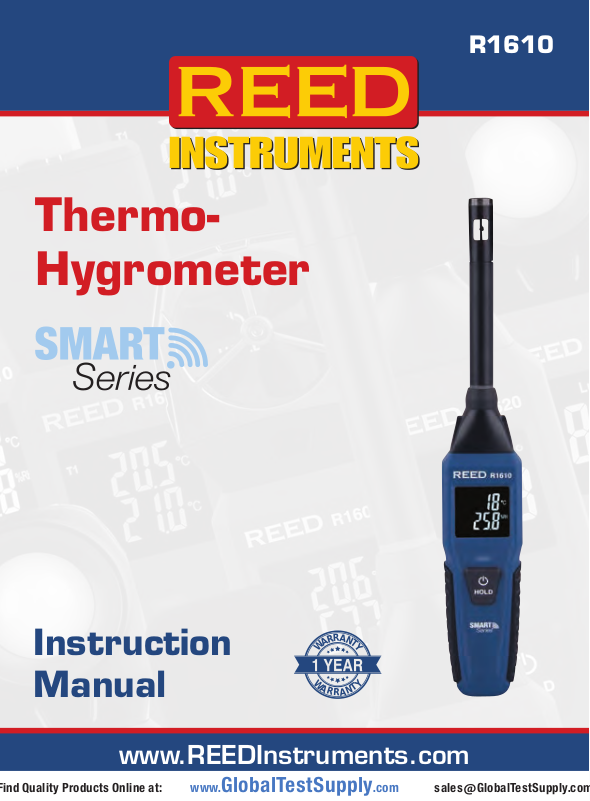

ThermoHygrometer
R1610
Instruction
Manual
www.REEDInstruments.com
www.GlobalTestSupply.com
T
A
Y
W
W
Y
A
T
Table of Contents
Introduction ................................................................................................ 3
Product Quality
......................................................................................................... 3
Safety
FCC Statement
FCC RF Exposure Statement
IC statement
IC RF Exposure Statement
Features
Included
Specications
Instrument Description
Display Description
REED Smart Series App
Operating Instructions
Power ON/OFF
Backlight
Establishing Bluetooth
Selecting the Temperature Unit of Measure
Enabling/Disabling Data Hold
Enabling/Disabling Auto Power OFF
Battery Replacement
Applications
Accessories and Replacement Parts
Product Care
Product Warranty
Product Disposal and Recycling
Product Support
........................................................................................... 3
........................................................................................... 4
................................................................. 4
............................................................................................... 5
.................................................................... 5
...................................................................................................... 6
...................................................................................................... 6
.......................................................................................... 7-8
............................................................................... 9
.................................................................................. 10
........................................................................... 11
......................................................................... 12-13
.................................................................................... 12
.............................................................................................. 12
®
Connection .................................................... 12
........................................ 13
.............................................................. 13
.................................................... 13
................................................................................ 14
.............................................................................................. 14
....................................................... 14
............................................................................................ 15
..................................................................................... 15
.............................................................. 15
....................................................................................... 16
www.GlobalTestSupply.com
Introduction
Thank you for purchasing your REED R1610 Thermo-Hygrometer,
Bluetooth® Smart Series. Please read the following instructions carefully
before using your instrument. By following the steps outlined in this manual
your meter will provide years of reliable service.
Product Quality
This product has been manufactured in an ISO9001 facility and has been
calibrated during the manufacturing process to meet stated product
specications. If a certicate of calibration is required, please contact the
nearest authorized REED distributor or authorized Service Center. Please
note an additional fee for this service will apply.
Safety
• Never attempt to repair or modify your instrument. Dismantling your
product, other than for the purpose of replacing batteries, may cause
damage that will not be covered under the manufacturer's warranty.
Servicing should only be provided by an authorized service center.
• Magnetic eld warning; please keep a minimum distance of 4 inches
(10cm) between pacemaker and meter.
www.GlobalTestSupply.com
FCC Statement
This device complies with Part 15 of the FCC Rules. Operation is subject
to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: Any changes or modications not expressly approved by
the party responsible for compliance could void the user's authority to
operate this equipment.
FCC RF Exposure Statement
This product complies with FCC portable RF exposure limit set forth for
an uncontrolled environment and is safe for the intended operation as
described in this manual.
www.GlobalTestSupply.com
IC statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply
with Innovation, Science and Economic Development Canada’s licenceexempt RSS(s). Operation is subject to the following two conditions:
1. This device may not cause interference.
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
CAN ICES-003(B)/NMB-003(B)
IC RF Exposure Statement
This product complies with the Canadian portable RF exposure limit
set forth for an uncontrolled environment and is safe for the intended
operation as described in this manual.
www.GlobalTestSupply.com
Features
• Measures ambient temperature and humidity
• Easy to operate, designed for one hand operation
• Bendable probe shaft enables easy access to ducts
• Integrated display provides exibility for use without mobile device
• Magnetic backing allows instrument to be mounted to metallic surfaces
• Data Hold function
• User selectable °F, or °C
• Low battery indicator and auto shut off
• Tripod mount for long-term monitoring
When used with REED Smart Series App:
• Real-time data logger
• User selectable sampling rate from 1 to 120 seconds
• Bluetooth® 5.0 provides connectivity to instruments up to
246' (75m) away
• Connect, measure and datalog up to 6 instruments, simultaneously
• Easy setup with automatic app integration for compatible REED Smart
Series instruments
• Export data via Excel or PDF and create custom reports that can be
emailed from mobile device
Included
• Thermo-Hygrometer
• 4 x AAA Batteries
www.GlobalTestSupply.com
Specifications
Temperature
Measuring Range: -4 to 140°F (-20 to 60°C)
Accuracy: -4 to 32°F (-20 to 0°C): ±1.6°F (0.8°C)
32 to 140°F (0 to 60°C): ±1°F (0.5°C)
Resolution: 0.1°F/°C
Humidity
Measuring Range: 0 to 100% RH
Accuracy: 20 to 80% RH: ±3.5% rdg.
0 to 20% & 80 to 100% RH: ±5% rdg.
Resolution: 0.1% RH
General Specifications
Display: Multi-Line Enhanced Black Twisted
Display Size: 1.3" (34mm)
Backlit Display: Yes
Data Hold: Yes
Adjustable Flex Probe Yes (90° swivel)
Probe Shaft Length 3.7" (95mm)
Probe Diameter 0.43" (11mm)
Datalogging Capabilities: Yes (with Smart Series App)
Real-Time Clock and Date Stamp: Yes (with Smart Series App)
Customizable Sampling Rate: Yes
Overrange Indicator: Yes
Auto Shut-off: Yes (adjustable)
Tripod Mountable:
Magnetic Backing: Yes
Low Battery Indicator: Yes
Power Supply: 4 x AAA Batteries
Battery Life: Approx. 50 hours
Nematic (EBTN) LCD
Yes
(sampling time dependent)
continued...
www.GlobalTestSupply.com
Connectivity: Bluetooth® 5.0
Bluetooth® Range: Up to 246' (75m)
Max # of Connected Devices: 6
Software: REED Smart Series App
(iOS and Android)
App Supported Languages: English, French
Product Certications:
CE, UKCA, FCC, IC ID
Maximum Operating Altitude: 6561' (2000m)
Operating Temperature: -4 to 140°F (-20 to 60°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Operating Humidity Range: 10 to 90%
Storage Humidity Range: 10 to 90%
Dimensions: 9.4 x 1.5 x 1" (240 x 38 x 25mm)
Weight: 3.2oz (88g)
www.GlobalTestSupply.com
Instrument Description
1. Temperature and
Humidity Sensor
2. LCD Display
3. POWER/HOLD Button
4. Bluetooth® Status
Indicator Light
www.GlobalTestSupply.com
5. Tripod Mounting Screw
6. Battery Cover Lock
7. Battery Cover
Display Description
1. Temperature
Measurement Value
2. Relative Humidity
Measurement Value
3. Humidity Unit of Measure
www.GlobalTestSupply.com
4. Temperature Unit
of Measure
5. Data Hold Indicator
6. Bluetooth® Indicator
7. Low Battery Indicator
REED Smart Series App
GET IT ON
REED Smart Series instruments can be connected wirelessly to your
smartphone or tablet. All measurement data is transmitted via Bluetooth®
to the free REED Smart Series app. The app allows users to analyze data,
generate reports and send information by email directly from
a mobile device.
App Features:
• Bluetooth® 5.0 provides connectivity to instruments up to
246' (75m) away
• Connect, measure and datalog up to 6 instruments, simultaneously
• Easy setup with automatic app integration
(Bluetooth® pairing not required)
• Measurement data is displayed as instrument
readings, tables, or graphs
• Save data in PDF or Excel Format
• Create custom reports that can be saved on a
mobile device or sent by email
To learn more and download the REED Smart
Series App from the Google Playstore (Android) or
Apple App Store (iOS), visit
www.REEDInstruments.com/smartseries.
You can also search for the "REED Smart Series"
app directly from your device.
GET IT ON
12:00
Full specications and Operating System compatibility can be found
on the product page at www.REEDInstruments.com/r1610. If you have
specic questions related to your application and/or questions related to
software setup and functionality, please contact the nearest authorized
distributor or Customer Service at info@reedinstruments.com
or 1-877-849-2127.
www.GlobalTestSupply.com
Operating Instructions
Power ON/OFF
Turn the meter ON by holding down the POWER button for approximately
2 seconds. To turn the meter OFF, press and hold the POWER button for
approximately 4 seconds.
Backlight
After powering the meter ON, the LCD Backlight will turn on automatically.
In order to preserve battery power, the LCD will turn off after
approximately 15 seconds. To turn the screen back on, press the
POWER button.
Establishing Bluetooth® Connection
1. In order to establish Bluetooth® connection, the REED Smart Series
App must be installed on your mobile device.
2. When the App is open and the meter is powered on, the meter will
automatically attempt to establish connection with the App. Until the
connection is established, the Bluetooth® status indicator light will
ash blue.
3. When connection is successful the Bluetooth® status indicator
remains blue and the the current readings are automatically
displayed in the App.
REED Smart Series meters feature Bluetooth® 5.0 connectivity which
does not require meters to be paired with the device.
If the App is open and the meter is powered on, a connection will
automatically be established.
www.GlobalTestSupply.com
continued...
Selecting the Temperature Unit of Measure
When the meter is powered on, press and hold the POWER button to
toggle between Fahrenheit and Celsius.
Enabling/Disabling Data Hold
1. Press the HOLD button to freeze the current reading on the display.
2. Press the HOLD button again to resume normal operation.
Enabling/Disabling Auto Power OFF
To preserve battery life, the meter is programmed to turn itself off after 30
minutes of inactivity.
Note: The Auto Power OFF feature can be disabled through the App.
(See REED Smart Series Software Guide located in the "Menu" section of
the App for additional details.)
For additional information on App features including sampling rate
setup, data logging, data analysis, export and report generation please
see the REED Smart Series App Software Guide
at www.REEDInstruments.com/smartseries
Battery Replacement
When the low battery icon appears on the LCD display, the batteries will
need to be replaced. In order to replace the batteries, proceed with the
following steps:
1. Turn off the meter.
2. Unlock the battery compartment located at the back of the meter.
3. Remove the battery cover.
4. Replace the 4 x AAA batteries.
5. Secure the battery cover and lock it in place.
www.GlobalTestSupply.com
Applications
• Environmental studies
• Food distribution
• HVAC/R system installation/evaluation
• Greenhouses and industrial spaces
• Saunas
• Humidors
• Museums
• Lab Monitoring
Accessories and Replacement Parts
CA-05A Medium Soft Carrying Case
R8888 Medium Hard Carrying Case
R9933 Humidity Calibration Standard, 33%
R9975 Humidity Calibration Standard, 75%
R9980 Humidity Calibration Kit (33% and 75%)
R1500 Tripod
Don't see your part listed here? For a complete list of all accessories and
replacement parts visit your product page on www.REEDInstruments.com.
www.GlobalTestSupply.com
Product Care
To keep your instrument in good working order we recommend the following:
• Store your product in a clean, dry place.
• Change the battery as needed.
• If your instrument isn’t being used for a period of one month or longer
please remove the battery.
• Clean your product and accessories with biodegradable cleaner. Do not
spray the cleaner directly on the instrument. Use on external parts only.
Product Warranty
REED Instruments guarantees this instrument to be free of defects
in material or workmanship for a period of one (1) year from date of
shipment. During the warranty period, REED Instruments will repair or
replace, at no charge, products or parts of a product that proves to be
defective because of improper material or workmanship, under normal
use and maintenance. REED Instruments total liability is limited to repair
or replacement of the product. REED Instruments shall not be liable for
damages to goods, property, or persons due to improper use or through
attempts to utilize the instrument under conditions which exceed the
designed capabilities. In order to begin the warranty service process,
please contact us by phone at 1-877-849-2127 or by email at
info@reedinstruments.com to discuss the claim and determine the
appropriate steps to process the warranty.
Product Disposal and Recycling
Please follow local laws and regulations when disposing or recycling your
instrument. Your product contains electronic components and must be
disposed of separately from standard waste products.
www.GlobalTestSupply.com
Product Support
If you have any questions on your product, please contact your authorized
REED distributor or REED Instruments Customer Service by phone at
1-877-849-2127 or by email at info@reedinstruments.com.
Please visit www.REEDInstruments.com for the most
up-to-date manuals, datasheets, product guides and software.
Product specifications subject to change without notice.
All rights reserved. Any unauthorized copying or reproduction of this
manual is strictly prohibited without prior written permission from
REED Instruments.
www.GlobalTestSupply.com
Vane Anemometer
GET IT ON
GET IT ON
Light Meter
Thermo-Hygrometer
Thermocouple Thermometer
Connect wirelessly to your smartphone or tablet
via the REED Smart Series App
Bluetooth® 5.0 provides connectivity to
instruments up to 246' (75m) away
Analyze data and create custom reports that can
be saved on a mobile device or sent by email
www.REEDInstruments.com/smartseries
www.GlobalTestSupply.com
Sound Level Meter
TEST & MEASURE
WITH CONFIDENCE
Access our
Product Catalog
Over 200 portable test and
measurement instruments
www.REEDInstruments.com
www.GlobalTestSupply.com
www.REEDInstruments.com
www.GlobalTestSupply.com
NOTES
www.REEDInstruments.com
www.GlobalTestSupply.com
Loading...
