Introduction
Thank you for purchasing your REED HT-6510A Durometer. Please read
the following instructions carefully before using your instrument.
By following the steps outlined in this manual your meter will provide
years of reliable service.
www.GlobalTestSupply.com
2
Product Quality
This product has been manufactured in an ISO9001 facility and has been
calibrated during the manufacturing process to meet the stated product
specications. If a certicate of calibration is required please contact the
nearest authorized REED distributor or authorized Service Center. Please
note an additional fee for this service will apply.
Safety
Never attempt to repair or modify your instrument. Dismantling your
product, other than for the purpose of replacing batteries, may cause
damage that will not be covered under the manufacturer's warranty.
Servicing should only be provided by an authorized service center.
Features
• Shore "A" hardness tester designed to measure hardness of rubber,
elastomers, natural rubber products, neoprene, polyester, resin, leather
and soft PVC
• Meets DIN 53505, ASTM D2240, ISO 7619 and JISK 7215
• 4-digit, LCD display
• Pocket-sized model with integrated probe
• Maximum and Average functions
• Zero adjustment button
• Low battery indicator and auto shut off
Included
• Wrist Strap
• Test Block
• Batteries
• Hard Carrying Case
www.GlobalTestSupply.com
3
Specifications
Measuring Range: 10 to 90HA
Deviation: ±1HA
Resolution: 0.1HA
Sampling Time: 1 second
Display: 4-digit, LCD
Zero Button: Yes
Max and Average
Functions: Yes
Power Supply: 2 x AAA Batteries
Low Battery Indicator: Yes
Product Certications: CE
Operating Temperature: 32 to 104°F (0 to 40°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Operating Humidity
Range: 20 to 90%
Dimensions: 6.4 x 2.6 x 1.5" (162 x 65 x 38mm)
Weight: 6.1oz (173g)
www.GlobalTestSupply.com
4

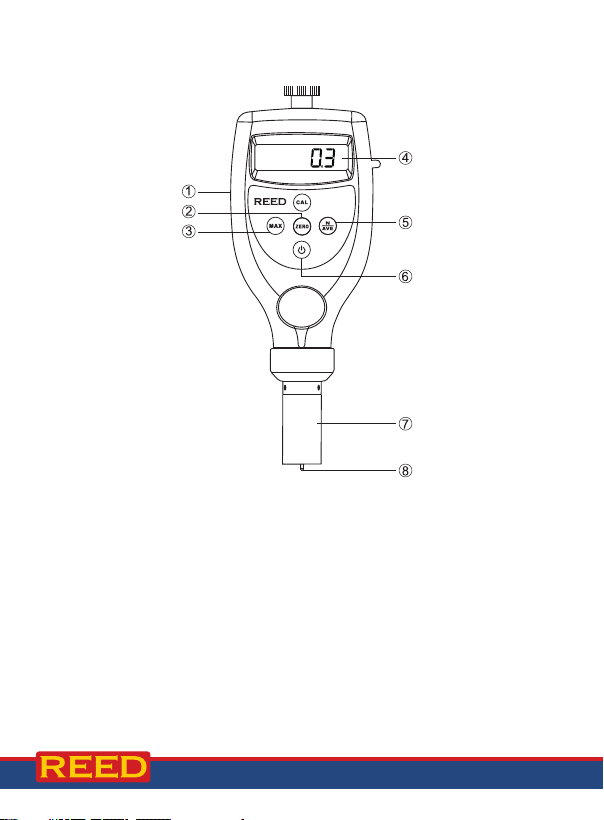

Instrument Description
HT-6510A
1. Battery Cover
2. Zero Button
3. Max Hold Button
4. LCD Display
5. Average Measaurement Button
6. POWER Button
7. Presser Foot
8. Indenter
Shore A
Durometer
www.GlobalTestSupply.com
5
Operating Instructions
Power ON/OFF
Turn the meter on by pressing the button. To turn the meter off, press
and hold the button for approx. 2 seconds and release when "OFF"
appears on the display.
Measuring Procedure
The material under test should be a minimum of 6mm (0.25"). The test
area should allow measurements to be taken at least 12mm from any
edge. The test area may be layered with multiple pieces to achieve the
necessary thickness requirements, however the measurements taken
may not be as accurate as those taken on solid test areas, due each
layer not being in complete contact.
1. When rst powered on, the meter should display "0.0". If any other
value appears on the display, perform a zero calibration (see Zero
Calibration section for details).
2. To check accuracy, simply insert the indenter into the hole of the
calibrated test block.
3. Apply enough force to make enough contact between the top
surface of the test block and the presser foot.
4. The reading should match the test block.
5. If inaccurate, perform a single point calibration (see Single Point
Calibration section for details).
6. When ready to use, simply hold the durometer vertically with the
point of the indenter at least 12mm from any edge.
7. Place the presser foot onto the test piece while keeping the foot
parallel to the surface.
8. Apply enough force to ensure proper contact between the presser
foot and the test piece.
9. Keep in place and Hold for approx. 2 seconds.
10. The LCD will display the measured value and will hold this value until
the presser foot is removed from the test piece.
11. Repeat steps 6 through 10 for each measurement.
continued...
www.GlobalTestSupply.com
6
Maximum Measurement Mode
1. Press the MAX button to enter the maximum value mode.
2. The Max Indicator will appear on the display.
3. Hold the durometer vertically with the point of the indenter at least
12mm from any edge.
4. Place the presser foot onto the test piece while keeping the foot
parallel to the surface.
5. Apply enough force to ensure proper contact between the presser
foot and the test piece.
6. Keep in place and Hold for approx. 2 seconds.
7. The LCD will display the measured maximum value and will hold
this value.
8. To take the next maximum value, press the ZERO button to clear
the reading.
9. Repeat steps 3 through 8 for each maximum value measurement.
10. Press the MAX button to exit maximum measurement mode and
resume normal operation.
Average Measurement Mode
The average value is calculated using the number of test measurements
the user selects which can range from 1 to 9.
1. To set the amount of test measurements required during a test
session, hold and release the
measurement mode.
2. The display will indicate "N" conrming it is now in average
measurement mode as well as the number of set test measurements.
3. Press the button again to scroll through the required number of
test measurements ranging from 1 to 9.
4. Press the ZERO button to conrm the selected number of
test measurements.
5. Press the MAX button to begin.
6. Hold the durometer vertically with the point of the indenter at least
12mm from any edge.
www.GlobalTestSupply.com
button to enter the average
continued...
7
7. Place the presser foot onto the test piece while keeping the foot
parallel to the surface.
8. Apply enough force to ensure proper contact between the presser
foot and the test piece.
9. Keep in place and Hold for approx. 2 seconds.
10. The LCD will display the measured maximum value and will hold
this value.
11. Press the ZERO button to take the next test measurement.
12. Follow steps 6 through 11 until the selected number of test
measurements have been reached.
13. When completed, the meter will emit 2 beeps and automatically
display the average measurement value of the test session.
Auto Power Off
To preserve battery life, the meter is programmed to turn itself off after
10 minutes of inactivity.
Zero Calibration
Press the ZERO button to perform a zero calibration when required.
Single Point Calibration
1. Place the indenter onto a at test piece of glass.
2. Apply enough force to make rm contact between the glass and the
presser foot.
3. The readings on the display should be between 99.7 and 101.
4. If the reading is not within the above range, hold the button until
"CAL" appears on the display while continuing to keep pressure
against the glass.
5. When the reading has stabilized, press the button to display "0.0"
which conrms that calibration is complete.
6. Repeat steps 1 through 3 to conrm that the reading is now
within range.
7. Repeat single point calibration if reading is still out of range.
www.GlobalTestSupply.com
8
Battery Replacement
1. When the low battery symbol appears on the display, the
batteries need to be replaced.
2. Remove the battery cover on the back and insert two (2)
"AAA"batteries.
Accessories and Replacement Parts
• R8888 Medium Hard Carrying Case
Don't see your part listed here? For a complete list of all accessories and
replacement parts visit your product page on www.REEDInstruments.com.
Product Care
To keep your instrument in good working order we recommend the following:
• Store your product in a clean, dry place.
• Change the battery as needed.
• If your instrument isn't being used for a period of one month or longer
please remove the battery.
• Clean your product and accessories with biodegradable cleaner. Do not
spray the cleaner directly on the instrument. Use on external parts only.
Product Warranty
REED Instruments guarantees this instrument to be free of defects in
material or workmanship for a period of one (1) year from date of shipment.
During the warranty period, REED Instruments will repair or replace, at no
charge, products or parts of a product that proves to be defective because
of improper material or workmanship, under normal use and maintenance.
REED Instruments total liability is limited to repair or replacement of the
product. REED Instruments shall not be liable for damages to goods,
property, or persons due to improper use or through attempts to utilize the
instrument under conditions which exceed the designed capabilities. In
order to begin the warranty service process, please contact us by phone at
1-877-849-2127 or by email at info@reedinstruments.com to discuss the
claim and determine the appropriate steps to process the warranty.
www.GlobalTestSupply.com
9
Product Disposal and Recycling
Please follow local laws and regulations when disposing or recycling your
instrument. Your product contains electronic components and must be
disposed of separately from standard waste products.
Product Support
If you have any questions on your product, please contact your authorized
REED distributor or REED Instruments Customer Service by phone at
1-877-849-2127 or by email at info@reedinstruments.com.
Please visit www.REEDInstruments.com for the most
up-to-date manuals, datasheets, product guides and software.
Product specifications subject to change without notice.
All rights reserved. Any unauthorized copying or reproduction of
this manual is strictly prohibited without prior written permission
from REED Instruments.
www.GlobalTestSupply.com
10
