Model
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
BS-150
Video Inspection Camera
Instruction
Manual
www
reedinstruments
www.GlobalTestSupply. com
com
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Table of Contents
Safety ............................................................................................2
Features ......................................................................................... 3
Specications .............................................................................3-4
Instrument Description .................................................................. 5
Operating Instructions ................................................................6-8
Safety
• Before operating this instrument, carefully read all safety information
and specications for the pinhole video
• This instrument meets European CE safety standards
• Consult professional instrument repair services for maintenance and
repairs, do not attempt to handle them on your own
• Clean the camera after each use
• Do not use detergents to clean this instrument
• When storing the instrument for a long period of time, remove the
batteries to avoid battery uid leaking and damaging the instrument
• The gooseneck angle should not pass 90° or it will lose it’s exibility
For service on this or any other REED product or information on other
REED products, contact REED Instruments at info@reedinstruments.com
www
reedinstruments
www.GlobalTestSupply. com
com
2
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Features
• Comfortable pistol grip design and forward facing controls make it
easy to detect and diagnose the unreachable
• Highvisibility3.2”colour TFTLCDmonitorwith320 x 240pixel
resolution
• 3.2’ exible gooseneck imager head retains congured shape and is
waterproof (IP67)
• Gooseneck is expandable up to 30’ (9.144m) with the optional cable
extensions
• High visibility 10° adjustable LED lighting
• Camera and video functions allows you to savehighresolution
JPGimagesandlivevideo
• TV compatible
• Transferlestoacomputervia USB cable or optional 2GB SD
memory card
• Rechargeablelithium-ionbattery
Specifications
Viewing Distance: 5.9 to 9.8” (15 to 25cm)
Viewing Angle: 0 to 180°
Camera Diameter: 0.66” (17mm); Length: 39” (1m)
Photosensitive Devices: 1/4” CMOS
Sensor Pixel: 640 x 480
Max. Resolution: 320 x 240
Max. Frames: 30fps
Median Colour: 24 bit
Focus: Manual
File Format Compatibility: MPEG4, 3GP, AVI, ASF
Image Format Compatibility:
JPEG
www
reedinstruments
www.GlobalTestSupply. com
continued ...
com
3
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Camera Video Format: 3GP
SD Card Compatibility: Max 8GB
Flash Compatibility: Max 8GB
Video Working Current: Max 595mA
Video Play Current: 230mA
Static Current: Max 20UA
TV-OUT: PAL/NTSC system
Testing Range: 1.96 to 5.9” (5 to 15cm)
Data Output: USB data cable and SD card
Power Supply: 3.7V, 2000mA, H battery (1860)
Dimensions: 9.5 x 3.9 x 6.3” (240 x 100 x 160mm)
Includes: Video borescope, imager head, magnet,
hook and mirror attachments, 3.7V lithium
battery, DC power supply, USB cable,
video output cable, and hard carrying case
Optional Accessories: 2GB SD Memory Card (SD-2GB)
6’ (182.88cm) Cable Extension (BS-C6)
0.35” (9mm) Replacement Camera Head with
3’ (91.44cm) Cable (BS-15-9C3)
www
reedinstruments
www.GlobalTestSupply. com
com
4
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Instrument Description
1. 3.2” TFT LCD
2. BRIGHT + Backlight Increase
3. BRIGHT - Backlight Decrease
Scroll to Previous Image
4.
5. Battery Cover
6. ESC Exit
Scroll to Next Image
7.
8.
9. OK
Connector with
motherboard socket
Power ON/OFF
Gooseneck
1
2
3
4
9
8
7
6
5
Camera
TV-OUT and earphone
Silica lm
jack block
SD card
USB port and
charging port
Reset
button hole
www
reedinstruments
www.GlobalTestSupply. com
Motherboard
socket
Image snapshot
button
Camera
socket
Video record
button
com
5
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Operating Instructions
Hold the power button for three seconds to turn the instrument on.
Hold the power button for three seconds to turn the instrument off.

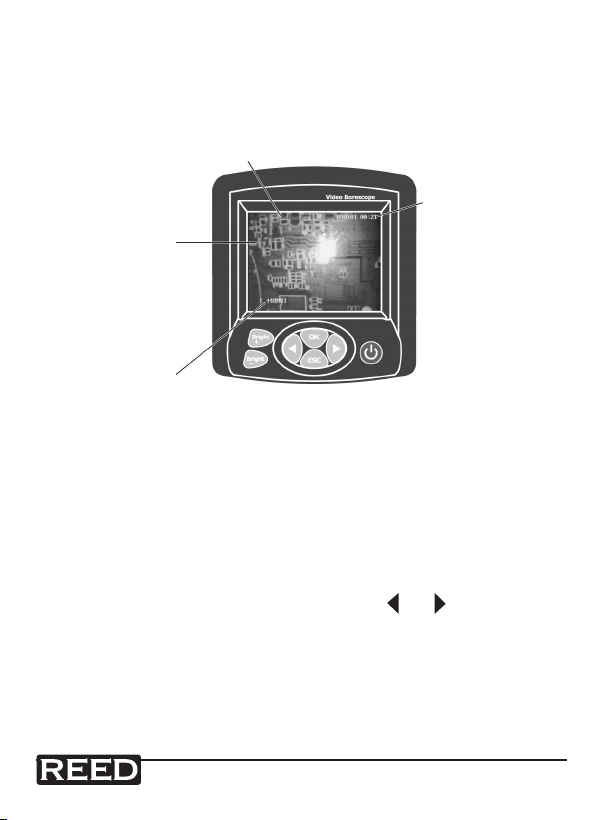

LED backlight indication
Date & Time
Image display
Remaining memory
CMOS Brightness Adjustment
When the instrument is in Camera mode, press the BRIGHT+ button to
increase the backlight level, press the BRIGHT- button to decrease the
backlight level. 10 is the highest brightness level.
Rotation of Images
When the instrument is in Video mode, press the and buttons to
rotate the image currently selected by 180°.
Taking an Image
When the instrument is in Camera mode, press the Photo snap button to
take and save the image.
www
reedinstruments
www.GlobalTestSupply. com
com
6
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
Taking a Video
When the instrument is in Video mode, hold the Video record button for
three seconds to begin recording video. You will see a ashing video symbol at the top/left of the display. Remaining memory will be displayed at
the bottom/left. To end the recording, press the Video record button. The
video will be saved automatically.

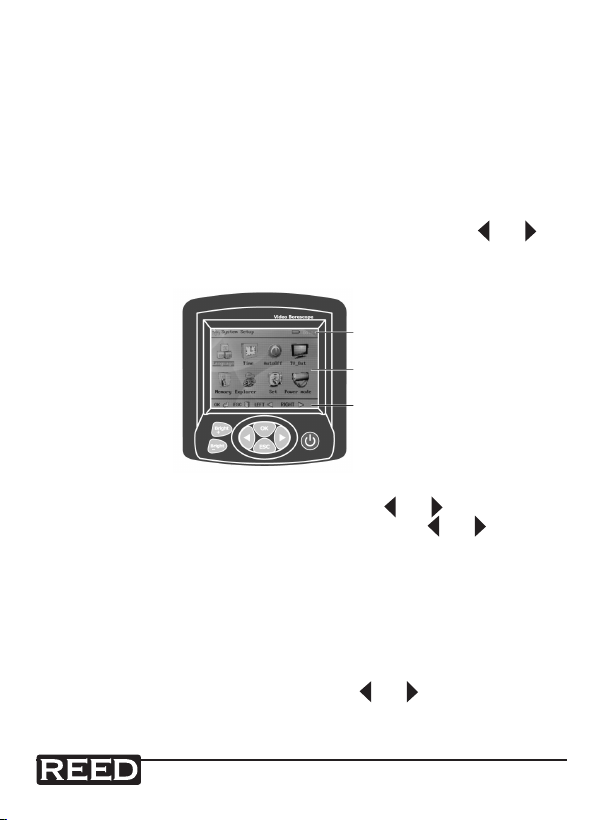

Menu Options
To access the menu, press the OK button, select yes (use the and
buttons), press the OK button again. The following Menu options will
appear: Language, Time, AutoOff, TV-OUT, Memory, Explorer, Set, and
Power mode.
Battery level, date/time,
& SD card indication
Menu options
Operation options
Navigating the menu
Scroll between these menu options by using the and buttons. Use
the OK button to select an option. Continue to use the and buttons
to scroll through listed options. Use the OK button to select an option.
The ESC button will you bring you out of the current screen and back one
level.
Language: Choose the language of your choice: English, German,
Spanish, and French.
Time: Set the date and time by using the the and buttons to go to the
data to be changed. Then use the Image snap and Video record buttons
to change the data.
www
reedinstruments
www.GlobalTestSupply. com
com
7
Pantone 534 Blue
Pantone 123 Yellow
Pantone 485 Red
Pantone 123 Yellow
Pantone 534 Blue
Black
Rich Black -
20/20/20/100
Blue - 100/80/30/5
Yellow - 0/27/100/0
Red - 10/100/100/5
Yellow - 0/27/100/0
Blue - 100/80/30/5
AutoOFF: Set the automatic power off feature of this instrument to either:
Never, 3 minutes, 15 minutes or 60 minutes of non use.
TV-OUT: Insert the TV-OUT cable (Black end) into the TV-OUT plug of
the instrument and plug the other end to the TV-VIDEO to the television.
Yellow is the VIDEO, Red is the right channel and White is the left (or
mono) channel. Select TV-OUT in the menu, press OK, select the NTSC or
PAL options in accordance with your television standards and press OK.
The display will turn Black, press the Operation button and the television
should now display the image. To go back to regular mode, return to the
TV-OUT menu option, select the LCD Display option, press OK.
Memory: Use the photo snap and video record buttons to select from
the two sub menus (Flash or SD). Then use the and buttons to scroll
through listed options. Press OK to select. The Flash indicates the
Capacity of space on the instrument, the Unused amount of space and
the Used amount. The SD indicates the same when a SD card is being
used. By formating the memory you will erase any images or video
currently stored.
Explorer: Directory of images and videos currently store on the Flash or
SD card.
Set: Use the photo snap and video record buttons to increase the value of
the various settings.
Power Mode: This setting allows the display of the instrument to go to
sleep while the instrument itself stays in operation. This saves battery
power. Set this feature to either: Never, 30 seconds, 60 seconds, or 180
seconds of non use.
For service on this or any other REED product or information on other
REED products, contact REED Instruments at info@reedinstruments.com
www
reedinstruments
www.GlobalTestSupply. com
com
8
