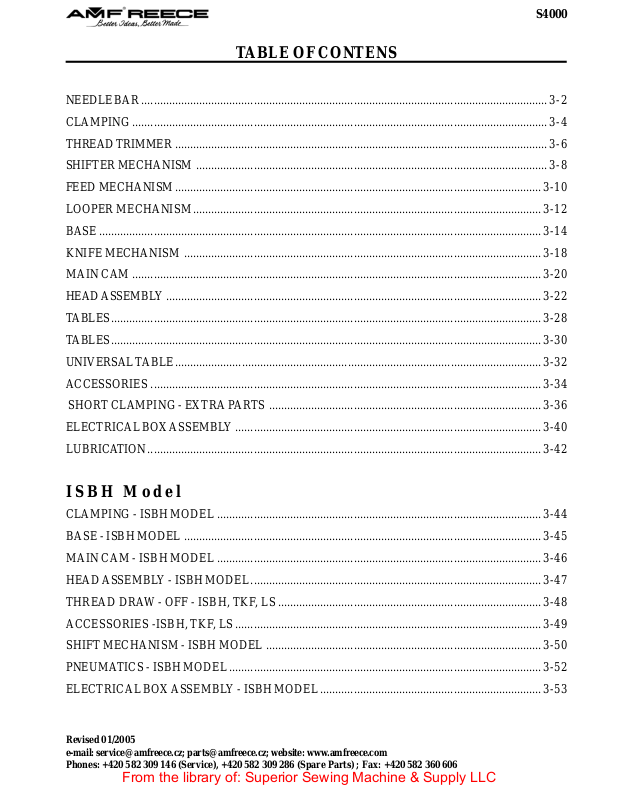

T ABLE OF CONTENS

NEEDLE BAR ......................................................................................................................................3-2

CLAMPING ......................................................................................................................................... 3-4

THREAD TRIMMER ...........................................................................................................................3-6

SHIFTER MECHANISM .................................................................................................................... 3-8

FEED MECHANISM.........................................................................................................................3-10

LOOPER MECHANISM................................................................................................................... 3-12

BASE ..................................................................................................................................................3-14

KNIFE MECHANISM ...................................................................................................................... 3-18

MAIN CAM ....................................................................................................................................... 3-20

HEAD ASSEMBL Y............................................................................................................................3-22

TABLES..............................................................................................................................................3-28

TABLES..............................................................................................................................................3-30

UNIVERSAL T ABLE......................................................................................................................... 3-32

ACCESSORIES ................................................................................................................................. 3-34

SHORT CLAMPING - EXTRA PARTS ..........................................................................................3-36

ELECTRICAL BOX ASSEMBLY..................................................................................................... 3-40

LUBRICATION.................................................................................................................................. 3-42

ISBH Model

CLAMPING - ISBH MODEL ........................................................................................................... 3-44

BASE - ISBH MODEL ...................................................................................................................... 3-45

MAIN CAM - ISBH MODEL ........................................................................................................... 3-46

HEAD ASSEMBLY - ISBH MODEL................................................................................................3-47

THREAD DRA W - OFF - ISBH, TKF, LS....................................................................................... 3-48

ACCESSORIES -ISBH, TKF , LS..................................................................................................... 3-49

SHIFT MECHANISM - ISBH MODEL ........................................................................................... 3-50

PNEUMA TICS - ISBH MODEL....................................................................................................... 3-52

ELECTRICAL BOX ASSEMBLY - ISBH MODEL.........................................................................3-53

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

S4000

T ABLE OF CONTENTS

ISBH Model with Indexer

BEDPLA TE - ISBH MODEL WITH INDEXER............................................................................... 3-54

T ABLE - ISBH MODEL WITH INDEXER ......................................................................................3-55

ELECTRICAL BOX ASSEMBLY - ISBH MODEL WITH INDEXER ...........................................3-56

INTERF ACE BOARD - ISBH MODEL WITH INDEXER................................................................. 3-57

CAED Model

NEEDLE BAR - CAED MODEL ...................................................................................................... 3-58

CLAMPING - CAED MODEL ......................................................................................................... 3-60

SHIFTER MECHANISM - CAED MODEL..................................................................................... 3-62

KNIFE MECHANISM - CAED MODEL ........................................................................................ 3-64

MAIN CAM - CAED MODEL ......................................................................................................... 3-66

HEAD ASSEMBLY - CAED MODEL............................................................................................... 3-68

BEDPLA TE - CAED MODEL ...........................................................................................................3-70

ACCESSORIES - CAED MODEL ................................................................................................... 3-72

PNEUMATICS - CAED MODEL .....................................................................................................3-74

ELECTRICAL BOX ASSEMBLY - CAED MODEL .......................................................................3-76

T ABLE - CAED MODEL ..................................................................................................................3-77

TKF Model

CLAMPING - TKF MODEL ............................................................................................................ 3-78

SHIFTER - TKF , LS.......................................................................................................................... 3-79

MAIN CAM - TKF MODEL ............................................................................................................ 3-80

BEDPLA TE - TKF MODEL .............................................................................................................. 3-81

EXTRA PAR TS - TKF MODEL........................................................................................................3-82

PNEUMA TICS - TKF MODEL ........................................................................................................3-83

e-mail: [e-mail]; [e-mail]; website: www .amfreece.com

Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

Revised 01/2005

S4000

T ABLE OF CONTENTS

Label Sewer Model

CLAMPING - LABEL SEWER MODEL ......................................................................................... 3-84

HEAD - LABEL SEWER MODEL....................................................................................................3-85

EXTRA PARTS - LABEL SEWER....................................................................................................3-86

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com
Phones: [phone] (Service), [phone] (Spare Parts) ; Fax: [phone]

S4000

NEEDLE BAR

3-2 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

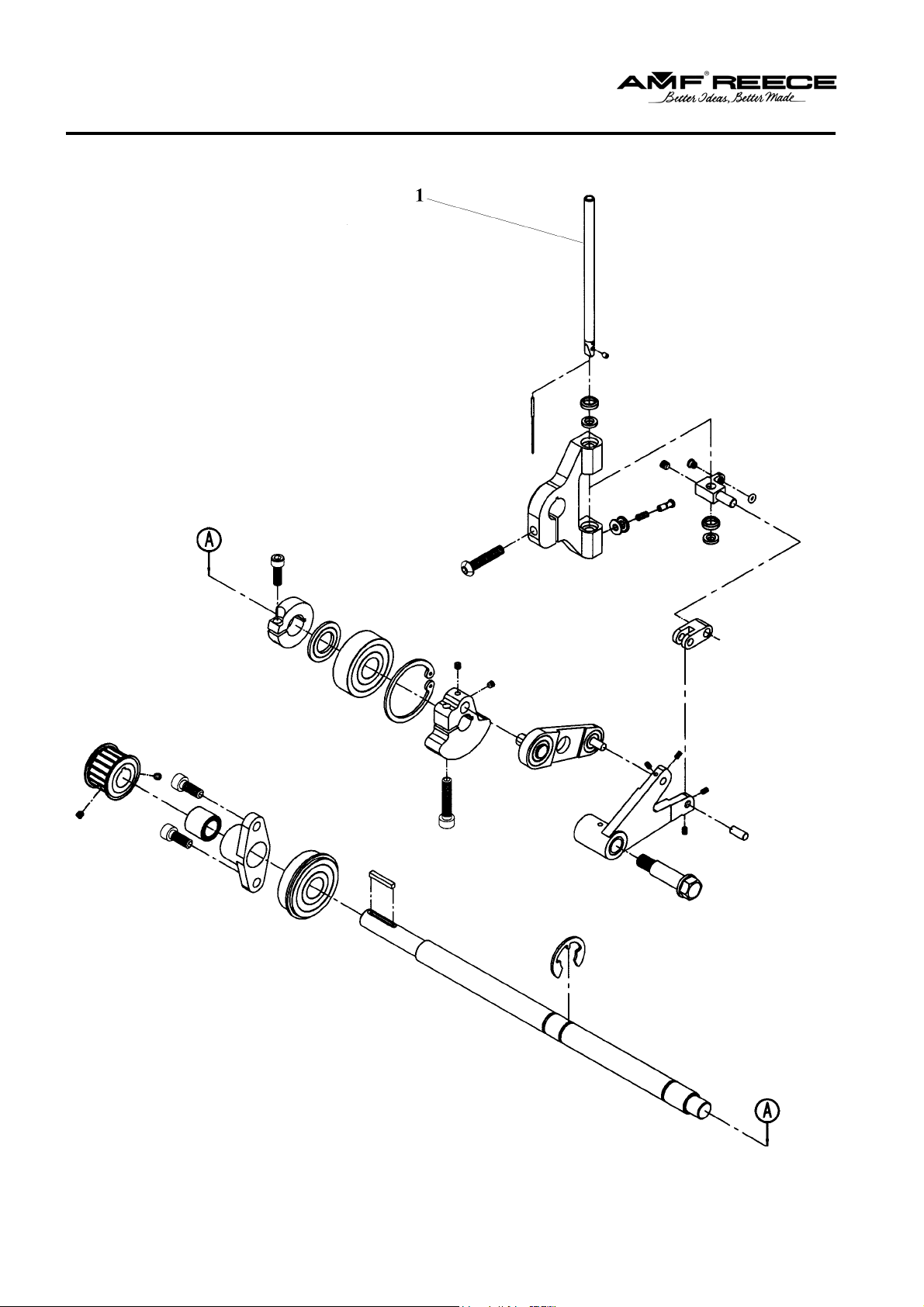

NEEDLE BAR

DET PART NUMBER DESCRIPTION

01 22.0195. 0. 000 Needle Bar
02 01.2193. 0. 000 4-60 Sc rew
03 22.0510. 0. 000 Needle Bar Holder
04 01.7447. 1. 000 Porc elai n Gui de
05 08.6400. 5. 005 M5 x 5 S et Sc rew
06 22.0520. 0. 000 Needle Bar Clamp
07 01.6551. 0. 000 Retaining Ring
08 22.0230. 0. 000 Cupped Was her
09 22.0239. 0. 000 Felt Was her
10 22.0530. 0. 000 Needle Bar Connect i ng Li nk
11 22.0542. 0. 000 Needle Bar Connect i ng Li nk P i n
12 08.6400. 3. 005 M3 x 5 S et Sc rew
13 22.0541. 0. 000 Needle Bar Shoul der S c rew
14 22.0540. 0. 000 Needle Bar Connect i ng Li nk P i n
15 08.6000. 6. 030 M6 x 30 S crew
16 22.0525. 0. 000 Needle Bar Crank
17 01.7809. 0. 000 Retaining Ring
18 01.7804. 0. 000 Top Shaft Bearing
19 24.0500. 0. 000 Needle Bar Drive Shaft
20 12.2050.0.003 Bearing
21 08.6400. 4. 004 M4 x 4 S et Sc rew
22 08.6000. 6. 016 M6 x 16 S crew
23 01.7805. 0. 000 Shaft B earing
26 24.0048. 0. 000 Needle Bar Drive Pul ley
27 22.0175. 0. 000 Drive Shaft K ey
28 24.0002. 0. 000 Clamp Collar
29 12.1045. 2. 001 Retaining Ring
30 22.0535. 0. 100 Needle Bar Crank Link A s m .
31 08.6200. 6. 025 M6 x 25 S crew
32 02.0750.2.110 Needle
33
34 17.0026.2.077 Spring
35 17.0082.8.017 Tension Disk
36 24.0100. 0. 000 M3.5 x 0. 35-11 Screw
37 08.6000. 5. 016 M5 x 16 S crew
38 24.0001. 0. 000 Bearing Carrier Upper Shaft
39 22.0545.0.000 Washer

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-3
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

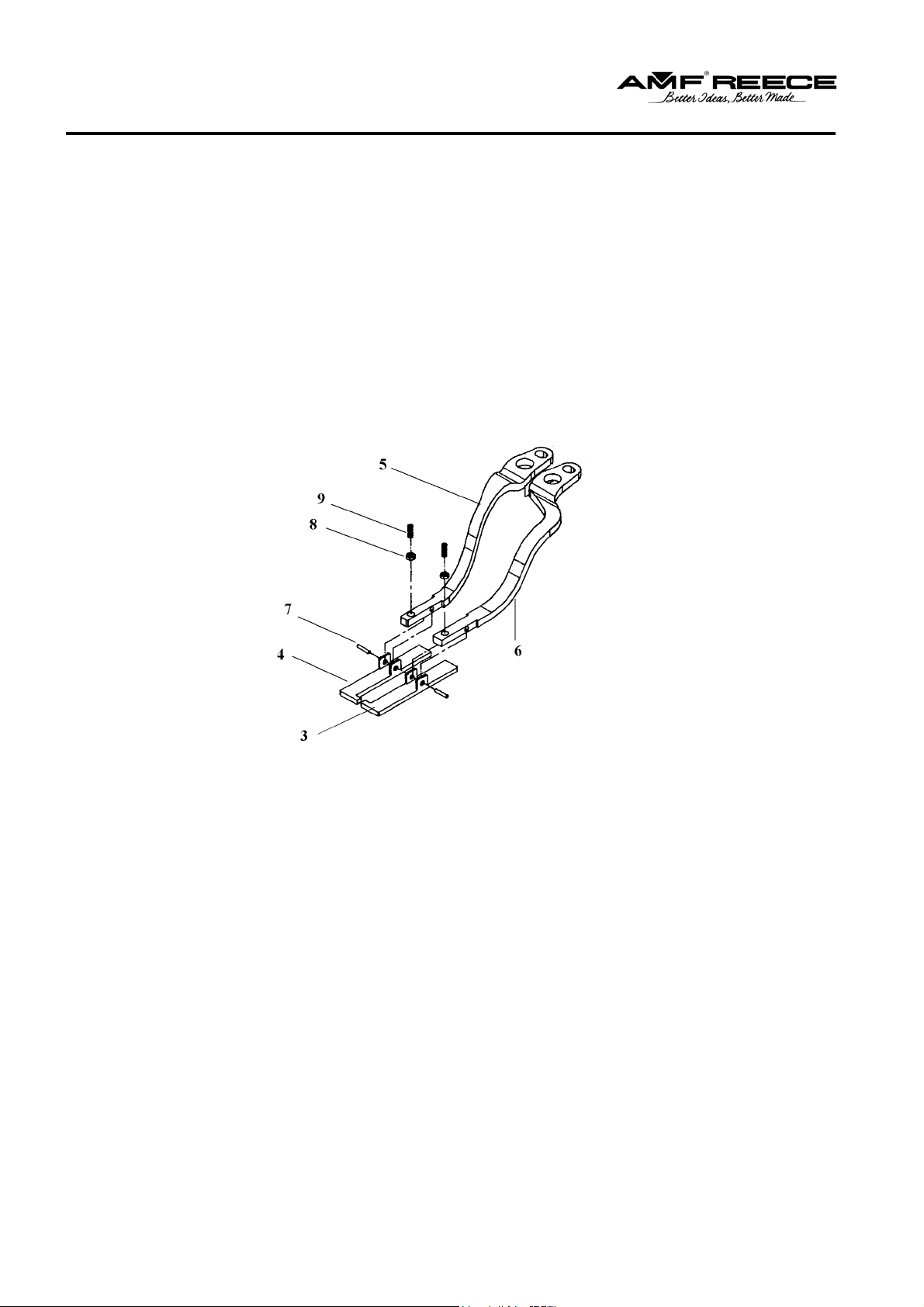

S4000

CLAMPING

3-4 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

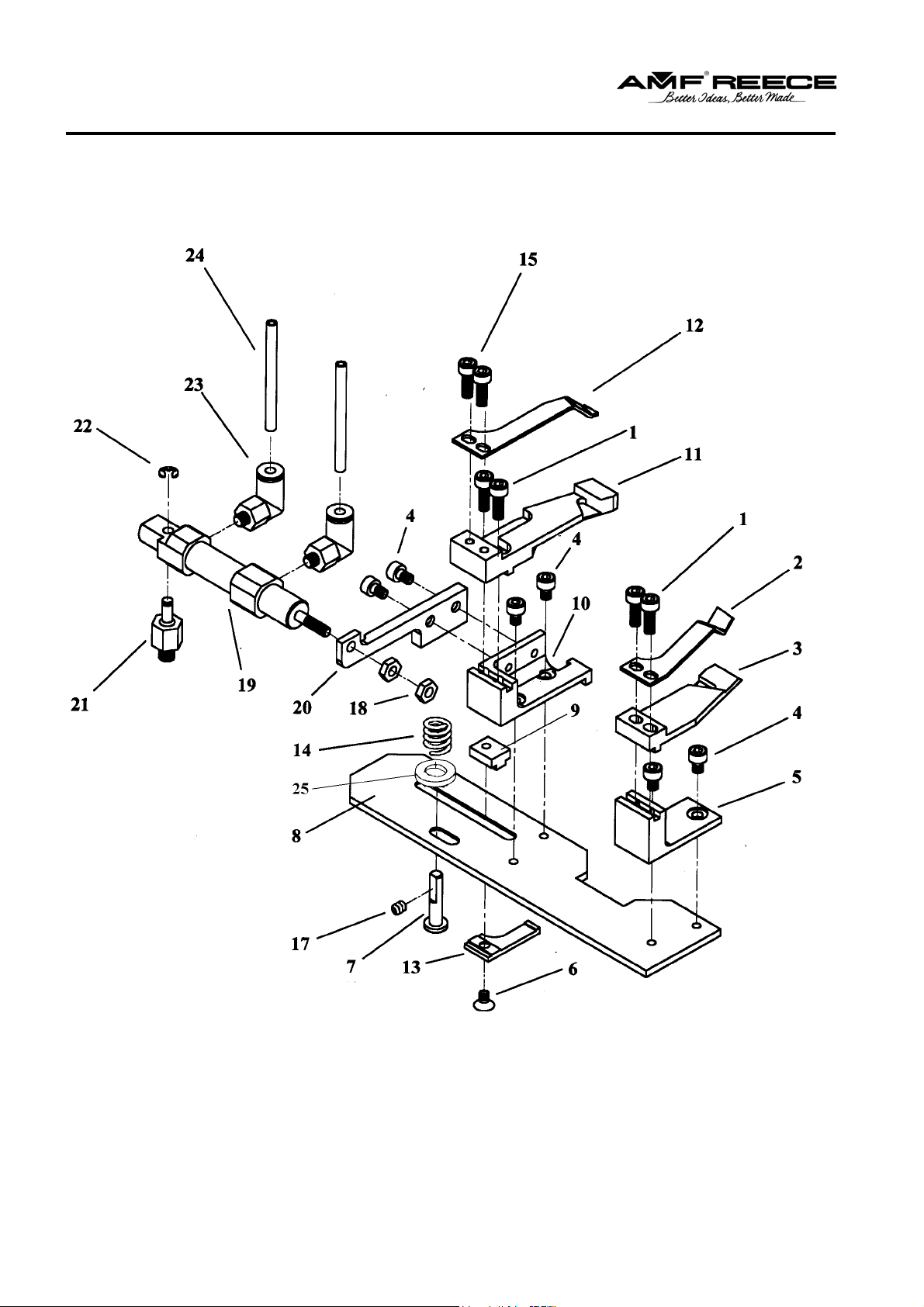

CLAMPING

DET PART NUMER DESCRIPTION

01 22.0164. 0. 000 Clamp Mat
02 01.2376. 0. 000 4-60 Sc rew
03 22.0224. 0. 000 R.H. Clam p F oot
04 22.0223. 0. 000 L.H. Clamp F oot
05 22.0226. 0. 000 L.H. Clamp Arm
06 22.0227. 0. 000 R.H. Clam p A rm
07 17.0031. 0. 460 Roll P in
08 08.6710. 3. 000 M3 Nut
09 08.6400. 3. 006 M3 x 6 S et Sc rew
10 08.6000. 6. 008 M6 x 8 S crew
11 24.0157. 0. 000 Tail Pivot Clamp
12 24.0158. 0. 000 Tail Bracket Clam p
13 08.6400. 5. 008 M5 x 10 S et Sc rew
14 22.0159. 0. 000 Tail Pivot Clamp Pi n
15 08.6400. 4. 004 M4 x 4 S et Sc rew
16 22.0173. 0. 000 Clamp Toggle Pivot Pin
17 07.6045.0.046 Pin
18 08.6400. 4. 012 M4 x 12 S et Sc rew
19 08.6700. 4. 000 M4 Nut
20 08.6000. 5. 012 M5 x 12 S crew
21 24.0035. 0. 000 Cyli nder Clevis
22 12.0008.3.412 Cylinder
23 12.0008.3.411 Connector
24 12.0008. 3. 416 Air Tubing
25 08.6000. 5. 022 M5 x 22 S crew
26 24.0036. 0. 000 Cyli nder Mounting Brack et
27 08.6100. 5. 012 M5 x 12 S crew
28 22.0125. 0. 000 Clamp Pl ate

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-5
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

S4000

THREAD TRIMMER

3-6 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

THREAD TRIMMER

DET PART NUMER DESCRIPTION

01 24.0003. 0. 000 Trimmer Pivot
02 24.0004. 0. 000 Trimmer Clamp Lever
03 08.6000. 4. 012 M4 x 12 S crew
04 07.6045.0.042 E-Clip
05 24.0005. 0. 000 Clevis Cyli nder
06 24.0080. 0. 000 Trimmer Shaft A ss embl y
07 12.1045.3.001 E-Clip
08 08.6700. 4. 000 M4 Nut
09 20.0093. 2. 004 Trimmer Hook
10 20.0092. 0. 004 Trimmer Ac tuator
11 01.2386. 0. 000 3/16-36 x .5 Hex Sc rew
12 24.0050. 0. 000 Trimmer Cyli nder
13 24.0006. 0. 000 Pivot Cyli nder
14 12.0008.3.411 Connector
15 12.0008. 3. 416 Air Tubing
16 08.6850.4.000 Washer

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-7
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

S4000

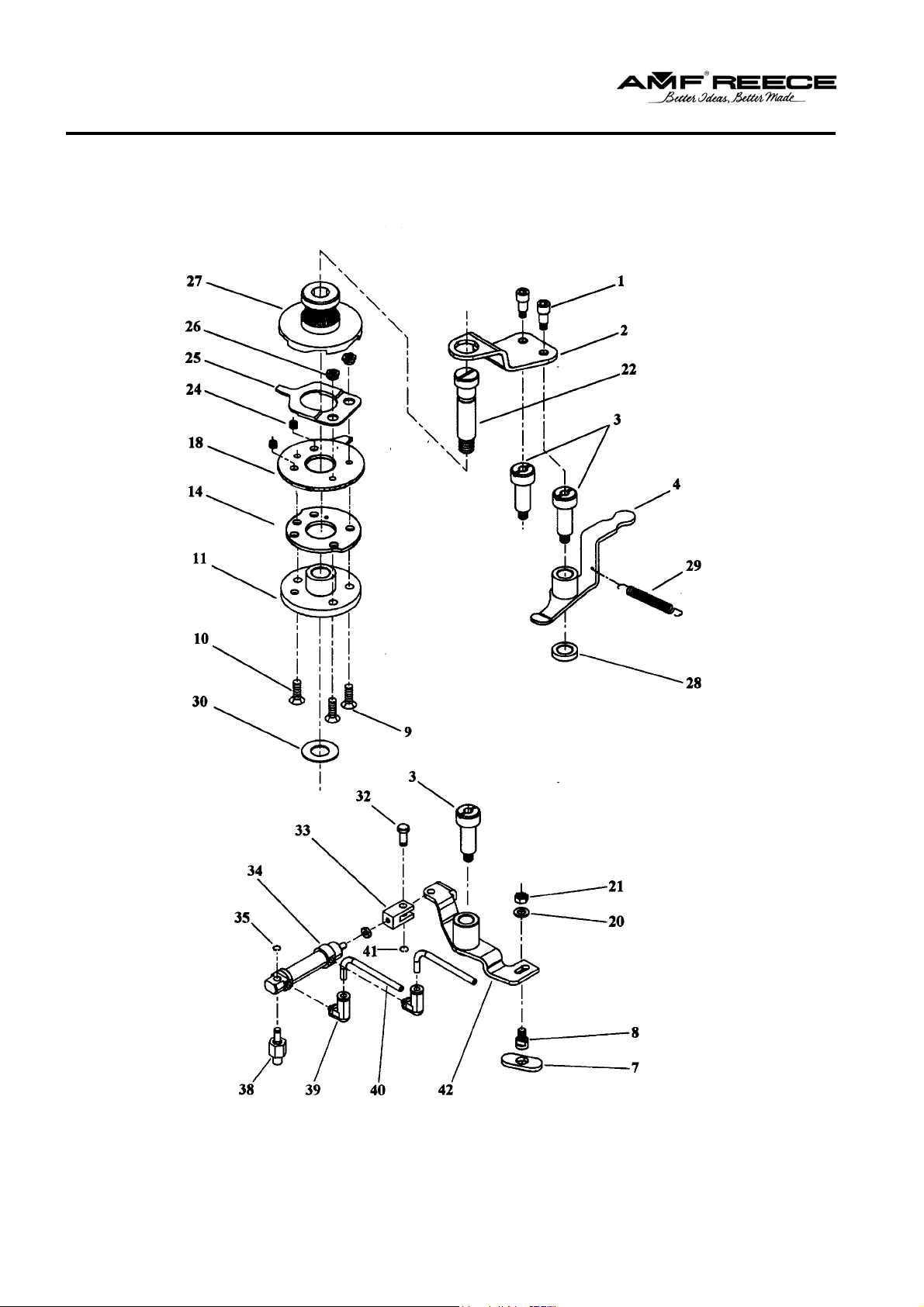

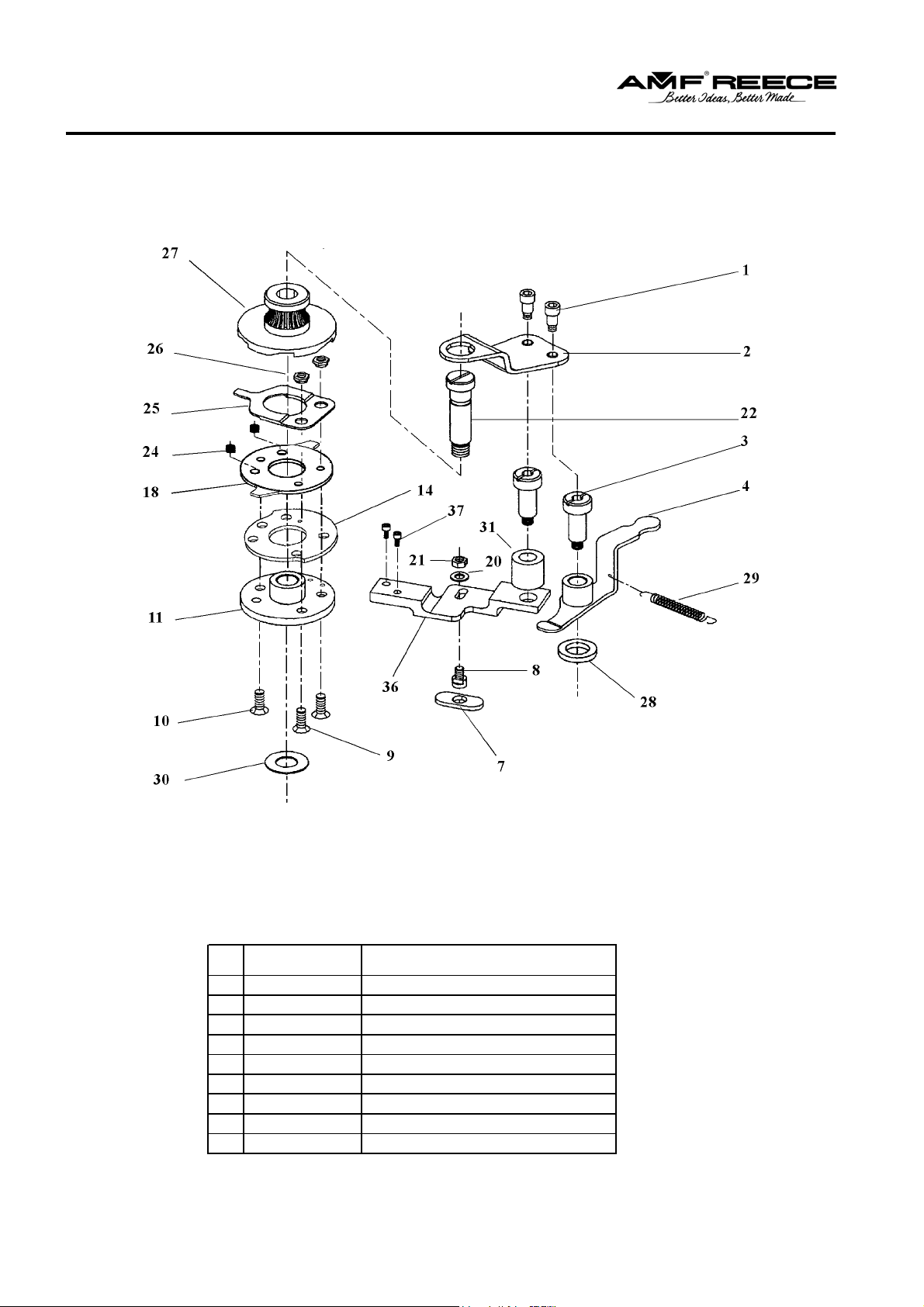

SHIFTER MECHANISM

6

3-8 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

SHIFTER MECHANISM

DET PART NUMER DESCRIPTION

01 08.6000. 4. 016 M4 x 16 S crew
02 22.2657. 0. 000 Right S hi fter A rm S pring
03 22.2656. 0. 000 Right S hi fter A rm
04 08.6000. 4. 005 M4 x 5 S crew
05 22.2655. 0. 000 Right S hi fter B l oc k
06 08.6100. 4. 006 M4 x 6 S crew
07 22.0400. 0. 000 Spring Load Pi n
08 22.2665. 0. 000 Main Cam S hi fter P l ate
09 22.0405. 0. 000 Adjustabl e Li nk Nut
10 22.2651. 0. 000 Left Shift er B lock
11 22.2652. 0. 000 Left Shift er A rm
12 22.2653. 0. 000 Left Shift er A rm Spring
13 22.2664. 0. 000 But t onhol e A dj us ting Link
14 07.6440.0.040 Spring
15 08.6000. 4. 010 M4 x 10 S crew
17 08.6400. 4. 005 M4 x 5 S et Sc rew
25 08.6887.5.000 Washer

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-9
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

S4000

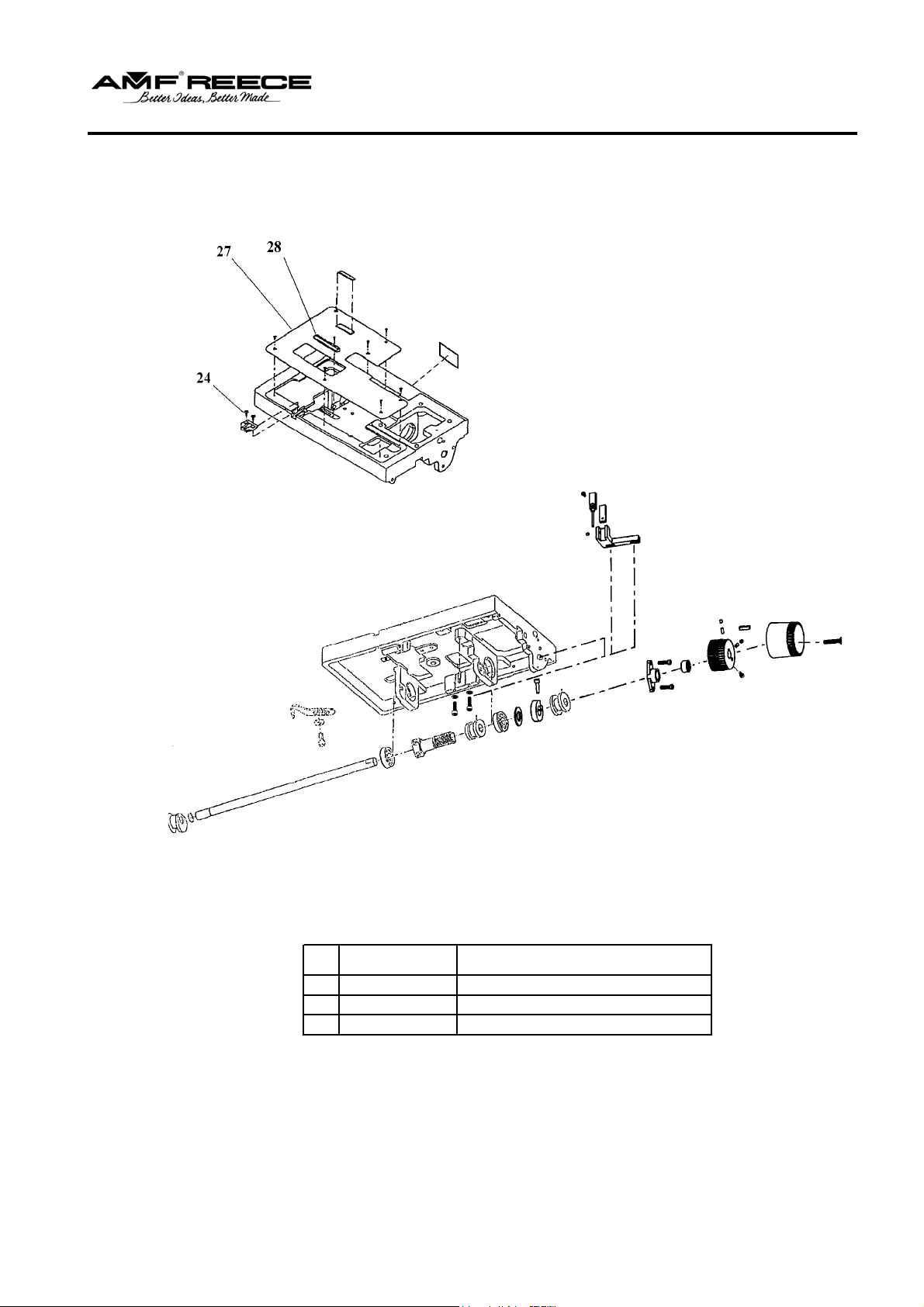

FEED MECHANISM

3-10 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

FEED MECHANISM

DE T PART NUMER DESCRIPTION DE T PART NUM ER DE SCRIPTION

01 22.0061.0.000 Clamp Plate Gear Rack Retainer 31 08.6000.5.020 M5 x 20 Screw
02 24.0351.0.000 Feed Gear Ass em bly 32 07.6045.0.009 3 x 12mm Pin
03 22.0354.0.000 Slip Cl utch Feed Gear 33 07.6440.0.033 Spring
04 22.0315.0.000 Feed Shaft Bracket 34 24.0049.0.000 Set Coll ar
05 22.0312.0.000 Slip Cl utch Feed Shaft 35 22.0232.0.000 Washer
06 22.0121.0.000 Slip Cl utch Drive Washer 36 08.6100.3.030 M3 x 30 Screw
07 08.6000.4.025 M4 x 25 Scr ew 37 22.0309.0.000 Feed Brake
08 08.6400.4.005 M4 x 5 Set Screw 38 08.6733.3.000 M3 Lock Nut
09 22.0353.0.000 Steel Bevel Gear 39 07.6440.0.028 Spri ng
10 22.0370.0.000 Feed Shaft Drive Bushing Crank 40 17.0019.2.057 Lockwasher
11 22.0336.0.000 Feed Shaft Drive Bushing 41 22.0114.0.000 Feed Br ake P ressure P late
12 08.6000.4.014 M4 x 14 Scr ew 42 07.6440.0.041 Spri ng
13 22.0021.0.000 Spring Retain Bl ock 43 22.0186.0.000 Washer Dia. 5.2/15- 0.2
14 22.0022.0.000 Pi vot S haft 44 22.0049.0.000 Feed Brake Mounti ng B loc k
15 22.0110.0.000 M5 Shoulder Nut 45 22.0031.0.000 Bearing Sp acer
16 08.6710.5.000 M5 Nut 46 08.6000.3.010 M3 x 10 Screw
17 22.0100.0.000 Shoulder Washer 47 08.6700.8.000 M8 Nut
18 07.6321.0.025 Cam Fol lower Bearing 48 08.6800.4.000 M4 Lockwasher
19 24.0127.0.000 R.H. Feed Cam Follo wer 49 07.6045.0.037 M3 x 16 Grooved Pin
20 22.0032.0.000 Looper Feed Foll.Bearing Sc rew 50 17.0019.0.517 Washer
21 22.0026.0.000 L.H. Feed Cam F ollower 51 07.6440.0.050 Spring
22 22.0183.0.000 Coll ar Dia. 8 52 22.0208.0.000 Flat Washer
23 07.6440.0.018 Compressi on Spring 53 22.0228.0.000 Coll ar
24 22.0184.0.000 M5 x 8 Screw 54 08.6400.5.305 M5 x 0,5 - 5 Set Screw
25 22.0305.0.000 Feed Connecti ng Link 55 08.6850.8.000 M8 Fla t W asher
26 22.0325.0.000 Feed Shaft 56 24.2035.0.000 Gear Cover
27 22.0320.0.000 Feed Shaft B earing Housing 57 08.6000.4.005 M4 x 5 Screw
28 08.6400.5.005 M5 x 5 Set Screw 58 24.0126.0.000 Fri ction Washer
29 22.0313.0.000 Feed Brake Pad 59 07.6321.0.030 Bearing
30 07.6045.0.034 E-Ring

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-11
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

S4000

LOOPER MECHANISM

3-12 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

LOOPER MECHANISM

DET PART NUMER DESCRIPTION

01 22.2410. 0. 000 Looper Shaft Bl ock
02 08.6100. 5. 020 M5 x 20 S crew
03 22.2440. 0. 000 Looper Shaft
04 01.1382.0.000 Screw
05 20.0094. 0. 000 Trimmer Knife
06 20.0111. 0. 000 Firs t Looper
07 23.2106. 0. 000 Firs t Looper Holder
08 01.1397.0.000 Screw
09 20.0112. 0. 000 Sec ond Looper
10 23.2107. 0. 000 Sec ond Looper Holder
11 08.6000. 4. 014 M4 x 14 S crew
12 08.6800. 4. 000 M4 Loc k was her
13 22.0021. 0. 000 Spring Retai ner B l oc k
14 22.0023. 0. 000 R.H. Looper Cam Fol l ower Pl at e
15 22.0022. 0. 000 Pivot Shaft
16 08.6700. 8. 000 M8 Hex Nut
17 24.0066. 0. 000 Looper Feed Follower Bearing S crew
18 12.2010. 1. 002 Cam Foll ower Bearing
19 22.0031. 0. 000 Bearing S pac er
20 22.0105. 0. 000 Looper Ec c ent ri c Nut
21 22.0100. 0. 000 Shoulder Washer
22 08.6710. 5. 000 M5 Hex Nut
23 22.0232. 0. 000 Flat Was her
24 22.0024. 0. 000 Looper Cam Follower Pl at e
25 08.6400. 4. 004 M4 x 4 S et Sc rew
26 22.0183.0.000 Collar
27 07.6440. 0. 036 Compression Spri ng
28 22.0064. 0. 000 Bite Shoul der S c rew
29 22.2425. 0. 050 Looper Link A ss em bly
30 22.2442. 0. 000 Looper Spacer
31 08.6000. 3. 010 M3 x 10 S crew
32 22.0233. 0. 000 Flat Was her
33 08.6850. 8. 000 M8 Flat W asher

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-13
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

S4000

BASE

3-14 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

BASE

DET PART NUMER DESCRIPTION

01 24.0038. 0. 000 Bas e Gask et
02 22.1010. 0. 000 Bas e Hinge
03 08.6100. 5. 012 M5 x 12 S crew
04 08.6200. 5. 012 M5 x 12 S crew
05 24.6005.0.000 Base
06 24.0111. 0. 000 Bas e Sound Deadener
07 05.1391. 0. 000 Logo Plat e
08 12.0008. 4. 399 Cyc l e Count er
09 08.6100. 5. 020 M5 x 20 S crew
10 08.6700. 5. 000 M5 Nut
11 08.6200. 5. 020 M5 x 20 S crew
12 12.0008. 4. 197 Air Tubing Brac ket
13 12.0008. 4. 305 Cyc l e Count er Cable
14 12.0008. 4. 052 Label "" G round""
15 12.0008.3.023 Tywrap
16 12.0008. 4. 192 Clamp Up/Down Cable
17 12.0008. 4. 235 Clamp Up/Down Push Button
18 08.6012. 4. 010 M4 x 10 S crew
19 08.6832. 4. 000 M4 Serrat ed Loc kwasher
20 12.0008. 4. 279 Plasti c Cable Fi t ting
21 12.0008. 4. 145 Cable End Connector
22 12.8000. 0. 188 Clamp Up/Down Label
23 17.0097. 5. 181 CE" " Label
24 12.0008.6.920 Plug
25 24.0059. 9. 004 Cyc l e Count er Cable Ass em bly

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-15
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

S4000

BITE MECHANISM

3-16 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

BITE MECHANISM

DET PART NUMER DESCRIPTION

01 22.0008. 0. 000 Bite Lever
02 08.6000. 6. 025 M6 x 25 S crew
03 22.0100. 0. 000 Shoulder Washer
04 22.0110. 0. 000 M5 Shoul der Nut
05 08.6000. 4. 014 M4 x 14 S crew
06 22.0183. 0. 000 Collar*Dia. 8
07 08.6700. 5. 000 M5 Hex Nut
08 22.0033. 0. 000 Left Cam Foll ower
09 22.0029. 0. 000 Bite Foll ower Bearing Spacer
10 22.0030. 0. 000 Bite Foll ower Spring Ret ai ner
11 07.6321.0.025 Bearing
12 22.0028. 0. 000 Bite Foll ower Bearing Sc rew
13 22.0027. 0. 000 Right Cam F oll ower
14 22.0069. 0. 000 Bite Foll ower Spacer
15 22.0020. 0. 000 Bite Pi vot Shaft
16 07.6440. 0. 028 Compression S pring
17 22.0064. 0. 000 Bite Shoul der S c rew
18 07.6321.0.029 Bearing
19 22.0009. 0. 000 Bite Adj usti ng Li nk
20 08.6100. 3. 008 M3 x 8 FH S crew
21 22.0063. 0. 000 Bite Shaft Ret ai ner
22 22.0005. 0. 000 Bite Shaft
23 08.6000. 3. 010 M3 x 10 S crew
24 22.0214. 0. 000 M5 Ecc ent ri c Nut
25 08.6400. 4. 005 M4 x 5 S et Sc rew
26 12.0008. 6. 800 Rubber Ring

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-17
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

S4000

KNIFE MECHANISM

3-18 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

KNIFE MECHANISM

DET PART NUMER DESCRIPTION

01 24.0009.0.000 Washer
02 08.6000. 5. 016 M5 x 16 S crew
03 24.0010. 0. 000 Clamp Collar
04 08.6000. 4. 010 M4 x 10 S crew
05 24.0011. 0. 000 Knife Drive Lever
06 22.1415. 0. 050 Knife Lever As sembly
07 22.1430. 0. 901 Knife Holder
08 22.1436. 0. 000 Knife Cover Cross Bar
09 24.0014.0.000 Piv ot
10 08.6000. 4. 016 M4 x 16 S crew
11 24.0062. 0. 000 Knife Guide Link
12 22.1442. 0. 000 Knife Shi m *.10mm
13 22.1443. 0. 000 Knife Shi m *.05mm
14 22.1426. 0. 000 Knife Holder Shi m B l oc k
15 08.6000. 4. 006 M4 x 6 S crew
16 07.6045.0.042 E-Clip
17 24.0037. 0. 000 Draw Bar Cyli nder
18 12.0008. 3. 408 Cyli nder K nife
19 24.0039. 0. 000 Knife Brack et
20 08.6000. 5. 040 M5 x 40 S crew
21 12.0008.3.409 Connector
22 12.0008. 3. 416 Air Tubing
23 23.2356.2.052 Knife*13mm
24 08.6000. 5. 008 M5 x 8 S crew
25 22.0046. 0. 000 Thread Guide Brack et
26 01.6551. 0. 000 Retaining Ring
27 08.6850. 4. 000 M4 Flat W asher
28 08.6800. 4. 000 M4 Loc k was her
29 08.6200. 4. 016 M4 x 16 S crew
30 01.7447. 1. 000 Porc elai n Gui de
31 08.6000. 3. 006 M3 x 6 S crew
32 24.0063. 0. 000 Thread Draw-Off
33 08.6400. 4. 004 M4 x 4 S et Sc rew
34 22.0091. 0. 000 Thread Take-Up
35 24.0093. 0. 000 Pivot Ec cent ric
36 22.0145. 0. 000 Knife Stop
37 08.6000. 4. 012 M4 x 12 S crew
38 08.6700. 4. 000 M4 Nut
39 08.6710. 6. 000 M6 Nut
40 24.0061. 0. 000 Shoulder S crew
41 08.6850. 3. 000 M3 Washer
42 24.0094.0.000 Collar
43 08.6400. 3. 003 M3x 3 S crew

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-19
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

S4000

MAIN CAM

3-20 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

MAIN CAM

DET PART NUMER DESCRIPTION

01 22.0182. 0. 000 M5 x 4 S crew
02 22.0097. 0. 000 Main Cam B rac e
03 22.0106. 0. 000 Hub Shoulder Screw
04 22.2640. 0. 050 Feed Reversing Lever
05 08.6400. 3. 020 M3 x 20 S et Sc rew
06 08.6700. 3. 000 M3 Nut
07 22.2631. 0. 000 Clamp Pl ate Sl idest one
08 22.2633. 0. 000 Sli destone Ret ai ning S crew
09 22.0137. 0. 000 M5 x 14 S crew
10 08.6100. 5. 010 M5 x 10 S crew
11 22.2600. 0. 000 Barring Cam
12 22.3069.0.000 Spacer
13 22.2637. 0. 000 Barring Lever St ud
14 22.2620. 0. 000 Feed Reversing Cam
15 22.2630. 0. 000 Barring Lever
16 22.2639. 0. 000 Barring Lever Roller
17 22.2638. 0. 000 Barring Lever Roller
18 24.0041.0.000 Washer
19 22.2635. 0. 000 Barring Lever Eccentric
20 08.6850. 5. 000 M5 Washer
21 08.6700. 5. 000 M5 Nut
22 22.2610. 0. 000 Main Cam S houl der S c rew
23 08.6100. 4. 012 M4 x 12 S crew
24 07.6440.0.037 Spring
25 22.2626. 0. 000 Drive Disk Swit c h Spring
26 22.2627. 0. 000 Shoulder Nut
27 22.2607. 0. 000 Drive Disk /Worm Gear Hub
28 22.3003.0.000 Spacer
29 07.6440. 0. 045 Ex tensi on Spring
30 07.6321. 0. 001 Thrus t Was her

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-21
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

S4000

HEAD ASSEMBL Y

3-22 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

S4000

HEAD ASSEMBL Y

DET PART NUMER DESCRI PTION

01 22.0054.0.000 Upper Thread Guide
02 24.6000.0.000 S4000 Head
03 12.0008.4.184 Encoder Cable
04 22.0058.0.000 Sewing Head Latch
05 12.0008.4.183 Motor Power Cable
06 07.6440.0.051 Latch Tension Spring
07 22.0062.0.000 M4 x 3 S crew
08 23.2044.0.050 Large Tension Assem bly
09 07.6045.0.037 3 x 16 Grooved Pin
10 22.1422.0.000 Knife Shaft Bushing
11 22.6002.0.000 Head Hinge Assem bl y
12 08.6100.5.020 M5 x 20 S crew
13 08.6700.5.000 M5 Nut
14 08.6310.6.035 M6 x 35 S crew
15 08.6000.8.040 M8 x 40 S crew
16 12.1010.2.003 2 x 24 Pi n
17 24.0016.0.000 Cylinder Pi vot Stud A ssem bl y
18 08.6700.6.000 M6 Nut
19 01.7806.0.000 Oilit e B ushing
20 08.6200.5.008 M5 x 8 S crew
21 07.6045.0.053 6 x 20 Pi n
22 08.6400.5.010 M5 x 10 S crew
23 08.6000.8.025 M8 x 25 S crew
24 12.5050.2.009 Belt
25 12.1011.0.001 6 x 20 Pi n
26 08.6850.5.000 M5 Washer
27 08.6000.5.016 M5 x 16 S crew
28 12.0008.4.182 DC Motor
29 24.0017.0.000 Motor Bracket
30 08.6000.6.025 M6 x 25 S crew
31 08.6400.5.008 M5x8 S et S crew
32 12.0008.3.156 Air Tubing Clamp
33 08.6400.5.005 M5 x 5 S et Screw
34 12.0008.4.192 Cable with Jumpers
35 12.0008.4.185 Emergency St op S witch
36 12.0008.4.186 Emergency S t op Lamp (Red)+24V
36 24.0059.0.020
37 12.0008.4.187 Power On Lamp (Green)
38 24.0023.0.000 Panel Plat e
39 12.0008.4.275 Cable Bushing
40 24.0029.0.000 Connector Cover
41 08.6850.6.000 M6 Washer
42 05.4116.0.000 S4000 Decal
43 08.6102.3.008 M3 x 8 S crew
44 12.8000.0.189 Panel Label
45 24.0047.0.000 Motor Pulley
46 17.0082.8.082 Washer
47 12.0008.3.023 T ywrap
48 12.0008.4.280 Plas tic Cable Fi tting
49 12.0008.4.140 Spiral Dia.8
50 08.6000.4.005 M4 x 5 S crew
51 24.0044.0.000 Needle Guard
52 12.8000.0.186 Motor Label
53 12.0008.3.023 Cable Holder
54 12.0008.4.428 Cable Emergency S t op
55 12.0008.4.429 Cable Power On

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-23
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Emergenc y Stop Lam p ( Red) +24V (Only C A ED )

S4000

BEDPLATE

3-24 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

BEDPLATE

DET PART NUMER DESCRIPTION

01 08.6100. 6. 035 M6 x 35 S crew
02 24.0051. 0. 066 Hand Wheel
03 24.0018. 0. 000 Main S haft Drive Pulley
04 08.6400. 5. 010 M5 x 10 S et Sc rew
05 08.6000. 3. 006 M3 x 6 S crew
06 12.2050.0.005 Bearing
07 01.7805. 0. 000 Shaft B earing
08 08.6000. 6. 016 M6 x 16 S crew
09 24.0019. 0. 000 Bearing Carrier Lower Shaft
10 08.6400. 5. 305 M5 x 0. 5-5 S et Screw
11 22.0006. 0. 000 Bite Cam
12 24.0020. 0. 000 End of Cyc l e S ensor Brac ket
13 22.0300. 0. 000 Feed Cam
14 22.8400. 0. 000 Shaft Worm Gear
15 24.1000. 0. 000 Main S haft
16 12.0008. 4. 181 Tension Release S ensor with Cable
17 12.1045. 2. 001 Retaining Ring
18 24.2400. 0. 000 Looper Cam
19 24.6100.0.000 Bedplate
20 07.6045. 0. 054 5 x 20 m m Pin
21 08.6400. 3. 004 M3 x 4 S et Sc rew
22 08.6000. 4. 016 M4 x 16 S crew
23 24.0021. 0. 000 Tension Release S ensor Brac ket
24 22.0408. 0. 000 Trimmer Cover P l at e
25 08.6100. 4. 006 M4 x 6 S crew
26 08.6120. 3. 008 M3 x 8 S crew
27 22.6101. 0. 000 Cover P l at e
28 20.0051. 1. 024 Throat P l ate
29 01.2084. 0. 000 6-52 Fill. S c rew
30 12.4030. 0. 002 Key 5x5x 30
31 08.6000. 5. 016 M5 x 16 S crew
32 08.6850. 5. 000 M5 W asher
33 22.0153.0.000 Screw
34 22.0096. 0. 000 But t onhol e S i z e Sti ck er
35
36 22.0115.0.000 Stop
37 22.0143.0.000 Screw
38 24.0002. 0. 000 Clamp Collar
39 12.0008. 4. 191 End of Cyc l e S ensor with Cable
40 22.3219. 0. 000 Needle Guard
41 08.6850. 4. 000 M4 W asher
42 08.6000. 4. 006 M4 x 6 S crew
43 24.0027. 0. 000 Sens or M ount ing Plat e
44 08.6100. 3. 008 M3 x 8 S crew
45 08.6400. 5. 005 M5 x 5 S et Sc rew
46 22.0545.0.000 Washer
47 08.6000. 4. 014 M4 x 14 S crew
48 08.6400. 4. 004 M4 x 4 S et Sc rew
49 05.1394. 0. 000 AMF Reec e Lable - smal l

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-25
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

S4000

COVERS

3-26 e-mail: [e-mail]; [e-mail]; website: www .amfr eece.com

Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]

Revised 01/2005

COVERS

DET PART NUMER DESCRIPTION

01 24.6004. 0. 000 Pull ey Cover
02 12.8000. 0. 188 Clamp Up/Down Label
03 08.6000. 3. 016 M3 x 16 S crew
04 24.6001. 0. 000 Head Rear Cover
05 24.0045. 0. 000 Ey e Shield
06 08.6200. 4. 008 M4 x 8 S crew
07 08.6000. 4. 006 M4 x 6 S crew
08 22.0057. 0. 000 Cover Lat ch
09 22.6003. 0. 000 Needle Bar Cover
10 08.6100. 5. 012 M5 x 12 S crew
11 24.0112. 0. 000 Cover S ound Deadener
12 08.6000. 4. 070 M4 x 70 S crew
13 08.6000. 3. 040 M3 x 40 S crew
14 05.4116. 0. 000 S-4000 Decal
15 24.6007. 0. 000 Fan Cover
16 24.0043.0.000 Fan
17 12.0008. 4. 142 Haet-Shrinkc able Tubing
18 08.6100. 3. 008 M3 x 8 S crew
19 24.0068.0.000 Net
20 24.0067. 0. 000 Fan Rack
21 08.6850. 5. 000 M5 Washer
22 12.0008.4.006 Pin
23 12.0008.4.008 Plug
24 24.0059. 9. 001 Fan Ass em bly

S4000

Revised 01/2005
e-mail: [e-mail]; [e-mail]; website: www .amfreece.com 3-27
Phones: [phone] (Service), [phone] (Spare Parts); Fax: [phone]
