USER'S MANUAL

1-888-936-4266

Mon.–Fri. 8h00 until 17h00 EST (excluding holidays).

[email protected]

CAUTION

Read all precautions and instructions in this manual before using this equipment. Keep this manual for future reference.

Page 2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ELLIPTICAL EXERCISER OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

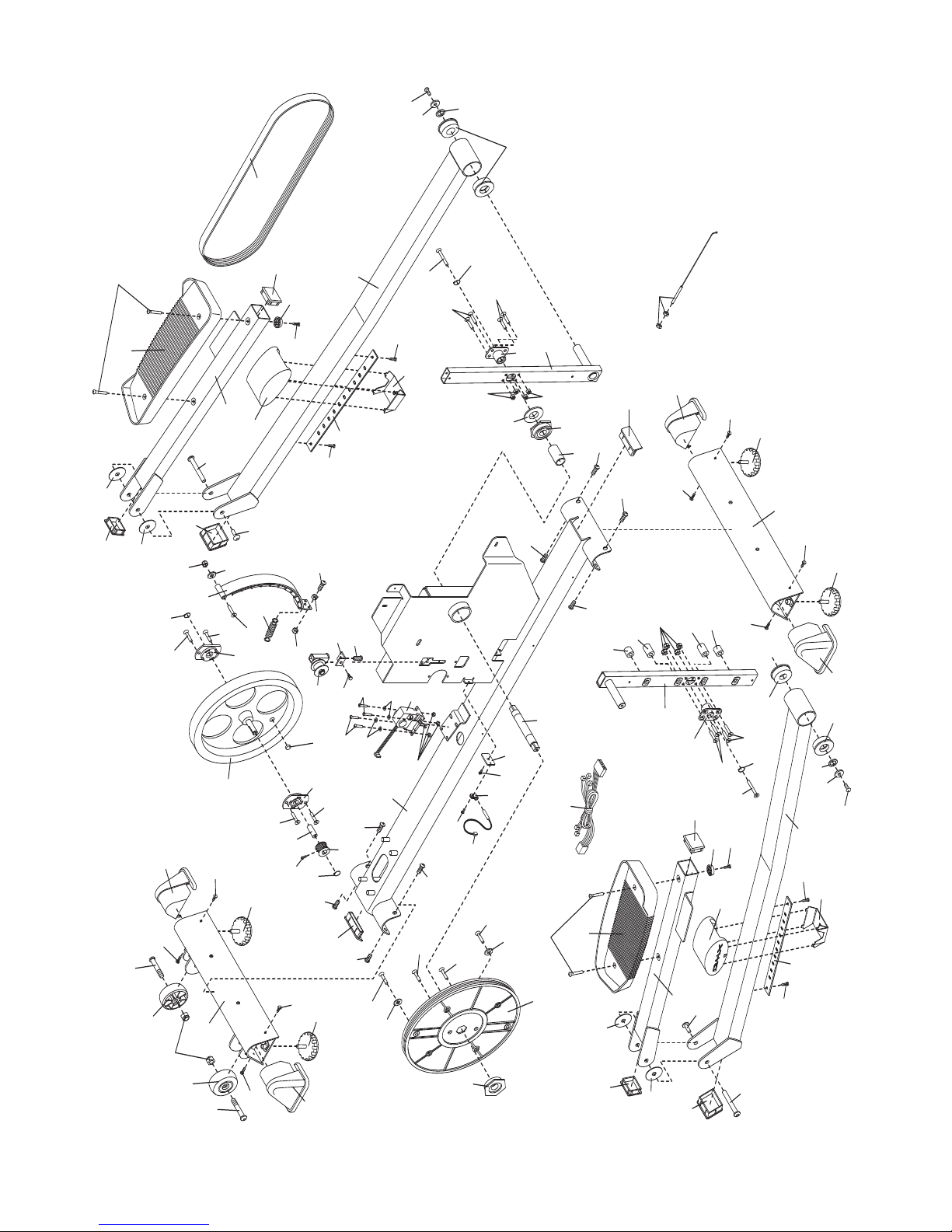

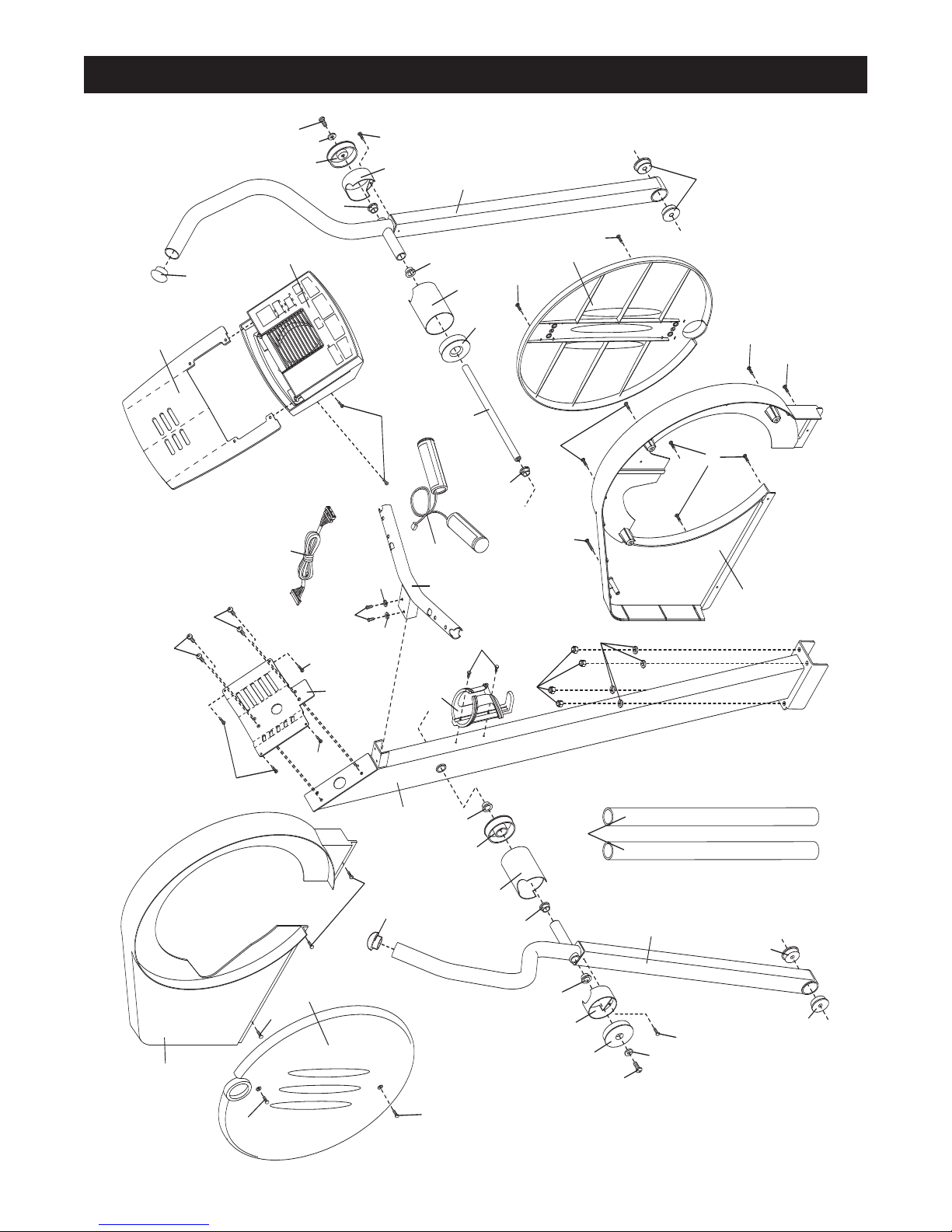

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is manufactured and distributed under license from Reebok International.

Page 3

IMPORTANT PRECAUTIONS

WARNING:To reduce the risk of serious injury, read the following important precau-

tions before using the elliptical exerciser.

1. Read all instructions in this manual before using the elliptical exerciser.

2. It is the responsibility of the owner to ensure that all users of the elliptical exerciser are adequately informed of all precautions.

3. The elliptical exerciser is intended for in-home use only. Do not use the elliptical exerciser in a commercial, rental, or institutional setting.

4. Place the elliptical exerciser on a level surface, with a mat beneath it to protect the floor or carpet. Keep the elliptical exerciser indoors, away from moisture and dust.

5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away from the elliptical exerciser at all times.

7. The elliptical exerciser should not be used by persons weighing more than 250 pounds.

8. Wear appropriate exercise clothing when using the elliptical exerciser. Always wear athletic shoes for foot protection.

Always hold the handlebar or the upper body arms when using the elliptical exerciser.

10. Keep your back straight when using the elliptical exerciser; do not arch your back.

11. If you feel pain or dizziness while exercising, stop immediately and cool down.

12. The pulse sensor is not a medical device. Various factors, including the user's movement, may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

13. When you stop exercising, allow the pedals to slowly come to a stop. The elliptical exerciser does not have a free wheel; the pedals will continue to move until the flywheel stops.

14. The decal shown on page 4 has been placed on the elliptical exerciser in the indicated location. If the decal is missing or illegible, call the telephone number on the front cover of this manual and order a free replacement decal. Apply the replacement decal in the location shown.

9. Always hold the handlebar when mounting dismounting the elliptical exerciser.

WARNING:Before beginning this or any exercise program, consult your physician.

This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

Page 4

BEFORE YOU BEGIN

REV–B

209489 & 210125

ongratulations for selecting the new REEBOK

C 545 elliptical exerciser. The RL 545 elliptical exerciser

s an incredibly smooth exerciser that moves your feet

i in a natural elliptical path, minimizing the impact on your knees and ankles. And the unique RL 545 features adjustable resistance and a state-of-the-art console to help you get the most from your exercise. Welcome to a whole new world of natural, ellipticalmotion exercise from REEBOK.

For your benefit, read this manual carefully before you use the elliptical exerciser. If you have ques-

Upper Body Arm

Fan

Handlebar with Pulse Sensor

ions after reading this manual, please see the front

t cover of this manual. To help us assist you, please

ote the product model number and serial number

n before contacting us. The model number is RBCCEL5906.0. The serial number can be found on a decal attached to the elliptical exerciser (see the front cover of this manual for the location of the decal).

Before reading further, please familiarize yourself with the parts that are labeled in the drawing below.

Bookrack

Console

BACK

Water Bottle Holder*

Upright

Pedal Cushion

Wheel

Pedal

Pedal Leg

RIGHT SIDE

Leveling Foot

*No water bottle is included

Page 5

ASSEMBLY

M4 x 16mm

Screw (82)–6

M4 x 22mm

Screw (92)–2

M4 x 25mm

Screw (69)–2

M8 x 25mm Patch

Screw (73)–10

M8 x 19mm Patch

Screw (81)–4

M6 x 20mm Patch

Screw (75)–4

M6 Split

Washer (72)–2

Small M8

Washer (71)–2

Large M8

Washer (70)–2

M10 Nylon

Locknut (85)–4

Bolt Set (67)–2

M10 Split

Washer (87)–4

Wave Washer

(91)–2

M6 x 13mm

Shoulder

Screw (93)–2

M8 x 19mm

Shoulder

Screw (86)–2

lace all parts of the elliptical exerciser in a cleared area and remove the packing materials. Do not dispose of

the packing materials until assembly is completed.

In addition to the included tools, assembly requires an adjustable wrench and a rubber mallet .

See the drawings below to identify the small parts needed for assembly. The number in parentheses below each drawing is the key number of the part, from the PART LIST on page 25; the number following the key number is the quantity needed for assembly. Note: Some small parts may have been preassembled. If a

part is not found in the parts bag, check to see if it has been preassembled.

1. Identify the Front Stabilizer (63), which has Wheels (27) attached to one side. Attach the Front Stabilizer to the front of the Frame (1) with four M8 x 25mm Patch Screws (73).

Page 6

2. Attach the Rear Stabilizer (24) to the rear of the

rame (1) with four M8 x 25mm Patch Screws (73).

3. Remove the four M10 Nylon Locknuts (85) and the four M10 Split Washers (87) from the welded bolts near the front of the Frame (1).

While a second person holds the Upright (2), connect the Upper Wire Harness (15) to the Lower Wire Harness (39).

Align the holes in the bracket on the lower end of the Upright (2) with the welded bolts on the Frame (1). Lower the Upright,

Harness (15) and the Lower Wire Harness (39) up into the Upright, until the welded bolts are fully inserted into the bracket. Be careful to avoid pinching and damaging the Wire Harnesses.

Place the four M10 Split Washers (87) onto the welded bolts on the Frame (1). Then, tighten the four M10 Nylon Locknuts (85) onto the welded bolts.

feeding the Upper Wire

Be careful to

avoid pinching

and damaging the

Wire Harnesses

(15, 39) during

this step.

Bracket

15 39

Welded

Bolts

4. Feed the Upper Wire Harness (15) up through the indicated hole in the Console Bracket (3). Console Bracket to the Upright (2) with four M8 x 19mm Patch Screws (81).

pinching and damaging the Upper Wire Harness.

Attach the Water Bottle Holder (13) to the Upright (2) with two M4 x 22mm Screws (92). Note: The water bottle holder is designed to be used with your own water bottle.

Be careful to avoid

Attach the

Hole

Page 7

5. While another person holds the Handlebar (4) near

the Upright (2), feed the Pulse Sensor Wire (14) into

he Upright and out of the indicated hole in the

t Console Bracket (3). Attach the Handlebar to the

pright with two M6 x 13mm Shoulder Screws (93)

U and two M6 Split Washers (72). Be careful to

avoid pinching and damaging the Pulse Sensor Wire.

Hole

6. The Console (8) requires four “D” batteries (not

included); alkaline batteries are recommended. Press the indicated tab on the battery cover and remove the cover. Press four batteries into the battery clips;

ed as shown by the markings inside of the battery clips. Then, reattach the battery cover.

7. Insert the Bookrack (7) into the slots in the Console

(8). Attach the Bookrack to the Console with two M4 x 25mm Screws (69).

and damaging the wires in the Console.

make sure that the batteries are orient-

Be careful to avoid pinching

Batteries

Battery

Cover

8. While another person holds the Console (8) near

the Console Bracket (3), connect the Pulse Sensor Wire (14) and the Upper Wire Harness (15) to the corresponding wires on the Console.

Insert all excess wiring down into the Upright (2). Attach the Console (8) to the Console Bracket (3) with four M4 x 16mm Screws (82). Be careful to avoid pinching and damaging the Pulse Sensor Wire (14) and the Upper Wire Harness (15).

Console

ires

Page 8

9. Insert the Pivot Axle (21) into the Upright (2), and

center the Pivot Axle. Apply a generous amount of

he included grease to both ends of the Pivot Axle

t and to the flat side of an Upright Bushing (20).

Identify the Left Upper Body Arm (5), which is marked with a decal. Insert the Upright Bushing (20) into an Upright Spacer (19). Turn the Upright Spacer so that the semicircular cutout is at the top, and slide the Upright Spacer onto the post on the Left Upper Body Arm.

Slide the Left Upper Body Arm (5) onto the Pivot Axle (21). Attach a Pivot Spacer (17) to the Left Upper Body Arm with an M4 x 16mm Screw (82). Turn a Pivot Endcap (16) so that the rectangular cutout is at the bottom. Using a rubber mallet, tap the Pivot Endcap into the Pivot Spacer.

Slide a Small M8 Washer (71) onto an M8 x 19mm Shoulder Screw (86), and finger tighten the Shoulder Screw into the Pivot Axle (21).

Attach the Right Upper Body Arm (6) in the same manner. Tighten both M8 x 19mm Shoulder

Screws (86).

10. Apply a small amount of grease to the axle on the

left Crank Arm (40).

Post

Grease

Identify the Left Pedal Leg (28), which is marked with a decal. Slide the Left Pedal Leg onto the axle on the left Crank Arm (40). Slide a Wave Washer (91) and a Large M8 Washer (70) onto an M8 x 25mm Patch Screw (73), and tighten the Patch Screw into the axle.

Washer is on the end of the axle before tightening the Patch Screw.

Snap a Pedal Cushion (74) around the Left Pedal Leg (28) onto a Cushion Bracket (46). Make sure that the arrow on the Pedal Cushion is pointing to one of the numbers on the Left Pedal Leg and that the number shows through the window in the Cushion Bracket.

Assemble the Right Pedal Leg (not shown) in the same way.

Identify the Left Pedal

with a decal. Attach the Left Pedal (35) to the Left Pedal Arm with two M6 x 20mm Patch Screws (75) as shown.

Attach the Right Pedal (not shown) to the Right

Arm (not shown) in the same way.

Pedal

Make sure that the Wave

Arm (33), which is marked

Window

Grease

Page 9

12. Set the Left Pedal Arm (33) on the left Pedal Cushion

(74), and hold the end of the Left Pedal Arm inside of

he bracket on the Left Pedal Leg (28).

old a Plastic Pedal Arm Spacer (65) between the

H Left Pedal Leg (28) and the Left Pedal Arm (33). Insert the long part of a Bolt Set (67) through the Left Pedal Leg, the Plastic Pedal Arm Spacer, and the Left Pedal Arm.

Apply a film of the included grease to the long part of the Bolt Set (67). Lift the Left Pedal Leg (28), and hold the lower end of the Left Upper Body Arm (5) inside of the bracket on the Left Pedal Arm (33). Insert the long part of the Bolt Set through the Left Upper Body Arm. Hold another Plastic Pedal Arm Spacer (65) between the Left Pedal Arm and the Left Pedal Leg, and insert the long part of the Bolt Set through these parts. Tighten the short part of the Bolt Set into the long part.

Attach the Right Pedal Arm (32) in the same way.

13. Make sure that all parts are properly tightened before you use the elliptical exerciser. Note: Some

hardware may be left over after assembly is completed.

Grease

HOW TO INSTALL THE RECEIVER FOR THE OPTIONAL CHEST PULSE SENSOR

The elliptical exerciser is now fully assembled. If you purchase the optional chest pulse sensor (see page 21), follow the steps below to install the receiver included with the chest pulse sensor.

1. See assembly step 7 on page 7, and remove the two

M4 x 25mm Screws (not shown) and the Bookrack (7).

Next, look under the Console (8) and locate the three indicated screws (not shown). Remove the three screws. Do not remove the screws attaching the

Console to the Console Bracket (not shown).

2. Carefully lift the top of the Console (8) as shown. Using

the two small screws included with the chest pulse sensor, attach the receiver to the indicated plastic posts on the Console. Make sure that the receiver is turned exactly as shown. Connect the wire on the receiver to the indicated wire on the Console.

See step 1 above. Lower the top of the Console (8). Make sure that no wires are pinched. Reattach the top of the Console with the three screws removed in step 1. See assembly step 7 on page 7, and reattach the Bookrack (7) with the two M4 x 25mm Screws (not shown). Note: The remaining wires included with the chest pulse sensor may be discarded.

Screws

Receiver

Posts

ire

Page 10

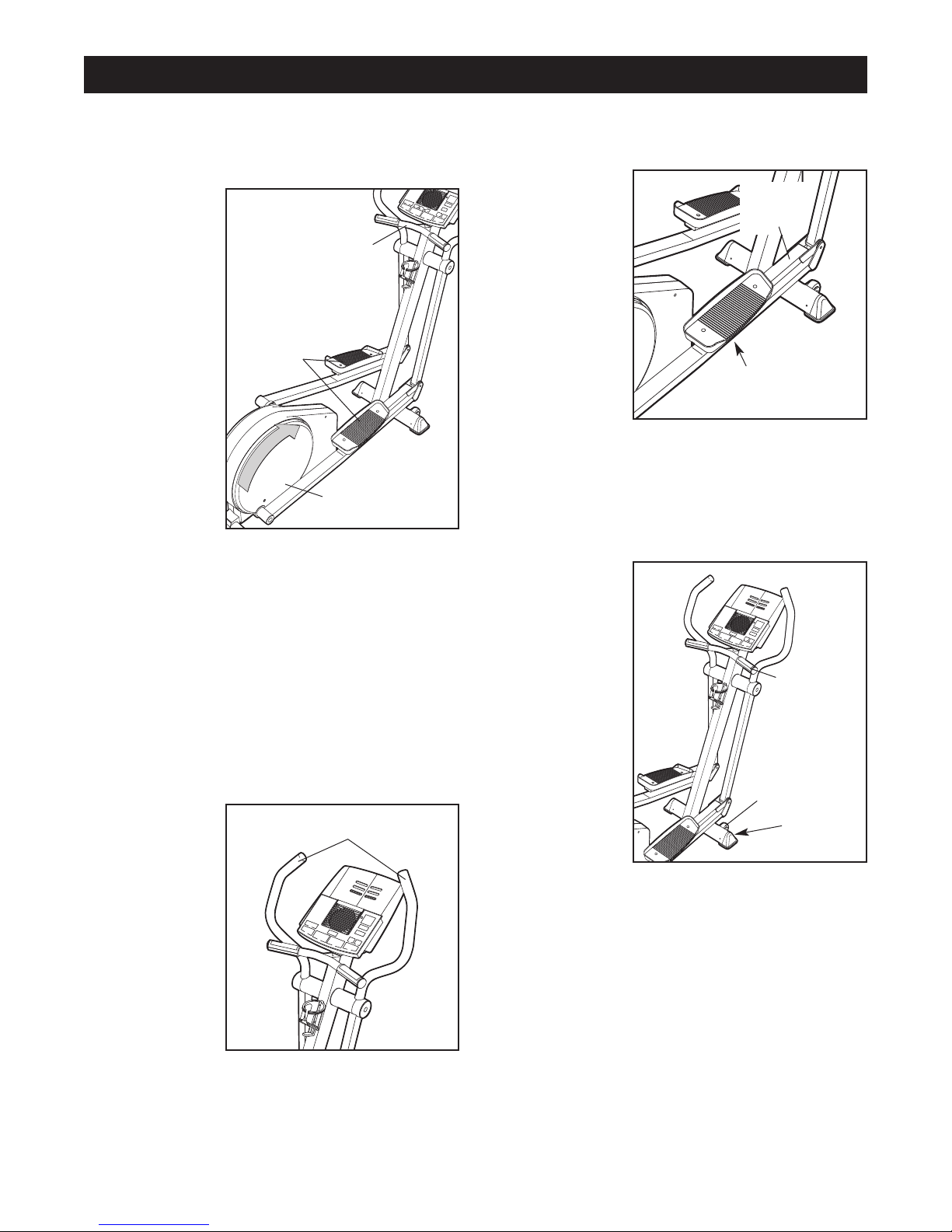

ELLIPTICAL EXERCISER OPERATION

OW TO EXERCISE ON THE ELLIPTICAL

H EXERCISER

To mount the

lliptical exer-

iser, hold the

c handlebar and step onto the pedal that is in the lowest position. Then, step onto the other pedal. Push the pedals until they begin to move with a continuous motion. Note:

The pedal disks can turn in either direction. It is recommended that you move the pedal disks in the direction shown by the arrow; however, for variety, you can turn the pedal disks in the opposite direction.

To dismount the elliptical exerciser, wait until the pedals come to a complete stop. Note: The elliptical

exerciser does not have a free wheel; the pedals will continue to move until the flywheel stops.

When the pedals are stationary, step off the highest pedal first. Then, step off the lowest pedal.

HOW TO USE THE UPPER BODY ARMS

o add upper-

T body exercise to your workouts, push and pull the upper body arms as you exercise.

o exercise

T only your lower body, hold the handlebar as you exercise.

Handlebar

Pedals

Upper Body

Pedal Disk

Arms

OW TO ADJUST THE PEDAL CUSHIONS

The feel of the pedals is affect-

d by the posi-

ions of the

t pedal cushions. The farther back the pedal cushions are placed, the firmer the pedals will feel. To move the pedal cushions, lift the pedal arms and slide the pedal cushions to the desired positions. Make sure that both

pedal cushions are in the same position.

HOW TO MOVE AND LEVEL THE ELLIPTICAL EXERCISER

Stand in front of the elliptical exerciser, hold the handlebar firmly, and tip the elliptical exerciser until it can be moved on the front wheels. Carefully move the elliptical exerciser to the desired location and then lower

Due to the

it.

weight of the elliptical exerciser, use extreme caution when moving it.

After the elliptical exerciser has been moved, make sure that the ends of both stabilizers are touching the floor. If the elliptical exerciser rocks slightly during use, turn one or both of the leveling feet under the front stabilizer until the rocking motion is eliminated.

Pedal

Arm

Pedal Cushion

(under the pedal)

Handlebar

Wheel

Leveling

Foot

Page 11

Note: If there is a sheet of clear plastic on

the face of the console, remove the plastic.

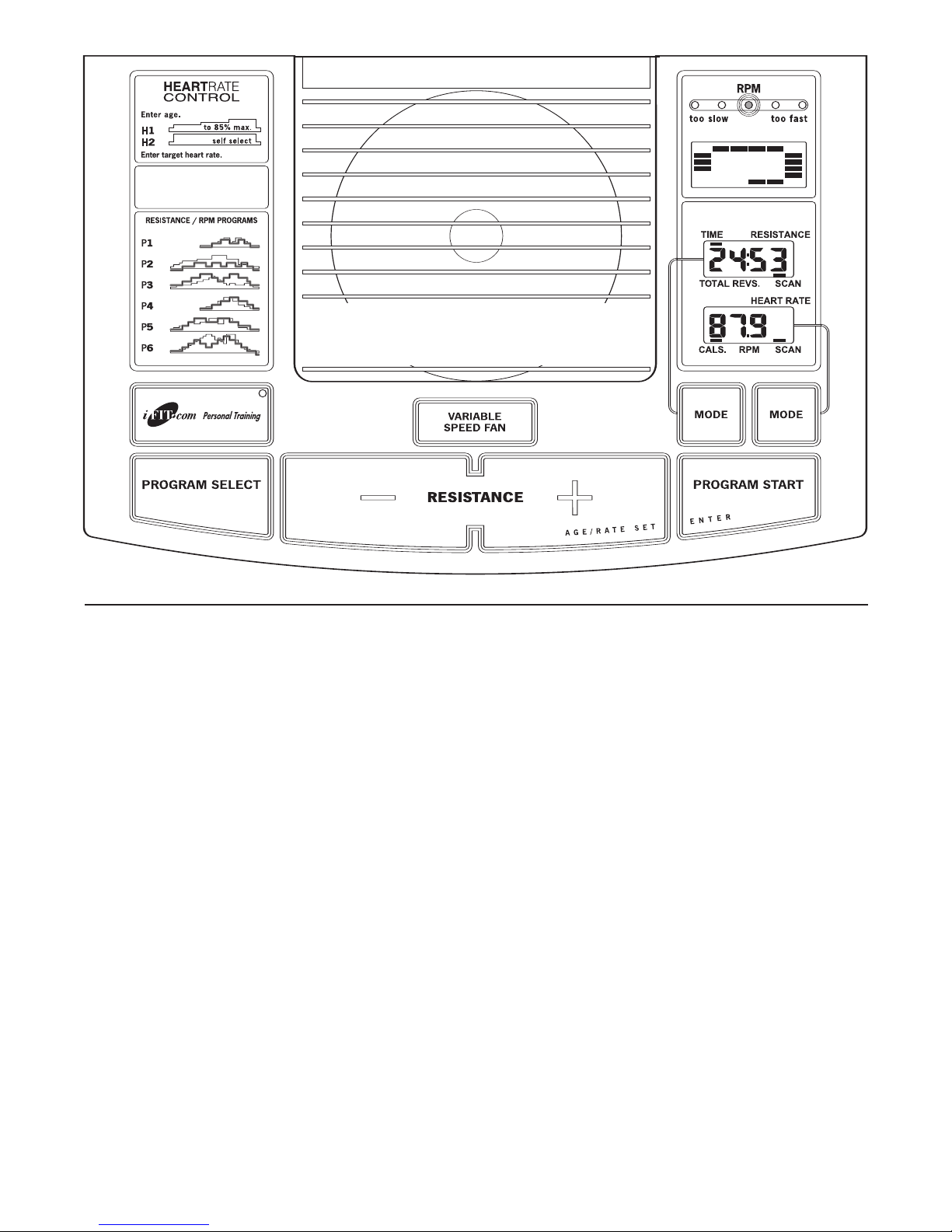

FEATURES OF THE CONSOLE

The advanced console offers a selection of features designed to make your workouts more enjoyable and effective. When the manual mode of the console is selected, the resistance of the pedals can be changed with the touch of a button. As you exercise, the console will provide continuous exercise feedback. You can even measure your heart rate using the handgrip pulse sensor.

about an

The console also offers six preset programs. Each program automatically changes the resistance of the pedals and prompts you to increase or decrease as it guides you through an effective workout.

In addition, the console features two heart rate programs that automatically change the resistance of the pedals and prompt you to vary your pace to keep your heart rate near a target heart rate as you exercise.

The console also features iFIT.com interactive technology. Having iFIT.com interactive technology is like hav-

Note: See page 21 for information

optional chest pulse sensor.

your pace

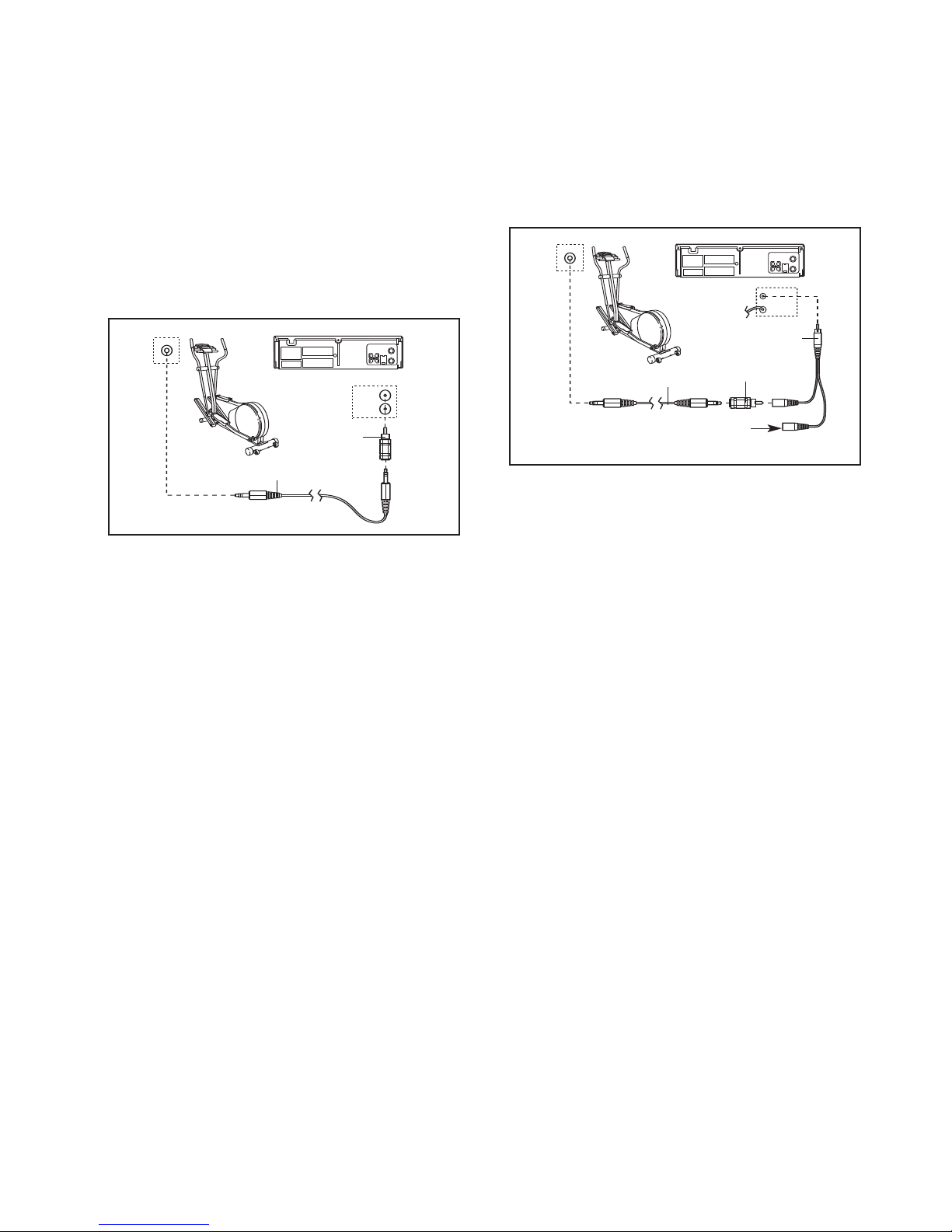

ing a personal trainer in your home. Using the included audio cable, you can connect the elliptical exerciser to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs and videocassettes are available separately). iFIT.com CD and video programs automatically control the resistance of the pedals and prompt you to vary your pace as a personal trainer coaches you through every step of your workout. High-energy music provides added motivation.

and videocassettes, call the telephone number on the front cover of this manual.

With the elliptical exerciser connected to your comput-

, you can also go to our W

er and access programs directly from the internet.

Explore www.iFIT.com for more information.

To use the manual mode of the console, see page

12. To use a preset program, see page 14. To use a heart rate program, see page 15. To use an iFIT.com CD or videocassette, see page 20. To use a program directly from our Web site, see page 21.

To purchase iFIT.com CDs

eb site at www.iFIT.com

Page 12

OW TO USE THE MANUAL MODE

egin pedaling to activate the console.

To activate the console, begin pedaling or push any button on the console. After a few seconds, the console displays will light. A tone will then

ound and the console will be ready for use.

Select the manual mode.

When the power is turned on, the manual mode will be selected. If you have selected a program or the iFIT.com mode, select the manual mode by pressing the Program Select button repeatedly until a track appears in the matrix.

Begin pedaling and change the resistance of

the pedals as desired.

As you pedal, change the resistance of the pedals by pressing the Resistance buttons. There are ten resistance levels. Note: After the buttons are pressed, it will take a moment for the pedals to reach the selected resistance level.

Monitor your progress with the matrix and the

two displays.

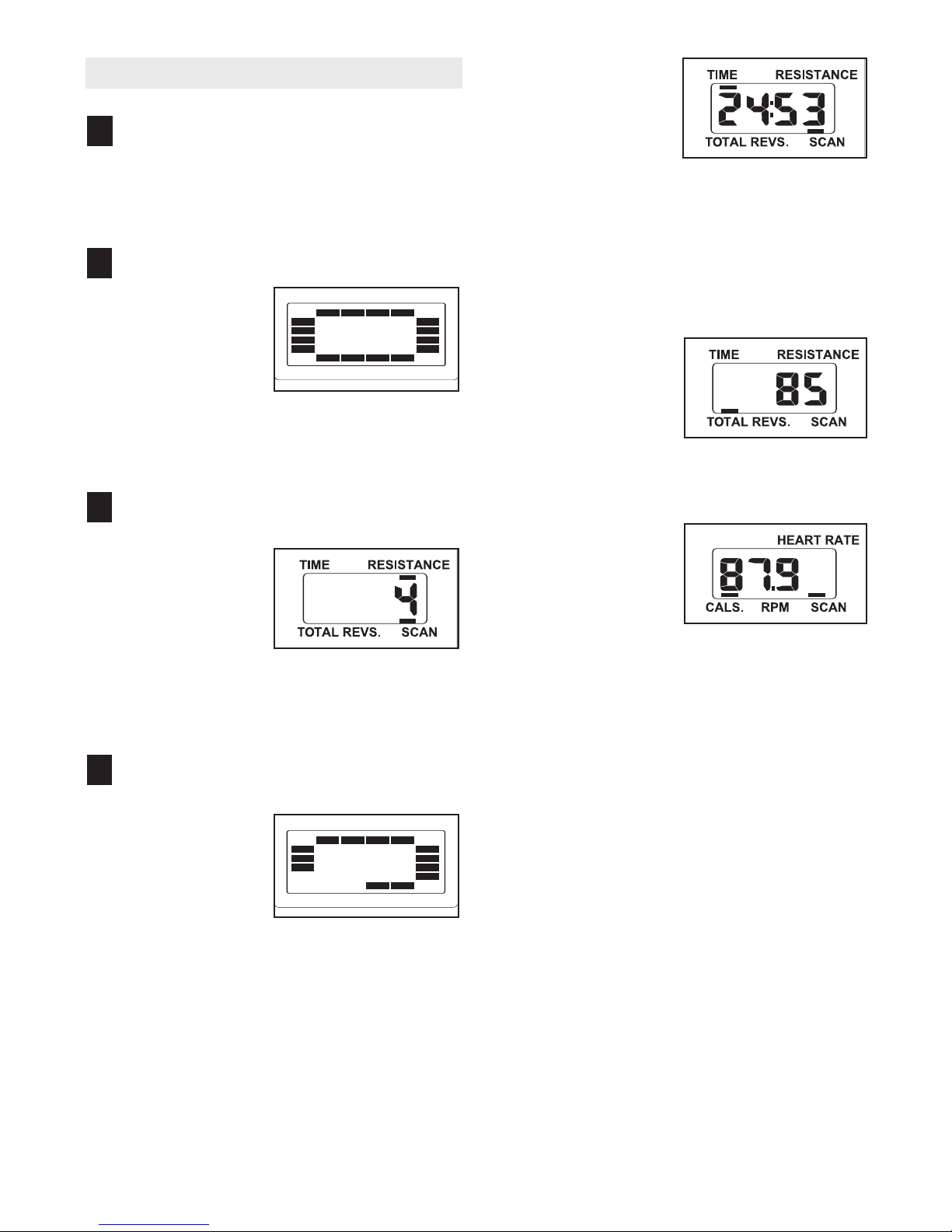

The matrix

When the manual mode or the iFIT.com mode is selected, the matrix will show a track representing 1/4 mile. As you exercise, the indicators around the track will light, one at a time, until the entire track is lit. The track will then darken and a new lap will begin.

—

The upper display—The

pper display will

u show the elapsed

ime and the total

t number of revolutions you have pedaled. The display will change from one number to the next every few seconds, as shown by the indicators in the display. Note: When a program is selected, the display will show the time in the program instead of the elapsed time. Each time the resistance of the pedals changes, the display will show the resistance level.

If desired, you can select a single mode for continuous display. Press the left Mode button repeatedly until the desired mode indicator is lit; make sure that the Scan indicator is not lit.

The lower display—The lower

display will show the approximate number of calories you have burned and your pedaling pace, in revolutions per minute (RPM). The display will change from one number to the next every few seconds, as shown by the indicators in the display. The display will also show your heart rate when you use the handgrip pulse sensor or the optional chest pulse sensor.

If desired, you can select a single mode for con tinuous display. Press the right Mode button repeatedly until the desired mode indicator is lit; make sure that the Scan indicator is not lit.

remaining

Page 13

easure your heart rate if desired.

You can measure your heart rate using either the handgrip pulse sensor or the optional chest pulse sensor. Note: If you hold the handgrip pulse sensor and wear the chest pulse sensor at the same time, the console

ill not display your heart rate accurately.

If there are thin sheets of plastic on the metal contacts on the handgrip pulse sensor, peel off the plastic.

measure your heart rate, hold the contacts; your palms must be resting on the contacts closest to you, and your fingers must be touching the opposite contacts.

Avoid moving your hands.

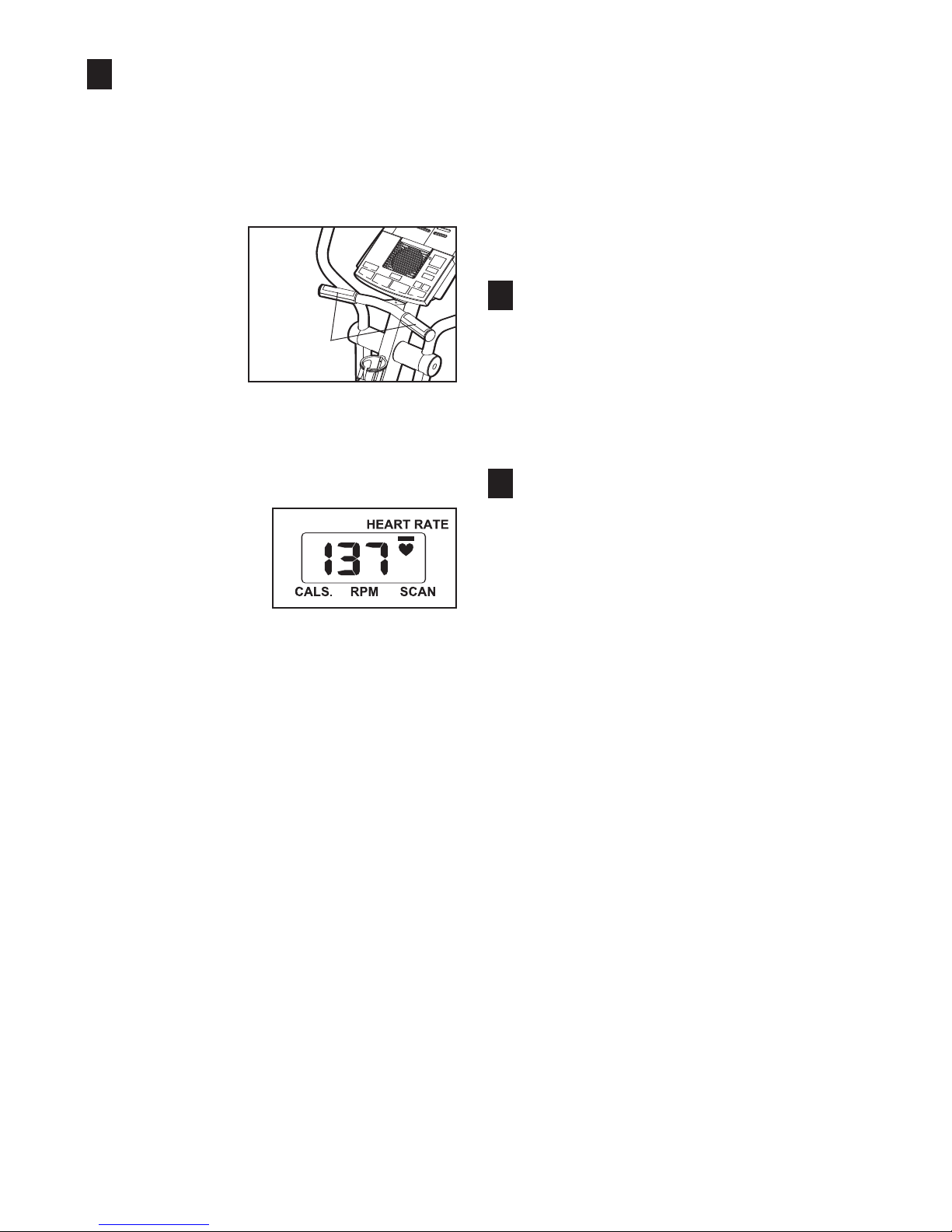

When your pulse is detected, the heart-shaped indicator in the lower display will flash each time your heart beats, and your heart rate will be shown. For the most accurate heart rate reading, hold the contacts for at least 15 seconds.

Contacts

Note: If you continue to hold the pulse sensor, the lower display will show your heart rate for up to

0 seconds. The display will then show your heart

3 rate along with the other modes.

If your heart rate is not shown, make sure that your hands are positioned as described. Avoid moving your hands excessively or squeezing the metal contacts too tightly. For optimal performance, periodically clean the metal contacts using a soft cloth; never use alcohol, abrasives, or chemicals.

Turn on the fan if desired.

To turn on the fan at low speed, press the Variable Speed Fan button. To turn on the fan at high speed, press the button a second time. To turn off the fan, press the button a third time. Note: If the fan is turned on but the pedals are not moved for thirty seconds, the fan will automatically turn off.

When you are finished exercising, the console

will automatically turn off.

If the pedals are not moved for a few seconds, a tone will sound, the console will pause, and the upper display will begin to flash.

If the pedals are not moved for about five minutes, the console will turn off and the displays will be reset.

Page 14

OW TO USE PRESET PROGRAMS

egin pedaling to activate the console.

See step 1 on page 12.

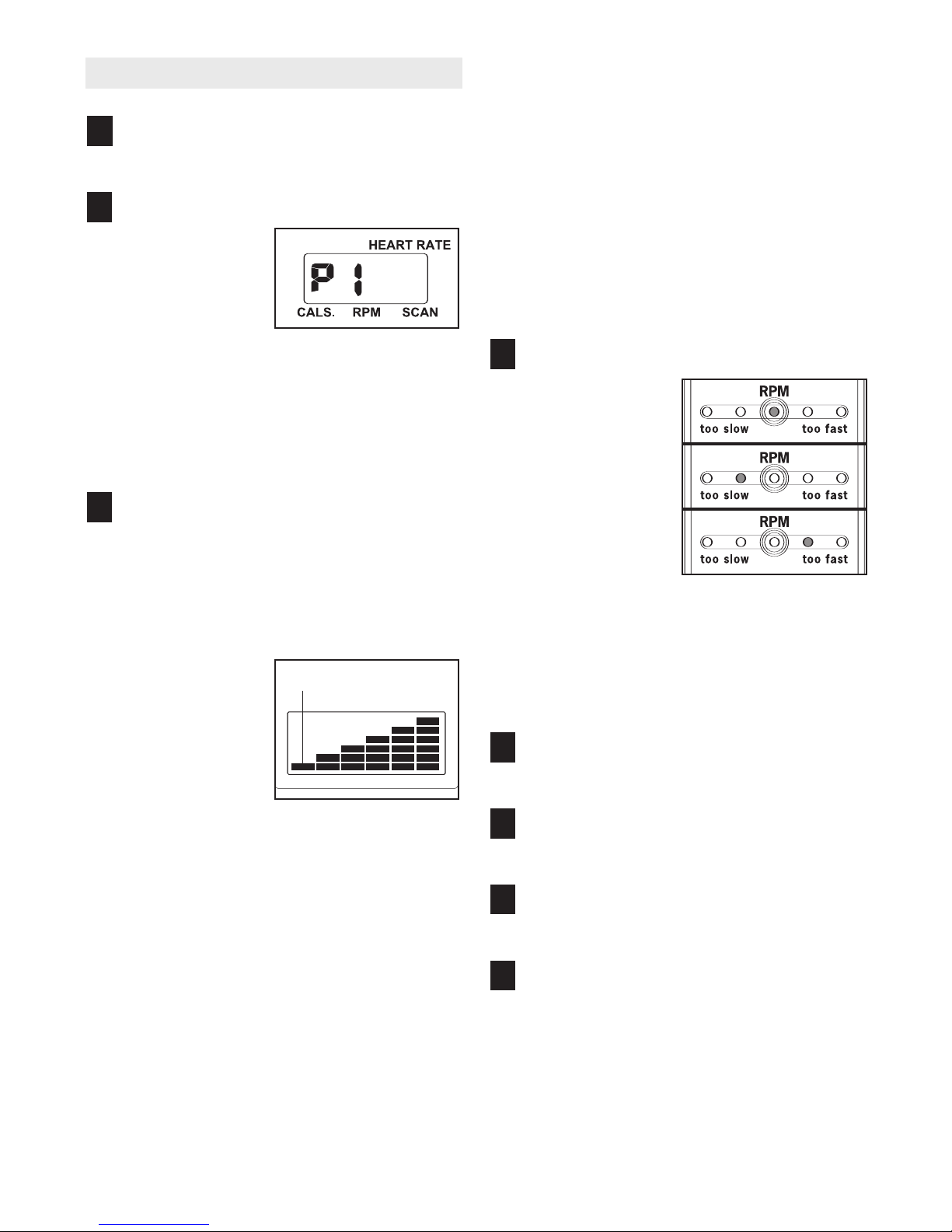

Select one of the six preset programs.

When the power is turned on, the manual mode will be selected. To select a preset program, press the Program Select button repeatedly until “P1,” “P2,” “P3,” “P4,” “P5,” or “P6” appears in the lower display.

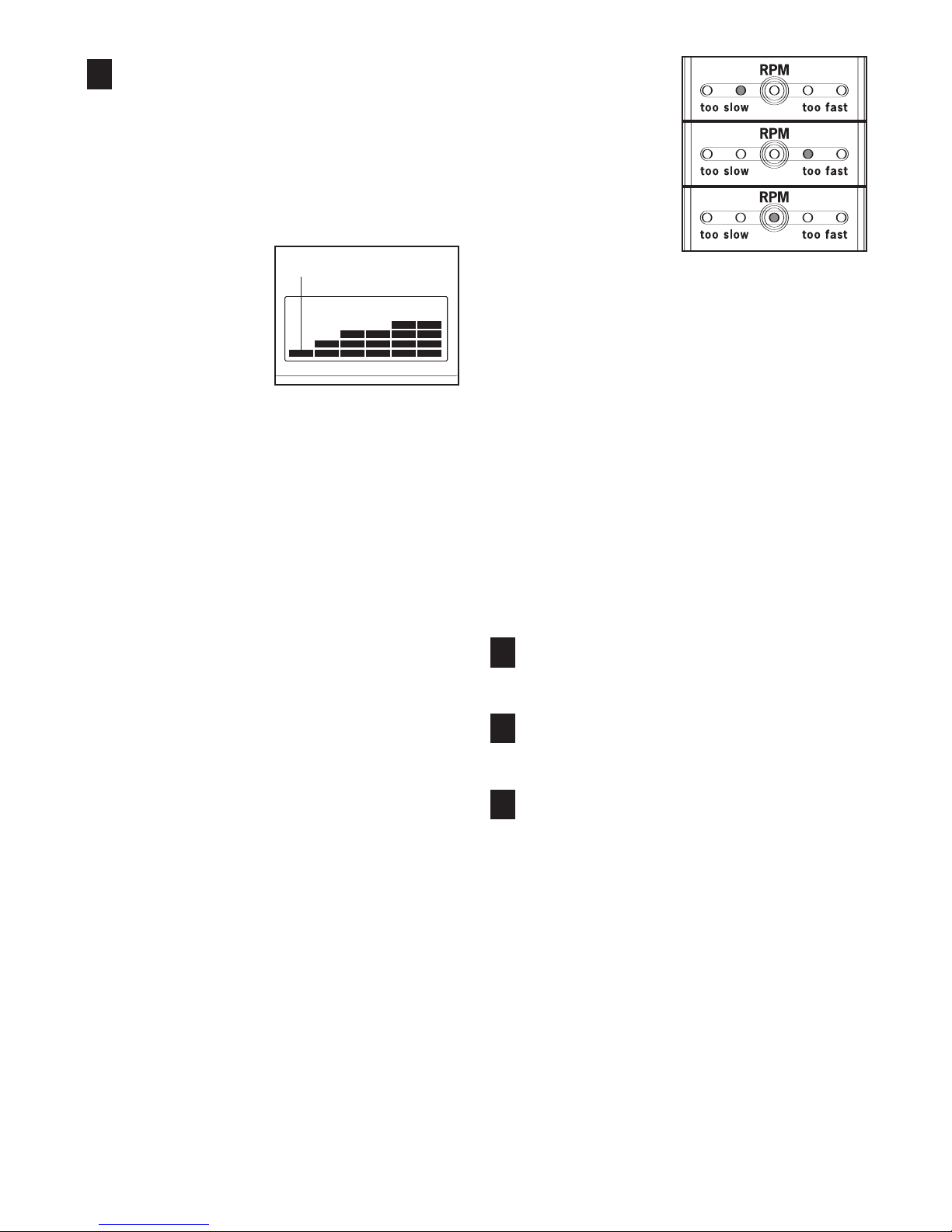

When a preset program is selected, the matrix will show the first six resistance settings of the program.

Press the Program Start button or begin

pedaling to start the program.

Each program is divided into several time segments of different lengths. One resistance setting is programmed for each segment. (The same resistance setting may be programmed for two or more consecutive segments.)

The resistance setting for the first segment will be shown in the flashing Current Segment column of the matrix. The resistance settings for the next five segments right.

will be shown in the columns to the

Current Segment

The program will continue until the resistance setting for the last segment is shown in the Current

egment column of the matrix and no time

S remains in the program.

Note: During the program, you can override the resistance setting for the current segment by pressing the Resistance buttons. However, when the next segment begins, the resistance will automatically change if a different resistance setting is programmed for the next segment. If you stop pedaling for several seconds, a tone will sound and the program will pause. To restart the program, simply resume pedaling.

Use the pace (RPM) guide.

During preset programs, the pace guide will prompt you to increase or decrease your pedaling pace. When one of the indicators on the left side of the pace guide lights, increase your pace; when one of the indicators on the right side lights, decrease your pace. When the center indicator lights, maintain your current pace.

the program are intended only to provide a goal. Make sure to pedal at a pace that is comfortable for you.

Monitor your progress with the two displays.

Important: The pace settings of

See step 4 on page 12.

Measure your heart rate if desired.

See step 5 on page 13.

When only three seconds remain in the first segment of the program,

all resistance settings will then move one column to the left.

segment will then be shown in the flashing Current Segment column and the resistance of the pedals will automatically change to the resistance setting for the second segment.

The resistance setting for the second

a series of tones will sound;

Turn on the fan if desired.

See step 6 on page 13.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 13.

Page 15

OW TO USE HEART RATE PROGRAMS

Heart rate program 1 is designed to keep your heart rate between 60% and 85% of your

mum heart rate

um heart rate is estimated by subtracting your age

m from 220. For example, if you are 30 years old, your estimated maximum heart rate is 190 (220 – 30 =

190).

Heart rate program 2 will keep your heart rate near a target heart rate that you select.

Follow the steps below to use a heart rate program.

Begin pedaling to activate the console.

while you exercise. Note: Your maxi-

estimated maxi-

See step 1 on page 12.

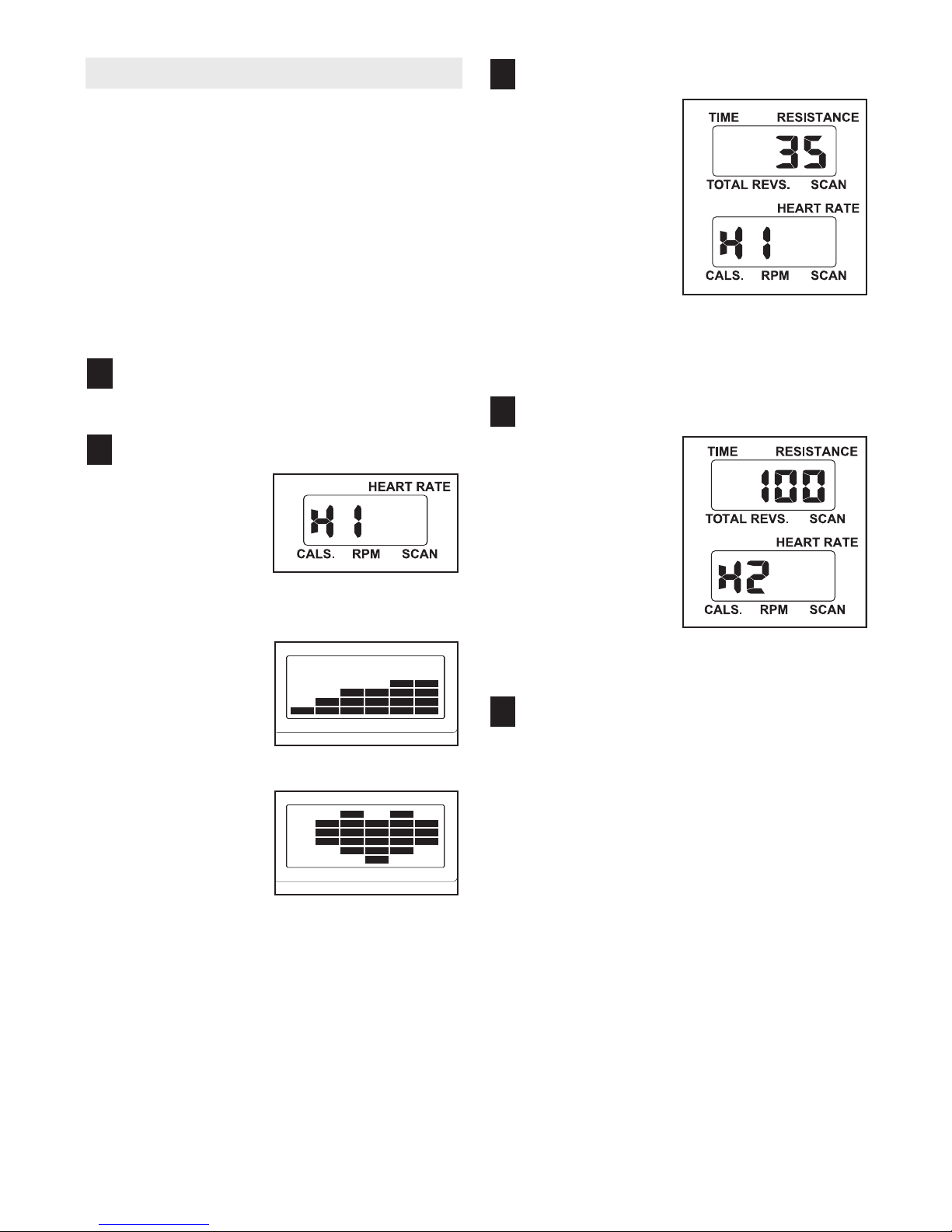

Select one of the heart rate programs.

To select a heart rate program, press the Program Select button repeatedly until “H1” or “H2” appears in the lower display.

If you selected heart rate program 1, the matrix will show the first eight target heart rate settings of the program.

If you selected heart rate program 2, a heart symbol will appear in the matrix.

If you selected heart rate program 1, go to step 3. If you selected heart rate program 2, go to step 4.

nter your age.

When heart rate program 1 is selected, you must enter your age. If you have already

ntered your age,

e press the Enter (Program Start) button and go to step 5. If you have not entered your age, press the + or – button repeatedly to enter your age, and then press the Enter button. Note: Once you have entered your age, it will be saved in memory.

Enter a target heart rate.

When heart rate program 2 is selected, you must enter a target heart rate. (See the heart rate chart on page 23 for heart rate guidelines.) To enter a target heart rate, press the + or – button repeatedly, and then press the Enter button.

Hold the handgrip pulse sensor or wear the

optional chest pulse sensor.

To use a heart rate program, you must hold the handgrip pulse sensor or wear the optional chest pulse sensor. If you use the handgrip pulse sensor, it is not necessary to hold the handgrips continuously during the program. However, you should hold the handgrips frequently for the program to operate properly.

the handgrips, keep your hands on the metal contacts for at least 30 seconds.

you are not holding the handgrips, the letters “PLS” will appear in the lower display instead of your heart rate.

Each time you hold

Note: When

Page 16

Begin pedaling.

ach heart rate program is divided into 30 one-

E minute segments. One target heart rate is pro-

rammed for each segment. Note: The same tar-

g get heart rate may be programmed for two or more consecutive segments. If heart rate program 2 is selected, the same target heart rate is programmed for all segments.

If heart rate program 1 is select-

the target

ed,

heart rate setting for the first segment will be shown in the flashing Current Segment column of the matrix. The target heart rate settings for the next seven segments will be shown in the columns to the right. When only three seconds remain in the first segment of the program, both the Current Segment column and the column to the right will flash, a series of tones will sound, and the time will flash in the right display. When the first segment ends,

tings will move one column to the left.

heart rate setting for the second segment will then be shown in the flashing Current Segment column.

If heart rate program 2 is selected, the same target heart rate is programmed for all segments; therefore, the target heart rate settings will not be shown in the matrix. When only three seconds remain in the first segment of the program, a series of tones will sound and the time will flash in the right display.

As you pedal, the console will regularly compare your heart rate to the target heart rate. If your heart rate is too far below or above the target heart rate, the resistance of the pedals will auto matically increase or decrease to being your heart rate closer to the target heart rate.

Current Segment

all target heart rate set-

The target

The pace guide will help you to

aintain a con-

m stant pace during

he program. When

t one of the indicators on the left side of the pace guide lights, increase your pace; when one of the indicators on the right side lights, decrease your pace. When the center indicator lights, maintain your current pace.

Important: The pace settings of the program are intended only to provide a goal. Make sure to pedal at a pace that is comfortable for you.

The program will continue until no time remains in the right display.

Note: During the program, you can manually change the resistance setting, if desired, by pressing the Resistance buttons. However, when the console compares your heart rate to the target heart rate, the resistance may automatically change. If you stop pedaling for several seconds, a tone will sound and the program will pause. To restart the program, simply resume pedaling.

Monitor your progress with the two displays.

See step 4 on page 12.

Turn on the fan if desired.

See step 6 on page 13.

When you are finished exercising, the con-

sole will automatically turn off.

See step 7 on page 13.

Page 17

HOW TO CONNECT YOUR CD PLAYER, VCR,

LINE OUT

PHONES

LINE OUT

PHONES

LINE OUT

PHONES

LINE OUT

PHONES

AUDIO OUT

RIGHT

LEFT

PHONES

LINE OUT

AUDIO OUT

RIGHT

LEFT

OR COMPUTER

o use iFIT.com CDs,the elliptical exerciser must be

connected to your portable CD player, portable stereo, home stereo, or computer with CD player. See pages 17 and 18 for connecting instructions. To use iFIT.com videocassettes, the elliptical exerciser must be connected to your VCR. See page 19 for connecting instructions. To use iFIT.com programs directly from our Web site, the elliptical exerciser must be connected to your home computer. See page 18 for connecting instructions.

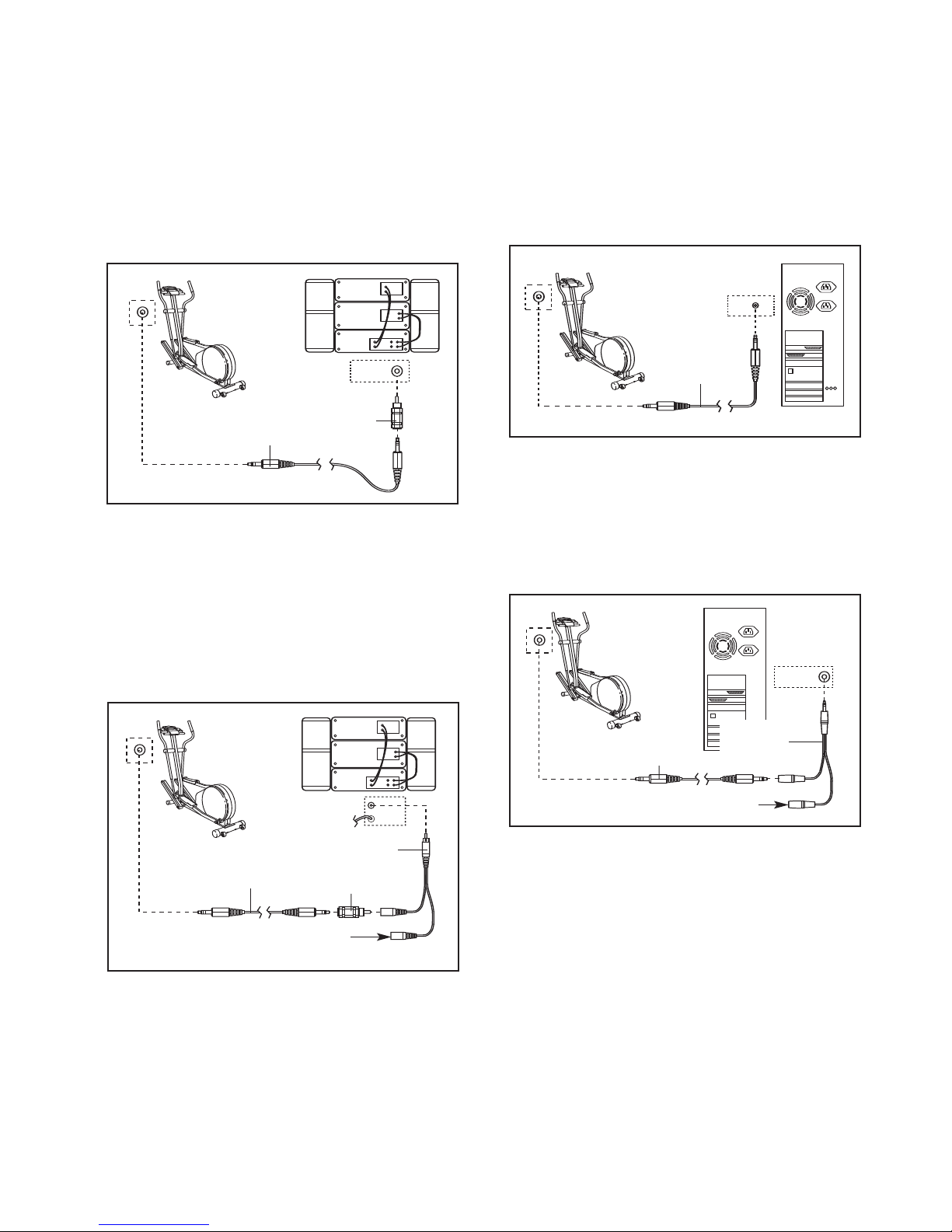

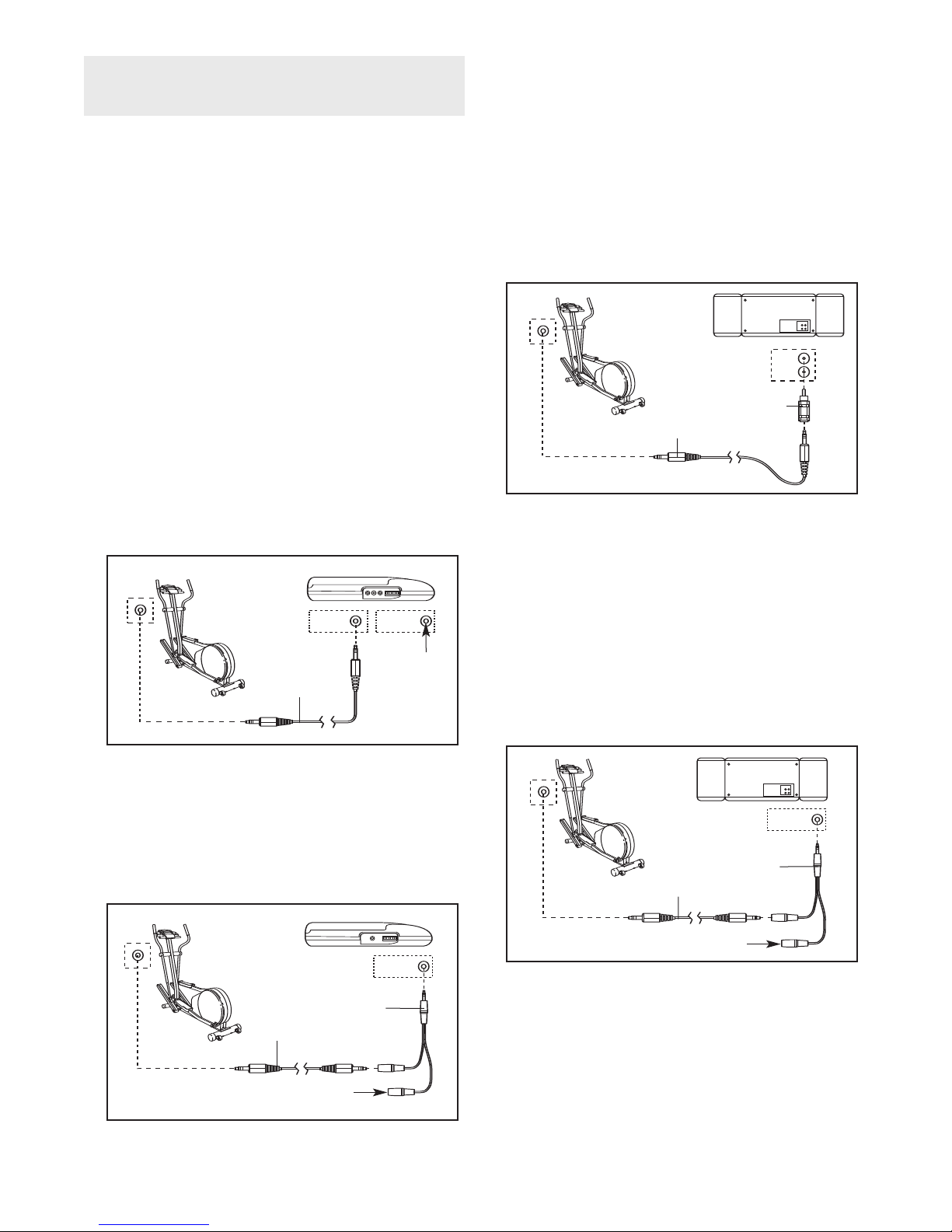

HOW TO CONNECT YOUR PORTABLE CD PLAYER

HOW TO CONNECT YOUR PORTABLE STEREO

ote: If your stereo has an RCA-type AUDIO OUT

N jack, see instruction A below. If your stereo has a

/8” LINE OUT jack, see instruction B. If your

1 stereo has only a PHONES jack, see instruction C.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into an AUDIO OUT jack on your stereo.

A, B

Note: If your CD player has separate LINE OUT and PHONES jacks, see instruction A below. If your CD player has only one jack, see instruction B.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the LINE OUT jack on your CD player. Plug your headphones into the PHONES jack.

B. Plug one end of the audio cable into the jack

Audio Cable

Head-

phones

beneath the console. Plug the other end of the cable into a 1/8”

Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your CD player. Plug your headphones into the other side of the Y-adapter.

Adapter

Audio Cable

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the LINE OUT jack on your stereo. Do not use the adapter.

C. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your stereo. Plug your headphones into the other side of the Y-adapter.

Audio Cable

1/8”

Y-adapter

Headphones

Audio Cable

Headphones

1/8”

Y-adapter

Page 18

HOW TO CONNECT YOUR HOME STEREO

VCR

Amp

INE OUT

LINE OUT

Amp

LINE OUT

VCR

Amp

LINE OUT

PHONES

LINE OUT

HOW TO CONNECT YOUR COMPUTER

ote: If your stereo has an unused LINE OUT jack,

N see instruction A below. If the LINE OUT jack is

eing used, see instruction B.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into the LINE OUT jack on your stereo.

Audio

Adapter

Cable

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into an RCA Y-adapter (available at electronics stores). Next, remove the wire that is currently plugged into the LINE OUT jack on your stereo and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the LINE OUT jack on your stereo.

ote: If your computer has a 1/8” LINE OUT jack,

N see instruction A. If your computer has only a

HONES jack, see instruction B.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the LINE OUT jack on your computer.

Audio Cable

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into a 1/8” Y-adapter (available at electronics stores). Plug the Y-adapter into the PHONES jack on your computer. Plug your headphones or speakers into the other side of the Y-adapter.

1/8”

Y-adapter

Audio

Cable

Headphones/Speakers

RCA

Y-adapter

Adapter

jack

Audio

Cable

ire removed from

LINE OUT

Page 19

HOW TO CONNECT YOUR VCR

AUDIO OUT

RIGHT

LEFT

VIDEO AUDIO

NT. IN

RF OUT

CH 3

VIDEO AUDIO

NT. IN

RF OUT

ote: If your VCR has an unused AUDIO OUT jack,

N see instruction A below. If the AUDIO OUT jack is

eing used, see instruction B. If you have a TV

b with a built-in VCR, see instruction B. If your VCR is connected to your home stereo, see HOW TO CONNECT YOUR HOME STEREO on page 18.

B. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the

able into the adapter. Plug the adapter into an

c RCA Y-adapter (available at electronics stores).

ext, remove the wire that is currently plugged into

N the AUDIO OUT jack on your VCR and plug the wire into the unused side of the Y-adapter. Plug the Y-adapter into the AUDIO OUT jack on your VCR.

A. Plug one end of the audio cable into the jack

beneath the console. Plug the other end of the cable into the adapter. Plug the adapter into the AUDIO OUT jack on your VCR.

Adapter

Audio Cable

RCA Y-adapter

Audio Cable

Adapter

Wire removed from

AUDIO OUT jack

Page 20

HOW TO USE IFIT.COM CD AND VIDEO PROGRAMS

To use iFIT.com CDs or videocassettes, the elliptical exerciser must be connected to your portable CD player, portable stereo, home stereo, computer with CD player, or VCR. See HOW TO CONNECT YOUR CD

LAYER, VCR, OR COMPUTER on pages 17 to 19.

To purchase iFIT.com CDs and videocassettes, call the telephone number on the front cover of this manual

Follow the steps below to use an iFIT.com CD or video program.

Begin pedaling to activate the console.

See step 1 on page 12.

Select the iFIT.com mode.

When the console is turned on, the manual mode will be selected. To select the iFIT.com mode, press the iFIT.com button. The indicator on the button will light.

Insert the iFIT.com CD or videocassette.

If you are using an iFIT.com CD, insert the CD into your CD player. If you are using an iFIT.com videocassette, insert the videocassette into your VCR.

Press the play button on your CD player or

VCR.

your workout. Simply follow your personal trainer’s instructions.

he program will function in almost the same way

T as a preset program (see steps 3 and 4 on page

14). However, an electronic “chirping” sound will alert you when the resistance of the pedals and/or

he target pace is about to change.

Note: If the resistance of the pedals and/or the target pace does not change when a “chirp” is heard:

• Make sure that the indicator above the iFIT.com button is lit.

• Adjust the volume of your CD player or VCR. If the volume is too high or too low, the console may not detect the program signals.

• Make sure that the audio cable is properly connected and that it is fully plugged in.

Monitor your progress with the two displays.

See step 4 on page 12.

Measure your heart rate if desired.

See step 5 on page 13.

Turn on the fan if desired.

See step 6 on page 13.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 13.

moment after the play button is pressed, your

A personal trainer will begin guiding you through

Page 21

HOW TO USE PROGRAMS DIRECTLY FROM OUR WEB SITE

Our Web site at www.iFIT.com allows you to play iFIT.com programs directly from the internet. To use programs from our Web site, the elliptical exerciser must be connected to your home computer. See HOW TO CONNECT YOUR COMPUTER on page 18. In addition, you must have an internet connection and an internet service provider. A list of specific system requirements is found on our Web site.

Follow the steps below to use a program from our Web site.

Begin pedaling to activate the console.

See step 1 on page 12.

Select the iFIT.com mode.

When the console is turned on, the manual mode will be selected. To select the iFIT.com mode, press the iFIT.com button. The indicator on the button will light.

Return to the elliptical exerciser and begin

pedaling.

When the on-screen countdown ends, the program will begin. The program will function in

lmost the same way as a preset program (see

a steps 3 and 4 on page 14). However, an electronic “chirping” sound will alert you when the resistance of the pedals and/or the target pace is about to change.

Monitor your progress with the two displays.

See step 4 on page 12.

Measure your heart rate if desired.

See step 5 on page 13.

Turn on the fan if desired.

See step 6 on page 13.

When you are finished exercising, the console

will automatically turn off.

See step 7 on page 13.

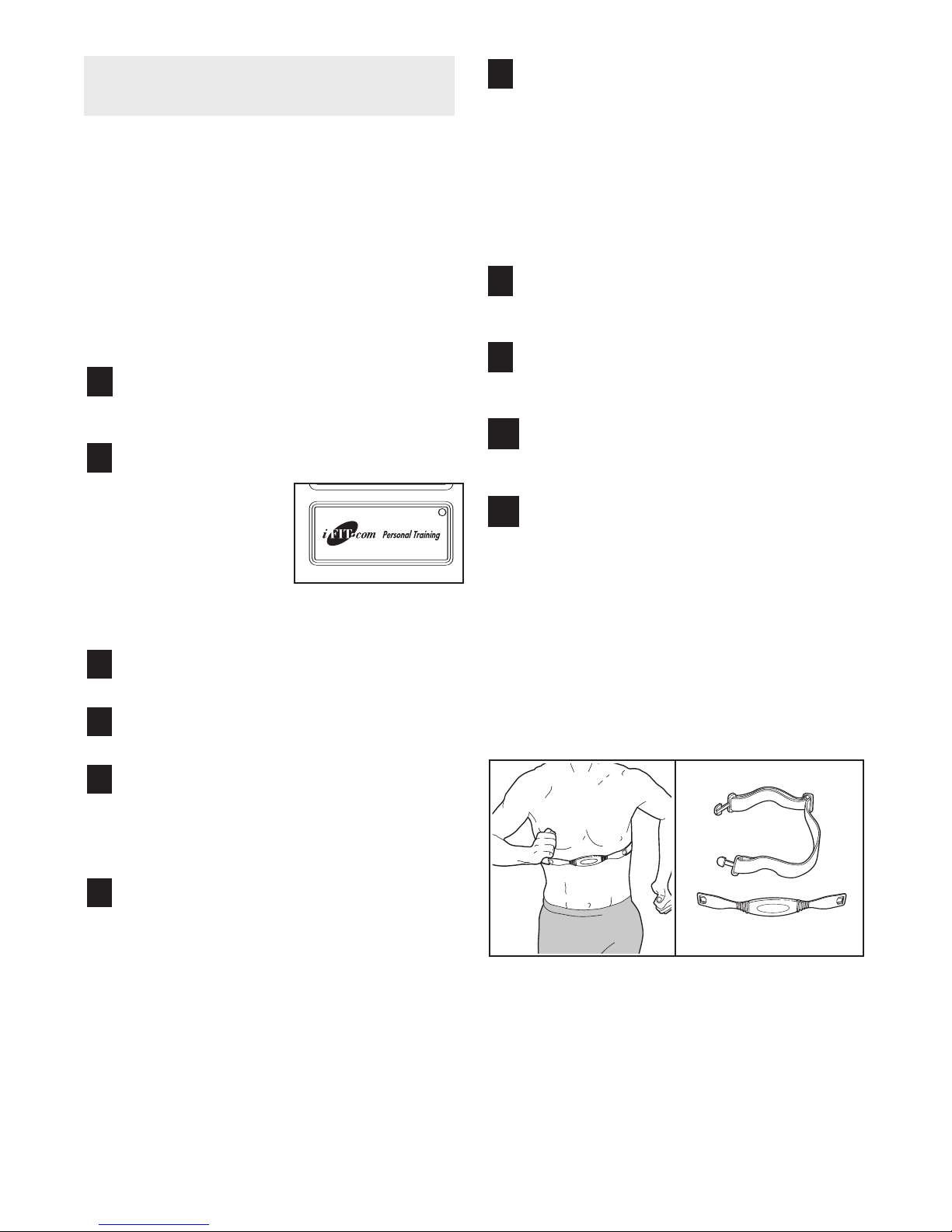

THE OPTIONAL CHEST PULSE SENSOR

Go to your computer and start an internet

connection.

Start your Web browser, if necessary, and go

to our Web site at www.iFIT.com.

Follow the desired links on our W

select a program.

Read and follow the on-line instructions for using a program.

Follow the on-line instructions to start the

program.

When you start the program, an on-screen countdown will begin.

eb site to

The optional chest pulse sensor provides hands-free operation and continuously monitors your heart rate during your workouts. To purchase the optional

chest pulse sensor, call the telephone number on the front cover of this manual.

Page 22

MAINTENANCE AND TROUBLESHOOTING

nspect and properly tighten all parts of the elliptical

I exerciser regularly. The elliptical exerciser can be cleaned with a soft, damp cloth. To prevent damage to the console, keep liquids away from the console and

eep the console out of direct sunlight.

TIGHTENING THE PEDALS

For best performance, regularly tighten both pedals.

CONSOLE TROUBLESHOOTING

If the console display becomes dim, or if the console does not function properly, the batteries should be replaced. See assembly step 6 on page 7 for replacement instructions. If the console does not display your heart rate when you use the handgrip pulse sensor, see step 5 on page 13.

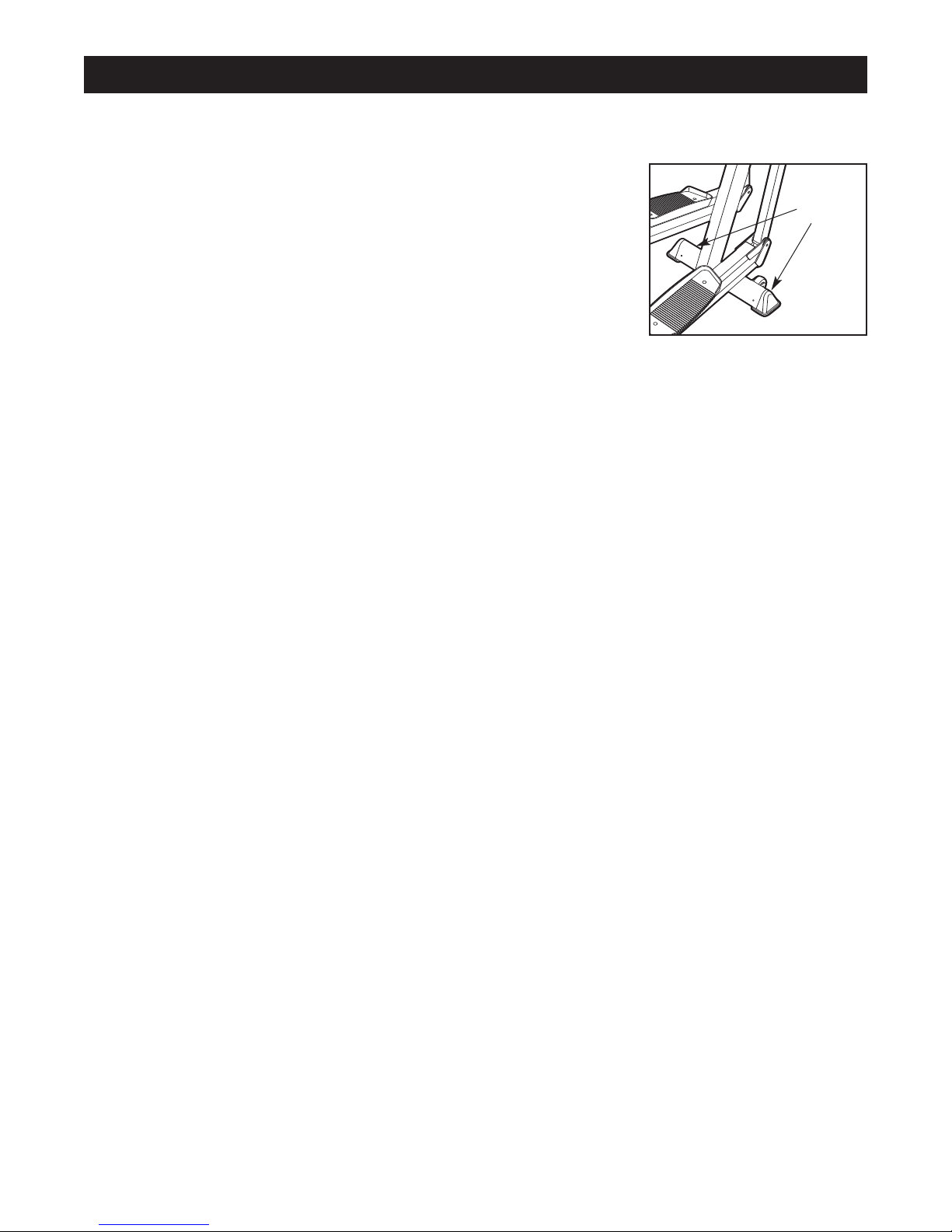

OW TO LEVEL THE ELLIPTICAL EXERCISER

If the elliptical exerciser does not sit

lat on the floor,

f turn one or both of the leveling pads until the elliptical exerciser is level.

Leveling

Pads

Page 23

EXERCISE GUIDELINES

Fat Burning

WARNING:

• Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals withpre-existing health problems.

• The pulse sensor is not a medical device. Various factors may affect the accuracy of heart rate readings. The pulse sensor is intended only as an exercise aid in determining heart rate trends in general.

The following guidelines will help you to plan your exercise program. Remember that proper nutrition and adequate rest are essential for successful results.

EXERCISE INTENSITY

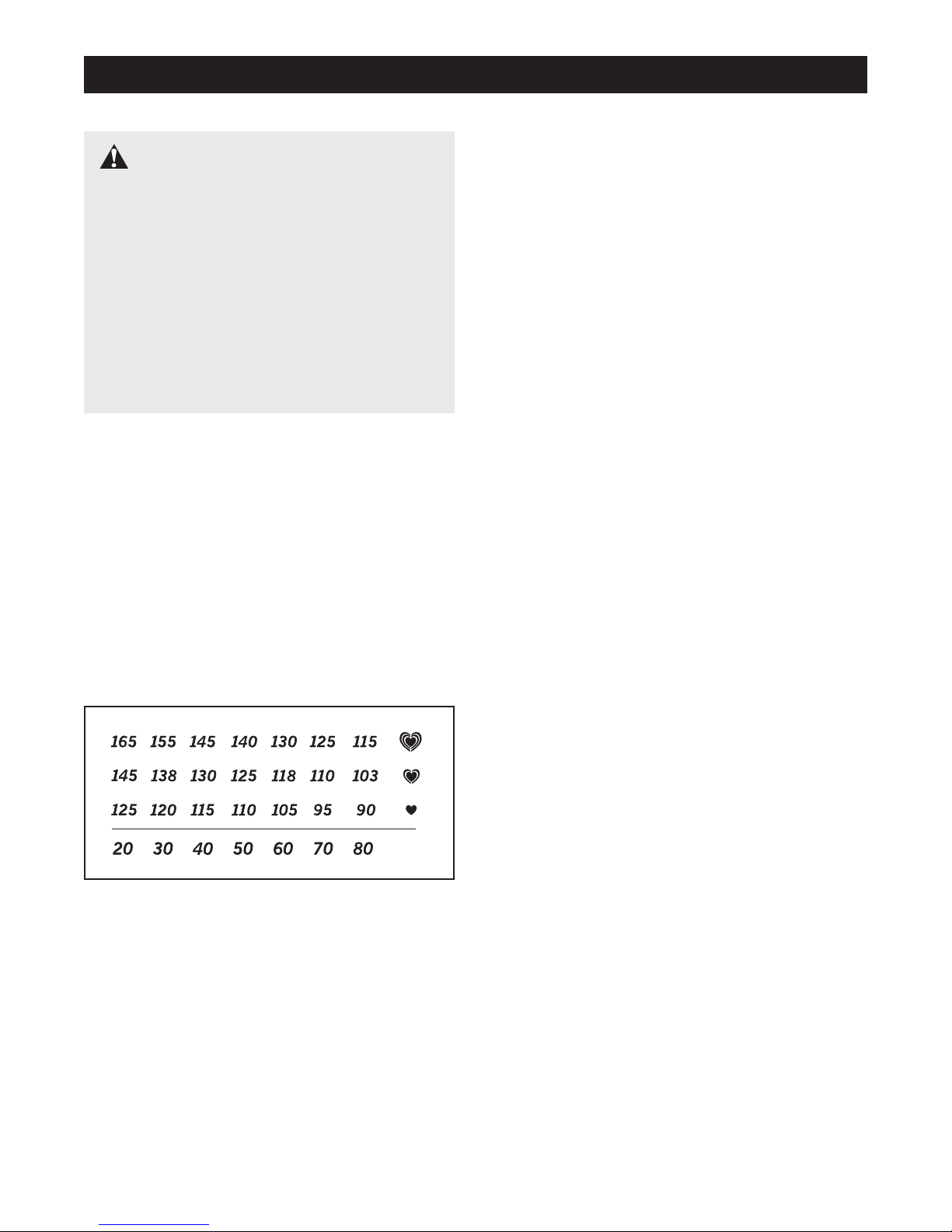

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat burning, and cardiovascular (aerobic) exercise.

o burn fat effectively, you must exercise at a relative-

T ly low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible gy. Only after the first few minutes of exercise does your body begin to use stored your goal is to burn fat, adjust the intensity of your exercise until your heart rate is near the lowest number or the middle number in your training zone as you exercise.

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys tem, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the intensity of your exercise until your heart rate is near the highest number in your training zone.

WORKOUT GUIDELINES

Each workout should include the following three parts:

A warm-up, consisting of 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

carbohydrate

fat

calories for energy. If

calories for ener-

o find the proper heart rate for you, first find your age

T at the bottom of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers above your age; the three numbers are your “training zone.” The lowest number is the recommended heart rate for fat burning; the middle number is the recommended heart rate for maximum fat burning; and the highest number is the heart rate for aerobic exercise.

Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training zone. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.)

cool-down

will increase the flexibility of your muscles and will help to prevent post-exercise problems.

EXERCISE FREQUENCY

o maintain or improve your condition, plan three work

T outs each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week, if desired. lar and enjoyable part of your everyday life.

, with 5 to 10 minutes of stretching. This

The key to success is make exercise a regu

Page 24

SUGGESTED STRETCHES

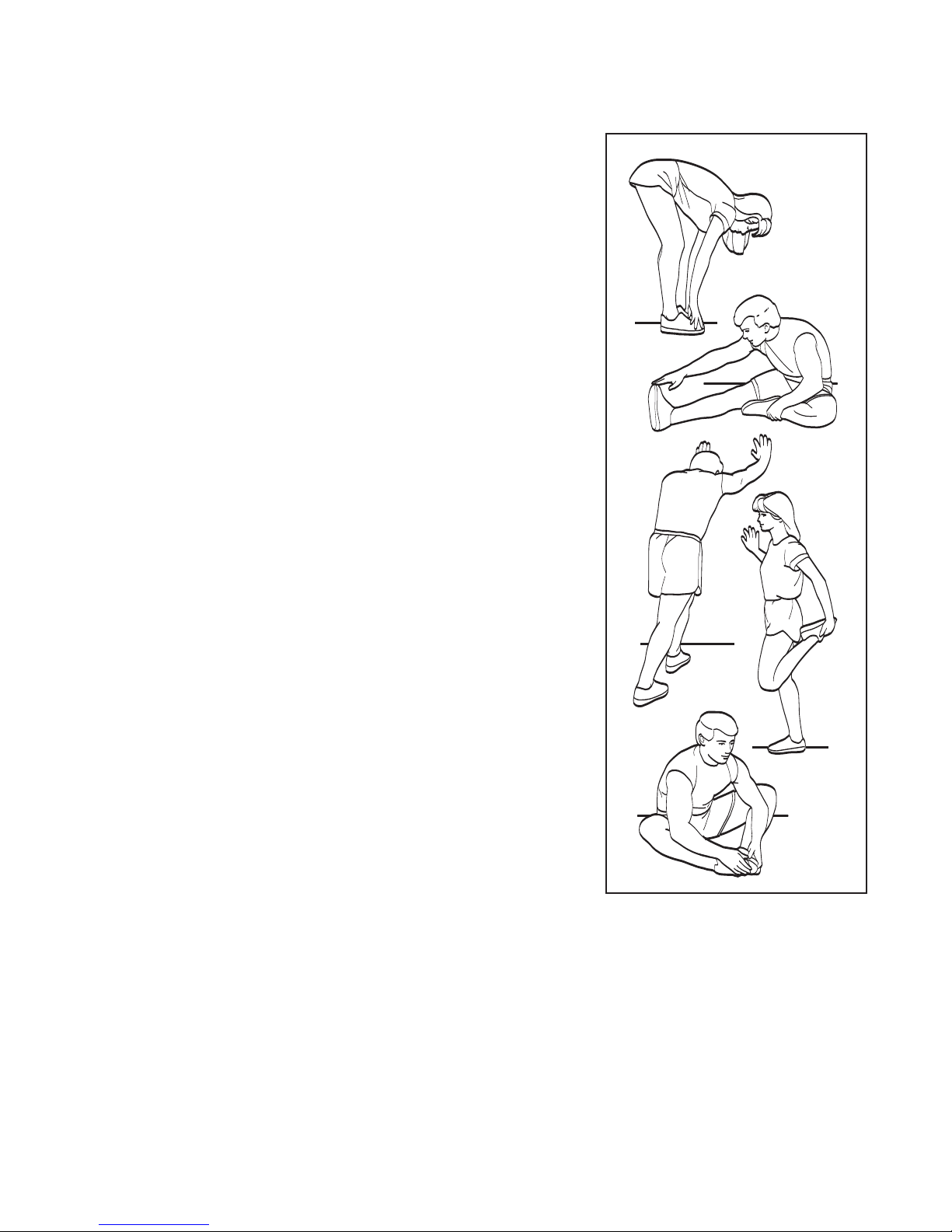

he correct form for several basic stretches is shown below. Move slowly as you stretch—never bounce.

. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

Page 25

PART LIST—MODEL NO. RBCCEL5906.0 R0606A

KeyNo. Qty. Description KeyNo. Qty. Description

1 1 Frame 2 1 Upright 3 1 Console Bracket 4 1 Handlebar 5 1 Left Upper Body Arm 6 1 Right Upper Body Arm 7 1 Bookrack 8 1 Console 9 2 Pedal Disk

10 1 Left Side Shield

11 1 Right Side Shield 12 2 Foam Grip 13 1 Water Bottle Holder 14 1 Hand Pulse Sensor/Wire 15 1 Upper Wire Harness 16 2 Pivot Endcap 17 2 Pivot Spacer 18 6 Pivot Bushing 19 2 Upright Spacer 20 2 Upright Bushing 21 1 Pivot Axle 22 2 Upper Body Endcap 23 4 Upper Body Bushing 24 1 Rear Stabilizer 25 4 Stabilizer Endcap 26 4 Foot 27 2 Wheel 28 1 Left Pedal Leg 29 4 Pedal Leg Bushing 30 4 Pedal Arm Endcap 31 2 Pedal Leg Endcap 32 1 Right Pedal Arm 33 1 Left Pedal Arm 34 1 Right Pedal 35 1 Left Pedal 36 2 Short Crank Bushing 37 2 Long Crank Bushing 38 2 Frame Endcap 39 1 Lower Wire Harness 40 41 42 43 2 Crank Block Set 44 1 Crank Spacer 45 2 Selector Plate 46 2 Cushion Bracket 47 1 Resistance Motor 48 1 Resistance Cable 49 1 Flywheel 50 1 Magnet 51 2 Flywheel Snap Ring 52 1 Pulley Axle 53 1 “C” Magnet 54 2 Pillow Block Set 55 1 Pulley Axle Bushing

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover of this manual for information about ordering replacement parts.

2 Crank Arm 1 Pulley 2 Crank Block

56 1 Small Pulley 57 1 Belt 58 1 Idler Pulley 59 1 Reed Switch Clamp 60 1 Reed Switch/Wire 61 1 Idler Pulley Bracket 62 2 Bumper 63 1 Front Stabilizer 64 1 Idler Bolt 65 4 Plastic Pedal Arm Spacer 66 1 M6 x 8mm Screw 67 2 Bolt Set 68 8 M6 x 32mm Flat Head Bolt 69 2 M4 x 25mm Screw 70 2 Large M8 Washer 71 4 Small M8 Washer 72 2 M6 Split Washer 73 10 M8 x 25mm Patch Screw 74 2 Pedal Cushion 75 4 M6 x 20mm Patch Screw 76 1 Set Screw 77 1 Spring 78 7 M5 x 16mm Bolt 79 2 M10 x 51mm Button Bolt 80 9 M6 Nylon Locknut 81 4 M8 x 19mm Patch Screw 82 28 M4 x 16mm Screw 83 2 Stop Nut 84 1 Stop Bolt 85 6 M10 Nylon Locknut 86 2 M8 x 19mm Shoulder Screw 87 4 M10 Split Washer 88 1 Right Pedal Leg 89 4 M5 Washer 90 4 M5 Nylon Locknut 91 2 Wave Washer 92 2 M4 x 22mm Screw 93 2 M6 x 13mm Shoulder Screw 94 1 M4 x 63mm Screw 95 96 97 98 2 Flange Screw

99 1 M4 x 12mm Screw 100 1 Magnet Bracket Bolt 101 2 M8 x 55mm Button Screw 102 2 M8 x 47mm Button Screw 103 4 M6 x 10mm Button Screw 104 1 Flywheel Spacer 105 1 M6 Washer 106 2 Snap Ring

# 4 Hex Key # 1 Grease # 1 User’s Manual

4 M5 x 28mm Screw 1 M4 x 10mm Flat Head Screw 1 Reed Switch Plate

Page 26

EXPLODED DRAWING—MODEL NO. RBCCEL5906.0 R0606A

8282

Page 27

103

101

102

106

103

105

100

104

102

Page 28

ORDERING REPLACEMENT PARTS

To order replacement parts, please see the front cover of this manual. To help us assist you, please be prepared

o give the following information when contacting us:

• the MODEL NUMBER of the product (RBCCEL5906.0)

• the NAME of the product (REEBOK RL 545 elliptical exerciser)

• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST on page 25)

LIMITED WARRANTY

ICON of Canada, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of one (1) year from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers. All repairs for which warranty claims are made must be pre-authorized by ICON. This warranty does not extend to any product or damage to a product caused by or attributable to freight damage, abuse, misuse, improper or abnormal usage or repairs not provided by an ICON authorized service center purposes, or products used as store display models. No other warranty beyond that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss of prop erty, loss of revenues or profits, loss of enjoyment or use, costs of removal, installation or other consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

, products used for commercial or rental

ICON of Canada, Inc., 900 de l’Industrie, St. Jerôme, QC J7Y

4B8
