Reebok RCTL12920 User Manual
Model No. RCTL12920
®
www.reebokfitness.com
Visit our website at
®
®
Serial No.
Write the serial number in the space
above for future reference.
Serial Number Decal
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, please call:
USER’S MANUAL
1-888-936-4266
Monday through Friday from
8h00 to 18h30 EST (excluding
holidays).
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Save this ma
nual for future reference.
-
®
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
TREADMILL OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
REEBOK UNIVERSITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

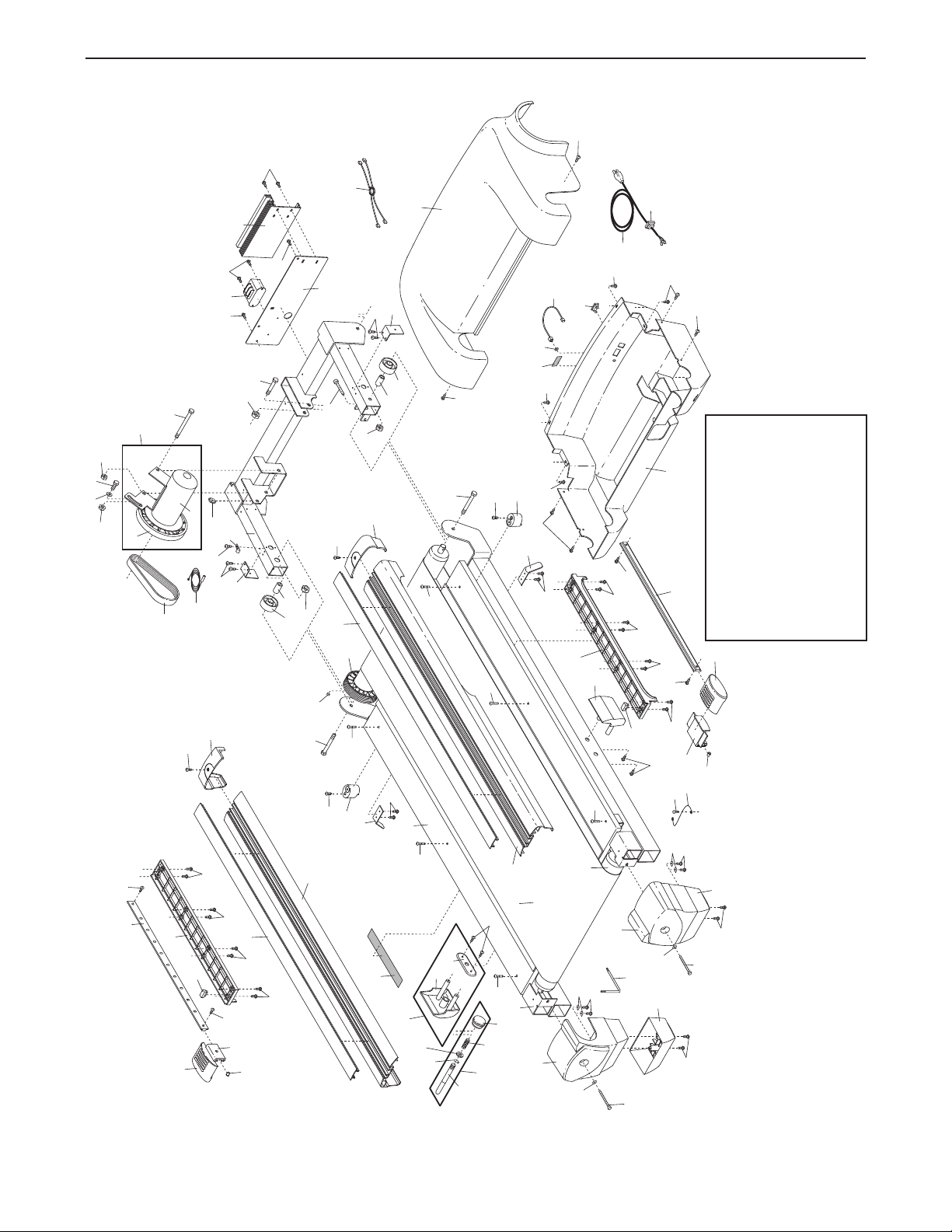

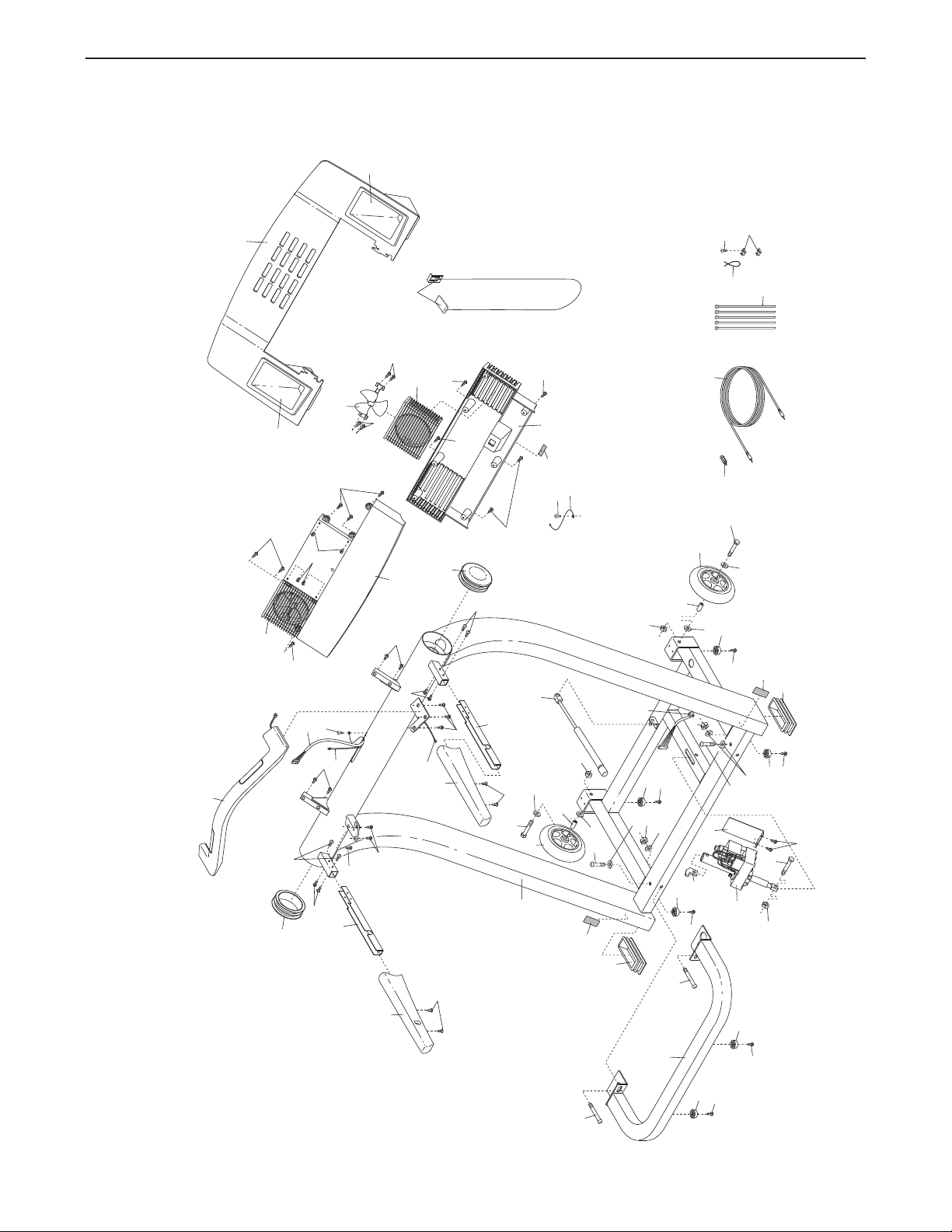

Note: An EXPLODED DRAWING is attached in the center of this manual.
REEBOK and the Vector Logo are registered trademarks and service marks of Reebok. This product is
manufactured and distributed under license from Reebok International.
2
IMPORTANT PRECAUTIONS
WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read the
following important precautions and information before operating the treadmill.
1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.
2. Use the treadmill only as described in this
manual.
3. Place the treadmill on a level surface, with at
least 2 m (8 ft.) of clearance behind it and 0.5
m (2 ft.) on each side. Do not place the treadmill on any surface that blocks air openings.
To protect the floor or carpet from damage,
place a mat under the treadmill.
4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.
5. Do not operate the treadmill where aerosol
products are used or oxygen is administered.
6. Keep children under the age of 12 and pets
away from the treadmill at all times.
7. The treadmill should not be used by persons
weighing more than 114 kg (250 lbs.). Never
allow more than one person on the treadmill at
a time.
8. Wear appropriate exercise clothes when
using the treadmill. Do not wear loose clothes
that could become caught in the treadmill.
Athletic support clothes are recommended
for both men and women.
tic shoes. Never use the treadmill with bare
feet, wearing only stockings, or in sandals.
9. When connecting the power cord (see page 8),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be on
the same circuit. Do not use an extension cord.
Use only a CUL-listed surge suppressor of
10.
450 joules minimum surge dissipation with
voltage rating of 400 volts or less, rated at 15
amps, with a 1 mm
(5 ft.) or less in length. Do not use an exten
sion cord.
2
Always wear athle-
(14-gauge) cord of 1.5 m
11. Failure to use a properly functioning surge
suppressor could result in damage to the control system of the treadmill. If the control system is damaged, the walking belt may change
speed or stop unexpectedly, which may result
in a fall and serious injury.
12. Keep the power cord and the surge suppressor away from heated surfaces.
13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See
BEFORE YOU BEGIN on page 5 if the treadmill is not working properly.)
14. Never start the treadmill while you are standing on the walking belt. Always hold the
handrails while using the treadmill.
15. The treadmill is capable of high speeds.
Adjust the speed in small increments to avoid
sudden jumps in speed.
16. The pulse sensors are not medical devices.
Various factors, including the user’s movement, may affect the accuracy of heart rate readings. The pulse sensors are intended only
as exercise aids in determining heart rate
trends in general.
17. Never leave the treadmill unattended while it
is running. Always remove the key, unplug
the power cord, and move the on/off circuit
breaker to the off position when the treadmill
is not in use. (See the drawing on
the location of the on/off circuit breaker.)
18. Do not attempt to raise, lower, or move the
treadmill until it is properly assembled. (See
ASSEMBLY on page 6, and HOW
AND MOVE THE TREADMILL on page 21.)
You must be able to safely lift 20 kg (45 lbs.)
to raise, lower, or move the treadmill.
When folding or moving the treadmill, make
19.
-
sure that the storage latch is fully closed.
page 5 for
FOLD
TO
3
20. When using iFIT.com CD’s and videos, an
KEEP HANDS
AND FEET
AWAY FROM
THIS AREA
WHILE THE
TREADMILL IS
IN OPERATION.
electronic “chirping” sound will alert you
when the speed and/or incline of the treadmill
is about to change. Always listen for the
“chirp” and be prepared for speed and/or incline changes. In some instances, the speed
and/or incline may change before the personal trainer describes the change.
21. When using iFIT.com CD’s and videos, you
can manually override the speed and incline
settings at any time by pressing the speed and
incline buttons. However, when the next
“chirp” is heard, the speed and/or incline will
change to the next settings of the CD or video
program.
22. Always remove iFIT.com CD’s and videos
from your CD player or VCR when you are not
using them.
23. Inspect and properly tighten all parts of the
treadmill every three months.
Never drop or insert any object into any ope-
24.
ning.
25.
DANGER: Always unplug the power
cord immediately after use, before cleaning
the treadmill, and before performing the maintenance and adjustment procedures described in this manual. Never remove the motor
hood unless instructed to do so by an authorized service representative. Servicing other
than the procedures in this manual should be
performed by an authorized service representative only.
26. The treadmill is intended for in-home use
only. Do not use the treadmill in any
commercial, rental, or institutional setting.
WARNING: Before beginning this or any exercise program, consult your physician. This
is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. ICON assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.
The decals shown below have been placed on your treadmill. If the decal is missing, or if it is not legible, please call our Customer Service Department, toll-free,
to order a free replacement decal (see ORDERING REPLACEMENT PARTS on
page 31). Apply the decal in the location shown. Note: The decals are not shown
at actual size.
SAVE THESE INSTRUCTIONS
4
BEFORE YOU BEGIN
Thank you for selecting the new REEBOK®RX 6200
treadmill. The RX 6200 treadmill combines advanced
technology with innovative design to help you get the
most from your exercise program in the convenience of
your home. And when you’re not exercising, the unique
RX 6200
floor space of other treadmills.
For your benefit, read this manual carefully before
using the treadmill
please call our Customer Service Department at 1-
can be folded up, requiring less than half the
. If you have additional questions,
Book Holder
Water Bottle Holder*
Handrail
Handgrip Pulse Sensor
888-936-4266, Monday through Friday 8h00 until
18h30 eastern time (excluding holidays).To help us assist you, please note the product model number and
serial number before calling. The model number of the
treadmill is RCTL12920. The serial number can be
found on a decal attached to the treadmill (see the
front cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the labeled parts.
Fan
Console
Key/Clip
Walking Belt
Foot Rail
BACK
Rear Roller
Adjustment Bolts
On/Off Circuit
Breaker
Power Cord
Adjustable Cushioned
Walking Platform
(See page 20)
RIGHT SIDE
*No water bottle is included
5
ASSEMBLY
Assembly requires two people. Place the treadmill in a cleared area and remove all packing materials. Do not
dispose
Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a
small amount of lubricant may be transferred to the top of the walking belt, the sides of the walking platform, or
the shipping carton. This does not affect treadmill performance. If there is lubricant on top of the walking belt or
on the sides of the walking platform, wipe off the lubricant with a soft cloth and a mild, non-abrasive cleaner.
Assembly requires your own phillips screwdriver , rubber mallet , wire
cutters , and adjustable wrench .
of the packing materials until the treadmill is assembled.
1. For help identifying small parts, refer to the PART
IDENTIFICATION CHART on page 31.
Cut the plastic ties (not shown) from the sides of the treadmill. With the help of a second person, carefully
raise the Uprights (65) until the Wheels (not shown) are
resting on the floor.
Hold the Book Plate (114) against the back of the
Console Base (117) and the Upright (65) as shown.
Attach the Book Plate with four 3/4” Screws (101).
2. Insert one of the Handrail Extensions (76) into the square
post on the left Upright (65). Make sure that the notch in
the Handrail Extension is in the position shown. Align
the small holes in the Handrail Extension with the holes in
the post. If necessary, use a rubber mallet to fully insert the
Handrail Extension. Attach the Handrail Extension with four
Extension Screws (50).
Identify the Left Foam Grip (62), which has a hole in the
right side. Slide the Left Foam Grip as far as possible onto
the Handrail Extension (76) and the post. (Note: It may be
helpful to apply soapy water to the Handrail Extension.)
Press two Plastic Fasteners (75) into the bottom of the Left
Foam Grip and the Handrail Extension. Note: It may be
helpful to tap on the Plastic Fasteners with a rubber mallet.
1
2
Hole
62
76
114
101
50
101
117
65
114
81
65
Post
50
Notch
Attach the other Handrail Extension (not shown) and the
Right Foam Grip (not shown) to the post on the right
Upright (65) in the same way. Note: There is not a hole in
the side of the Right Foam Grip.
Press the Left Cup Holder (81) into the Book Plate (114).
Press the other Cup Holder (not shown) into the other side
of the Book Plate.
6
75
3. (Note: The parts shown in this step may be preassembled
but may need to be adjusted.) With the help of a second person, raise the Frame (55) and hold it. Insert the Left Frame
Guide (68) into the left side of the Frame. Remove the Lock
Knob (67) from the Lock Pin (72). Be sure the Lock Pin
Collar (70) and the Spring (69) are on the Lock Pin. Insert
the Lock Pin into the Frame and the Left Frame Guide.
Press the Latch Insert (5) onto the Frame, with the Lock Pin
in the center hole. Tighten the Lock Knob onto the Lock Pin.
Align the Lock Pin (72) with the hole in the Left Foam Grip
(62) by sliding the Left Frame Guide (68) up or down.
Make sure that the Lock Pin can be inserted fully into the
hole. Hold the Left Frame Guide in place and tighten two
1/2” Screws (10) into the Latch Insert and the Left Frame
Guide. Note: It may be necessary to pull the Lock Knob
(67) to access and tighten the Screws.
3
72
55
70
69
10
5
67
68
Hole
62
4. Raise the treadmill to the storage position (see HOW TO
FOLD THE TREADMILL FOR STORAGE on page 21).
Have a second person hold the treadmill in the upright position. Position the U-base (20) against the base of the
Uprights (65) as shown,
U-base. Finger tighten two 2” Bolts (26) with Base
Washers (127) into the base of the Uprights and the Ubase. Then, attach the U-base with two 3” Bolts (23), two
Base Washers (127), and two Nuts (13). Tip the treadmill
forward if necessary. Tighten the two 2” Bolts.
5. Make sure that all parts are properly tightened before
you use the treadmill. Place a mat beneath the treadmill to protect the floor. For your benefit, familiarize your-
self with the information on pages 23 and 24.
If you purchase the optional chest pulse sensor (see page
20), follow the steps below to install the receiver and the
short jumper wire included with the chest pulse sensor.
1. Make sure that the power cord is unplugged. Remove the
indicated Screws (40) from the Console Back (117). Remove
the Console Back.
with the Bumpers (98) under the
4
26
127
1
98
20
23
98
65
13
127
26
13
23
Connect the Short Jumper Wire (A) to the wire on the
2.
Receiver (B). Connect the other end of the Short Jumper
Wire to the PULSE jack on the back of the Console (80).
Turn the Receiver (B) so the cylinder is on the side
shown, and hold the Receiver against the back of the
Console (80). Attach the Receiver with the two Small
Screws (C) included with the receiver.
Make sure that no wires are pinched. See step 1.
Reattach the Console Back (117) with the 3/4” Screws (40).
You may discard the other wires included with the receiver.
117
40
2
80
A
C
40
Cylinder
B
7
TREADMILL OPERATION
THE PERFORMANT LUBETMWALKING BELT
Your treadmill features a walking belt coated with
PERFORMANT LUBE
IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking platform. Such substances will deteriorate the walking
belt and cause excessive wear.
HOW TO PLUG IN THE POWER CORD
TM
, a high-performance lubricant.
DANGER: Improper connection
of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the
plug provided with the product—if it will not
fit the outlet, have a proper outlet
installed by a qualified electrician.
Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of
your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right).
plug.
Plug the power cord into a surge suppressor,
and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
Important: The treadmill is not compatible with
GFCI-equipped outlets.
This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.
1
Grounded Outlet Box
Surge Suppressor
Grounding Pin
Grounding Pin
Grounded Outlet
2
Grounded Outlet Box
Adapter
Grounding Plug
Surge Suppressor
Use only a single-outlet surge suppressor that is
UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a
UL suppressed voltage rating of 400 volts or less
and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated
for 120 volts AC and 15 amps. There must be a monitoring light on the surge suppressor to indicate
whether it is functioning properly. Failure to use a
properly functioning surge suppressor could result in damage to the control system of the tread
mill. If the control system is damaged, the walking
belt may change speed or stop unexpectedly,
which may result in a fall and serious injury.
This product must be grounded.
tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec
tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
If it should malfunc
-
Lug
Metal Screw
The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a
qualified electrician.
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
-
by a metal screw.
covers are not grounded. Contact a qualified elec-
-
trician to determine if the outlet box cover is
grounded before using an adapter.
Some 2-pole receptacle outlet box
8
Note: If there is a thin sheet of clear
plastic on the console, remove it.
Key
Clip
FEATURES OF THE CONSOLE
The treadmill console offers an impressive array of
features designed to make your workouts more effective.
When the manual mode of the console is selected, the
speed and incline of the treadmill can be changed with
the touch of a button. As you exercise, the console will
display instant exercise feedback. You can even measure your heart rate using the handgrip pulse sensor.
Note: See page 20 for information about an optional
chest pulse sensor.
In addition, the console offers four preset workout programs. Each program automatically controls the speed
and incline of the treadmill as it guides you through an
effective workout. Two heart rate programs are also offered. Each program automatically adjusts the speed
and incline of the treadmill to keep your heart rate within
a preset range while you exercise.
The console also features new iFIT.com interactive
technology. Having iFIT.com technology is like having a
personal trainer in your home. Using the included audio
cable, you can connect the treadmill to your home stereo, portable stereo, computer, or VCR and play special iFIT.com CD and video programs (iFIT.com CDs
and videocassettes are available separately). iFIT.com
CD and video programs automatically control the speed
and incline of the treadmill as a personal trainer coaches you through every step of your workout. Highenergy music provides added motivation. To purchase
iFIT.com CDs or videocassettes, call toll-free 1888-936-4266.
With the treadmill connected to your computer, you
can also go to our Web site at www.iFIT.com and access programs directly from the internet. Additional options are soon to be available. See www.iFIT.com for
more information.
To use the manual mode of the console, follow the
steps beginning on page 10. To use preset workout
programs, see page 12. To use heart rate programs,
see page 13. To use iFIT.com CD or video
programs, see page 17. To use iFIT.com programs
directly from our Web site, see page 19.
9
HOW TO TURN ON THE POWER
Plug in the power cord (see page 8).
1
Locate the circuit bre-
2
aker near the power
cord. Make sure the
breaker is in the reset
position.
Stand on the foot rails of the treadmill. Find the clip
3
attached to the key (see the drawing on page 9)
and slide the clip onto the waistband of your clothes. Next, route the cord attached to the clip
under the handgrip pulse sensor, and insert the
key into the console. After a moment, the displays
and various indicators will light.
carefully taking a few steps backward until the
key is pulled from the console. If the key is not
pulled from the console, adjust the position of
the clip.
HOW TO USE THE MANUAL MODE
Insert the key fully into the console.
Reset
Position
Test the clip by
1
See HOW TO TURN ON THE POWER above.
Note: Be sure to route the cord attached to the clip
under the handgrip pulse sensor.
Select the manual mode.
2
When the key is inserted, the manual mode
will be selected and the
Manual Control indicator will light. If a program has been
selected, press the Program Select button repea
tedly to reselect the manual mode.
Press the Start button or the Speed
3
start the walking belt.
A moment after the button is pressed, the wal-
belt will begin to
king
move at 1 mph. Hold
the handrails
walking. As you exer
cise, change the speed of the walking belt as desired by pressing the Speed
and begin
-
t
t
and
ss
s
s
buttons.
button to
Each time a button is pressed, the speed setting
will change by 0.1 mph; if a button is held down,
the speed setting will change in increments
mph. To change the speed setting quickly, press
the OneTouch Speed buttons. Note: The console
can display speed and distance in either miles
or kilometers. For simplicity, all instructions in
this section refer to miles.
To stop the walking belt, press the Stop button.
The Time/Seg. Time/Pace display will begin to
flash. To restart the walking belt, press the Start
button or the Speed
Note: The first time the treadmill is used, observe
the alignment of the walking belt, and align the walking belt if necessary (see page 24).
Change the incline of the treadmill as desired.
button.
s
s
of 0.5
4
To change the incline of
the treadmill, press the
Incline buttons. Each time
a button is pressed, the
incline will change by
0.5%. Note: After the buttons are pressed, it may take a moment for the
treadmill to reach the selected incline setting.
Follow your progress with the LED matrix and
5
the displays.
The LED matrix—When
the manual mode or the
iFIT.com mode is selected, the LED matrix will
show a track representing 1/4 mile. As you
exercise,
around the track will light, one at a time, until you
have completed 1/4 mile. A new lap will then begin.
-
Time/Segment Time/
Pace display
manual mode or the
iFIT.com mode is selected, this display will show
the elapsed time and your
current pace (pace is measured in minutes per
mile
the other every few seconds.
gram or a heart rate program is selected, the dis
play will show the time
the time remaining in the current segment of the
program, and your current pace.
the indicators
—When the
). The display will change from one number to
When a preset pro
remaining in the program,
-
-
10
Pulse/Calories/Fat
Calories display—This
display shows the appro
ximate numbers of
ries and fat calories you
have burned (see FAT
BURNING on page 27). The display will change
from one number to the other every few seconds.
The display will also show your heart rate when
you use the handgrip pulse sensor or the optional
chest pulse sensor.
Distance/Incline/Laps
display—This display
shows the distance that
you have walked, the incline level of the treadmill, and the number of
1/4-mile laps you have completed. The display will
change from one number to the next every few
seconds. Note: Each time the incline changes, the
display will show the incline setting for several seconds.
-
calo-
Measure your heart rate if desired.
6
You can measure your heart rate using either the
handgrip pulse sensor or the optional chest pulse
sensor.
To use the
handgrip pulse
sensor, first
make sure that
your hands are
clean. Next,
stand on the
foot rails and
place your
hands on the metal contacts on the handgrip
pulse sensor. Your palms should be resting on the
upper contacts. Avoid moving your hands. When
your pulse is detected, two dashes (– –) will appear in the Pulse/Calories/Fat Calories display,
and then your heart rate will be shown.
most accurate heart rate reading, continue to
hold the contacts for about 15 seconds.
Sensors
For the
Speed display—This
display shows the speed
of the walking belt.
Note: When the Km/H indicator is lit, the console
will display speed and
distance in kilometers;
when the Km/H indicator
is not lit, the console will
display speed and distance in mile
the unit of measurement, first hold down the Stop
button while inserting
“E” for English miles or an “M” for metric kilometers
will appear in the Speed display. Press the Speed
ss
button to change the unit of measurement.
When the desired unit of measurement is selected,
remove the key and then reinsert it.
To reset the displays, press the Stop button, remove the key, and then reinsert the key.
the key into the console. An
s. To change
Turn on the fans if desired.
7
To use the fans, press the Low or High button. To
turn off the fans, press the Off button. Note: Any
time that the walking belt is stopped for a few minutes, the fans will automatically turn off.
When you are finished exercising, remove the
8
key from the console.
Step onto the foot rails, press the Stop button, and
adjust the incline of the treadmill to the lowest
setting. The incline must be at the lowest setting
when the treadmill is folded to the storage position or the treadmill will be damaged.
move the key from the console and put it in a secure place. Note: If the displays and various indi-
cators on the console remain lit after the key is
removed, the console is in the “demo” mode.
See page 20 and turn off the demo mode.
When you are finished using the treadmill, unplug
the power cord.
Next, re
-
1
1
Loading...
