11 SSaaffeettyy NNoottiicceess ffoorr SSUU--II IInnddoooorr MMooddeemm ((SSUU--II))

- Do not exceed the described limits on product labels.

- Position power cords to avoid damage.

- Use only properly grounded power receptacles.

- A separation distance of 20 cm or more should be maintained

between the antenna of this device and persons during device
operation.

- Do not overload wall outlets.

- Do not place equipment on or near a direct heat source or operate

near water or in a wet location.

- Disconnect power before cleaning and use only a damp cloth for
cleaning (no liquid / aerosol cleaners).

- Disconnect power when product is not in use.

- It is the user's responsibility to install this device in accordance

with the local electrical and building codes.

- Refer to the subscriber User Manual for a complete description of
safety notices and regulatory information for this product.

- Usage of this subscriber modem is subject to license within
Canada. Operation is restricted to the 200 MHz band from 3.450-

3.650 GHz. More information regarding licensing requirements is
available from Industry Canada (www.ic.gc.ca).

Attention:

The SU-I front grill is used to dissipate heat and may feel quite
warm during normal operation. Avoid direct contact with this
feature when handling the SU-I.

4Gon www.4Gon.co.uk [e-mail] Tel: [phone] Fax: [phone]

SU-I Quick Install Guide

70-00077-01-03 Proprietary Redline Comm. © 2010 Page 4 of 12 July 23, 2010

22 IInnttrroodduuccttiioonn

The RedMAX indoor wireless access subscriber modem is a fully
integrated WiMAX Forum compliant device incorporating an Ethernet
interface and wireless interface to a WiMAX base station. Mounting
options are available to accommodate desktop, window, and wall
mount.

The subscriber is pre-configured for easy self-install. Following proper
installation, the local WiMAX base station will automatically contact
the subscriber and configure subscribed services.

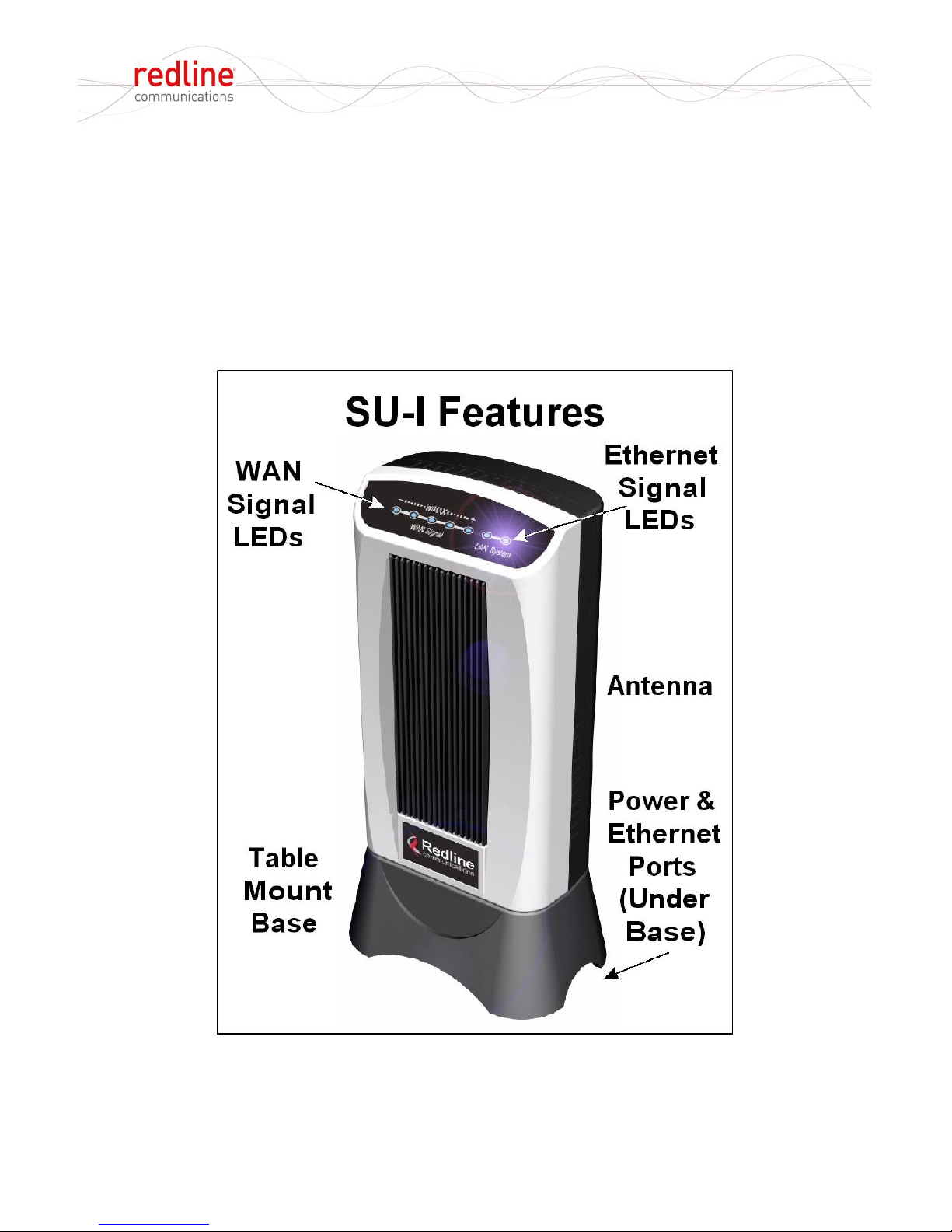

Figure 1: Indoor Wireless Modem System Features

4Gon www.4Gon.co.uk [e-mail] Tel: [phone] Fax: [phone]

SU-I Quick Install Guide

70-00077-01-03 Proprietary Redline Comm. © 2010 Page 5 of 12 July 23, 2010

33 IInnssttaallllaattiioonn SSuummmmaarryy

The following simple steps are needed to setup your RedMAX SU-I:

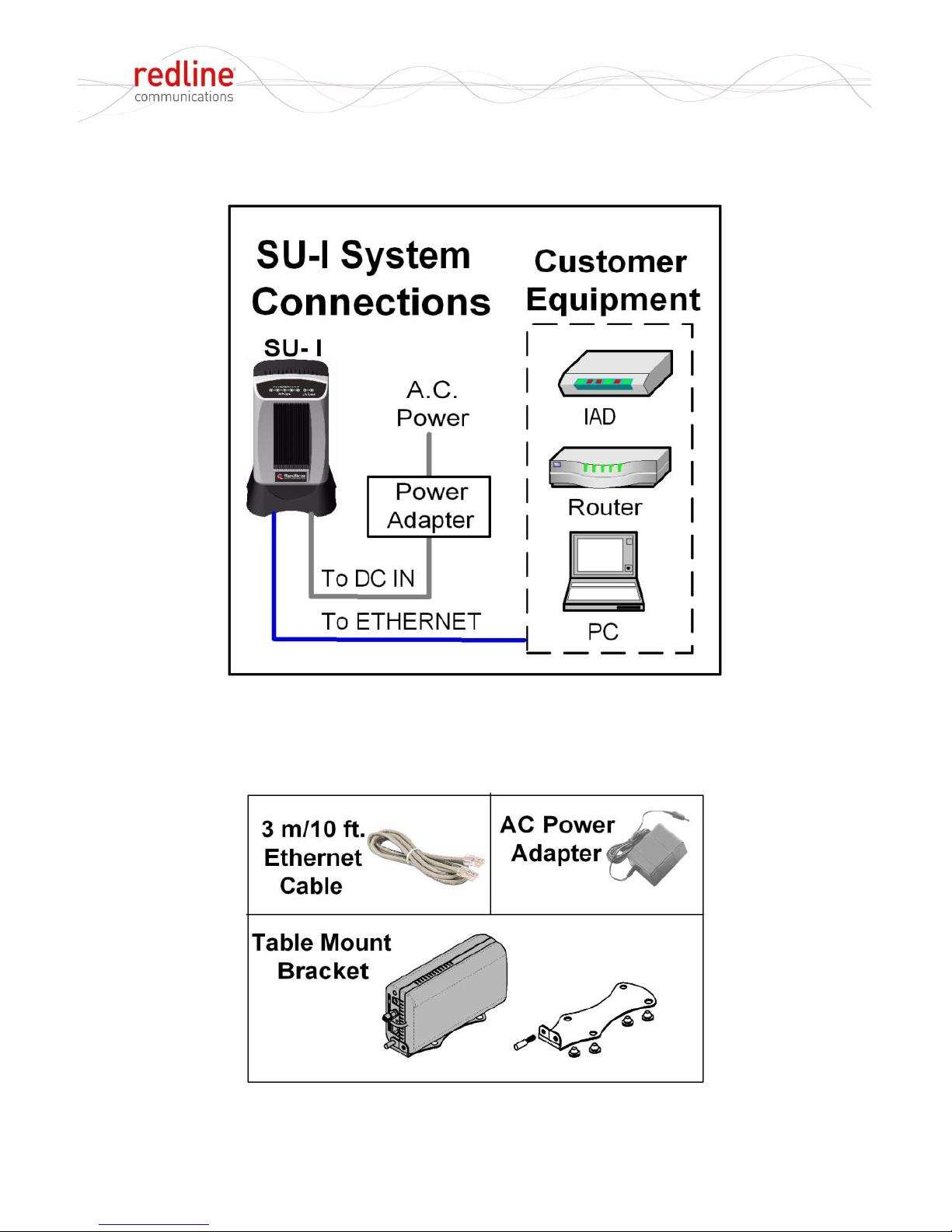

Figure 2: Subscriber Power and Network Connections

Step 1: Unpack SU-I Components

The following accessories are supplied in the SU-I package:

Figure 3: Subscriber Accessories

4Gon www.4Gon.co.uk [e-mail] Tel: [phone] Fax: [phone]

SU-I Quick Install Guide

70-00077-01-03 Proprietary Redline Comm. © 2010 Page 6 of 12 July 23, 2010

Step 2: Connect SU-I to PC or Other Network Device

Use the supplied CAT-5E Ethernet cable to connect the SU-I to your
PC, router, or other network equipment.

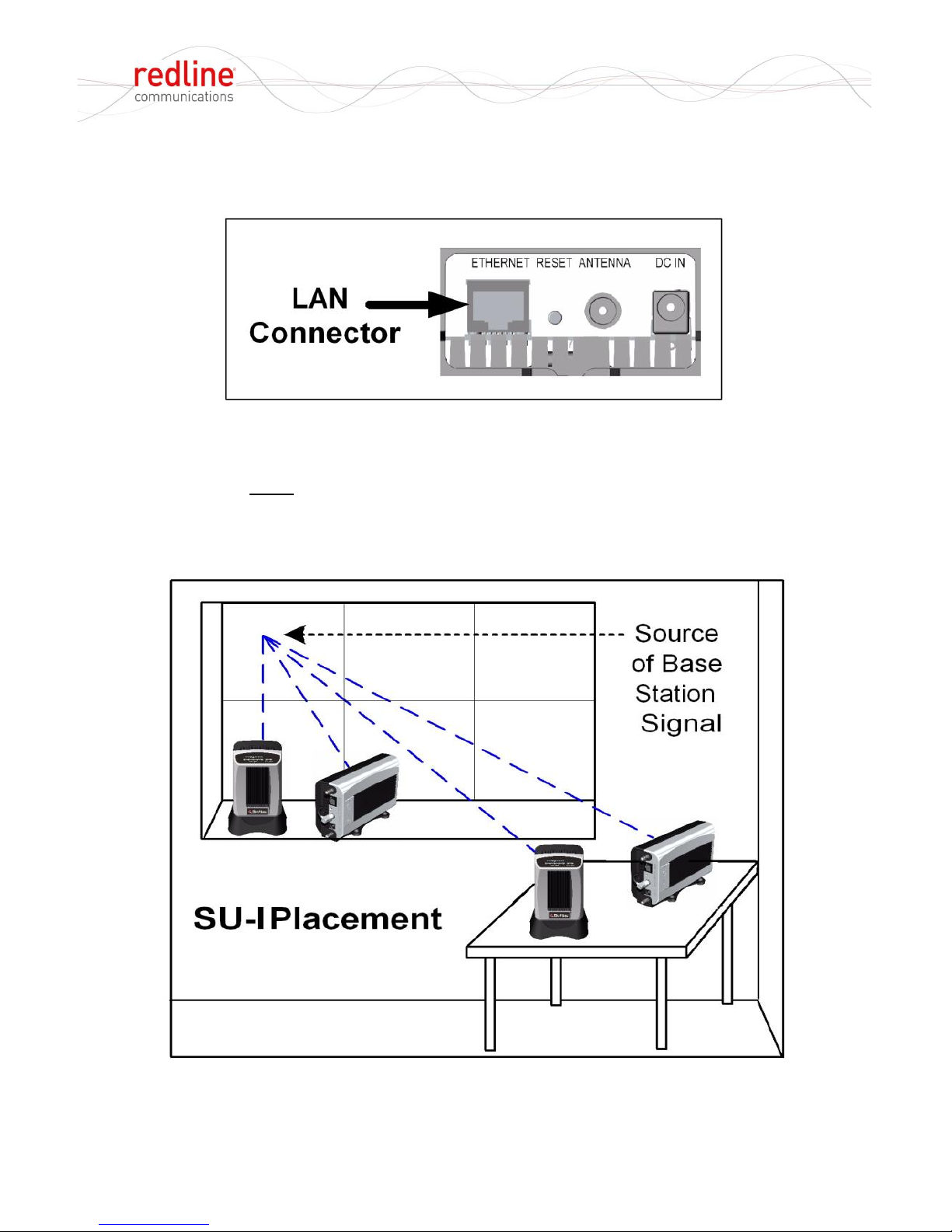

Figure 4: SU-I Ethernet Port (Under Base)

Step 3: Position SU-I with an Unobstructed View of Window.

The SU-I must be located near a window.
The SU-I can be located on any flat level surface such as a window

sill, shelf or table. If this is not practical, you may order a wall mount
bracket for the SU-I.

Figure 5: Subscriber LED Display

4Gon www.4Gon.co.uk [e-mail] Tel: [phone] Fax: [phone]

SU-I Quick Install Guide

70-00077-01-03 Proprietary Redline Comm. © 2010 Page 7 of 12 July 23, 2010

Step 4: Connect Power to SU-I

1. Connect the power adapter to the DC IN port (bottom of

subscriber).

2. Connect the power adapter to a 110-240 VAC (nominal)

grounded receptacle. The subscriber is not equipped with a
power switch and activates immediately when connected to a
power source.

Figure 6: Subscriber System Connections - Power Connector

Search Mode

When powered-on, a walking LED pattern is displayed while the SU-I
searches for WiMAX base stations. Note: Do not move the SU-I while
the search is in-progress. When the search is completed, the walking
pattern stops and the LEDs indicate received signal strength.

Figure 7: Subscriber LED Display

Signal Strength

When the SU-I has locked-in on its home base station, the WAN
signal LEDs indicate signal strength. All LEDs are lit to indicate a
strong signal, while a single LED indicates poor signal strength.

Important: A minimum of two LEDs must be lit for acceptable
wireless operation.

4Gon www.4Gon.co.uk [e-mail] Tel: [phone] Fax: [phone]

SU-I Quick Install Guide

70-00077-01-03 Proprietary Redline Comm. © 2010 Page 8 of 12 July 23, 2010

44 TTrroouubblleesshhoooottiinngg

4.1 Find Room Location with Best Signal Strength

The most important factor when installing the SU-I is to find the
location where maximum signal strength is detected. Correct antenna
alignment is essential in obtaining the maximum performance from
the SU-I. A misaligned antenna will decrease the received signal and
can result in a total loss of the connectivity with the base station.

Use the following procedures to test signal strength at various
locations in the room before deciding on the final location to install the
SU-I unit.

Base Station Location

Each SU-I must communicate with a WiMAX base station located in
your area. Identifying the tower or building where the base station
antenna is located can assist in setting up the subscriber. To receive
the best signal, the subscriber requires visual line-of-sight (LOS) and
must be located as close as possible to a window facing the base
station antenna. When the base station antenna is not visible from the
SU-I location, it is still be possible to receive a strong signal reflected
from nearby buildings.

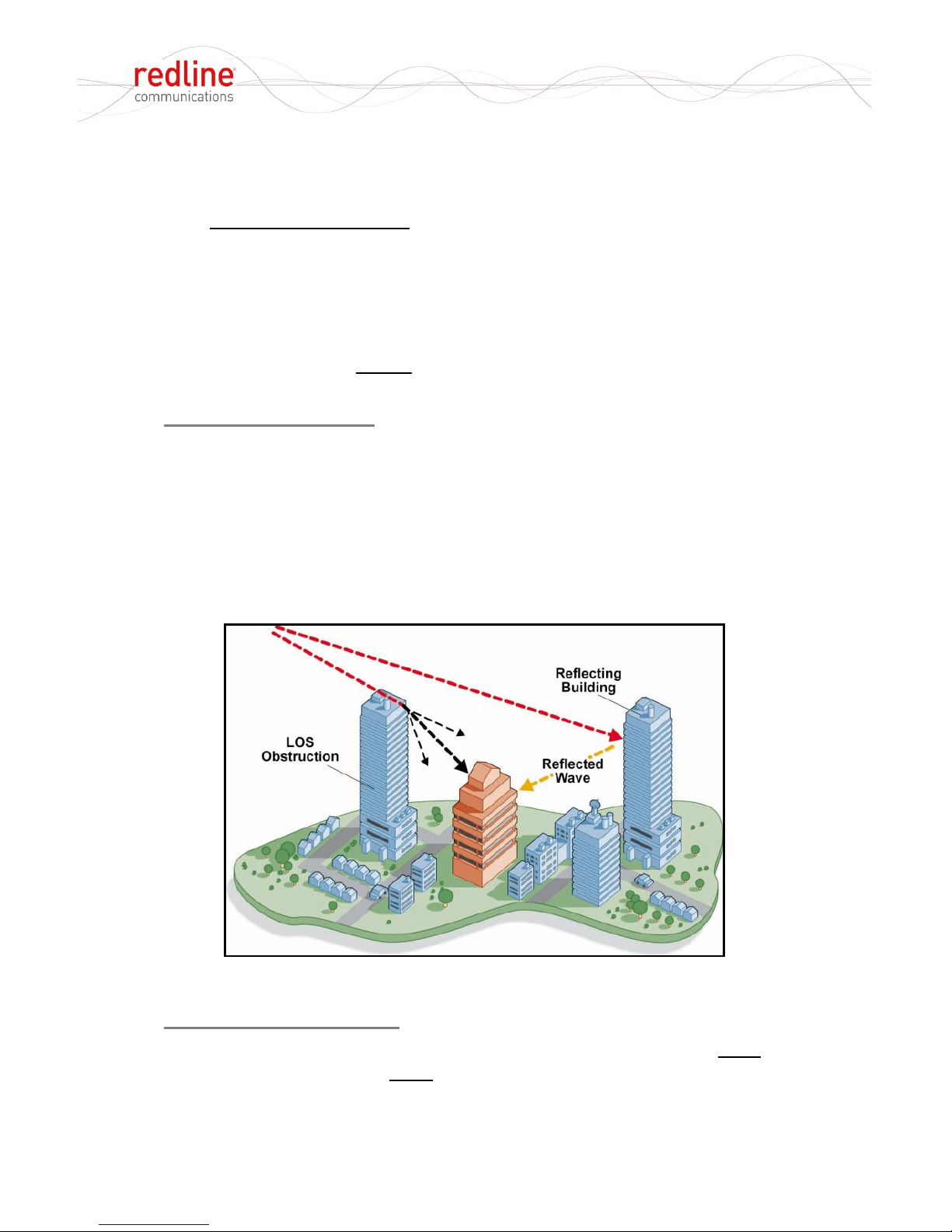

Figure 8: Non-Line of Sight Signal from Base Station

Aiming the SU-I Antenna

The antenna is located inside the black plastic cover on the back of
the SU-I. The subscriber must be positioned with the antenna pointed
straight out the window. The closer the SU-I is positioned to the
window, the more likely it is to receive a strong signal.

4Gon www.4Gon.co.uk [e-mail] Tel: [phone] Fax: [phone]

SU-I Quick Install Guide

70-00077-01-03 Proprietary Redline Comm. © 2010 Page 9 of 12 July 23, 2010

Find the Best Antenna Position

The subscriber antenna is sensitive to horizontal and vertical
orientation (polarized). For the best signal reception, the polarity of
the subscriber antenna must match the base station antenna. Your
service provider can recommend which orientation, is best suited for
your coverage area.

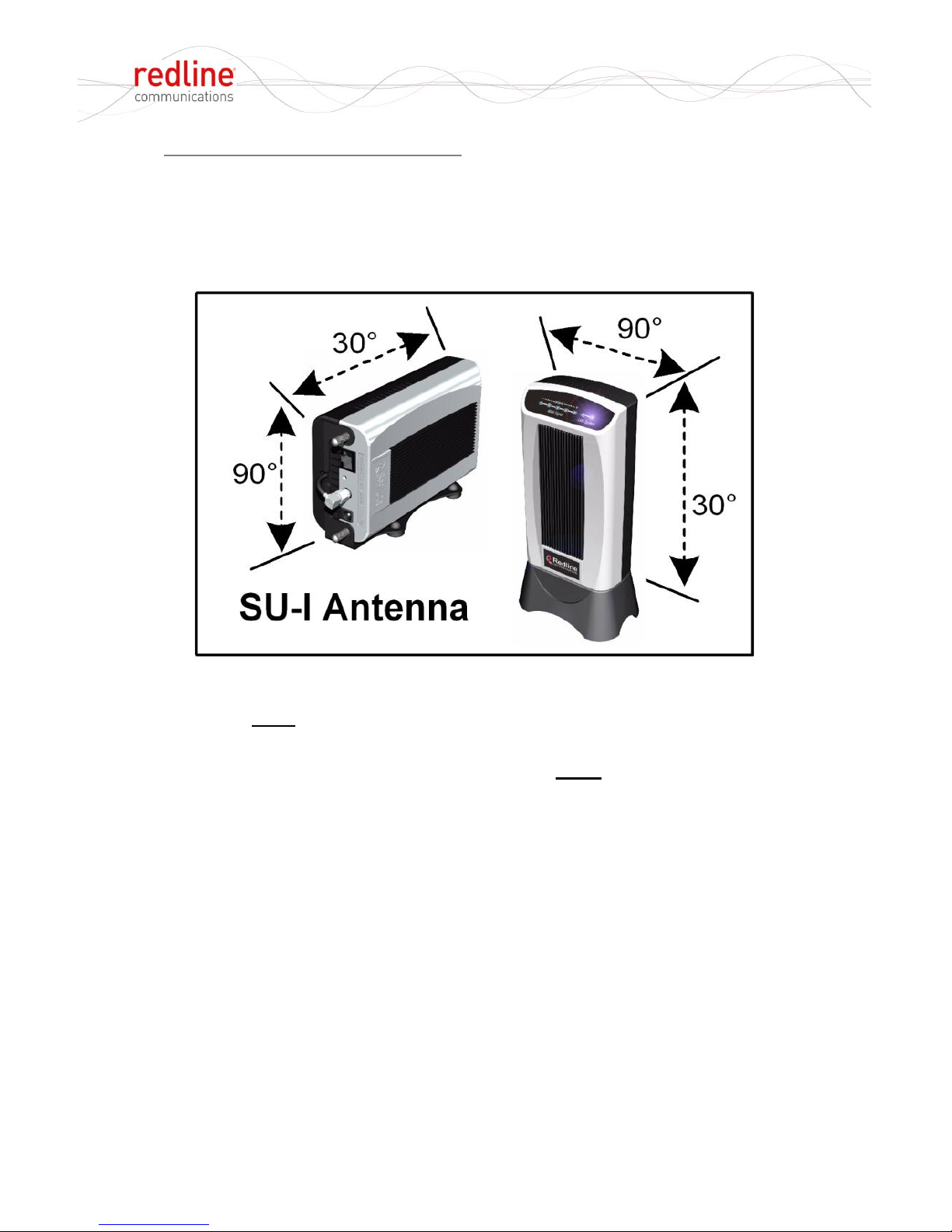

Figure 9: Antenna Direction

The SU-I must be located near a window. Find a suitable location for
the SU-I and observe the signal strength (LEDs).

Important: The antenna is located on the back of the SU-I.

When you have located the SU-I position with the strongest signal,
set the SU-I on its side and observe the effect (if any) on signal
strength. If increased signal strength is detected in this position, you
should user the horizontal mount option. The SU-I can be located on
any flat level surface such as a windowsill, shelf, or table. If this is not
practical, you may order a wall mount bracket for the SU-I.

4Gon www.4Gon.co.uk [e-mail] Tel: [phone] Fax: [phone]

SU-I Quick Install Guide

70-00077-01-03 Proprietary Redline Comm. © 2010 Page 10 of 12 July 23, 2010

Low Signal / No Connection to Base Station

a) The subscriber requires visual line-of-sight (LOS) to receive the

best signal, and must typically be located as close as possible to
a window.

b) Some office buildings use tinted windows to reduce heat. If the

tinting uses metal embedded in the glass, this may act as an RF
shield and greatly reduce the available signal level.

c) For the best signal reception, the polarity of the subscriber

antenna must match the base station antenna. Test the signal
strength with the subscriber standing upright and also on its side.

d) The subscriber is self-install and cannot be configured by the

user. Verify with your service provider that your subscriber is
correctly registered. The subscriber serial number is located
inside the factory-installed desktop mounting foot.
