RedMax BCZ2600SU, BCZ2600SW, BCZ2600S User Manual

BCZ2600S
BCZ2600SU

BCZ2600SW

OWNER/OPERATOR MANUAL

BRUSHCUTTERS

T3228-93110 (309)

The engine exhaust from this product
contains chemicals known to the State
of California to cause cancer, birth
defects or other reproductive harm.

WARNING

Before using our brushcutters,
please read this manual carefully to
understand the proper use of your
unit.

WARNING

BCZ2600S DRIVE UNIT 300001 and up ENGINE UNIT 300101 and up
BCZ2600SU DRIVE UNIT 300001 and up ENGINE UNIT 300101 and up
BCZ2600SW DRIVE UNIT 300001 and up ENGINE UNIT 300101 and up

APPLICABLE SERIAL NUMBERS :

BCZ2600S
BCZ2600SU
BCZ2600SW

SAFETY FIRST

Instructions contained in warnings within this
manual marked with a symbol concern
critical points which must be taken into
consideration to prevent possible serious
bodily injury, and for this reason you are
requested to read all such instructions
carefully and follow them without fail.

■ WARNINGS IN THE MANUAL

This mark indicates instructions which must be
followed in order to prevent accidents which could
lead to serious bodily injury or death.

This mark indicates instructions which must be
followed, or it leads to mechanical failure,
breakdown, or damage.

This mark indicates hints or directions useful in the
use of the product.

NOTE

CONTENTS

1. Parts location …………………………………4

2. Specifications …………………………………4

3. Warning labels on the machine ……………5

4. Symbols on the machine ……………………6

5. For safe operation ……………………………7

6. Set up …………………………………………13

7. Fuel……………………………………………16

8. Operation ……………………………………18

9. Maintenance …………………………………21

10. Storage ………………………………………25

11. Optional blade usage ………………………26

12. Troubleshooting guide ………………………31

13. Parts list ………………………………………33

WARNING

IMPORTANT

2. Specifications

■ BCZ2600S/BCZ2600SU/BCZ2600SW

Overall size(LxWxH)

BCZ2600S/BCZ2600SU ····································· 70.5(1790)x9.8(250)x12.2(310) in(mm)
BCZ2600SW ····················································· 70.5(1790)x24.8(630)x19.1(485) in(mm)

Dry weight w/o acc.

BCZ2600S/BCZ2600SU················································· 11.7 lbs (5.3kg)/11.1 lbs (5.1kg)
BCZ2600SW ···························································································· 13.0 lbs (5.9kg)

Engine Type······················································································ Air-cooled 2-stroke gasoline

Model········································································································ Zenoah GZ25N
Displacement ······················································································· 1.6cu-in (25.4cm3)
Max. output ··································································· 1.2Hp (0.9kW)at 7500/min-1(rpm)
Idle speed··························································································3000±200/min-1(rpm)
Fuel ······················································································· Mixture(Gasoline 50 : Oil 1)
Carburetor ··················································································· Walbro Diaphragm type

Spark plug·····································································································NGK CMR7A
Fuel tank capacity·······························································································22.0 fl.oz (0.65 )
Transmission··········································································· Centrifugal clutch, Rigid driveshaft
Reduction ratio ····················································································································· 1.357
Cutting head rotating direction ················································ Counter-clockwise(Operator view)
Durability period··················································································································300hrs.
Standard Accessories

4 in. 2-line Head ········································································································ 1 pc.

Shoulder Strap ·········································································································· 1 pc.

Goggle······················································································································· 1 pc.

Tool Kit ······················································································································ 1 pc.

Specifications are subject to change without notice.

1. Parts location

BCZ2600S
BCZ2600SU

BCZ2600SW

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

7

8

9

4

2

5

3

6

18

10

1. Loop handle

2. Shoulder strap hanger

3. Ignition switch

4. Throttle cable

5. Throttle lever

6. Throttle set button

7. Drive shaft housing

8. Debris guard

9. Cutting line head

10. Gear case

11. Spark arrester

12. Starter knob

13. Fuel tank

14. Primer pump

15. Choke lever

16. Air cleaner cover

17. Handle

18. Protector

 4 

(1) Read owner's manual before operating this machine.
(2) Wear head, eye and ear protection.
(3) Warning/Attention
(4) Keep all children, bystanders and helpers 15 meters away from the brushcutter

If warning label peel off or become soiled and impossible to read, you should contact the dealer
from which you purchased the product to order new labels and affix them in the required
location(s).

Never modify your brushcutter.
We won't warrant the machine, if you use the remodeled brushcutter or you don't observe
the proper usage written in the manual.

WARNING

3. Warning labels on the machine

 5 

IMPORTANT

 6 

For safe operation and maintenance,
symbols are carved in relief on the machine.
According to these indications, please be
careful not to take a mistake.

(a) The port to refuel the "MIX GASOLINE"
Position: FUEL TANK CAP

(b) The direction to close the choke
Position: AIR CLEANER COVER

(c) The direction to open the choke
Position: AIR CLEANER COVER

4. Symbols on the machine

IMPORTANT

ENGINE INFORMATION

THIS ENGINE MEETS U.S. EPA PH2

AND 2001 CALIFORNIA EMISSION

REGULATIONS FOR SI SORE’s

COMPLIANCE PERIOD : CATEGORYA:

ENGINE FAMILY : 1KZXS.0254QR ; EM
ENGINE DISPLACEMENT : 25.4cc

REFER TO OWNER’S MANUAL FOR MAINTE-

NANCE SPECIFICATIONS AND ADJUSTMENTS.

Ce moteur est conformc aux normcs U.S.
EPA PH2 et 2001 ainsi qu’aux autres dispositions
ultérieures de la réglementation concernant la pollution
de l’air pour les petits moteurs tout-terrain avec une
période de accordable : CATEGORYA.

Type de moteur : 1KZXS.0254QR :EM
Cylindrée du moteur : 25,4cc

Se référer au Manuel de l’utilisateur pour les
spécifications d’entretien et les réglages.

INFORMATION IMPORTANTE
CONCERNANT LE MOTEUR

 7 

5. For safe operation

1. Read this manual carefully until you
completely understand and follow all safety
and operating instructions.

2. Keep this manual handy so that you may refer
to it later whenever any questions arise. Also
note, if you have any questions which cannot
be answered herein, contact the dealer from
whom you purchased the product.

3. Always be sure to include this manual when
selling, lending, or otherwise transferring the
ownership of this product.

4. Never allow children or anyone unable to fully
understand the directions given in the manual
to use the machine.

■ WORKING CONDITION

1. When using the product, you should wear proper
clothing and protective equipment.

(1) Helmet
(2) Ear protectors
(3) Protection goggles or face protector
(4) Thick work gloves
(5) Non-slip-sole work boots

2. And you should carry with you.

(1) Attached tools and files
(2) Properly reserved fuel
(3) Spare blade
(4) Things to notify your working area (rope,

warning signs)
(5) Whistle (for collaboration or emergency)
(6) Hatchet or saw (for removal of obstacles)

3. Do not wear loose clothing, jewelry, short
trousers, sandals, or go barefoot. Do not wear
anything which might be caught by a moving
part of the unit. Secure hair so it is above
shoulder length.

■ WORKING CIRCUMSTANCE

1. Never start the engine inside a closed room or
building. Exhaust gases contain dangerous
carbon monoxide.

2. Never use the product,
a. when the ground is slippery or when you can’t

maintain a steady posture.

 8 

b. At night, at times of heavy fog, or at any other

times when your field of vision might be
limited and it would be difficult to gain a clear
view of the working area.

c. During rain storms, during lightning storms, at

times of strong or gale-force winds, or at any
other times when weather conditions might
make it unsafe to use the product.

■ WORKING PLAN

1. You should never use the product when under
the influence of alcohol, when suffering from
exhaustion or lack of sleep, when suffering from
drowsiness as a result of having taken cold
medicine or at any other time when a possibility
exists that your judgment might be impaired or
that you might not be able to operate the product
properly and in a safe manner.

2. When planning your work schedule, allow plenty
of time to rest. Limit the amount of time over
which the product is to be used continuously to
somewhere around 30~40 minutes per session,
and take 10~20 minutes of rest between work
sessions. Also try to keep the total amount of
work performed in a single day under 2 hours or
less.

1. If you don’t observe the working time, or
working manner (See ■ USING THE
PRODUCT), Repetitive Stress Injury(RSI)
could occur.
If you feel discomfort, redness and swelling
of your fingers or any other part of your
body, see a doctor before getting worse.

2. To avoid noise complaints, in general,
operate product between 8a.m. and 5p.m. on
weekdays and 9a.m. to 5p.m. weekends.

Check and follow the local regulations as to sound
level and hours of operations for the product.

NOTE

5. For safe operation

WARNING

■ BEFORE STARTING THE ENGINE

1. The area within a perimeter of 50 feet (15m) of
the person using the product should be
considered a hazardous area into which no one
should enter. If necessary yellow warning rope,
warning signs should be placed around the
perimeter of the area. When work is to be
performed simultaneously by two or more
persons, care should also be taken to constantly
look around or otherwise check for the presence
and locations of other people working so as to
maintain a distance between each person
sufficient to ensure safety.

2. Check the condition of working area to avoid any
accident by hitting hidden obstacles such as
stumps, stones, cans, or broken grass.

Remove any obstacle before beginning work.

3. Inspect the entire unit for loose fasteners and
fuel leakage. Make sure that the cutting
attachment is properly installed and securely
fastened.

4. Be sure the debris guard is firmly attached in
place.

5. Always use the shoulder strap. Adjust the strap
for comfort before starting the engine. The strap
should be adjusted so the left hand can
comfortably hold the handlebar grip
approximately waist high.

■ STARTING THE ENGINE

1. Keep bystanders and animals at least 50feet
(15m) away from the operating point. If you are
approached, immediately stop the engine.

2. The product is equipped with a centrifugal clutch
mechanism, so the cutting attachment begins to
rotate as soon as the engine is started by putting
the throttle into the start position. When starting
the engine, place the product onto the ground in
a flat clear area and hold it firmly in place so as
to ensure that neither the cutting part nor the
throttle come into contact with any obstacle
when the engine starts.

IMPORTANT

5. For safe operation

 9 

 10 

Never place the throttle into the high speed
position when starting the engine.

3. After starting the engine, check to make sure
that the cutting attachment stops rotating when
the throttle is moved fully back to its original
position. If it continues to rotate even after the
throttle has been moved fully back, turn off the
engine and take the unit to your authorized Red
Max servicing dealer for repair.

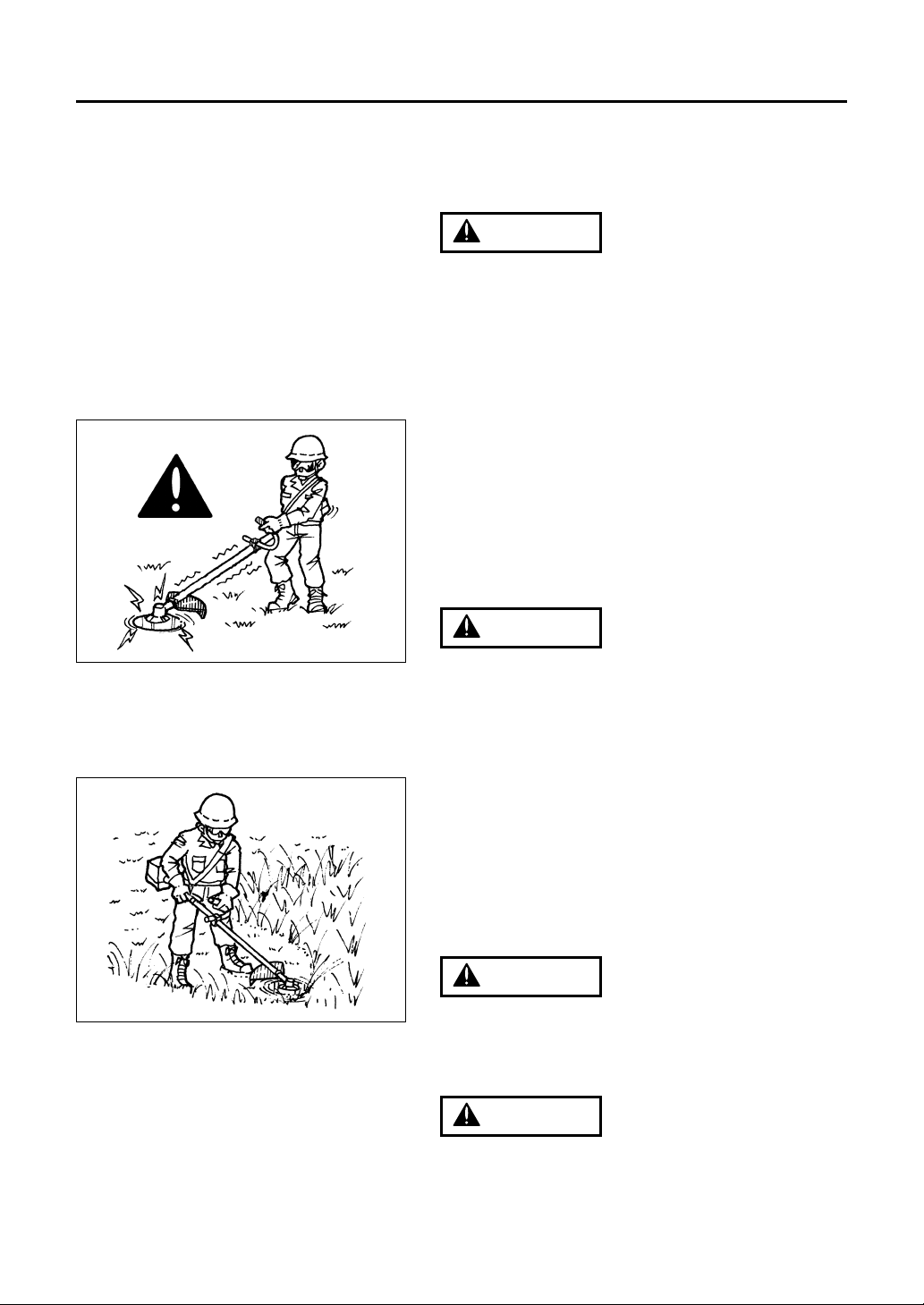

■ USING THE PRODUCT

Cut only materials recommended by the
manufacturer. And use only for tasks explained
in the manual.

1. Grip the handles firmly with both hands using
your whole hand. Place your feet slightly apart
(slightly further apart than the width of your
shoulders) so that your weight is distributed
evenly across both legs, and always be sure to
maintain a steady, even posture while working.

2. Keep cutting attachment below waist level.

3. Maintain the speed of the engine at the level
required to perform cutting work, and never raise
the speed of the engine above the level
necessary.

4. If the unit start to shake or vibrate, turn off the
engine and check the whole unit. Do not use it
until the trouble has been properly corrected.

5. Keep all parts of your body away from rotating
cutting attachment and hot surfaces.

6. Never touch the muffler, spark plug, or other
metallic parts of the engine while the engine is in
operation or immediately after shutting down the
engine. Doing so could result in serious burns or
electrical shock.

IMPORTANT

5. For safe operation

WARNING

• IF SOMEONE COMES

1. Guard against hazardous situations at all times.
Warn adults to keep pets and children away
from the area. Be careful if you are approached.
Injury may result from flying debris.

2. If someone calls out or otherwise interrupts you
while working, always be sure to turn off the
engine before turning around.

■ MAINTENANCE

1. In order to maintain your product in proper
working order, perform the maintenance and
checking operations described in the manual at
regular intervals.

2. Always be sure to turn off the engine before
performing any maintenance or checking
procedures.

The metallic parts reach high temperatures
immediately after stopping the engine.

3. When replacing the cutting attachment or any
other part, or when replacing the oil or any
lubricant, always be sure to use only RedMax

products or products which have been
certified by RedMax for use with the RedMax
product.

4. In the event that any part must be replaced or
any maintenance or repair work not described in
this manual must be performed, please contact a
representative from the store nearest RedMax
authorized servicing dealer for assistance.

5. Do not use any accessory or attachment other
than those bearing the RedMax mark and
recommended for the unit.

6. Under no circumstances should you ever take
apart the product or alter it in any way. Doing so
might result in the product becoming damaged
during operation or the product becoming unable
to operate properly.

■ HANDLING FUEL

1. The engine of the RedMax product is designed
to run on a mixed fuel which contains highly
flammable gasoline. Never store cans of fuel or

WARNING

5. For safe operation

 11 

 12 

5. For safe operation

refill the tank of the unit in any place where there
is a boiler, stove, wood fire, electrical sparks,
welding sparks, or any other source of heat or
fire which might ignite the fuel.

2. Never smoke while operating the unit or refilling
its fuel tank.

3. When refilling the tank, always turn off the
engine and allow it to cool down. Take a careful
look around to make sure that there are no
sparks or open flames anywhere nearby before
refueling.

4. Wipe spilled fuel completely using a dry rag if
any fuel spillage occurs during refueling.

5. After refueling, screw the fuel cap back tightly
onto the fuel tank and then carry the unit to a
spot 10feet (3m) or more away from where it
was refueled before turning on the engine.

■ TRANSPORTATION

1. When hand-carrying the product, cover over the
cutting part if necessary, lift up the product and
carry it paying attention to the blade.

2. Never transport the product over rough roads
over long distances by vehicle without removing
all fuel from the fuel tank. If doing so, fuel might
leak from the tank during transport.

■ MOUNTING ENGINE (SE1)

1. Push the driveshaft housing toward the clutch
housing and rotate it by hand to check that the
driveshaft is engaged with the gears.

2. Insert the driveshaft housing into the clutch
housing until it bottoms, and align the positioning
holes on the clutch housing and the shaft tube
and install the screw. When difficult to engage,
twist the engine slightly.

3. Fasten the clamp securely with two screws.

Tighten the screws gradually by turns.

■ CONNECTING THROTTLE WIRE

1. Remove the air cleaner cover.

2. Connect the end of the throttle wire to the joint
on the top of the carburetor. (SE2)

■ CONNECTING SWITCH WIRES

• Connect the switch wires between the engine
and the main unit. Pair the wires of the same
color.

■ INSTALLING HANDLE

•Mount the handle to the shaft tube and clamp it
at a location that is comfortable to you. (SE3)

(1) About 19 inches (48cm)

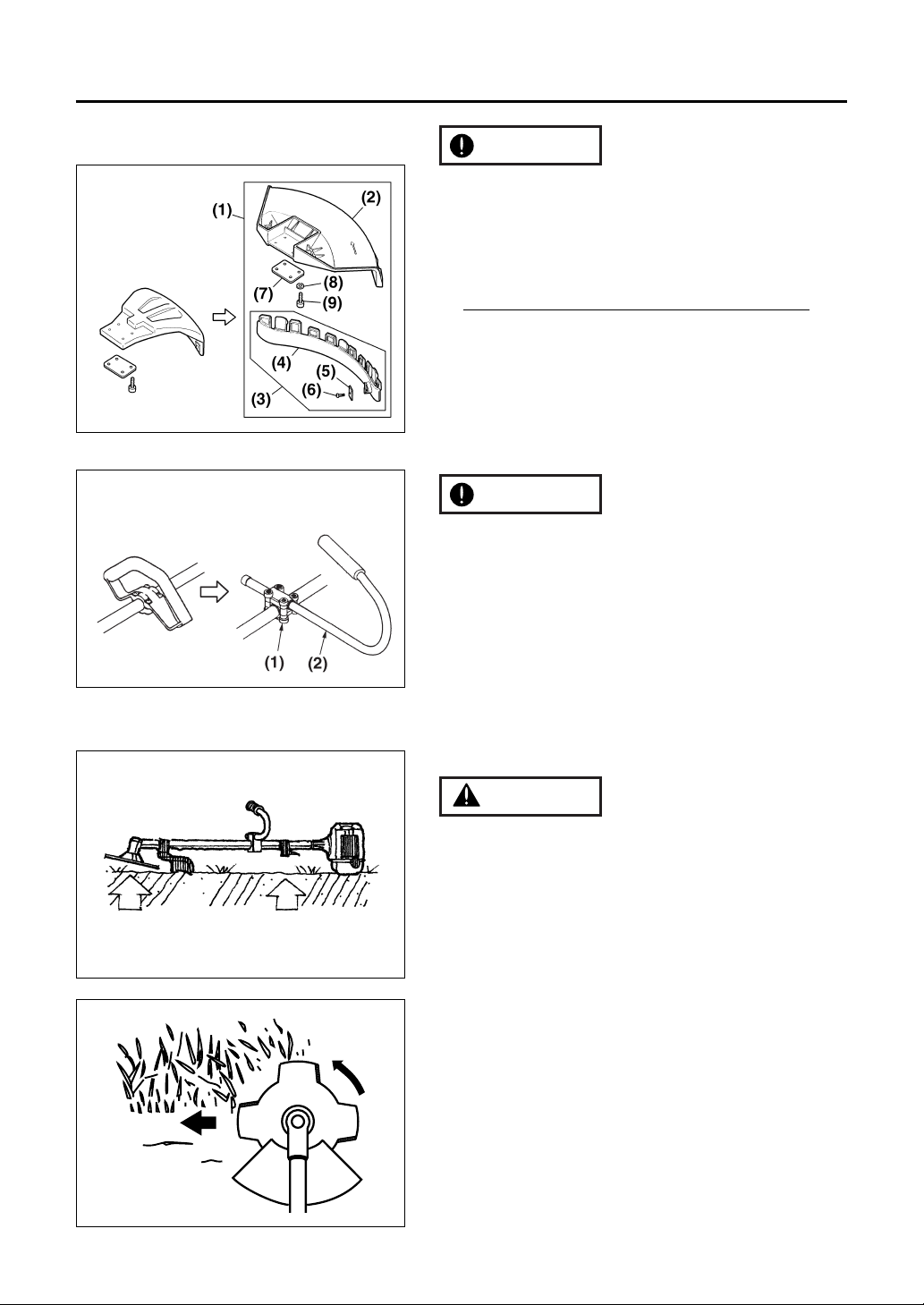

■ INSTALLING DEBRIS GUARD

• Put the debris guard on the gear box, attach it
with the 4 screws and hardware provided. (SE4)

(1) debris guard
(2) plate
(3) screw

IMPORTANT

6. Set up (BCZ2600S, BCZ2600SU)

SE1

SE2

(1)

SE3

(1)

(2)

(3)

SE4

 13 

 14 

6. Set up (BCZ2600SW)

■ MOUNTING ENGINE (SE5)

1. Push the driveshaft housing toward the clutch
housing and rotate it by hand to check that the
driveshaft is engaged with the gears.

2. Insert the driveshaft housing into the clutch
housing until it bottoms, and align the positioning
holes on the clutch housing and the shaft tube
and install the screw. When difficult to engage,
twist the engine slightly.

3. Fasten the clamp securely with two screws.

Tighten the screws gradually by turns.

■ INSTALLING HANDLE

•Mount the handle to the shaft tube and clamp it
at a location that is comfortable to you. (SE6)

(1) About 14.5 inches (37cm)

■ CONNECTING THROTTLE WIRE

1. Remove the air cleaner cover.

2. Connect the end of the throttle wire to the joint
on the top of the carburetor. (SE7)

■ CONNECTING SWITCH WIRES

• Connect the switch wires between the engine
and the main unit. Pair the wires of the same
color. (SE7)

■ PUTTING ON WAIST PAD

• Wrap the waist pad around the shaft tube and
the throttle wire. (SE8)

(1) Waist Pad
(2) Band

■ INSTALLING DEBRIS GUARD

• Put the debris guard on the gear box, attach it
with the 4 screws and hardware provided. (SE9)

(1) Debris guard
(2) Plate
(3) Washer
(4) Screw

IMPORTANT

SE5

SE7

SE6

(1)

(2)

SE8

SE9

 15 

6. Set up

SE10

SE11

■ INSTALLING CUTTING HEAD (SE10)

1. While locking the gear shaft, by inserting the
supplied tool into the upper holder on the gear
box, loosen and remove the hexagon nut(left­handed)

2. Fit the holder attached to the upper holder. Then
screw in the cutting head to the gear shaft over
the holders. Hand-tighten it securely.

■ BALANCE UNIT

1. Put on strap and attach unit to strap.

2. Slide clamp up or down until unit balances with
head just touching on the ground. (SE11)

 16 

7. Fuel

■ RECOMMENDED MIXING RATIO
GASOLINE 50:OIL 1

• Exhaust emission are controlled by the
fundamental engine parameters and
components(eq., carburation, ignition
timing and port timing) without
addition of any major hardware or the
introduction of an inert material during
combustion.

• These engines are certified to operate on
unleaded gasoline.

• Make sure to use gasoline with a
minimum octane number of 89 RON
(USA/Canada: 87AL)

• If you use a gasoline of a lower octane
value than prescribed, there is a danger
that the engine temperature may rise and
an engine problem such as piston seizing
may consequently occur.

• Unleaded gasoline is recommended to
reduce the contamination of the air for the
sake of your health and the environment.

• Poor quality gasolines or oils may damage
sealing rings, fuel lines or fuel tank of the
engine.

■ HOW TO MIX FUEL

Pay attention to agitation.

1. Measure out the quantities of gasoline
and oil to be mixed.

2. Put some of the gasoline into a clean,
approved fuel container.

3. Pour in all of the oil and agitate well.

4. Pour In the rest of gasoline and agitate

IMPORTANT

• Gasoline is very flammable. Avoid
smoking or bringing any flame or
sparks near fuel. Make sure to stop the
engine and allow it cool before
refueling the unit. Select outdoor bare
ground for fueling and move at least
3m (10ft) away from the fueling point
before starting the engine.

• The RedMax engines are lubricated by oil
specially formulated for air-cooled 2-cycle
gasoline engine use. If RedMax oil is not
available, use an anti-oxidant added
quality oil expressly labeled for air-cooled
2-cycle engine use. (JASO FC GRADE
OIL or ISO EGC GRADE)

• Do not use BIA or TCW (2-stroke water­cooling type) mixed oil.

WARNING

50:1 MIXING CHART

GASOLINE gal. 1 2345

2-CYCLE OIL fl.oz 2.6 5.2 7.8 10.4 13

GASOLINE liter 1 2345

2-CYCLE OIL ml 20 40 60 80 100

7. Fuel

 17 

again for at least one minute. As some
oils may be difficult to agitate depending
on oil ingredients, sufficient agitation is
necessary for the engine to last long. Be
careful that, if the agitation is insufficient,
there is an increased danger of early
piston seizing due to abnormally lean
mixture.

5. Put a clear indication on the outside of the
container to avoid mixing up with gasoline
or other containers.

6. Indicate the contents on outside of
container for easy identification.

■ FUELING THE UNIT

1. Untwist and remove the fuel cap. Rest the
cap on a dustless place.

2. Put fuel into the fuel tank to 80% of the full
capacity.

3. Fasten the fuel cap securely and wipe up
any fuel spillage around the unit.

1. Select bare ground for fueling.

2. Move at least 10feet (3meters) away from
the fueling point before starting the
engine.

3. Stop the engine before refueling the unit.
At that time, be sure to sufficiently agitate
the mixed gasoline in the container.

FOR YOUR ENGINE LIFE, AVOID;

1. FUEL WITH NO OIL(RAW GASOLINE) –
It will cause severe damage to the internal
engine parts very quickly.

2. GASOHOL – It can cause deterioration of
rubber and/or plastic parts and disruption
of engine lubrication.

3. OIL FOR 4-CYCLE ENGINE USE – It can
cause spark plug fouling, exhaust port
blocking, or piston ring sticking.

4. Mixed fuels which have been left

unused for a period of one month or
more may clog the carburetor and result

in the engine failing to operate properly.

5. In the case of storing the product for a

WARNING

long period of time, clean the fuel tank
after rendering it empty. Next, activate the
engine and empty the carburetor of the
composite fuel.

6. In the case of scrapping the used mixed
oil container, scrap it only at an authorized
repository site.

As lot details of quality assurance, read the
description in the section Limited Warranty
carefully. Moreover, normal wear and
change in product with no functional
influence are not covered by the warranty.
Also, be careful that, if the usage in the
instruction manual is not observed as to fhe
mixed gasoline, etc. described therein, if
may not be covered by the warranty.

NOTE

 18 

■ STARTING ENGINE

The cutting head will start rotating upon the
engine starts.

1. Rest the unit on a flat, firm place. Keep the
cutting head off the ground and clear of
surrounding objects as it will start rotating upon
starting of the engine.

2. Push the primer pump several times until
overflown fuel flows out in the clear tube. (OP1)

3. Move the choke lever to the closed position.
(OP2)

4. Set the ignition switch to the “start” position.
While pulling the throttle lever, push the set
button, and release the throttle, then the throttle
lever is in to the “start” position. (OP3)

5. While holding the unit firmly, pull out the starter
rope quickly until engine fires. (OP4)

(1) choke lever (2) close (3) open
(4) ignition switch (5) start (6) stop
(7) throttle set button

• Avoid pulling the rope to its end or returning it by
releasing the knob. Such actions can cause
starter failures.

6. Move the choke lever downward to open the
choke. And restart engine. (OP2)

7. Allow the engine to warm up for a several
minutes before starting operation.

1. When restarting the engine immediately after
stopping it, leave the choke open.

2. Overchoking can make the engine hard to start
due to excess fuel. When the engine failed to
start after several attempts, open the choke and
repeat pulling the rope, or remove the spark plug
and dry it.

NOTE

8. Operation

OP1

(1)

(2)

(3)

OP2

(4)

(7)

(5)

(6)

(4)

(7)

(5)

(6)

BCZ2600S
BCZ2600SU

BCZ2600SW

OP3

OP4

WARNING

IMPORTANT

8. Operation

■ STOPPING ENGINE (OP3)

1. Release the throttle lever and run the engine for
a half minute.

2. Shift the ignition switch to the STOP position.

• Except for an emergency, avoid stopping the
engine while pulling the throttle lever.

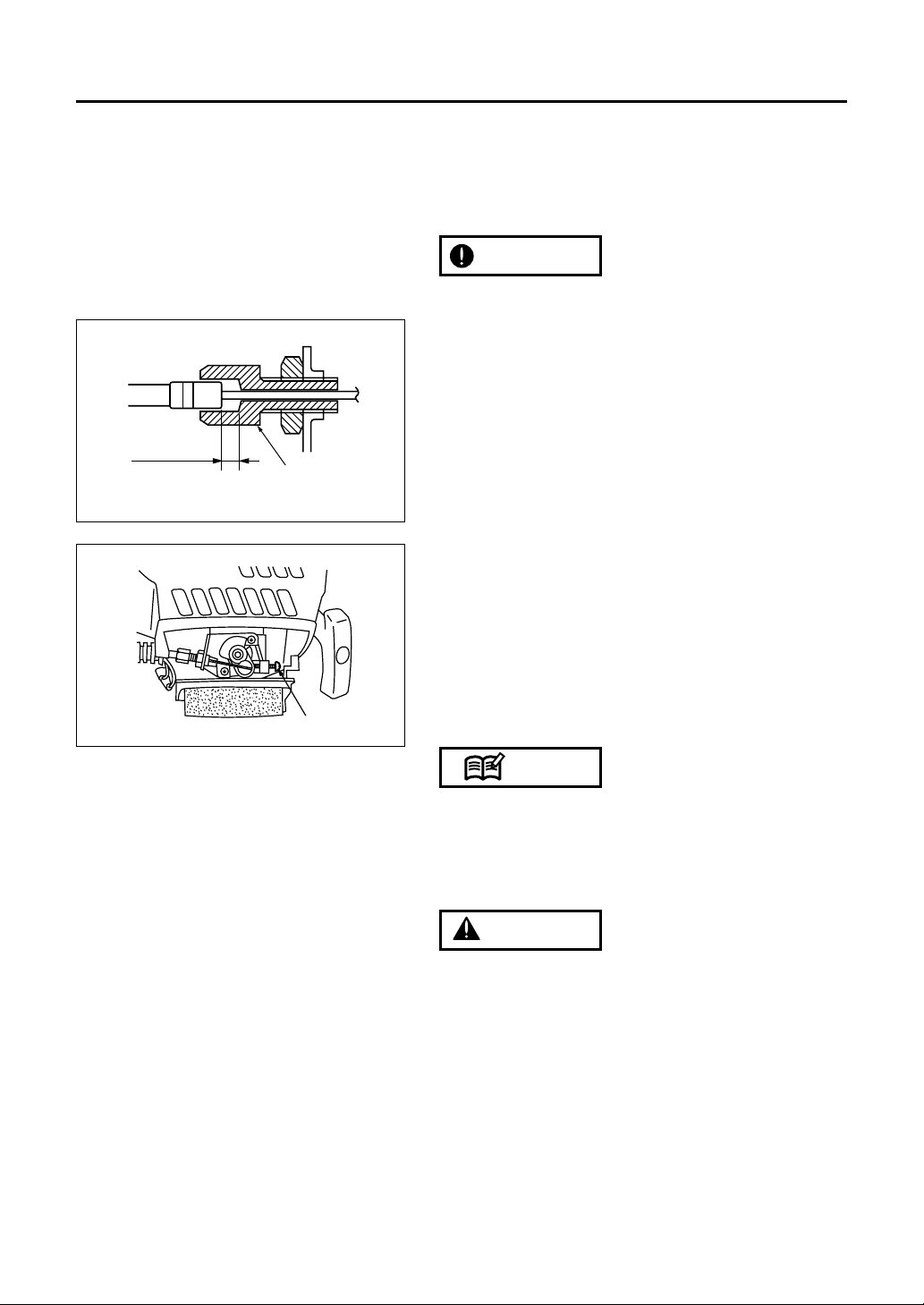

■ ADJUSTING THROTTLE CABLE

• The normal play is 1 or 2mm when measured at
the carburetor side end. Readjust with the cable
adjuster as required. (OP5)

(1) cable adjuster

■ ADJUSTING IDLING SPEED (OP6)

1. When the engine tends stop frequently at idling
mode, turn the adjusting screw clockwise.

2. When the cutting head keeps rotating after
releasing the trigger, turn the adjusting screw
counter-clockwise.

(1) idle adjusting screw

• Warm up the engine before adjusting the idling
speed.

■ CUTTING WORK (LINE HEAD USAGE)

1. Always wear eye protection such as safety
goggles. Never lean over the rotating cutting
head. Rocks or other debris could be thrown
into eyes and face and cause serious
personal injury.

2. Keep the debris guard in place at all times
when the unit is operated.

TRIMMING GRASS AND WEEDS

• Always remember that the TIP of the line does
cutting. You will achieve better results by not

WARNING

OP6

.04 in

(1~2mm)

(1)

OP5

 19 

IMPORTANT

(1)

NOTE

 20 

crowding the line into the cutting area. Allow the
unit to trim at its own pace.

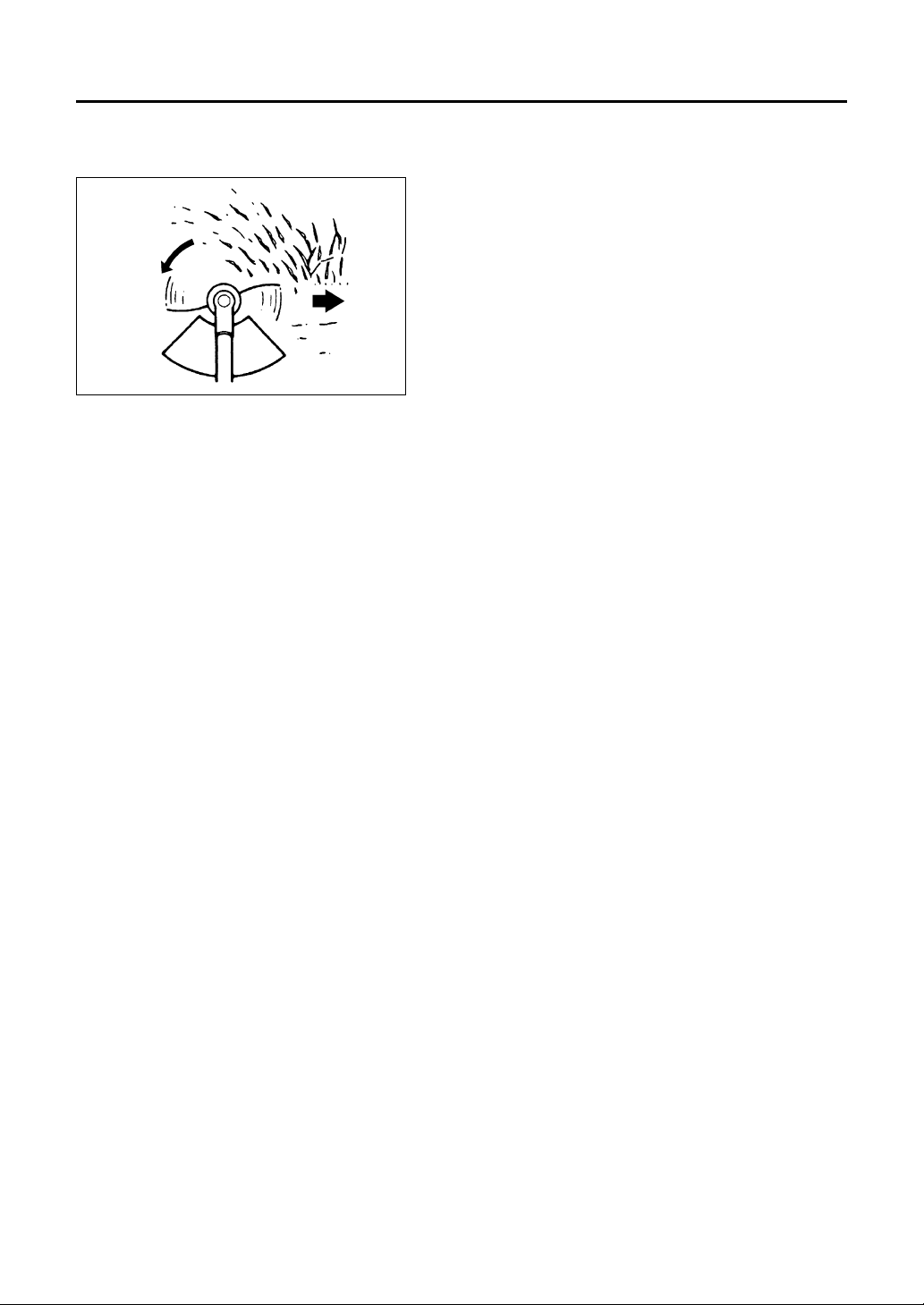

1. Hold the unit so the head is off the ground and is
tilted about 20 degrees toward the sweep
direction. (OP7)

2. You can avoid thrown debris by sweeping from
your left to the right.

3. Use a slow, deliberate action to cut heavy
growth. The rate of cutting motion will depend on
the material being cut. Heavy growth will require
slower action than will light growth.

4. Never swing the unit so hard as you are in
danger of losing your balance or control of the
unit.

5. Try to control the cutting motion with the hip
rather than placing the full workload on the arm
and hands.

6. Take precautions to avoid wire, grass and dead,
dry, long-stem weeds from wrapping around the
head shaft. Such materials can stall the head
and cause the clutch to slip, resulting in damage
to the clutch system if repeated frequently.

ADJUSTING THE LINE LENGTH

• Your brushcutters is equipped with a semi- auto
type nylon line head that allows the operator to
advance the line without stopping the engine.
When the line becomes short, lightly tap the
head on the ground while running the engine at
full throttle.

• Each time the head is bumped, the line advance
about 1 inch(25.4 mm). For better effect, tap the
head on bear ground or hard soil. Avoid
bumping in thick, tall grass as the engine may
stall by overload.

8. Operation

OP7

9. Maintenance

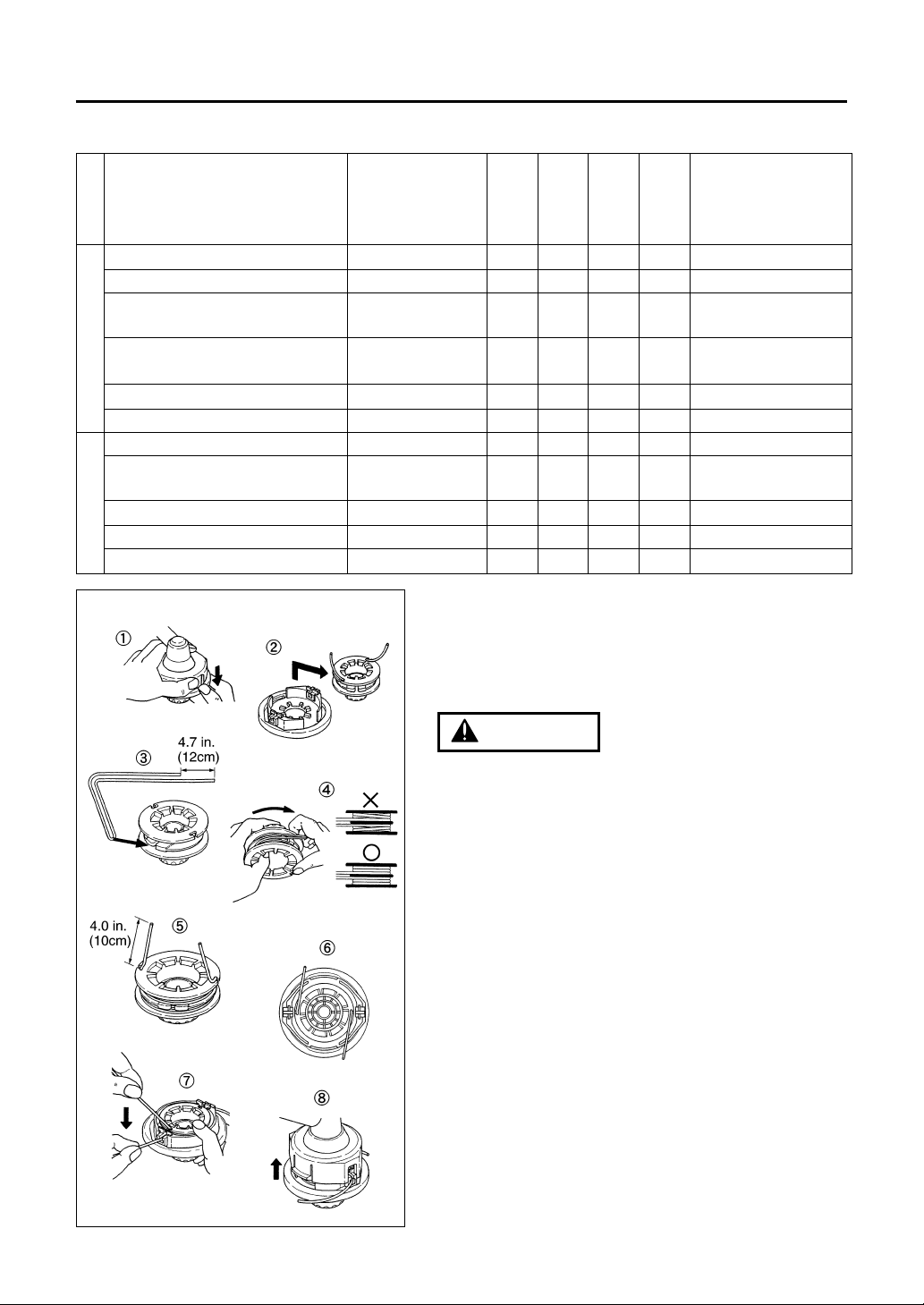

■ REFILLING TRIMMING LINE (MA1)

1. For replacement line, use a diameter of .095in
(2.4mm). The spool is capable for a line upto 20ft
(6m) on the 4” head. Avoid using a larger line as
it may cut down the trimming performance.

For safety reasons, do not use metalreinforced
line.

2. Pinch the slotted area on the both sides of the
spool housing to unhook the bottom cap.

3. Take out the spool and pull off the old line. Put
one end of new line through the spool holes and
pull it until the length is equal between each part
of the line.

4. Wind up the line in the correct direction as
indicated on the spool.

5. Hook each end of the line in the slot on the edge
of the spool, and then put the ends through the
eyelets on the housing. Make sure that the
spring and the washers are in place.

6. While holding the spool against the housing, pull
the line ends to release them from the slot.

7. Line up the slot on the bottom cap with the hook
on the housing, press the cap against the
housing until it clicks.

WARNING

every every every

25 50 100

system/compornent procedure before hours hours hours note

use after after after

fuel leaks, fuel spillage wipe out ✔
fuel tank, air filter, fuel filter inspect/clean ✔✔ replace, if necessary

see

■ADJUSTING

replace carburetor

idle adjusting screw ✔

IDLING SPEED (p.19)

if necessary

clean and readjust

GAP: .025in(0.6~0.7mm)

spark plug ✔

plug gap replace, if necessary

cylinder fins, intake air cooling vent clean ✔

muffler, spark arrester, cylinder exhaust port

clean ✔

throttle lever, ignition switch check operation ✔

replace if

cutting parts ✔

something's wrong

debris guard make sure to attach ✔
gear case grease ✔
screws/nuts/bolts tighten/replace ✔✔not adjusting screws

E

N

G

I

N

E

S

H

A

F

T

■ MAINTENANCE CHART

 21 

MA1

 22 

•Make sure that the engine has stopped and is
cool before performing any service to the
machine. Contact with moving cutting head
or hot muffler may result in a personal injury.

■ AIR FILTER

• The air filter, if clogged, will reduce the engine
performance. Check and clean the filter element
in warm, soapy water as required. Dry
completely before installing. If the element is
broken or shrunk, replace with a new one. (MA2)

(1) air filter

■ FUEL FILTER

• When the engine runs short of fuel supply, check
the fuel cap and the fuel filter for blockage.
(MA3)

(1) fuel filter

■ SPARK PLUG

• Starting failure and mis-firing are often caused
by a fouled spark plug. Clean the spark plug and
check that the plug gap is in the correct range.
For a replacement plug, use the correct type
specified by RedMax. (MA4)

• REPLACEMENT PLUG IS A NGK CMR7A.

• Note that using any spark plug other than those
designated may result in the engine failing to
operate properly or in the engine becoming
overheated and damaged.

• To install the spark plug, first turn the plug until it
is finger tight, then tighten it a quarter turn more
with a socket wrench.

87~104 in-lbs

TIGHTENING TORQUE:

(9.8~11.8 N.m.)

IMPORTANT

9. Maintenance

.025 in

0.655mm

MA4

(1)

MA3

(1)

MA2

WARNING

■ MUFFLER

• Inspect periodically, the muffler for loose
fasteners, any damage or corrosion. If any sign
of exhaust leakage is found, stop using the
machine and have it repaired immediately.

• Note that failing to do so may result in the
engine catching on fire.

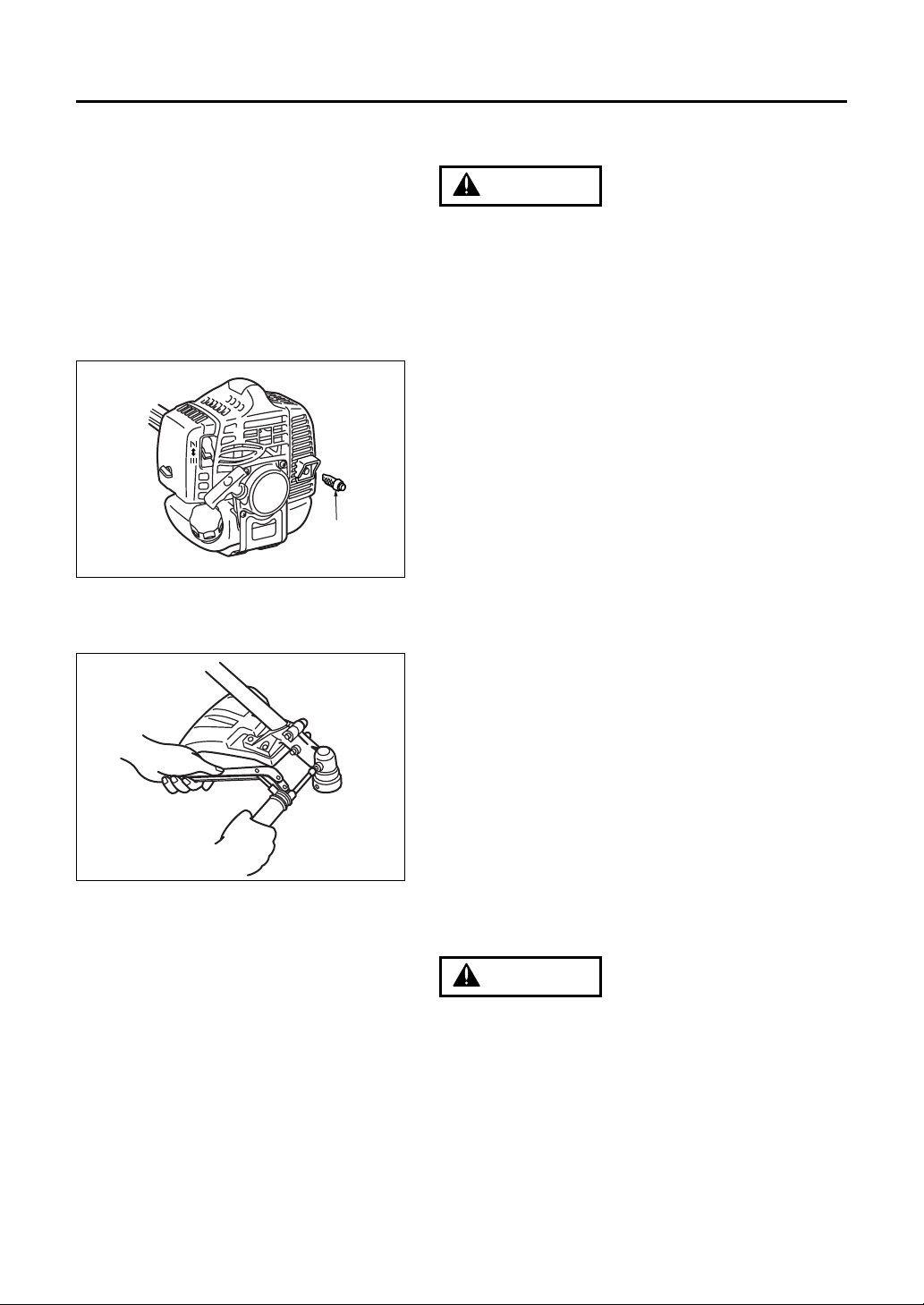

■ SPARK ARRESTER

• The muffler is equipped with a spark arrester to
prevent red hot carbon from flying out of the
exhaust outlet. Periodically inspect and clean as
necessary with a wire brush. In the State of
California it is required by law (Section 4442 of
the California Public Resources Code) to equip a
spark arrester when a gas powered tool is used
in any forest covered, brush covered, or grass
covered unimproved land. (MA5)

(1) spark arrester

■ GEAR CASE (MA6)

• The reduction gears are lubricated by
multipurpose, lithium-based grease in the gear
case. Supply new grease every 25 hours of use
or more often depending on the job condition.

• Remove the cutter holders before installing new
grease to arrange for old grease to exit.

■ INTAKE AIR COOLING VENT

•Never touch the cylinder, muffler, or spark
plugs with your bare hands immediately after
stopping the engine. The engine can
become very hot when in operation, and
doing so could result in severe burns.

•When checking the machine to make sure
that it is okay before using it, check the area
around the muffler and remove any wood
chips or leaves which have attached

WARNING

9. Maintenance

(1)

MA5

MA6

 23 

WARNING

 24 

9. Maintenance

themselves to the brushcutter. Failing to do
so could cause the muffler to become
overheated, and that this in turn could cause
the engine to catch on fire. Always make
sure that the muffler is clean and free of
wood chips, leaves, and other waste before
use.

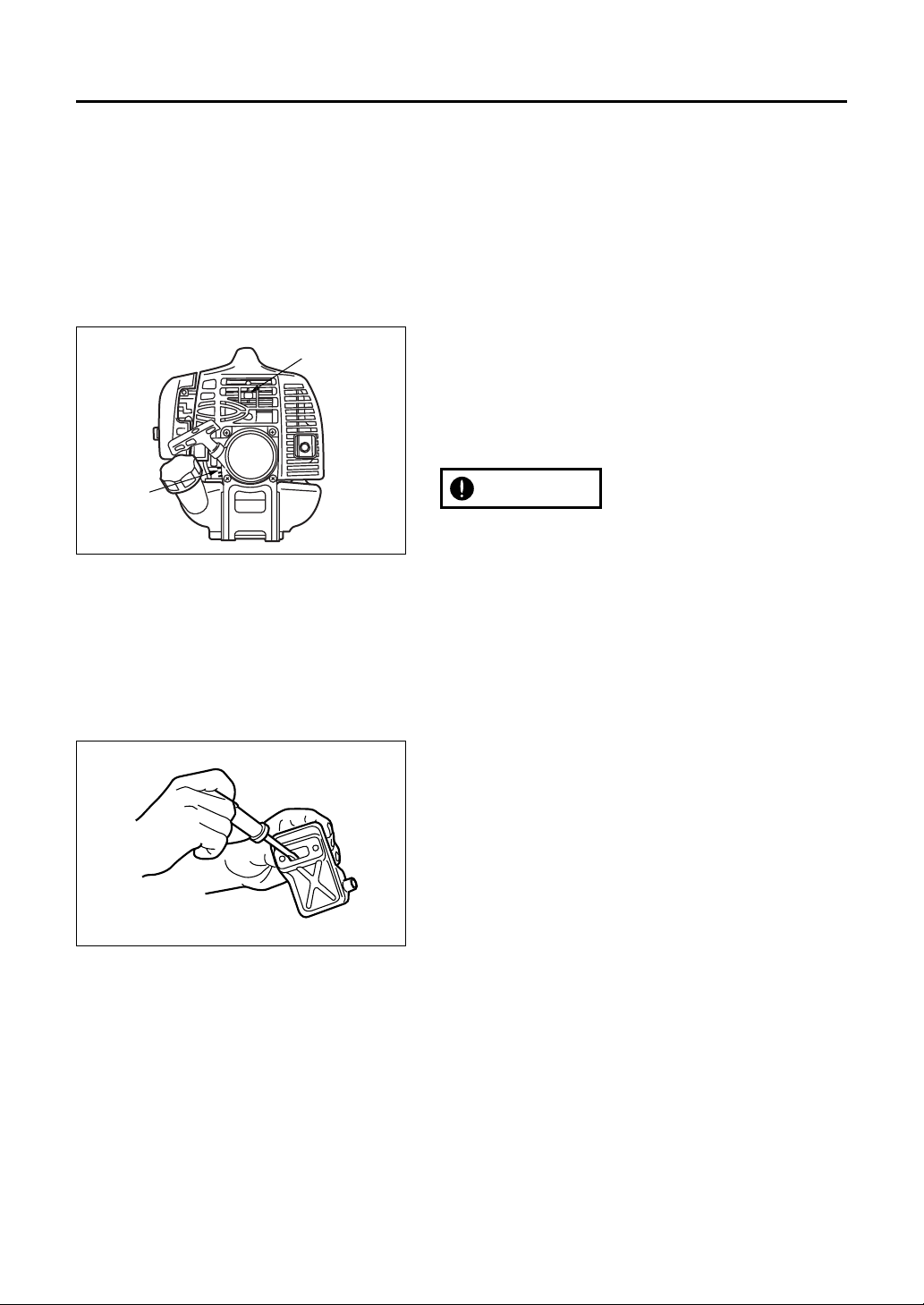

• Check the intake air cooling vent and the area
around the cylinder cooling fins after every 25
hours of use for blockage, and remove any
waste which has attached itself to the
brushcutter. Note that it is necessary to remove
the engine cover shown in (MA7) in order to be
able to view the upper part of the cylinder.

• If waste gets stuck and causes blockage around
the intake air cooling vent or between the
cylinder fins, it may cause the engine to
overheat, and that in turn may cause mechanical
failure on the part of the brushcutter. (MA7)

(1) cylinder
(2) intake air cooling vent (back)

■ PROCEDURES TO BE PERFORMED AFTER
EVERY 100 HOURS OF USE

1. Remove the muffler, insert a screwdriver into the
vent, and wipe away any carbon buildup. Wipe
away any carbon buildup on the muffler exhaust
vent and cylinder exhaust port at the same time.

2. Tighten all screws, bolts, and fittings.

3. Check to see if any oil or grease has worked its
way in between the clutch lining and drum, and if
it has wipe it away using oil-free, lead-free
gasoline.

IMPORTANT

MA8

(1)

(2)

MA7

10. Storage

• Aged fuel is one of major causes of engine
starting failure. Before storing the unit, empty the
fuel tank and run the engine until it uses all the
fuel left in the fuel line and the carburetor. Store
the unit indoor taking necessary measures for
rust prevention.

 25 

 26 

Under
growth

Heavy
weeds

Light
weeds

Grass

Nylon line

head

CUTTER
APPLICATION
CHART

9” 22-tooth:

SST229

9” 24-tooth:

SST249

8” 8-tooth:

SGB088

9” 8-tooth:

SGB089

8” 4-tooth:

SGB048

9” 4-tooth:

SGB049

11. Optional blade usage

■ CHOOSE THE BLADE

Choose a suitable recommended cutting
attachment according to the object to be cut.
(OPT1)

• When replacing blade always be sure to use
products which have been certified by RedMax.

• When sharpening, removing, or reattaching the
blade, be sure to wear thick, sturdy gloves and
use only proper tools and equipment to prevent
injury.

■ SET UP

1. Detach the line head assembly completely.
(OPT2)

2. Put on the blade, making the marked side face
the holder, put on the outer holders, and fasten
the blade with the blade nut. (OPT2)

(1) Cover: 3540-13283
(2) Holder: 6019-13250 (Standard)
(3) Nut: T3002-13260 (Standard)

WARNING

OPT1

(1)

(2)

(3)

OPT2

11. Optional blade usage

[ BCZ2600S, BCZ2600SU ]

Change to the debris guard which is suitable for
the metal blade. (OPT3)

130~174 in-lbs

TIGHTENING TORQUE:

(14.7~19.6 N.m.)

(1)Guard Ass’y: 6489-24000 (6)Screw: 0277-10412

(2)Guard: 6489-24110 (7)Plate: 6489-24120

(3)Plate Comp.: 6489-24200 (8)Washer: 01601-20513

(4)Plate: 6489-24210 (9)Bolt: 01252-30516

(5)Blade: 6489-24220

[ BCZ2600S, BCZ2600SU ]

Change the loop handle to the J-handle for safe
operation. (OPT4)

(1) Bracket: 3583-14101
(2) J-handle: 6367-14200

■ STARTING THE ENGINE

Please refer 5.For safe operation (P.9~10),

8.Operation (P.18).

• The product is equipped with a centrifugal clutch
mechanism, so the cutting attachment begins to
rotate as soon as the engine is started by putting
the throttle into the start position. When starting
the engine, place the product onto the ground in
a flat clear area and hold it firmly in place so as
to ensure that neither the cutting part nor the
throttle come into contact with any obstacle
when the engine starts. (OPT5)

■ CUTTING METHOD

a) Use the front left side cutting.
b) Guide the blade from your right to left with it

tilted slightly to your left. (OPT6)

c) When mowing a wide area, start working from

your left end to avoid interference of cut grass.

d) The blade may be seized by weeds if the engine

WARNING

OPT4
BCZ2600S
BCZ2600SU

OPT6

OPT5

OPT3
BCZ2600S
BCZ2600SU

 27 

IMPORTANT

IMPORTANT

 28 

11. Optional blade usage

speed is too low, or the blade cuts too deep into
weeds. Adjust the engine speed and cutting
depth according to the condition of object.

• If the grass or other object gets caught in the
blade, or if the unit starts to shake or vibrate,
turn off the engine and check the whole unit.
Change the blade if it has been damaged.

• Turn off the engine and make sure the blade has
completely stop before checking the blade, and
removing any object got caught in.

■ OPERATION

1. Check the bolt to fasten the blade and be sure
the bolt has no fault, and no abrasion.

2. Be sure that the blade and the holder have been
fastened according to instruction and the blade
turns smoothly without abnormal noise. (OPT7)

• The rotating parts fastened incorrectly may
cause serious accident to the operator.

• Make sure that the blade is not bent, warped,
cracked, broken or damaged.

• If you find any error to the blade, discard it
and change new one which is certified by
RedMax.

■ By using the shoulder strap, hang the unit on
your right side. Adjust the strap length so that
the cutting head may become parallel to the
ground.(OPT8)

Make sure to use shoulder strap and debris
guard. If not, it is vary dangerous when you slip
or lose your balance.

■ CONTROLLING BLADE BOUNCE

• Kick out can cause serious personal injury.

Carefully study this section. It is important that

WARNING

OPT7

OPT8

WARNING

WARNING

WARNING

you understand what causes kick out, how you
can reduce the chance of kick out and how you
can remain in control of the unit if kick out does
occur.

1. What causes kick out:

• Kick out can occur when the moving blade
contacts an object that it cannot cut. This contact
causes the blade to stop for an instant and then
suddenly move or ”bounce” away from the object
that was hit. The operator can lose control of the
unit and the blade can cause serious personal
injury to the operator or any person nearby if the
blade contacts any part of the body.

2. How you can reduce the chance of kick out:

a. Recognize that kick out can happen. By

understanding and knowing about bounce,
you can help eliminate the element of
surprise.

b. Cut fibrous weeds and grass only. Do not

let the blade contact materials it cannot cut
such as hard, woody vines and brush or
rocks, fences, metal, etc

c. Be extra prepared for bounce if you must cut

where you cannot see the blade making
contact such as in areas of dense growth.

d. Keep the blade sharp. A dull blade increase

the chance of bounce.

e. Avoid feeding the blade too rapidly. The blade

can bounce away from material being cut if
the blade is fed faster than its cutting
capability.

f. Cut only from your right to your left.

g. Keep your path of advance clear of material

that has been cut and other debris.

3. How you can maintain the best control:

a. Keep a good, firm grip on the unit with both

hands. A firm grip can help neutralize bounce.
Keep your right and left hands completely
around the respective handles.

b. Keep both feet spread apart in a comfortable

stance and yet braced for the possibility that
the unit could bounce. Do not overreach.
Keep firm footing and balance.

11. Optional blade usage

 29 

 30 

11. Optional blade usage

OPT9

■ MAINTENANCE

BLADE

• Check the blade and the fasteners for
looseness, cracking, or bending.

• Check the cutting edges and reform with a flat
file.

Point (OPT9) :

1. Keep the end corner sharp.

2. Round the root of the edge, using round file.

3. Do not use water when using a grinder.

• It is recommended that filing should be done by
professionals.

• Especially regarding filing the saw blade, Leave
it to the professionals.

■ TRANSPORTING THE UNIT

• When you finish cutting in one location and wish
to continue work in another spot, turn off the
engine, and lift up the unit and carry it paying
attention fo the blade.

• Never forget to place the protective cover over
the blades.

• When transporting the unit over long distances,
detach the blade fix the unit by ropes.

IMPORTANT

12. Troubleshooting guide

Case 1. Starting failure

CHECK PROBABLE CAUSES ACTION

fuel tank ➞ incorrect fuel ➞ drain it and with correct fuel

fuel filter ➞ fuel filter is clogged ➞ clean

carburetor adjustment screw ➞ out of normal range ➞ adjust to normal range

sparking (no spark) ➞ spark plug is fouled/wet ➞ clean/dry

➞ plug gap is incorrect ➞ correct (GAP: 0.6~0.7mm)

spark plug ➞ disconnected ➞ retighten

Case 2. Engine starts but does not keep running/Hard re-starting.

CHECK PROBABLE CAUSES ACTION

fuel tank ➞ incorrect fuel or staled fuel ➞ drain it and with correct fuel

carburetor adjustment screw

➞ out of normal range ➞ adjust to normal range

muffler,cylinder (exhaust port)

➞ carbon is built-up ➞ wipe away

air cleaner ➞ clogged with dust ➞ wash

cylinder fin, fan cover ➞ clogged with dust ➞ clean

When your unit seems to need further service, please consult with our RedMax service shop in your area.

 31 

 32 

13. Parts list

NOTE :

1. Use KOMATSU ZENOAH genuine parts as specified in the parts list for repair and/or

replacement.

2. KOMATSU ZENOAH does not warrant the machines, which have been damaged by the

use of any parts other than those specified by the company.

3. When placing parts orders for repair and/or replacement, check if the model name and the

serial number are applicable to those specified in the parts list, then use parts number

described in the parts list.

4. The contents described in the parts list may change due to improvement.

5. The parts for the machine shall be supplied seven (7) years after the machine is

discontinued. [It is possible that some specific parts may be subject to change of their

delivery term and list price within the limit of seven (7) years after the machine is

discontinued. It is also possible that some parts may be available even after the limit of

seven (7) years.]

 33 

BRUSHCUTTERS

Sep. 2003

BCZ2600S DRIVE UNIT 300001 and up ENGINE UNIT 300101 and up
BCZ2600SU DRIVE UNIT 300001 and up ENGINE UNIT 300101 and up
BCZ2600SW DRIVE UNIT 300001 and up ENGINE UNIT 300101 and up

APPLICABLE SERIAL NUMBERS :

BCZ2600S
BCZ2600SU
BCZ2600SW

13. Parts list

 34 

Fig.1 DRIVE UNIT BCZ2600S (S/N 300001 and up)

BCZ2600SU (S/N 300001 and up)

101 9” 22-tooth SST229 1
102 9” 24-tooth SST249 1
103 8” 8-tooth SGB088 1
104 9” 8-tooth SGB089 1
105 8” 4-tooth SGB048 1
106 9” 4-tooth SGB049 1
107 GUARD ASS’Y 6489-24000 1
108 • GUARD 6489-24110 1
109 • PLATE COMP. 6489-24200 1
110 • • PLATE 6489-24210 1
111 • • BLADE 6489-24220 1
112 • • SCREW 0277-10412 1
113 • PLATE 6489-24120 1
114 • WASHER 01601-20513 1
115 • BOLT 01252-30516 1
116 J-HANDLE 6367-14200 1
117 BRACKET 3583-14101 1
118 COVER 3540-13283 1

Key# Description Part Number Q'ty

1A*

PIPE-COMP, 1500xø24xT1.7

T3002-12101 1

1B

*

PIPE-COMP, 1500xø24xT1.5

T3064-12100 1

2

SHAFT, 1536xø7, spline 7T

3520-12213 1
3 GEARCASE-ASSY T3002-13001 1
4• GEARCASE 6489-13110 1
5• BEARING T3300-13521 1
6• BEARING T3403-13510 1
7• RING 04065-02612 1
8• SEAL 3565-13130 1
9• SHAFT T3002-13210 1

10 • GEAR 6440-13220 1
11 • NUT, M10 T3002-13260 1
12 • PINION T3002-13310 1
13 • BEARING T3300-13531 1
14 • BEARING T3403-13530 1
15 • RING T3300-13330 1
16 • RING 04065-02412 1
17 • BOLT 01252-30510 1
18 • BOLT 3350-21320 1
19 • HOLDER (A) 6440-13242 1
20 • FITTING, grease 3199-13350 1
21 • WASHER 01641-20608 1
22 GRIP 3577-32141 1
23 LEVER-COMP T3002-12202 1
24 • LEVER 6110-14412 1
25 • COVER-COMP

6110-14410020

1

26 • SHAFT

6110-14410060

1

27 • BUTTON

6110-14410090

1

28 • SPRING

6110-14410080

1
29 • CORD (A) T3002-12220 1
30 • CORD (B) T3002-12230 1
31 TUBE T3002-12240 1
32 CABLE T3002-83100 1
33 HANGER-ASSY 6420-17300 1
34 • HANGER-COMP 6420-17400 1
35 • • HANGER 9366-17110 1
36 • • CLAMP 9366-17120 1
37 • • SLEEVE 6420-17410 1
38 • SCREW 0263-90525 1

39A

*

LABEL NAME & CAUTION

848B5090R1 1

39B

*

LABEL NAME & CAUTION

848B5290R1 1

41 HANDLE-ASSY T3339-14000 1
42 • HANDLE T3195-14102 1
43 • SCREW 0263-90530 4

45 GUARD-ASSY T3002-24001 1
46 • GUARD COMP T3002-24101 1
47 • • BLADE T3002-24121 1
48 • • SCREW 0263-90516 1

Key# Description Part Number Q'ty

49 • • NUT 3320-15310 1
50 • PLATE 6489-24120 1
51 • BOLT 01252-30514 4
52 STRAP-ASSY 848B503610 1
53 TOOL-SET T3002-91000 1
54 • SOCKET T3002-91310 1
55 • WRENCH 09007-00425 1
56 • SPANNER 3540-91120 1
57 • BAR 3540-91110 1
58 GOGGLE T3002-91190 1
59 TAP HEAD COMP. PT104 Plus 1
60 • CASE T3189-15112 1
61 • EYELET T3189-15191 2
62 • COVER T3189-15132 1
63 • CORD HOLDER T3189-15142 1
64 • SPRING T3189-15160 1
65 • CORD T3189-15180 1
66 HOLDER (B) 6019-13250 1

 35 

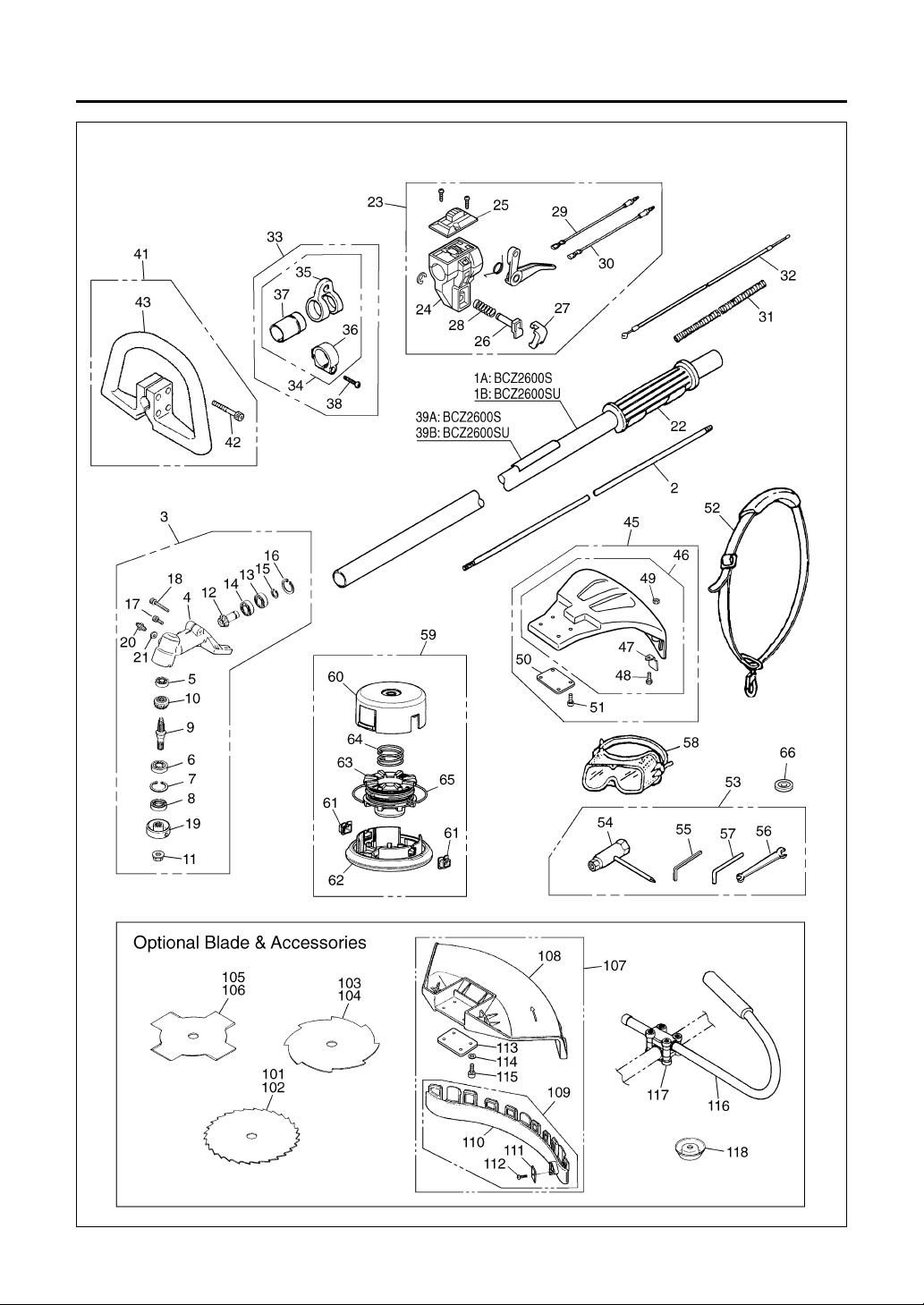

BCZ2600S (S/N 300001 and up)

Fig.1 DRIVE UNIT BCZ2600SU (S/N 300001 and up)

OPTIONAL BLADE & ACCESSORIES

* 1A, 39A for BCZ2600S

1B, 39B for BCZ2600SU

13. Parts list

 36 

Fig.2 DRIVE UNIT BCZ2600SW (S/N 300001 and up)

101 9” 22-tooth SST229 1
102 9” 24-tooth SST249 1
103 8” 8-tooth SGB088 1
104 9” 8-tooth SGB089 1
105 8” 4-tooth SGB048 1
106 9” 4-tooth SGB049 1
107 COVER 3540-13283 1

Key# Description Part Number Q'ty

1

PIPE-COMP, 1500xø24xT1.7

T3002-12101 1

2

SHAFT, 1536xø7, spline 7T

3520-12213 1
3 GEARCASE-ASSY T3002-13001 1
4• GEARCASE 6489-13110 1
5• BEARING T3300-13521 1
6• BEARING T3403-13510 1
7• RING 04065-02612 1
8• SEAL 3565-13130 1
9• SHAFT T3002-13210 1

10 • GEAR 6440-13220 1
11 • NUT, M10 T3002-13260 1
12 • PINION T3002-13310 1
13 • BEARING T3300-13531 1
14 • BEARING T3403-13530 1
15 • RING T3300-13330 1
16 • RING 04065-02412 1
17 • BOLT 01252-30510 1
18 • BOLT 3350-21320 1
19 • HOLDER (A) 6440-13242 1
20 • FITTING, grease 3199-13350 1
21 • WASHER 01641-20608 1
22 HANGER-ASSY 6420-17300 1
23 • HANGER-COMP 6420-17400 1
24 • • HANGER 9366-17110 1
25 • • CLAMP 9366-17120 1
26 • • SLEEVE 6420-17410 1
27 • SCREW 0263-90525 1
28

LABEL NAME & CAUTION

848B5190R1 1

30 W-HANDLE KIT T3002-95000 1
31 • HANDLE-L-COMP T3040-14200 1
32 • HANDLE-R-COMP T3002-95400 1
33 • LEVER-ASSY 6234-14601 1
34 • • COVER-COMP

6234-14601020

1

35 • • SHAFT

6110-14410060

1

36 • • BUTTON

6110-14410090

1

37 • • SPRING

6110-14410080

1
38 • CORD(A) BLACK T3002-95710 1
39 • CORD(B) RED T3002-95720 1
40 • CABLE-COMP T3040-83100 1
41 • TUBE 5512-73220 1
42 • CLAMP 3260-14251 1
43 • SCREW 0260-00516 1
44 • BRACKET-ASSY 3583-14101 1
45 • • BRACKET 3583-14111 1
46 • • CAP-L 3583-14121 1
47 • • CAP-U 3257-14192 1
48 • • BOLT 01252-30522 2
49 • • BOLT 01252-30525 4
50 • PROTECTOR 4050-17110 1

Key# Description Part Number Q'ty

51 • BAND 3540-93120 1
52 GUARD ASS’Y 6489-24000 1
53 • GUARD 6489-24110 1
54 • PLATE COMP. 6489-24200 1
55 • • PLATE 6489-24210 1
56 • • BLADE 6489-24220 1
57 • • SCREW 0277-10412 1
58 • PLATE 6489-24120 1
59 • BOLT 01252-30516 4
60 • WASHER 01601-20513 4
61 STRAP-ASSY 848B503610 1
62 TOOL-SET T3002-91000 1
63 • SOCKET T3002-91310 1
64 • WRENCH 09007-00425 1
65 • SPANNER 3540-91120 1
66 • BAR 3540-91110 1
67 GOGGLE T3002-91190 1
68 TAP HEAD COMP. PT104 Plus 1
69 • CASE T3189-15112 1
70 • EYELET T3189-15191 2
71 • COVER T3189-15132 1
72 • CORD HOLDER T3189-15142 1
73 • SPRING T3189-15160 1
74 • CORD T3189-15180 1
75 HOLDER (B) 6019-13250 1

 37 

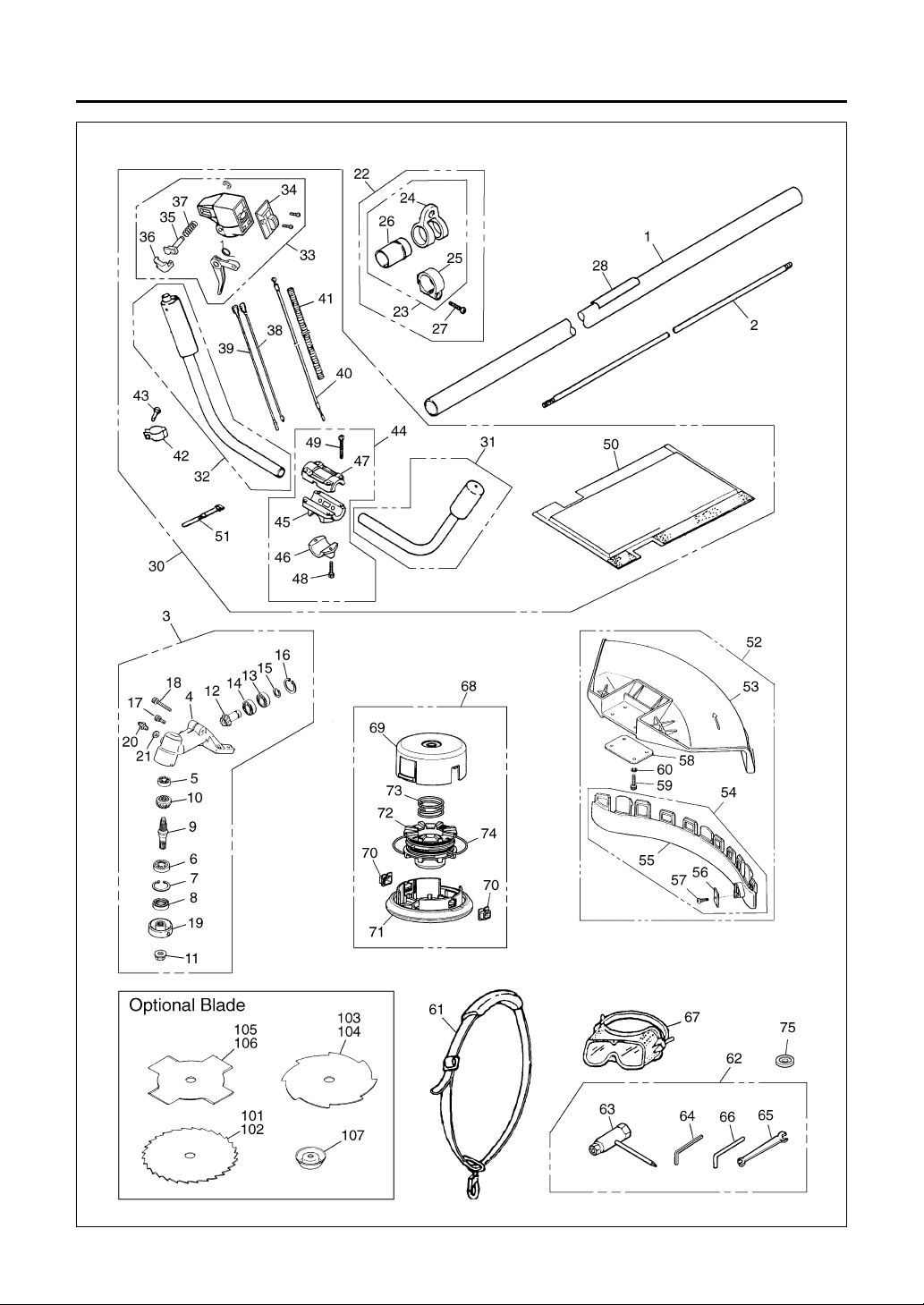

Fig.2 DRIVE UNIT BCZ2600SW (S/N 300001 and up)

OPTIONAL BLADE

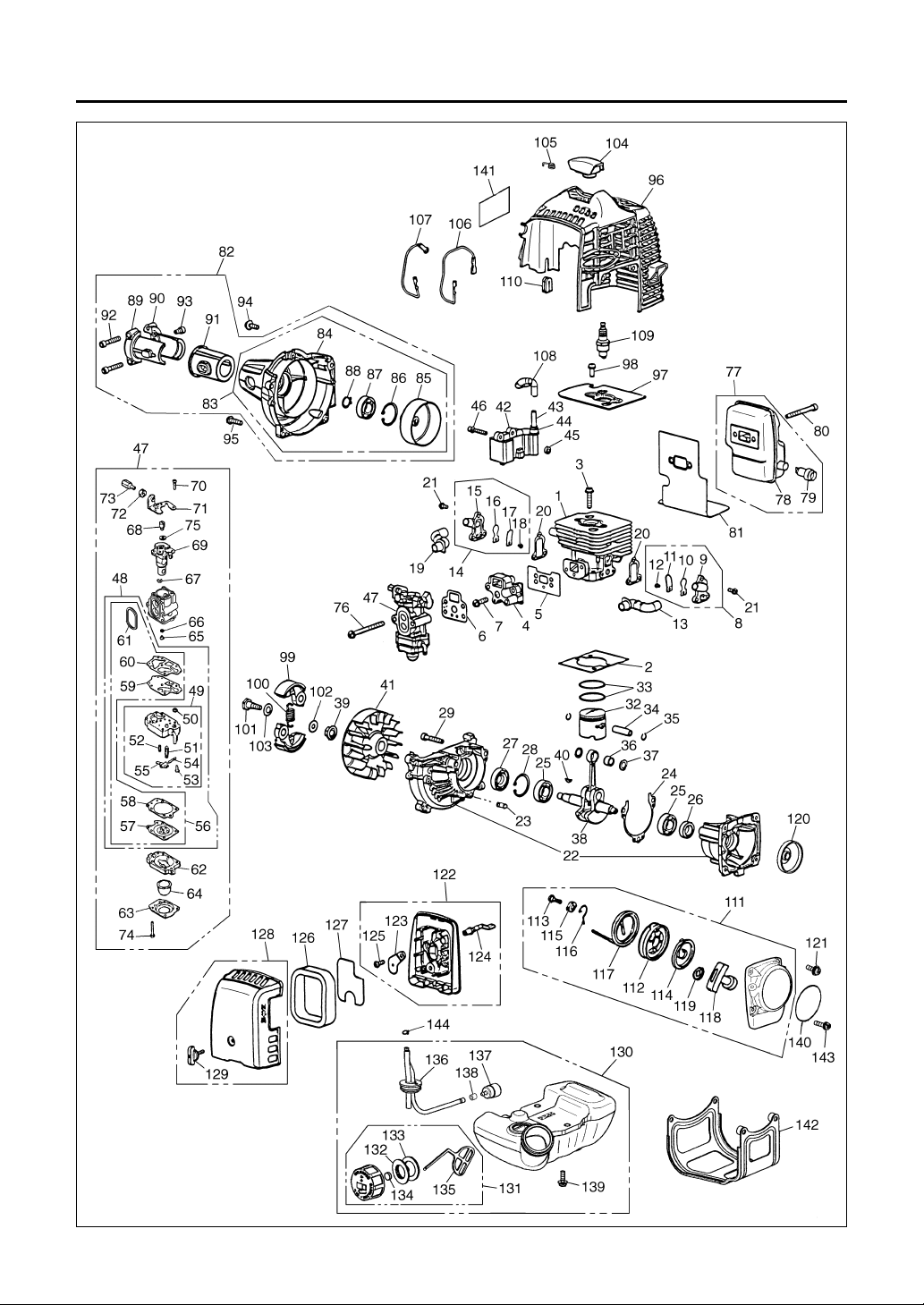

Fig.3 ENGINE UNIT

BCZ2600S (S/N 300101 and up)
BCZ2600SU (S/N 300101 and up)
BCZ2600SW (S/N 300101 and up)

 38 

13. Parts list

 39 

Key# Description Part Number Q'ty

1 CYLINDER 4810-12111 1
2 GASKET, base 4810-12210 1
3BOLT, M5x22 1850-12130 2
4 INSULATOR 4810-13162 1
5 GASKET, insulator 4810-13120 1
6GASKET, carburetor 4810-13130 1
7 SCREW, M5x20 0263-90520 1
8 REEDVALVE (S)-A 848F301601 1

9• VALVECASE (S) 848F3016A1 1
10 • REEDVALVE 4810-16120 1
11 • STOPPER 4810-16130 1
12 • SCREW, M3x8 4810-16170 1
13 PIRE AIR (S) 4810-16150 1
14 REEDVALVE (F)-A 848F301611 1
15 • VALVECASE (F) 848F3016B1 1
16 • REEDVALVE 4810-16120 1
17 • STOPPER 4810-16130 1
18 • SCREW, M3x8 4810-16170 1
19 PIPE AIR (F) 4810-16160 1
20 GASKET, valve 4810-16140 2
21 SCREW 4810-16180 6
22 CRANKCASE-C 4810-21101 1
23 • PIN 2629-21130 3
24 GASKET 4810-21140 1
25 BEARING 06030-06001 2
26 SEAL 4810-21210 1
27 SEAL 1850-21220 1
28 SNAP RING 04065-02812 1
29 BOLT, M5x30 01252-30530 3

32 PISTON 4810-41110 1
33 RING 5910-41210 2
34 PIN 1600-41310 1
35 RING 1260-41320 2
36 BEARING 5500-41410 1
37 WASHER 1101-41340 2
38 CRANKSHAFT-O 4810-42000 1
39 NUT 1650-43230 1
40 KEY 1000-43240 1
41 ROTOR 4810-71110 1
42 COIL-A T1512-71200 1
43 • CORD T1512-71220 1
44 • CAP 2616-71320 1
45 SPACER 1260-71261 2
46 BOLT, M4x22 4500-72150 2
47

CARBURETOR ASS'Y, WYA-1D

4810-81002 1
48 • REBUILD KIT T1551-06030 1
49 • • BODY ASS'Y T1551-81450 1
50 • • • SCREEN ––––––––– –
51 • • • VALVE ––––––––– –
52 • • • SPRING ––––––––– –
53 • • • SCREW ––––––––– –
54 • • • PIN ––––––––– –
55 • • • LEVER ––––––––– –
56 • • GASKET KIT 4810-06021 1
57 • • • DIAPHRAGM ––––––––– –
58 • • • GASKET, diaphragm ––––––––– –
59 • • • DIAPHRAGM, pump ––––––––– –
60 • • • GASKET, pump ––––––––– –
61 • • • RING 4810-81130 1
62 • BODY, purge 1850-81490 1
63 • COVER, pump 1850-81520 1
64 • PUMP, priming 1751-81510 1
65 • JET #37.5 4810-81250 1
66 • O-RING 1751-81240 1
67 • RING 1751-81130 1
68 • SWIVEL 1881-81140 1
69 • VALVE ASS'Y ––––––––– –
70 • SCREW 1752-81110 2
71 • BRACKET 5500-81120 1
72 • NUT, adjuster 1751-81180 1

Key# Description Part Number Q'ty

73 • SCREW, adjuster 1918-81170 1
74 • SCREW 1850-81530 4
75 • WASHER 5500-81160 1
76 SCREW, M5x60 0263-90560 2
77 MUFFLER ASS’Y 4810-15100 1
78 • MUFFLER 4810-15111 1
79 • ARRESTER 4810-15140 1
80 BOLT, M5x50 01252-30550 2
81 GASKET T1501-15211 1
82 COVER-A 4810-31001 1
83 • COVER-C 4810-31101 1
84 • • COVER, fan 4810-31111 1
85 • • DRUM 848F3051A1 1
86 • • SNAPRING 04065-02812 1
87 • • BEARING T1701-31150 1
88 • • SNAP RING 04064-01210 1
89 • BRACKET (A) 6470-31211 1
90 • BRACKET (B) 6470-31221 1
91 • CUSHION 6470-31230 1
92 • BOLT, M5x30 01252-30530 2
93 • BOLT, M5x14 01252-30514 1
94 SCREW, M5x16 5500-85510 1
95 SCREW, M5x20 0263-90520 4
96 COVER, engine 4810-32111 1
97 PLATE T1501-12310 1
98 SCREW, M5x10 0263-90510 2

99 SHOE 4820-51110 2
100 SPRING 4820-51220 1
101 SCREW 1140-51250 2
102 WASHER 1140-51230 2
103 WASHER 1140-51242 2
104 CAP 4810-72111 1
105 SPRING 1900-72120 1
106 CORD 4810-71240 1
107 CORD, earth 4810-71250 1
108 TUBE T1512-71320 1
109 PLUG, NGK CMR7A 4810-73110 1
110 GROMMET 4810-72120 1
111 RECOIL ASS'Y 4810-75100 1
112 • REEL 4500-75120 1
113 • SCREW 4500-75150 1
114 • SPRING, spiral 1850-75130 1
115 • COLLAR 4500-75180 1
116 • ARM 4500-75190 1
117 • ROPE 4810-75160 1
118 • KNOB 3330-75421 1
119 • PLATE, stopper 4810-75170 1
120 PULLEY 4500-75210 1
121 SCREW, M5x16 5500-85510 2
122 BODY ASS'Y 4810-82100 1
123 • PLATE, choke 4810-82130 1
124 • LEVER, choke 5500-82140 1
125 • SCREW 2630-33610 1
126 ELEMENT 4810-82170 1
127 SCREEN 4810-82180 1
128 COVER ASS'Y 4810-82200 1
129 • KNOB 5500-82221 1
130 TANK ASS'Y T1504-85002 1
131 • CAP ASS'Y T1015-85202 1
132 • • HOLDER-A 4500-85300 1
133 • • PACKING 4500-85220 1
134 • • FILTER 5601-85260 1
135 • • STOPPER 4820-85260 1
136 • PIPE COMP. 4810-85300 1
137 • FLTER ASS'Y 3302-85400 1
138 • COLLER 2841-31280 1
139 SCREW, M5x16 5500-85510 3
140 LABEL, recoil ––––––––– –
141 LABEL, cover 4810-31132 1
142 GUARD T1506-31910 1
143 SCREW 0263-90525 2
144 CLIP 1950-86120 1

BCZ2600S (S/N 300101 and up)
BCZ2600SU (S/N 300101 and up)

Fig.3 ENGINE UNIT BCZ2600SW (S/N 300101 and up)

The California Air Resources Board and KOMATSU ZENOAH are pleased to explain the
emission control system warranty on your 1995 and later small off-road engine. In California,

new small off-road engines must be designed, built and equipped to meet the state’s stringent
anti-smog standards. KOMATSU ZENOAH must warrant the emission control system on your
small off-road engine for the periods of time listed below provided there has been no abuse,
neglect or improper maintenance of your small off-road engine.

Your emission control system may include parts such as the carburetor and the ignition system.

Where a warrantable condition exists, KOMATSU ZENOAH will repair your small off-road engine
at no cost to you including diagnosis, parts and labor.

Manufacturer’s warranty coverage:

The 1995 and later small off-road engines are warranted for two years. If any emission­related part on your engine is defective, the part will be repaired or replaced by
KOMATSU ZENOAH.

Owner’s warranty responsibilities:

– As the small off-road engine owner, you are responsible for the performance of the
required maintenance listed in your owner’s manual. KOMATSU ZENOAH
recommends that you retain all receipts covering maintenance on your small off-road
engine, but KOMATSU ZENOAH can not deny warranty solely for the lack of receipts or
for your failure to ensure the performance of all scheduled maintenance.

– As the small off-road engine owner, you should be aware, however, that KOMATSU
ZENOAH may deny you warranty coverage if your small off-road engine or a part has
failed due to abuse, neglect, improper maintenance or unapproved modification.

– You are responsible for presenting your small off-road engine to a KOMATSU ZENOAH
distribution center as soon as a problem exists. The warranty repairs should be
completed in e reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty rights and responsibilities, you should
contact KOMATSU ZENOAH AMERICA INC. at (770)-381-5147 or you can write to

KOMATSU ZENOAH AMERICA INC.
4344 Shackleford Road Suite 500
Norcross, Georgia 30093

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT

YOUR WARRANTY RIGHTS AND OBLIGATIONS

EMISSION-RELATED PARTS, FOR TWO (2) YEARS FROM THE DATE OF ORIGINAL DELIVERY, KOMATSU ZENOAH

AMERICA INC. (THE COMPANY), THROUGH ANY RedMax DEALER, WILL REPAIR OR REPLACE, FREE OF CHARGE,
FOR THE ORIGINAL AND EACH SUBSEQUENT PURCHASER, ANY PART OR PARTS FOUND TO BE DEFECTIVE IN
MATERIAL AND/OR WORKMANSHIP. EMISSION-RELATED PARTS ARE:

THE CARBURETOR ASSY, COIL ASSY, ROTOR, SPARKPLUG,

AIR FILTER, FUEL FILTER, INTAKE MANIFOLD, AND THE GASKETS

ALL OTHER PARTS EXCEPT ABOVE PARTS, FOR TWO (2) YEARS OF HOME USE [ ONE (1) YEAR FOR ANY OTHER

USE ] FROM THE DATE OF ORIGINAL ANY DELIVERY, THE COMPANY, THROUGH ANY RedMax DEALER, WILL REPAIR
OR REPLACE, FREE OF CHARGE, FOR THE ORIGINAL PURCHASER, ANY PART OF PARTS FOUND TO BE DEFECTIVE
IN MATERIAL AND/OR WORKMANSHIP. THIS IS THE EXCLUSIVE REMEDY.

THE PURCHASER SHALL BEAR COSTS OF TRANSPORTING THE UNIT TO AND FROM THE RedMax DEALER.

THE PURCHASER SHALL NOT BE CHARGED FOR DIAGNOSTIC LABOR WHICH LEADS TO THE DETERMINATION
THAT A WARRANTED PART IS DEFECTIVE, IF THE DIAGNOSTIC WORK IS PERFORMED AT THE RedMax DEALER.

THE PURCHASER OR OWNER IS RESPONSIBLE FOR THE PERFORMANCE OF THE REQUIRED MAINTENANCE AS
DEFINED BY THE MANUFACTURER IN THE OWNER/OPERATOR MANUAL.

ANY WARRANTED PART WHICH IS NOT SCHEDULED FOR REPLACEMENT AS REQUIRED MAINTENANCE, OR
WHICH IS SCHEDULED ONLY FOR REGULAR INSPECTION TO THE EFFECT OF "REPAIR OR REPLACE AS
NECESSARY" SHALL BE WARRANTED FOR THE WARRANTY PERIOD.ANY WARRANTED PART WHICH IS
SCHEDULED FOR REPLACEMENT AS REQUIRED MAINTENANCE SHALL BE WARRANTED FOR THE PERIOD OF
TIME UP TO THE FIRST SCHEDULED REPLACEMNET POINT FOR THE PART.

ANY REPLACEMENT PART THAT IS EQUIVALENT IN PERFORMANCE AND DULABILITY MAY BE USED IN NON­WARRANTY MAINTENANCE OR REPAIRS, AND SHALL NOT REDUCE THE WARRANTY OBLIGATION OF THE
COMPANY.

THE COMPANY IS LIABLE FOR DAMAGES TO OTHER ENGINE COMPONENTS CAUSED BY THE FAIRURE OF A
WARRANTED PARTS STILL UNDER WARRANTY.

THE WARRANTY DOES NOT APPLY TO THOSE UNITS WHICH HAVE BEEN DAMAGED BY NEGLIGENCE OF
INSTRUCTION LISTED IN THE OWNER/OPERATOR MANUAL FOR PROPER USE AND MAINTENANCE OF THE UNITS,
ACCIDENT MISHANDLING, ALTERATION, ABUSE, IMPROPER LUBULICATION, USE OF ANY PARTS OR ACCESSARIES
OTHER THAN THOSE SPECIFIED BY THE COMPANY, OR OTHER CAUSES BEYOND THE CONPANY'S CONTROL.

THIS WARRANTY DOES NOT COVER THOSE PARTS REPLACED BY NORMAL WEAR OR HARMLESS CHANGES IN
THEIR APPEARANCE.

THERE ARE NO OTHER EXPRESS WARRANTIES.

IMPLIED WARRANTIES INCLUDING THOSE OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
ARE LIMITED TO TWO (2) YEARS OF HOME USE [ ONE (1) YEAR FOR ANY OTHER USE ] FROM THE ORIGINAL

DELIVERY DATE.

LIABILITIES FOR INCIDENTAL OR CONSEQUENTIAL DAMAGE UNDER ANY AND ALL WARRANTIES
ARE EXCLUDED.

SOME STATES DO NOT ALLOW LIMITATION ON HOW LONG AN IMPLIED WARRANTY LASTS OR EXCLUSION OR
LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMINATION OR EXCLUSION MAY
NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
IF YOU NEED TO OBTAIN INFORMATION ABOUT THE NEAREST SERVICE CENTER, PLEASE CALL KOMATSU
ZENOAH AMERICA INC. AT (770)-381-5147.

IMPORTANT: YOU WILL RECEIVE A WARRANTY REGISTRATION CARD AT TIME OF PURCHASE.PLEASE FILL
OUT THE CARD AND SEND IT TO RedMax / KOMATSU ZENOA AMERICA WITHIN SEVEN (7) DAYS.BE SURE TO KEEP
A COPY FOR YOUR RECORDS.

RedMax 2-YEAR LIMITED WARRANTY

KOMATSU ZENOAH AMERICA INC.
4344 Shackleford Road Suite 500
Norcross, Georgia 30093

Pièces en rapport avec les émissions de gaz d'échappement : KOMATSU ZENOAH AMERICA INC., par
l'intermédiaire de n'importe quel revendeur RedMax, réparera gratuitement ou remplacera gratuitement pour
l'acheteur initial et chaque acheteur successif toute(s) pièce(s) se révélant de constitution et/ou de montage
défectueux pendant deux (2) ans à compter de la date initiale de livraison d’une unité. Les pièces en rapport avec les
émissions de gaz d'échappement sont:

l'assemblage carburateur, l'assemblage bobine, le rotor, la bougie,

le filtre à air, le filtre à carburant, la tubulure d'admission et les joints

Toutes autres pièces exceptées celles mentionnées ci-dessus : La société, par l'intermédiaire de n'importe quel

revendeur RedMax, réparera gratuitement ou remplacera gratuitement pour l'acheteur initial toute(s) pièce (s) se
révélant de constitution et/ou de montage défectueux pendant deux (2) ans en cas d’utilisation privée [un (1) an pour
toute autre utilisation] à compter de la date de livraison initiale d’une unité. Telles sont les limites de la garantie.

Le coût du transport de l'unité jusqu'au revendeur RedMax et depuis celui-ci sera à la charge de l'acheteur.

L'acheteur ne supportera pas le coût de main d'oeuvre du diagnostic qui amène à la conclusion qu'une pièce
garantie est défectueuse, si ce diagnostic est effectué chez le revendeur RedMax.

L’acheteur ou propriétaire a pour responsabilité d’effectuer l’entretien obligatoire tel que défini par le fabricant dans le
manuel du propriétaire/de l'utilisateur.

Toute pièce garantie dont le remplacement n'est pas prévu dans le cadre de l’entretien obligatoire, ou pour laquelle
est seulement prévue une inspection périodique pour "remplacement ou réparation si nécessaire" sera garantie pour
la période de garantie. Toute pièce garantie arrivée à l’échéance de son premier remplacement prévu sera garantie
jusqu’à celui-ci.

Toute pièce de rechange équivalente en performance ou en durabilité peut être utilisée pour l’entretien hors-garantie
ou les réparations hors-garantie, et ce sans réduire l’obligation de garantie incombant à la société.

La société sera tenue responsable des dommages aux autres composants du moteur causés par la défaillance de
pièce(s) garantie(s) en période de garantie.

La garantie ne s'applique pas aux unités endommagées par suite de: négligence dans la mise en oeuvre des
instructions spécifiées dans le manuel du propriétaire/de l'utilisateur en vue d’une utilisation et d’un entretien correct,
fausse manœuvre accidentelle, modification, utilisation abusive, lubrification incorrecte, utilisation de pièces ou
d’accessoires autres que ceux spécifiés par la société, ou autres causes hors du contrôle de la société.

Cette garantie ne couvre pas les pièces remplacées en raison de leur usure normale ou de changements
d’apparence sans effets.

Il n'existe aucune autre garantie explicite.

Les garanties implicites, celles de négociabilité du produit et de son adaptabilité à un usage défini incluses, sont
limitées à deux (2) ans pour un usage privé [un (1) an pour toute autre utilisation] à compter de la date initiale de

livraison.

Les responsabilités pour les dommage conséquents ou incidents sont exclues de toutes les garanties.

Certaines provinces n'autorisant pas les limitations à la durée des garanties implicites, ou les exclusions ou
limitations relatives aux dommages incidents ou conséquents, la limitation indiquée ci-dessus peut ne pas vous être
applicable.
Cette garantie vous donne des droits juridiques spécifiques, et vous pouvez également jouir d’autres droits variant
d'une province à l'autre.
Si vous désirez obtenir des informations sur le centre de service le plus proche, veuillez appeler KOMATSU
ZENOAH AMERICA INC. au (770)-381-5147

Note importante: vous recevrez une carte d'enregistrement de garantie au moment de l'achat. Veuillez la remplir et
l'adresser à RedMax / KOMATSU ZENOAH AMERICA sous sept (7) jours en prenant soin de conserver une copie
pour vous.

RedMax Garantie limitée à 2 ans

KOMATSU ZENOAH AMERICA INC.
4344 Shackleford Road Suite 500
Norcross, Georgia 30093

KOMATSU ZENOAH AMERICA INC.

4344 Shackleford Road Suite 500

Norcross, Georgia 30093

© Printed in U.S.A.
