16-Port
Gigabit
IP67
Layer 3
Ethernet
Switch
Contents at a Glance:
Section 1
General Information
Page 3
Section 2
Mechanical and Installation
Page 7
Section 3
Power and Communication Wiring
Page 9
Section 4
LEDs
Page 15
Section 5
Pressure Vent
Page 16
Section 6
Service and Contact Information
Page 17
USER MANUAL
Installation and Wiring Manual
This manual applies to the following products:
MIL316-CCCC IP67 Layer 3 switch w/ 16 copper Gigabit ports
MIL316-MMMM IP67 Layer 3 switch w/ 12 copper Gigabit ports & 4 multimode fiber ports
MIL316-SSSS IP67 Layer 3 switch w/ 12 copper Gigabit ports & 4 singlemode fiber ports
MIL316 Hardware Manual_Rev_2-10-14.docx Page 1 of 17 Last Revised: 10-Feb-14
Red Lion Protected Technology Policy - Red Lion protects your investment in Red Lion systems with
Note: All information in this document is subject to change without notice.
long-term planned technology and our unique Protected Technology Policy. We will continue to support the
specified capabilities of standard Red Lion products for at least five years (twenty years for Industrial
Managed Switches). We plan each product improvement and new feature to be upward compatible with
existing designs and installations. Our goals are to make each new software release bring new power to
your Red Lion systems and have every existing feature, applications program and data file continue to work.
We protect your investment even further with a liberal five-year trade-in policy. Exchange standard products
for upgraded versions of the same product to take advantage of new features and improvements at any
time for five years. A prorated trade-in allowance will be given for your existing unit. Red Lion protects your
long-term productivity with state-of-the-art planned technology and continued support.
Red Lion Statement of Limited Warranty - Red Lion, manufacturer of Red Lion products, warrants to
Buyer that products, except software, manufactured by Red Lion will be free from defects in material and
workmanship. Red Lion's obligation under this warranty will be limited to repairing or replacing, at Red
Lion's option, the defective parts within five (5) years of the date of installation, or within 60 months of the
date of shipment from the point of manufacture, whichever is sooner. Products may be returned by Buyer
only after permission has been obtained from Red Lion. Buyer will prepay all freight charges to return any
products to the repair facility designated by Red Lion. This limited warranty does not cover losses or
damages which occur in shipment to or from Buyer or due to improper installation, maintenance, misuse,
neglect or any cause other than ordinary commercial or industrial applications. In particular, Red Lion
makes no warranties whatsoever with respect to implied warranties of merchantability or fitness for any
particular purpose. All such warranties are hereby expressly disclaimed. No oral or written information or
advice given by Red Lion or Red Lion’s representative shall create a warranty or in any way increase the
scope of this warranty. This limited warranty is in lieu of all other warranties whether oral or written,
expressed or implied. Red Lion's liability shall not exceed the price of the individual units, which are the
basis of the claim. In no event shall Red Lion be liable for any loss of profits, loss of use of facilities or
equipment, or other indirect, incidental or consequential damages.
INSTALLATION WARNINGS - These products should not be used to replace proper safety
interlocking. No software-based device (or any other solid-state device) should ever be designed to
be responsible for the maintenance of consequential equipment or personnel safety. In particular,
Red Lion disclaims any responsibility for damages, either direct or consequential, that result from the
use of this equipment in any application. All power, input and output (I/O) wiring must be in
accordance with the authority having jurisdiction. Refer to section 1 for other important installation
warnings.
FCC Statement - This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures: Reorient or relocate the receiving
antenna; Increase the separation between the equipment and receiver; Connect the equipment into an
outlet on a circuit different from that to which the receiver is connected; Consult the dealer or an
experienced radio/TV technician for help.
Copyright & Trademarks - Copyright 2014 Sixnet, Inc. All Rights Reserved.
MIL316 Hardware Manual_Rev_2-10-14.docx Page 2 of 17 Last Revised: 10-Feb-14
Section 1
General Specifications
Overview
The Red Lion MIL316-XXXX is a 16 port industrial Ethernet managed switch designed to
meet the extreme requirements found in the toughest applications. It combines the high
performance and security of an enterprise-class switch with rugged packaging and
protected circuitry to meet the needs of the most demanding applications.
This manual will help you install and maintain these industrial Ethernet switches.
Installation of these switches is very easy and they will begin to operate as soon as they
are powered up. Though these are fully managed switches, they will act as unmanaged
until they are configured otherwise. Refer to the separate software manual or management
guide for configuration of the advanced networking functionality and security.
Note: This manual only covers the installation and wiring of these switches. Refer
to the separate Software User Manual for details on configuring and using any of
the management functions such as SNMP, RSTP, IGMP, port mirroring, etc.
Basic
Operation
Unlike an Ethernet hub that broadcasts all messages out all ports, these industrial Ethernet
switches will intelligently route Ethernet messages only out the appropriate port. The major
benefits of this are increased bandwidth and speed, reduction or elimination of message
collisions, and deterministic performance when tied with real-time systems.
These switches support 10BaseT (10 Mbps), 100BaseT (100 Mbps) and 1000BaseT (1000
Mbps) on 12 ports. Each of these ports independently and automatically senses the speed
and duplex for best performance. There are an additional 4 fiber ports (single mode or
multimode) with fixed 1000BaseT speeds. All copper Gigabit ports offer auto-crossover
and auto-polarity to assure a proper link with either straight or crossed wired cables or
even when the cable is incorrectly wired.
Performance
Specs
The switch has the following performance specifications. Note: All specifications are
subject to change. Consult factory for latest information.
ETHERNET PERFORMANCE
12 10/100/1000 Ethernet ports
4 additional 10/100/1000 copper ports OR fiber ports (1000Mbps only; single mode or
multimode)
Auto-negotiation (speed/duplex) and auto-crossover on copper Gigabit ports
Non-blocking, store and forward, wire-speed
Switching capacity: 128 Gbps/176 Gbps
Forwarding rate: 95.2 Mpps/130.9 Mpps
MAC address table size: 16K
Jumbo frame: 9K
Ethernet isolation: 1500 Vrms 1 minute
Connector: MIL-STD-38999 series III receptacle
ETHERNET COMPLIANCE
IEEE 802.3 (Original Ethernet 10Mbps)
IEEE 802.3u (Fast Ethernet 100Mbps)
IEEE 802.3z (Gigabit Ethernet 1000Mbps)
IEEE 802.3x (Full-Duplex with Flow Control)
Refer to product data sheet for complete list
MIL316 Hardware Manual_Rev_2-10-14.docx Page 3 of 17 Last Revised: 10-Feb-14
POWER INPUT
Connector: MIL-STD-38999 Series III receptacle with shell size A, style 98, 3 pin
contacts and A keying
Input voltage range: 18-36 VDC (continuos), 28 VDC Nominal
Input power: 50 W (typical under full load)
Reverse polarity protection
Meets MIL-STD-704 A/E/F and MIL-STD-1275 A/B/D for power protection
Surge protection: 100 volts for 1 second
Transient protection: 15,000 watts peak
Spike protection: 5,000 watts (10x for 10 uS)
or 250 volts (50x for 100 uS)
ENVIRONMENTAL
Operating temperature: -40 to +75°C (cold startup at -40°C)
Storage temperature: -40 to +85 °C
Humidity (non-condensing) 5 to 95% RH
Vibration, shock and Immersion per MIL-STD-810G
Water Jet Test per MIL-STD-108E
Vent plug for high altitude operation
PHYSICAL
Dimensions (L x W x H) 13 x 8.5 x 4.25” (330 x 216 x 108 mm)
Weight (including caps) 12 lbs (5.44 Kg)
IP67 dust, oil and water-tight package protection
STANDARDS COMPLIANCE
MIL-STD-461F for EMI performance. CE101, CE102, RE102
MIL-STD-461F for EMC performance. CS101, CS114, CS115, CS116, RS101, RS103
MIL-STD-810F and MIL-STD-202F/G for environmental performance
MIL-STD-704 A/E/F and MIL-STD-1275 A/B/D for power protection (Power Input)
SWITCHING FEATURES
Flow control: IEEE 802.3x (Full Duplex) & Back-Pressure (Half Duplex)
Spanning Tree Protocol (STP per IEEE 802.1D) plus
o IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
o IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
o BPDU forwarding and filtering
Virtual Local Area Networks (VLANs)
o 802.1Q tag-based with 256 VLANs and 4K VLAN ID
o 802.1v protocol and port-based VLAN
o Voice and Private VLAN
o QVRP and Q-in-Q (double tagging)
Link Aggregation Control Protcol (LACP per IEEE 802.3ad)
o Static trunk (8 trunks and up to 8 ports per trunk)
o Traffic load balancing
Internet Group Management Protocol (IGMP)
o IGMP v1, v2 and v3 with up to 255 multicast groups
o IGMP snooping and querying
o Immediate leave and leave proxy
o Throttling and filtering
Multicast VLAN Registration (MVR)
IEEE 802.1ab Link layer Discovery Protocol (LLDP)
Quality of Service (QoS) with 4 priority queues
o Scheduling schemes: WRR and Strict priority
o CoS per IEEE 802.1p and IP DSCP-based
o DiffServ (DS): ingress, egress and remarking
Rate limiting (ingress and egress)
o 64Kbps to 100/1000Mbps
o Per port CoS
MIL316 Hardware Manual_Rev_2-10-14.docx Page 4 of 17 Last Revised: 10-Feb-14
SECURITY
Enable / disable ports
Port security (MAC-based): static and dynamic
DHCP Snooping and Option 82
IP Source Guard
IEEE 802.1x Network Access Control
o Port-based with single or multiple host mode
o Authentication: EAP-MD5, PEAP, TLS, TTLS
o MAC and web authentication
o Guest VLAN and Auto VLAN assignment
RADIUS and TACACS AAA
o Authentication, Accounting and Authorization
o 5 servers for RADIUS, 1 server for TACACS
o Encryption: MD5, TLS, TTLS, TACACS AAA/3.0
Access Control List (ACL)
o IP and MAC-based
o VLAN and TCP/UDP port
Storm Control for broadcast and multicast messages
HTTPS/SSL for secure Web access
SSH v1.5/2.0 for secure Telnet access
SNMPv3 authentication and encryption
Username and password authentication
Management access filtering
MANAGEMENT AND MONITORING

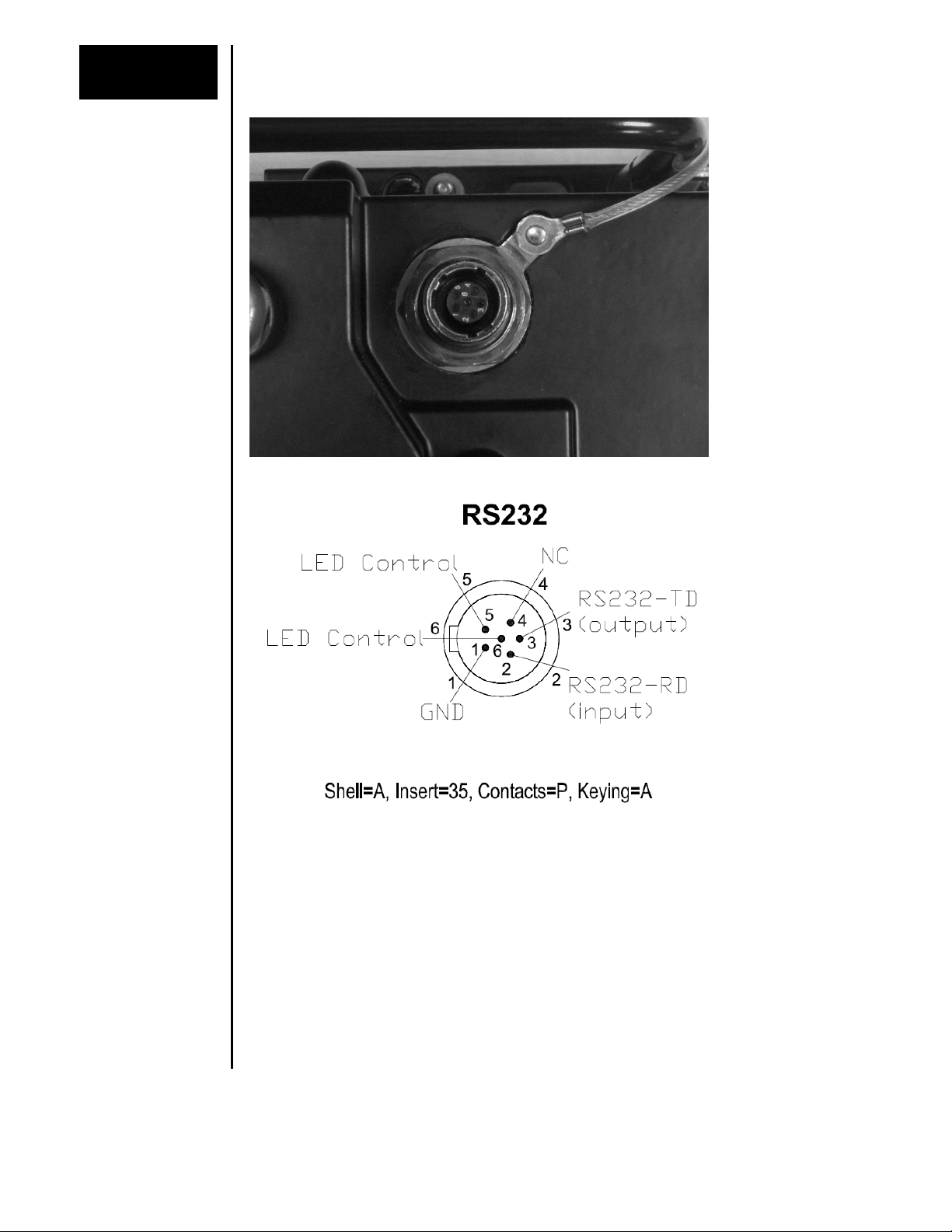

RS232 console port via MIL-STD-38999 series III connector w/ shell size A, style 35,
6 contacts & A keying
IP Address assignment: Static, DHCP and BOOTP
CLI (Command Line Interface) via console or Telnet
Web interface (HTTP/HTTPS/SSL)
SNMP v1, v2, v3 (Simple Network Management Protocol)
SNMP Traps for event notification
RMON (Remote Monitoring): Groups 1, 2, 3 and 9
sFlow network-wide traffic monitoring
Dual firmware update system
Configuration download and upload
Software upgrade via TFTP
Port mirroring
Event / Error / System log
o Local flash
o Remote server via system log (Syslog RFC 3164)
o SMTP (RFC 821) email alarming
Network Time Protocol for time synchronization
o SNTP (RFC 2030) and NTP (RFC 1305)
DNS (Domain Name Server) client
Universal Plug and Play (UPnP)
IEEE 802.3ah OAM (Operational Administration Maintenance)
o Banner commands
ROUTING FEATURES
Host table: 8K
Route table: 8K
Static route table: 512
Multicast table: 1K
Unicast routing
Static unicast routes
RIP v1/v2
OSPF
BGP
Multicast routing
PIM-DM
ROUTING FEATURES(cont.)
PIM-SM
MIL316 Hardware Manual_Rev_2-10-14.docx Page 5 of 17 Last Revised: 10-Feb-14
IGMP v1/v2/v3
IGMP v3 proxy
IP Redundancy
Proxy ARP
UDP Helper
WARRANTY
5 years on design and manufacturing defects
Safety
Warnings
Strictly abiding by these warnings will help ensure the safe installation, startup and
operation of the switch.
INSTALL THE SWITCH IN ACCORDANCE WITH ALL LOCAL AND NATIONAL
ELECTRICAL CODES.
LIGHTNING DANGER: DO NOT WORK ON EQUIPMENT DURING PERIODS OF
LIGHTNING ACTIVITY.
Consiges
de Sécurité
démarrage et le fonctionnement de l'interrupteur.
ET NATIONAUX.
PÉRIODES D’ACTIVITÉS DE FOUDRE.
MIL316 Hardware Manual_Rev_2-10-14.docx Page 6 of 17 Last Revised: 10-Feb-14
Section 2
Mechanical Dimensions and Installation
Overview
The switch is designed to be mounted to any flat surface. It is recommended to use thermal
grease or a gap pad between the MIL316 unit and the surface it is mounted on .The MIL316
case is designed to act as a heat sink and this will ensure cooler operation of the unit.
0.375" [9.52mm]
0.575" [14.60mm]
Gig Ports
1
2
3
4
5
6
7
8
9
10
11
12
Power
Console
Vent
Gig Ports
13
14
15
16
8.480" [215.39mm]
7.440" [188.98mm]
5.940" [150.88mm]
3.365" [85.47mm]
2.440" [61.98mm]
0.940" [23.88mm]
0.212" [5.40mm]
0.250" [6.35mm]
0.250" [6.35mm]
0.212" [5.40mm]
0.375" [9.52mm]
0.275" [6.99mm]
MIL316 Hardware Manual_Rev_2-10-14.docx Page 7 of 17 Last Revised: 10-Feb-14
4.100" [104.14mm]
12.980" [329.69mm]
0.350" [8.88mm]
2.504" [63.60mm]
3.244" [82.39mm]
3.754" [95.35mm]
4.254" [108.05mm]
MIL316 Hardware Manual_Rev_2-10-14.docx Page 8 of 17 Last Revised: 10-Feb-14
Section 3
Power and Communication Connections
Overview
The switch features 38999 Series III style connectors which meet or exceed the MIL-STD38999 standard. All these connectors have EMI shielding, ESD protection, plus moisture
and corrosion resistance. All mating connectors will self-lock with one 360 degree turn of
the coupling nut.
Typical
MIL-STD-38999
Connectors
(shown with
tethered dust
caps)
Typical
MIL-STD-38999
Plug
(not typically
supplied with
switch)
Grounding
Use the provided 8-32 ground stud to connect the switch to a suitable safety, chassis or
earth ground. Use of heavy gauge (at least 16 AWG) grounding wire is recommended.
Make sure to follow your local or national codes for the proper ground connection.
Chassis
Ground
Connection
Point
MIL316 Hardware Manual_Rev_2-10-14.docx Page 9 of 17 Last Revised: 10-Feb-14
Power
Receptacle
The switch requires a nominal voltage of 28 VDC (18-36 VDC Range). Make the power
connections as shown in the diagram below.
Power
Receptacle
Power
Receptacle
Pinout
Recommended
Plug
Model # D38999/26WA98SA
(w/ socket contacts and A keying)
Note: The W in the part # above indicates cadmium plating. However, you may use any
plating option that you desire. The mating receptacles on the switch have a RoHScompliant nickel plating.
--
DC Supply
++
C
B
A
No Connection
Receptacle:
Shell=A, Insert=98, Contacts=P, Keying=A
MIL316 Hardware Manual_Rev_2-10-14.docx Page 10 of 17 Last Revised: 10-Feb-14
Console
Receptacle
The switch offers a RS232 serial port for accessing the local management interface. Once
you have made a physical connection refer to the software user manual on how to access
the switch via this console port.
Console
Receptacle
Console
Receptacle
Pinout
LED Control
Shorting out pins 5 and 6 on the RS232 connector will turn off all LEDs while
continuing regular switch operation. Leave pins 5 and 6 open for normal LED
function.
Recommended
Plug
Model # D38999/26WA35PA
(w/ pin contacts and A keying)
Note: The W in the part # above indicates cadmium plating. However, you may use any
plating option that you desire. The mating receptacles on the switch have a RoHScompliant nickel plating.
MIL316 Hardware Manual_Rev_2-10-14.docx Page 11 of 17 Last Revised: 10-Feb-14
Ethernet
Receptacle
The switch has 12 to 16 10/100/1000 copper Ethernet ports. These ports will auto-detect
the speed and duplex of the connection. Ports can be disabled or configured for fixed
settings via one of the management interfaces. See the software user manual for details.
Ethernet
Receptacle
Ethernet
Receptacle
Pinout
Typical Pinout Connections
Pin-1 - - - TX + (For 10/100)
Pin-2 - - - TX – (For 10/100)
Pin-3 - - - RX + (For 10/100)
Pin-4 - - - TX + (For Gig)
Pin-5 - - - TX – (For Gig)
Pin-6 - - - RX – (For 10/100)
Pin-7 - - - RX + (For Gig)
Pin-8 - - - RX – (For Gig)
Recommended
Plug
Aero # AE90-365-BN9-9PN
Note: This plug has a black nickel plating. Contact Aero for other plating options that may
be used. The mating receptacles on the switch also have a black nickel plating.
MIL316 Hardware Manual_Rev_2-10-14.docx Page 12 of 17 Last Revised: 10-Feb-14
Wiring
Standards
Table
See chart below
Pin
EIA / TIA
568A
EIA / TIA
568B or AT&T
258A
10Base-T
10 Mbps
Cat3
100Base-TX
100 Mbps
Cat5
100Base-T4
100 Mbps
Cat3
100Base-T2
100 Mbps
Cat3
1000Base-T
1 Gbps
Cat5+
1
white /
white /
TX+
TX+
TX D1+
BI DA+
BI DA+
green
orange
2
green /
orange /
TX-
TX-
TX D1-
BI DA-
BI DAwhite (green)
white (orange)
3
white /
white /
RX+
RX+
RX D2+
BI DB+
BI DB+
orange
green
4
blue /
blue /
N/A
N/A
BI D3+
N/A
BI DC+
white (blue)
white (blue)
5
white /
white /
N/A
N/A
BI D3-
N/A
BI DCblue
blue
6
orange /
green /
RX-
RX-
RX D2-
BI DB-
BI DBwhite (orange)
white (green)
7
white /
white /
N/A
N/A
BI D4+
N/A
BI DD+
brown
brown
8
brown /
brown /
N/A
N/A
BI D4-
N/A
BI DD -
white (brown)
white (brown)
BI=BI directional data RX=Receive Data TX=Transmit Data
(Pair Colors may be solid and striped/color, or color with white stripe and white with color stripe)
MIL316 Hardware Manual_Rev_2-10-14.docx Page 13 of 17 Last Revised: 10-Feb-14

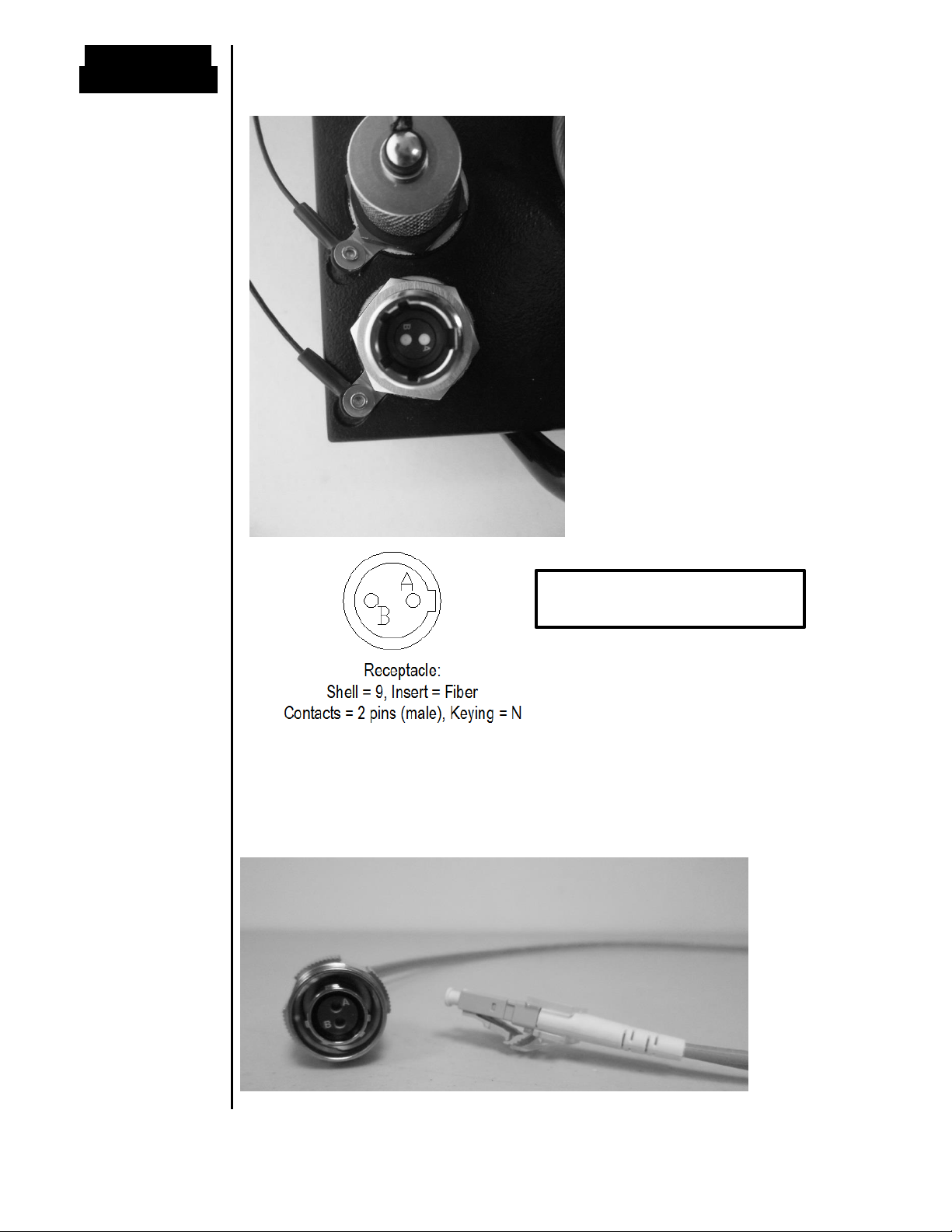

Gigabit fiber
receptacle
The switch may have 4 full duplex 1000Mbps fiber ports available as single mode or
multimode. These ports will NOT auto-detect the speed and duplex of the connection. The
ports can be disabled or configured for fixed settings via one of the management
interfaces. See the software user manual for details.
10 Gigabit
Receptacle
Fiber
Receptacle
Pinout
Recommended
Plug
TE/Deutsch # MC406E-N-09-2SN
(Note: This plug has a silver nickel plating. Contact TE for other plating options that may be
used. The receptacles on the switch also have a silver nickel plating.)
Typical 10
Gigabit fiber
Plug
A = Receive into switch
B = Transmit out of switch
MIL316 Hardware Manual_Rev_2-10-14.docx Page 14 of 17 Last Revised: 10-Feb-14
Section 4
LEDs
LED Location
The switch has a set of LEDs to indicate the status of various operating conditions as
defined below.
Typical LED Location
Status LED
The Status LED indicates the overall health of the switch. It is normally ON solid green
indicating that no internal CPU or software problems are detected. It will flash green when
loading firmware and briefly on power up or reset. Otherwise, if it is OFF or amber for an
extended period of time then a problem is detected. In this case, please contact technical
support.
Power LED
The Power LED will be on solid green when power is applied to the switch. In the event of a
power fault, the LED will turn to solid amber. The LED will also be solid amber during a
portion of the boot up sequence.
Ethernet
LEDs
The switch has a set of LEDs to indicate the status of the Ethernet ports. Each LED is
labeled with the number of the port it represents. They function as follows:
Solid Green = 1000 Mbps linked detected but no Ethernet activity.
Flashing Green = 1000 Mbps linked detected with Ethernet activity.
Solid Orange = 10/100 Mbps linked but no Ethernet activity.
Flashing Orange = 10/100 Mbps linked detected with Ethernet activity.
OFF = No link detected.
LED Blackout
The switch is equipped with the capability to toggle the LEDs from an active state to an
inactive state. See Console Receptacle Pinout above or refer to the data sheet for more
information.
MIL316 Hardware Manual_Rev_2-10-14.docx Page 15 of 17 Last Revised: 10-Feb-14
Section 5
Pressure Vent
Pressure
Vent
Without a pressure ventilation system the pressure differential that can occur due to
temperature or altitude changes can result in condensation. To prevent this, the switch
incorporates a pressure vent that adjusts the internal air pressure to match the
surrounding (external) pressure. At the same time the vent is IP67 rated and will not let
moisture into the switch.
Pressure Vent
Characteristics
Air flow rate: 0,4 l/min at 0,1 bar ΔP to 5,0 l/min at 1 bar ΔP
Point of water entry: 1,5 bar
Temperature resistance: –40°C to +120°C (in assembled state)
Pressure Vent
MIL316 Hardware Manual_Rev_2-10-14.docx Page 16 of 17 Last Revised: 10-Feb-14
Section 6
Service Information
Service
Information
do need service, call Red Lion at 1-877-432-9908 for Technical Support. A trained specialist
will help you to quickly determine the source of the problem. Many problems are easily
resolved with a single phone call. If it is necessary to return a unit to us, an RO (Repair
Order) can be obtained on the Red Lion website.
Red Lion tracks the flow of returned material with our RO system to ensure speedy service.
You must include this RO number on the outside of the box so that your return can be
processed immediately.
Be sure to have your original purchase order number and date purchased available.
We suggest that you give us a repair purchase order number in case the repair is not
covered under our warranty. You will not be billed if the repair is covered under warranty.
Please supply us with as many details about the problem as you can. The information you
supply will be written on the RO form and supplied to the repair department before your unit
arrives. This helps us to provide you with the best service, in the fastest manner. Repairs
are completed as soon as possible. If you need a quicker turnaround, ship the unit to us by
air freight. We give priority service to equipment that arrives by overnight delivery.
We apologize for any inconvenience that the need for repair may cause you. We hope that
our rapid service meets your needs. If you have any suggestions to help us improve our
service, please give us a call. We appreciate your ideas and will respond to them.
For Your Convenience:
Please fill in the following and keep this manual with your Red Lion system for future
reference:
Serial #:__________________ Date Purchased: ___________________
Purchased From:______________________________________________
MIL316 Hardware Manual_Rev_2-10-14.docx Page 17 of 17 Last Revised: 10-Feb-14
Loading...
