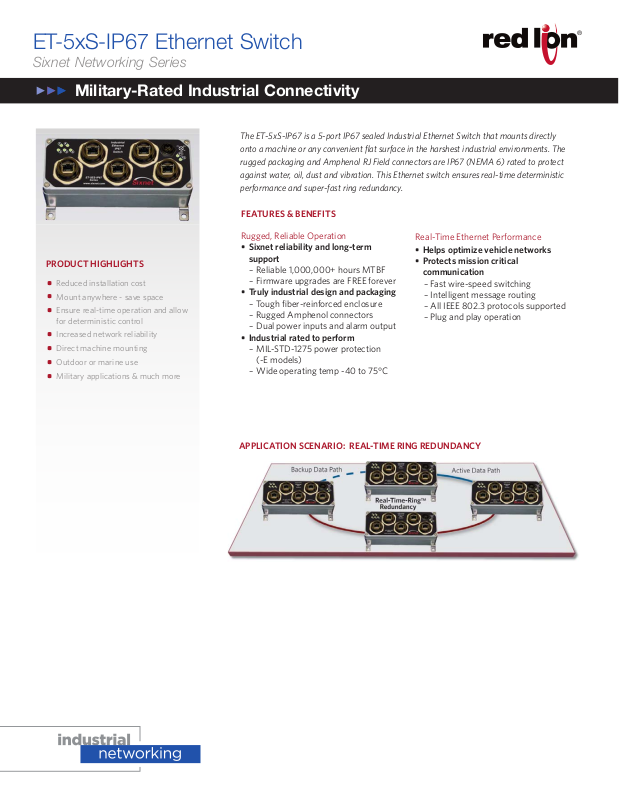

ET-5xS-IP67 Ethernet Switch
Military-Rated Industrial Connectivity
INDUSTRIAL NETWORKING SOLUTIONS
The ET-5xS-IP67 is a 5-port IP67 sealed Industrial Ethernet Switch that mounts directly
onto a machine or any convenient at surface in the harshest industrial environments. The
rugged packaging and Amphenol RJ Field connectors are IP67 (NEMA 6) rated to protect
against water, oil, dust and vibration. This Ethernet switch ensures real-time deterministic
performance and super-fast ring redundancy.
DATASHEET
ET-5xS-IP67 Ethernet Switch
Military-Rated Industrial Connectivity
APPLICATION SCENARIO: REAL-TIME RING REDUNDANCY
FEATURES & BENEFITS
Rugged, Reliable Operation
• Sixnet reliability and long-term
support
– Reliable 1,000,000+ hours MTBF
– Firmware upgrades are FREE forever
• Truly industrial design and packaging
– Tough ber-reinforced enclosure
– Rugged Amphenol connectors
– Dual power inputs and alarm output
• Industrial rated to perform
– MIL-STD-1275 power protection
(-E models)
– Wide operating temp -40 to 75°C
Real-Time Ethernet Performance
• Helps optimize vehicle networks
• Protects mission critical
communication
– Fast wire-speed switching
– Intelligent message routing
– All IEEE 802.3 protocols supported
– Plug and play operation
INDUSTRIAL NETWORKING SOLUTIONS
The ET-5xS-IP67 is a 5-port IP67 sealed Industrial Ethernet Switch that mounts directly
onto a machine or any convenient at surface in the harshest industrial environments. The
rugged packaging and Amphenol RJ Field connectors are IP67 (NEMA 6) rated to protect
against water, oil, dust and vibration. This Ethernet switch ensures real-time deterministic
performance and super-fast ring redundancy.
DATASHEET
ET-5xS-IP67 Ethernet Switch
Military-Rated Industrial Connectivity
FEATURES & BENEFITS
Rugged, Reliable Operation
• Sixnet reliability and long-term
support
– Reliable 1,000,000+ hours MTBF
– Firmware upgrades are FREE forever
• Truly industrial design and packaging
– Tough ber-reinforced enclosure
– Rugged Amphenol connectors
– Dual power inputs and alarm output
• Industrial rated to perform
– MIL-STD-1275 power protection
(-E models)
– Wide operating temp -40 to 75°C
Real-Time Ethernet Performance
• Helps optimize vehicle networks
• Protects mission critical
communication
– Fast wire-speed switching
– Intelligent message routing
– All IEEE 802.3 protocols supported
– Plug and play operation
Sixnet Networking Series
Military-Rated Industrial Connectivity
The ET-5xS-IP67 is a 5-port IP67 sealed Industrial Ethernet Switch that mounts directly
onto a machine or any convenient at surface in the harshest industrial environments. The
rugged packaging and Amphenol RJ Field connectors are IP67 (NEMA 6) rated to protect
against water, oil, dust and vibration. This Ethernet switch ensures real-time deterministic
performance and super-fast ring redundancy.
PRODUCT HIGHLIGHTS
Reduced installation cost
•
Mount anywhere - save space
•
Ensure real-time operation and allow
•
for deterministic control
Increased network reliability
•
Direct machine mounting
•
Outdoor or marine use
•
Military applications & much more
•
FEATURES & BENEFITS
Rugged, Reliable Operation
• Sixnet reliability and long-term
support
– Reliable 1,000,000+ hours MTBF
– Firmware upgrades are FREE forever
• Truly industrial design and packaging
– Tough ber-reinforced enclosure
– Rugged Amphenol connectors
– Dual power inputs and alarm output
• Industrial rated to perform
– MIL-STD-1275 power protection
(-E models)
– Wide operating temp -40 to 75°C
APPLICATION SCENARIO: REAL-TIME RING REDUNDANCY
Real-Time Ethernet Performance
• Helps optimize vehicle networks
• Protects mission critical
communication
– Fast wire-speed switching
– Intelligent message routing
– All IEEE 802.3 protocols supported
– Plug and play operation
ABOUT SIXNET
Celebrating 35 years in operation,
Sixnet provides innovative machine-
to-machine (M2M) connectivity to
industrial customers and markets
worldwide. Sixnet’s exible solutions
enable organizations to cost-effectively
increase business productivity. By
integrating powerful enterprise-class
networking with rugged reliability,
Sixnet meets the standards of the most
demanding industrial applications in
industries such as power & energy,
banking & retail, transportation, video &
security, utilities, military, mobile data,
maritime and more.
For more information,
visit www.sixnet.com,
email sales@sixnet.com or
call +1 518 877 5173
ET-5xS-IP67 Ethernet Switch
Military-Rated Industrial Connectivity
SPECIFICATIONS
Ethernet Performance
• 5 Ethernet ports
• Intelligent store & forward Ethernet switch
• RJ45 ports (shielded) 10/100BaseTX
• RJ45 speed (10 or 100 Mbps) auto-negotiation
• RJ45 MDI/MDIX auto-crossover
• RJ45 TD and RD auto-polarity
• Typical latency @ 10 Mbps=16 us + frame time;
typical latency @ 100 Mbps=5 us + frame
time; varies on load and settings
• Full or half duplex operation con gurable
• MAC addresses: 2048
• Memory bandwidth: 3.2 Gbps
• Ethernet isolation: 1500 VRMS 1 minute
Ethernet Compliance
• IEEE 802.3u (fast Ethernet 100Mbps)
• IEEE 802.3 (original 10Mbps Ethernet)
• IEEE 802.3x (Full-Duplex with Flow Control)
• IEEE 802.1p (QoS / CoS – Quality & Class of
Service)
Power Input
• Redundant input connections
• Input power ES: 2.4 W, RS: 2.7 W
• Power input voltage (-D models): 10-30 VDC
• Power input voltage (-E models): 10-50 VDC
• Power protection per MIL-STD-1275
Environmental
• Operating temperature: -40 to 75 °C
• Storage temperature: -40 to 85 °C
• Humidity (non-condensing): 5 to 95% RH
• Vibration, shock and freefall:
IEC60068-2-6, -27, -32
Standards & Compliance
• Electrical safety: UL508 / CSA C22.2/14;
EN61010-1, CE
• EMI emissions: FCC part 15, ICES-003;
EN61000-6-4, CE
• EMC immunity EN61000-6-2, CE
• Hazardous locations: UL1604 / CSA
C22.2/213 (Class I, Div. 2); EN60079-15 (Zone
2, Category 3), CE (ATEX)
• Marine/maritime/offshore tested to meet ABS,
DNV and Lloyds
• RoHS and WEEE compliant
• ISO9001:2000 certi ed company
Mechanical
• Direct machine mounting
• Case: UL 94V-0 materials
• Protection rating - IP67 and NEMA 6
• Dimensions (HxWxD): 2.97x7.48x3.75”
(7.54x19x9.52cm)
• Weight (typical): 1.2 lbs (.54 kg)
Warranty
• 5 years on design and manufacturing defects
