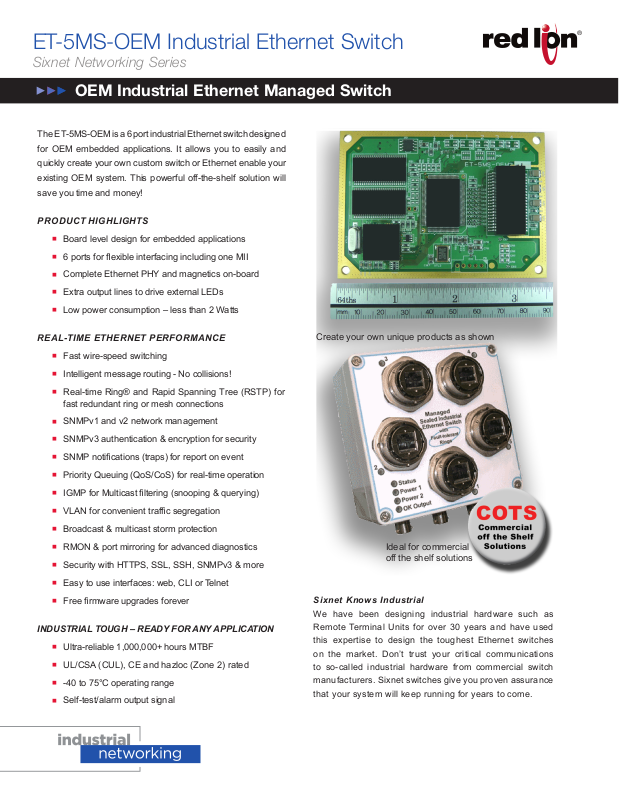

Red Lion ET-5MS-OEM Data Sheet
ET-5MS-OEM Industrial Ethernet Switch
ET-5MS-OEM
PRODUCT DATASHEET
OEM INDUSTRIAL ETHERNET MANAGED SWITCH
ET-5MS-OEM
PRODUCT DATASHEET
The ET-5MS-OEM is a 6 port industrial Ethernet switch designed
ET-5MS-OEM
PRODUCT DATASHEET
Create your own unique products as shown
Ideal for commercial
off the shelf solutions
Sixnet Knows Industrial
OEM INDUSTRIAL ETHERNET MANAGED SWITCH
ET-5MS-OEM
PRODUCT DATASHEET
The ET-5MS-OEM is a 6 port industrial Ethernet switch designed
for OEM embedded applications. It allows you to easily and
quickly create your own custom switch or Ethernet enable your
existing OEM system. This powerful off-the-shelf solution will
save you time and money!
OEM INDUSTRIAL ETHERNET MANAGED SWITCH
ET-5MS-OEM
PRODUCT DATASHEET
The ET-5MS-OEM is a 6 port industrial Ethernet switch designed
for OEM embedded applications. It allows you to easily and
quickly create your own custom switch or Ethernet enable your
existing OEM system. This powerful off-the-shelf solution will
save you time and money!
PRODUCT HIGHLIGHTS
n
Board level design for embedded applications
n
6 ports for exible interfacing including one MII
n
Complete Ethernet PHY and magnetics on-board
n
Extra output lines to drive external LEDs
n
Low power consumption – less than 2 Watts
Create your own unique products as shown
Ideal for commercial
off the shelf solutions
Sixnet Knows Industrial
OEM INDUSTRIAL ETHERNET MANAGED SWITCH
ET-5MS-OEM
PRODUCT DATASHEET
The ET-5MS-OEM is a 6 port industrial Ethernet switch designed
for OEM embedded applications. It allows you to easily and
quickly create your own custom switch or Ethernet enable your
existing OEM system. This powerful off-the-shelf solution will
save you time and money!
PRODUCT HIGHLIGHTS
n
Board level design for embedded applications
n
6 ports for exible interfacing including one MII
n
Complete Ethernet PHY and magnetics on-board
n
Extra output lines to drive external LEDs
n
Low power consumption – less than 2 Watts
REAL-TIME ETHERNET PERFORMANCE
n
Fast wire-speed switching
n
Intelligent message routing - No collisions!
n
Real-time Ring® and Rapid Spanning Tree (RSTP) for
fast redundant ring or mesh connections
n
SNMPv1 and v2 network management
n
SNMPv3 authentication & encryption for security
n
SNMP notications (traps) for report on event
n
Priority Queuing (QoS/CoS) for real-time operation
n
IGMP for Multicast ltering (snooping & querying)
n
VLAN for convenient trafc segregation
n
Broadcast & multicast storm protection
n
RMON & port mirroring for advanced diagnostics
n
Security with HTTPS, SSL, SSH, SNMPv3 & more
n
Easy to use interfaces: web, CLI or Telnet
n
Free rmware upgrades forever
Create your own unique products as shown
Ideal for commercial
off the shelf solutions
Sixnet Knows Industrial
We have been designing industrial hardware such as
Remote Terminal Units for over 30 years and have used
this expertise to design the toughest Ethernet switches
on the market. Don’t trust your critical communications
to so-called industrial hardware from commercial switch
manufacturers. Sixnet switches give you proven assurance
that your system will keep running for years to come.
Sixnet Networking Series
OEM Industrial Ethernet Managed Switch
for OEM embedded applications. It allows you to easily and
quickly create your own custom switch or Ethernet enable your
existing OEM system. This powerful off-the-shelf solution will
save you time and money!
PRODUCT HIGHLIGHTS
n
Board level design for embedded applications
n
6 ports for exible interfacing including one MII
n
Complete Ethernet PHY and magnetics on-board
n
Extra output lines to drive external LEDs
n
Low power consumption – less than 2 Watts
REAL-TIME ETHERNET PERFORMANCE
n
Fast wire-speed switching
n
Intelligent message routing - No collisions!
n
Real-time Ring® and Rapid Spanning Tree (RSTP) for
fast redundant ring or mesh connections
n
SNMPv1 and v2 network management
n
SNMPv3 authentication & encryption for security
n
SNMP notications (traps) for report on event
n
Priority Queuing (QoS/CoS) for real-time operation
n
IGMP for Multicast ltering (snooping & querying)
n
VLAN for convenient trafc segregation
n
Broadcast & multicast storm protection
n
RMON & port mirroring for advanced diagnostics
n
Security with HTTPS, SSL, SSH, SNMPv3 & more
n
Easy to use interfaces: web, CLI or Telnet
n
Free rmware upgrades forever
INDUSTRIAL TOUGH – READY FOR ANY APPLICATION
n
Ultra-reliable 1,000,000+ hours MTBF
n
UL/CSA (CUL), CE and hazloc (Zone 2) rated
n
-40 to 75°C operating range
n
Self-test/alarm output signal
Create your own unique products as shown
We have been designing industrial hardware such as
Remote Terminal Units for over 30 years and have used
this expertise to design the toughest Ethernet switches
on the market. Don’t trust your critical communications
to so-called industrial hardware from commercial switch
manufacturers. Sixnet switches give you proven assurance
that your system will keep running for years to come.
Ideal for commercial
off the shelf solutions
ET-5MS-OEM Industrial Ethernet Switch Specifications
et-5ms-oemOEM INDUSTRIAL ETHERNET MANAGED SWITCH SPECIFICATIONS
ETHERNET COMPLIANCE
et-5ms-oemOEM INDUSTRIAL ETHERNET MANAGED SWITCH SPECIFICATIONS
Molex ribbon
et-5ms-oemOEM INDUSTRIAL ETHERNET MANAGED SWITCH SPECIFICATIONS
ETHERNET PERFORMANCE
ETHERNET COMPLIANCE
n
IEEE 802.3 (10Mbps Ethernet supports legacy devices)
n
IEEE 802.3u (Fast Ethernet 100Mbps for newer devices)
n
IEEE 802.3x (Full-Duplex with Flow Control)
n
IEEE 802.1D/w, 802.1p, 802.1Q and much more
POWER INPUT
n
Power input voltage: 3.3 VDC (regulated)
n
Input power (typical - all ports active at 100 Mbps)
p
<1.65 W (<500 mA @ 3.3 VDC)
ENVIRONMENTAL
n
Operating temperature: -40 to +75°C (cold startup at -40)
n
Storage temperature: -40 to +85 °C
n
Humidity (non-condensing) 5 to 95% RH
n
Vibration and shock: IEC60068-2-6
STANDARDS COMPLIANCE
n
Electrical safety - UL508/CSA C22.2/14, EN61010-1, CE
n
EMC - FCC part 15, ICES-003; EN61000-6, CE
n
Hazardous locations: UL1604/CSA C22.2/213 (Class I, Div.
2); EN60079-15 (Zone 2, Category 3), CE (ATEX)
ORDERING GUIDE
et-5ms-oem-2-1 OEM switch with Molex connectors
et-5ms-oem-2-1B OEM switch with Samtec connectors plus
Molex ribbon
Reference mechanical diagram
et-5ms-oemOEM INDUSTRIAL ETHERNET MANAGED SWITCH SPECIFICATIONS
ETHERNET PERFORMANCE
n
Fully managed with 6 Ethernet ports
n
Store & forward wire-speed switching
n
Automatic address learning, aging and migration
n
Full duplex operation with ow control (no collisions)
n
All IEEE 802.3 Ethernet protocols supported
n
MAC addresses supported 2048
n
Memory bandwidth 3.2 Gbps
n
Typical latency (varies on load and settings)
p
@ 100 Mbps: 5 µs + frame time
p
@ 10 Mbps: 16 µs + frame time
n
Ethernet isolation 1500 VRMS 1 minute
ETHERNET PORTS
n
6 fast (10/100) Ethernet ports total
n
4 with on-board PHYs and magnetics; these are available
through board-to-board or ribbon connector
n
1 with on board PHY (by requires external magnetics);
available through board-to-board connector
n
1 is an MII port for interface to an external CPU or PHY
or ber optic transceiver; available through board-to-board
connector
n
Ports support plug and play operation
p
Auto-negotiation for 10 or 100 Mbps
p
Auto-MDI/MDIX-crossover for either cable type
p
Auto-polarity corrects for crossed +/- signals
All specications are subject to change. Consult factory for latest info.
ETHERNET COMPLIANCE
n
IEEE 802.3 (10Mbps Ethernet supports legacy devices)
n
IEEE 802.3u (Fast Ethernet 100Mbps for newer devices)
n
IEEE 802.3x (Full-Duplex with Flow Control)
n
IEEE 802.1D/w, 802.1p, 802.1Q and much more
POWER INPUT
n
Power input voltage: 3.3 VDC (regulated)
n
Input power (typical - all ports active at 100 Mbps)
p
<1.65 W (<500 mA @ 3.3 VDC)
ENVIRONMENTAL
n
Operating temperature: -40 to +75°C (cold startup at -40)
n
Storage temperature: -40 to +85 °C
n
Humidity (non-condensing) 5 to 95% RH
n
Vibration and shock: IEC60068-2-6
STANDARDS COMPLIANCE
n
Electrical safety - UL508/CSA C22.2/14, EN61010-1, CE
n
EMC - FCC part 15, ICES-003; EN61000-6, CE
n
Hazardous locations: UL1604/CSA C22.2/213 (Class I, Div.
2); EN60079-15 (Zone 2, Category 3), CE (ATEX)
ORDERING GUIDE
et-5ms-oem-2-1 OEM switch with Molex connectors
et-5ms-oem-2-1B OEM switch with Samtec connectors plus
Molex ribbon
Reference mechanical diagram
et-5ms-oemOEM INDUSTRIAL ETHERNET MANAGED SWITCH SPECIFICATIONS
