Red Lion 516TX-A Data Sheet

516TX-A Industrial Ethernet Switch

THE INDUSTRIAL NETWORK COMPANY

516TX-A

N-Tron Networking Series

Unmanaged Industrial Ethernet Switch

PRODUCT FEATURES

• Full IEEE 802.3 and 1613 Compliance

• NEMA TS1/TS2 Compliance

• American Bureau of Shipping (ABS) Type Approval

• Sixteen (16) 10/100 BaseTX RJ-45 Ports

• -40º to 85ºC Operating Temperature

• Auto Sensing 10/100BaseTX, Duplex, and MDIX

• Store-and-Forward Technology

• Up to 2.6 Gb/s Maximum Throughput

• Rugged Industrial DIN-Rail Enclosure

• Redundant Power Inputs (10-30 VDC)

• Bi-Color LEDs For Link, Speed, Activity & Duplex Status

Advanced Management Functions (With -A option only):

• IGMP Snooping

• VLAN

• QoS

• Trunking

• Mirroring

• N-View™ (Remote Monitoring Using OPC Technology)

PRODUCT OVERVIEW

The N-TRON® 516TX Series Industrial Ethernet Switch offers outstanding
performance and ease of use. It is ideally suited for connecting Ethernet enabled
industrial and/or security equipment and can be optionally con gured with advanced
Ethernet communication management functions.

Industrial Packaging and Speci cations

The 516TX, designed to operate in industrial environments, is housed in a rugged
DIN-rail-mounted steel enclosure. Optional panel and rack mount kits are also

available. The switch comes standard with extended temperature rating, extended

shock and vibration specs, redundant power inputs, and a high MTBF (greater

than 2M hours).

Ease of Use

The 516TX requires no setup unless the advanced port functions are utilized. The

sixteen 10/100BaseTX ports are auto sensing and auto con guring. Each port
automatically negotiates for maximum speed and performance by default. Bi-color

LEDs are provided to display the link status, link speed and activity of each port

as well as power on/off status.

Performance

The 516TX supports up to 4,000 MAC addresses and uses advanced IEEE 802.3
Fast Ethernet 10/100BaseTX switching technology to eliminate network collisions

and increase network determinism. A high-speed processor and backplane provide
outstanding throughput performance.

ADVANCED MANAGEMENT FEATURES

The 516TX-A offers several management functions that can be easily con gured
using the COM Port (DB 9 connector located on the right side of the switch).

IGMP Snooping: Internet Group Management Protocol allows the N-Tron switch

to intelligently forward and  lter multicast traf c.

VLAN: Virtual Local Area Network allows switch segmentation in order to create

two or more separate local area network domains.

QoS: Quality of Service streamlines network operation by managing packet

priority. The primary goal of QoS is to improve the latency of prioritized Ethernet
packets required for ring management, real-time and other interactive applications.

Trunking: Trunking (aggregation) enables multiple physical ports to be linked

together and function as one uplink to another identically con gured trunking-
capable switch. This feature increases the bandwidth between switches and
creates redundancy for applications requiring high levels of fault tolerant operation.

Port Mirroring: Port mirroring allows traf c on one port to be duplicated and

sent to a designated mirror port. This function can be used to monitor Ethernet
traf c on the designated source port using the assigned mirror port.

N-View OPC Switch Monitoring: (With -A or -N Option Only) N-View OPC

server software can be used with popular HMI software packages to transmit
operational information from N-View-capable switches. This technology enables
network traf c monitoring, as well as alarm and trending details. In all, the N-View
OPC Server collects 41 different traf c variables per port and  ve system level
variables per switch, providing a complete overview of network load, service
quality, and packet traf c. Empowered with N-View OPC Server data, users can
resolve network problems faster and make more informed decisions about overall
system performance.

516TX-A

Speci cations

Switch Properties

Number of MAC Addresses: 4,000
Aging Time: 300s, Programmable (-A option)
Latency Typical: 2.1 μs
Switching Method: Store & Forward

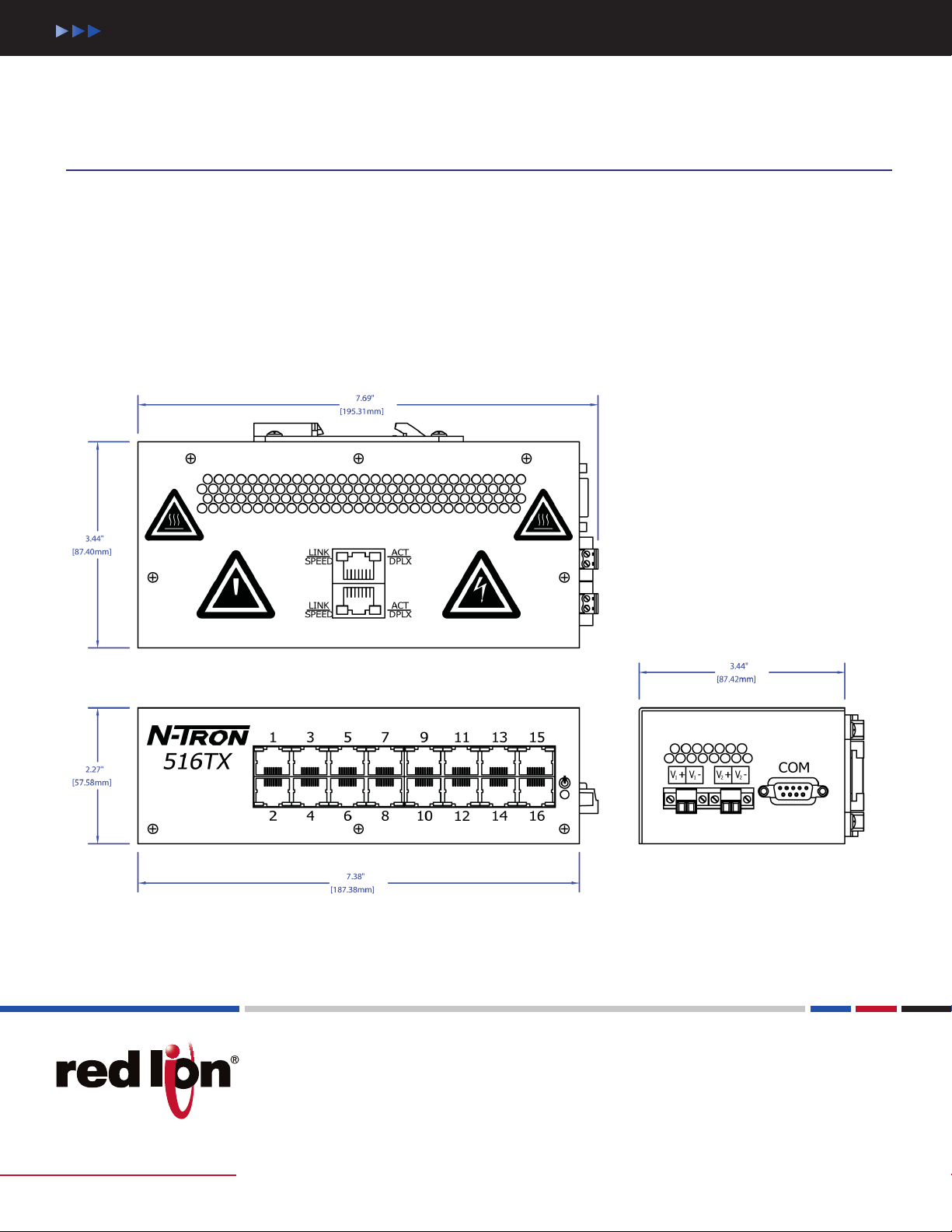

Case Dimensions

Height: 2.3" (5.8 cm)
Width: 7.4" (18.8 cm)
Depth: 3.5" (8.8 cm)
Weight: 1.9 lbs (0.9 kg)
Din-Rail: 35 mm

Electrical

Redundant Input Voltage: 10-30 VDC
Input Current: 400 mA @ 24 VDC
Inrush: 7.0 amp/0.8ms @ 24 VDC
N-Tron Power Supply: NTPS-24-1.3 (1.3A @ 24 VDC)

Environmental

Operating Temperature: -40oC to 85oC
Storage Temperature: -40

o

C to 85oC
Operating Humidity: 10% to 95% (Non Condensing)
Operating Altitude: 0 to 10,000 ft.

Shock and Vibration (bulkhead mounted)

Shock: 200 g @ 10 ms
Vibration/Seismic: 50 g, 5-200 Hz, Triaxial

Reliability

MTBF: >2 Million Hours

Serial Con guration Port

Com Parameters: 9600,n,8,1

Network Media

10BaseT: ≥Cat3 Cable
100BaseTX: ≥Cat5 Cable

Connectors

10/100BaseTX: Sixteen (16) RJ-45 Copper Ports

Recommended Wiring Clearance

Front: 2" (5.1 cm)
Side: 1" (2.6 cm)

Regulatory Approvals

FCC/CE (CFR 47, Part 15, Subpart B, Class A); ICES-003
EMC Dir 89/336/EEC, EN 50204, EN 55011
EN61000-4-2, 3, 4, 5, 6, 8,11, EN61000-6-2, 4
ANSI C63.4
UL /cUL: Class I, Div 2, Groups A, B, C, D and T4
UL 508 and UL 1604
CAN/CSA-C22.2 No.213, ATEX II 3 G Ex nA
IEEE 1613 for Electric Utility Substations
ABS Type Approval for Shipboard Applications
GOST-R Certi ed, RoHS Compliant

Designed to comply with:
NEMA TS1/TS2 for Traf c Control

516TX-A Specifications
