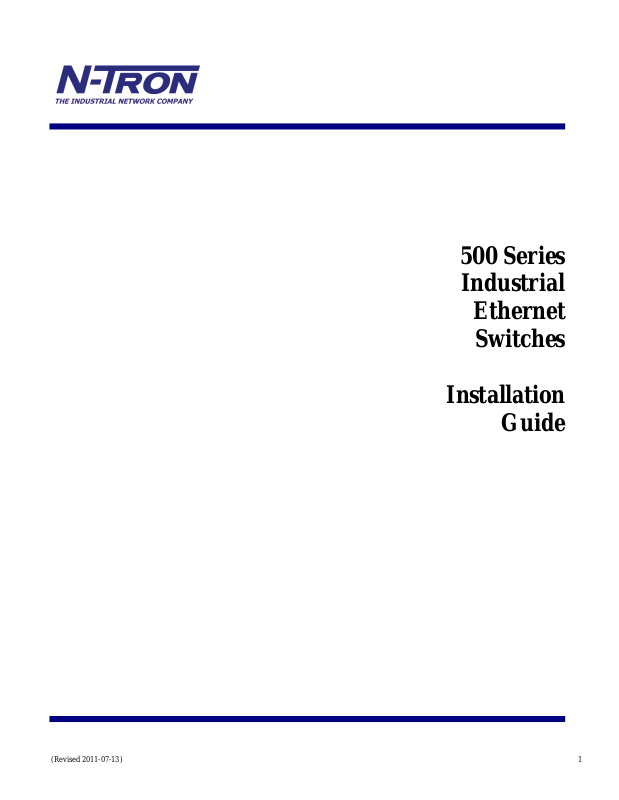

Red Lion 500 Series Installation Guide

500 Series Industrial

Ethernet

Switches

Installation

Guide

(Revised 2011-07-13)

Table of Contents

Applicability: ..................................................................................................................................................... 4

Safety Warnings ................................................................................................................................................. 5

Overview: 500 Series Industrial Ethernet Switches ........................................................................................... 9

Key Features..................................................................................................................................................... 10

Installation ........................................................................................................................................................ 10

Panel and Rack Mounting ................................................................................................................................ 11

Front Panel ....................................................................................................................................................... 12

Applying Power (Side View) ........................................................................................................................... 13

N-Tron Switch Grounding Techniques ............................................................................................................ 14

RJ45 Connector Crimp Specifications ............................................................................................................. 15

Connecting the Unit ......................................................................................................................................... 16

Serial Interface ................................................................................................................................................. 16

Troubleshooting ............................................................................................................................................... 17

FCC Statement ................................................................................................................................................. 17

Command Line Interpreter ............................................................................................................................... 18

Logging In (password protection) .................................................................................................................... 19

CLI Tree of Menus ........................................................................................................................................... 20

CLI Menus and Commands ............................................................................................................................. 22

Home Menu .................................................................................................................................................. 22

Top Level Info.......................................................................................................................................... 22

System Menu ................................................................................................................................................ 23

N-ViewTM Menu....................................................................................................................................... 23

Aging Menu ............................................................................................................................................. 24

System Info .............................................................................................................................................. 25

Restoring defaults..................................................................................................................................... 25

User Password .......................................................................................................................................... 26

Switch Menu ................................................................................................................................................ 27

Port Mirroring .......................................................................................................................................... 27

MAC Based Trunking .............................................................................................................................. 29

QOS .......................................................................................................................................................... 31

VLAN ....................................................................................................................................................... 33

Tagged VLAN ...................................................................................................................................... 34

Port VLAN ........................................................................................................................................... 40

IGMP Snooping ....................................................................................................................................... 44

Filters ....................................................................................................................................................... 48

Ports ......................................................................................................................................................... 52

500 Series Stacked Switches IGMP Multicast Limitations ............................................................................. 55

With Quality of Service (QOS) DISABLED, as in factory defaults out of box: .............................................. 55

With Quality of Service (QOS) ENABLED, which would have to be manually configured:......................... 56

Key Specifications (508TX) ............................................................................................................................ 57

Damp Heat: IEC60068-2-30 (Test Db) ................................................................................................. 58

GOST-R Certified. ......................................................................................................................................... 58

Key Specifications (508FX2/FXE2) ................................................................................................................ 59

Key Specifications (509FX/FXE) .................................................................................................................... 61

GOST-R Certified. ......................................................................................................................................... 62

Key Specifications (516TX) ............................................................................................................................ 63

Damp Heat: IEC60068-2-30 (Test Db) ................................................................................................. 64

GOST-R Certified. ......................................................................................................................................... 64

Key Specifications (517FX/FXE) .................................................................................................................... 65

(Revised 2011-07-13)

Damp Heat: IEC60068-2-30 (Test Db) ........................................................................................................ 66

GOST-R Certified. ........................................................................................................................................... 66

Key Specifications (524TX) ............................................................................................................................ 67

Damp Heat: IEC60068-2-30 (Test Db) ........................................................................................................ 68

GOST-R Certified. ........................................................................................................................................... 68

Key Specifications (526FX2/FXE2) ................................................................................................................ 69

(Revised 2011-07-13)

Applicability: This guide is applicable to Firmware Version 8 of the following products:

508TX-N 516TX-N 524TX-N

Where: N = N for N-ViewTM

= A for Advanced Management

= Blank Otherwise

XX = ST or SC and YY = -15, -40, -80

S = Standard Temperature Rating -20° C to 70° C

= Blank for -40° C to 85° C

Note: The firmware version can be seen on the power up banner on the serial console for any of these products.

508FX2-N-XX-S 509FX-N-XX-S 517FX-N-XX-S 526FX2-N-XX-S

508FXE2-N-XX-YY 509FXE-N-XX-YY 517FXE-N-XX-YY 526FXE2-N-XX-YY

(Revised 2011-07-13)

Ethernet is a registered trademark of Xerox Corporation. All other product names, company names, logos or other designations mentioned herein are trademarks of their respective owners.

The information contained in this document is subject to change without notice. N-TRON Corp. makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability or fitness for a particular purpose. In no event shall N-TRON Corp. be liable for any incidental, special, indirect or consequential damages whatsoever included but not limited to lost profits arising out of errors or omissions in this manual or the information contained herein.

Warning:

Do not perform any services on the unit unless qualified to do so. Do not substitute unauthorized parts or make unauthorized modifications to the unit.

Do not operate the unit with the top cover removed, as this could create a shock or fire hazard.

Do not block the air vents on the sides or the top of the unit.

Do not operate the equipment in the presence of flammable gasses or fumes. Operating electrical equipment in such an environment constitutes a definite safety hazard.

Do not operate the equipment in a manner not specified by this manual.

Safety Warnings GENERAL SAFETY

WARNING: If the equipment is used in the manner not specified by N-TRON Corp., the protection provided by the equipment may be impaired.

Contact Information

N-TRON Corp. 820 South University Blvd. Suite 4E Mobile, AL 36609 TEL: (251) 342-2164 FAX: (251) 342-6353 Website: www.n-tron.com Email: N-TRON_Support@n-tron.com

(Revised 2011-07-13)

ENVIRONMENTAL SAFETY

WARNING: Disconnect the power and allow to cool 5 minutes before touching.

PRODUCT DISPOSAL

This product complies with WEEE Directive 2002/96/EC marking requirements. The Wheelie-bin mark, located on the product‟s dataplate, indicates that the product should not be indiscriminately discarded in unsorted municipal waste facilities. It further indicates that N-TRON will accept

responsibility for proper disposal of the product from the customer. To return this product for proper disposal, please complete the N-TRON RMA Warranty Service Request Form available on the N-TRON web site (www.n-tron.com)

ELECTRICAL SAFETY

WARNING: Disconnect the power cable before removing the enclosure top.

WARNING: Do not operate the unit with the top cover removed.

WARNING: Properly ground the unit before connecting anything else to the unit. Units not properly grounded

may result in a safety risk and could be hazardous and may void the warranty. See the grounding technique section of this user manual for proper ways to ground the unit.

WARNING: Do not work on equipment or cables during periods of lightning activity. WARNING: Do not perform any services on the unit unless qualified to do so.

WARNING: Do not block the air vents.

WARNING: Observe proper DC Voltage polarity when installing power input cables. Reversing voltage polarity

can cause permanent damage to the unit and void the warranty.

LASER SAFETY (FXE-40,-80 Only)

CAUTION: CLASS 1 LASER PRODUCT. Do not stare into the laser!

UL/cUL Hazardous Location Installation Requirements

1. WARNING: Explosion hazard, do not disconnect while circuit is live, unless area is known to be non-hazardous.

2. WARNING: Install only in accordance with Local & National Codes of Authorities Having Jurisdiction.

3. Power must be supplied by an isolating source, and a 3.3A max rated UL recognized fuse must be installed

immediately before the unit.

(Revised 2011-07-13)

4. Class I, Div 2 installations require that all devices connected to this product must be UL listed for the area in

which it is installed.

5. Only UL listed wiring with temperature ratings greater than 90OC permitted for Class I, Div 2 installations

operating at temperatures up to 70OC ambient.

6. Limited Operating Voltage: 12-30V for Class I, Div 2 installations.

(Revised 2011-07-13)

ATEX Installation Requirements

1. The conductor size of the phase conductor must be in the range of 0.05-2.08 mm2.

2. Field wiring must be suitable for a minimum of 110°C.

3. Ethernet Switches are intended for mounting in an IP54 enclosure in a pollution degree 2 environment.

4. Temperature testing of the Ethernet Switches was conducted on the switch itself in an 85°C air-

circulating oven and resulted in a Temperature Code of T4. However, end-product temperature testing shall be considered.

5. The end user shall provide bonding means as necessary. All bonding equipment (components) shall be

evaluated according to EN 60079-15:2005 and covered by a component certificate for the actual use. When installing bonding components that will pass through an enclosure wall, they must have a minimum of IP54 rating equal to the enclosure. All electrical clearances must be maintained per the manufacturer‟s instructions of the bonding component or per EN 60079-15:2005.

6. Ethernet Switch requires protection against transients. The end-product shall provide a suitable form of

protection that removes the risk of or limits transients to no more than 42V.

(Revised 2011-07-13)

Overview: 500 Series Industrial Ethernet Switches

The 500 Series Industrial Ethernet Switches support high speed layer 2 switching between ports.

The 508TX (516TX)(524TX) is an affordable 8 (16)(24) port switch that is capable of auto negotiating 10/100 Mb and half/full duplex communications. The N-TRON 508TX (516TX)(524TX) is housed in a ruggedized steel enclosure, and provides 8 (16)(24) Category 5 compliant 10/100-BaseTX connections for high performance network design, and hub/repeater upgrades.

The 509FX (517FX)(526FX) is a 9 (17)(26) port switch that has 8 (16)(24) ports identical to the 508TX (516TX)(524TX), plus an additional multimode fiber optic up-link port in the 509FX and 517FX, and two additional multimode fiber optic up-link ports in the 526FX. These fiber links are capable of 2 Kilometers of 100 Mb communications without the use of repeaters.

The 509FXE (517FXE) (526FXE) is a 9 (17)(26) port switch that is similar to the 509FX (517FX) (526FX), but with extended range. The FXE versions utilize a singlemode fiber transceiver that is capable of 15-80 Kilometers of 200 Mb communications.

The 508FX2 is an 8 port switch that has 6 copper ports plus two additional multimode fiber optic up-link ports. The 508FXE2 is similar to the 508FX2 , but is populated with singlemode extended range fiber optics.

All FX, FX2, FXE, and FXE2 models utilize the IEEE compliant SC or ST duplex connector for fiber optic communications. The 10/100Base-TX ports utilize the RJ45 shielded connector.

All N-TRON switches come housed in a steel ruggedized Din-Rail enclosure, designed to withstand the most demanding industrial applications, and have been fully tested and certified at industrial environmental extremes. All 500 Series Units operate on 10-30VDC.

(Revised 2011-07-13)

Key Features

 Full IEEE 802.3 & 100BASE-FX Compliance  Full IEEE 1613 Compliance (Communications Networking Devices in Electric Power Stations)  NEMA TS1/TS2 Compliance (Traffic Control Systems)  American Bureau of Shipping (ABS) Type Approval (Maritime and Offshore Applications)  Extended Environmental Specifications  Support for Full/Half Duplex Operation  LED Link/Activity Status Indication  Auto-Sensing Speed and Flow Control  Up to 2.6 Gb/s Maximum Throughput  Industry Standard 35mm DIN-Rail Enclosure  Optional N-ViewTM Monitoring  Optional Advanced Management Features

 Port Mirroring  Mac Based Trunking  Quality of Service - traffic priority (port or tagged)  VLAN (port or tagged)  IGMP Snooping ( Plug and Play out of box )

PACKAGE CONTENTS

Please make sure the Ethernet Switch package contains the following items:

1. 500 Series Switch

2. Product CD

Contact your carrier if any items are damaged.

Installation

Read the following warning before beginning the installation:

WARNING

The 500 Series FXE-40 and FXE-80 units contain a class 1 laser. Do not stare into the laser beam (fiber optic connector) when installing or operating the product.

(Revised 2011-07-13)

WARNING

Never install or work on electrical equipment or cabling during periods of lightning activity. Never connect or disconnect power when hazardous gasses are present.

Disconnect the power cable before removing the enclosure top. Do not operate the unit with the top cover removed

UNPACKING

Remove all the equipment from the packaging, and store the packaging in a safe place. File any damage claims with the carrier.

CLEANING

Clean only with a damp cloth.

SERVICING

No user serviceable parts inside. Removing the top cover will void the warranty.

DIN-Rail Mounting

Install the unit on a standard 35mm Din-Rail. Recess the unit to allow at least 5” of horizontal clearance for fiber optic cable bend radius (2” for TX models).

Panel and Rack Mounting

With the exception of the 524TX and 526FX2, all N-Tron™ products are designed to be mounted on industry standard 35mm DIN-Rail. However, DIN-Rail mounting may not be suitable for all applications. We offer two alternative mounting solutions: Our 900 Panel Mount Assembly (P/N: 900PM) may be used to securely mount our 100, 200, 300, 400, 500, or 900 Series products to a panel or other flat surface; Our Universal Rack Mount Kit (P/N: URMK) may be used to mount our products to standard 19" racks

900-PM URMK

(Revised 2011-07-13)

Front Panel

LED

Color

Description

GREEN

Power is Applied

OFF

Power is OFF

LNK

GREEN

100Mb Link between ports

ORANGE

10 Mb Link between ports

OFF

No Link between ports

ACT

GREEN

Data is active between ports and operating in full duplex

ORANGE

Data is active between ports and operating in half duplex

OFF

Data is inactive between ports

From Left to Right:

LNK Link LED for Fiber Optic Port (only FX/FXE models) TX 100MB/s Fiber Optic TX Port (only FX/FXE models) RX 100MB/s Fiber Optic RX Port (only FX/FXE models) ACT Activity LED for Fiber Optic Port (only FX/FXE models) RJ45 Ports Auto sensing 10/100 BaseTX Connections

Green LED lights when Power is connected

NOTE: Each RJ45 data port has two LED‟s located at the top or bottom of each connector. The left LED indicates LINK status (green for 100Mb link, Orange for 10Mb link), and the right LED indicates ACTIVITY (Green for Full Duplex activity, Orange for Half Duplex Activity).

LED‟s: The table below describes the operating modes:

(Revised 2011-07-13)

Applying Power (Side View)

Unscrew & Remove the DC Voltage Input Plug(s) from the side header Install the DC Power Cables into the Plug(s) (observing polarity). Plug the Voltage Input Plug(s) back into the side header. Tightening torque for the terminal block power plug is 0.22 Nm/0.162 Pound Foot. All LED‟s will flash ON Momentarily Verify the Power LED stays ON (GREEN).

Note: Only 1 plug must be connected to power for minimal operation. For redundant power operation, V1 and V2 plugs must be connected to separate DC Voltage sources. Use wire sizes 16-28 gauge. The power cord should be limited to less than 10 meters in order to ensure optimum performance.

Recommended 24V DC Power Supplies, similar to

100VAC/240VAC:

N-Tron‟s NTPS-24-1.3, DC 24V/1.3A.

Note: For 526FX2 please use the NTPS-24-3, DC 24V/3.0A

(Revised 2011-07-13)

N-Tron Switch Grounding Techniques

The grounding philosophy of any control system is an integral part of the design. N-Tron switches are designed to be grounded, but the user has been given the flexibility to float the switch when required. The best noise immunity and emissions (i.e. CE) are obtained when the N-Tron switch chassis is connected to earth ground via a drain wire. Some N-Tron switches have metal din-rail brackets that can ground the switch if the din-rail is grounded. In some cases, N-Tron switches with metal brackets can be supplied with optional plastic brackets if isolation is required.

Both V- legs of the power input connector are connected to chassis internally on the PCB. Connecting a drain wire to earth ground from one of the V- terminal plugs as shown here will ground the switch and the chassis. The power leads from the power source should be limited to 3 meters or less in length.

As an alternate, users can run a drain wire & lug from any of the DinRail screws or empty PEM nuts on the enclosure. When using an unused PEM nut to connect a ground lug via a machine screw, care should be taken to limit the penetration of the outer skin by less than 1/4 in. Failure to do so may cause irreversible damage to the internal components of the switch. Please note that the minimum cross-

sectional area of the grounding conductor must be at least 4mm2 and it must be suitable for use in temperature of 110°C.

Note: Ensure the power supply is grounded properly before applying power to the grounded switch. This may be verified by using a voltmeter to determine that there is no voltage difference between the

power supply‟s negative output terminal and the chassis grounding

point of the switch.

If the use of shielded cables is required, it is generally recommended to only connect the shield at one end to prevent ground loops and interfere with low level signals (i.e. thermocouples, RTD, etc.). Cat5e cables manufactured to EIA-568A or 568B specifications are required for use with N-Tron Switches.

In the event all Cat5e patch cable distances are small (i.e. All Ethernet devices are located the same local cabinet and/or referenced to the same earth ground), it is permissible to use fully shielded cables terminated to chassis ground at both ends in systems void of low level analog signals.

(Revised 2011-07-13)

RJ45 Connector Crimp Specifications

Please reference the illustration below for your Cat5 cable specifications:

(Revised 2011-07-13)

Connecting the Unit

Pin 6

Pin 7

Pin 8

Pin 9

Pin 1

TXD Pin 2

RXD Pin 3

Pin 4

GND Pin 5

PC Port

25-Pin

9-Pin

500 series

Female

9-Pin Male

Signal Name

Pin #

Signal Name

TXD

2 3 3

RXD

3 2 2

TXD

GND

7 5 5

GND

For FX/FXE units, remove the dust cap from the fiber optic connectors and connect the fiber optic cables. The TX port on the FX/FXE models should be connected to the RX port of the far end station. The RX port on the FX/FXE versions should be connected to the TX port of the far end station.

For 10/100 Base-TX ports, plug a Category 5E twisted pair cable into the RJ45 connector. Connect the other end

to the far end station. Verify that the LNK LED‟s are ON once the connection has been completed. To connect

any other port to another Switch or Repeater, use a standard Category 5 straight through or crossover cable.

Warning: Creating a port to port connection on the same switch (i.e. loop) is an illegal operation and will create a broadcast storm which will crash the network!

Note: For units which have the N-View Option, you can validate that all ports are working correctly by installing the N-View OPC Server software. The software is freely distributed on the ProductCD and our website (http://www.n-tron.com/pdf/nview_opc_user_guide.pdf). Once the software is installed, you should view the Ports Counter page to remotely monitor each connected port. You may find it helpful to copy [Alt]+[Print Screen] the Port Counter information for each port and paste [Control]+[V] into a Windows document for further review. Please consult your N-View OPC Server Manual for additional information.

Serial Interface

The 500 series switches provide an EIA-232 interface accessed via a 9 pin female connector (labeled „COM‟ on the unit). This is used to access the Command Line Interpreter (CLI). The pin-outs are shown below:

Serial Cable

Connect the serial COM port of your PC and the 500 Series Switch using a standard straight through cable. You will require a cable with a 9-pin or 25-pin sub-D female connector for the PC end, and a 9-pin male sub-D connector for the series 500 end. The following table shows the pin-out and the connections for both types of cable:

Shielded cables and null modems are readily available from Radio Shack or a variety of computer shops.

(Revised 2011-07-13)

HyperTerminal

The following configuration should be used in HyperTerminal:

Port Settings: 9600 Data Bits: 8 Parity: None Stop bits: 1 Flow Control: None

Troubleshooting

1. Make sure the (Power LED) is ON.

2. Make sure you are supplying sufficient current for the version chosen.

3. Verify that Link LED‟s are ON for connected ports.

4. Verify cabling used between stations.

5. Verify that cabling is Category 5E or greater for 100Mbit Operation.

6. For FX/FXE models, verify TX is connected to far end RX and vise versa. Also insure the

connecting partner is 100Mb/s IEEE 100BaseFX compliant. Note: the 500 Series FX/FXE

switches do not support the 10BaseFL standard.

SUPPORT

Contact N-TRON Corp. at: TEL: 251-342-2164 FAX: 251-342-6353 www.n-tron.com

N-TRON_Support@n-tron.com

FCC Statement

This product complies with Part 15 of the FCC-A Rules. Operation is subject to the following conditions: (1) This device may not cause harmful Interference (2) This device must accept any interference received, including interference that may cause

undesired operation.

(Revised 2011-07-13)

Software Configuration

Self Test & System Initialization Complete..... OK!

MAC ADDRESS:00-07-AF-00-05-26 N-View is ENABLED.

Trunking (Link Aggregation) is DISABLED. Mirroring is DISABLED. Tagged QOS is DISABLED. Port QOS is DISABLED. VLAN is DISABLED. IGMP Snooping is ENABLED. Aging is ENABLED.

Managing IGMP Snooping.....................

Exit to return to Management Console Function. Press [ESC] to Exit >

Command Line Interpreter

With the „-A‟ option, you can configure and/or query all the important parameters of an N-Tron 500 series industrial Ethernet switch using a command line interpreter. These functions may be accessed using the serial port (marked COM).

To access the Command Line Interpreter (CLI), connect a PC serial port to the 500 Series V24 serial port and use HyperTerminal or equivalent.

COM Parameters: 9600, 8, none, 1, none

After a successful connection and reboot, the boot menu should be displayed:

Note that example above is for a –A unit, and so has the login capability. Only aging, N-View and IGMP Snooping are enabled by default on a –A unit. Only aging and N-View are enabled on a –N unit. Only aging is enabled on a basic (no dash) unit.

This information includes the model number, firmware version, and MAC address.

Also, information is presented as to which functions are enabled, for example in this case above:

- N-ViewTM, Aging and IGMP Snooping are reported as enabled (default).

- Trunking, mirroring, Port QOS, Tagged QOS, and VLAN are reported as disabled (default).

Note: Prior to version 7.08 firmware, Tagged QOS was enabled by default on –A units.

(Revised 2011-07-13)

Logging In (password protection)

Managing IGMP Snooping.....................

Exit to return to Management Console Function. Press [ESC] to Exit > ** Now in user interface mode. ** ** IGMP Snooping will resume after power is cycled. **

CUSTOMER USER VALIDATED.

/ (Go to top of menu tree) ? (Show menus/commands)

info (Show identification data) SYSTEM (Open system menu) SWITCH (Open switch menu)

CLI>

Access using the CLI is password-protected. You can log in as administrator to read and modify the 500 Series switch parameters. Note: The factory defaults admin password is admin.

First press <Escape> to access the Management Console Function.

(see section on user defined password) Example:

You can now activate the commands of the CLI.

(Revised 2011-07-13)

CLI Tree of Menus

 info (Show identification data)  SYSTEM (Open system menu)

 nview (Get information about N-View function)

 info (Get information about N-View)  enable/disable (Enable/Disable N-View)

 aging (Aging Time for dynamically learned addresses)

 info (Get information about Aging)  enable/disable (Enable/Disable Aging)  config (Configure Aging)

 info1 (Get information about system - ports 1->8)

 info2 (Get information about system - ports 9->16)

 info3 (Get information about system - ports 17->24)

 info4 (Get information about system - ports 25 & 26)

 upwd (Set a user defined password)

 restore (Restore factory defaults) **Note: Power cycle is required when completed.

 SWITCH (Open switch menu)

 mirror (mirroring)

 info (Get information about Mirroring)  enable/disable (Enable/Disable Mirroring)  config (Configure Mirroring)

 trunking (Assign Port Trunking Groups)

 info (Get information about Trunking)  enable/disable (Enable/Disable Trunking)  config (Configure Trunking)

 qos (Quality of Service - traffic priority)

 info (Get information about QOS)  en_tag/dis_tag (Enable/Disable Tagged QOS - 802.1p)  set_tag (Set Tagged QOS threshold - 802.1p)  en_port/dis_port (Enable/Disable Port QOS)  set_port (Set Port QOS - higher priority ports)

 vlan (Virtual Local Area Networks)

 info (Get information about VLAN)  enable/disable (Enable/Disable VLAN)  if tagged now:

 untagged (Untagged pkt handling)  port (Switch to Port Based VLAN)

 if port now:

 tagged (Switch to Tagged VLAN)  group1 (configure tagged VLAN Group 1)  group2 (configure tagged VLAN Group 2)  group3 (configure tagged VLAN Group 3)  group4 (configure tagged VLAN Group 4)  group5 (configure tagged VLAN Group 5)  group6 (configure tagged VLAN Group 6)  group7 (configure tagged VLAN Group 7)  group8 (configure tagged VLAN Group 8)  cleargroups (clear all 8 tagged VLAN Groups)

(continued)

(Revised 2011-07-13)

(SWITCH Sub-Menu Continued)

 igmp (IGMP Snooping)

 info (Get information about IGMP Snooping)  enable/disable (Enable/Disable IGMP Snooping)  routers (Manage Router Port(s) for IGMP Snooping)

 'A' to Auto-detect plus manual, OR

 'M' for Manual only, OR

 'N' for None.  rfilters (Manage Router Multicast Data Filters)  query (Manage Query Generation)

 'A' to Auto query, OR

 'O' for query On, OR

 'F' for query oFF.

 filters (Select traffic filter(s))

o info (Get info on Filters) o bfilter (Configure Broadcast Filter Ports) o sfilter (Configure Static Multicast Filter)

On 508FX2-A only:

o dis_nring (Disable filters for N-Ring)

( or „en_nring‟ if currently disabled )

o dis_ring600 (Disable filters for 600 series ring)

( or „en_ring600‟ if currently disabled )

 ports (Reconfigure Individual Port Parameters)

 info (Get info on Port Parameters)  enabling (Enable or disable each port)  negotiate (Select autonegotiate or not for each port)  speed10 (Force 10 Mb speed for each port)  speed100 (Force 100 Mb speed for each port)  half (Force half duplex for each port)  full (Force full duplex for each port)  crossover (Force crossover connection for each port)  link10h (Advertise 10Mb and half for each port)  filter (Configure Collision Filter for each port)  squelchon (Squelch more than IEEE standard.)

( or „squelchoff‟ if currently on )

(Revised 2011-07-13)

CLI Menus and Commands

Command

Description

Comment

Returns you to the top of menu tree (available in every menu)

Home function

Displays the current menu again (available in every menu)

Refresh function Command

Description

Comment

info

Displays information about the switch

Model Number, firmware version, MAC address, which functions are presently enabled.

SYSTEM

Opens the SYSTEM menu.

The SYSTEM menu is used to set the system parameters.

SWITCH

Opens the SWITCH menu.

You can make settings for the switch in this menu.

CLI>info

Self Test & System Initialization Complete..... OK!

MAC ADDRESS:00-07-AF-00-05-24

N-View is ENABLED. Trunking (Link Aggregation) is DISABLED. Mirroring is DISABLED. Tagged QOS is DISABLED. Port QOS is DISABLED. VLAN is DISABLED. IGMP Snooping is ENABLED. Aging is ENABLED.

CLI>

These commands are available at all menus (on a –A unit):

Also: “u” or “U” = up one level in the menu tree

\ = home

Home Menu

You can display all the other menus from the start menu. This is displayed immediately after you login and includes the following commands:

Top Level Info

Top level info includes Model Number, Firmware version, MAC Address, and whether or not each major function is enabled.

Example of the (top level) info screen:

(Revised 2011-07-13)

+ 49 hidden pages
