317FX-N Industrial Ethernet Switch
THE INDUSTRIAL NETWORK COMPANY
317FX-N
N-Tron Networking Series
Unmanaged Industrial Ethernet Switch
The N-TRON® 317FX-N, an unmanaged Industrial Ethernet switch, is designed for
use in industrial data acquisition, control, and Ethernet I/O applications. The rugged
DIN-RAIL enclosure protects the switch from harsh environmental conditions, enabling
awless performance in extreme settings.
PRODUCT FEATURES
• Compact Size
• Full IEEE 802.3 and 1613 Compliance
• NEMA TS1/TS2 Compliance
• Extended Environmental Speci cations
• Sixteen 10/100 BaseTX RJ-45 Ports
• One 100BaseFX Ports, ST (shown) or SC
• Supports Full/Half Duplex Operation
• LED Link/Activity Status Indication
• Store-and-Forward Technology
• Auto Senses Speed and Flow Control
• MDIX Auto Cable Sensing (RJ-45)
• Up to 2.6 Gb/s Maximum Throughput
• Rugged Industrial DIN-Rail Enclosure
• Redundant Power Inputs (10-30 VDC)
™
• N-View
• Bi-Color Status LEDs For Link, Speed, Activity & Duplex
• Port Control
OPC Switch Monitoring Option
PRODUCT OVERVIEW
The 317FX-N switch is designed to meet and exceed the most demanding industrial
communication requirements while providing high throughput and minimum downtime.
The 317FX-N provides sixteen RJ-45 auto sensing 10/100BaseTX ports. All ports
are full/half duplex capable, using leading-edge Ethernet switching technology. The
switch auto-negotiates the speed and ow control capabilities of the TX copper port
connections and con gures itself automatically. The ber optic port supports full
200Mb/s communications via 100BaseFX. Bi-color LEDs are provided to display the
link status, speed and activity of each port as well as power on/off status.
The 317FX-N is auto sensing, so there is no need to make extensive wiring changes
if upgrades are made to host computers, plant systems, or Ethernet I/O modules. The
switching fabric simply scales up or down automatically to match network environments.
The device supports up to 4,000 MAC addresses, enabling these products to support
extremely sophisticated and complex network architectures.
The 317FX-N is an ideal candidate for upgrading existing hubs and repeaters to
increase bandwidth and determinism by virtually eliminating network collisions. The
product provides a cost-effective solution while maintaining the plug & play simplicity
of an unmanaged hub.
The 317FX-N simpli es plant wiring by eliminating the need to bring data acquisition
and control connections back to a climate controlled environment. The switch
has extended operating speci cations to meet the harsh needs of the industrial
environment, including extended temperature rating, extended shock and vibration
specs, redundant power inputs, and a high MTBF (greater than 2M hours).
For cost savings and convenience, the 317FX-N can be DIN-RAIL mounted
alongside Ethernet I/O or other Industrial Equipment. It can also be panel mounted.
To increase reliability, the unit contains redundant power inputs. LED's are provided
to display power on/off status as well as the link status and activity of each port.
N-VIEW OPC PORT MONITORING (With -N Option Only)
The N-TRON N-View OLE for Process Control (OPC) Server Software can be
combined with popular HMI software packages to add network traf c monitoring,
trending and alarming to any application using N-TRON switches con gured with
the N-View option. N-TRON's N-View OPC Server collects 41 different traf c
variables per port and ve system level variables per switch. This information
can provide a complete overview of the network load, service quality, and packet
traf c. OPC client software can use N-View OPC Server data to resolve network
problems quickly and improve system reliability.
317FX-N Specifications
317FX-N
Speci cations
Switch Properties
Number of MAC Addresses: 4,000
Latency (typical): 2.1 s
Backplane Speed: 2.6 Gb/s
Switching Method: Store & Forward

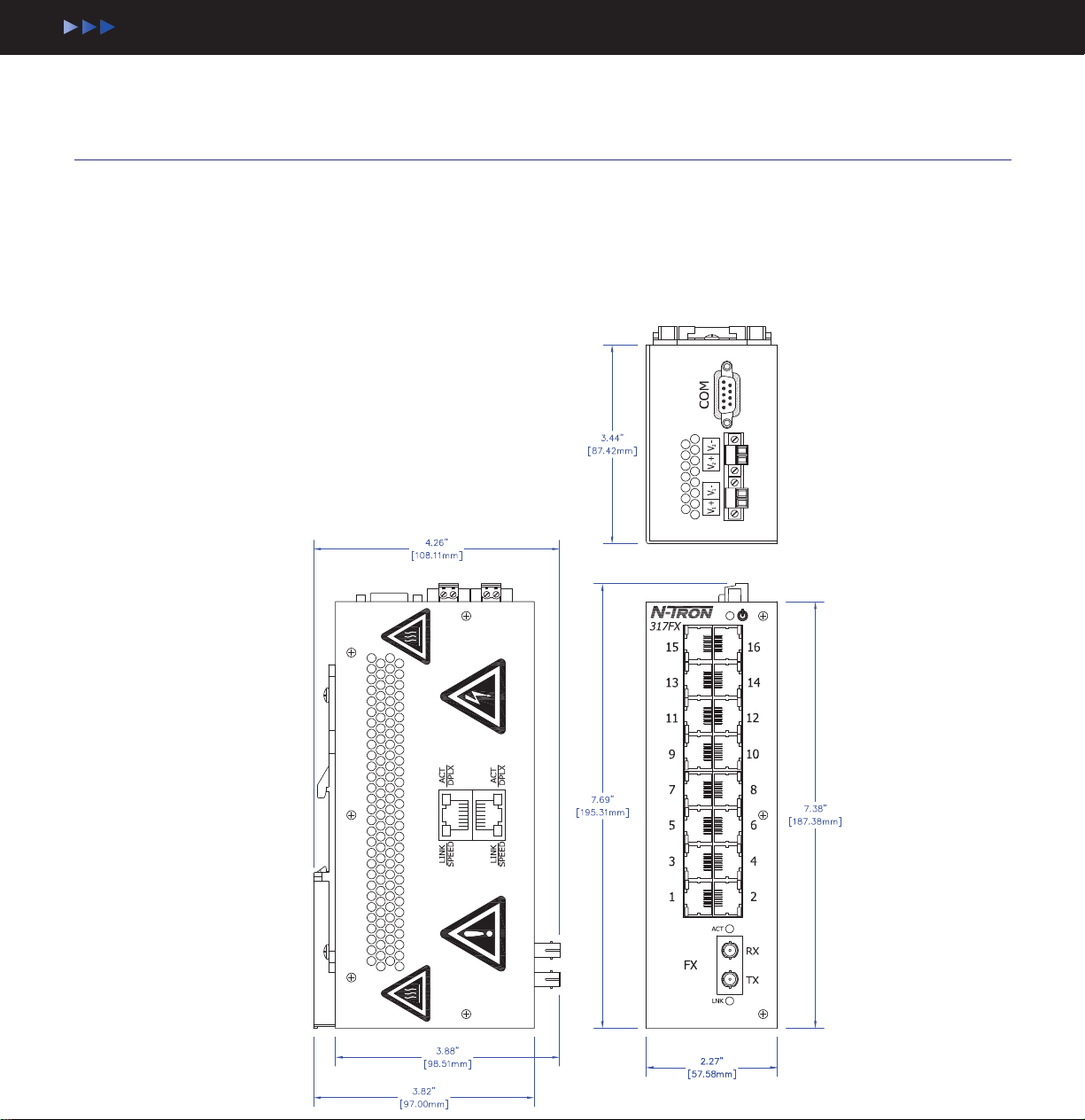

Case Dimensions:
Height: 7.4" (18.8cm)
Width: 2.3" (5.8cm)
Depth: 3.5" (8.9cm)
Weight: 1.9 lbs (0.9kg)
Din-Rail: 35mm
Electrical
Redundant Input Voltage: 10-30 VDC
Input Current: 440 mA@24V
BTU/hr: 36@24V
Inrush: 8.5Amp/0.8ms@24V
Environmental
Operating and Storage Temp: -40ºC to 85ºC
Operating Humidity: 10% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.
Shock and Vibration (bulkhead mounting)
Shock: 200g@10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial
Fiber Transceiver Characteristics
Fiber Length 2km* 15km** 40km** 80km**
TX Power Min -19dBm -15dBm -5dBm -5dBm
RX Sensitivity Max -31dBm -31dBm -34dBm -34dBm
Wavelength 1310nm 1310nm 1310nm 1550nm
* Multimode Fiber Optic Cable
** Singlemode Fiber Optic Cable
Regulatory Approvals
FCC (CFR 47, Part 15, Subpart B, Class A and ANSI C63.4)
ICES-003
CE (IEC 60068: 2-1/2/6/30 and IEC 60533-7)
UL/cUL: Class I, Div 2, Groups A, B, C, and D; T4
(ANSI/ISA 12.12.01-2007)
EN 60079-0/15 ATEX
GOST-R Certi ed, RoHS Compliant
Designed to comply with:
IACS UR E10 (ABS Type-Approval)
IEC 61850-3 and IEEE 1613 (Elec. Power Sub-stations)
NEMA TS1/TS2 for Traf c Control
Reliability
MTBF: >2 Million Hours
Network Media
10BaseT: Cat3 Cable
100BaseTX: Cat5 Cable
100BaseFX
Multimode: 50-62.5/125m
Singlemode: 7-10/125m
Connectors
10/100BaseTX: Sixteen (16) RJ-45 Copper Ports
100BaseFX: One (1) SC or ST Duplex Port
Serial Con guration Port
Com Parameters: 9600,n,8,1
Recommended Wiring Clearance
Front: 4" (10.16 cm)
Top: 1" (2.54 cm)
