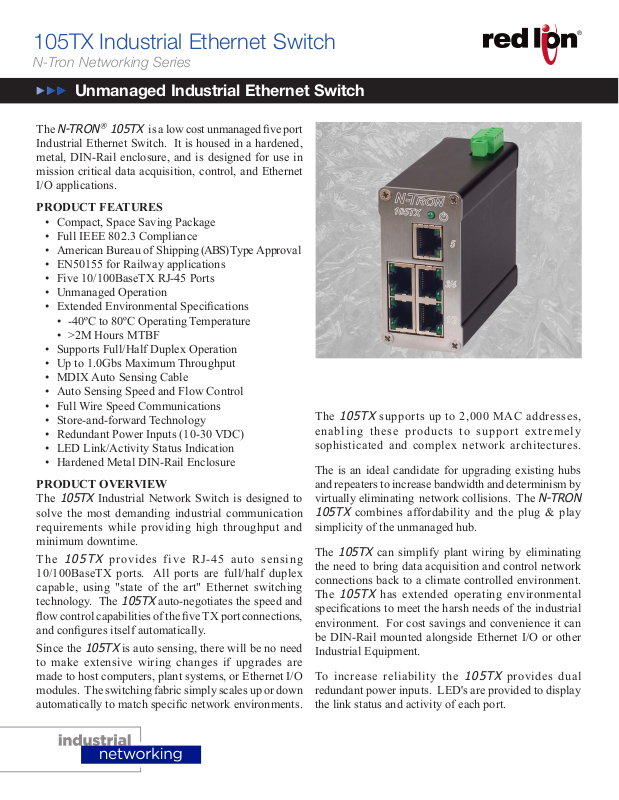

Red Lion 105TX Data Sheet

105TX Industrial Ethernet Switch

The

N-TRON®105TX

is a low cost unmanaged fi ve port

N-Tron Networking Series

Unmanaged Industrial Ethernet Switch

Industrial Ethernet Switch. It is housed in a hardened,
metal, DIN-Rail enclosure, and is designed for use in
mission critical data acquisition, control, and Ethernet
I/O applications.

PRODUCT FEATURES

• Compact, Space Saving Package

• Full IEEE 802.3 Compliance

• American Bureau of Shipping (ABS) Type Approval

• EN50155 for Railway applications

• Five 10/100BaseTX RJ-45 Ports

• Unmanaged Operation

• Extended Environmental Specifi cations

• -40ºC to 80ºC Operating Temperature

• >2M Hours MTBF

• Supports Full/Half Duplex Operation

• Up to 1.0Gbs Maximum Throughput

• MDIX Auto Sensing Cable

• Auto Sensing Speed and Flow Control

• Full Wire Speed Communications

• Store-and-forward Technology

• Redundant Power Inputs (10-30 VDC)

• LED Link/Activity Status Indication

• Hardened Metal DIN-Rail Enclosure

PRODUCT OVERVIEW

105TX

The
solve the most demanding industrial communication
requirements while providing high throughput and
minimum downtime.

The

10/100BaseTX ports. All ports are full/half duplex
capable, using "state of the art" Ethernet switching

technology. The

fl ow control capabilities of the fi ve TX port connections,

and confi gures itself automatically.

Since the

to make extensive wiring changes if upgrades are

made to host computers, plant systems, or Ethernet I/O

modules. The switching fabric simply scales up or down
automatically to match specifi c network environments.

Industrial Network Switch is designed to

105TX

provides five RJ-45 auto sensing

105TX

105TX

is auto sensing, there will be no need

auto-negotiates the speed and

The

enabling these products to support extremely
sophisticated and complex network architectures.

The is an ideal candidate for upgrading existing hubs
and repeaters to increase bandwidth and determinism by
virtually eliminating network collisions. The

105TX

simplicity of the unmanaged hub.

The

the need to bring data acquisition and control network
connections back to a climate controlled environment.

The
specifi cations to meet the harsh needs of the industrial

environment. For cost savings and convenience it can
be DIN-Rail mounted alongside Ethernet I/O or other

Industrial Equipment.

To increase reliability the
redundant power inputs. LED's are provided to display
the link status and activity of each port.

105TX

supports up to 2,000 MAC addresses,

N-TRON

combines affordability and the plug & play

105TX

105TX

can simplify plant wiring by eliminating

has extended operating environmental

105TX

provides dual

105TX Specifications

CE: EN61000-6-2,4; EN61000-4-2,3,4,5,6; EN55011
UL Listed (US and Canada) per ANSI/ISA-12.12.01-2007,

BENEFITS

105TX SPECIFICATIONS

Regulatory Approvals

FCC Title 47 Part 15 Class A; ICES-003- Class A
CE: EN61000-6-2,4; EN61000-4-2,3,4,5,6; EN55011

UL Listed (US and Canada) per ANSI/ISA-12.12.01-2007,
Class I, Div 2, Groups A,B,C,D,T4A

GOST-R Certifi ed
ABS Type Approval for Shipboard Applications
DNV Type Approval Certifi cation
EN50155 for Railway Applications
RoHS Compliant

Designed to comply with:

IEEE 1613 for Electric Utility Substations
NEMA TS1/TS2 for Traffi c Control Equipment

BENEFITS

Industrial Network Switch

• Compact Size / Small Footprint

• Extended Environmental Specifi cations

• Hardened Metal DIN-Rail Enclosure

• High Performance

• High MTBF >2M Hours

• ESD Protection Diodes on RJ-45 Ports

• Surge Protection Diodes on Power Inputs

Ease of Use

• Plug & Play Operation

• Auto Sensing 10/100BaseTX

• Auto Negotiation Full/Half Duplex

• MDIX Auto Cable Sensing

• Unmanaged Operation

Increased Performance

• Full Wire Speed Capable

• Full Duplex Capable

• Eliminates Network Collisions

• Increases Network Determinism

105TX SPECIFICATIONS

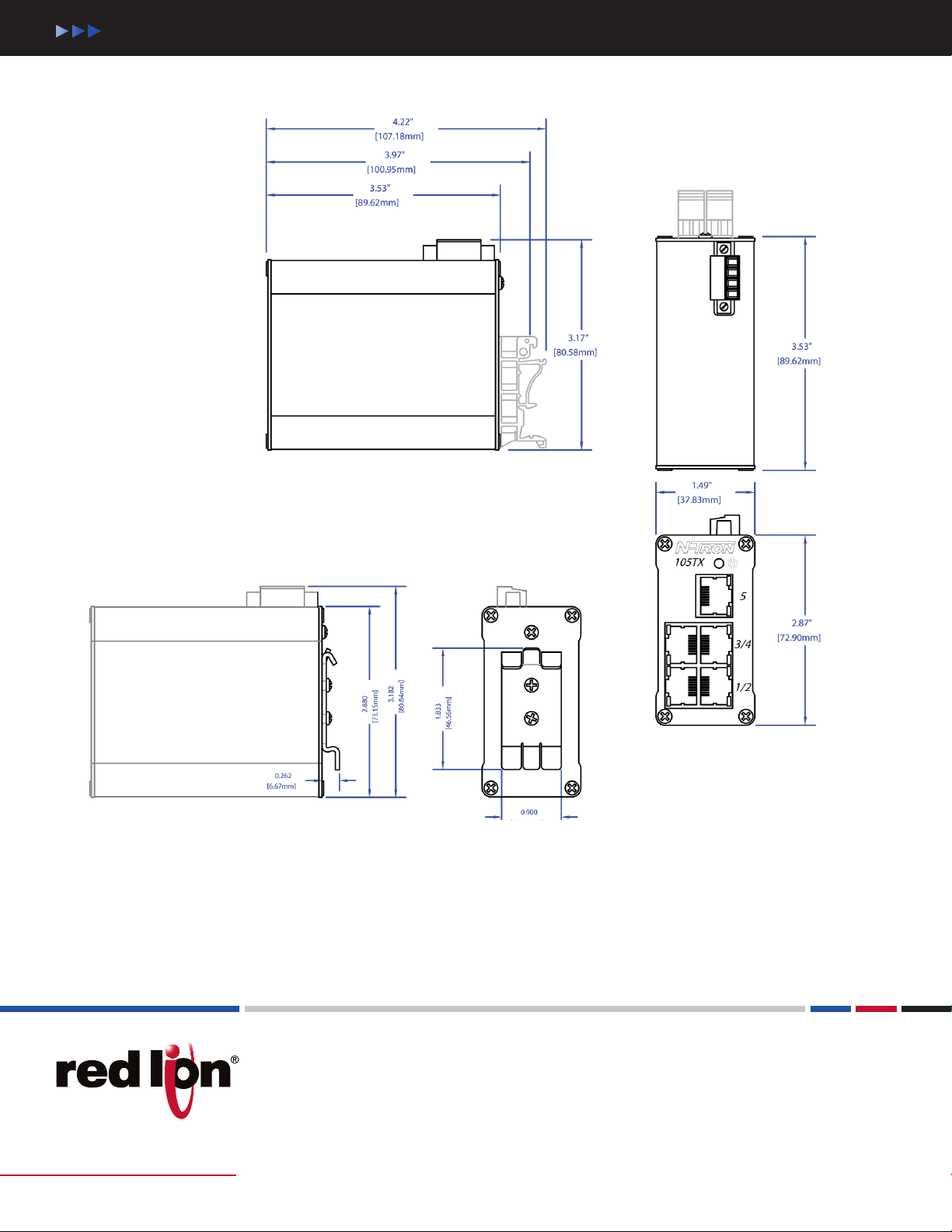

Case Dimensions

Height: 2.9" (7.3cm)
Width: 1.5" (3.8 cm)
Depth: 3.6" (9 cm)
Weight: 0.6 lbs. (0.28 kg)

DIN-Rail: 35mm

Electrical

Input Voltage: 10-30 VDC
Steady Input Current: 215mA@24V
Inrush: 7.8Amp/0.7ms@24V

Environmental

Operating Temperature: -40oC to 80oC
Storage Temperature: -40oC to 85oC

Operating Humidity: 10% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.

Shock and Vibration (bulkhead mounted)

Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial

Reliablity

MTBF: >2 Million Hours

Network Media

10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable

Connectors

10/100BaseTX: Five (5) RJ-45 TX
Copper Ports

Recommended Wiring Clearance

Front: 2" (5.08 cm)
Top: 1" (2.54 cm)

Contact Information

N-TRON Corp. N-TRON Europe GmbH
820 S. University Blvd., Suite 4E Alte Steinhauserstr 19
Mobile, AL 36609 USA 6330 Cham / Zg Switzerland
TEL: [phone] TEL: [phone]
FAX: [phone] FAX: [phone]
Website: www.n-tron.com
Email: [e-mail]

Case Dimensions

Height: 2.9" (7.3cm)
Width: 1.5" (3.8 cm)
Depth: 3.6" (9 cm)
Weight: 0.6 lbs. (0.28 kg)

DIN-Rail: 35mm

Electrical

Input Voltage: 10-30 VDC
Steady Input Current: 215mA@24V
Inrush: 7.8Amp/0.7ms@24V

Environmental

Operating Temperature: -40oC to 80oC
Storage Temperature: -40oC to 85oC

Operating Humidity: 10% to 95%
(Non Condensing)
Operating Altitude: 0 to 10,000 ft.

Shock and Vibration (bulkhead mounted)

Shock: 200g @ 10ms
Vibration/Seismic: 50g, 5-200Hz, Triaxial

Reliablity

MTBF: >2 Million Hours

Network Media

10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable

Connectors

10/100BaseTX: Five (5) RJ-45 TX
Copper Ports

Recommended Wiring Clearance

Front: 2" (5.08 cm)
Top: 1" (2.54 cm)

Ordering Information

105TX Five 10/100BaseTX Ports
NTPS-24-1.3 DIN-Rail Power Supply 24V@1.3 Amp

100-MDR-1 Metal Din Rail Option*

* MDR option must be specifi ed with switch order - not fi eld upgradable
