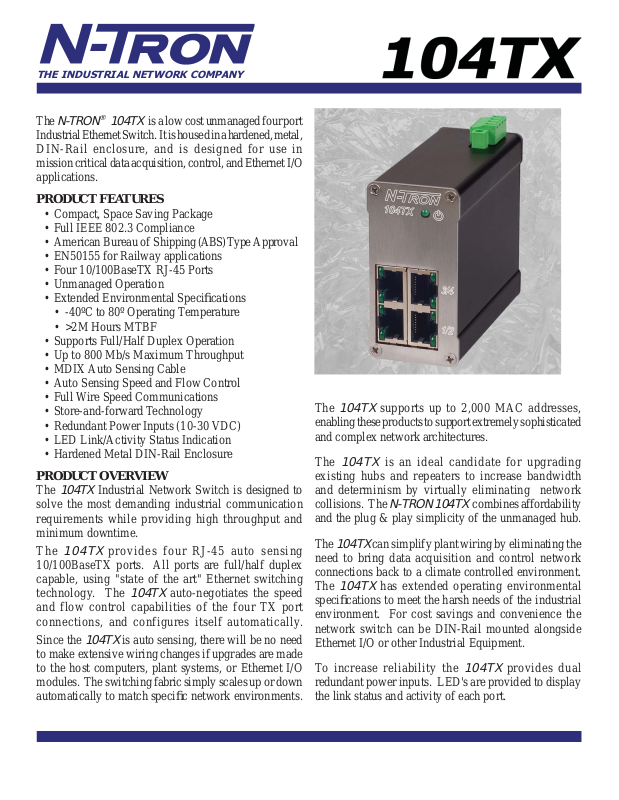

The

N- TRON

104TX

is a low cost unmanaged four port

Industrial Ethernet Switch. It is housed in a hardened, metal,
DIN-Rail enclosure, and is designed for use in
mission critical data acquisition, control, and Ethernet I/O
applications.

PRODUCT FEATURES

• Compact, Space Saving Package

• Full IEEE 802.3 Compliance

• American Bureau of Shipping (ABS) Type Approval

• EN50155 for Railway applications

• Four 10/100BaseTX RJ-45 Ports

• Unmanaged Operation

• Extended Environmental Specifi cations

• -40ºC to 80º Operating Temperature

• >2M Hours MTBF

• Supports Full/Half Duplex Operation

• Up to 800 Mb/s Maximum Throughput

• MDIX Auto Sensing Cable

• Auto Sensing Speed and Flow Control

• Full Wire Speed Communications

• Store-and-forward Technology

• Redundant Power Inputs (10-30 VDC)

• LED Link/Activity Status Indication

• Hardened Metal DIN-Rail Enclosure

PRODUCT OVERVIEW

The

104TX

Industrial Network Switch is designed to
solve the most demanding industrial communication
requirements while providing high throughput and
minimum downtime.

The

104TX

provides four RJ-45 auto sensing
10/100BaseTX ports. All ports are full/half duplex
capable, using "state of the art" Ethernet switching
technology. The

104TX

auto-negotiates the speed
and flow control capabilities of the four TX port
connections, and configures itself automatically.

Since the

104TX

is auto sensing, there will be no need
to make extensive wiring changes if upgrades are made
to the host computers, plant systems, or Ethernet I/O
modules. The switching fabric simply scales up or down
automatically to match specifi c network environments.

The

104TX

supports up to 2,000 MAC addresses,
enabling these products to support extremely sophisticated
and complex network architectures.

The

104TX

is an ideal candidate for upgrading
existing hubs and repeaters to increase bandwidth
and determinism by virtually eliminating network
collisions. The

N-TRON 104TX

combines affordability

and the plug & play simplicity of the unmanaged hub.
The

104TX

can simplify plant wiring by eliminating the
need to bring data acquisition and control network
connections back to a climate controlled environment.
The

104TX

has extended operating environmental
specifi cations to meet the harsh needs of the industrial
environment. For cost savings and convenience the
network switch can be DIN-Rail mounted alongside
Ethernet I/O or other Industrial Equipment.

To increase reliability the

104TX

provides dual
redundant power inputs. LED's are provided to display
the link status and activity of each port.

THE INDUSTRIAL NETWORK COMPANY

104TX SPECIFICATIONS

BENEFITS

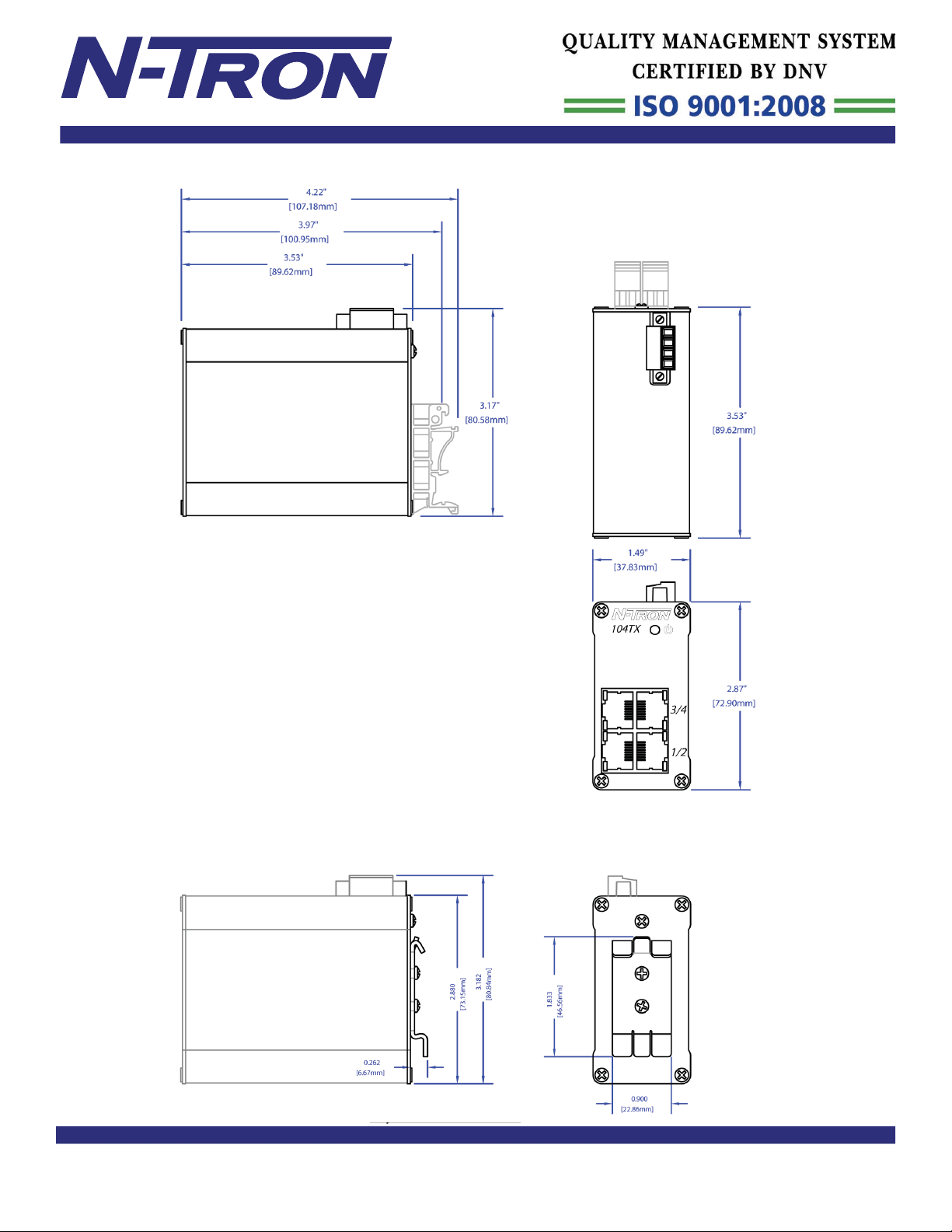

Case Dimensions

Height: 2.9" (7.3cm)
Width: 1.5" (3.8 cm)
Depth: 3.6" (9 cm)
Weight: 0.6 lbs. (0.28 kg)
DIN-Rail: 35mm

Electrical

Input Voltage: 10-30 VDC
Steady Input Current: 215mA@24V
Inrush: 7.8Amp/0.7ms@24V

Environmental

Operating Temperature: -40oC to 80oC
Storage Temperature: -40oC to 85oC
Operating Humidity: 10% to 95%

(Non Condensing)
Operating Altitude: 0 to 10,000 ft.

Reliablity

MTBF: >2 Million Hours

Network Media

10BaseT: >Cat3 Cable
100BaseTX: >Cat5 Cable

Connectors

10/100BaseTX: Four (4) RJ-45 TX
Copper Ports

Recommended Wiring Clearance

Front: 2" (5.08 cm)
Top: 1" (2.54 cm)

Ordering Information

104TX Four 10/100BaseTX Ports

NTPS-24-1.3 DIN-Rail Power Supply 24V@1.3 Amp
100-MDR-1 Metal Din Rail Option*

* MDR option must be specifi ed with switch order - not fi eld upgradable

Industrial Network Switch

• Compact Size / Small Footprint

• Extended Environmental Specifi cations

• Hardened Metal DIN-Rail Enclosure

• High Performance

• High MTBF >2M Hours

• ESD Protection Diodes on RJ-45 Ports

• Surge Protection Diodes on Power Inputs

Ease of Use

• Plug & Play Operation

• Auto Sensing 10/100BaseTX

• Auto Negotiation Full/Half Duplex

• MDIX Auto Cable Sensing

• Unmanaged Operation

Increased Performance

• Full Wire Speed Capable

• Full Duplex Capable

• Eliminates Network Collisions

• Increases Network Determinism

Regulatory Approvals

FCC Title 47 Part 15 Class A; ICES-003-Class A
CE: EN61000-6-2,4; EN61000-4-2,3,4,5,6; EN55011

UL Listed (US and Canada) per ANSI/ISA-12.12.01-2007,
Class I, Div 2, Groups A,B,C,D,T4A

ABS Type Approval for Shipboard Applications
DNV Type Approval Certifi cation
EN50155 for Railway Applications
RoHS Compliant; GOST-R Certifi ed

Designed to comply with:

IEEE 1613 for Electric Utility Substations;
and NEMA TS1/TS2 for Traffi c Control Equipment
