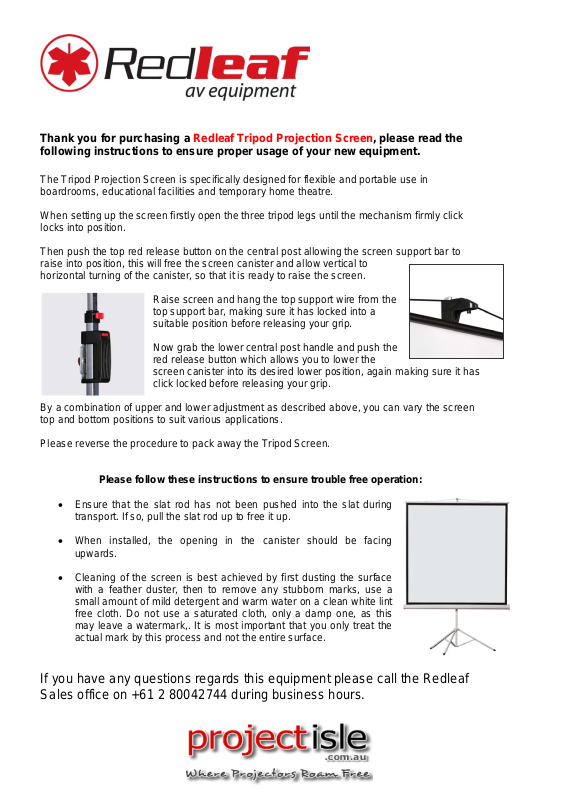

Thank you for purchasing a Redleaf Tripod Projection Screen, please read the
following instructions to ensure proper usage of your new equipment.
The Tripod Projection Screen is specifically designed for flexible and portable use in
boardrooms, educational facilities and temporary home theatre.
When setting up the screen firstly open the three tripod legs until the mechanism firmly click
locks into position.
Then push the top red release button on the central post allowing the screen support bar to
raise into position, this will free the screen canister and allow vertical to
horizontal turning of the canister, so that it is ready to raise the screen.
Raise screen and hang the top support wire from the
top support bar, making sure it has locked into a
suitable position before releasing your grip.
Now grab the lower central post handle and push the
red release button which allows you to lower the
screen canister into its desired lower position, again making sure it has
click locked before releasing your grip.
By a combination of upper and lower adjustment as described above, you can vary the screen
top and bottom positions to suit various applications.
Please reverse the procedure to pack away the Tripod Screen.
Please follow these instructions to ensure trouble free operation:
• Ensure that the slat rod has not been pushed into the slat during
transport. If so, pull the slat rod up to free it up.
• When installed, the opening in the canister should be facing
upwards.
• Cleaning of the screen is best achieved by first dusting the surface
with a feather duster, then to remove any stubborn marks, use a
small amount of mild detergent and warm water on a clean white lint
free cloth. Do not use a saturated cloth, only a damp one, as this
may leave a watermark,. It is most important that you only treat the
actual mark by this process and not the entire surface.
If you have any questions regards this equipment please call the Redleaf
Sales office on +61 2 80 0 427 44 during business hours.
