WELCOME
Thank you for purchasing our IP camera! This user’s
manual is designed to be a reference tool for your system.
Please read the following safeguards and warnings
carefully before you use this series product!
Please keep this user’s manual well for future reference!
4
IMPORTANT SAFEGUARDS AND WARNINGS
1. ELECTRICAL SAFETY
All installation and operation here should conform to your local electrical safety codes.
The power shall conform to the requirement in the SELV (Safety Extra
Low Voltage) and the Limited power source is rated 12V DC in the IEC1-60950.
We assume no liability or responsibility for all the fires or electrical shock caused by
improper handling or installation.
We are not liable for any problems caused by unauthorized modifications or attempted
repairs.
2. TRANSPORTATION SECURITY
Heavy stress, violent vibration or water splash are not allowed during transportation, storage
and installation.
3. INSTALLATION
Do not apply power to the camera before completing installation.
Please install the proper power cut-off device during the installation connection.
Always follow the instruction guide the manufacturer recommended.
4. QUALIFIED ENGINEERS NEEDED
All the examination and repair work should be done by the qualified service engineers.
We are not liable for any problems caused by unauthorized modifications or attempted
repair
5. ENVIROMENT
This series IP camera should be installed in a cool, dry place away from direct sunlight,
inflammable, explosive substances and etc.
Please keep it away from the electromagnetic radiation object and environment.
Please make sure the CCD (CMOS) component is out of the radiation of the laser beam
device. Otherwise it may result in CCD (CMOS) optical component damage. Please keep the
sound ventilation. Do not allow the water and other liquid falling into the camera. Thunderproof device is recommended to be adapted to better prevent thunder.
The grounding holes of the product are recommended to be grounded to further enhance
the reliability of the camera.
6. DAILY MAINTENANCE
Please shut down the device and then unplug the power cable before you begin daily
maintenance work. Do not touch the CCD (CMOS) optic component. You can use the blower
to clean the dust on the lens surface. Always use the dry soft cloth to clean the device. If
there is too much dust, please use the water to dilute the mild detergent first and then use it
to clean the device. Finally use the dry cloth to clean the device. Please put the dustproof
cap to protect the CCD (CMOS) component when you do not use the camera.
5
7. ACCESSORIES
Be sure to use all the accessories recommended by manufacturer. Before installation, please
open the package and check all the components are included. Contact your local retailer
ASAP if something is broken in your package.
6
1. GENERAL INTRODUCTION
1.1. Overview
This series IP camera integrates the traditional camera and network video technology. It
adopts audio and video data collection, transmission together. It can connect to the
network directly without any auxiliary device. This series RLC uses standard H.264 video
compression technology and MJPEG audio compression technology, which maximally
guarantee the audio and video quality.
This series RLC enclosure has the strong resistance capacity, which can guarantee the
proper work performance under heavy strike. It supports real-time monitor and motion
detect function.
It can be used alone or used in a network area. When it is used lonely, you can connect it
to the network and then use a network client-end. Due to its multiple functions and
various uses, this series RLC is widely used in many environments such office, bank, road
monitor and etc.
1.2. Features
7
1.3. SPECIFICATIONS
1.3.1. Performance
Please refer to the following sheet for Red Leaf performance specification.
8
9
10
11
12
13
2. FRAMEWORK
2.1. DIMENSIONS
Please refer to the following figures for the dimension information. The unit is mm. See
Figure 2-1 through Figure 2-3.
14
2.2. STRUCTURE
Please refer to the following figure for detailed information. See Figure 2-4.
Please refer to the following sheet for detailed information.
15
3. INSTALLATION
3.1. DEVICE INSTALLATION
This series RLC can be put on the table to realize surveillance. Or you can use the bracket
or the in-ceiling installation to realize the hang function. Please refer to the steps listed
below.
STEP 1
Use the inner hexagonal wrench (provided) to loose the three inner hexagon screws
in the dome cover and then open the cover.
STEP 2
Please take the installation position map in the accessories bag, and then paste it on
the ceiling or the wall according to your monitor area requirements.
Draw and then dig three plastic expansion bolts holes in the installation surface and
then insert three expansion bolts in the holes.
Secure these three bolts firmly.
Please dig a “cable exit hole” in the surface according to the installation position map
if you want to draw out the cable from the top of the installation surface. You need to
use the proper tool to open up the side port of the U-cable channel of the dome
camera pedestal if you want to draw out the cable from the side port of the cable
channel when you are installing the device cable and then you can draw out the cable
from the cable channel of the pedestal.
STEP 3
16
Adjust the device installation pedestal to the proper position and then draw the cable
through the cable exit you just dug in the ceiling (wall).
Line up the TOP direction of the device to the installation position map and then line
up the three screw holes in the device pedestal to the three plastic expansion bolt
holes in the installation position. Put the three self-tapping screws in the three plastic
expansion bolts firmly. Now the dome camera is secure in the installation surface.
STEP 4
Loosen the two M3 secure screws of the lens rotation structure (Do not remove,
loosen a little bit will be OK.). Use the inner hexagonal wrench to insert them to the
inner hexagonal holes and then use the wrench to turn the lens. Adjust the lens to
the proper monitor angle and then secure the screws of the lens rotation structure.
The lens adjust angle ranges are: flip (0°~+75°), video pan rotation (-15° ~+15°), video
rotation angle (-15° ~+15°).
STEP 5
Line up the dome camera cover to the cable exits and put the cover back. Use the
inner hexagonal wrench to secure the three inner hexagonal screws firmly. Now the
installation completed.
NOTE:
The device GND cable can effectively enhance the device reliability.
The GND hole is near the cable exit of the back of the enclosure. The
GND screw specification is M3. See Figure 3-3.
17
3.2. SD CARD INSTALLATION
Important
Some product series do not support the SD card storage function. Please shut down the
power and then turn off the device before you install the SD card.
STEP 1
Please refer to the step 1 in chapter 2.1 to open the device.
STEP 2
Find the “SD CARD” indicator in the enclosure. Adjust the SD card to the proper direction
and then install. See Figure 3-4.
STEP 3
Please refer to the step 5 in chapter 2.1 to complete the installation.
18
4. QUICK CONFIGURATION TOOL
4.1. OVERVIEW
Quick configuration tool can search current IP address, modify IP address. At the same
time, you can use it to upgrade the device. Please note the tool only applies to the IP
addresses in the same segment.
4.2. OPERATION
Double click the “RLC tool box.exe’” icon, you can see an interface is shown as in Figure
4-1.
In the device list interface, you can view device IP address, subnet mask, default gateway,
MAC address and etc.
Select one IP address and then right click mouse, you can see an interface which is shown
as in Figure 4-2.
19

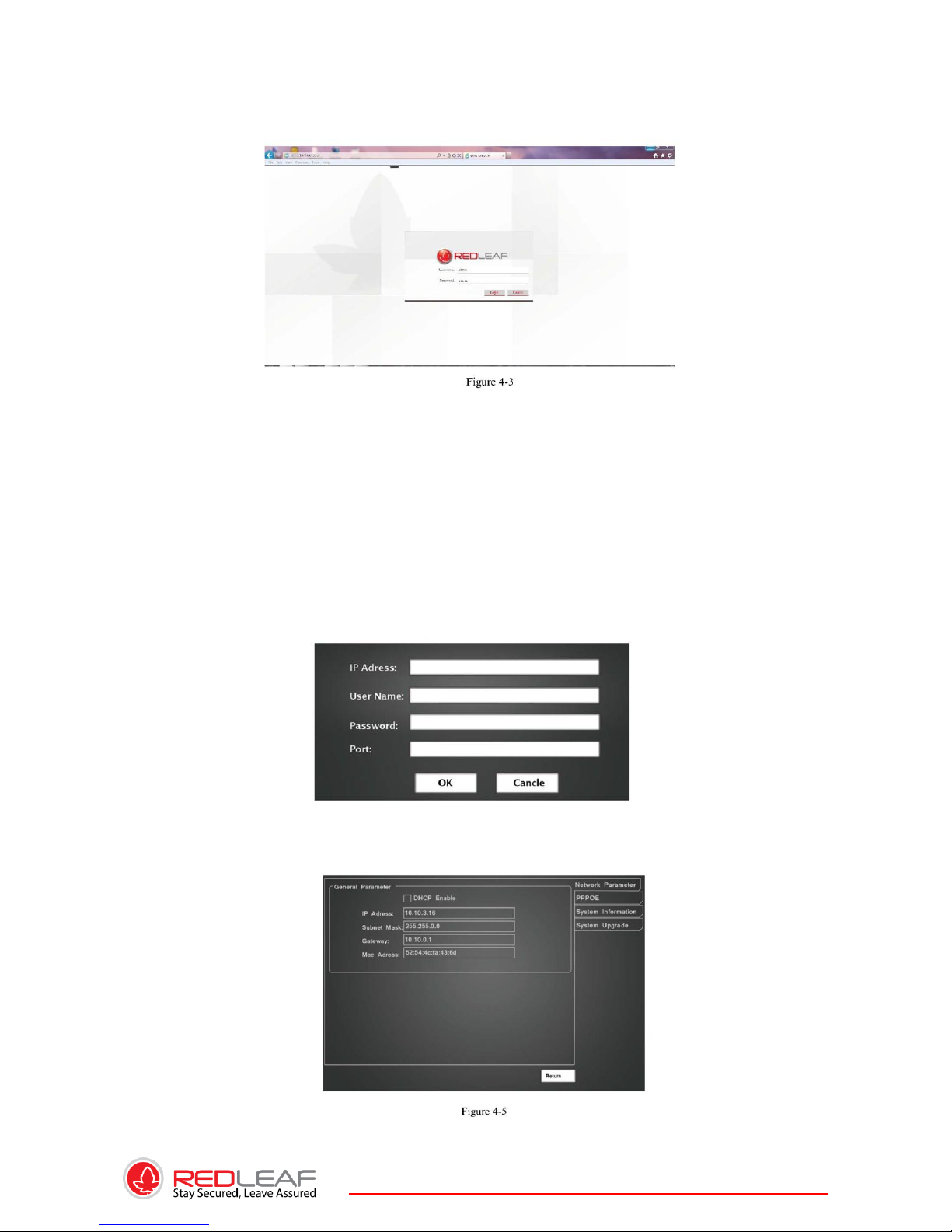

Select the “Open Device Web” item; you can go to the corresponding web login interface.
See Figure 4-3.
If you use device background upgrade port 3800 to login, other setups are all invalid.
If you want to modify the device IP address without logging in the device web interface,
you can go to the configuration tool main interface to set.
In the configuration tool search interface (Figure 4-1), please select a device IP address
and then double click it to open the login interface. Or you can select an IP address and
then click the Login button to go to the login interface. See Figure 4-4.
In Figure 4-4, you can view device IP address, username, password and port.
Please modify the corresponding information to login.
Please note the port information here shall be identical with the port value you set in
TCP port in Web Network interface. Otherwise, you can’t login the device.
After you logged in, the configuration tool main interface is shown as below.
See Figure 4-5.
20
5. WEB OPERATION
This series RLC product support the Web access and management via PC. Web includes
several modules includes monitor channel preview, PTZ control, system configuration,
alarm and etc.
IP camera factory default setup:
. IP address: 192.168.1.108.
. User name: admin
. Password: admin
5.1. NETWORK CONNECTION
Please follow the steps listed below for network connection.
. Make sure the RLC has connected to the network properly.
. Please set the IP address, subnet mask and gateway of the PC and the RLC respectively.
RLC default IP address is 192.168.1.108. Subnet mask is 255.255.255.0. Gateway is
192.168.1.1
. Use order ping ***. ***. ***. *** (* IP camera address) to check connection is OK or
not.
5.2. LOGIN AND MAIN INTERFACE
Open IE and input IP camera address in the address bar.
For example, if your camera IP is 192.168.1.108, then please input http:// 192.168.1.108
in IE address bar. See Figure 5-1.
The login interface is shown as below. See Figure 5-2.
Please input your user name and password. Default factory name is admin and
password is admin.
Note: For security reasons, please modify your password after you first login.
21
If it is your first time to login in, system pops up warning information to ask you whether
install control webrec.cab or not after you logged in for one minute. Please click OK
button, system can automatically install the control. When system is upgrading, it can
overwrite the previous Web too.
If you can’t download the ActiveX file, please check whether you have installed the plugin to disable the control download. Or you can lower the IE security level. See Figure 5-3.
After you logged in, you can see the main window. See Figure 5-4.
Please refer to the Web Operation Manual included in the resource CD for detailed
operation instruction.
22
6. FAQ
23
Appendix Toxic or Hazardous Materials or Elements
Note
O: Indicates that the concentration of the hazardous substance in all homogeneous materials in
the parts is below the relevant threshold of the SJ/T11363-2006 standard.
X: Indicates that the concentration of the hazardous substance of at least one of all
homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006
standard. During the environmental-friendly use period (EFUP) period, the toxic or hazardous
substance or elements contained in products will not leak or mutate so that the use of these
(substances or elements) will not result in any severe environmental pollution, any bodily injury
or damage to any assets. The consumer is not authorized to process such kind of substances or
elements, please return to the corresponding local authorities to process according to your
local government statutes.
Note
• This manual is for reference only. Slight difference may be found in the user interface.
• All the designs and software here are subject to change without prior written notice.
• All trademarks and registered trademarks are the properties of their respective owners.
• If there is any uncertainty or controversy, please refer to the final explanation of us.
• Please visit our website or contact your local service engineer for more information.
24
About RedLeaf Company:
RedLeaf is a Canadian-based IT company
offering state-of-the-art network security
products fulfilling customers’ needs for
cutting edge security technologies.
Founded in 2002, RedLeaf internationally
provides professional IP based video
security solutions for surveillance, remote
monitoring and other security
applications,including network security
cameras, video servers, video decoders,
video management software and related
accessories.
Loading...
