RedLeaf 32 Series, 38 Series, 32V-P Series, 32-P Series 32-S Series, 38-E Series User Manual

...

1 2

Table of Contents

1 Features and Specifications ................................................................................................... 8

1.1 Overview ....................................................................................................................... 8

1.2 Features......................................................................................................................... 8

1.2.1 32V/32V-P Series ...................................................................................................... 9

1.2.2 32V/32V-P Series .................................................................................................... 10

1.3 Alarm Connection ........................................................................................................ 12

1.4 Bidirectional talk .......................................................................................................... 12

1.4.1 Device-end to PC-end ............................................................................................. 12

1.4.2 PC-end to the device-end ....................................................................................... 13

1.5 Mouse Operation ......................................................................................................... 13

1.6 Remote Control ............................................................................................................ 14

2 HDD Installation .................................................................................................................. 17

2.1 32V/32V-P Series .......................................................................................................... 17

3 System Performance ........................................................................................................... 18

4 GUI Operation ..................................................................................................................... 19

4.1 Login ........................................................................................................................... 19

4.2 Right Click Menu .......................................................................................................... 21

4.3 Main Menu .................................................................................................................. 21

4.4 Search & Playback ........................................................................................................ 21

4.5 Information ................................................................................................................. 24

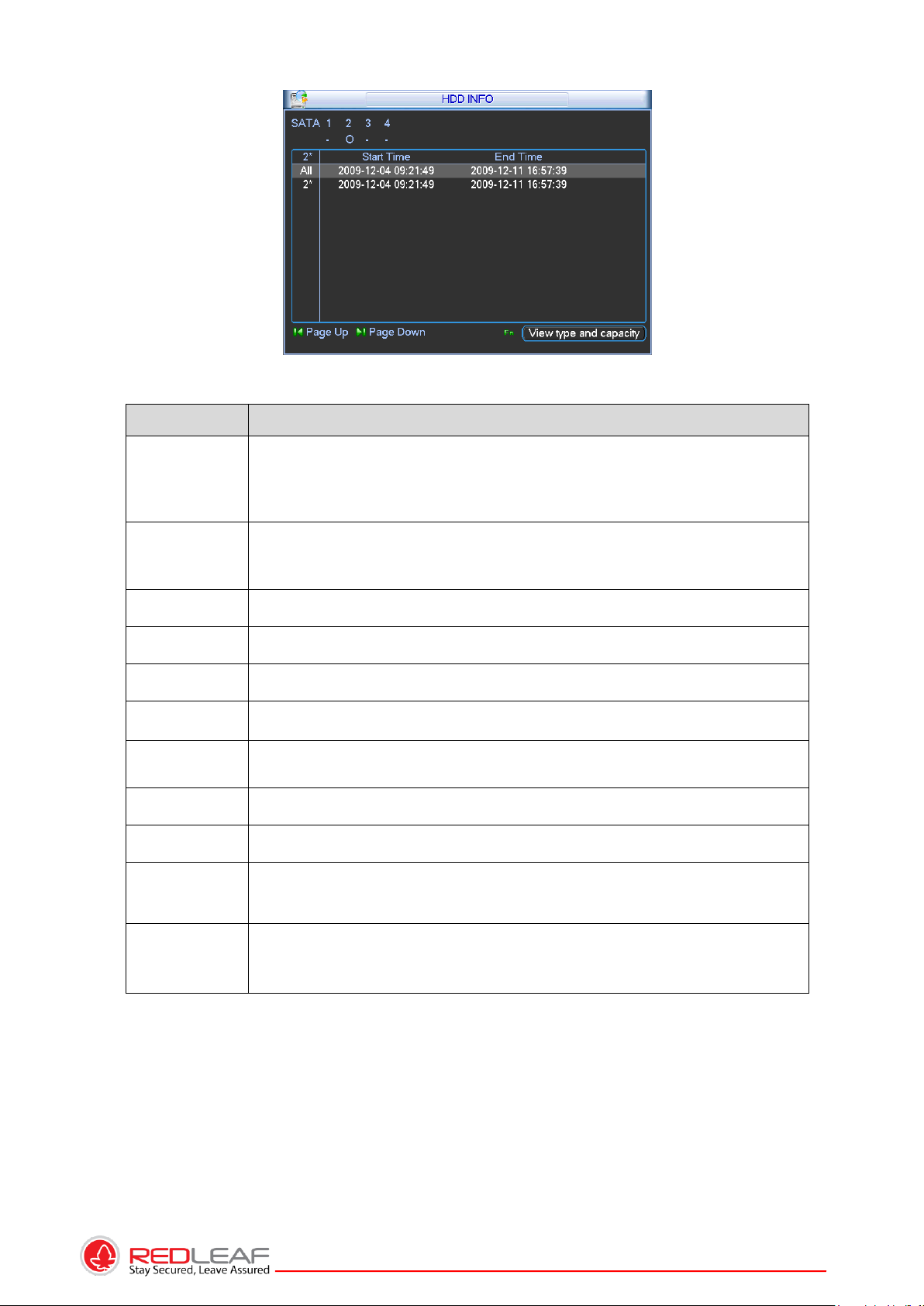

4.5.1 HDD Information .................................................................................................... 25

4.5.2 BPS ........................................................................................................................ 26

4.5.3 Log ........................................................................................................................ 27

4.5.4 Version .................................................................................................................. 28

4.5.5 Online Users .......................................................................................................... 29

4.5.6 Remote Device Information .................................................................................... 29

4.6 Setting ......................................................................................................................... 30

4.6.1 General .................................................................................................................. 31

4.6.2 Encode .................................................................................................................. 32

4.6.3 Schedule ................................................................................................................ 34

4.6.3.1 Quick Setup ................................................................................................... 35

4.6.4 RS232 .................................................................................................................... 36

4.6.5 Network ................................................................................................................ 36

4.6.5.1 Network Setting ............................................................................................. 37

4.6.5.2 IP Filter .......................................................................................................... 38

4.6.5.3 NTP Setup ...................................................................................................... 38

4.6.5.4 Multiple Cast Setup ........................................................................................ 39

4.6.5.5 PPPoE ............................................................................................................ 40

4.6.5.6 DDNS Setup ................................................................................................... 40

4.6.5.7 UPNP ............................................................................................................. 42

4.6.5.8 WIFI Setting ................................................................................................... 43

4.6.5.9 Email ............................................................................................................. 45

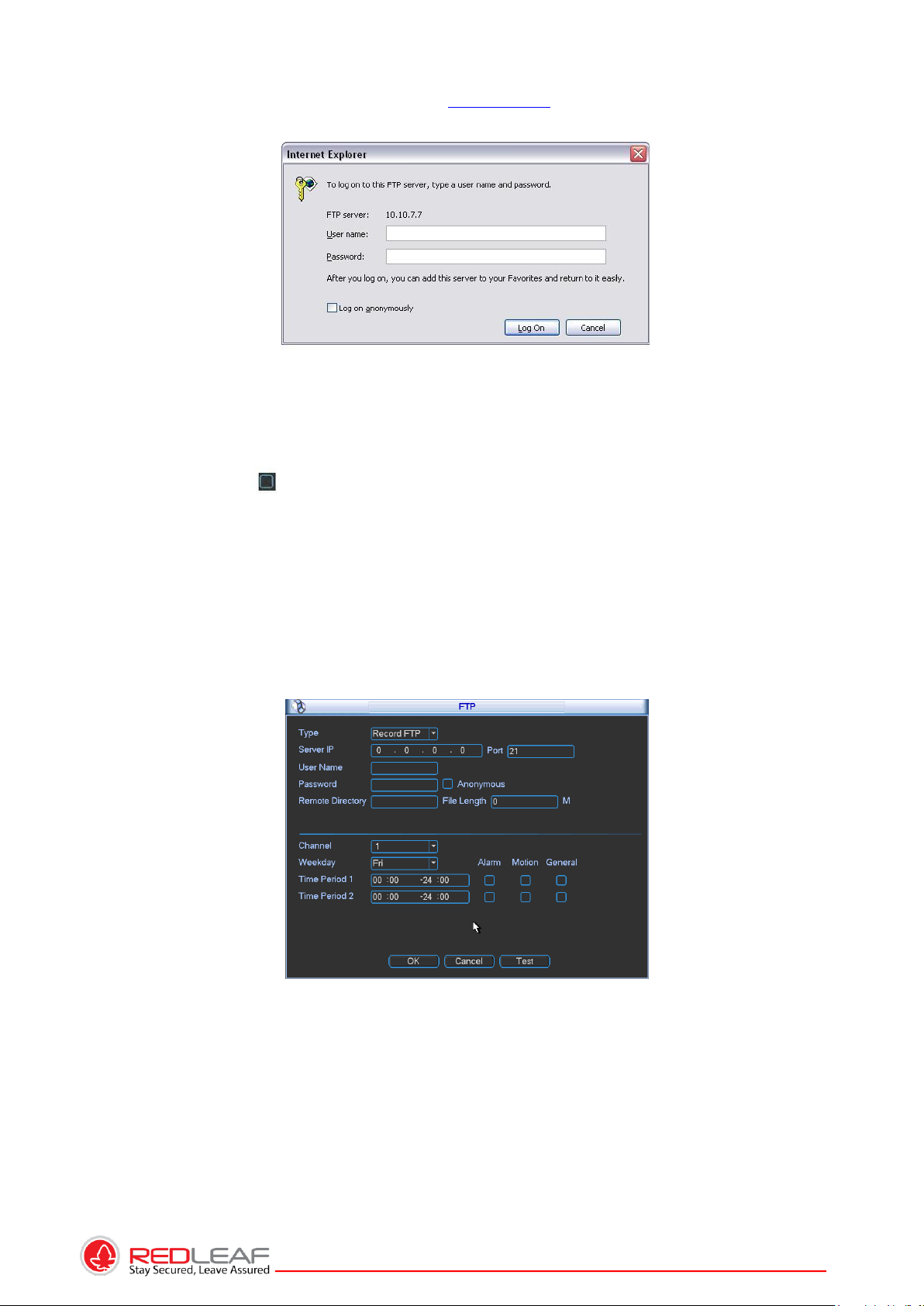

4.6.5.10 FTP ................................................................................................................ 46

4.6.5.11 Alarm center .................................................................................................. 48

4.6.5.12 SNMP ............................................................................................................ 48

4.6.5.13 Auto register .................................................................................................. 49

4.6.6 Alarm .................................................................................................................... 49

4.6.7 Detect.................................................................................................................... 53

4.6.8 PTZ ........................................................................................................................ 56

4.6.9 Display .................................................................................................................. 58

4.6.10 Default .................................................................................................................. 59

4.6.11 Remote Device ....................................................................................................... 60

4.6.11.1 Built-in Switch Setup ...................................................................................... 60

4.6.11.2 Remote Device ............................................................................................... 61

4.6.11.3 Short-cut Menu .............................................................................................. 63

4.7 Advanced ..................................................................................................................... 64

4.7.1 HDD Management ................................................................................................. 64

4.7.2 Abnormity ............................................................................................................. 67

4.7.3 Alarm Output ......................................................................................................... 68

4.7.4 Manual Record ...................................................................................................... 68

4.7.4.1 Manual record menu ...................................................................................... 68

4.7.4.2 Basic operation .............................................................................................. 68

4.7.4.3 Enable/disable record .................................................................................... 69

4.7.4.4 Enable all channel recording ........................................................................... 69

4.7.4.5 Stop all channel recording .............................................................................. 70

4.7.4.6 Account ......................................................................................................... 70

4.7.4.7 Modify Password ........................................................................................... 71

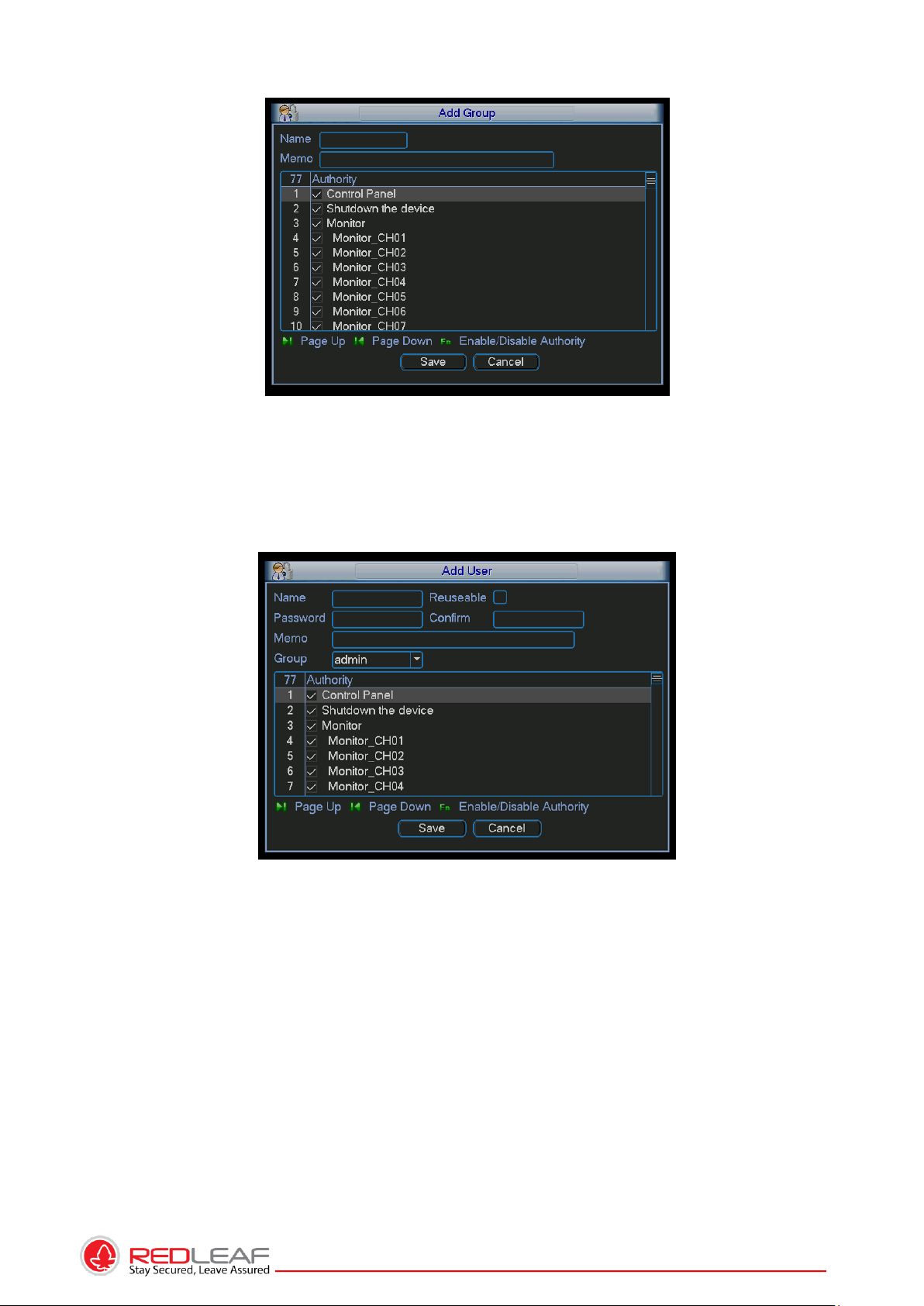

4.7.4.8 Add/Modify Group ......................................................................................... 71

4.7.4.9 Add/Modify User ........................................................................................... 72

4.7.5 Auto Maintenance ................................................................................................. 72

4.7.6 Configuration Backup ............................................................................................. 73

4.8 Shutdown .................................................................................................................... 73

5 Quick Configuration Tool ..................................................................................................... 75

5.1 Overview ..................................................................................................................... 75

5.2 Operation .................................................................................................................... 75

6 Web Operation ................................................................................................................... 78

6.1 General Introduction .................................................................................................... 78

6.1.1 Preparation ............................................................................................................ 78

6.1.2 Log in ..................................................................................................................... 78

6.2 LAN Mode ................................................................................................................... 79

6.2.1 Monitor Channel Menu Tree................................................................................... 80

6.2.2 System Menu ......................................................................................................... 83

6.2.3 Monitor Window Switch ........................................................................................ 83

6.2.4 PTZ Control ............................................................................................................ 83

6.2.5 Color and More Setup ............................................................................................ 85

6.3 WAN Login ................................................................................................................... 86

6.4 Configuration ............................................................................................................... 88

6.4.1 System Information ................................................................................................ 88

6.4.1.1 Version Information ....................................................................................... 88

6.4.1.2 HDD information ............................................................................................ 88

6.4.1.3 Log ................................................................................................................ 89

6.4.2 System Configuration ............................................................................................. 89

6.4.2.1 General Setup ................................................................................................ 89

6.4.2.2 Encode .......................................................................................................... 91

6.4.2.3 Schedule ........................................................................................................ 92

6.4.2.4 RS232 ............................................................................................................ 94

6.4.2.5 Network ........................................................................................................ 95

6.4.2.6 Alarm .......................................................................................................... 103

6.4.2.7 Detect.......................................................................................................... 105

6.4.2.8 PTZ .............................................................................................................. 106

6.4.2.9 Default & Backup ......................................................................................... 107

6.4.3 Advanced ............................................................................................................. 108

6.4.3.1 HDD Management ....................................................................................... 108

6.4.3.2 Abnormity ................................................................................................... 109

6.4.3.3 Alarm I/O .................................................................................................... 110

6.4.3.4 Record ......................................................................................................... 111

6.4.3.5 Account ....................................................................................................... 111

6.4.3.6 Snapshot ..................................................................................................... 113

6.4.3.7 Auto Maintenance ....................................................................................... 113

6.4.3.8 Remote device ............................................................................................. 114

6.4.3.9 Preview Control ........................................................................................... 115

6.4.4 Additional Function .............................................................................................. 116

6.4.4.1 Auto register ................................................................................................ 116

6.4.4.2 Mobile Configuration ................................................................................... 116

6.4.4.3 WIFI Configuration ....................................................................................... 117

6.5 Search ....................................................................................................................... 118

6.6 Alarm ........................................................................................................................ 121

6.7 About ........................................................................................................................ 123

6.8 Log out ...................................................................................................................... 123

7 FAQ .................................................................................................................................. 124

8 Appendix A HDD Capacity Calculation ................................................................................ 129

9 Appendix B Compatible SATA HDD ..................................................................................... 130

10 Appendix C Compatible USB List .................................................................................... 132

11 Appendix D Compatible Displayer List ............................................................................ 134

12 Appendix E No-IP DDNS ................................................................................................. 135

Appendix H Toxic or Hazardous Materials or Elements .............................................................. 141

Welcome

Thank you for purchasing our network video recorder! This user’s manual is designed to be a reference tool for your system. Please open the accessory bag to check the items one by one in accordance with the list below. Contact your local retailer ASAP if something is missing or damaged in the bag.

Important Safeguards and Warnings

1． Electrical safety

All installation and operation here should conform to your local electrical safety codes. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.

2．Transportation security

Heavy stress, violent vibration or water splash are not allowed during transportation, storage and installation.

3． Installation

Keep upwards. Handle with care. Do not apply power to the NVR before completing installation. Do not place objects on the NVR.

4． Qualified engineers needed

All the examination and repair work should be done by the qualified service engineers. We are not liable for any problems caused by unauthorized modifications or attempted repair.

5． Environment

The NVR should be installed in a cool, dry place away from direct sunlight, inflammable, explosive substances and etc. This series product shall be transported, storage and used in the environment ranging from 0℃ to 50 ℃.

6. Accessories

Be sure to use all the accessories recommended by manufacturer. Before installation, please open the package and check all the components are included. Contact your local retailer ASAP if something is broken in your package.

7. Lithium battery Improper battery use may result in fire, explosion, or personal injury! When replace the battery, please make sure you are using the same model!

Before your operation please read the following instructions carefully.

 Installation environment

 Keep away from extreme hot places and sources；  Avoid direct sunlight；  Keep away from extreme humid places；  Avoid violent vibration；  Do not put other devices on the top of the NVR；  Be installed in well ventilated place; do not block the vent.

 Accessories

Check the following accessories after opening the box：

 Please refer to the packing list in the box *

Component Name

32 Series

32-P

Series

32-S

Series

32V Series

32V-P

Series

38 Series

38-E

Series

NVR

1 1 1 1 1 1 1

7-pin SATAzcable

2 2 2

N/A

N/A 8 8

Power cable

1 2 1 1 2 1 1

Network cable

1 1 1 1 1 1 1

Remote control

1 1 1 1 1 1 1

Black optical mouse

1 1 1 1 1 1 1

Power adapter

1 2 1 1 2

N/A

Quick start guide

1 1 1 1 1 1 1

Plastic pad

4 4 4 4 4 4 4

1 Features and Specifications

User Management

 ·Each group has different management powers that can be edited freely. Every user belongs to

an exclusive group.

Storage

 Via corresponding setup (such as alarm setup and schedule setup), you can backup related

audio/video data in the network video recorder.

 Support Web record and record local video and storage the file in the client end.

Alarm

 Respond to external alarm simultaneously (within 200MS), based on user’s pre-defined relay

setup, system can process the alarm input correctly and prompt user by screen and voice (support pre-recorded audio).

 Support central alarm server setup, so that alarm information can remotely notify user

automatically. Alarm input can be derived from various connected peripheral devices.

 Alert you via EMAIL.

Network Monitor

 Through network, sending audio/video data compressed by IPC or NVS to client-ends, then the

data will be decompressed and display. If bandwidth is big enough, latency is less than 500ms

 Support max 10 connections  Transmit audio/video data by HTTP, TCP, UDP, MULTICAST, RTP/RTCP and etc.  Transmit some alarm data or alarm info by SMTP.  Support WEB access in WAN.

Window Split

 Adopt the video compression and digital process to show several windows in one monitor.

Support 1/4/9/16-window display.

Record

 Support schedule record function. Save the recorded files in the HDD, client-end PC, or network

storage server. You can search or playback the saved files at the local-end or via the Web.

Backup

 Support network backup, USB record backup function, the recorded files can be saved in

network storage server, peripheral USB device, burner and etc.

Network Management

 Supervise NVR configuration and control power via Ethernet.  Support management via WEB.

Peripheral Equipment Management

 Support peripheral equipment management such as protocol setup and port connection.  Support transparent data transmission through RS232/RS485.

1.1 Overview

This series NVR is a high performance network video recorder. This series product support local preview, multiple-window display, recorded file local storage, remote control and mouse shortcut menu operation, and remote management and control function. All these functions support this series product to be used in various situations.

This series product supports centre storage, front-end storage and client-end storage. The monitor zone in the front-end can be set in anywhere. Working with other front-end devices such as IPC, NVS, this series product can establish a strong surveillance network via the CMS. In the network system, there is only one network cable from the monitor centre to the monitor zone in the whole network. There is no audio/video cable from the monitor centre to the monitor zone. The whole project is featuring of simple connection, low-cost, low maintenance work.

This series NVR can be widely used in many areas such as public security, water conservancy, transportation and education.

1.2 Features

Auxiliary

 Support switch between NTSC and PAL.  Support real-time system resources information and running statistics display.  Support log file.

 Local GUI output. Shortcut menu operation via mouse.  IR control function. Shortcut menu operation via remote control.  Support IPC or NVS remote video preview and control.

Name

Icon

Function

Power button

Power button, press this button for three seconds to boot up or shut down NVR.

Assistant

 One-window monitor mode, click this button to display assistant function: PTZ

control and image color.

 Backspace function: in numeral control or text control, press it for 1.5 seconds

to delete the previous character before the cursor.

 In motion detection setup, working with Fn and direction keys to realize setup.  In text mode, click it to switch between numeral, English character

(small/capitalized) and etc.

 In HDD management interface, you can click it to switch HDD record

information and other information (Menu prompt)

 Realize other special functions.

USB port

To connect USB storage device, USB mouse, burner and etc.

1.2.1 32V/32V-P Series

The front panel is shown as below. See Figure 1-1.

Figure 1-1

Please refer to the following sheet for front panel button information.

Power indication light

Power

Power indication light.

HDD abnormal indication light

HDD

HDD error occurs or HDD capacity is below specified threshold value, the light becomes red to alert you.

Network abnormal indication light

Net

Network error occurs or there is no network connection, the light becomes red to alert you.

IR Receiver

It is to receive the signal from the remote control.

1.2.2 32V/32V-P Series

The 32V series rear panel is shown as below. See Figure 1-2

The 32V-P rear panel is shown as below. See Figure 1-3.

Figure 1-2

Please refer to the following sheet for detailed information.

Port Name

Connection

Function

USB

USB port.

Connect to USB mouse.

NET

Network port

10M/100M/1000M self-adaptive Ethernet port. Connect to the network cable.

HDMI

High Definition Media Interface

High definition audio and video signal output port. It transmits uncompressed high definition video and multiple-channel data to the HDMI port of the display device.

VGA

VGA video output port

VGA

VGA video output port. Output analog video signal. It can connect to the monitor to view analog video.

1-3

Alarm input port 1-3.

I/O port

 Alarm input port.  When your alarm input device is using external power,

please make sure the device and the NVS have the same ground.

Alarm input port ground end

Alarm input ground end.

Alarm output port

 3 groups of alarm output ports. (Group 1：port NO1～

C1,Group 2:port NO2 ～ C2,Group 3:port NO3 ～ C3）).Output alarm signal to the alarm device. Please make sure there is power to the external alarm device.

 NO：Normal open alarm output port.  C：Alarm output public end.

Figure 1-3

Port Name

Connection

Function

RS485 port

RS485_A port. It is the cable A. You can connect to the control devices such as speed dome PTZ.

RS485_B.It is the cable B. You can connect to the control devices such as speed dome PTZ.

Power input port

Input 12V DC.

Power button

Power on/off button.

PoE PORTS

Built-in Switch supports PoE function.

Power input port

Switch power port. Input DC 48V.

Please note the 32V series product does not have this port.

MIC IN

Audio input port

Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as mike phone, pickup.

MIC OUT

Audio output port

Audio output port. It is to output the analog audio signal to the devices such as the sound box.

eSATA

eSATA port

External SATA port. It can connect to the device of the SATA port. Please jump the HDD when there is peripheral connected HDD.

1.3 Alarm Connection

Please refer to the steps listed below.

 Connect the alarm input device to the alarm input port.  Connect the alarm output device to the alarm output port. The NO and NC alarm output device can connect to the NO/C/NC

port. For the NO alarm device, please connect to the NO/C ports. For the NC alarm device, please connect to the NC/C ports. Please note the NO/C ports are for NO alarm device only.

 Open Web, and go to the Alarm setup interface to set the alarm input and output. The alarm 01 is corresponding to the first

channel of the device I/O port and so on. Please set the NO/NC type according to the high/low level the alarm input device generated when an alarm occurred

 Set the alarm output on the Web. The alarm output 01 is corresponding to the first group of alarm output port.

1.4 Bidirectional talk

1.4.1 Device-end to PC-end

Device Connection

Please connect the speaker or the pickup to the first audio input port in the device rear panel. Then connect the earphone or the sound box to the audio output port in the PC. Login the Web and then enable the corresponding channel real-time monitor. Please refer to the following interface to enable bidirectional talk.

Left click mouse

When you have selected one menu item, left click mouse to view menu content.

Modify checkbox or motion detection status.

Click combo box to pop up dropdown list

Figure 1-4

Listening Operation

At the device end, speak via the speaker or the pickup, and then you can get the audio from the earphone or sound box at the pc-end.

1.4.2 PC-end to the device-end

Device Connection

Connect the speaker or the pickup to the audio output port in the PC and then connect the earphone or the sound box to the first audio input port in the device rear panel. Login the Web and then enable the corresponding channel real-time monitor. Please refer to the above interface (Figure 1-4) to enable bidirectional talk.

Listening Operation

At the PC-end, speak via the speaker or the pickup, and then you can get the audio from the earphone or sound box at the device-end.

1.5 Mouse Operation

Please refer to the following sheet for mouse operation instruction.

In input box, you can select input methods. Left click the corresponding button on the panel you can input numeral/English character (small/capitalized). Here ← stands for backspace button. ＿ stands for space button.

In English input mode: _stands for input a backspace icon and ← stands for deleting the previous character.

In numeral input mode: _ stands for clear and ← stands for deleting the previous numeral.

When input special sign, you can click corresponding numeral in the front panel to input. For example, click numeral 1 you can input“/” , or you can click the numeral in the on-screen keyboard directly.

Double left click mouse Implement special control operation such as double click one item in the file list to playback the video.

In multiple-window mode, double left click one channel to view in full-window. Double left click current video again to go back to previous multiple-window mode.

Right click mouse

In real-time monitor mode, pops up shortcut menu.

Exit current menu without saving the modification.

Press middle button

In numeral input box: Increase or decrease numeral value.

Switch the items in the check box.

Page up or page down

Move mouse

Select current control or move control

Drag mouse Select motion detection zone

Select privacy mask zone.

1.6 Remote Control

The remote control interface is shown as in X282H282H282HFigure 2-4X. Please note remote control is not our standard accessory and it is not included in the accessory bag.

Figure 1-5

Serial Number

Name

Function

Power button

Click it to boot up or shut down the device.

Address

Click it to input device number, so that you can control it.

Forward

Various forward speeds and normal speed playback.

Slow play

Multiple slow play speeds or normal playback.

5 Next record

In playback mode, playback the next video.

6 Previous record

In playback mode, playback the previous video.

Play/Pause

In pause mode, click this button to realize normal playback.

In normal playback click this button to pause playback.

In real-time monitor mode, click this button to enter video search menu.

8 Reverse/pause Reverse playback pause mode, click this button to realize normal playback.

In reverse playback click this button to pause playback.

9 Cancel

Go back to previous menu or cancel current operation (close upper interface or control)

Please refer to the following sheet for detailed information.

Record

Start or stop record manually In record interface, working with the direction buttons to select the record channel. Click this button for at least 1.5 seconds, system can go to the Manual Record interface.

Direction keys

Switch current activated control, go to left or right. In playback mode, it is to control the playback process bar. Aux function(such as switch the PTZ menu)

Confirm /menu key

go to default button go to the menu

Multiple-window switch

Switch between multiple-window and one-window.

Auxiliary key

In 1-ch monitor mode: pop up assistant function：PTZ control and Video color.

Switch the PTZ control menu in PTZ control interface.

In motion detection interface, working with direction keys to complete setup.

0-9 number key

Input password, channel or switch channel.

Shift is the button to switch the input method.

2 HDD Installation

①Use 4 screws to secure the HDD

②Put the HDD to the HDD box at the front.

③Pull the HDD knob up when you put the HDD

into the box in case the knob buckle may strike

the front panel.

④Put the knob back after you insert the HDD

to the SATA board.

For the first time install, please be aware that whether the HDDs have been installed. Strongly recommended to use the HDDs which we suggest you to use (high speed HDD that above 7200 rounds), we do not suggest you to use PC specified HDD.

You can refer to the User’s Manual for recommended HDD brand. Please use HDD of 7200rpm or higher. Usually we do not recommend the PC HDD. Please follow the instructions below to install hard disk.

2.1 32V/32V-P Series

Important：

Please turn off the power before you replace the HDD.

3 System Performance

Model

System Performance

4-ch series

Max support 4-channel video.

Total resources:400/480fps@D1,200/240fps@720P.100/120@1080P.

8-ch series

Max support 8-channel video.

Total resources:400/480fps@D1,200/240fps@720P.100/120@1080P.

16-ch series

Max support 16-channel video.

Total resources:400/480fps@D1,200/240fps@720P.100/120@1080P.

32-ch series

Max support 32-channel standard definition video.

Support 8-channel 1080p/5mbps (extra stream D1/1mbps), 16-channel 720p/2mbps (extra CIF/640kbps), 32-channel D1/1mbps.

This series product max supports 32-channel standard definition video/high definition non-real-time video and the transmission rate is 1mbps per channel. It can also max supports 4-channel high definition video and the transmission rate is 8mbps. The delay time of each channel is below 500ms.

Important

 The standard definition device here is referring to the devices of D1 resolution or below.  The high definition device here is referring to the devices of 702P resolution or higher.

4 GUI Operation

Recording status

Video loss

Motion detection

Camera lock

Connect the device to the monitor and then connect a mouse and power cable. Click the power button at the rear panel and then boot up the device to view the analog video output. You can use the mouse to implement some GUI operation.

4.1 Login

After device booted up, the system is in multiple-channel display mode. See Figure 4-1.Please note the displayed window amount may vary. The following figure is for reference only.

Figure 4-1

You can use USB mouse to input. Click to switch between numeral, English character (small/capitalized) and denotation.

Note: For security reason, please modify password after you first login.

Within 30 minutes, three times login failure will result in system alarm and five times login failure will result in account lo

Figure 4-2

You can overlay the corresponding date, time and channel name on each screen. You can refer to the following sheet for channel record or alarm status information.

Preview Control

The preview control function has the following features.

 Support preview playback.

 In the preview desktop, system can playback previous 5-60 minutes record of current channel. Please go to the

Main Menu->General to set real-time playback time.

 Support drag and play function. You can use your mouse to select any playback start time.

Name

Function

Real time playback

It is to playback the previous 5-60 minutes record of current channel. Please go to the Main Menu->General to set real-time playback time. System may pop up a dialogue box if there is no such record in current channel.

Digital zoom

It is to zoom in specified zone of current channel. It supports zoom in function of multiple-channel.

The selected area has an icon as and the free area is

shown as an icon as .

Real-time backup function

It is to back up the video of current channel to the USB device. System can’t backup the video of multiple-channel at the same time.

Current selected backup channel has an icon as and the free channel is shown as an icon as .

Once the backup started, you can see the free channel is shown as an icon as .

Remote device add shortcut

It is to go to the remote device connection interface.

Bidirectional talk

Support bidirectional talk function.

Exit

1 2 3 4 5

 Support playback, pause and exit function.

 Right now, system does not support slow playback and backward playback function.  Support digital zoom function.  Support real-time backup function.

You can follow the contents listed below for the operation instruction.

Preview control interface

Move you mouse to the top centre of the video of current channel, you can see system pops up the preview control interface. See Figure 4-3. If your mouse stays in this area for more than 6 seconds and has no operation, the control bar automatically hides.

Figure 4-3

You can refer to the following sheet for detailed information.

Playback control

The playback control has the following features.

 Support play, pause, and exit and drag function.  During the preview playback process, you can’t see the channel title and record status of current channel. It will

display the channel title and the record status once you exit the preview playback.

 During the preview playback, you can’t switch the displayed channel or change current window-display mode.  Please note, the tour function has the higher priority than the preview playback. System automatically exits the

preview playback function and its corresponding interface when the tour function started. You can’t control the preview

playback until the tour function ended.

4.2 Right Click Menu

After you logged in the device, right click mouse, you can see the short cut menu. Please see Figure 4-4. Here you can set local playback window, PTZ control, video color, search records, remote device and etc. The local playback window includes 1/4/9/16. You can set the detail channel amount in 1/4-window.

Figure 4-4

4.3 Main Menu

After you logged in, the system main menu is shown as below. See Figure 4-5. There are total seven icons: search, Information, setting, remote device, backup, advanced and shutdown. Move the cursor to highlight the icon, then double click mouse to enter the sub-menu.

Figure 4-5

4.4 Search & Playback

Click search button in the main menu, search interface is shown as below. See Figure 4-6.

Usually there are three file types:

Name

Function

Display window

Here is to display the searched picture or file. Support 1/4/9/16-window playback.

Search type

Here you can select to search the picture or the recorded file. When there is displayed picture on the left pane, you can set the

corresponding setup

Calendar

The blue highlighted date means there is picture or file. Otherwise, there is no picture or file. In any play mode, click the date you want to see, you can see the corresponding record file trace in the

time bar.

Playback mode and channel selection pane.

Playback mode：1/4/9/16. (It may vary due to different series.)  In 1-window playback mode: you can select 1-16 channels.  In 4-window playback mode: you can select 4 channels according to your requirement.  In 9-window playback mode, you can switch between 1-8 and 9-16 channels.  In 16-window playback mode, you can switch between1-16 and 17-32 channels. The time bar will change once you modify the playback mode or the channel option.

1 2 3 4 5 6 7 8 12 9 10

 R: Regular recording file.  A: External alarm recording file.  M: Motion detection recording file.

Please refer to the following sheet for more information.

Figure 4-6

File list switch button

Double click it, you can view the picture/record file list of current day. The file list is to display the first channel of the record file. The system can display max 128 files in one time. Use the / or the mouse to view the file. Select one

item, and then double click the mouse or click the ENTER button to playback.

You can input the period in the following interface to begin accurate search. File type：R—regular record； A—external alarm record；M—Motion detect record.

Card number search

The card number search interface is shown as below.

Playback control pane.

►/

Play/Pause There are three ways for you to begin playback.

 The play button  Double click the valid period of the time bar.  Double click the item in the file list.

In slow play mode, click it to switch between play/pause.

■

Stop



Backward play In normal play mode, left click the button, the file begins backward play. Click it again to pause current play. In backward play mode, click ►/ to restore normal play.

│/ │

In playback mode, click it to play the next or the previous section. You can click continuously when you are watching the files from the same channel. In normal play mode, when you pause current play, you can click │ and │ to begin frame by frame playback.

In frame by frame playback mode, click ►/ to restore normal playback.

►

Slow play In playback mode, click it to realize various slow play modes such as slow play 1, slow play 2, and etc.



Fast forward In playback mode, click to realize various fast play modes such as fast play 1,fast play 2 and etc.

Note: The actual play speed has relationship with the software version.

Smart search

The volume of the playback Click the snapshot button in the full-screen mode, the system can snapshot 1 picture per second.

Time bar

It is to display the record type and its period in current search criteria.

In 4-window playback mode, there are corresponding four time bars. In other playback mode, there is only

one time bar.

Use the mouse to click one point of the color zone in the time bar, system begins playback.

The time bar is beginning with 0 o'clock when you are setting the configuration. The time bar zooms in the

period of the current playback time when you are playing the file.

The green color stands for the regular record file. The red color stands for the external alarm record file.

The yellow stands for the motion detect record file.

Time bar unit

●The option includes: 24H, 12H, 1H and 30M. The smaller the unit, the larger the zoom rate. You can

accurately set the time in the time bar to playback the record.

The time bar is beginning with 0 o'clock when you are setting the configuration. The time bar zooms in the period of the current playback time when you are playing the file.

Backup

Select the file(s) you want to backup from the file list. System max supports files from four channels. Then click the backup button, now you can see the backup menu. Click the start button to begin the backup operation. Check the file again you can cancel current selection. System max supports to display 32 files from one channel.

Clip

It is to edit the file.

●Please play the file you want to edit and then click this button when you want to edit. You can see the

corresponding slide bar in the time bar of the corresponding channel. You can adjust the slide bar or input the accurate time to set the file end time. Click this button again and then save current contents in a new file. .

Record type

In any play mode, the time bar will change once you modify the search type.

Smart search

 When system is playing, you can select a zone in the window to begin motion detect. Click the motion

detect button to begin play.

 Current button is null once the motion detect play has begun.  The system will take the whole play zone as the motion detect region by default.  The motion detect play stopped once you switch the play file.  Operations such as set time bar, click the play button, or any file list operation will stop current motion

detect play.

Other Functions

Other channel synchronization switch to play when playback

When playing the file, click the number button, system can switch to the same period of the corresponding channel to play.

Digital zoom

When the system is in full-screen playback mode, left click the mouse in the screen. Drag your mouse in the screen to select a section and then left click mouse to realize digital zoom. You can right click mouse to exit.

Note:

All the operations here (such as playback speed, channel, time and progress) have relationship with hardware version. Some series NVRs do not support some functions or playback speeds.

4.5 Information

Here is for you to view system information. There are total six items: HDD (hard disk information), BPS (data stream statistics), log, Version, online user and remote device information. See Figure 4-7.

Figure 4-7

4.5.1 HDD Information

Here is to list hard disk type, total space, free space, and status. See Figure 4-8. For 32 series product there are max 2 HDDs. For 38 series product there are max 8 HDDs.

○ means current HDD is normal.. - means there is no HDD.

If disk is damaged, system shows as “?”. Please remove the broken hard disk before you add a new one.

Figure 4-8

In Figure 4-8, click view record d time button, HDD record time information interface is shown as in Figure 4-9.

Figure 4-9

Parameter

Function

SATA

1-4 here means there are 4 HDDS. For 32 series product there are max 2 HDDs. For 38 series product there are max 8 HDDs.

When HDD is working properly, system is shown as O. . “_” means there is no HDD.

You can view the HDD amount the device connected to; ﹡ means the second HDD is current working HDD.

Type

The corresponding HDD property.

Total space

The HDD total capacity.

Free space

The HDD free capacity.

Status

HDD can work properly or not.

Bad track

Display there is bad track or not. Page up

Click it to view previous page.

Page down

Click it to view the next page.

View recording time

Click it to view HDD record information (file start time and end time).

View HDD type and capability

Click it to view HDD property, status and etc,

4.5.2 BPS

Here is for you to view current video data stream (KB/s) and occupied hard disk storage (MB/h). See Figure 4-10.

Figure 4-10

For the 32-channel series product, the interface is shown as below. See Figure 4-11.

Figure 4-11

4.5.3 Log

Here is for you to view system log file. System lists the following information. See Figure 4-12. Log types include system operation, configuration operation, data management, alarm event, record operation, log clear and etc. Please select start time and end time, then click search button. You can view the log files. System max displays 100 logs in one page. It can max save 1024 log files. Please page up/down button to view if there are more than ten files. System also supports the backup function; you can click the backup button to save the log files in the USB devices.

Figure 4-12

Click the Details button or double click the log item, you can view the detailed information. See Figure 4-13.

Figure 4-13

4.5.4 Version

Here is for you to view some version information. See Figure 4-14.

 Channel  Alarm in  Alarm out  System version:  Build Date  Web  Serial number

Figure 4-14

4.5.5 Online Users

Here is for you manage online users connected to the local device. See Figure 4-15. You can disconnect one user or block one user if you have proper system right.

Figure 4-15

4.5.6 Remote Device Information

Here you can view the channel status of the remote device, connection log and network balance information and etc. Channel status: Here you can view the IPC status of the corresponding channel such as motion detect, video loss, camera masking, alarm and etc. See Figure 4-16.

Figure 4-16

Connection log: In this interface, you can search the IPC log information of the corresponding channel. It includes IPC online, offline and etc. (See Figure 4-17)

Figure 4-17

Network Balance: Here you can view network data transmission speed, receive speed. See Figure 4-18.

Figure 4-18

4.6 Setting

In main menu, highlight setting icon and double click mouse. System setting interface is shown as below. See Figure 4-19.

Figure 4-19

Important

Please note you need to have the proper right to implement the following operation.

4.6.1 General

General setting includes the following items. See Figure 4-20.

 System time: Here is for you to set system time  Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or DD-MM-YYYY.  Date separator: There are three denotations to separate date: dot, beeline and solidus.  DST: Here you can set DST time and date. Please enable DST function and then click set button. You can see an interface

is shown as in Figure 4-21. Here you can set start time and end time by setting corresponding week setup. In Figure 4-21,

enable date button, you can see an interface is shown as in Figure 4-22. Here you can set start time and end time by setting

corresponding date setup.

 Time format: There are two types: 24-hour mode or 12-hour mode.  Language: System supports various languages: Chinese (simplified), Chinese (Traditional), English, Italian, Japanese,

French, Spanish (All languages listed here are optional. Slight difference may be found in various series.)  HDD full: Here is for you to select working mode when hard disk is full. There are two options: stop recording or rewrite.

If current working HDD is overwritten or the current HDD is full while the next HDD is no empty, then system stops

recording, If the current HDD is full and then next HDD is not empty, then system overwrites the previous files.  Pack duration: Here is for you to specify record duration. The value ranges from 60 to 120 minutes. Default value is 60

minutes.  Device No: When you are using one remote control (not included in the accessory bag) to control several NVRs, you can

give a name to each NVR for your management.

 Video standard: There are two formats: NTSC and PAL.  Real time play: It is to set playback time you can view in the preview interface. The value ranges from 5 to 60 minutes.  Device ID: Please input a corresponding device name here.  Startup wizard: Once you check the box here, system will go to the startup wizard directly when the system restarts the next

time. Otherwise, it will go to the login interface.  Auto logout: Here is for you to set auto logout interval once login user remains inactive for a specified time. Value ranges

from 0 to 60 minutes.

 Navigation bar: Check the box here, system displays the navigation bar on the interface.  IPC Time Sync: You can input an interval here to synchronize the NVR time and IPC time.

Note:

Since system time is very important, do not modify time casually unless there is a must! Before your time modification, please stop record operation first! After completing all the setups please click save button, system goes back to the previous menu.

Figure 4-20

Figure 4-21

Figure 4-22

4.6.2 Encode

Encode setting includes the following items. See Figure 4-23. Please note some series do not support extra stream.

 Channel: Select the channel you want.  Type: Please select from the dropdown list. There are three options: regular/motion detect/alarm. You can set the various

encode parameters for different record types.

 Compression: System supports H.264, MPEG4, MJPEG and etc.  Resolution: The mainstream resolution type is IPC’s encoding configuration. Generally there is D1/720P/1080P.  Frame rate: It ranges from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.  Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set video quality.  Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image quality.

 Video/audio: You can enable or disable the video/audio.  Overlay: Click overlay button, you can see an interface is shown in Figure 4-24.  Cover area (Privacy mask): Here is for you to set privacy mask section. You can drag you mouse to set proper section size.

In one channel video, system max supports 4 zones in one channel.  Preview/monitor: privacy mask has two types. Preview and Monitor. Preview means the privacy mask zone can’t be viewed

by user when system is in preview status. Monitor means the privacy mask zone can’t be view by the user when system is

in monitor status.  Time display: You can select system displays time or not when you playback. Please click set button and then drag the title

to the corresponding position in the screen.  Channel display: You can select system displays channel number or not when you playback. Please click set button and

then drag the title to the corresponding position in the screen.  Copy：After you complete the setup, you can click Copy button to copy current setup to other channel(s). You can see an

interface is shown as in Figure 4-25. You can see current channel number is grey. Please check the number to select the

channel or you can check the box ALL. Please click the OK button in Figure 4-25 and Figure 4-23 respectively to complete

the setup. Please note, once you check the all box, you set same encode setup for all channels. Audio/video enable box,

overlay button and the copy button is shield. See Figure 4-26.

Please highlight icon to select the corresponding function.

Figure 4-23

Figure 4-24

Figure 4-25

Figure 4-26

4.6.3 Schedule

In the main menu, from setting to schedule, you can go to schedule menu. See Figure 4-27.

 Channel: Please select the channel number first. You can select “all” if you want to set for the whole channels.  Week day: There are eight options: ranges from Saturday to Sunday and all.  Pre-record: System can pre-record the video before the event occurs into the file. The value ranges from 1 to 30 seconds

depending on the bit stream.  Redundancy: System supports redundancy backup function. It allows you backup recorded file in two disks. You can

highlight Redundancy button to activate this function. Please note, before enable this function, please set at least one HDD

as redundant. (Main menu->Advanced->HDD Management). Please note this function is null if there is only one HDD.

 Snapshot: You can enable this function to snapshot image when alarm occurs.  Record types: There are four types: regular, motion detection (MD), Alarm, MD & alarm.  Holiday setting: Click it you can see an interface shown as in Figure 4-28. Here you can set holiday date. Check the box, it

means current channel shall record as your holiday setup. Please go to the Period interface to set the holiday date record

setup.

Please highlight icon to select the corresponding function. After completing all the setups please click save button, system goes back to the previous menu. At the bottom of the menu, there are color bars for your reference. Green color stands for regular recording, yellow color stands for motion detection and red color stands for alarm recording. The white means the MD and alarm record is valid.

Once you have set to record when the MD and alarm occurs, system will not record neither motion detect occurs nor the alarm occurs.

Figure 4-27

Figure 4-28

4.6.3.1 Quick Setup

Copy function allows you to copy one channel setup to another. After setting in channel 1, click Copy button, you can go to interface Figure 4-29. You can see current channel name is grey such as channel 1. Now you can select the channel you want to paste such as channel 5/6/7. If you want to save current setup of channel 1 to all channels, you can click the first box “ALL”. Click the OK button to save current copy setup. Click the OK button in the Encode interface, the copy function succeeded. Please note, if you select ALL in Figure 4-29, the record setup of all channels are the same and the Copy button becomes hidden.

Figure 4-29

4.6.4 RS232

RS232 interface is shown as below. There are five items. See Figure 4-30.  Function: There are various devices for you to select. Console is for you to use the COM or mini-end software to upgrade or

debug the program. The control keyboard is for you to control the device via the special keyboard. Transparent COM

(adapter) is to connect to the PC to transfer data directly. Protocol COM is for card overlay function. Network keyboard is

for you to use the special keyboard to control the device. PTZ matrix is to connect to the peripheral matrix control.

 Baud rate: You can select proper baud rate.  Data bit: You can select proper data bit. The value ranges from 5 to 8.  Stop bit: There are three values: 1/1.5/2.  Parity: there are five choices: none/odd/even/space mark.

System default setup is:

 Function: Console  Baud rate:115200  Data bit:8  Stop bit:1  Parity: None

After completing all the setups please click save button, system goes back to the previous menu.

Figure 4-30

4.6.5 Network

Here is for you to input network information. See Figure 4-31.  IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP address format and you can access

via them.

 MAC address: The host in the LAN can get a unique MAC address. It is for you to access in the LAN. It is read-only.  IP address: Here you can use up/down button () or input the corresponding number to input IP address. Then you can

set the corresponding subnet mask the default gateway.  Subnet prefix: The input value ranges from 0 to 128. It is to mark a specified network MAC address. Usually it includes an

organization of multiple-level.

 Default gateway: Here you can input the default gateway. Please note system needs to check the validity of all IPv6

addresses. The IP address and the default gateway shall be in the same IP section. That is to say, the specified

length of the subnet prefix shall have the same string.

 DHCP: It is to auto search IP. When enable DHCP function, you can’t modify IP/Subnet mask /Gateway. These values are

from DHCP function. If you have not enabled DHCP function, IP/Subnet mask/Gateway display as zero. You need to

disable DHCP function to view current IP information. Besides, when PPPoE is operating, you can’t modify IP/Subnet

mask /Gateway.

 TCP port: Default value is 37777. You can change if necessary.  UDP port: Default value is 37778. You can change if necessary.  HTTP port: Default value is 80.  RTSP port: Default value is 554.

Important: System needs to reboot after you changed and saved any setup of the above four ports. Please make sure the port values here do not conflict.

 Max connection: system support maximal 20 users. 0 means there is no connection limit.  Preferred DNS server: DNS server IP address.  Alternate DNS server: DNS server alternate address.  Transfer mode: Here you can select the priority between fluency/video qualities.  LAN download: System can process the downloaded data first if you enable this function. The download speed is 1.5X or

2.0X of the normal speed.

Important For the IP address of IPv6 version, default gateway, preferred DNS and alternate DNS, the input value shall be 128-digit. It shall not be left in blank.

After completing all the setups please click save button, system goes back to the previous menu.

Figure 4-31

4.6.5.1 Network Setting

Network setting interface is shown as in Figure 4-32. Please draw a circle to enable corresponding function and then double click current item to go to setup interface.

Figure 4-32

4.6.5.2 IP Filter

IP filter interface is shown as in Figure 4-33. You can add IP in the following list. The list supports max 64 IP addresses. Please note after you enabled this function, only the IP listed below can access current NVR. If you disable this function, all IP addresses can access current NVR.

Figure 4-33

4.6.5.3 NTP Setup

You need to install SNTP server (Such as Absolute Time Server) in your PC first. In Windows XP OS, you can use command “net

start w32time” to boot up NTP service. NTP setup interface is shown as in Figure 4-34.

 Host IP: Input your PC address.  Port: This series NVR supports TCP transmission only. Port default value is 123.  Update interval: minimum value is 1. Max value is 65535. (Unit: minute)  Time zone: select your corresponding time zone here.  Update period: You can input interval here.  Manual update: It allows you to synchronize the time with the server manually.

Here is a sheet for your time zone setup.

City /Region Name

Time Zone

London

GMT+0

Berlin

GMT+1

Cairo

GMT+2

Moscow

GMT+3

New Deli

GMT+5

Bangkok

GMT+7

Beijing (Hong Kong)

GMT+8

Tokyo

GMT+9

Sydney

GMT+10

Hawaii

GMT-10

Alaska

GMT-9

Pacific Time(P.T)

GMT-8

American Mountain Time(M.T)

GMT-7

American Central Time(C.T)

GMT-6

American Eastern Time(E.T)

GMT-5

Atlantic Time

GMT-4

Brazil

GMT-3

Middle Atlantic Time

GMT-2

4.6.5.4 Multiple Cast Setup

Multiple-cast setup interface is shown as in Figure 4-35.

Figure 4-34

Figure 4-35

Here you can set a multiple cast group. Please refer to the following sheet for detailed information.  IP multiple cast group address

-224.0.0.0-239.255.255.255

-“D” address space

 The higher four-bit of the first byte=”1110”

 Reserved local multiple cast group address

-224.0.0.0-224.0.0.255

-TTL=1 When sending out telegraph

-For example

224.0.0.1 All systems in the sub-net

224.0.0.2 All routers in the sub-net

224.0.0.4 DVMRP router

224.0.0.5 OSPF router

224.0.0.13 PIMv2 router  Administrative scoped addressees

-239.0.0.0-239.255.255.255

-Private address space

 Like the single broadcast address of RFC1918  Can’t be used in Internet transmission  Used for multiple cast broadcast in limited space.

Except the above mentioned addresses of special meaning, you can use other addresses. For example: Multiple cast IP: 235.8.8.36 Multiple cast PORT: 3666. After you logged in the Web, the Web can automatically get multiple cast address and add it to the multiple cast groups. You can enable real-time monitor function to view the view. Please note multiple cast function applies to special series only.

4.6.5.5 PPPoE

PPPoE interface is shown as in Figure 4-36. Input “PPPoE name” and “PPPoE password” you get from your ISP (Internet service provider).

Click save button, you need to restart to activate your configuration. After rebooting, NVR will connect to internet automatically. The IP in the PPPoE is the NVR dynamic value. You can access this IP to visit the unit.

Figure 4-36

4.6.5.6 DDNS Setup

DDNS setup interface is shown as in Figure 4-37. You need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In other words, this PC is a DNS

(domain name server). In network DDNS, please select DDNS type and highlight enable item. Them please input your PPPoE name you get from you IPS and server IP (PC with DDNS ) . Click save button and then reboot system. Click save button, system prompts for rebooting to get all setup activated. After rebooting, open IE and input the domain name. Now you can open DDNS Server web search page.

Figure 4-37

Please note NNDS type includes: CN99 DDNS, NO-IP DDNS, Private DDNS, and Dyndns DDNS. All the DDNS can be valid at the same time, you can select as you requirement. Private DDNS function shall work with special DDNS server and special Professional Surveillance Software (PSS).

Private DDNS and Client-end Introduction

1) Background Introduction

Device IP is not fixed if you use ADSL to login the network. The DDNS function allows you to access the NVR via the registered domain name. Besides the general DDNS ,the private DDNS works with the device from the manufacturer so that it can add the extension function.

2) Function Introduction

The private DDNS client has the same function as other DDNS client end. It realizes the bonding of the domain name and the IP address. Right now, current DDNS server is for our own devices only. You need to refresh the bonding relationship of the domain and the IP regularly. There is no user name, password or the ID registration on the server. At the same time, each device has a default domain name (Generated by MAC address) for your option. You can also use customized valid domain name (has not registered.).

3) Operation

Before you use our private DDNS, you need to enable this service and set proper server address, port value and domain name.

 Server address：www.dahuaddns.com  Port number：80  Domain name：There are two modes: Default domain name and customized domain name.

Except default domain name registration, you can also use customized domain name (You can input your self-defined domain name.) After successful registration, you can use domain name to login installed of the device IP.

 User name: It is optional. You can input your commonly used email address.

Important

 Do not register frequently. The interval between two registrations shall be more than 60 seconds. Too many registration

requests may result in server attack.  System may take back the domain name that is idle for one year. You can get a notification email before the cancel operation

if your email address setup is OK.

4.6.5.7 UPNP

The UPNP protocol is to establish a mapping relationship between the LAN and the WAN. Please input the router IP address in the LAN in Figure 4-31. Double click the UPNP item in Figure 4-31, you can see the following interface. See Figure 4-38.

 UPNP on/off ：Turn on or off the UPNP function of the device.  Status: When the UPNP is offline, it shows as “Unknown”. When the UPNP works it shows “Success”  Router LAN IP: It is the router IP in the LAN.  WAN IP: It is the router IP in the WAN.  Port mapping list： The port mapping list here is the one to one relationship with the router’s port mapping setting.

 Enable Switch : ：It shows that the function of port mapping is enabled in this port.  List：

 Service name：Defined by user.

 Protocol： Protocol type

 Internal port：Port that has been mapped in the router.

 External port：Port that has been mapped locally.  Default: UPNP default port setting is the HTTP, TCP and UDP of the NVR.

 Add to the list: Click it to add the mapping relationship.  Delete: Click it to remove one mapping item.

Double click one item; you can change the corresponding mapping information. See Figure 4-39.

Important: When you are setting the router external port, please use 1024~5000 port. Do not use well-known port 1~255 and the system port 256~1023 to avoid conflict. For the TCP and UDP, please make sure the internal port and external port are the same to guarantee the proper data transmission.

Figure 4-38

Figure 4-39

4.6.5.8 WIFI Setting

You can view the WIFI connection status in the Network Setting interface. See Figure 4-40. You can view current connection status and IP address if there is a connection.

Figure 4-40

The WIFI interface is shown as below. See Figure 4-41.

 Auto connect WIFI: Check the box here, system automatically connects to the previous WIFI hotspot.  Refresh: You can click it to search the hotspot list again. It can automatically add the information such as the password if you

have set it before.

 Disconnect: Here you can click it to turn off the connection.  Connect: Here you can click it to connect to the hotspot. System needs to turn off current connection and then connect to a

new hotspot if there is connection of you selected one. (See Figure 4-42)

Figure 4-41

Figure 4-42

After successfully connection, you can see the following interface. You can see it is connected now. See Figure 4-43.

Figure 4-43

 WIFI working status: Here you can view current connection status.

Please note:

 After successful connection, you can see WIFI connection icon at the top right corner of the preview interface.  When the hotspot verification type is WEP, system displays as AUTO since the device can’t detect its encryption type.  System does not support verification type WPA and WPA2. The display may become abnormal for the verification type and

encryption type. After device successfully connected to the WIFI, you can view the hotspot name, IP address, subnet mask, default gateway and etc. See Figure 4-44.

Figure 4-44

4.6.5.9 Email

The email interface is shown as below. See Figure 4-45.

 SMTP server: Please input your email SMTP server IP here.  Port: Please input corresponding port value here.  User name: Please input the user name to login the sender email box.  Password: Please input the corresponding password here.  Sender: Please input sender email box here.  Title: Please input email subject here. System support English character and Arabic number. Max 32-digit.  Receiver: Please input receiver email address here. System max supports 3 email boxes.  SSL enable: System supports SSL encryption box.  Interval: The send interval ranges from 0 to 3600 seconds. 0 means there is no interval.  Health email enable: Please check the box here to enable this function. This function allows the system to send out the test

email to check the connection is OK or not.  Interval: Please check the above box to enable this function and then set the corresponding interval. System can send out

the email regularly as you set here. Click the Test button, you can see the corresponding dialogue box to see the email

connection is OK or not. See Figure 4-46. Please note system will not send out the email immediately when the alarm occurs. When the alarm, motion detection or the abnormity event activates the email, system sends out the email according to the interval you specified here. This function is very useful when there are too many emails activated by the abnormity events, which may result in heavy load for the email server.

Figure 4-45

Figure 4-46

4.6.5.10 FTP

You need to download or buy FTP service tool (such as Ser-U FTP SERVER) to establish FTP service. Please install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv-U Administator. Now you can set user password and FTP folder. Please note you need to grant write right to FTP upload user. See Figure 4-47.

Figure 4-47

You can use a PC or FTP login tool to test setup is right or not.

For example, you can login user ZHY to H140H140H140HTUFTP://10.10.7.7UTH and then test it can modify or delete folder or not. See Figure 4-48.

Figure 4-48

System also supports upload multiple NVRs to one FTP server. You can create multiple folders under this FTP. In Figure 4-31, select FTP and then double click mouse. You can see the following interface. See Figure 4-49.

Please highlight the icon in front of Enable to activate FTP function. Here you can input FTP server address, port and remote directory. When remote directory is null, system automatically create folders according to the IP, time and channel. User name and password is the account information for you to login the FTP. File length is upload file length. When setup is larger than the actual file length, system will upload the whole file. When setup here is smaller than the actual file length, system only uploads the set length and auto ignore the left section. When interval value is 0, system uploads all corresponding files. After completed channel and weekday setup, you can set two periods for one each channel. Click the Test button, you can see the corresponding dialogue box to see the FTP connection is OK or not. See Figure 4-50.

Figure 4-49

Figure 4-50

4.6.5.11 Alarm center

Interface is pre-reserved for the users to develop this function.

4.6.5.12 SNMP

SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network management frame of the network management system. The SNMP widely used in many environments. It is used in many network device, software and system. You can set in the following interface. (See Figure 4-51)

Figure 4-51

Please enable the SNMP function. Use the corresponding software tool (MIB Builder and MG-SOFT MIB Browser. You still need two MIB file: DAHUA-BASE-SNMP-MIB, DAHUA-NVR-SNMP-MIB) to connect to the device. You can get the device corresponding configuration information after successfully connection. Please follow the steps listed below to configure.  In Figure 4-51, check the box to enable the SNMP function. Input the IP address of the PC than is running the software in the

Trap address. You can use default setup for the rest items.

 Compile the above mentioned two MIB file via the software MIB Builder.  Run MG-SOFT MIB Browser to load the file from the previous step to the software.  Input the device IP you want to manage in the MG-SOFT MIB Browser. Please set the corresponding version for your future

reference.  Open the tree list on the MG-SOFT MIB Browser; you can get the device configuration. Here you can see the device has how

many video channels, audio channels, application version and etc.

4.6.5.13 Auto register

This function allows the device to auto register to the proxy you specified. In this way, you can use the client-end to access the NVR and etc via the proxy. Here the proxy has a switch function. In the network service, device supports the server address of IPv4 or domain. Please follow the steps listed below to use this function. Please set proxy server address, port, and sub-device name at the device-end. Please enable the auto register function, the device can auto register to the proxy server.

1) The setup interface is shown as in Figure 4-52.

Important

Do not input network default port such as TCP port number.

Figure 4-52

2) The proxy server software developed from the SDK. Please open the software and input the global setup. Please make sure the auto connection port here is the same as the port you set in the previous step.

3) Now you can add device. Please do not input default port number such as the TCP port in the mapping port number. The device ID here shall be the same with the ID you input in Figure 4-52. Click Add button to complete the setup.

4) Now you can boot up the proxy server. When you see the network status is Y, it means your registration is OK. You can view the proxy server when the device is online.

Important

The server IP address can also be domain. But you need to register a domain name before you run proxy device server.

4.6.6 Alarm

In the main menu, from Setting to Alarm, you can see alarm setup interface. See Figure 4-53.

 Alarm in: Here is for you to select channel number.  Event type: There are four types. Local input/network input/IPC external/IPC offline alarm.

 Local input alarm: The alarm signal system detects from the alarm input port.

 Network input alarm: It is the alarm signal from the network.

 IPC external alarm: It is the on-off alarm signal from the front-end device and can activate the local NVR.

 IPC offline alarm: Once you select this item, system can generate an alarm when the front-end IPC disconnects with

the local NVR. The alarm can activate record, PTZ, snap and etc. The alarm can last until the IPC and the NVR connection resumes.

 Enable: Please you need to highlight this button to enable current function.  Type: normal open or normal close.

 Period: It is to set local alarm period. System only enables local alarm in the specified period. Click the Set button; you can

select the business day and the non-business day. Please note for the work day/free day setup and the specific work day

setup, system just saves the latest setup. For example, the work day ranges from 8:30-17:30 Monday to Friday, and then

you set the period 7:10-18:00 for Monday. So, the arm period of the Monday ranges from 7:10 to 18:00. Please highlight the

corresponding button to enable this function.  PTZ activation: When an alarm occurred, system can activate the PTZ operation. The PTZ activation lasts an anti -dither

period.

 In the Pan/Tilt/Zoom interface (Main menu->Setting-> Pan/Tilt/Zoom), please set video channel, speed dome protocol

and etc.

 Select the channel of current speed dome as current monitor video and the right click mouse to select Pan/Tilt/Zoom

item. Now you can set preset, tour pattern.

 In Figure 4-54, click “select” button, you can see an interface is s hown as in Figure 4-55. Here you can set the

activation operation such as preset tour, pattern and enable.

 Anti-dither: Here you can set anti-dither time. The value ranges from 5 to 600s. The anti-dither time refers to the alarm

signal lasts time. It can be seem as the alarm signal activation stays such as the buzzer, tour, PTZ activation, snapshot,

channel record. The stay time here does not include the latch time. During the alarm process, the alarm signal can begin an

anti-dither time if system detects the local alarm again. The screen prompt, alarm upload, email and etc wi ll not be

activated. For example, if you set the anti-dither time as 10 second, you can see the each activation may last 10s if the local

alarm is activated. During the process, if system detects another local alarm signal at the fifth second, the buzzer, tour, PTZ

activation, snapshot, record channel will begin another 10s while the screen prompt, alarm upload, email will not be

activated again. After 10s, if system detects another alarm signal, it can generate an alarm since the anti-dither time is out.  Alarm output: The number here is the device alarm output port. You can select the corresponding ports(s) so that system

can activate the corresponding alarm device(s) when an alarm occurred.  Latch: When the anti-dither time ended, the channel alarm you select in the alarm output may last the specified period. The

value ranges from 1 to 300 seconds. This function is not for other alarm activation operations. The latch is still valid even

you disable the alarm event function directly.

 Show message: System can pop up a message to alarm you in the local host screen if you enabled this function.  Alarm upload: System can upload the alarm signal to the network (including alarm centre and the WEB) if you enabled

current function. System only uploads the alarm channel status. You can go to the WEB and then go to the Alarm

interface to set alarm event and alarm operation. Please go to the Network interface to set alarm centre information.  Send email: System can send out the alarm signal via the email to alert you when alarm occurs. Once you enable the snap

function, system can also send out an image as the attachment. Please go to the Main Menu->Setting ->Network->Email

interface to set.

 Record channel: you can select proper channel to record alarm video (Multiple choices).

 You need to set alarm record mode as Schedule in Record interface (Main Menu->Advanced->Record). Please note

the manual record has the highest priority. System record all the time no matter there is an alarm or not if you select Manual mode.

 Now you can go to the Schedule interface (Main Menu->Setting->Schedule) to set the record type, corresponding

channel number, week and date. You can select the record type: Regular/MD/Alarm/MD & Alarm. Please note, you can’t select the MD & Alarm and MD (or Alarm) at the same time.

 Now you can go to the Encode interface to select the alarm record and set the encode parameter (Main

Menu->Setting->Encode).

 Finally, you can set the alarm input as the local alarm and then select the record channel. The select channel begins

alarm record when an alarm occurred. Please note system begins the alarm record instead of the MD record if the local alarm and MD event occurred at the same time.

 Tour: Here you can enable tour function when alarm occurs. System supports 1/8-window tour. Please go to chapter 4.6.9

Display for tour interval setup. Please note the tour setup here has higher priority than the tour setup you set in the Display

interface. Once there two tours are both enabled, system can enable the alarm tour as you set here when an alarm

occurred. If there is no alarm, system implements the tour setup in the Display interface.  Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.

Please highlight icon to select the corresponding function. After setting all the setups please click save button, system goes back to the previous menu.

Figure 4-53

Figure 4-54

Figure 4-55

Figure 4-56

For the 32-channel series product, the alarm interface and PTZ setup is shown as below. (See Figure 4-57 and Figure 4-58)

Figure 4-57

Figure 4-58

4.6.7 Detect

Go to Detect Menu

In the main menu, from Setting to Detect, you can see motion detect interface. See Figure 4-59.There is three detection types: motion detection, video loss, camera masking.

Motion Detect

Detection menu is shown as below. See Figure 4-59

 Event type: from the dropdown list you can select motion detection type.  Channel: select the channel to activate recording function once alarm occurred. Please make sure you have set MD record

in encode interface(Main Menu->Setting->Schedule) and schedule record in manual record interface(Main

Menu->Advanced->Manual Record)  Latch: when motion detection complete, system auto delays detecting for a specified time. The value ranges from

10-300(Unit: second)  Region: Click select button, the interface is shown as in Figure 4-60. Here you can set motion detection zone. There are

396(PAL)/330(NTSC) small zones. The green zone is current cursor position. Grey zone is the motion detection zone.

Black zone is the disarmed zone. You can click Fn button to switch between the arm mode and disarm mode. In arm

mode, you can click the direction buttons to move the green rectangle to set the motion detection zone. After you

completed the setup, please click ENTER button to exit current setup. Do remember click save button to save current setup.

If you click ESC button to exit the region setup interface system will not save your zone setup.

 Sensitivity: System supports 6 levels. The sixth level has the highest sensitivity.  Show message: System can pop up a message to alarm you in the local host screen if you enabled this function.  Alarm upload: System can upload the alarm signal to the network (including alarm centre) if you enabled current

function.

 Send email: System can send out email to alert you when alarm occurs.  PTZ activation: Here you can set PTZ movement when alarm occurs. Such as go to preset, tour &pattern when there is an

alarm. Click “select” button, you can see an interface is shown as in X305H305H305HFigure 4-61X.

 Period: Click set button, you can see an interface is shown as in Figure 4-62. Here you can set for business day and

non-business day. In Figure 4-62 click set button, you can see an interface is shown as in Figure 4-63. Here you can set

your own setup for business day and non-business day.

 Anti-dither: Here you can set anti-dither time.  Alarm output: when alarm occurred, system enables peripheral alarm devices.  Tour: Here you can enable tour function when alarm occurs. System one-window tour. Please go to chapter 5.3.9 Display

for tour interval setup.  Snapshot: You can enable this function to snapshot image when motion detect alarm occurs.

Please highlight icon to select the corresponding function. After all the setups please click save button, system goes back to the previous menu.

Note:

In motion detection mode, you can’t use copy/paste to set channel setup since the video in each channel may not be the same. In Figure 4-60, you can left click mouse and then drag it to set a region for motion detection. Click Fn to switch between arm/withdraw motion detection. After setting, click enter button to exit.

Figure 4-59

Figure 4-60

Figure 4-61

Figure 4-62

Figure 4-63

Video Loss

In Figure 4-59, select video loss from the type list. You can see the interface is shown as in Figure 4-64.This function allows you to be informed when video loss phenomenon occurred. You can enable alarm output channel and then enable show message function.

Tips:

You can enable preset activation operation when video loss occurs.

Figure 4-64

Camera Masking

When someone viciously masks the lens, or the output video is in one-color due to the environments light change, the system can alert you to guarantee video continuity. Camera masking interface is shown as in Figure 4-65.

Tips:

You can enable preset/tour/pattern activation operation when video loss occurs.

Note:

In Detect interface, copy/paste function is only valid for the same type, which means you can’t copy a channel setup in video loss mode to camera masking mode.

Figure 4-65

4.6.8 PTZ

Note: All the operations here are based on PELCOD protocol. For other protocols, there might be a little difference.

Cable Connection

Please follow the procedures below to go on cable connection

 Connect the dome RS485 port to NVR 485 port.  Connect dome video output cable to NVR video input port.  Connect power adapter to the dome.

PTZ Setup Note: The camera video should be in the current screen. Before setup, please check the following connections are right:

 PTZ and decoder connection is right. Decoder address setup is right.  Decoder A (B) line connects with NVR A (B) line.

Boot up the NVR, input user name and password. In the main menu, click setting, and then click Pan/Tilt Control button. The interface is shown as in Figure 4-66. Here you can set the following items:

 Channel: select the current camera channel.  Protocol: select corresponding PTZ protocol(such as PELCOD)  Address: default address is 1.  Baud rate: select corresponding baud rate. Default value is 9600.  Data bits: select corresponding data bits. Default value is 8.  Stop bits: select corresponding stop bits. Default value is 1.  Parity: there are three options: odd/even/none. Default setup is none.

Figure 4-66

After completing all the setting please click save button. In one window display mode, right click mouse (click “Fn” Button in the front panel or click “Fn” key in the remote control). Click Pan/Tilt/Zoom, the interface is shown as below. See Figure 4-67. Here you can set the following items:

 Step: value ranges from 1 to 8.  Zoom  Focus  Iris

Please click icon and to adjust zoom, focus and iris.

Name

Function key

function

Shortcut key

Function key

function

Shortcut Key

Zoom

Wide

Far  Focus

Near

│

Far

►│

Iris Close



Open



Figure 4-67

In Figure 4-67, please click direction arrows to adjust PTZ position. There are total 8 direction arrows.

Figure 4-68

Here is a sheet for you reference.

4.6.9 Display

Display setup interface is shown as below. See Figure 4-69.

 Transparency: Here is for you to adjust transparency. The value ranges from 128 to 255.  Channel name: Here is for you to modify channel name. System max support 25-digit (The value may vary due to different

series). Please note all your modification here only applies to NVR local end. You need to open web or client end to refresh

channel name.

 Time display: You can select to display time or not when system is playback.  Channel display: You can select to channel name or not when system is playback.  Resolution: There are four options: 1280×1024(default),1280×720,1024×768,800×600. Please note the system needs to

reboot to activate current setup.

 Enable tour: Activate tour function.  Interval: System supports 1/4/8/9/16-window tour. Input proper interval value here. The value ranges from 5-120 seconds. In

tour process, you can use mouse or click Shift to turn on window switch function. Stands for opening switch function,

stands for closing switch function.

 Monitor tour type: System support 1/8-window tour.  Alarm tour type: System support 1/8-window tour.

Please highlight icon to select the corresponding function. After completing all the setups please click save button, system goes back to the previous menu.

Figure 4-69

In Figure 4-69, click modify button after channel. You can see an interface shown as in Figure 4-70. Please note all your modification here applies to local end only. You need to refresh web or client-end to get the latest channel name. System max support 25-digital character.

Figure 4-70

In tour mode, you can see the following interface. On the right corner, right click mouse or click shift button, you can control the tour.

There are two icons: stands for enabling window switch and stands for disabling window function. See Figure 4-71.

Figure 4-71

4.6.10 Default

Click default icon, system pops up a dialogue box. You can highlight to restore default factory setup.

 Select all  General  Encode  Schedule  RS232  Network  Alarm  Detect  Pan/tilt/zoom  Display  Channel name

Please highlight icon to select the corresponding function. After all the setups please click OK button, system goes back to the previous menu.

Warning!

System menu color, language, time display mode, video format, IP address, user account will not maintain previous setup after default operation!

4.6.11 Remote Device

Figure 4-72

4.6.11.1 Built-in Switch Setup

From Network->Network Server->Switch, you can set switch IP address, subnet mask, gateway and etc. See Figure 4-73.

Figure 4-73

4.6.11.2 Remote Device

In the main menu, click the Remote Device icon to go to the corresponding interface. See Figure 4-74.

Figure 4-74

The remote device interface is shown as in Figure 4-75.

 IP search: Click it to search IP address.  Add: Click it to connect to the selected device and add it to the Added device list. Support Batch add.  Show filter: You can use it to display the specified devices from the added device.  Delete: Please select one device in the Added device list and then click it to remove.  Manual add: Click it to add the IPC manually. The port number is 37777. The default user name is admin and password is

admin.

Model

System Performance

4-ch series

Max support 4-channel video.

Total resources:400/480fps@D1,200/240fps@720P.100/120@1080P.

8-ch series

Max support 8-channel video.

Total resources:400/480fps@D1,200/240fps@720P.100/120@1080P.

16-ch series

Max support 16-channel video.

Total resources:400/480fps@D1,200/240fps@720P.100/120@1080P.

32-ch series

Max support 32-channel standard definition video.

Support 8-channel 1080p/5mbps (extra stream D1/1mbps), 16-channel 720p/2mbps (extra CIF/640kbps), 32-channel D1/1mbps.

Figure 4-75

Click the Manual Add button; you can go to the following interface. See Figure 4-76. This series product max supports 32-channel standard definition video/high definition non-real-time video and the transmission rate is 1mbps per channel. It can also max supports 4-channel high definition video and the transmission rate is 8mbps. The delay time of each channel is below 500ms.

This series product supports the IPC from many popular manufactures such as Sony, Hitachi, Axis, Samsung, and Dahua.

Figure 4-76

4.6.11.3 Short-cut Menu

In the preview interface, for the channel of no IPC connection, you can click the icon “+” in the centre of the interface to quickly go to the Remote Device interface. See Figure 4-77 and Figure 4-78.

Figure 4-77

Figure 4-78

4.7 Advanced

Double click advanced icon in the main window, the interface is shown as below. See Figure 4-79.There2 are total eight function keys: HDD management, alarm output, abnormity, manual record, account, auto maintenance, TV adjust and video matrix.

Figure 4-79

4.7.1 HDD Management

Here is for you to view and implement hard disk management. See Figure 4-80. You can see current HDD type, status, capacity and record time. When HDD is working properly, system is shown as O. When HDD error occurred, system is shown as X.  Alarm set: Click alarm set button, the interface is shown as below. See Figure 4-81. (This interface is just like the abnormity

setup). Please refer to chapter 6.7.2 for detailed information.  HDD operation: You can select HDD mode from the dropdown list such as read-only or you can erase all data in the HDD.

Please note system needs to reboot to get all the modification activated.

Figure 4-80

Figure 4-81

For the HDD group setup operation, please note:

 Each channel’s records can be stored into the specified HDD Group.  Each HDD Group is corresponding to several hard disks, while one hard disk is only included in one HDD Group.  Each channel is only corresponding with one HDD Group, while one HDD Group can store records from several

channels.  HDD Group is only available for read-write HDD and self-defined disks, other types of hard disks cannot be set as

HDD Group.

Important:

 e-SATA also supports this function, you can manage e-SATA hard disk as local hard disk.  Current series software version can only set the HDD group operation of the read-write HDDs. It is not for the redundancy

HDD.

HDD Setting

Click the button “HDD Settings” at the top right corner of the Figure 4-80, system will pop up an interface as below. See Figure 4-82.

The number of hard disk from 1 to 12 is shown in the “HDD No.” column. If there is a mark in the front of the number, it

means this interface have access to the hard disk, otherwise it does not have access to the hard disk. The “HDD Group” column lists the HDD Group number of current hard disk. When you are setting the HDD Group, please check the box of the hard disk, and then choose the corresponding HDD Group number and save the settings.

In Figure 4-82, you can see the system has two working hard disks at the 6th and 7th position, and the 6th position hard disk belongs to HDD Group 1, the 7th position hard disk belongs to HDD Group 2.

Figure 4-82

In Figure 4-83, you can see the 6th and 7th position hard disks both belong to HDD Group 2.

Important

Once you change the HDD Group settings, system will pack the records and snapshots, and then reboot.

Figure 4-83

Channels Setting

Click the button named with “Channels Settings” at the top right corner of the Figure 4-80, system will pop up an interface shown as in Figure 4-84.

When you are setting the configurations of the channels setting, please select relevant channels first (such as channel 1 to 16), and then select the HDD Group NO. Please click the Save button to save current setup. The Figure 4-84 and Figure 4-85 show that channels 1 to 16 are associated to HDD Group NO 1, and channels 17 to 32 are associated to HDD Group NO 2. Therefore the records of channels 1 to 16 are stored into the hard disk(s) which belong to HDD

Group NO 1, and the records of channels 17 to 32 are stored into the hard disk(s) which belong to HDD Group NO 2.

Important

Once you change the HDD Group settings, system will pack the records and snapshots, and then reboot.

Figure 4-84

Figure 4-85

4.7.2 Abnormity

Abnormity interface is shown as in Figure 4-86.

 Event type: There are several options for you such as disk error, no disk, disconnection, IP conflict and etc.  Alarm output: Please select alarm activation output port (multiple choices).  Latch: Here you can set corresponding delaying time. The value ranges from 10s-300s. System automatically delays

specified seconds in turning off alarm and activated output after external alarm cancelled.

 Show message: system can pop up the message in the local screen to alert you when alarm occurs.  Alarm upload: System can upload the alarm signal to the network (including alarm centre) if you enabled current

function.

 Send email: System can send out email to alert you when alarm occurs.  Buzzer: Highlight the icon to enable this function. The buzzer beeps when alarm occurs.

Figure 4-86

4.7.3 Alarm Output

Here is for you to set proper alarm output.

Please highlight icon to select the corresponding alarm output. After all the setups please click OK button, system goes back to the previous menu. See Figure 4-87.

Figure 4-87

4.7.4 Manual Record

Note:

You need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed.

4.7.4.1 Manual record menu

There are two ways for you to go to manual record menu.

 Right click mouse or in the main menu, Advanced->Manual Record.  In live viewing mode, click record button in the front panel or record button in the remote control.

Manual record menu is shown as in Figure 4-88.

4.7.4.2 Basic operation

There are three statuses: schedule/manual/stop. Please highlight icon“○” to select corresponding channel.

 Manual: The highest priority. After manual setup, all selected channels will begin ordinary recording.  Schedule: Channel records as you have set in recording setup (Main Menu->Setting->Schedule)  Stop: All channels stop recording.

Figure 4-88

4.7.4.3 Enable/disable record

Please check current channel status: “○” means it is not in recording status , “●” means it is in recording status.

You can use mouse or direction key to highlight channel number. See Figure 4-89.

Figure 4-89

4.7.4.4 Enable all channel recording

Highlight ○ below All, you can enable all channel recording.  All channel schedule record Please highlight “ALL” after “Schedule”. See Figure 4-90. When system is in schedule recording, all channels will record as you have previously set (Main menu->Setting->Schedule). The corresponding indication light in front panel will turn on.

Figure 4-90

 All channel manual record Please highlight “ALL” after “Manual.” See Figure 4-91. When system is in manual recording, all scheduled set up you have set in will be null ((Main menu->Setting->Schedule)). You can see indication light in front panel turns on, system begins manual record now.

Figure 4-91

4.7.4.5 Stop all channel recording

Please highlight “ALL” after “Stop”. See Figure 4-92. System stops all channel recording no matter what mode you have set in the menu (Main menu->Setting->Schedule)

Figure 4-92

4.7.4.6 Account

Here is for you to implement account management. See Figure 4-93. Here you can:

 Add new user  Modify user  Add group  Modify group  Modify password.

For account management please note:  For the user account name and the user group, the string max length is 6-byte. The backspace in front of or at the back of the

string is invalid. There can be backspace in the middle. The string includes the valid character, letter, number, underline,

subtraction sign, and dot.

 System account adopts two-level management: group and user. No limit to group or user amount.  For group or user management, there are two levels: admin and user.  The user name and group name can consist of eight bytes. One name can only be used once. There are four default users:

admin/888888/666666 and hidden user “default”. Except user 6666, other users have administrator right.

 Hidden user “default” is for system interior use only and can’t be deleted. When there is no login user, hidden user “default”

automatically login. You can set some rights such as monitor for this user so that you can view some channel view without

 One user should belong to one group. User right can’t exceed group right.  About reusable function: this function allows multiple users use the same account to login.

After all the setups please click save button, system goes back to the previous menu.

Figure 4-93

4.7.4.7 Modify Password

Click password button, the interface is shown as in Figure 4-94. Here you can modify account password. Please select the account from the dropdown list, input the old password and then input the new password twice. Click the Save button to confirm current modification. For the users of user account right, it can modify password of other users.

Figure 4-94

4.7.4.8 Add/Modify Group

Click add group button, the interface is shown as below. See Figure 4-95. Here you can input group name and then input some memo information if necessary. There are total 60 rights such as control panel, shut down, real-time monitor, playback, record, record file backup, PTZ, user account, system information view, alarm input/output setup, system setup, log view, clear log, upgrade system, control device and etc. The modify group interface is similar to the Figure 4-95.

Figure 4-95

4.7.4.9 Add/Modify User

Click add user button, the interface is shown as in Figure 4-96. Please input the user name, password, select the group it belongs to from the dropdown list. Then you can check the corresponding rights for current user. For convenient user management, usually we recommend the general user right is lower than the admin account. The modify user interface is similar to Figure 4-96.

Figure 4-96

4.7.5 Auto Maintenance

Here you can set auto-reboot time and auto-delete old files setup. You can set to delete the files for the specified days. See Figure 4-97. You can select proper setup from dropdown list. After all the setups please click save button, system goes back to the previous menu.

Figure 4-97

4.7.6 Configuration Backup

The configuration file backup interface is shown as below. See Figure 4-98. This function allows you to copy current system configuration to other devices.

Figure 4-98

4.8 Shutdown

Double click shutdown button, system pops up a dialogue box for you to select. See Figure 4-99.

 Log out menu user: log out menu. You need to input password when you login the next time.  Restart application: reboot device.  Shutdown: system shuts down and turns off power.  Restart system: system begins rebooting.  Switch user: you can use another account to login.

If you shut down the device, there is a process bar for your reference, system waits for 3 seconds and then shut down (You can’t cancel). Please note, sometimes you need to input the proper password to shut down the device.

Figure 4-99

5 Quick Configuration Tool

5.1 Overview

Quick configuration tool can search current IP address, modify IP address. At the same time, you can use it to upgrade the device. Please note the tool only applies to the IP addresses in the same segment.

5.2 Operation

Double click the “ConfigTools.exe” icon, you can see an interface is shown as in Figure 5-1. In the device list interface, you can view device IP address, port number, subnet mask, default gateway, MAC address and etc.

Figure 5-1

Select one IP address and then right click mouse, you can see an interface is shown as in Figure 5-2.

Figure 5-2

Select the “Open Device Web” item; you can go to the corresponding web login interface. See Figure 5-3.

Figure 5-3

If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set. In the configuration tool search interface (Figure 5-1), please select a device IP address and then double click it to open the login interface. Or you can select an IP address and then click the Login button to go to the login interface. See Figure 5-4. In Figure 5-4, you can view device IP address, user name, password and port. Please modify the corresponding information to login. Please note the port information here shall be identical with the port value you set in TCP port in Web Network interface. Otherwise, you can’t login the device. If you are use device background upgrade port 3800 to login, other setups are all invalid.

Figure 5-4

After you logged in, the configuration tool main interface is shown as below. See Figure 5-5. Please refer to the Quick Configuration Tool User's Manual included in the resources CD for detail information.

Figure 5-5

6 Web Operation

Input IP address here.

6.1 General Introduction

The device web provides channel monitor menu tree, search, alarm setup, system setup, PTZ control and monitor window.

Important The following operation is based on 16-channel series device. For the 32-channel series product, there is 32-channel option.

6.1.1 Preparation

Before log in, please make sure:

 Network connection is right  NVR and PC network setup is right. Please refer to network setup(main menu->setting->network)  Use order ping ***. ***. ***. ***(* NVR IP address) to check connection is OK or not. Usually the return TTL value should be

less than 255.

 Open the IE and then input NVR IP address.  System can automatically download latest web control and the new version can overwrite the previous one.  If you want to un-install the web control, please run uninstall webrec2.0.bat. Or you can go to C:\Program Files \ webrec to

remove single folder. Please note, before you un-install, please close all web pages, otherwise the un-installation might result

in error.  Current series product supports various browsers such as Safari, firebox browser, Google browser. Device only support

1-channel monitor on the Apple PC.

6.1.2 Log in

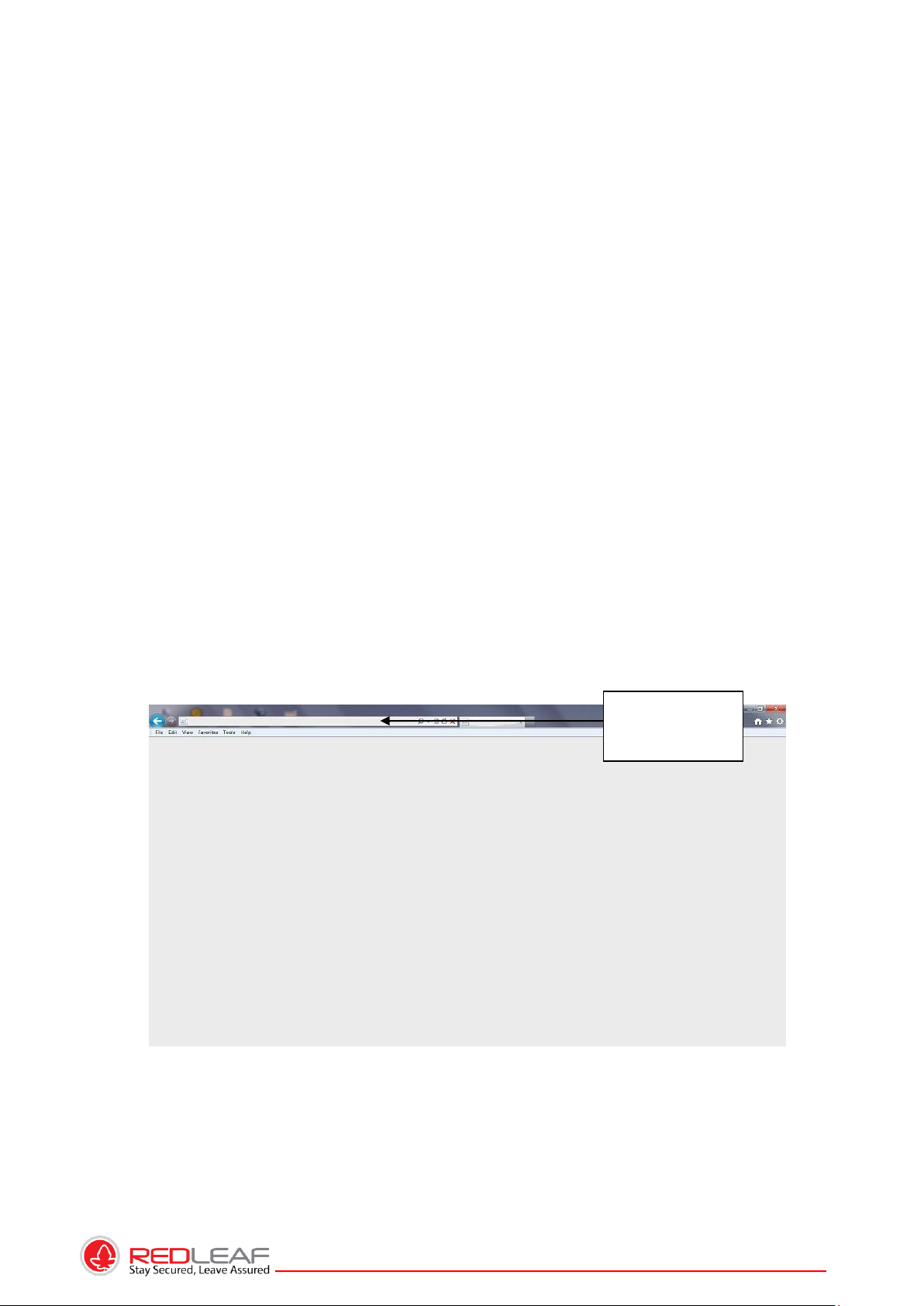

Open the IE and then input the NVR IP address in the address column. For example, if your NVR IP address is 192.168.1.108, then please input http:// 192.168.1.108 in IE address column. See Figure 6-1.

System pops up warning information to ask you whether install webrec.cab control or not. Please click yes button. If you can’t download the ActiveX file, please modify your settings as follows. See Figure 6-2.

Figure 6-1 IE Interface

Figure 6-2 IE Safety Setup

After installation, the interface is shown as below. See Figure 6-3.

Figure 6-3 Login interface

Please input your user name and password. Default factory name is admin and password is admin.

Note: For security reasons, please modify your password after you first login.

6.2 LAN Mode

For the LAN mode, after you logged in, you can see the main window. See Figure 6-4.

①

②

③

④

⑥

⑤

Figure 6-4 Main Interface

There are six sections:

 Section 1: Monitor channel menu tree  Section 2: System menu  Section 3: PTZ control  Section 4: Video setup and other setup  Section 5: Preview window  Section 6: Monitor window switch

6.2.1 Monitor Channel Menu Tree

The monitor channel menu tree is shown as in Figure 6-5. Please note the following figure is for reference only. For 32-channel series product, there are 32 channels.

Figure 6-5 Monitor Channel Menu Tree

Parameter

Function

CAM 1 to CAM 16

channel 1 to channel 16

Open all /close all

Click this button to open all video channels. Once all video channels are open, it becomes close all button.

Start Dialogue

You can click this button to enable audio talk. Click 【▼】 to select bidirectional talk mode. There are four options: DEFAULT，G711a，G711u and PCM. Please note, the audio input port from the device to the client-end is using the first channel audio input port. During the bidirectional talk process, system will not encode the audio data from the 1-channel.

Please refer to the following sheet for detailed information.

Local play

The Web can playback the saved (Extension name is dav) files in the PC-end. Click local play button, system pops up the following interface for you to select local play file. See Figure 6-6.

Figure 6-6 Refresh

Click this button to refresh monitor channel name.

Parameter

Function

Display device information

 1: NVR IP address.  2: Channel number.  3: Bit stream.  4: Bit stream decode type.

 S1: Overlay.  S2: Off stream.  S3:GD1  H1: Overlay  H2: off stream decoding from the display card.

Digital zoom

Click this button and then left drag the mouse in the zone to zoom in. Right click mouse system restores original status.

Change show mode

Resize or switch to full screen mode.

Local record

When you click local record button, the system begins recording. The recorded file is saved to system folder: \ RecordDownload(default).

Please left click one monitor to view real-time video, the monitor window is shown as in Figure 6-7.

Figure 6-7 Real-time Monitor

Please refer to the following sheet for monitor window parameter information.

Snapshot

You can snapshot important video. All images are memorized in system folder: \ picture download (default).

Audio

Turn on or off audio.

Close video

Close video in current window.

6.2.2 System Menu

System menu is shown as in Figure 6-8. Please refer to chapter 6.4 Configuration, chapter 6.5 Search, chapter 6.6 Alarm, chapter 6.7 About, chapter 6.8 Log out for detailed information.

Figure 6-8 System Menu

6.2.3 Monitor Window Switch

The monitor window switch interface is shown as in Figure 6-9.

Figure 6-9 Monitor Window Switch

System supports 1/4/6/8/9/13/16/20/25/36-window real-time preview.

----It is video quality adjustment button. It has relationship with decode via software.

--Fluency button. You can use this function to adjust the priority between real-time and fluency.

6.2.4 PTZ Control

Before PTZ operation, please make sure you have properly set PTZ protocol. (Please refer to chapter 6.4.2.8 PTZ). Here you can view direction keys, speed, zoom, focus, iris, preset, tour, pan, scan, pattern, aux close, and PTZ setup button. Please note: open menu/close menu/up/down/left/right/confirm/cancel buttons are for speed dome only.

 PTZ direction: PTZ supports eight directions: left/right/up/down/upper left/upper right/bottom left/bottom right.  Speed: The step 8 speed is faster than step 1.

Figure 6-10 PTZ Interface

You can click this icon to display or hide the PTZ control platform.

Click PTZ set button, the interface is shown as in Figure 6-11.

Figure 6-11 PTZ Setup

Please refer to the following sheet for PTZ setup information.

Parameter

Function

Scan

 Move the camera to you desired location and then click left limit button.  Then move the camera again and then click right limit button to set a right limit.

Preset

Use direction keys to move the camera to your desired location and then input preset value. Click add button, you have set one preset.

Tour

 Input auto tour value and preset value. Click add button, you have added one preset

in the tour.

 Repeat the above procedures you can add more presets in one tour.  Or you can click delete button to remove one preset from the tour.

Pattern

You can input pattern value and then click start record button to begin PTZ movement. Please go back to Figure 7-10 to implement camera operation. Then you can click stop record button in Figure 7-11. Now you have set one pattern.

Assistant

The assistant items include: BLC, Digital zoom, night vision, camera brightness, flip. You can select one option and then click start or stop button.

Matrix

Please select matrix x and then input corresponding monitor output channel number, video input channel number. Then you can click video switch button.

Light/wiper

You can control the light and wiper of the peripheral device. Please note the peripheral device shall support this function.

Parameter

Function

Video setup

It is to adjust monitor video brightness.

Note: All the operation here applies to

WEB end only.

It is to adjust monitor video contrast ness.

It is to adjust monitor video saturation.

It is to adjust monitor video hue.

6.2.5 Color and More Setup

Color and other setup interface are shown as in Figure 6-12.

Figure 6-12 Color

Please refer to the following sheet for detailed information.

Reset

Restore system default value. Parameter

Function

Picture Path

Click picture path button, system pops up an interface for you to modify path. Record Path

Click record path button, system pops up an interface for you to modify path.

Reboot

Click this button to reboot device. If there is local use logged in the system menu, or the Web logged in user has no right to reboot the device system pops up a dialogue box to alert you.

Click more button, the interface is shown as in Figure 6-13.

Figure 6-13 Color and More

Please refer to the following sheet for detailed information.

6.3 WAN Login

In WAN mode, after you logged in, the interface is shown as below. See Figure 6-14.

Figure 6-14

Please refer to the following contents for LAN and WAN login difference.

1) In the WAN mode, system opens the main stream of the first channel to monitor by default. The open/close button on the left pane is null.

2) You can select different channel and different monitor mode at the bottom of the interface. See Figure 6-15.

Figure 6-15

Important The window display mode and the channel number are by default. For example, for the 16-channel, the max window split mode is 16.

3) Multiple-channel monitor, system adopts extra stream to monitor by default. Double click one channel, system switches to single channel and system uses main stream to monitor. You can view there are two icon at the left top corner of the channel number for you reference. M stands for main stream. A stands for

4) When you switch from Monitor to Search or Configuration, system pops a dialogue box asking you leave current interface or not. See Figure 6-16.Click the OK button, system will close current monitor window. For example, you click the Config button when you are monitoring, system pos up a following dialogue. Click the OK button, system closes current monitor interface and open the configuration interface. The monitor interface appears automatically after you close configuration interface. When you switch from Search to the Configuration interface, system also pops up the same dialogue box for your confirmation. Click OK button, you can see system close playback interface and open the configuration interface. Please note, system will not open the playback interface again after you close the configuration interface.

Figure 6-16

5) If you login via the WAN mode, system does not support alarm activation to open the video function in the Alarm setup interface.

Important

 For multiple-channel monitor mode, system adopts extra stream to monitor by default. You can’t modify manually. All

channels are trying to synchronize. Please note the synchronization effect still depends on your network environments.  For bandwidth consideration, system can’t support monitor and playback at the same time. System auto closes monitor or

playback interface when you are searching setup in the configuration interface. It is to enhance search speed.

6.4 Configuration

6.4.1 System Information

6.4.1.1 Version Information

Here you can view device hardware feature and software version information. See Figure 6-17.

Figure 6-17 Version Information

6.4.1.2 HDD information

Here you can view local storage status such as free capacity and total capacity. See Figure 6-18.

Figure 6-18 HDD Information

Parameter

Function

Type

Log types include: system operation, configuration operation, data management, alarm event, record operation, user management, log clear and file operation.

Start time

Set time to start search.

Finish time

Set time to finish search Search

You can select log type from the drop down list and then click search button to view the list.

Clear

You can click this button to delete all displayed log files. Please note system does not support clear by type.

Backup

You can click this button to backup log files to current PC.

6.4.1.3 Log

Here you can view system log. See Fi gure 6-19

Figure 6-19 Log

Please refer to the following sheet for log parameter information.

6.4.2 System Configuration

Please click save button to save your current setup. Please click refresh button to view the latest setup.

6.4.2.1 General Setup

Here you can set system time, record length, video format and etc. See Figure 6-20.

Figure 6-20 General Setup

Parameter

Function

System Time

Here is for you to modify system time. Please click Save button after your completed modification

Sync PC

You can click this button to save the system time as your PC current time.

Data Format

Here you can select data format from the dropdown list.

Figure 6-21 DST

Figure 6-22 DST

Please refer to the following sheet for detailed information.

Data Separator

Please select separator such as – or /. Time Format

There are two options: 24-H and 12-H.

DST

Here you can set day night save time begin time and end time. See Figure 6-21and Figure 6-22.

Language

Here you can view the system current language. You can select from the dropdown list.

HDD Full

There are two options: stop recording or overwrite the previous files when HDD is full.

Pack Duration

Here you can select file size. The value ranges from 1 to 120 (minute). Default setup is 60 minutes.

Device No

When you are using one remote control to manage multiple devices, you can give a serial numbers to the device. Please note current series product does not support this function.

Video Standard

Here you can view video format such as PAL.

Parameter

Function

Channel

Select the corresponding channel.

Channel Name

Display the current channel ID. You can also modify the channel ID here.

Encoding mode

The device does not support it.

Audio / video

For the main stream, recorded file only contains video by default. You need to draw a circle here to enable audio function.

For extra stream, you need to draw a circle to select the video first and then select the audio if

6.4.2.2 Encode

The encode interface is shown as in Figure 6-23.

Figure 6-23 Encode

Please refer to the following sheet for detailed information.

necessary.

Resolution

Main code stream types are D1/HD1/2CIF/CIF/QCIF Channel 1～16 extra code stream supports CIF/QCIF.

Frame rate

PAL: 1f/s-25f/s；NTSC: 1f/s-30f/s

Bit rate

There are two options: VBR and CBR. Please note, you can set video quality in VBR mode only.。

Reference bit

The bigger bit value, the better the image quality. Reference bit is an ideal range for you to set bit rate.

Overlay (Cover area)

Here you can privacy mask the specified video in the monitor video. One channel max supports 4 privacy mask zones. The privacy mask includes two options: Never/monitor. Never: It means do not enable privacy mask

function. Monitor: the privacy mask zone can’t be viewed in monitor mode.

Time display

You can enable this function so that system overlays time information in video window.

Channel display

You can enable this function so that system overlays channel information in video window.

6.4.2.3 Schedule

Here you can set different periods for various days. There are max six periods in one day. See Figure 6-24.

Figure 6-24 Schedule

Figure 6-25 Schedule Time

Parameter

Function

Channel

Please select a channel first.

Figure 6-26 Copy

Please refer to the following sheet for detailed information.

Figure 6-27

Parameter

Function

Pre-record

Please input pre-record value here. When alarm record or motion detection record occurs, system can record the several seconds video before activating the record operation into the file. (Depends on data size).

Setup

In Figure 6-24, click set button, you can go to the corresponding setup interface. See Figure 6-25.

Please set schedule period and then select corresponding record type: schedule, motion detection, and alarm.

Please select date (Current setup applies to current day by default. You can draw a circle before the week to apply the setup to the whole week.)

After complete setup, please go back to Figure 6-24 and then click save to save current time period setup.

Holiday

Click Set button, system pops up a dialogue box shown as in Figure 6-27. Here you can set holiday date. Check the box, it means current channel shall record as your holiday setup. Please go to the Period interface to set the holiday date record setup.

Copy

It is a shortcut menu button. You can copy current channel setup to one or more (all) channels. The interface is shown as in Figure 6-26.

Parameter

Function

RS232

There is only one option COM 01, corresponding to RS232.

Function Console is for debug.

Control keyboard: Switch between RS232 and control keyboard.

6.4.2.4 RS232

The RS232 interface is shown as in Figure 6-28.

Figure 6-28 RS232

Please refer to the following sheet for detailed information.

Parameter

Function

Network keyboard: COM control protocol. You can use network keyboard to control NVR via COM.

Transparent COM: Network user can communicate with RS232 COM device.

PTZ matrix: PTZ matrix protocol. You can use the device to control the PTZ matrix.

Data Bit

The value ranges from 5 to 8. Stop Bit

There are three options: 1/2.

Baud Bit

You can select corresponding baud bit here.

Parity

There are five options: none/odd /even/mark/space. Parameter

Function

IP Version

There are two options: IPv4 and IPv6. Right now, system supports these two IP address format and you can access via them.

MAC Address

The host in the LAN can get a unique MAC address. It is for you to access in the LAN. It is read-only.

IP Address

Here you can use up/down button () or input the corresponding number to input IP address. Then you can set the corresponding subnet mask the default gateway.

Subnet Prefix

The input value ranges from 0 to 128. It is to mark a specified network MAC address. Usually it includes an organization of multiple-level.

6.4.2.5 Network

Network interface is shown as in Figure 6-29.

Figure 6-29 Network

Please refer to the following sheet for detailed information.

Parameter

Function

Default Gateway

Here you can input the default gateway. TCP Port

Default value is 37777. You can change if necessary.

HTTP Port

Default value is 80.

RTSP port

Default value is 554.

UDP Port

Default value is 37778. You can change if necessary.

Max Connection

Network user max amount. The value ranges from 0 to 20. O means there is no user can access current device.

Parameter

Function

Remote host

PPPOE  Input the user name and password which ISP(Internet service supplier) provided and chose enable.



Reboot system after configuration is saved and the device will auto connect to Internet. The IP address is the WAN IP.



There are two conditions for reboot,

1. The user must have the authority to reboot device.

2. There is no user login the system menu on the local end



After PPPOE dial succeed, get the current IP address and visit this IP address via WEB.

Please note system needs to check the validity of all IPv6 addresses. The IP address and the default gateway shall be in the same IP section. That is to say, the specified length of the subnet prefix shall have the same string.

For the IP address of IPv6 version, default gateway, preferred DNS and alternate DNS, the input value shall be 128-digit. It shall not be left in blank.

Advanced setup

The remote host can choose multi-cast and PPOE to set. See Figure 6-30.

Figure 6-30 Network

The email interface is shown as in Figure 6-31.

Figure 6-31 Email

Parameter

Function

SMTP Server

Input server address and then enable this function. You can also input the corresponding server domain name here, but you need to go to DNS interface (chapter 7.3.4.1) to set the server IP that can parse the domain.

SSL enable

You can enable SSL encryption function to guarantee data safety. Port

Default value is 25. You can modify it if necessary.

User Name

The sender email account user name.

Password

The sender email account password.

Sender

Sender email address.

Subject

Input email subject here. Max 32-digit.

Address

Input receiver email address here. Max input three addresses.

Interval

Please input the send interval value here.

Please refer to the following sheet for detailed information.

DDNS

The DDNS interface is shown as in Figure 6-32.

Parameter

Function

Server Type

You can select DDNS protocol from the dropdown list and then enable DDNS function. The private DDNS protocol means you use our self-defined private protocol to realize DDNS function.

Server IP

DDNS server IP address

Server Port

DDNS server port.

Domain Name

Your self-defined domain name.

User

The user name you input to log in the server.

Password

The password you input to log in the server.

Interval

Device sends out alive signal to the server regularly. You can set interval value between the device and DDNS server here.

Figure 6-32 DDNS

Please refer to the following sheet for detailed information.

Private DDNS and Client-end Introduction

1) Background Introduction

2) Function Introduction

3) Operation

Before you use our private DDNS, you need to enable this service and set proper server address, port value and domain name.

 Server address：www.dahuaddns.com  Port number：80  Domain name：There are two modes: Default domain name and customized domain name.

 User name: It is optional. You can input your commonly used email address.

Important

 Do not register frequently. The interval between two registrations shall be more than 60 seconds. Too many registration

requests may result in server attack.  System may take back the domain name that is idle for one year. You can get a notification email before the cancel operation

if your email address setup is OK.

NAS

NAS interface is shown as in Figure 6-33.

Figure 6-33 NAS

Figure 6-34 NAS Setup

Please refer to the following sheet for detailed information.

Parameter

Function

NAS enable

Please select network storage protocol and then enable NAS function. The network storage protocol includes FTP.

Server IP

Input remote storage server IP address.

Port

Input Remote storage server port number.

User Name

File length

The max files length when you transfer the file. When the input value is 0, then system upload the whole files.

Password

The password you need to login the server.

Remote Path

Remote storage file path.

Period info.

Channel

Select a monitor channel.

Setup



In NAS interface, click set button, you can go to the corresponding setup interface. See



Figure 6-34.



.Please set schedule period and then select corresponding record type: schedule/alarm. Please note device does not support motion detect record function now.



Please select date (Current setup applies to current day by default. You can draw a circle before the week to apply the setup to the whole week.)



After complete setup, please go back to Figure 7-28 and then click save to save current time period setup.

Copy

User can use this shortcut to copy the storage state of a channel to another (or all other channels)

NTP

The NTP interface is shown as in Figure 6-35. Here you can realize network time synchronization. Please enable current function and then input server IP, port number, time zone and time.
